Owing to climate change and economic crises, the architecture of the 21st century must be “sustainable”, i.e. “meeting the needs of the present without compromising the ability of future generations, to meet their own needs, and thereby supporting long-term ecological balance” (as defined by the Brundtland Commission). Thus, architects must find solutions and strategies to make buildings sustainable regardless of their scale or function. Materials used in construction can provide architects the elementary ingredient in building more sustainably; materials that are cheap, easily available, and not harmful to the environment, ticking all the boxes of sustainability: economically, socially, and ecologically viable.

Rethinking The Future Awards 2022

Thus, 10 such materials every architect must know about are as follows:

1. Natural Clay | Sustainable Materials

Finely grained natural rock or soil is known as natural clay, a material that has been in constant use in construction owing to its high plasticity, easy availability, and low cost. Clay is mostly used in the tiling of roofs and as a plaster, render paint, and flooring. It is known for its thermal insulation, robustness, durability, and fire resistance and as the primary ingredient in adobe, cordwood, rammed earth, etc.

Eduwik- Online Courses for Architects & Designers

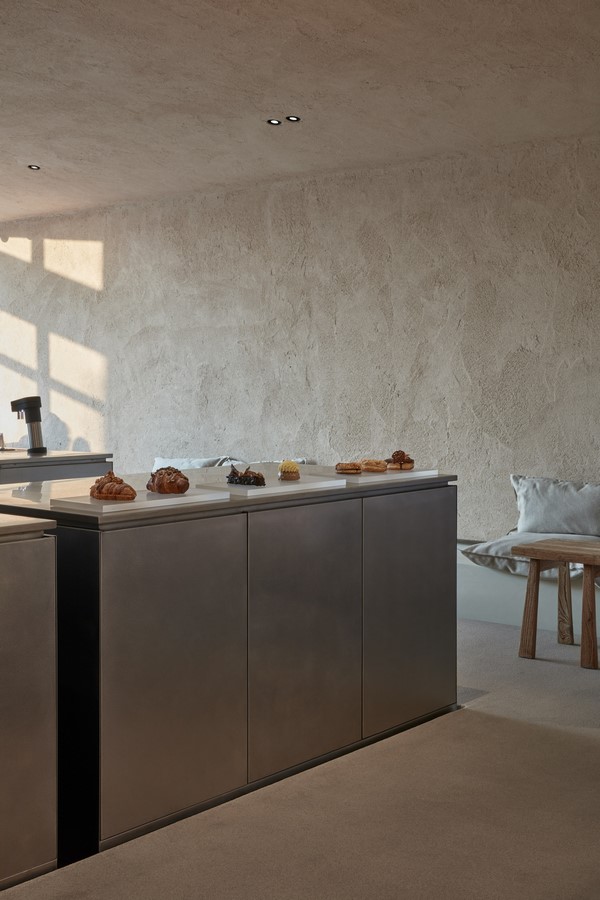

10 Sustainable Materials Every Architect Must Know -Natural clay - Sheet1
natural clay ©dezeen.com
Natural clay - Sheet2
natural clay ©org
Natural clay - Sheet3
natural clay ©pinimg.com

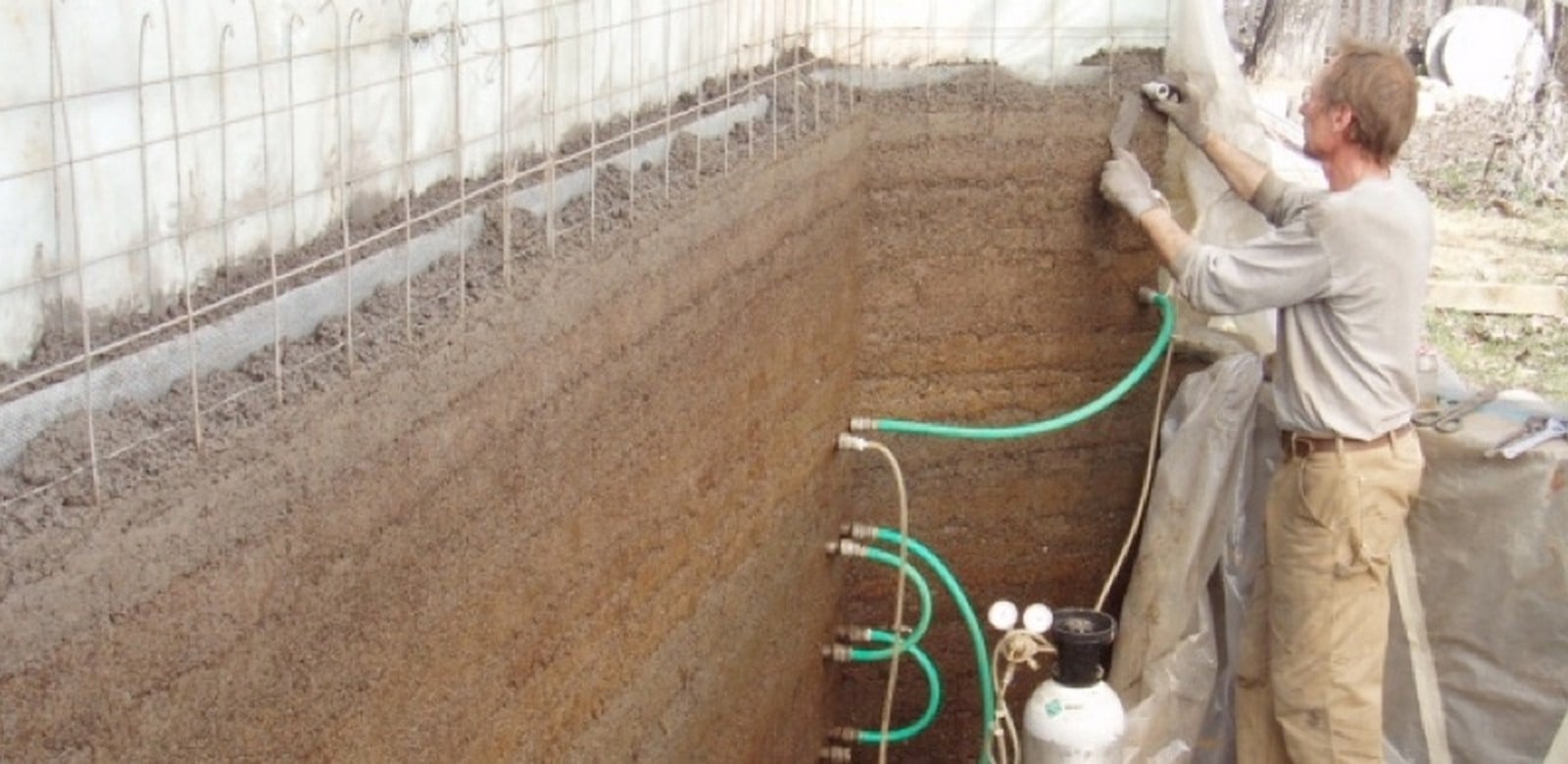

2. Rammed Earth

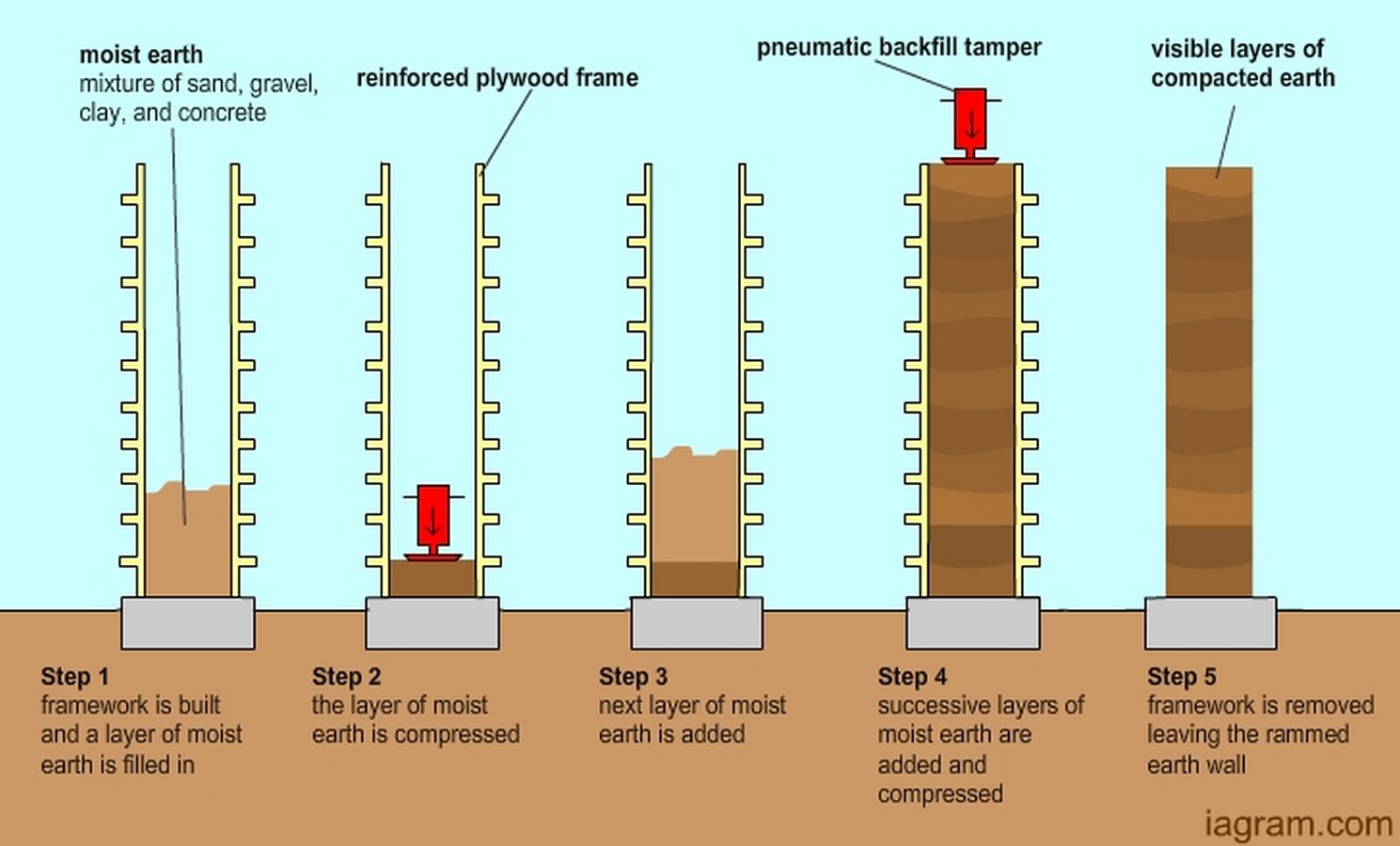

Using compacted layers of aggregate, gravel, sand, silt, and a small amount of clay compressed within a formwork rammed earth is one of the oldest methods in construction by means of easily available material, i.e., earth. Rammed earth can be used to form walls, floors, and foundations, lending qualities such as load-bearing capacity, high thermal mass, low embodied energy, and almost complete reusability post demolition. It requires skilled labor to achieve the formwork but provides for architects to build using material on the site itself.

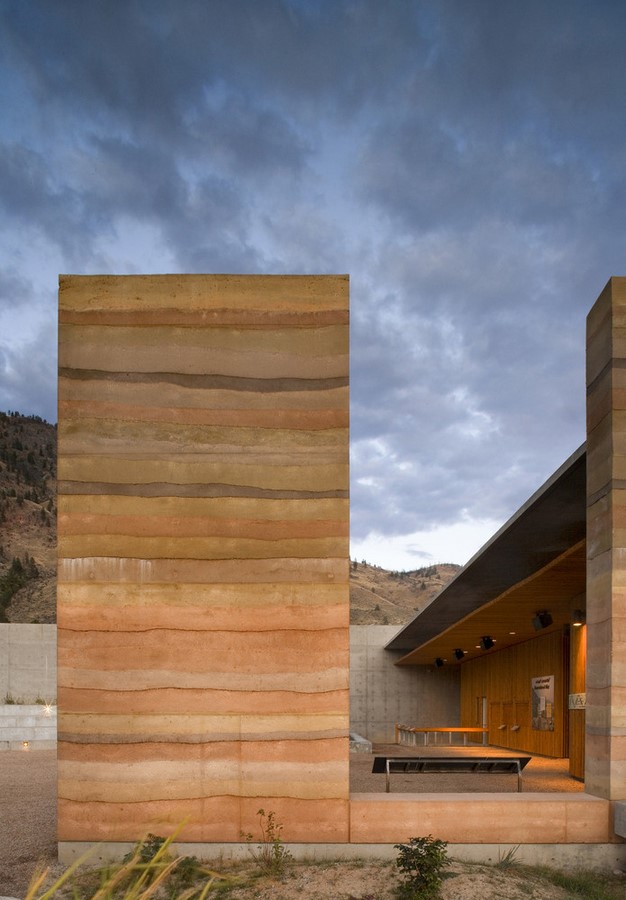

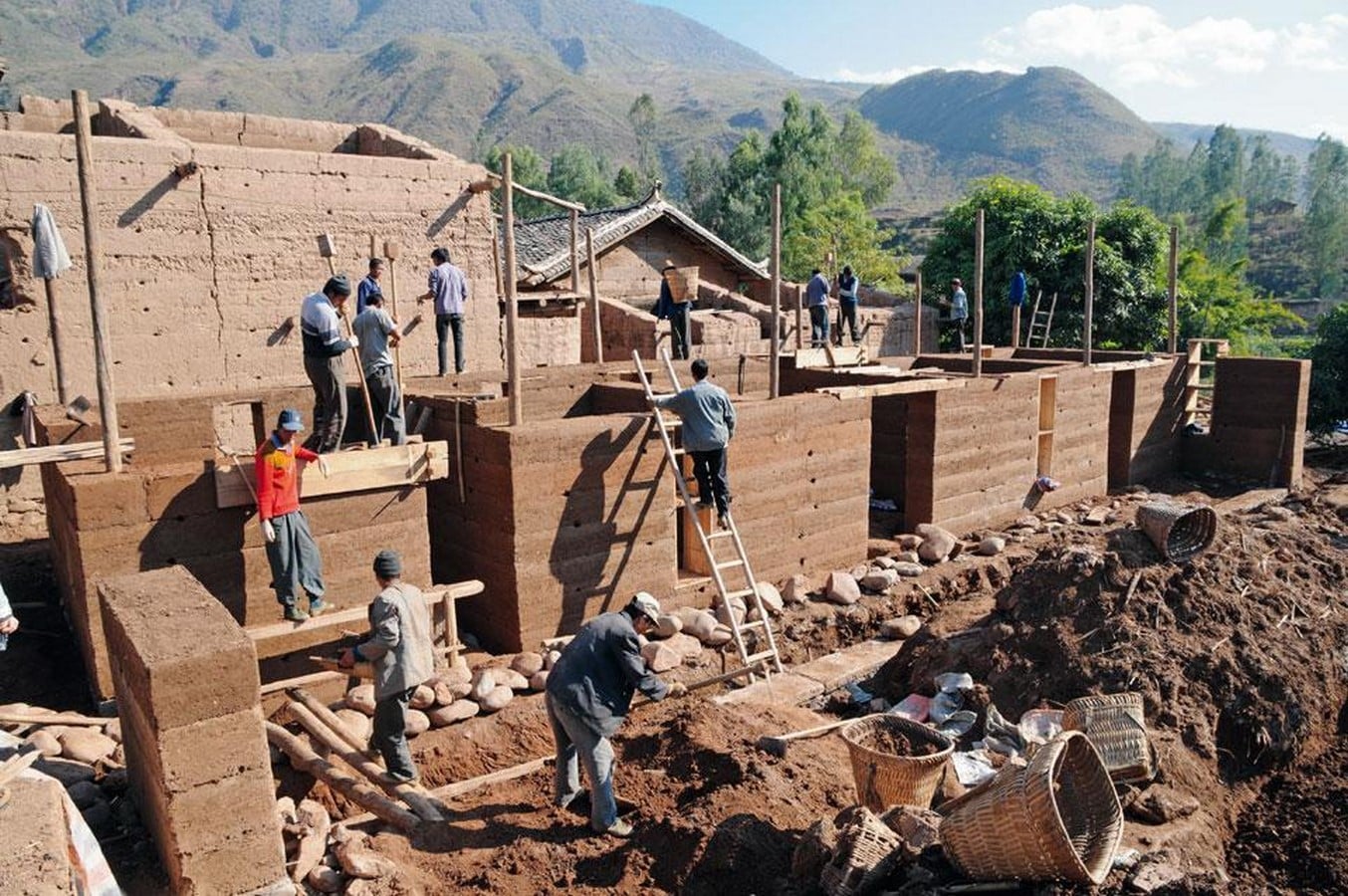

10 Sustainable Materials Every Architect Must Know -Rammed Earth - Sheet1
rammed earth ©bnet.com
Rammed Earth - Sheet2
rammed earth © archdaily.com

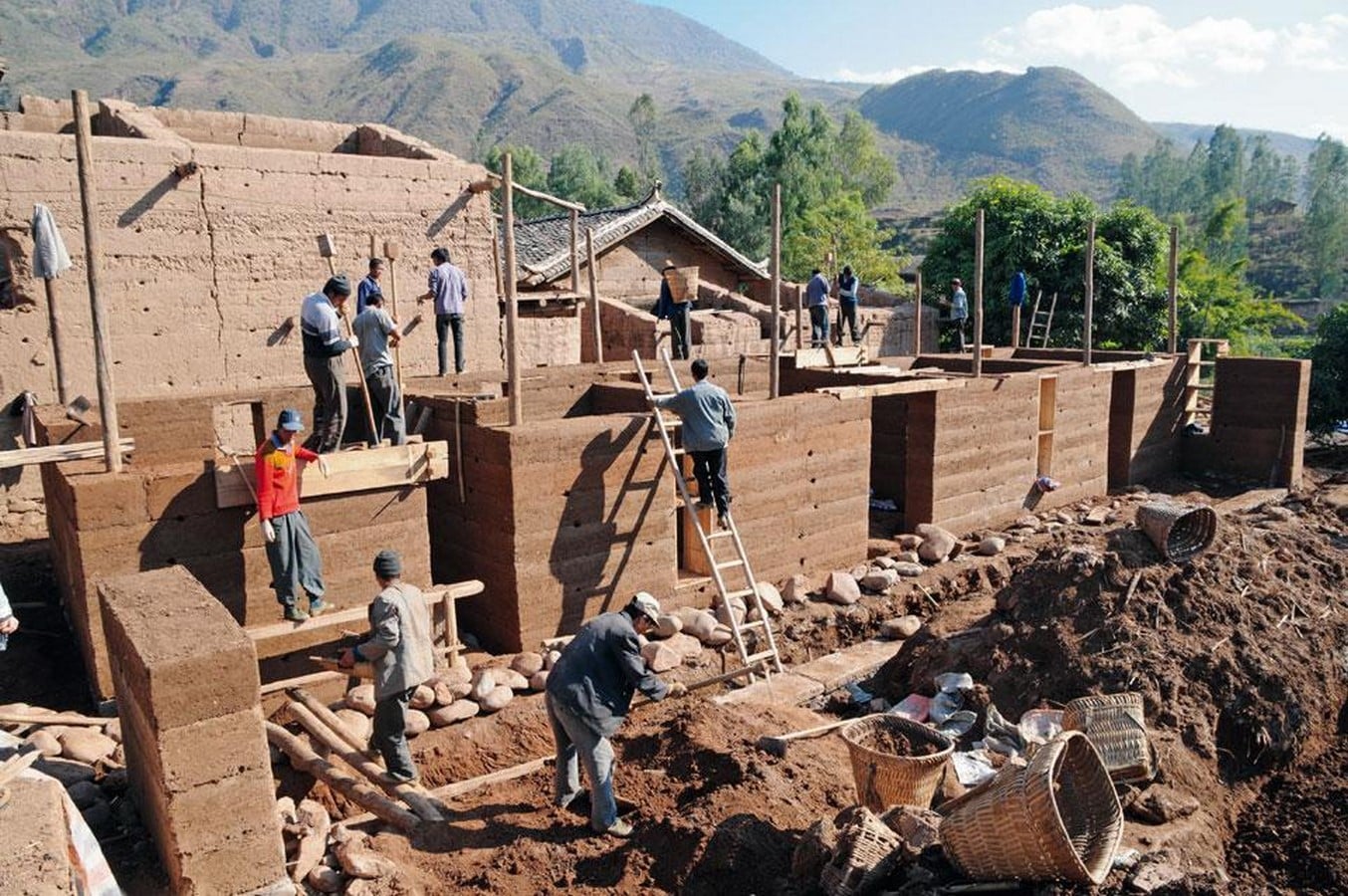

Rammed Earth - Sheet3
rammed earth ©domusweb.it

3. Bamboo

An evergreen perennial plant is known for its strength, hardness, and rate of growth; bamboo is one of the most popular sustainable building materials. It has a higher compressive strength than wood, brick, or concrete and a tensile strength that rivals steel, making it ideal for a variety of architectural use. Its versatility in construction from flooring to structure is only surpassed by its widespread use across the globe. From the temporary construction of bridges or scaffolding, bamboo has transitioned into a more permanent building material in recent times.

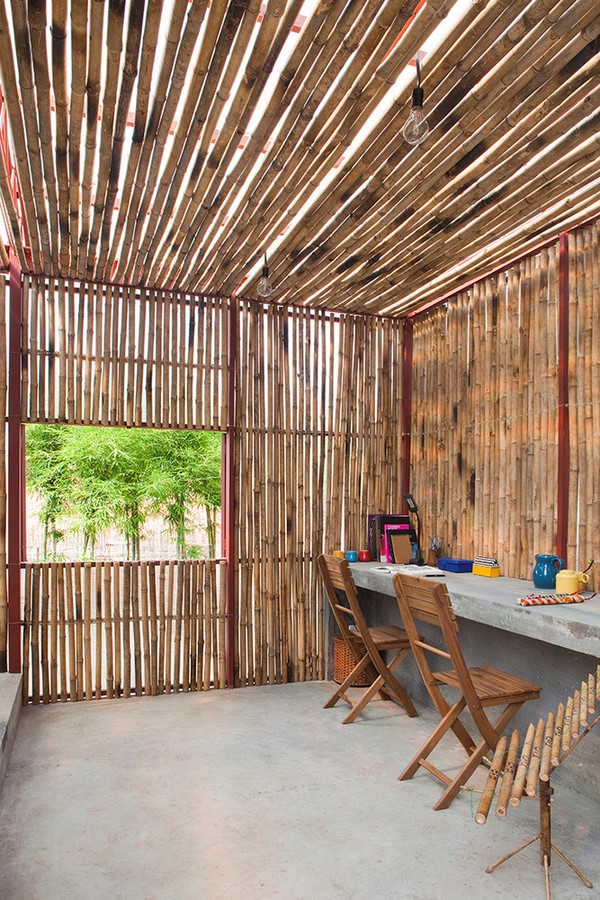

10 Sustainable Materials Every Architect Must Know -Bamboo - Sheet1
Bamboo ©adsttc.com

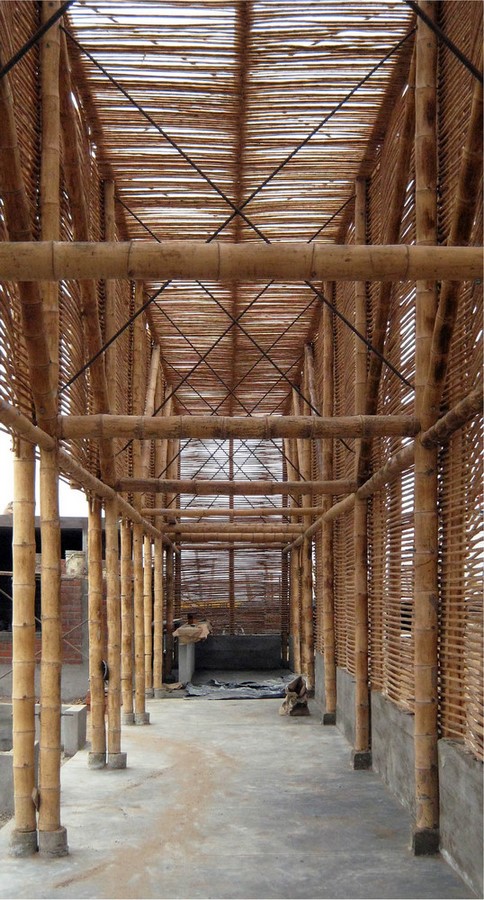

Bamboo - Sheet2
Bamboo ©adsttc.com

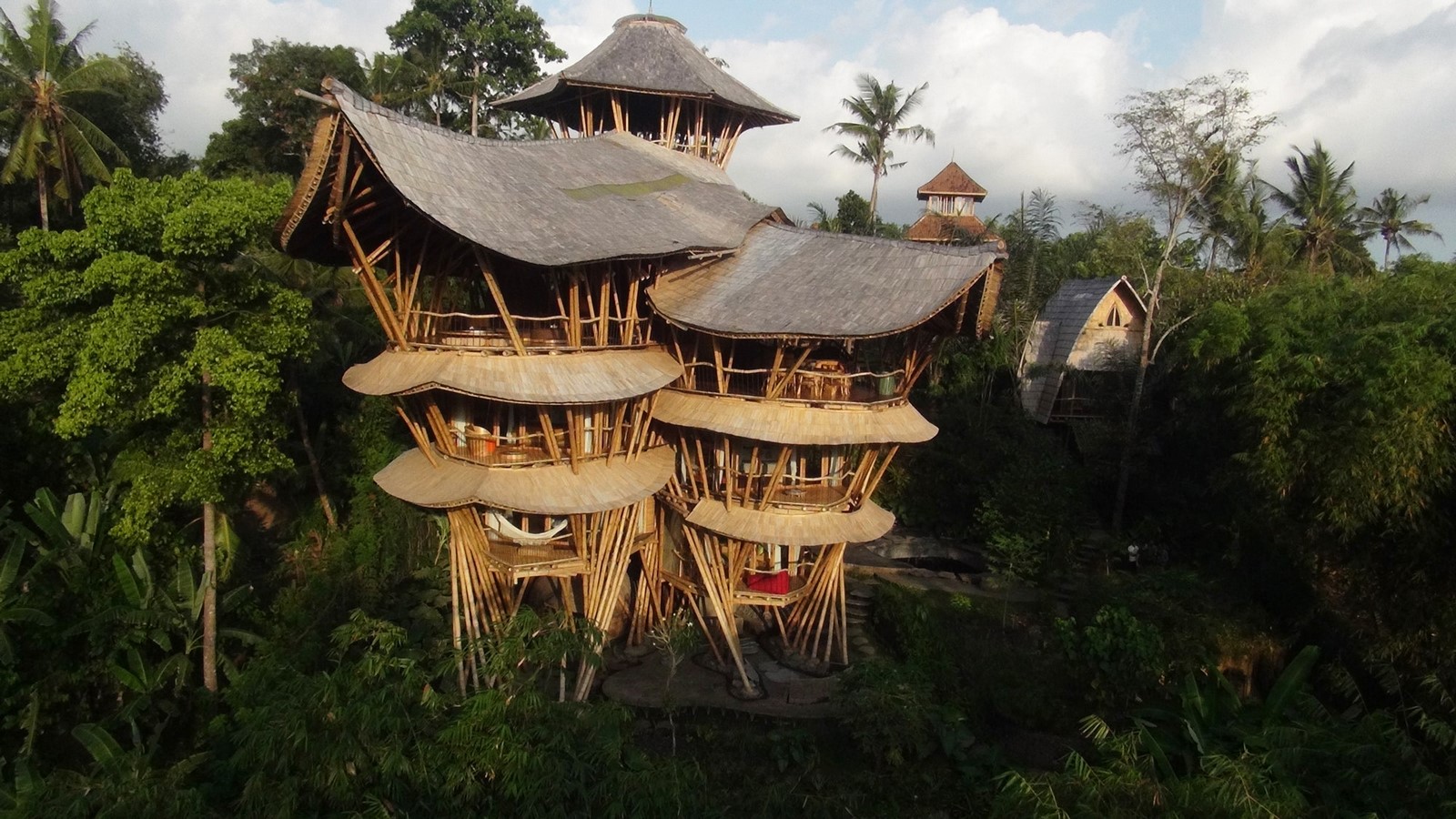

Bamboo - Sheet3
Bamboo ©vogue.com

4. Straw bales

Straw bales are bundles of straw, a waste product from harvesting grains (wheat, rice, rye, or oats) that have been used in building for centuries. Bound together, they can be used as building insulation and to form load-bearing structural elements in construction. With wire mesh and wooden pins followed by stucco or plaster, the formwork of the straw bales makes for thermally insulated wall systems reducing the need for mechanical heating or cooling. However, straw bale construction is prone to moisture and mold; hence, it is not suitable in wet conditions.

Eduwik- Online Courses for Architects & Designers

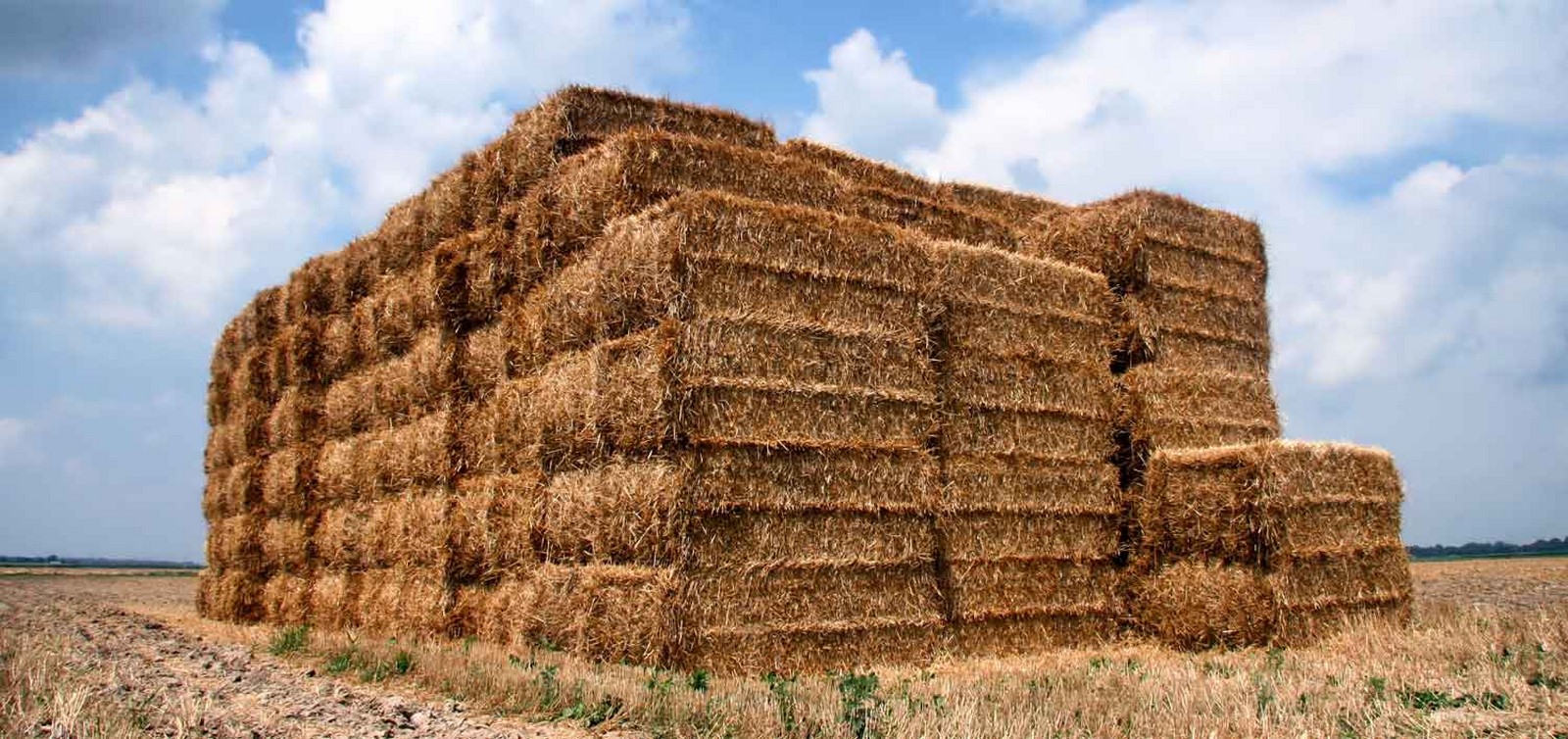

10 Sustainable Materials Every Architect Must Know -Straw bales - Sheet1
Straw Bales ©thenbs.com

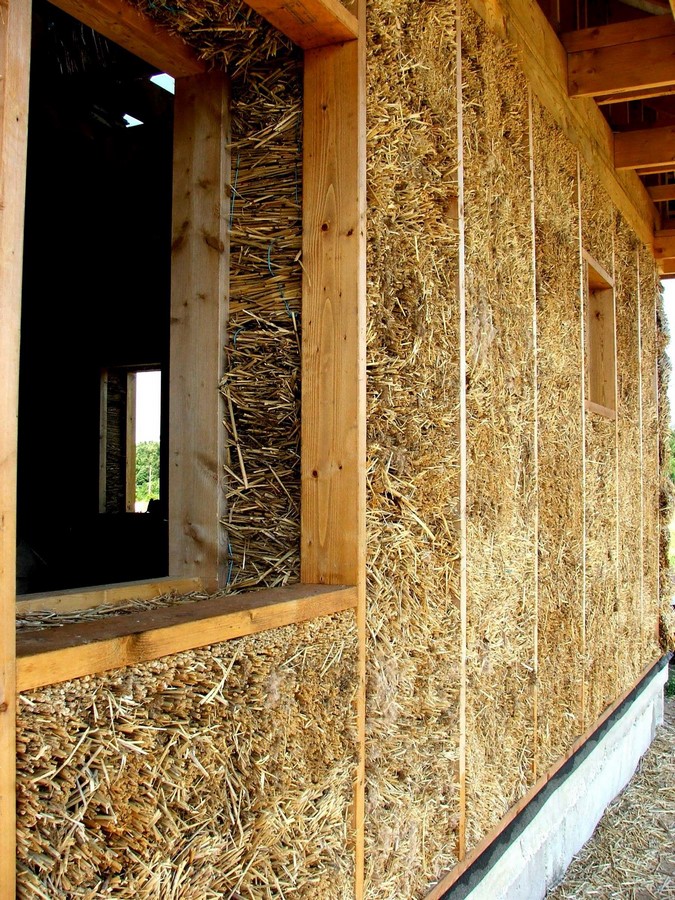

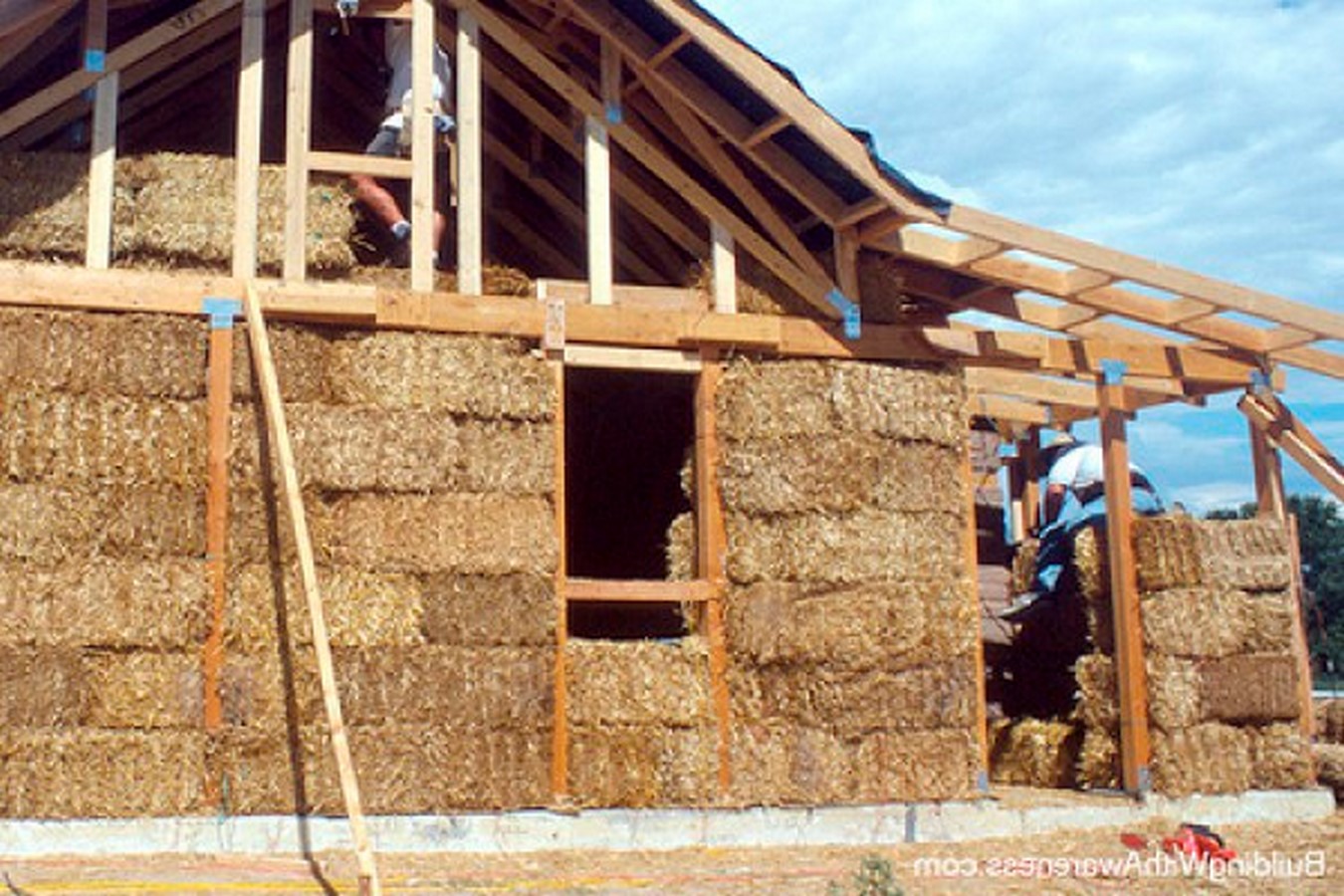

Straw bales - Sheet2
Straw Bales ©designingbuildings.co.uk
Straw bales - Sheet3
Straw Bales ©voog.com

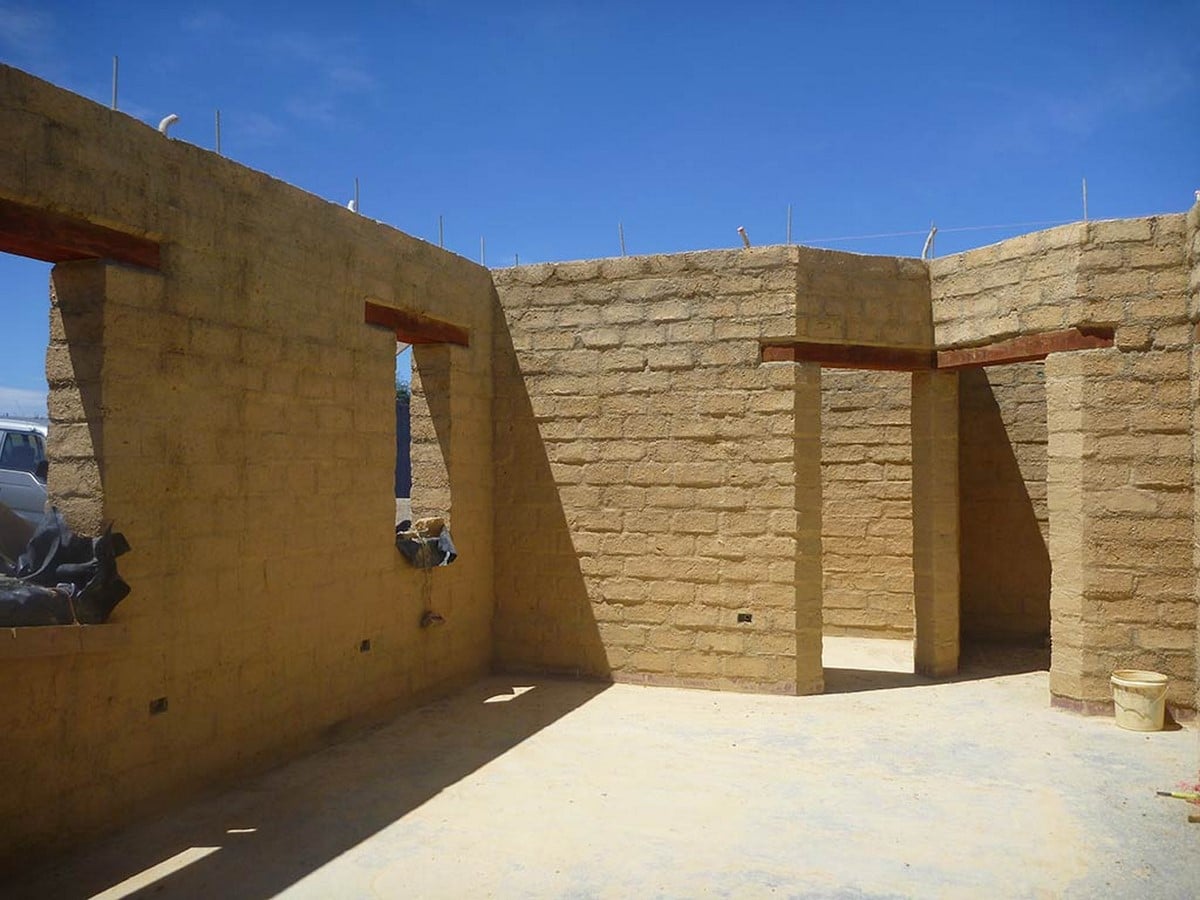

5. Adobe | Sustainable Materials

Adobe, mostly used as a building material in the form of bricks, is a composite of earth, clay, straw, and/or other organic materials. Adobe bricks have similar properties to that of rammed earth construction with high thermal insulation and energy efficiency. Such bricks are formed in open-cast molds and dried in the open air before being laid using earth mortar. Excess exposure to wet conditions can lead to damage, thus deep waves are used in adobe construction.

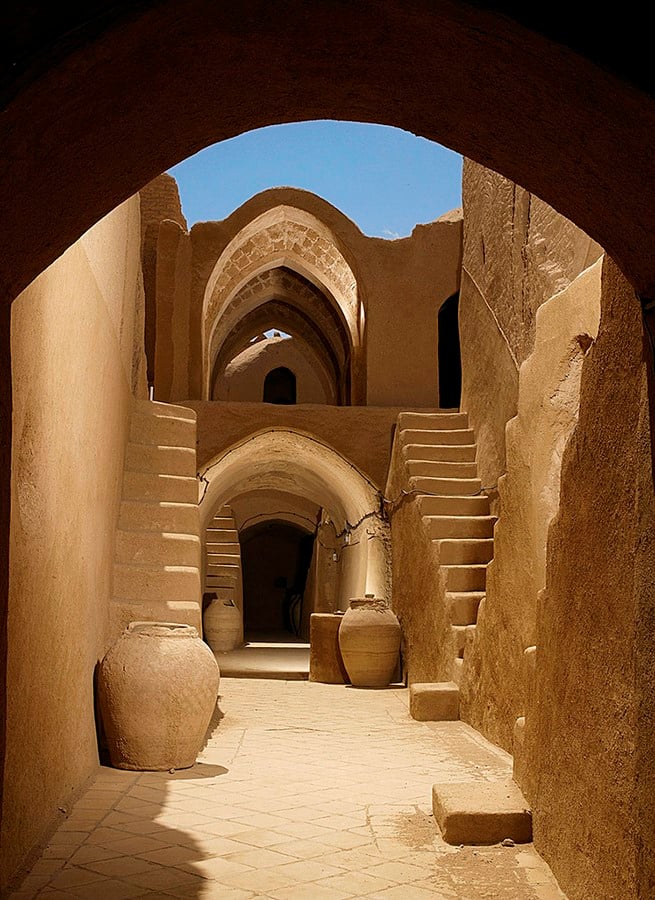

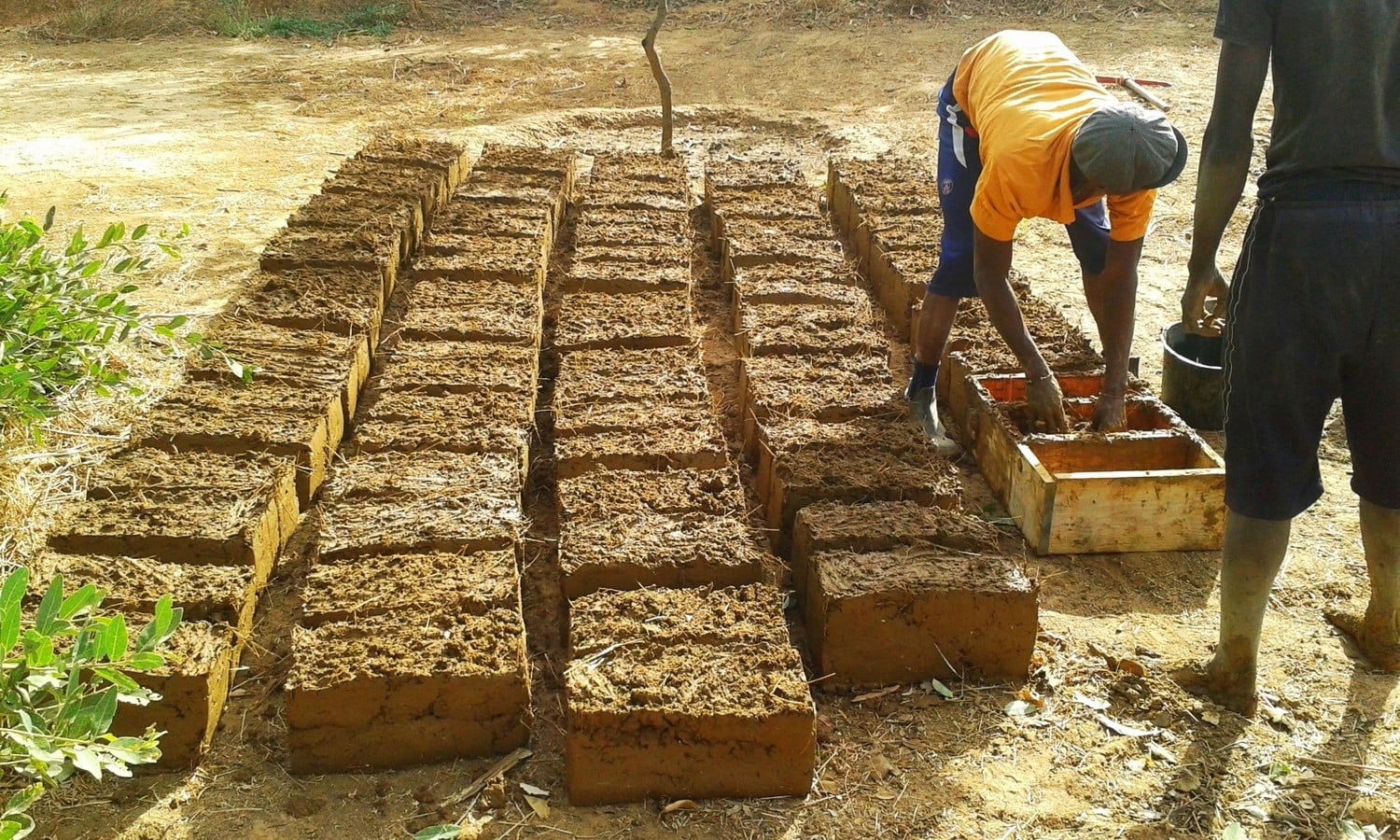

10 Sustainable Materials Every Architect Must Know -Adobe - Sheet1
Adobe ©squarespace-cdn.com

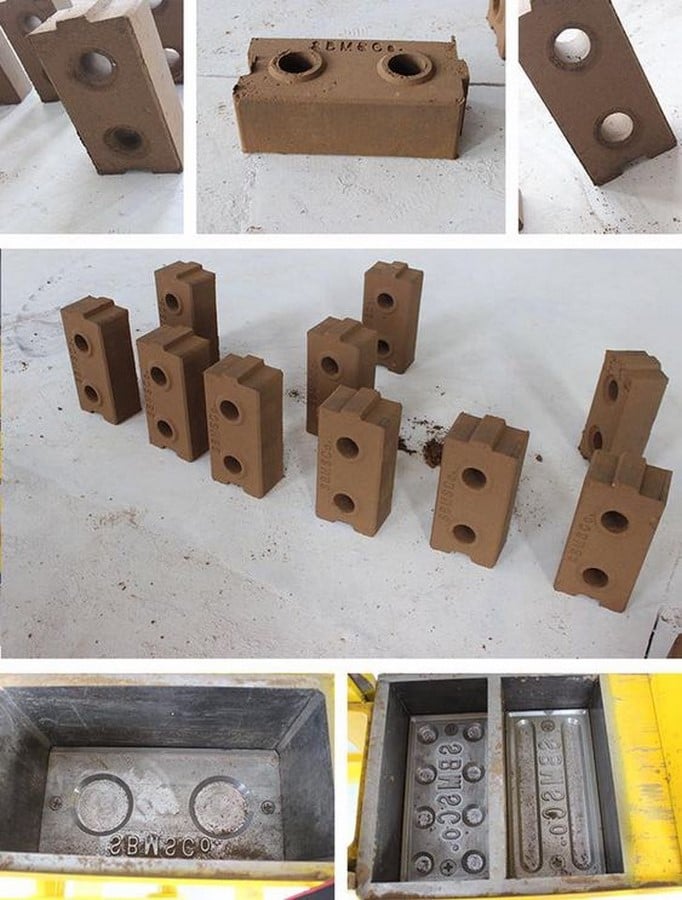

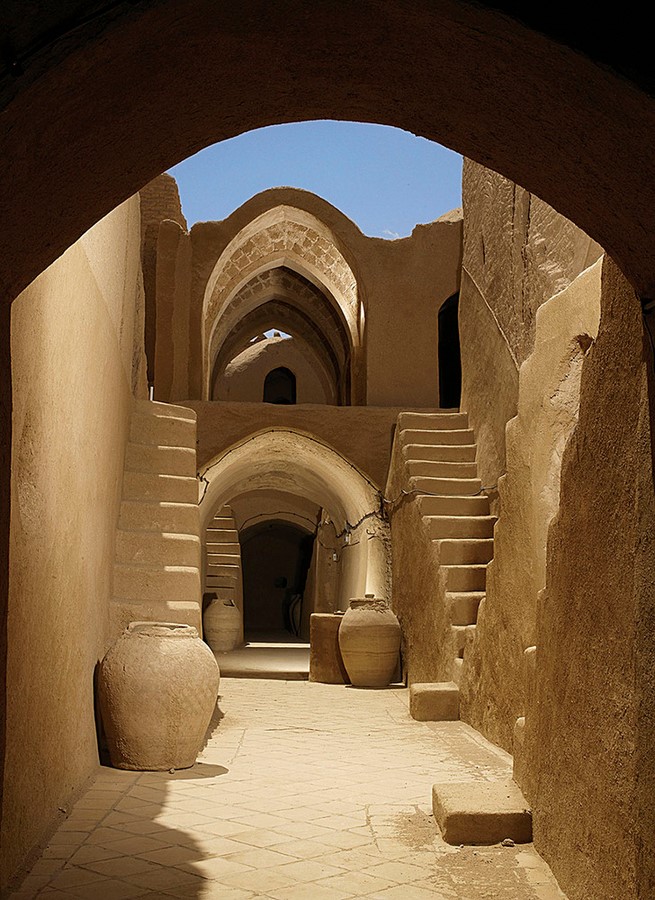

Adobe - Sheet2
Adobe ©files.wordpress.com
Adobe - Sheet3
Adobe ©solidearth.co.nz

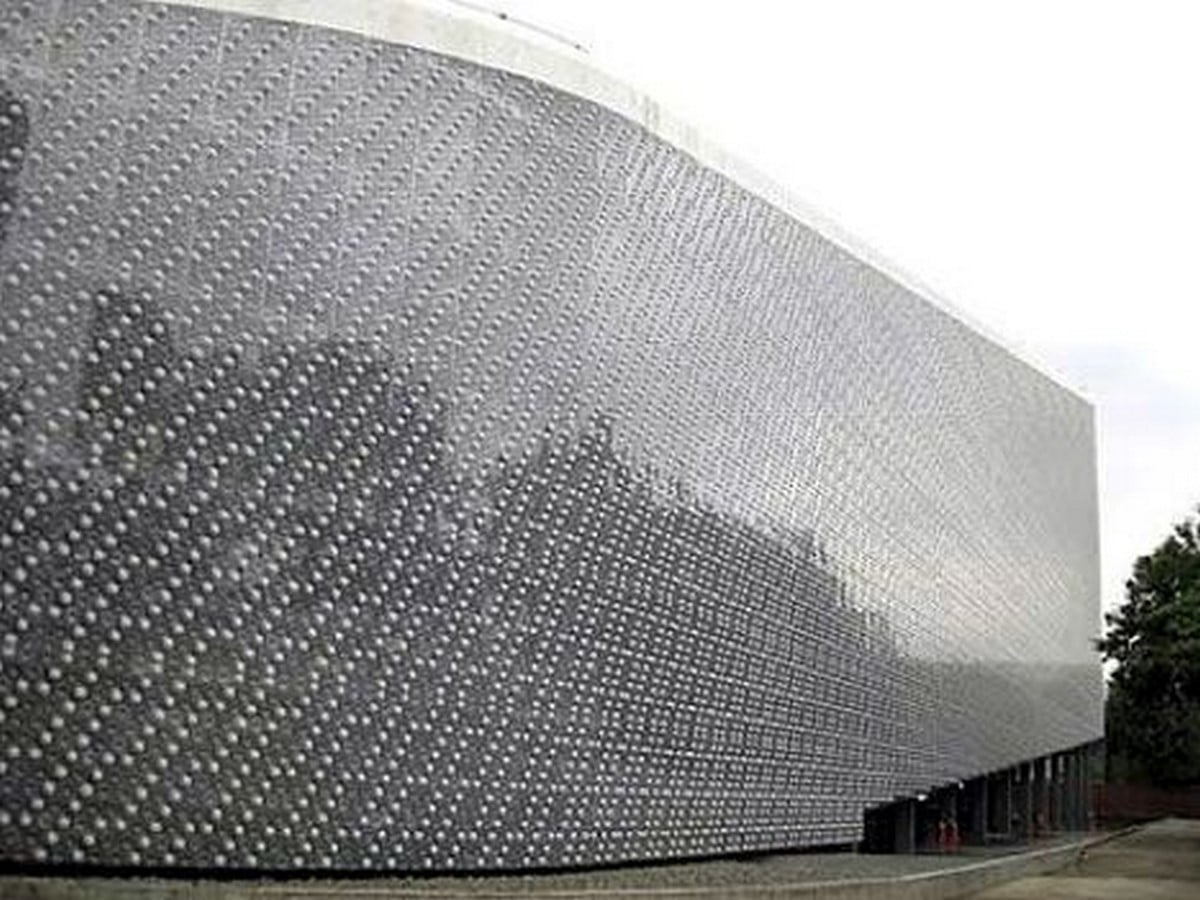

6. Recycled plastic

Recovered scraps of waste plastic reprocessed into different materials and products give new life to one of the biggest polluters of the world like recycled plastic. In construction, recycled plastic can be found in polymeric timbers, polycarbonate panels, polymeric tiling, and alternative building blocks like EcoBricks or RePlasts, machine-compressed single-use plastic blocks. Currently, recycled plastic products are only used in small-scale construction but new architectural solutions are being developed.

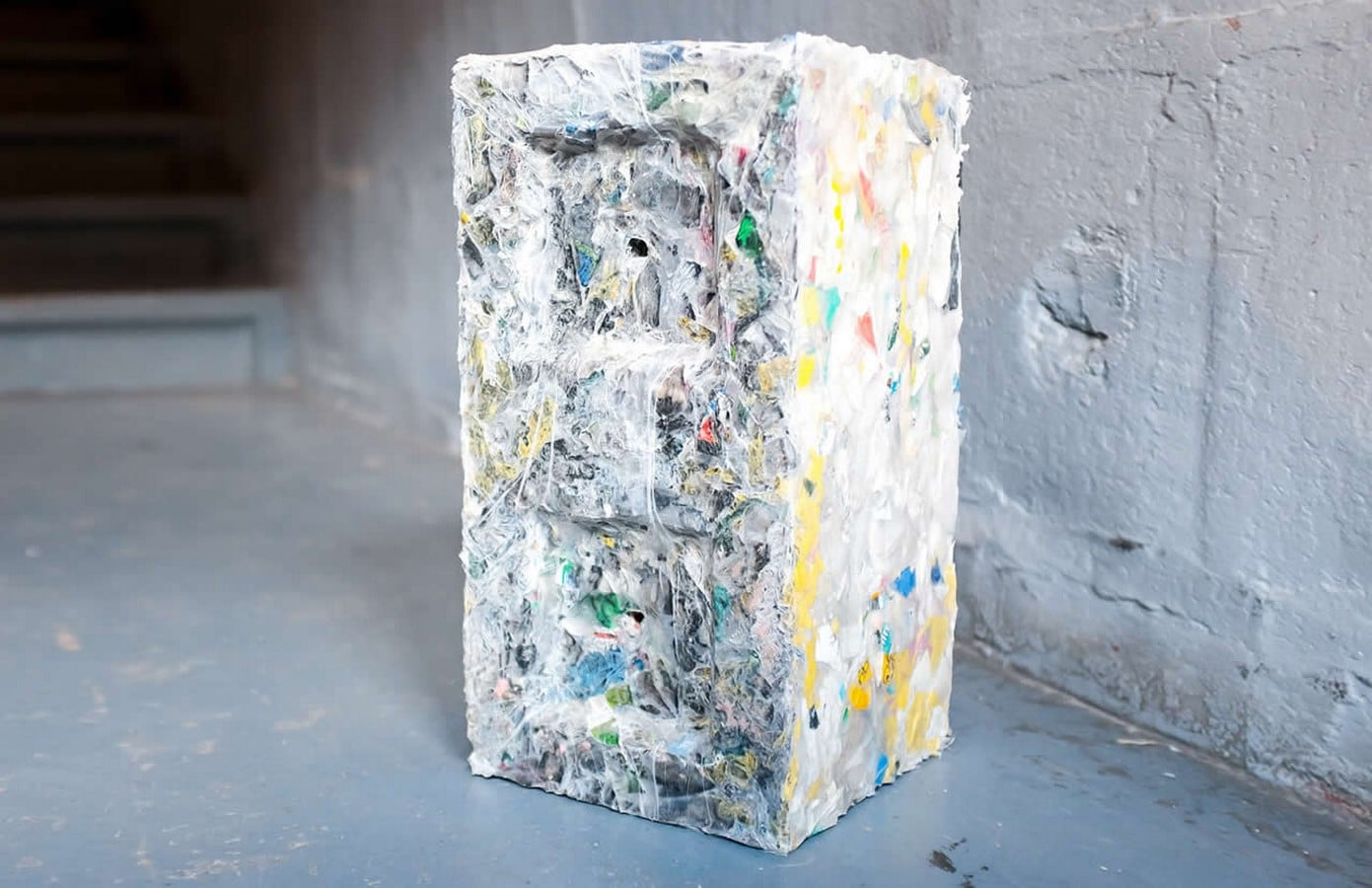

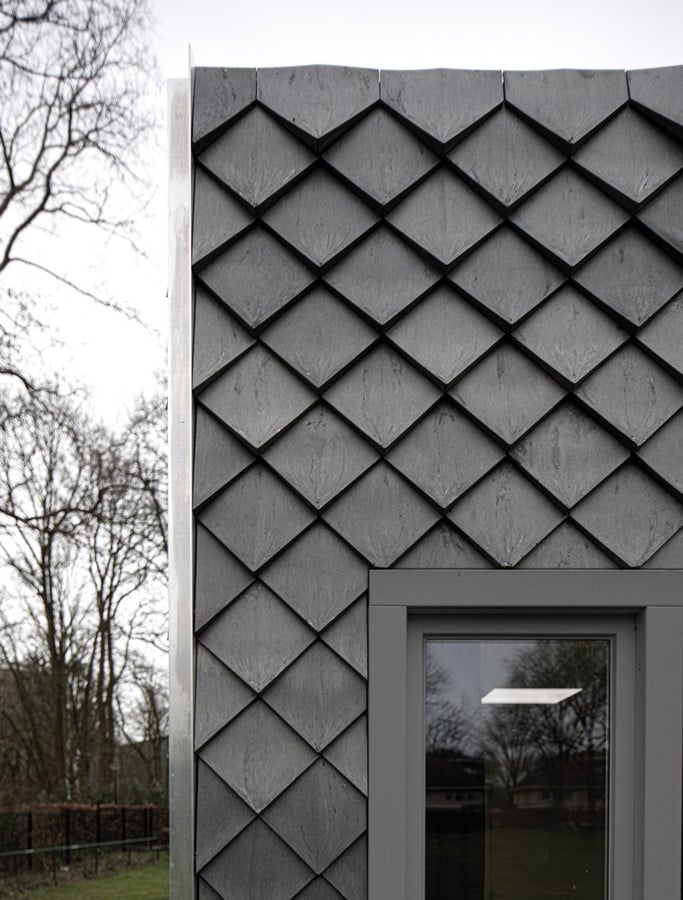

10 Sustainable Materials Every Architect Must Know -Recycled plastic - Sheet1
Recycled Plastic ©expertskiphire.co.uk
Recycled plastic - Sheet2
Recycled Plastic ©treehugger.com

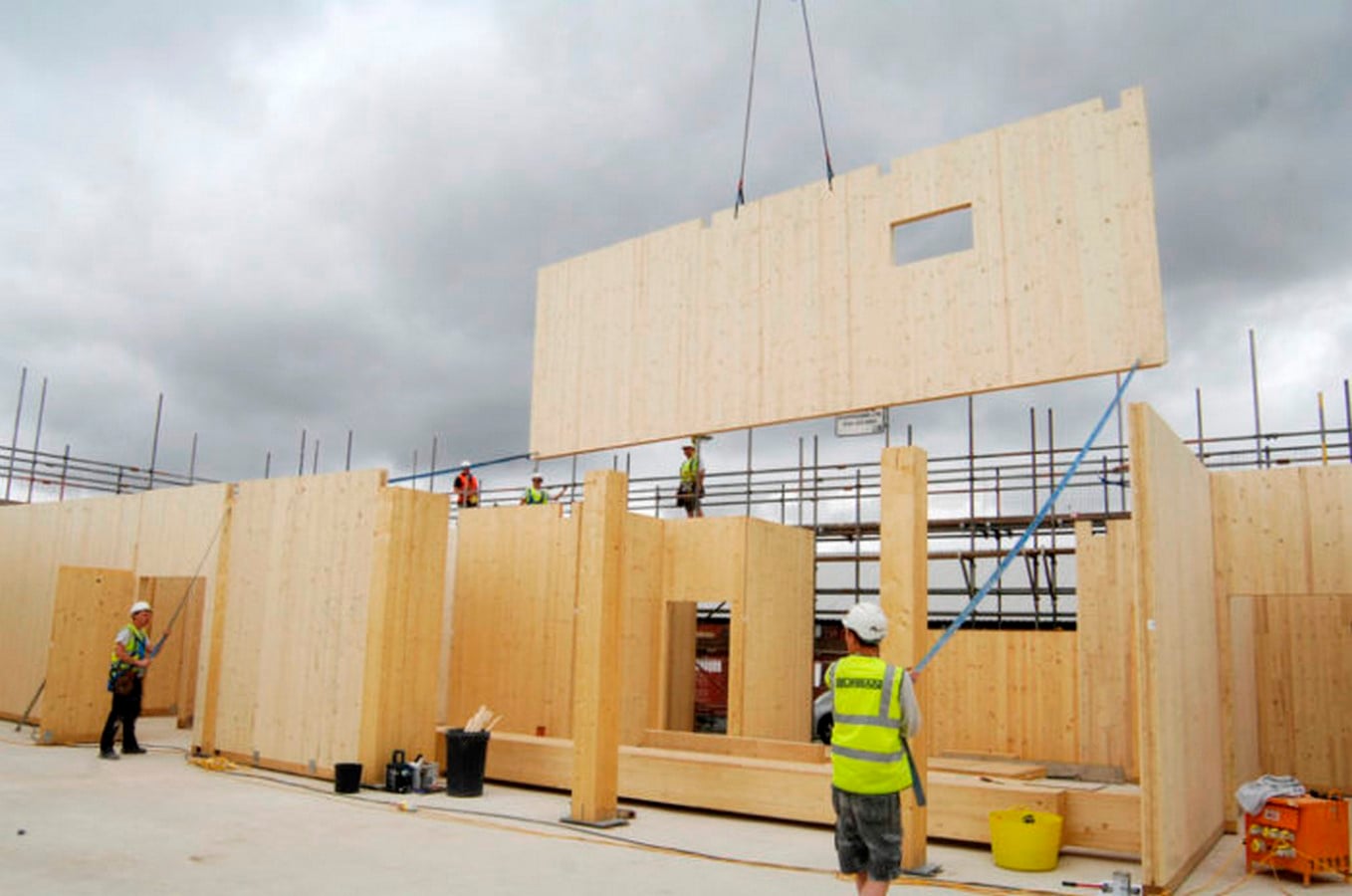

7. Cross-laminated timber

CLT or Cross-Laminated Timber is composed of wood (usually from reforestation) sawn, glued, and layered as planks each perpendicular to the previous lamella for structural integrity. Produced as panels of a varying thickness suitable for floors, roofs, walls, and furniture, CLT is a versatile prefabricated material ideal for almost all sorts of architectural ideas. Although it is not cheap, it owes its sustainability to the rapid construction and renewability of the material.

Eduwik- Online Courses for Architects & Designers

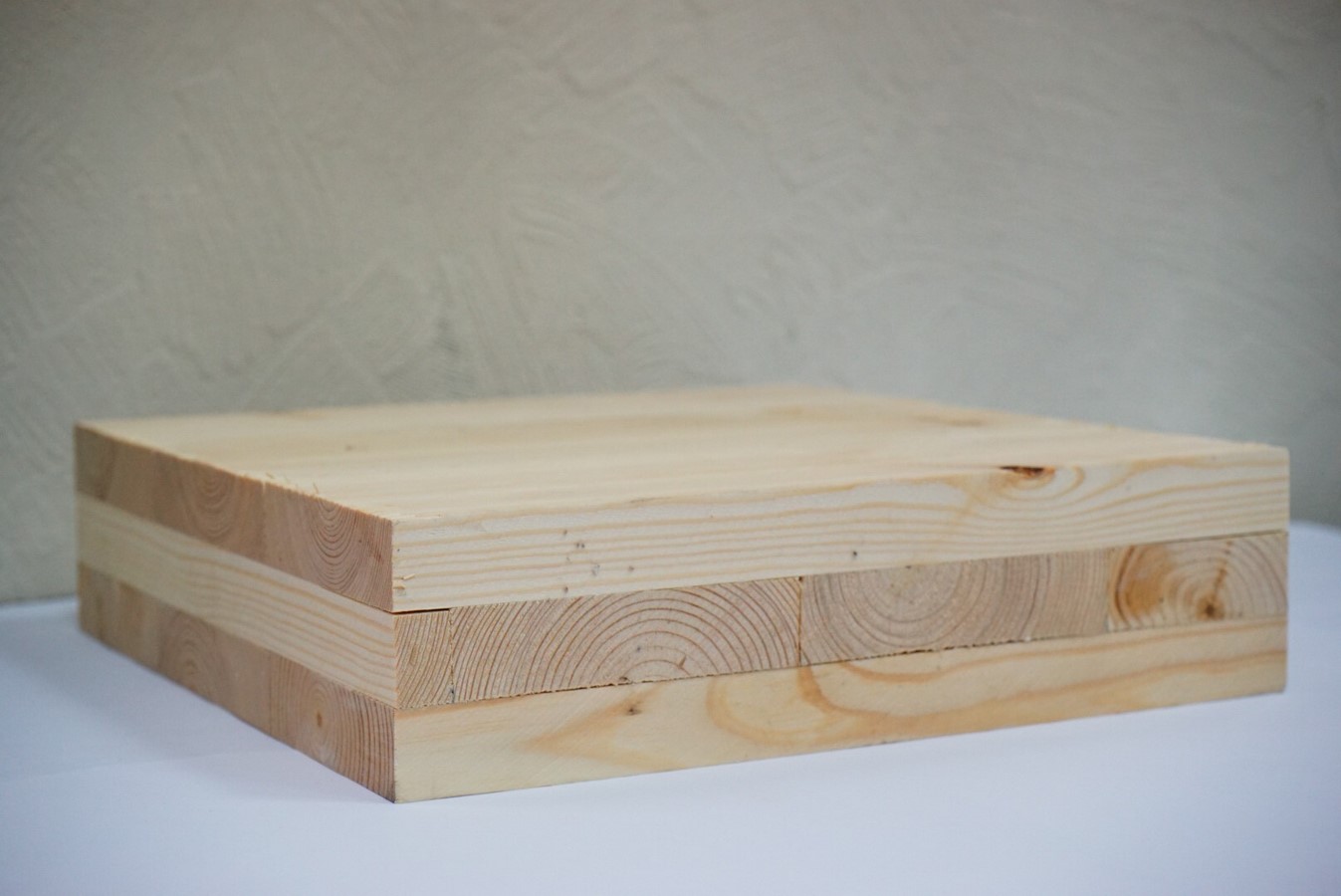

10 Sustainable Materials Every Architect Must Know -Cross-laminated timber - Sheet1
Cross Laminated ©Timber i2.wp.com

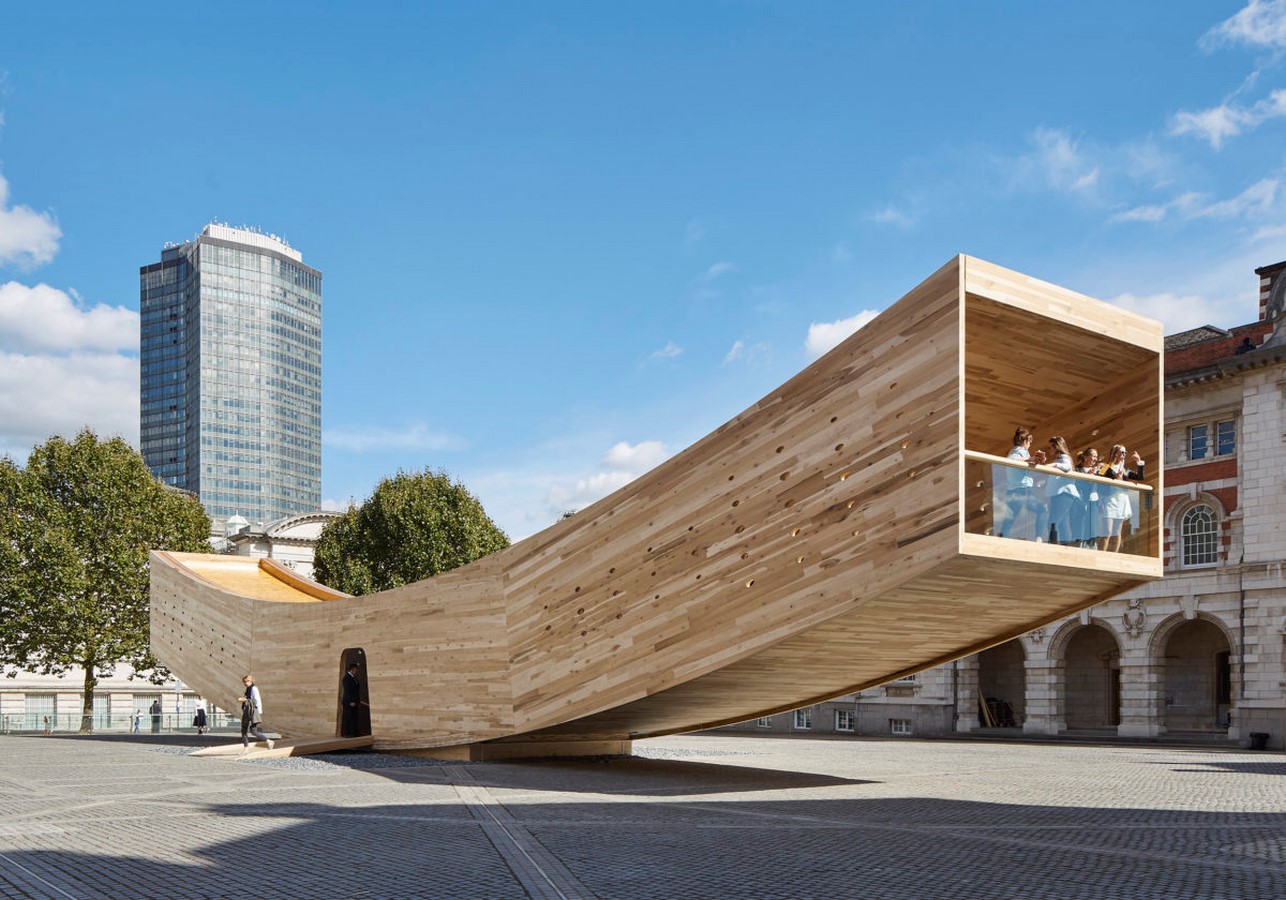

Cross-laminated timber - Sheet2
Cross Laminated ©Timber www.alisonbrooksarchitects.com
Cross-laminated timber - Sheet3
Cross Laminated ©Timber upload.wikimedia.org

8. Ferrock

An iron-based binding compound made using waste steel dust and silica from ground up glass reacting with carbon dioxide; ferrock is a carbon-negative material developed as a substitute for concrete. It is stronger and more flexible than Portland Cement and can be used in construction in similar applications. Although not yet viable for large-scale applications, due to the sourcing of waste materials, it proves to be one of the most sustainable in small-scale projects.

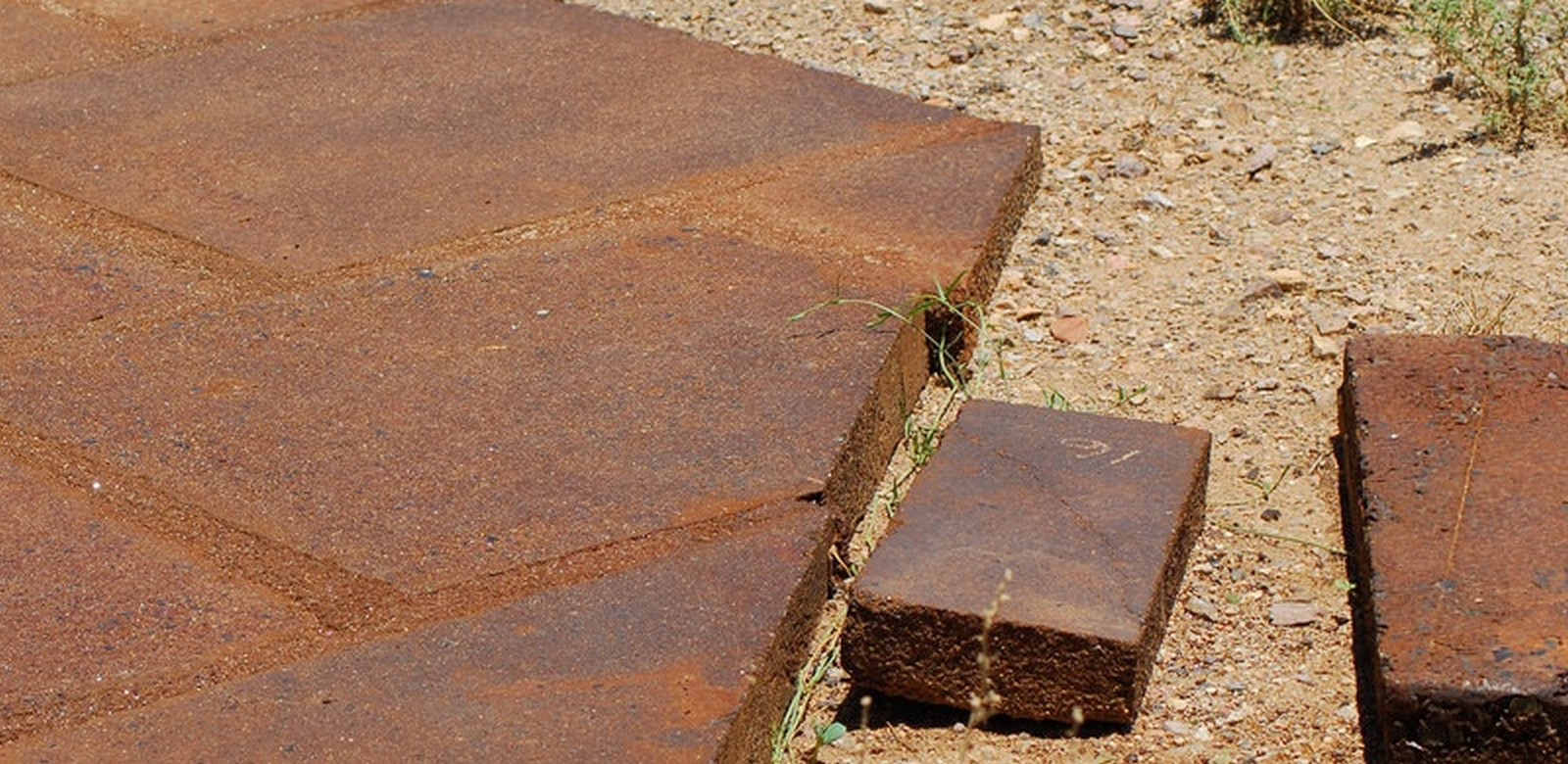

10 Sustainable Materials Every Architect Must Know -Ferrock - Sheet1
Ferrock ©rqnj0mo0em-flywheel.netdna-ssl.com
Ferrock - Sheet2
Ferrock ©files.wordpress.com

9. Mycelium

Mycelium is the rootlike fibrous underground growth of fungi that hold together the soil into a dense network for sprouting mushrooms. Construction applications of mycelium include composite boards (Mycoboard, a medium-density fibreboard), bio fabricated furniture, composite bricks, and organic sculptures using controlled growth of the fibers. Mycelium biocomposites are insulative, compostable, CO2 absorbing, and have high compressive strength. However, they are susceptible to termite infestation, and being relatively new, the material is still being researched in different conditions and applications.

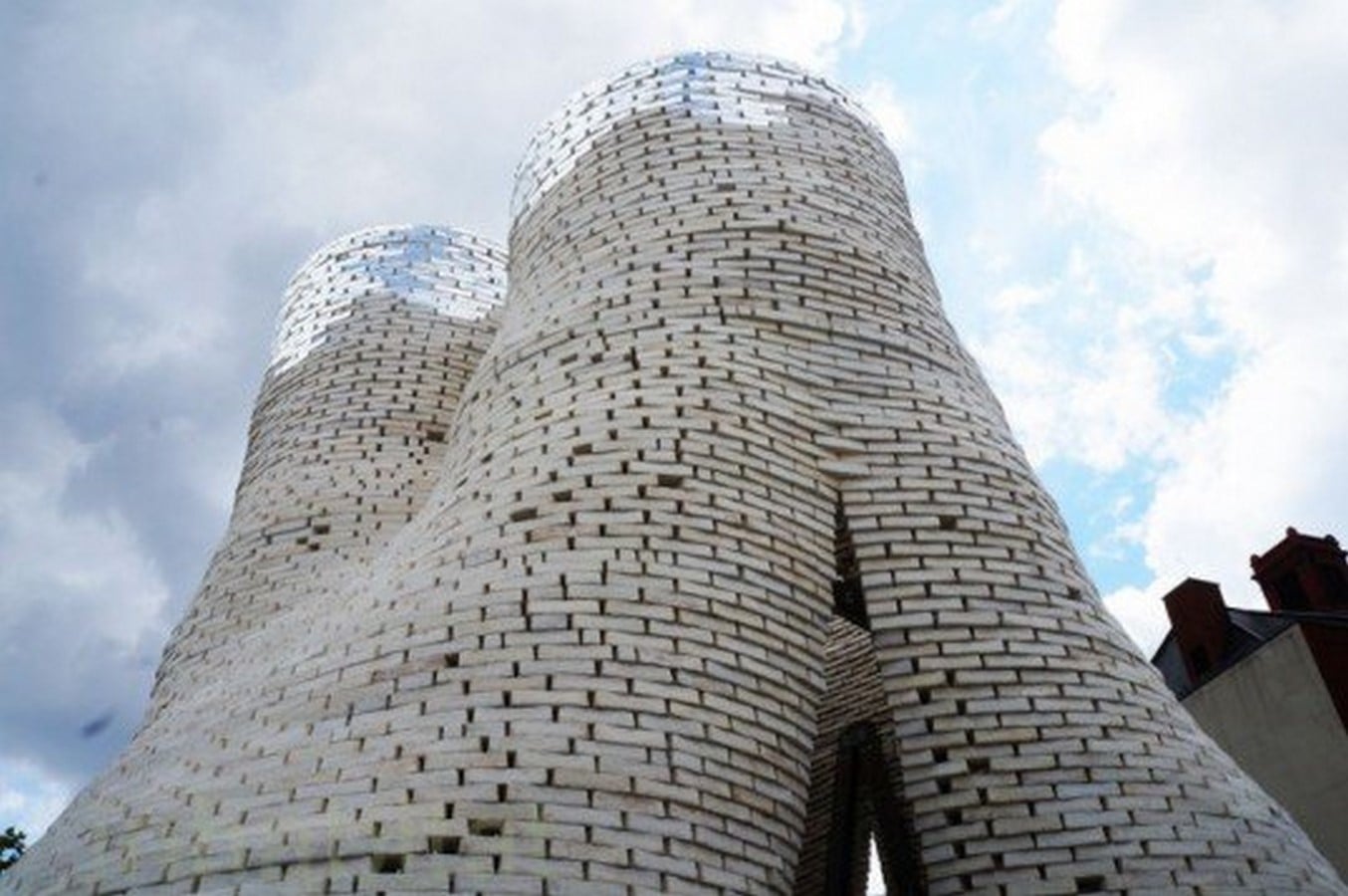

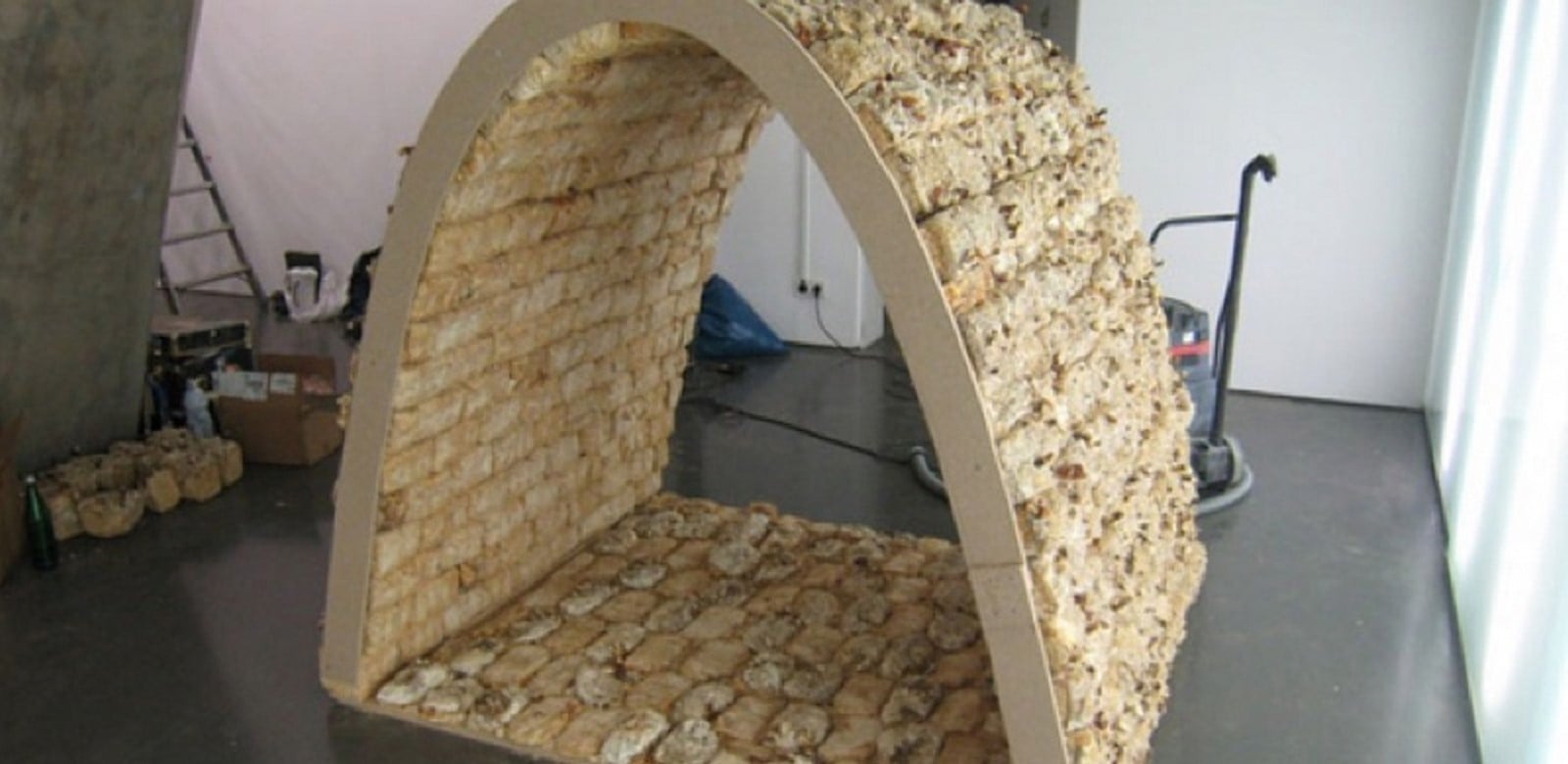

10 Sustainable Materials Every Architect Must Know -Mycelium - Sheet1
Mycelium ©com

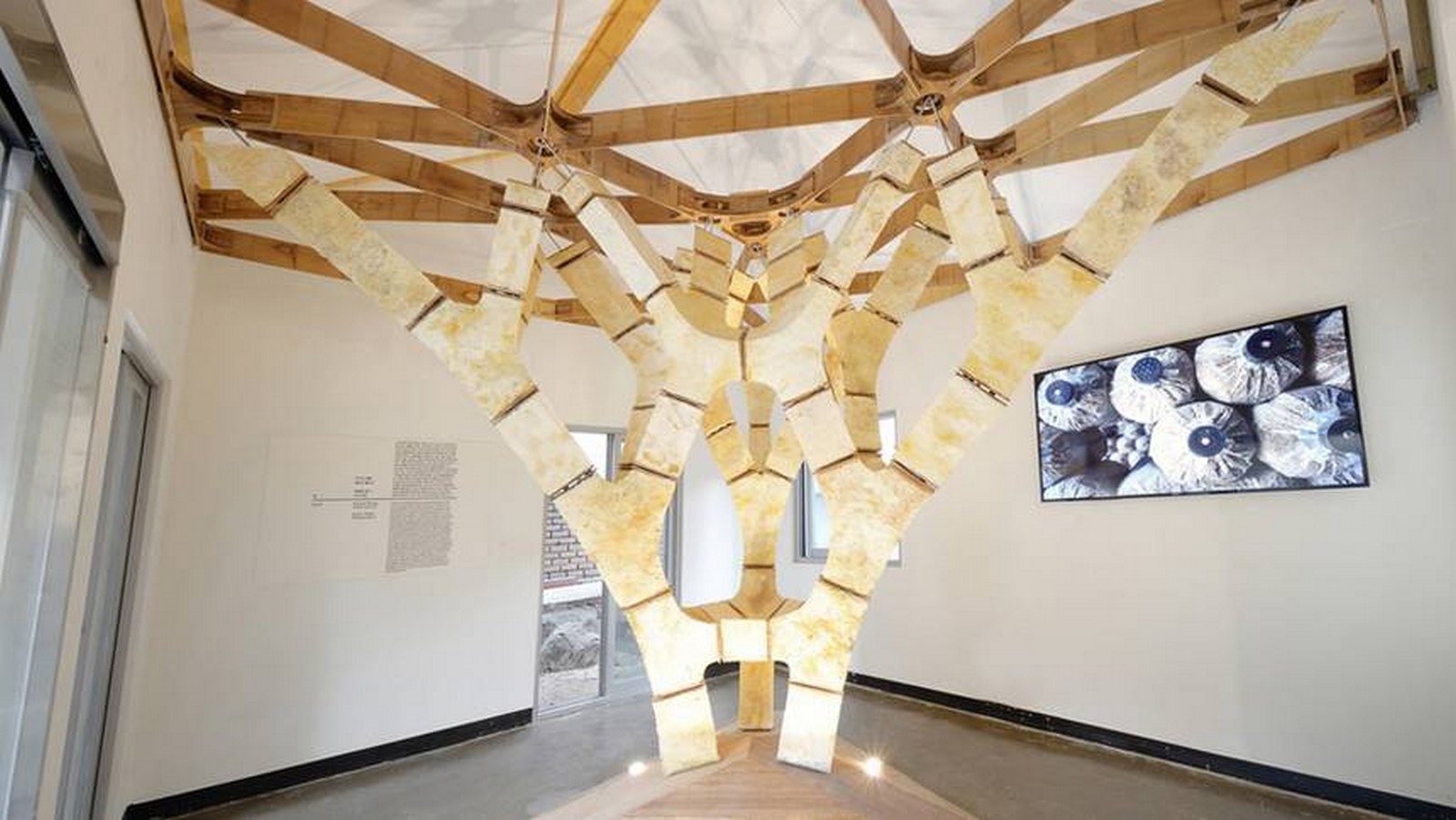

Mycelium - Sheet2
Mycelium ©treehugger.com
Mycelium - Sheet3
Mycelium ©rqnj0mo0em-flywheel.netdna-ssl.com

10. Hempcrete | Sustainable Materials

A bio-composite material of hemp, the balsa wood-like core of a cannabis plant, lime, and water called hempcrete or hemplime, is an alternative to concrete and traditional insulation. Lightweight and durable, hempcrete is not suitable for load-bearing elements and needs a framework and finishing for installation. Being a plant product and with lime turning to limestone, hempcrete has a negative carbon footprint.

Eduwik- Online Courses for Architects & Designers

Being sustainable in architecture is no longer a choice but an imperative. Architects, responsible for shaping the built must add ten more, a hundred more materials and strategies to build a sustainable future.

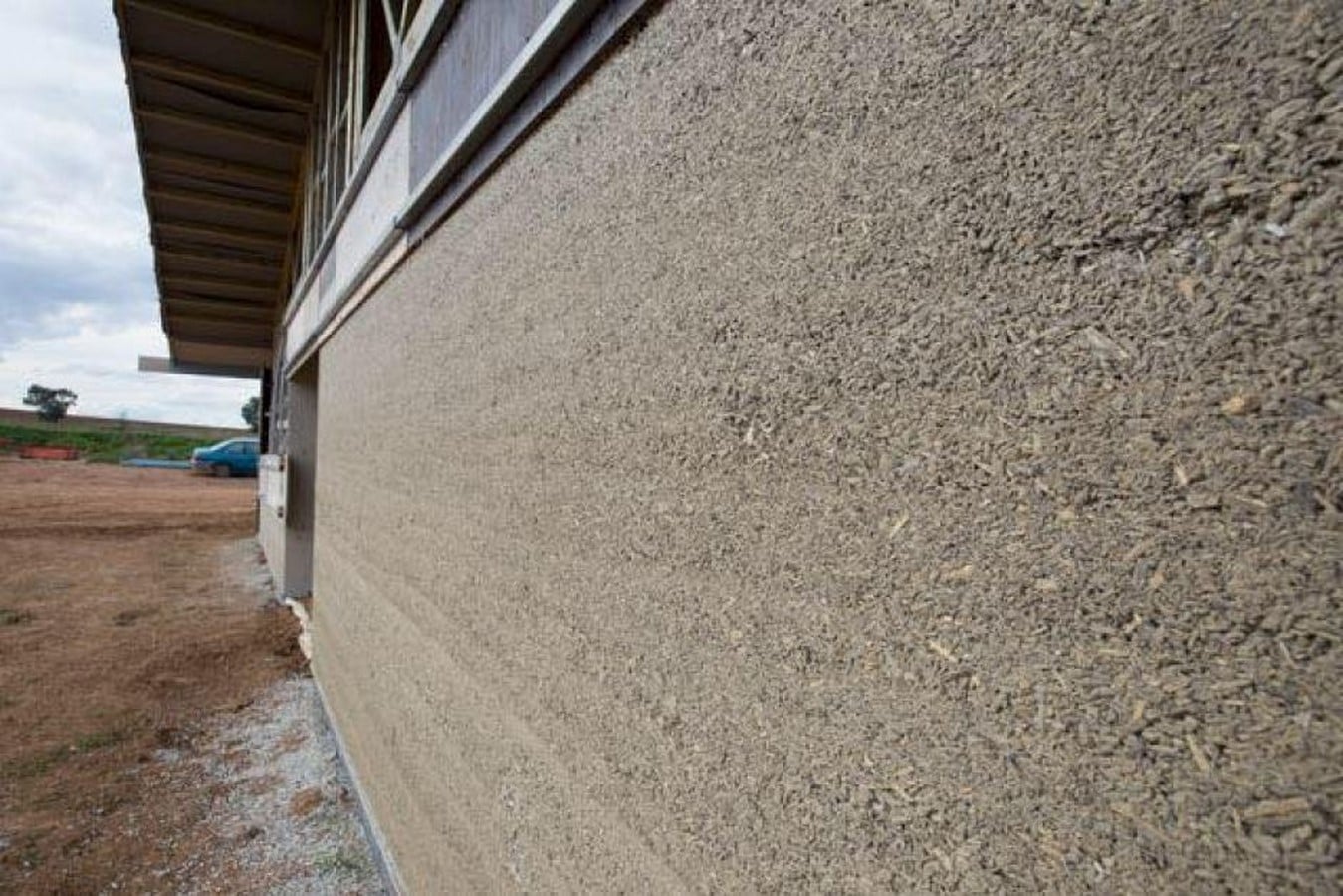

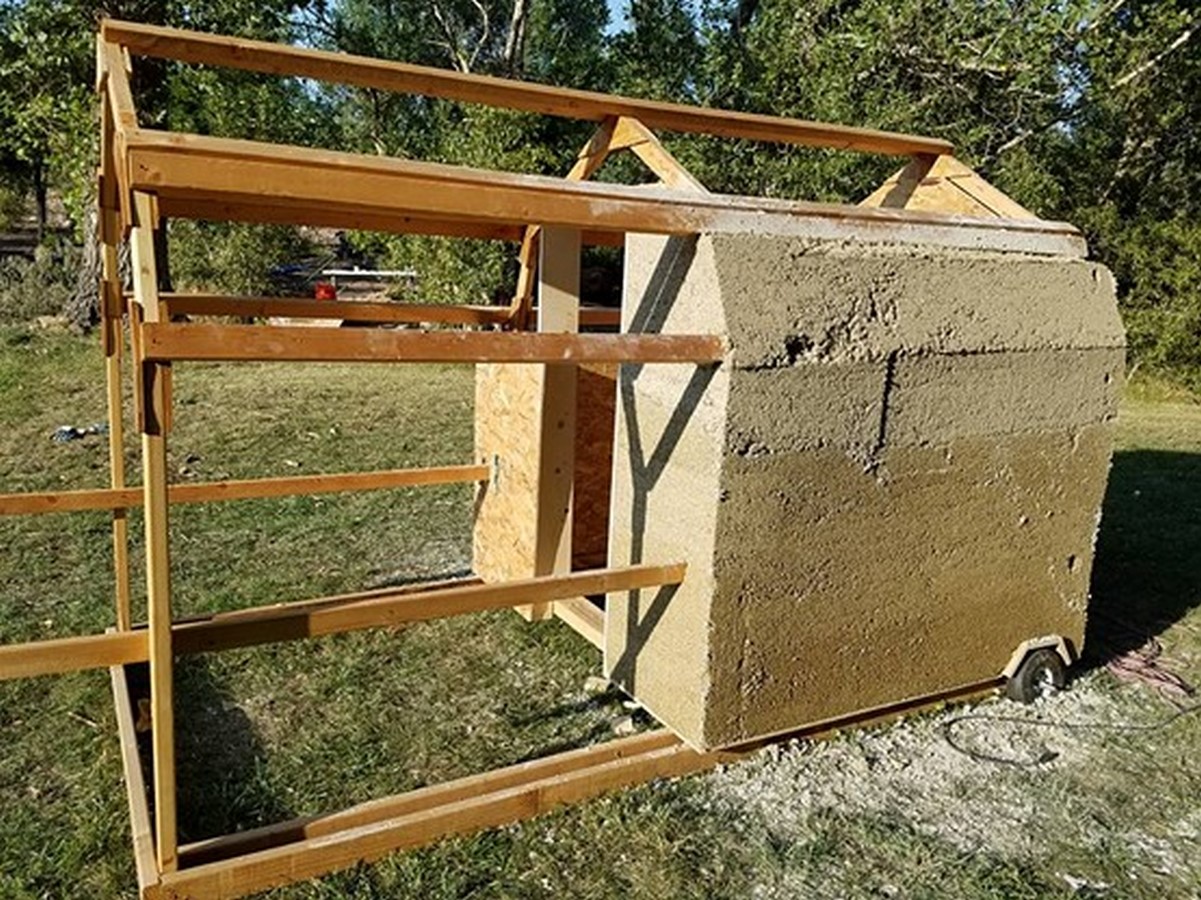

10 Sustainable Materials Every Architect Must Know -Hempcrete - Sheet1
Hempcrete ©com
Hempcrete - Sheet2

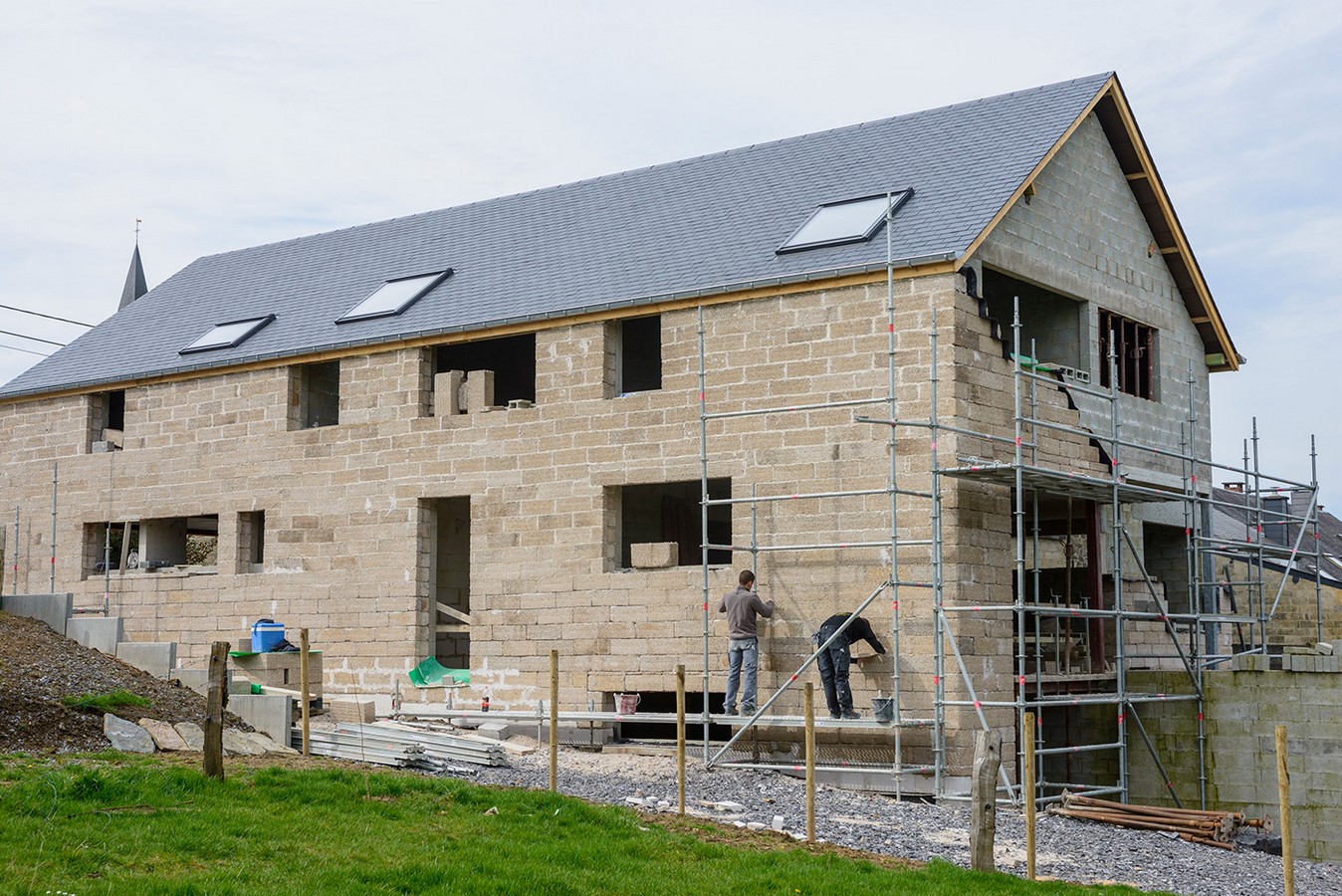

Hempcrete ©isohemp.com
Hempcrete - Sheet3
Hempcrete ©westword.com



Author

Ekam Singh Sahni is an architect with a penchant for writing and finding a sense of feeling in every human activity. He thinks of design as a primary attribute of human existence: from moving a chair in one's room to building an island in the middle of nowhere.
