Guildford Lodge was built around 1860 by Lord of Lovelace, as the gatehouse for his house, Horsley towers. Over the years it has been amended substantially to suit new uses as its purpose as a gatehouse became obsolete. The building is Grade II listed and is now solely used as a family home. Guildford Lodge is very characteristic of its local vernacular, being constructed of flint random rubble with brick dressings and roofs of clay tile, slate and asphalt.

Project Name: Guildford Lodge
Studio Name:
Hardman Structural Engineers
Project Budget: £200000
Completion date: 2017
Building levels: 2
Location: Surrey, United Kingdom
Photography: Will Pryce

Guildford Lodge by Hardman Structural Engineers - Sheet1

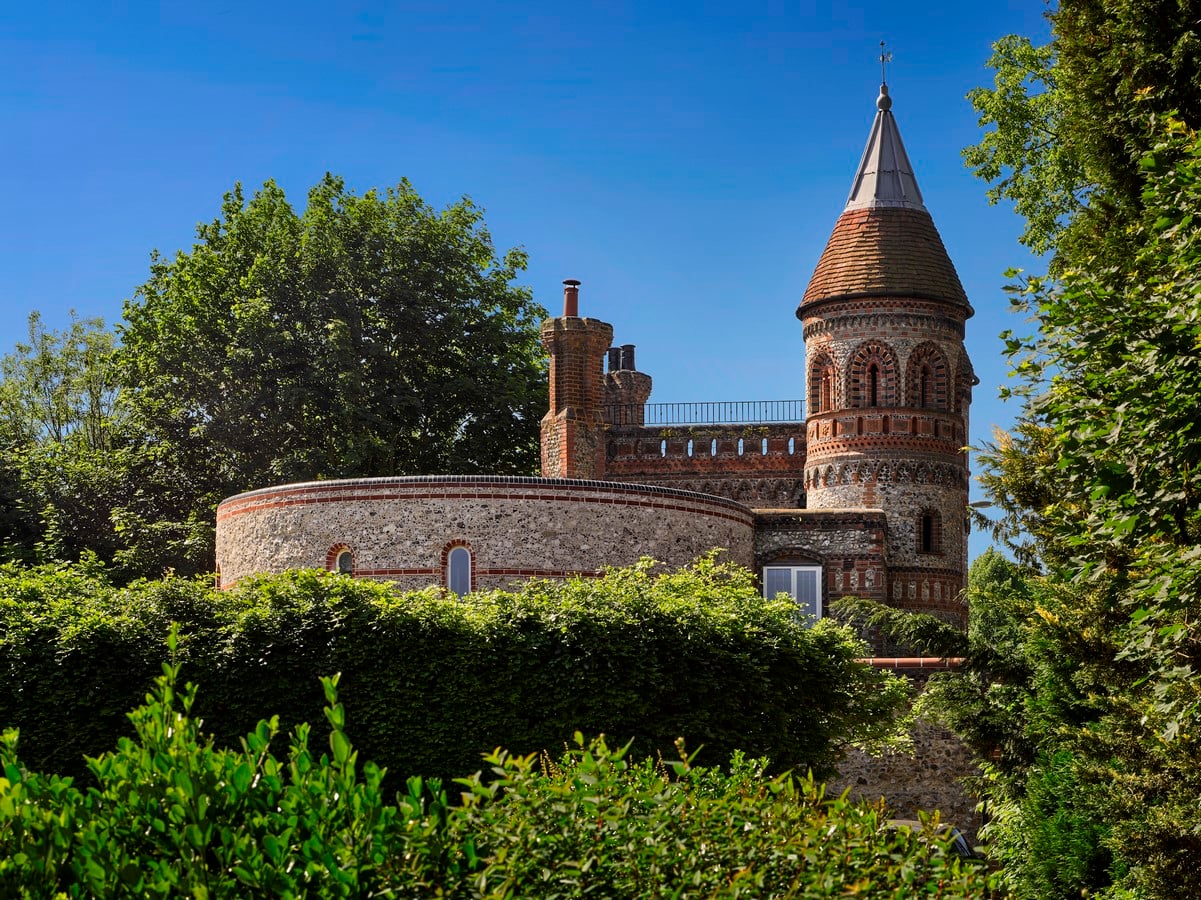

Exterior View ©Will Pryce

The arrangement of spaces in the original gatehouse did not lend itself naturally to a domestic home. All previous extensions of space are at ground floor level, so the upper levels remained quite small in comparison. The bedrooms thus became divided between upper and lower floors – which was very awkward for parents of young children. Our starting point was to see if there was a way of adding space to the upper floors for additional bedrooms, which would in turn free up space at ground level for living space.

Guildford Lodge by Hardman Structural Engineers - Sheet2

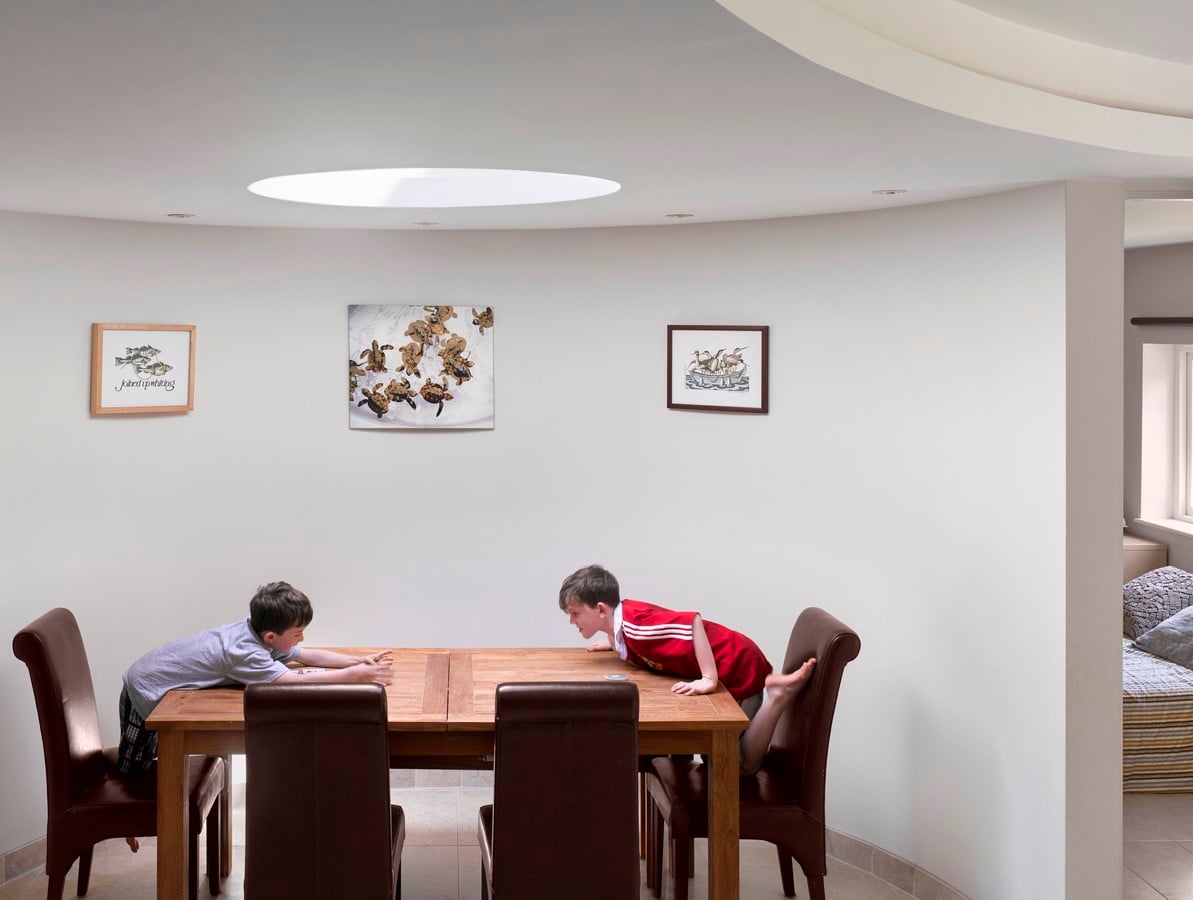

Dining Space ©Will Pryce

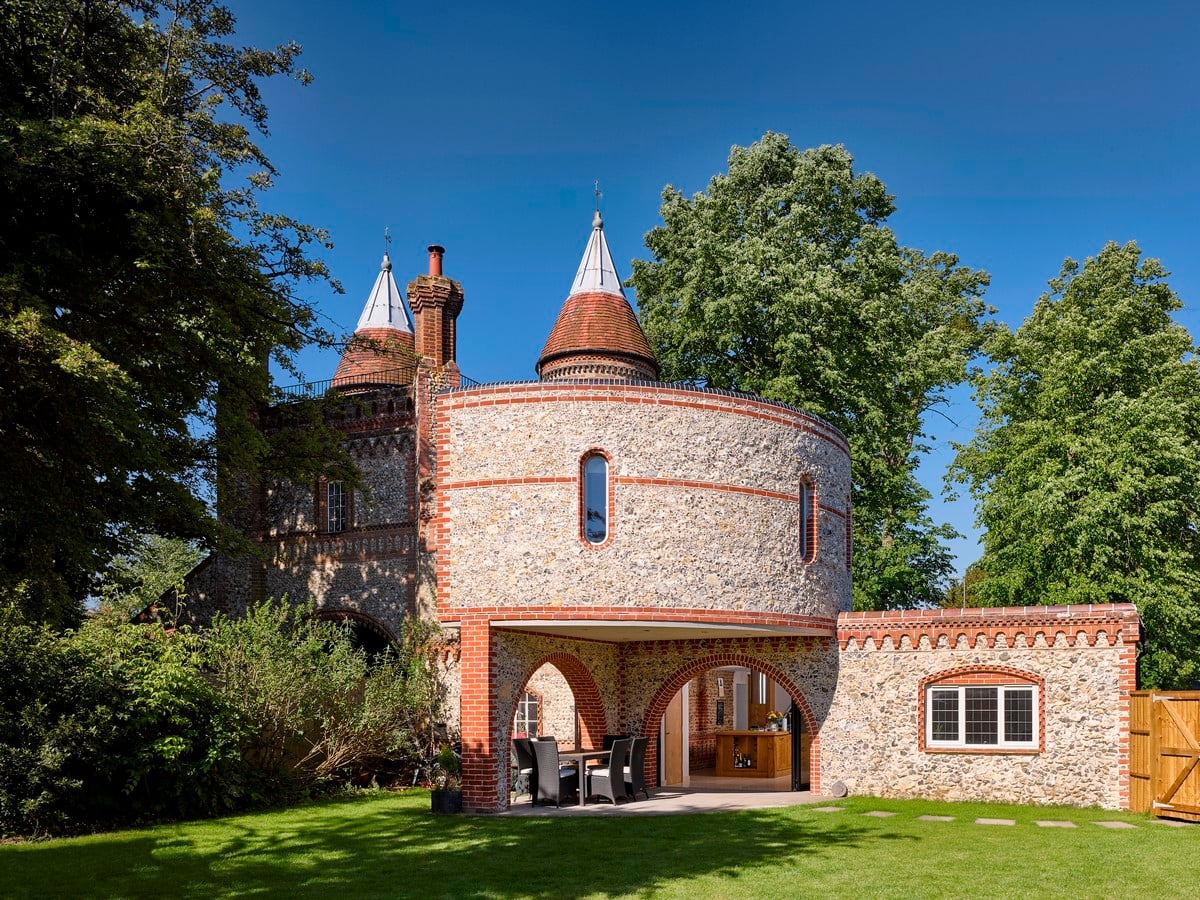

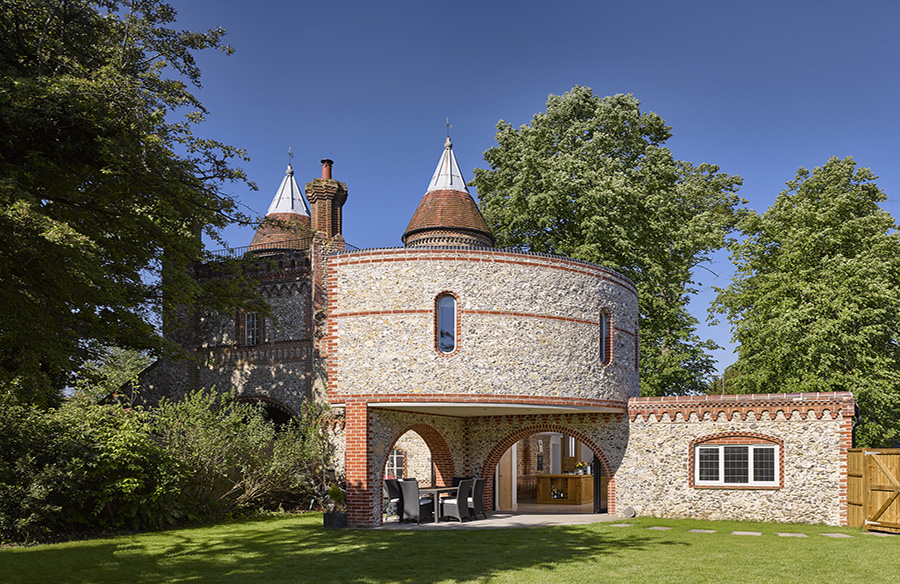

We wanted to create an extension that feels like it ‘belongs’ to the original building, yet also has something of our time about it. The semi-circle in plan of the upper floor compliments the circular towers of the original gatehouse, and is offset from the lower floor to create a protected area for external dining.

Guildford Lodge by Hardman Structural Engineers - Sheet3

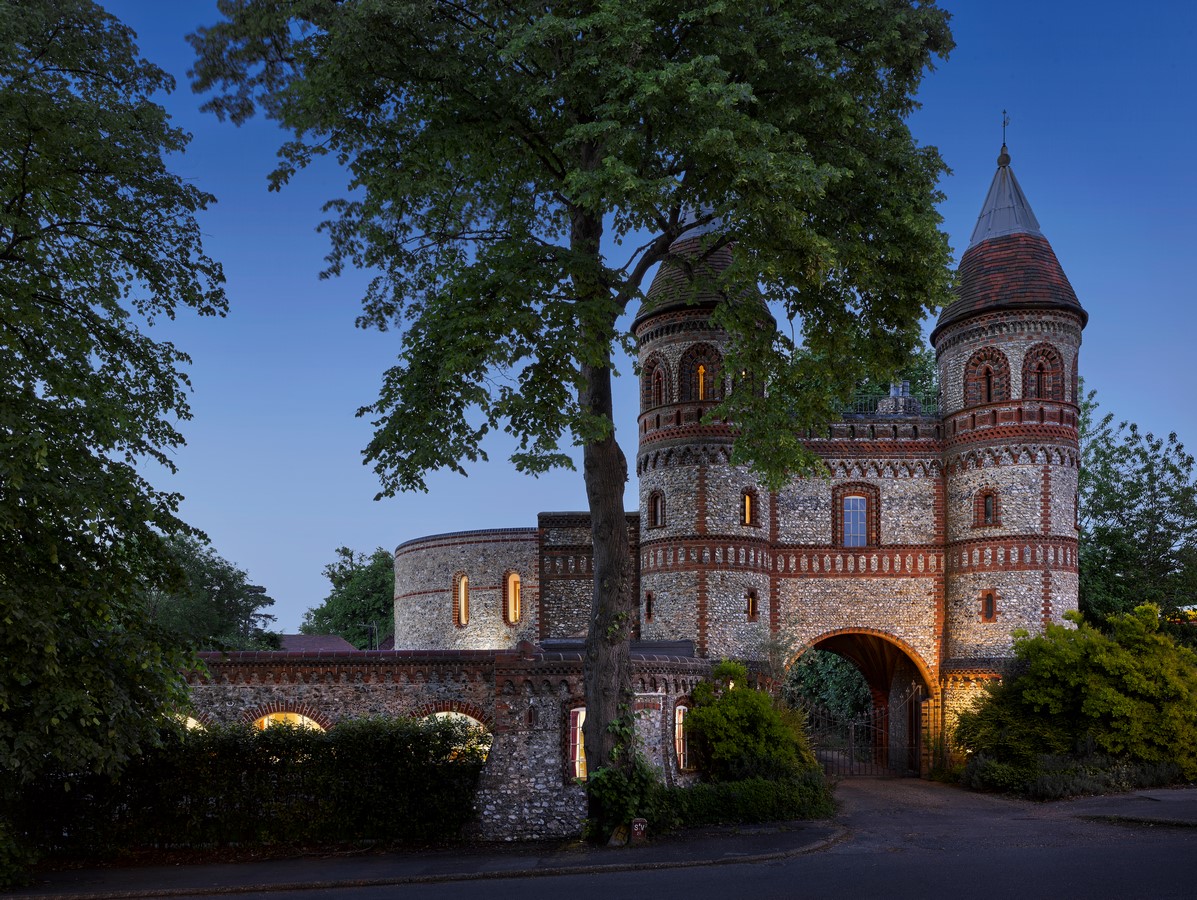

Night View ©Will Pryce

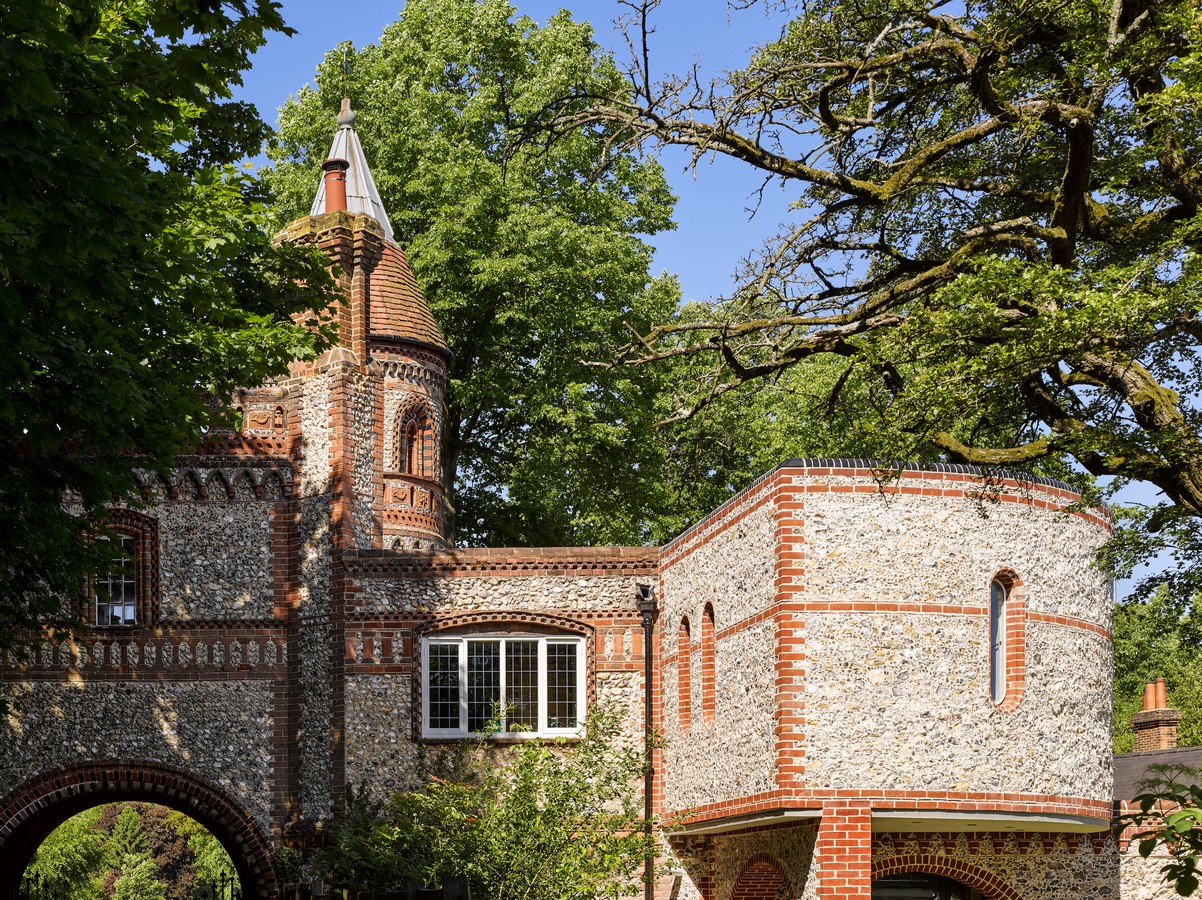

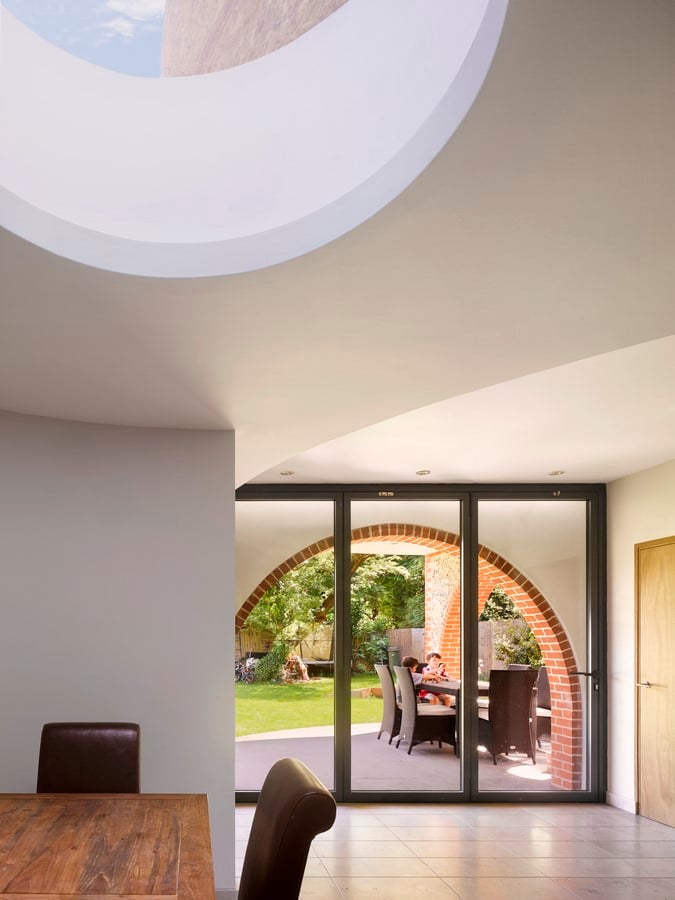

The new structure cantilevers around the curve – and sits on a brick arch. A further brick arch was cut into the wall of the existing extensions. Internally, the curve of the upper floor is reflected in the ceiling, and the dining space is formed of a complimentary semi circle. All in all, five large curves play off each other in three dimensions.
