Architecture is one of the oldest professions in the world. From the primitive cave paintings of Bhimbetka to the Harappan civilization to the current age, one thing that is common is the need for habitable spaces that can sustain the people of that civilization and their socio-economic activities. If studied closely one would notice that these shelters, which were made, were simply the best possible answer to the question of intolerance of the harsh environment, to make it liveable.

Available technology and materials along with the study of the climate- governed the design. However, with the advancement in technology, we have started building a more efficient and more luxurious habitable area but the basis of design i.e. to protect ourselves from the environment remains the same. Reducing the scope, what follows is a list of 10 things that an architect must remember while designing in the harsh Tropical Monsoon Climate. The list reflects and takes into accounts the original factors which were considered while designing by our ancestors and the locals of the area as nothing can explain a climate better than the vernacular architecture of that area.

Eduwik- Online Courses for Architects & Designers
10 things to remember while designing in Tropical monsoon - Sheet1

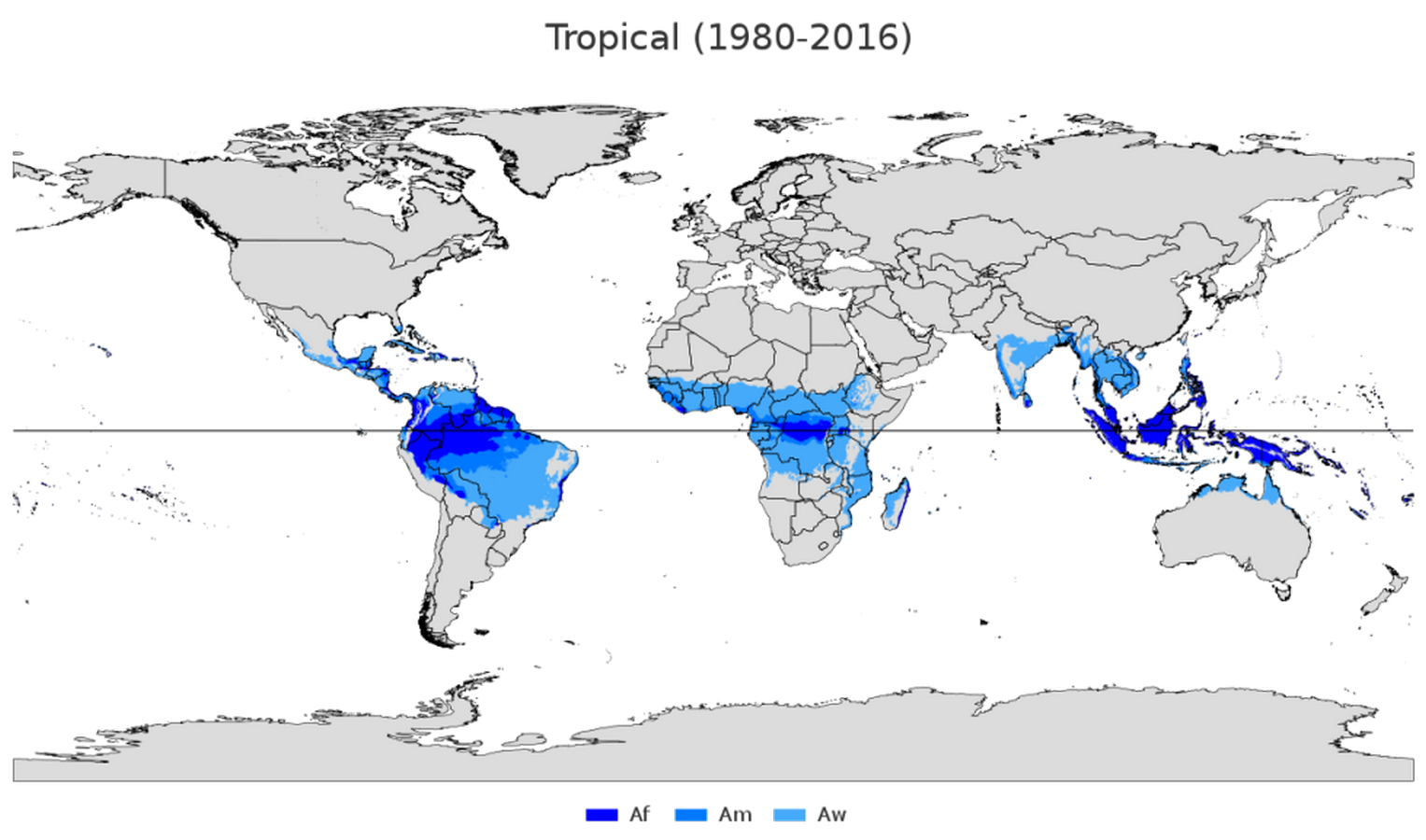

Designing in tropical monsoon ©Wikipedia.com

1. Site location

Humans out of all the other animals have the least adaptability. Research has shown that constant change in the temperature of the environment causes psychological effects on our brain such as irritability and inefficiency. Hence to maintain a constant comfort zone site location and study is of uttermost importance. Sites near lake or sea have an advantage of air current and humidity whereas sites on/near mountains have cooler temperatures. Every site has its advantages and challenges which need to be molded, manipulated and harvested to obtain the best user-friendly design.

10 things to remember while designing in Tropical monsoon - Sheet2

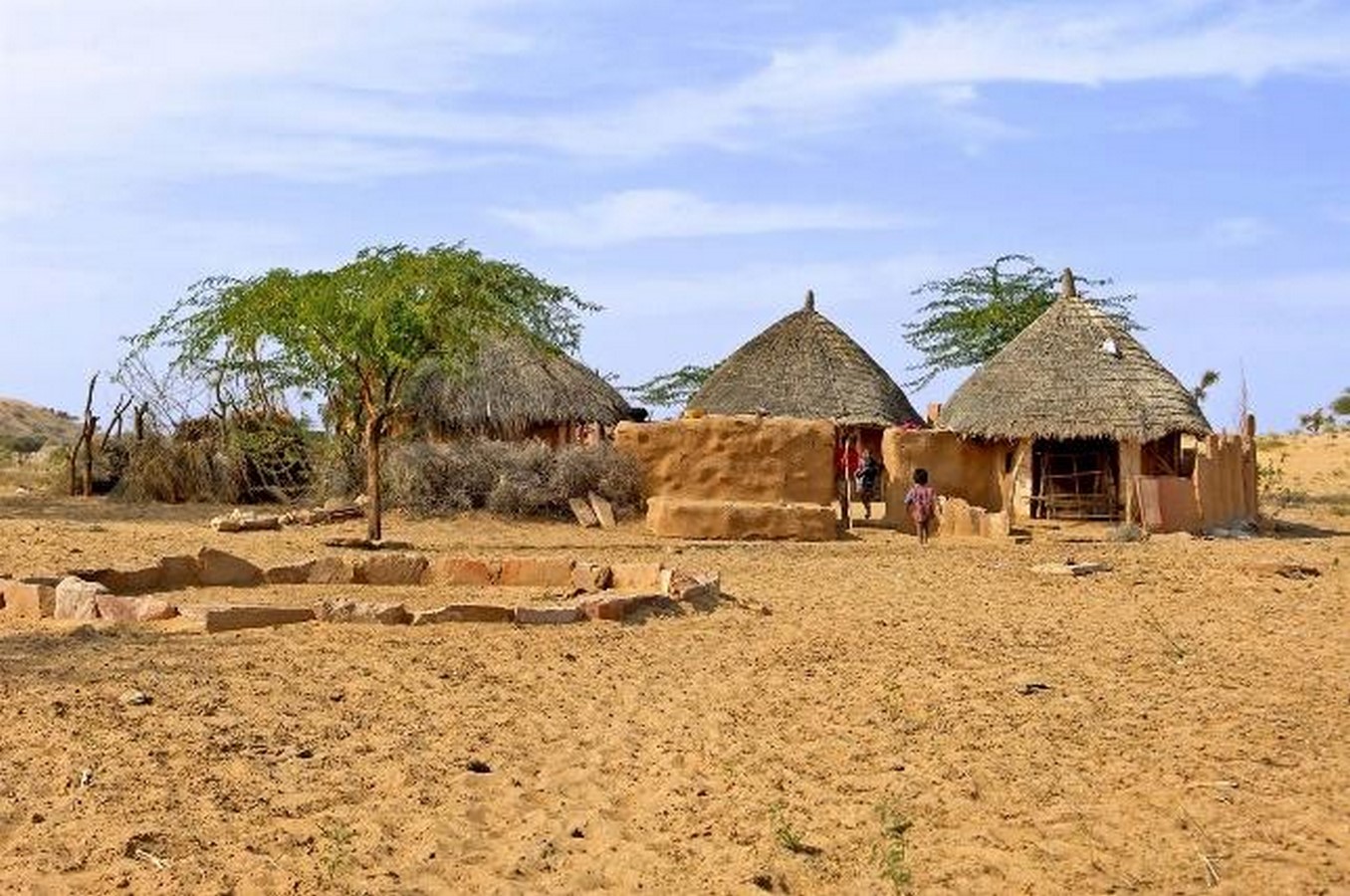

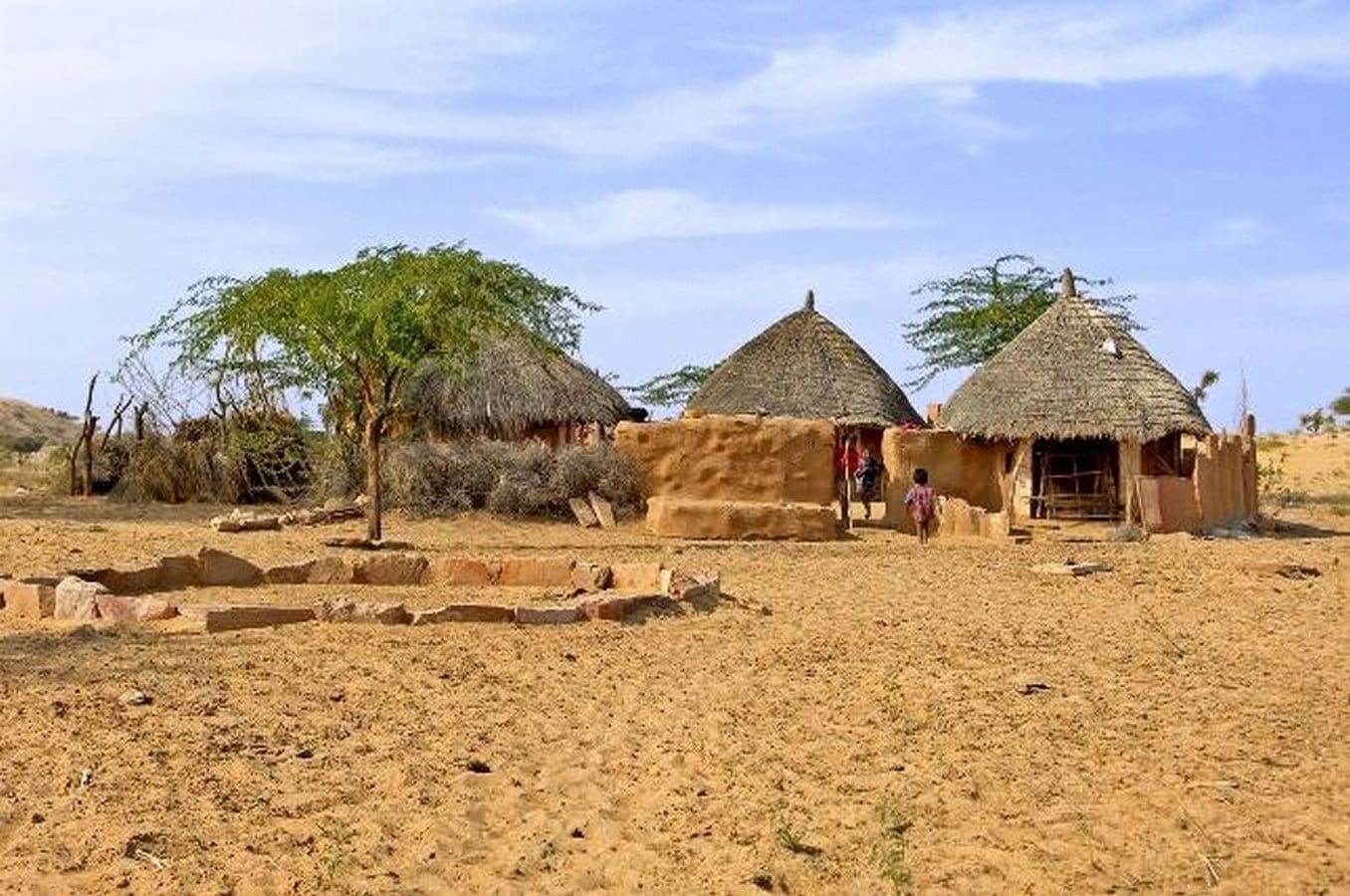

Rural housing in Thar desert in Rajasthan ©Britannica.com
10 things to remember while designing in Tropical monsoon - Sheet3

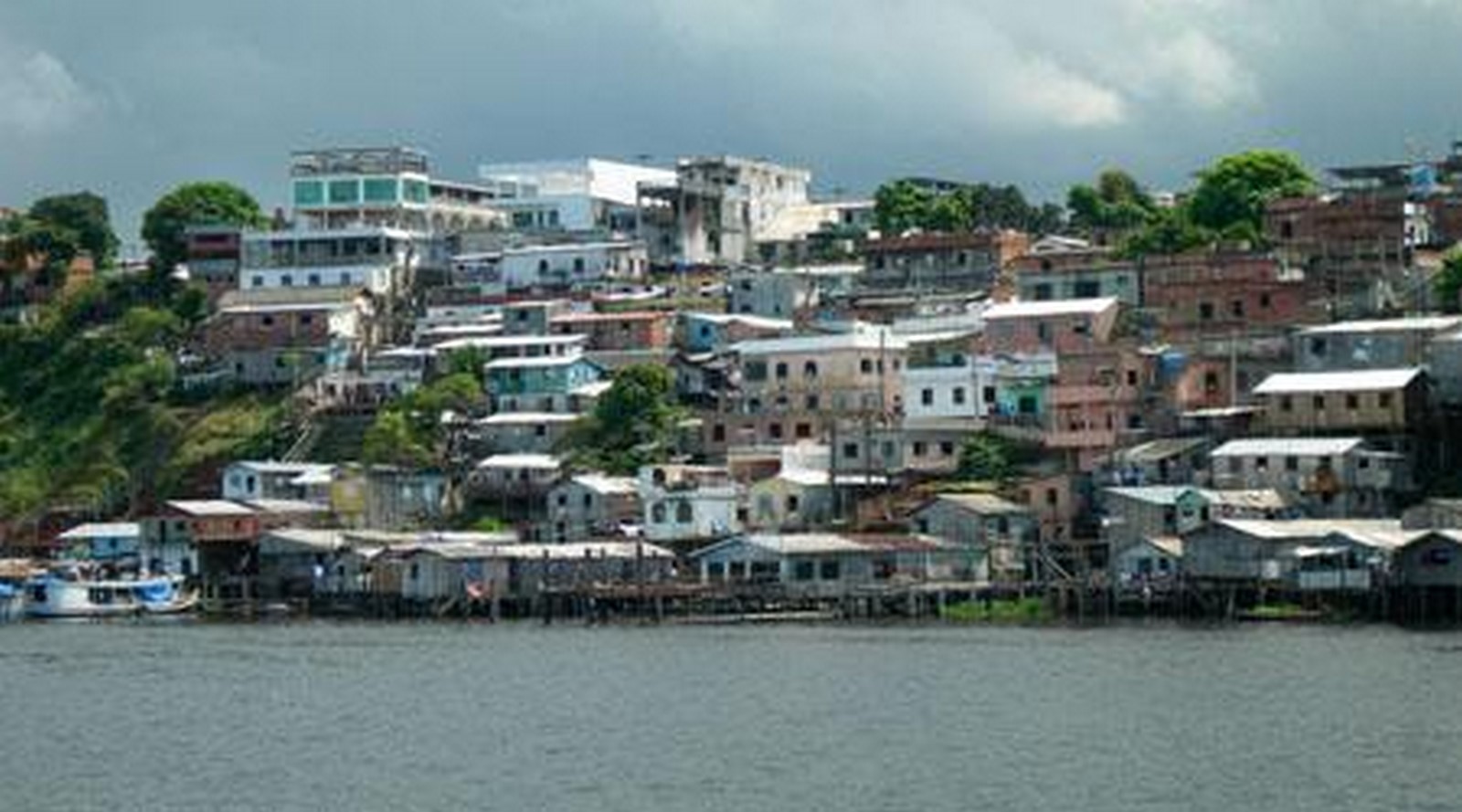

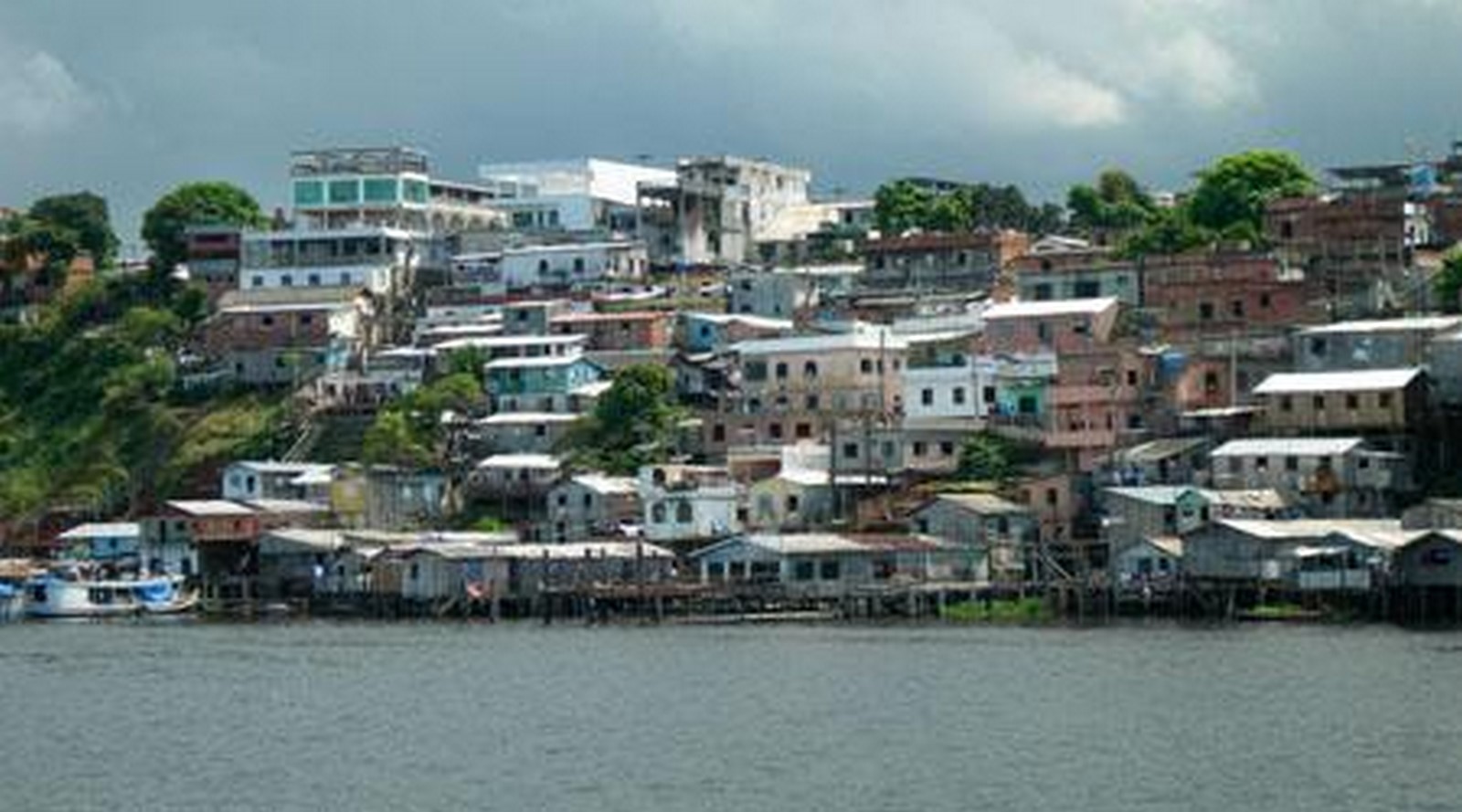

Designing in tropical monsoon ©oddizzi

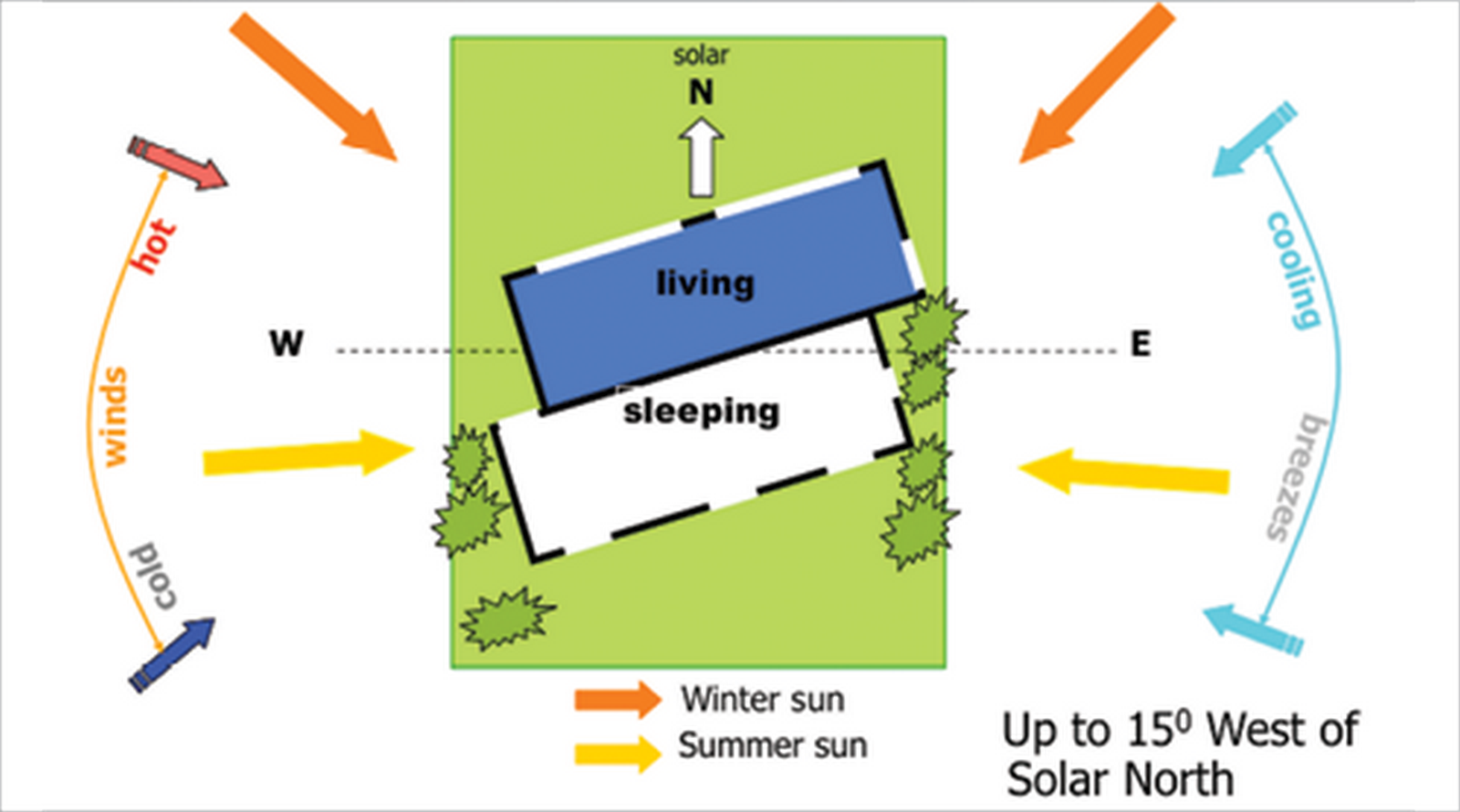

2. Orientation

The orientation of the building should be such that it harvests the forces of nature for the benefit of the user. The orientation should reduce direct sunlight inside the structure however it should allow glaze free indirect light. The structure should be along the prevailing wind direction to maximize ventilation. It must also be noted that- The highest intensity of radiation falls on the roof and west walls, and it is slightly less on the east walls. This is because the morning temperatures are lower. The relative areas of the building surfaces may be adjusted to minimize heat gain due to solar radiation.

10 things to remember while designing in Tropical monsoon - Sheet4
Designing in tropical monsoon ©yourhome.gov.au

3. Form and planning

As the movement of air is only available to relieve the climatic stress, therefore it is vital to catch indoor comfort by opening the building to the breeze. Elongated plan shapes with a single row of rooms to allow cross-ventilation, accessible from open verandahs and galleries are generally provided.

Eduwik- Online Courses for Architects & Designers

4. Openings and shading devices

Since we are designing for Tropical Monsoon air movement should be given high priority as it brings down high temperatures and reduces the humidity in the shelter. However, one should make sure that the size of the opening is appropriate. The design of large openings may get unnecessary heat through radiation hence shading devices are essential. Shaded courtyards around the house were designed for the same.

10 things to remember while designing in Tropical monsoon - Sheet5

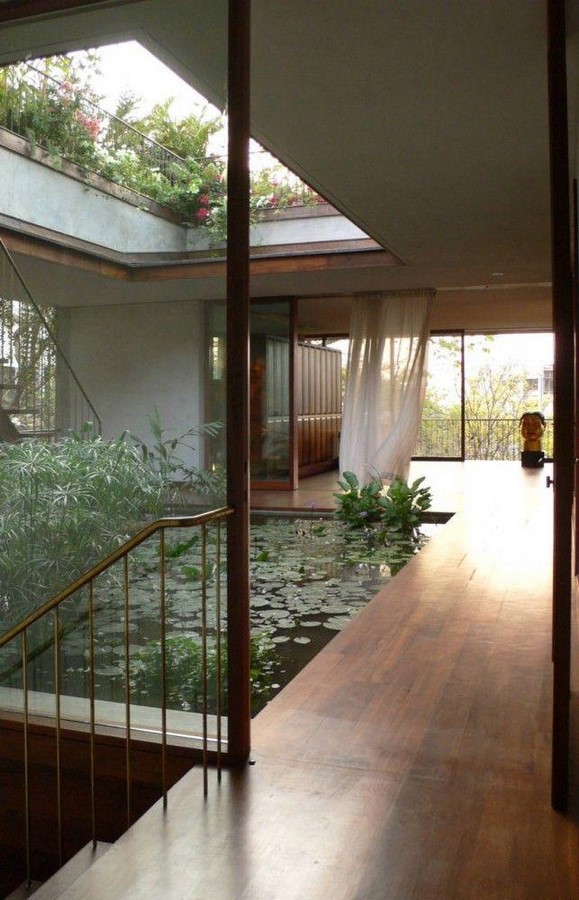

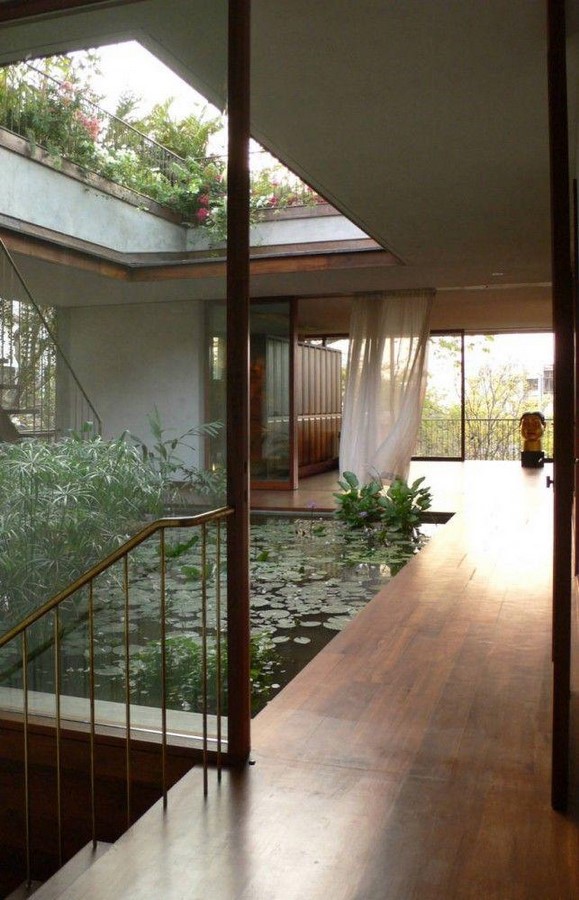

Modern courtyard in Pali Hill Mumbai for air movement and heat protection ©pinterest

5. Walls

Wall insulation is not necessary if they are shaded. However if the walls are exposed to solar radiation (such as gable walls), good insulation will prevent the elevation of inner surface temperatures above the air temperatures. Reflective qualities on the outer surface of such unshaded walls will also be helpful.

10 things to remember while designing in Tropical monsoon - Sheet6

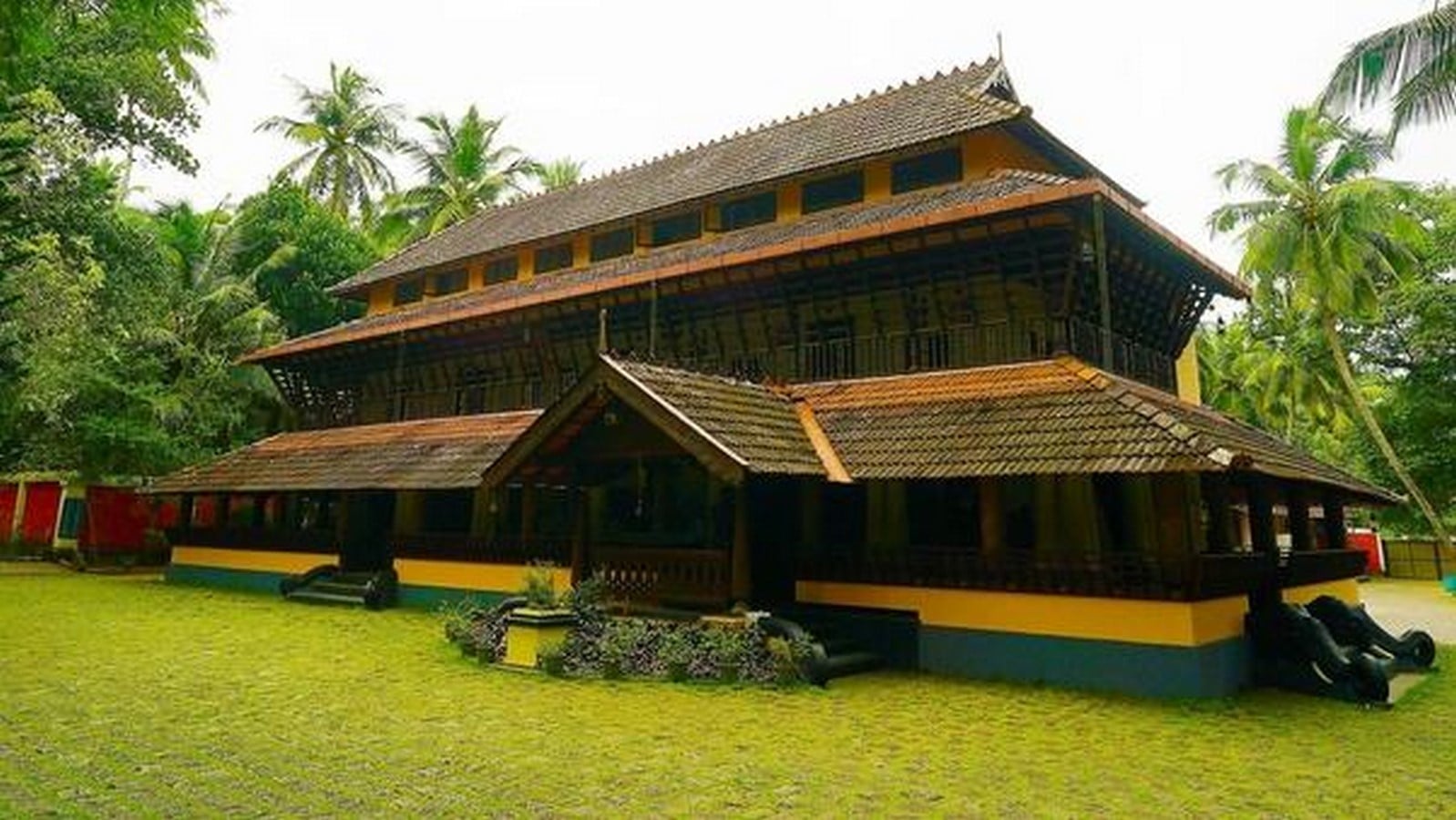

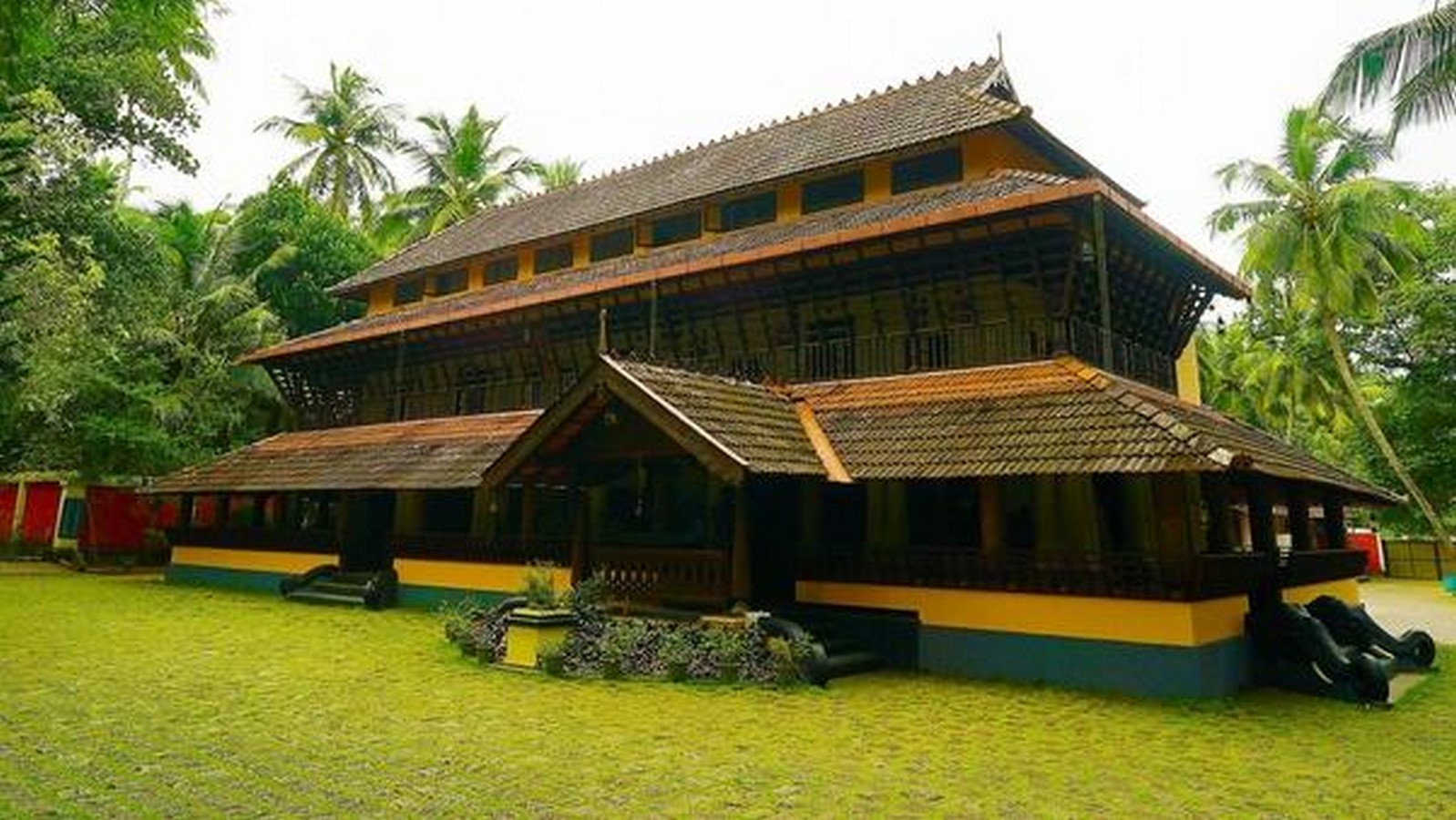

Kerala house with shaded walls from all sides to reduce inner temperatures of the house ©quora

6. Roofs

Roofs should have a reflective upper surface, a double roof construction with roof space ventilated, a ceiling with its upper surface highly reflective and having good resistive insulation. Both the ceiling and the roof should be of low thermal capacity.

Eduwik- Online Courses for Architects & Designers
10 things to remember while designing in Tropical monsoon - Sheet7

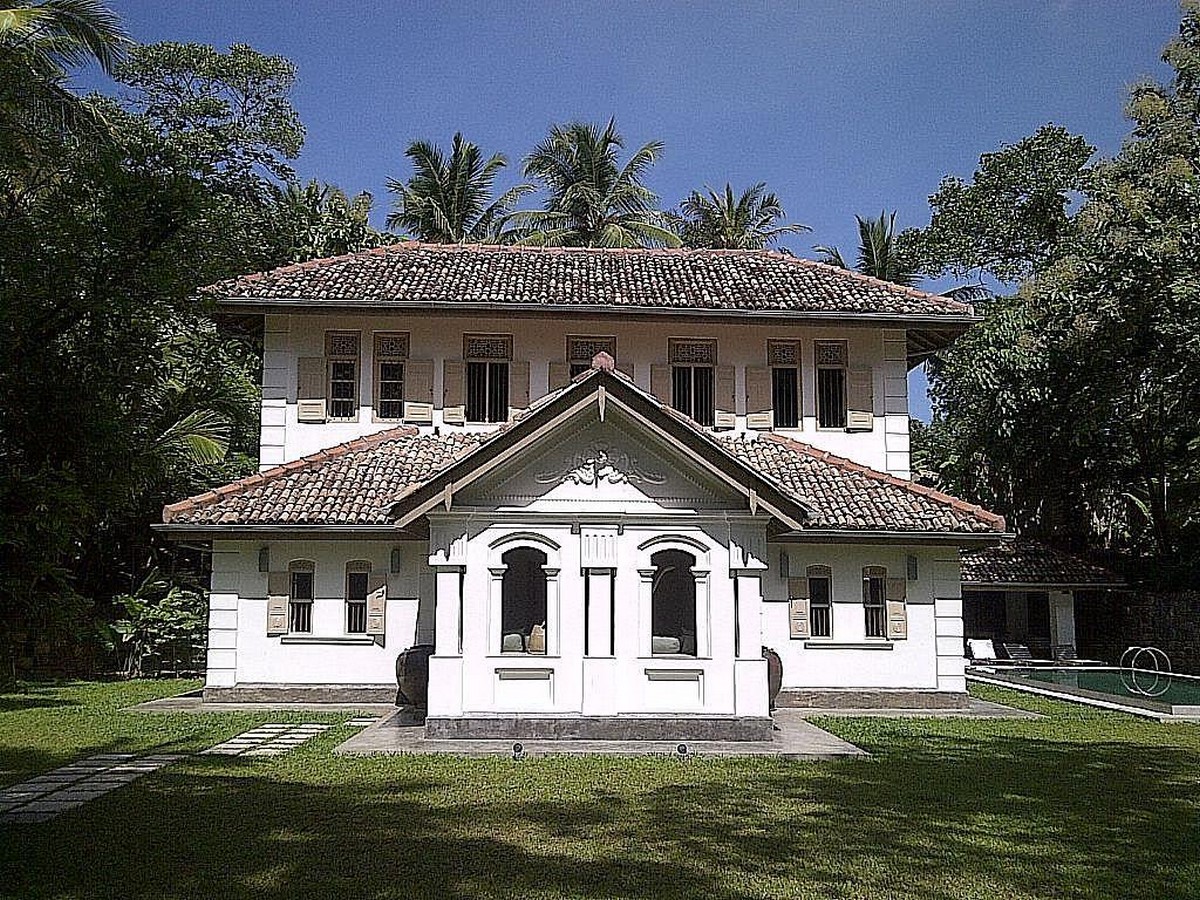

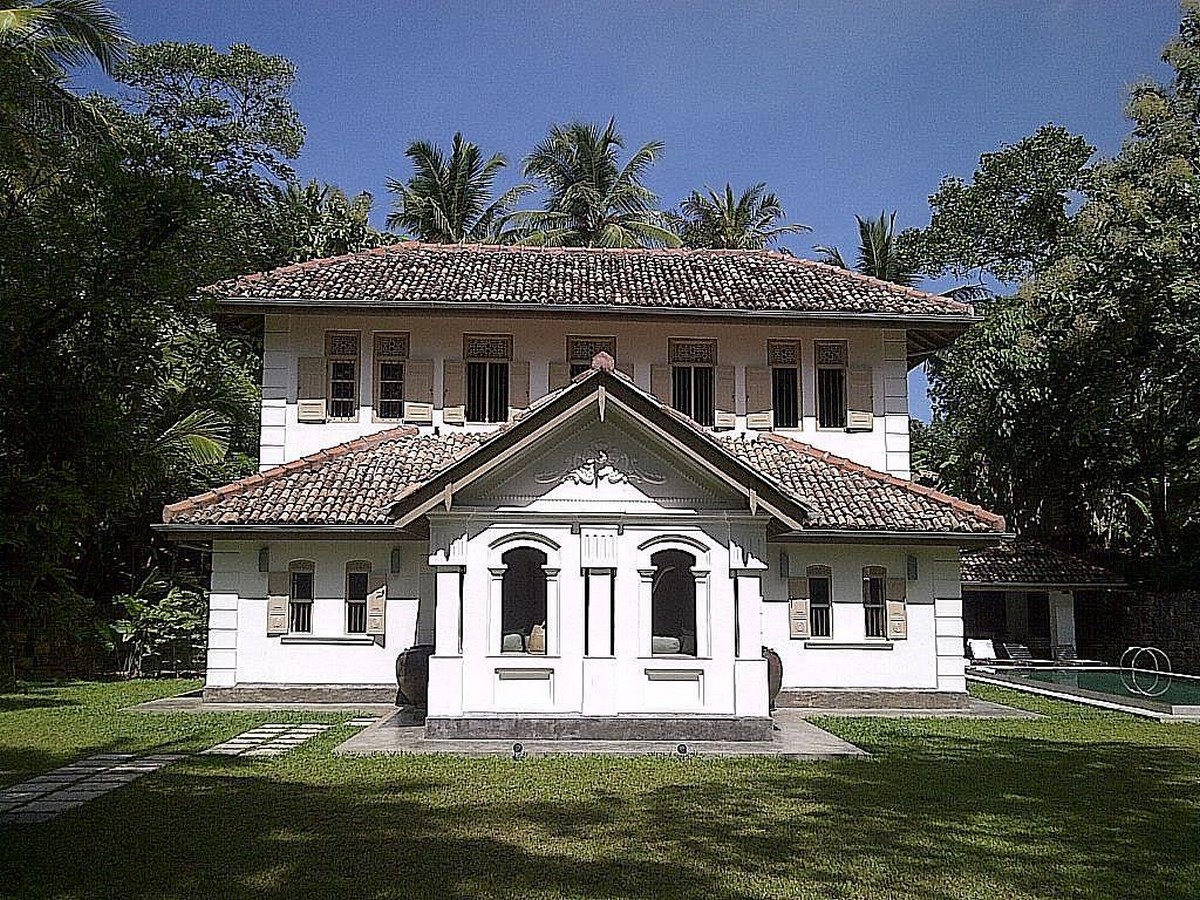

Traditional Srilankan house ©rentbyowner.com

7. Materials

As the outside temperature remains mostly constant the building cannot cool itself sufficiently at night to allow the storage of heat during the day. The principles of Thermal storage cannot be relied on in this climate. Hence it is advisable to use low thermal capacity materials, using lightweight construction.

10 things to remember while designing in Tropical monsoon - Sheet8

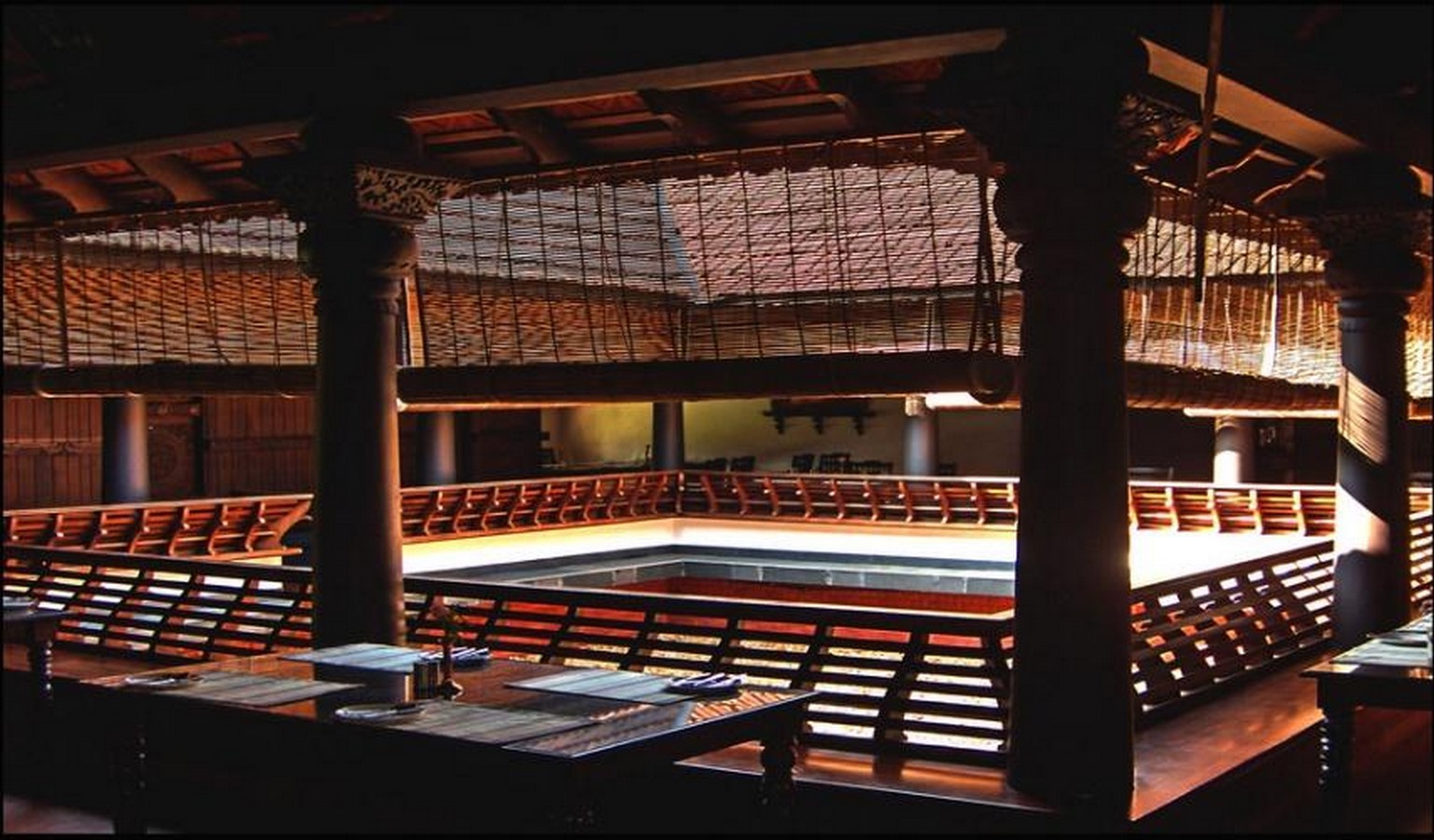

Wooden construction ©Calideoscope

8. External Spaces

The same principles apply to the design of external spaces as to the design of buildings. Shading and free passages for air movement are the two basic requirements. Trees and plantings can be relied on for shading, as plants carry foliage all year round.

10 things to remember while designing in Tropical monsoon - Sheet9

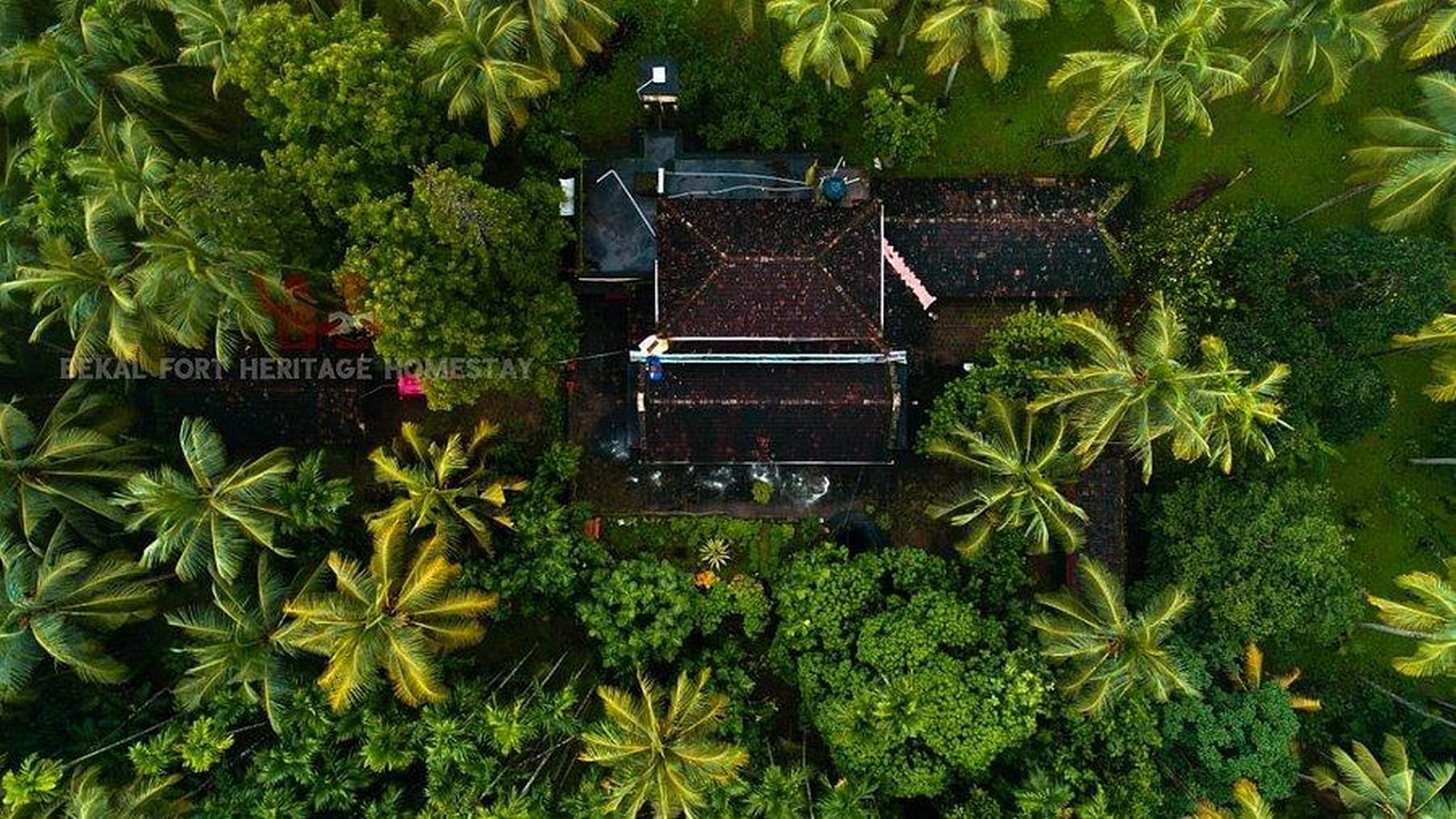

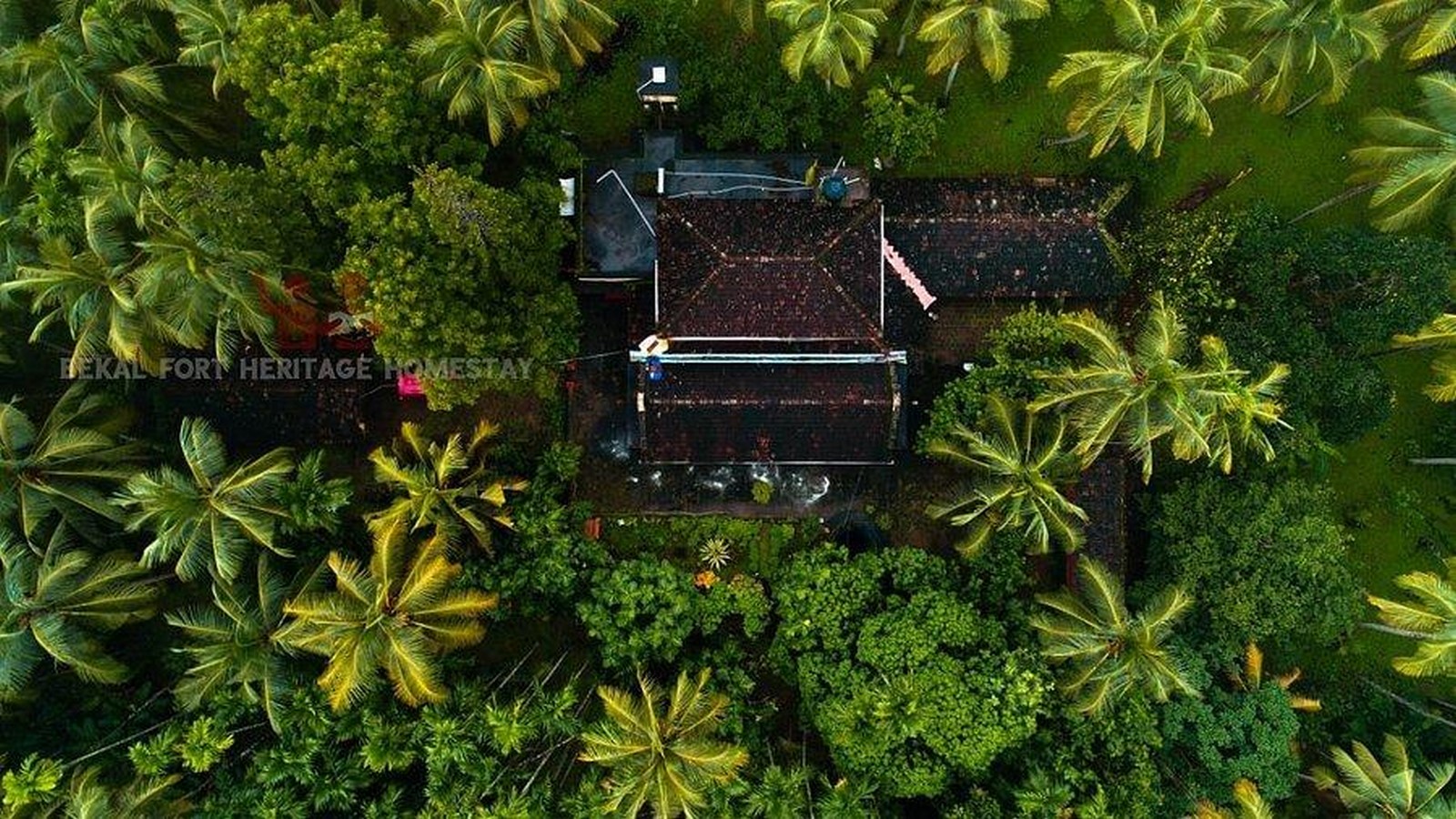

Designing in tropical monsoon ©tripadvisor

9. Principles for Comfort in the warm Humid Climate

The condition under which man adjusts himself to the environment, with the minimum expenditure of energy, is defined as the ‘comfort zone’. It is essential to understand the comfort zone of the people and area you are designing for as it is relative to the environment.

Eduwik- Online Courses for Architects & Designers

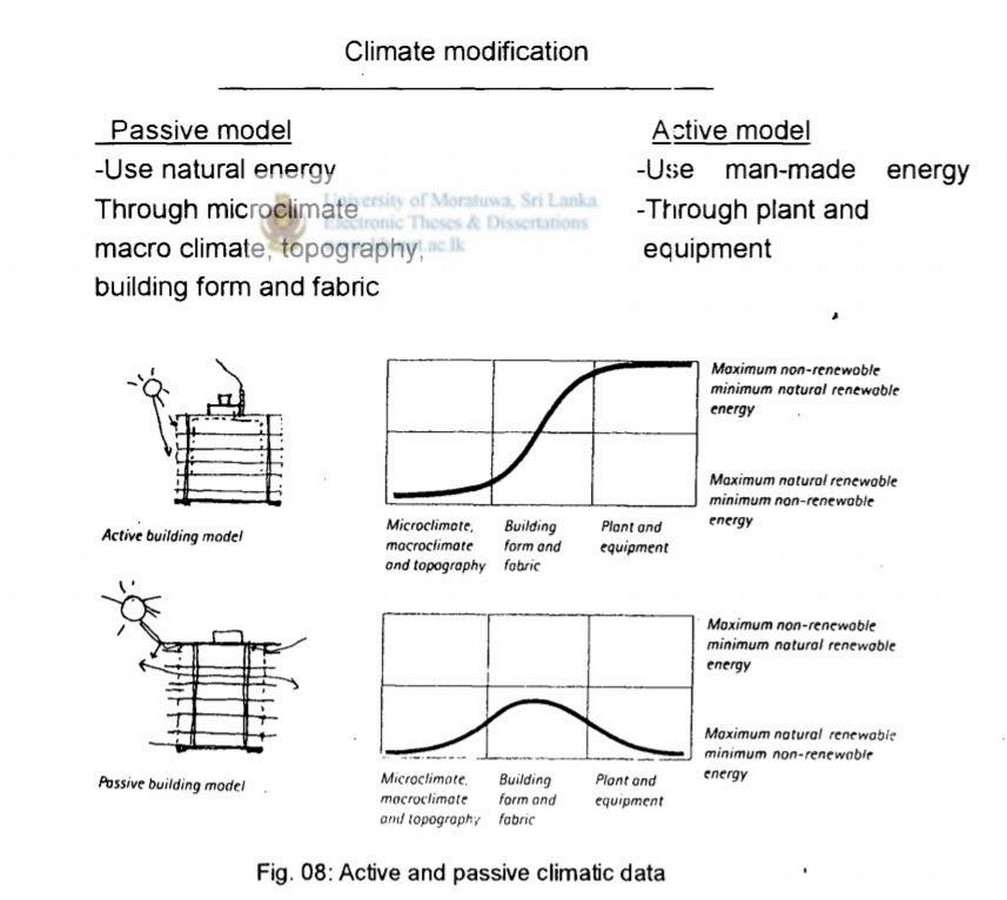

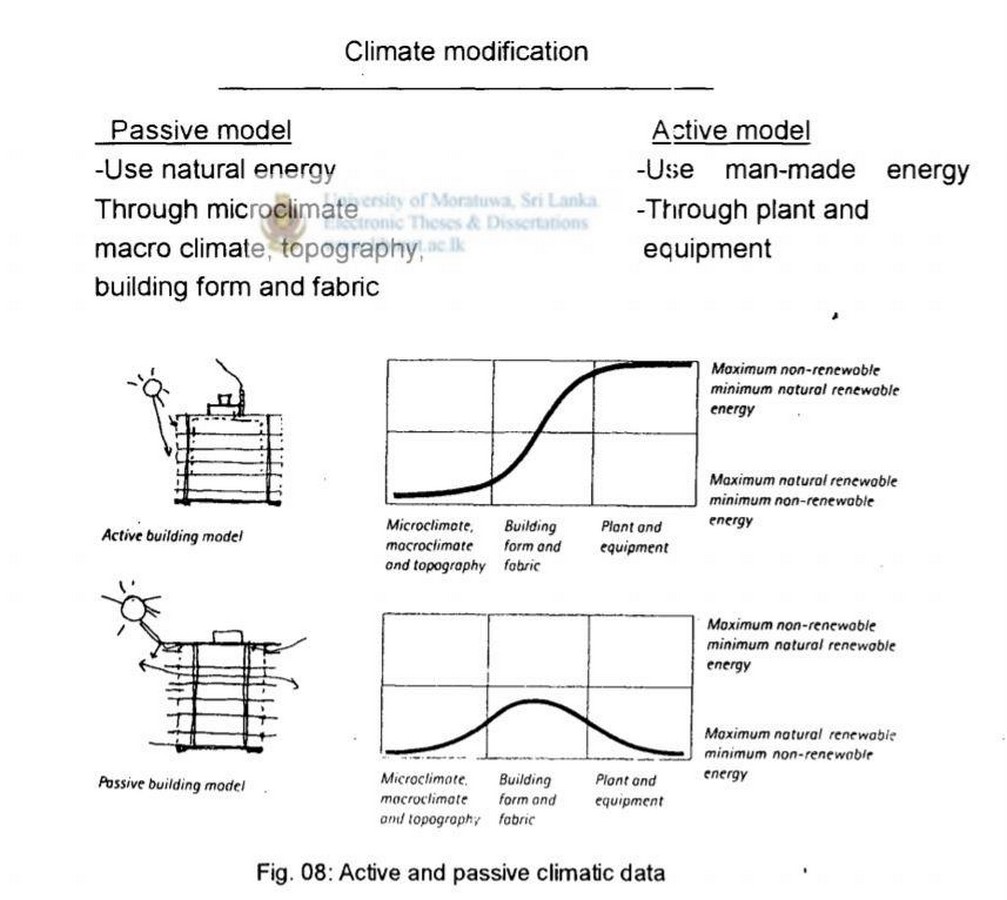

10. Climate Modification Strategies

The basic climate modification strategies involve the use of airflow, solar gain, evaporative cooling, thermal mass, shading, etc. The design basis for selecting the appropriate climate modification strategy is to define the physical characteristics of the particular climate and the design objectives.

10 things to remember while designing in Tropical monsoon - Sheet10
Designing in tropical monsoon ©dl.lib.mrt.ac.lk
