Humankind has continuously strived to push boundaries, be it with science, medicine, art, or architecture. We are challenging ourselves to design and execute some of the largest and breath-taking projects across the world. A once-impossible feat is now achievable due to incalculable advancements in building materials, techniques, and engineering.

Here are fifteen examples of extreme engineering around the world:

Eduwik- Online Courses for Architects & Designers

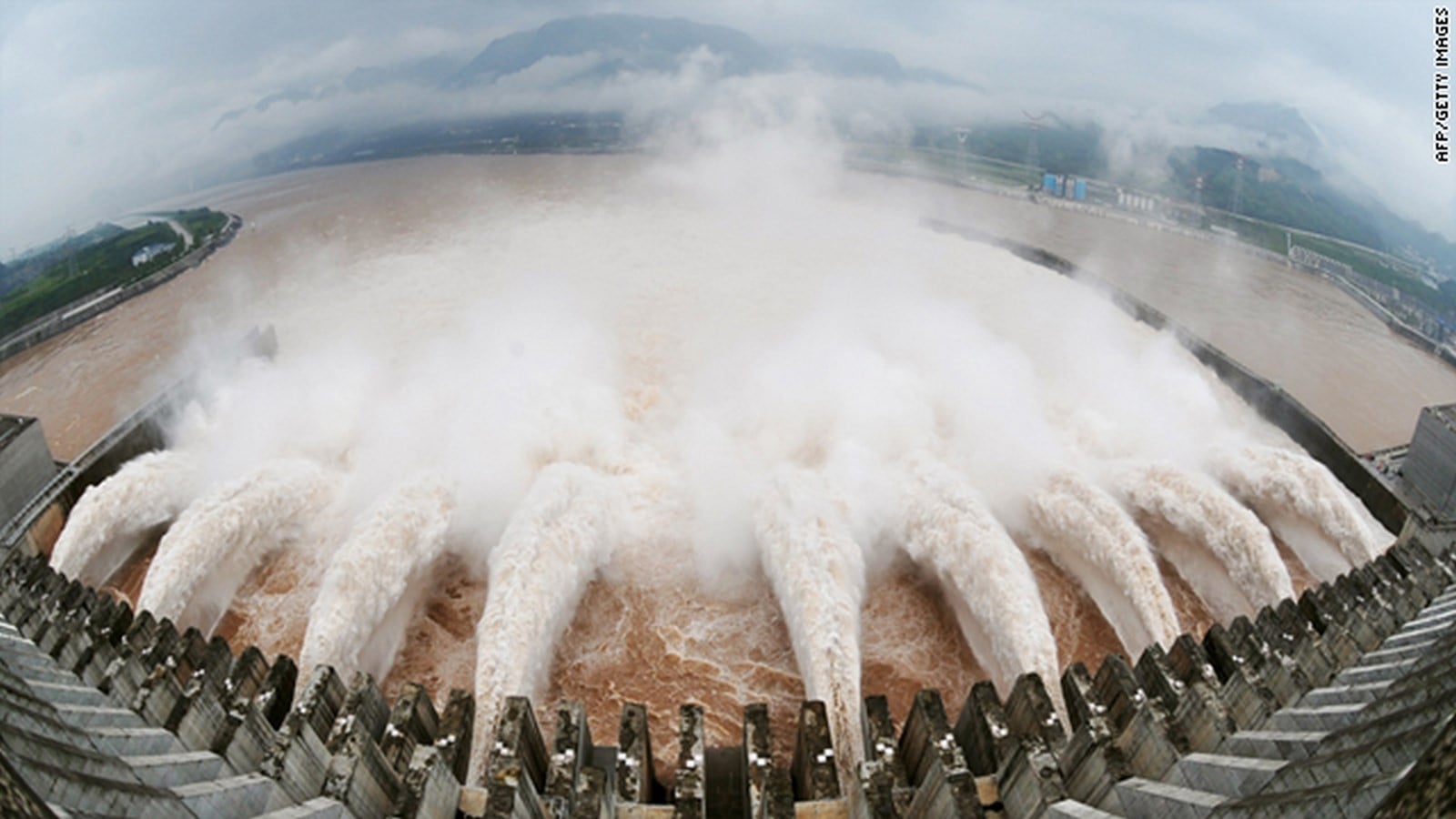

1. Three Gorges Dam

Location: Hubei Province, China
Status: Completed in 2012

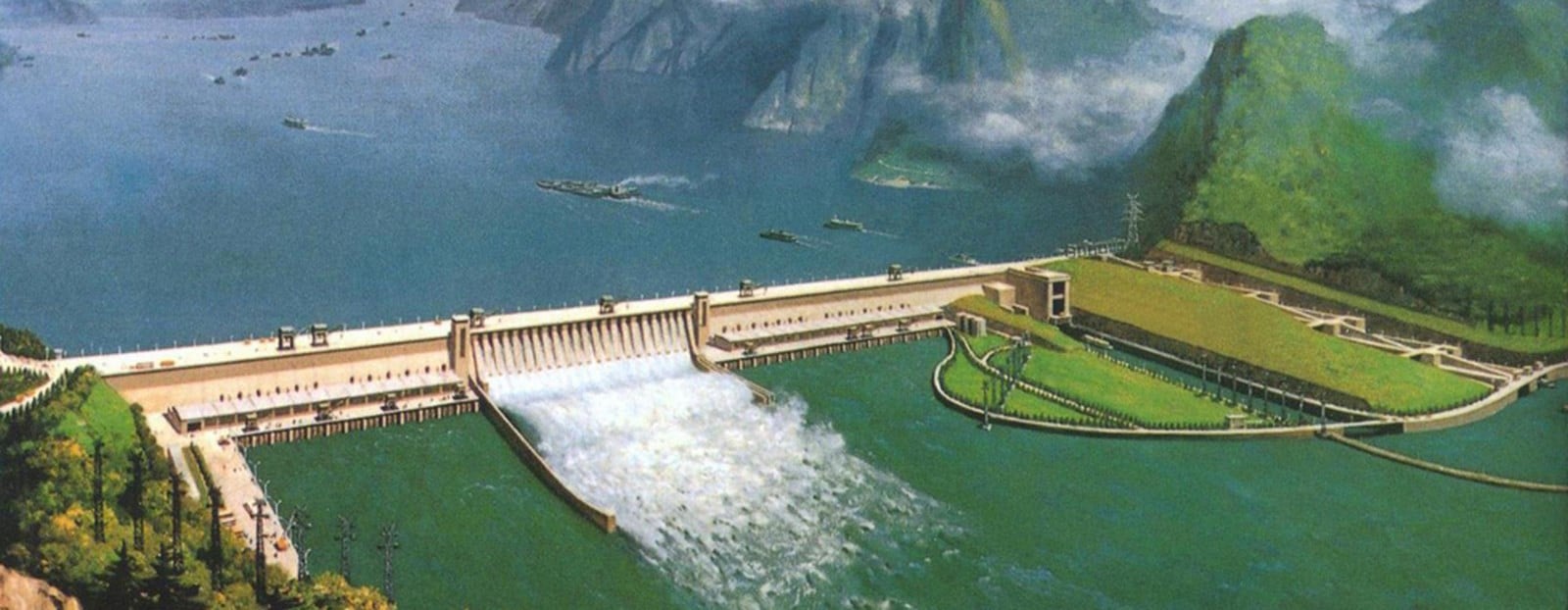

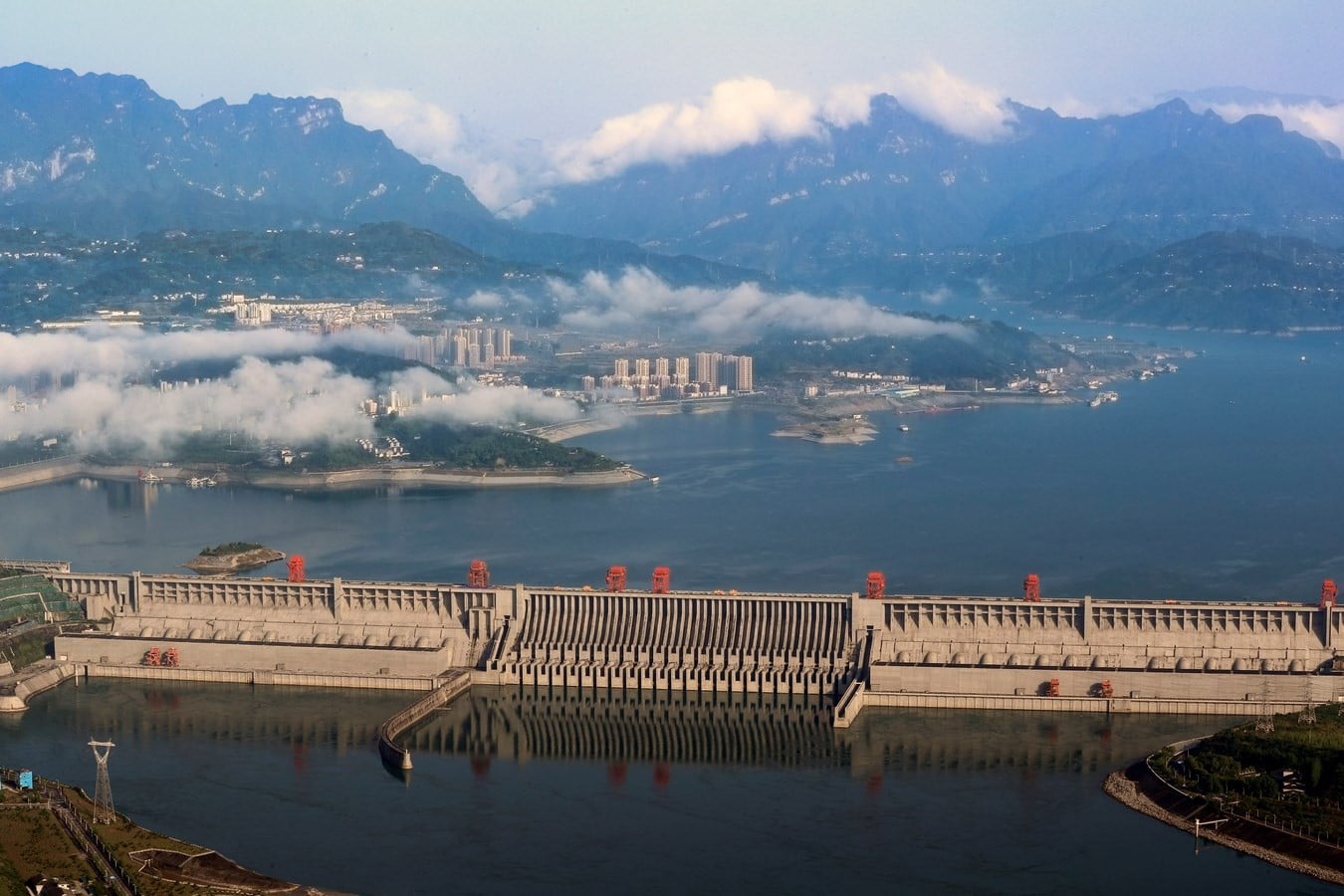

Built over the Yangtze River in Hubei Province of China, Three Gorges Dam is considered the world’s largest hydropower project spanning 2,335m in length and 185m in height. The dam consists of 28 million cubic meters of concrete and 5,10,000 metric tons of steel. It is massive enough to shift the mass on earth and increase the length of the day by 0.06 microseconds.

Three Gorges Dam - Sheet1
Three Gorges Dam ©Reuters
Three Gorges Dam - Sheet2
Three Gorges Dam ©CNN
Three Gorges Dam - Sheet3
Three Gorges Dam ©www.chinadiscovery.com

2. Öresund Bridge – “The Disappearing Road”

Location: Denmark
Status: Completed in 1999

Eduwik- Online Courses for Architects & Designers

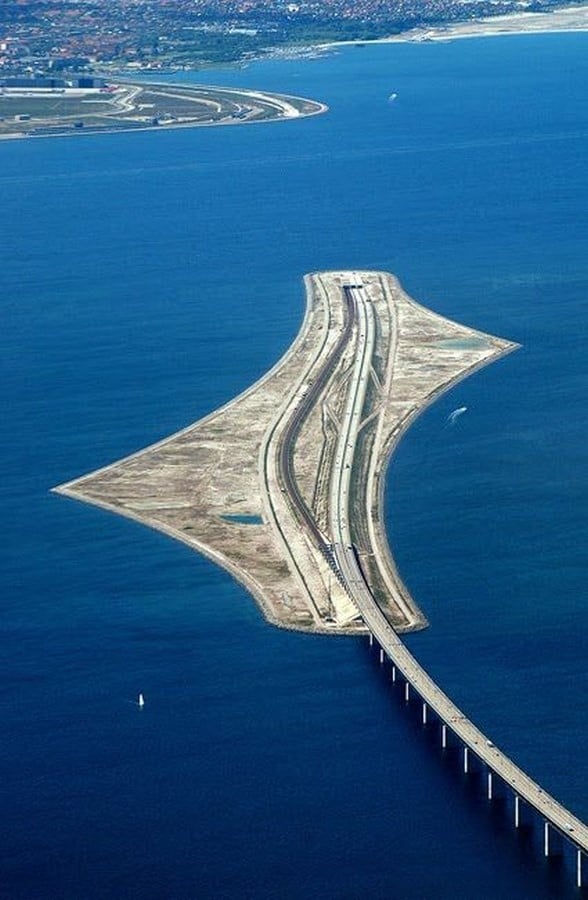

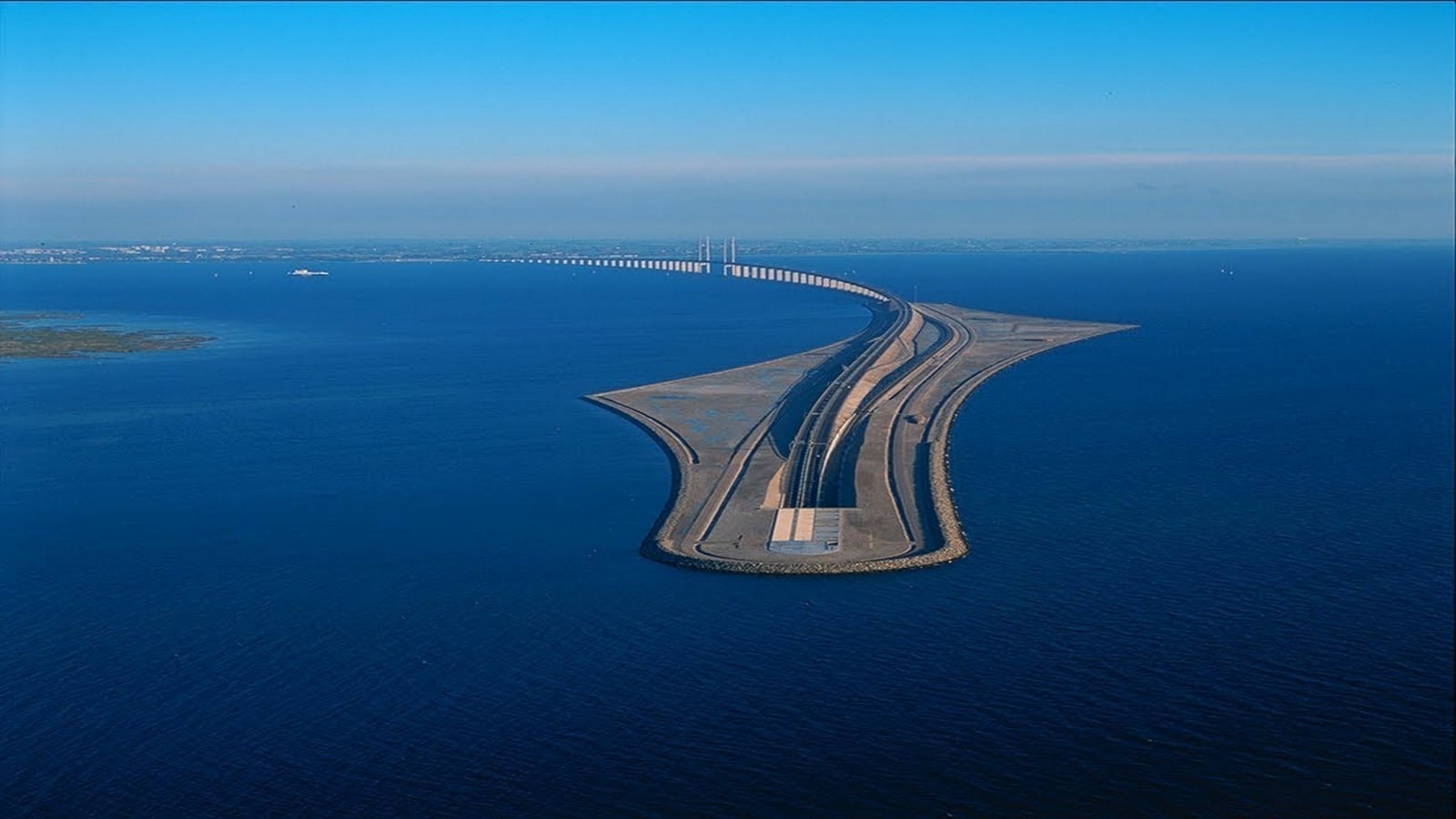

One of the lesser-known wonders is the Öresund Bridge, connecting Sweden and Denmark. The bird’s eye view of the bridge reveals a bizarre construction.

The bridge’s roadway dips down beneath the water, literally disappearing into the ocean! The road descends into the Grodgen Tunnel that runs underwater for around two and a half miles.

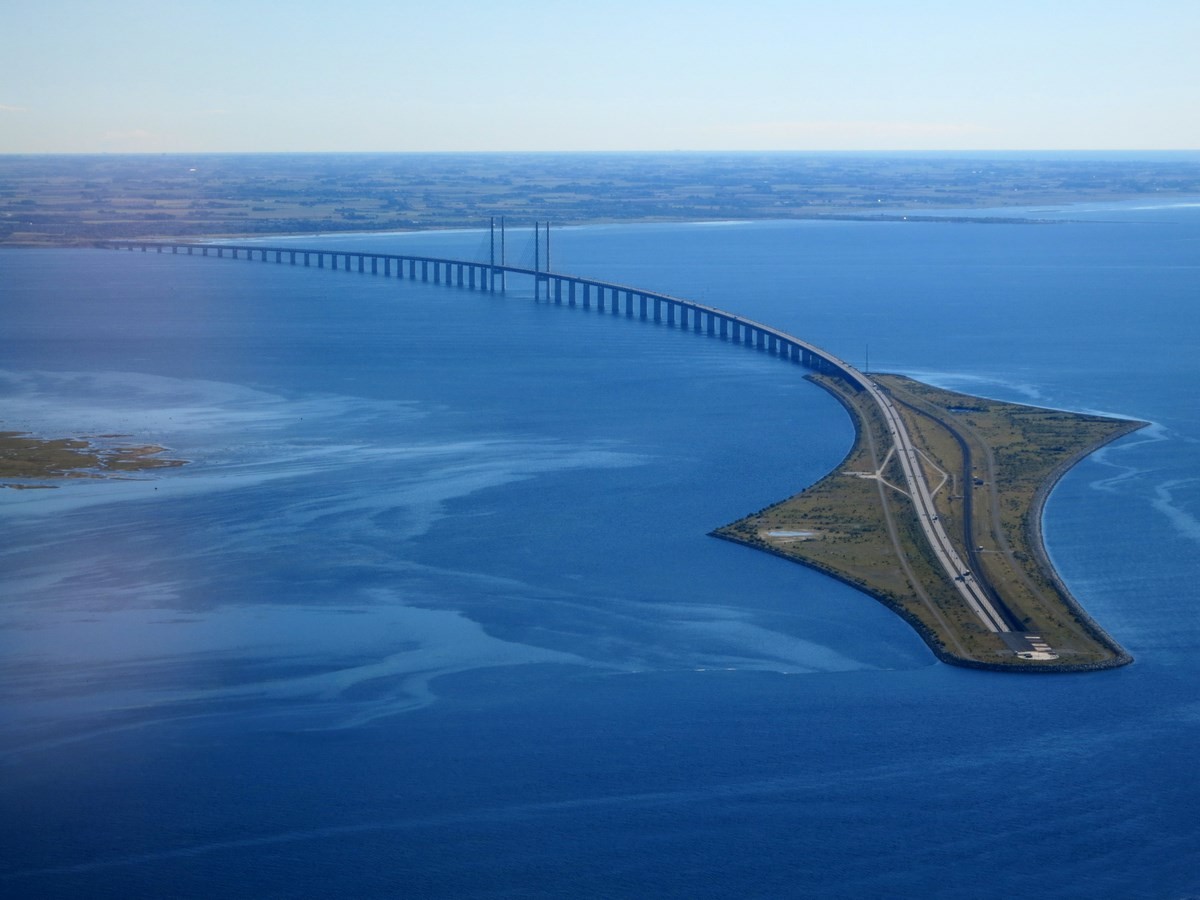

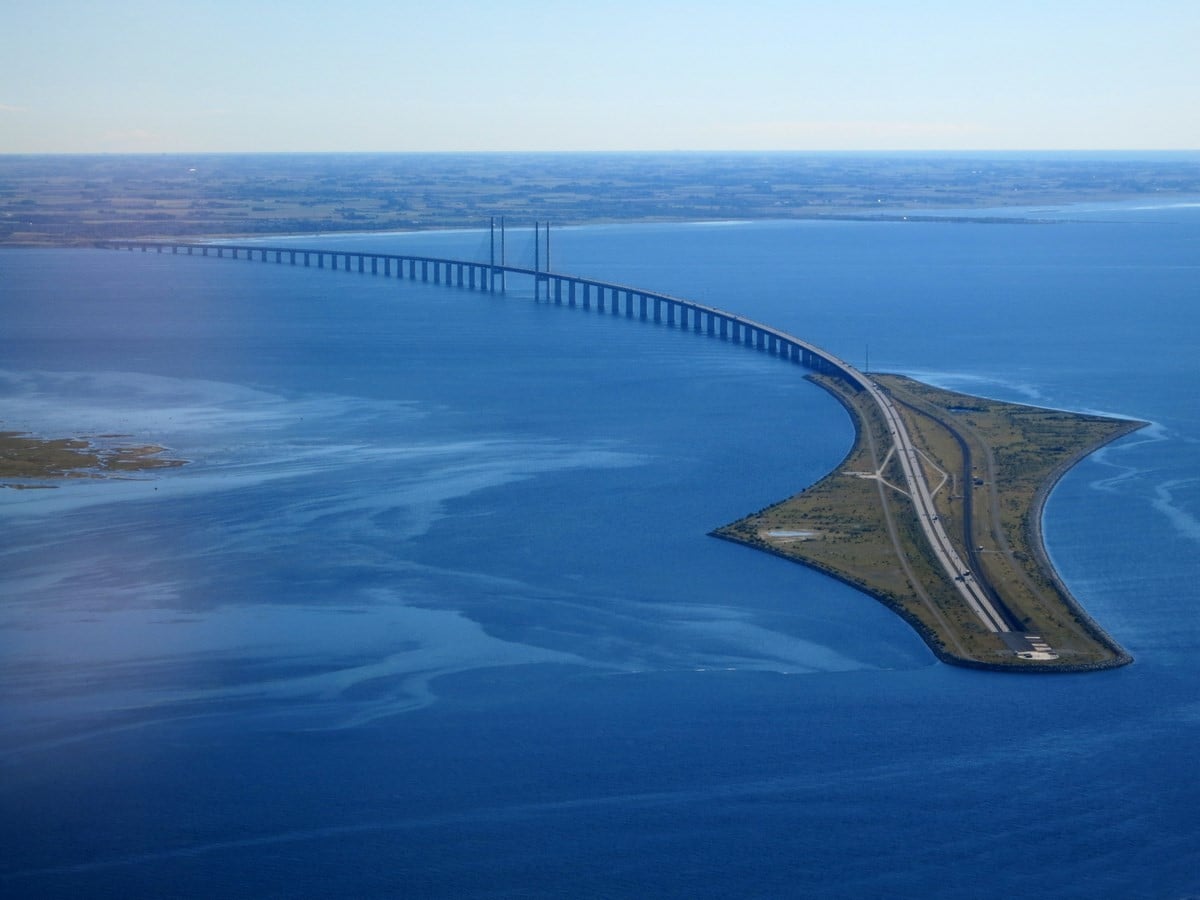

Öresund Bridge – “The Disappearing Road” - Sheet1
Öresund Bridge ©Wikipedia
Öresund Bridge – “The Disappearing Road” - Sheet2
Öresund Bridge ©Youtube
Öresund Bridge – “The Disappearing Road” - Sheet3
Öresund Bridge ©Pinterest

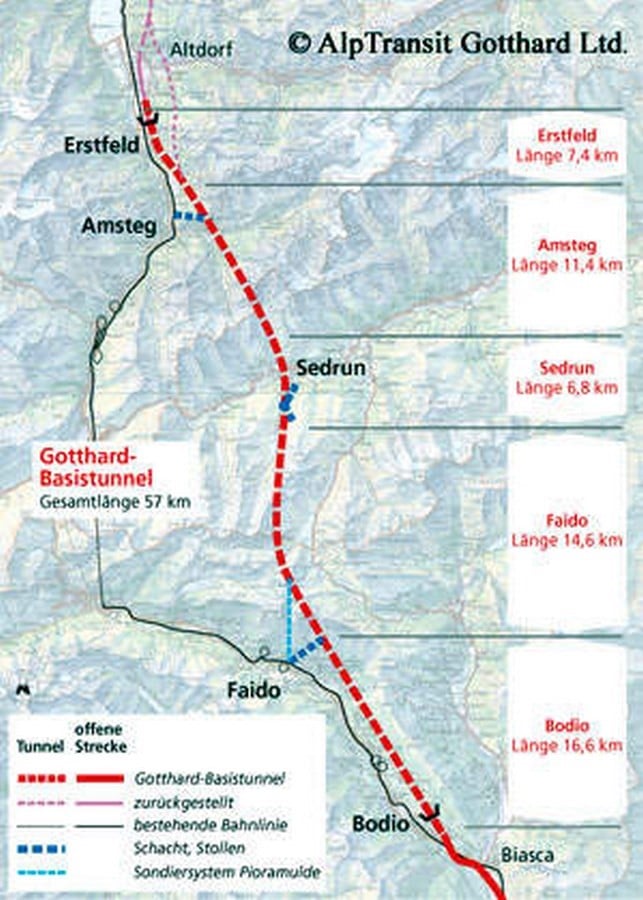

3. Gotthard Base Tunnel

Location: Switzerland
Status: Completed in 2016

Eduwik- Online Courses for Architects & Designers

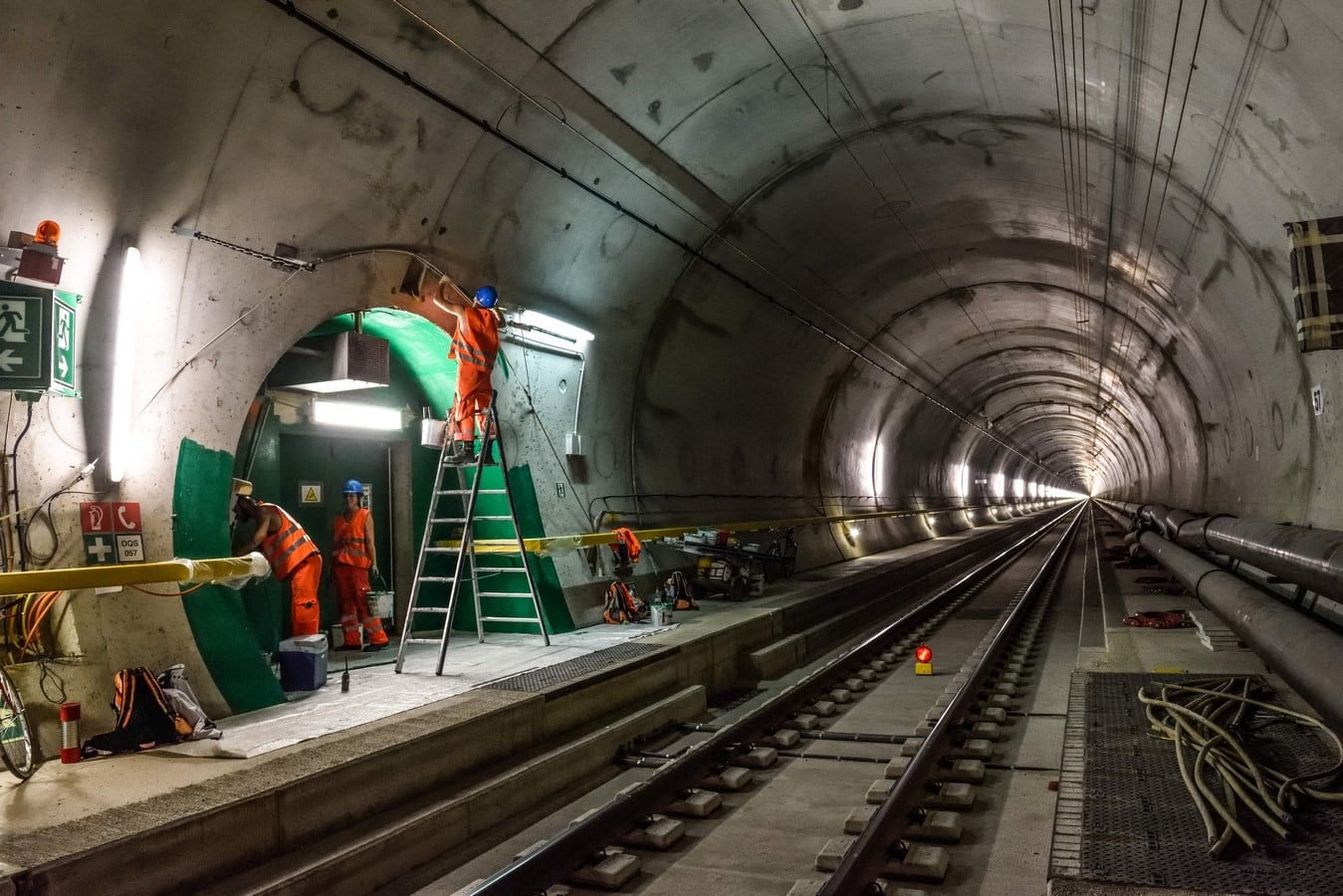

The geographical barrier formed by the Alps across Europe led to the construction of the world’s deepest railway tunnel buried under 2,300m of rocks. The surveyors also achieved a near-perfect construction, with a small 8cm deviation horizontally across the length of the tunnel.

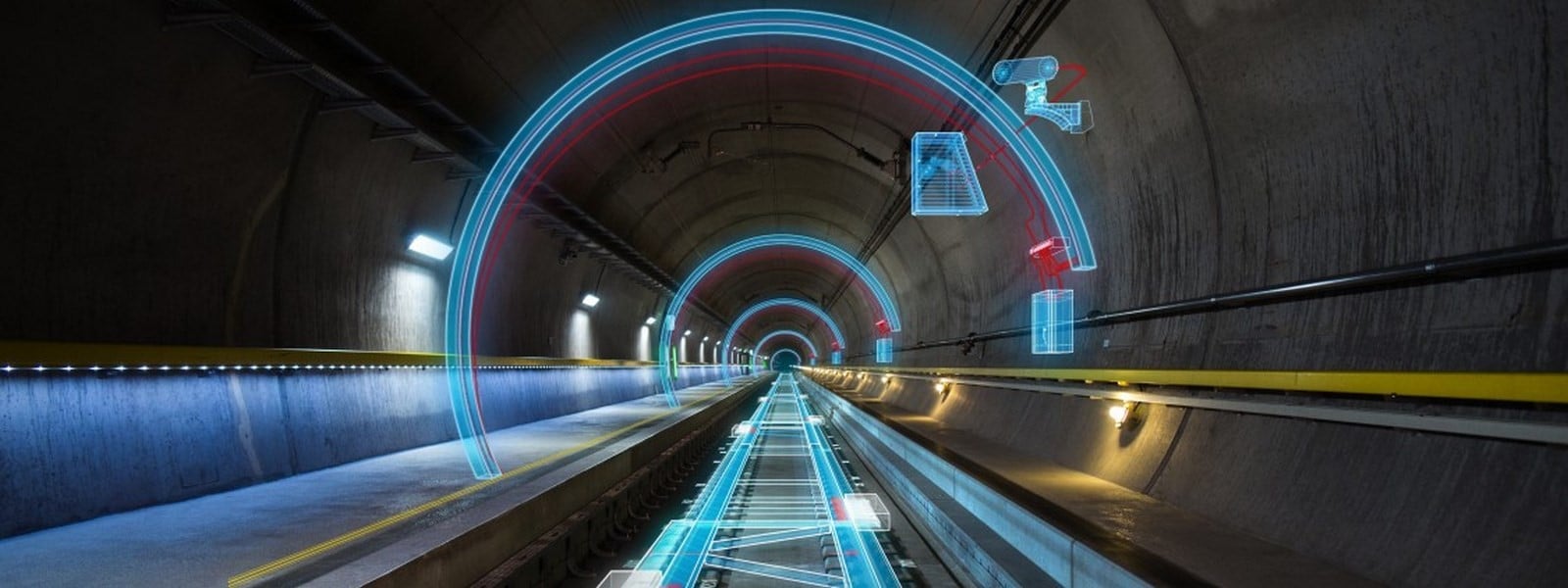

Gotthard Base Tunnel - Sheet1
Gotthard Base Tunnel ©Siemens Global

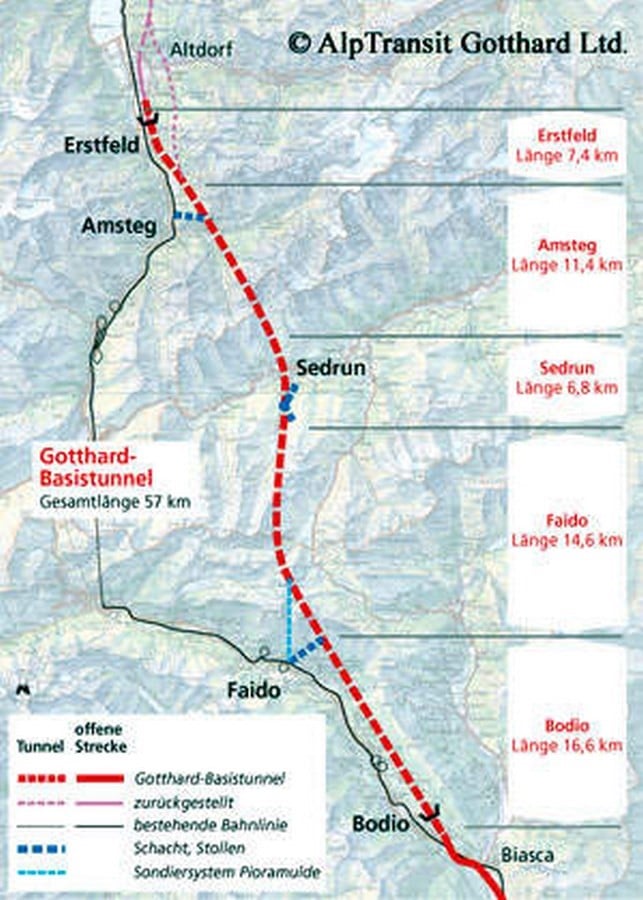

Gotthard Base Tunnel - Sheet2
Gotthard Base Tunnel ©Railway Technology

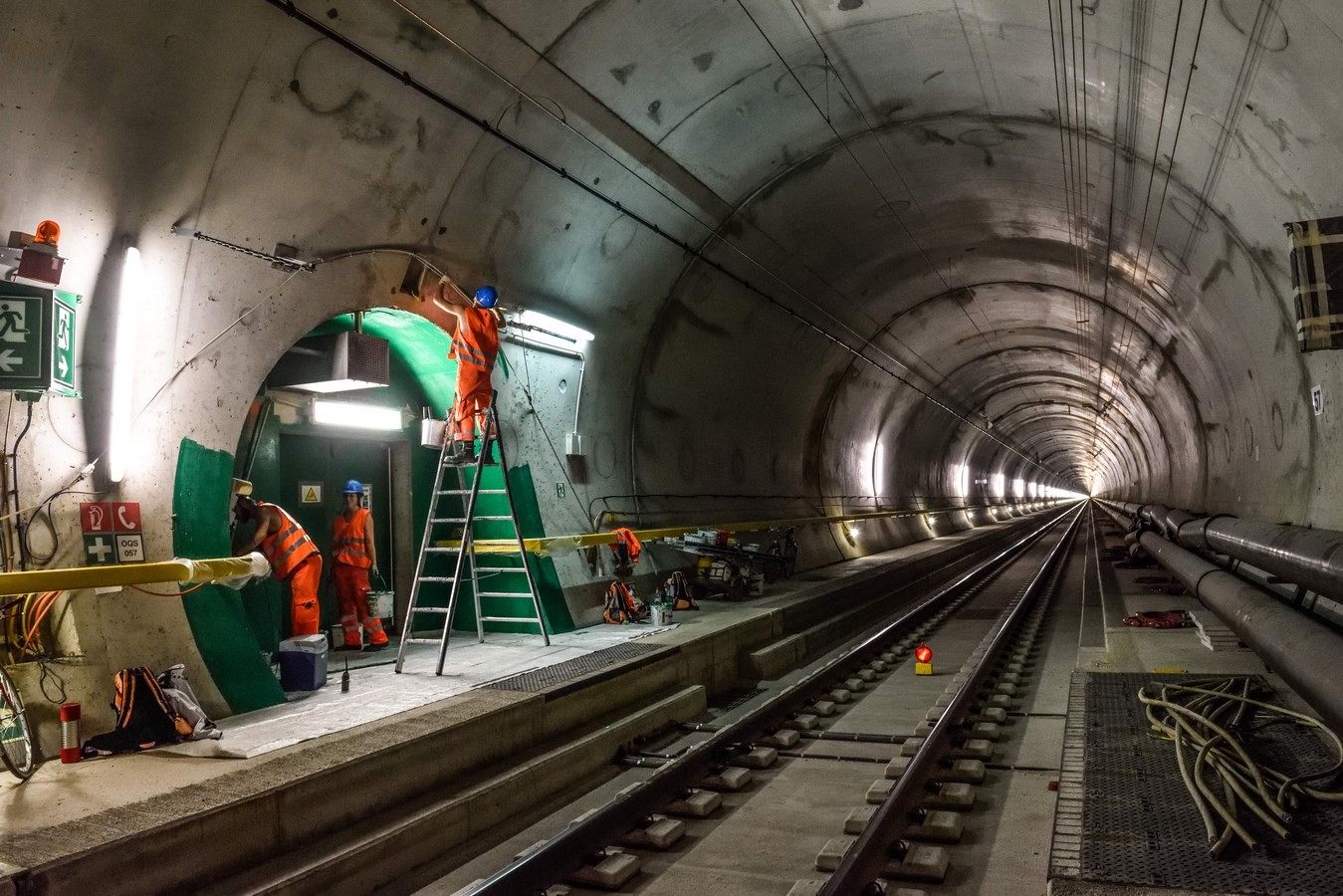

Gotthard Base Tunnel - Sheet3
Gotthard Base Tunnel ©Railway Technology

4. IHNC Lake Borgne Surge Barrier

Location: New Orleans
Status: Completed in 2013

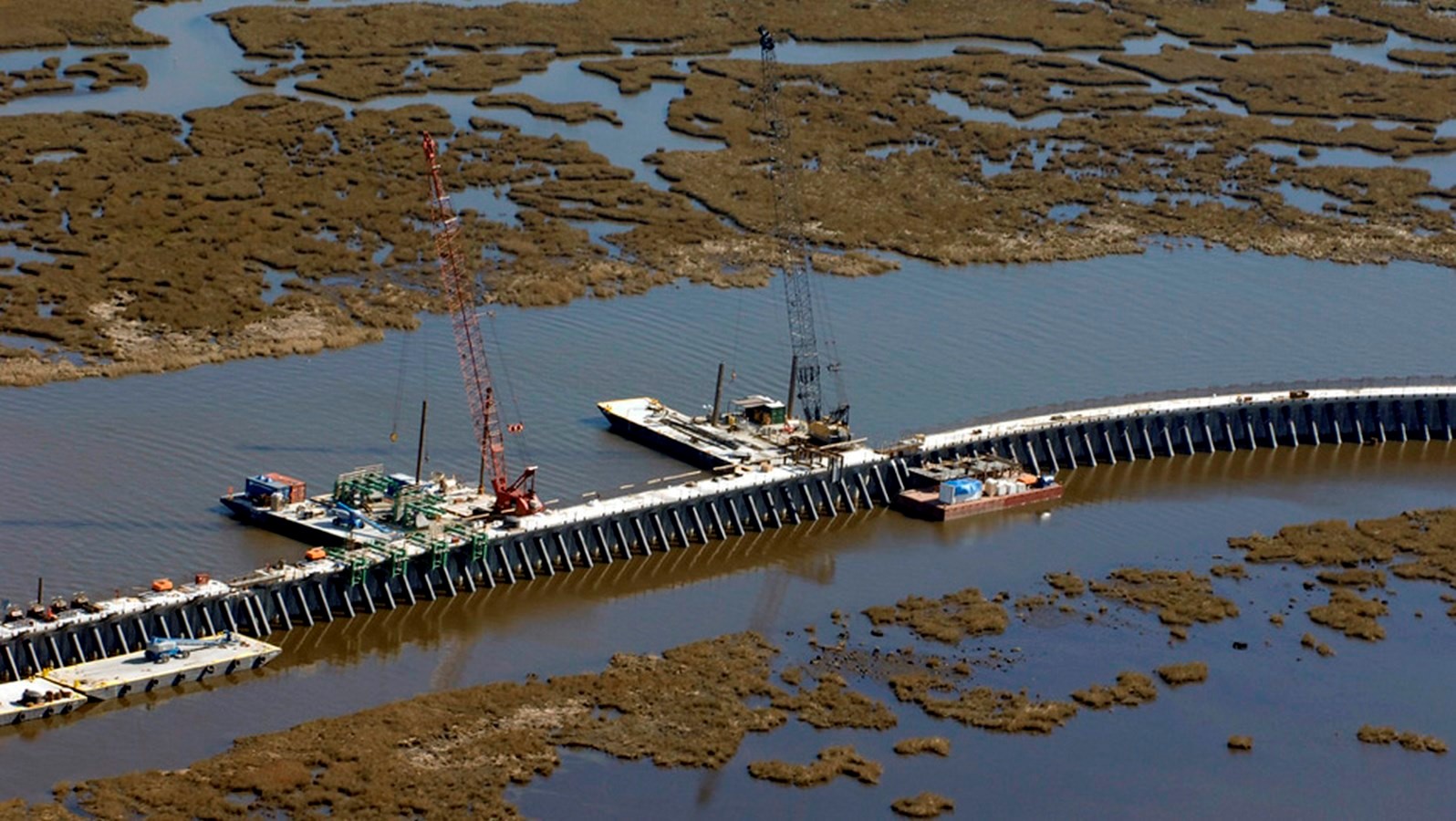

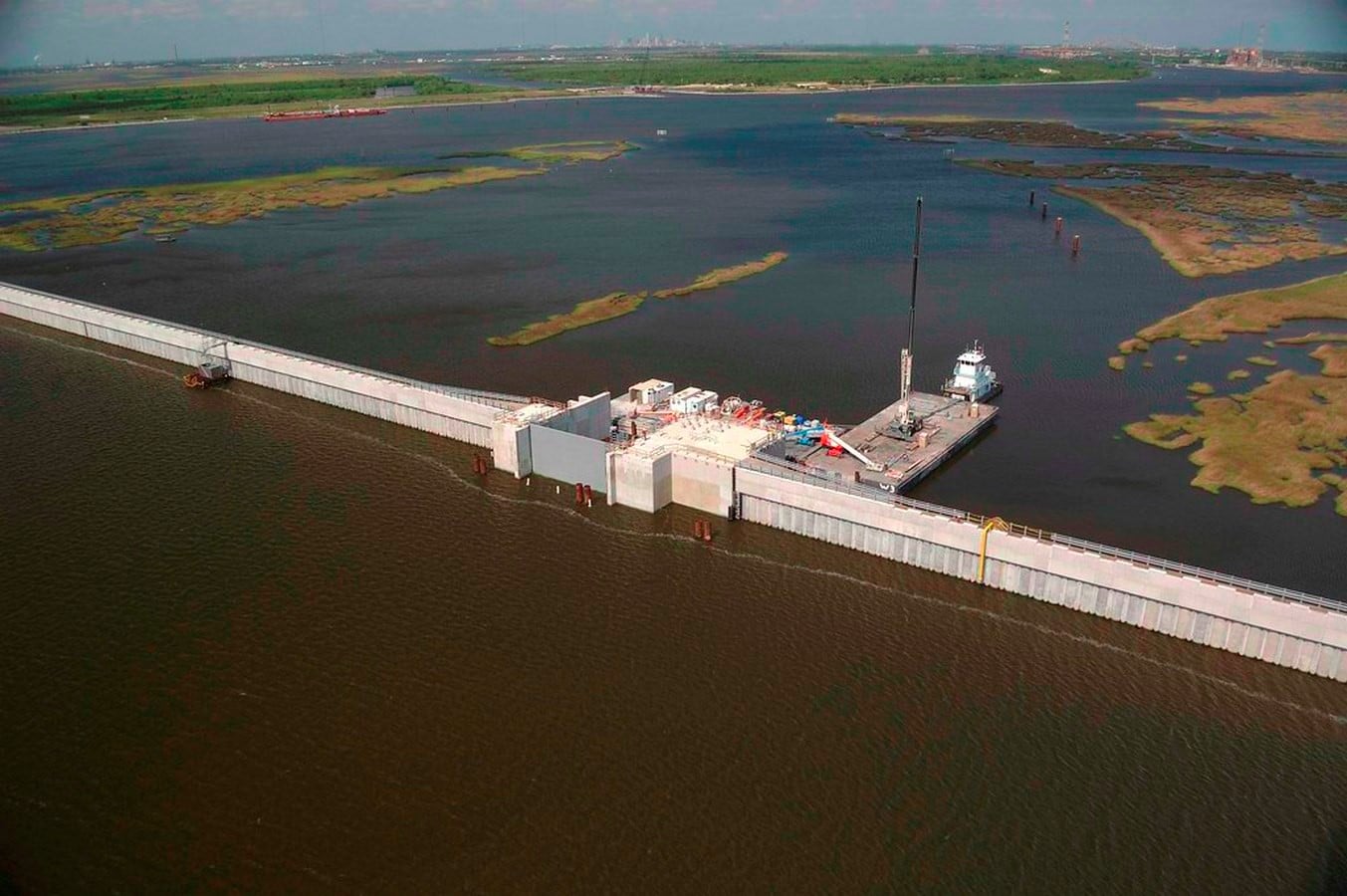

Termed as the “Great Wall of Louisiana,” the storm surge barrier is deemed the most prominent public works project undertaken in the US. It forms a 133-miles long enclosure around the city and reaches 150 ft deep into the waters. The barrier consists of 1,271 concrete piles, each being 44m long, 1.7m in diameter, and weighing 96 tonnes.

Eduwik- Online Courses for Architects & Designers

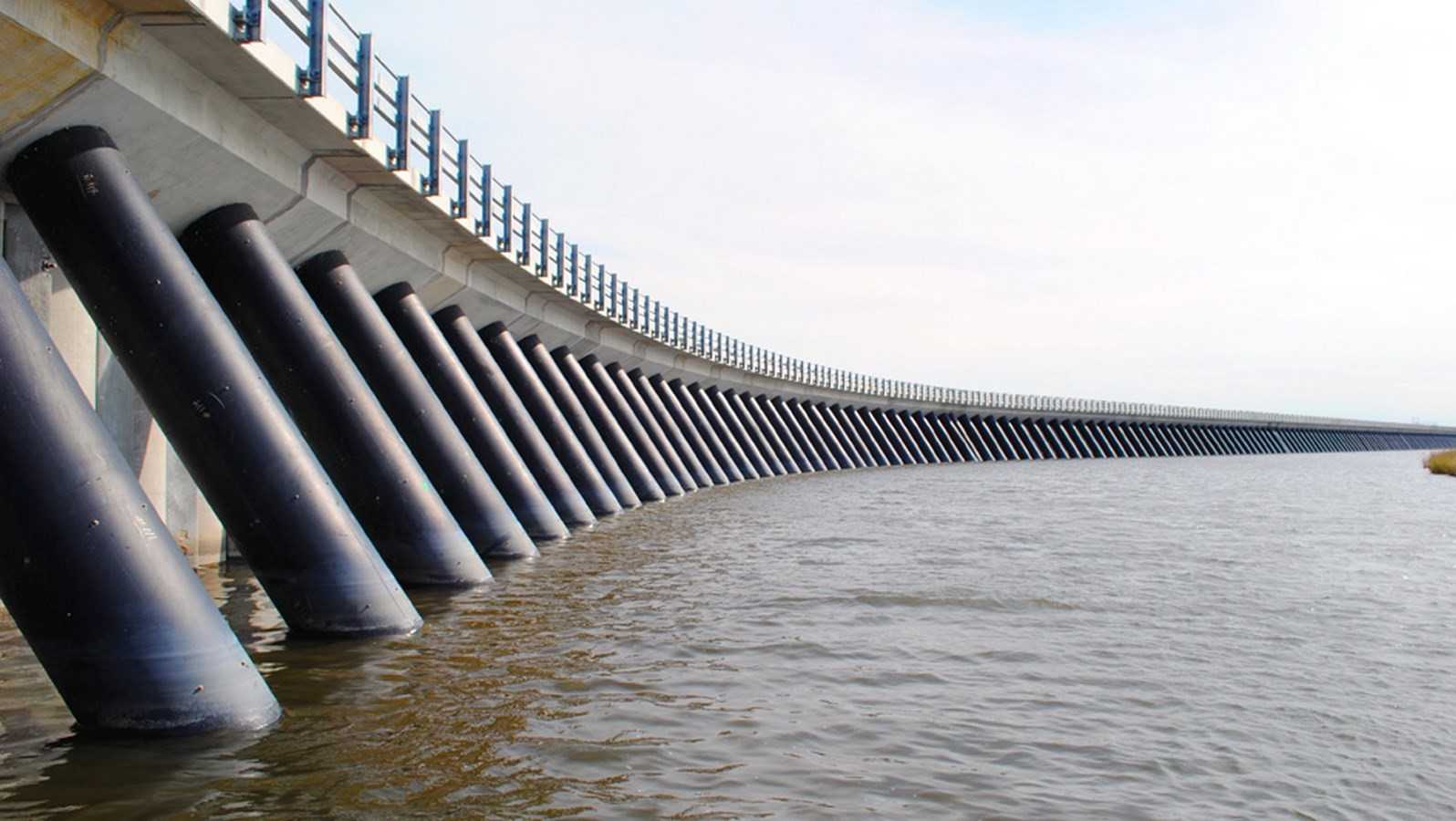

IHNC Lake Borgne Surge Barrier - Sheet1
IHNC Lake Borgne Surge Barrier ©Inner Harbor Navigation Channel
IHNC Lake Borgne Surge Barrier - Sheet2
IHNC Lake Borgne Surge Barrier ©Inner Harbor Navigation Channel
IHNC Lake Borgne Surge Barrier - Sheet3
IHNC Lake Borgne Surge Barrier ©Flickr

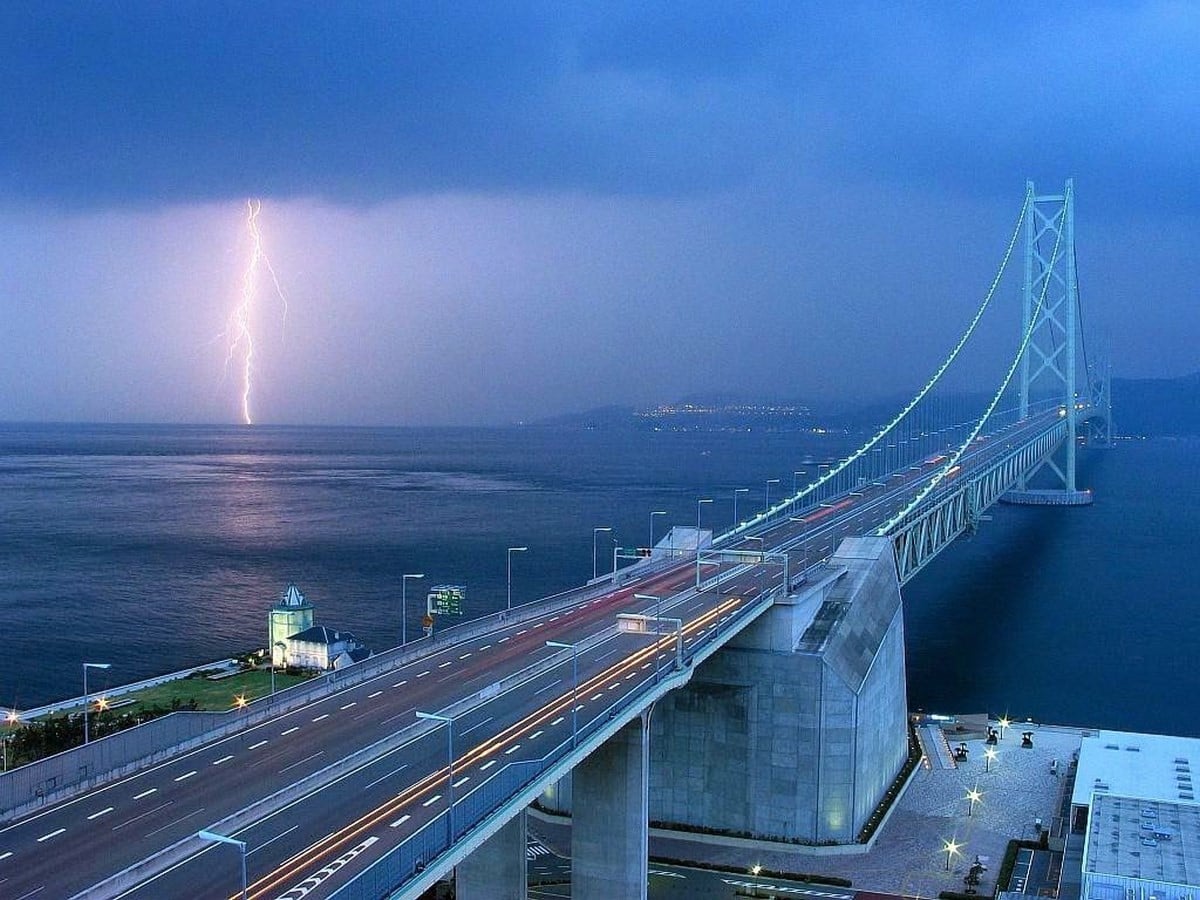

5. Akashi Kaikyo Bridge

Location: Japan
Status: Completed in 1998

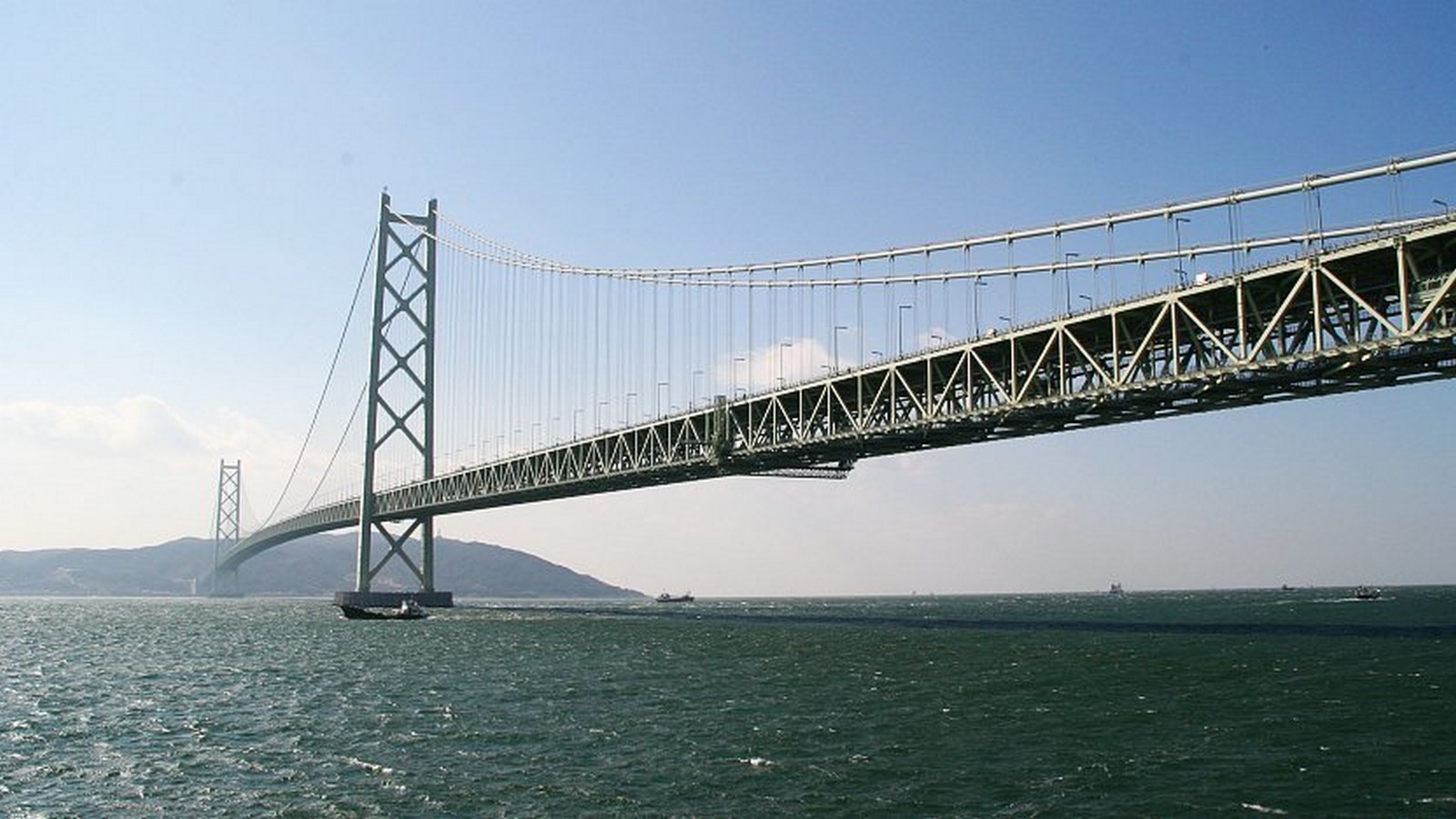

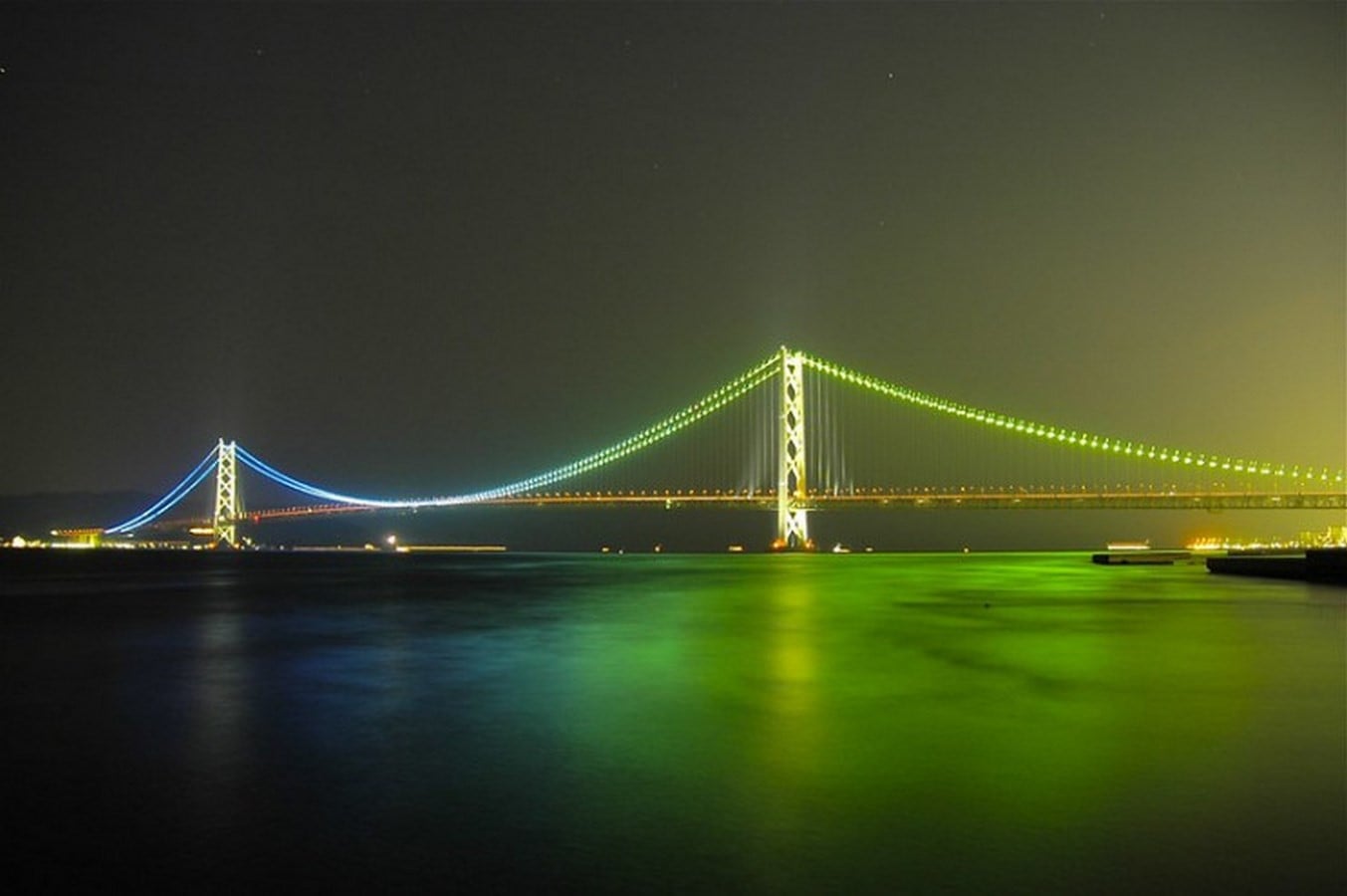

With a length of almost 4km, the Akashi Kaikyo Bridge is the world’s longest suspension bridge spanning between Kobe Island and Awaji Island. The bridge is built to endure earthquakes up to 8.5 on the Richter scale. It used up to 3,00,000 km of cabling during its construction.

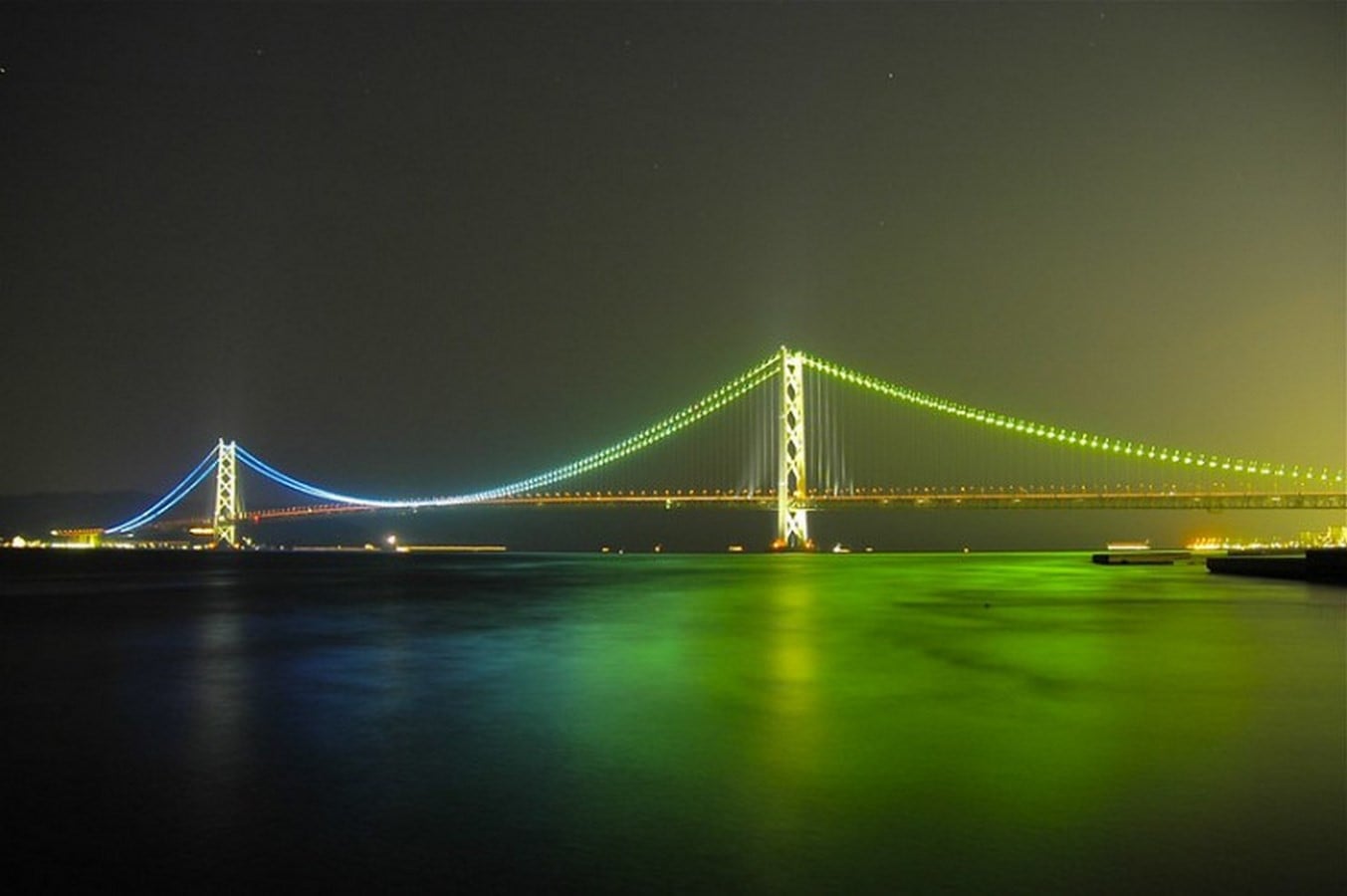

Akashi Kaikyo Bridge - Sheet1
Akashi Kaikyo Bridge ©Flickr

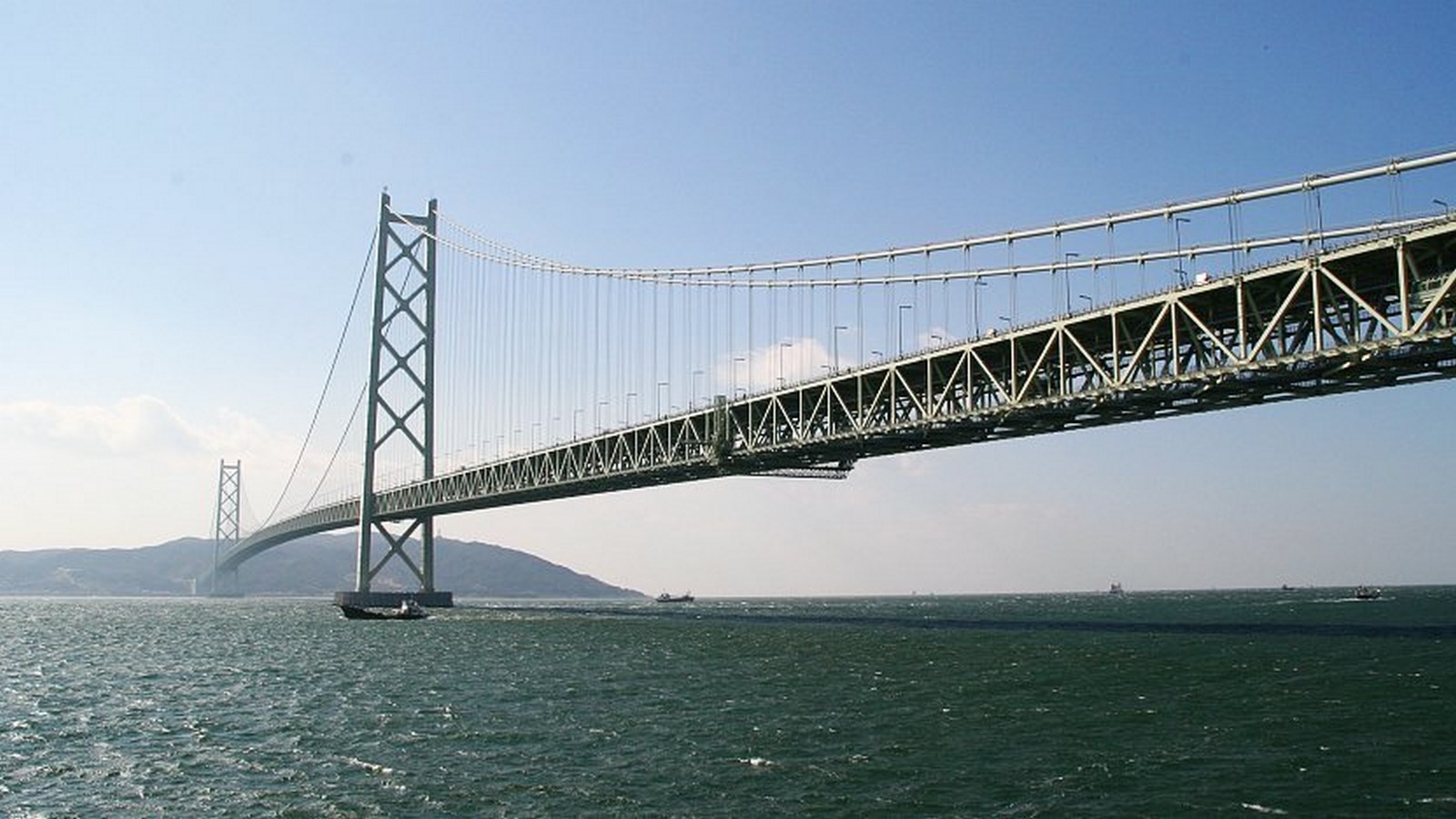

Akashi Kaikyo Bridge - Sheet2
Akashi Kaikyo Bridge ©Japan Guide

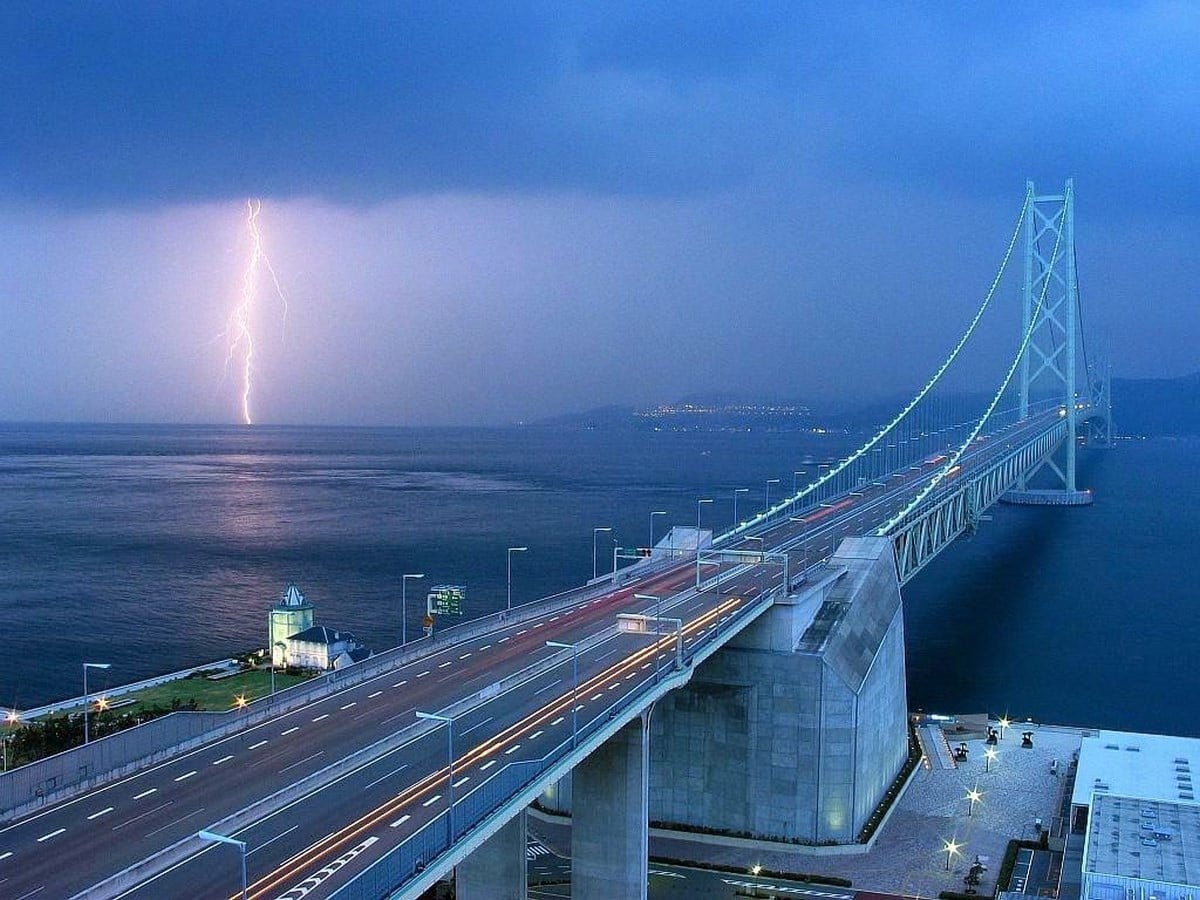

Akashi Kaikyo Bridge - Sheet3
Akashi Kaikyo Bridge ©www.sites.google.com

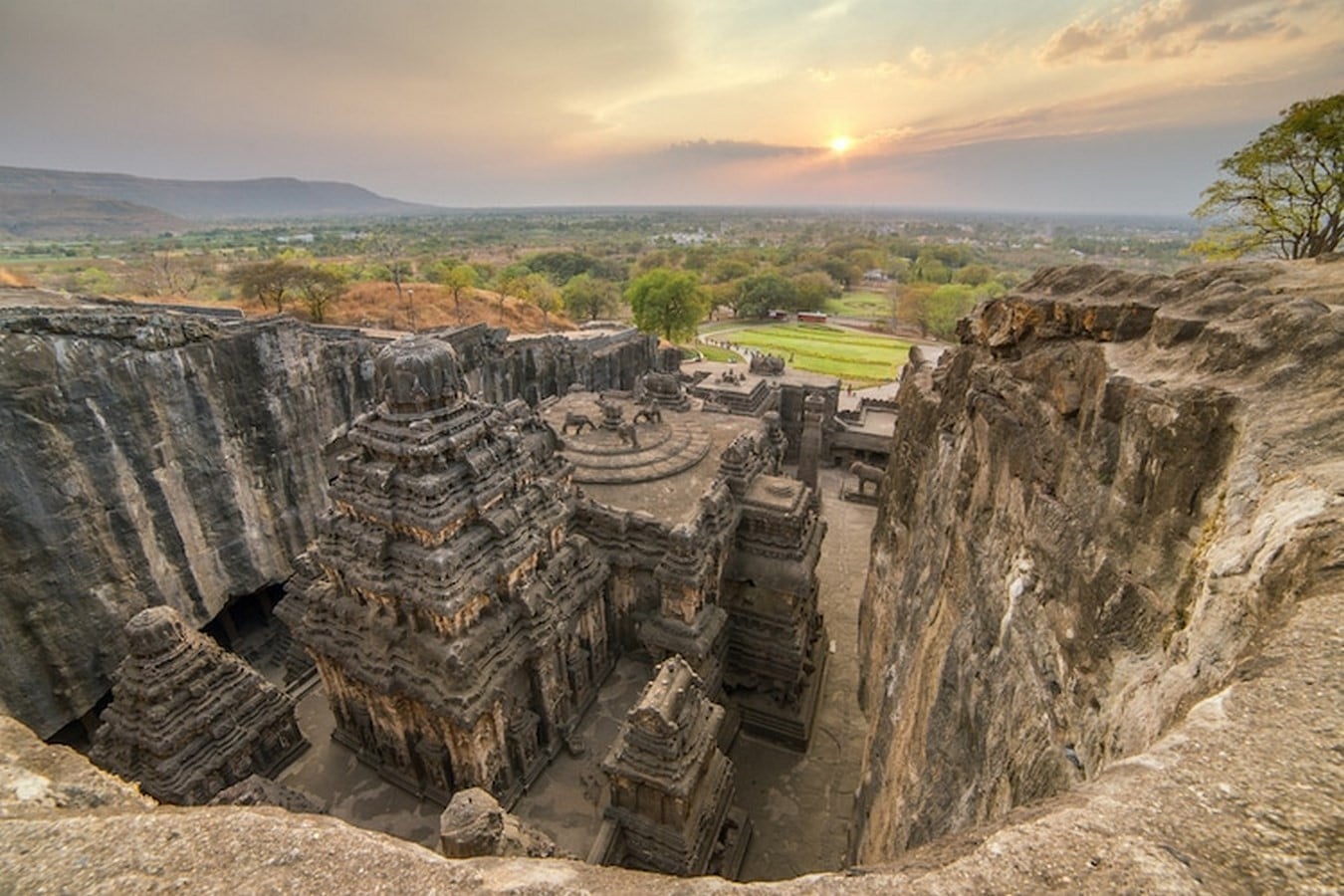

6. Kailasa Temple

Location: Ellora, India
Status: Completed between 600 and 1000 CE

Eduwik- Online Courses for Architects & Designers

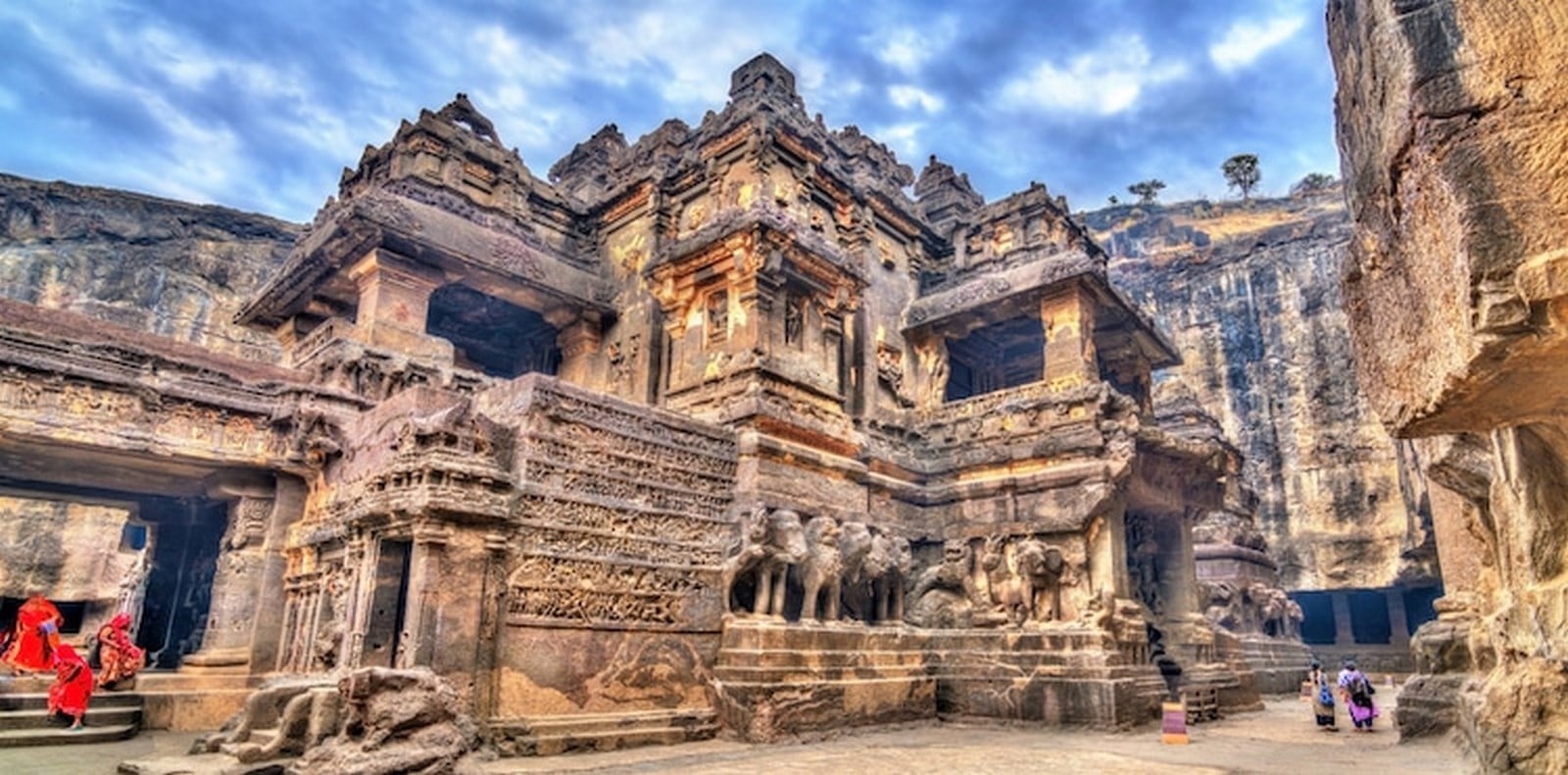

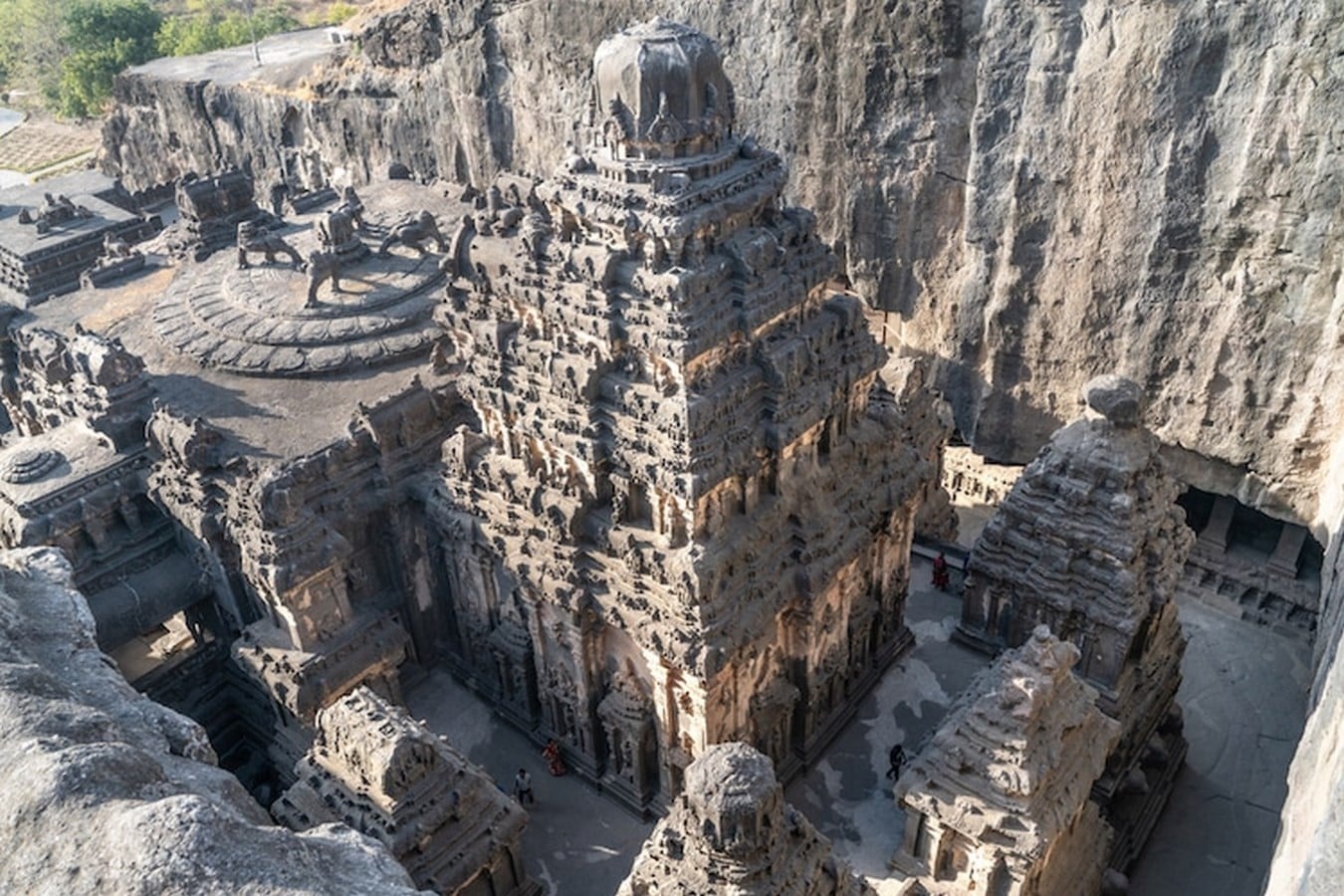

The 100ft high megalithic, carved from a single volcanic basaltic stone temple is the only structure in the world sculpted from top to bottom. The chiseling started at the top of the Gopura and proceeded downwards with artisans using just hammers, chisels, and picks.

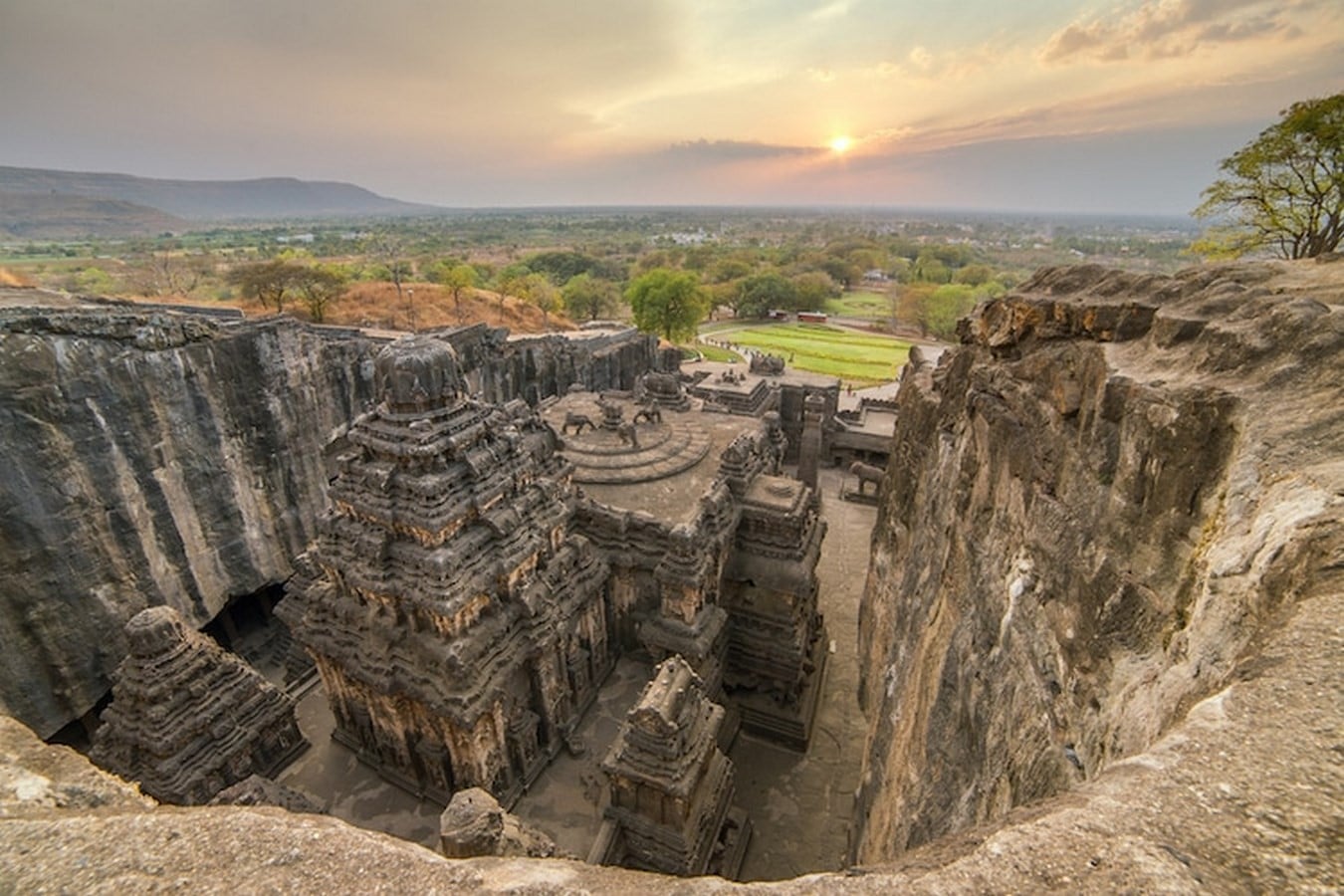

Kailasa Temple - Sheet1
Kailas Temple ©Stock Photos from Mazur Travel –Shutterstock

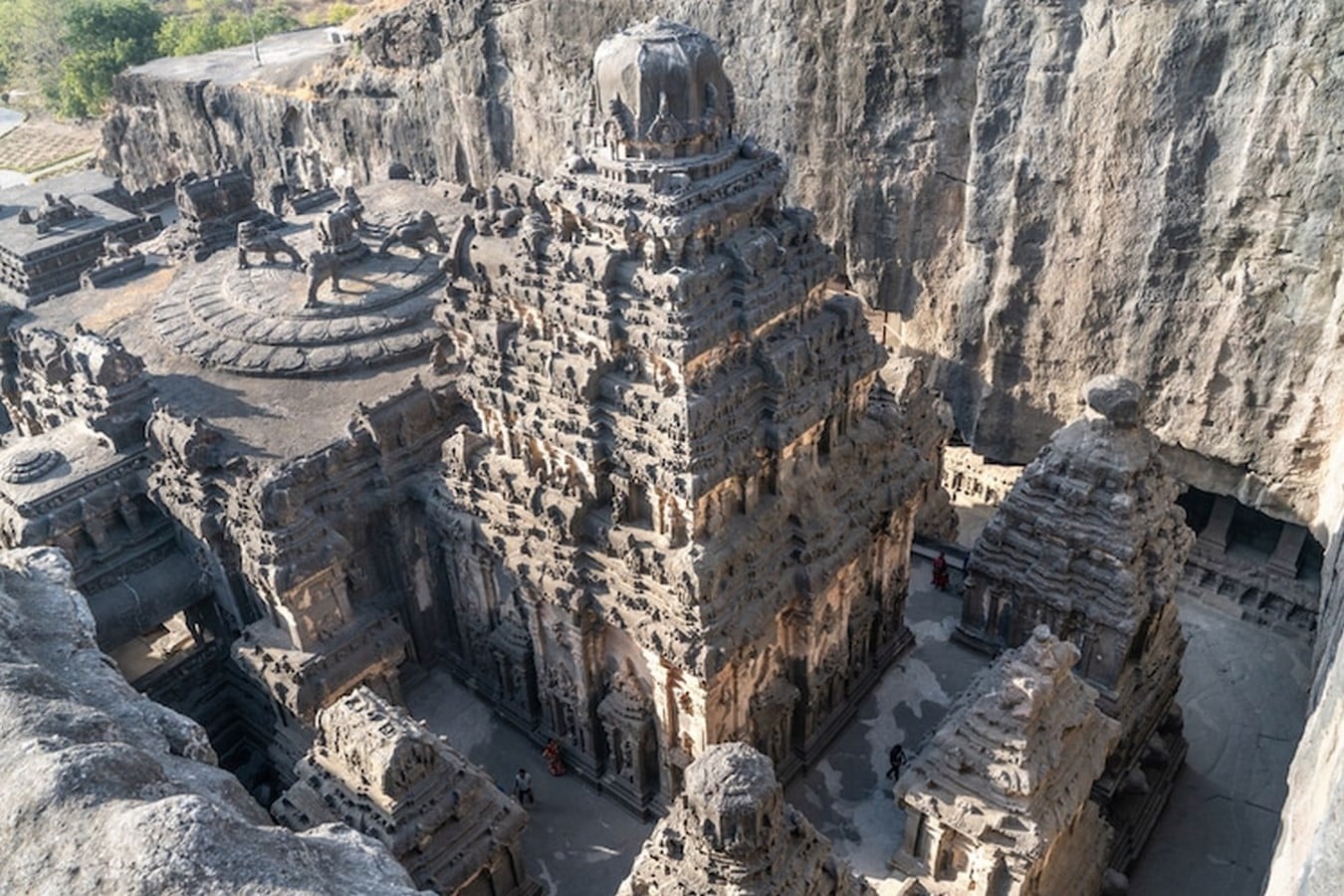

Kailasa Temple - Sheet2
Kailas Temple © Stock Photos from Nomad1988 –Shutterstock

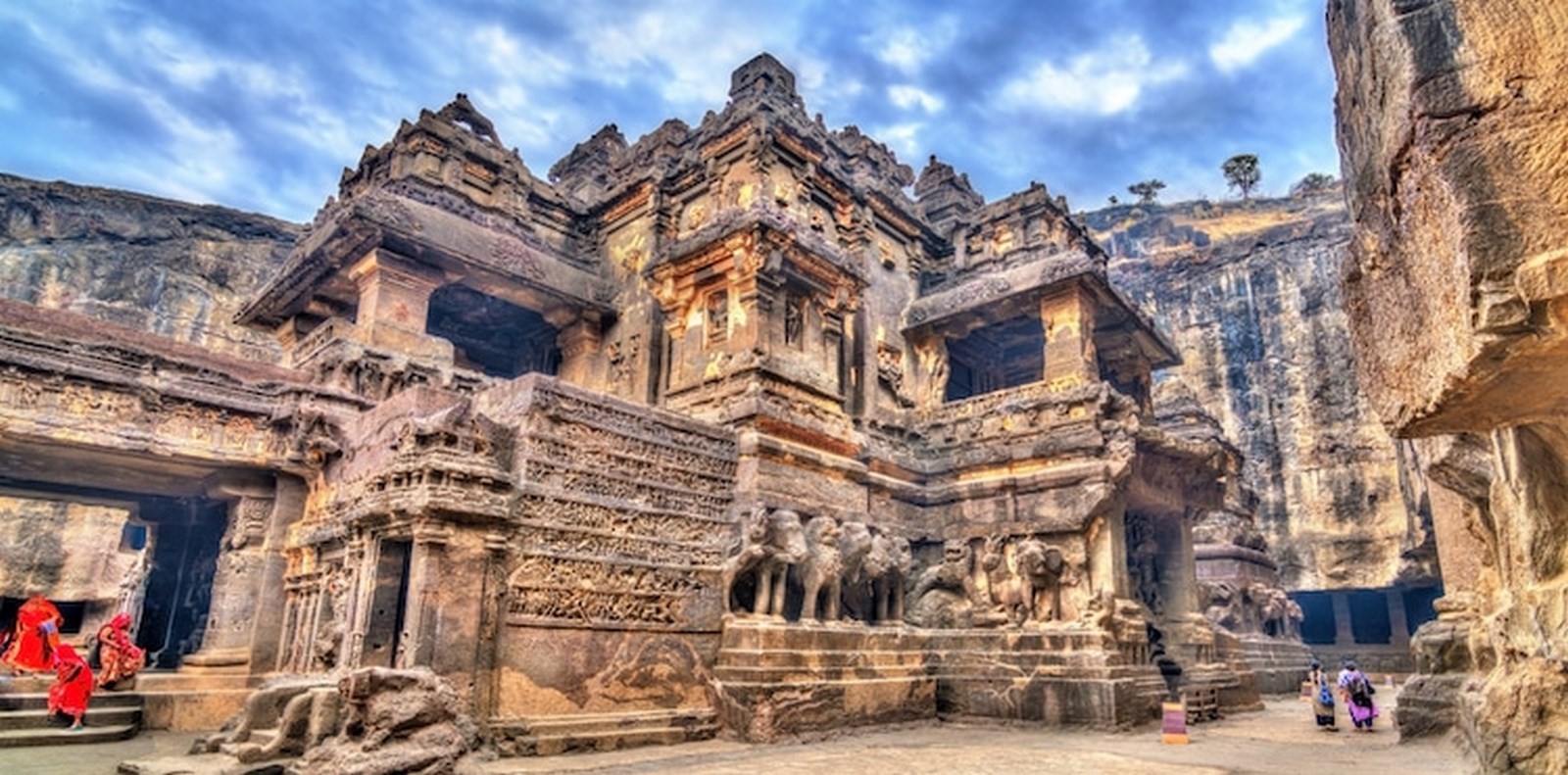

Kailasa Temple - Sheet3
Kailas Temple ©Stock Photos from Leonid Andronov -Shutterstock

7. Bailong Elevator

Location: China
Status: Completed in 2002

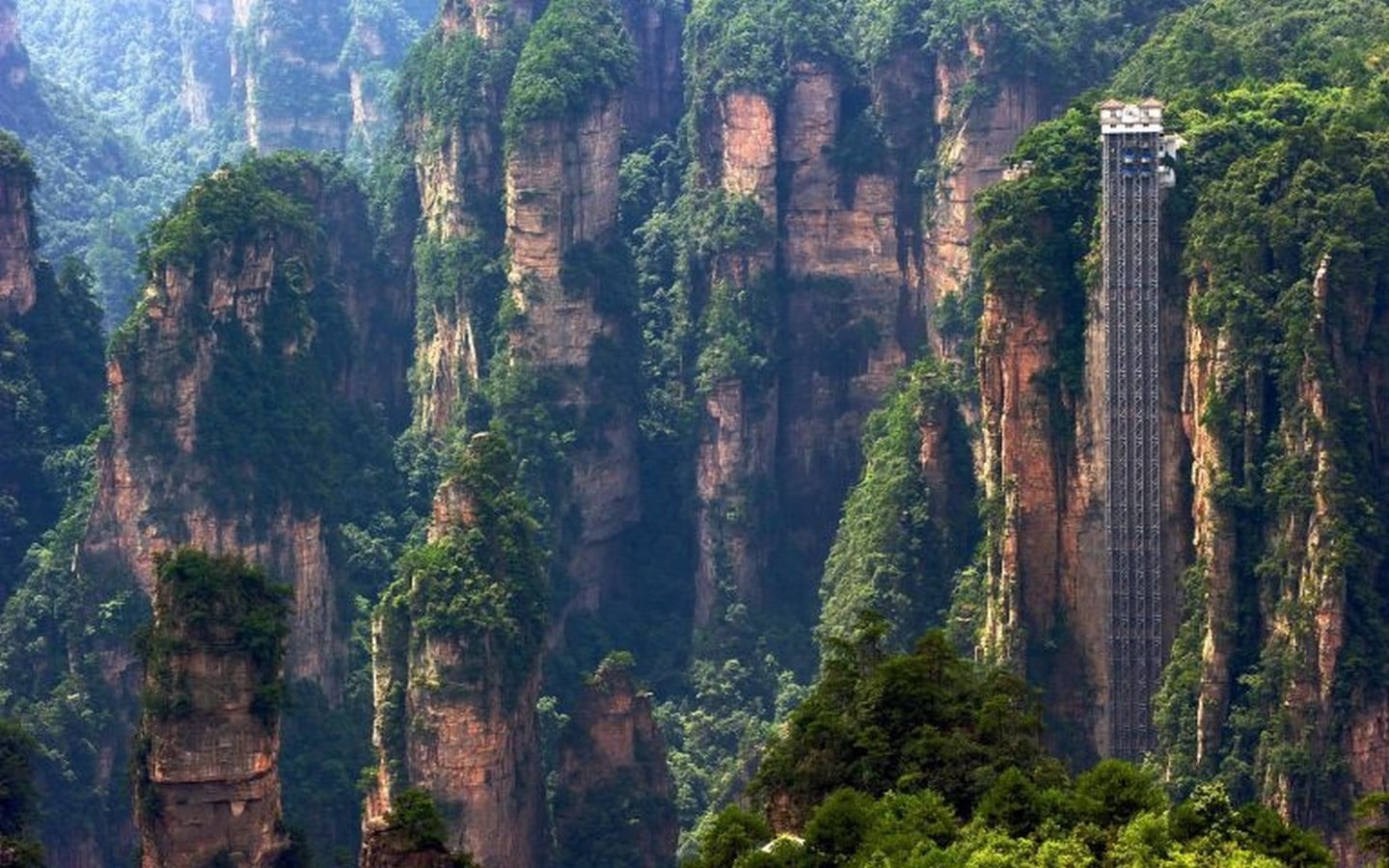

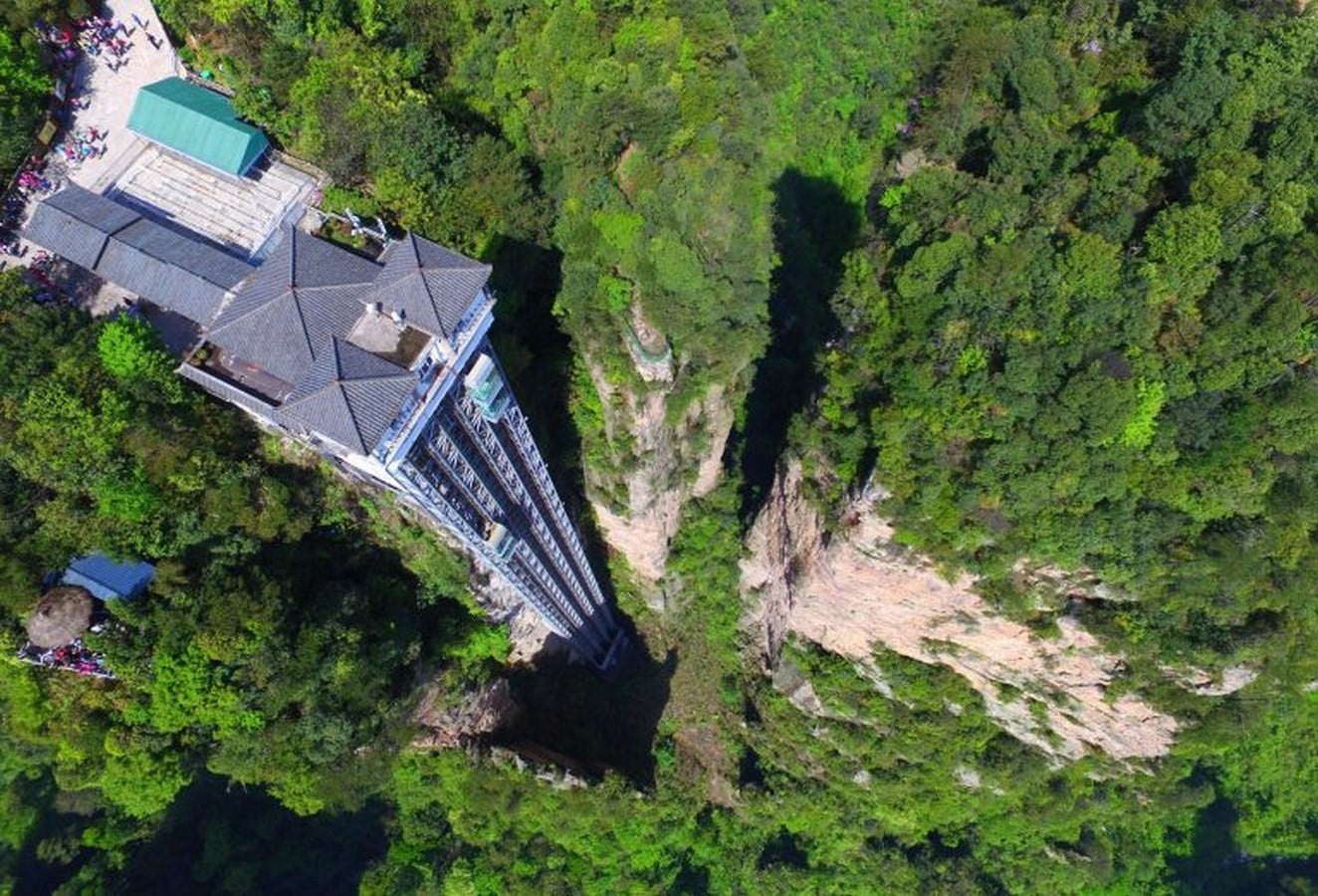

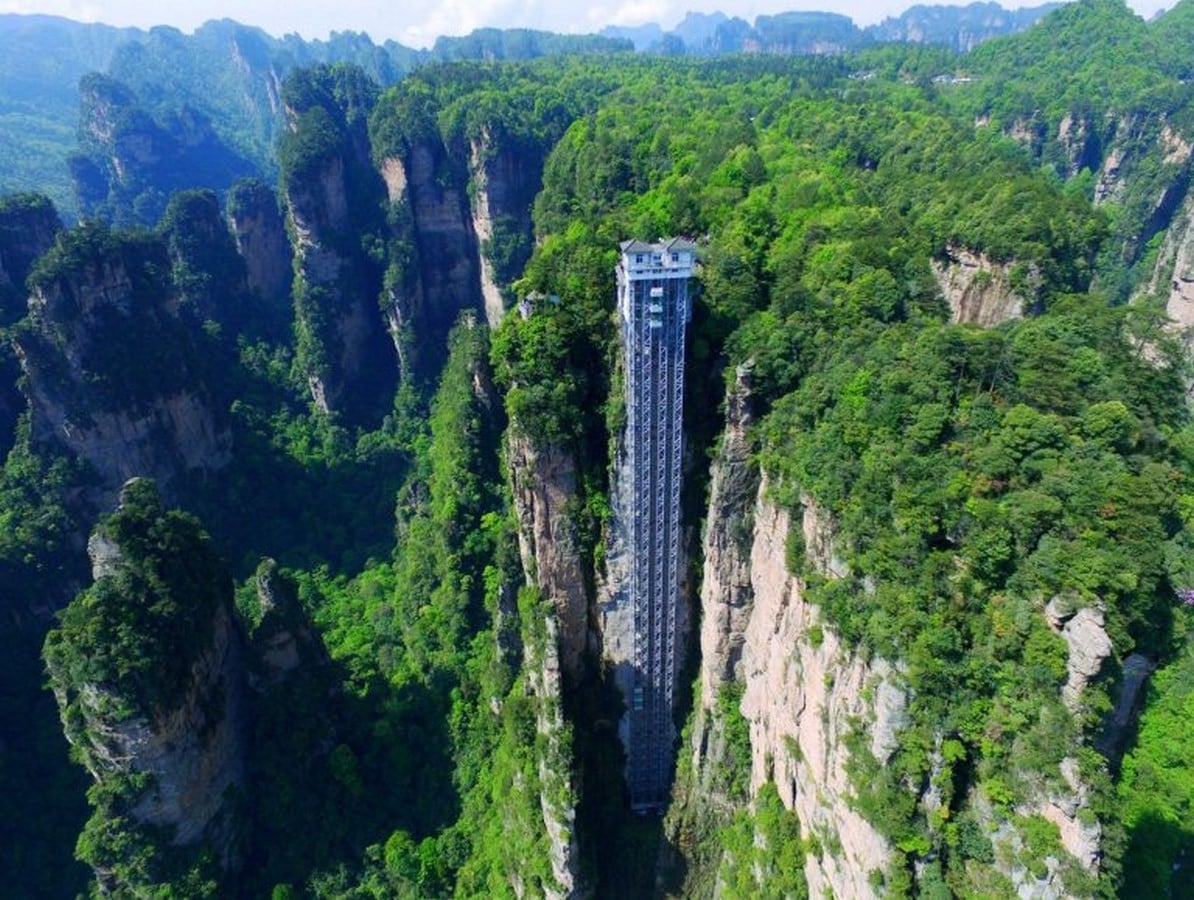

Zhangjiajie National Forest Park is well known for its magnificent natural sandstone pillars rising to heights of 3,000 ft. Attached to one of these pillars is the world’s tallest outdoor lift reaching a height of 1099 ft. It takes about 1 minute and 32 seconds to reach the topmost point.

Eduwik- Online Courses for Architects & Designers

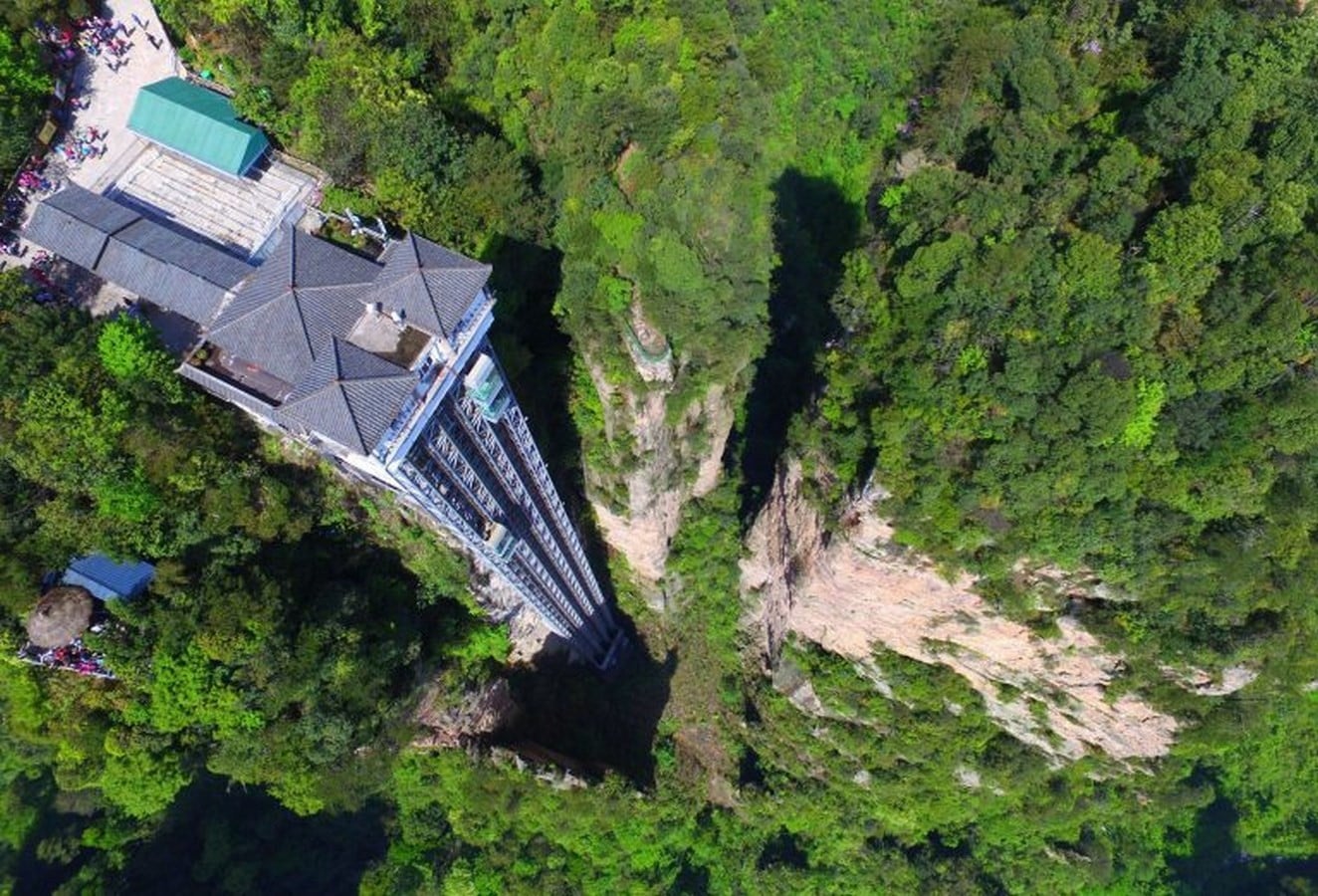

Bailong Elevator - Sheet1
Bailong Elevator ©Metro

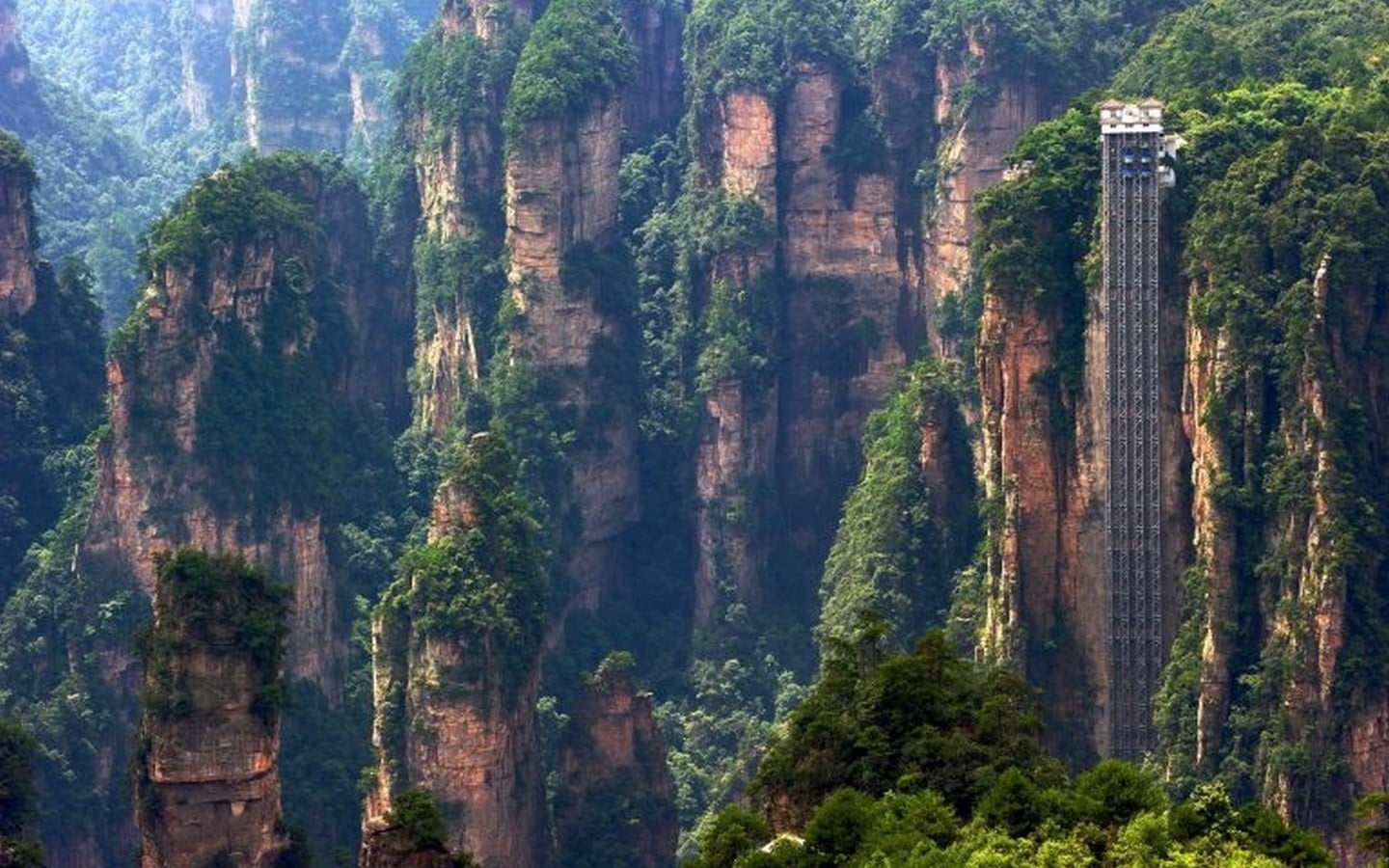

Bailong Elevator - Sheet2
Bailong Elevator ©Amazing China Trip

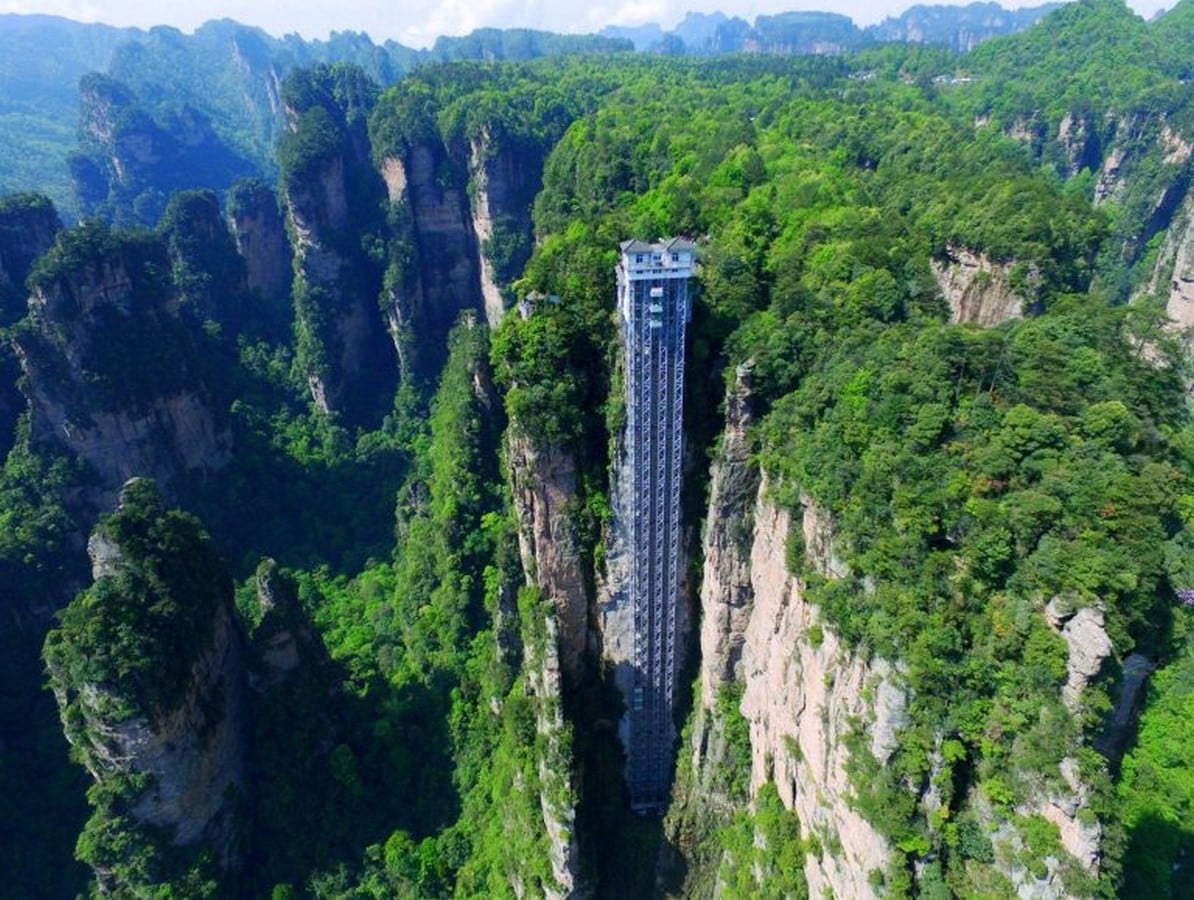

Bailong Elevator - Sheet3
Bailong Elevator ©Wonderful Engineering

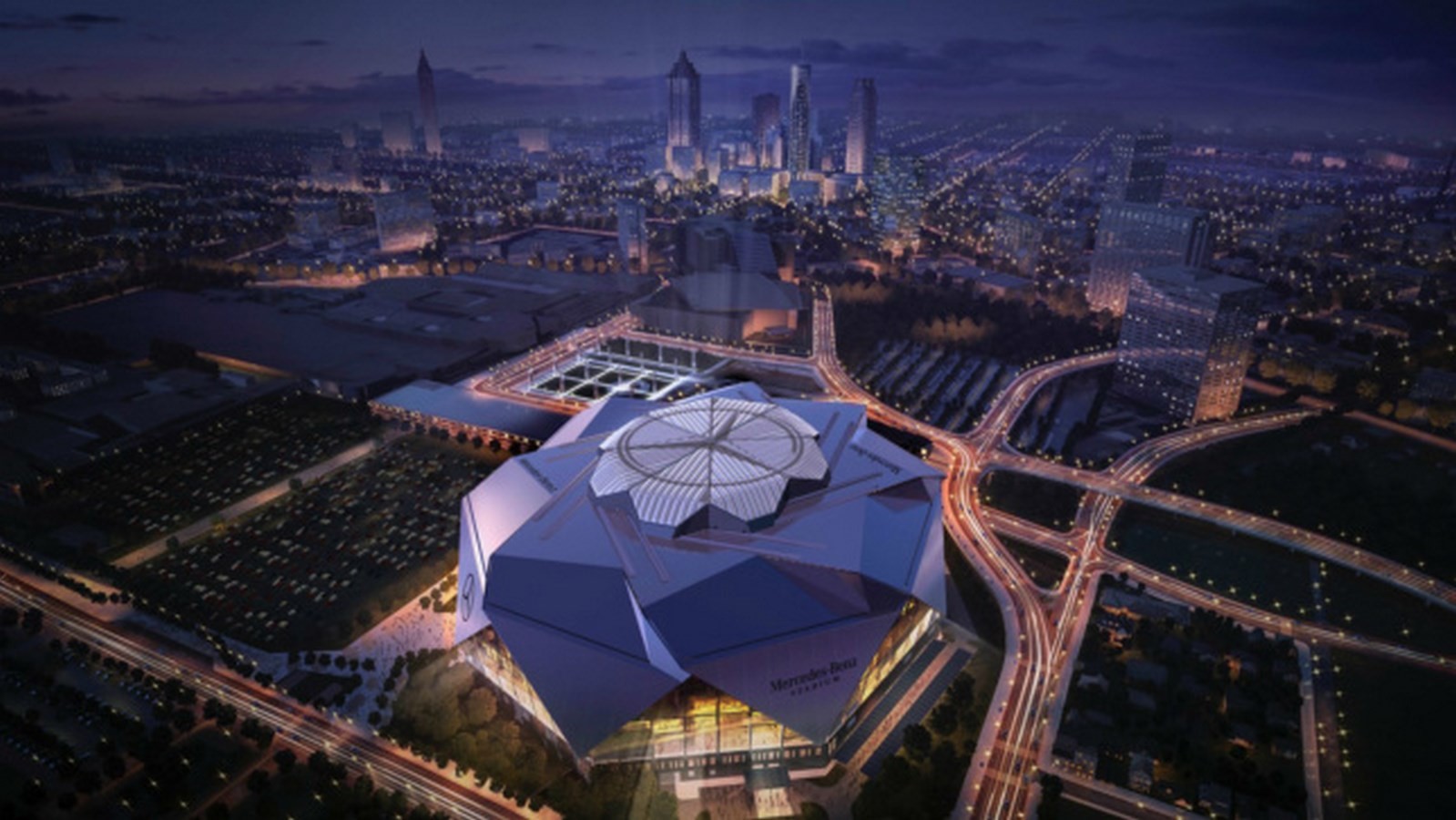

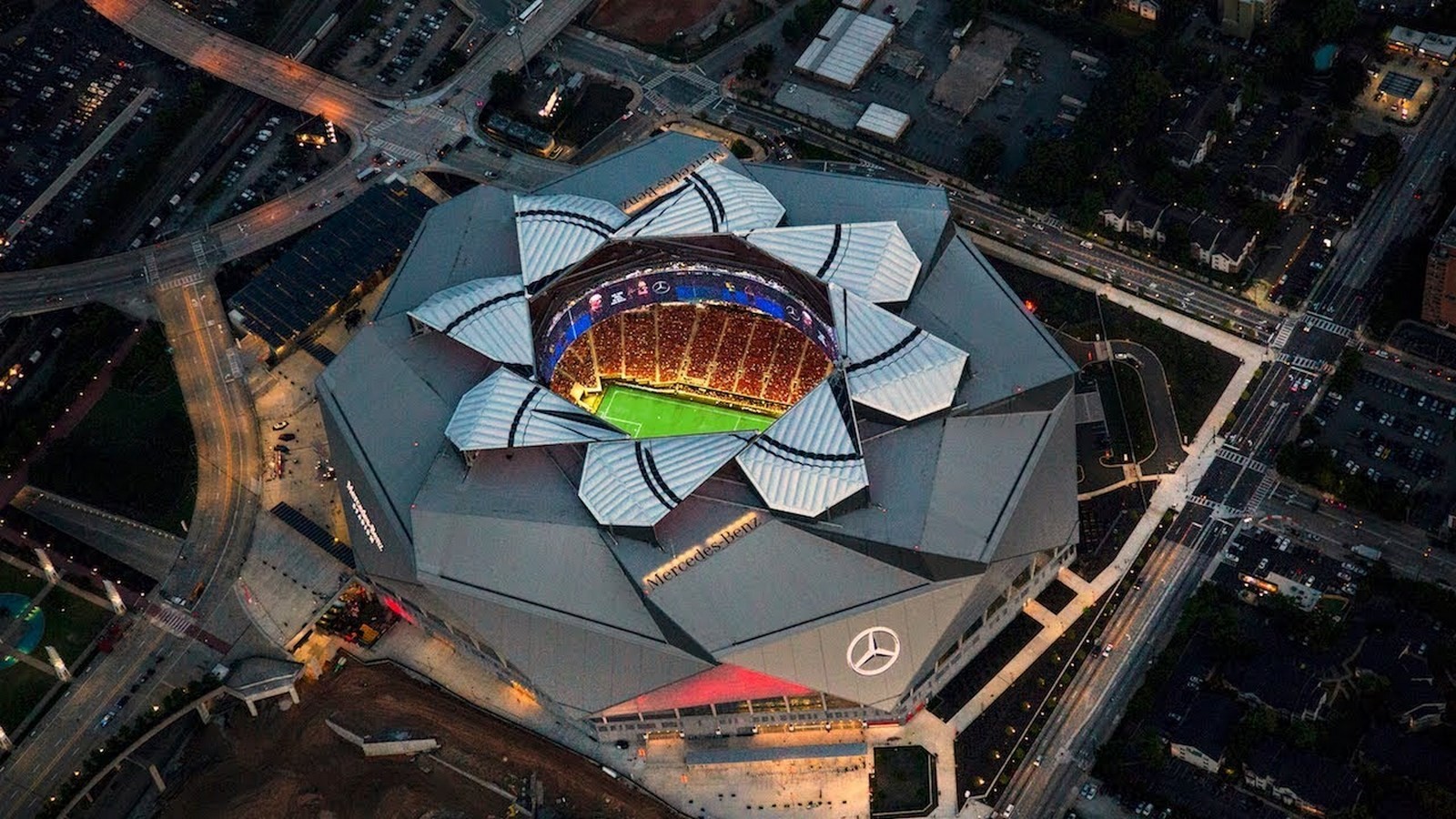

8. Mercedes Benz Stadium

Location: Atlanta
Status: Completed in 2017

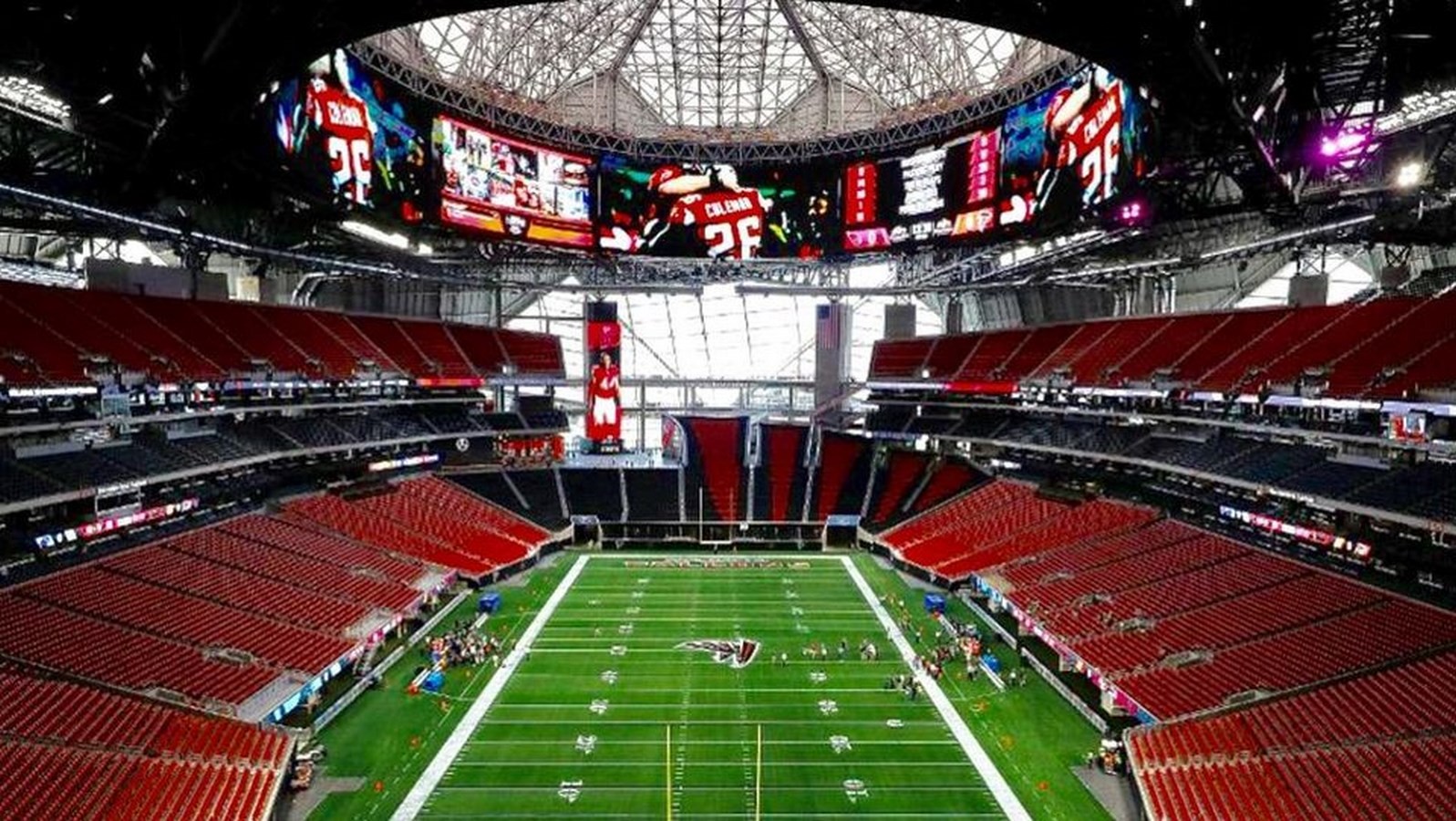

The stadium boasts a fascinating form with a retractable roof made of lightweight polymer, consisting of eight triangular “petals”. Each moving petal cantilevers up to 200 ft into the center of the stadium. Although the roof may appear to rotate to open, it is merely an optical illusion, and the petals slide open in a straight line.

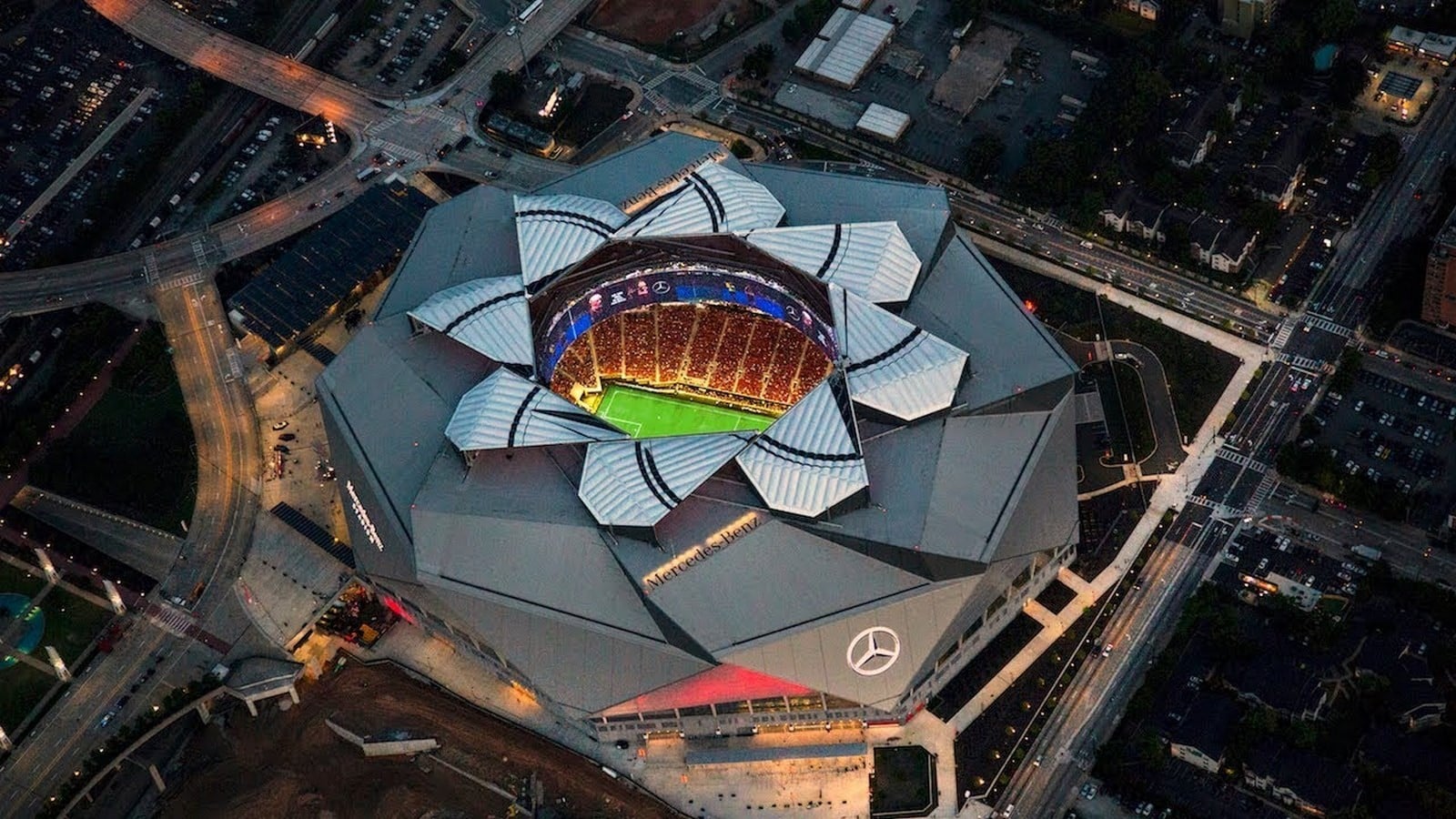

Mercedes Benz Stadium - Sheet1
Mercedes Benz Stadium ©Mercedes-Benz Stadium

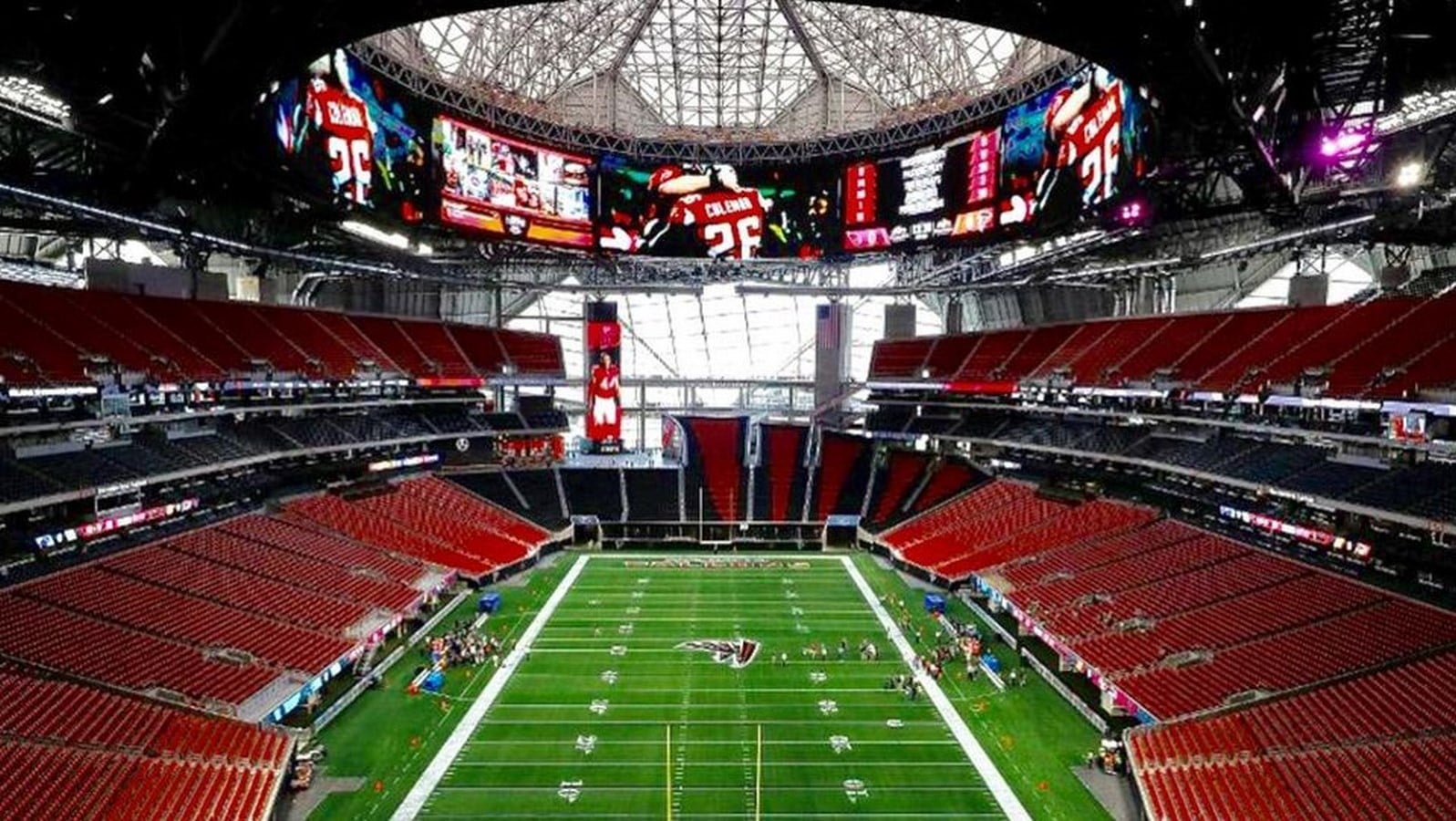

Mercedes Benz Stadium - Sheet2
Mercedes Benz Stadium ©Forbes

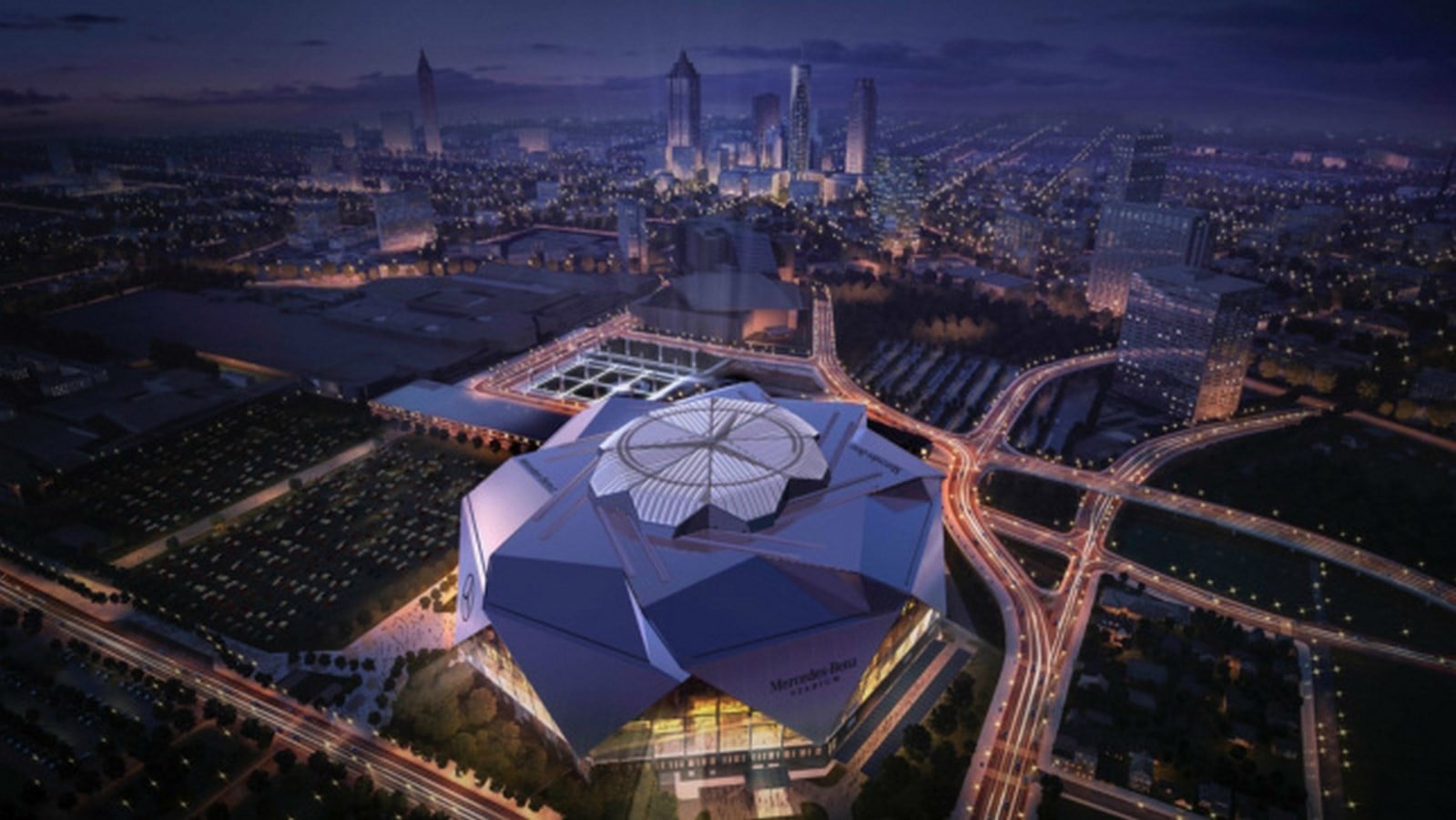

Mercedes Benz Stadium - Sheet3
Mercedes Benz Stadium ©Archpaper

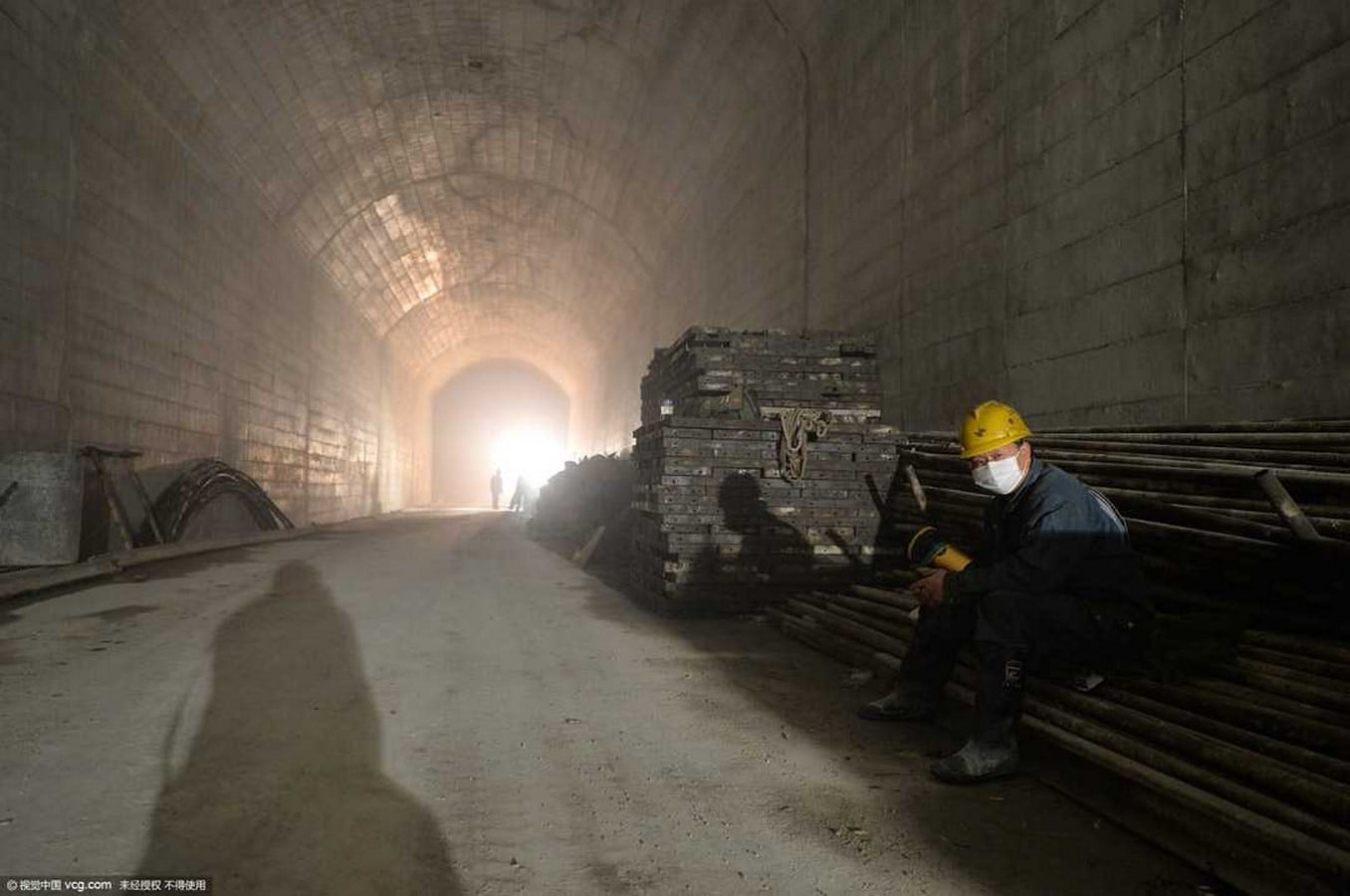

9. Jinping Underground Laboratory

Location: Sichuan, China
Status: Completed in 2010

Eduwik- Online Courses for Architects & Designers

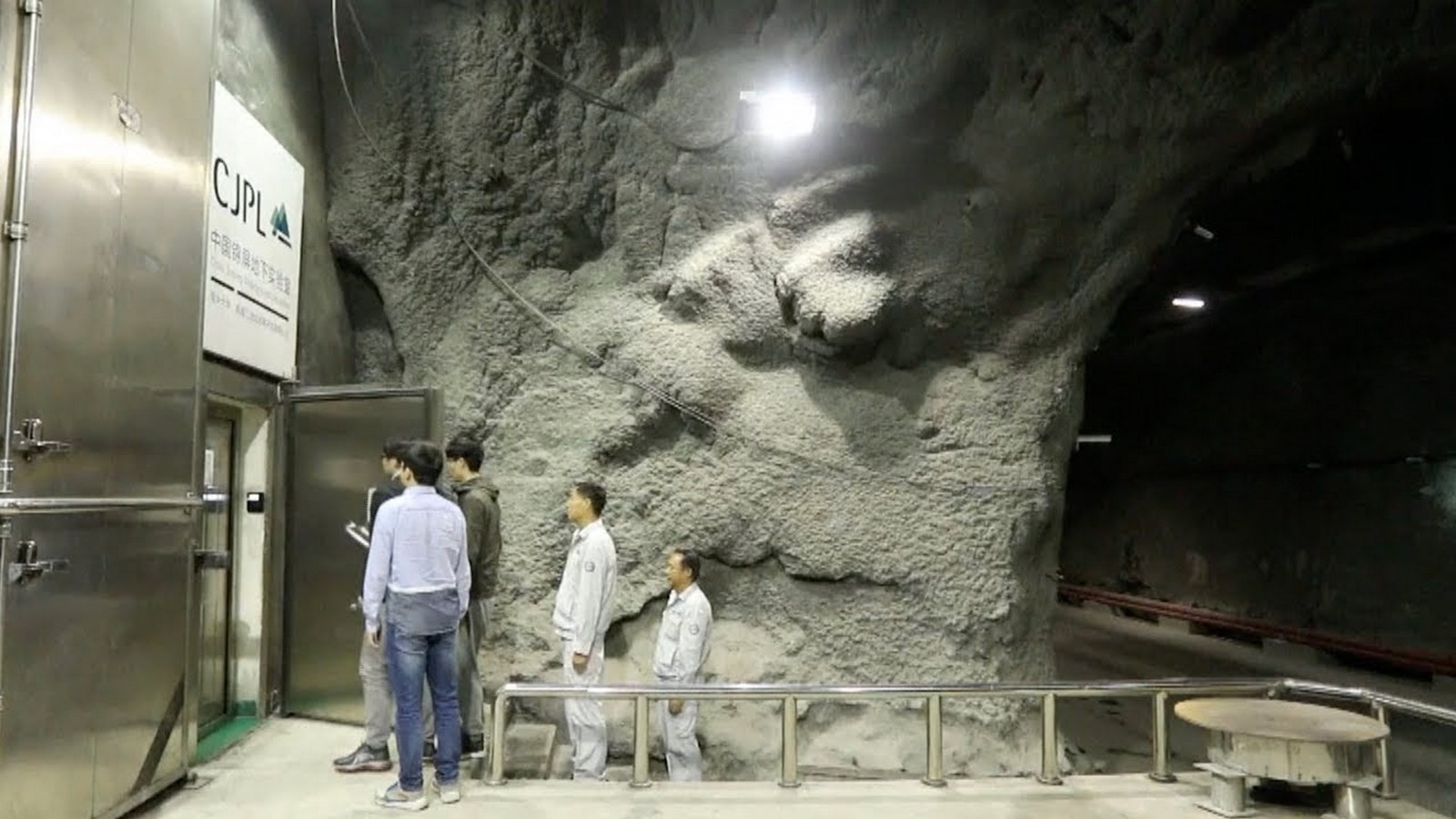

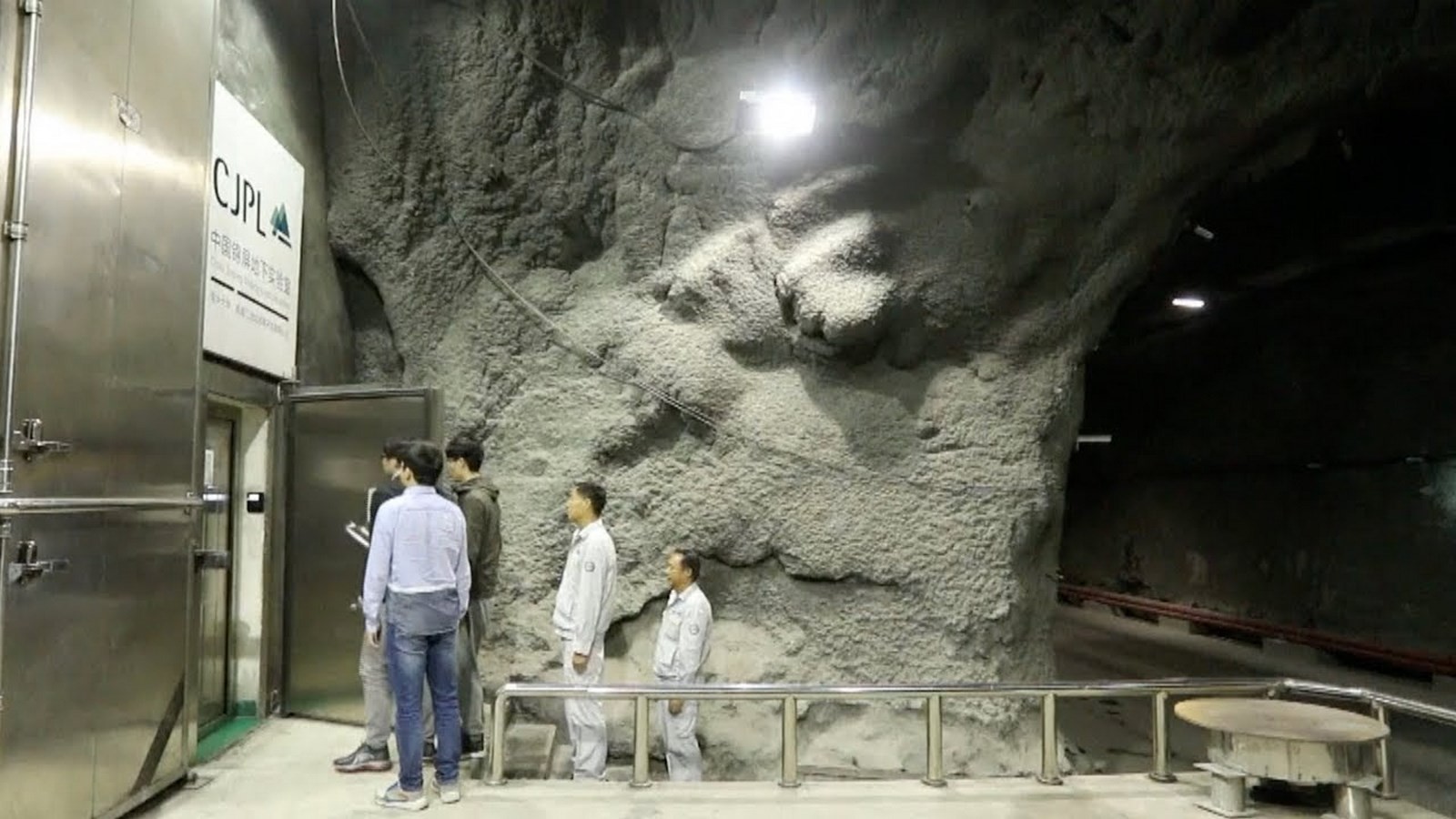

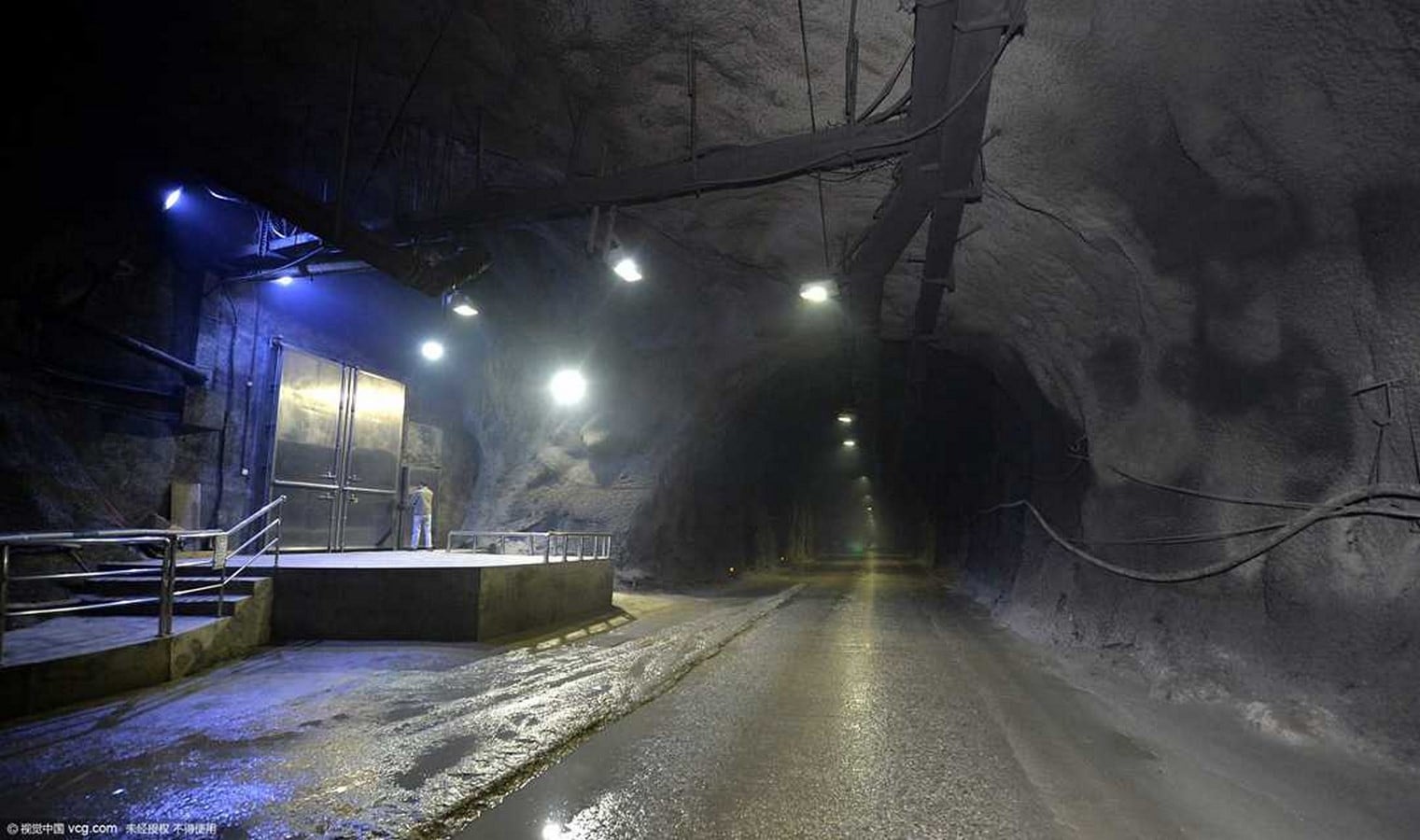

Built around 2,400m under a mountain, the Jinping Underground Laboratory is the world’s deepest underground lab. Scientists use this laboratory to detect dark matter, owing to the lab’s near-perfect shield from background radiation. The construction pushed for engineering advancements in order to carve through hard rock marble.

Jinping Underground Laboratory - Sheet1
Jinping Underground Laboratory ©Youtube

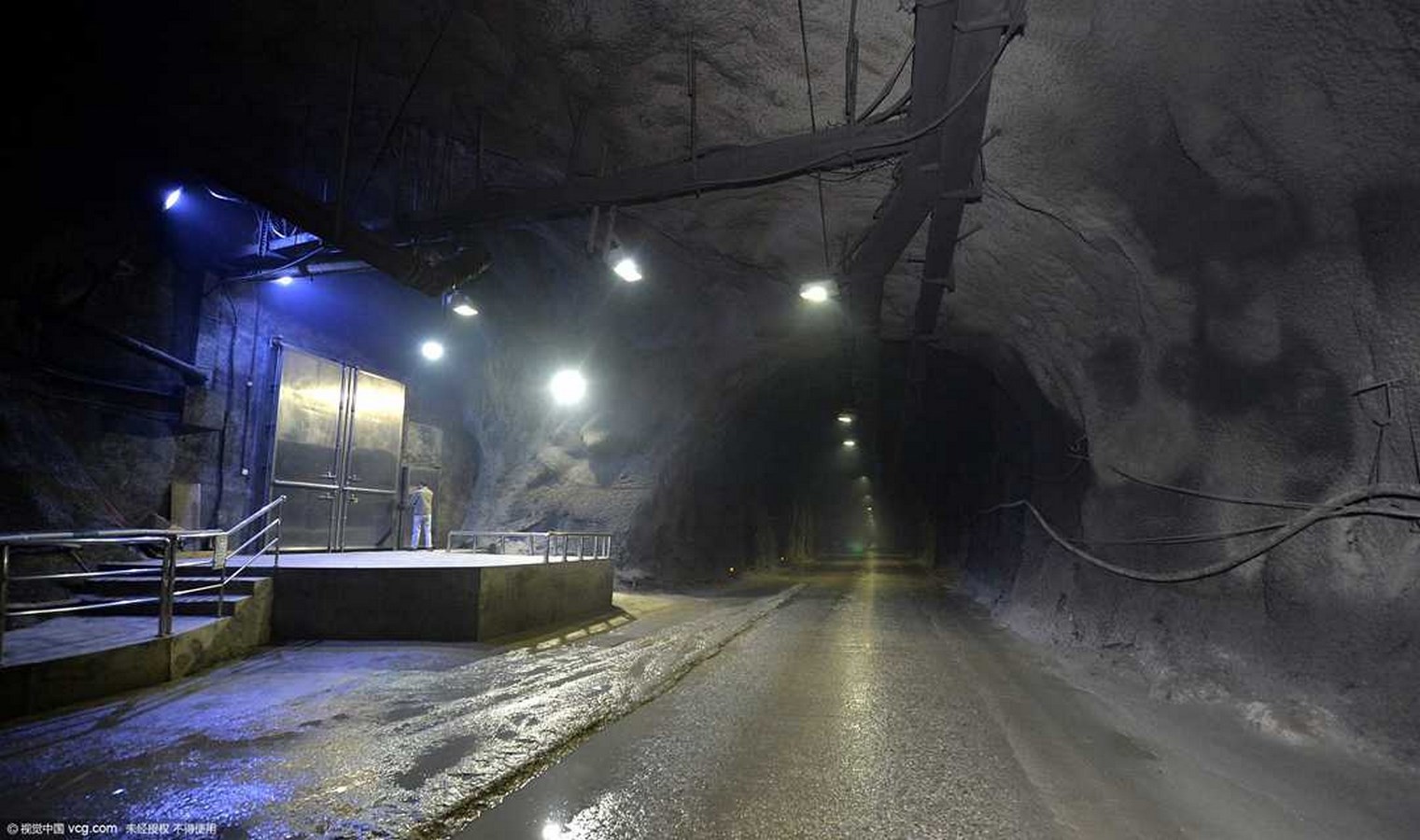

Jinping Underground Laboratory - Sheet2
Jinping Underground Laboratory ©CFP

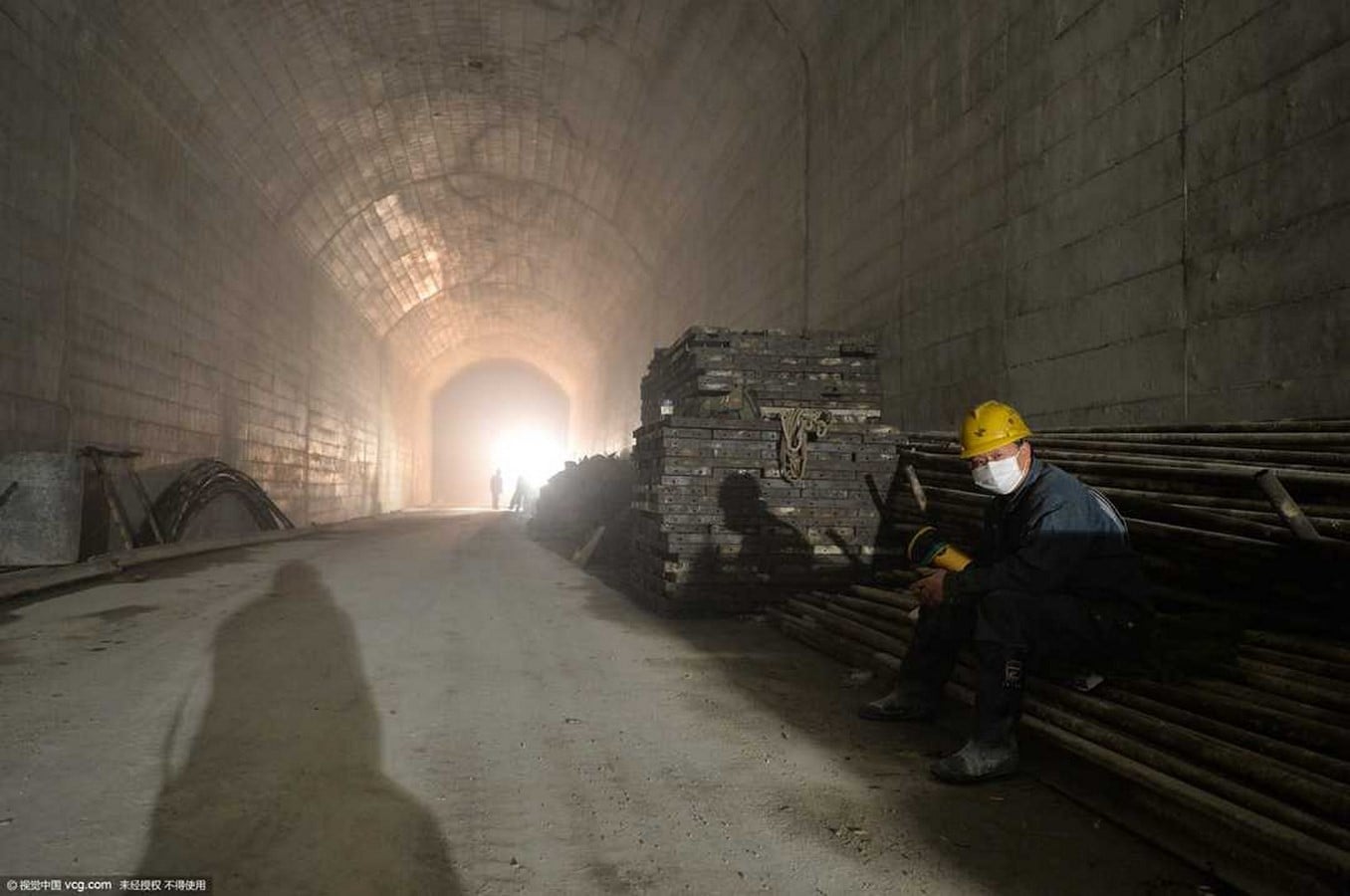

Jinping Underground Laboratory - Sheet3
Jinping Underground Laboratory ©CFP

10. The Mars Habitat

Location: Mars
Status: Proposed

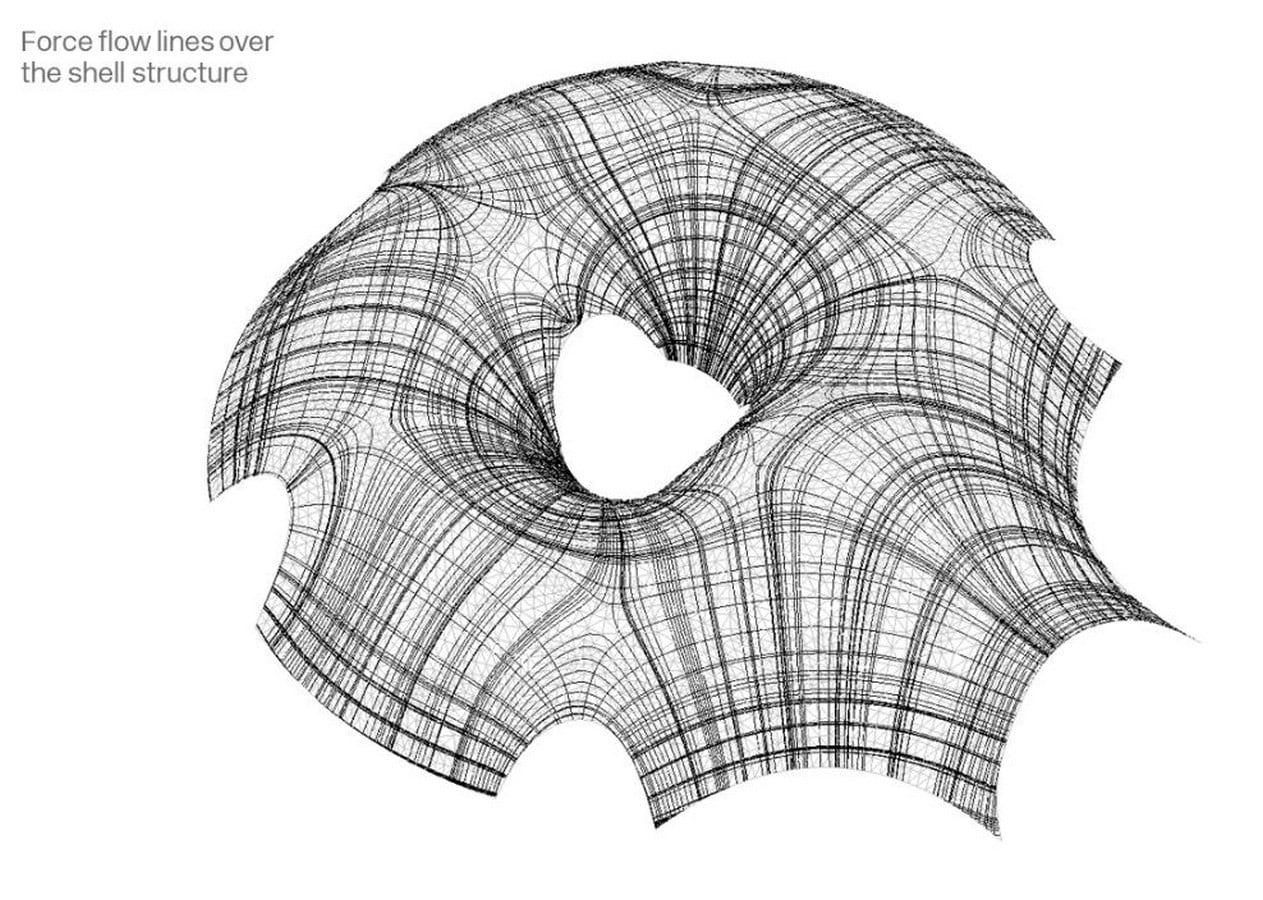

NASA launched a competition to explore habitation on Mars, known for its harsh environment and deadly radiations. That is when Eckersley O’Callaghan engineered a 3-D printed shell constructed entirely by automated robots. The building material will be sourced from the planet’s natural rigolet. Once the shell is complete, astronauts will be able to create the interiors using inflatable habitation units.

Eduwik- Online Courses for Architects & Designers

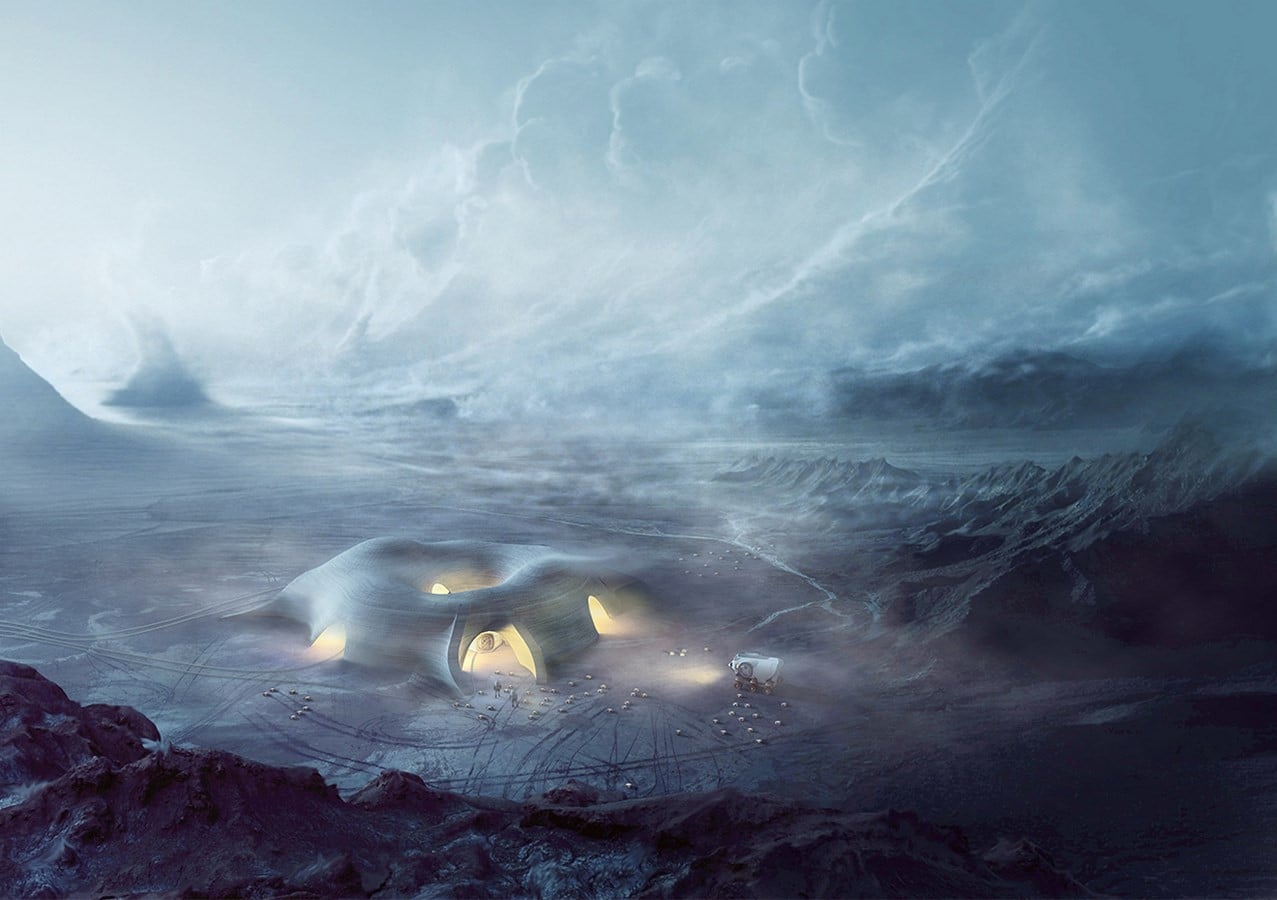

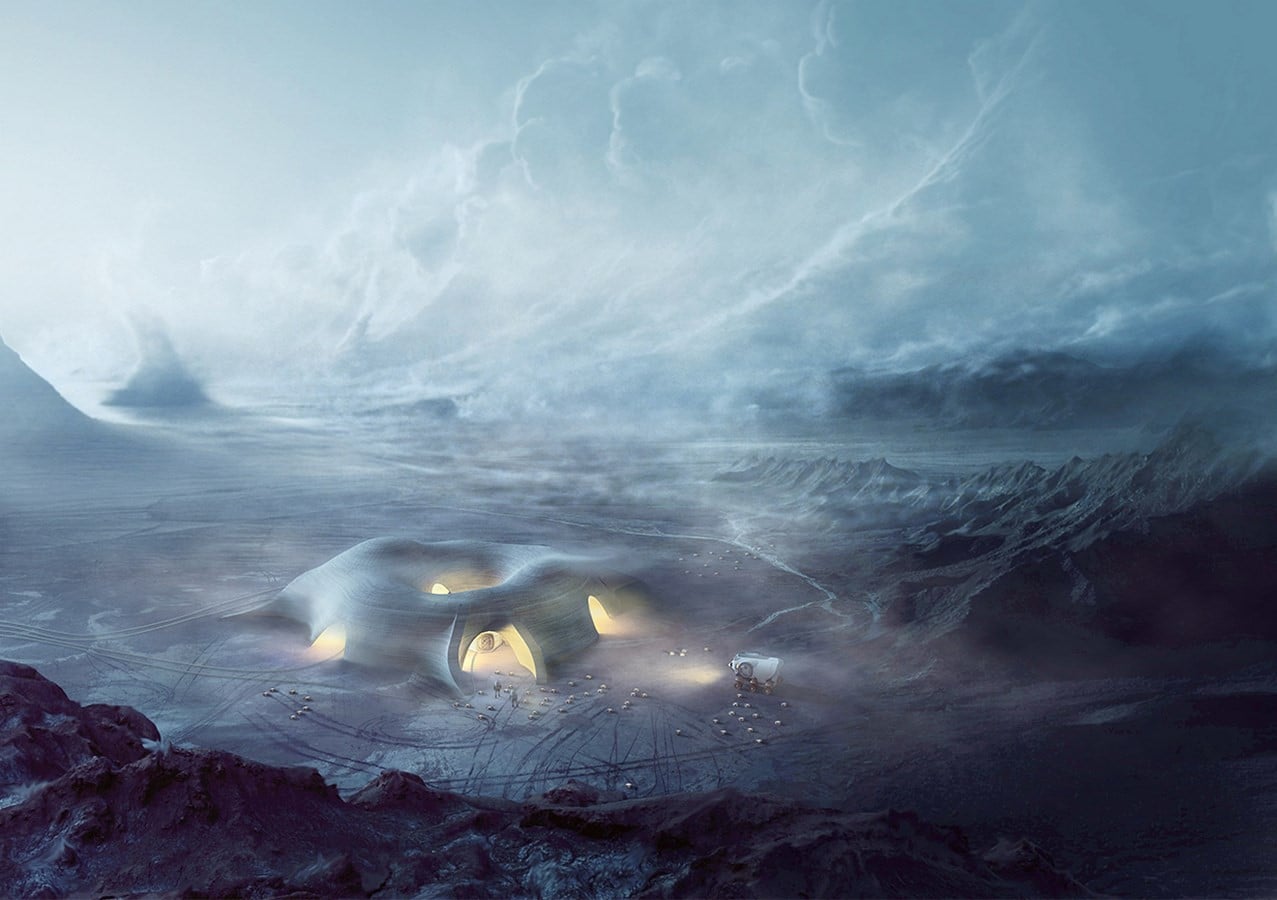

The Mars Habitat - Sheet1
The Mars Habitat ©Eckersley O’ Callaghan Engineers

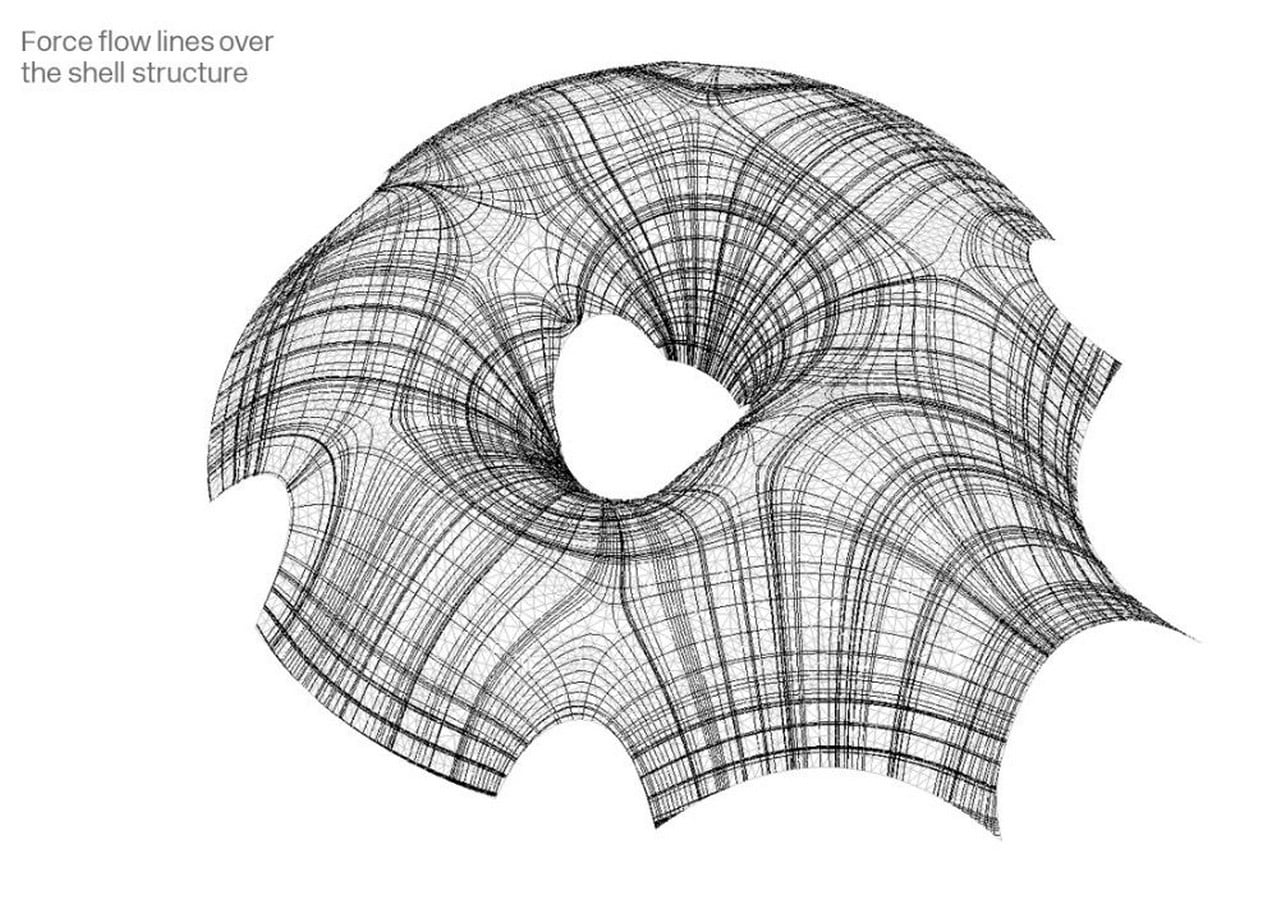

The Mars Habitat - Sheet2
The Mars Habitat ©Eckersley O’ Callaghan Engineers
The Mars Habitat - Sheet3
The Mars Habitat ©Eckersley O’ Callaghan Engineers

11. Al Hamra Tower

Location: Kuwait
Status: Completed in 2011

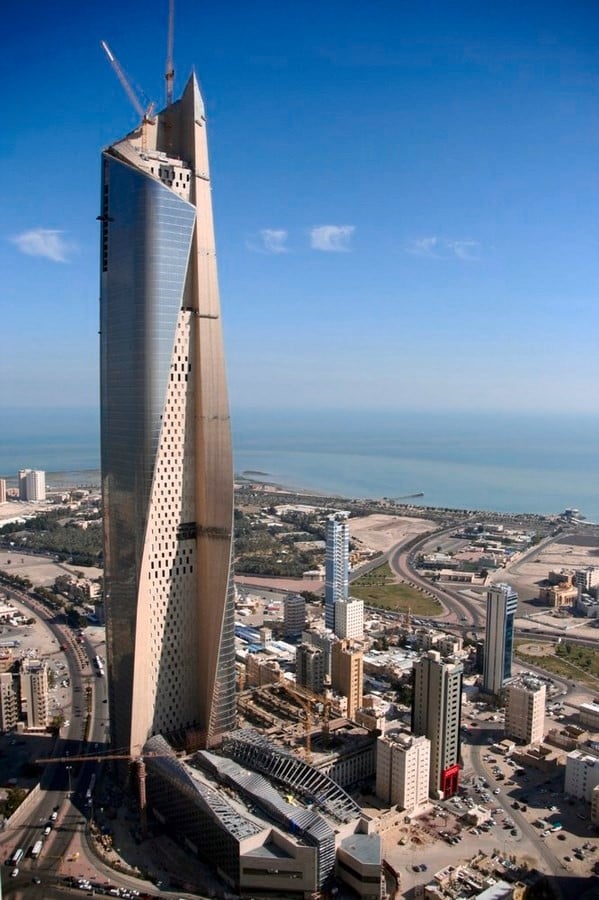

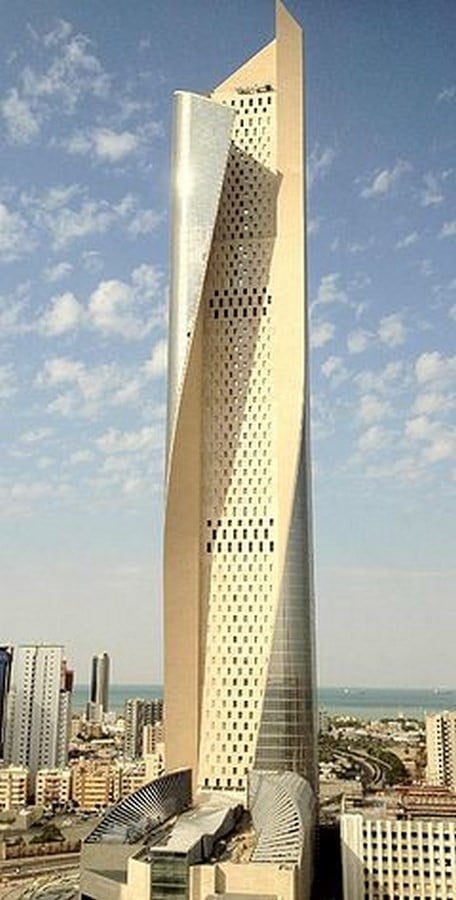

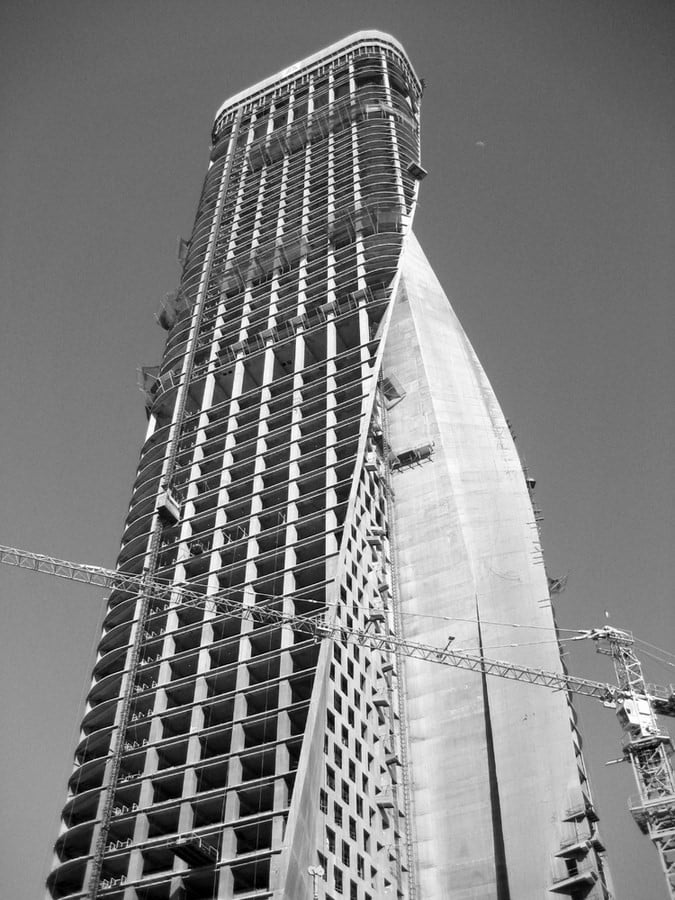

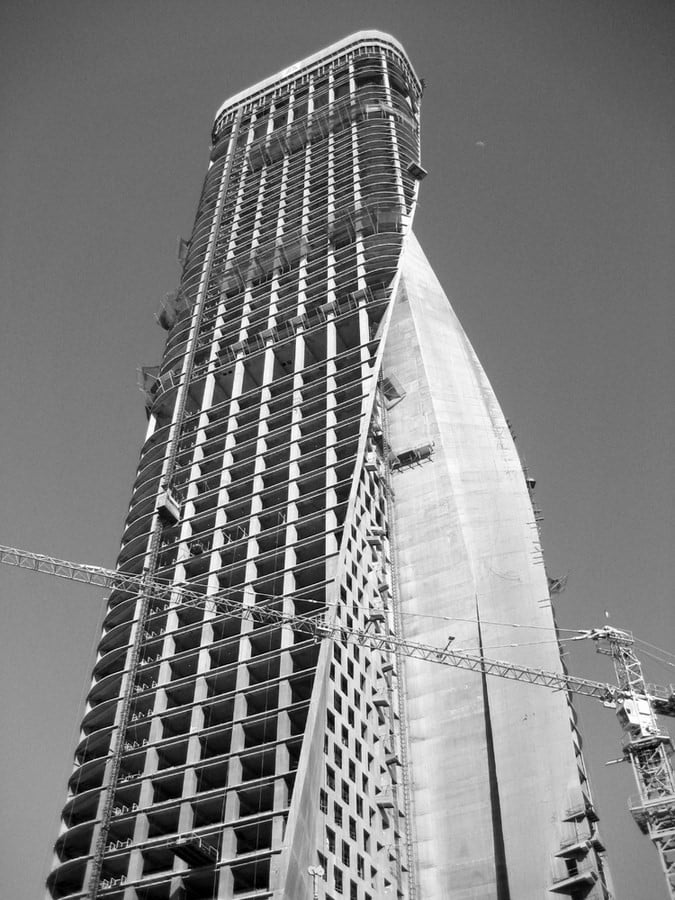

The Al Hamra Tower is the world’s tallest structure to have a continuous stone façade. The building has a distinctive form in response to the harsh climatic conditions. The design eliminates all south-facing offices while providing 270 degrees-wide view of the waters around.

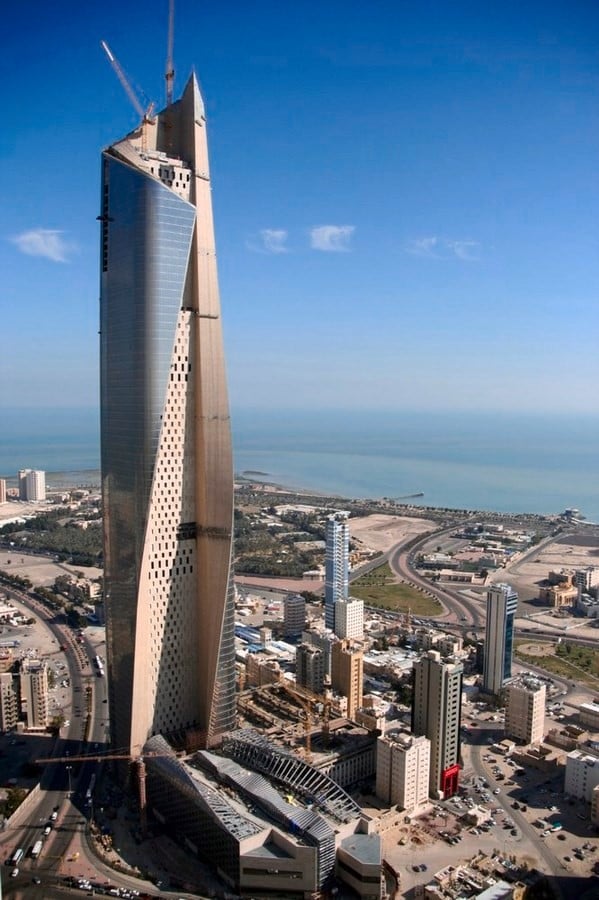

Al Hamra Tower - Sheet1
Al Hamra Tower ©Archdaily
Al Hamra Tower - Sheet2
Al Hamra Tower ©Archdaily

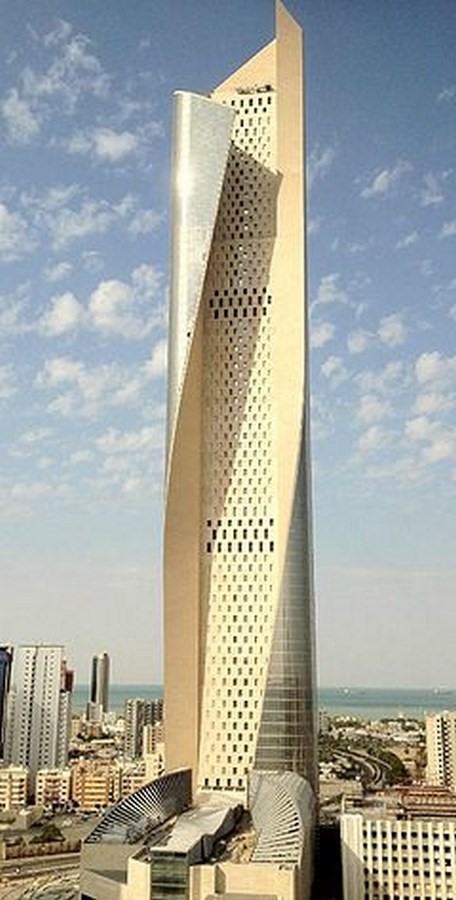

Al Hamra Tower - Sheet3
Al Hamra Tower ©Archdaily

12. Montreal Tower

Location: Canada
Status: Completed in 2018

Eduwik- Online Courses for Architects & Designers

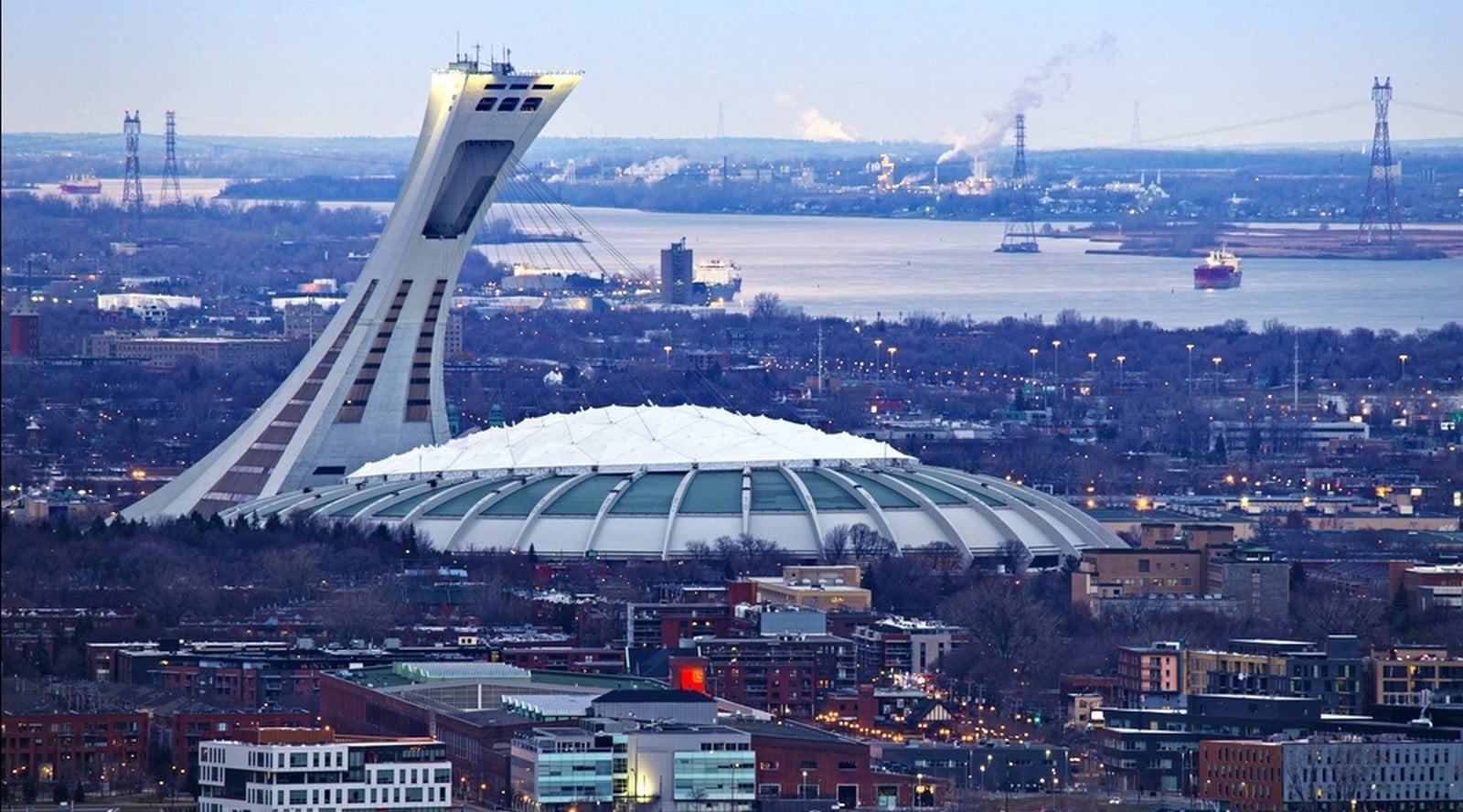

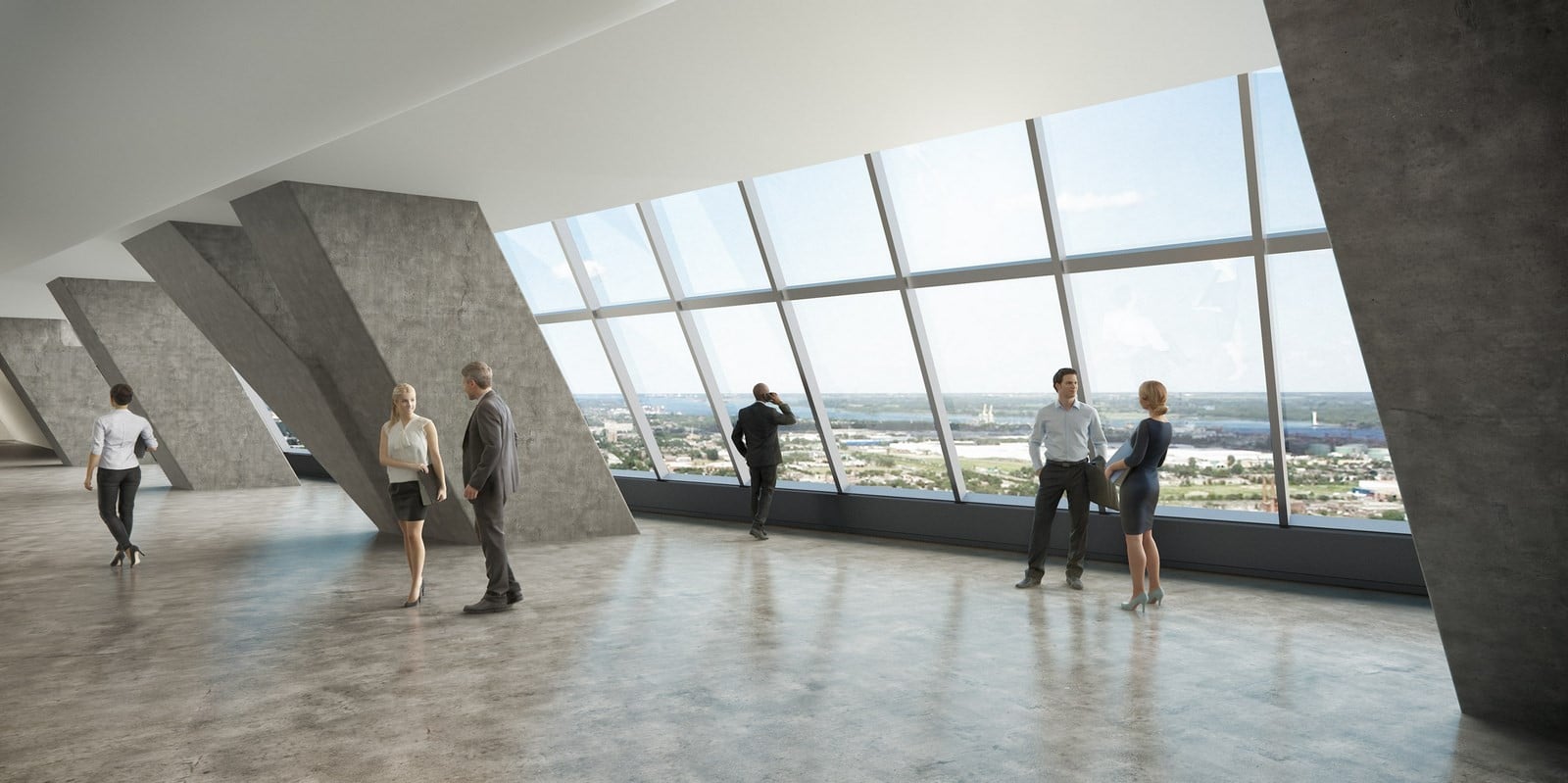

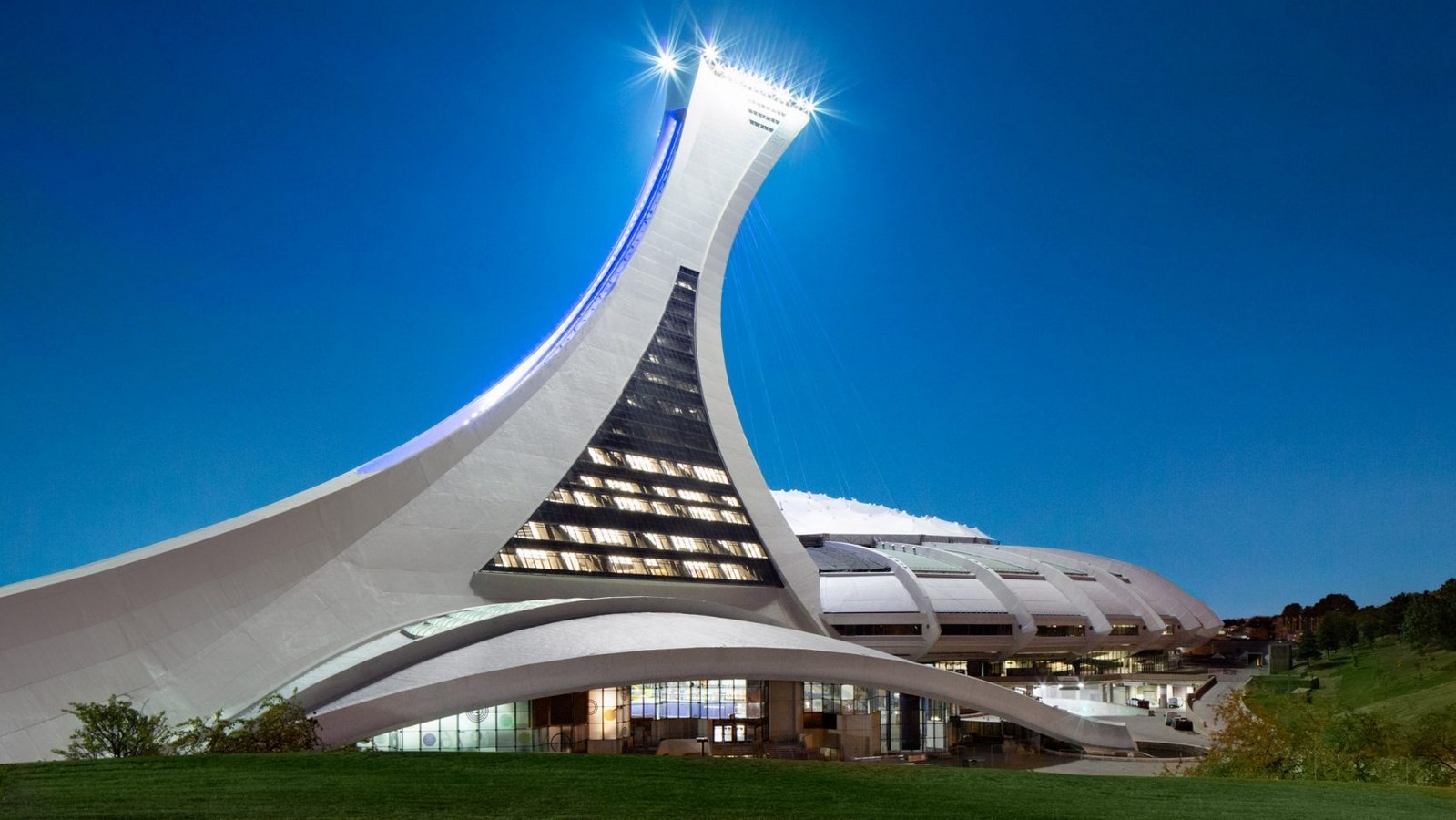

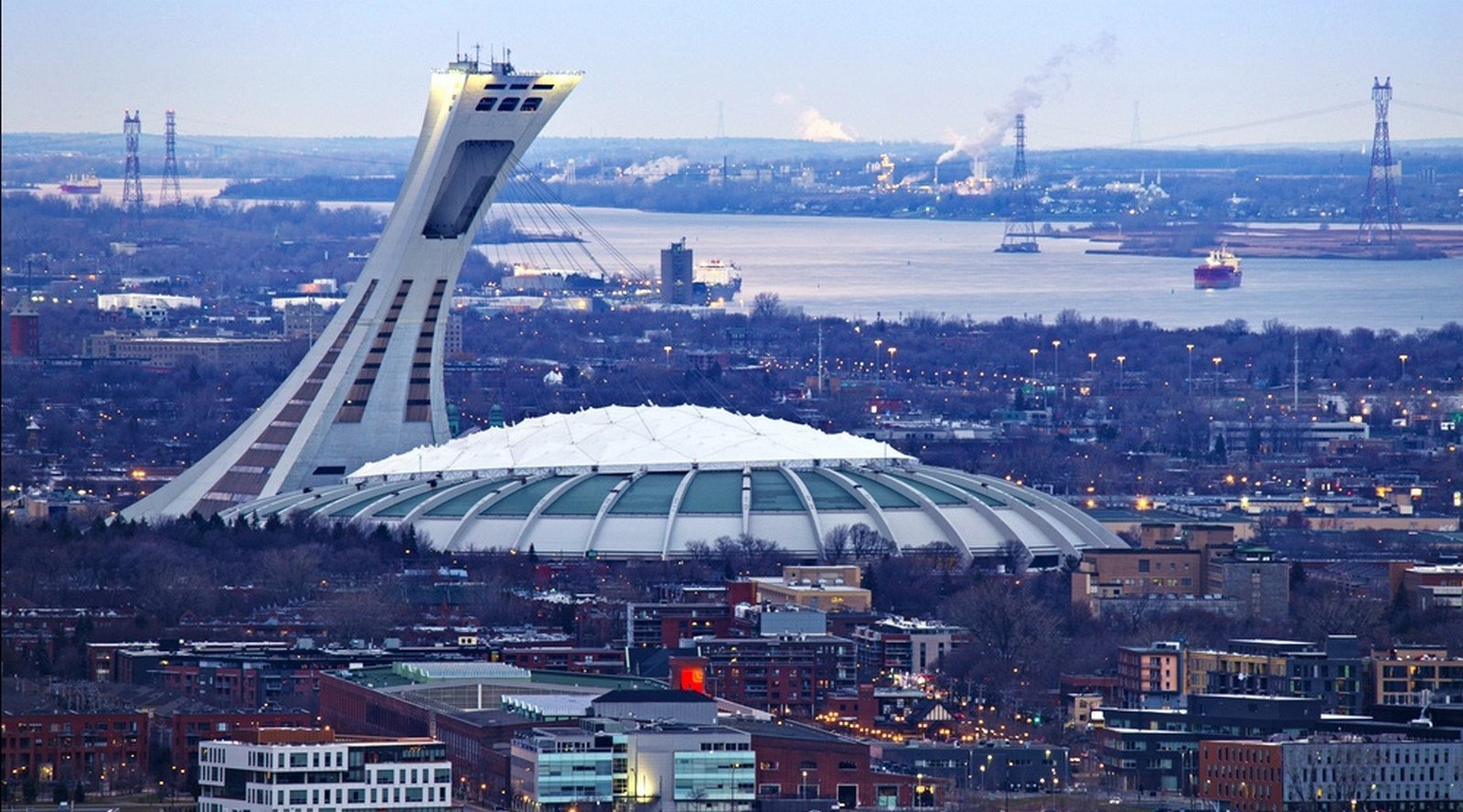

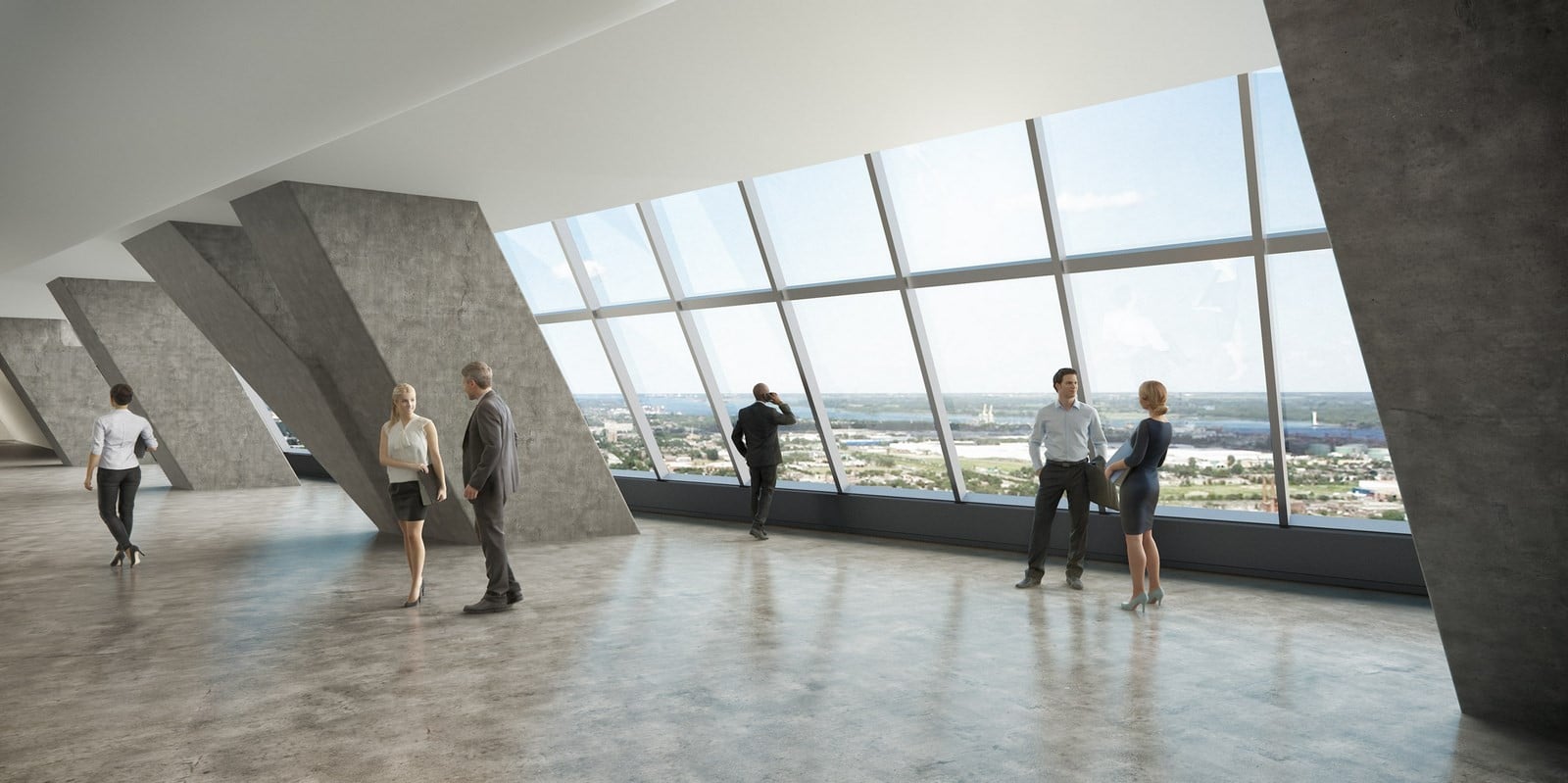

As a part of the Olympic Stadium constructed for the Summer Games in 1976, the Montreal Tower was built to support the stadium’s retractable roof. Post completion, the tower reaches a height of 175m and an inclination of almost 45 degrees, making it the world’s tallest inclined structure.

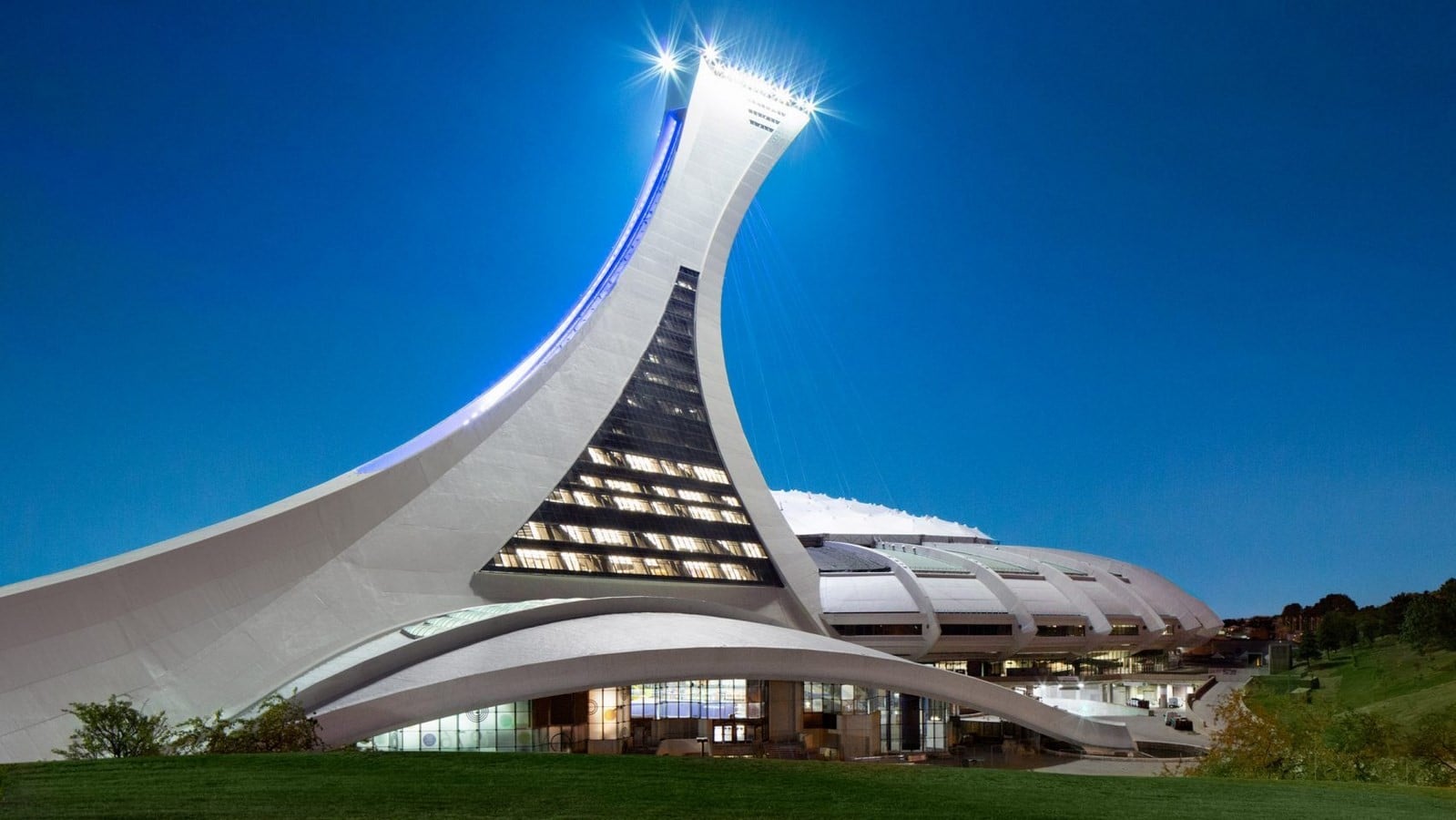

Montreal Tower - Sheet1
Montreal Tower ©Dezeen
Montreal Tower - Sheet2
Montreal Tower ©Dezeen
Montreal Tower - Sheet3
Montreal Tower ©Dezeen

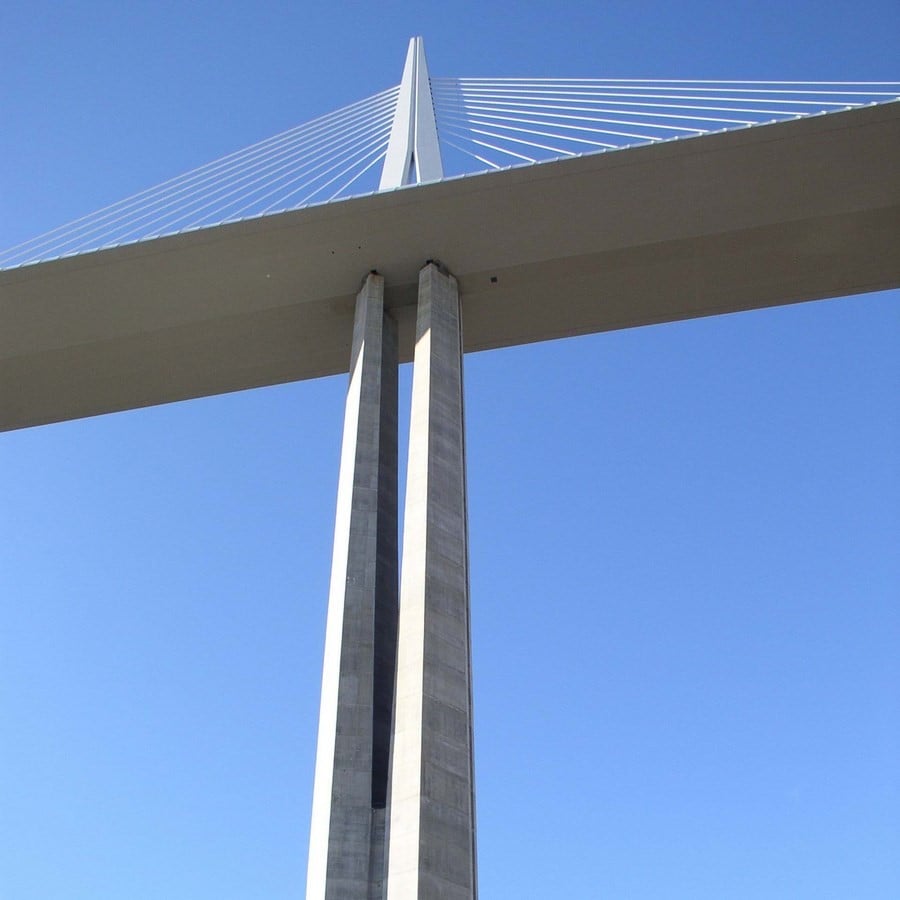

13. Millau Viaduct

Location: Millau, France
Status: Completed in 2004

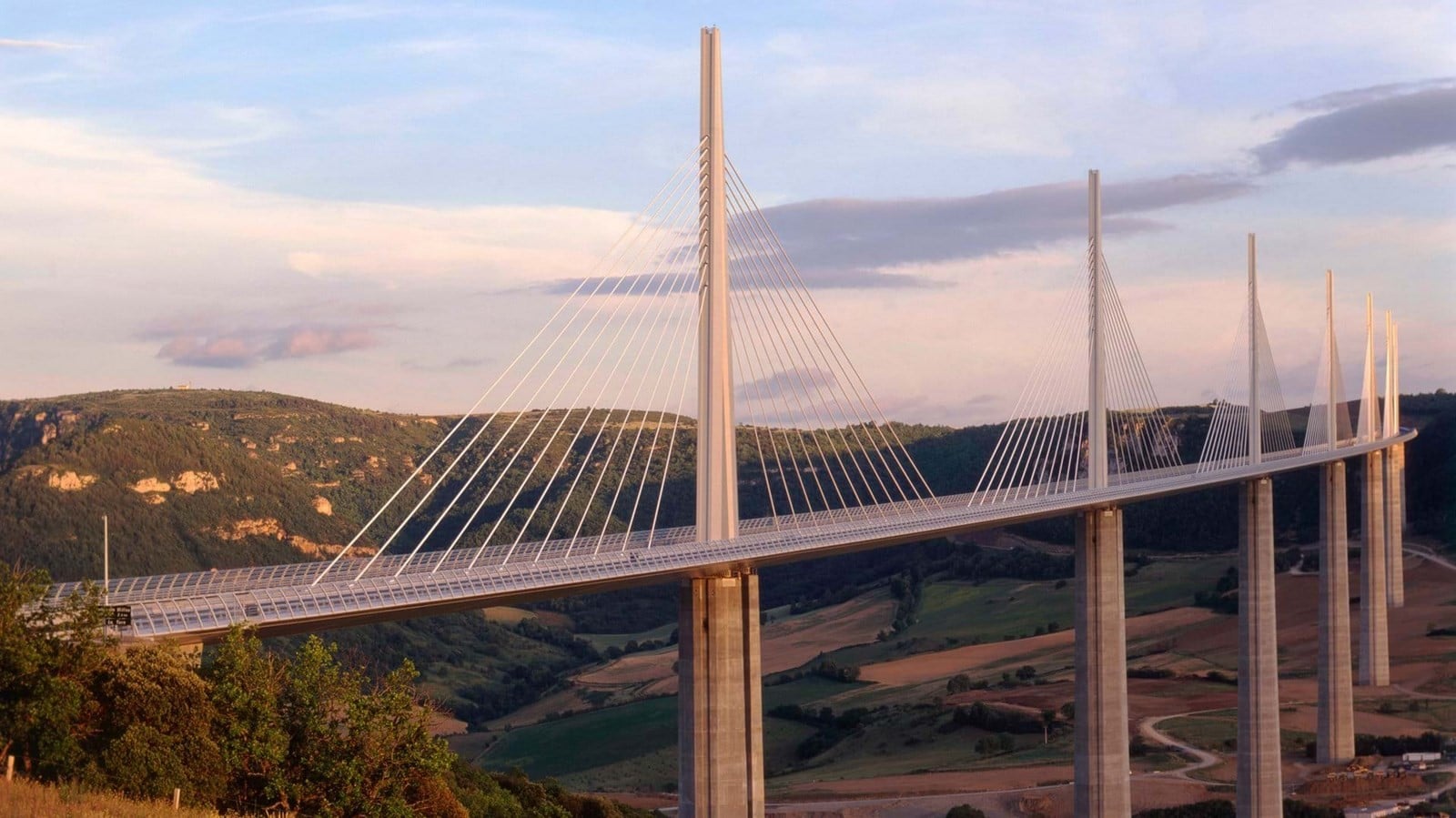

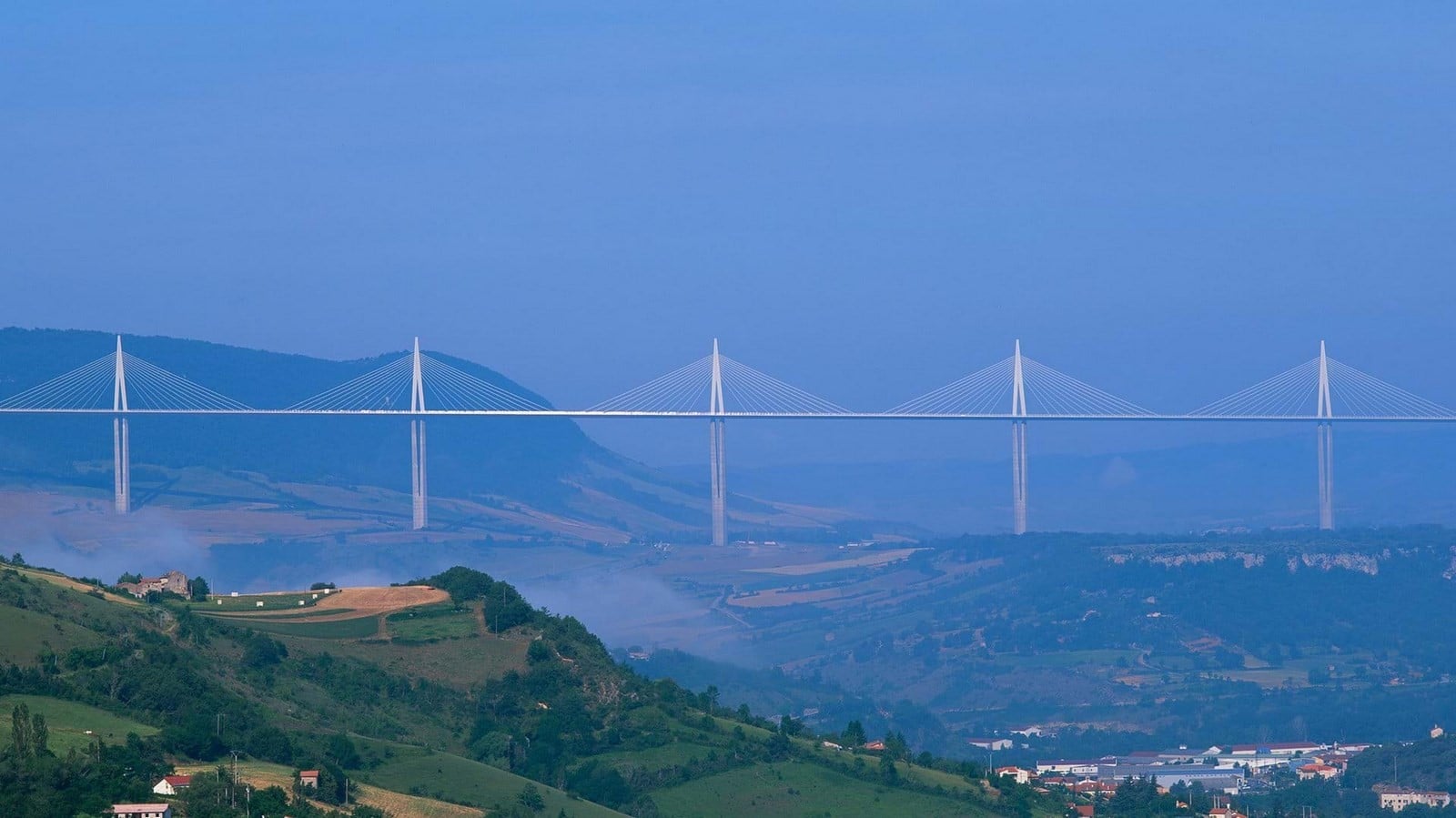

Spanning a total of 2460m with eight consecutive cable stays, the Millau Viaduct is the highest cable-stayed bridge structure in the world. The mast reaches a height of 343m above the ground. Designed by British architect Norman Foster, the bridge consumed 1,27,000 cubic meters of concrete and 19,000 tonnes of steel.

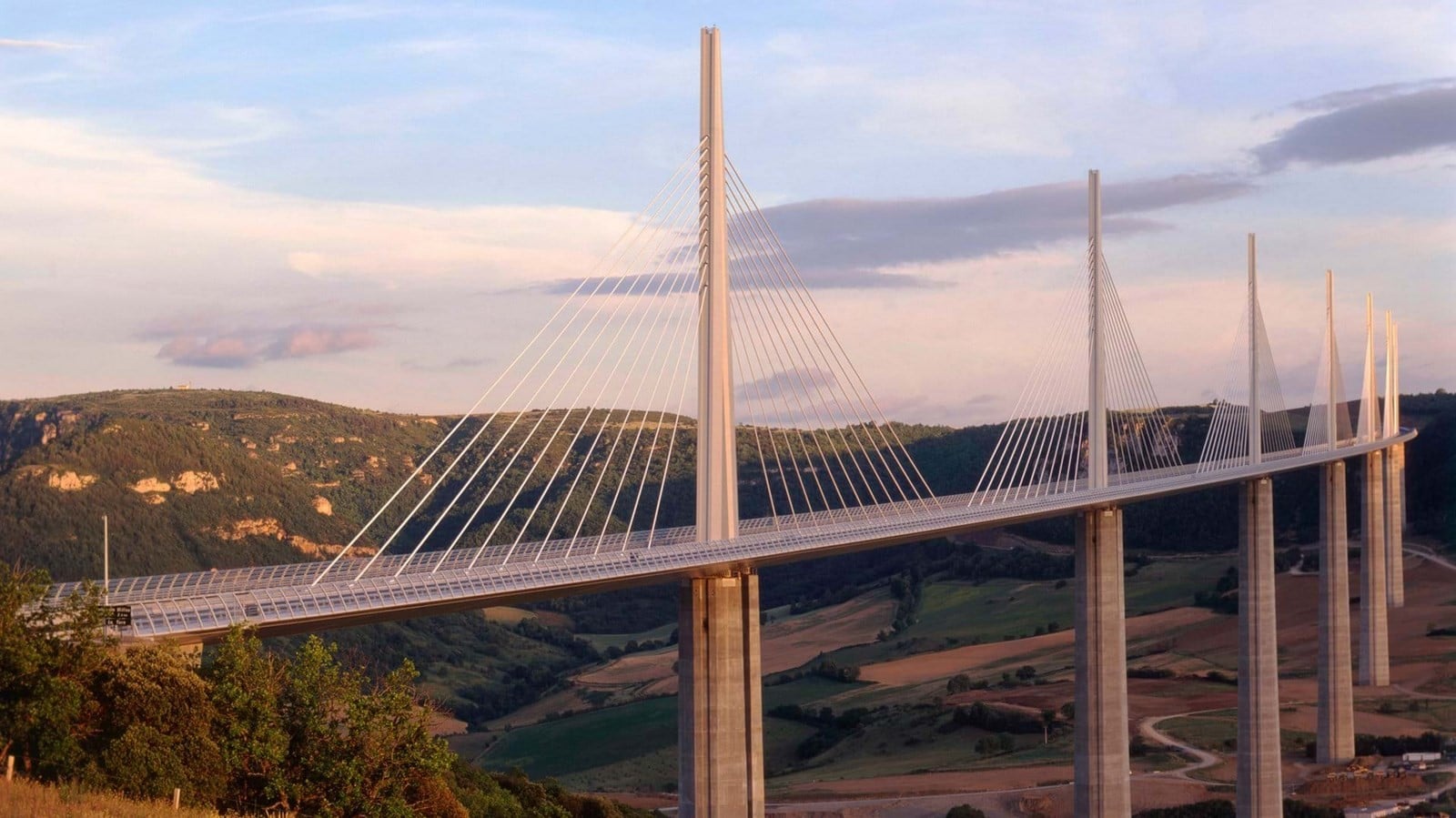

Millau Viaduct - Sheet1
Millau Viaduct©Foster and Partners

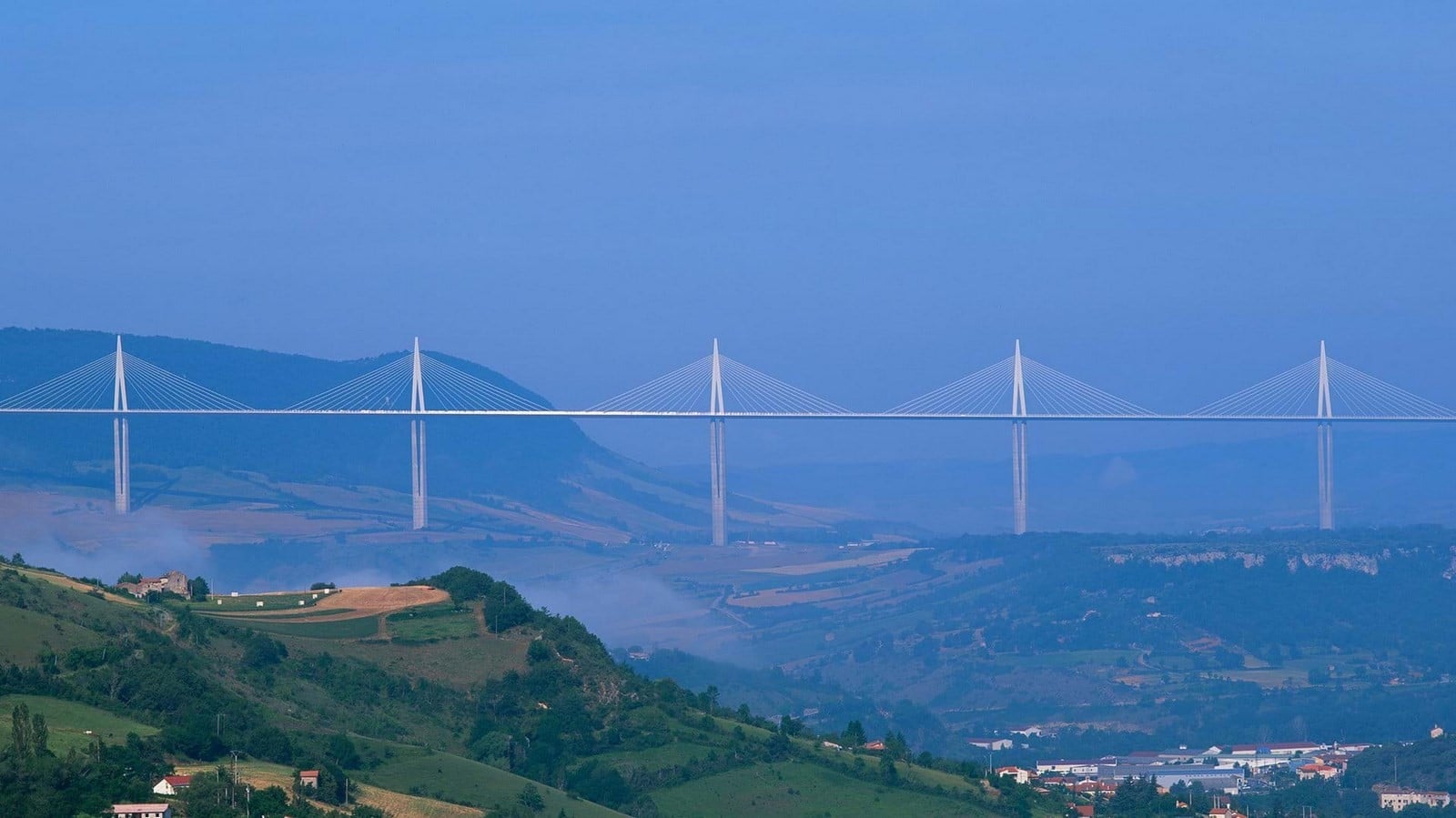

Millau Viaduct - Sheet2
Millau Viaduct©Foster and Partners
Millau Viaduct - Sheet3
Millau Viaduct©Foster and Partners

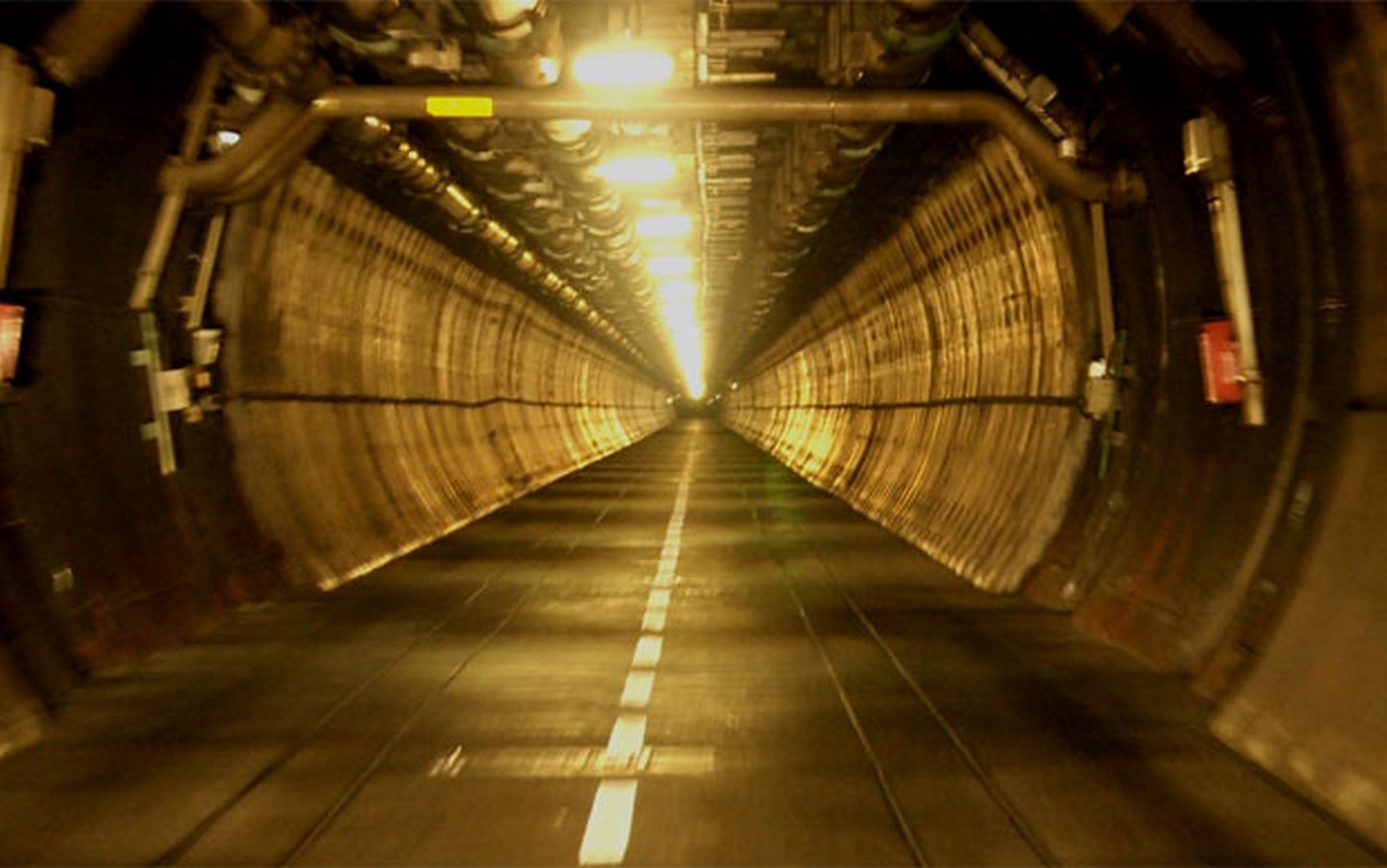

14. Channel Tunnel

Location: England
Status: Completed in 1994

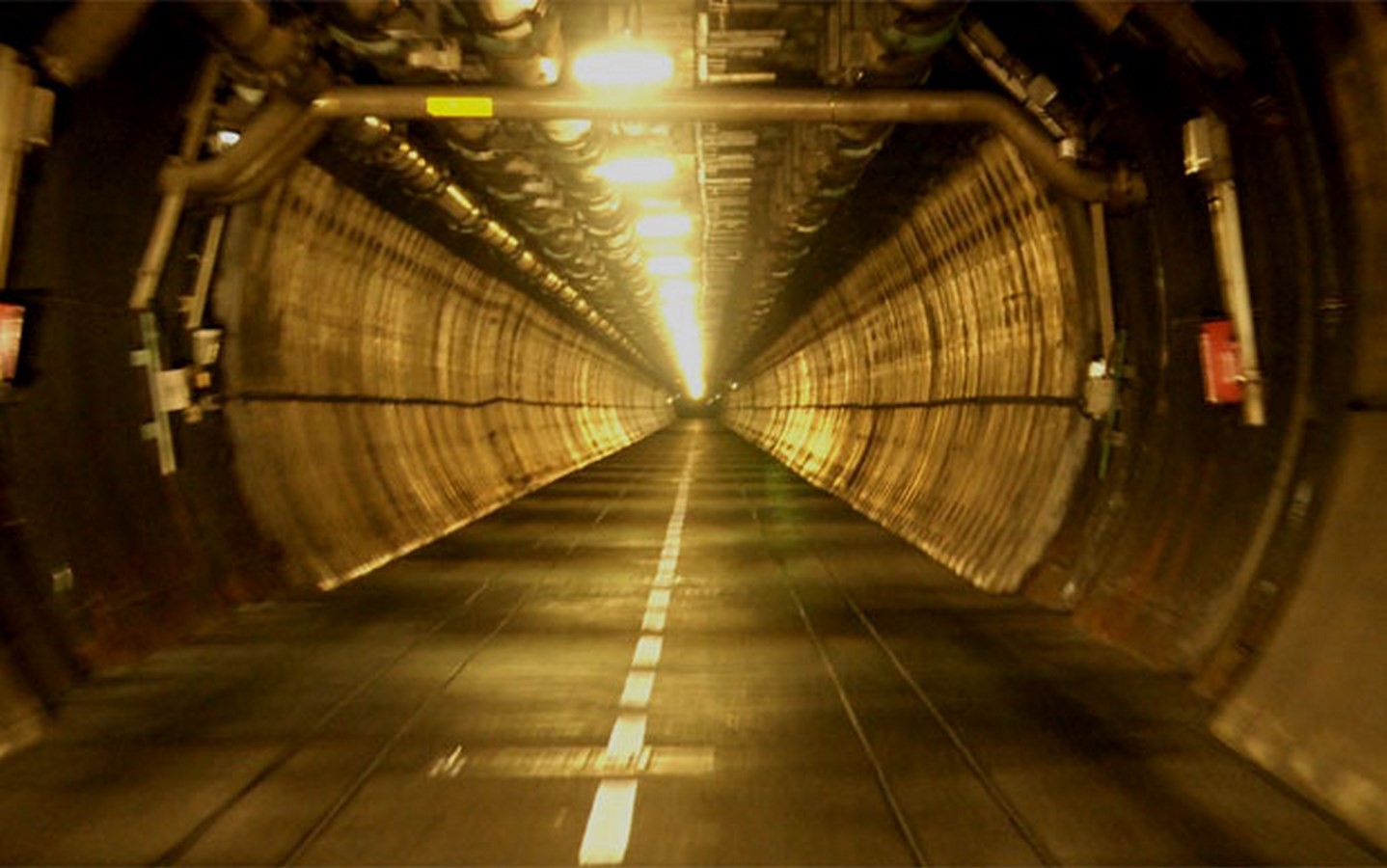

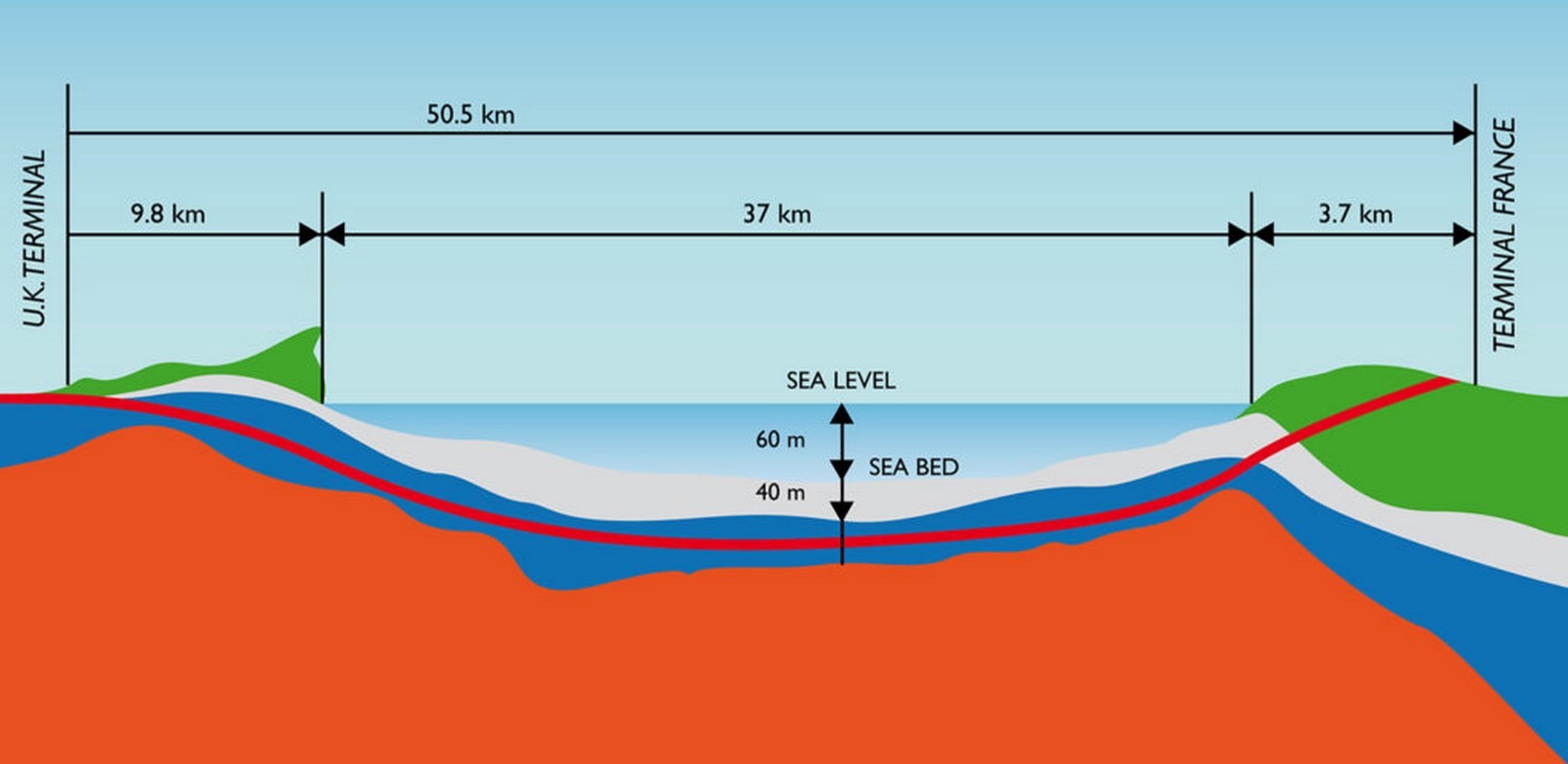

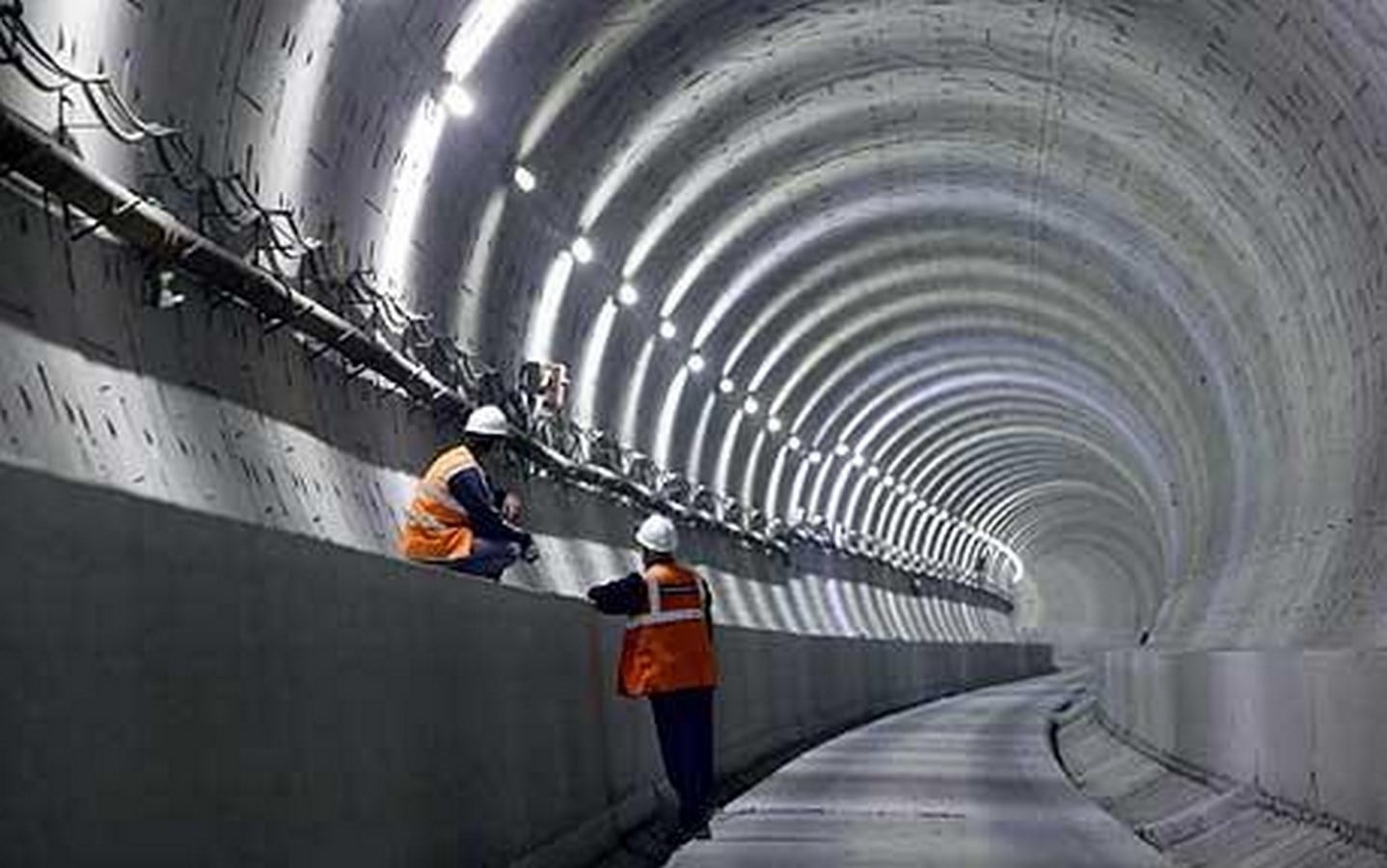

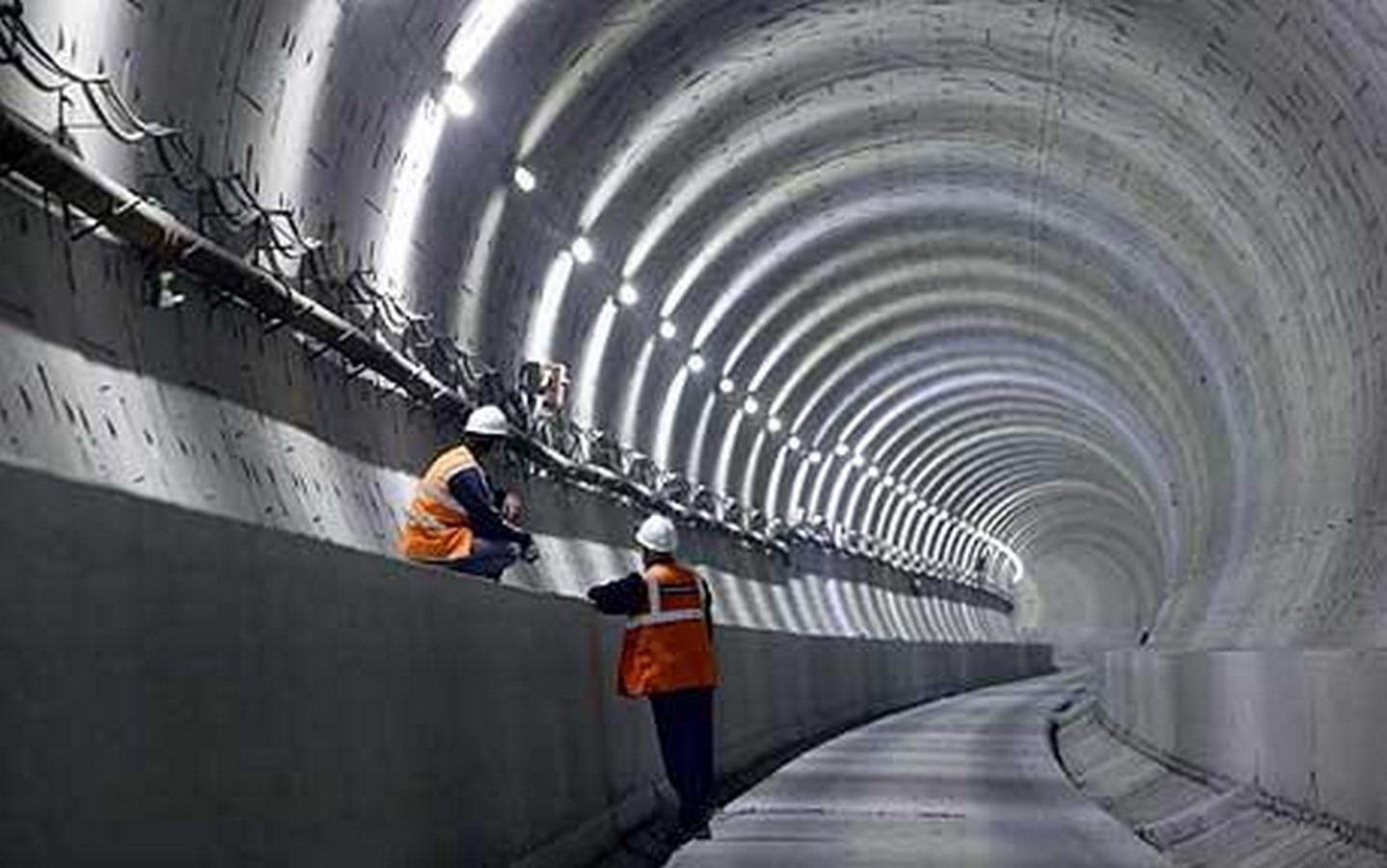

Connecting England and France, the Channel Tunnel runs 50 km underwater, making it the world’s longest undersea tunnel. The average depth of the tunnel is 50m below the seabed and reaches the lowest point at 75m.

Channel Tunnel - Sheet1
The Channel Tunnel ©Getlink Group
Channel Tunnel - Sheet2
The Channel Tunnel ©Getlink Group

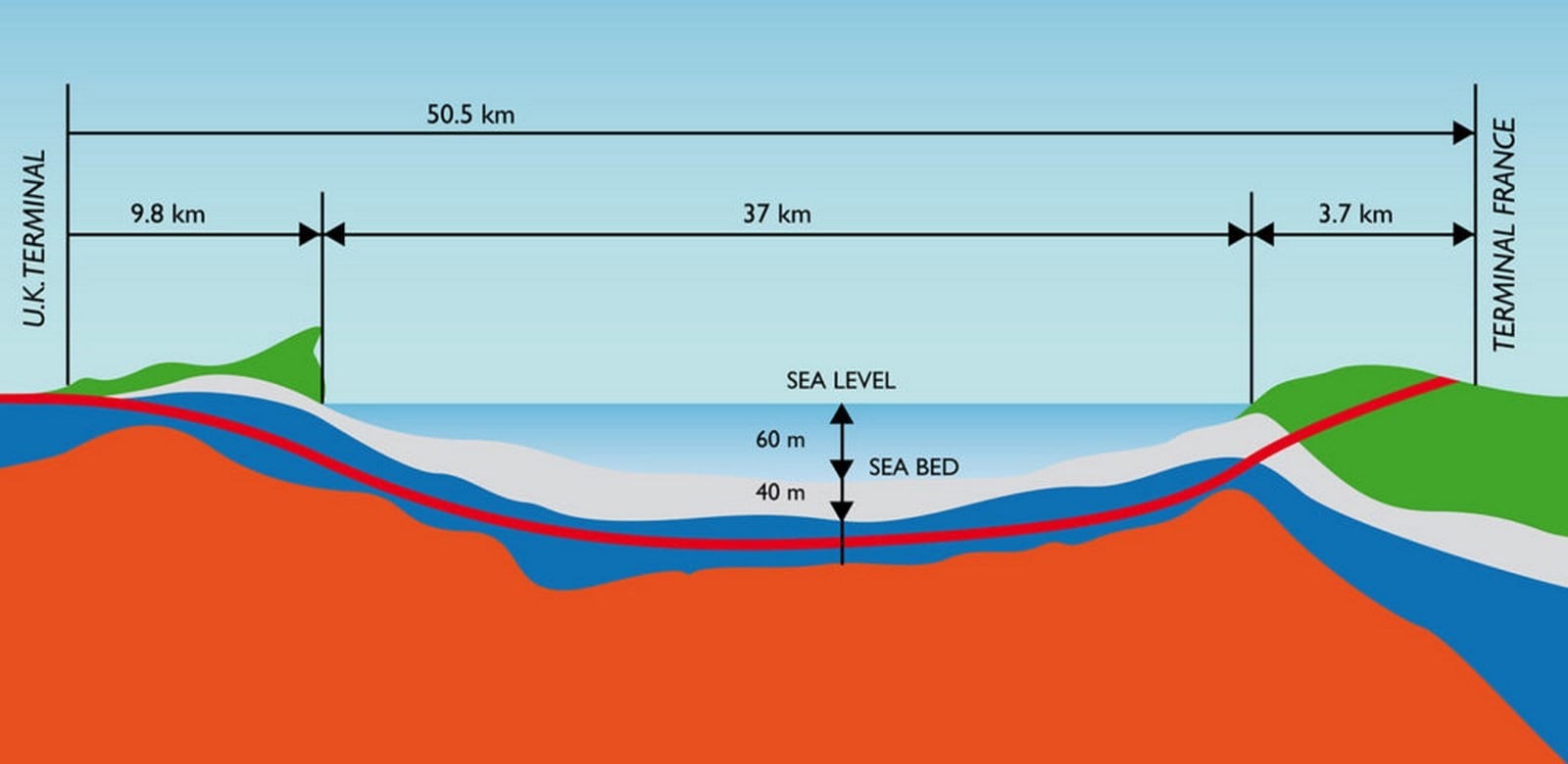

Channel Tunnel - Sheet3
The Channel Tunnel ©Getlink Group

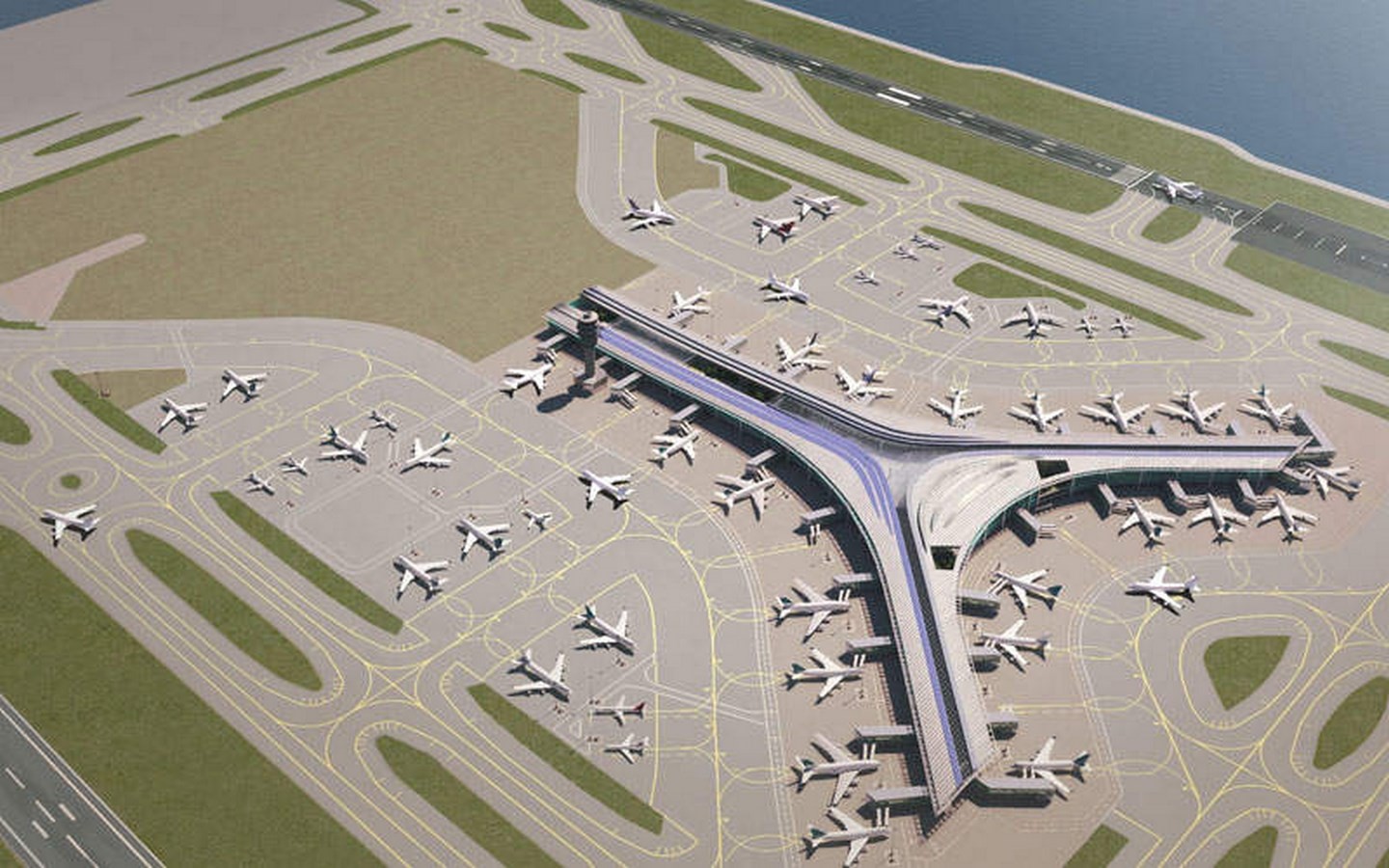

15. Hong Kong International Airport

Location: Hong Kong
Status: Completed in 1998

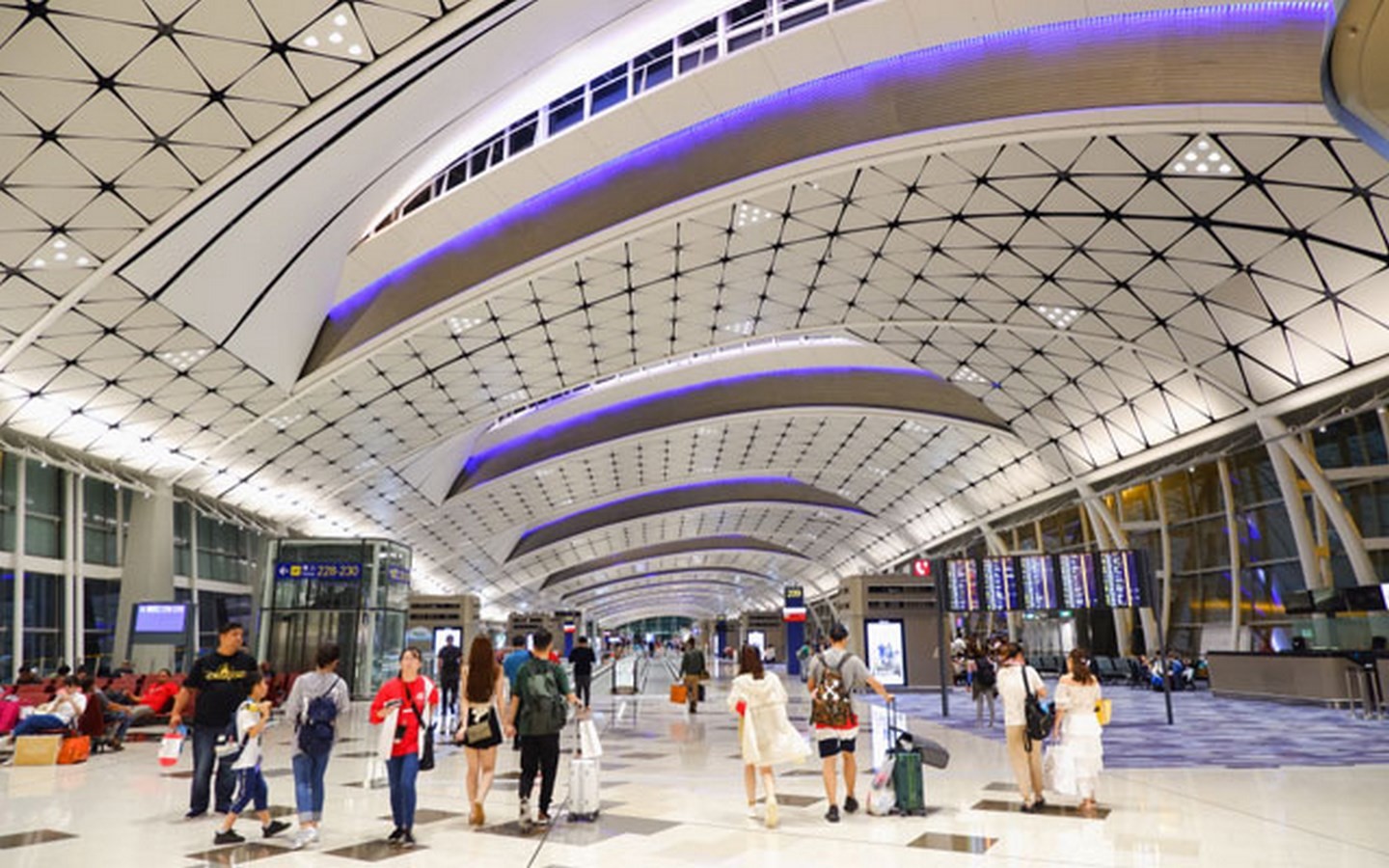

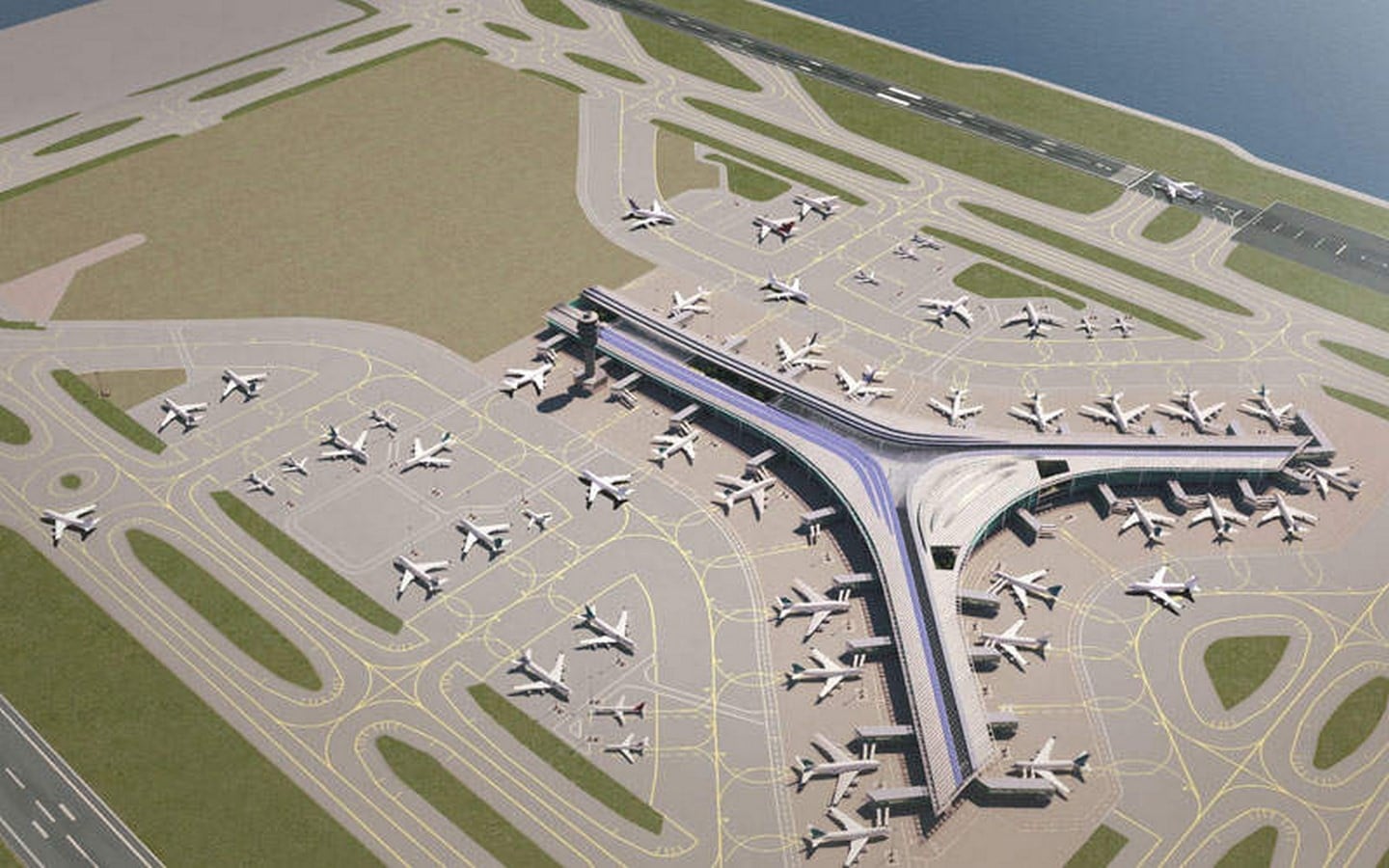

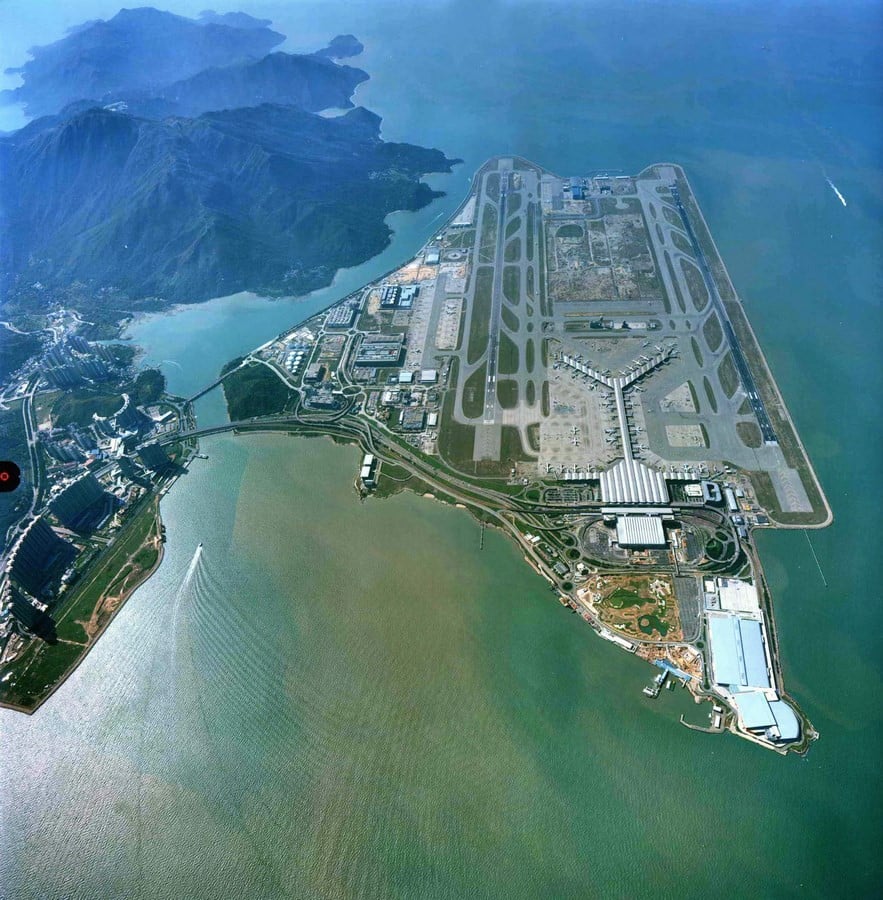

Designed by Forster and Partners, the Hong Kong International Airport is built entirely on the reclaimed piece of land. At the time of its opening, the airport’s terminal 1 was the biggest in the world, with two parallel runways 3,800m long and 60m wide.

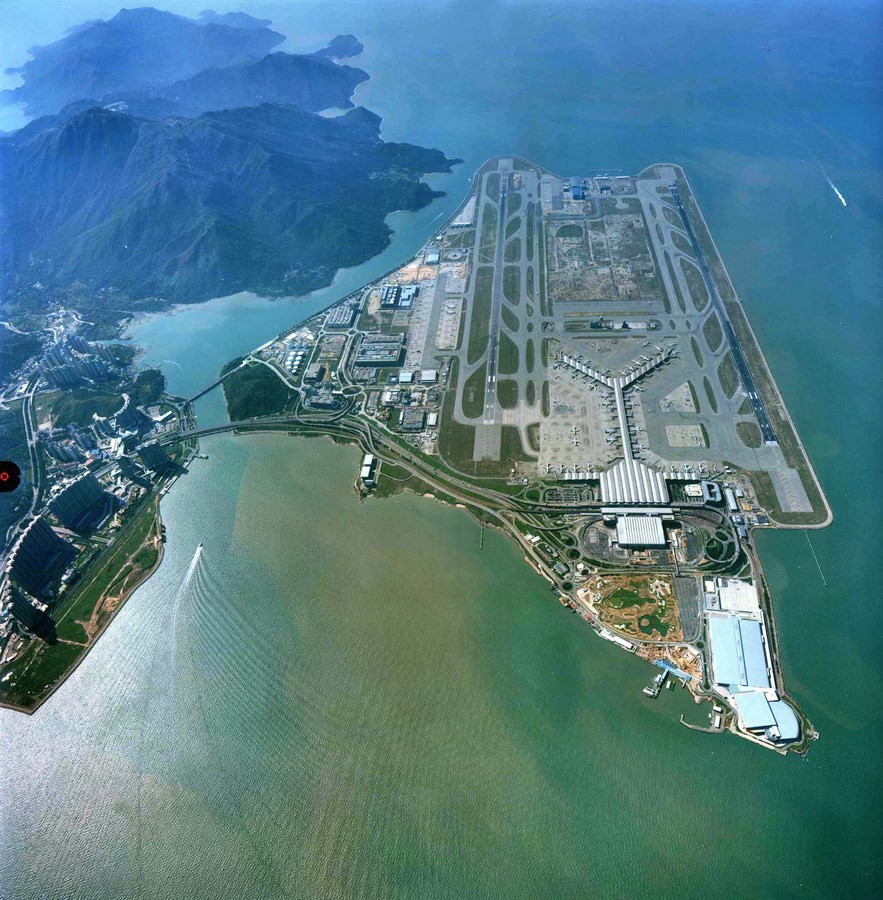

Hong Kong International Airport - Sheet1
Hong Kong International Airport ©TTG Asia
Hong Kong International Airport - Sheet2
Hong Kong International Airport ©TTG Asia

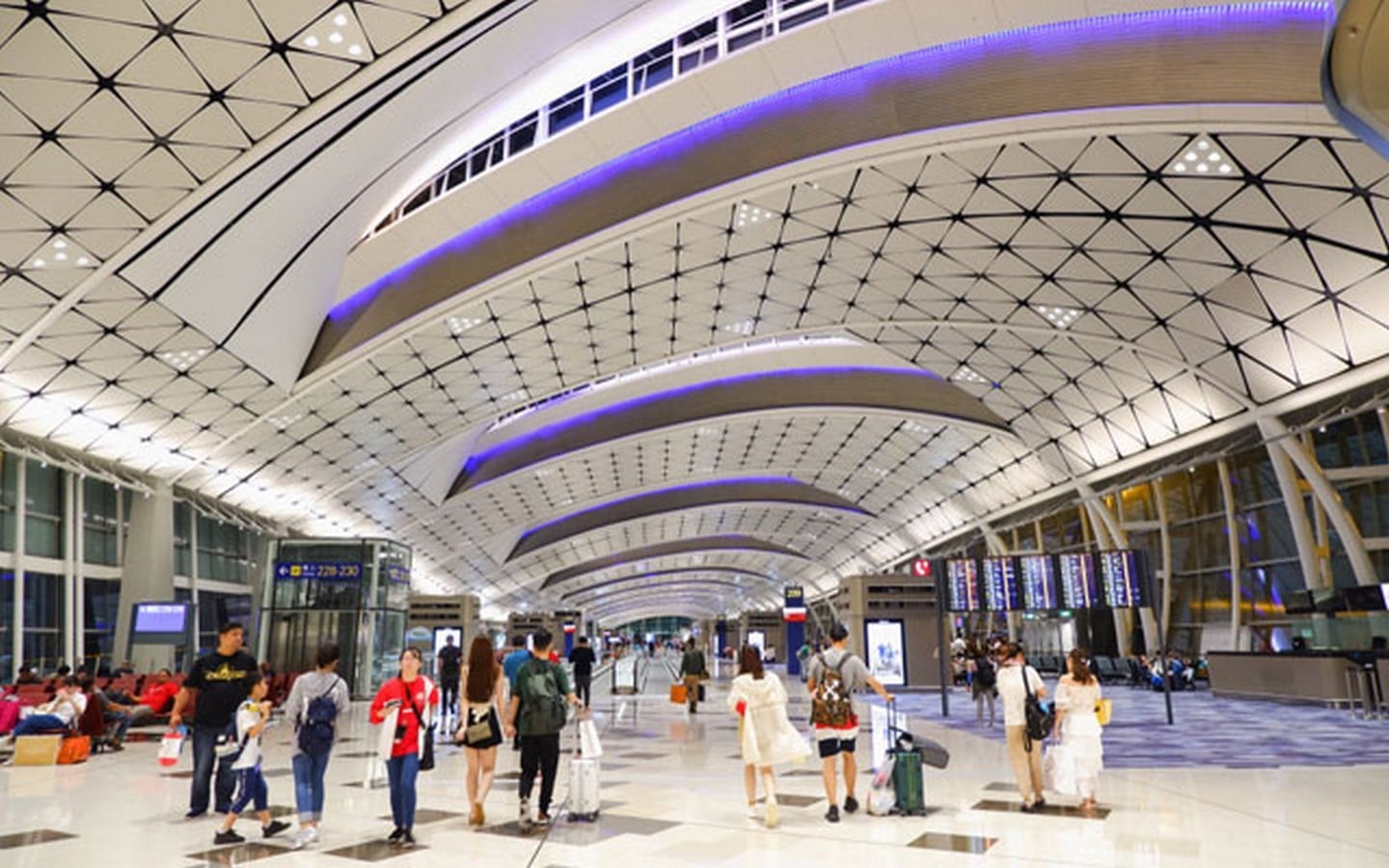

Hong Kong International Airport - Sheet3
Hong Kong International Airport ©TTG Asia
