Hugely controversial, for almost 90 years from its inception to its opening, the Three Gorges Dam is a wonder of modern technology and engineering. The big concrete structure has converted the dangerous Yangtze River situated in Chongqing municipality, into a navigable trade route from Shanghai to Chongqing.

Rethinking The Future Awards 2022

Location: Sandouping Village, Yichang County, Hubei Province.
Project Dimensions: 2.31 km in length, with the crest elevation at 185 m and a maximum height of 181 m.
Project Completed: 2009

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet1
It has taken over 40,000 workers and 17 years to build this enormous dam ©acivengstudent.com

A monumental engineering achievement – bridging two centuries at the cost of irreversible impact on nature and society.

Eduwik- Online Courses for Architects & Designers

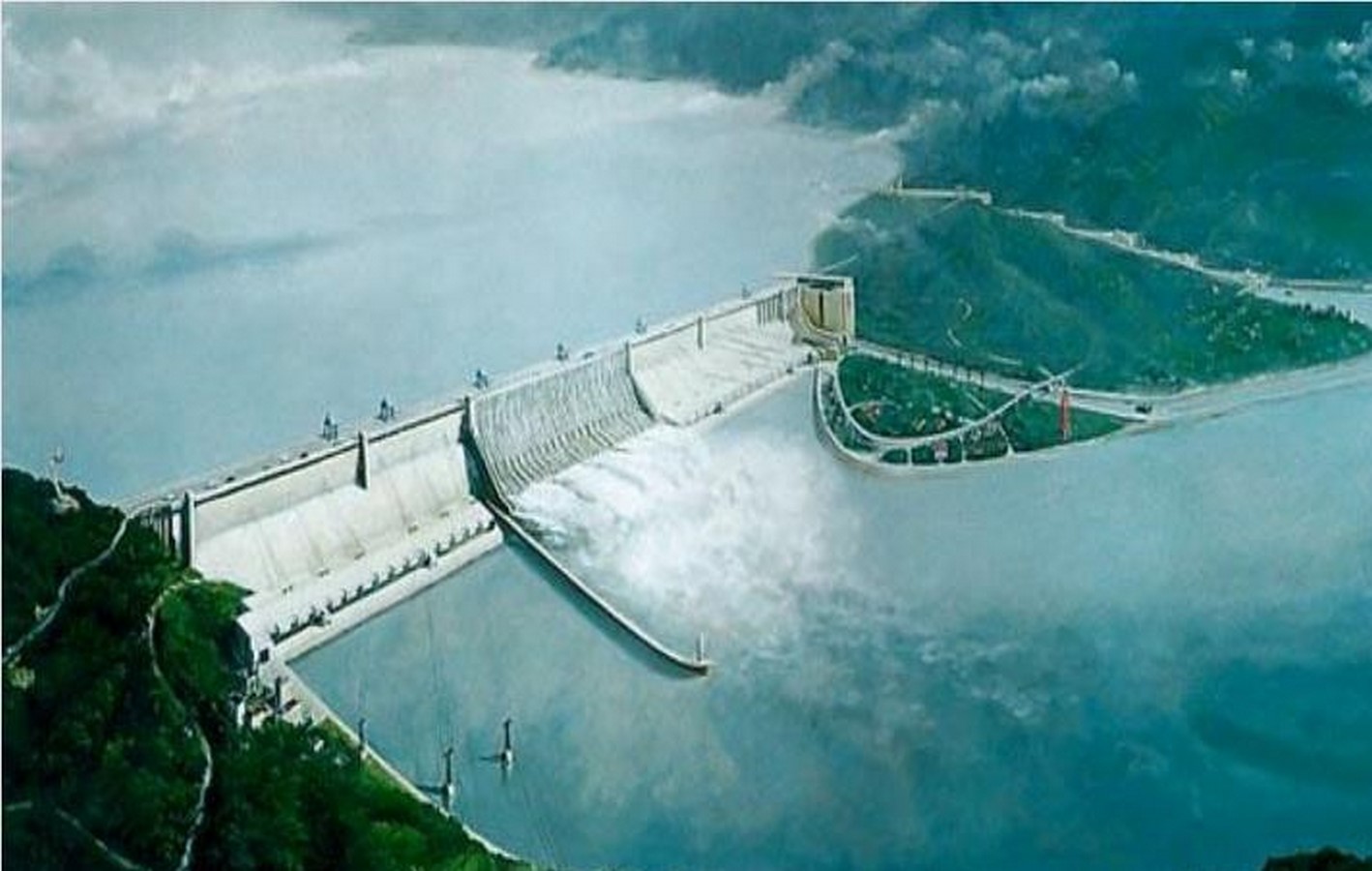

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet2
Made of concrete and steel, this concrete gravity dam has chamber volumes of maximum39 cubic kilometers ©www.slideserve.com

From an early design, Sun Yat-sen, the founding father of modern China, saw the dam as a part of his economic development plan for China in 1919. For a country eager to cement its place as a world leader, the three gorges dam is a tool to boost energy security while simultaneously reducing coal-based carbon emission to be viewed as a developed nation. Yat-sen envisioned to use the vast hydropower resources of the river to produce electricity to build factories that make artificial fertilizer, which would make China achieve the leap in agricultural productivity to accommodate their growing population’s needs.

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet3

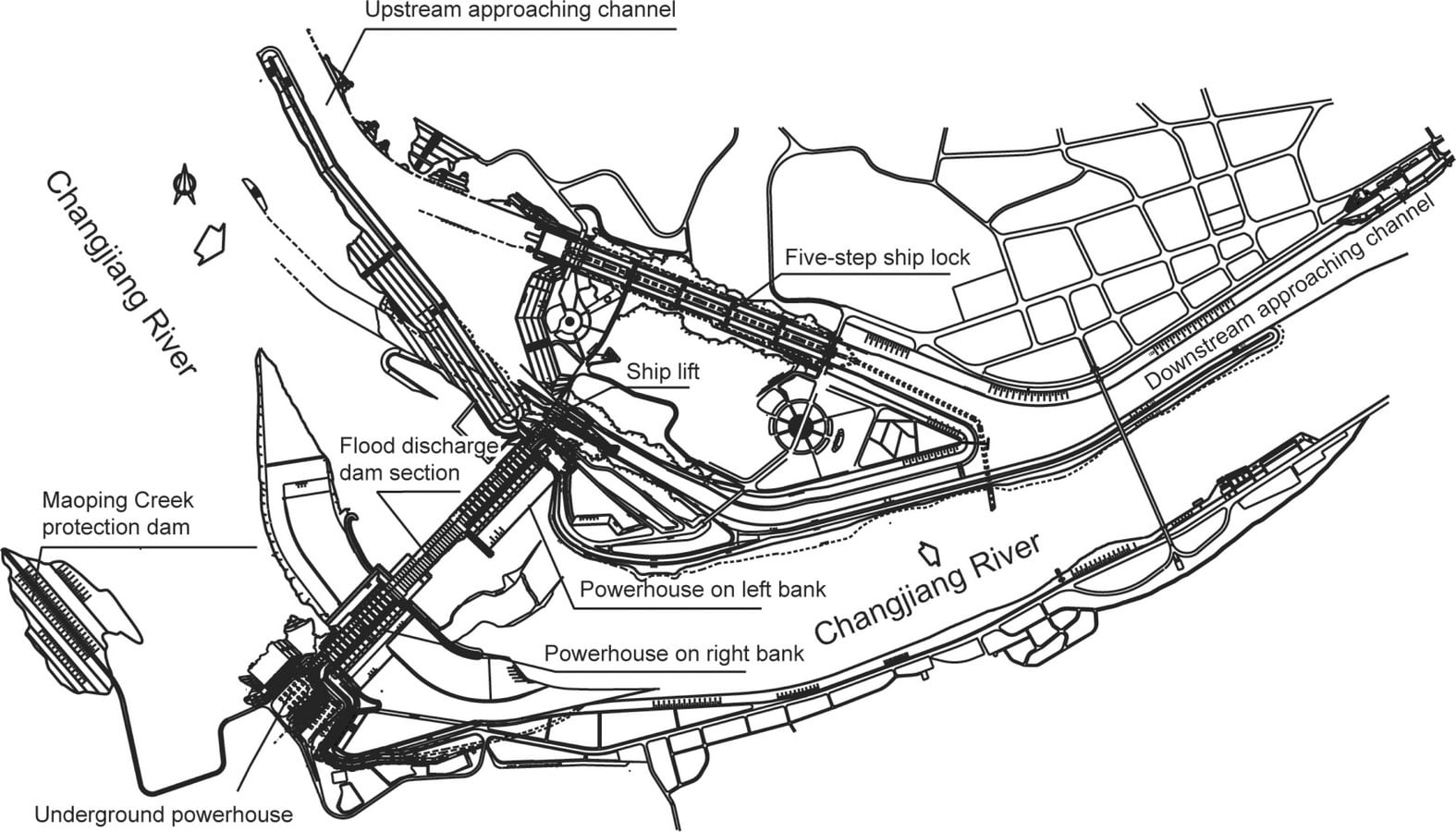

Master Plan of the Three Gorges Dam  www.sciencedirect.com

The site chosen for construction can accommodate the lake upstream of the dam and The granite with 100 MPa of compressive quality, frames a decent establishment bed for the dam. Additionally, there are no major troublesome geologic structures in the region around the site, while the local seismic activities are little in power, low in recurrence. Also, the existence of the small islet of Zhongbao near the side bank of the river was favorable for the diversion project. At last in 1992, with Pan Jiazheng as the ‘chief architect’ the construction for the 60-story high concrete gravity dam, began in 1994.

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet4

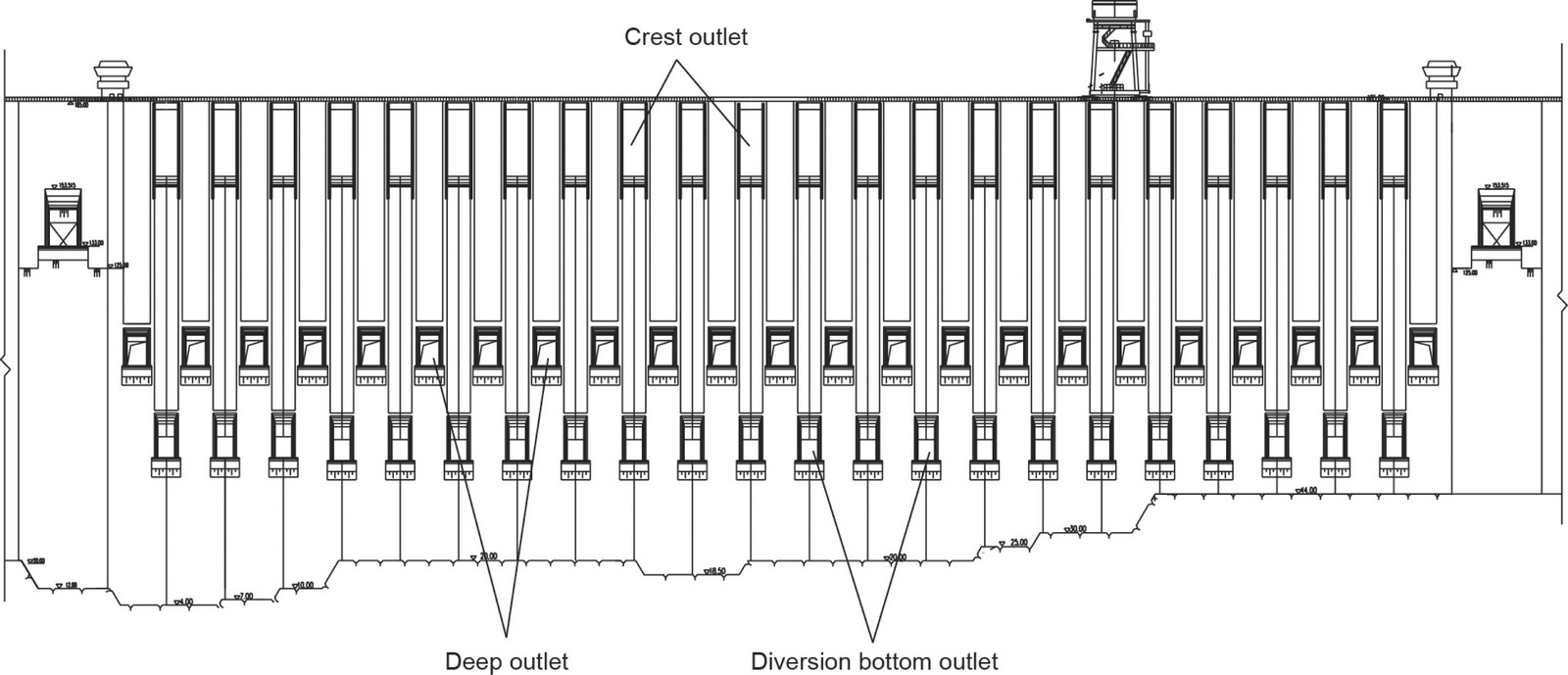

The layout of the three-layer orifices ©www.sciencedirect.com

It has two power plants, navigation facilities, and a dam with three sections: the spillway dam – to release some pressure off the foundation, the intake dam, and the non-overflow dam. Additionally, 22 sluiceways each 8 meters wide with sputtering tips are constructed. The water is first directed into the dams and then down the concrete tubes into the 33 enormous turbines to spin and activate the 34 generators thus generating electricity. Fun Fact: When the dam is running at its full capacity it produces over 4 times the energy of the most powerful nuclear power station in the world yet only generates 1.25% of China’s power supply.

Eduwik- Online Courses for Architects & Designers

Construction Timeline

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet5

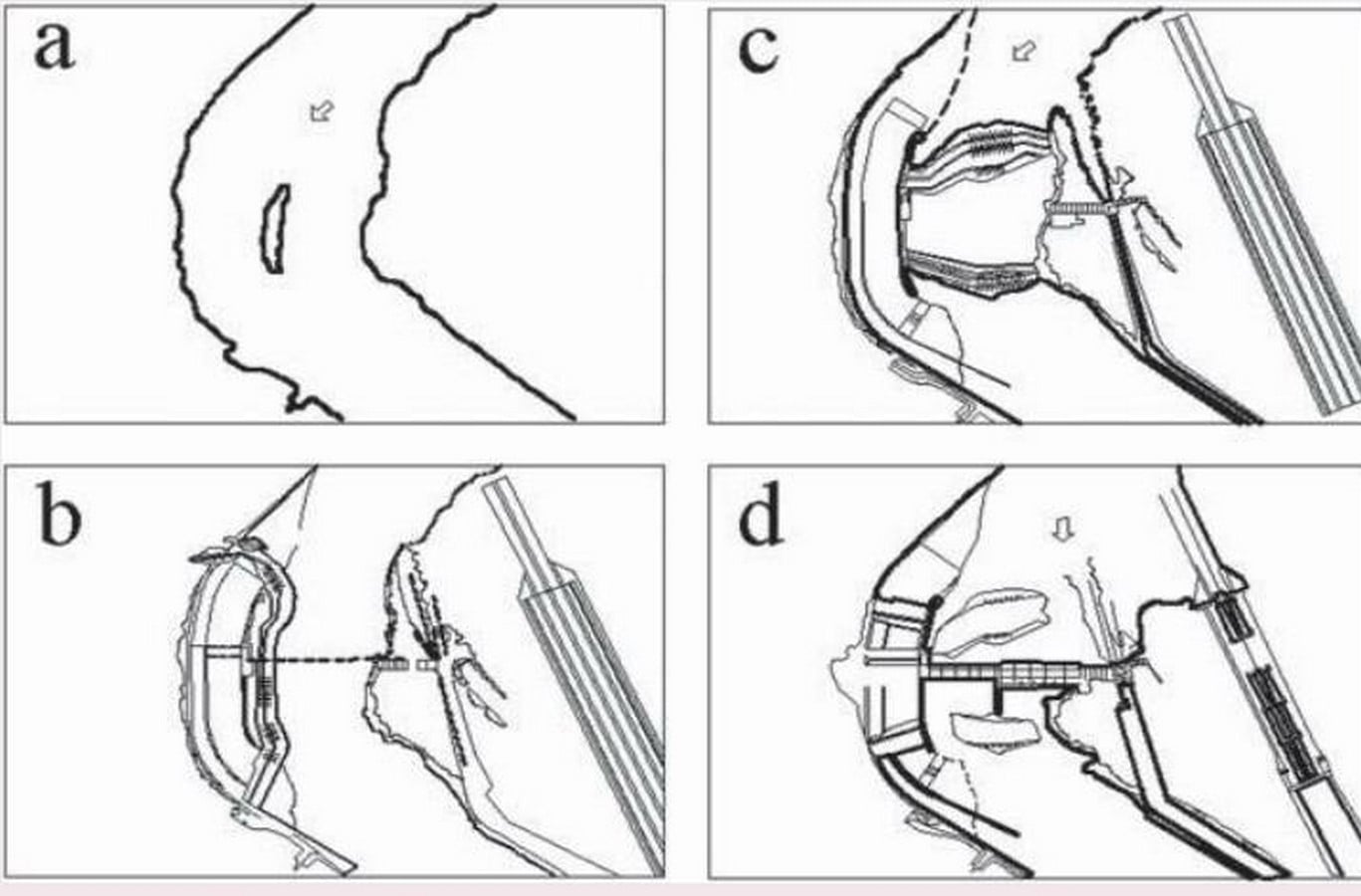

Natural Stage B. first stage of construction C. Second stage of construction D. Third and final stage of construction ©slideserve.com

1993-1997: A rotation system was implemented, therefore the right side of the beach was closed with cofferdams, and space on the left side of the beach was arranged for the passage of vessels.

1998-2003: The dam and the powerplant were constructed on the left side of the beach. Sluiceways and Spillways were constructed in the middle of the dam. The turbine and generators were slowly added in stages and the cofferdams were dismantled with explosives to let the water reach the turbines.

Eduwik- Online Courses for Architects & Designers

2003-2009: The third and final phase was the construction of the right side of the dam and placement of all generators.

Construction Process

The main work quantities to be done in the construction for principal structures and diversion works were as follows:

Eduwik- Online Courses for Architects & Designers

Earth-and-rock excavation:

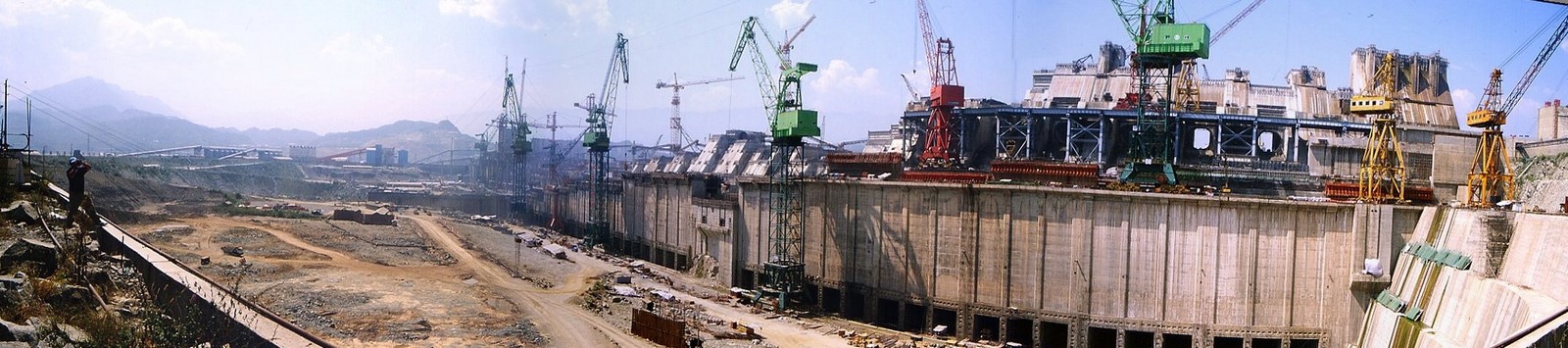

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet6

The construction pit for erecting the dam was dug to a depth of 260 ft. Numerous holes were drilled into the ground and filled with pressurized grout, to help protect the dam from being uplifted by preventing water from seeping underneath the structure.

Eduwik- Online Courses for Architects & Designers

Earth-and-rock embankment:

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet7

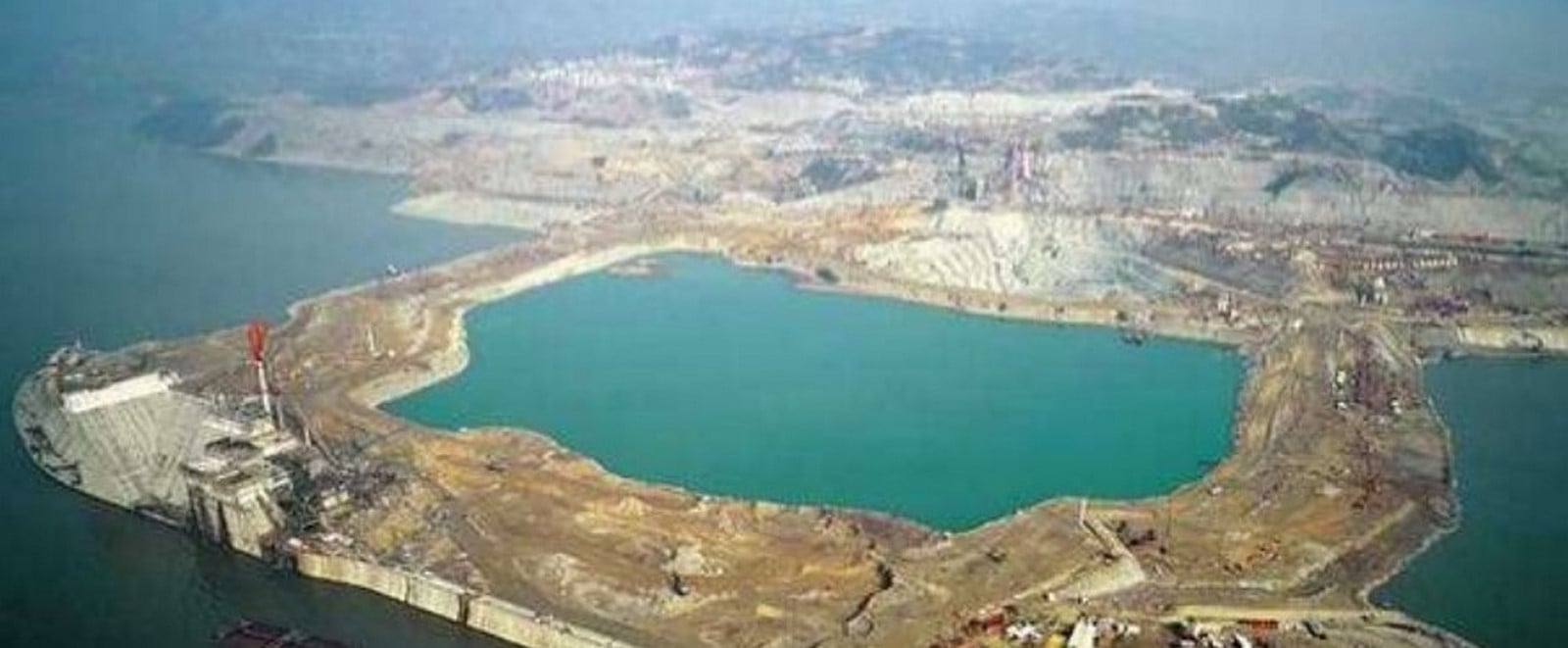

Cofferdams placed for river diversions ©www.slideshare.net

870,000 sq ft of concrete walls were sunk below the transverse cofferdams.

Concrete and Rebar placing:

Eduwik- Online Courses for Architects & Designers

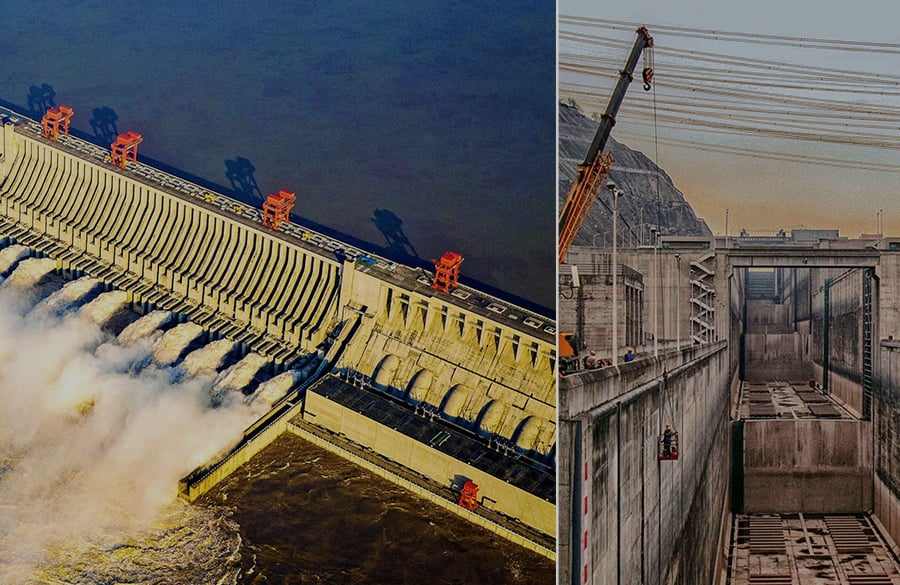

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet8

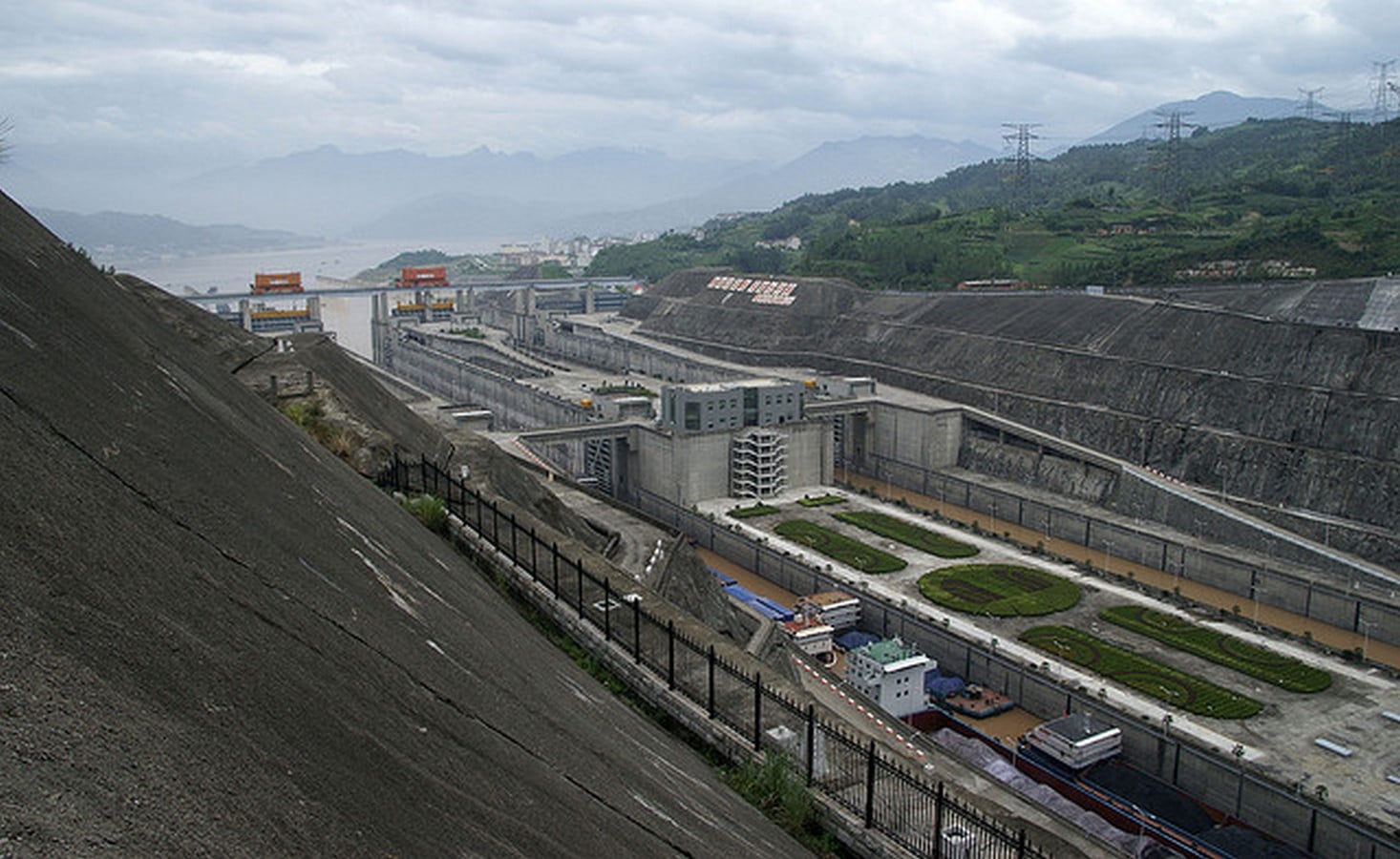

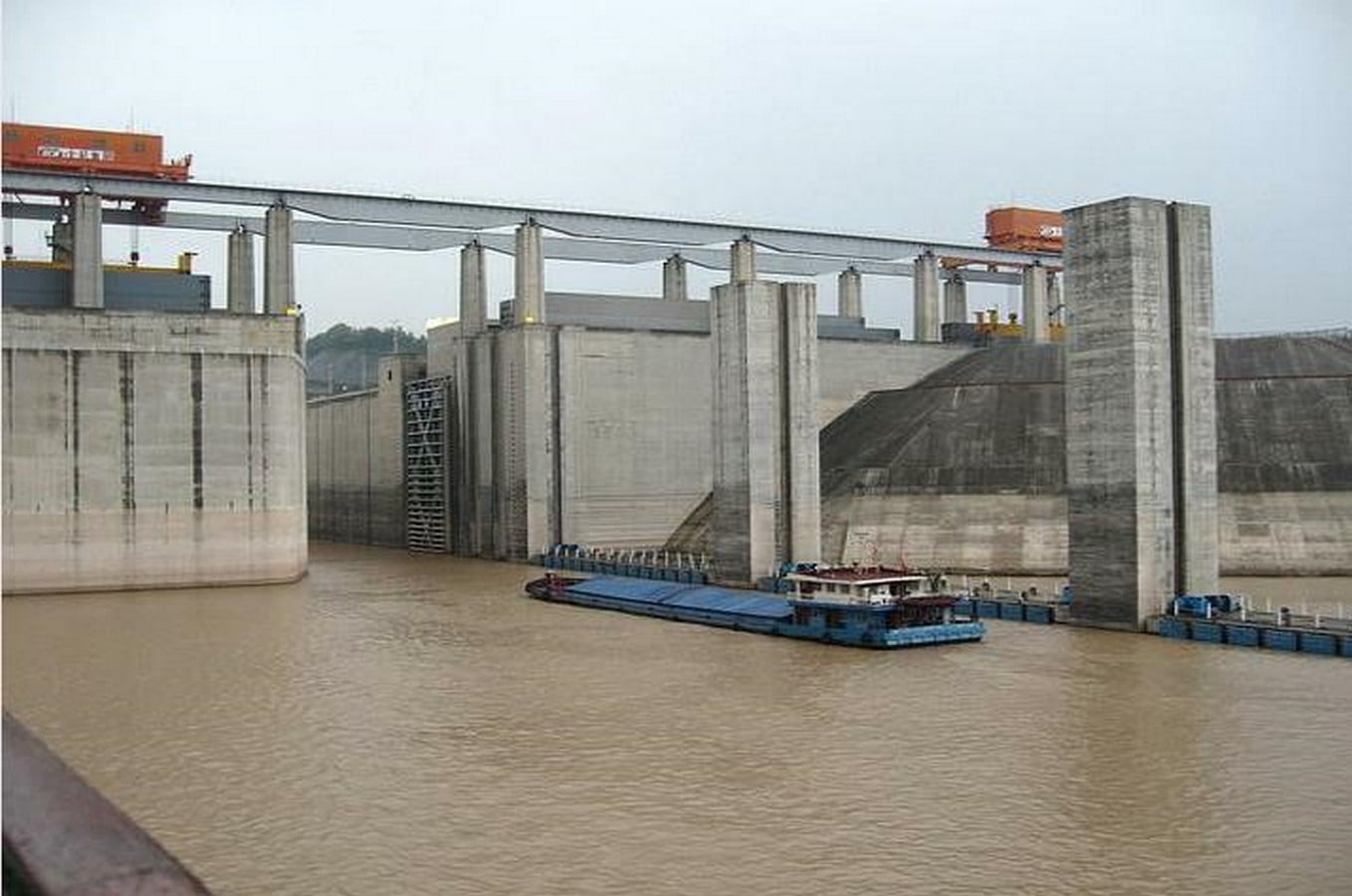

World’s largest ship lock and ship lift, which works at an unbelievable speed ©www.slideserve.com

As the dam progresses, six tower cranes specially fitted with jacking systems raise the conveyors. In addition to their lifting capacity, the tower cranes have swinging telescopic conveyors that are designed to pour concrete at the impressive rate of more than 600 cubic yards per hour.

Metalworks:

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet9

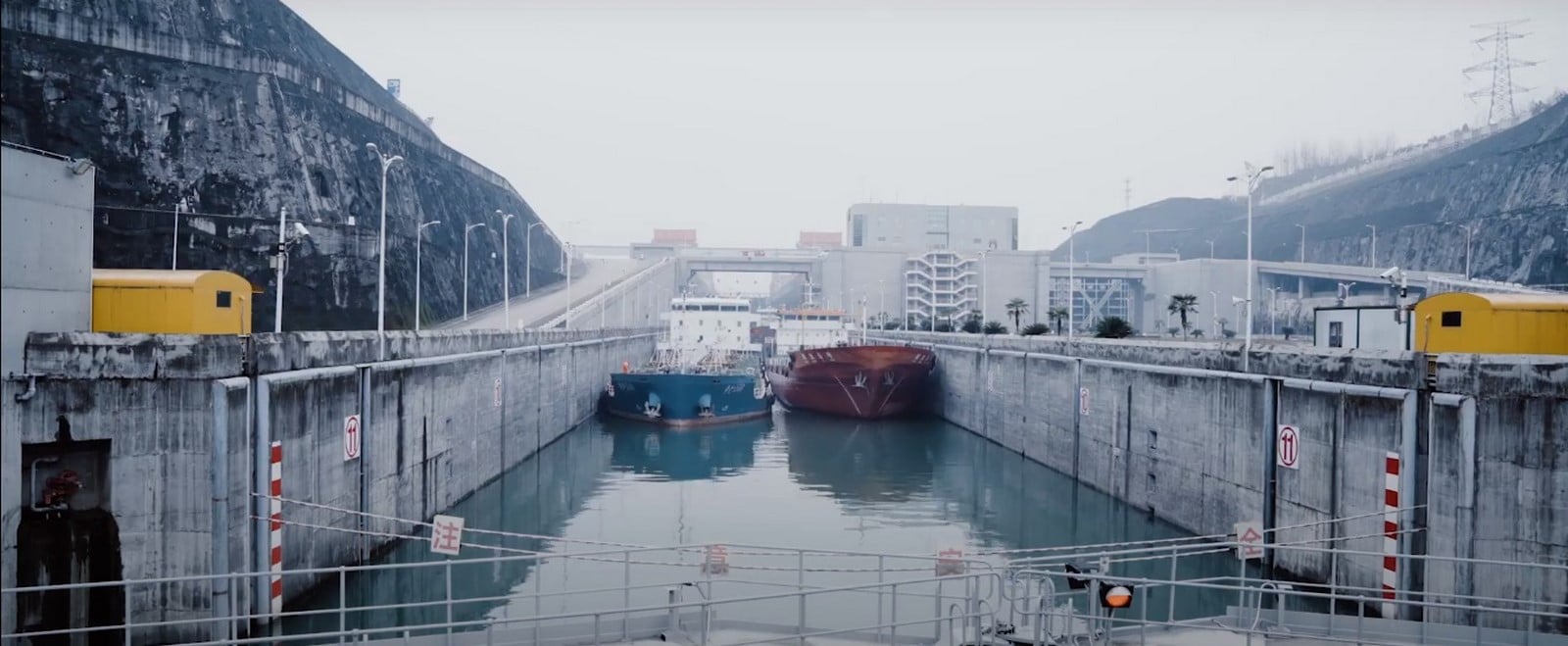

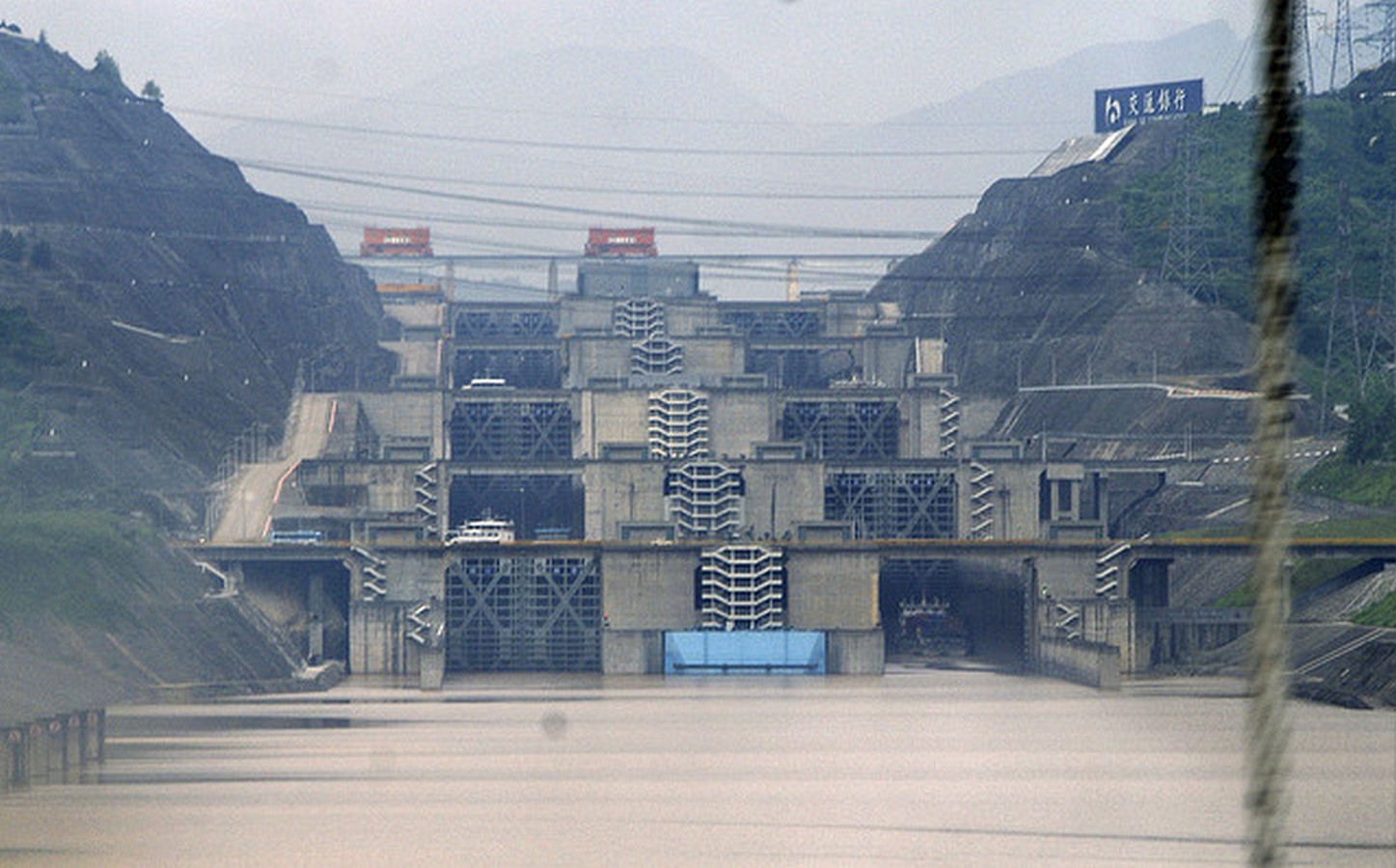

The ship locks were installed to increase movement and shipping across the river from 10 million to 100 million tonnes annually ©www.architecturerevived.com
Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet10
The dam has opened up navigation routes to other cities across China and has supported the trade tremendously ©www.youtube.com
Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet11
The dam increased the water traffic in the Yangtze river by 6 times and has improved the navigation upstream ©www.architecturerevived.com

The double-way, five-step flight ship lock was carved from granite and lined with concrete, placed on the river’s left side bank.

Eduwik- Online Courses for Architects & Designers

Installation of hydro turbine generator:

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet12

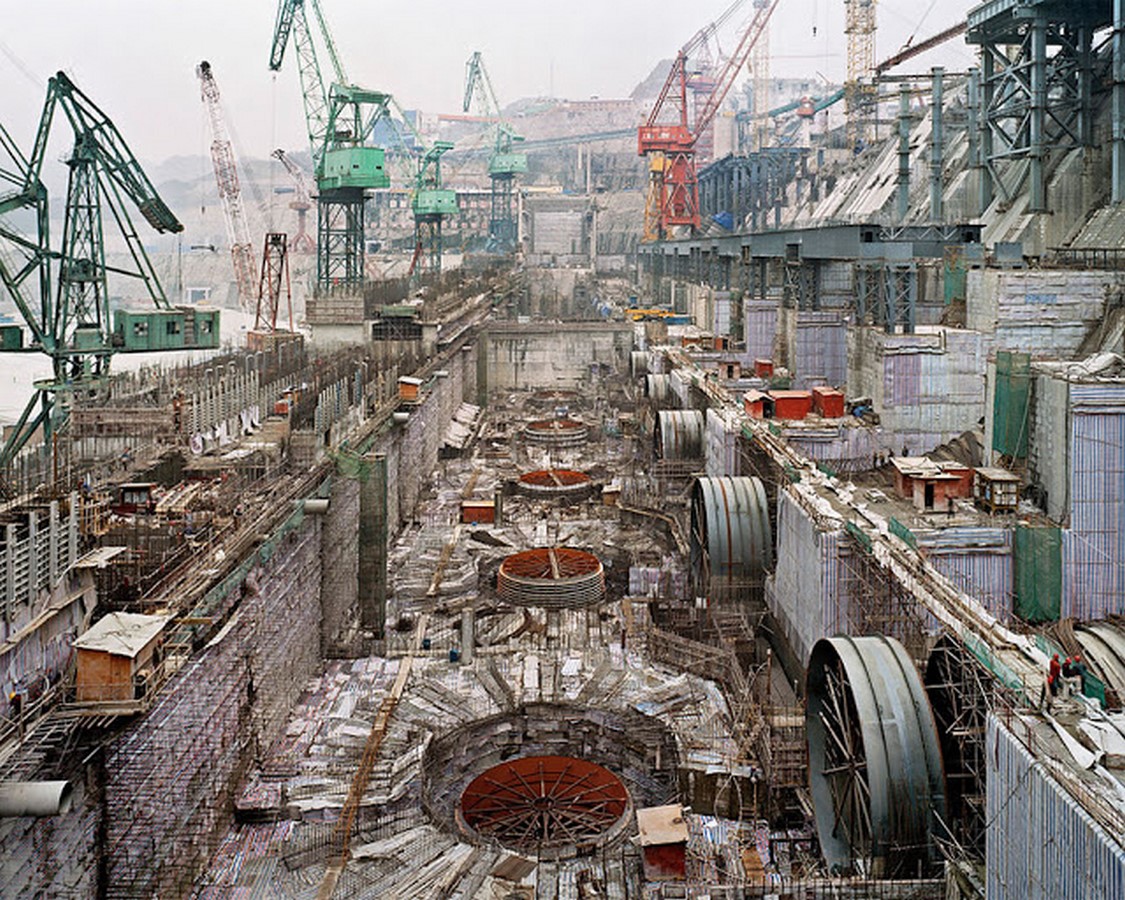

Construction of the underground power station placed on top of the generators. ©www.slideserve.com
Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet13

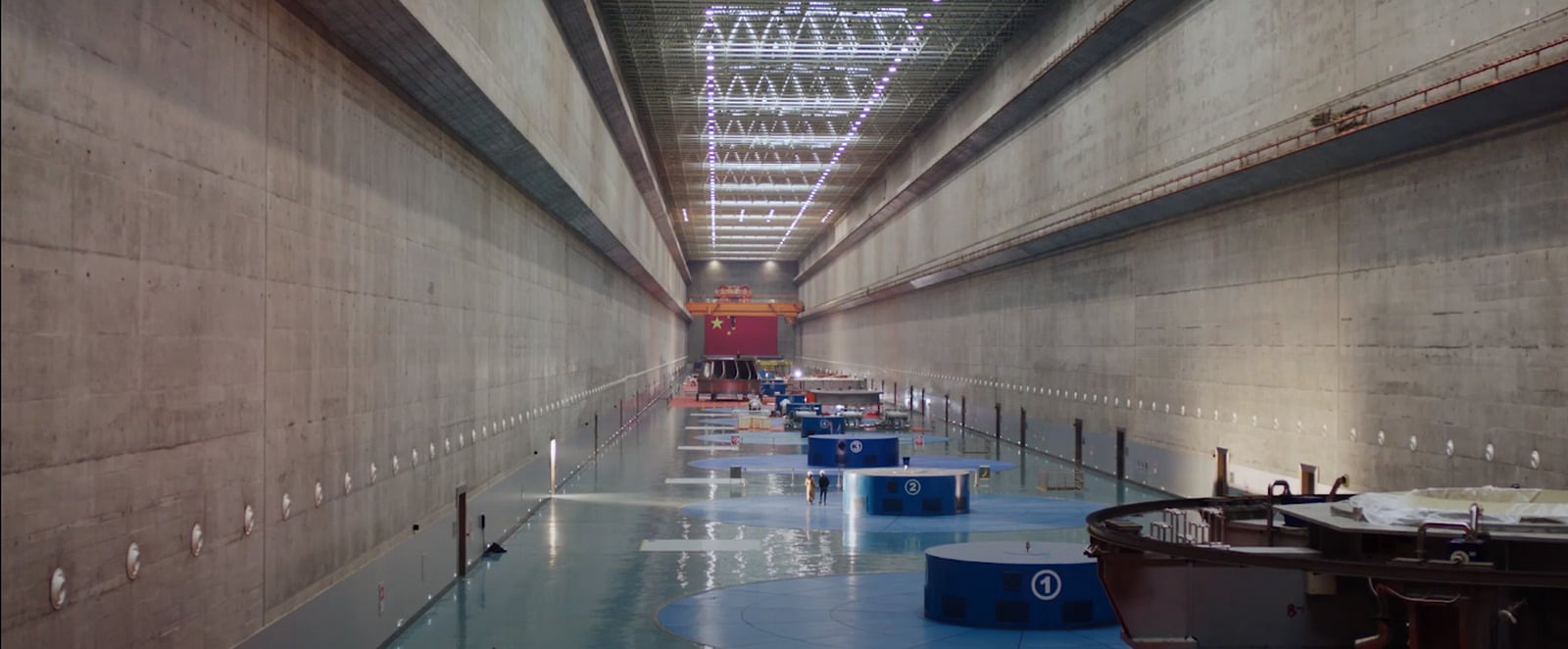

Interiors of the Three Gorges Dam underground power station ©www.slideserve.com

Turbines and generators were installed that operate in the two hydropower stations on each bank.

Is Three Gorges Dam A Sustainable Approach Towards The Development OF China’s Economy?

Eduwik- Online Courses for Architects & Designers

The scale of the Three Gorges Dam has led to inevitable social impacts. However, its contribution to China’s industrialization and economy cannot be questioned.

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet14

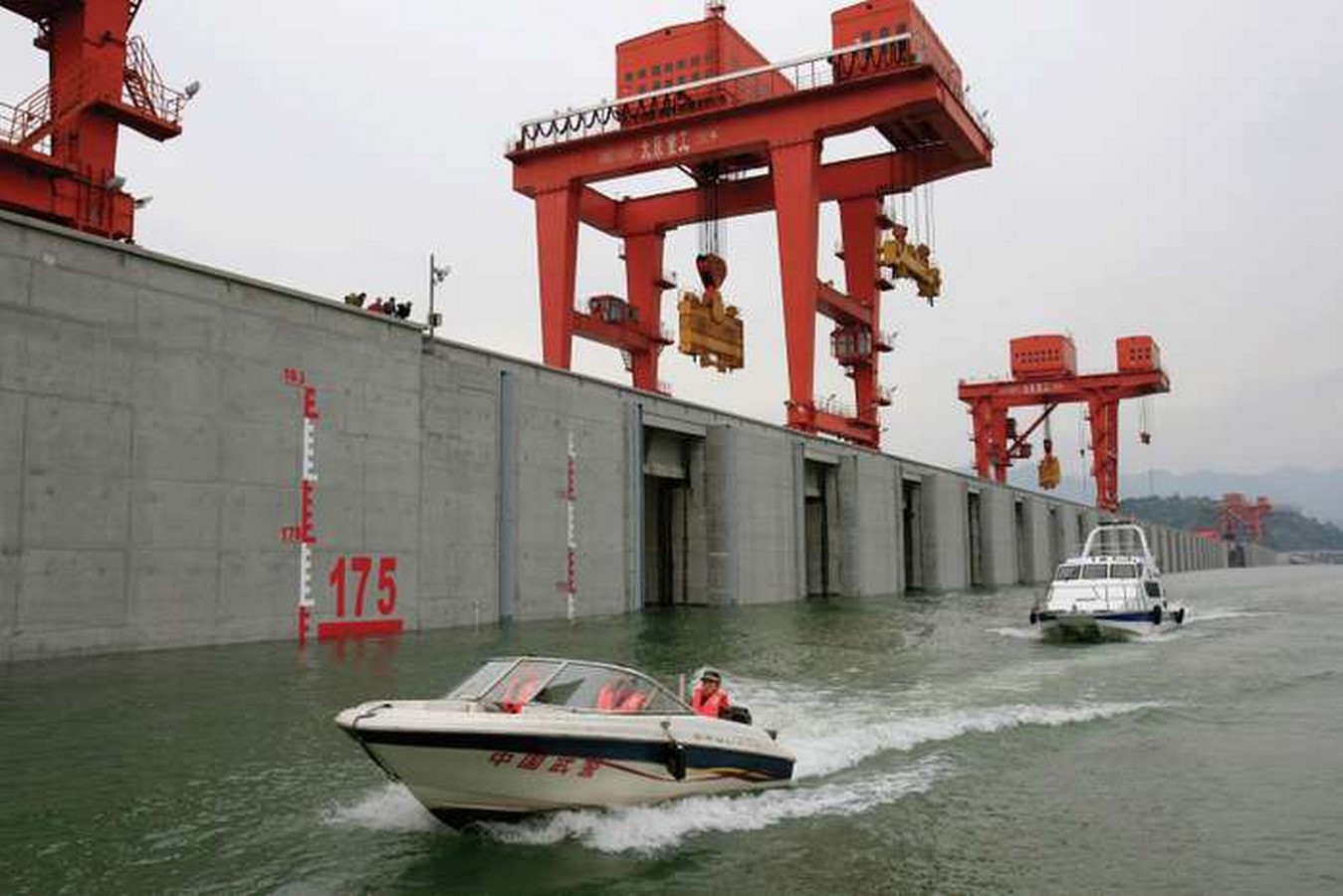

Paramilitary patrolling the Dam reservoir after it reached its maximum capacity of 175 meters for the first time ©www.britannica.com
  • The dam’s reservoir acts as a buffer and can lessen the risk of floods, by storing waters but has blocked the migration of fish and has driven the Chinese River Dolphin to extinction, causing enormous ramification on the ecosystem. The reservoir has increased water availability for irrigation, industrial use, and human consumption, and the hydropower it generates aids in China’s electricity consumption.
Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet15

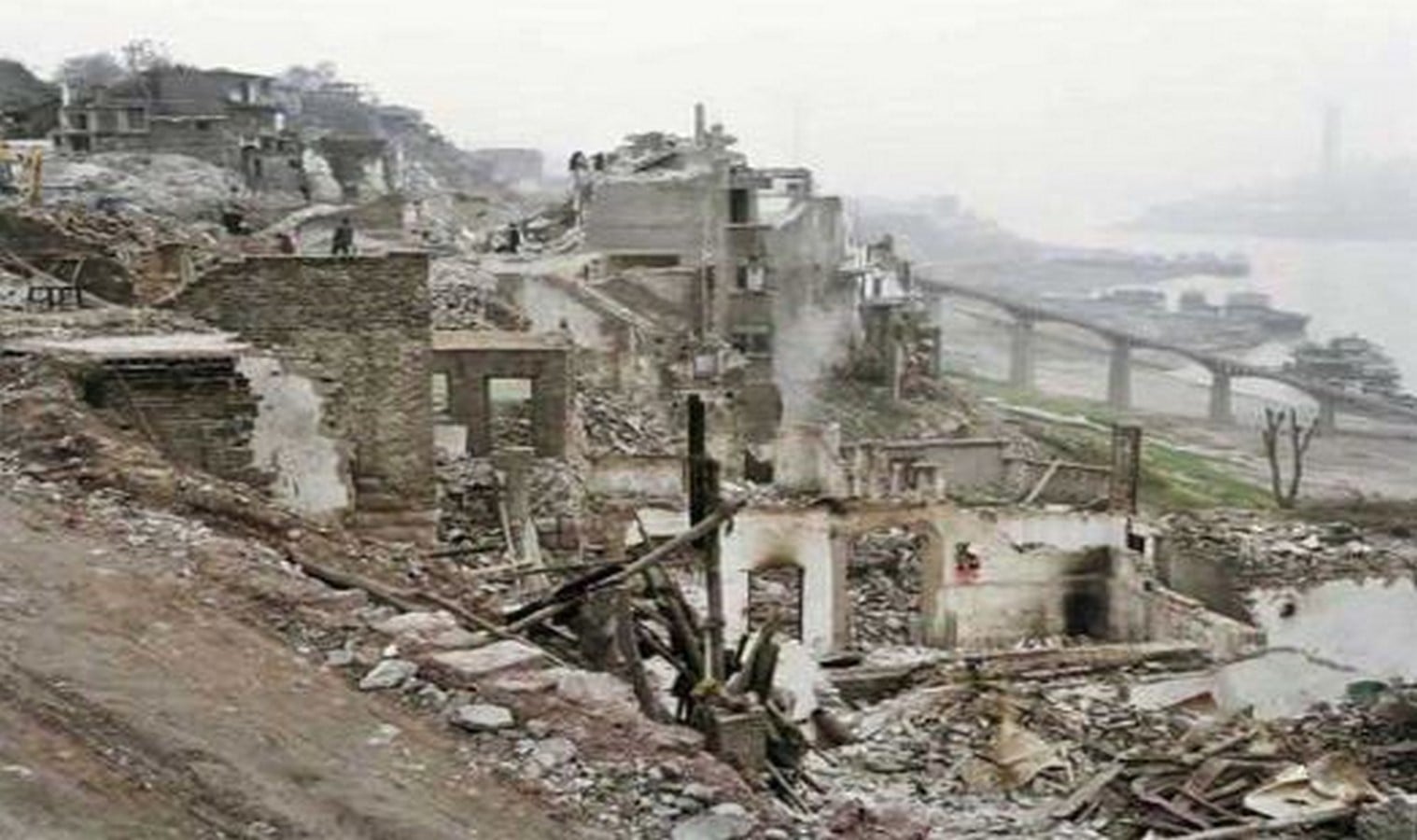

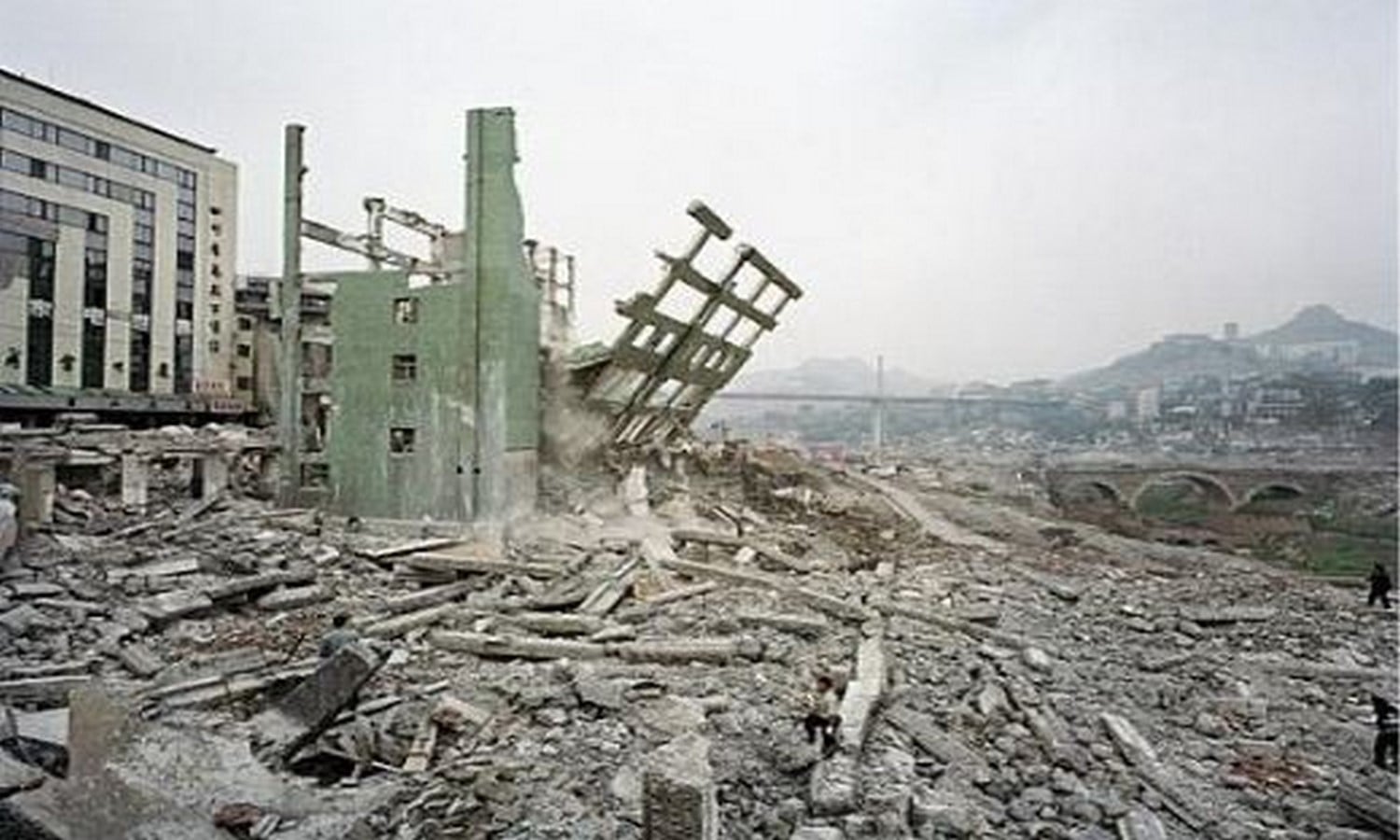

Many settlements and towns were destroyed to build the dam ©docs.google.com
Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet16
Many settlements and towns were destroyed to build the dam ©docs.google.com
  • The dam destroyed religious and archeological sites, farmland, and homes and contaminated the water as all the infrastructure was submerged underwater. The relocation of 1.3 million people and upward migration of farmers also led to deforestation that led to soil erosion.
Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet17
An inhabitant watches out at the site where in October 2010, an immense piece of slope broke free in Badong, in the Hubei area, on the Yangtze River ©thedailyreformer.com
  • It has helped in the reduction of greenhouse gases that contribute to global warming but has contributed severely to weather changes around the region like a decrease in the rainfall around the region and the temperature on the mountains, increasing the frequency of landslides and the reservoir has triggered earthquakes all over the world. Fun Fact: The Three Gorges Dam sits on two major earthquake fault lines.
Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet18
Excessive amounts of trash have accumulated at the three gorges dam and it has threatened the structural stability of the dam ©epochtimes.today
  • The dam has accumulated 10 million tons of rubbish over the years which can cause the turbines to stop working once it reaches them and it could cause huge structural damage. Hence, the Chinese government developed a Garbage-lapping “tongue”, a device that can consume 300 cubic meters of rubbish per hour. Fun Fact: China will spend about 40 billion yuan to build at least 150 sewage treatment plants and 170 urban garbage disposal plants due to the dam.

When the dam filled up its reservoir it held 10 trillion gallons of water it moved the earth’s mass further from the axis hence, slowing down the earth’s rotation, which makes one day now 60 nanoseconds longer. The dam has moved the north and south pole by 0.8 inches each and is said to have triggered multiple earthquakes over the years to move the earth’s mass closer to the axis. Fun fact: Which weighs 83.4 trillion pounds a small portion of the 13 septillion pounds earth weighs but is enough shifting mass to affect.

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet19

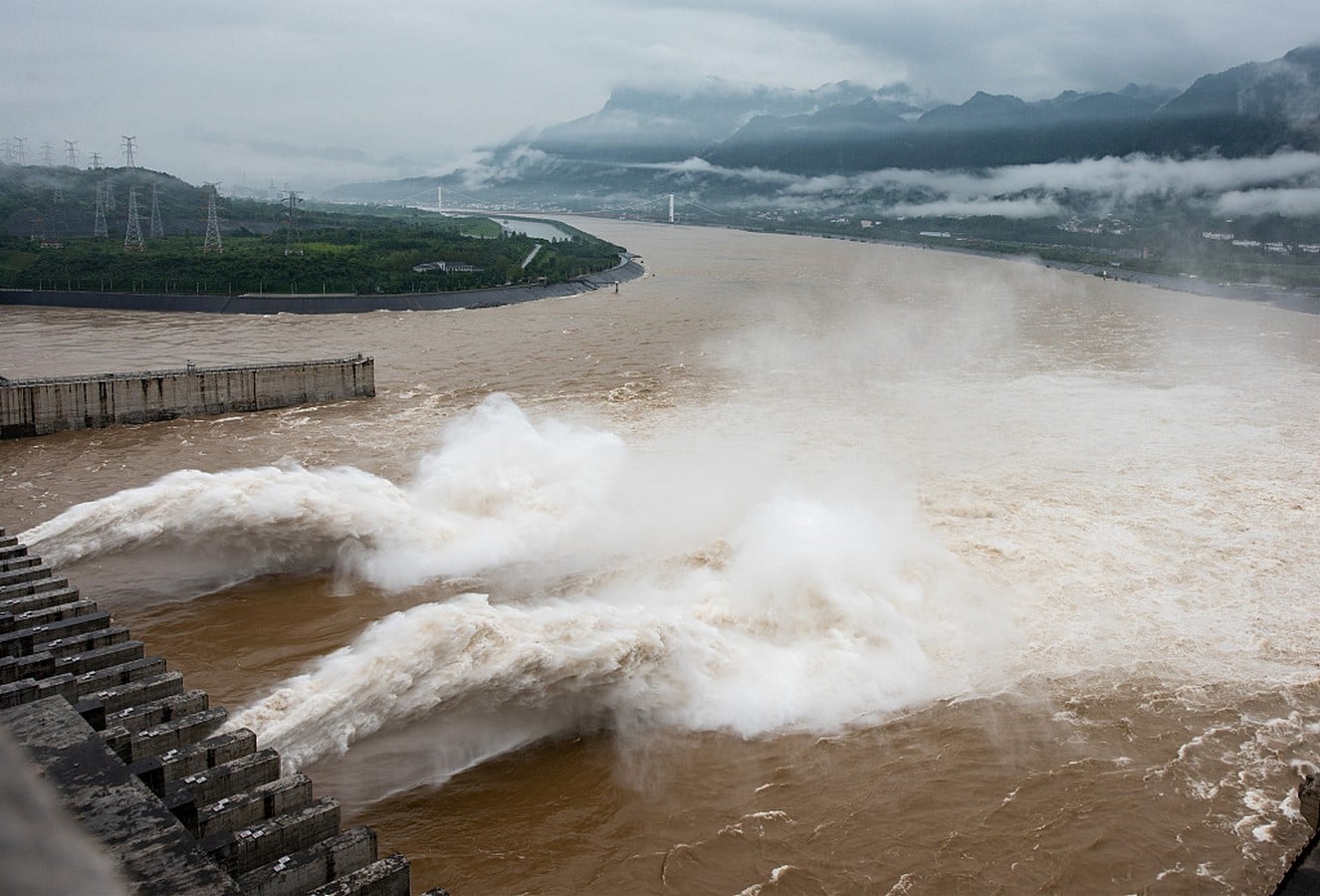

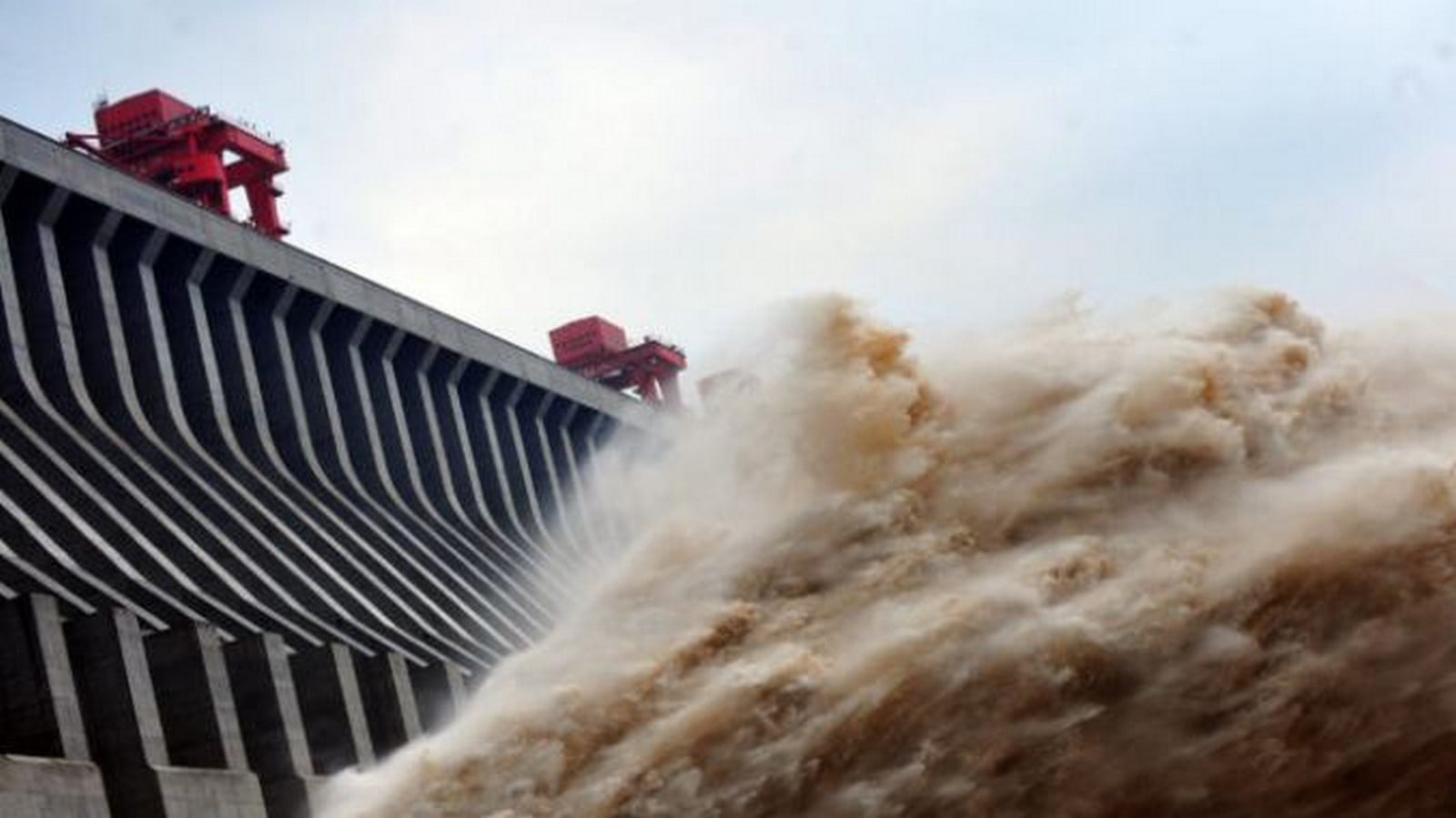

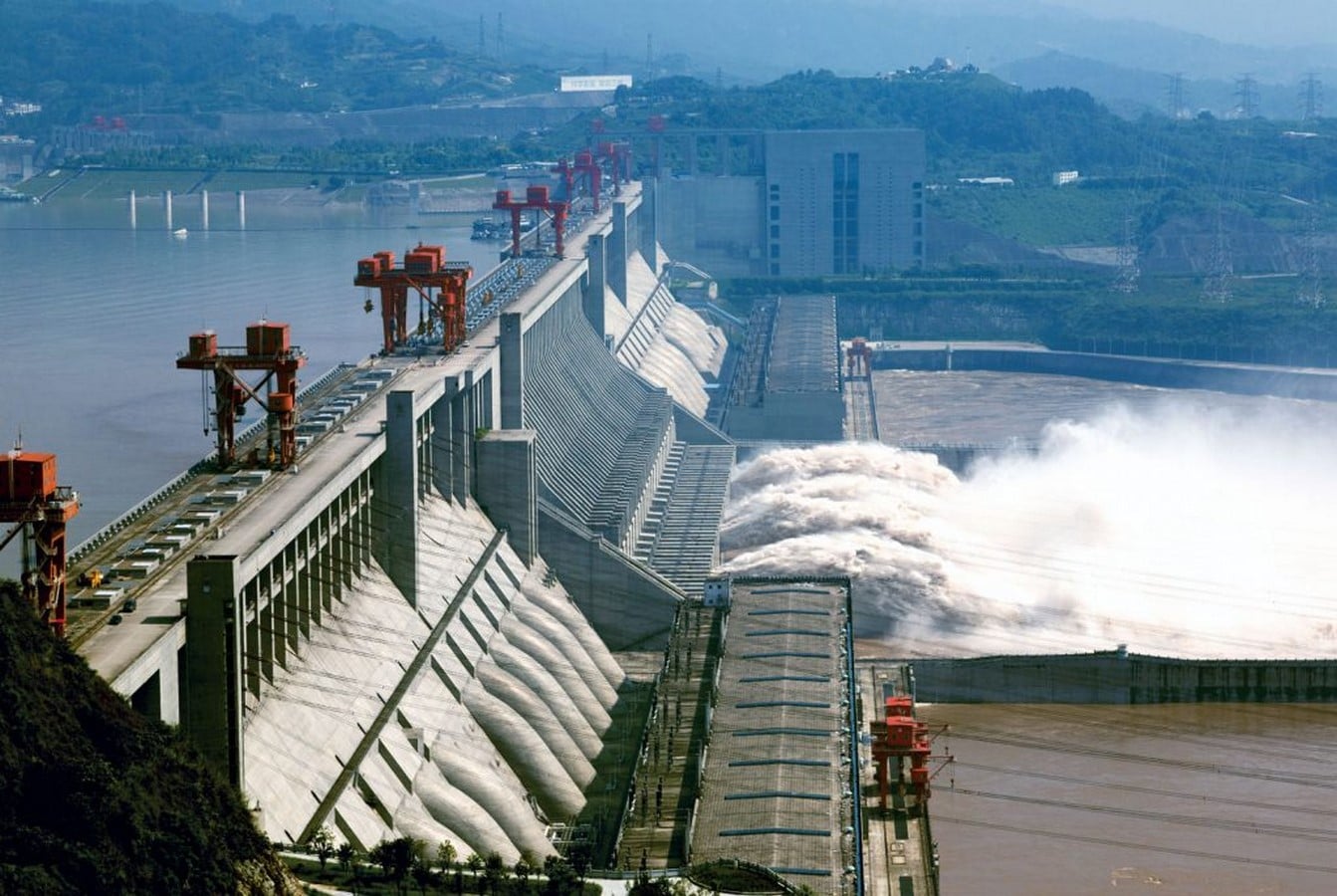

China’s national observatory restored a yellow alarm for rainstorms as unremitting deluges would keep on unleashing devastation in tremendous stretches of the nation. Three lower floodgates of the Three Gorges Dam opened to discharge the floodwater ©www.cgtn.com

On July 19th, 2020, China issued a Yellow Alert for rainstorms, evacuating 40,000 locals as the dam could be at risk of collapsing. Although Chinese authorities claim the dam is structurally strong, a hydrologist Wang Wei Lau – says the dam is constructed of materials which are below standards and hence, can’t provide flood protection. Shortly after filling up the reservoir 80 hairline cracks appeared on the structure despite all 163,000 concrete units passing quality control tests. In 1998 after a flood, the quality control of the building was assessed and it was concluded that the steel bar welding of the dam didn’t meet the standards.

Eduwik- Online Courses for Architects & Designers
Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet20

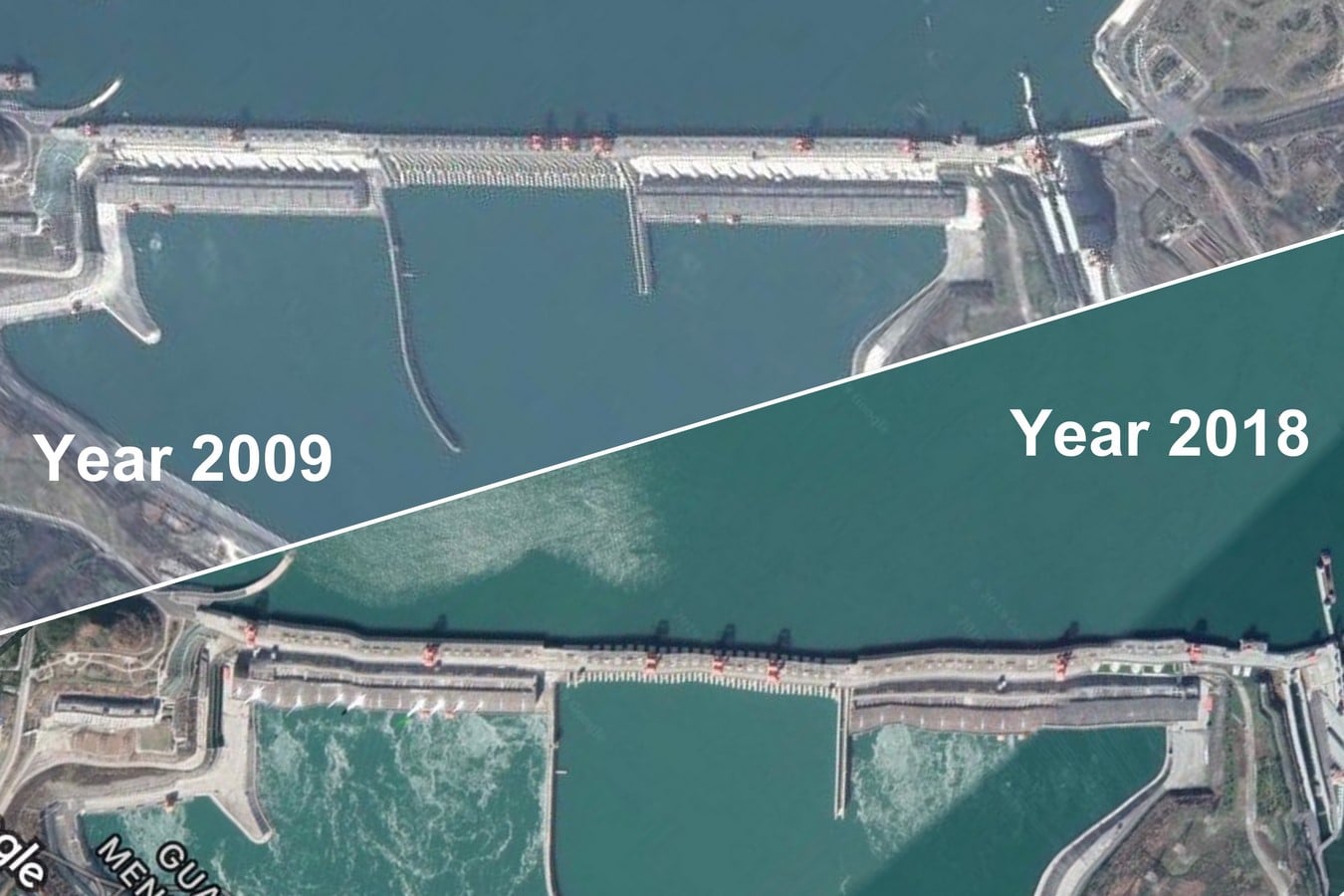

Satellite images comparing the Dam’s structure from 2009 to 2018. ©thedailyreformer.com

In 2009, the dam was a straight line but in 2018, it had a slight curve – Estate experts revealed the dam had moved a few millimeters but within the normal safety range. Wang said the dam has moved due to its flawed design. He claimed the dam is composed of dozens of independent concrete blocks that are not connected to the bedrock below and hence could collapse, killing 400 million as the Yangtze River flows through big cities like Shanghai and Wuhan. Fun fact: First claims were made that the dam could withhold the worst floods for 10,000 years which was later changed to 1,000 years and 100 years a year after.

Three Gorges Dam by Pan Jiazheng- The world's Largest hydroelectric dam - Sheet21
The Three Gorges Dam is an example of a human-created marvel and yet has received lots of criticism and is viewed as one of the most problematic projects of all time.©www.slideserve.com

Three Gorges Dam –  a cosmic sublimity inspired by the possibility of planetary destruction. Looking down through the still surface of the lake to the submerged world below gives us a premonition of that future. Would the dam turn out to be a magnificent human achievement that brought clean energy to China or a bloated ecological disaster that caused great hardships to millions over the years is still unknown!
