The invention of the Superquadra is one of the most thorough books about the city of Brasilia. It provides a profound understanding of the main concepts of space design that resulted in the city’s plan, focusing on the so-called Superquadra. The first edition of the book was published in 2009, and a second edition was launched in 2020—both of them by IPHAN, the Institute of National Historical and Artistic Heritage in Brazil.

Rethinking The Future Awards 2022

The book’s content is the result of a research project started in 1999 by Marcílio Mendes Ferreira and Matheus Gorovitz, renowned professors from the University of Brasilia.

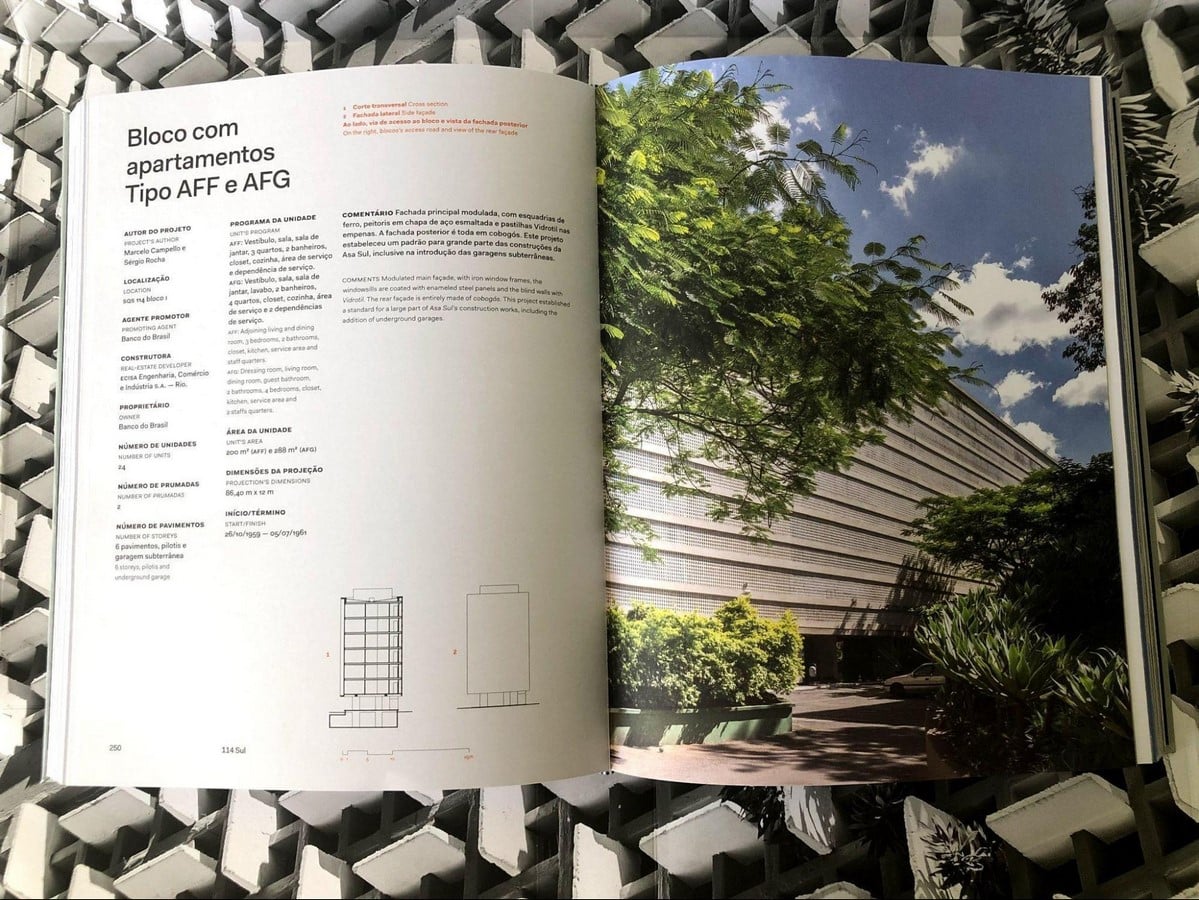

Book in Focus: A invenção da Superquadra by Marcílio Mendes Ferreira e Matheus Gorovitz - Sheet1
The invention of the superquadra_+casavogue.globo.com

Brasilia and the Superquadra Concept

Brasilia is the planned capital of Brazil, inaugurated in 1960. Lucio Costa was responsible for its urban plan, while Oscar Niemeyer designed the most important buildings. The city firmly represents the modernist architecture and urban planning concepts, which lead to its inscription as a World Heritage Site by Unesco.

Eduwik- Online Courses for Architects & Designers

Although the occupation has expanded through the years, the centre of the city, Plano Piloto, is still where most of the jobs and activities are located. It is also where the planning efforts and—as the book mentions—the utopian idea were concentrated at first. Plano Piloto is a scheme of two wings called Asa Sul and Asa Norte. A central axis was placed between them, where the monuments and office buildings were constructed. The wings, however, ought to have a different scale with a more intimate atmosphere. This intention was the baseline for the development of the Superquadra idea, as Marcílio Mendes Ferreira and Matheus Gorovitz explain.

Book in Focus: A invenção da Superquadra by Marcílio Mendes Ferreira e Matheus Gorovitz - Sheet2

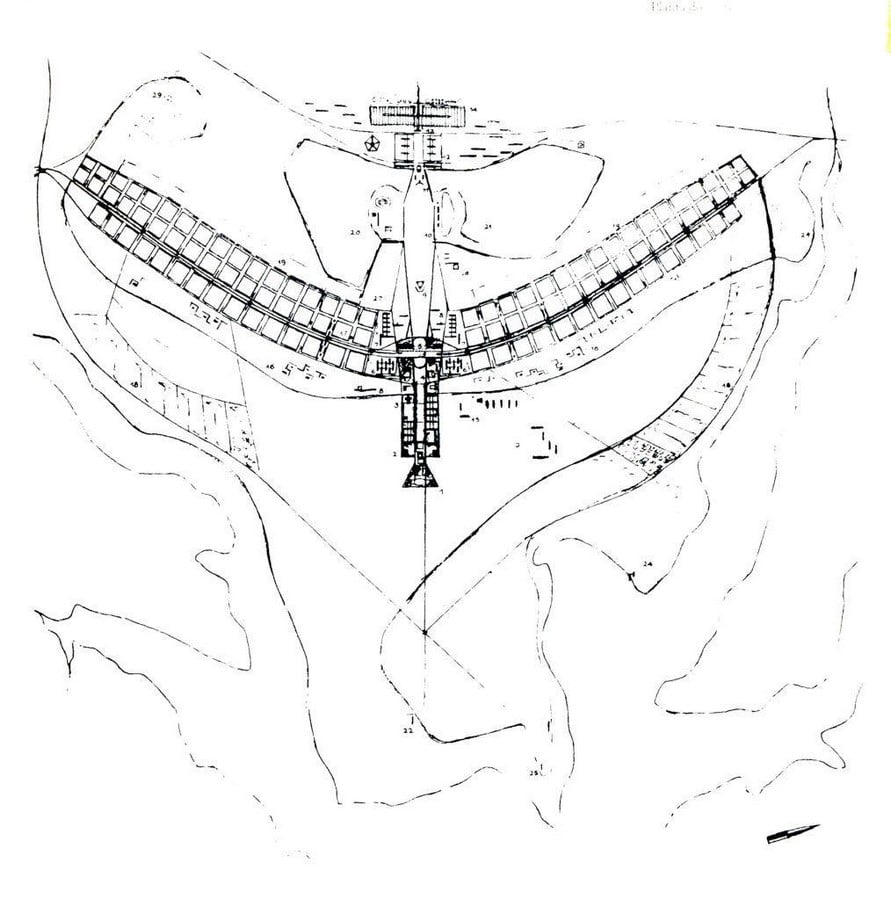

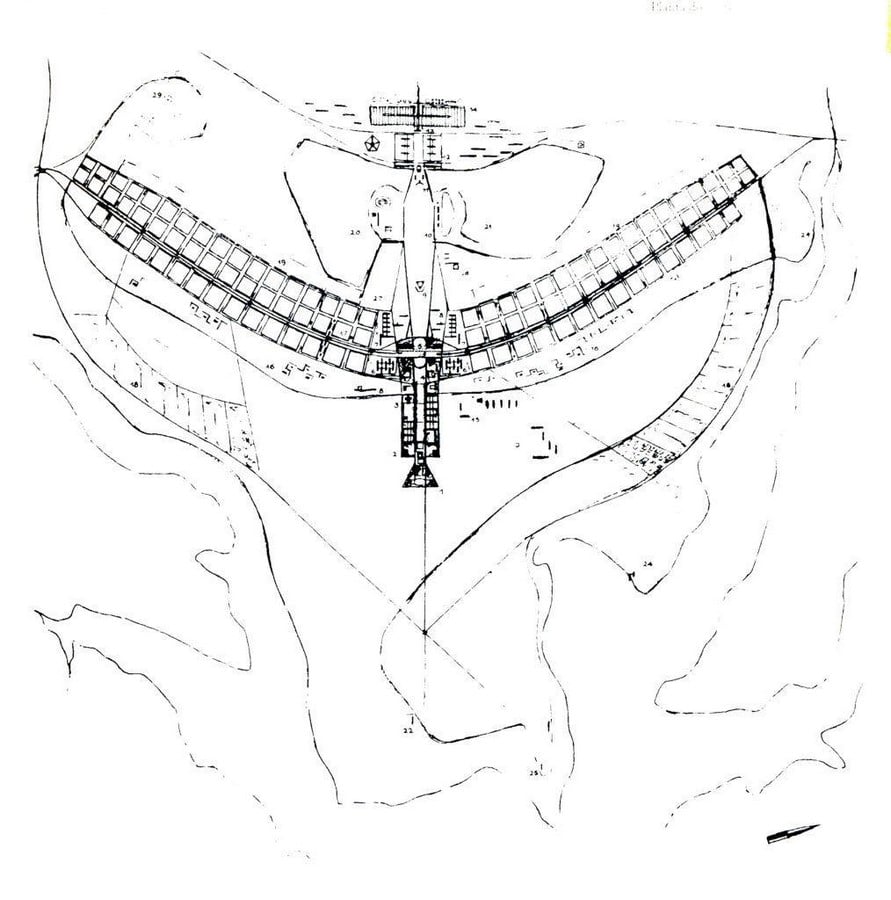

Brasília Plan_+Projetos para Brasília

Lucio Costa attempted to recreate the idea of neighbourhood units (NUs), placing them in the plan as modules of the urban grid in the residential area. Each NU aimed to provide basic services for everyday life that residents should be able to access by walking short distances. To guarantee the quality of this mobility, sidewalks with several trees were distributed to connect the houses and apartments to the stores, schools, supermarkets, churches, green areas, etc.

The automobile infrastructure was meant to be designed hierarchically so that the distribution of people in transit culminated in the most private areas. Four residential blocks were distributed near the main commercial area of each NU. These blocks were named superquadras, which means “superblocks”. Each superquadra has around ten buildings, most of them with pilotis and a six-story high limit.

Eduwik- Online Courses for Architects & Designers
Book in Focus: A invenção da Superquadra by Marcílio Mendes Ferreira e Matheus Gorovitz - Sheet3

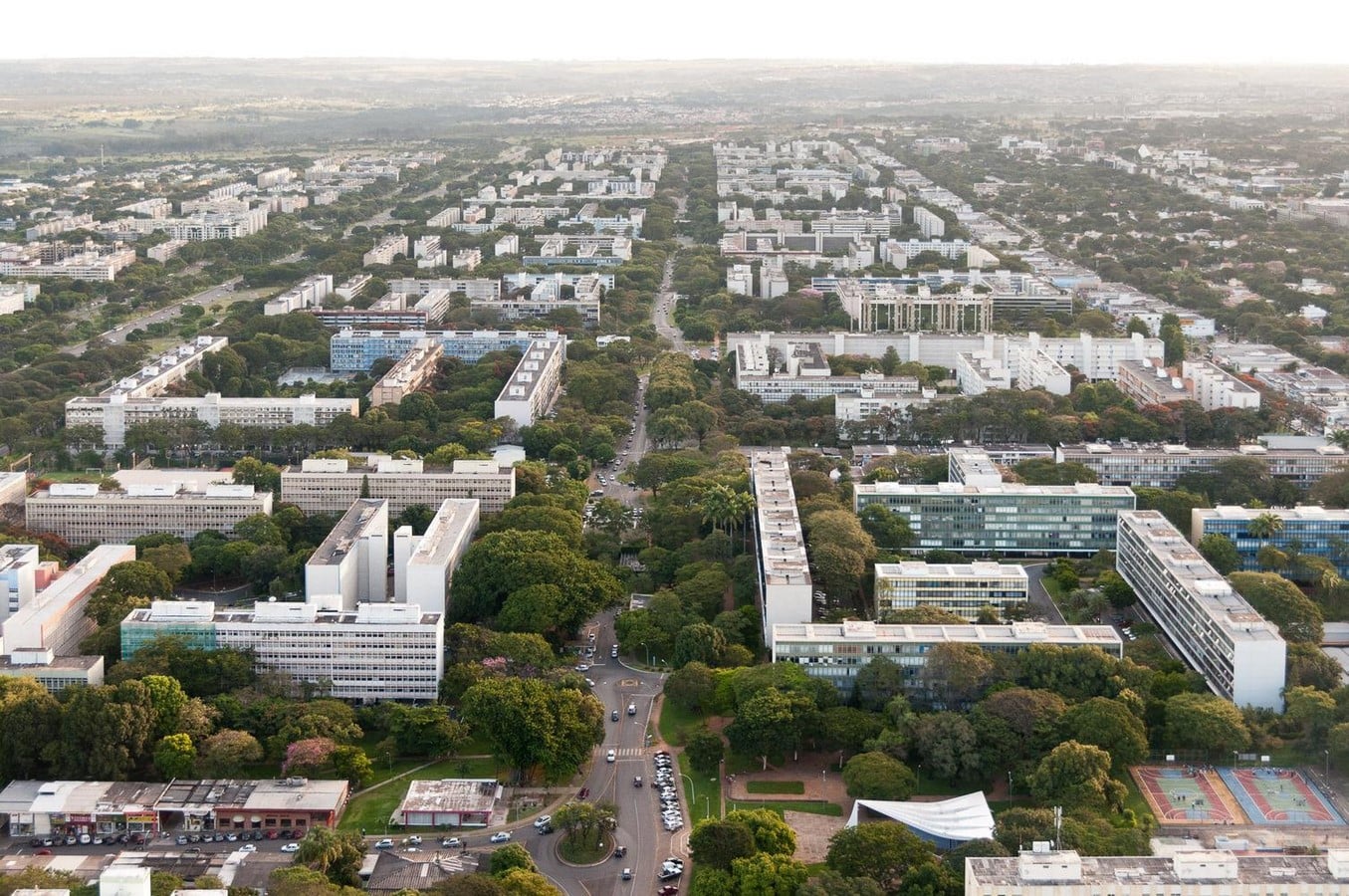

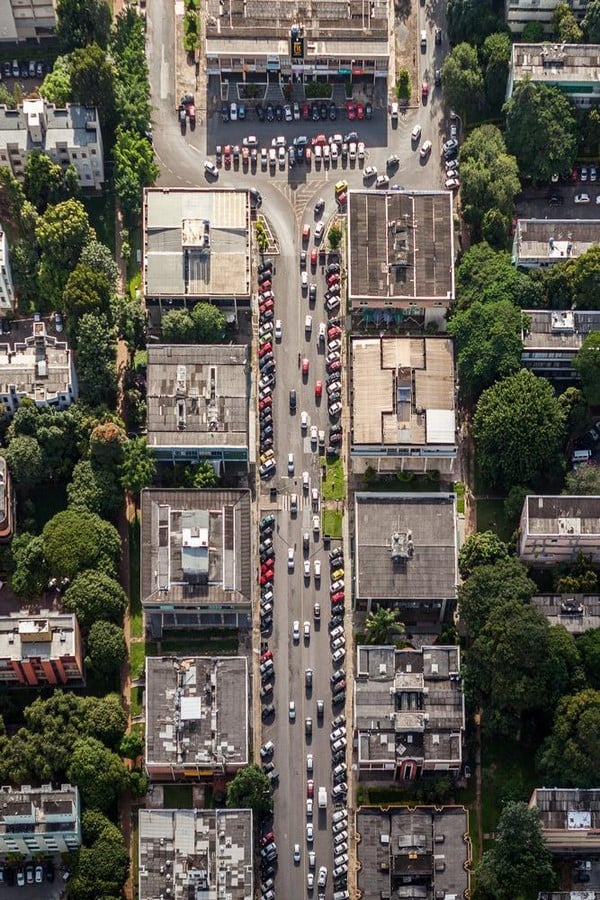

Residential Scale_+Joana França

Although the implementation of the buildings and their aesthetics are different, all of the superquadras have similar densities and large green spaces. By freeing the ground level of large obstacles, the adoption of the pilotis provided numerous possibilities of paths for the pedestrian, transforming each superquadra into a wide public space. This architectural typology also matches the aim to encourage social interaction in superquadras.

Book in Focus: A invenção da Superquadra by Marcílio Mendes Ferreira e Matheus Gorovitz - Sheet4

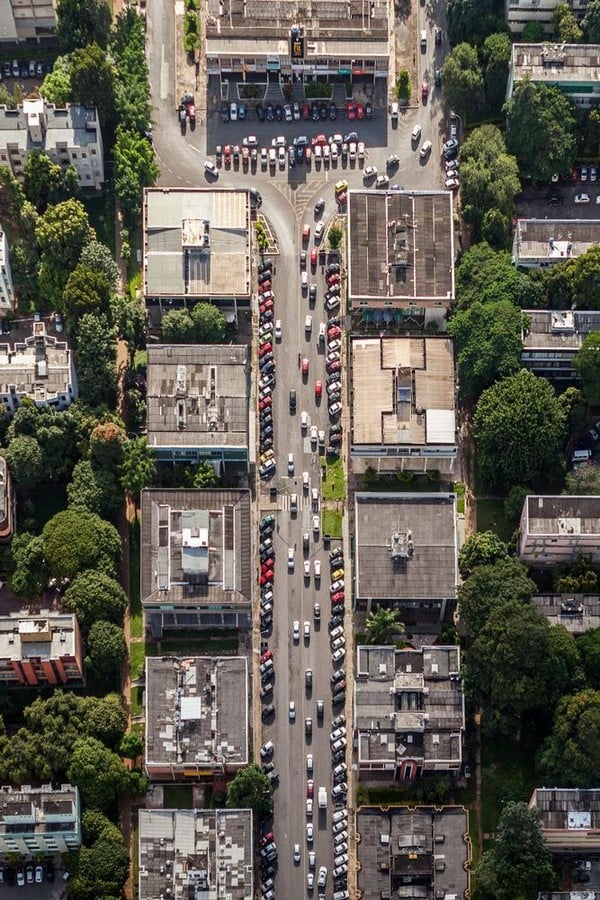

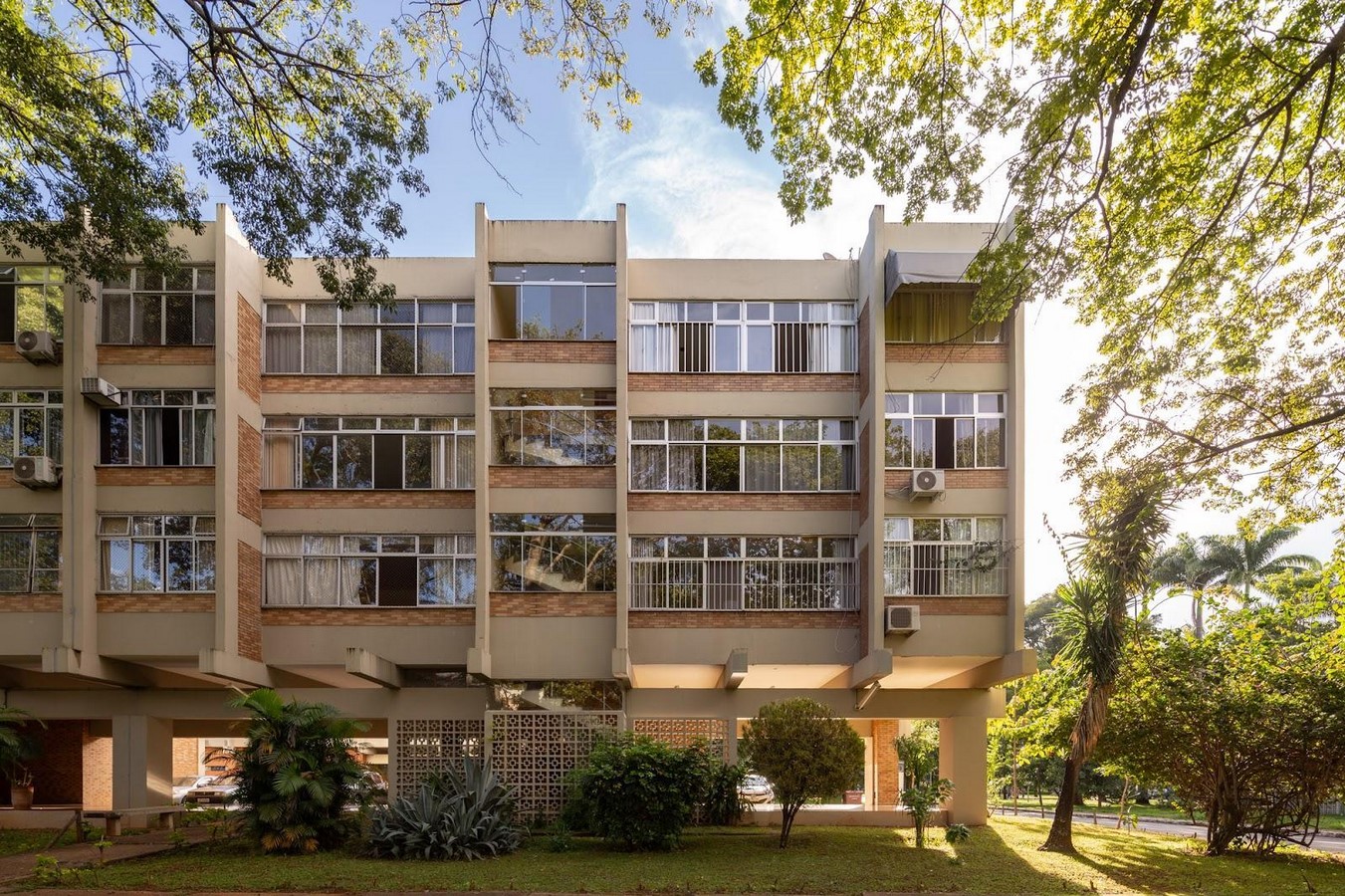

Residential Scale_+Joana França

When explaining how the superquadra idea emerged, Marcílio Mendes Ferreira and Matheus Gorovitz reinforce the fact that it was essentially utopic. They did not hesitate to point out problematic aspects of Brasilia’s plan, claiming that the city did not consider the world as it is, but as the planners wanted it to be. Naturally, many original ideas were subverted as people and businesses established themselves in the superquadras.

One example of controversy mentioned in the book is the predominant occupation of rich families in Plano Piloto, in contrast to the original goal to promote interaction between different social strata in the neighbourhood units.

Eduwik- Online Courses for Architects & Designers
Book in Focus: A invenção da Superquadra by Marcílio Mendes Ferreira e Matheus Gorovitz - Sheet5

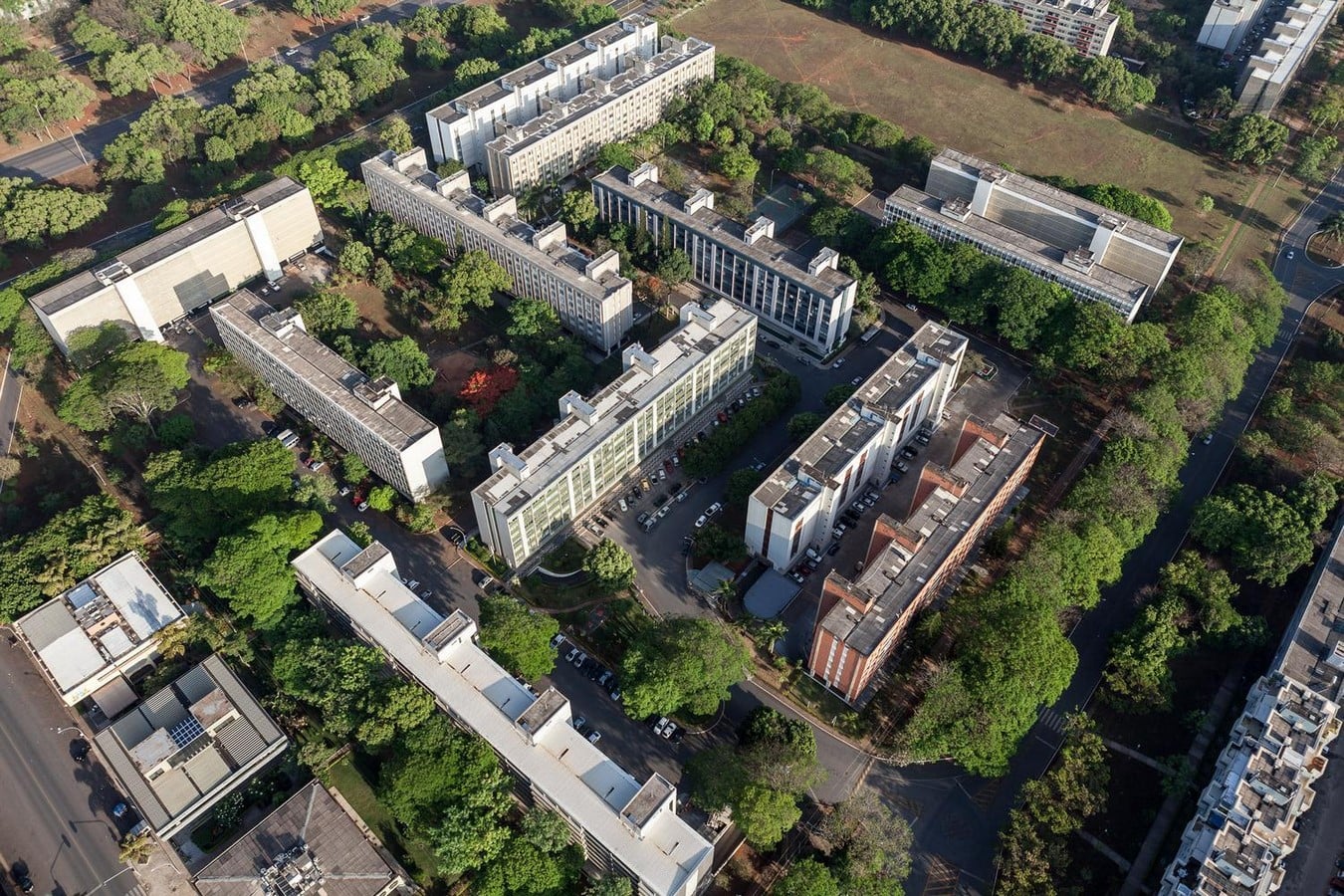

Superquadra_+Joana França

Structure of the book

The book presents its content dynamically. It explains the concept of Superquadras in different formats such as historical texts, interviews, photos, and drawings. The invention of the Superquadra starts by explaining some of the concepts that influenced Brasilia’s plan and what Lucio Costa expected the residential area to be. Then, some original articles by Lucio Costa are presented, reinforcing the intentions he had for the project of Brasilia.

Texts from other authors are also shown, providing different perspectives with critical considerations about the city. Subsequently, the interviews section starts, which contains talks from former coworkers of Lucio Costa and Oscar Niemeyer and other important architects.

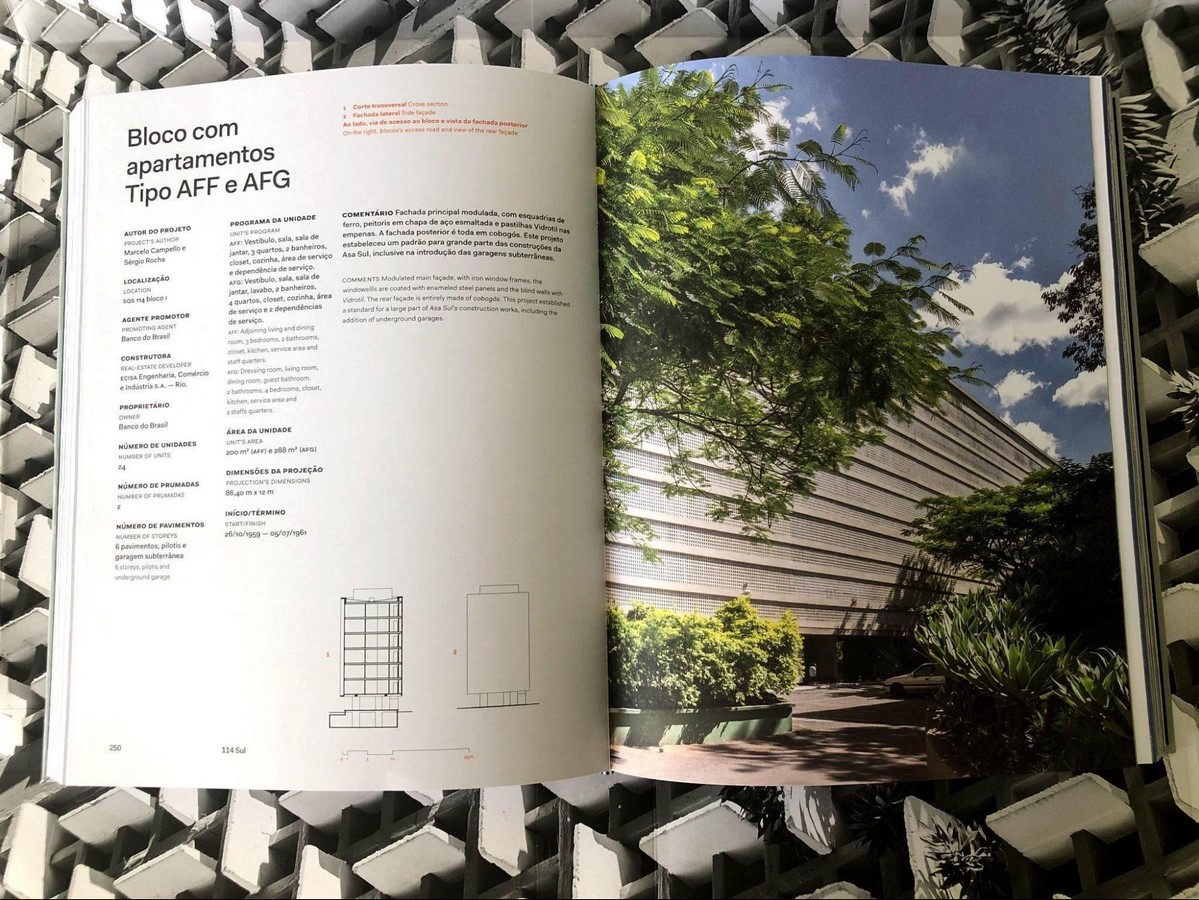

Finally, the book presents its mostly documental part, with several images of plans, sections, and photos by one of the most famous architecture photographers in Brasilia, Joana França. All of the visual content is focused on the buildings that are part of the superquadras in both North and South wings.

Eduwik- Online Courses for Architects & Designers
Book in Focus: A invenção da Superquadra by Marcílio Mendes Ferreira e Matheus Gorovitz - Sheet6

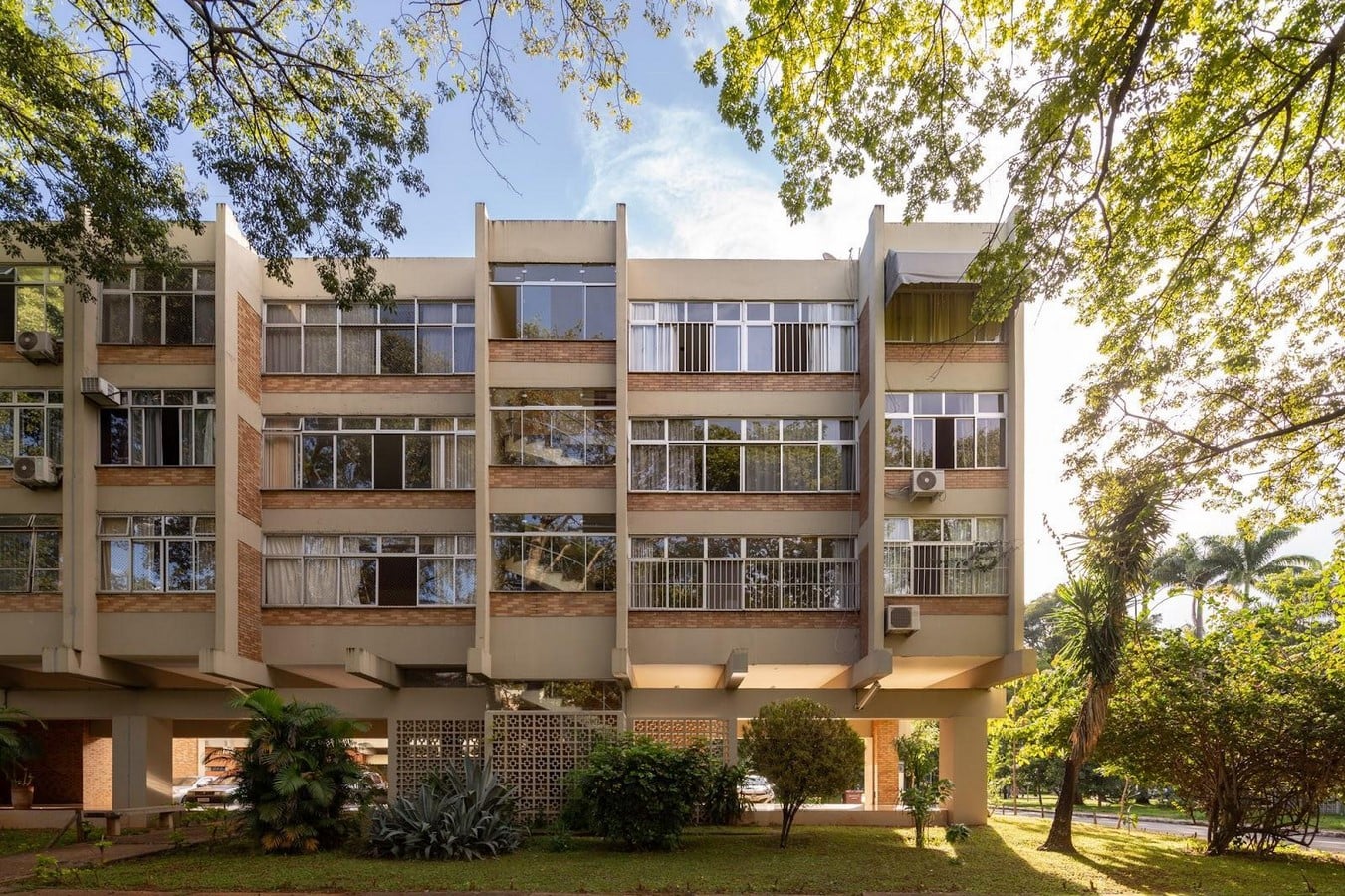

Superquadra_+Joana França

Highlights

Marcílio Mendes Ferreira and Matheus Gorovitz assemble information that is not only interesting but very important for the identity of Brasilia. The invention of the Superquadra turned out to be an essential tool for architects, urban planners, and researchers in the city to have a deeper knowledge about Brasilia and promote effective maintenance of its plan and buildings.

The drawings and pictures show how the buildings and the superquadras differ from one another and yet maintain the same typology and language. Although The invention of the Superquadra presents many qualities of Brasilia’s plan, the highlight of the book is its purpose of encouraging people to look at the city with a critical eye.

References

Eduwik- Online Courses for Architects & Designers

Instituto do Patrimônio Histórico e Artístico Nacional. (2021). Segunda edição do livro “A Invenção da Superquadra” é lançada oficialmente. [online] Available at: https://www.gov.br/iphan/pt-br/assuntos/noticias/segunda-edicao-do-livro-2018a-invencao-da-superquadra2019-e-lancada-oficialmente. [Accessed 29 Jul. 2021].

Ferreira, M. and Gorovitz, M. (2020). The invention of the Superquadra.

Author

Roberta Inglês is an architecture and urbanism student at University of Brasilia, Brazil. She is passionate about urban planning and architectural history, and loves to observe how buildings and cities can influence human behavior. She believes writing is a very effective way to develop critical thinking.
