Space architecture plays a crucial role in humanity’s space exploration. It is not just about building structures but designing environments where astronauts can live, work, and thrive in extreme conditions. As space agencies and private companies turn their attention back to the lunar surface, innovative design solutions are essential for overcoming unique challenges. And as the Artemis Program aims to return humans to the Moon, the lessons learned from this mission will pave the way for future missions to Mars and beyond.
What is Space Architecture?
Space Architecture refers to the theory and practice of designing and building living and working environments for use in outer space. It encompasses everything from space vehicles and stations to habitats on other celestial bodies and all the required infrastructure. Given the harsh and isolated environments of space, it requires collaboration across numerous disciplines, involving aerospace engineering, design, human factors, space sciences and psychology, among others. Space architecture integrates all these disciplines at different scales to create environments that are not only safe and functional but also ensure the physical and mental well-being of astronauts.
For space missions like the Artemis Program, this means creating habitats that support long-term exploration of the lunar surface and enable future Mars explorations. Balancing technological constraints with human-centric design, space architects and other specialists ensure that astronauts can operate efficiently while maintaining good health. Addressing both technical and human needs, space architecture is a key element in supporting the sustainability of space exploration.
The Artemis Program
In 1969, Neil Armstrong made history as he took the first steps on the Moon with the Apollo 11 mission. Following that, a few more missions reached the lunar surface to collect more samples and data, with the last man-landing of Apollo 17 in 1972.
Marking a new era of lunar exploration, the Artemis Program (named after the twin sister of Apollo), aims to bring people back to the Moon and establish a sustainable human presence on the lunar surface (NASA, n.d., a). This initiative includes constructing a modular lunar space station and paves the way for future missions to Mars (NASA, n.d., b).
The Artemis Program is a multinational collaborative project involving space agencies such as NASA, the European Space Agency (ESA), the Japanese Aerospace Exploration Agency (JAXA), the Canadian Space Agency (CSA) and the Mohammed Bin Rashid Space Centre (MBRSC); and is structured around a series of missions (NASA, 2020):

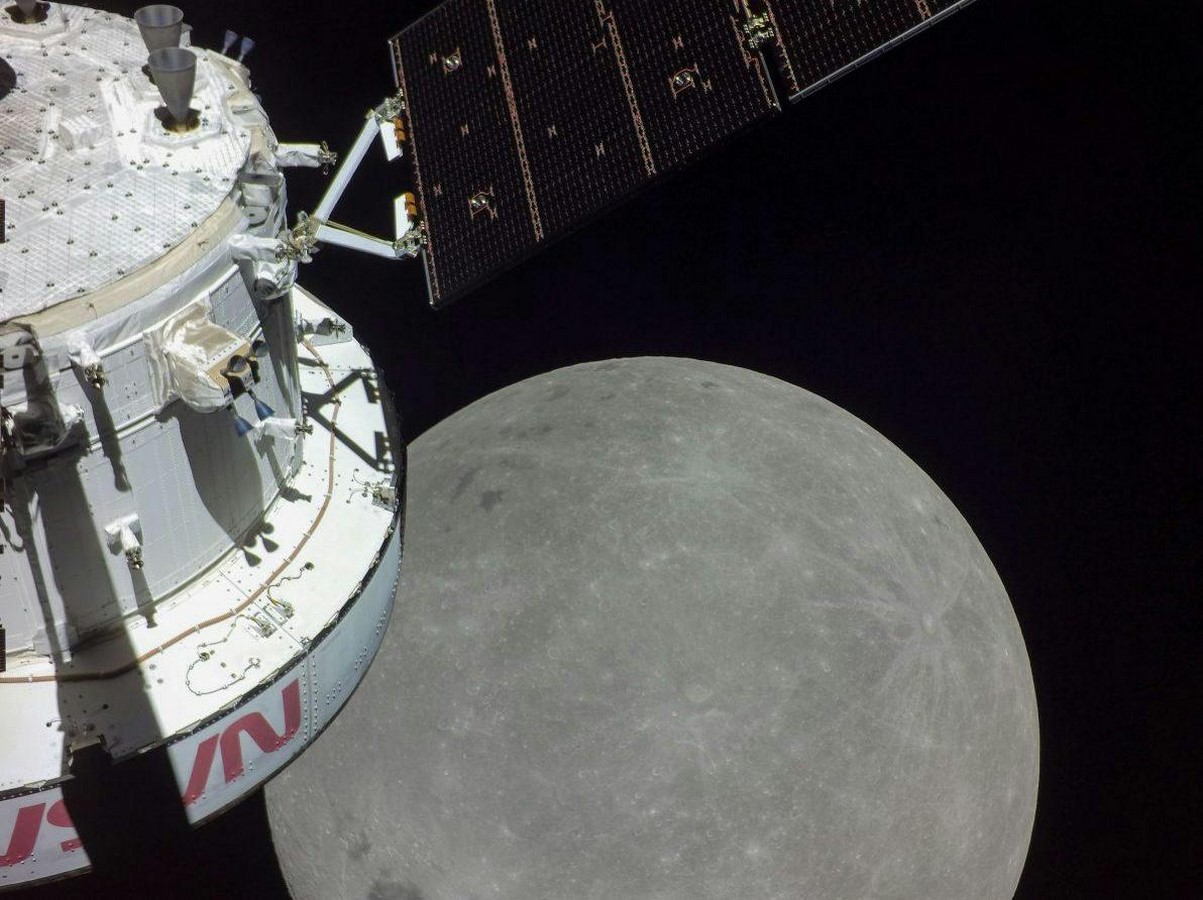

- Artemis I (2022): a successful uncrewed test of the Space Launch System (SLS) missions and Orion spacecraft.
- Lunar Gateway launch (2025): the first pieces of the space station launched, including the power (PPE) and the main module (HALO).
- Artemis II (2025): the first crewed mission, testing systems in Earth’s orbit.
- Artemis III (2026): the first human landing on the Moon since Apollo 17 and surface operations.
- Artemis IV-VI (2028-2031): crewed missions focused on construction and utilising the modular Lunar Gateway space station orbiting the Moon.
By developing the infrastructure and technologies needed for lunar exploration, Artemis will enable NASA to test systems critical for future Mars missions. Space architecture is pivotal in this effort, shaping not only the physical layout of the lunar base but also how humans will interact with these environments.
Lunar Habitat Design: Key Challenges
Designing for outer space requires addressing various environmental, psychological, as well as logistical challenges due to the harsh and isolated nature of the space environment. For a lunar habitat, factors such as extreme temperature swings (from -173°C to 127°C), solar and cosmic radiation, micrometeorite impacts, and a lack of breathable atmosphere necessitate engineering solutions and sustainable life-supporting systems.
Additionally, the reduced lunar gravity must be taken into account, as prolonged exposure to low gravity can lead to muscle atrophy and bone density loss. Understanding the effects of reduced gravity on human health as well as human physiology and ergonomics are essential to designing living and working spaces that support long-term health.
Beyond physical challenges, living in isolated, confined, and extreme (ICE) environments poses psychological challenges. Astronauts can experience circadian disruptions, sensory degradation, and increased stress and anxiety. Addressing these issues through space architecture involves incorporating elements that promote well-being, such as adequate lighting, colour schemes, and spatial organisation (Benaroya, 2010).
Lunar Habitat Design: Local Resources & Habitats
Transporting building materials from Earth is not only extremely expensive but also impractical for long-term missions. A solution is the focus on in-situ resource utilisation (ISRU), which essentially involves using locally available materials to reinforce habitats. Based on the samples from the Apollo missions and spectral images, we know that the lunar regolith (the Moon’s “soil”) is rich in resources like silicon, aluminium, and iron, among others. The Artemis Program aims to explore 3D-printing structures using regolith, which could provide protection from micrometeorites as well as shield against radiation (Kessler et al., 2022).
Additionally, local resources allow for the extraction of oxygen and water ice from lunar regolith (Kessler et al., 2022). The highest abundance of water ice is found in the permanently shadowed regions at the Moon’s poles, hence the interest in the South Pole where the Artemis base will be located.
Another approach to lunar habitats is the use of prefabricated structures, such as inflatables or rigid modules. These modules can be deployed on the lunar surface and reinforced with lunar regolith for added protection. Prefabricated habitats offer immediate shelter while ISRU techniques are refined for long-term sustainability.
Space Architecture in the Artemis Program
The Artemis Base Camp will be established near the lunar South Pole and will feature prefabricated modules (NASA, 2020). But space architecture’s role in the Artemis Program extends beyond lunar habitat design. It involves planning the entire lunar base layout, from landing pads to resource utilisation and communication systems. Multidisciplinary collaboration is crucial here, as architects work closely with engineers, material scientists, psychologists, and astronauts to create an integrated environment that supports both technical and human requirements.
Key structures in the Artemis mission include (NASA, 2020):

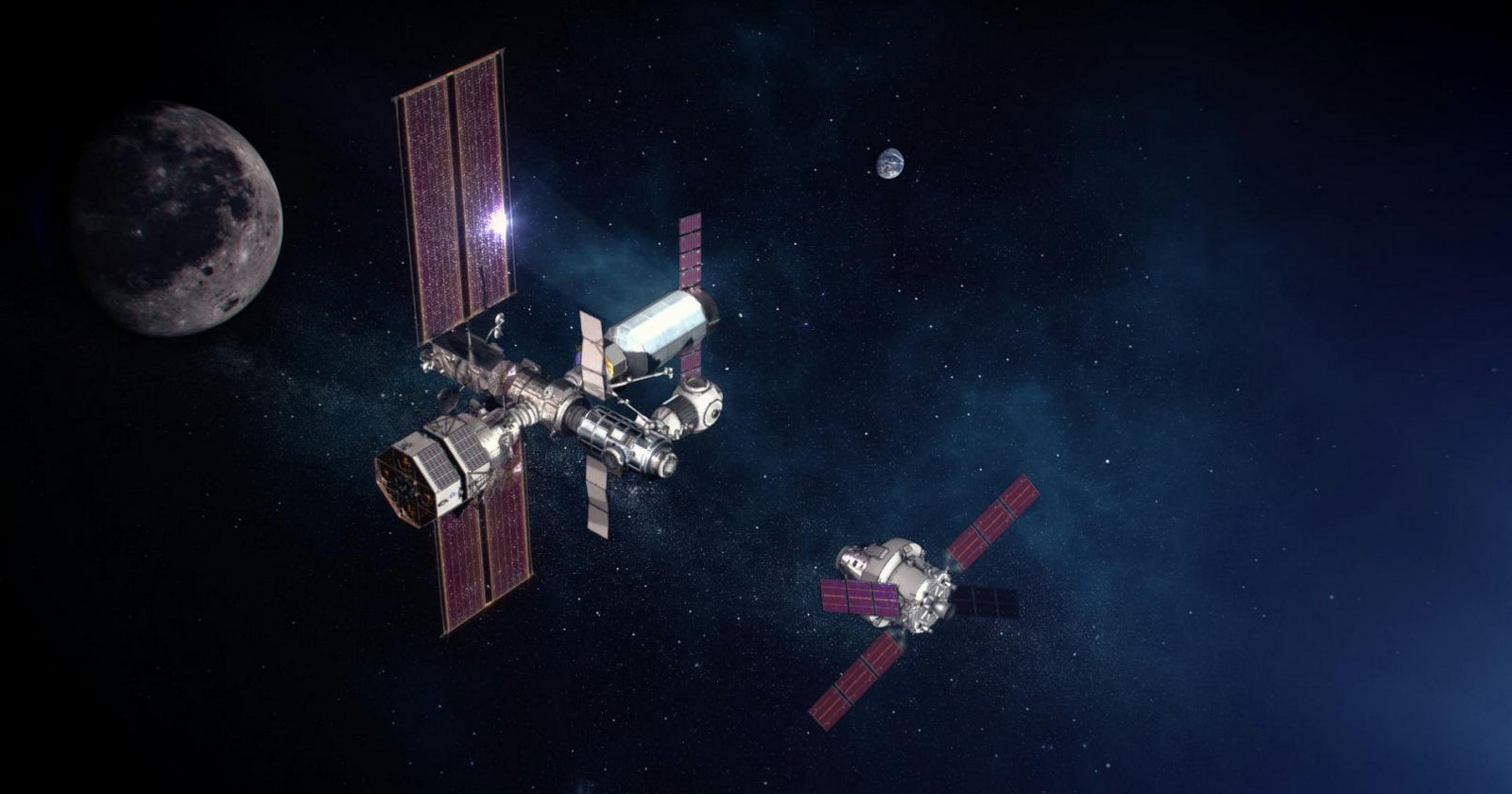

- Lunar Gateway: an orbiting space station serving as a hub for crewed and robotic missions featuring modular structures. The Gateway’s design incorporates radiation shielding, flexible docking ports, and living quarters, making it a critical component of the Artemis infrastructure.

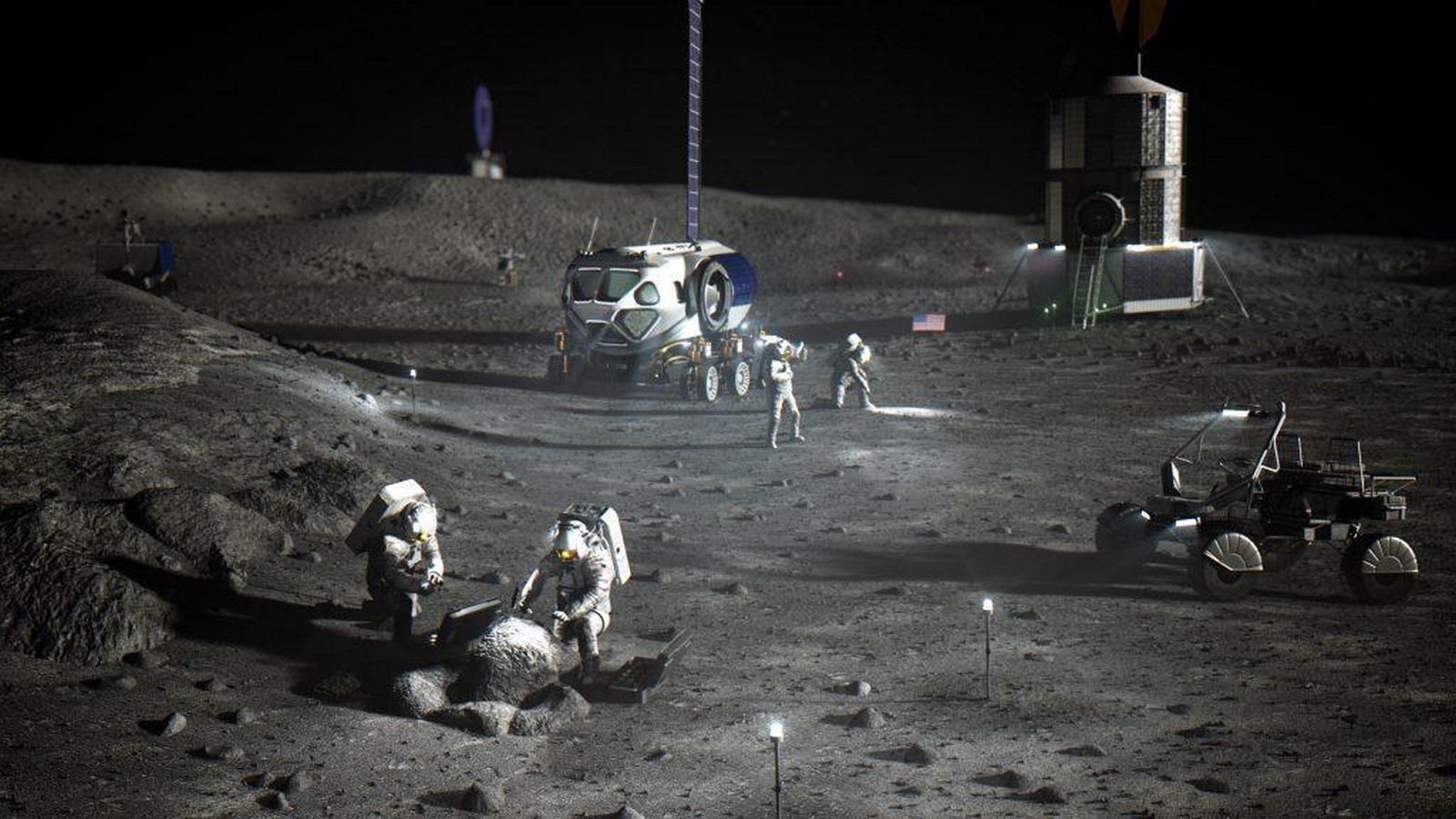

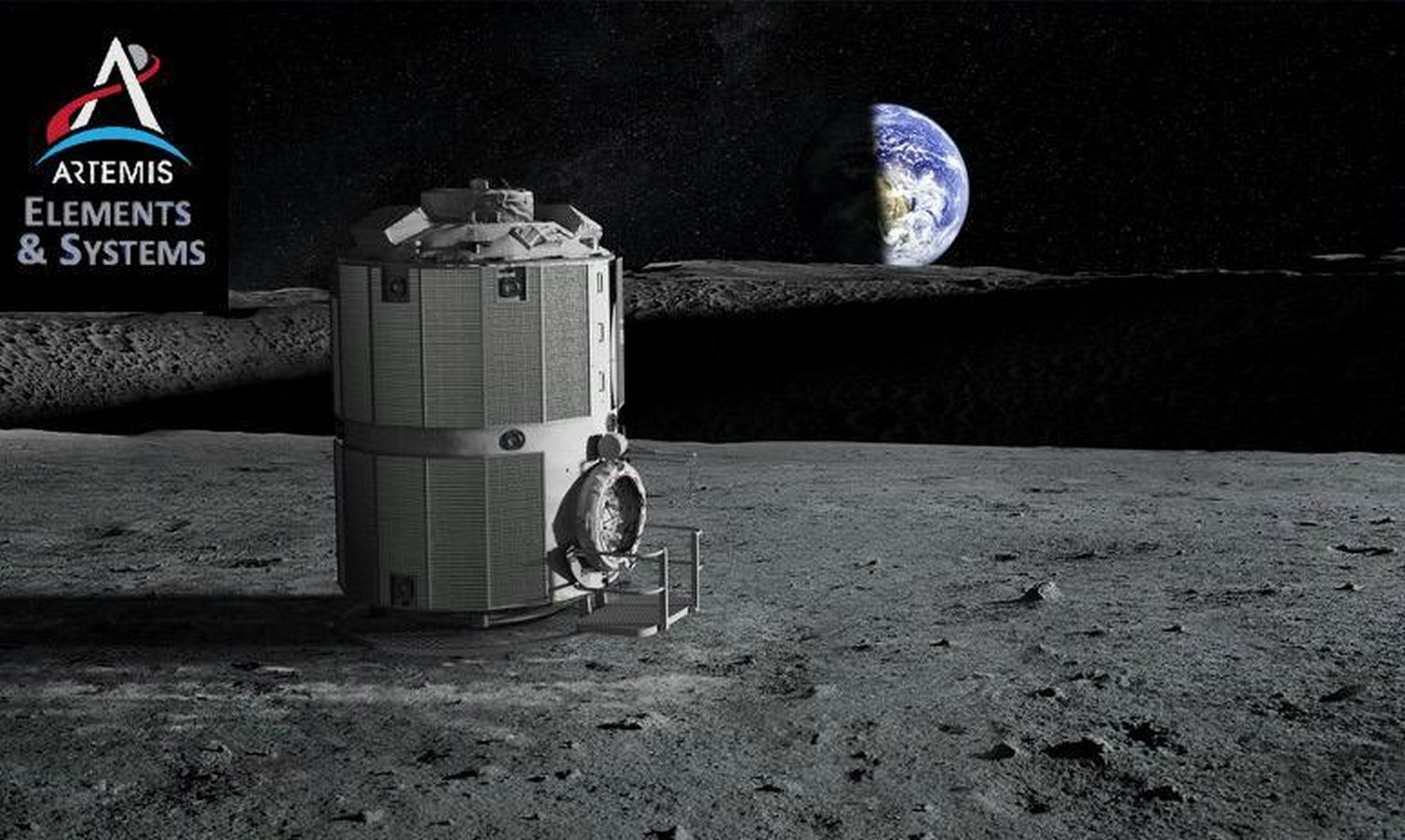

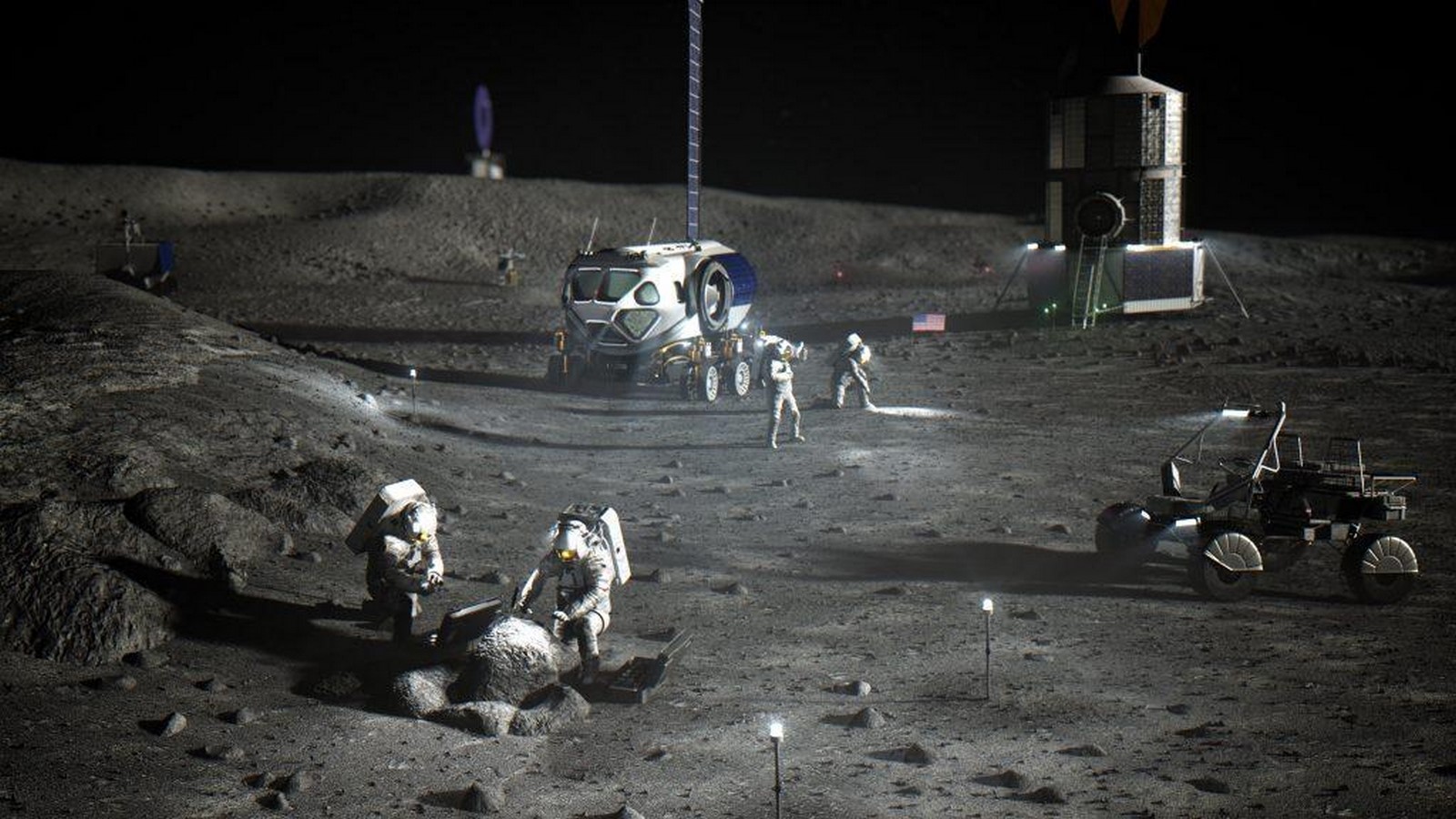

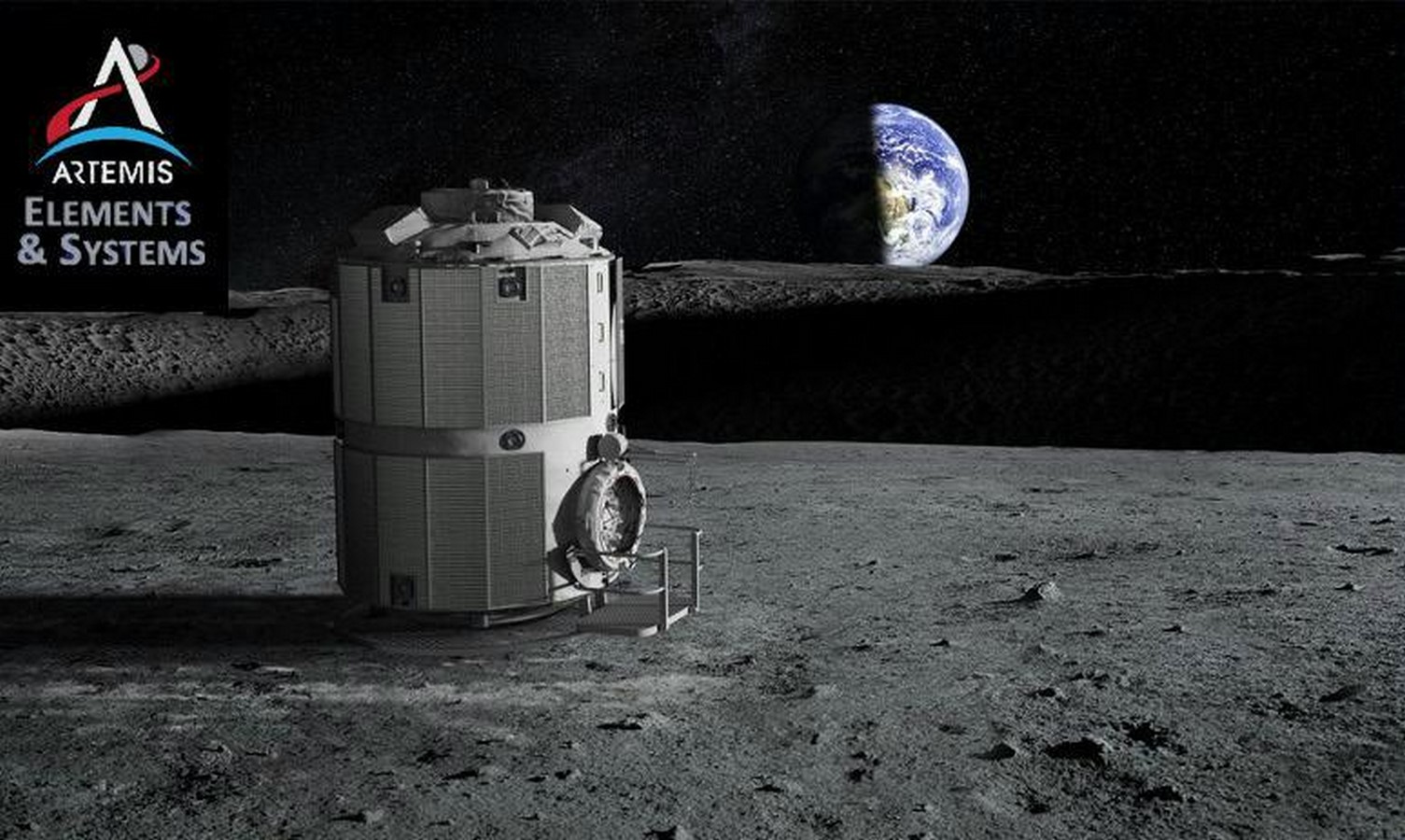

- Lunar Base Camps: initially consist of prefabricated modules and rovers, including the Human Landing Systems (HLS), supporting extended missions and serving as a habitat for astronauts on the Moon. The further stage involves the Foundational Surface Habitat (FSH) (prefabricated structure potentially incorporating ISRU) designed for long-duration stays, featuring radiation shielding and advanced life support systems.

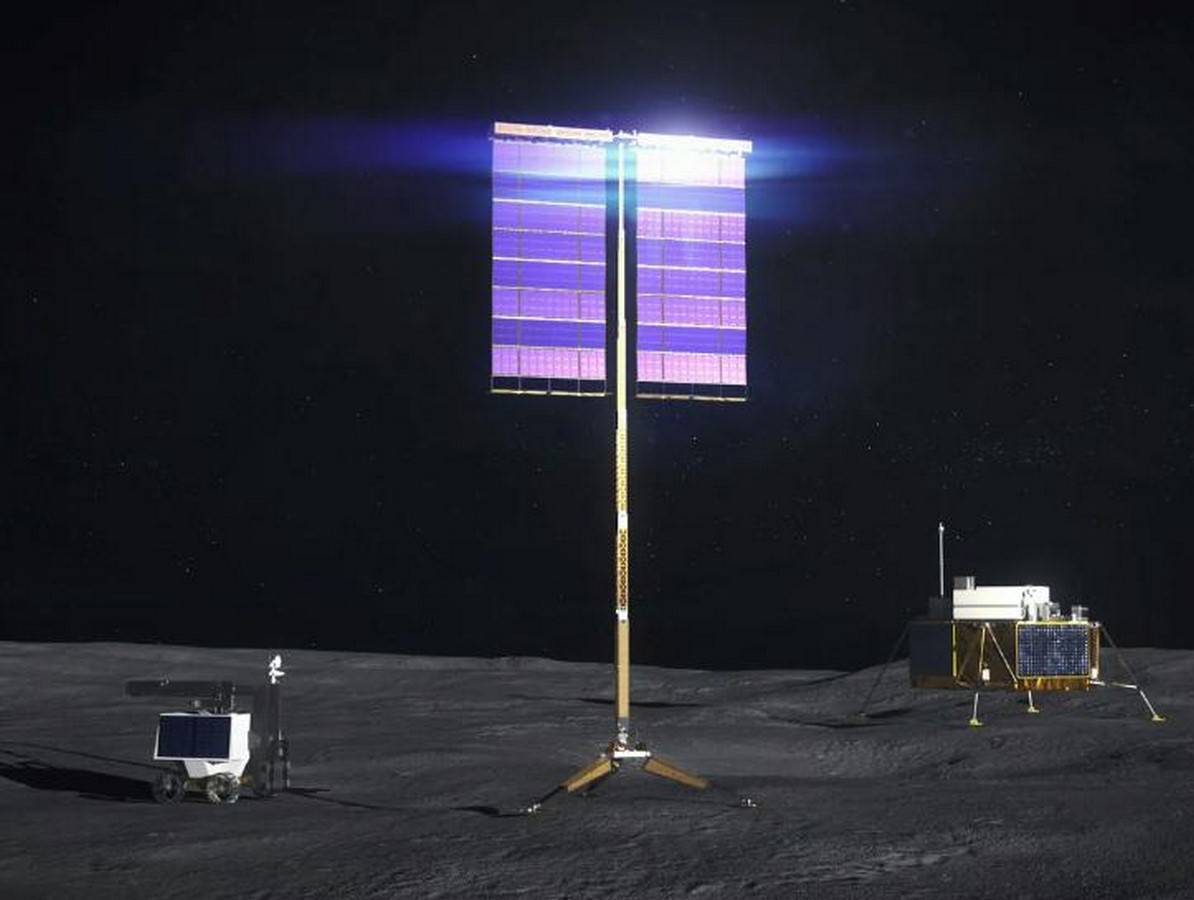

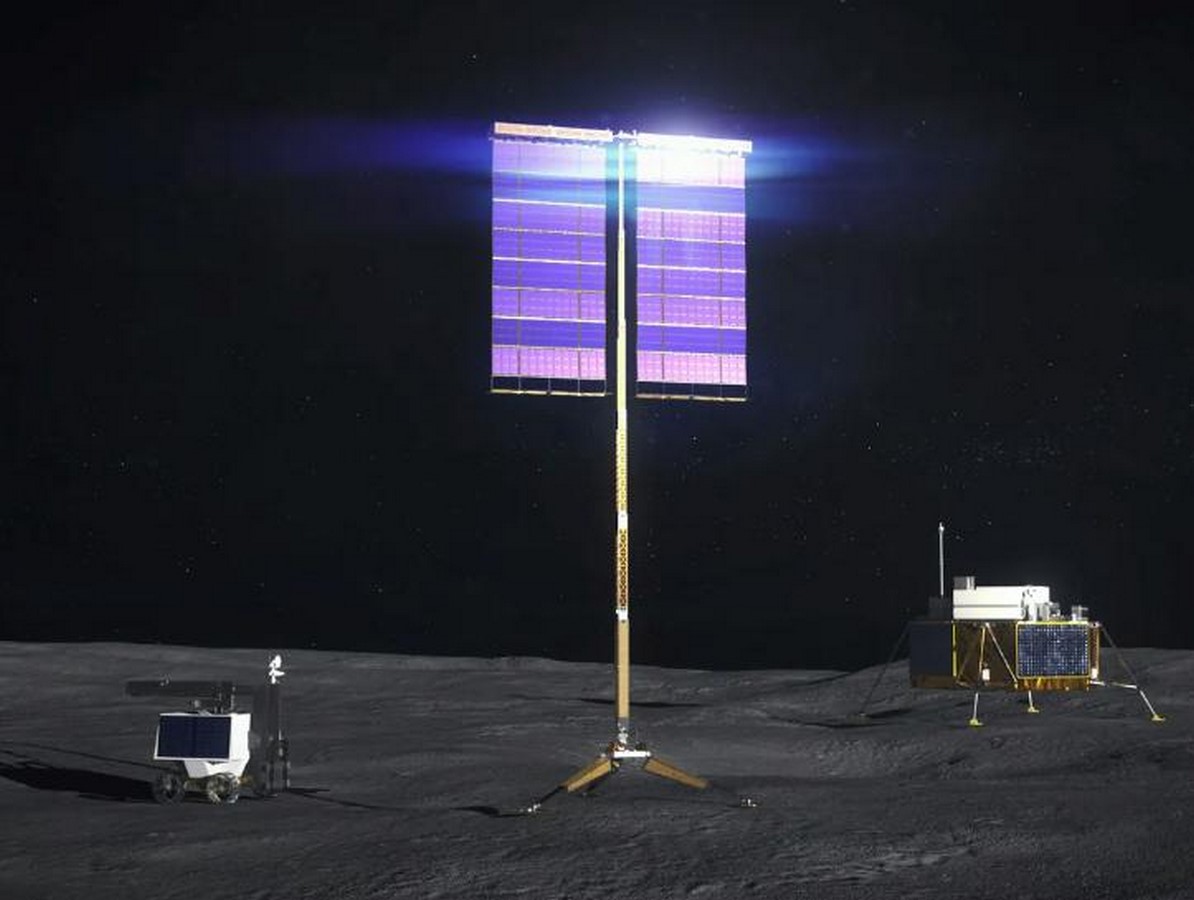

- Resource Processing Facilities: infrastructure for ISRU, enabling the extraction and processing of local resources (like water ice).
- Landing pads and mobility systems: Dedicated landing zones for safe and repeatable landings, and vehicles designed for surface exploration, sample collection, and habitat construction.
The Future of Space Architecture: Beyond Artemis

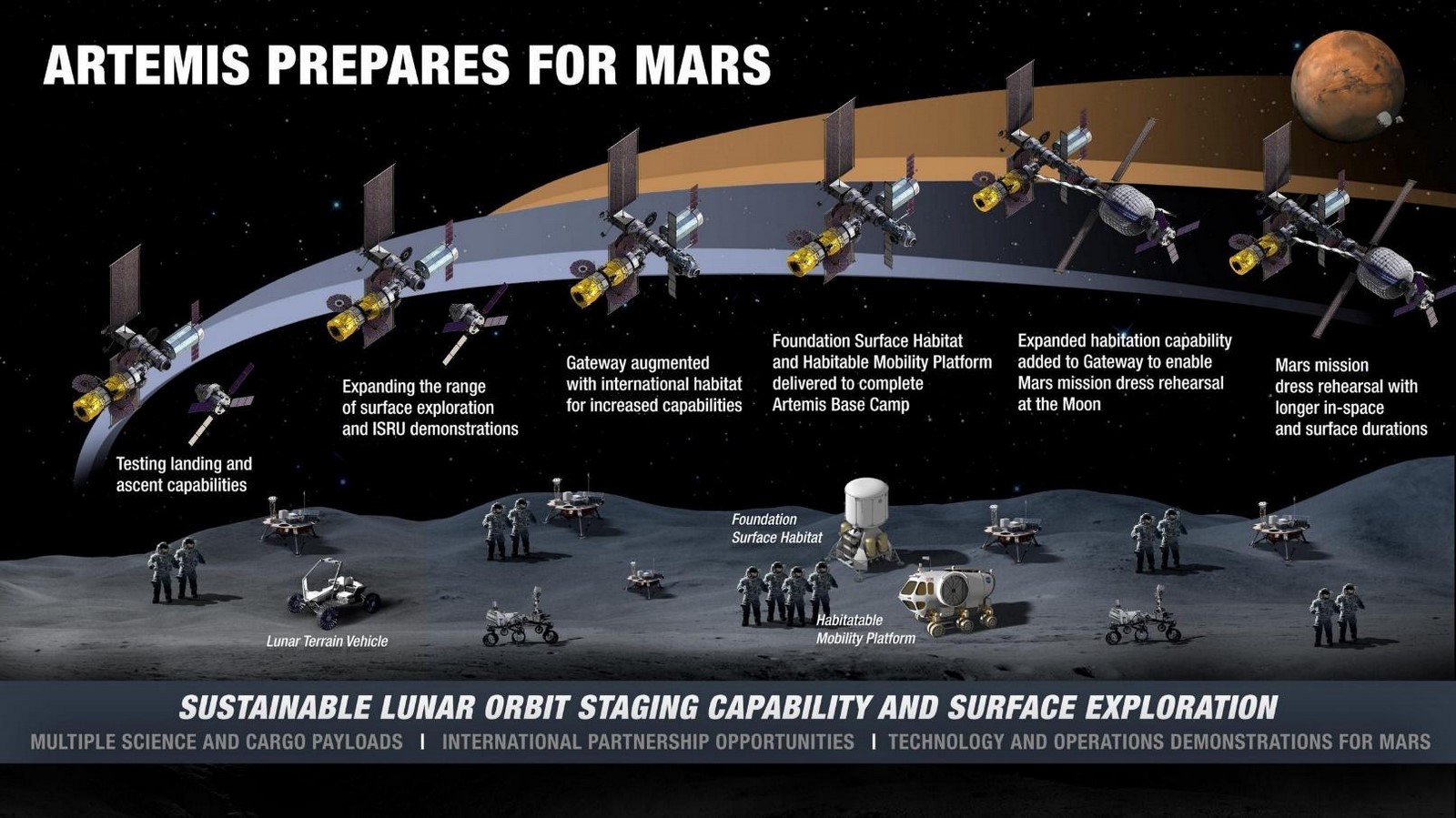

The Artemis Program is a great opportunity to explore and refine the architectural possibilities, requirements, and processes for permanent habitation on extraterrestrial surfaces. That’s where the theory and years of research and proposals will finally be tested on the actual site and conditions. Artemis’ mission is, therefore, more than just a return to the Moon; it is a stepping stone towards the future of space exploration. The mission will involve landing on the moon, deploying vehicles, rovers, and robots to start building a human outpost. The long-term goal is to establish a permanent lunar base camp. By first testing technologies and infrastructures on the Moon, the lessons learned will inform future missions and give the confidence needed for deeper space exploration, allowing humanity to reach Mars and beyond.
Reference list:
Benaroya, H. (2010). Lunar Settlements. CRC Press.
Kessler, P., Prater, T., Nickens, T., & Harris, D. (2022). Artemis Deep Space Habitation: Enabling a Sustained Human Presence on the Moon and Beyond. IEEE Aerospace Conference. Big Sky, MT, USA, 2022. DOI: 10.1109/AERO53065.2022.9843393
NASA. (2020). Artemis Plan: NASA’s Lunar Exploration Project Overview. National Aeronautics and Space Administration. Available from: https://www.nasa.gov/wp-content/uploads/2020/12/artemis_plan-20200921.pdf [Accessed date: 10 October 2024].
NASA. (n.d.). Artemis [online]. Available from: https://www.nasa.gov/feature/artemis/ [Accessed date: 10 October 2024].
NASA. (n.d.). Gateway [online]. Available from: https://www.nasa.gov/mission/gateway/ [Accessed date: 10 October 2024].
