Talina Edwards Architecture has won multiple awards over the past year for their pioneering Owl Woods Passive House project.
Project Name: Owl Woods Passive House
Studio Name: Talina Edwards Architecture
Project size: 200 m2
Site size: 2875 m2
Completion date: 2019
Building levels: 1
Location: Trentham, Australia
Photography: Tatjana Plitt
These include the Sustainability Medal at the 2019 Architeam Awards, the 2020 Architeam Innovation and Contribution Award, the 2020 BDAA National Design Excellence Award (and 2020 BDAA New residential buildings 251 – 350 sqm and over $2,500/sqm), 2020 Design Matters National Residential – New House Up to $500K-$1M. It was also shortlisted in the 2020 HOUSES awards and the 2019 Sustainability Awards. Talina won the 2020 Sustainability Award for Emerging Sustainable Architect/Designer and was shortlisted for the 2020 Sustainability Award for Women in Sustainability.
One of the judges praised the project, saying it, “Raises the bar for what is achievable in Sustainable Architecture and homebuilding. This project has now achieved its official Certified Passive House (CPH) status, making it the 10th single-detached CPH home in Victoria, and the 20th CPD project in all of Australia. It is a project that demonstrates that the stringent requirements to achieve this certification can work in harmony with good design.
The Owl Woods Passive House pavilions reach into the landscape and contain beautiful spaces that achieve a level of energy efficiency that all Architects should aspire to in their work.” Owl Woods Passive House has been described as one of the most unique and beautiful Architecturally-designed Passivhaus homes in Australia.
The owners wanted a ‘tree-change’ home that was ‘just-enough’ in terms of size, whilst also being comfortable, sustainable, functional, flexible, healthy and beautiful. The architectural response was inspired by the surrounding bushland and farming land. The design echoes a cluster of farm-sheds or birdhouses, whilst also being reminiscent of a Scottish Village where the owners previously lived.

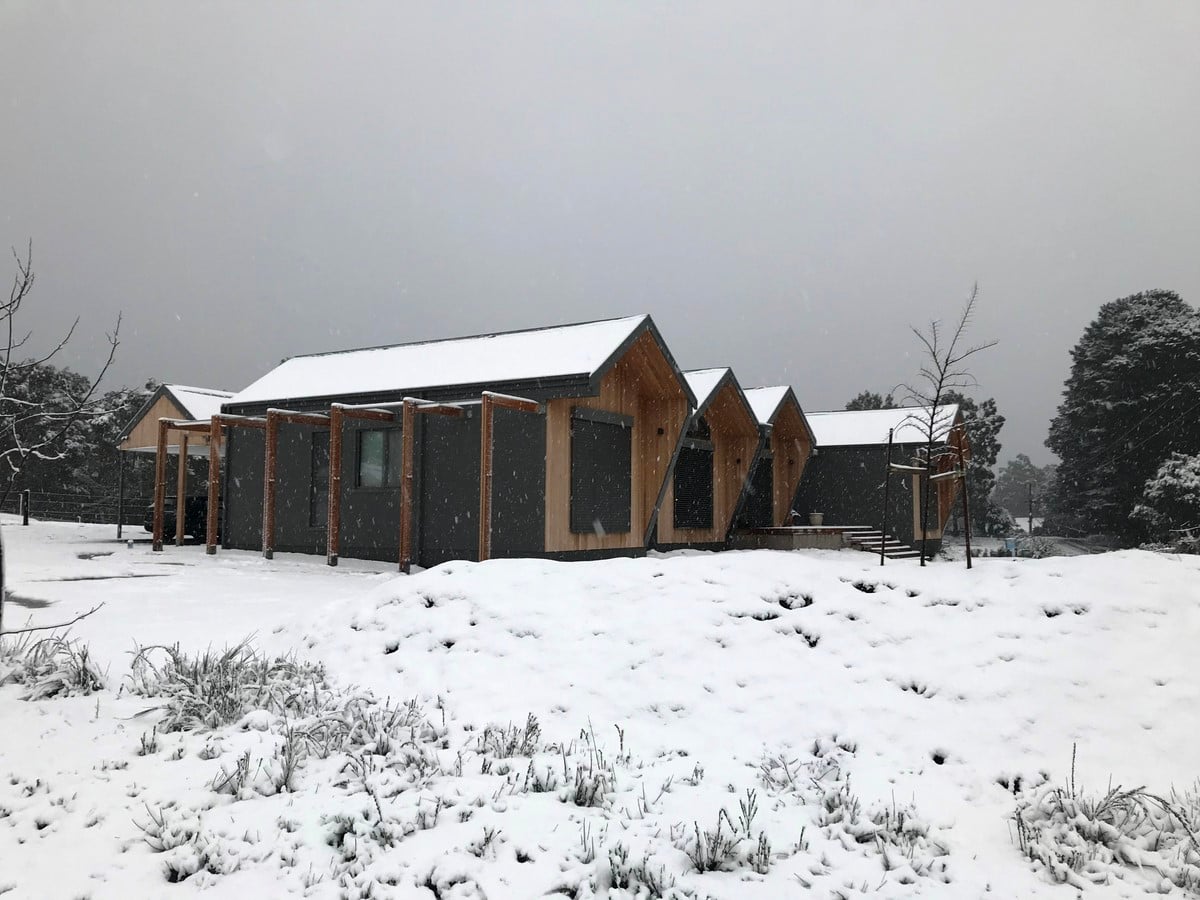

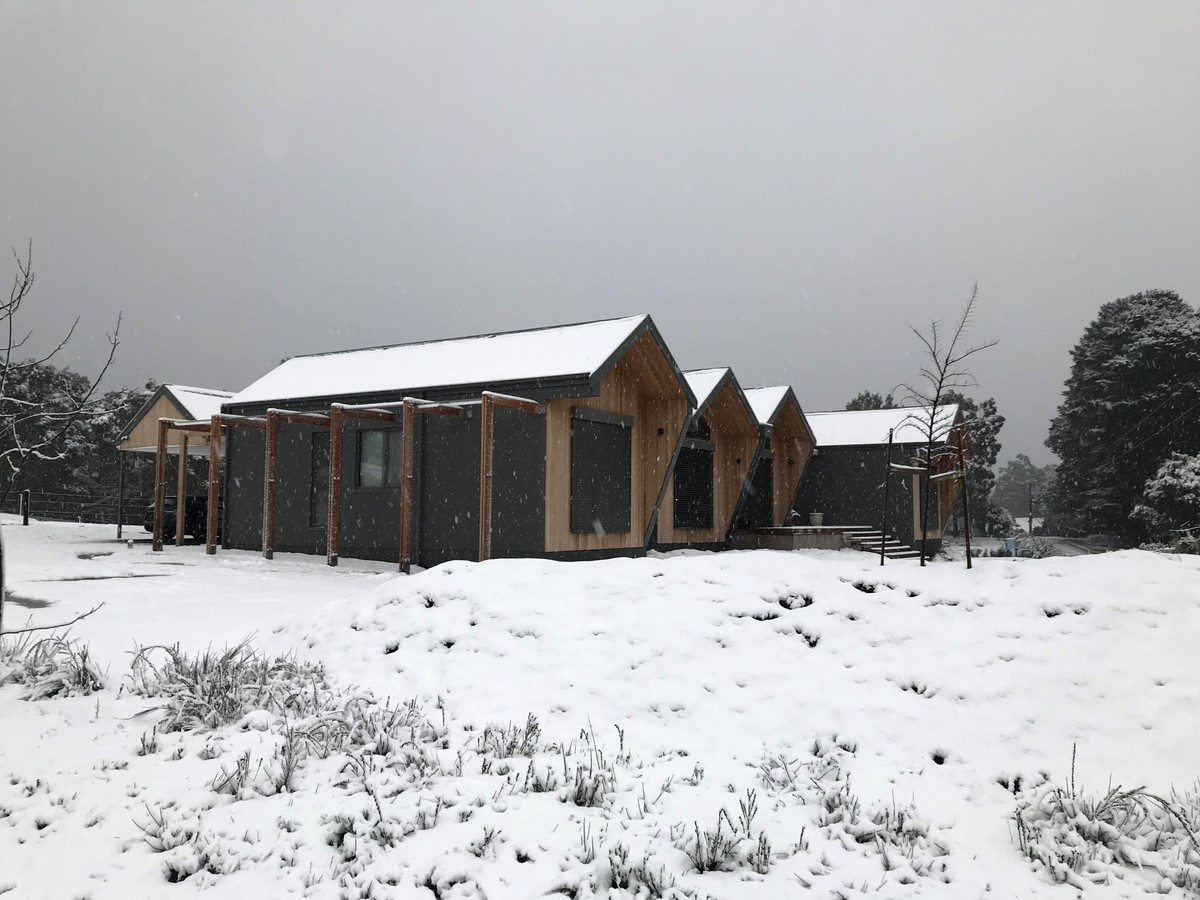

Located in the lovely regional Victorian town of Trentham, with an altitude of 700m above sea level, the area has weather that varies between snow in winter to summer temperatures reaching 40 degrees celsius.
For the new home to be climate-responsive, comfortable, sustainable and energy-efficient, the decision was made to design and construct the home to meet international passivhaus standards. This cutting edge approach to high performance homes is still new in Australia, but it is fast-growing as home-owners, architects and builders learn about its many benefits.
The Passivhaus standards allow for stable indoor temperatures and a healthy indoor environment with low running costs. This is achieved by:
– Well insulated building envelope
– Airtight envelope

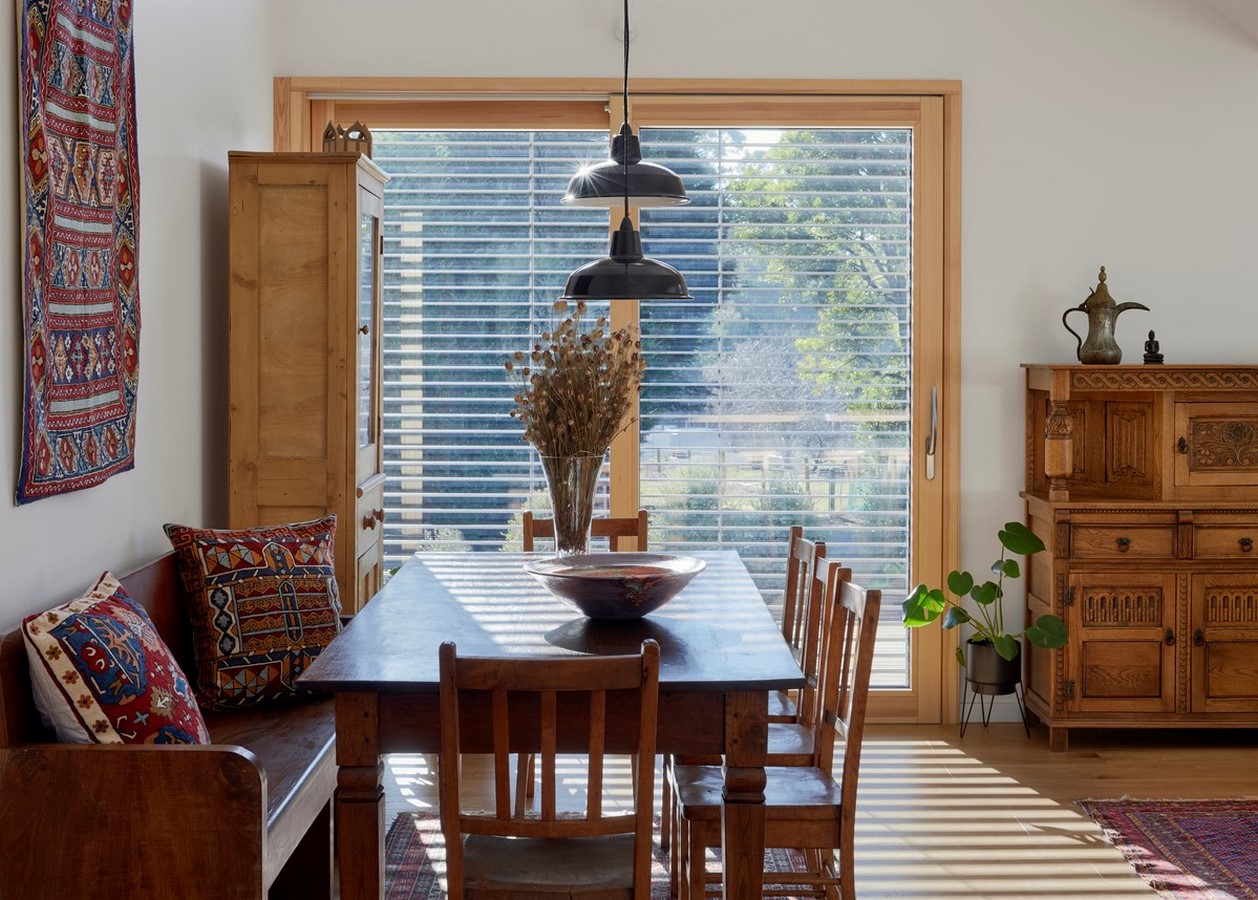

– Really great windows (that are openable for natural ventilation when the outdoor temps are desirable!)
– Controlled Ventilation
– Elimination of Thermal Bridges in the structure
– plus orientation for solar gain in winter with appropriate shading for summer.

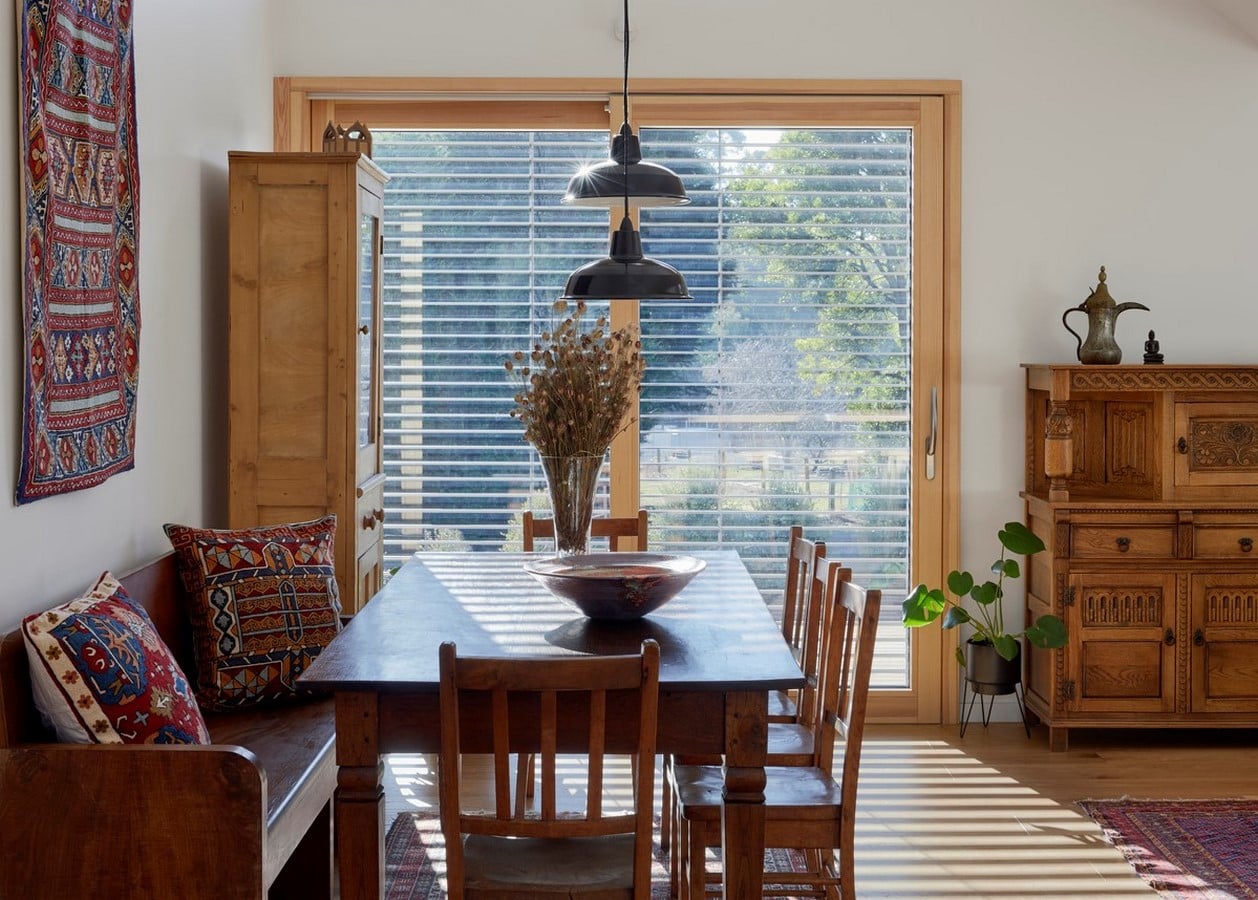

The integration of Passivhaus standards with biophilic design enriches the experiences and wellbeing of the occupants. Generous visual and physical connections to nature, natural light and materials are integral to the design, whilst the contemporary pavilion style layout creates diverse indoor environments for its users to experience.

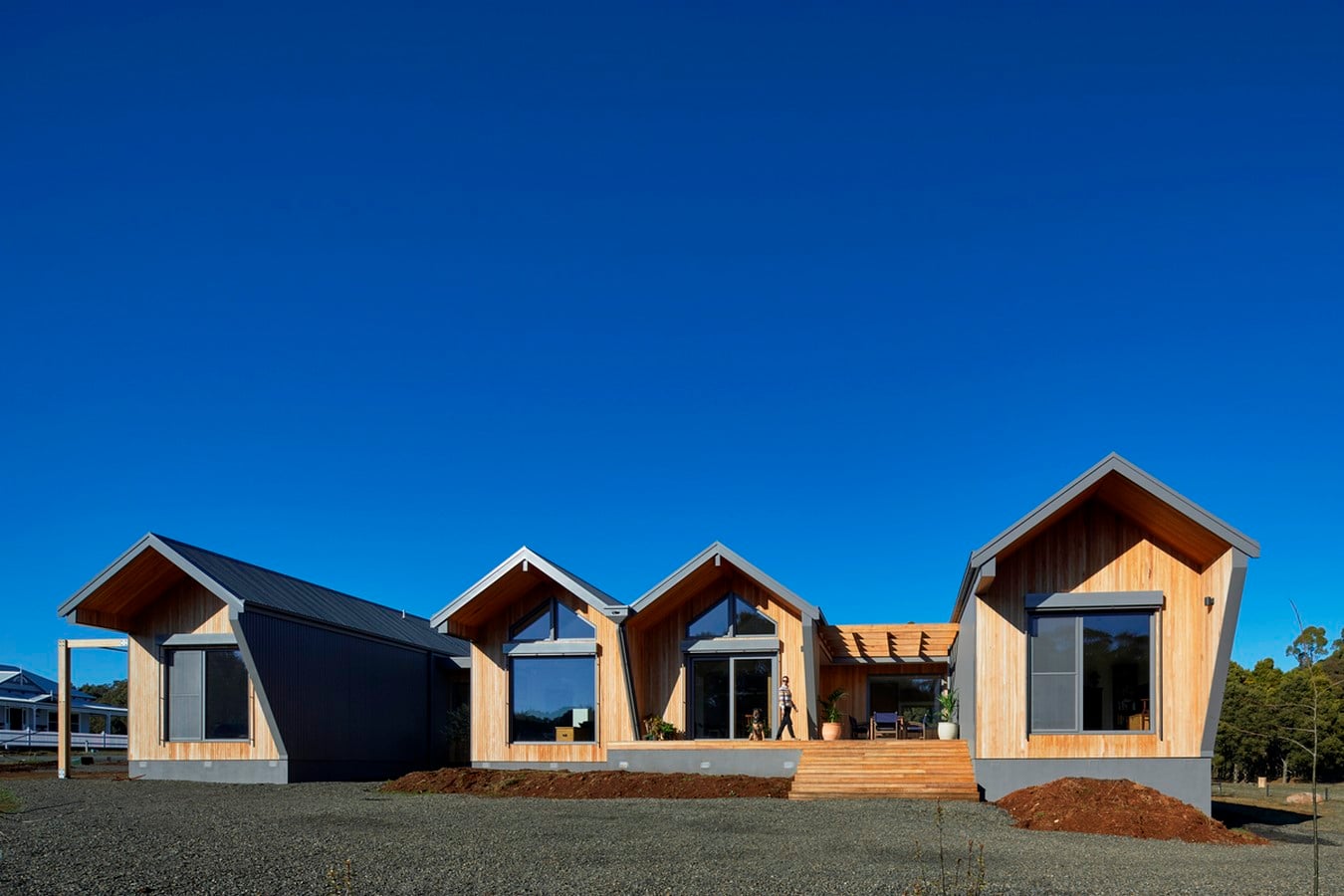

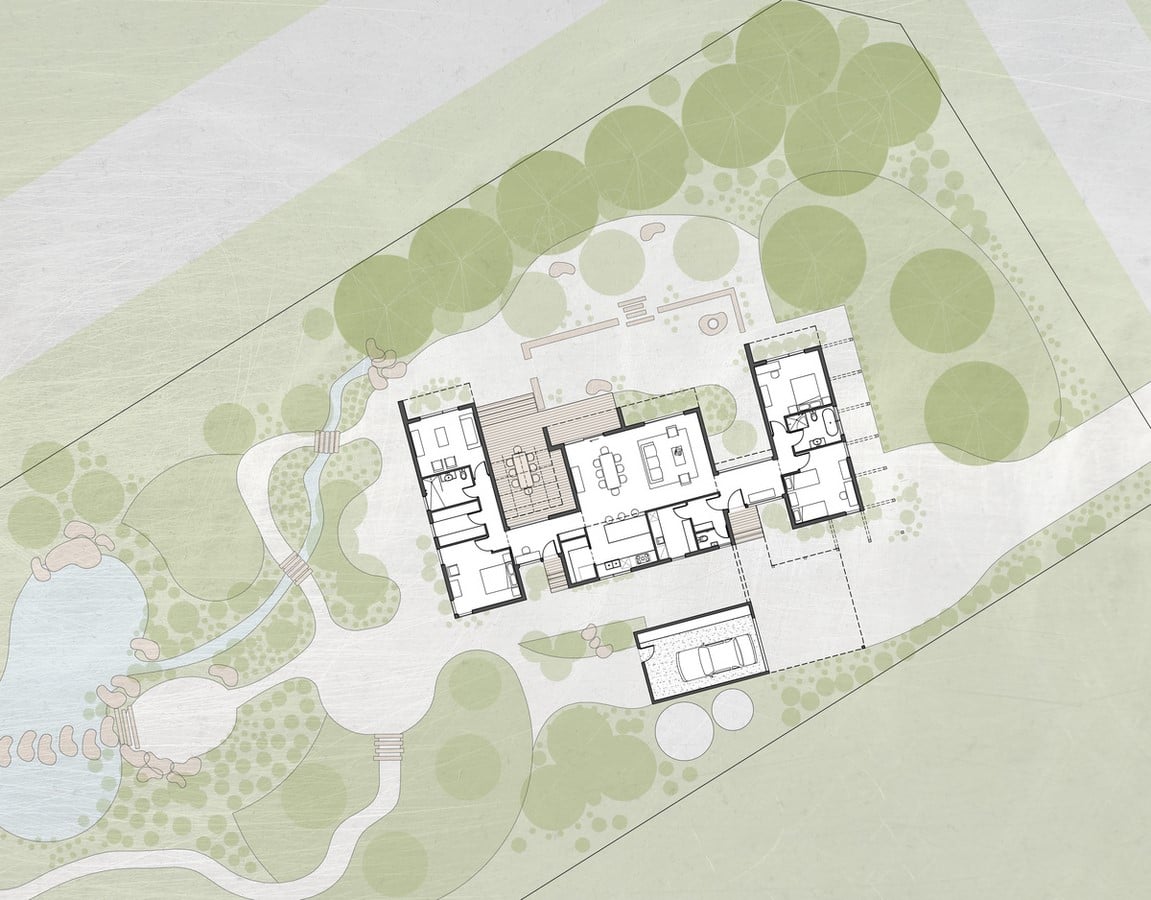

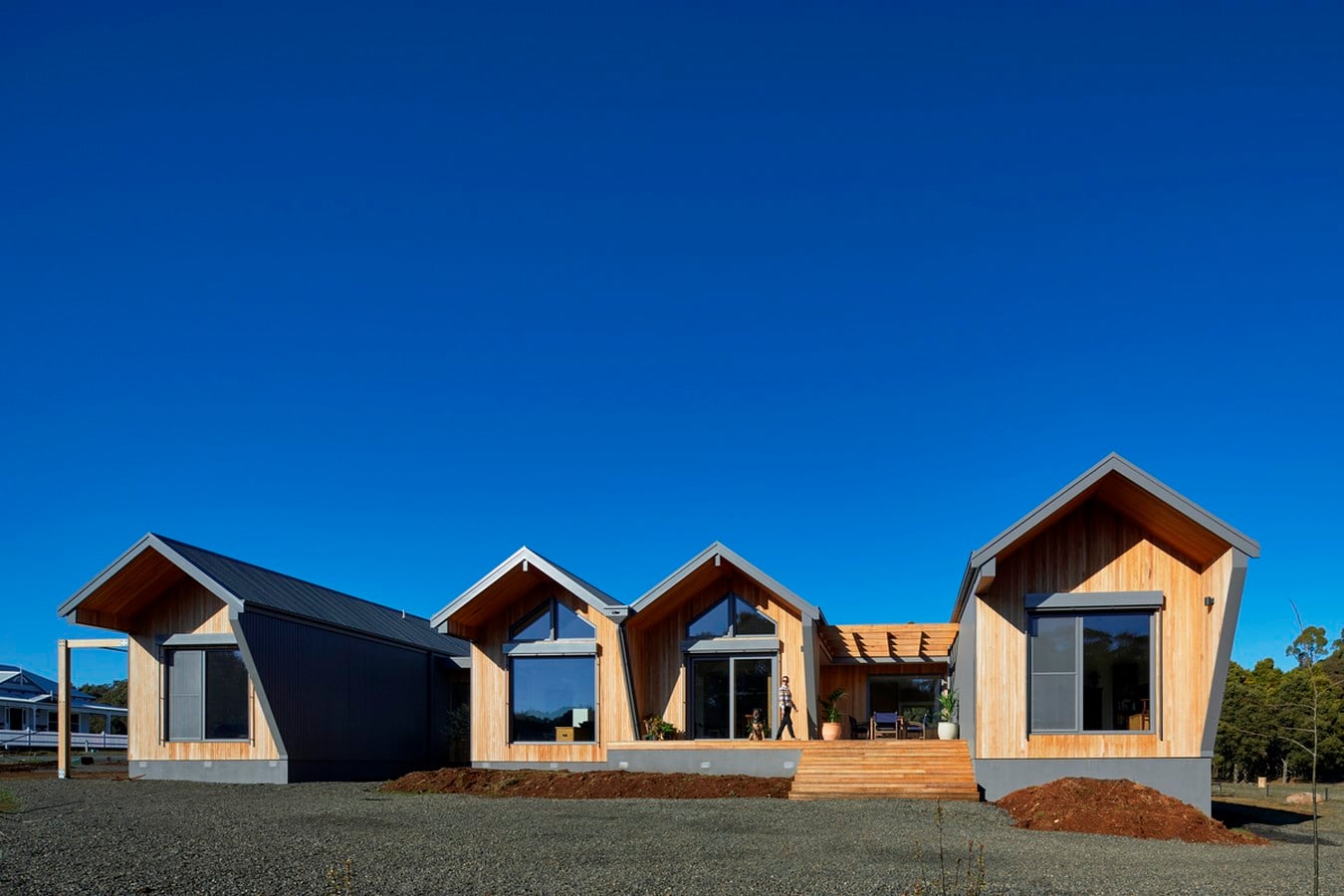

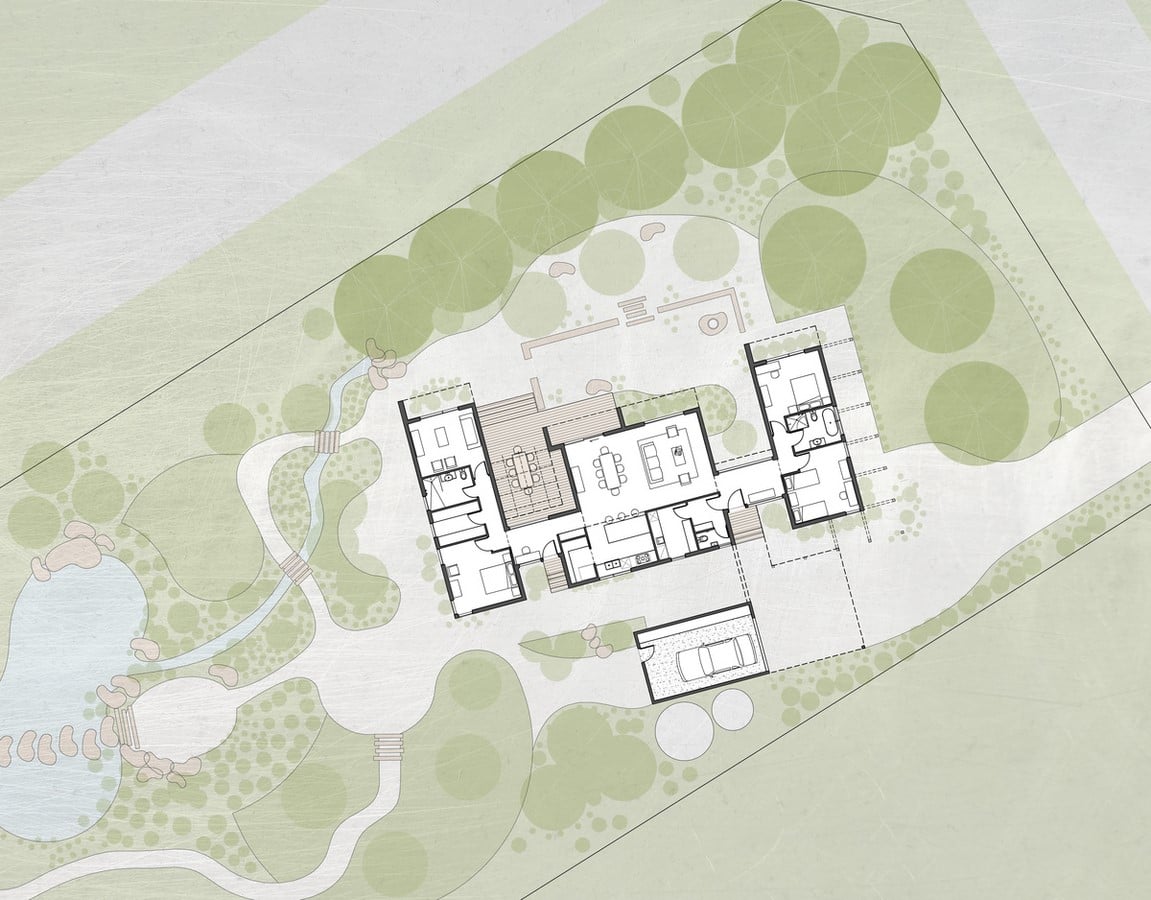

The locality is known as “Owl Woods”, and the home appears as though a collection of birdhouses are sitting in the native woodland. The pitched roofs stretch out to the north in a unique ‘birds-beak’ shape for summer shading. The orientation of the house is slightly north-west due to the ‘building envelope’ specified for the site – in response the roofs fold down on the western sides, forming wings to shelter each pavilion from afternoon summer sun. External blinds, and deciduous planting also help shade the house at different times of the day and year.

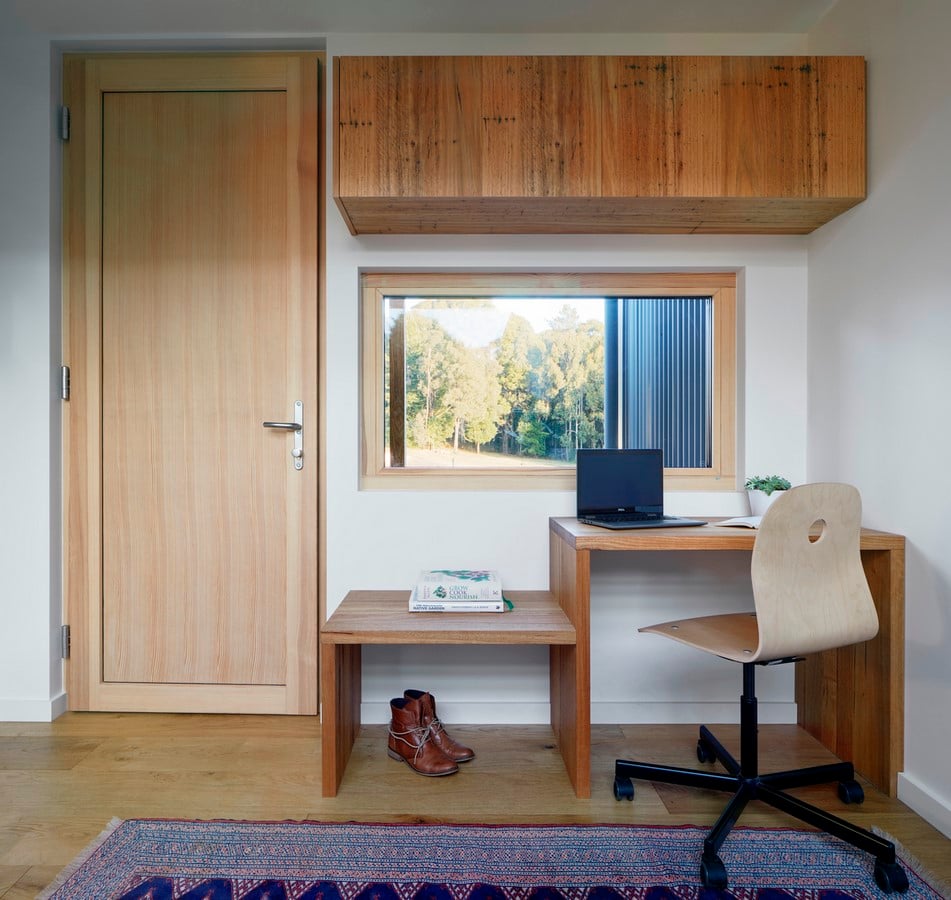

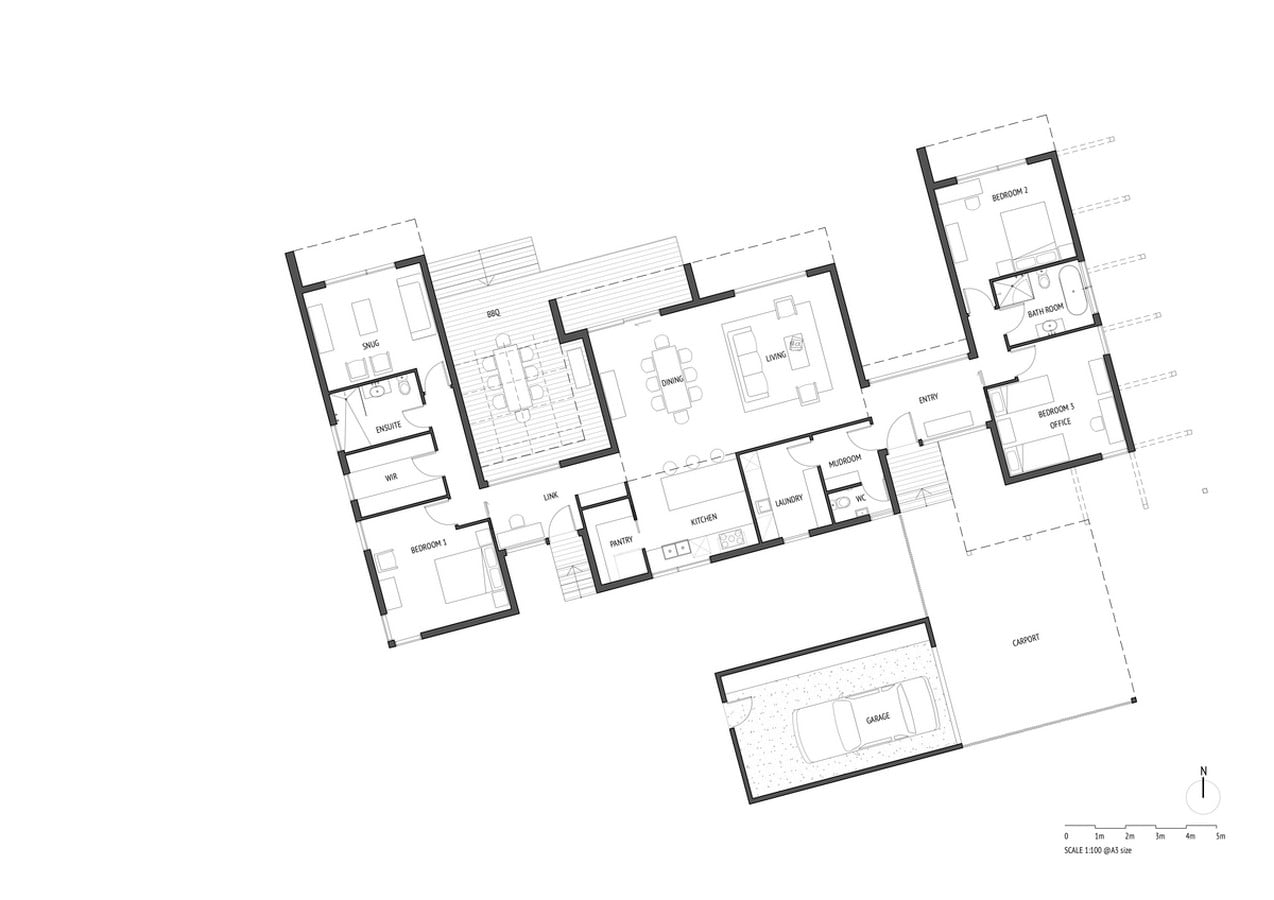

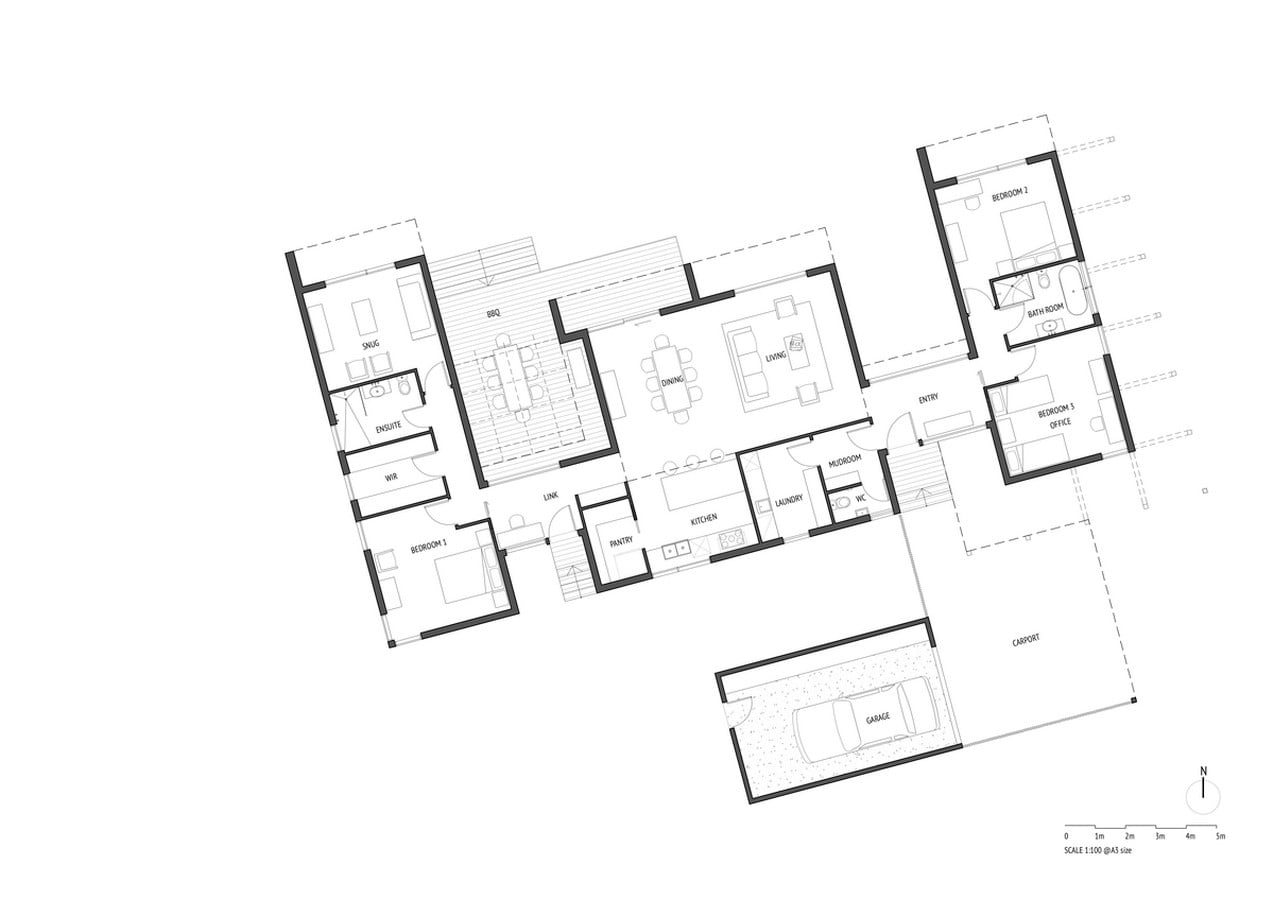

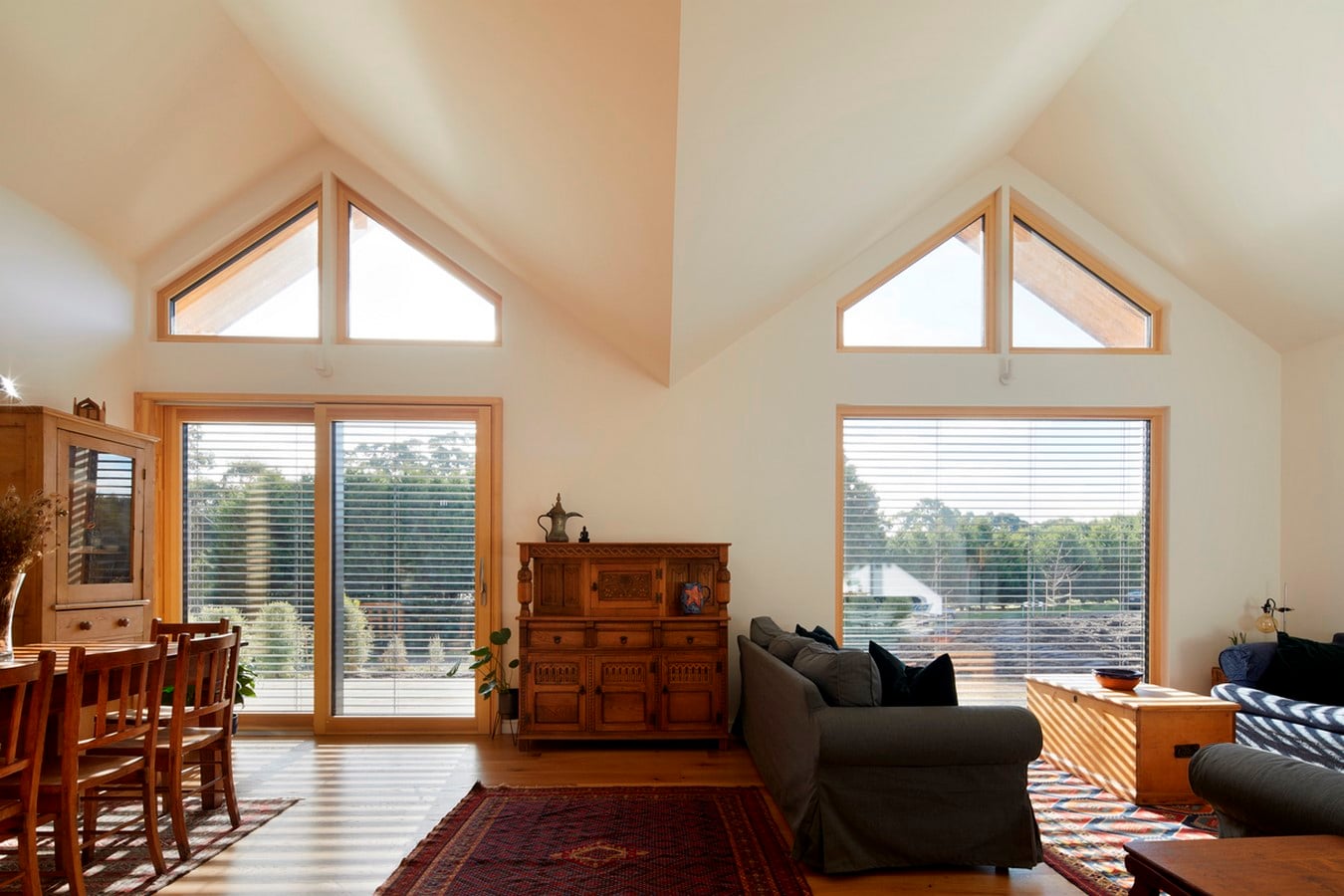

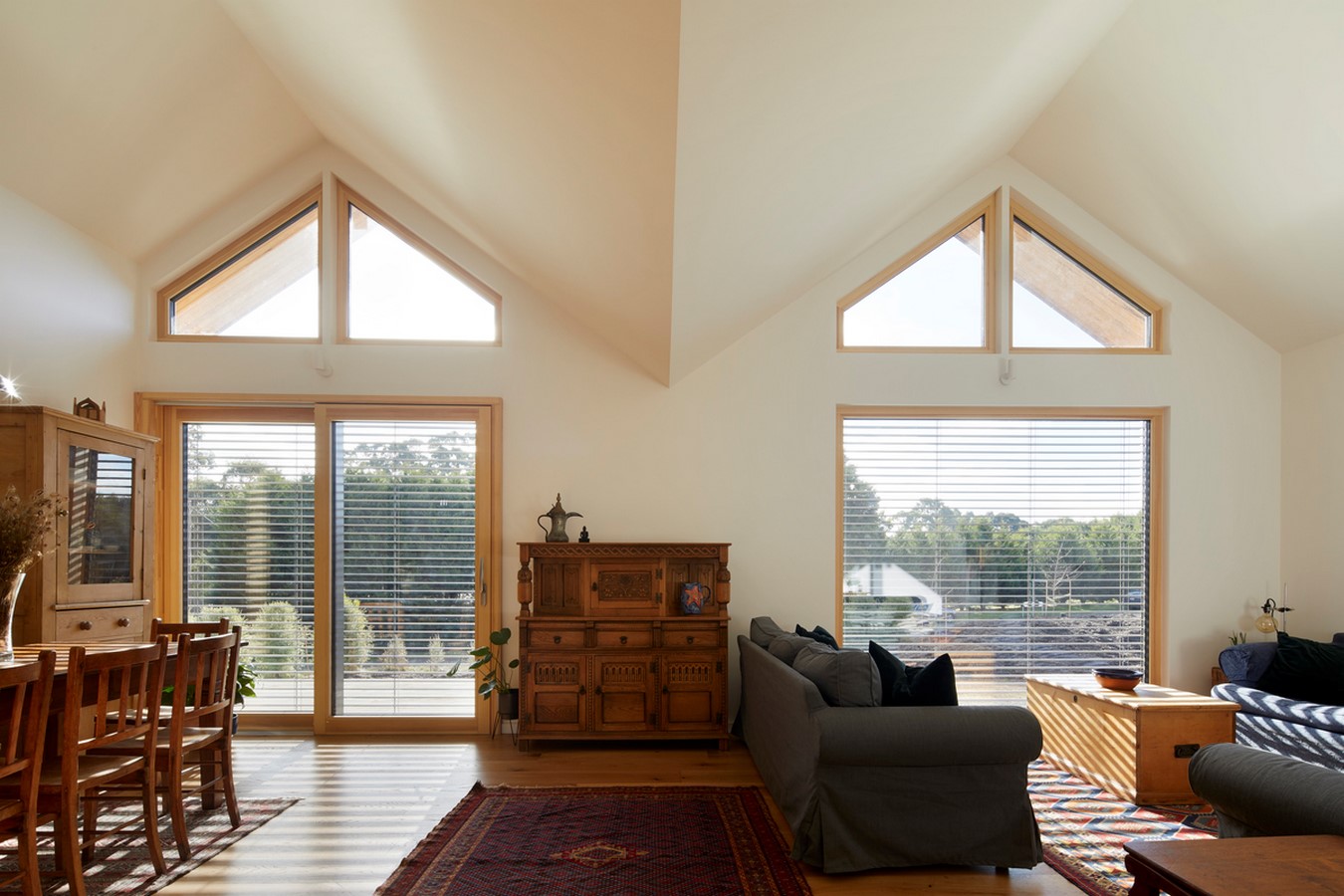

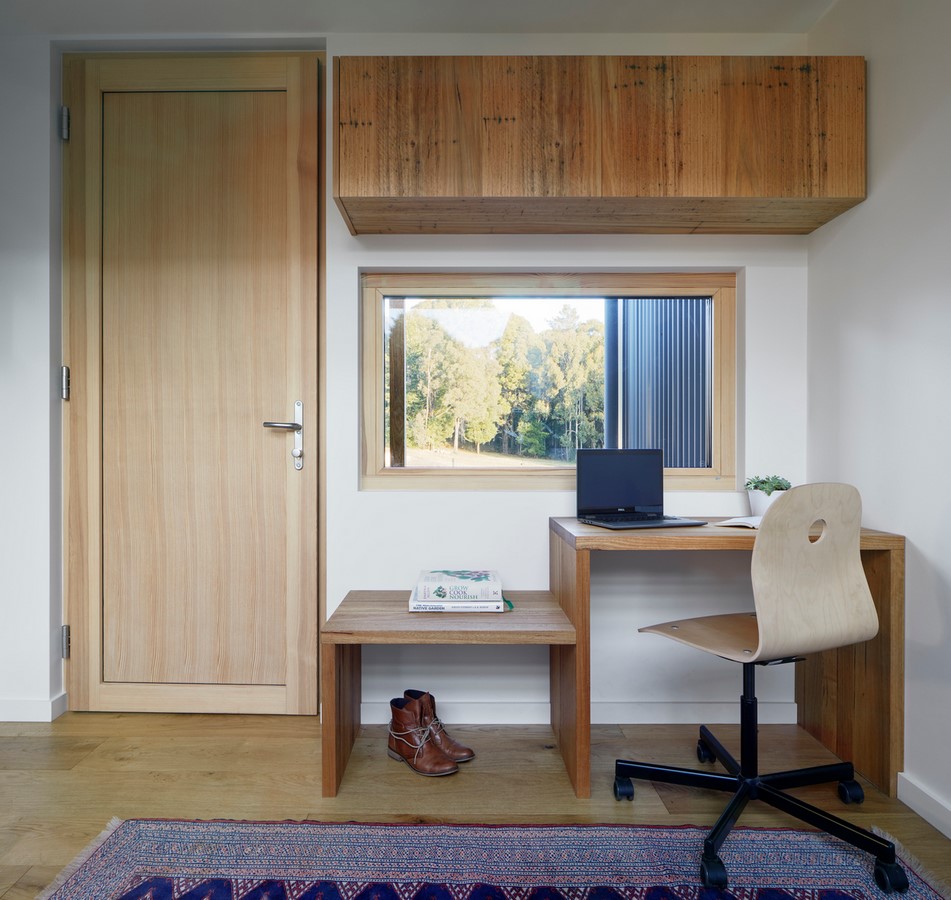

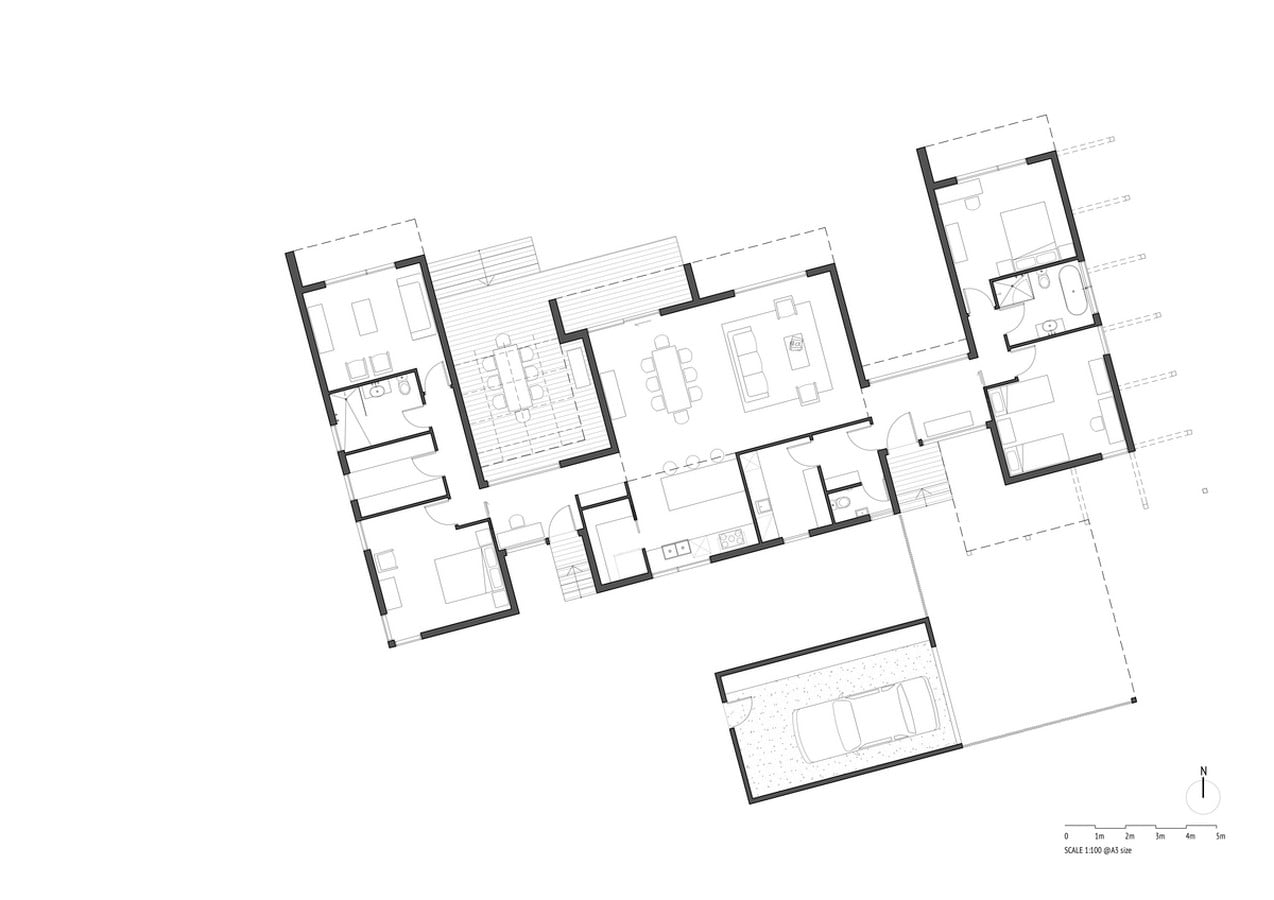

The home takes advantage of the winter sun to provide passive heating to the centrally located living areas, and the bedroom/bathroom zones to each side, which are connected by functional linkways and courtyard spaces which perform as outdoor rooms. The modest sized home has a couple of ‘bedrooms’ which are flexible as guest rooms or as everyday office/study/living areas.
Rather than just being ‘tin sheds’, lovely radial-sawn native timber cladding was introduced to complement the grey corrugated steel, and soften the overall feel of the home and create that connection back to the surrounding bushland. Materials were chosen that are natural, healthy, durable and sustainably sourced, relating back to the Australian landscape and minimising embodied energy wherever possible.
Designed to fulfill both the physical and emotional desires of its occupants, the Owl Woods Passive House is a unique blend of Biophilic Design and Passivhaus Standards of Construction. In this aspect, it really is a pioneer project for Passivhaus homes in Australia.
