Located at Minsheng Wharf in Pudong of Shanghai, Minsheng Wharf Block E15-3 designed by Atelier Ping Jiang/ EID Arch is a new waterfront development intended for urban regeneration.

Project Name: Minsheng Wharf Block E15-3
Studio Name: Atelier Ping Jiang – EID Arch

Location: Shanghai, China
Client: China Enterprise Co., Ltd. / Shanghai Real Estate (Group) Co. Ltd.
Urban Renewal Scope:15,569 sq m
Site Area: 9,640 sq m
Gross Built Area: 38,240sq m
Completion Year: 2021
Type: Urban Renewal, Office, Retail
Architect: Atelier Ping Jiang / EID Arch
Design Principal: Ping Jiang, AIA
Technical Director: Sean Lu
Curtain Wall Consultant:Inhabit Group
Landscape Consultant: H & A Landscape / LAN·G.
Interior Consultant: DU Studio
Signage Consultant:Selbert Perkins Design
Lighting Consultant:LEOX Design Partnership
BIM Consultant:China Shanghai Architectural Design & Research Institute Co.,Ltd
Historic Building Preservation:Arcplus Historic Building Preservation Design Institute
LDI: Shanghai TIANHUA Architecture Planning & Engineering Ltd.

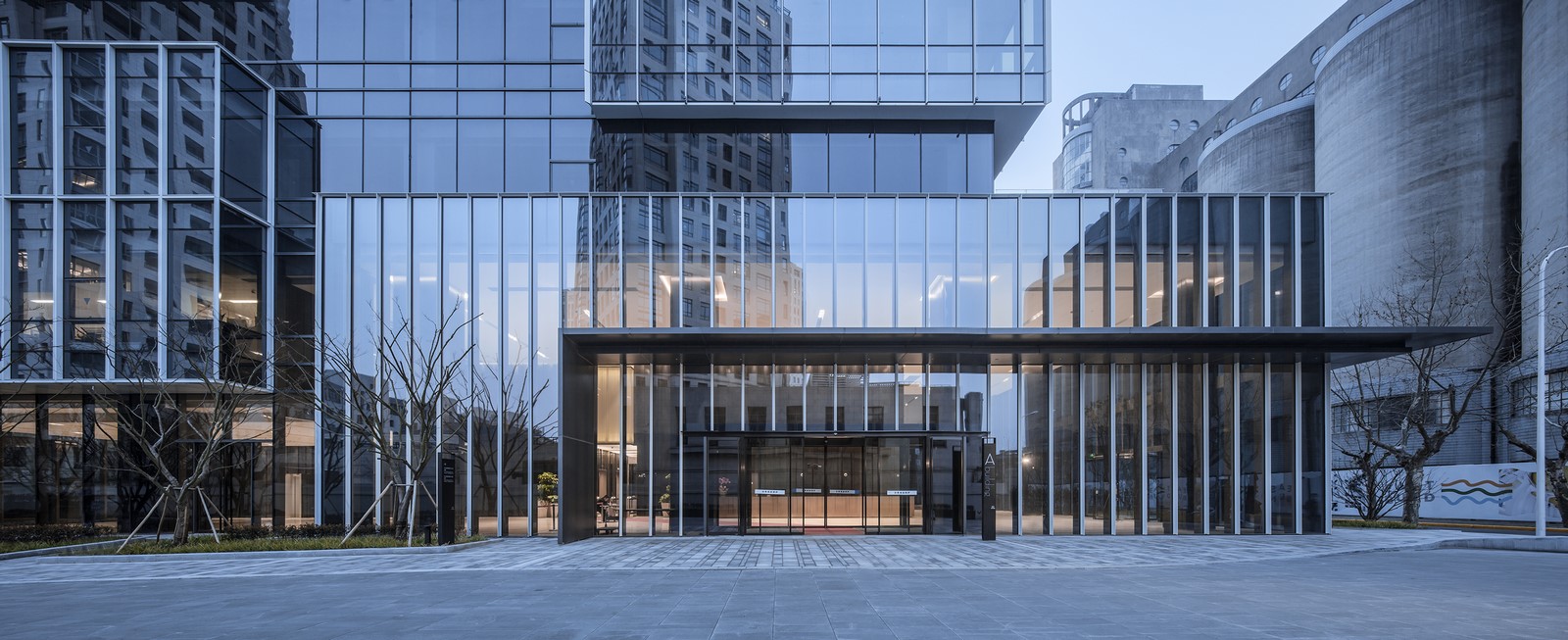

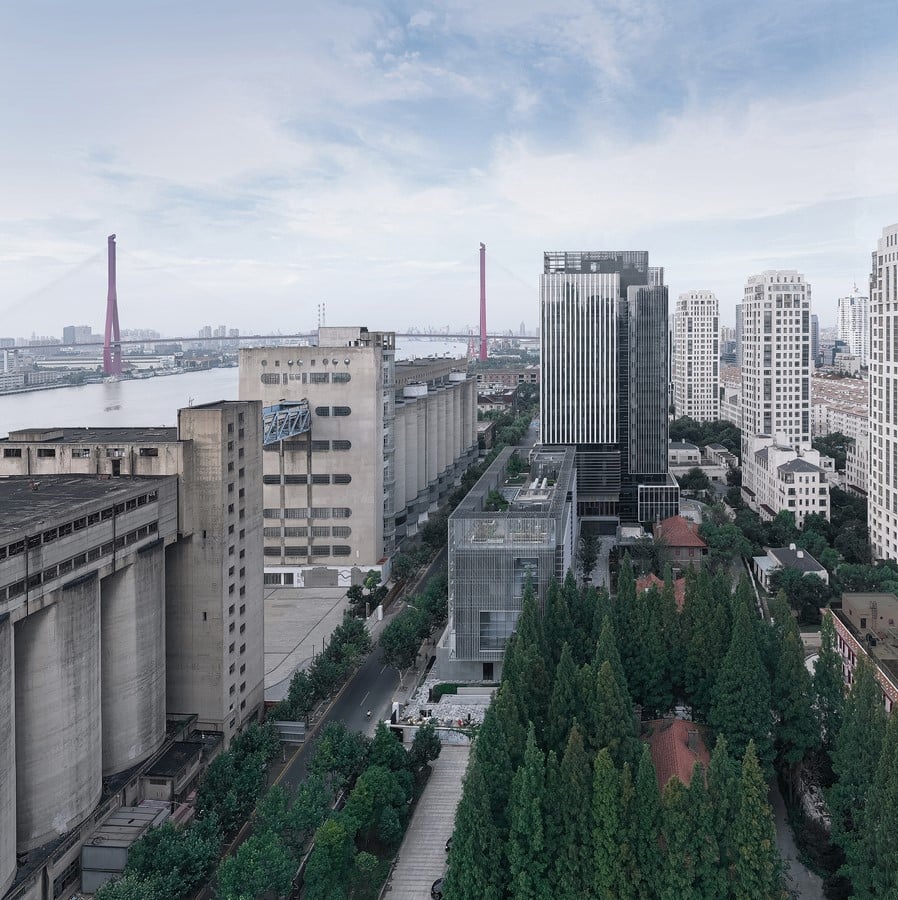

Minsheng Wharf Block E15-3 by Atelier Ping Jiang - EID Arch - Sheet1
©Atelier Ping Jiang – EID Arch

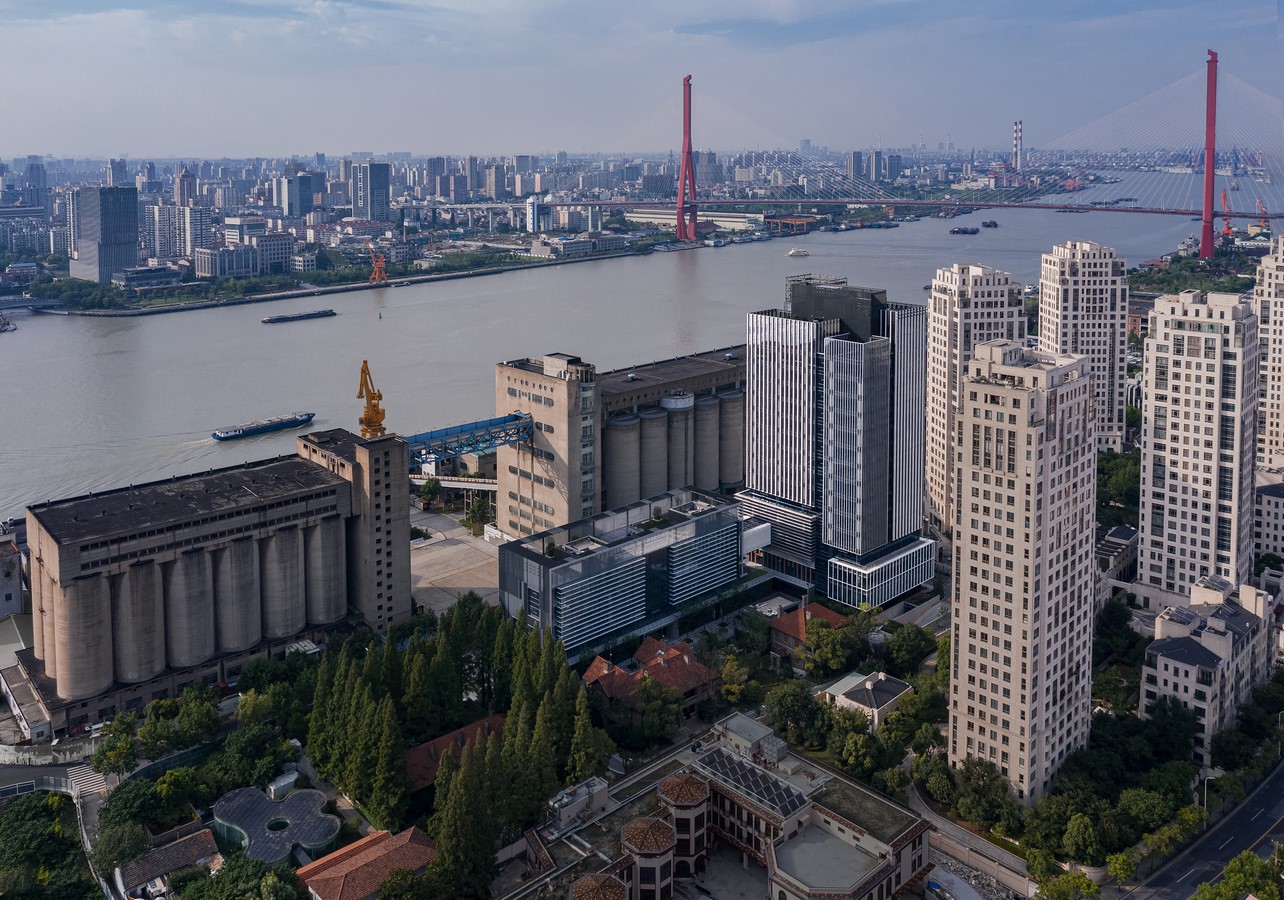

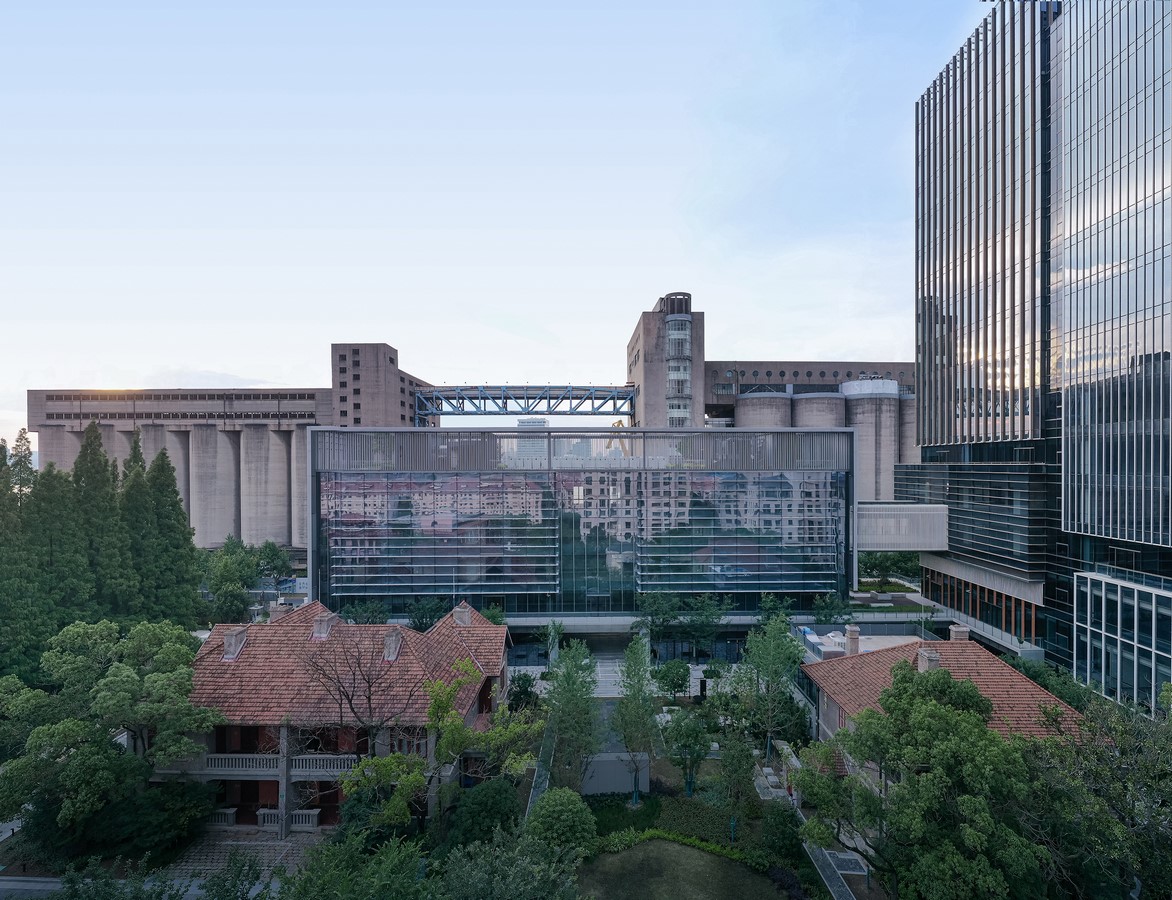

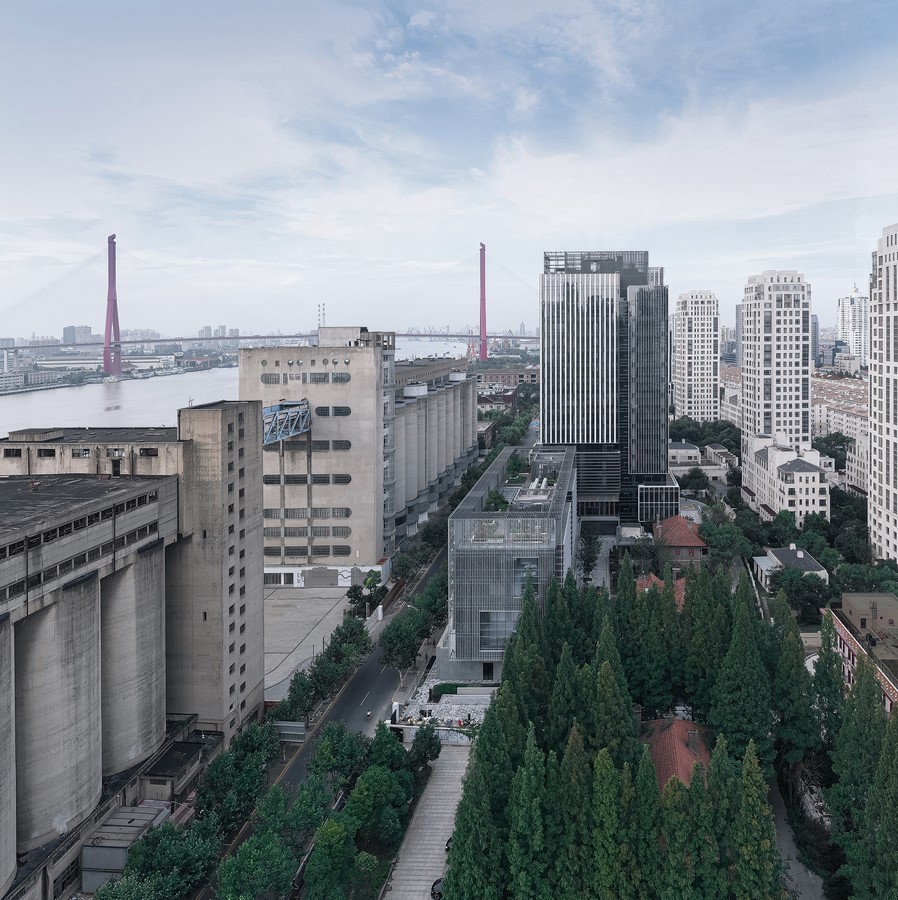

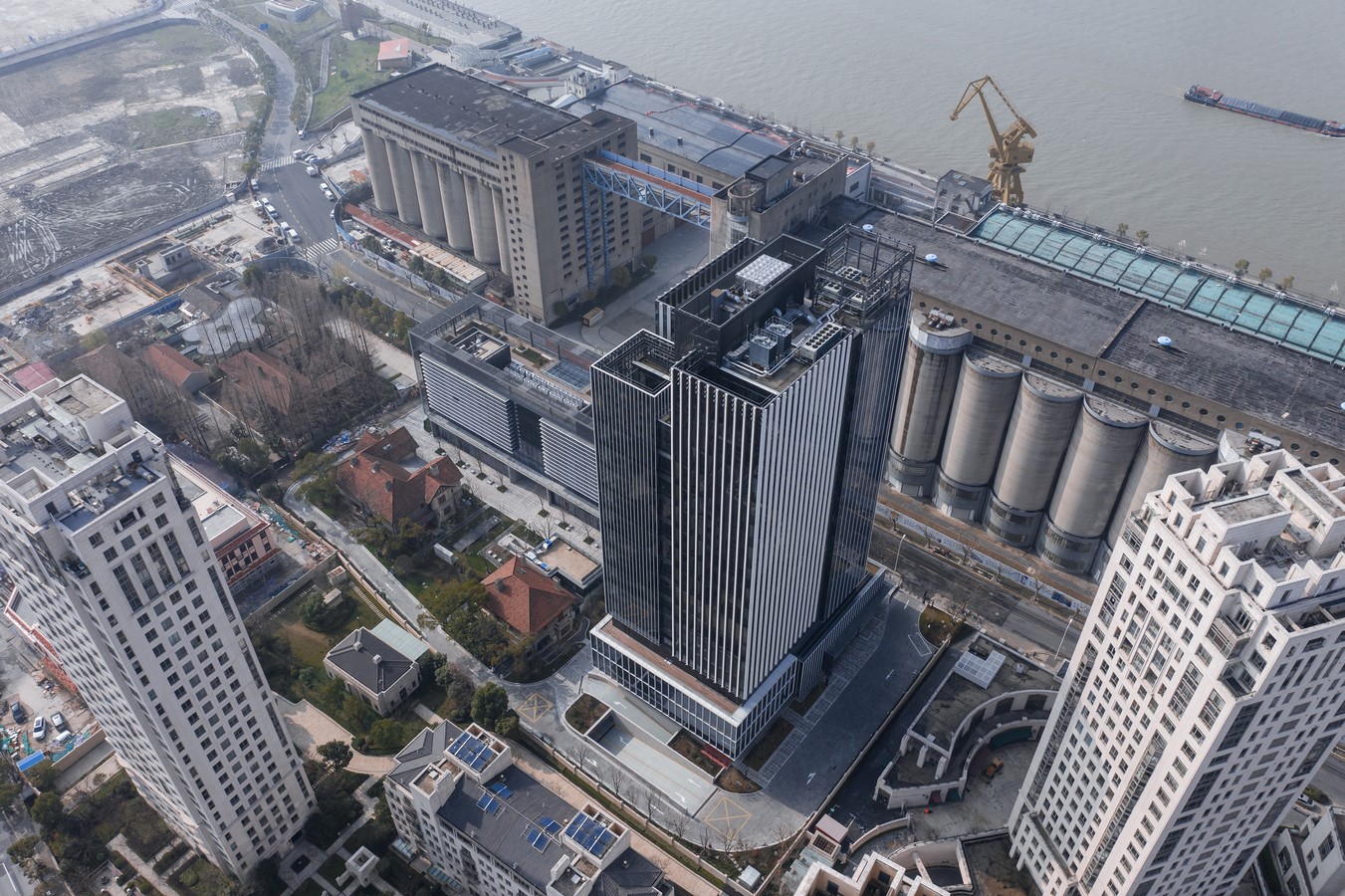

Primarily consisted of grade A office space and amenities, the project site is bookended in-between century old industrial silo warehouse, historical houses with landmark status and neoclassical luxurious residential neighborhood designed by American architect Robert Stern. With a GFA of 38,240 sqm, Minsheng Wharf Block E15-3 aims to create an urban structure that mediates and reconnects the complex urban conditions.

1. Urban Regeneration: the Fugue of Urban Space

The juxtaposition of these chaotic and complex urban conditions reflects the urban reality of the evolving city of Shanghai. By carefully addressing the complexity of these site conditions, the design of Minsheng Wharf Block E15-3 reestablishes a spatial order for the wharf. Negotiating with an L-shaped site configuration, the master planning includes not only a new addition of office building, also a temporary pavilion for arts and communal activities, along with renovation of three historical colonial houses.

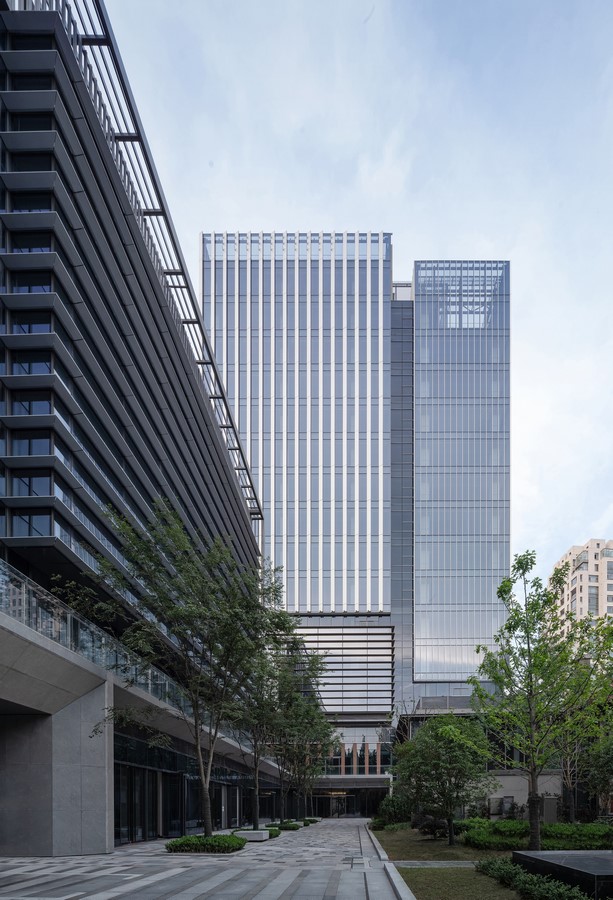

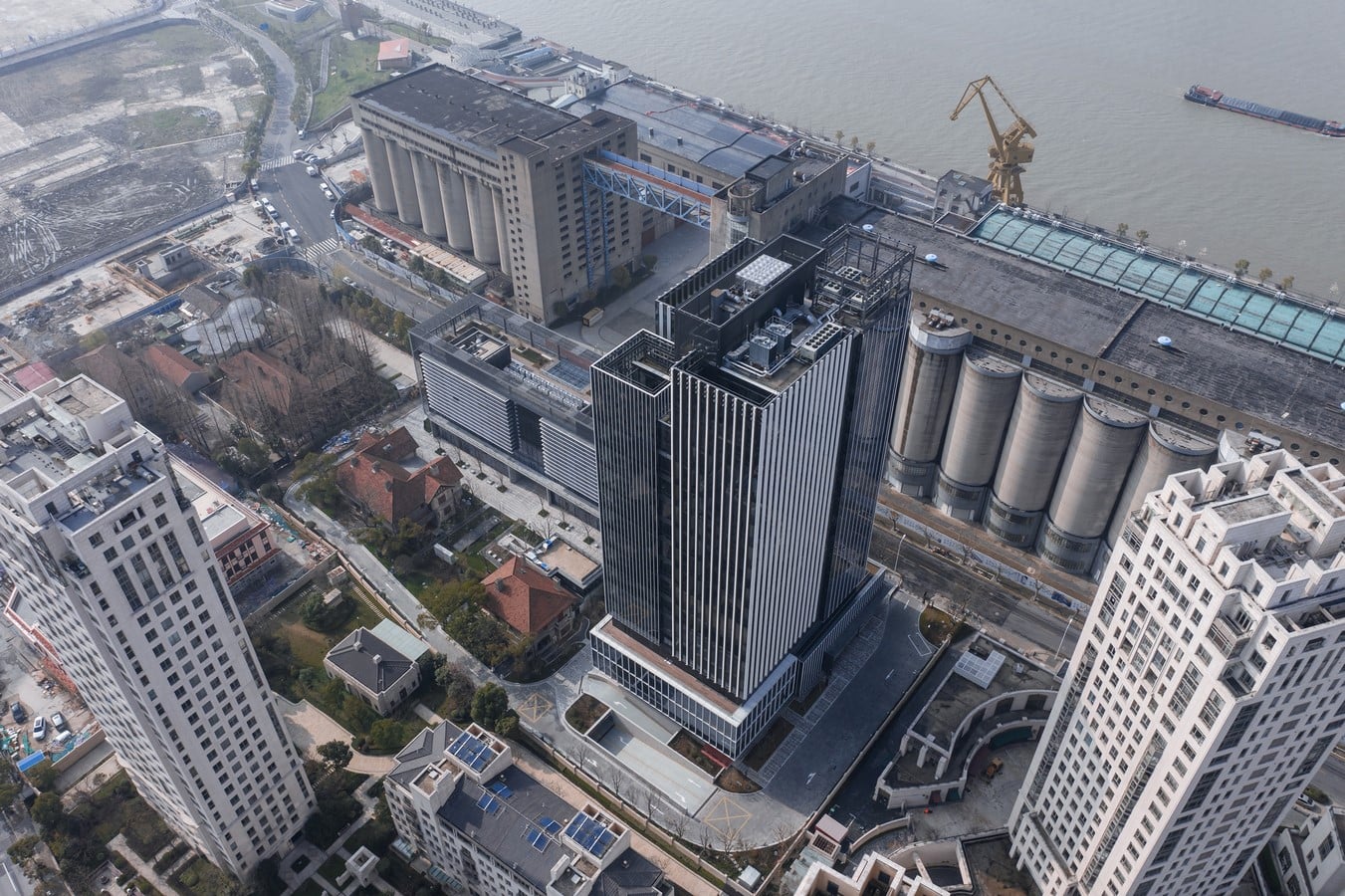

Minsheng Wharf Block E15-3 by Atelier Ping Jiang - EID Arch - Sheet4
©Atelier Ping Jiang – EID Arch

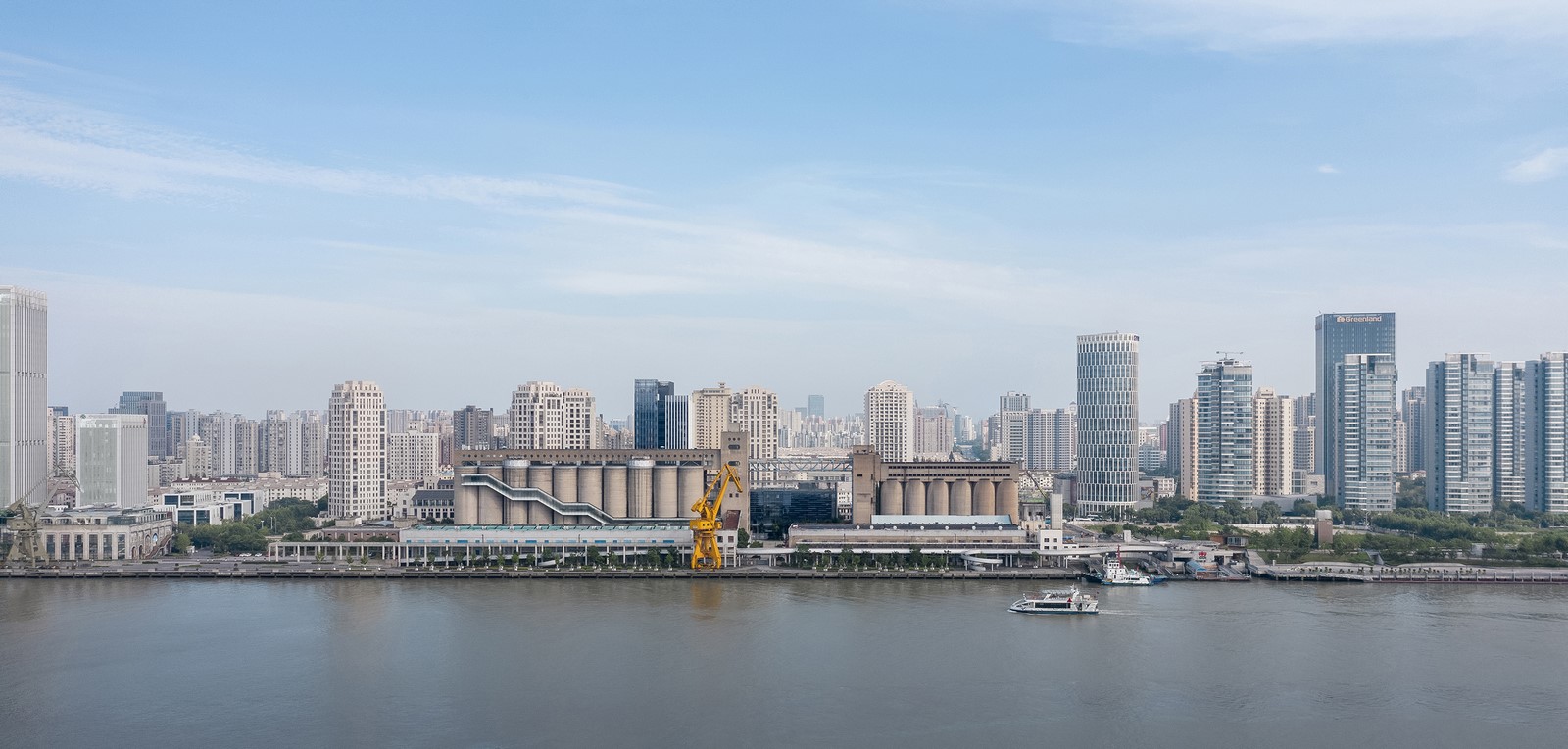

Working with strict site constrains, the organization of the new addition stems from the spatial relationship with surrounding buildings and urban environment, the solidity of the building is as critical as the voids. By correlating the massing and voids with the existing urban fabrics, a spatial fugue is created with new meaning and purpose, reactivating the industrial waterfront district.

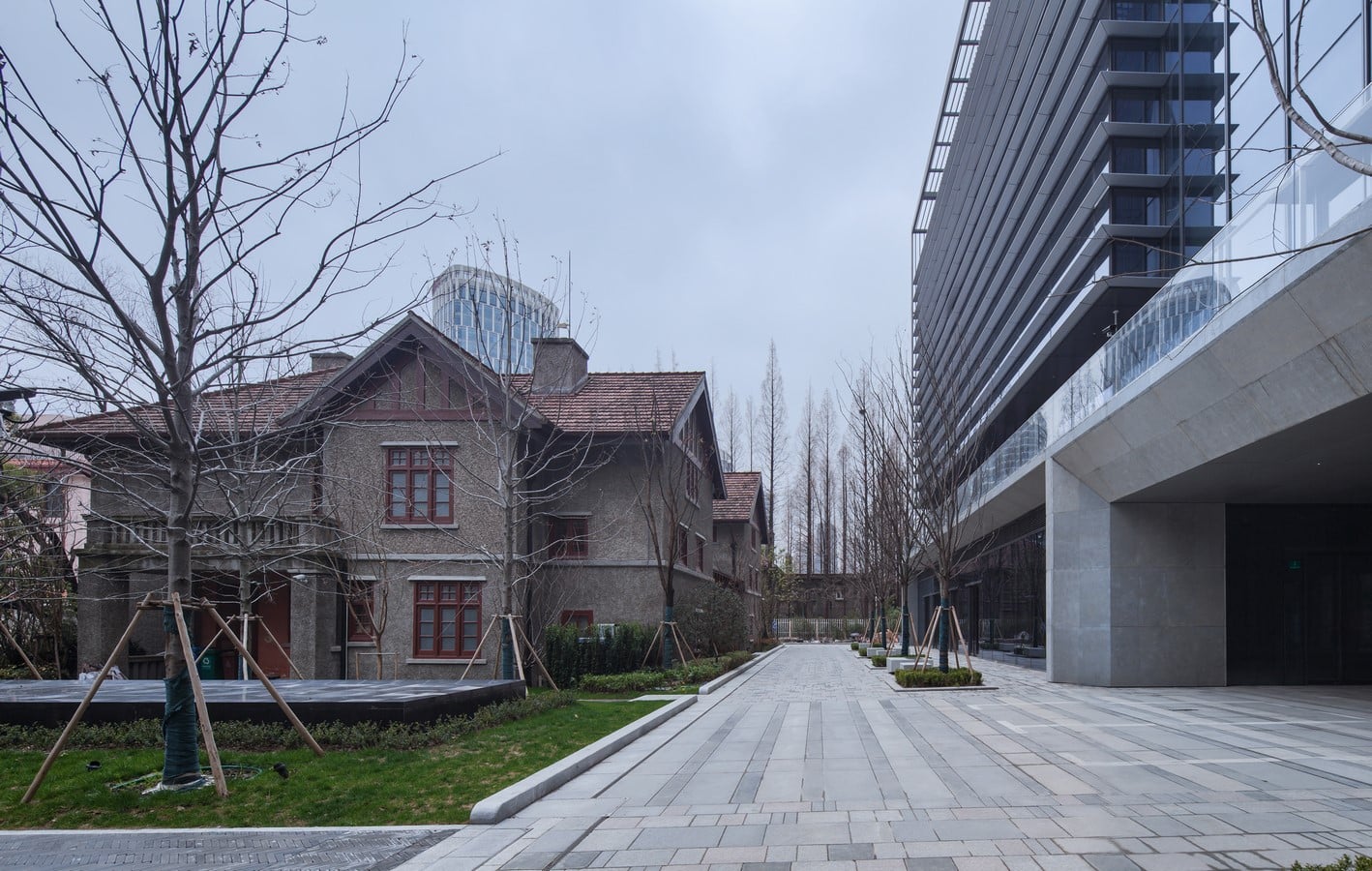

Minsheng Wharf Block E15-3 by Atelier Ping Jiang - EID Arch - Sheet7
©Atelier Ping Jiang – EID Arch

2. Urban In-fill and acupuncture

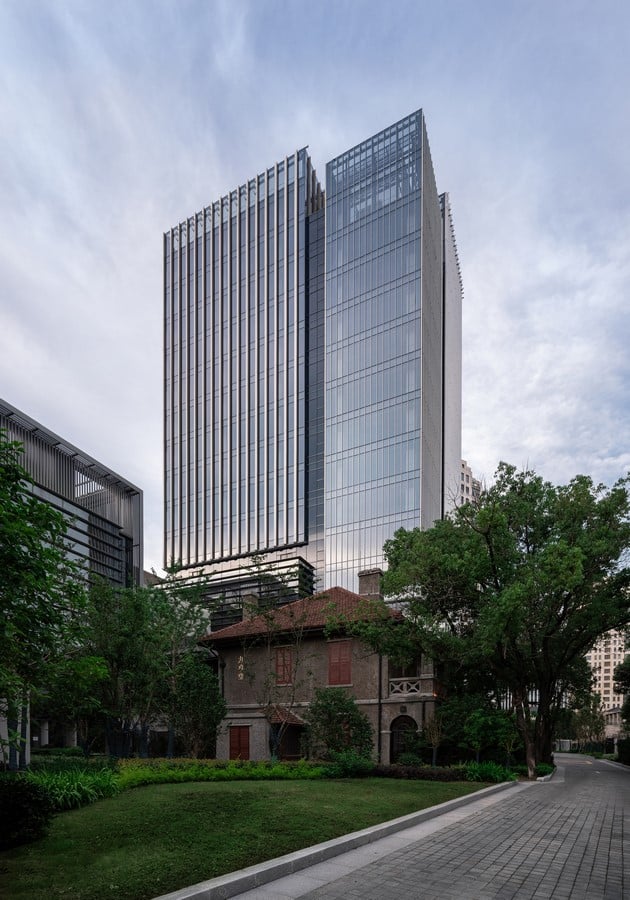

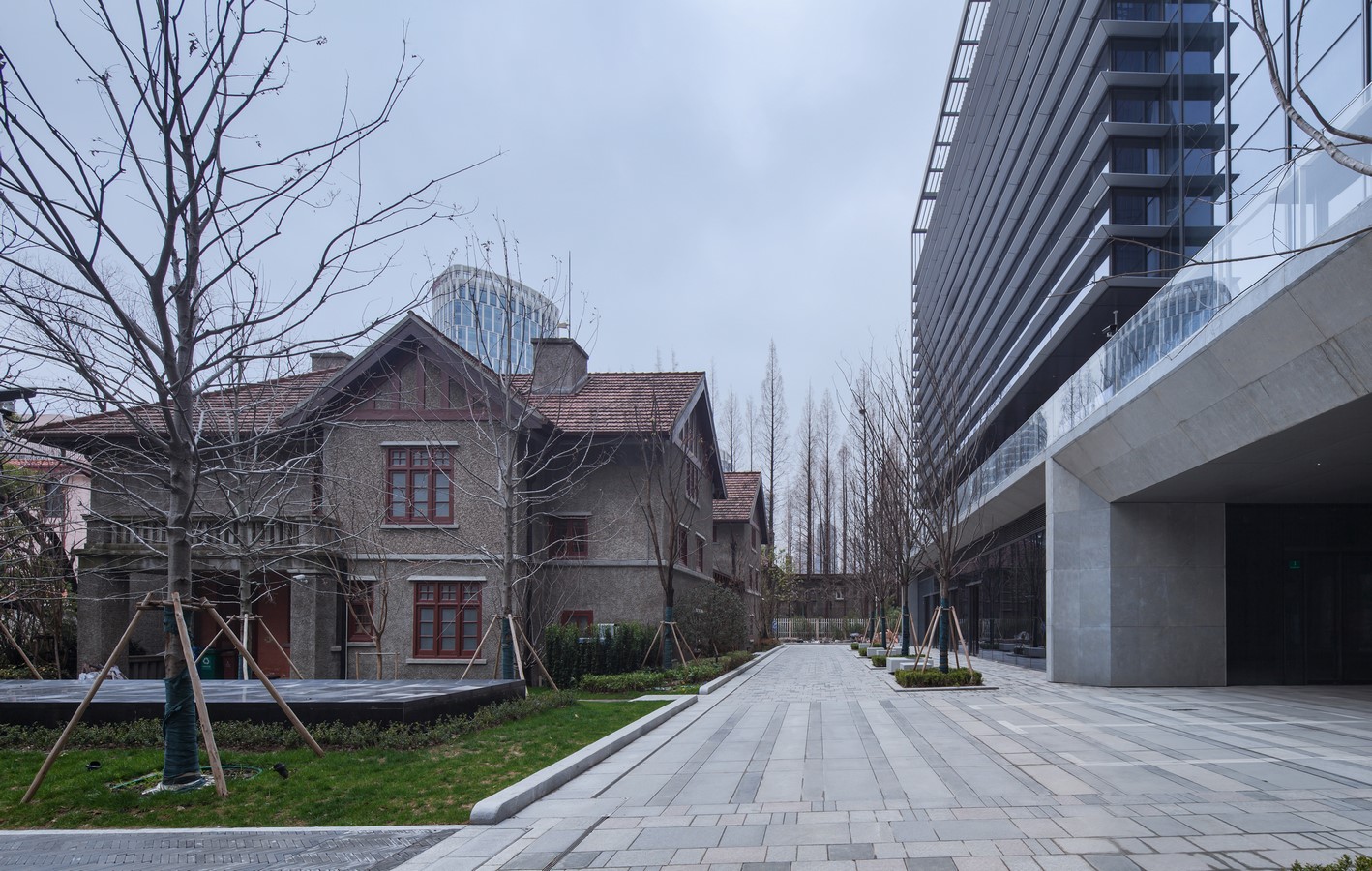

The design ambition does not lie in creating an eye-catching spectacle building, on the contrary, it is intended to address the urban conditions in a restrained manner, providing a monolithic, minimal building responding and correlating to the surroundings. Inspired by the vertical rhythm of the silos, the building massing is articulated into four vertical tiers. To maximize the views towards the river and Lujiazui Financial District skyline, an offside core layout is adopted. A lower wing of the office/retail is place between the opening of the silo warehouse to allow for better river view and frontage. It also creates a pedestrian friendly urban experience. Porosity and permeability are introduced to the massing allowing for connectivity and interaction between the street and enclosed courtyard. Inside the office space, the design optimizes the overall height and creates a small floor plate ideal for daylighting. A series of landscaped gardens and terraces are placed throughout the office building to offer outdoor activity and interaction. In addition, the low rise wing of the building addresses the preserved historical colonial houses, forming a intimate street scale within the courtyard side of the block.

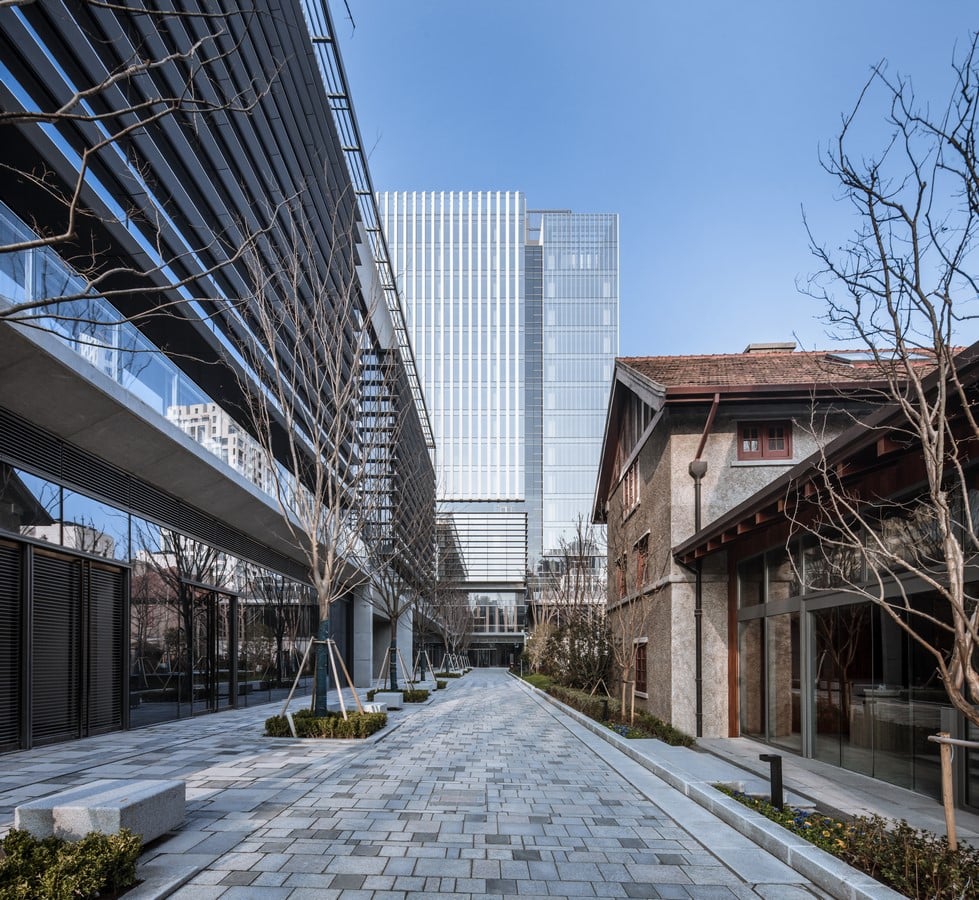

Minsheng Wharf Block E15-3 by Atelier Ping Jiang - EID Arch - Sheet9
©Atelier Ping Jiang – EID Arch

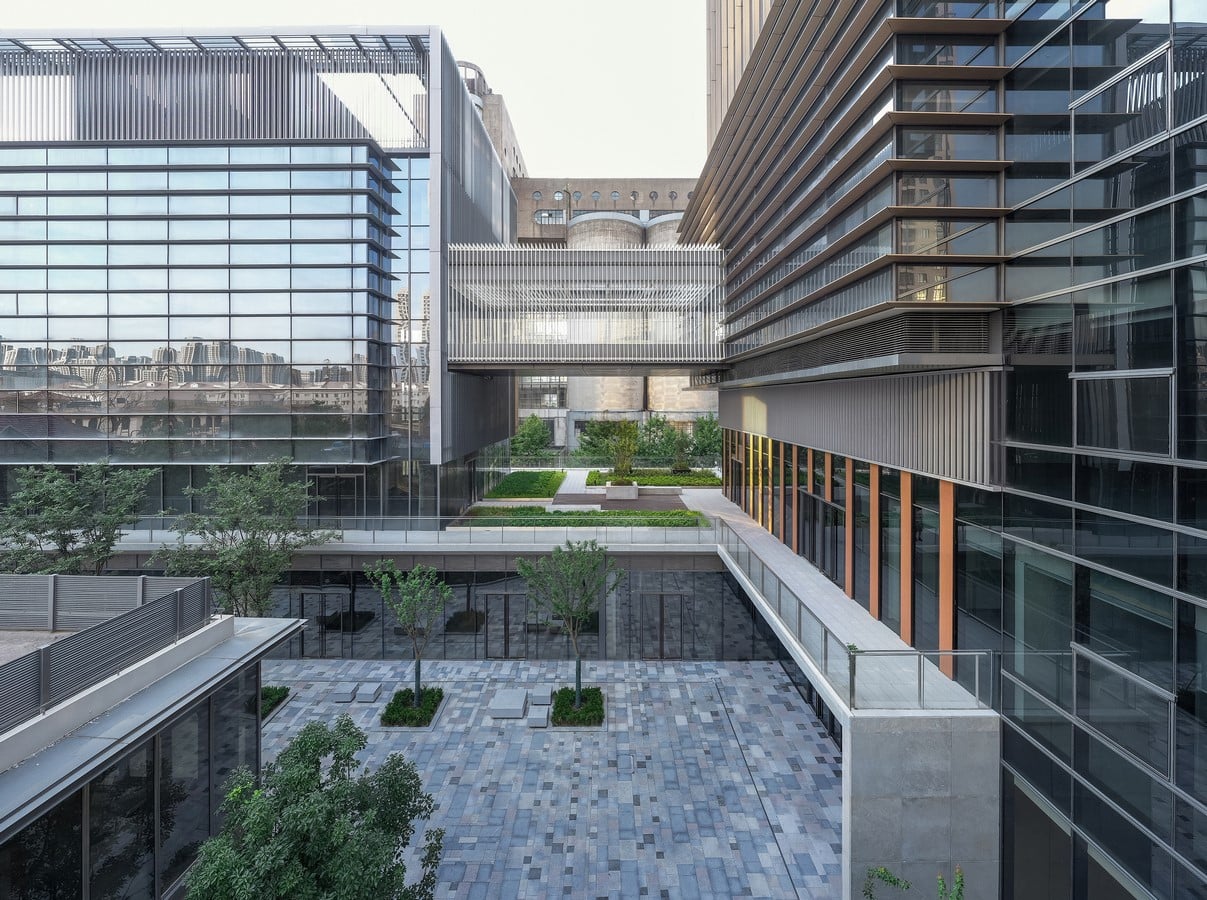

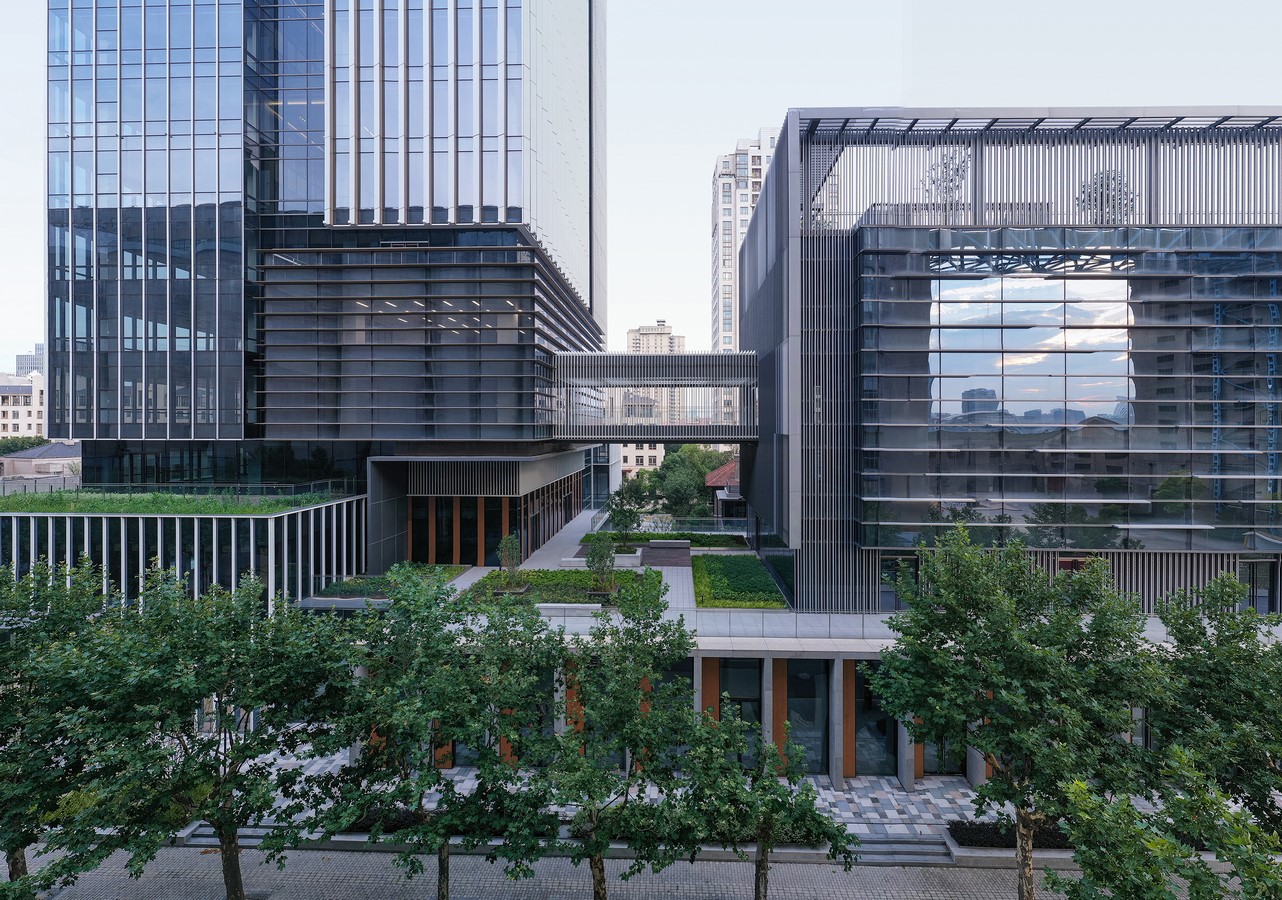

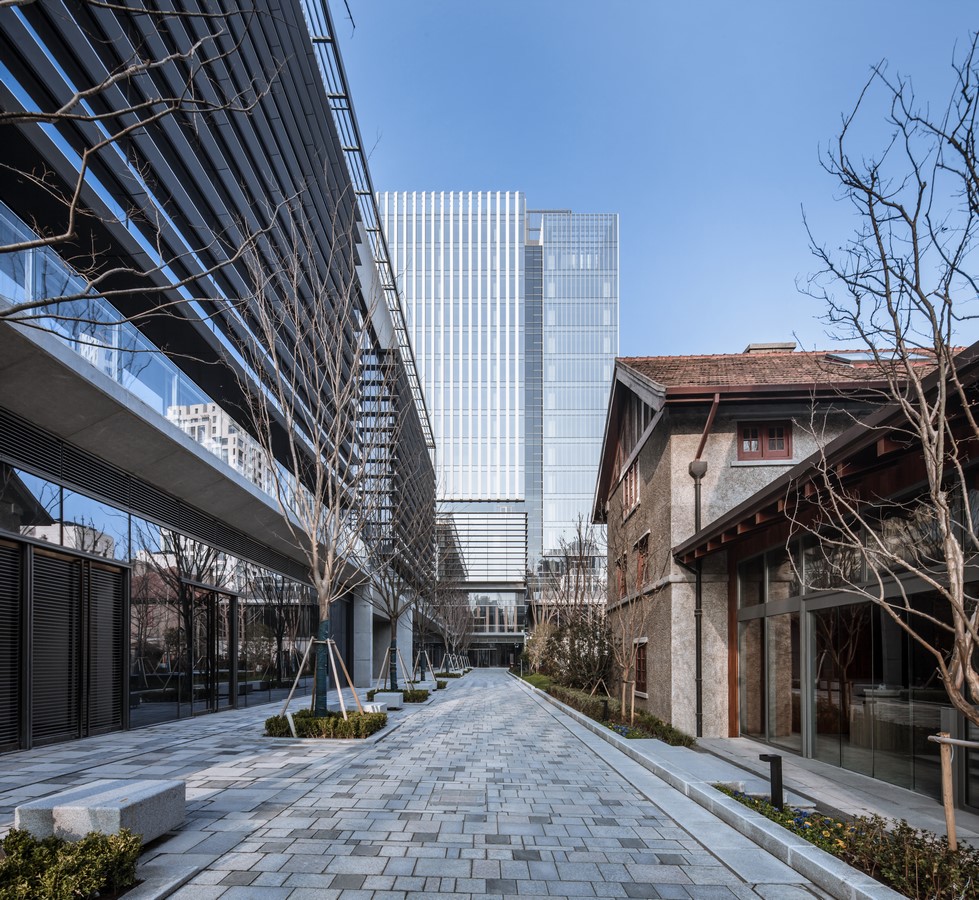

The superimposing of old industrial building and new architecture created a space-time dialogue with the waterfront sites. It’s a dialogue between the new and old, history and modernity, preserving and inheritance. Some design features are inspired by the surrounding heritage buildings in terms of scale and materiality, the tower and the podium are connected by a slender horizontal corridor, which not only facilitates the circulation in the building itself, but also pay tribute to the industrial elements of the silos on the wharf.

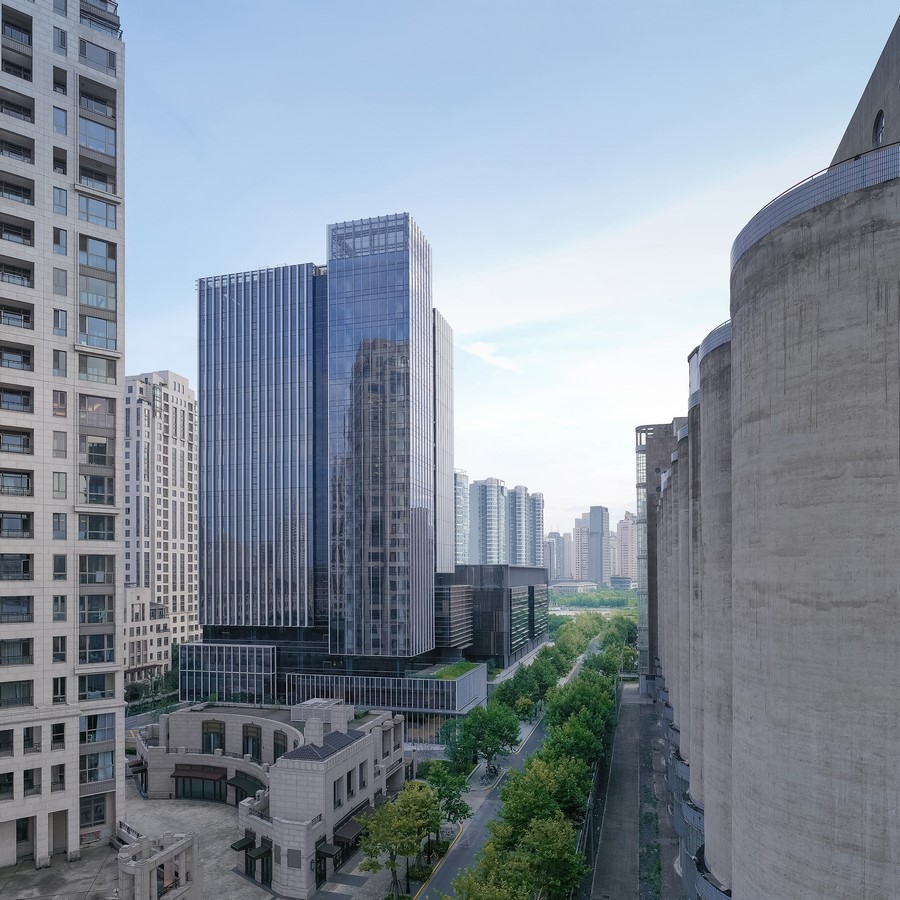

The counterpoint in architecture and the framed scenery in Chinese traditional gardens are also apparent in this project. The four vertical volumes of the tower correspond to the verticality of the silo; the high on the east and low on the west section echo to the scale of surrounding buildings; the clear geometric division of the horizontal and vertical grids on the building facade take cues from the rich attributes of the industrial site…In the voids of the new building, with a casual glance, tenants and visitors could get the clear views of the surrounding landmark buildings, and the old and new are mutually framing views to each other.

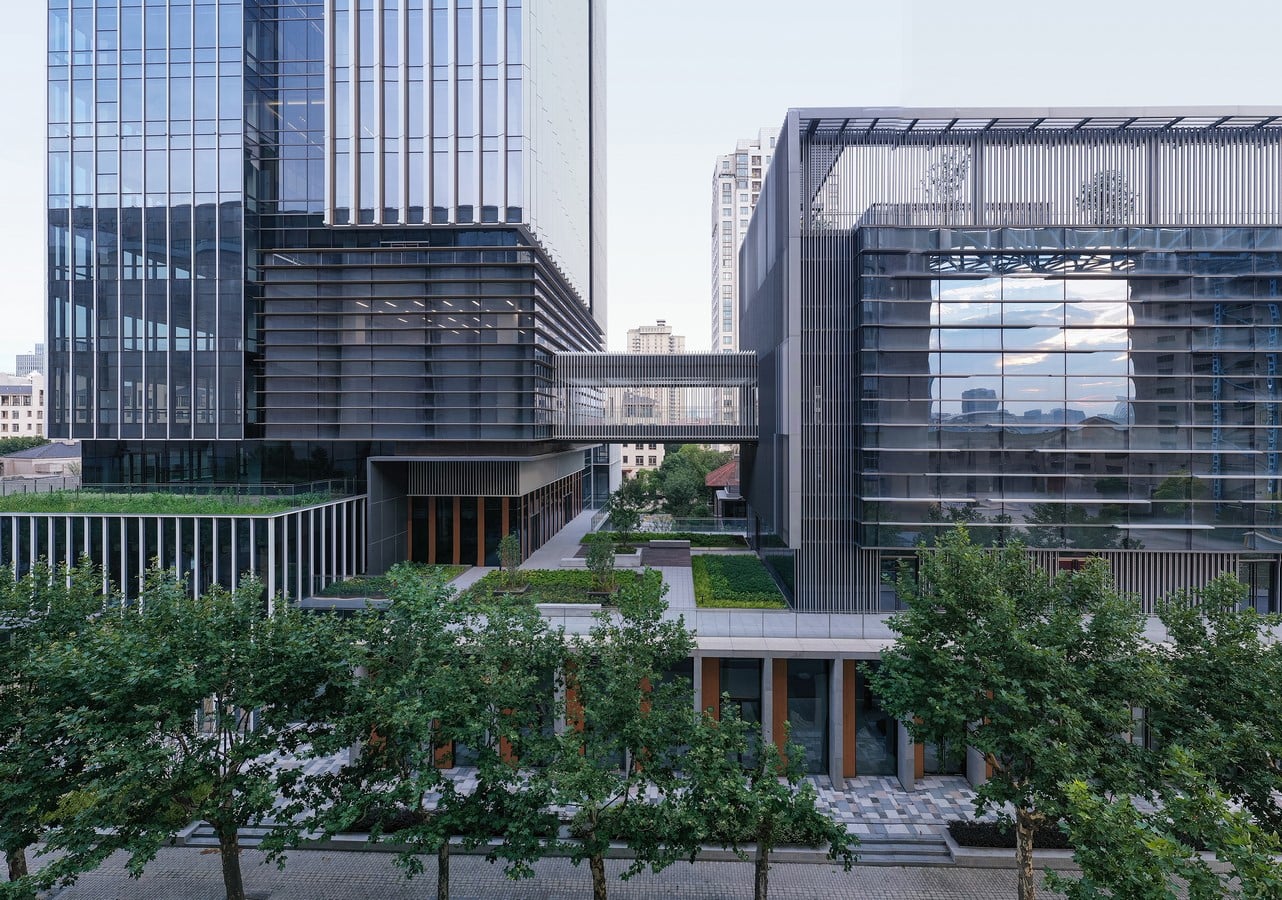

Minsheng Wharf Block E15-3 by Atelier Ping Jiang - EID Arch - Sheet10
©Atelier Ping Jiang – EID Arch

3. Materiality, façade articulation

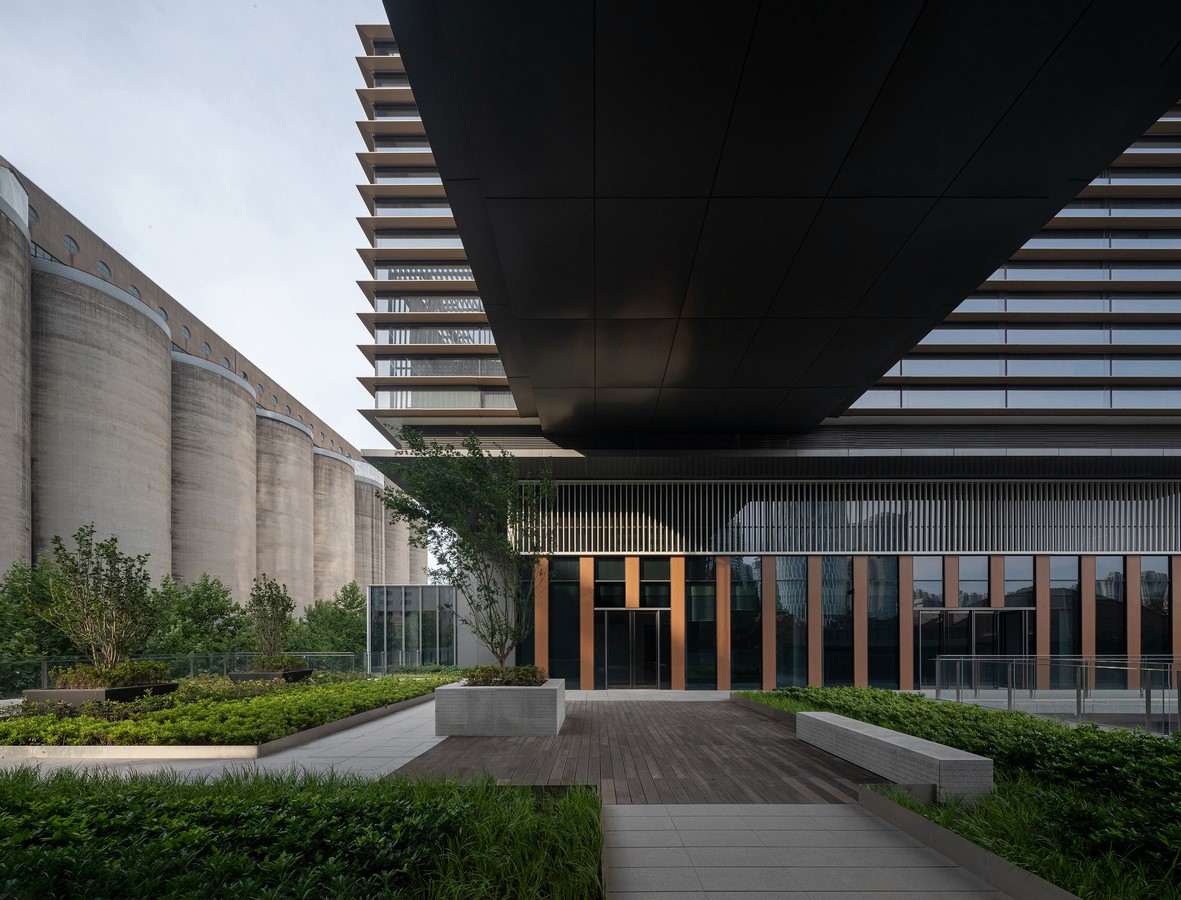

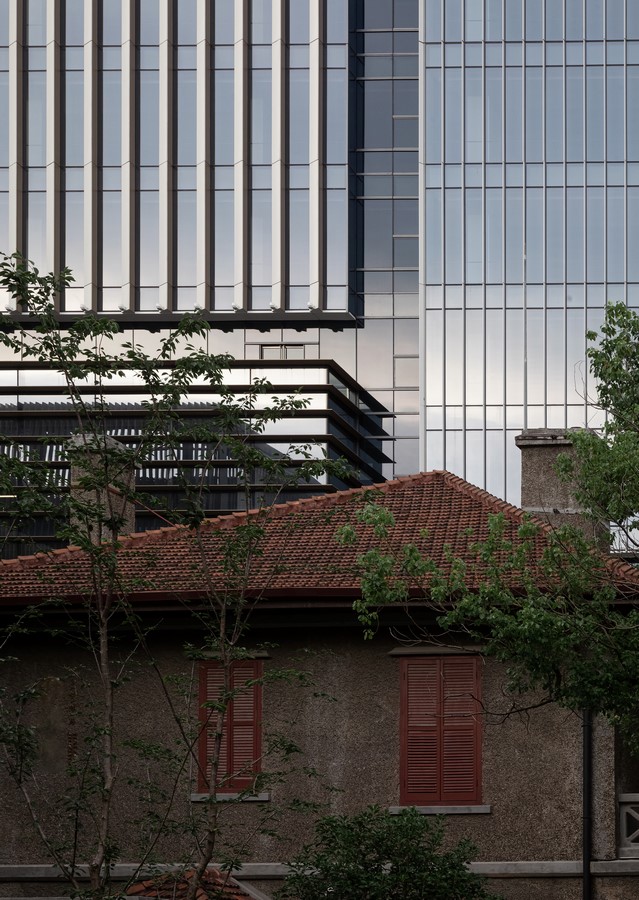

Unique from the traditional office building, Minsheng Wharf Block E15-3 selected Moroccan gray limestone and pressure-treated wood panel for podium base storefront facade, which is consistent to the concrete material palate of the silo; meanwhile, the vertical grooved line details on the tower façade adopted warm-tone material such as metal copper, which reflects the materiality of the surrounding historical building.

Further down the road, in addition to Minsheng Wharf Block E15-3, the architect also designed a clover-shaped temporary exhibition center and a renovated office building. While fulfilling the functional requirements of the buildings themselves, this project not only improved the urban fabric and structure, but also activated the previously deserted urban environment. These interventions have connected new commercial spaces, cultural/communal venues and residential neighborhood along the riverside. Through strategic urban in-fill and acupuncture, Minsheng Wharf is becoming a lively urban hub and cultural destination.


Atelier Ping Jiang / EID Arch

Atelier Ping Jiang / EID Arch is a leading international practice for architecture and urbanism. Led by Founding Principal Ping Jiang, AIA, who established the Shanghai based firm in 2015, the firm strives to provide innovative design solutions for architecture and urban environment. The firm is founded on the belief that design can transform life, and is deeply committed to design excellence, innovation and sustainability. The firm has extensive experience in a wide range of building types, including large scale mixed-use developments, office/corporate, retail, hospitality, cultural/civic, institutional and residential uses.

The practice aims to address the ever-changing urban conditions in China and beyond, confronting the challenges of complex urban realities with an impressive portfolio of projects across typologies and scales, such as high-density urban development, urban regeneration, along with civic, cultural and institutional projects. The firm’s design approach is rooted in deep understanding of the unique qualities of each project’s site, program, context and aspiration.

Atelier Ping Jiang’s work has been awarded numerous international awards in recent years, including multiple AIA Design Awards, The Plan Award, WAF Awards, WAN Awards, LEAF Awards, etc. The firm’s work has been published in architectural journals internationally. i.e. Architectural Review、Domus、The Plan、DETAIL、Canadian Architect.
