Spa architecture gets written about almost entirely as photography — the quarried stone, the oculus of light, the water sliding over a ledge into shadow. What rarely gets discussed is that every one of those effects is delivered by a mechanical decision made long before the finishes went in: how the floor is heated, how the wet areas are sealed, and which material can actually tolerate both. A spa is one of the few building types where the engineering and the atmosphere are the same design problem. Get the floor assembly wrong, and no amount of quartzite or careful light will fix it.
This is not a new idea. It’s closer to the oldest idea in the typology. Long before “wellness” was a design category, the architecture of the ancient Roman baths already treated heat as a structural and spatial system, not a finishing touch — the hypocaust ran hot air beneath raised floors and through hollow wall flues to heat the calidarium and tepidarium in sequence, and the whole plan was organized around that thermal gradient. Contemporary spa architecture has swapped hot air under a raised floor for electric or hydronic elements embedded in a thin assembly, but the design logic hasn’t changed: the floor is the mechanism, not just the surface.
Why Spa Architecture Is an Engineering Problem, Not Just an Aesthetic One
Ask what makes a spa feel different from any other building, and the honest answer is a stack of tightly controlled variables: surface temperature underfoot, humidity, water temperature, and the thermal mass of whatever material is holding all of it. Get any one of those wrong and the “sanctuary” reads as a damp, cold, or overheated room regardless of how well the massing and light are handled.
That’s a specification problem before it’s a design problem. A stone floor over a thermal spring behaves nothing like a porcelain tile floor over a suspended concrete slab, and a hammam’s near-saturation humidity puts different demands on a waterproofing membrane than a sauna’s dry 10–20% relative humidity does. Spa architecture, more than almost any other typology, requires the architect to specify the heating and waterproofing systems as carefully as the material palette — because in this building type, they’re the same decision.
Inside the Buildings: How the System Actually Shows Up
A handful of the world’s most published spas make the mechanism visible, once you look past the photography.
Therme Vals, Switzerland (Peter Zumthor, 1996). Peter Zumthor’s built work is dominated by this one building, and for good reason — it’s built from roughly 60,000 slabs of local Vals quartzite over the site’s natural 30°C (86°F) thermal spring, and the stone’s mass is doing real thermal work, not just visual work: quarried stone absorbs and releases heat slowly, which is exactly why the building holds an even, soaking warmth rather than the sharp temperature swings a lighter material would produce. RTF’s case study on Therme Vals covers the spatial sequence in more depth.

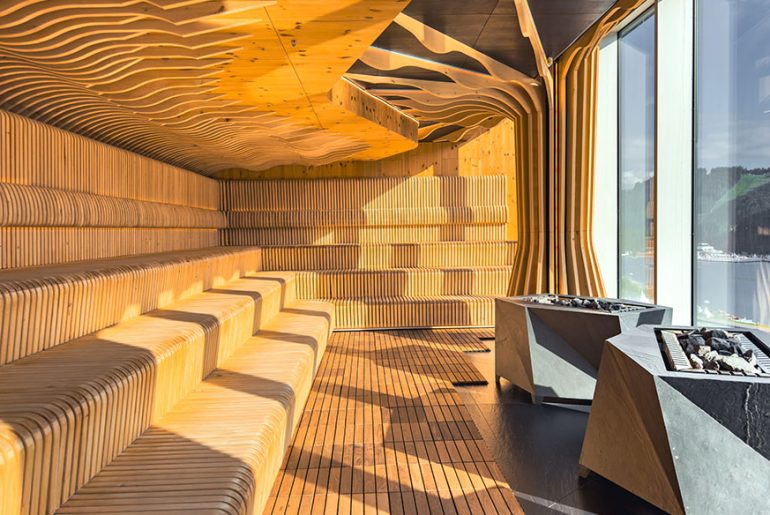

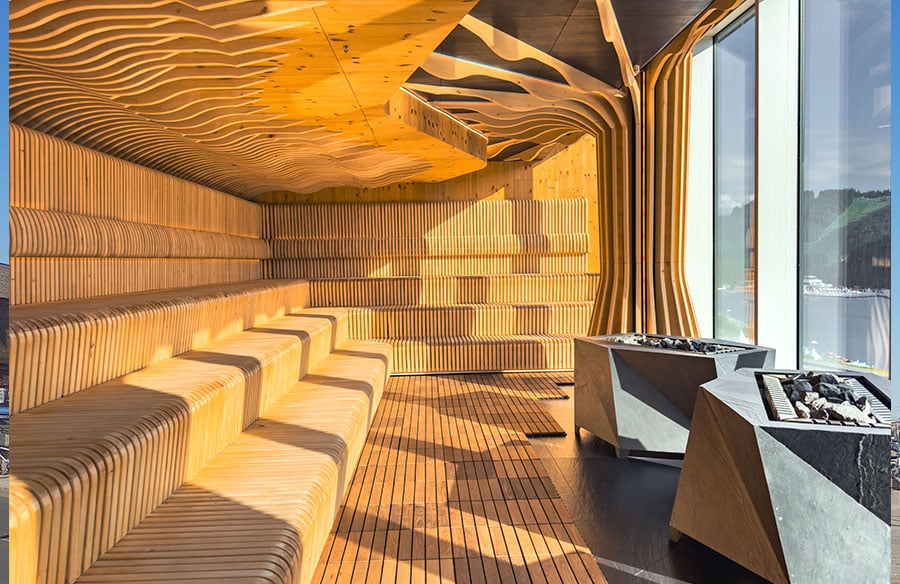

Löyly, Helsinki (Avanto Architects, 2016). A public sauna clad entirely in heat-treated pine, chosen specifically because treated softwood tolerates the sauna’s 70–90°C dry heat without the surface-temperature risk that denser materials would carry at skin contact.
Euphoria Retreat, Mystras, Greece (Deca Architecture, 2019). Carved into a mountainside in exposed concrete, with a central oculus that manages both daylight and air exchange through what is functionally a modern reinterpretation of the Roman impluvium.
Strøm Spa Vieux-Québec (LEMAYMICHAUD, 2019). Organized around distinct thermal zones — hot pools, cold plunge, temperate relaxation rooms — each a separately controlled environment rather than one undifferentiated “warm building,” which is the same zoning logic behind a Roman bath’s calidarium/tepidarium/frigidarium sequence.
Wellness Plesnik, Slovenia (ENOTA, 2018). A renovation that subdivided an existing pool into a small whirlpool with a fireplace and a separate repose area — a reminder that thermal zoning is a renovation-compatible move, not just a new-build luxury.
How Radiant Heat and Waterproofing Actually Work in a Spa Floor
Strip away the material choice, and every heated spa or wellness floor is answering the same three questions: how is heat introduced, how is the assembly kept watertight, and what does the finish material tolerate.
For electric systems — the more common retrofit-friendly choice, and the one with the fewest structural implications on a wood-framed floor — a resistance cable or mat runs on standard 120V or 240V line current (not “low-voltage,” a common misconception) and is fully embedded rather than left loose under the finish floor: thinset mortar embeds it under tile or stone, self-leveling compound embeds it under laminate, LVP, or engineered wood. ProLux’s LuxHeat system, for example, runs at roughly 12 W/sq ft on 3-inch cable spacing and stays under 5/32″ thick, which matters in a spa retrofit where floor buildup height is often the constraint that rules out a hydronic system entirely — hydronic tubing typically adds several inches of height and real structural weight, where a thin electric mat or cable does not. Any electric heating cable embedded in the floor of a bathroom, kitchen, or hydromassage location falls under NEC Article 424.44(G), which requires GFCI protection — a wet-area code requirement, not an optional upgrade.
Waterproofing is the other half of the assembly, and it’s the part BibLus’s own technical guide to wellness-center design — otherwise the most detailed specification resource available for this typology — reduces to a single line about “proper planning.” In practice, a bonded waterproof membrane under tile or stone in a wet area needs to meet ANSI A118.10 (the standard for load-bearing, bonded waterproof membranes), while an uncoupling membrane is governed by the separate ANSI A118.12 standard. ProLux Materials’ PROVA line is cited to ANSI/IAPMO standards and carries a lifetime warranty when installed as a complete system — worth citing here specifically because a heated tile floor assembly in a wet area is exactly the condition both standards exist for: a floor that has to stay watertight while carrying an embedded electric element underneath it.
Tile itself carries its own wet-area requirement: the TCNA Handbook calls for 95% mortar coverage in wet areas (versus 80% in dry ones), and any large-format tile or stone slab — over 15 inches on a side, or heavier than 15 lb/sq ft, both common in spa floors — needs an improved polymer-modified mortar meeting ANSI A118.15, not standard thinset.
Specification Considerations for Spa and Wellness Floors
The thermal program of a spa isn’t one temperature — it’s several, each with different implications for floor and wall assemblies.
| Thermal zone | Typical temperature / humidity | Common floor & wall materials |
|---|---|---|
| Sauna | 70–90°C (158–194°F), 10–20% relative humidity | Untreated softwood (pine, cedar, hemlock) — low thermal conductivity, no metal or plastic fittings |
| Turkish bath / hammam | 25–50°C (77–122°F), ~100% relative humidity | Ceramic or porcelain tile, sealed natural stone — near-constant condensation demands a fully sealed membrane |
| Thermal pool / hydromassage | 36–38°C (97–100°F) water | Large-format porcelain or natural stone, slip-rated finish |
| Relaxation / changing areas | Ambient, unheated or lightly heated | Wood, stone, or heated tile/stone floor for barefoot comfort |
Finish material governs the heating system’s operating ceiling as much as the room program does:
| Finish floor | Max recommended surface temp | Embedding method |
|---|---|---|
| Tile / natural stone | 86°F | Thinset mortar |
| Laminate / LVP / LVT | 82°F (up to 85°F on some premium-rated lines) | Self-leveling compound |
| Engineered wood | 80°F | Self-leveling compound |
Tile and stone carry the highest ceiling of the three, which is one reason they dominate wet-area spa floors — they’re also the only finish types rated for direct, sustained wet-area contact in the first place.
Where These Systems Show Up by Project Type
- Hospitality and destination spas (Therme Vals, Euphoria Retreat) specify at the largest scale, often integrating heated floors with a geothermal or district heat source rather than a standalone electric system — but electric radiant remains the standard for individual treatment rooms and changing areas even in these larger builds, where a single small zone doesn’t justify running a separate hydronic loop.
- Boutique and hotel wellness suites (Strøm Spa, Wellness Plesnik) are closer to residential scale and are where electric radiant’s thin profile and retrofit compatibility matter most — particularly in renovations of existing buildings where raising the floor height for hydronic tubing isn’t an option.
- Residential “spa-inspired” bathrooms are the domestic version of the same brief, at one-room scale — the material and biophilic principles are identical (see the 14 patterns of biophilic design for the sensory logic behind natural materials and water features at any scale), just compressed into a single wet room.
- Historic retrofit (Wellness Plesnik’s 80-year-old building) shows that thermal zoning and heated floors are addable to existing structures without a full rebuild, provided the floor buildup constraint is solved with a thin electric system rather than a hydronic one.
Common Specification Mistakes
- Treating waterproofing as an afterthought behind the heating system. The membrane, not the heating element, is what determines whether the assembly survives sustained humidity — spec the membrane standard first, then fit the heating system to it.
- Assuming natural stone behaves like tile thermally. Stone’s higher thermal mass means slower warm-up and slower cool-down — a spa floor on a timer schedule needs a longer lead-in time for stone than for porcelain.
- Defaulting to hydronic in a retrofit without checking floor buildup height. Several added inches of assembly height is often the detail that kills a hydronic retrofit outright; electric radiant’s sub-5/32″ profile is frequently the only option that fits.
- Skipping GFCI protection on the assumption it’s only required for full bathrooms. NEC 424.44(G) applies to hydromassage locations and wet areas generally, not just rooms that meet the strict code definition of “bathroom” — verify locally rather than assuming.
- Using standard thinset on large-format stone or porcelain. Anything over 15 inches on a side or heavier than 15 lb/sq ft needs an improved ANSI A118.15 mortar, not standard modified thinset.
What to Ask Before Specifying a Heated Spa Floor
| Question | Why it matters |
|---|---|
| What’s the finish material’s max surface temperature? | Sets the heating system’s operating ceiling — tile/stone (86°F) tolerates more than engineered wood (80°F) |
| Is this new construction or a retrofit? | Determines whether floor buildup height rules out hydronic in favor of a thin electric system |
| What’s the room’s humidity load? | A hammam’s near-constant condensation demands a different membrane spec than a dry sauna |
| Does the tile or stone exceed 15″ per side or 15 lb/sq ft? | Triggers the need for an improved ANSI A118.15 mortar instead of standard thinset |
| Is the space classified as a wet area under local code? | Determines GFCI requirements under NEC 424.44(G) and mortar coverage requirements under the TCNA Handbook |
Frequently Asked Questions
Can radiant floor heating be installed under natural stone in a spa or bathhouse?
Yes — natural stone is one of the most common finish materials paired with radiant heat in spa design, and its higher thermal mass is an advantage for a soaking, even warmth rather than a drawback. The tradeoff is a slower response time: stone takes longer to reach temperature and longer to cool than tile, so a system on a timer needs a longer lead-in built into the schedule.
Do heated floors in wet areas need special waterproofing?
Yes. Any floor assembly in a sustained wet area — a hammam, pool surround, or steam room — needs a bonded waterproof membrane meeting ANSI A118.10, installed as a complete system rather than treated as a generic vapor barrier. Uncoupling membranes, which serve a different function (isolating the tile from substrate movement), fall under the separate ANSI A118.12 standard.
What’s the difference between electric and hydronic radiant heat for spa floors?
The main practical difference is floor buildup height and structural load. Hydronic tubing typically adds several inches of assembly height and meaningful weight, which matters on a wood-framed floor or in a retrofit with limited height to work with. Electric mat or cable systems stay under roughly 5/32″ thick with no structural load concern, which is why electric is the more common choice for individual treatment rooms, changing areas, and most retrofits, while hydronic tends to appear in larger new-build spas already running a geothermal or district heat loop.
Is GFCI protection required for heated floors in spas and bathrooms?
Yes. NEC Article 424.44(G) requires GFCI protection for electric heating cables embedded in the floors of bathrooms, kitchens, and hydromassage locations. This is a code requirement in wet-area installations, not an optional safety upgrade, and it should be confirmed against local code amendments before specification.
What temperature should a heated spa or wellness floor be set to?
It depends on the finish material, not a single fixed number. Tile and natural stone tolerate up to roughly 86°F at the surface; laminate, LVP, and LVT are typically capped around 82°F (some premium-rated lines to 85°F); engineered wood is the most conservative at around 80°F. Most occupants find 76–85°F comfortable underfoot, which sits safely within tile and stone’s higher ceiling.
Can you retrofit radiant heat into an existing spa or bathhouse floor?
Yes, and it’s one of the more common renovation moves in this typology — Wellness Plesnik’s 80-year-old building is one published example. The limiting factor is almost always floor buildup height rather than the heating system itself, which is why thin electric mat or cable systems, embedded under new thinset or self-leveling compound, are typically the practical retrofit choice over a hydronic system that would require raising the finished floor height.
Further Reading
For more on where the wellness-design conversation is heading industry-wide, see RTF’s own take on whether wellness architecture is the future of the architecture.
