3D printing revolutionizes architecture through a layer-by-layer additive manufacturing process, offering precision, efficiency, and significant savings in time and labor costs. Beyond its initial role in tabletop models, it now enables architects to design intricate, non-standardized elements within an industrial framework. The technology’s versatility extends to large-scale production, facilitating the construction of homes and entire communities using various materials, from commonplace concrete to readily available raw earth.
Ceramic House, Amsterdam

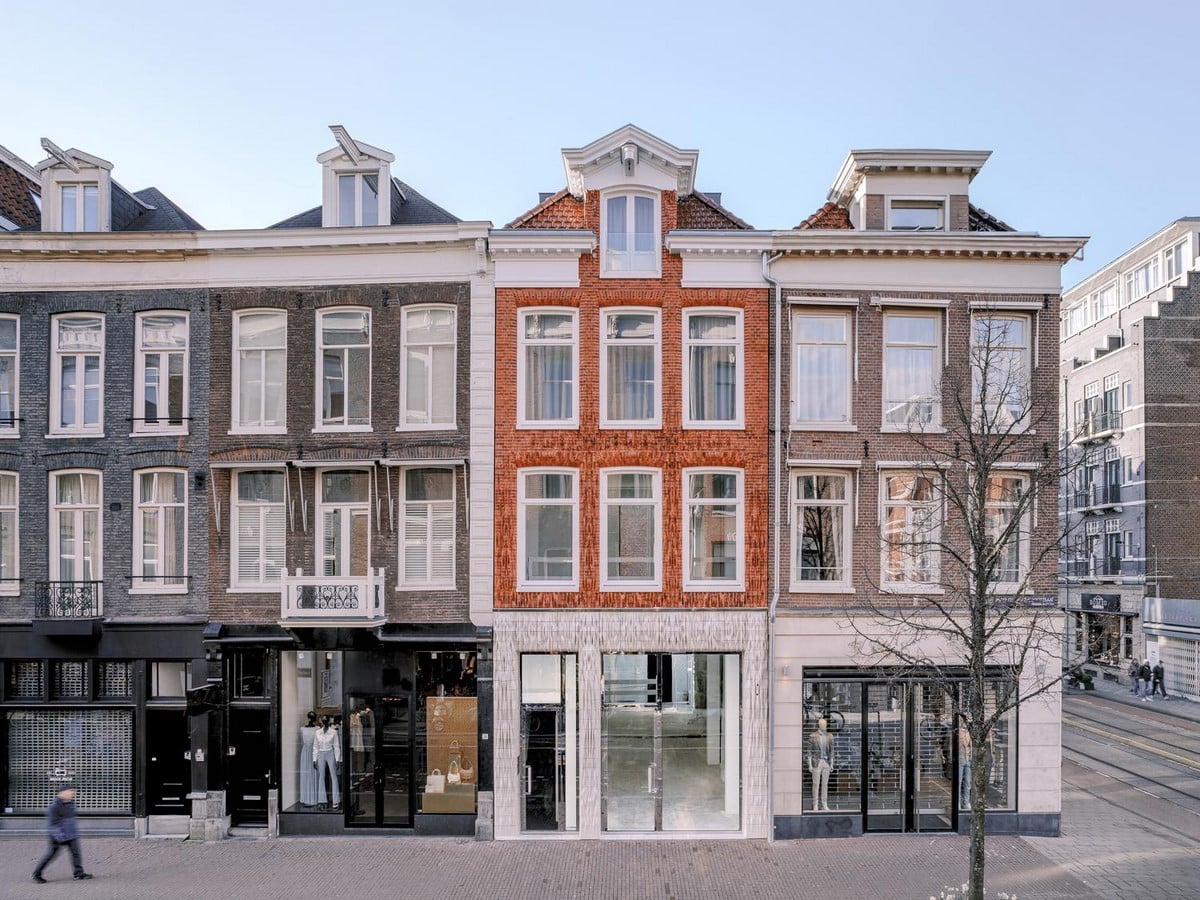

Studio RAP in Amsterdam has effectively manufactured 3D-printed modularized systems using algorithmically generated geometries. using 3D printing they completed the Ceramic House, a boutique store in Amsterdam, using individually 3D printed ceramic tiles mounted on a laser-cut stainless steel frame. The design is the result of algorithmic design, 3D-printed ceramics, and artisanal glazing inspired by the craft of knitting garments.

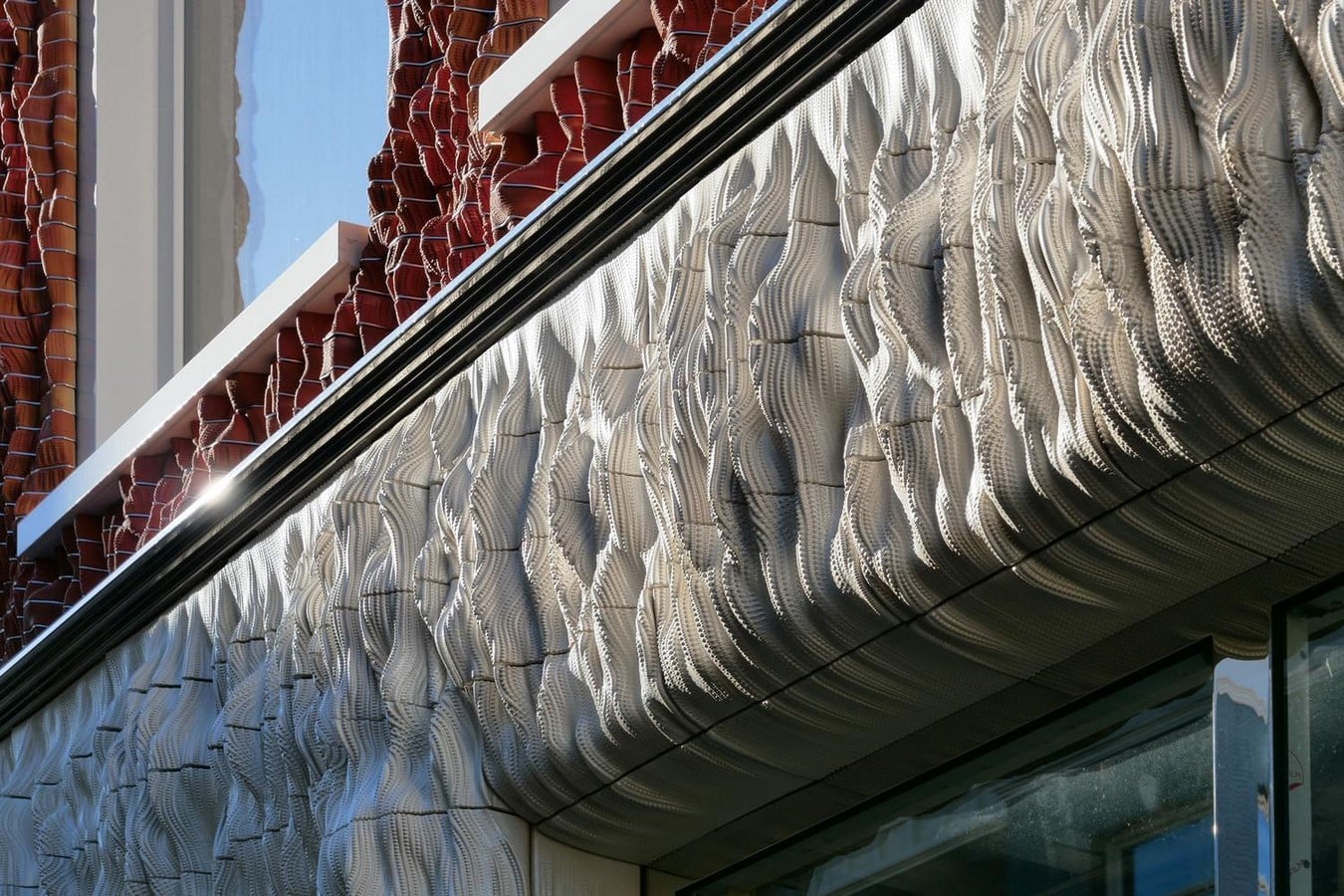

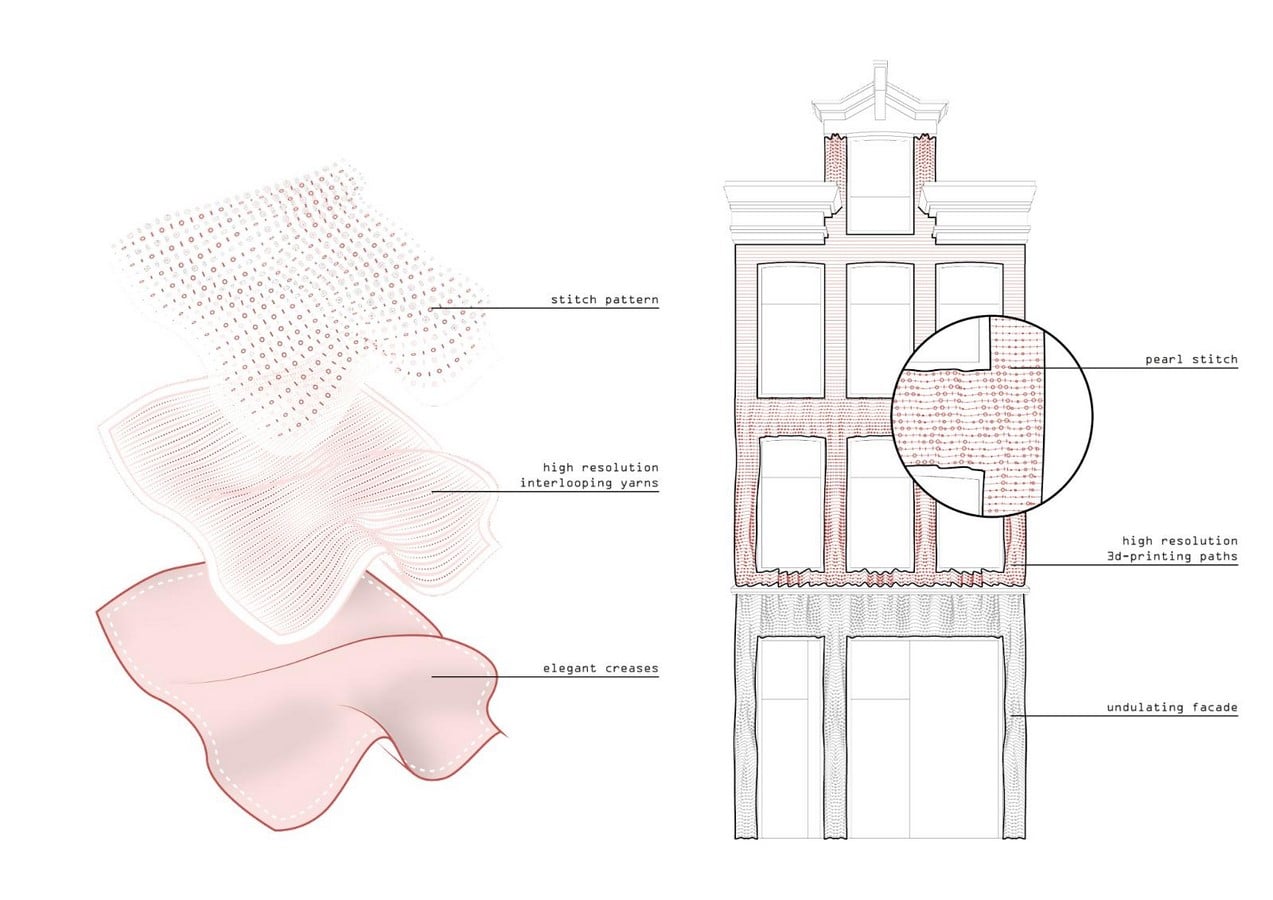

The Ceramic House delves into a reimagining of the ornamental characteristics and design language of glazed ceramics within the historical context of Amsterdam. Using internally developed digital design algorithms, the project seeks to offer a fresh perspective on the aesthetics and decorative elements associated with ceramic art in this iconic city. 3D printed ceramic tiles approximately 40 X 20 cm each of the façade feature intricate layers inspired by the textiles- elegant creases, stitch patterns, and interloping yarn.
Nadarra, Dubai

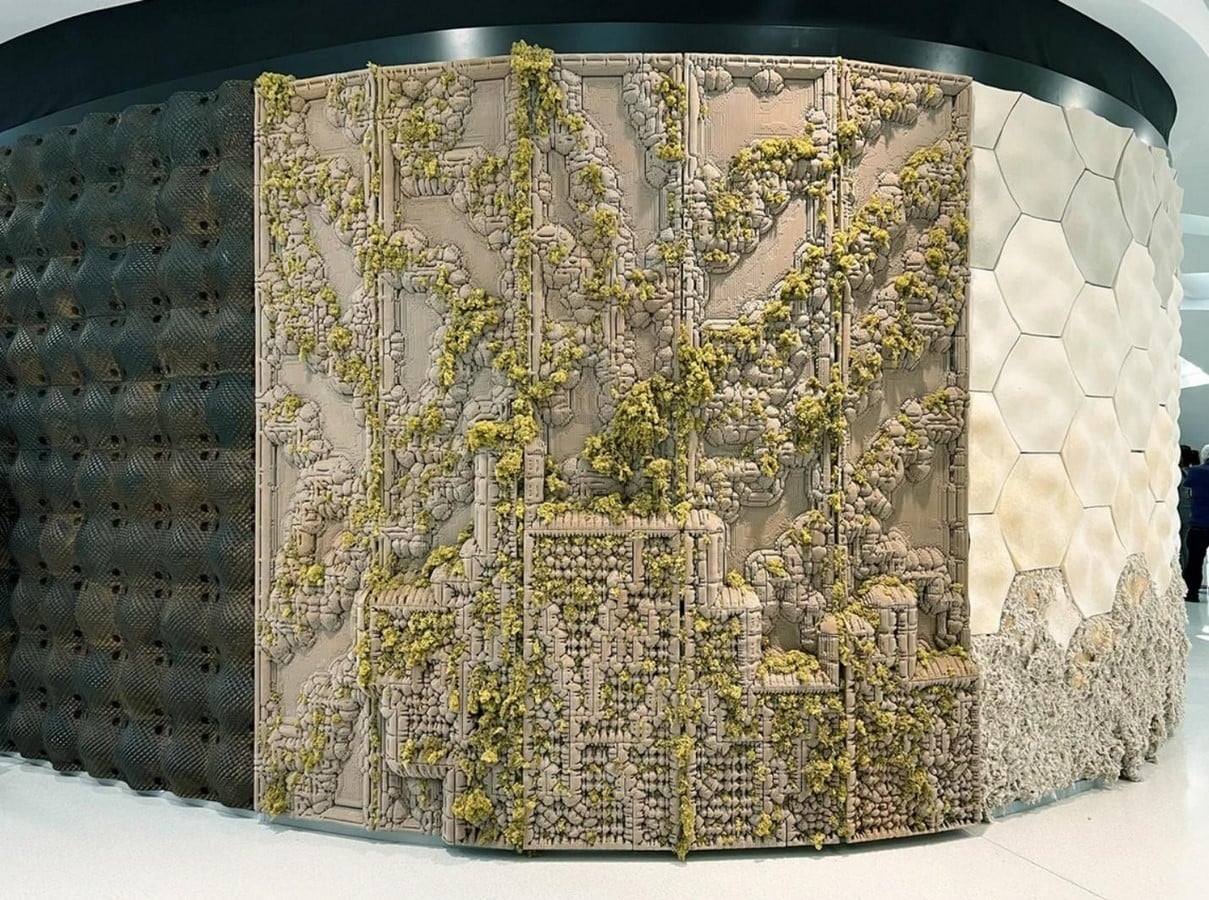

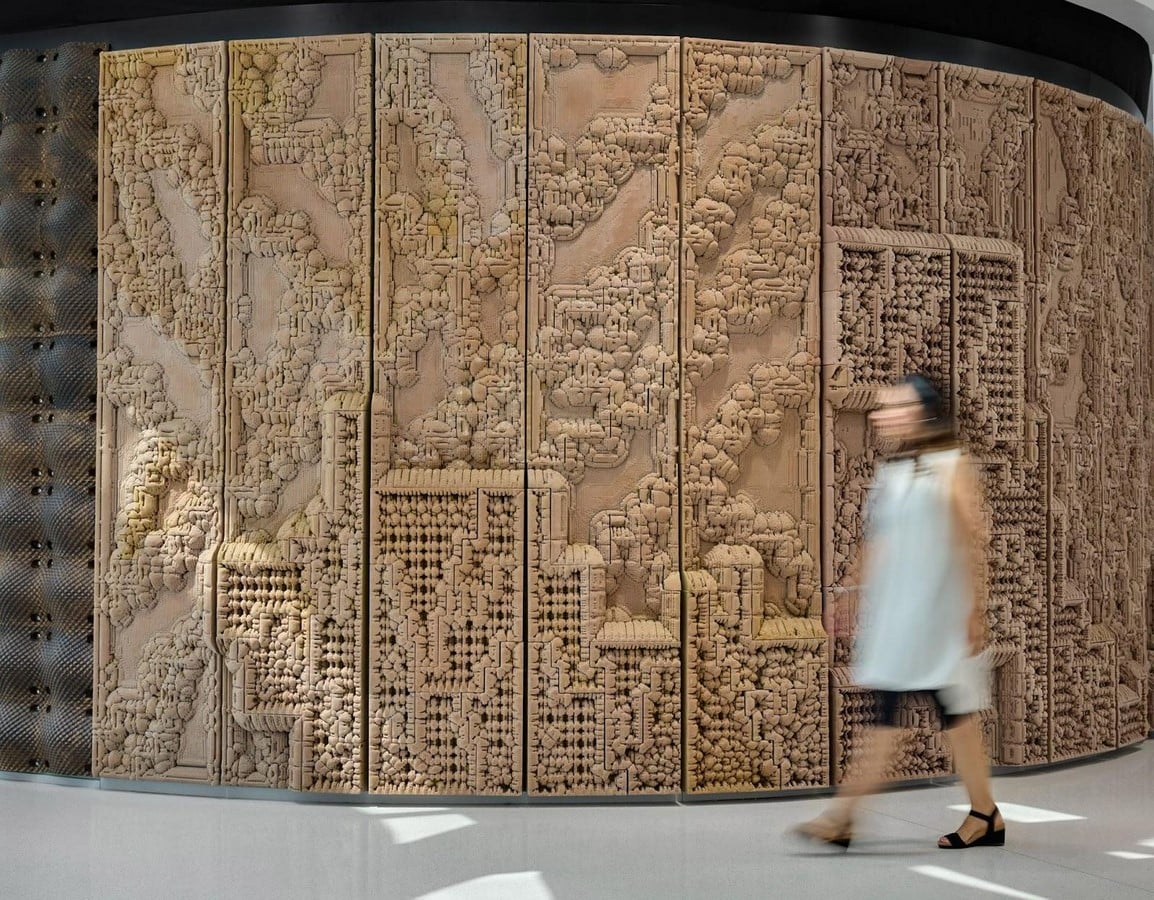

Barry Wark conceived a six-meter-long wall crafted from 3D-printed sand for the Museum of the Future in Dubai. Utilizing 3D generative software, the wall mimics natural processes, yielding distinctive shapes and textures that blur the line between organic and ornamental. Notably, the sand employed in its construction can undergo grinding and recycling up to eight times, showcasing a sustainable approach to materials.
The project is designed to display its interconnectedness with its environment with the concept that all buildings eventually erode, stain, and weather. The concept is creating crevices and pockets for water and seed retention that can accelerate and promote the growth and presence of non-human organisms with its surfaces. Nadarra is constructed using 3D printing ability creating virtually unlimited geometric possibilities without the need of complex mould-making.
Tsuginote Tea House, Japan

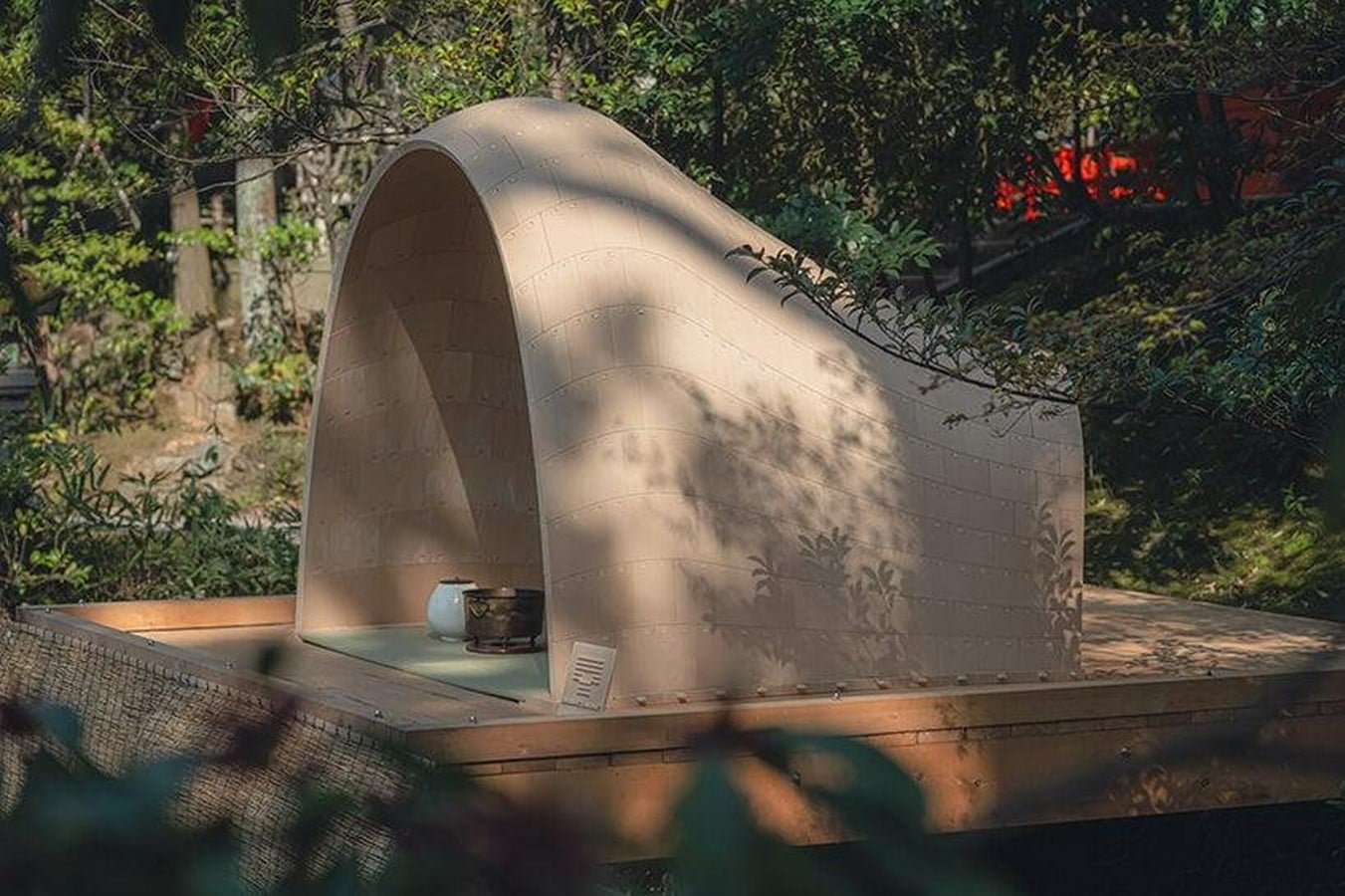

Kei Atsumi and Nicholas Preaud collaborated on a Japanese pavilion, crafting over 900 distinctive 3D-printed double-curved pieces. Employing wood-based PLA filament, the project seeks to blend traditional Japanese joinery techniques with the innovation of 3D printing. This pavilion marks the culmination of three years of research into applying 3D printing technology in everyday architecture. The Tsuginote Tea House shows how additive manufacturing can be applied in producing architectural scale volumes.

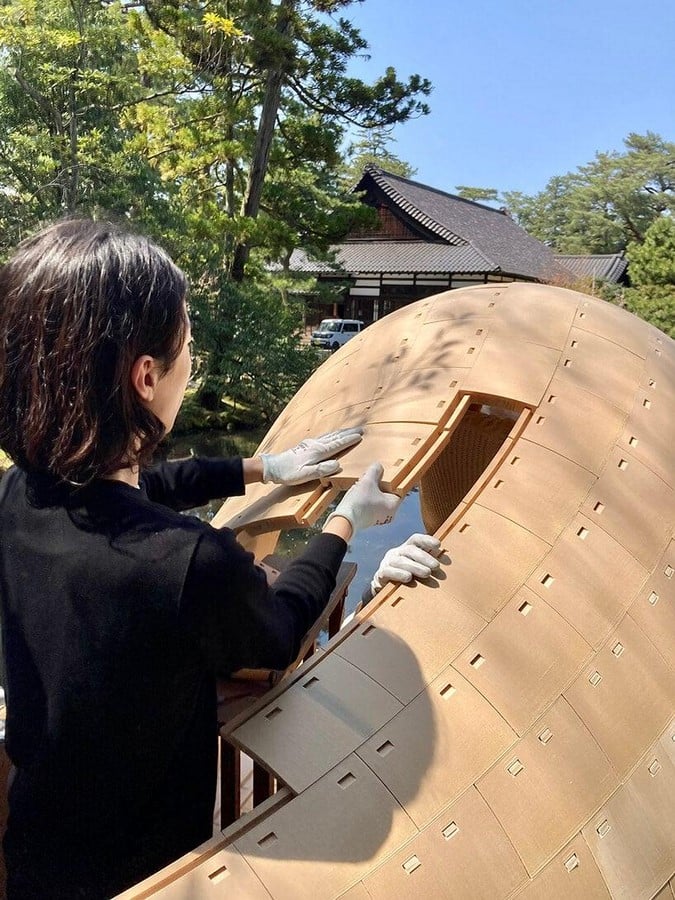

It uses a lightweight timber plate system that uses robotic fabrication creating complex joints and wooden plate structures. The use of the FFF desktop 3D printer has the potential to fabricate components with complex geometries, including wood joints, with remarkable precision. Exhibited at the Kanazawa Shrine in Japan, the Tsuginote Tea House showcases the potential of 3D printing technology in architecture addressing technical and environmental parameters.
Lunar Habitat Master Plan
Unveiled at the ESA’s Space for Inspiration event, the Lunar Habitat Master Plan, a collaboration between the European Space Agency, Cranfield University, and a multidisciplinary team, outlines a vision for a sustainable human settlement on the moon. Combining insights from anthropologists, psychologists, roboticists, and astronauts, the plan aims to support around 150 people in the unique conditions of lunar living, marking a significant step toward establishing a lasting lunar community.
Diverging from traditional monolith shell structures for lunar settlements, this design opts for a novel approach using 3D-printed modular components as a protective outer layer. These hexapod-shaped pieces are assembled like building blocks, interlocking to create a shield safeguarding the habitat from the moon’s hazardous radiation levels.
Nagami X Ecoalf, Madrid
Ecoalf, a trailblazer in eco-fashion, collaborates with Nagami, a tech-infused design studio revolutionizing design, production, and consumption with large-scale robotic 3D printing. United by a commitment to sustainable manufacturing, these Spanish brands join forces to establish a Net Zero, Zero Waste boutique store in Las Rozas, Madrid. The innovative space breathes new life into 3.3 tons of plastic waste per second, ensuring complete reusability for future projects at the end of its lifecycle. Remarkably, the material remains almost infinitely recyclable, with just a one percent loss in structural performance with each reuse.

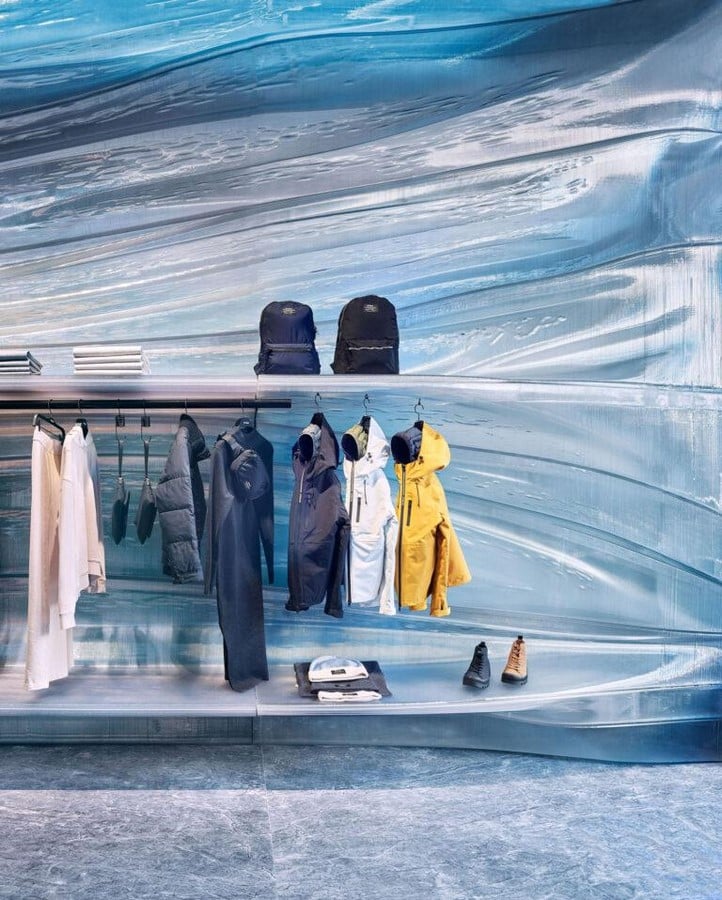

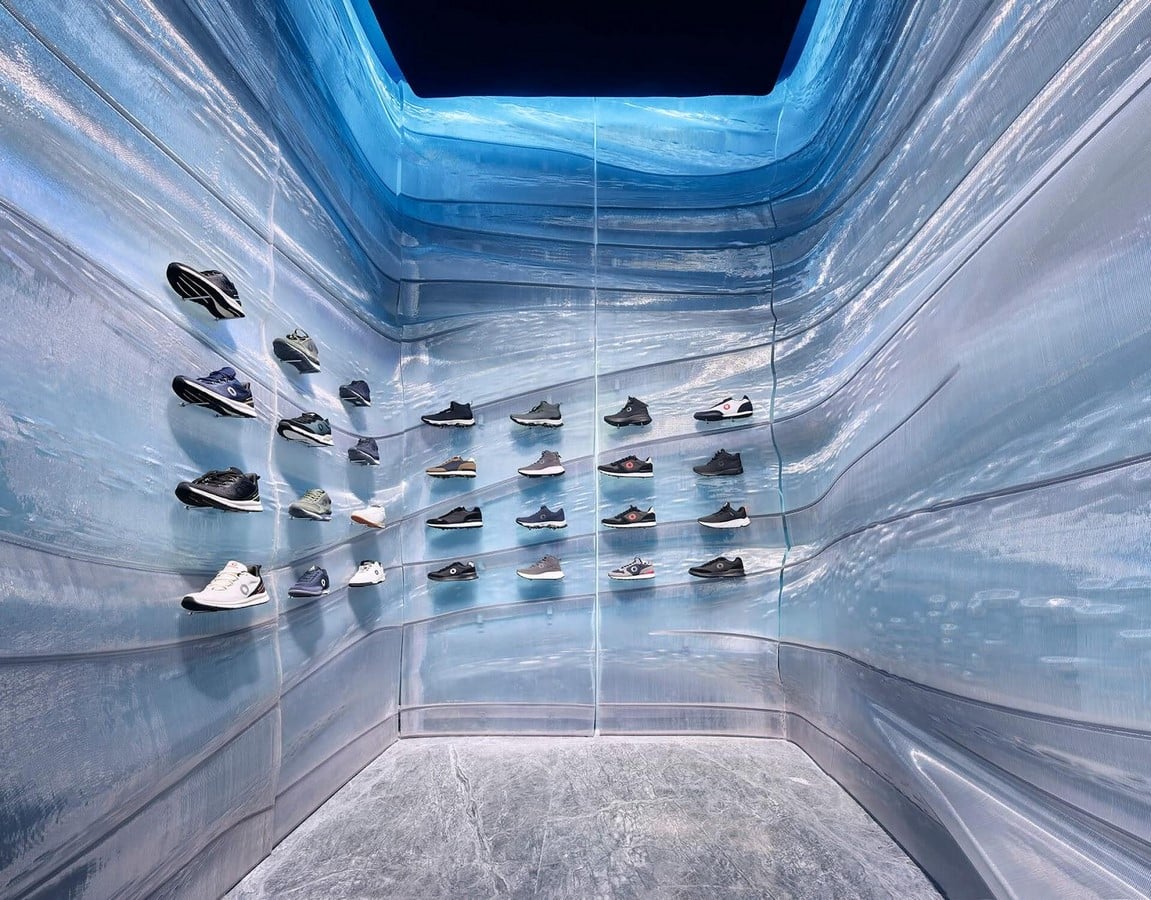

Drawing inspiration from the visual impact of a melting glacier due to global warming, this installation envelops a 90 m2 space, creating an immersive experience. Crafted entirely from 100% recycled plastics and meticulously detailed, the interior is adorned with a single layer that serves both functional necessities for a clothing store and imparts a sense of continuity, seamlessly integrating into the space.
In the realm of architecture, these projects stand as testaments to the boundless potential of 3D printing, innovative materials, and collaborative design thinking. From Amsterdam to Dubai and Japan to the moon, each endeavor tells a unique story of pushing boundaries and envisioning a future where technology not only shapes our structures but also fosters harmony with our environment. As we witness the emergence of sustainable practices and artistic ingenuity, we catch a glimpse of a world where architecture becomes a catalyst for a brighter, more interconnected future.
