In every aspect of life on Earth, bamboo is a material that is widely used for everything from building to food and medicine. It is a suitable alternative material that is growing in popularity in place of more conventional building materials because of its noble qualities like sustainability and extreme adaptability. It also serves as a structural material in architecture.
Structural Implementations of Bamboo
Construction with bamboo has been a long-standing practice, particularly in areas where it is readily available like tropical regions of Asia, South America, and parts of Africa. It is appropriate for a variety of structural applications along with trusses beams and columns because of its flexibility excessive power-to-weight ratio and cylindrical form. Bamboo is a cloth that is good for homes and other systems that require support and balance due to the fact it is sturdy and solid and has a tensile power that is higher than steel.
Thanks to its composition, bamboo is also naturally resistant to water damage and decay, hence making it an extremely durable material. It has no rays and knots, unlike wood, which makes it even more resilient to withstand stresses and tensions. As a result, it is a material that requires very low maintenance once treated well. In addition to this, despite its strength, bamboo is also a flexible material, hence allowing it to sway and bend without breaking during naturally occurring emergencies such as earthquakes, strong winds, or tropical storms. This makes bamboo an excellent choice for the construction of arches, hyperbolic paraboloids, curved roofs, plus other types of architectural traits that may require an evident extent of flexibility.
Bamboo Construction Techniques
Columns
Bamboo columns serve as vertical supports in architectural structures. Since they are linear and are vertically positioned, they are elements that transmit compressive force hence to maximize stability; it is essential to note that any compressive forces transferred by the column cross-section are the same at the top and the base of the column. They therefore need to have a node at both ends. If not, then the pressure of the structure on the joint may crush the bamboo because of some of its physical properties. Because bamboo is tapered, hollow, and not perfectly circular, traditional joinery methods like mortise and tenon (strong, stable joints that connect two pieces of bamboo or any other material where a “tenon tongue” in one member fits into a “mortise hole” created in the other member hence joining the two elements together) are used to connect bamboo segments seamlessly and making it aesthetically pleasing.
Post-And-Beam

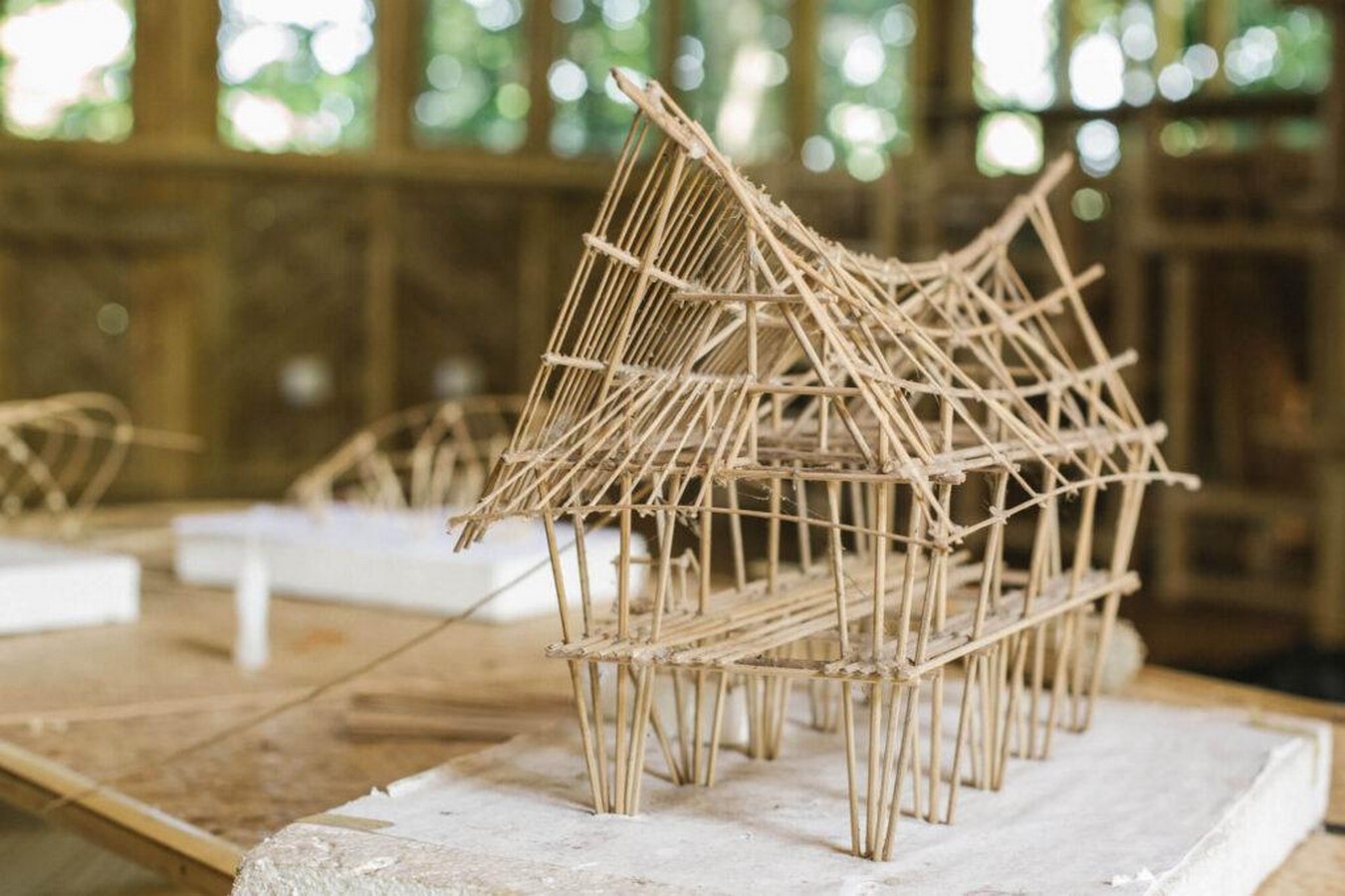

Post and beam construction is a structural system commonly used in many traditional and conservative buildings. The use of traditional post and beam systems allows for the use of maximum space by creating open and expansive interior spaces. The flexible and lightweight nature of bamboo provides interesting variations of the traditional post and beam construction methods that are built using materials like timber, stone, and RCC. Post and beam structures also require and support system to help triangulate it for stability and this is composed of three fundamental elements: vertical posts, horizontal beams, and cross-bracing. The horizontal beams support the load from the floors, roofs, or other elements of the building and together with the vertical posts and cross-bracing create a structural framework called trusses that is composed of interconnected members that support the roof loads and distribute them to the columns and walls. Round bamboo poles are the usual choice for these structural elements, creating a structure that is not only stable and sturdy but also visually appealing.
Hyperbolic Paraboloids

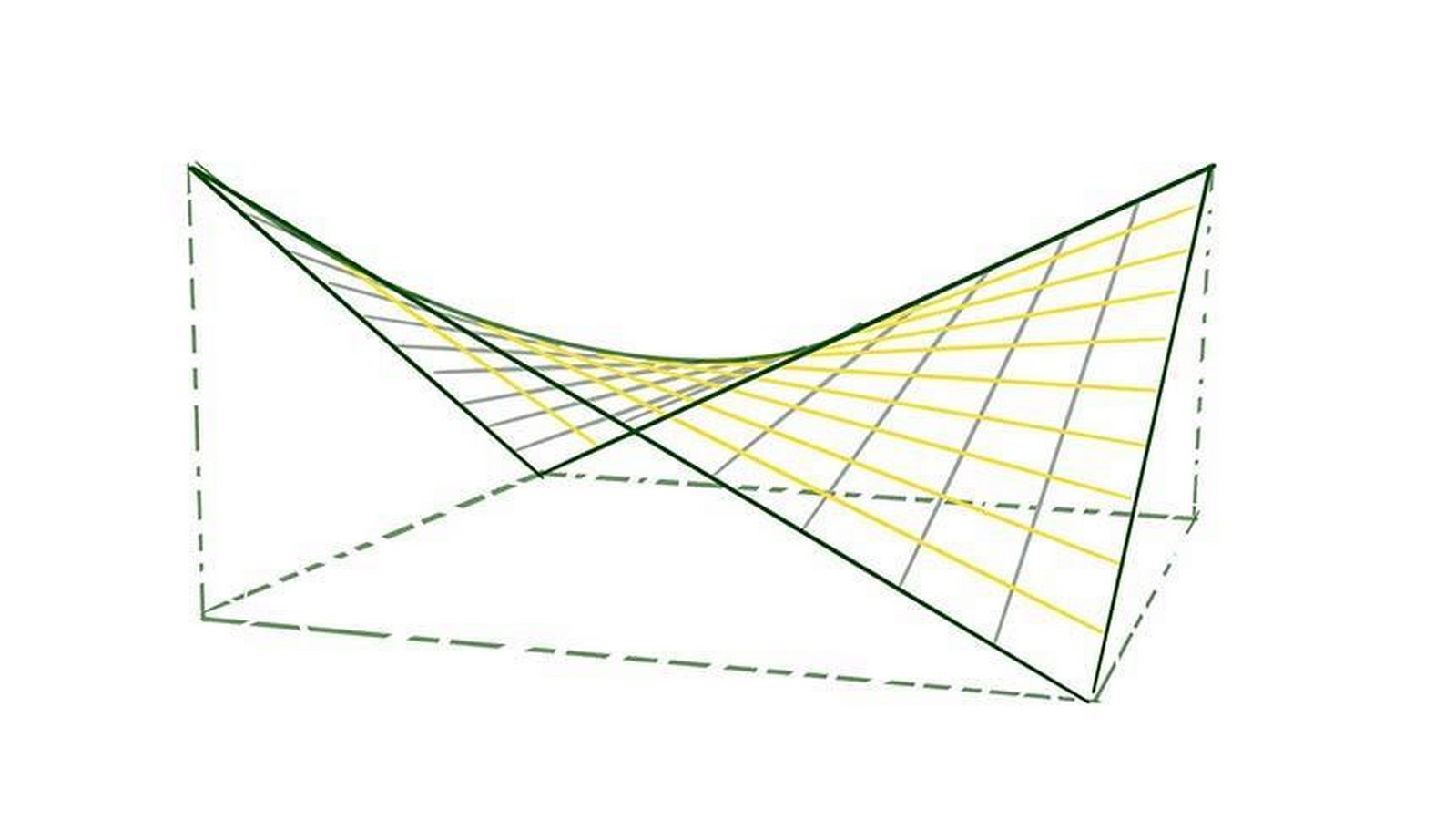

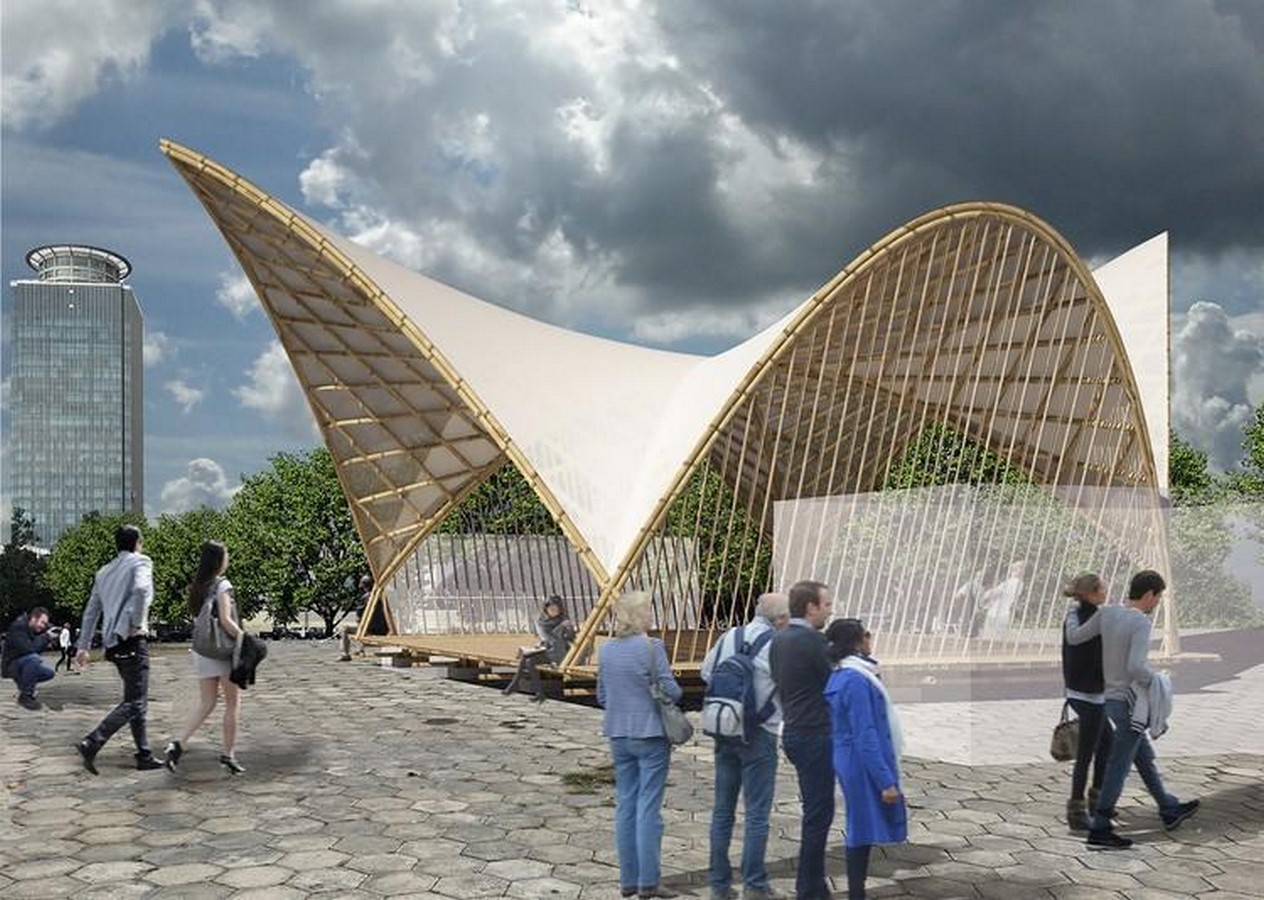

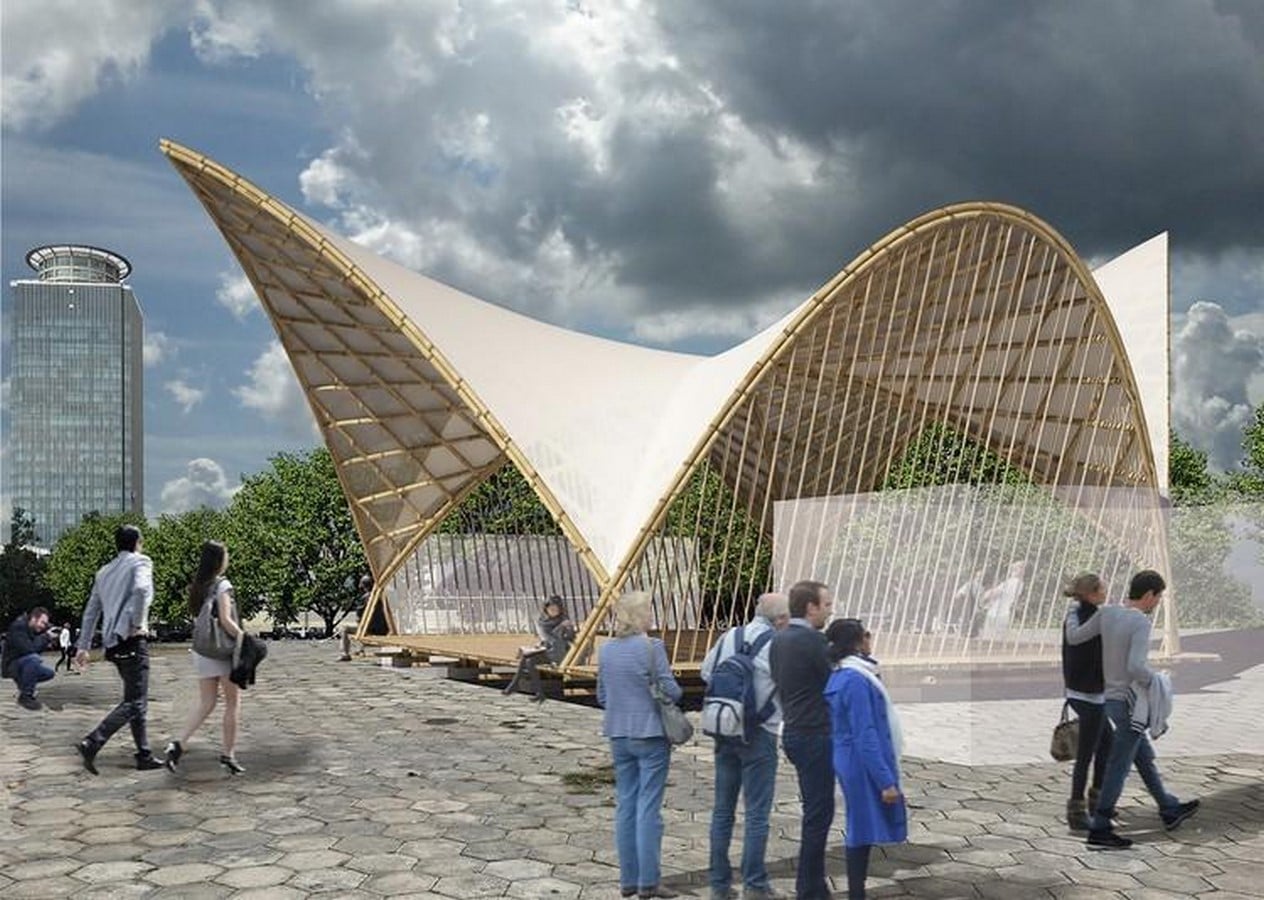

Hyperbolic paraboloids, also known as “hypar” structures, define their shape by combining both a concave and convex surface, making them both structurally strong and aesthetically appealing. This blend creates the shape of a saddle because of the arrangement of two axes, which also generates a “doubly ruled” surface. Since hyperbolic paraboloids are only constructed using straight members, two straight lines intersect at every point along its surface hence forming one of its unique characteristics and the other one being that they are very efficient and interesting forms of shell-shaped construction as the surface warp provides a way for them to carry great loads over wide distances and excellent stiffness. These characteristics, amongst others, make hyperbolic paraboloids a very proficient approach for lightweight structures composed of long open amorph spans and minimal bamboo supporting columns. The structural behavior of the “hyparor” of efficient load transfer of compression in the arches and tension in the linear members makes a natural bamboo pole the perfect material for such.
Reinforcing with Bamboo

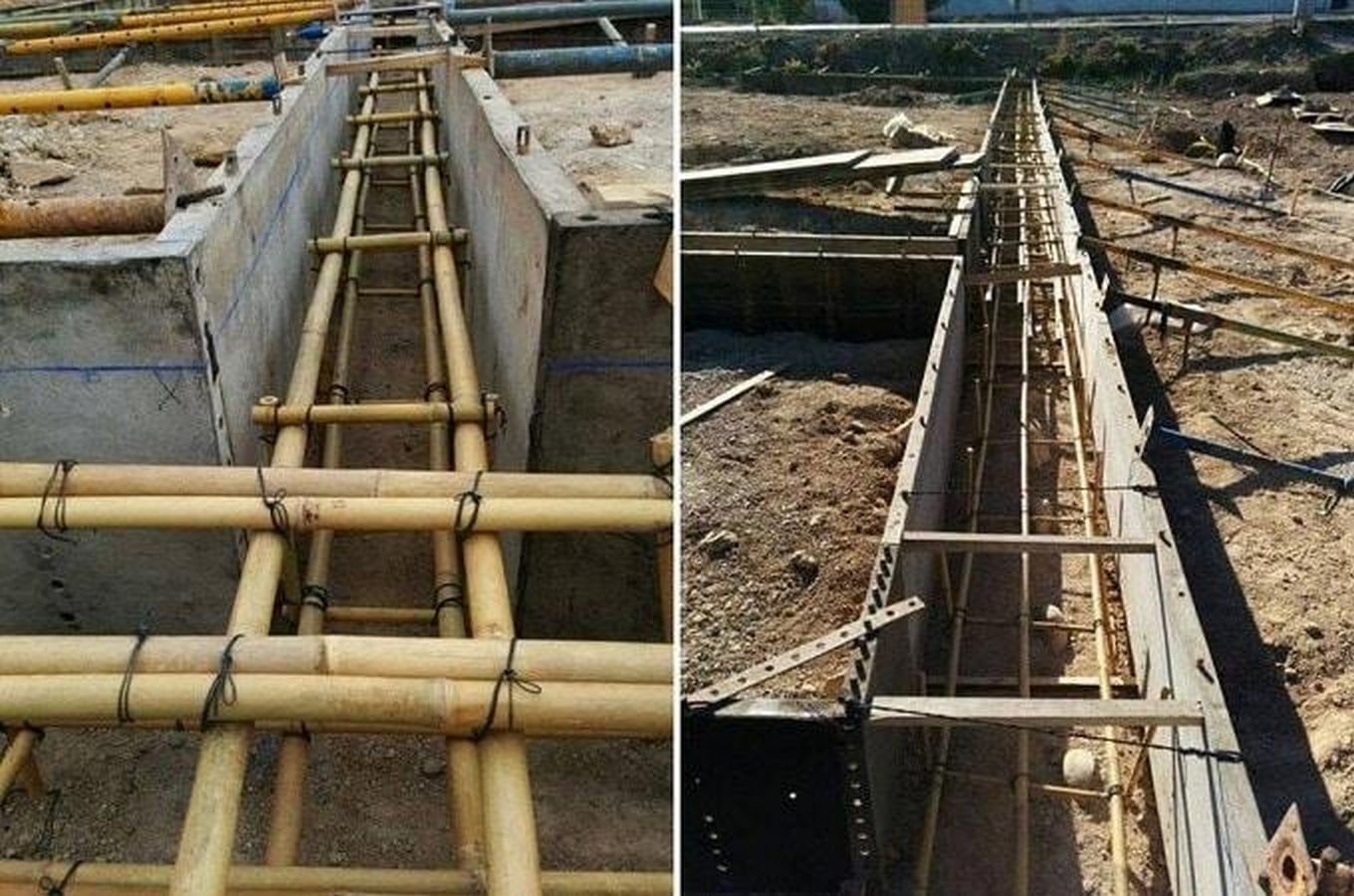

Reinforcement techniques play a crucial role in boosting the already effective load-bearing capabilities and durability of bamboo structures. The mechanical properties of bamboo and its obtainability in abundance have led to its experimental use as reinforcement in concrete structures as opposed to common steel. This is because the use of reinforcing steel is very expensive, and prices keep soaring regularly. Production of steel is not found enough to face its demand and in addition to the high use of fossil fuels and energy used to manufacture steel (50 times more energy is used in the production of steel than on bamboo) has resulted in the outlook for a more sustainable material capable of being an efficient substitute to steel and bamboo has emerged victorious in this case. Bamboo is hollow, has a higher tensile strength than steel, is anisotropic, and is a naturally occurring material with great potential for shock absorption, hence making it the ideal substitute for steel. Well-treated bamboo also helps avoid problems because of shrinking and attack by insects, consequently increasing its lifespan and making it even more sustainable in terms of durability and longevity.
Sustainability of Construction with Bamboo
Overall, the sustainability of bamboo construction techniques comes up from various factors such as bamboo’s rapid growth rate, minimal environmental impact, renewability, and physical and mechanical properties, amongst others. Its fundamental versatility and structural characteristics, coupled with innovative construction techniques and reinforcement methods, offer a renewable and eco-friendly option to traditional building materials like timber or steel, hence making it a viable solution for sustainable architecture. Unlike conventional building materials like concrete and steel, bamboo can be harvested sustainably, has a negligible carbon footprint, requires minimal resources for cultivation, and possesses the ability to sequester carbon dioxide which further contributes to its environmental benefits, therefore making it a try sustainable material for architecture and construction.
REFERENCES:
- Archila, H. et al. (2018) Bamboo reinforced concrete: A critical review – materials and structures, SpringerLink. Available at: https://link.springer.com/article/10.1617/s11527-018-1228-6 (Accessed: 14 March 2024).
- GOUTHAM , S. (2022) Bamboo structural systems: Post and beam, Bamboo U. Available at: https://bamboou.com/bamboo-structural-systems-post-and-beam/ (Accessed: 14 March 2024).
- Istchuk, R. (2023) How to build with bamboo: 4 basic structural systems, ArchDaily. Available at: https://www.archdaily.com/1001680/how-to-build-with-bamboo-4-basic-structural-systems (Accessed: 14 March 2024).
- K, N.S. (2021) Bamboo reinforced concrete – mix proportion, design and construction, The Constructor. Available at: https://theconstructor.org/structural-engg/bamboo-reinforced-concrete-mix-design-construction/15054/ (Accessed: 14 March 2024).
- Kumar, P. et al. (2021) Bamboo as reinforcement in structural concrete, Materials Today: Proceedings. Available at: https://www.sciencedirect.com/science/article/abs/pii/S2214785321032624#:~:text=Bamboo%20has%20many%20usages.,RCB%20properties%20shall%20be%20studied. (Accessed: 14 March 2024).
- M, K.H. (2023) Bamboo as building material: Sustainable & cost-effective, The NoBroker Times. Available at: https://www.nobroker.in/blog/bamboo-as-a-building-material/#:~:text=It%20is%20lightweight%2C%20yet%20can,an%20environmentally%20friendly%20building%20material. (Accessed: 14 March 2024).
- Patel, M. (2021) Use of bamboo as reinforcement in building construction, All House Related Solutions. Available at: https://gharpedia.com/blog/use-of-bamboo-as-reinforcement-in-concrete/ (Accessed: 14 March 2024).
- Quick read: Bamboo in construction (2023) UK Bamboo. Available at: https://www.ukbamboo.com/blog/bamboo-construction/ (Accessed: 14 March 2024).
- S, K., A, L. and D, T. (2016) Structural use of bamboo. part 1, Structural use of bamboo. Part 1: Introduction to bamboo. The Structural Engineer, volume 94 (8): 40-43. Available at: https://www.istructe.org/journal/volumes/volume-94-(2016)/issue-8/structural-use-of-bamboo-part-1-introduction-to-b/ (Accessed: 14 March 2024).
- SCHLÜTER, L. (2022) Hyperbolic paraboloids in bamboo architecture, Bamboo U. Available at: https://bamboou.com/hyperbolic-paraboloids-in-bamboo-architecture/ (Accessed: 14 March 2024).
