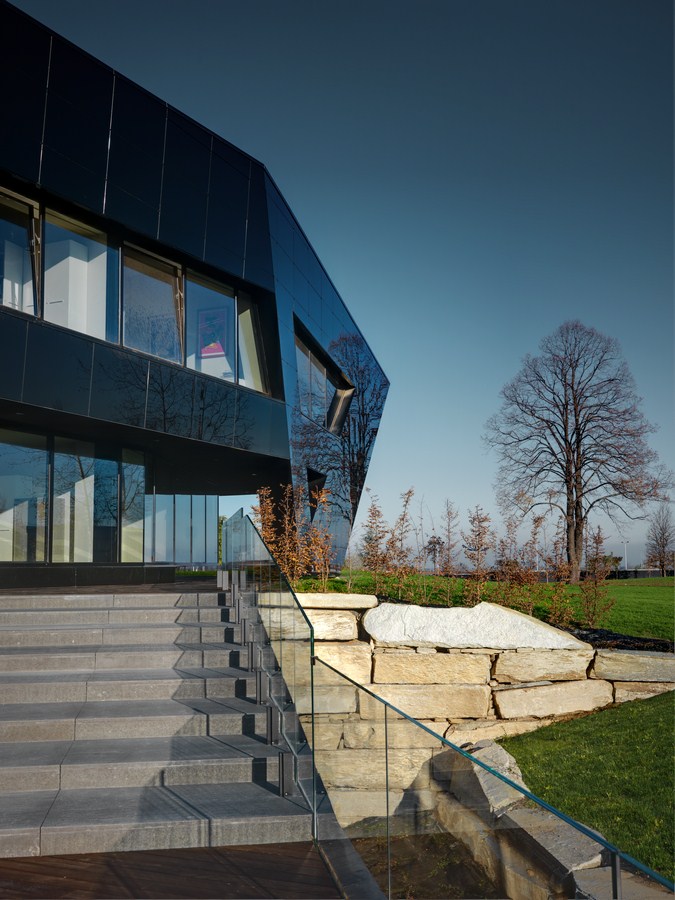

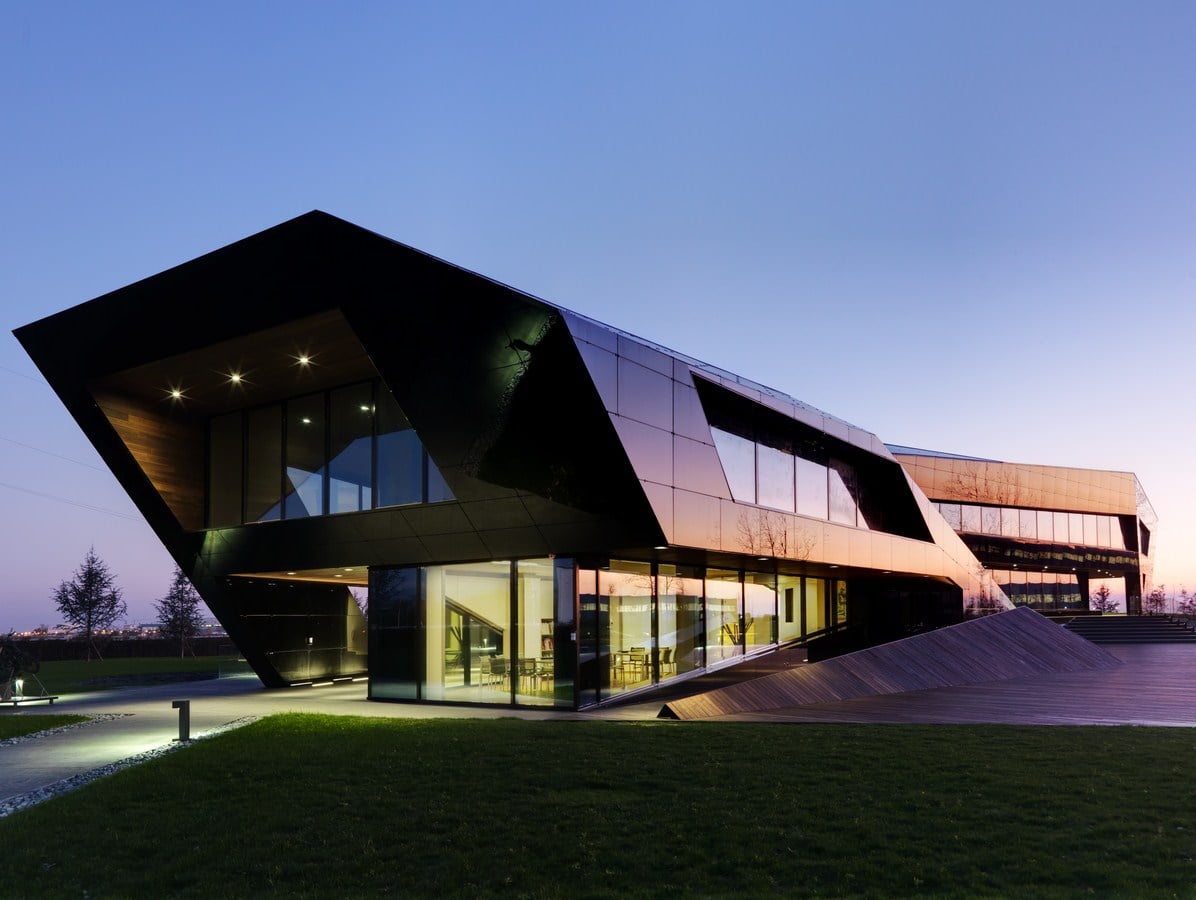

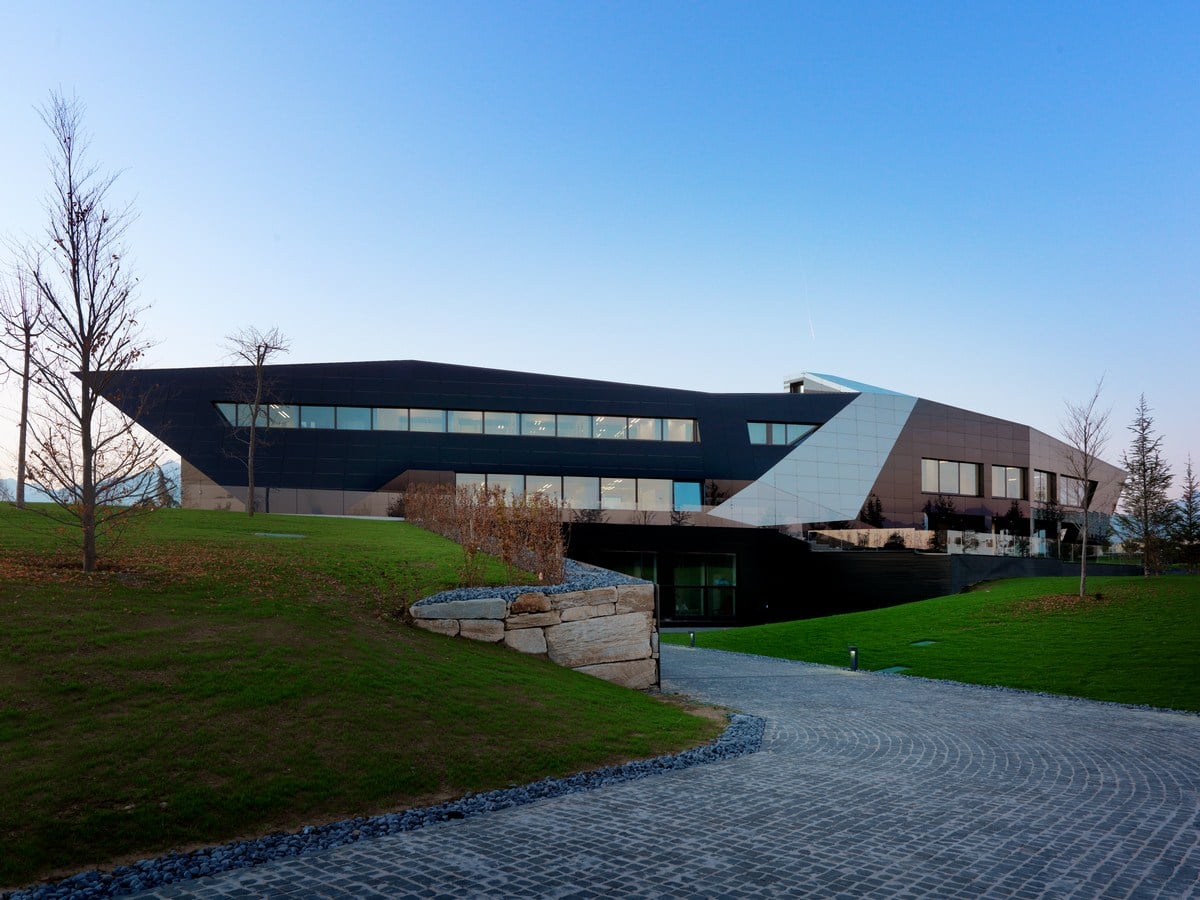

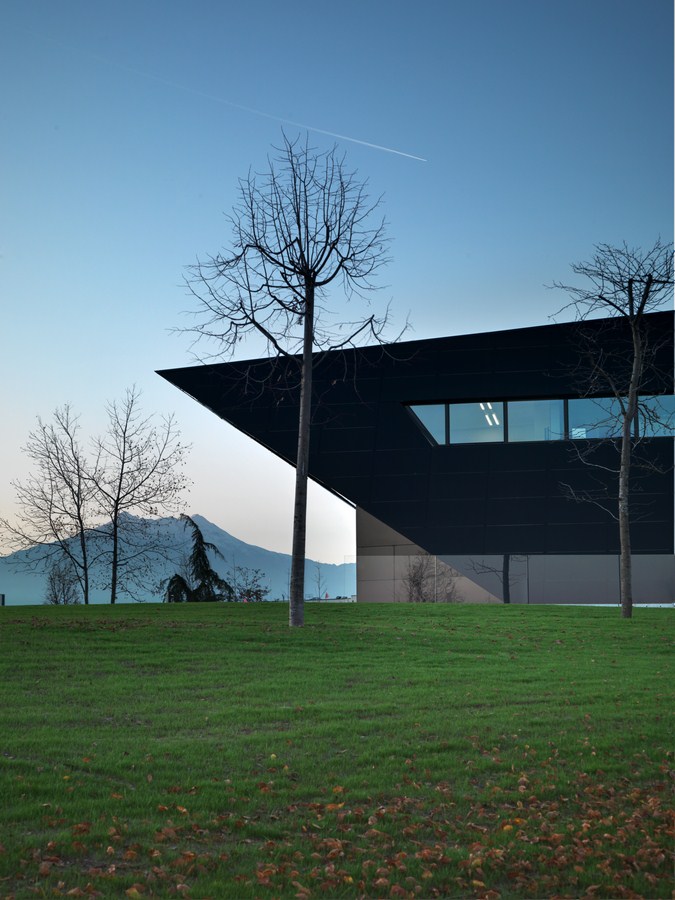

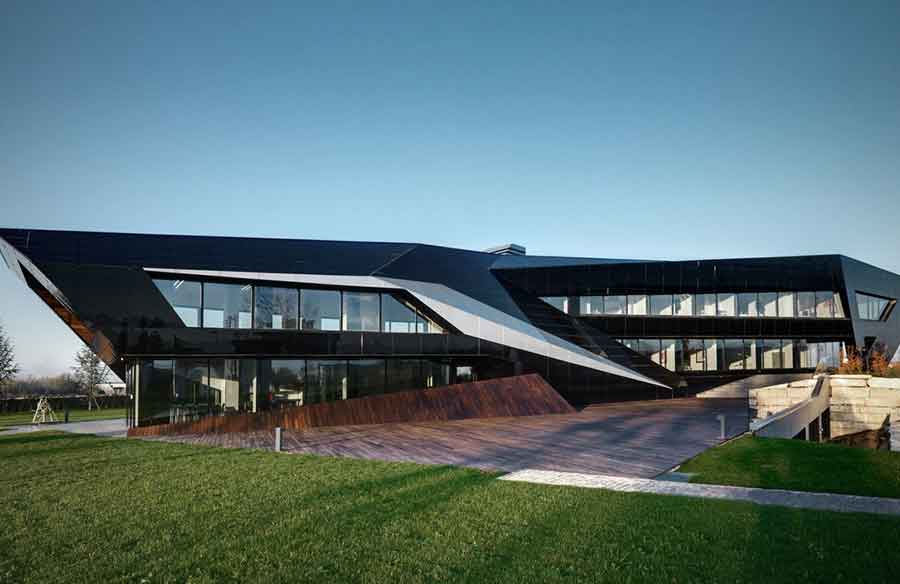

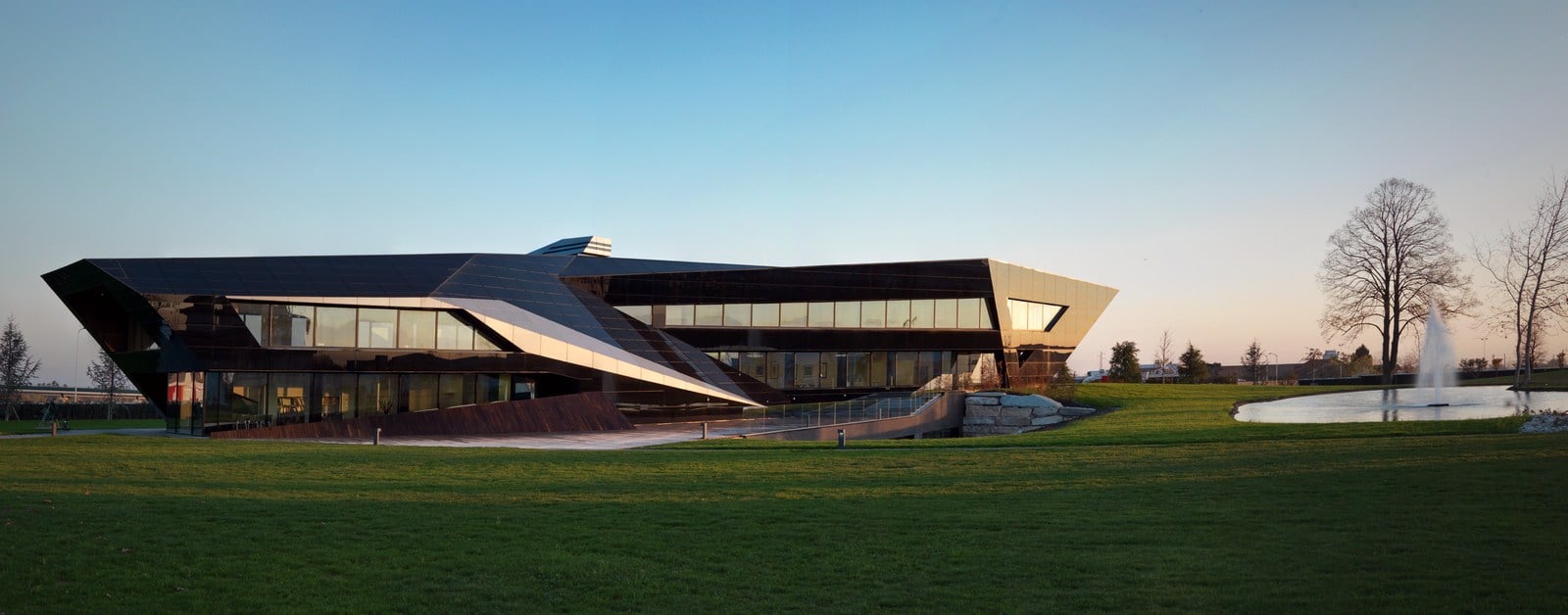

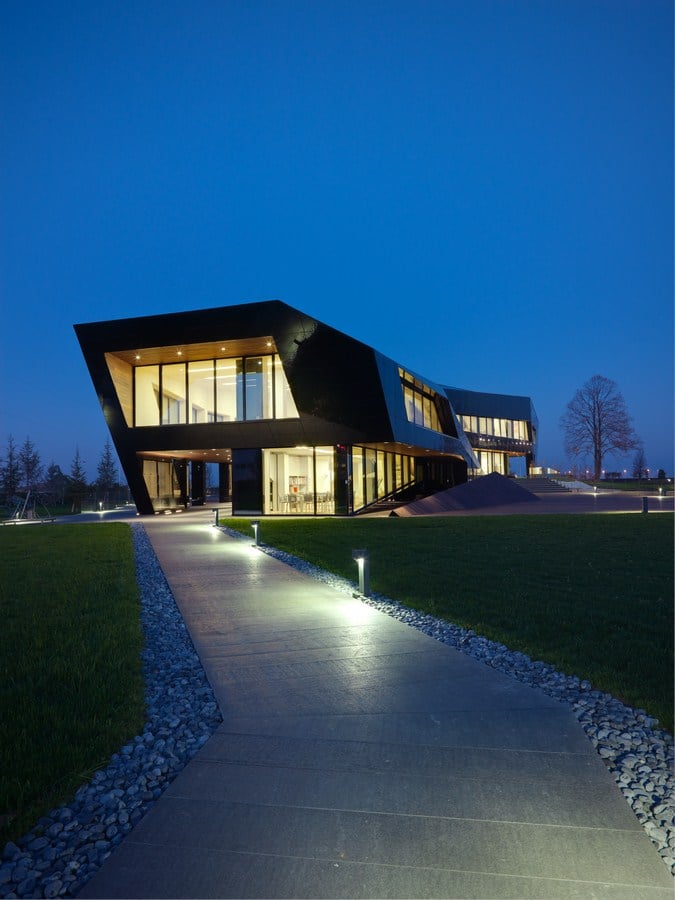

Oficina Vidre Negre was born as a contemporary sculpture, a symbol of a dynamic and continuous development with the need for strong identification, even in terms of image. In a context of peripheral node of the motorway, the building is set within a park, planted with native species, in which a sort of town square accompanied to the entrance.

Rethinking The Future Awards 2022

Project Name: Oficina Vidre Negre
Architect Name: Damilano Studio Architects

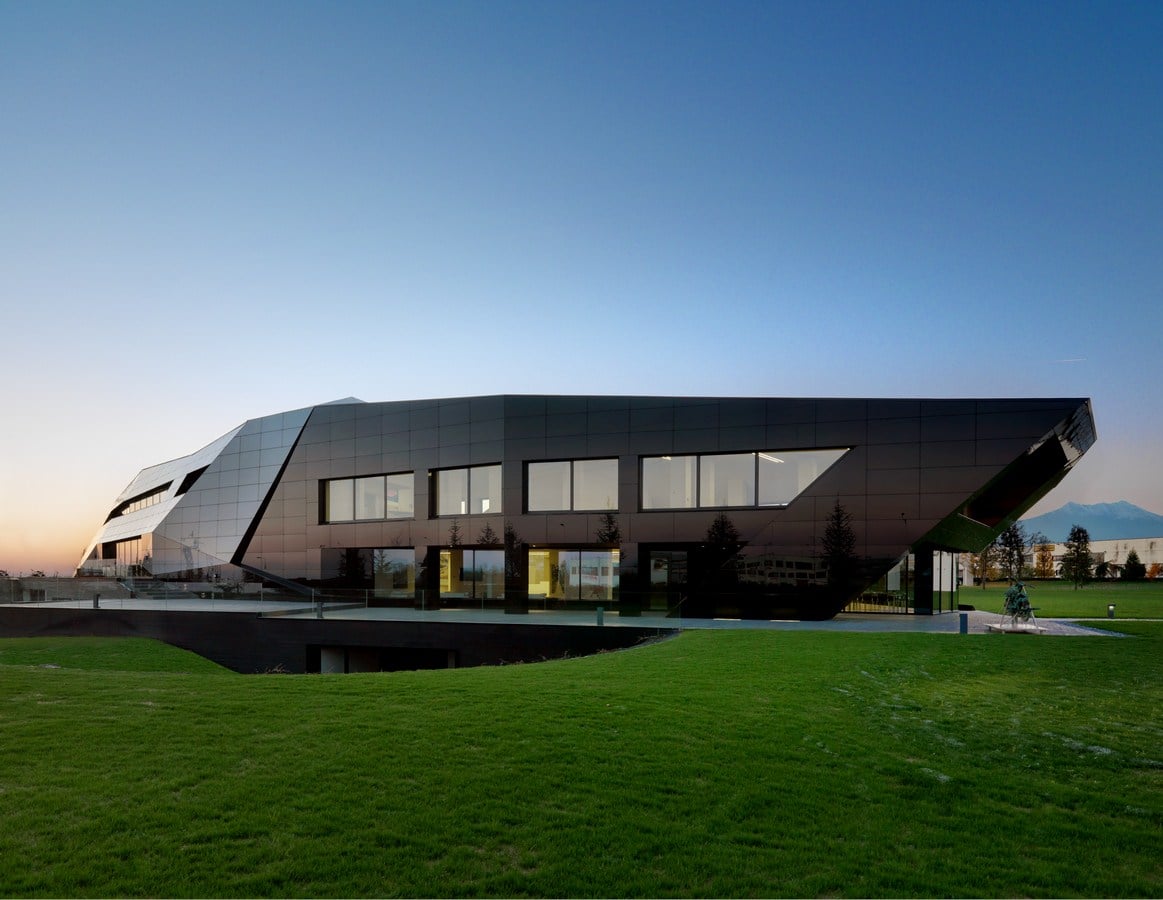

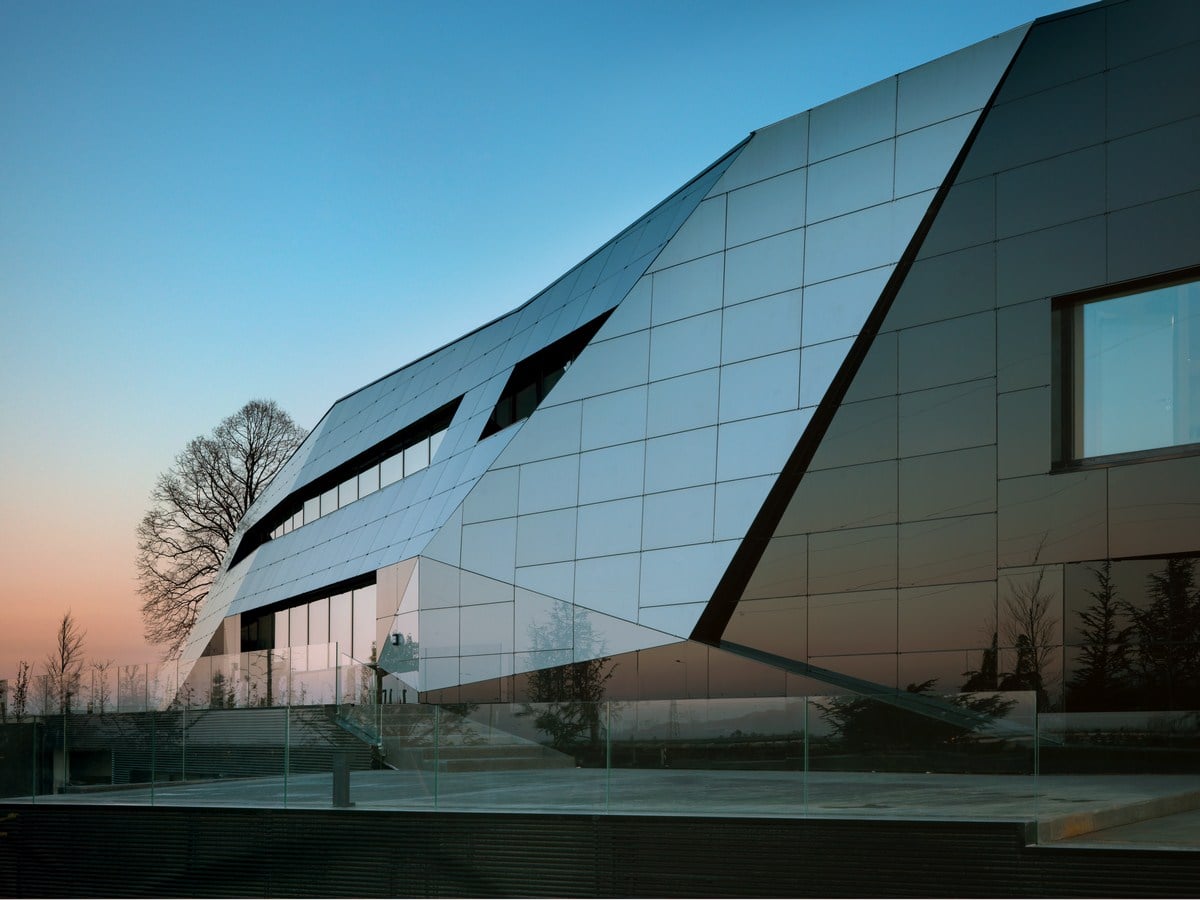

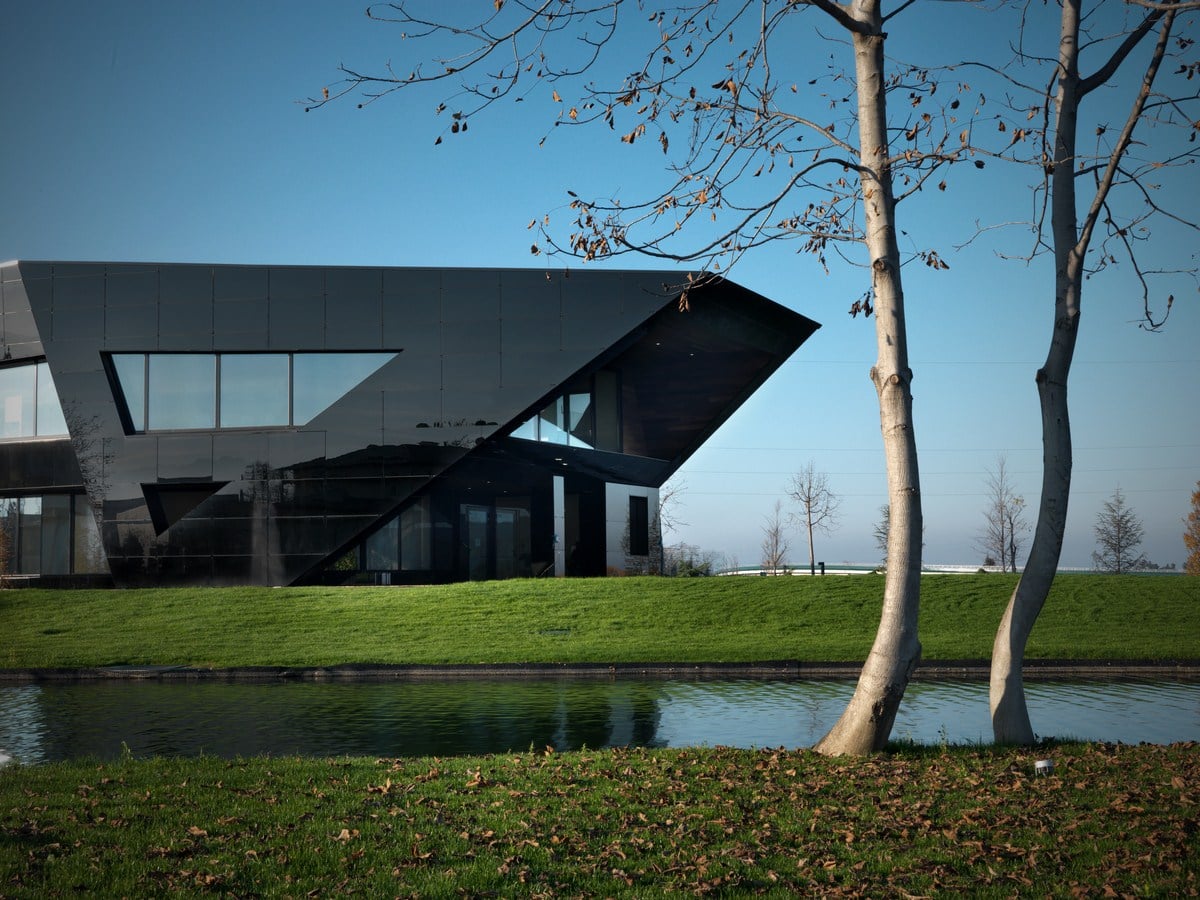

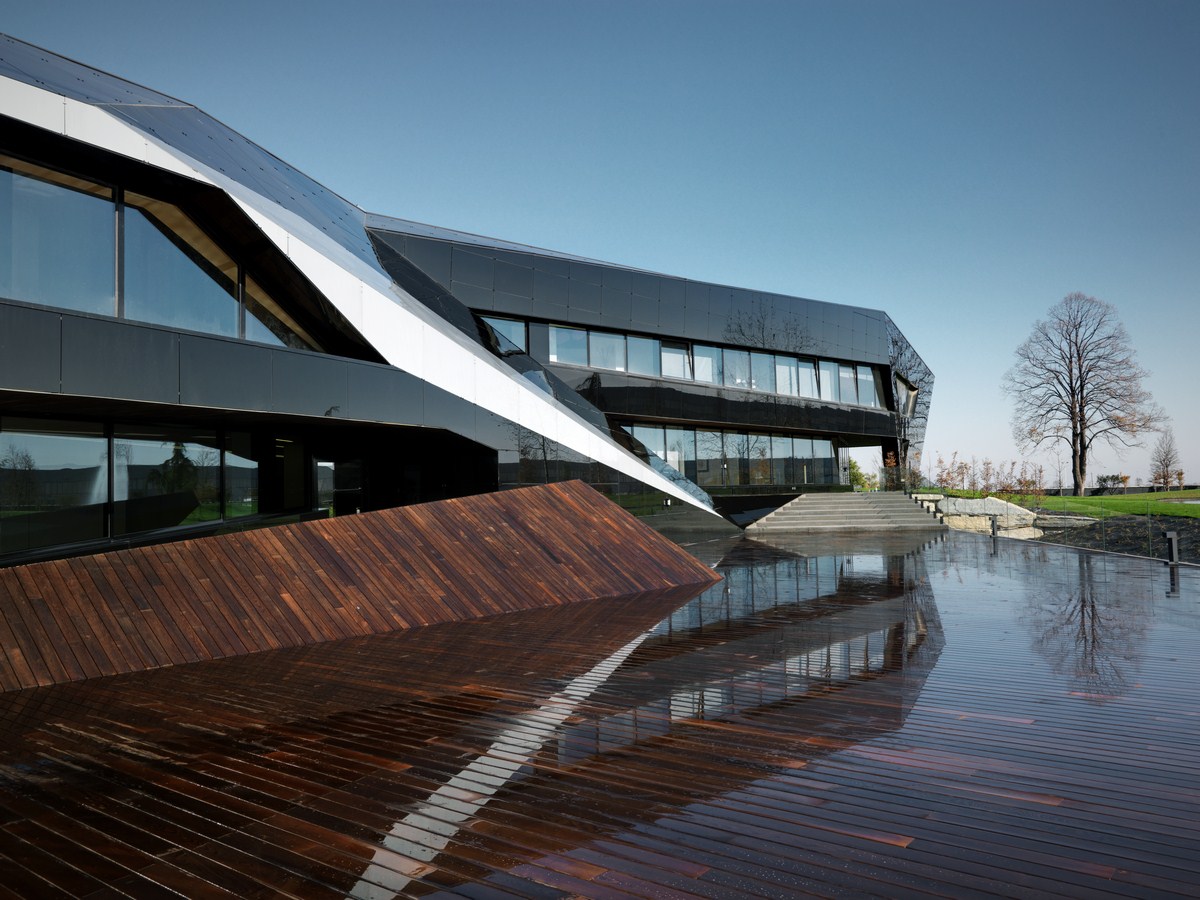

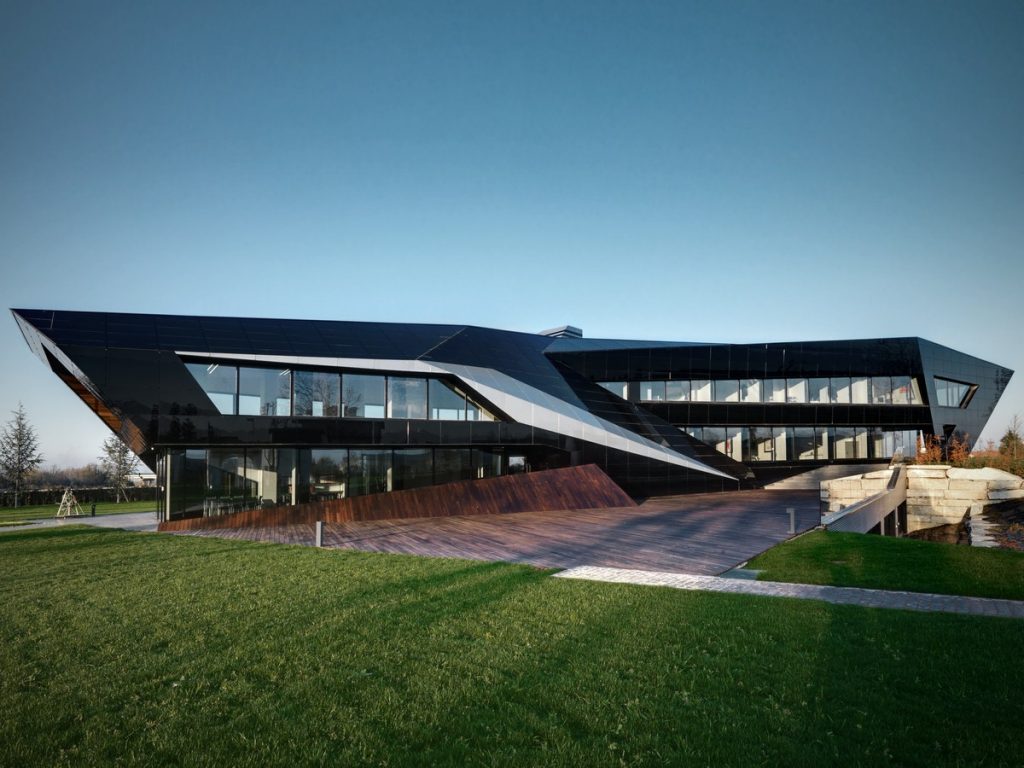

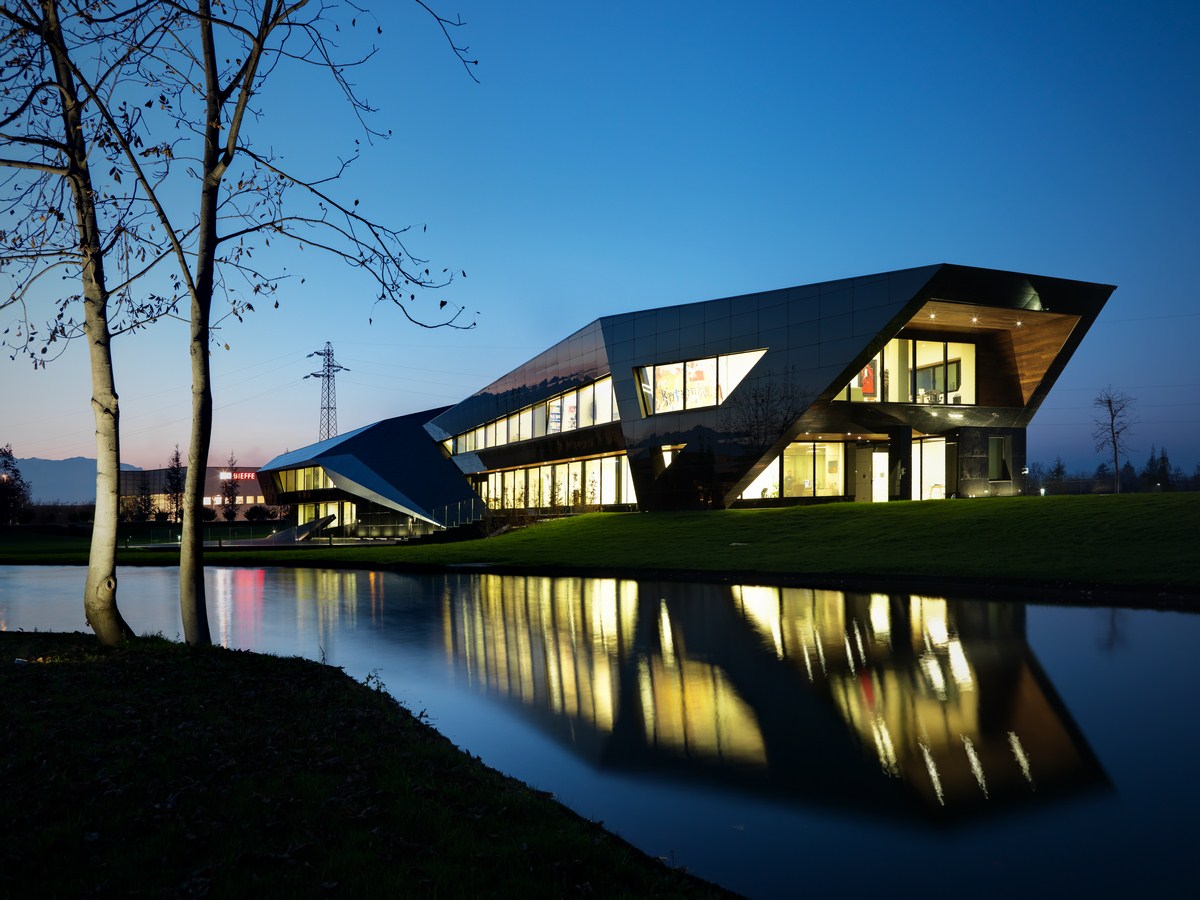

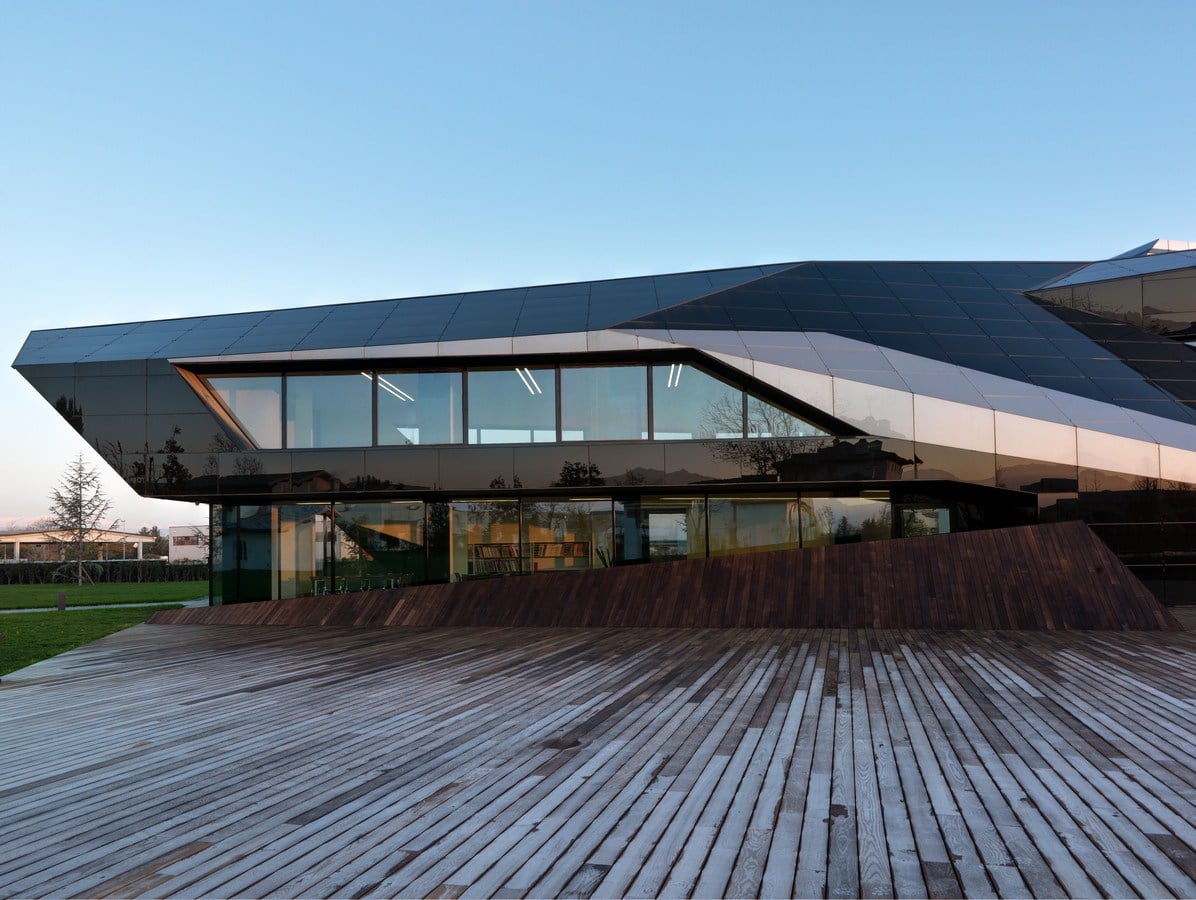

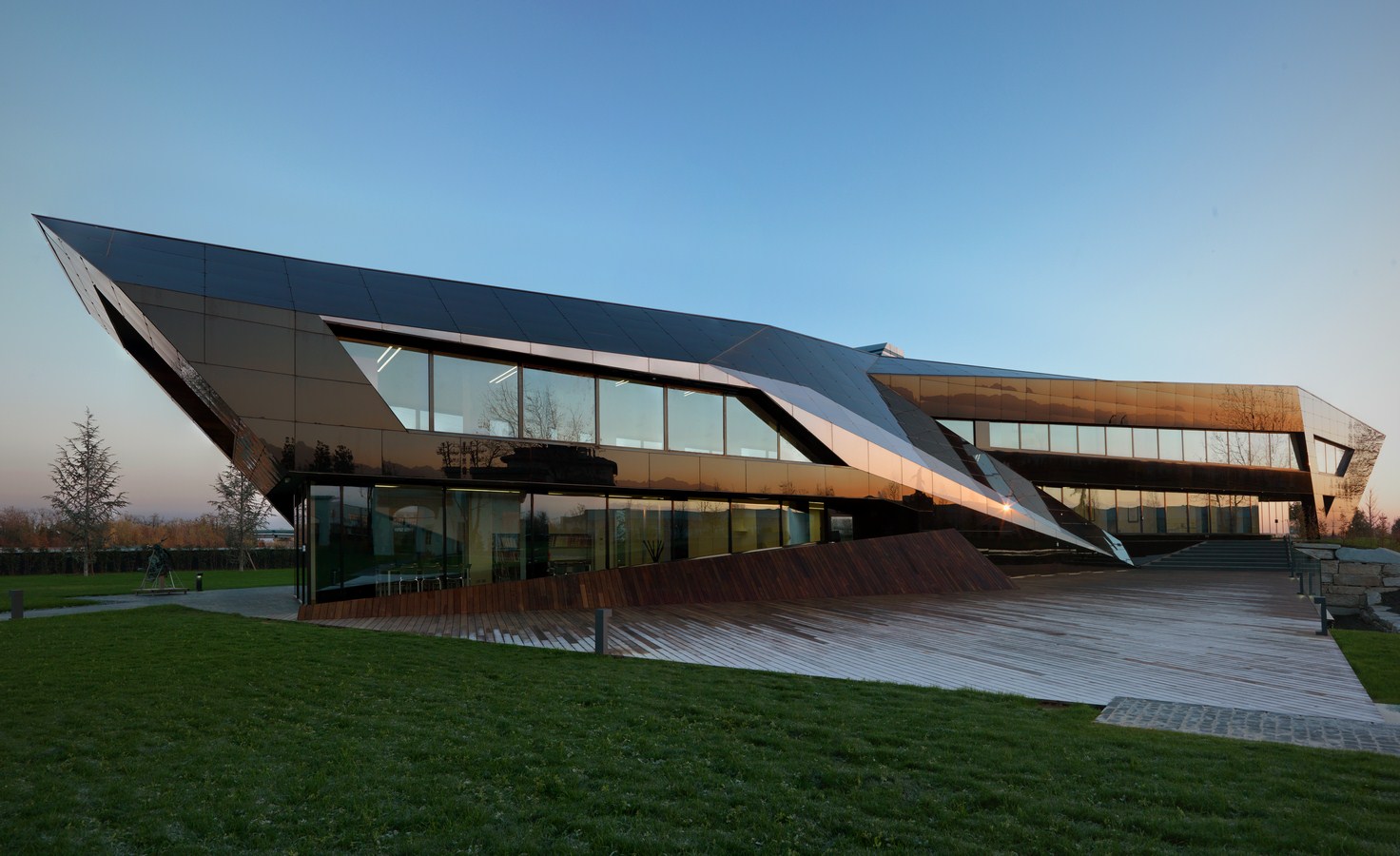

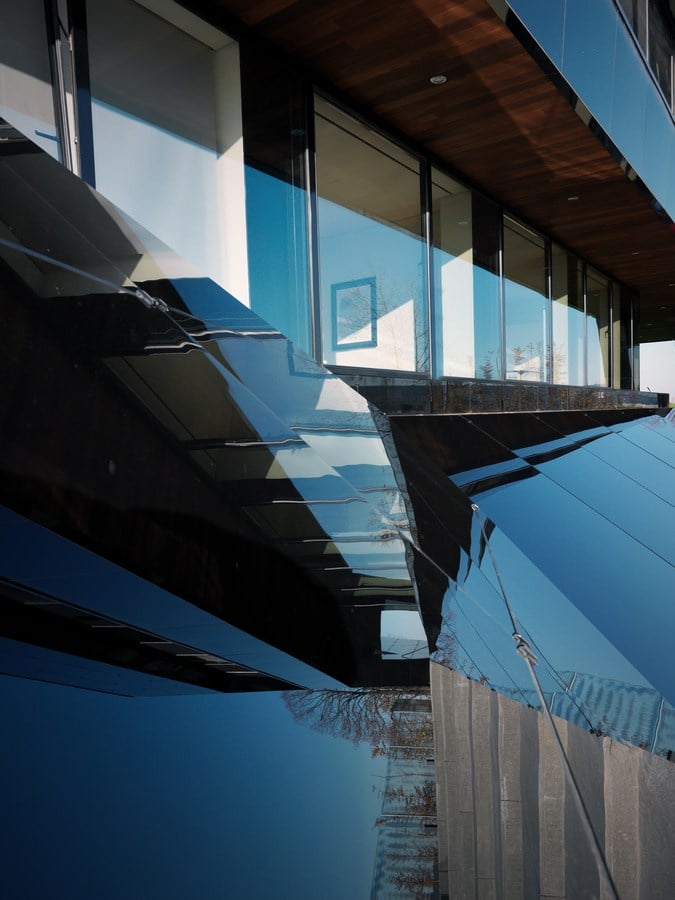

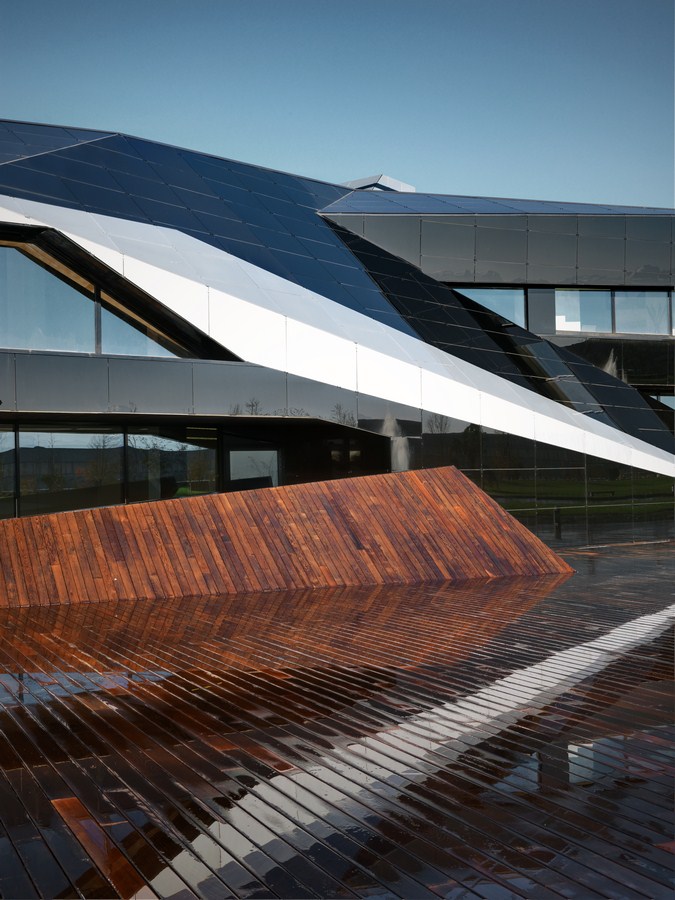

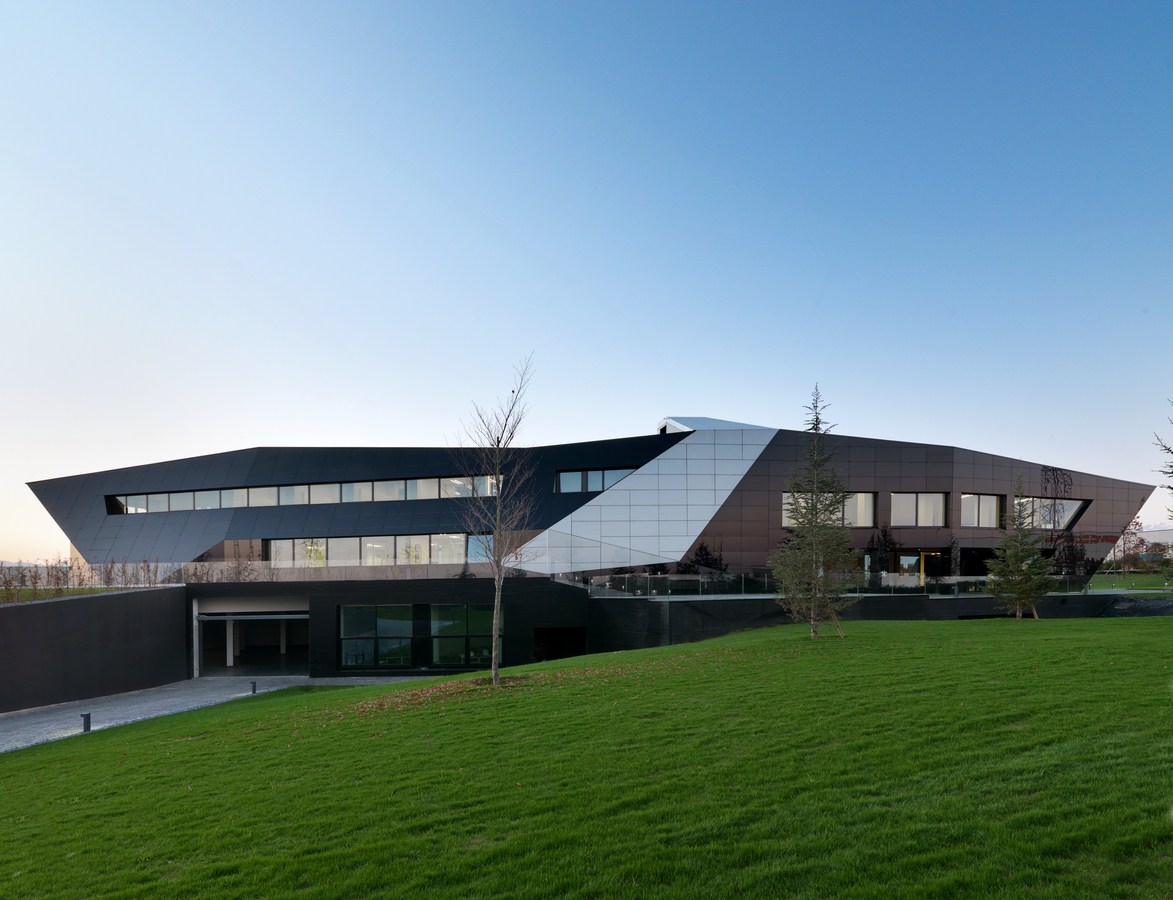

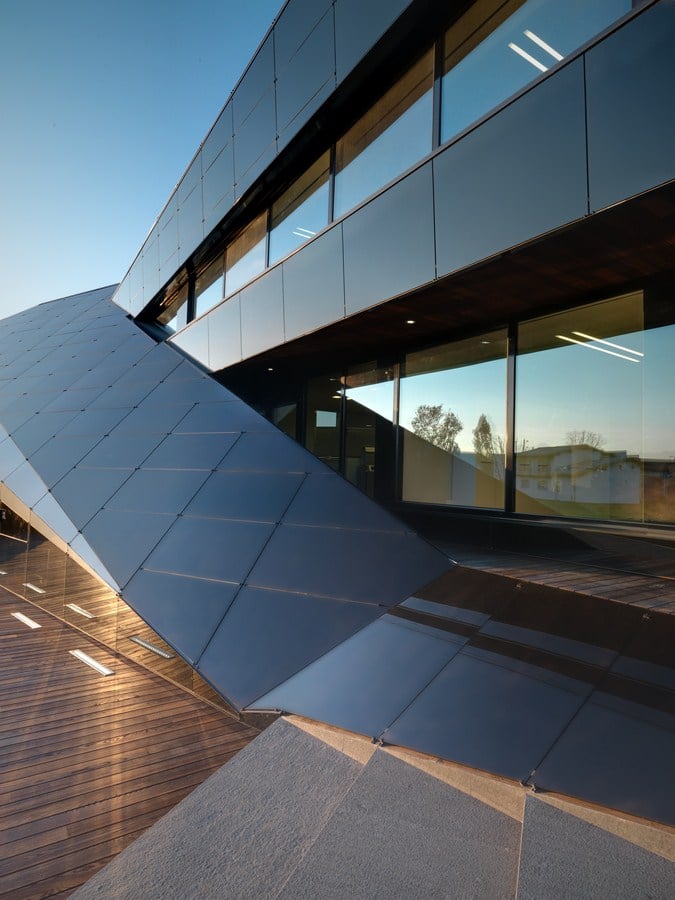

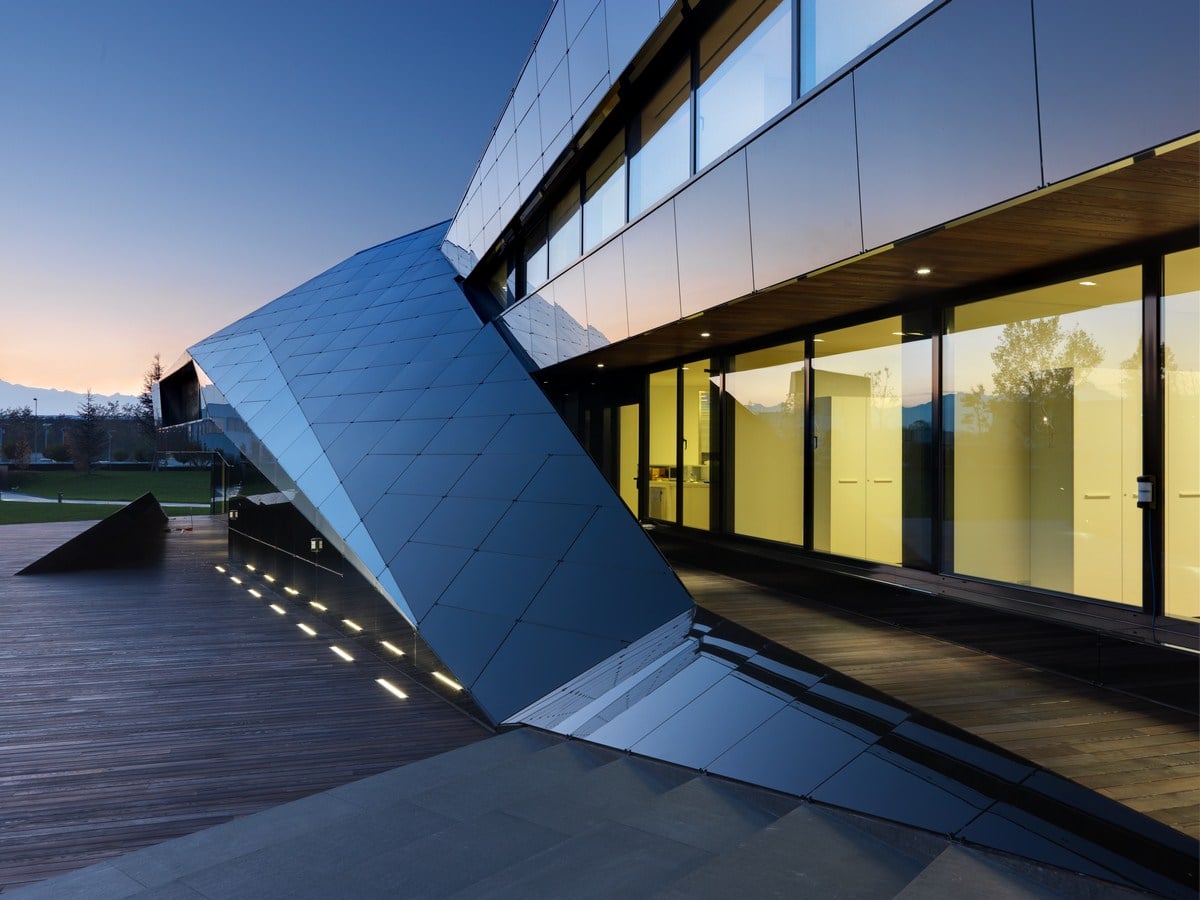

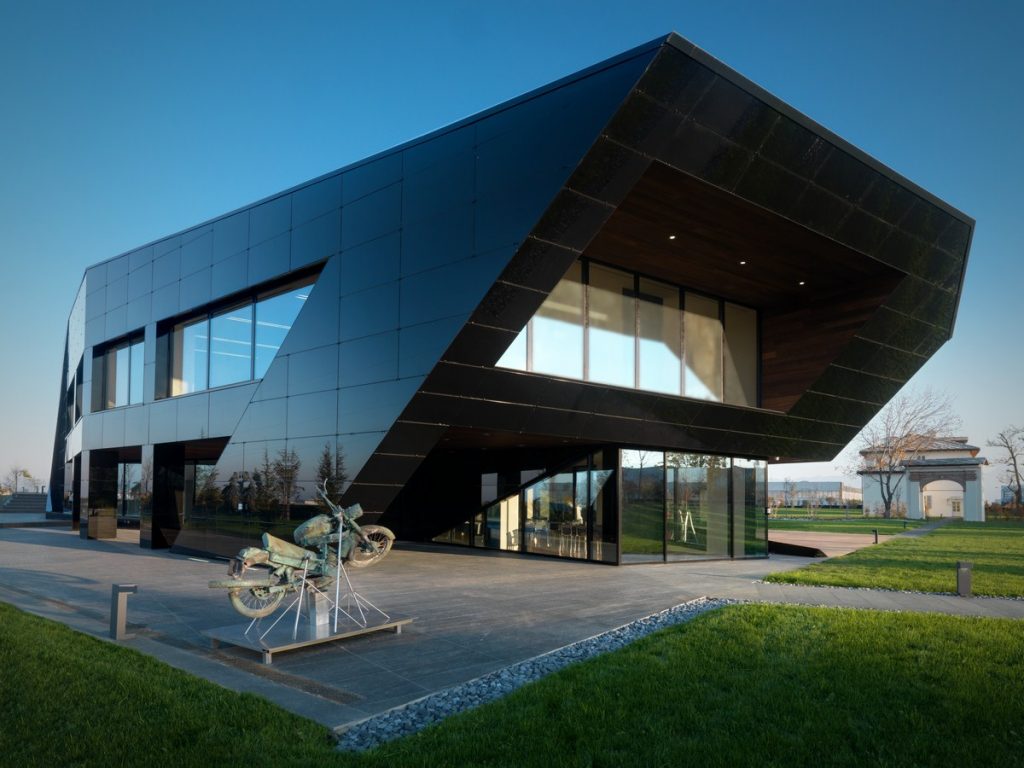

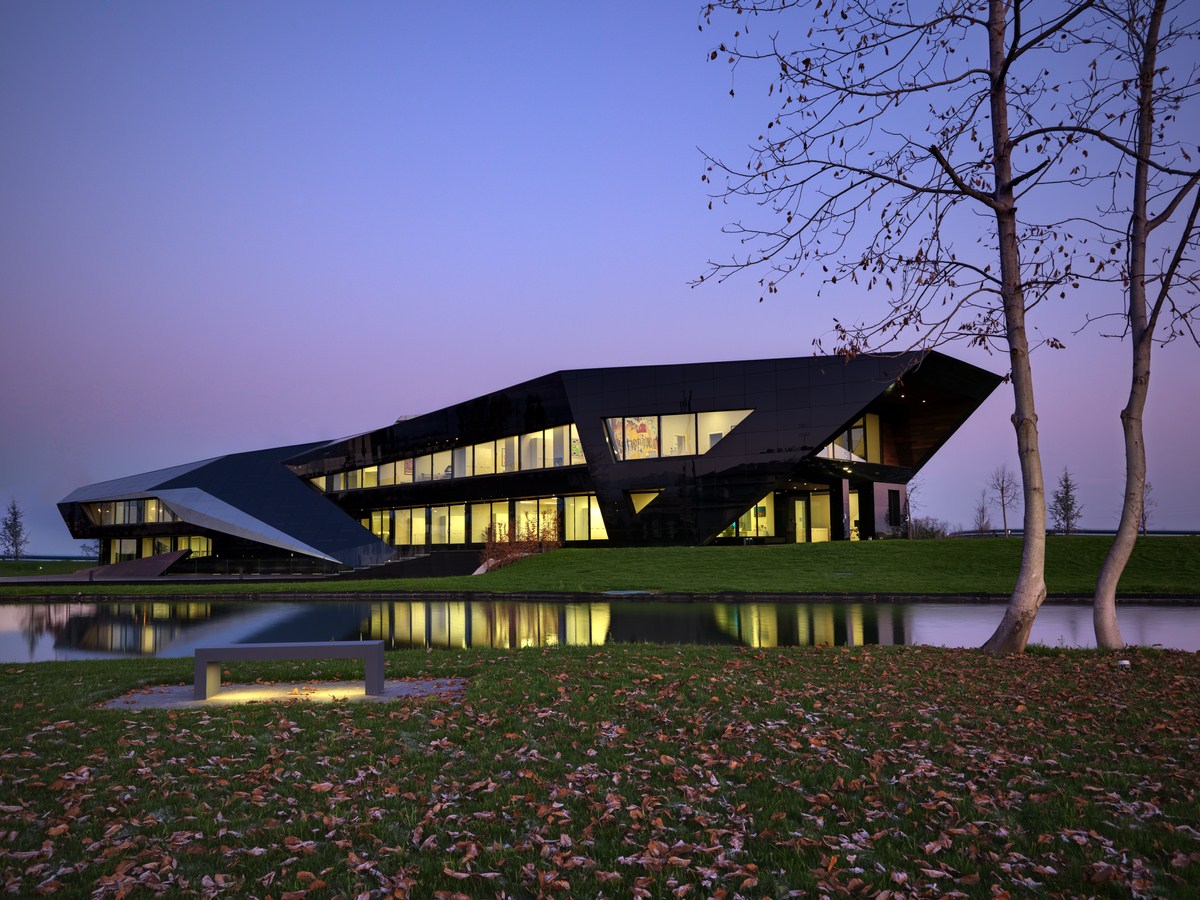

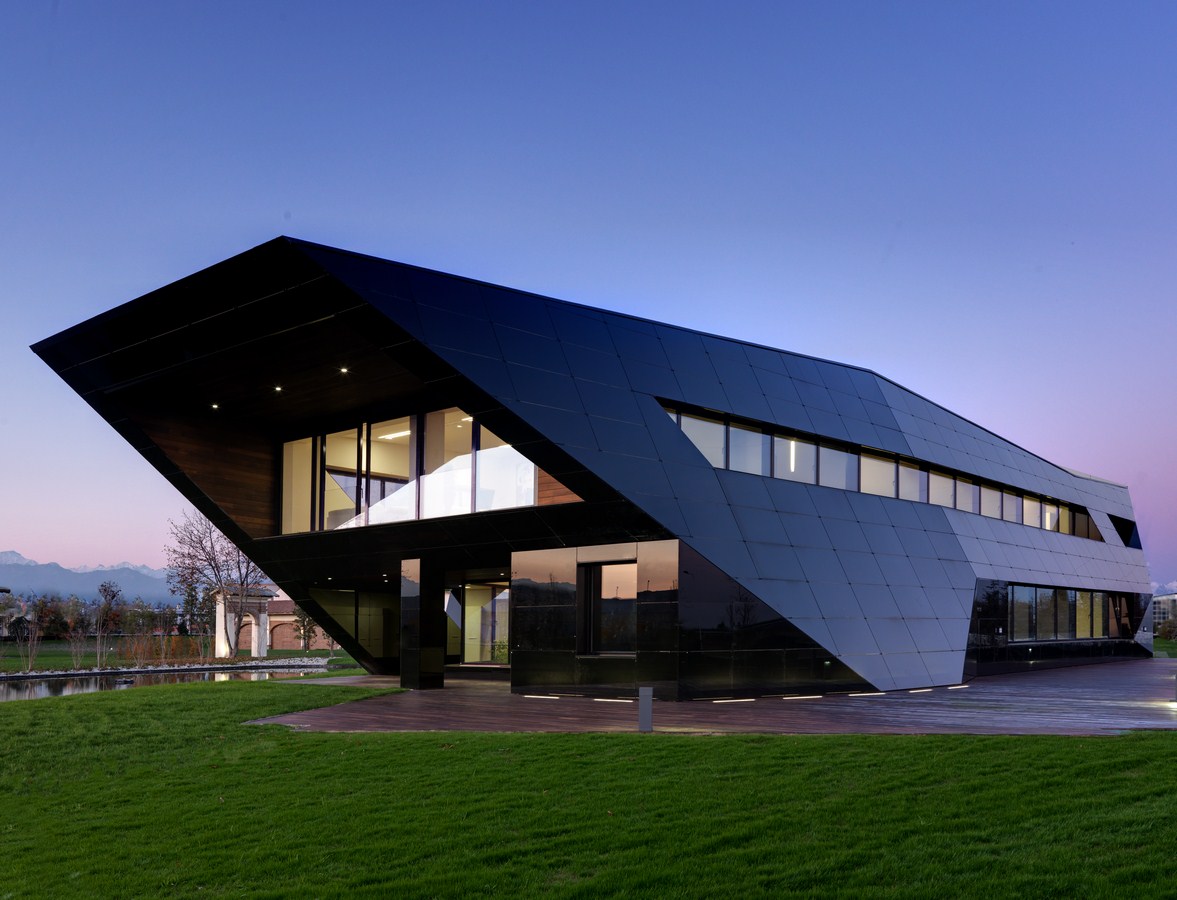

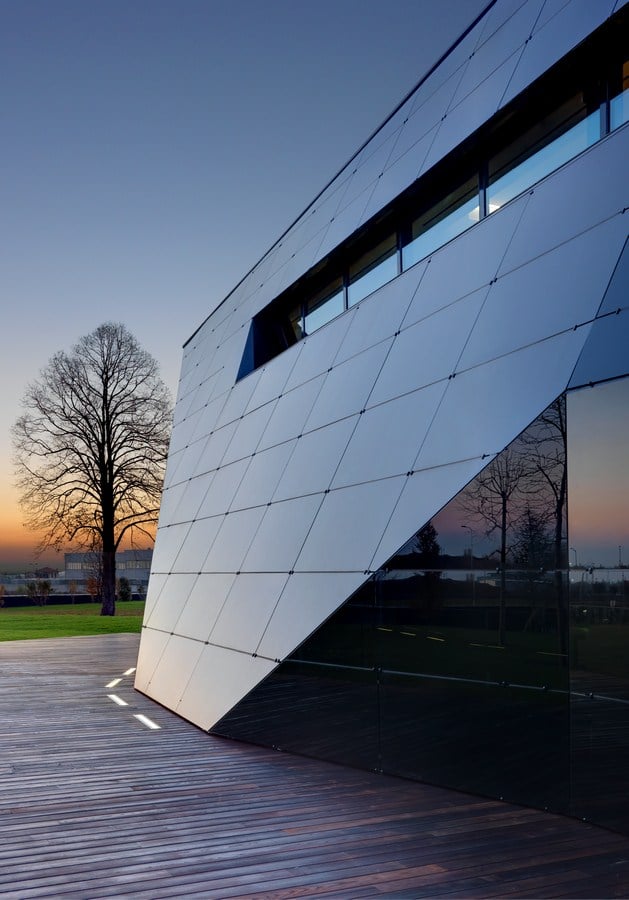

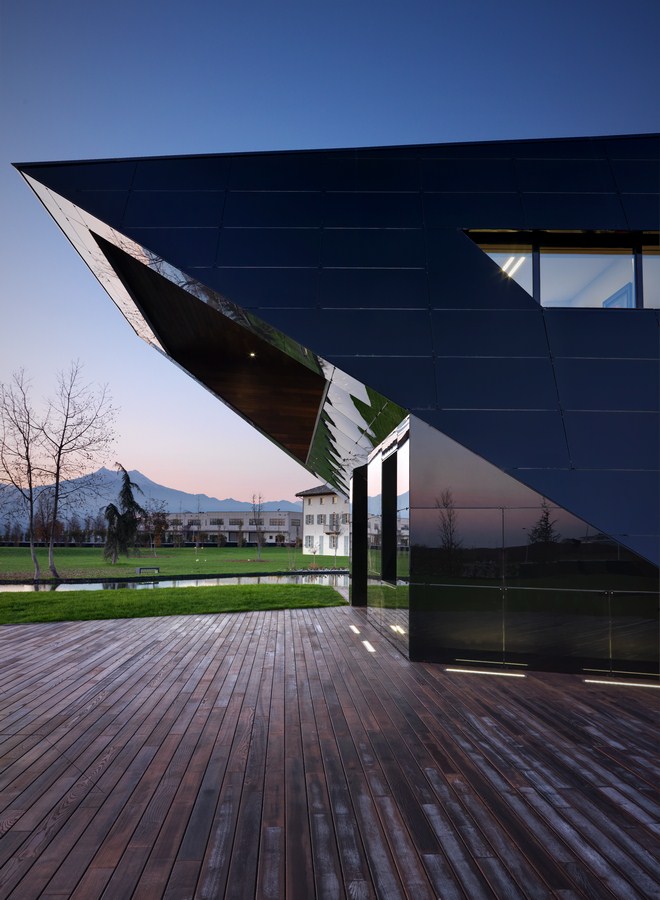

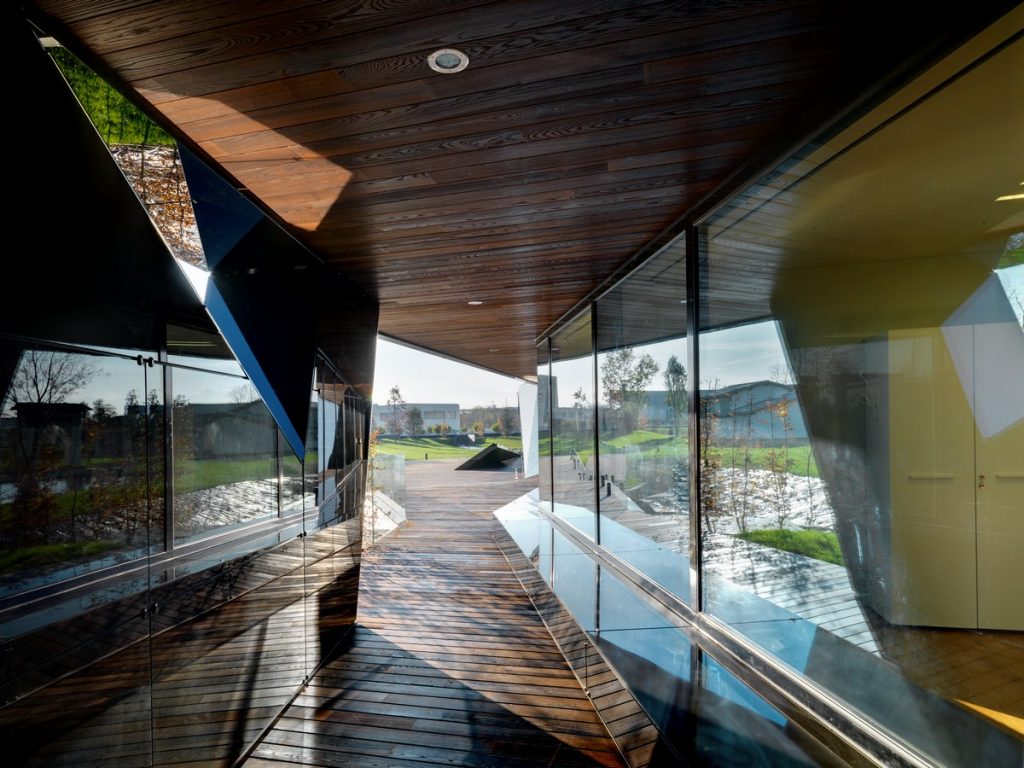

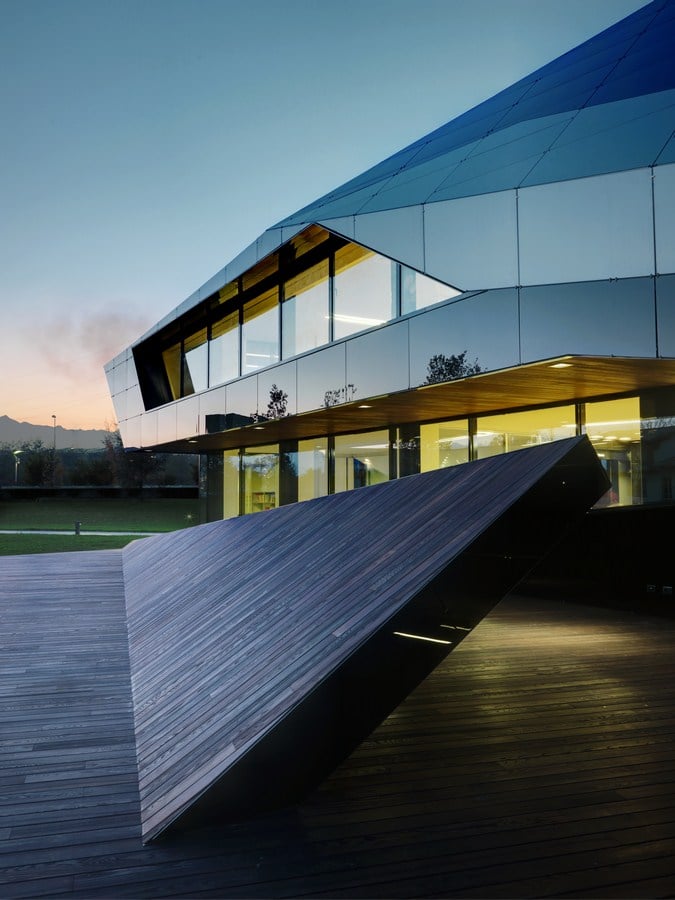

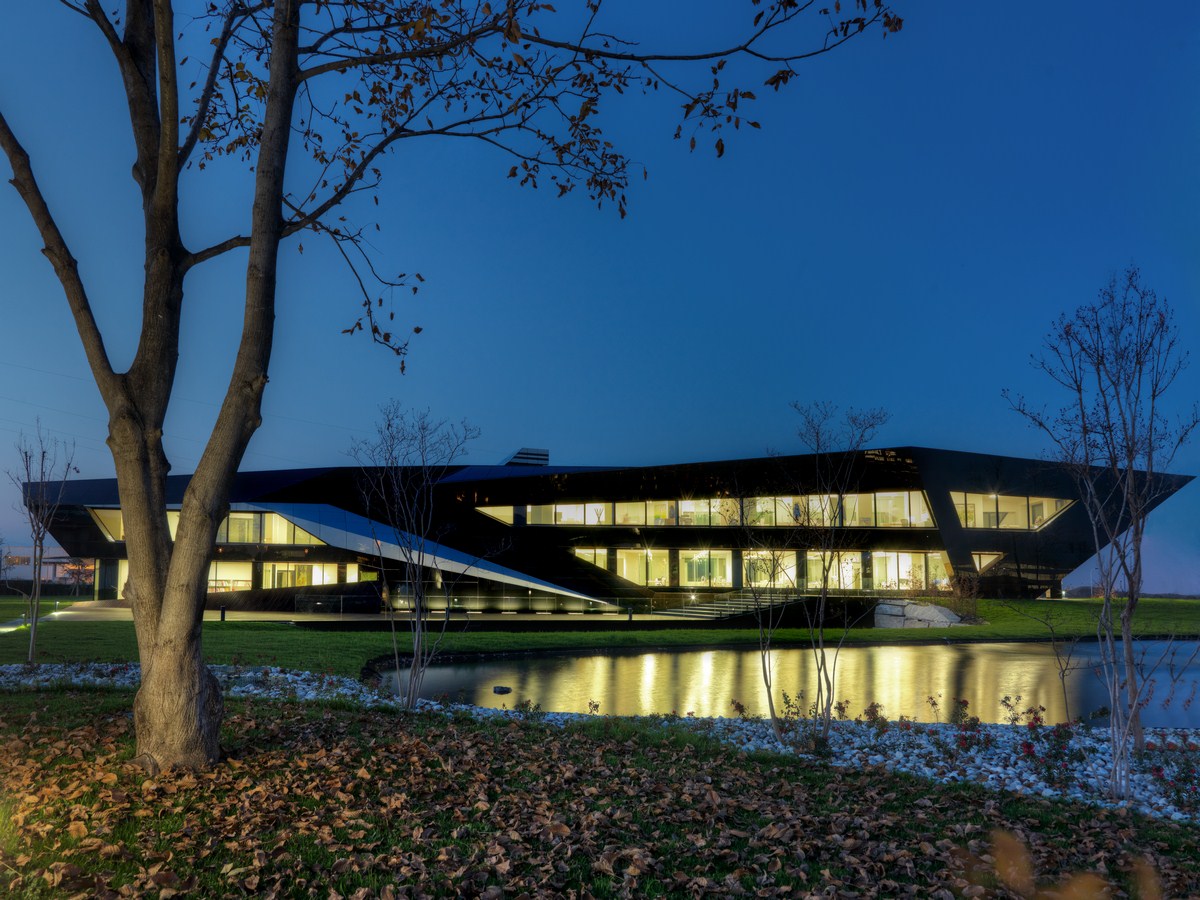

Oficina Vidre Negre By Damilano Studio Architects - Sheet2The dynamism of the client is shown in architecture, volume changing, a prism completely covered in black glass faceted and integrated photovoltaic panels. The structure is split reflected in the wide expanse of water over the stage function, is the reserve of water for fire-fighting system and irrigation of the park.

Eduwik- Online Courses for Architects & Designers

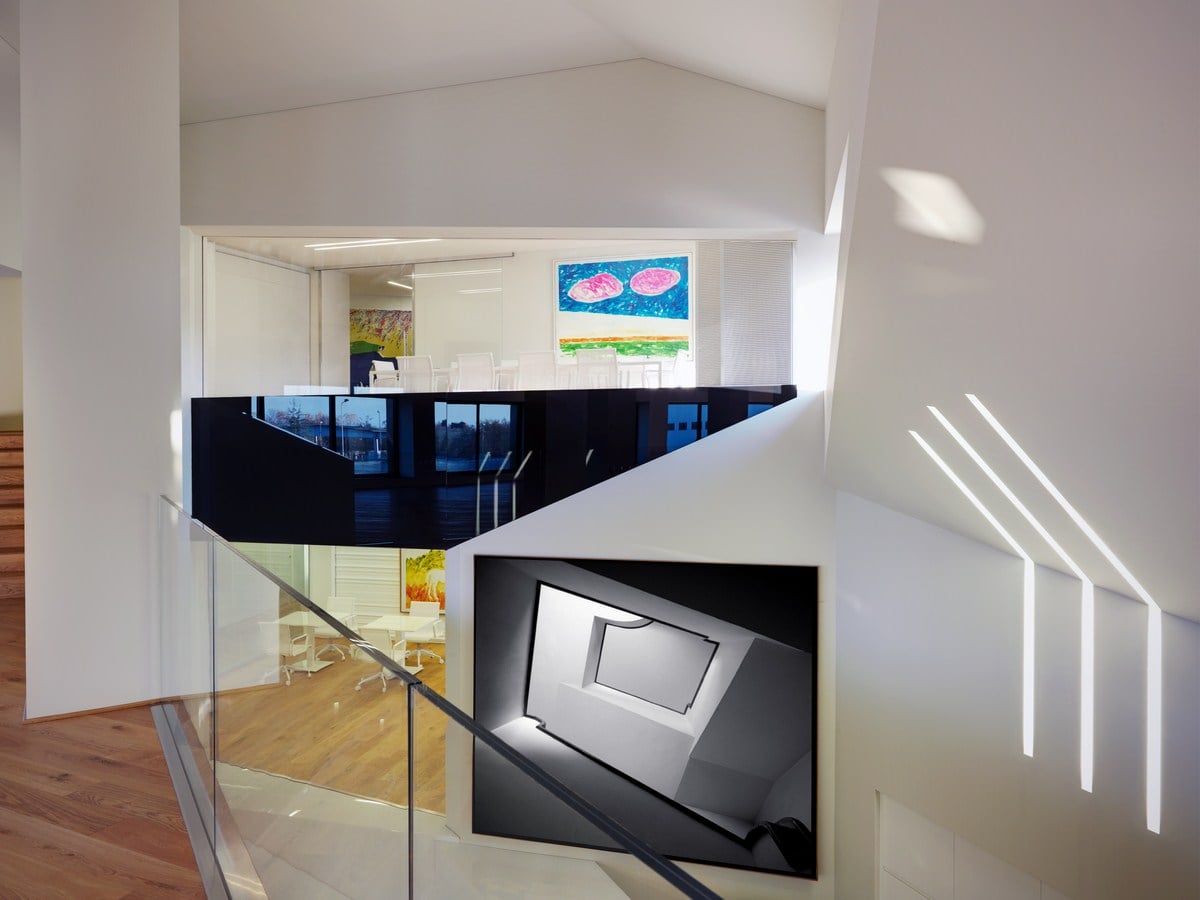

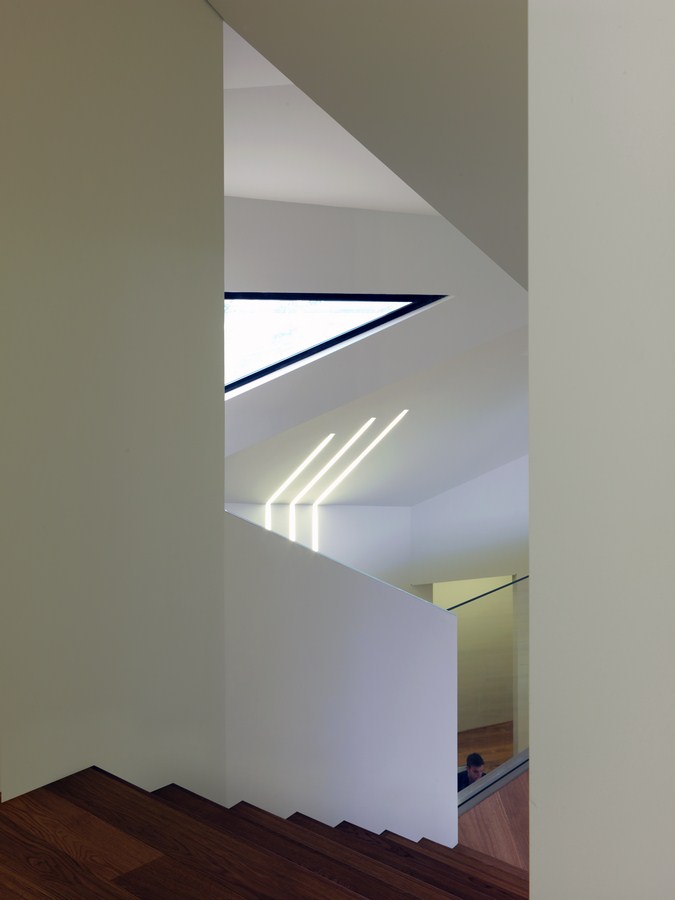

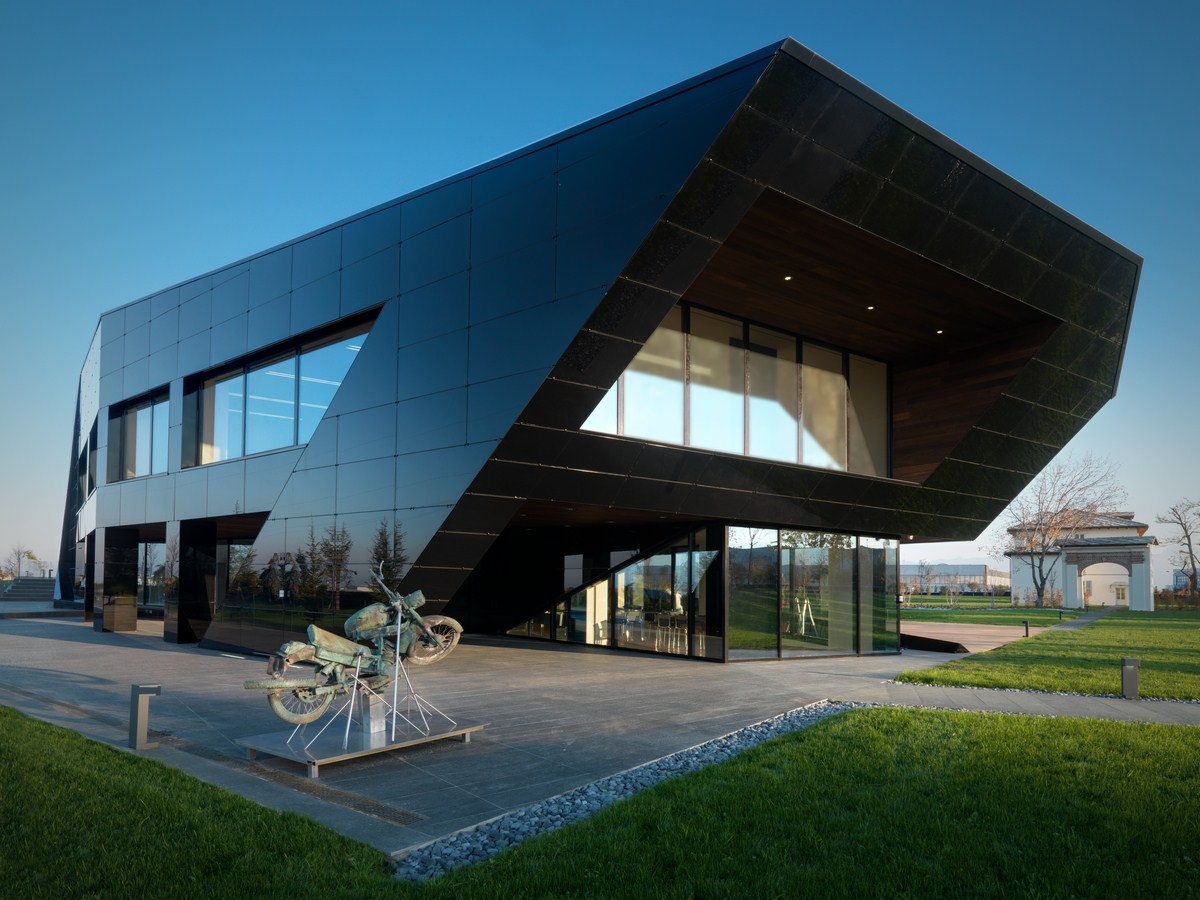

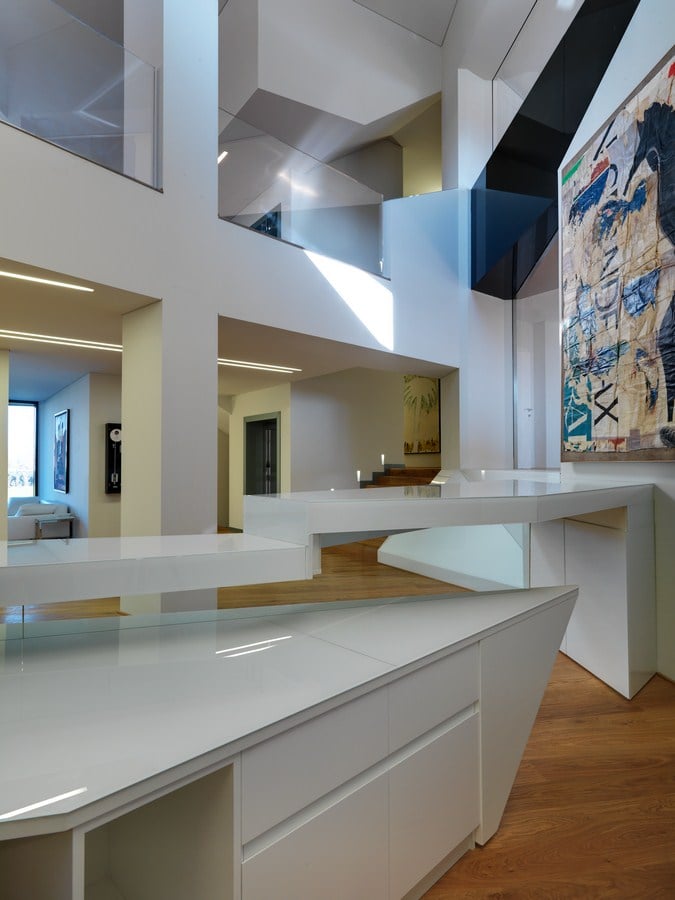

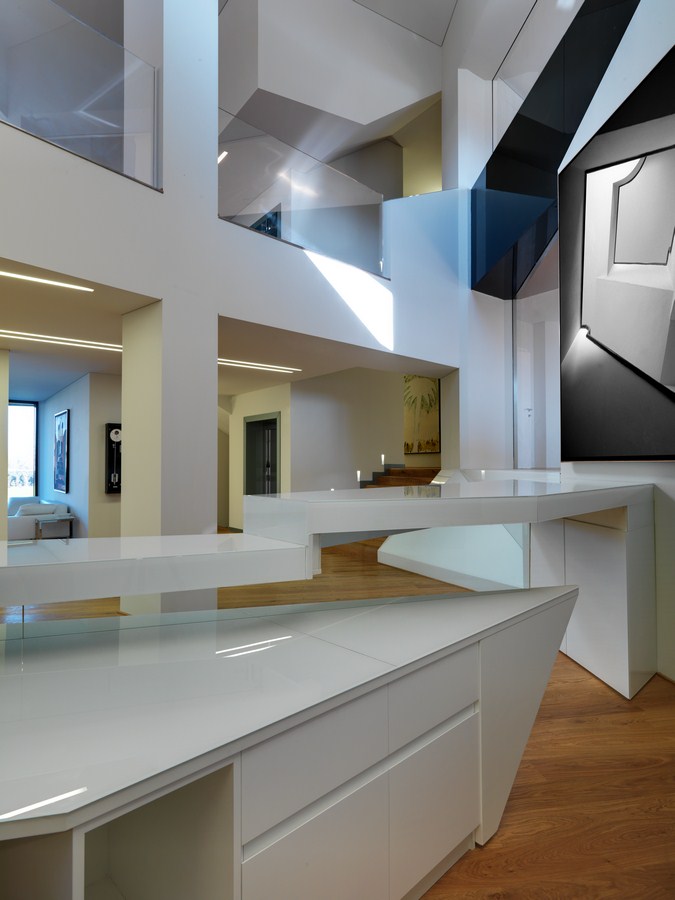

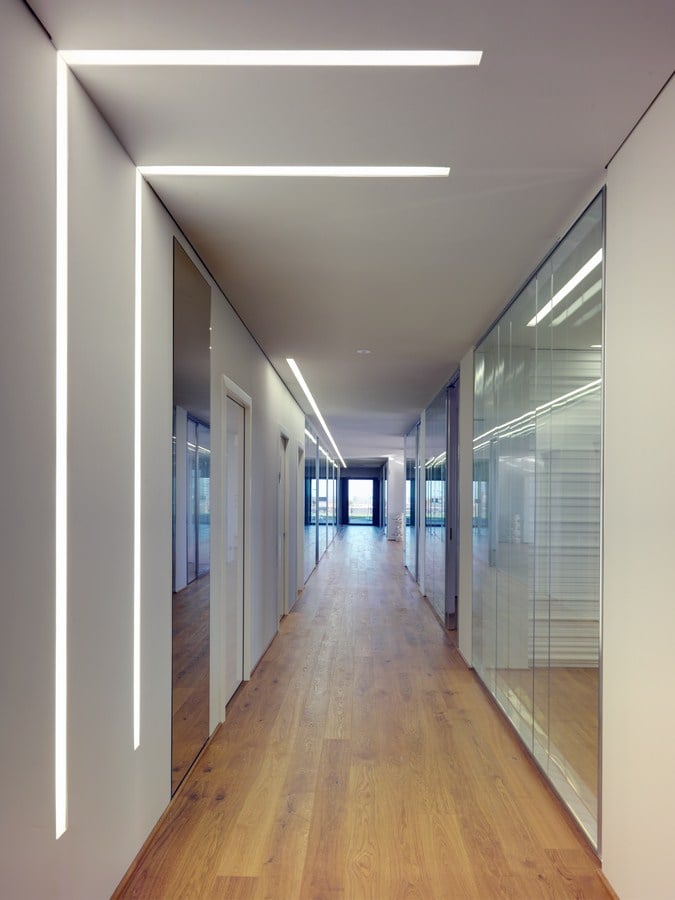

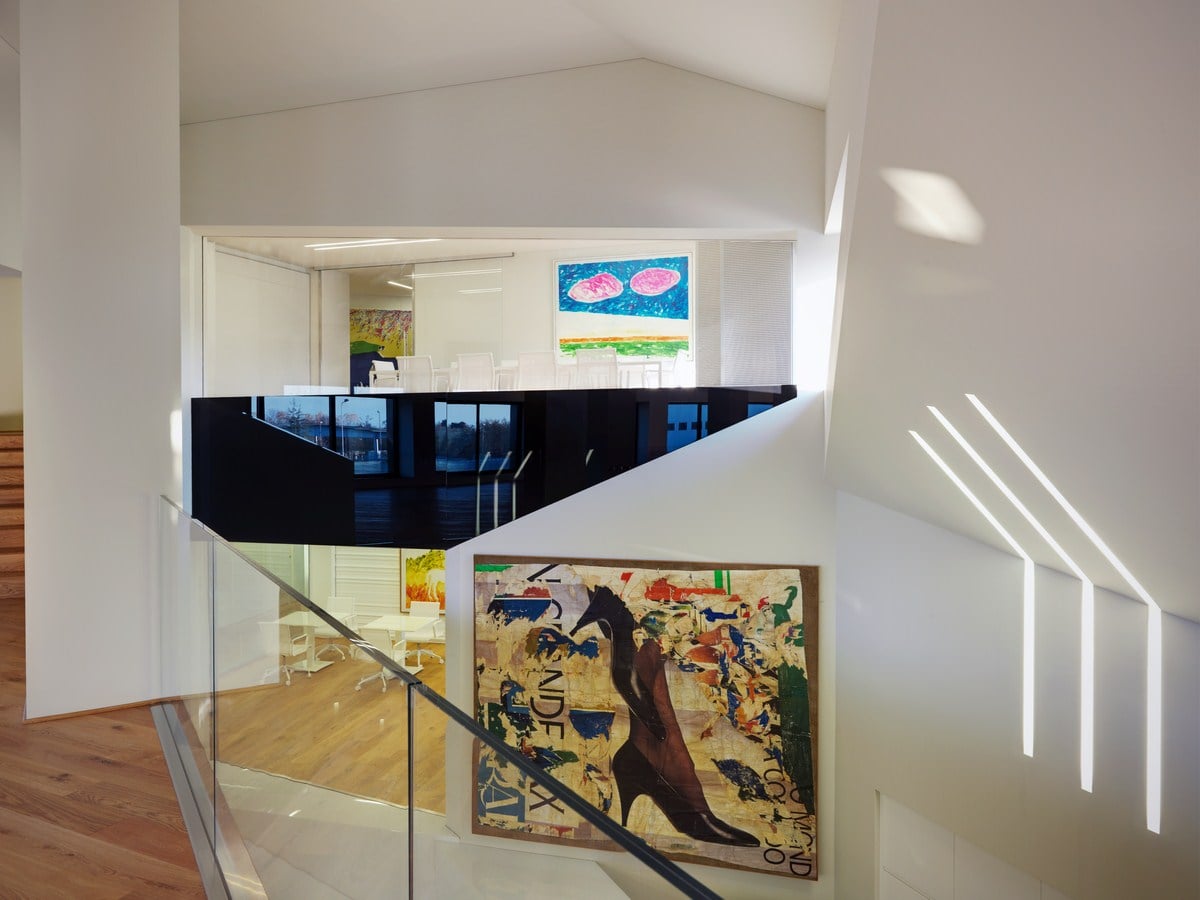

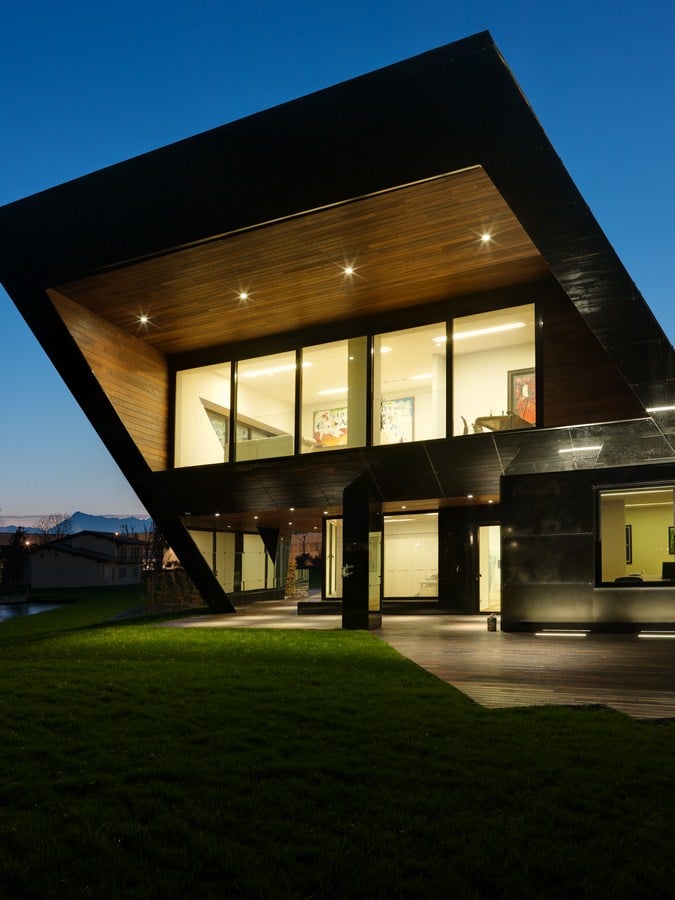

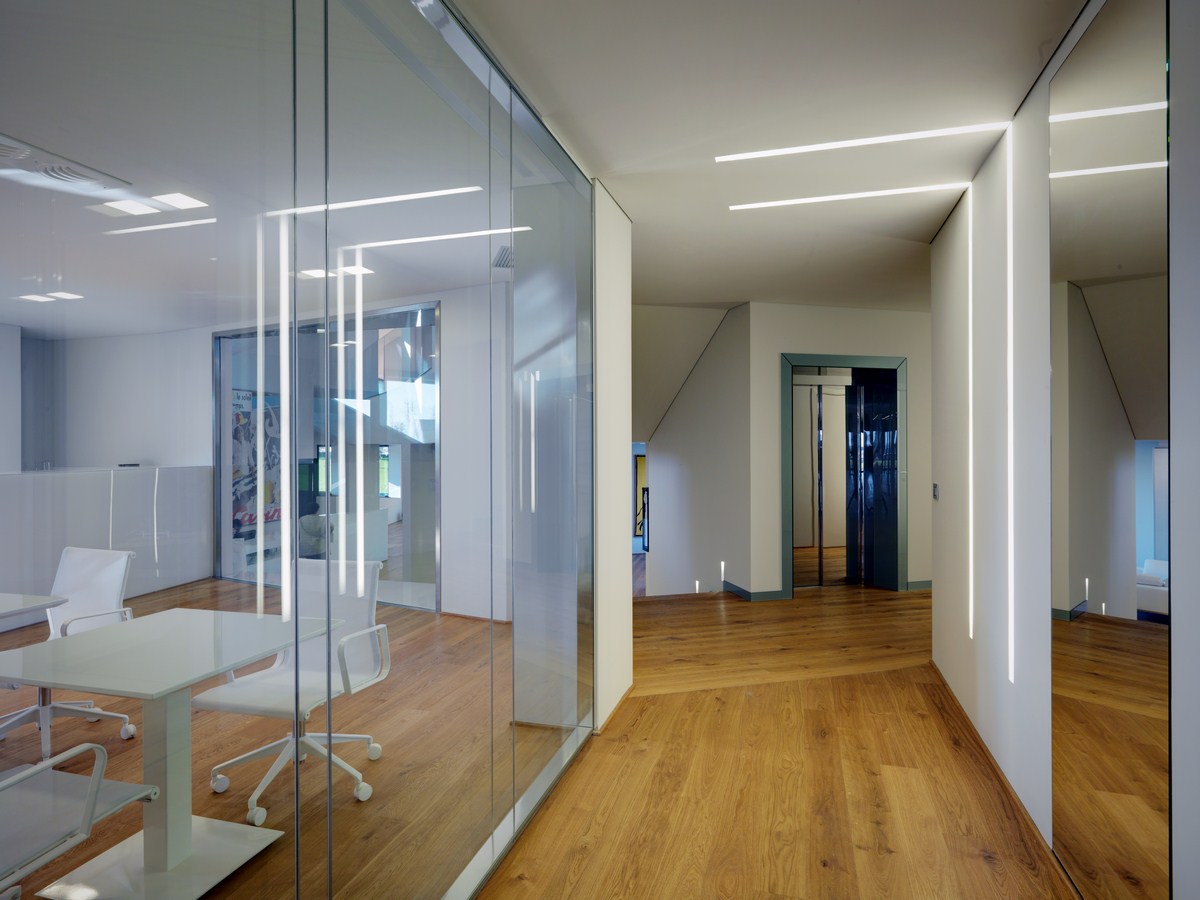

The decomposition of the volume remains in the interior, intersected a sequence of spaces on four staggered levels, illuminated by more than cuts and side windows. In plan the building is on the east-west, in two wings separated by a central block of facilities (stairs, toilets and bars). Operating areas are designed as open-space, while the executive offices, the private sector, are tested in the east of the building, projected to the outside and suspended in a vacuum.

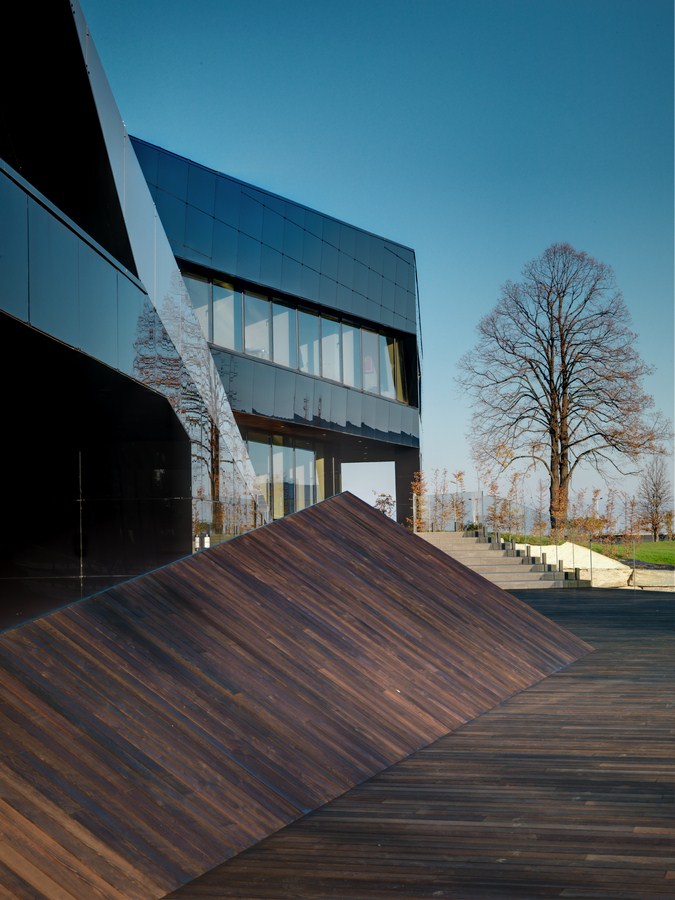

Oficina Vidre Negre By Damilano Studio Architects - Sheet5

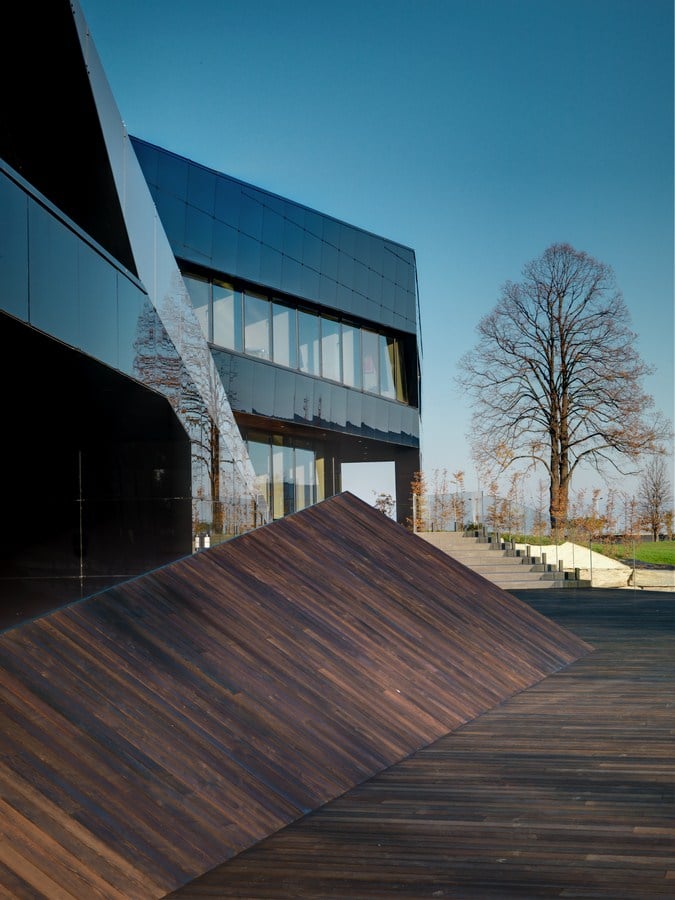

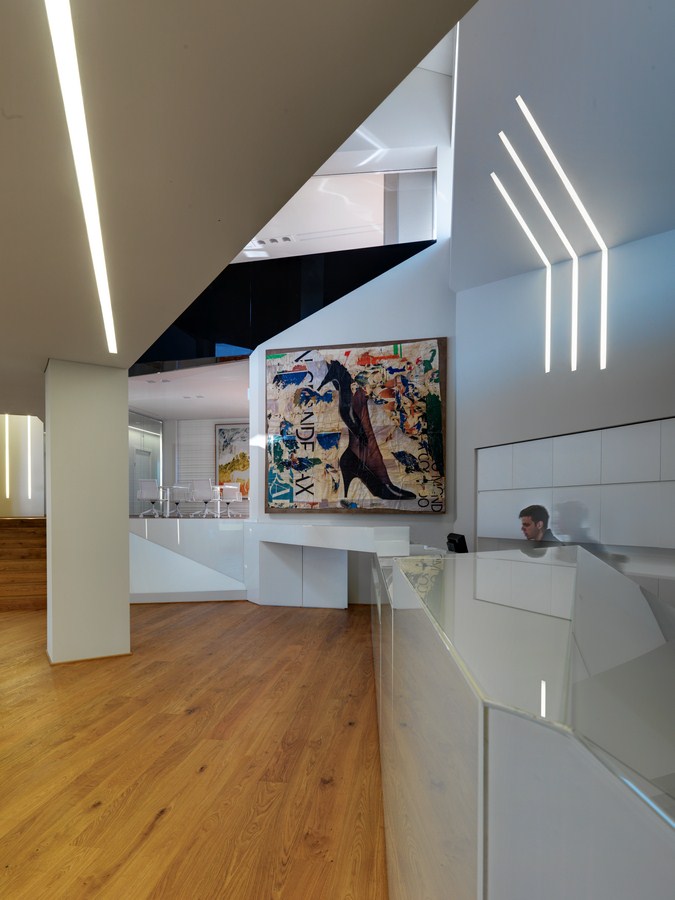

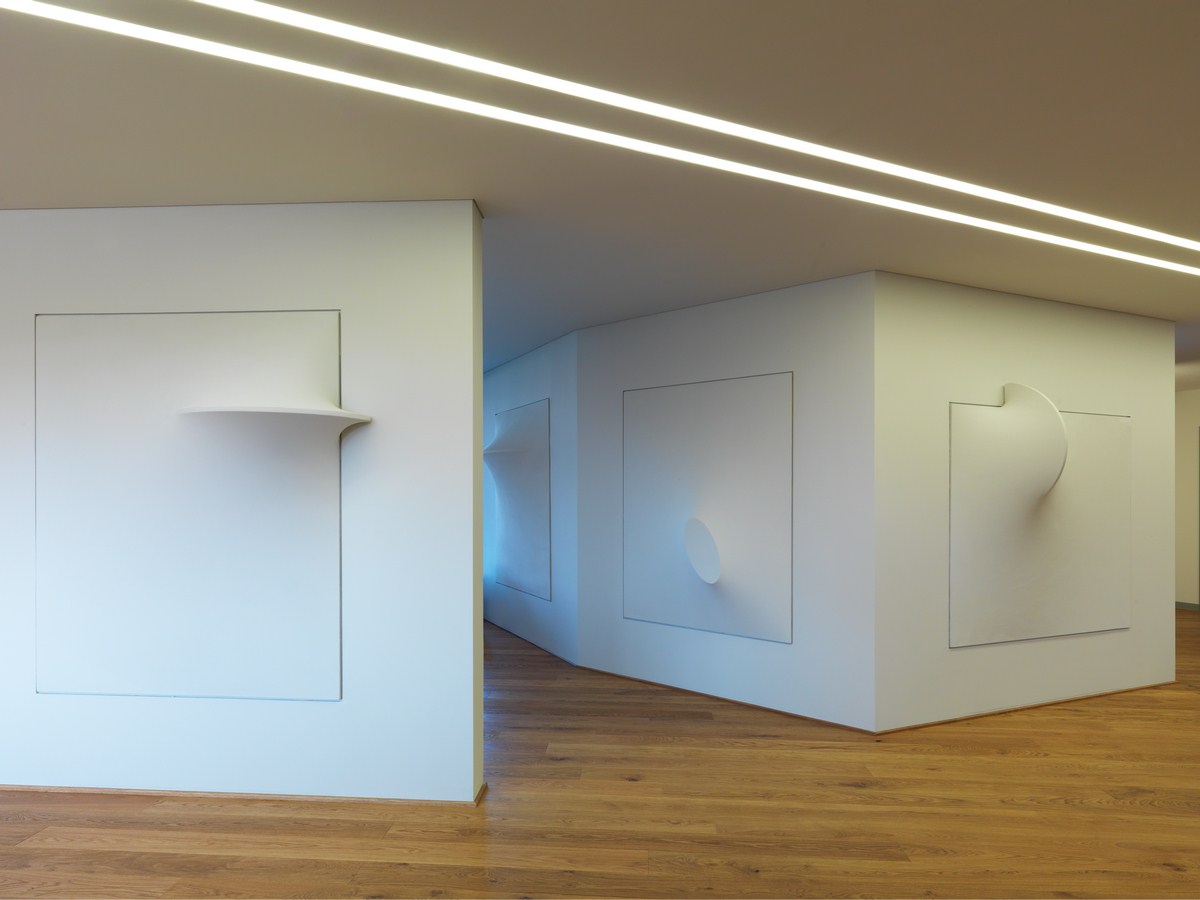

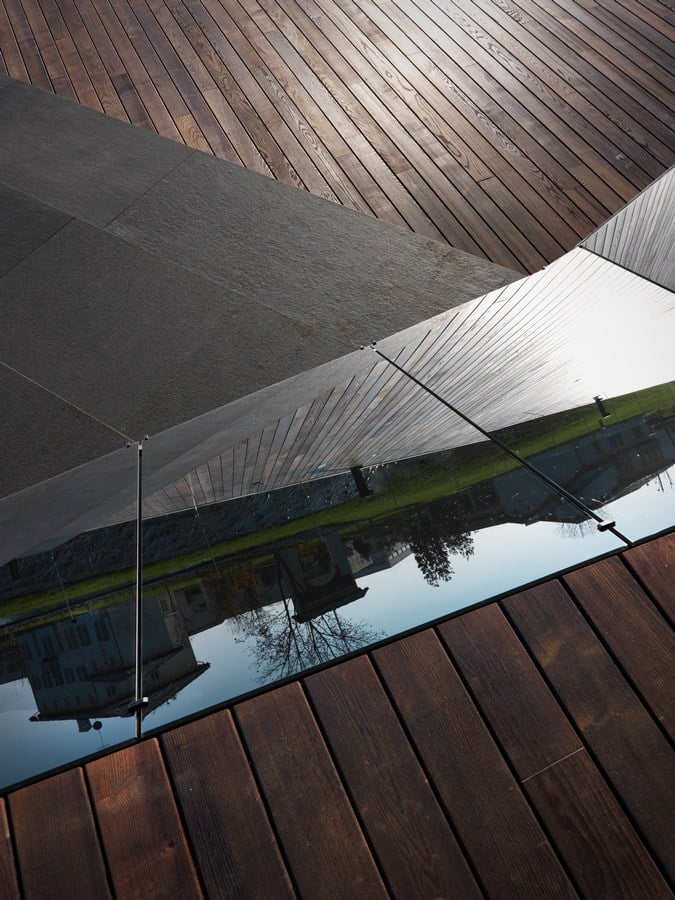

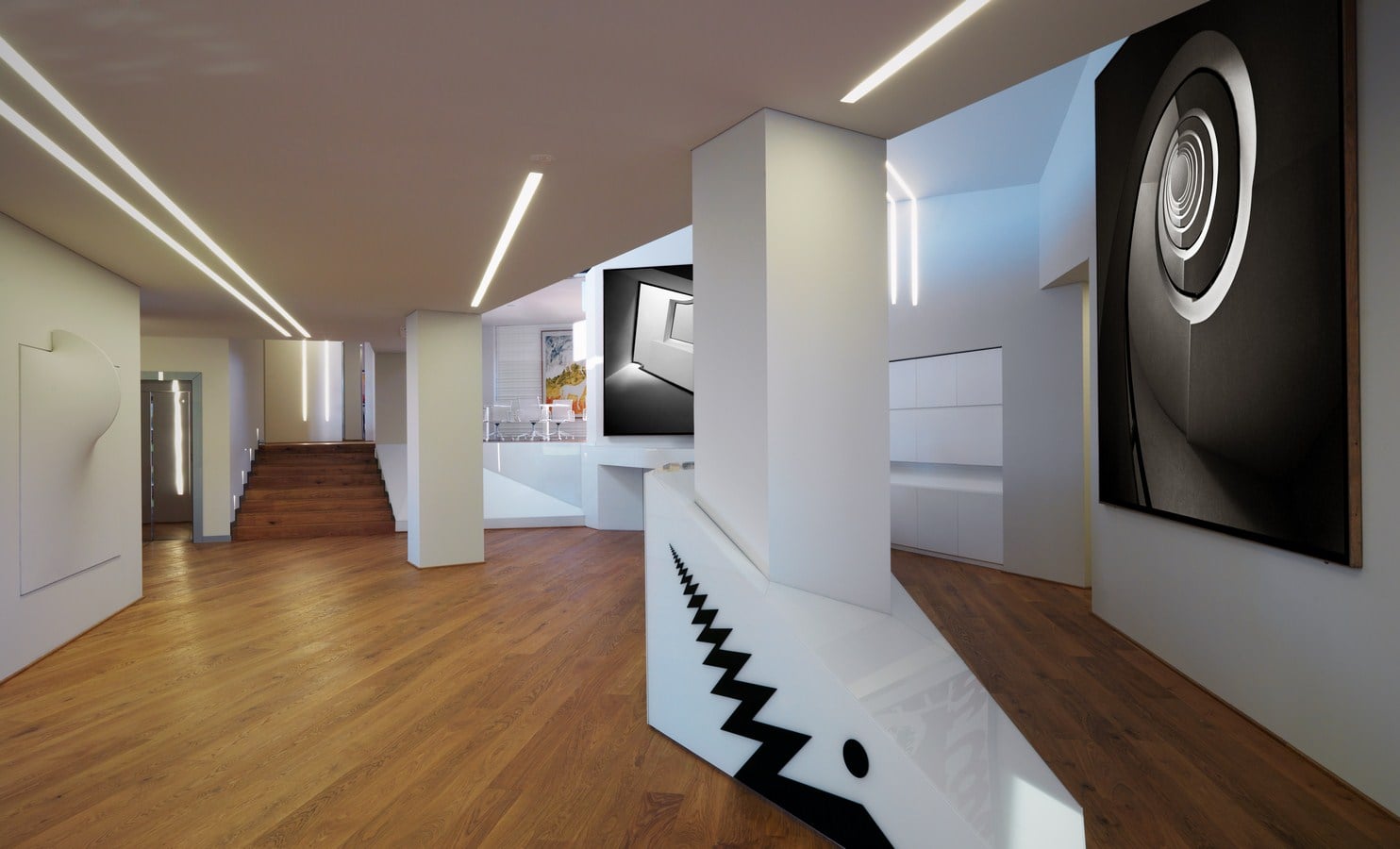

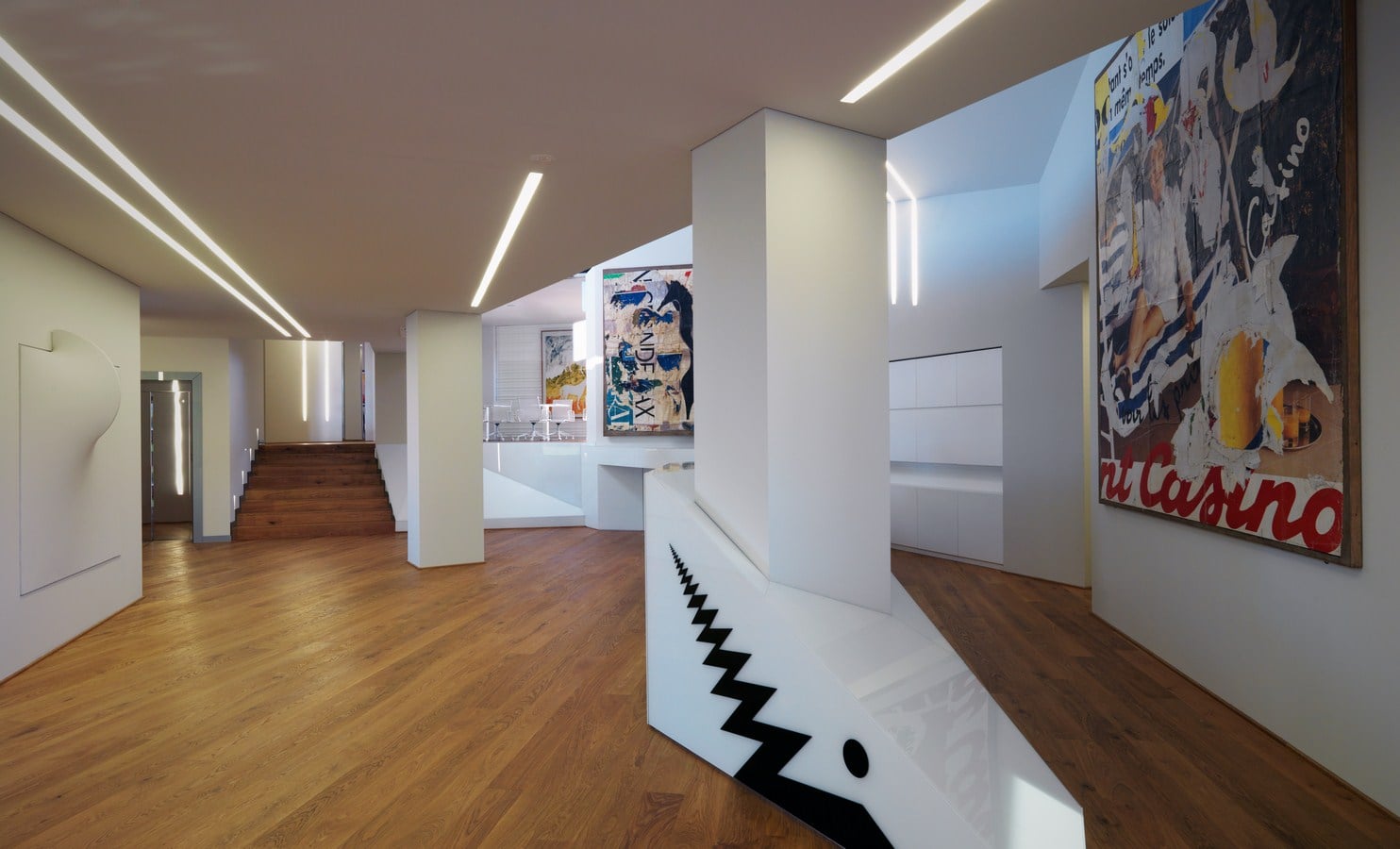

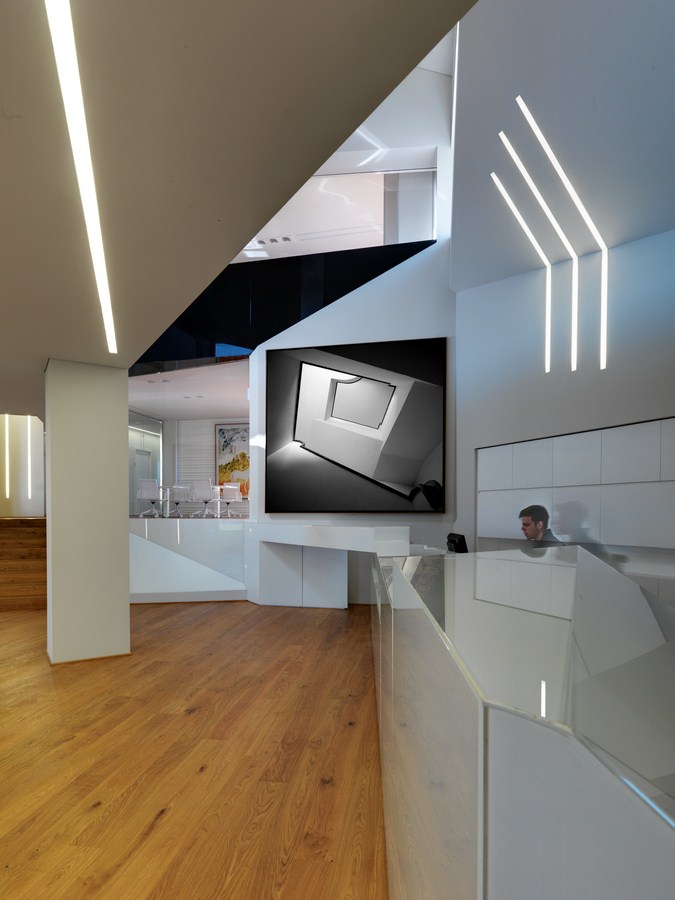

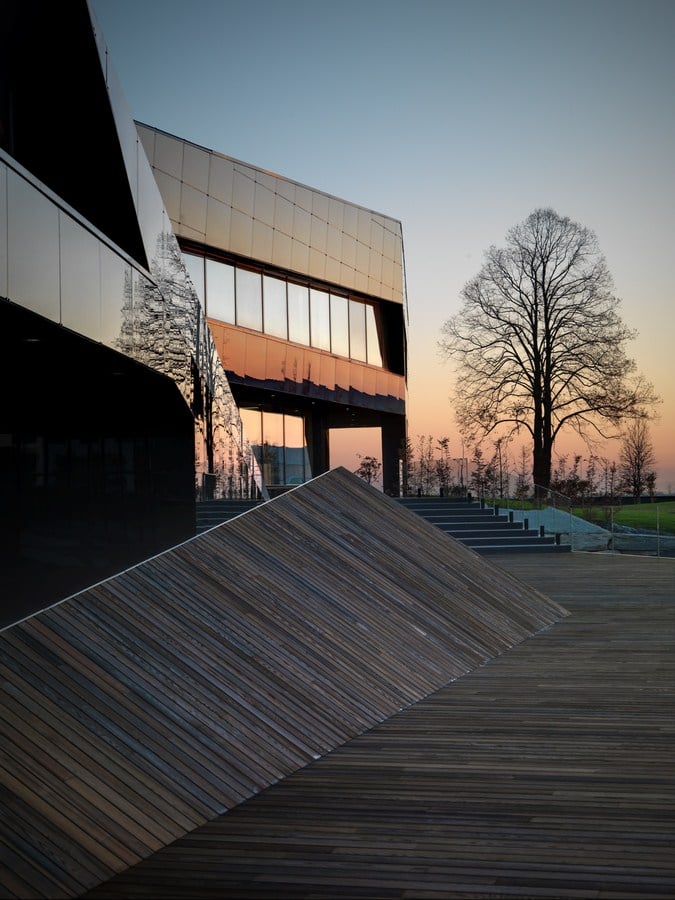

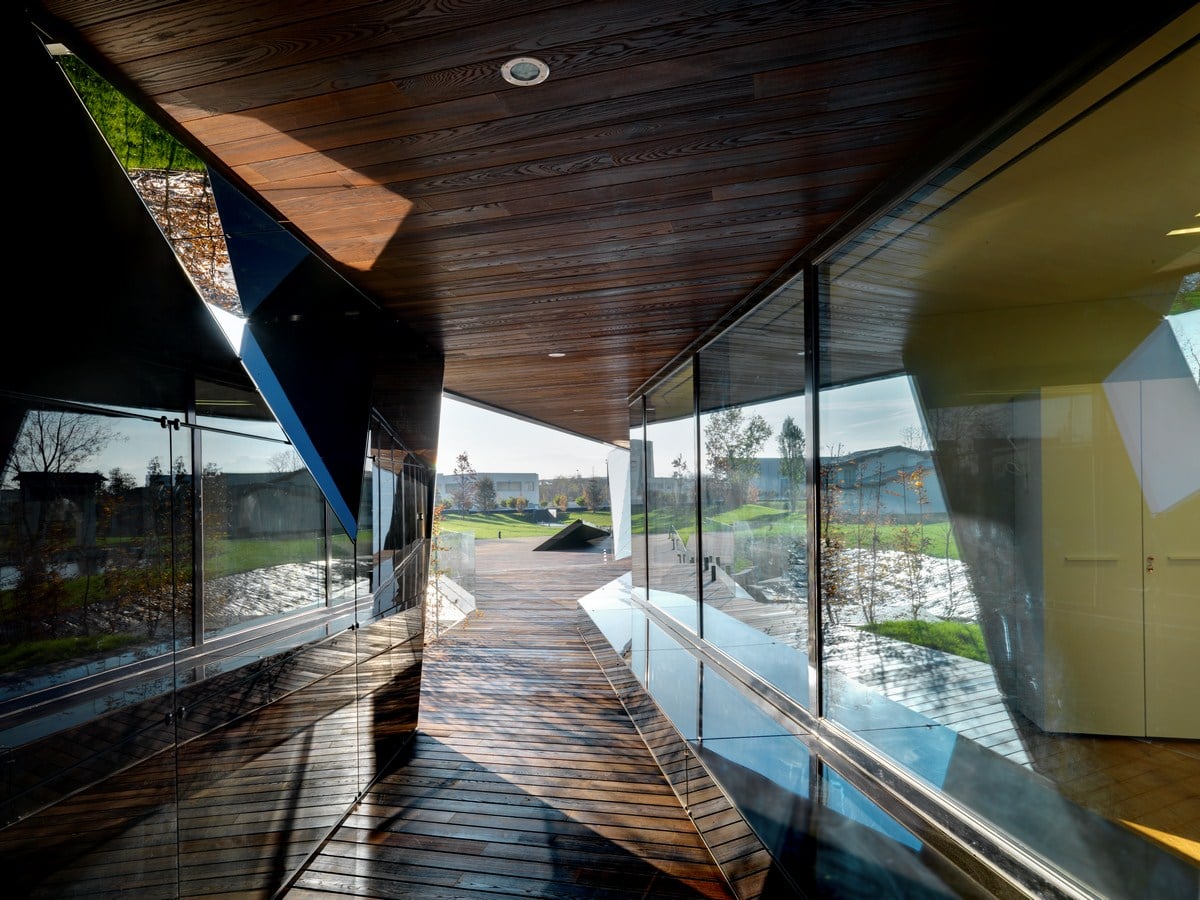

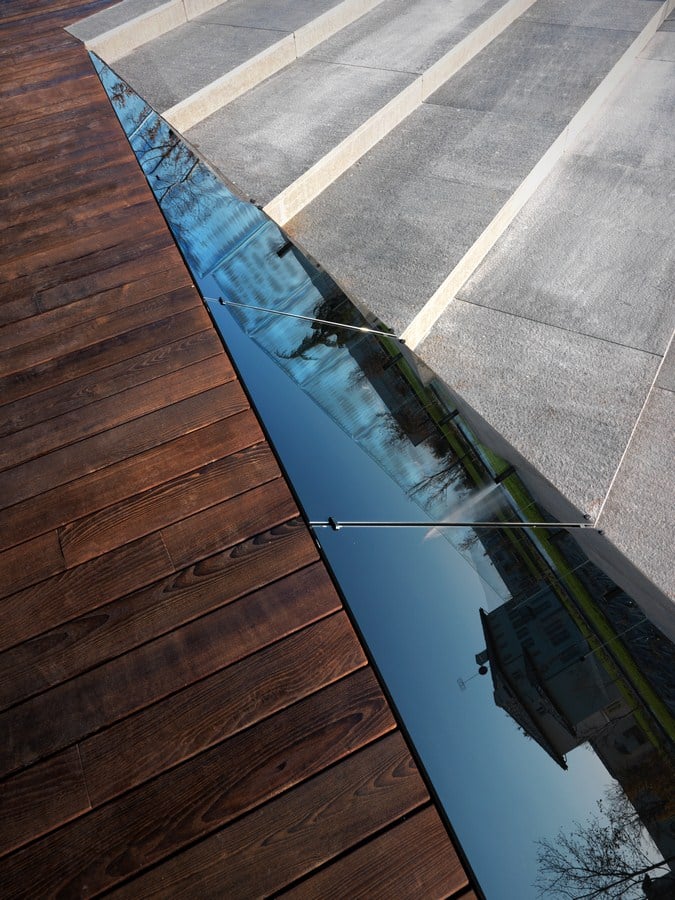

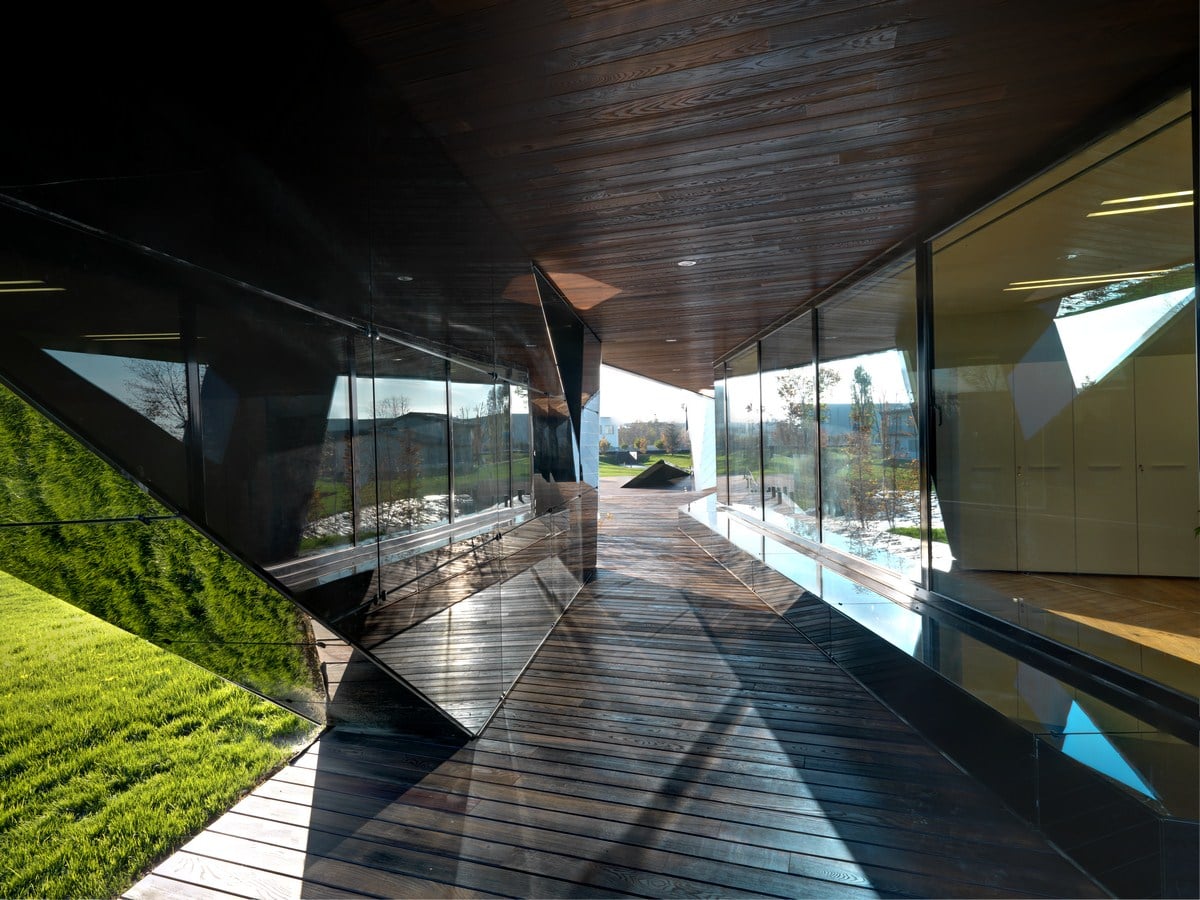

The basement, with conference rooms and parking spaces are lit by large windows to which the green is sucked into chasms of ballast contained in rocks. Inside solid oak flooring Reception desk of Damilanostudio design architects. In external floors and ceilings in oak cooked in an autoclave, vietnam black stone floors with large plates of extra-clear glass railings.

Eduwik- Online Courses for Architects & Designers

The entire structure is of type point with beams and reinforced concrete pillars brick and cladding.

Building components and systems provide the Class A classification, according to the main guidelines outlined in the DCR 98-1247 as amended by D.G.R. 46-11968 of 04.08.2009 and the Regional Law No. 13 of May 28, 2007 as amended by DGR 45-11967 of 8.4.2009.

To ensure maximum energy savings is provided a heating system with centralized systems of distribution areas, a low temperature heating system with radiant floor system and roof, installing a water-water heat pump performance to meet as provided in Annex 4 of the DCR 98-1247 with C.O.P. (Coefficient of performance) ≥ 4, a primary air exchange system with heat recovery efficiency of recovery characterized by greater than 50%, as prescribed in the scheme of 2N DCR 98-1247.

Eduwik- Online Courses for Architects & Designers

Oficina Vidre Negre By Damilano Studio Architects - Sheet6The heating and / or cooling of the various environments is assured of No. 4 HEAT PUMPS WATER-WATER type can provide a heating capacity of 39,300 watts each. for a potential total of 117,900 watts The exterior doors are made of aluminium with thermal break the system EKONAL AVANTIS 75 in the configuration with high thermal insulation SHI Super Insulated

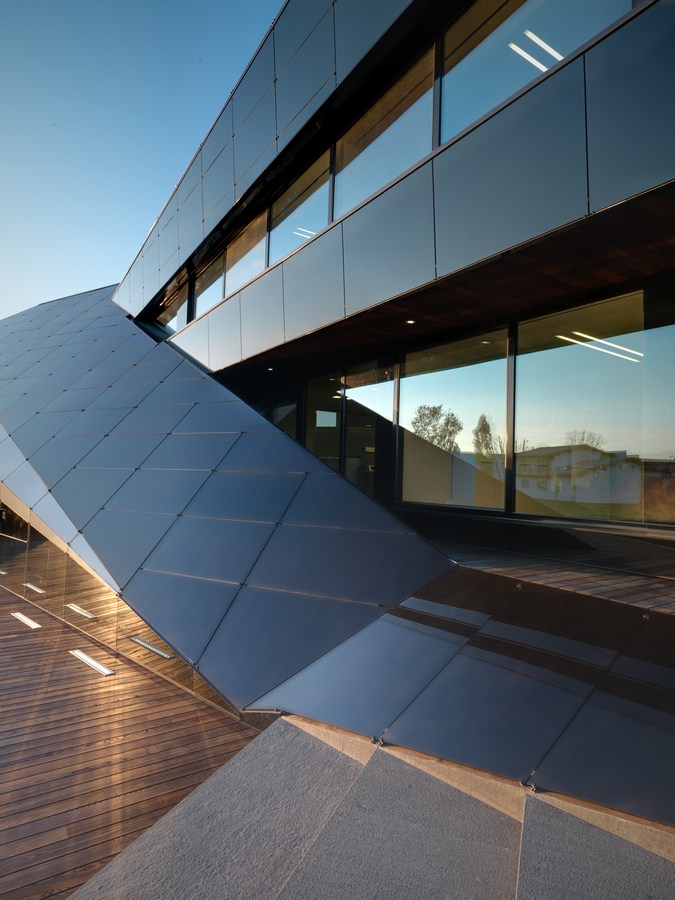

Oficina Vidre Negre By Damilano Studio Architects - Sheet8

The Insulating glass units are stratified Low Emissivity “Zeronove”
new concept, with thermal transmittance value Ug = 0.9 W / mqK

Eduwik- Online Courses for Architects & Designers

Composition windows:

4 +4 mm laminated outer pane low-emissivity
Cavity 16 mm warm edge insulated duct with Argon Gas
4 +4 mm laminated inner pane low-e *

Suppliers

Eduwik- Online Courses for Architects & Designers

Construction Company
Ko.Ji. Srl (工事)_ 12100 IT

Interiors
Nuova Rekord_ 10040 IT
Sereno Arredamenti_ 12044 IT

Ceramic Tiles
Maes _ 12038 IT

Eduwik- Online Courses for Architects & Designers

Windows – Facade
Comet_12100 IT
AGC_12100 IT

Bathroom Equipments
Idroterm_12030 IT

Lighting
Ambiente _ 12100 IT

Eduwik- Online Courses for Architects & Designers

Doors
Ferrero Legno _ 12060 IT

Hydraulics
Tranchero_ 12013 IT

Electric
Silo_ 12100 IT

Eduwik- Online Courses for Architects & Designers

Insulation
CTI Isolare _ 10099 IT

Plasterboards
Bertero _ 10044 IT

Stone
Marmi & Pietre Point _ 12100 IT

Eduwik- Online Courses for Architects & Designers

Sheaths
Gerbaudo _ 12038 IT

Steel and iron
Mondino_ 12100 IT

Landscape
Provini_ 12100 IT


TEAM PROFILE

Duilio Damilano, graduated at Polytechnic of Turin in 1988, founded his architectural firm in 1990. He was born in Cuneo from a family of sculptors and he was interested in architecture since he was a child developing interest in plastic and material aspects of objects.

The work of the practice, according to critic Brunetto De Battè, breaks immediately the connection with the masters of Piedmont area standing out and develops two lines of architectural composition that almost negate each other. On one side the clarity and purity of signs in stately homes and on the other side the sperimental forms of its commercial and industrial buildings. These are two opposite lines of research, sometimes strident each other, that seem not to destabilize the architect and who live and feed off each bringing out three interpretations of the works suggested by the architect Luigi Prestinenza Puglisi, one of the most important italian architecture critics: the symbolic, the sculptural and the emotional.

Major areas of interest of Damilanostudio architects are the design of residential, offices, commercial, and graphic both in Italy and abroad.
