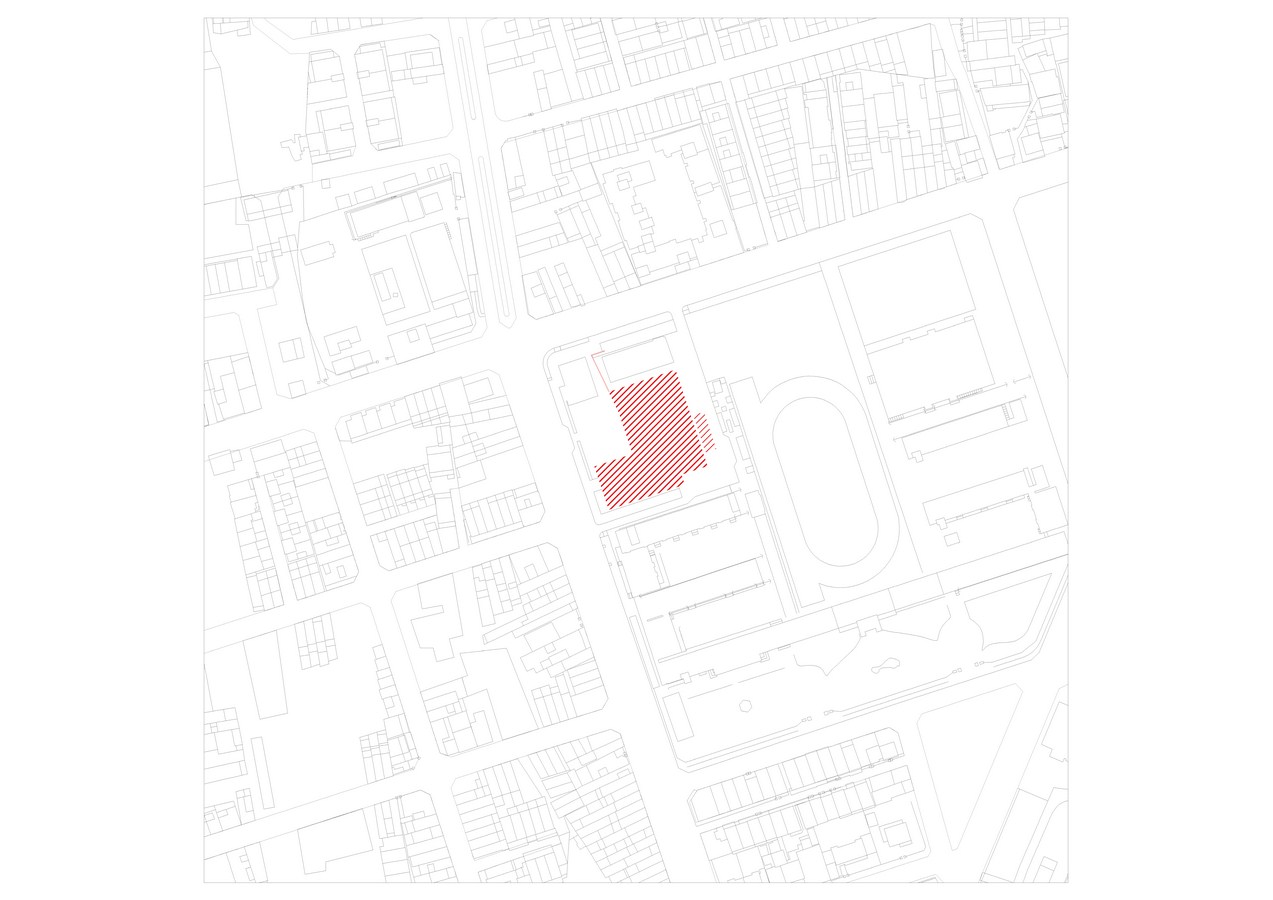

Beigang Township is the epicenter for the Taiwanese worshipping of Mazu, a Chinese sea goddess. Therefore, the Beigang Chao-Tien Temple for Mazu and its surrounding form a core area with local historic significance. However, Beigang as well as other cities in the western plain of Taiwan faces the same suburban sprawl, exacerbated by disorderly building development resulting from the lack of a cohesive planning guidance. The project site itself is located at the northwestern corner of the 90-years-old Bei-Chen Elementary School campus, sitting right on the axis of the sprawling expansion.

Design Firm: MAYU architects
Architect: Malone Chang, Yu-lin Chen
Client: Yunlin County Government\
Location: Yunlin, Taiwan
Program(Use): Music auditorium, Exhibition
Project Team:  Malone Chang, Yu-lin Chen (Architects), Ya-yun Wang, Pin-min Huang (SD, DD, CD), Shi-hong Yao (CA)
Structural Engineer: Li-Yen Wang Structural Engineers Associates
Site Area: 7652 m2
Building Area: 2053 m2
Total Floor Area: 2918 m2
Stories: 2
Structure: Reinforced Concrete
Finish (Exterior): Stucco, Granite, Low-E Glass
Finish (Interior): Oak veneer wall and ceiling panel, Oak floor, paint, Tiles, Linoleum Flooring
Interior Design: MAYU architects
Landscape Design: MAYU architects
Competition: 05/2012
Construction Start: 02/2014
Completion: 02/2015
Photographs:  Shawn Liu Studio (http://www.shawnliustudio.com/)
Address of the Firm:    3F-1, 10, Siwei 4th Road, Kaohsiung City, TAIWAN

Phone: 886-7-3389098
Fax: 886-7-3389600
Website: www.malonearch.com.tw

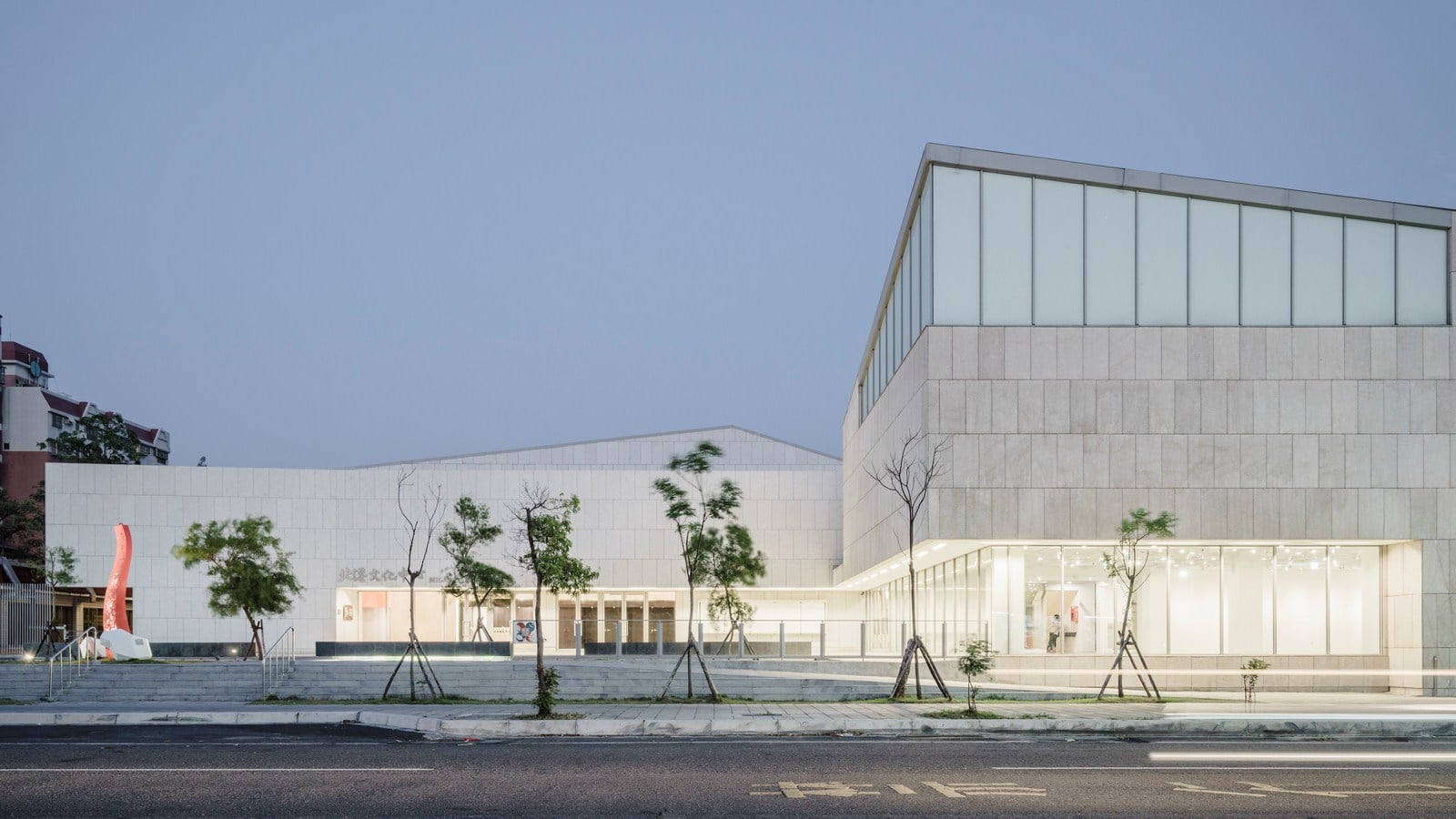

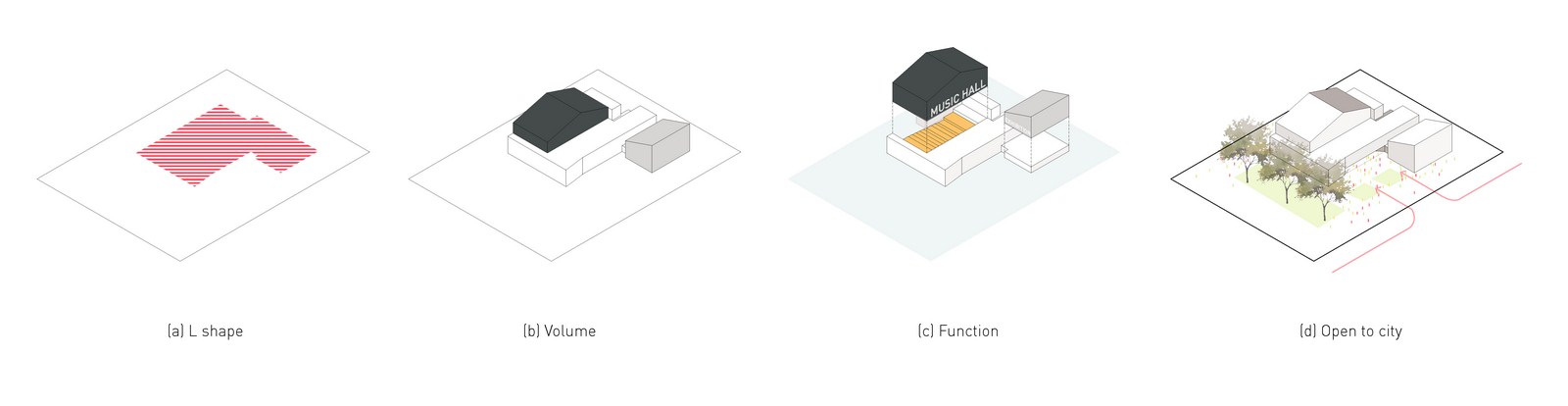

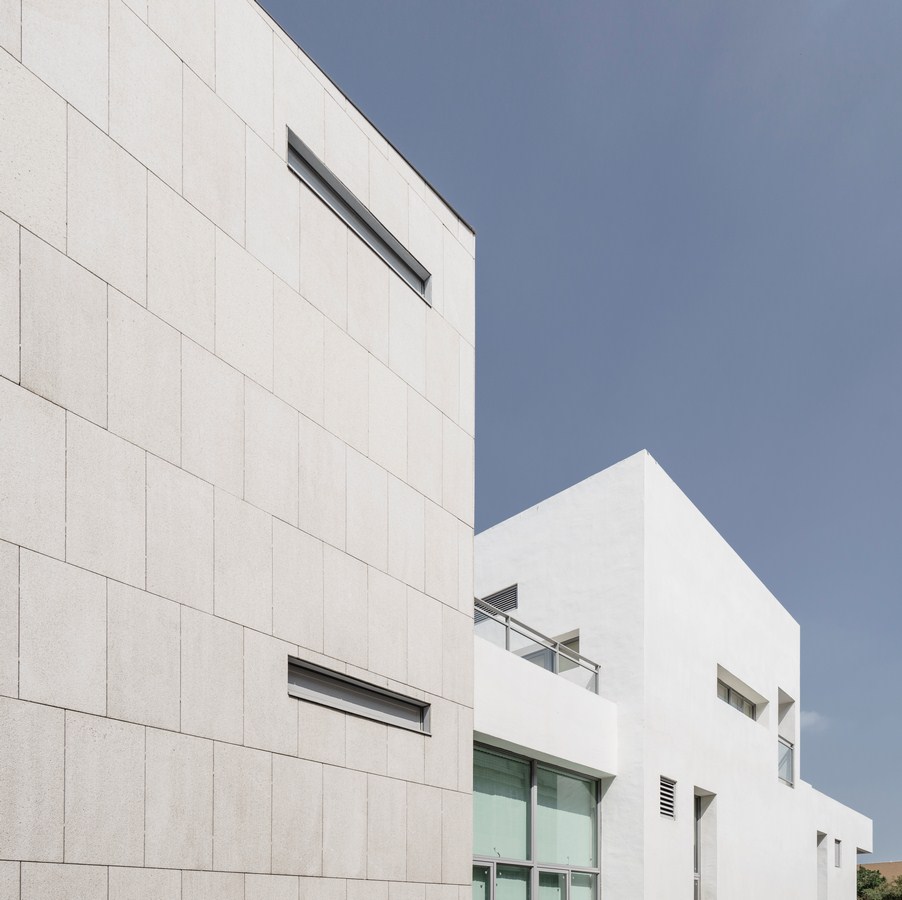

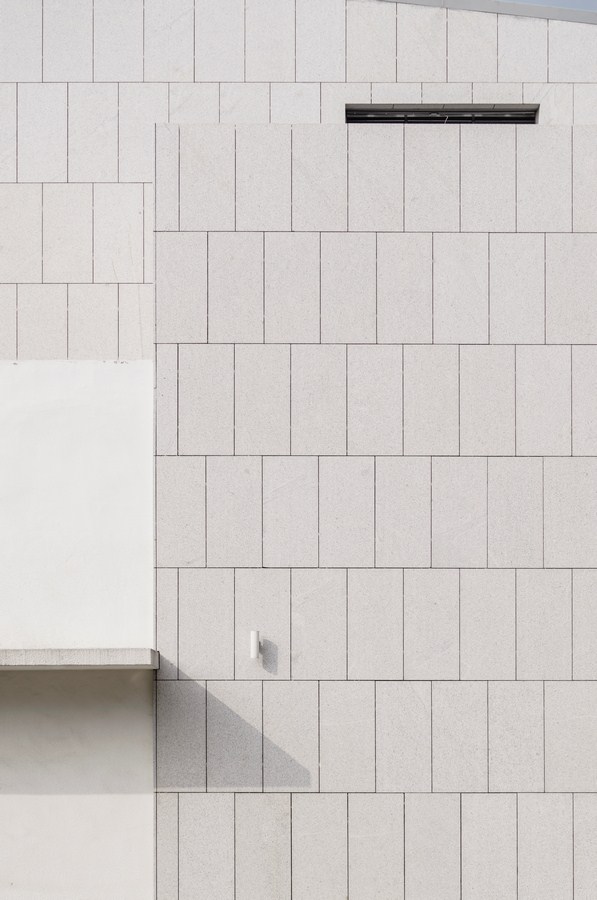

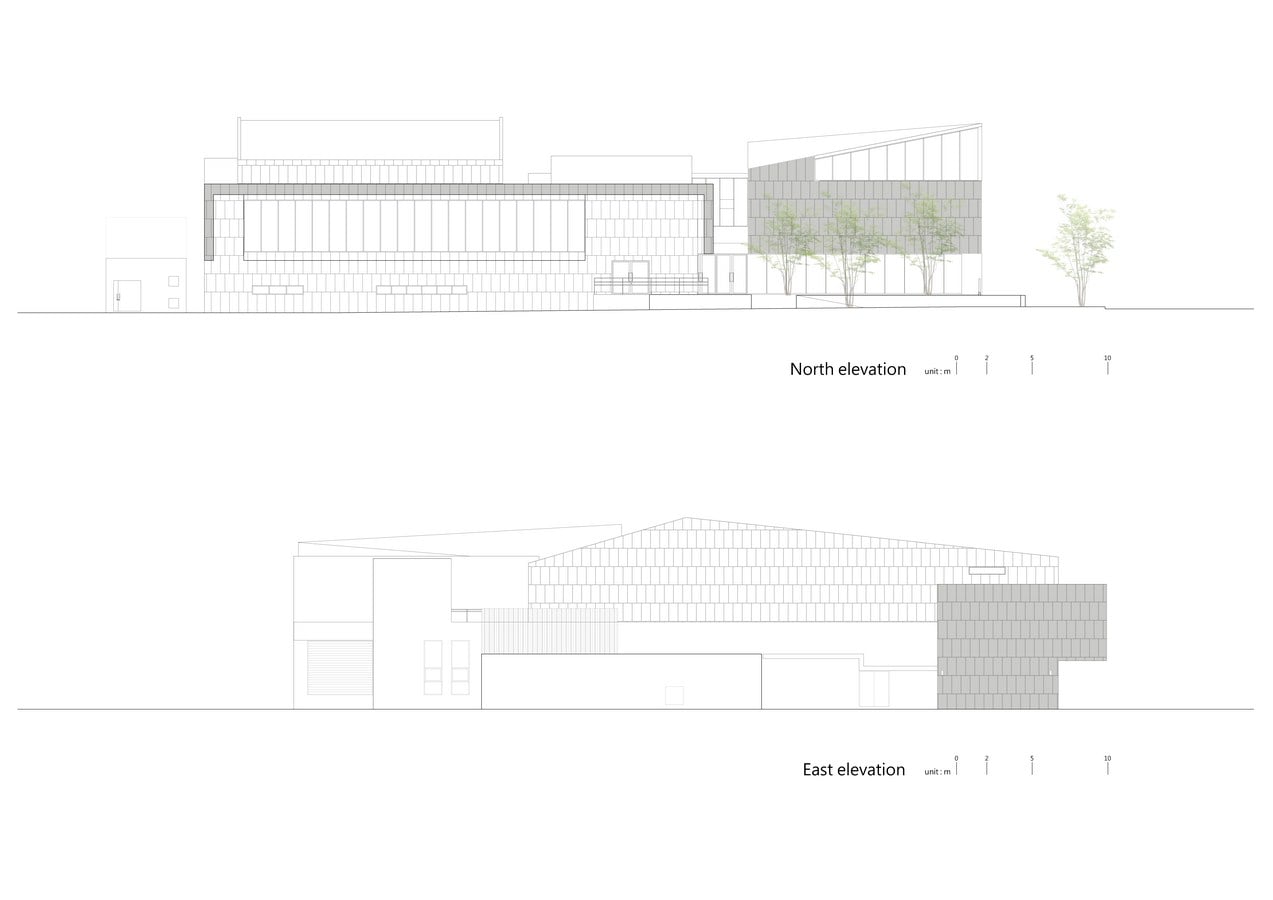

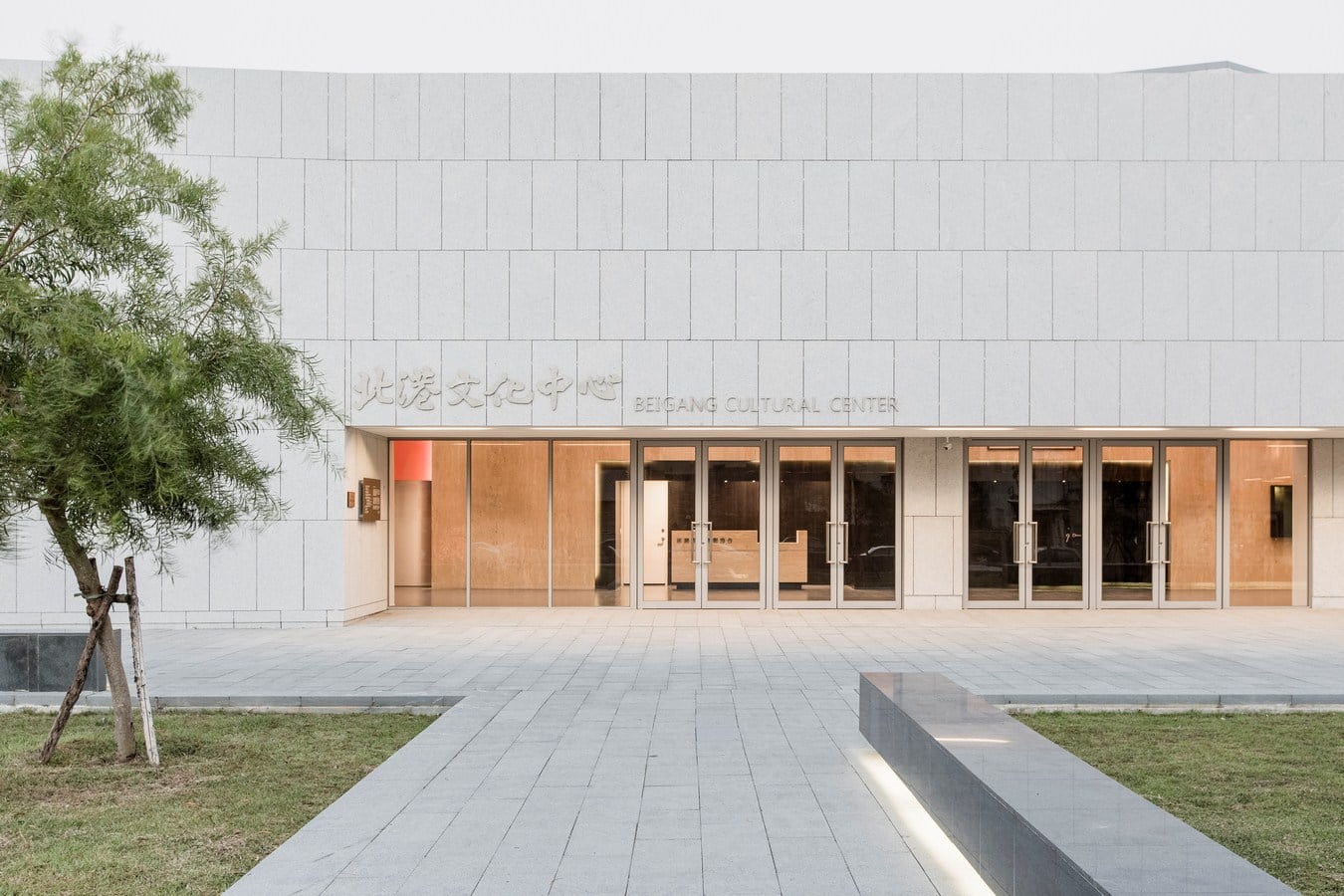

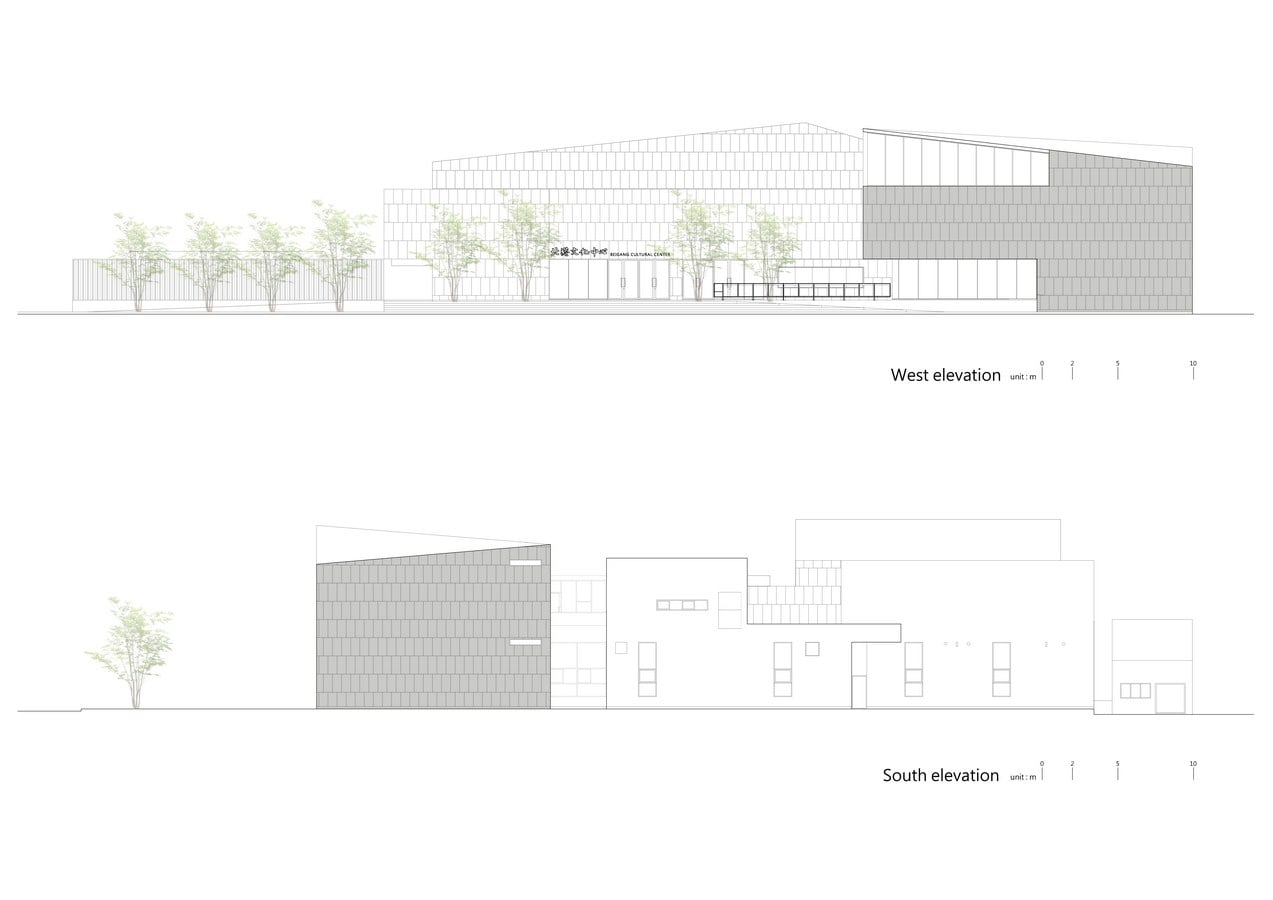

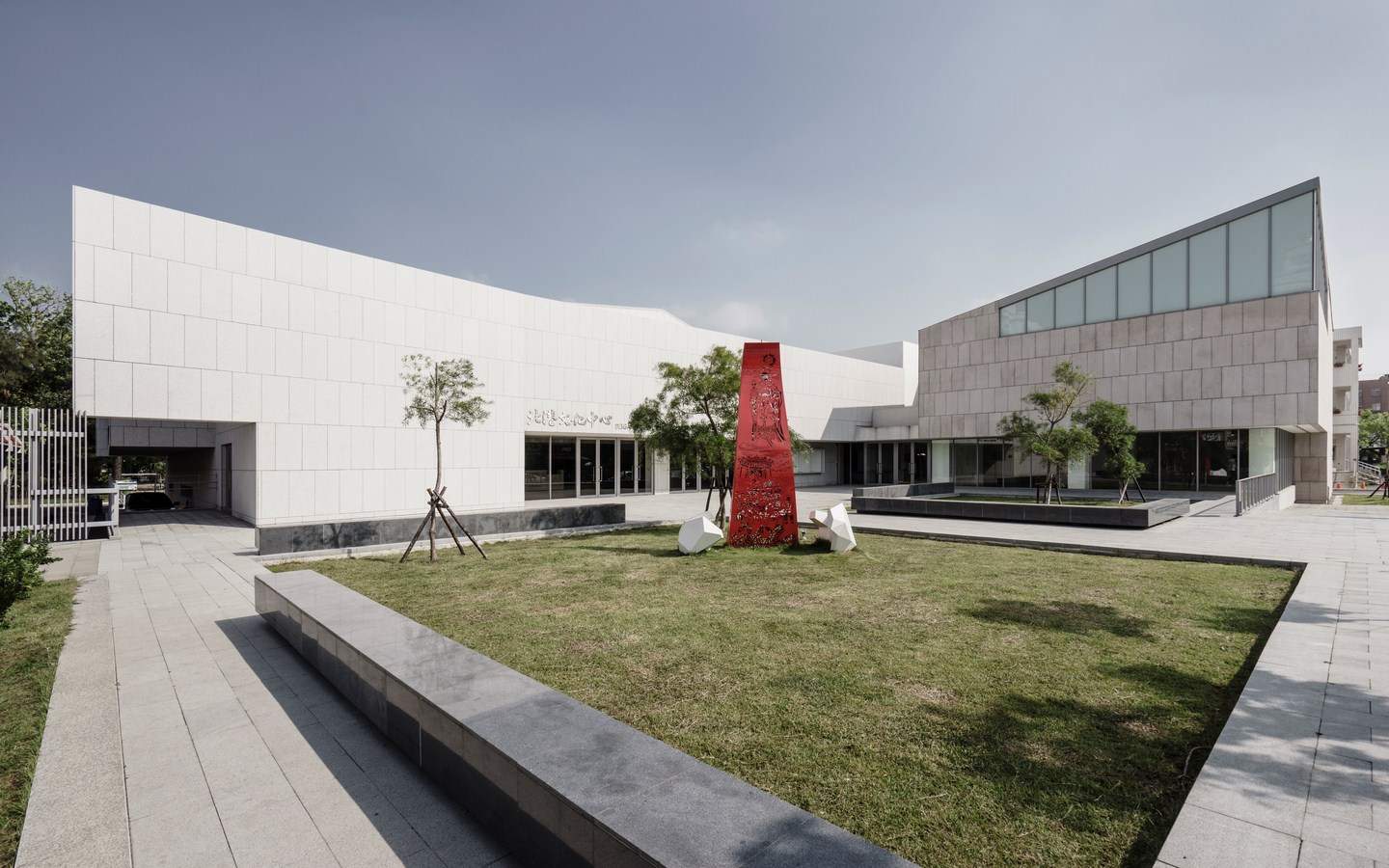

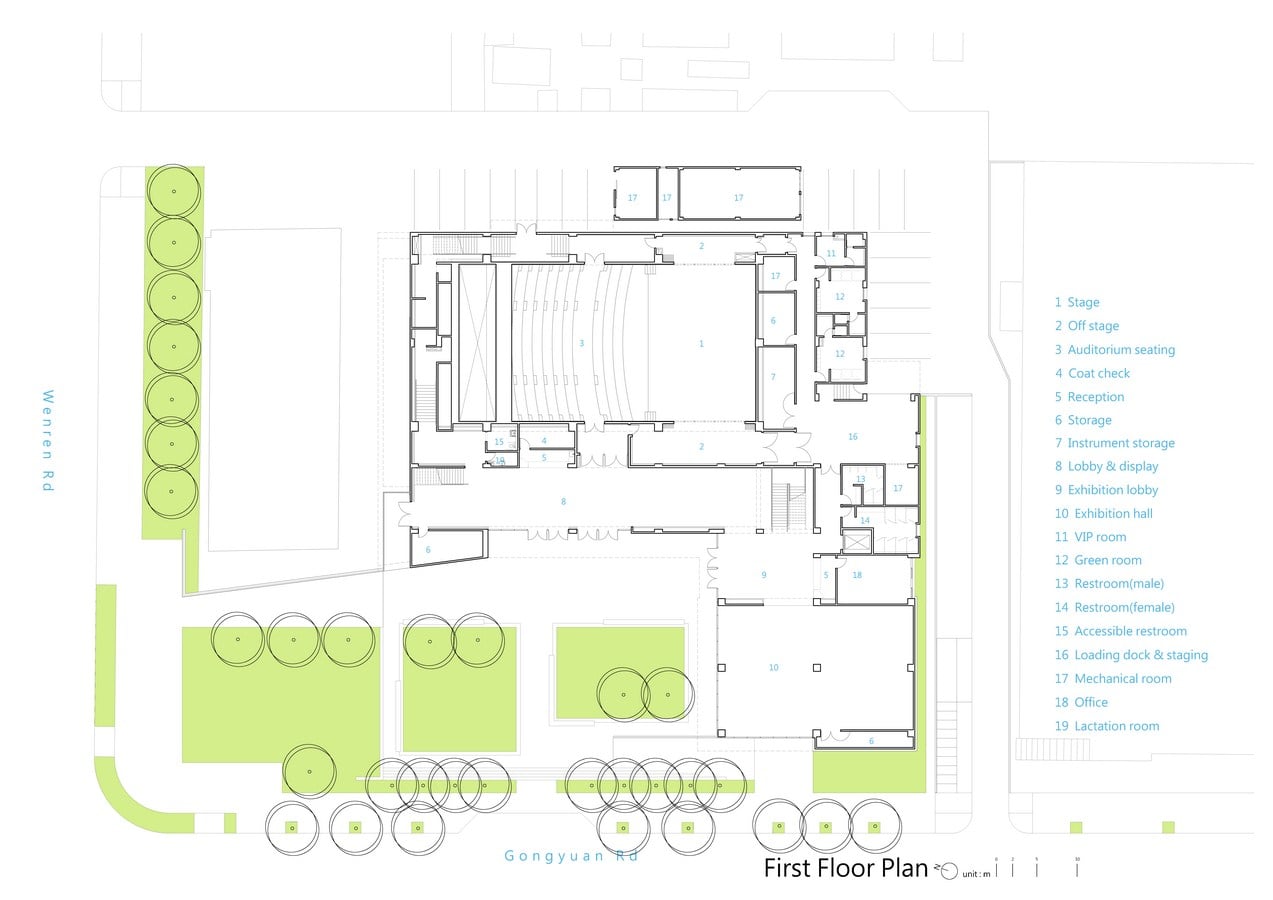

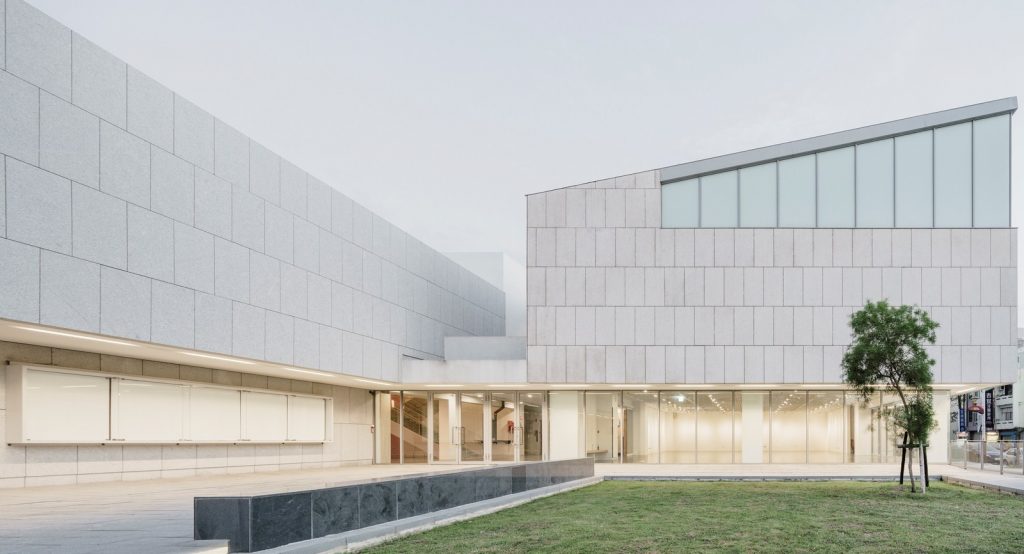

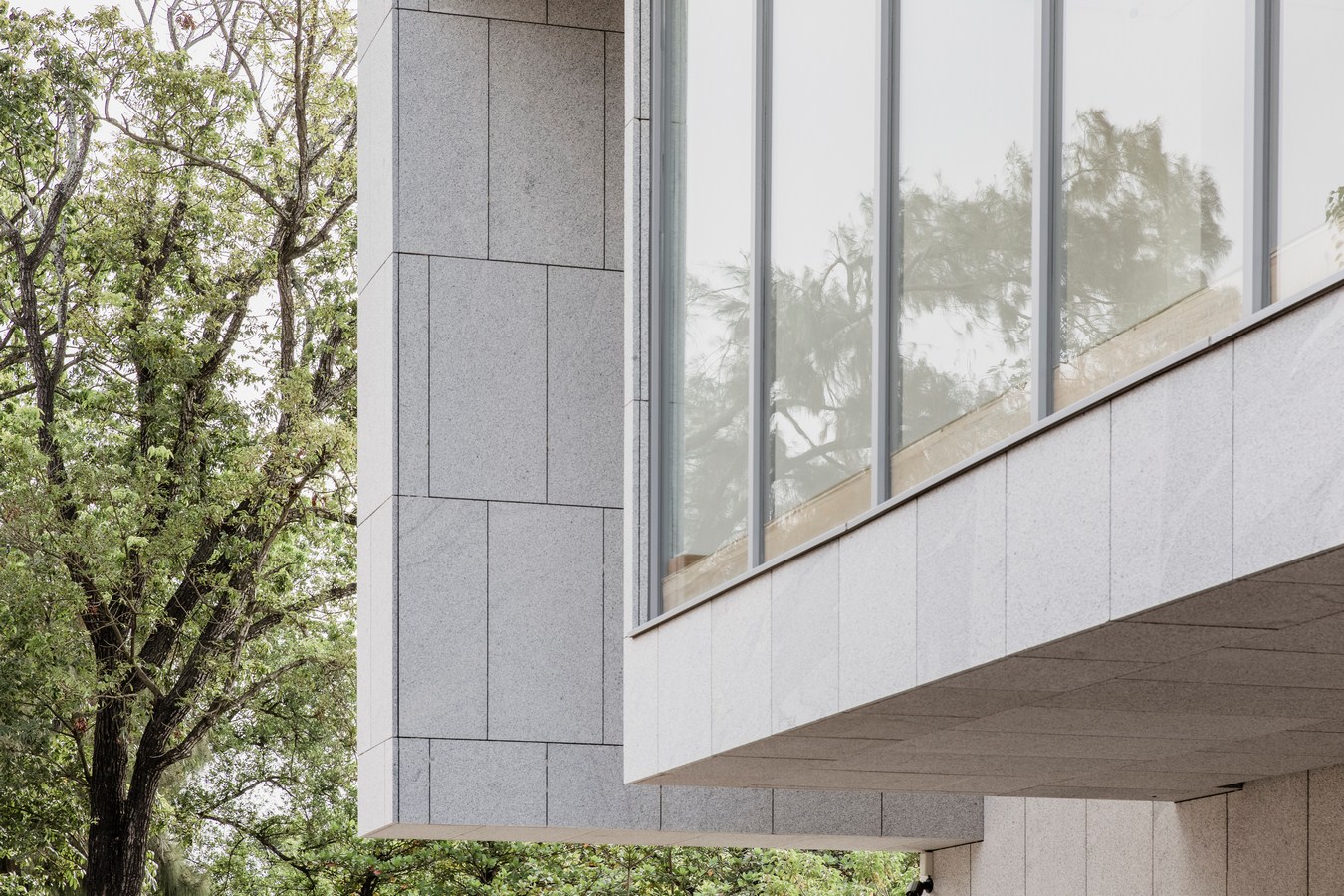

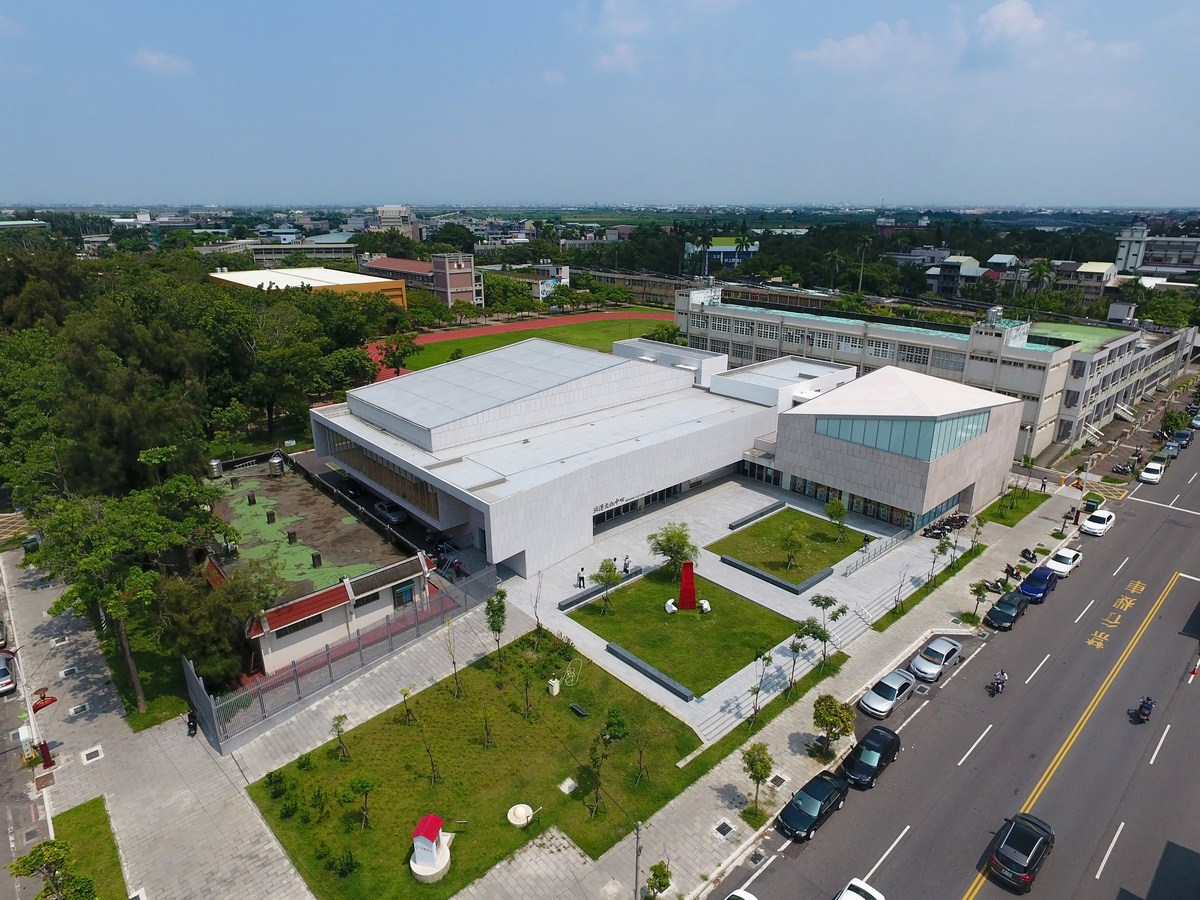

Beigang Cultural Center By MAYU Architects - Sheet2The program of the new Beigang Cultural Center is mainly composed of a 400-seat auditorium, a permanent exhibition space and a special exhibition space. Because of its significant volume and being a civic building, the culture center can anchor the adjacent streets and establish an important city block. The L-shaped building is further divided into two volumes, responding to the adjacent street intersection. The larger auditorium volume and the smaller exhibition hall volume are each sheathed with different types of granite.

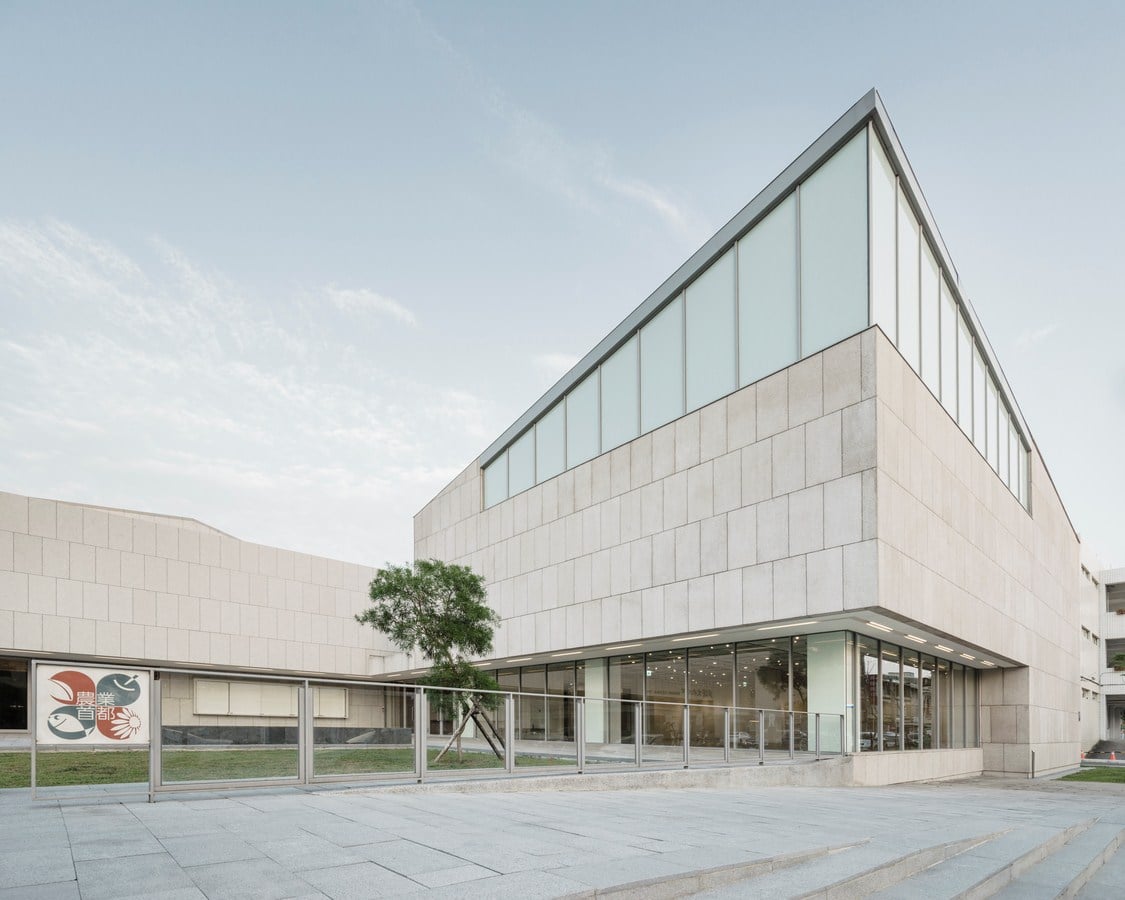

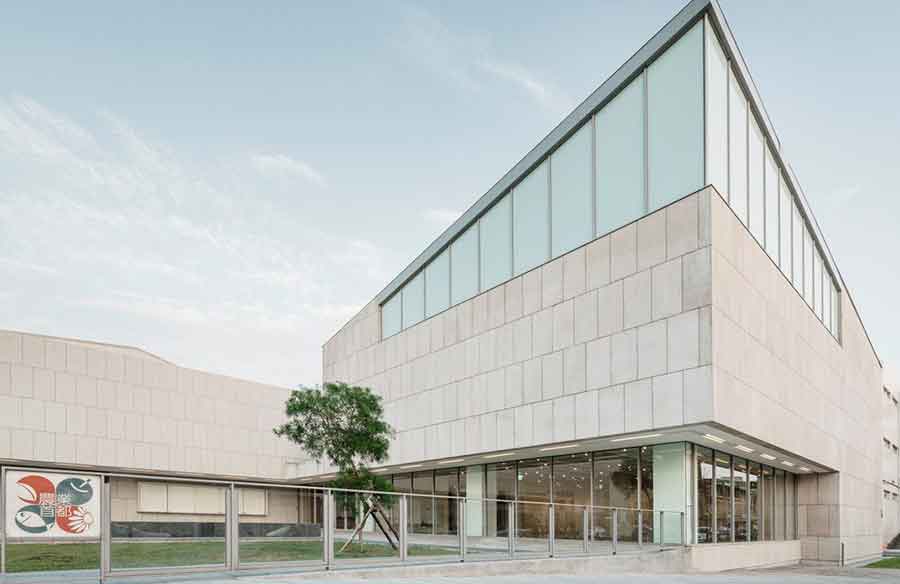

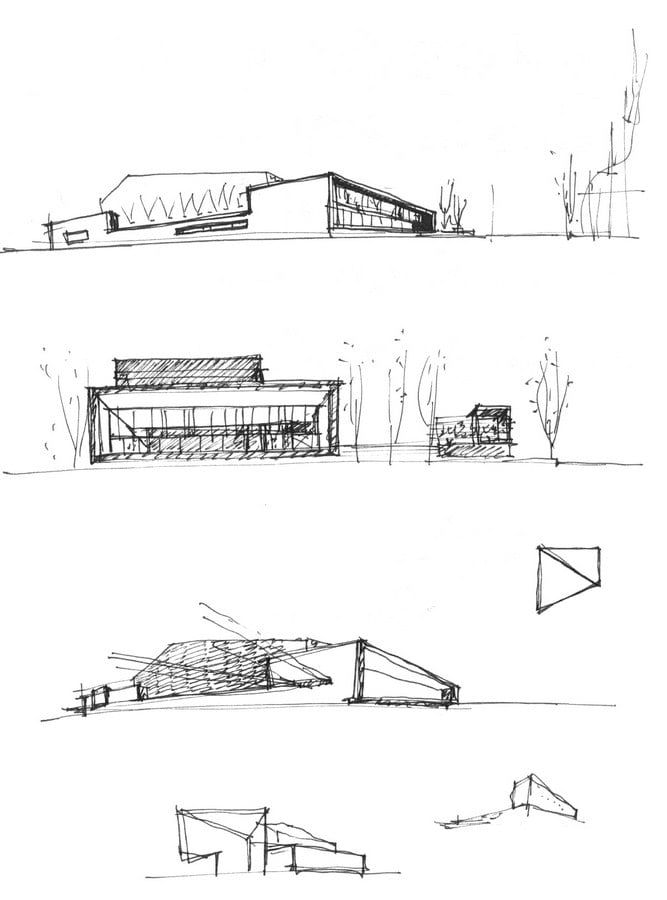

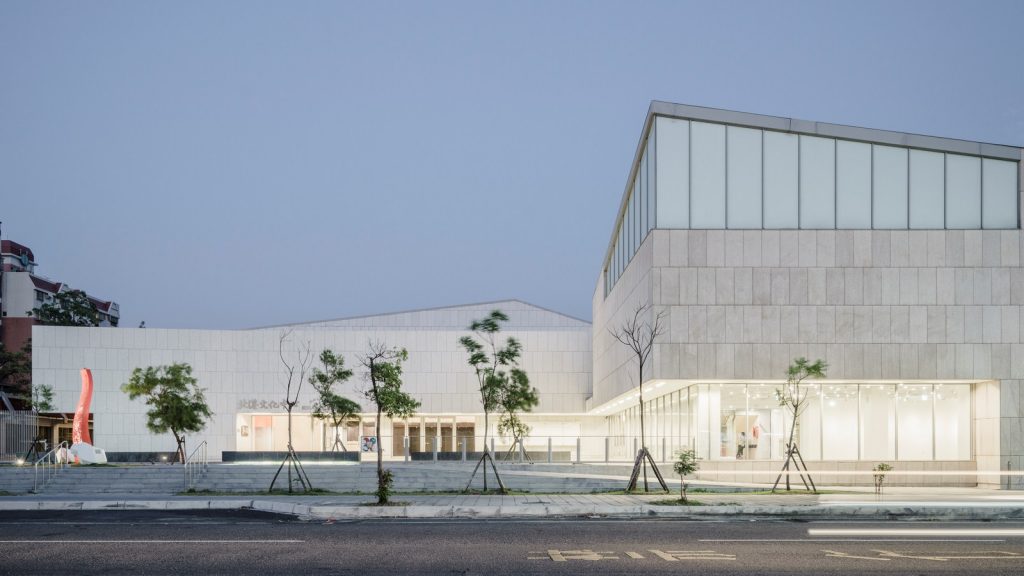

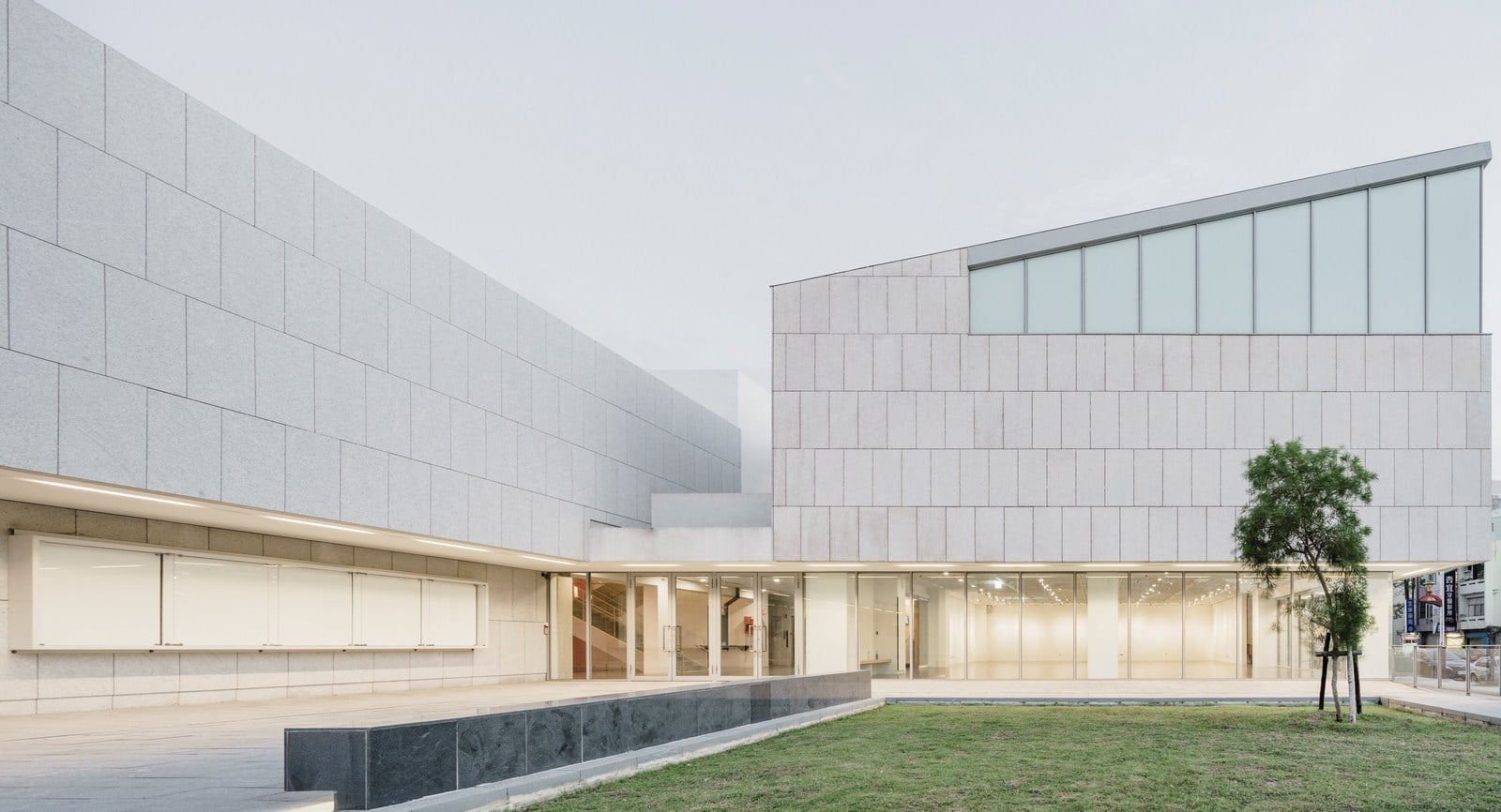

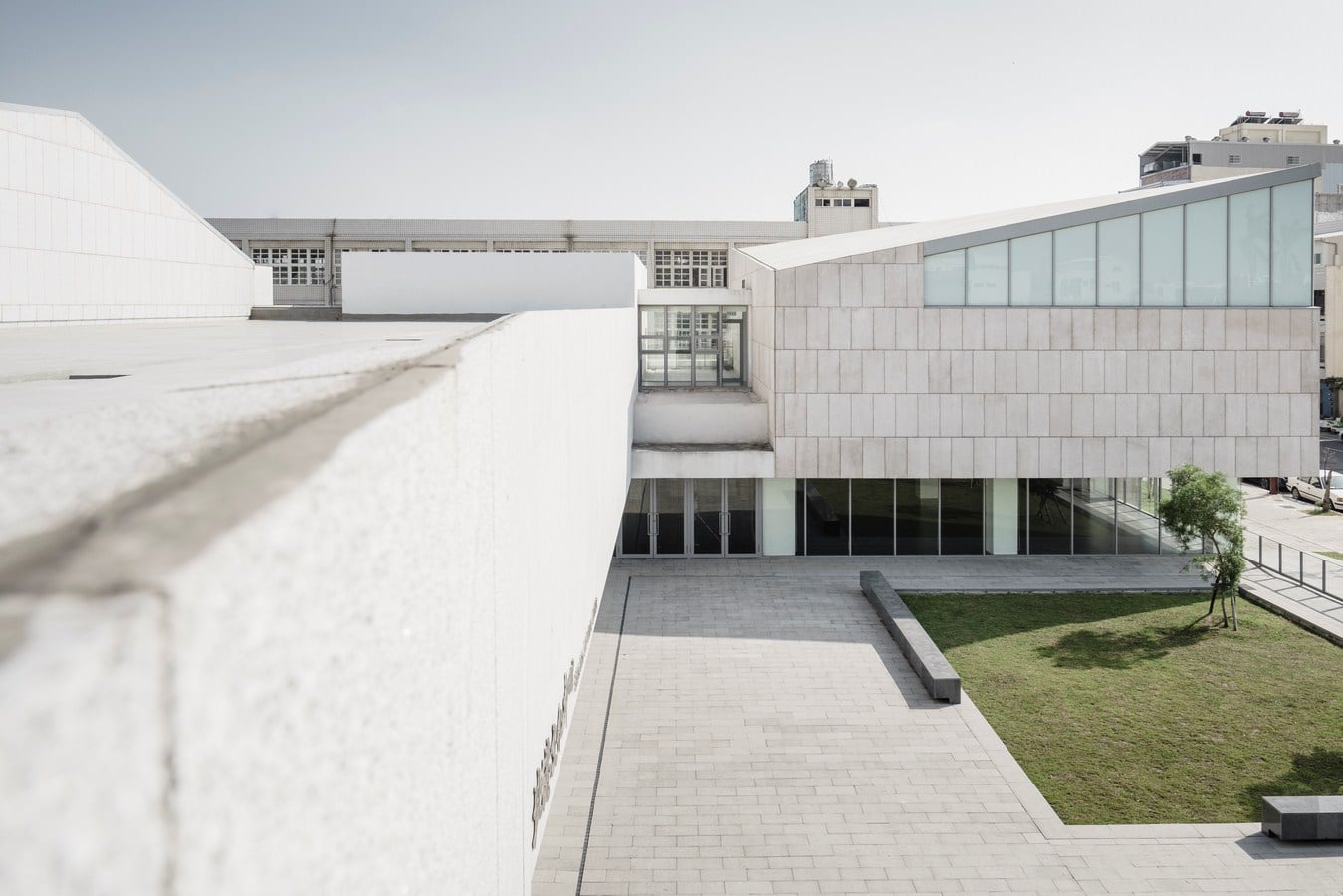

Beigang Cultural Center By MAYU Architects - Sheet3The top of both volumes is also angled differently to create a dialogue to each other. The roofs are free from rooftop equipment so that the culture center has a clean and refined appearance, which stands out from the surrounding buildings dotted by unsightly equipment and bland building covers. In addition, the plaza in front of the building varies in elevation, and elongated stairs form the linear edge along the paved walkway next to the adjacent street. Unique in Taiwanese cities, this site planning creates subtle grading variance and generates dynamic visual effect that changes with viewing angles.

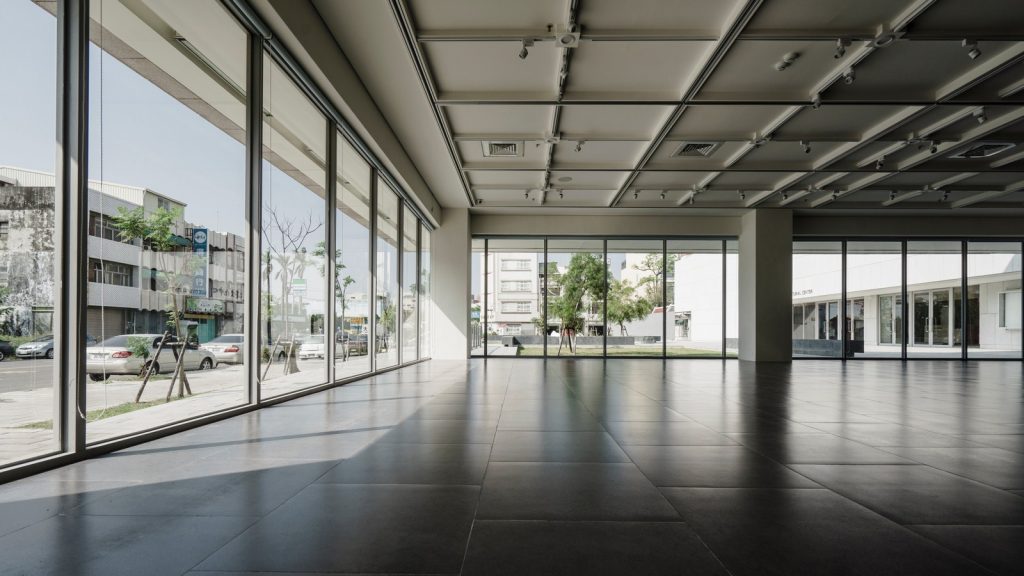

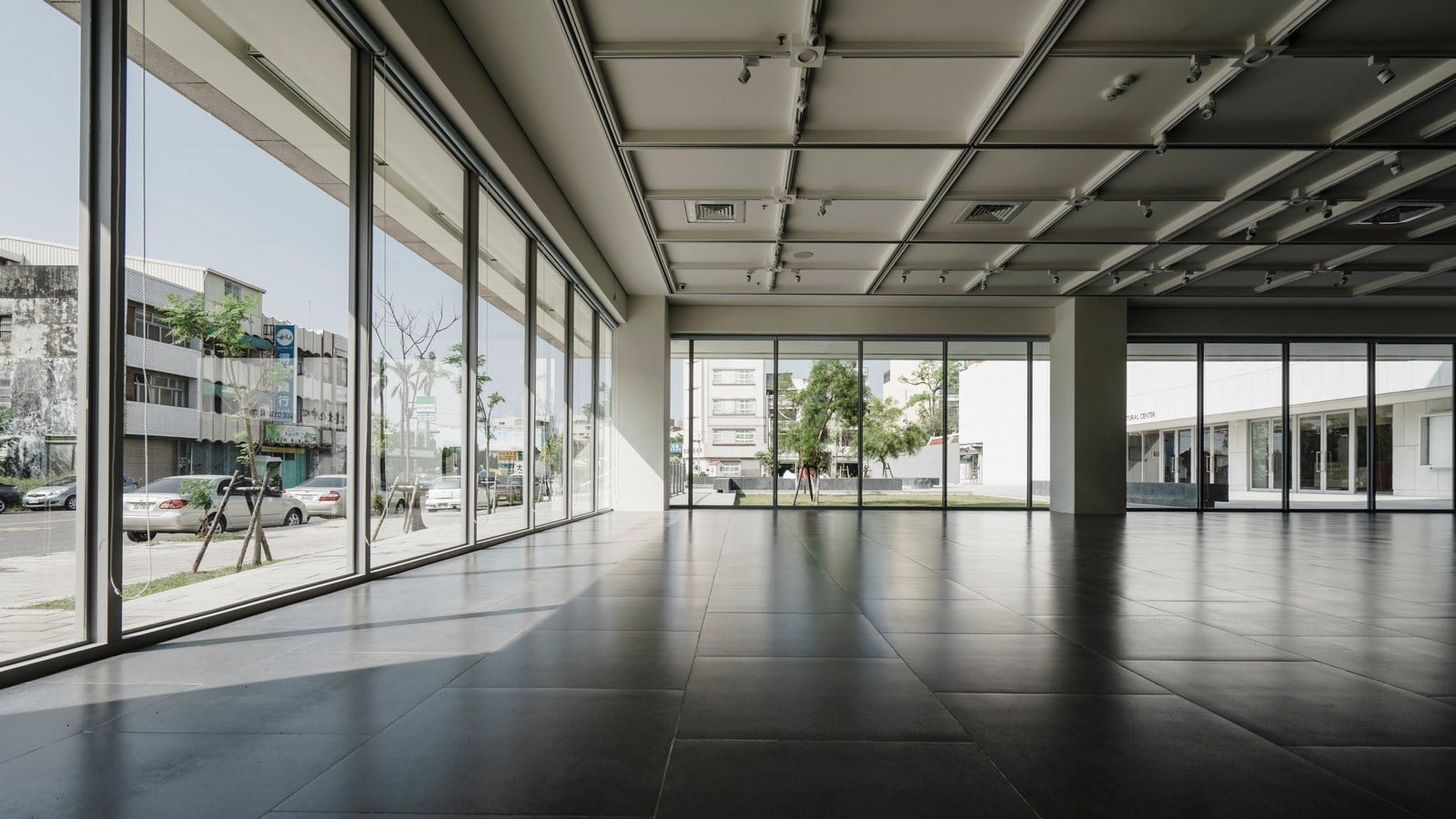

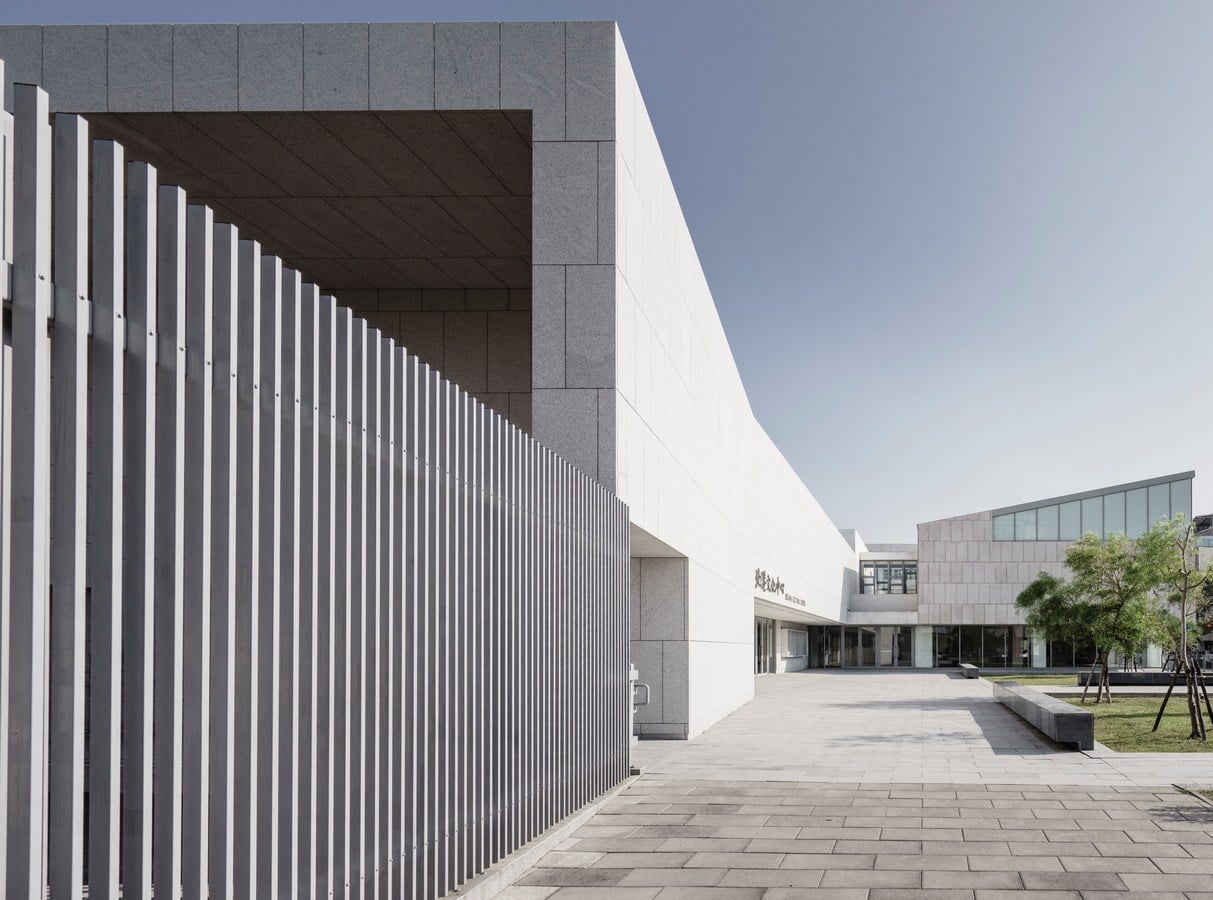

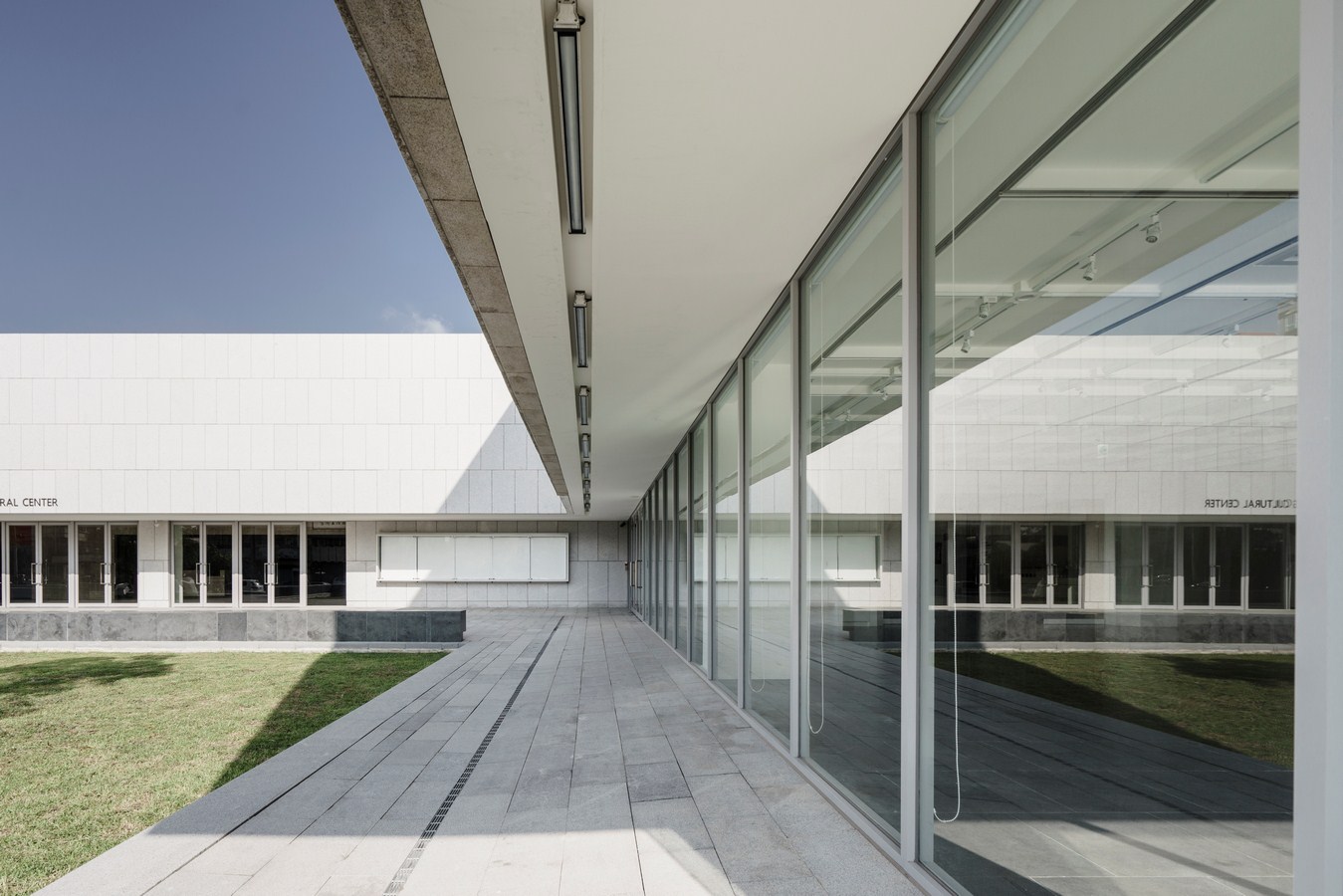

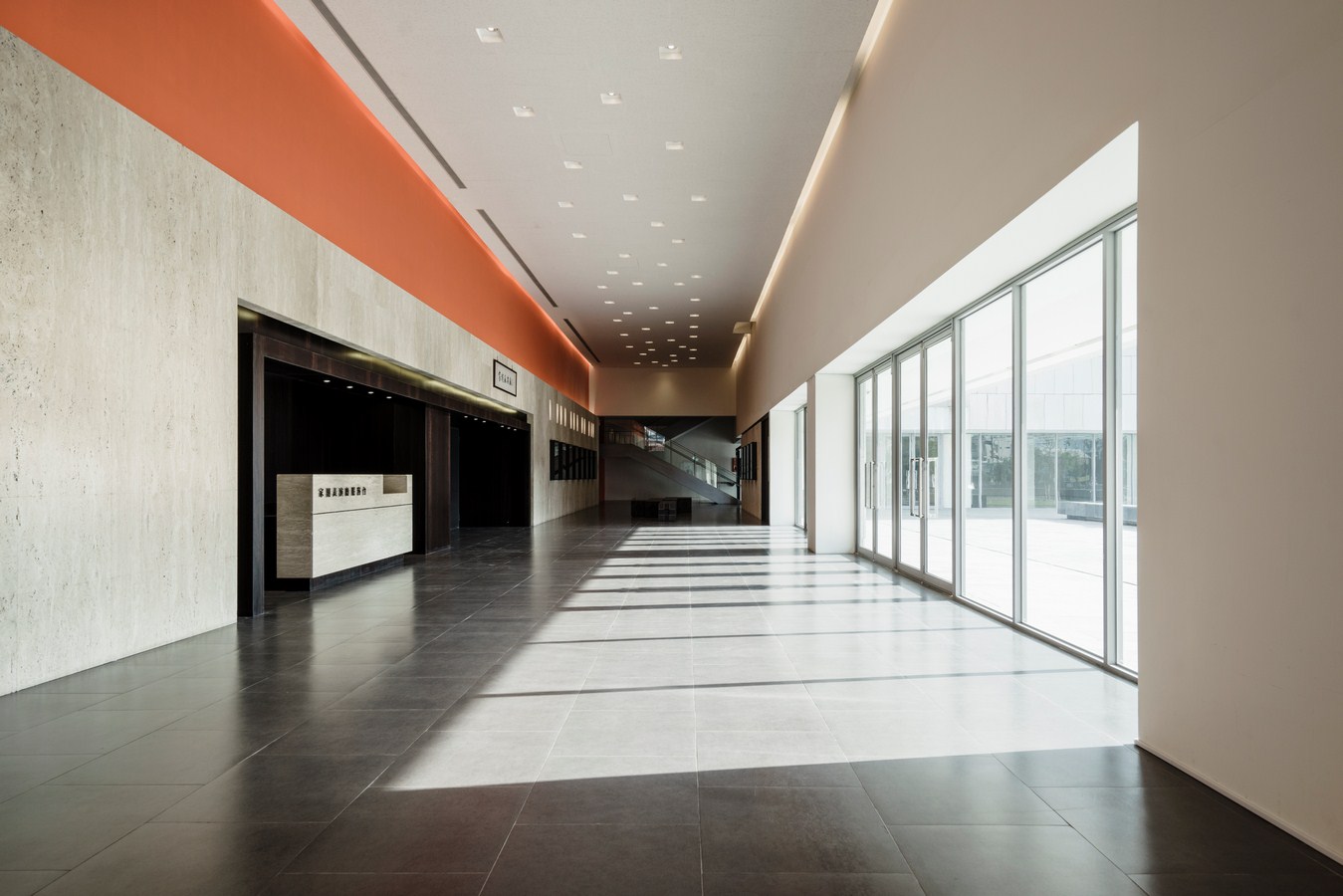

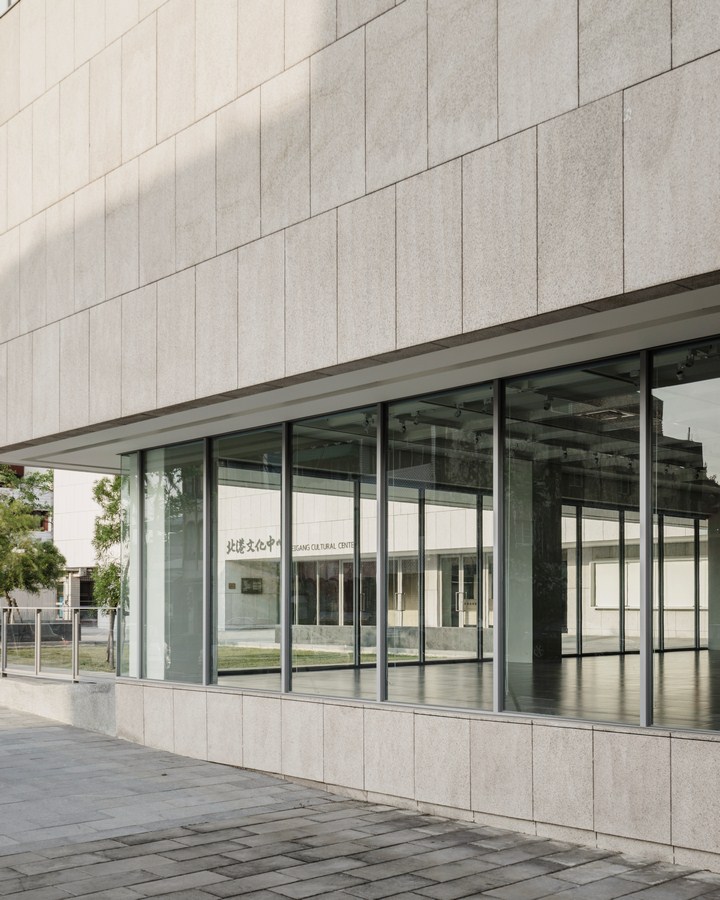

Beigang Cultural Center By MAYU Architects - Sheet6The interior spatial flow and the transparency created by the ground-touching ribbon glass windows do contrast with the substantial opaque building volumes above. In fact, the transparency below the opaque volumes becomes a datum line that links the opaque volumes and lifts them together as if they are floating above the plaza. The linear lobby extends out the circulation along longitudinal axis of the building.

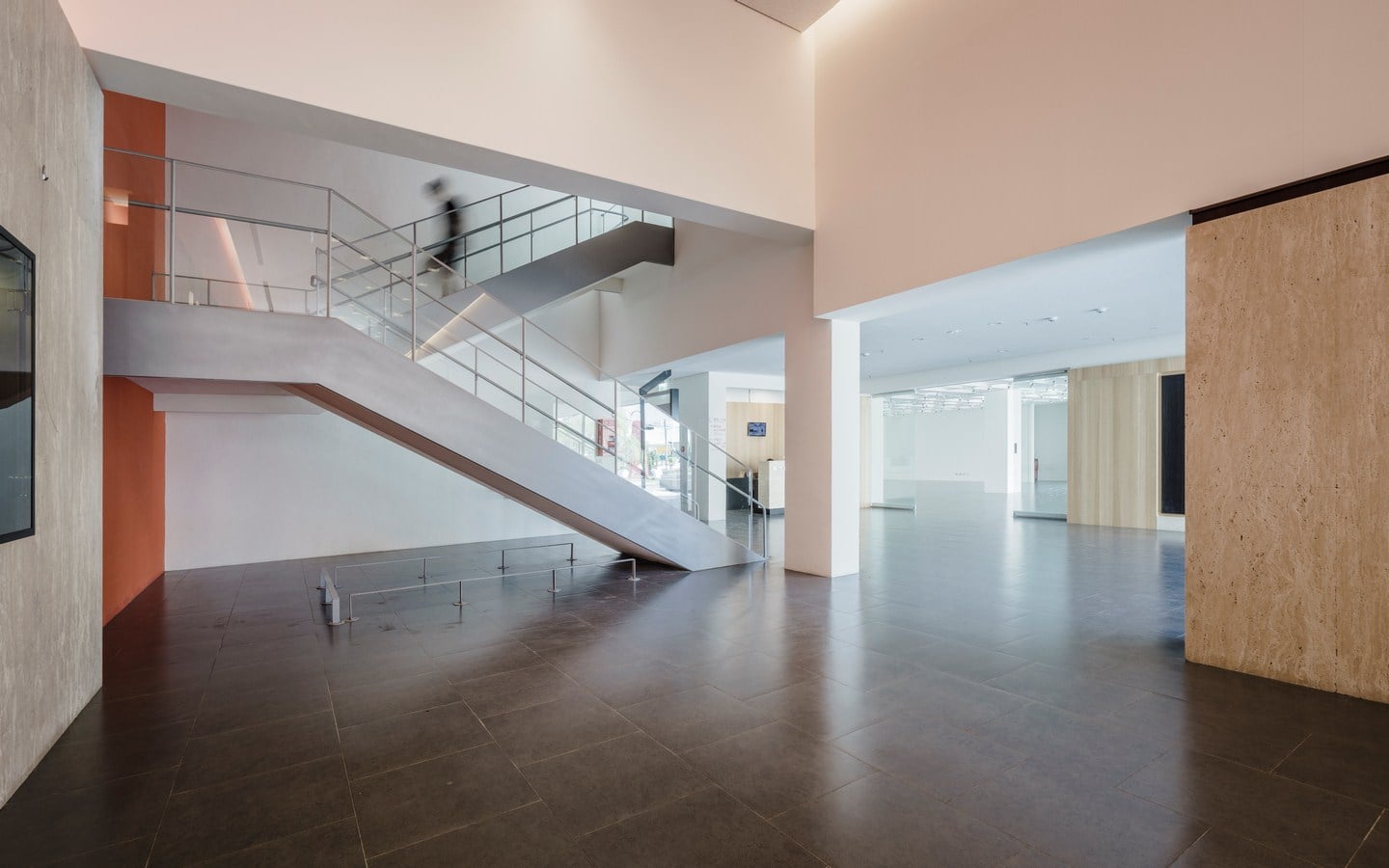

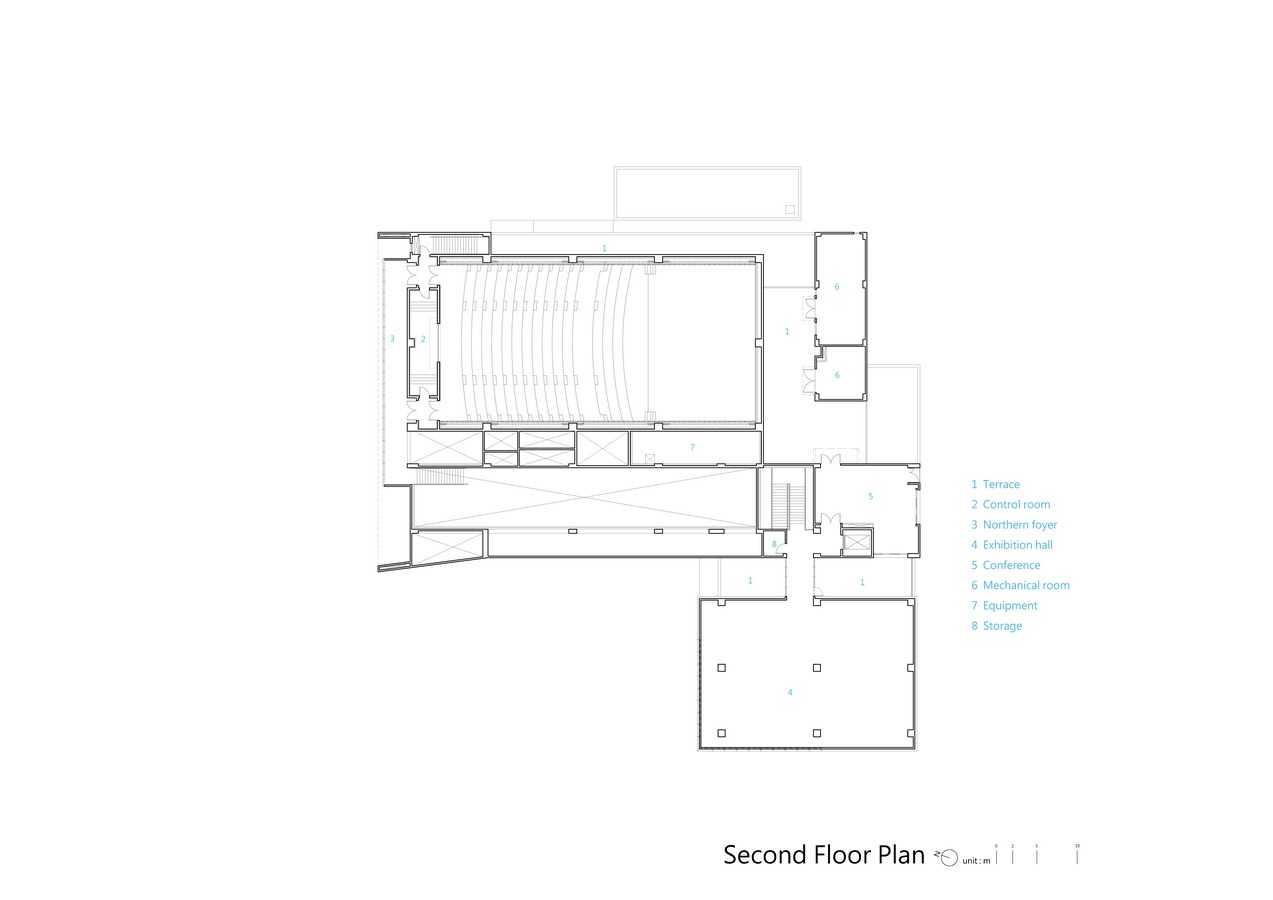

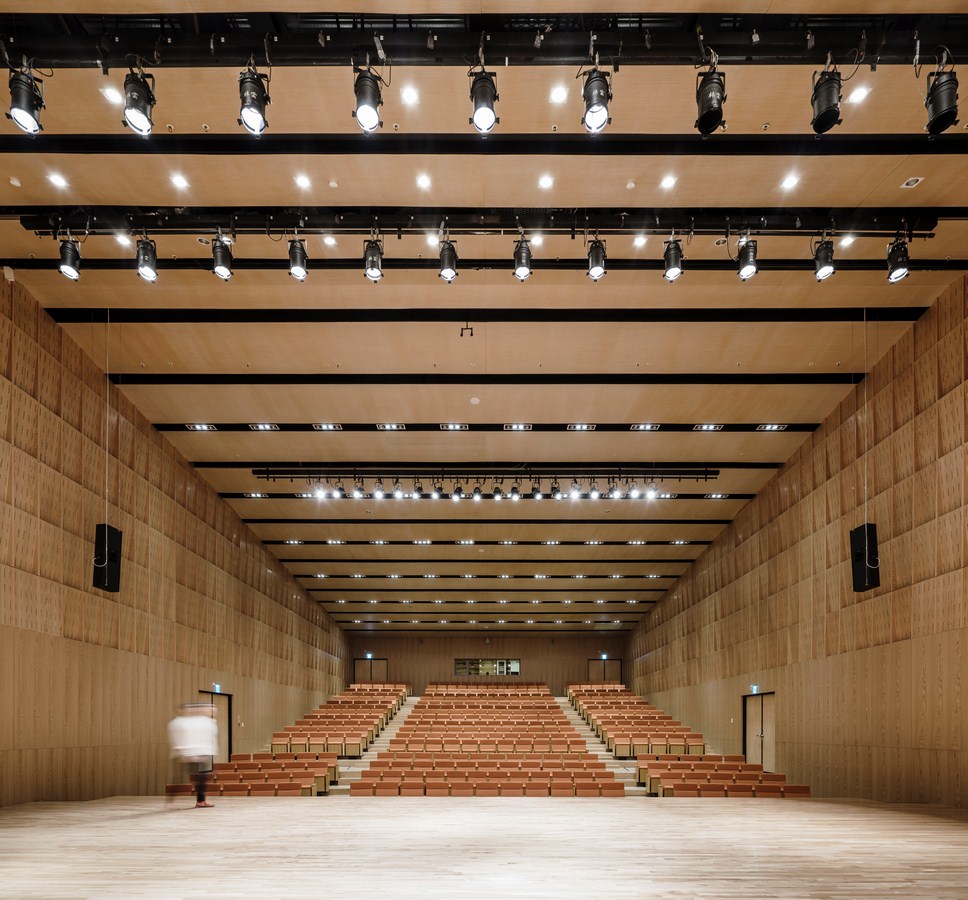

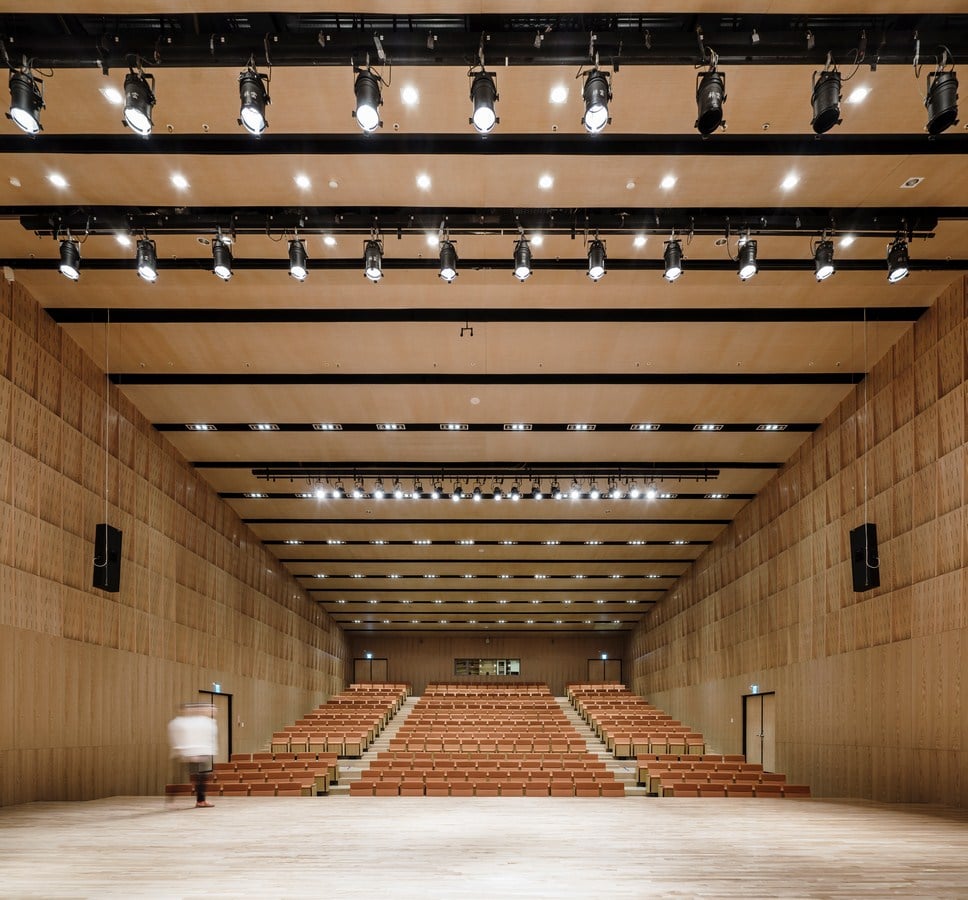

Beigang Cultural Center By MAYU Architects - Sheet8It joins with the stairs at the center turning node of the L-shaped plan and unites the stacked exhibition spaces with the secondary entrance in a dynamic way. The stairs at the other end of the lobby lead to the overhanging second floor foyer that not only blurs the inside-outside spatial relationship, the movement inside the transparent foyer is also being displayed to the public until the circulation of visitors is returned inwardly toward the auditorium. The interior of the auditorium is shaped into a pure sound chamber known as shoebox typology instead of relying on individually placed sound reflectors.

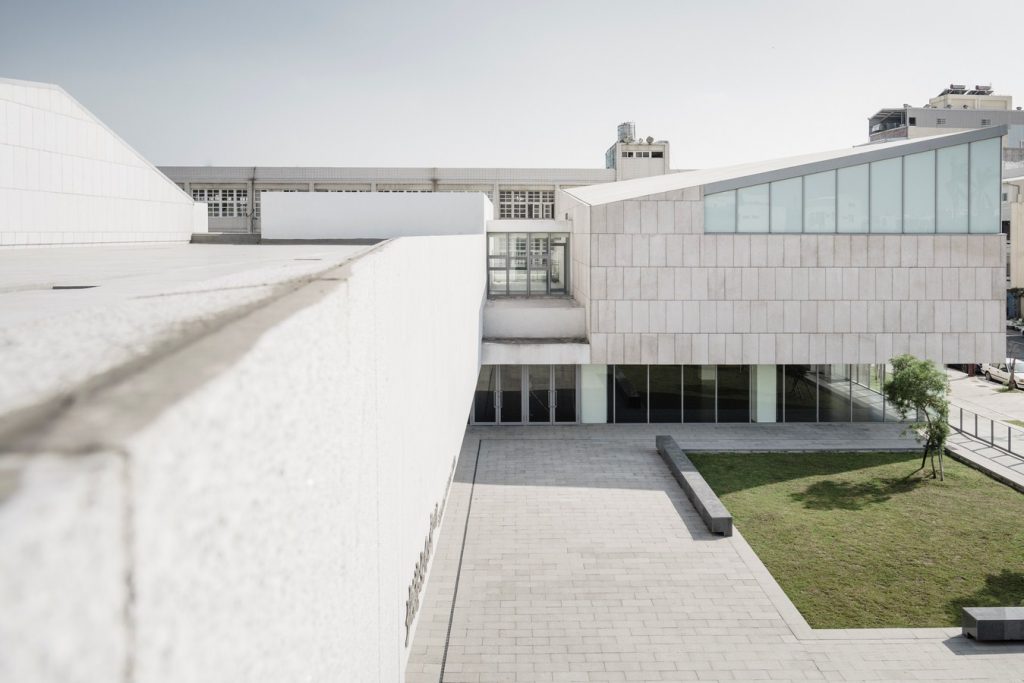

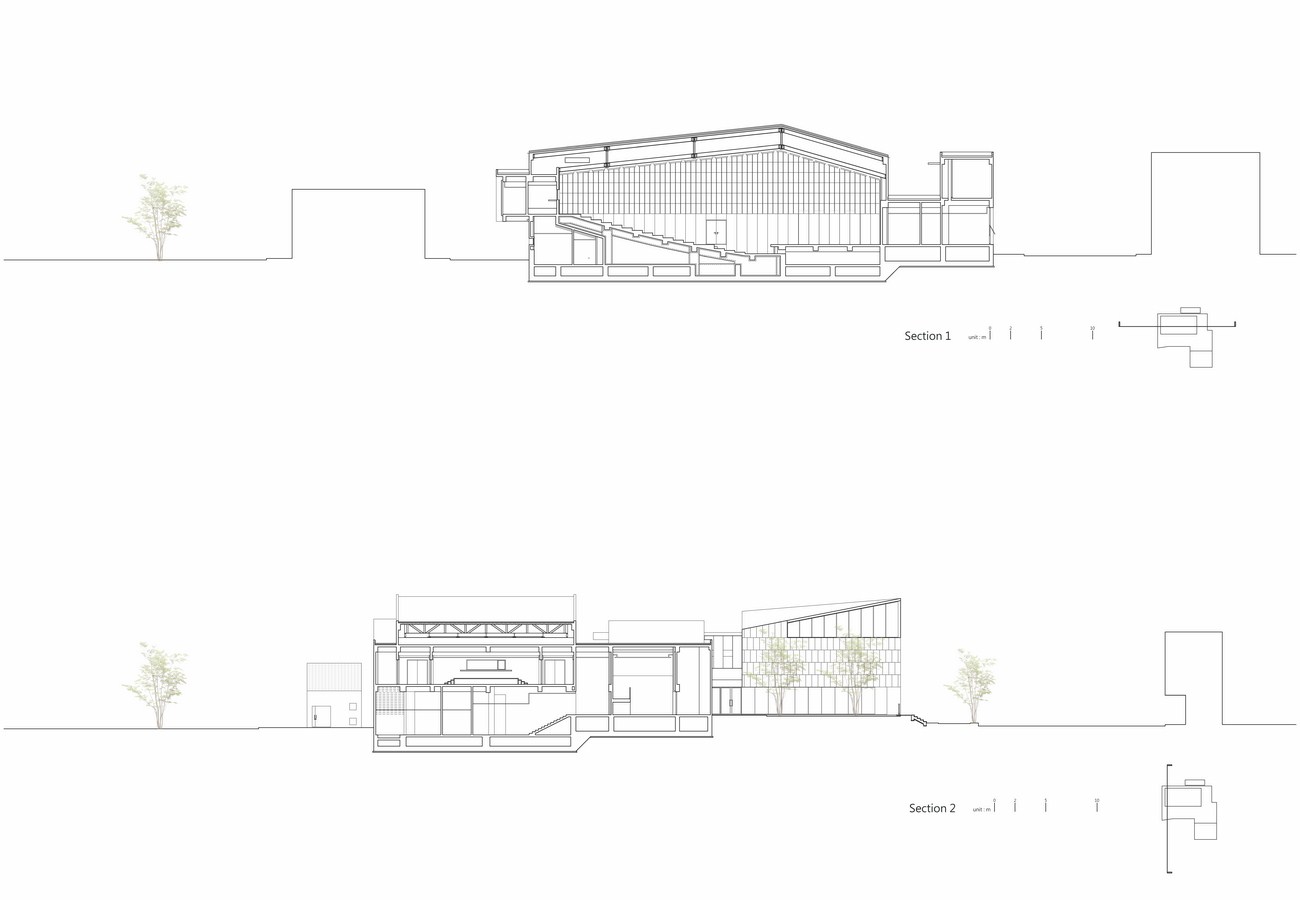

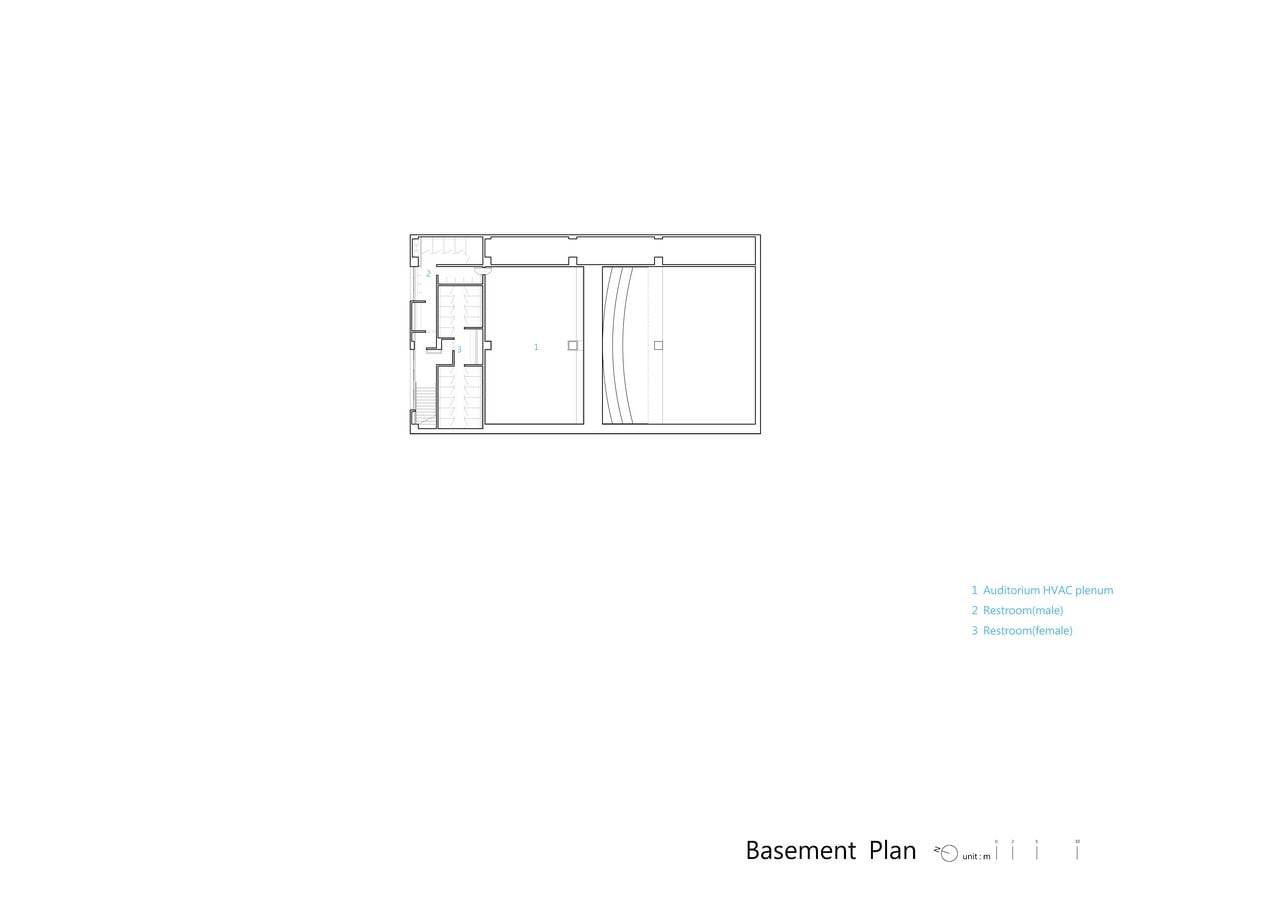

Beigang Cultural Center By MAYU Architects - Sheet10The angled roof above the stage and inclined perforated wood acoustic panels flanking the auditorium help to reverberate the sound properly and eliminate standing sound waves. The conditioned air is distributed through vents located underneath the auditorium seats so that the energy efficiency is achieved while the main air conditioning equipment can be located below the auditorium instead on the rooftop, freeing up the rooflines to convey the building form.
