The country’s newest airport is located 11 miles (18 km) from the Red Sea resort city of Eilat and was designed by two of Israel’s leading firms, Amir Mann-Ami Shinar Architects and Planners in partnership with Moshe Zur Architects.
Project Name: Ilan and Asaf Ramon International Airport
Studio Name: Amir Mann-Ami Shinar Architects and Planners in partnership with Moshe Zur Architects
Israel Airports Authority (IAA)
Yaacov Ganot, Directing Manager
Rafi Elbaz, Deputy Director-General of Engineering & Planning Division
Design and Planning Management:
Amir Mann – Moshe Zur – Ami Shinar – Orna Zur Architects
Design Manager: Amir Mann, Architect
Construction Management: Gadish-Baran Partnership
Construction Manager: Eng. Ron Havatzelet
ARUP London with Amir Mann-Ami Shinar Architects and Planners
The Overall Design Team includes over 45 local Israeli Engineering Firms.
For more information on the Ilan and Asaf Ramon International Airport, please visit www.Mann-Shinar.com.
Timna, Israel: Amir Mann-Ami Shinar Architects and Planners in partnership with Moshe Zur Architects, two of Israel’s leading firms, announce the opening of Israel’s Ilan and Asaf Ramon International Airport, servicing the Red Sea resort city of Eilat and the surrounding region. Commissioned by the Israel Airport Authority (IAA), the project was handled from A to Z by design manager, Architect Amir Mann. Located in Timna, it is Israel’s first civil airport built from scratch (“greenfield”).

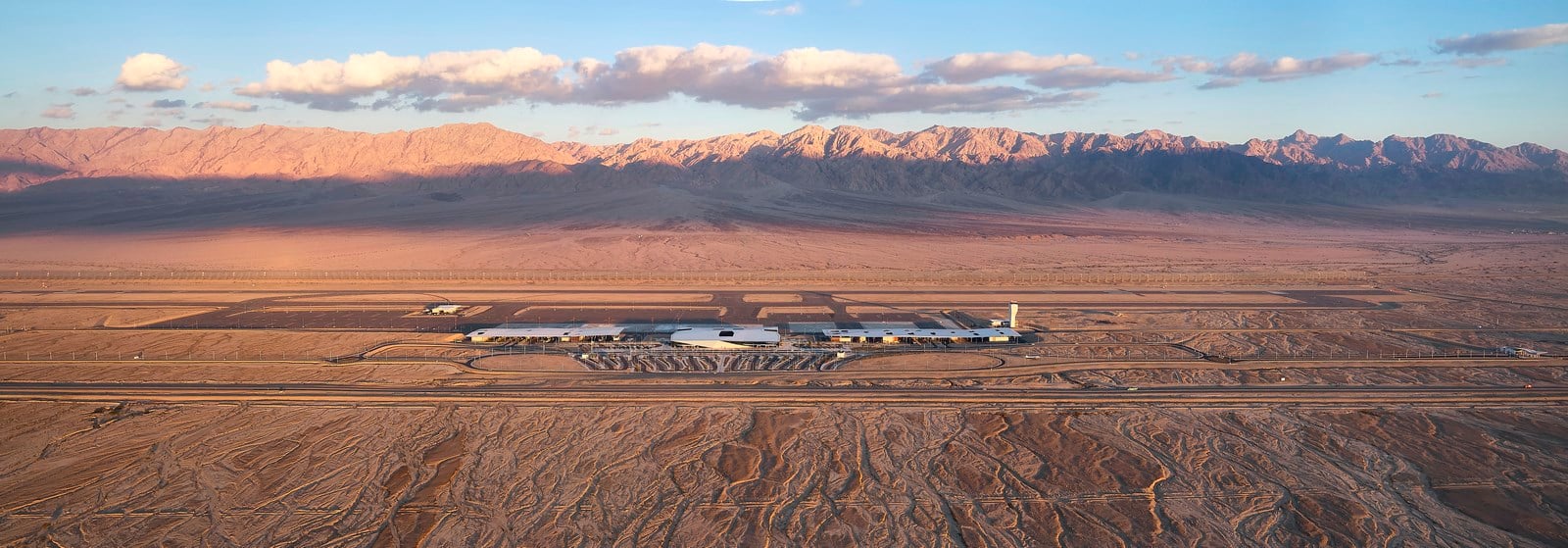

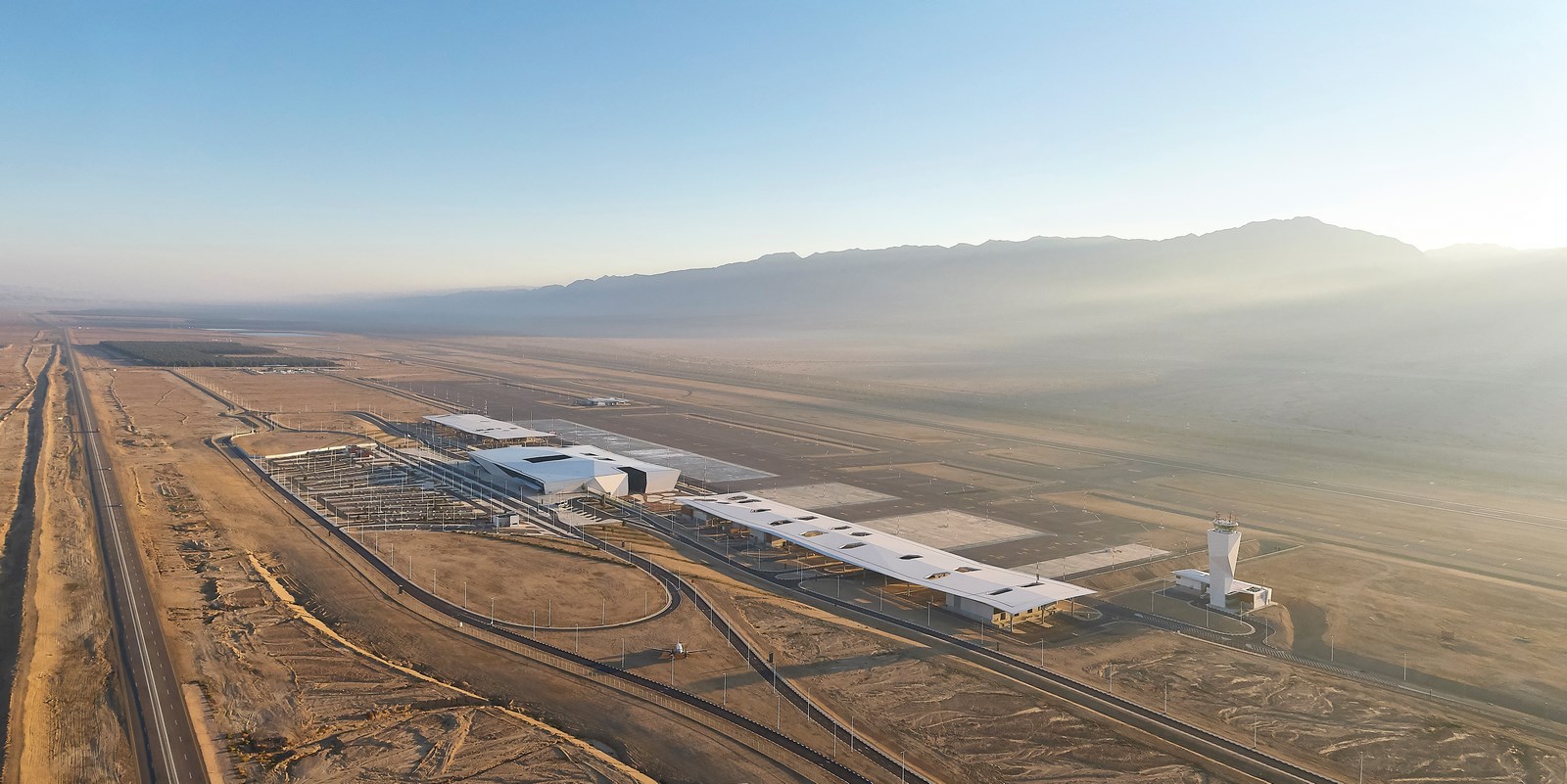

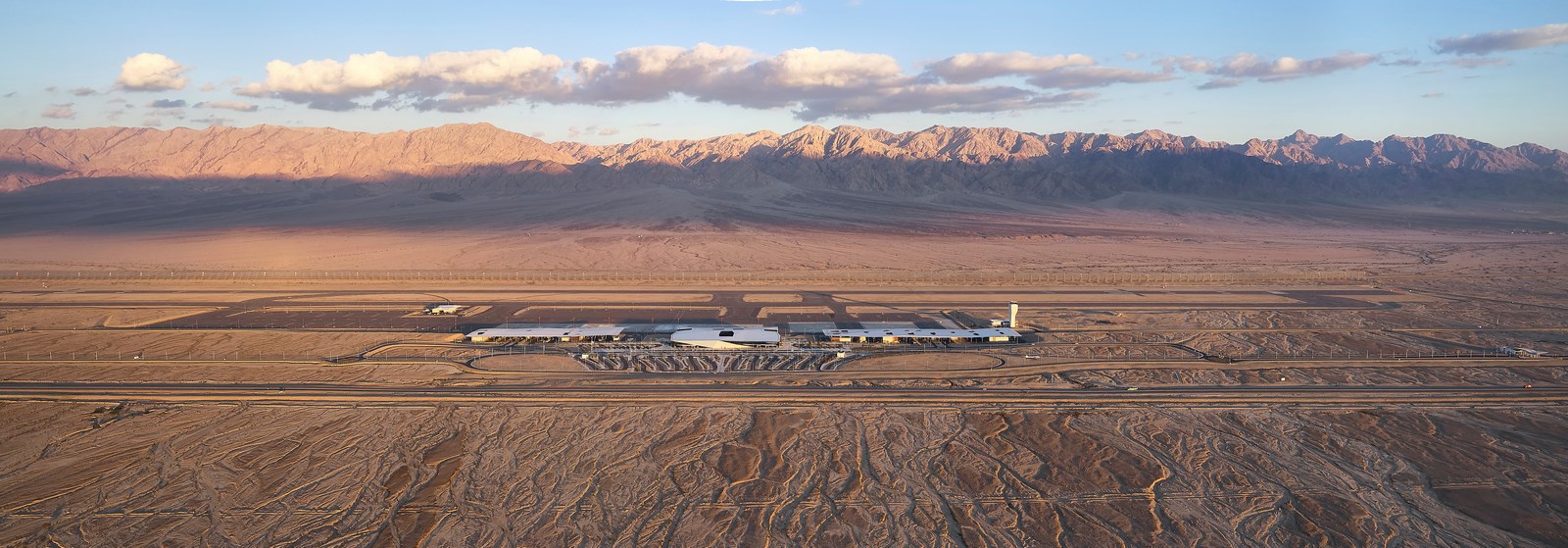

Spread across 1,250 acres, the airport is a minimalist and futuristic design in the middle of the Negev Desert, wholly unified under one architectural language. The architects served as project design managers, leading more than 45 consulting firms, nearly all local Israeli engineers, alongside ARUP London’s aviation team. Situated just 18 km north of Eilat, the Ilan and Asaf Ramon International Airport will become a major game-changer for local and international tourism to Israel, Jordan and Egypt’s the Sinai Desert.
The Ilan and Asaf Ramon International Airport was completed with significant achievements, firstly, an international airport fully constructed and operational within budget, funded for less than half of similar projects worldwide; on schedule for opening day within an exceptionally tight timeframe; a “greenfield” without existing infrastructures, included the creation and implementation of cutting edge navigation, landing, and baggage handling systems, runways, and operational buildings — while maintaining the existing natural surrounding and a control of quality; all led by the team of architects to a rather extraordinary feat — the entire airport is unified under one unique holistic design language that frames the stunning scenery of the Negev Desert mountainscape.

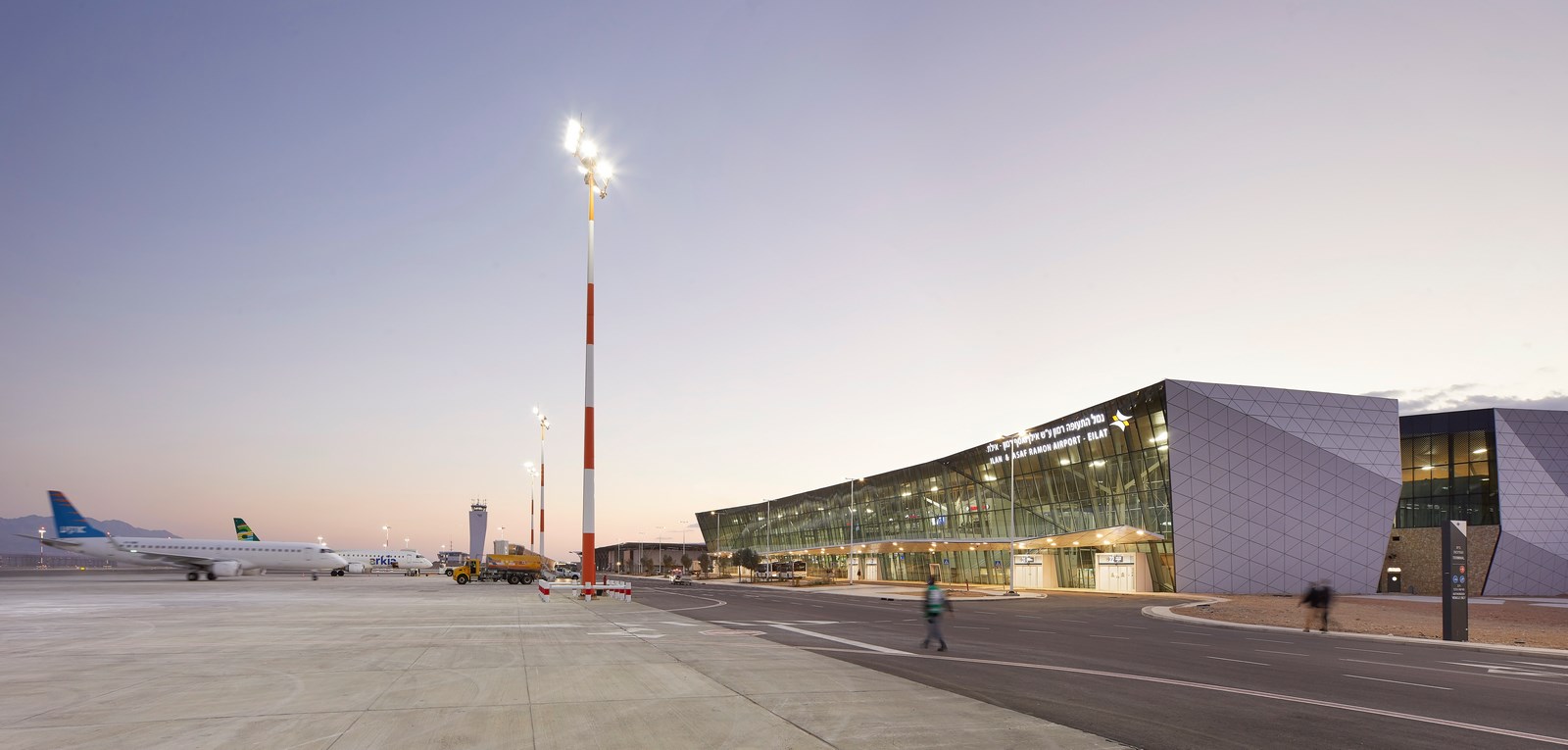

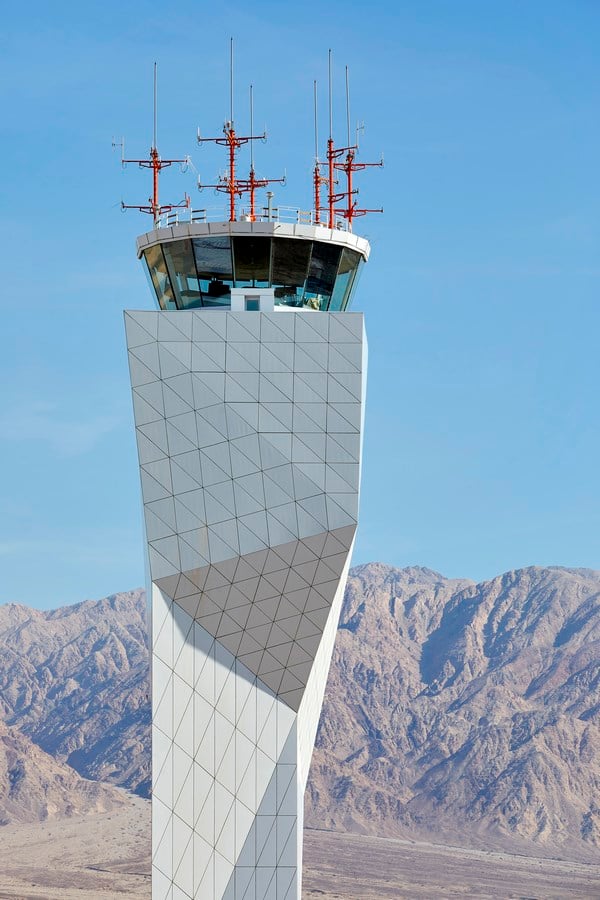

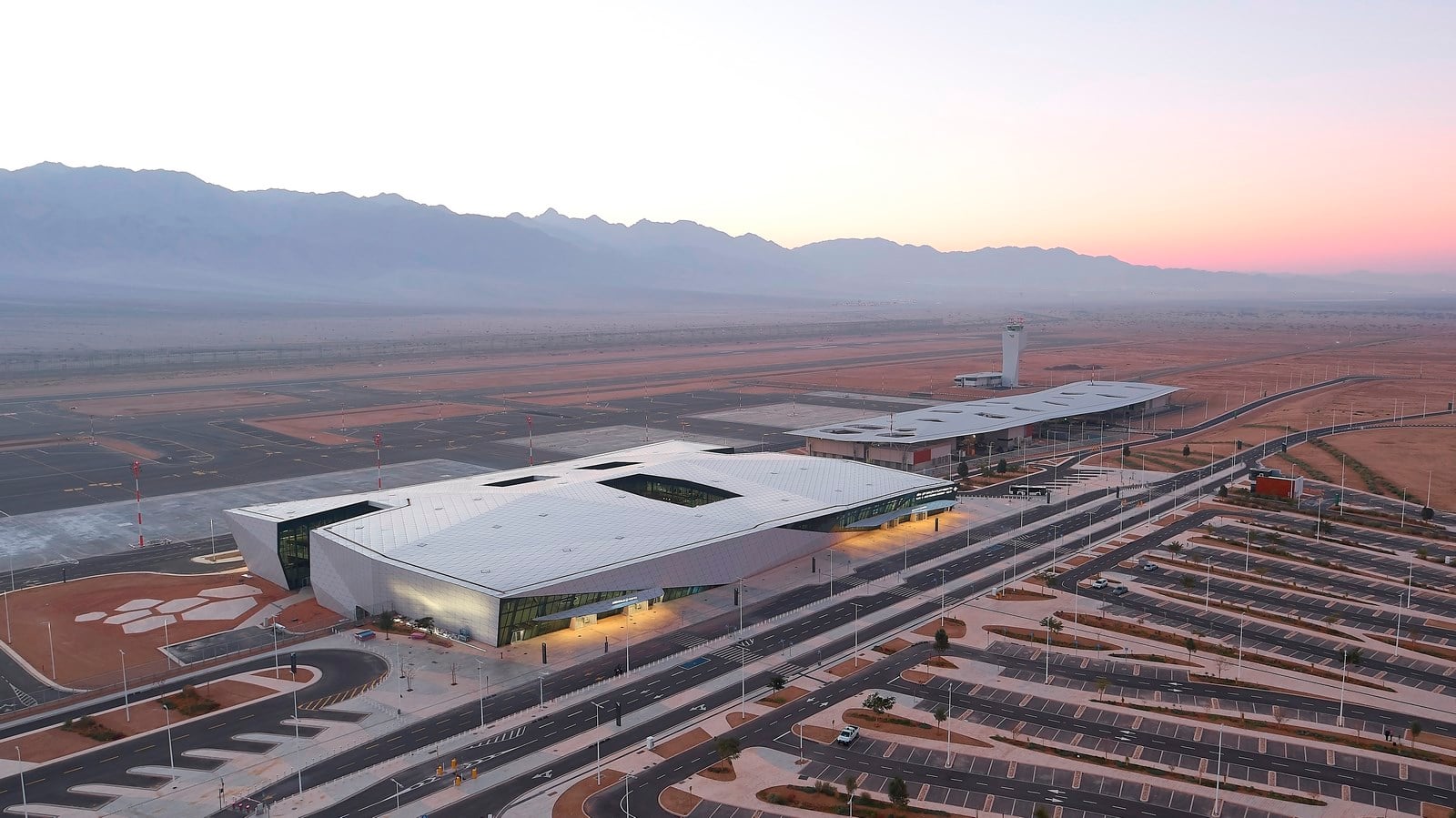

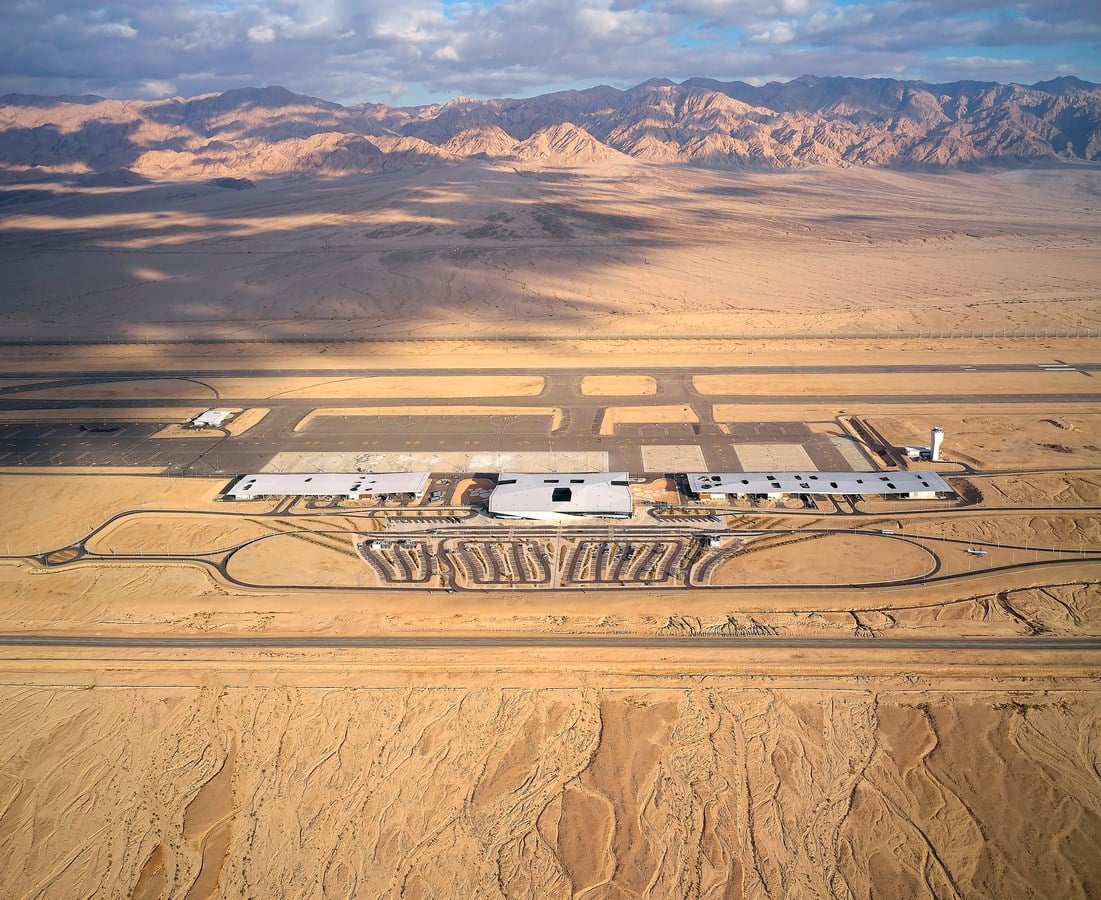

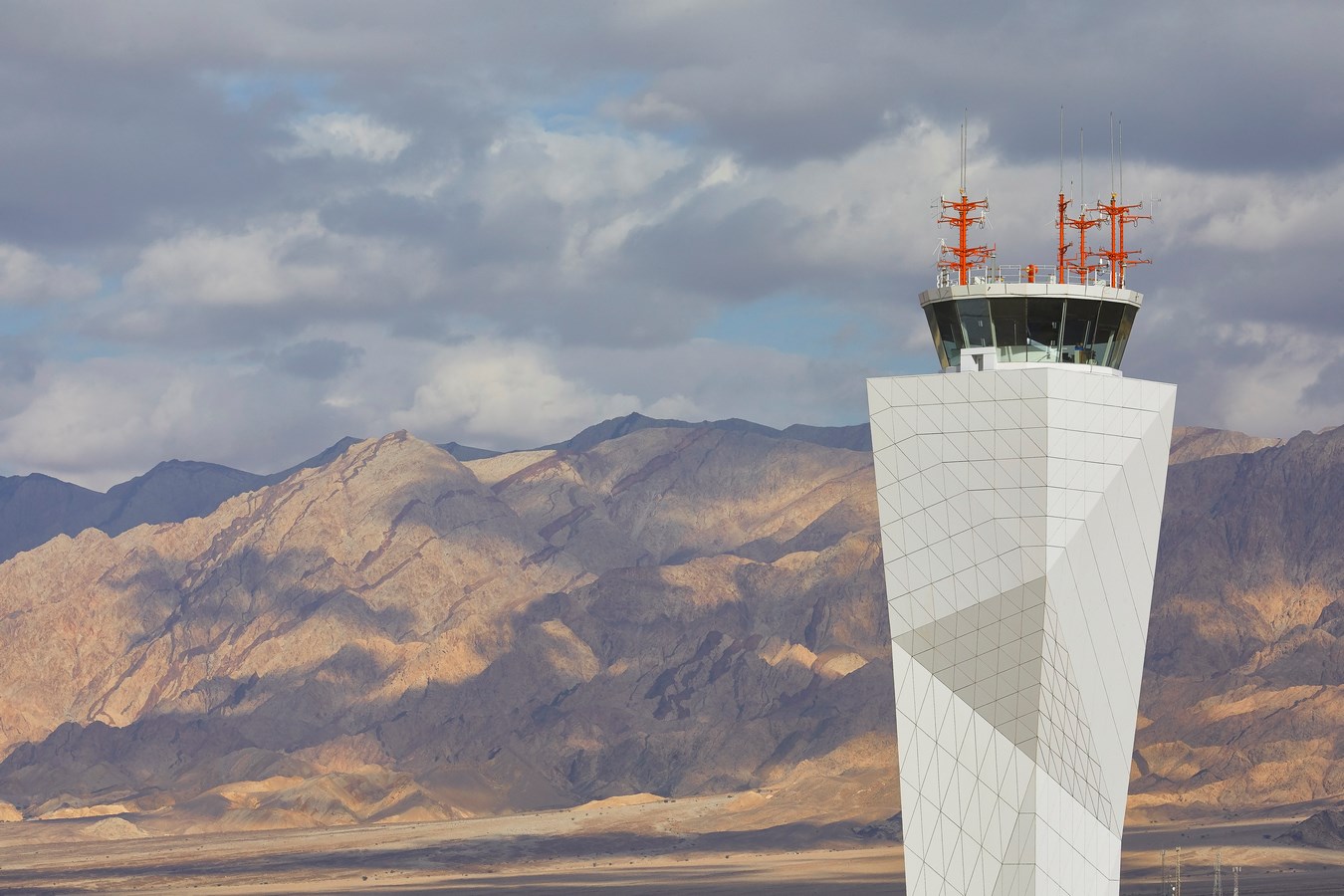

The Airport features a 45,000 square-meters Passenger Terminal Building and 3,600 meters long runway and taxiway, alongside 40 aprons, allowing for domestic and international traffic. The two support structures to the north and south of the terminal measure a combined 36,210 square-meters with a 45 meters-high Air Control Tower.
The opening of the Ilan and Asaf Ramon International Airport will coincide with the closing of the existing J. Hozman Eilat Airport that is currently located in the middle of the city of Eilat. The old airport was a barrier within the city, dividing and disrupting its development. With its annulment, the city’s urban fabric will be able to unite, surfacing potential opportunities and regeneration. The Ilan and Asaf Ramon International Airport will serve as the new southern gate to Israel and is expected to host 2.25 million passengers per year, that figure bound to grow to an estimated 4.25 million passengers per year.
For the project, the architects developed a unique and minimal design language influenced by the futuristic world of aviation and its seemingly timeless natural desert surrounding. The decision of the IAA to appoint the architects as design managers responsible for budget, program, and planning schedule, allowed for the architects to implement the design across the entire airport – from the various buildings to each individual check-in counter, thus unifying the airport on all its parts into a holistic singular entity within the dramatic emptiness of its surrounding. This is evident from a general concept of carved geometries, through a limited choice of materials used to clad the family of forms.
“In designing the airport we learned from the desert scenery. It required a vision of the most suitable design solution that responds to the existing landscape and climate. Our objective was how not to compete with the overwhelming emptiness of the site, while creating a place that welcomes passengers through the departure and arrival processes, reflecting through that experience the uniqueness of the desert environment, as a functioning international southern gate to Israel.” – Project Design Manager, Amir Mann.

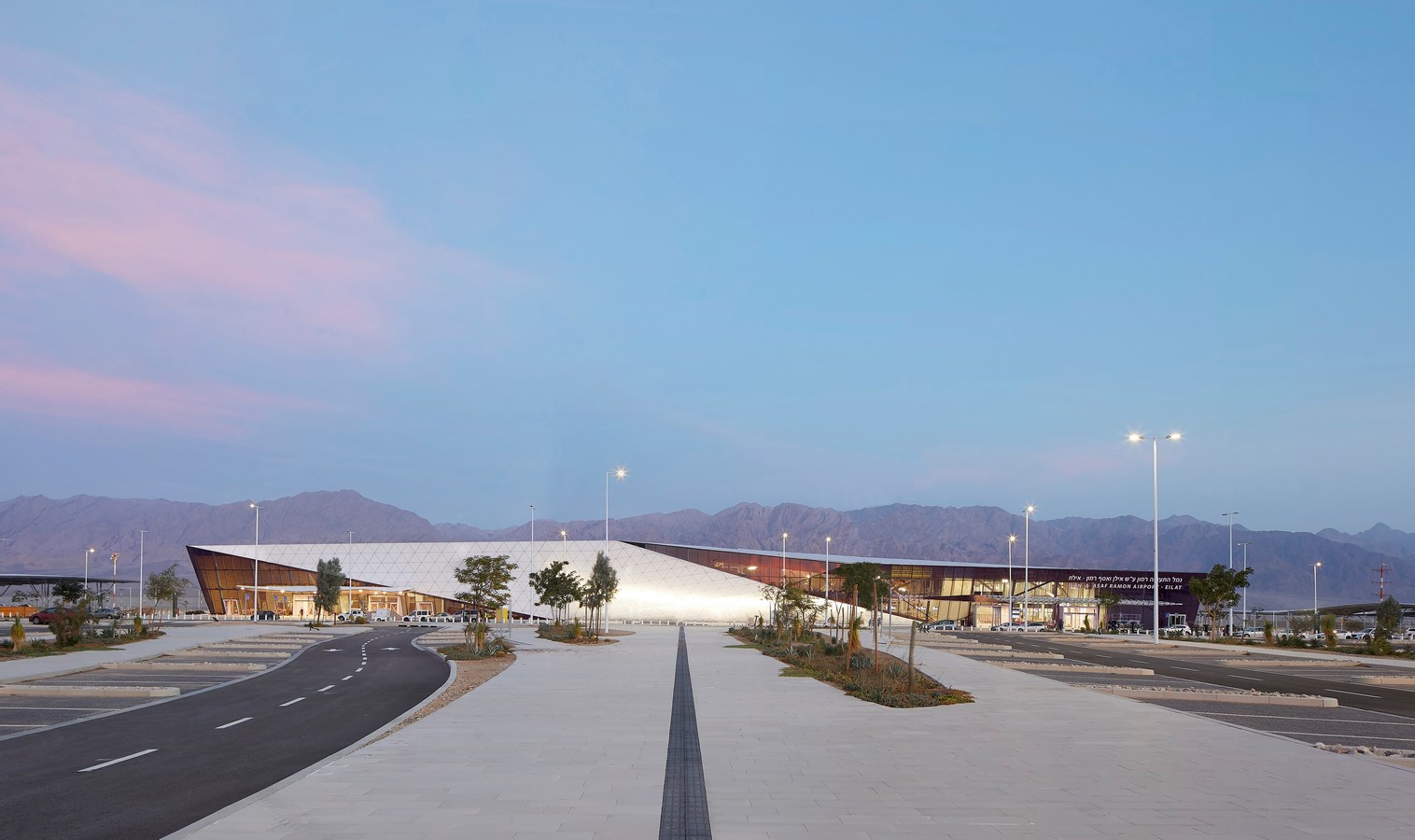

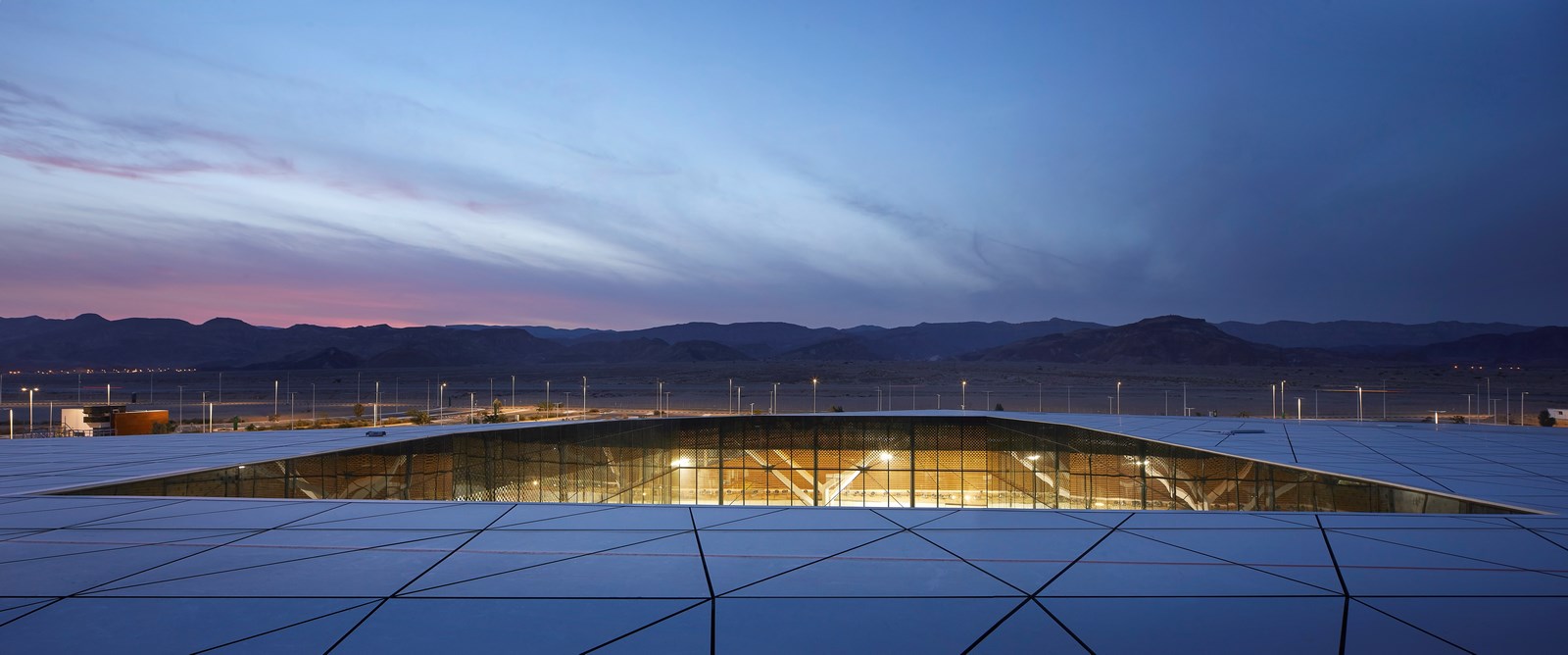

The mushroom-like rock formations found in Israel’s National Timna Park served as inspiration for the initial geometry of the Passenger Terminal Building as a self-shading volume. Just as the rocks are shaped by the “natural movements” of wind and water, the terminal’s opaque volume was carved by the “natural movements” of the passenger traffic: at the entrances and exits, at the divisions between arrivals and departures, and between the check-in and boarding gate halls. At every such occasion glass curtain walls were inserted, surrounding patios that introduce the natural desert landscaping into the building. These serve as light wells allowing natural light into the depths of the terminal, instead of the commonly used skylights, impossible within such climate conditions.

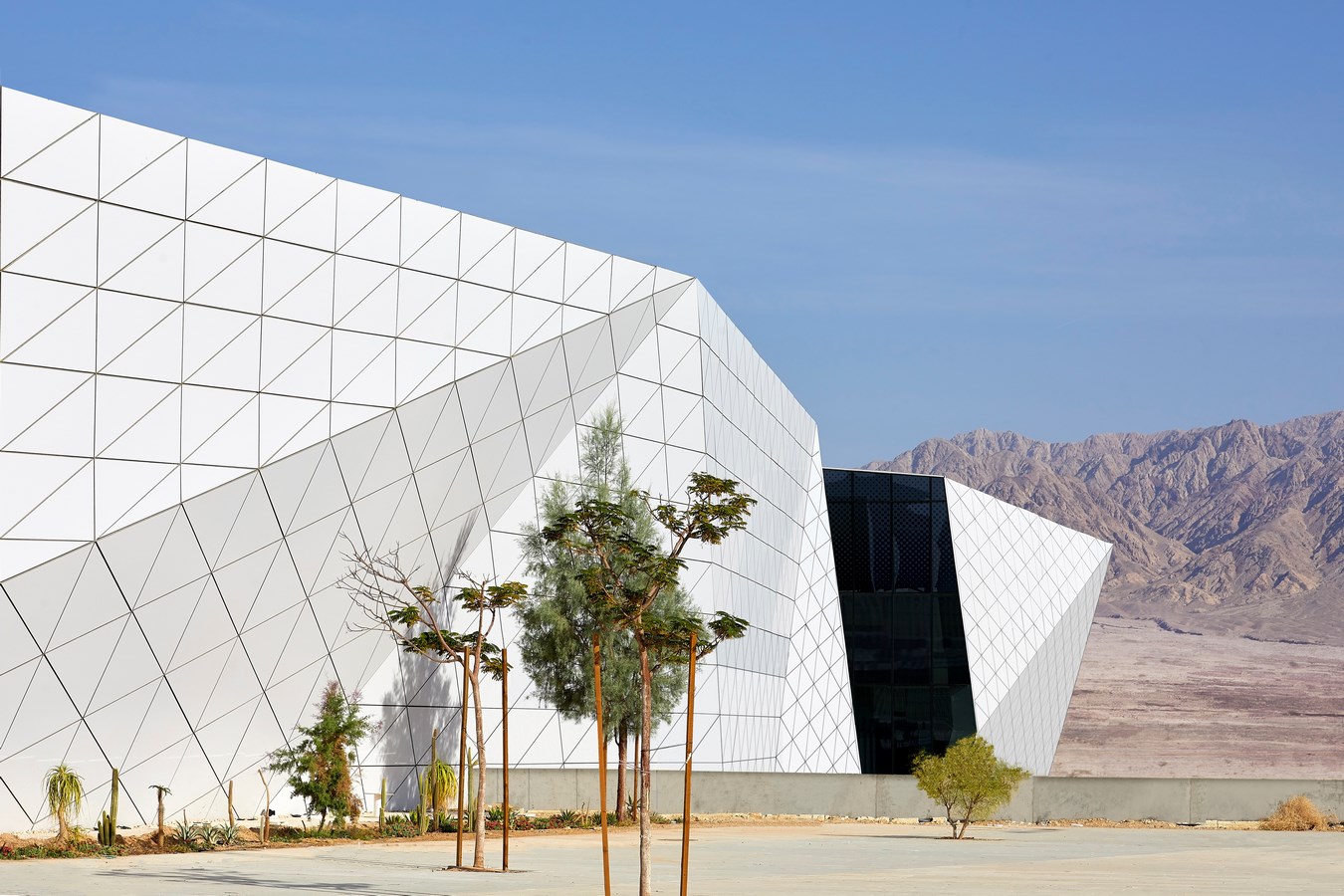

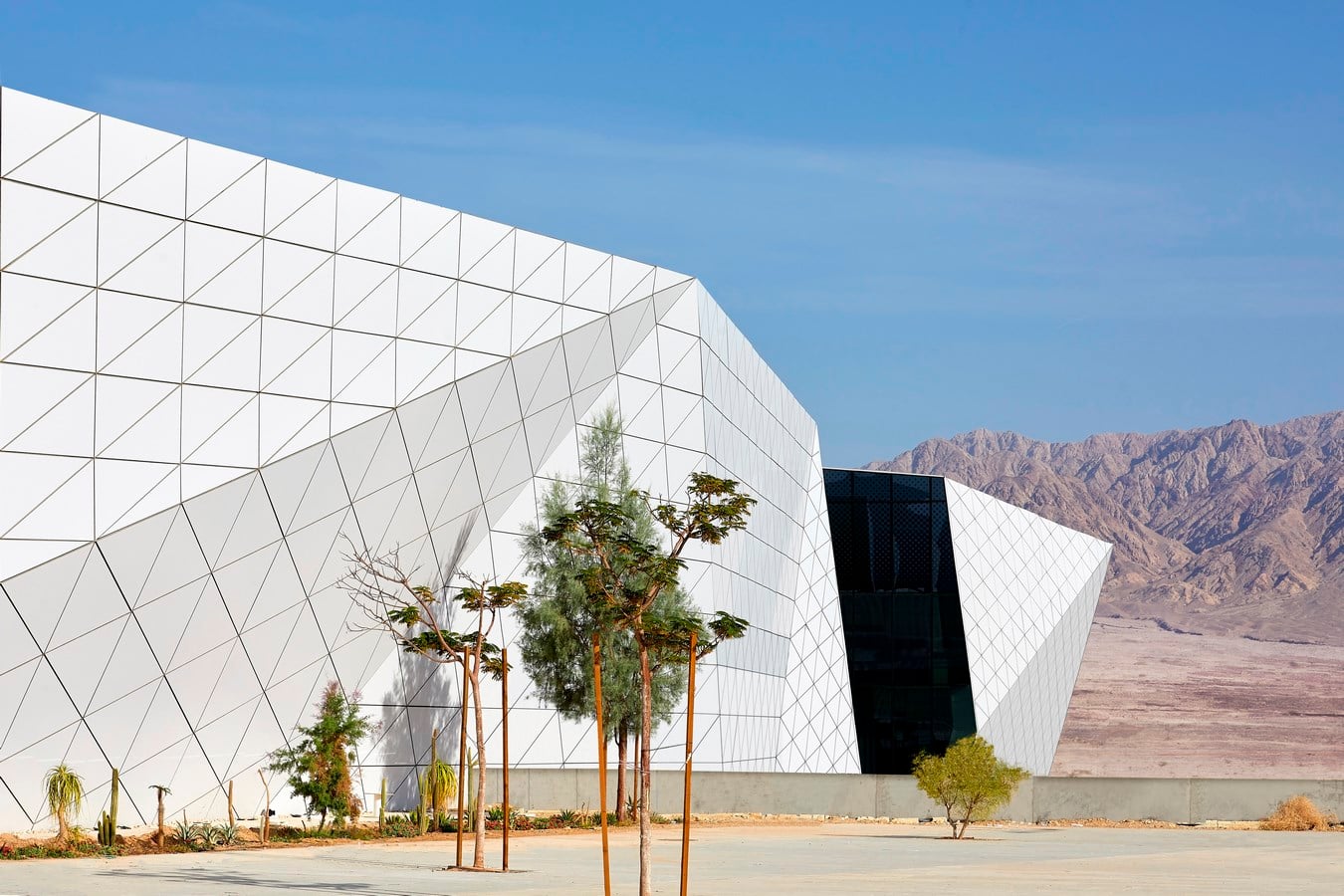

The terminal’s envelope consists of a steel and concrete skeleton structure, cladded to the exterior with insulating aluminum triangular panels, continuous from wall to the roof that create one single mass. The pristine white panels reflect the light rays and the UV waves and thus help in further reducing the skin’s temperature. Towards the interior, the building’s volume is hollowed out and the envelope is cladded in a contrasting bamboo-wood, uniting the ceiling and walls over one continuous space.

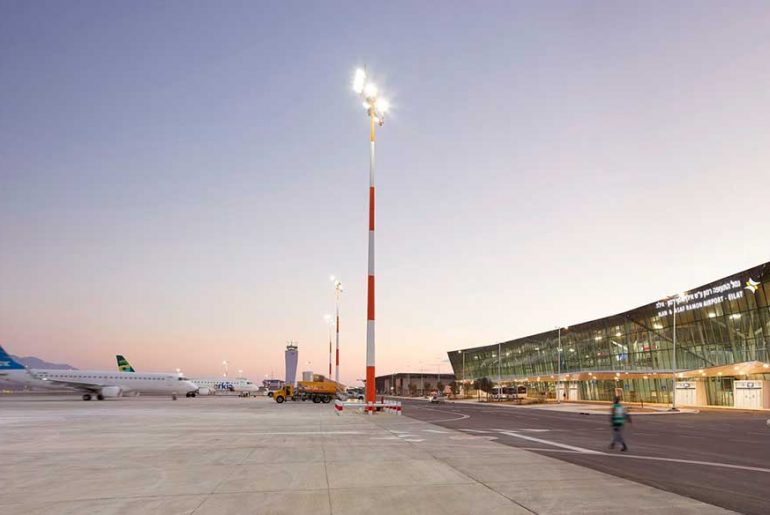

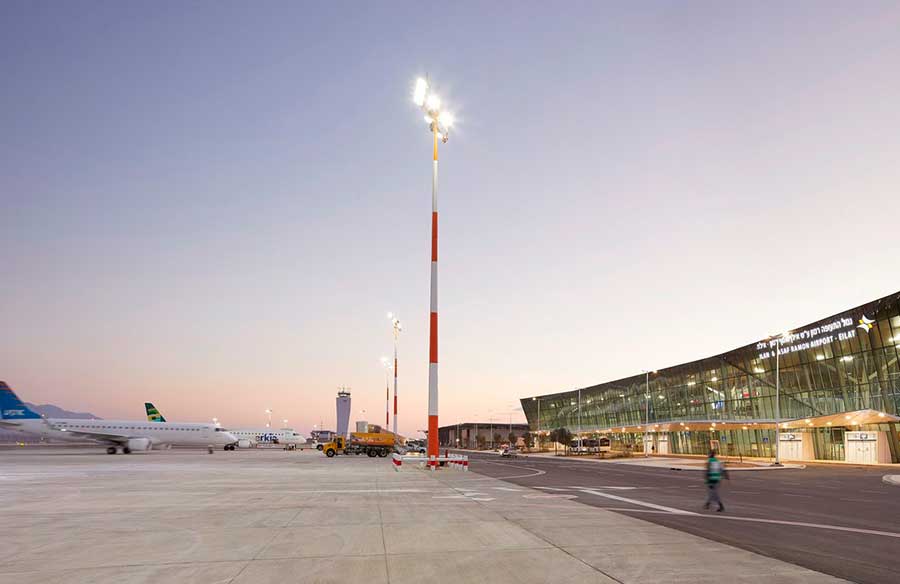

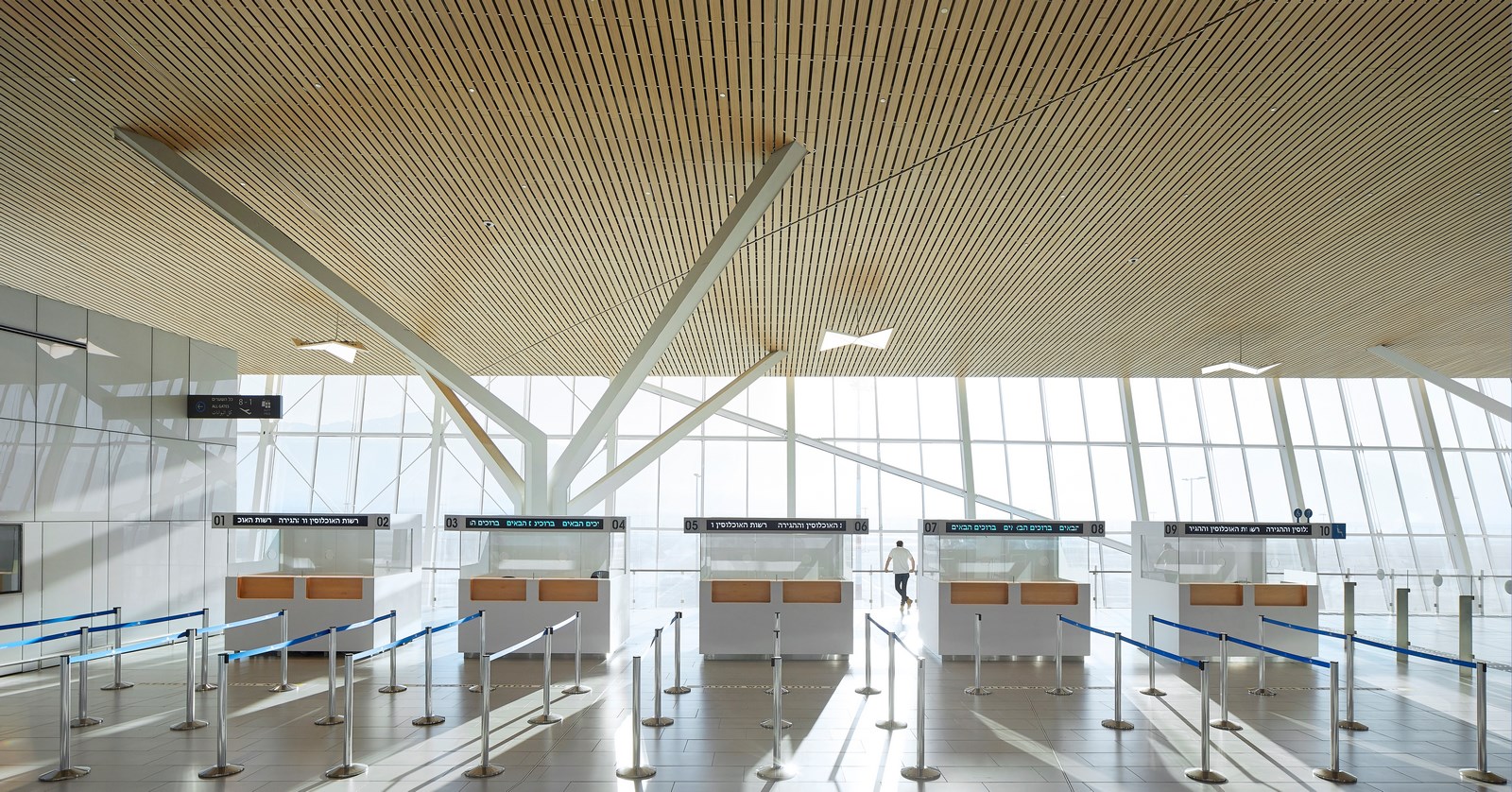

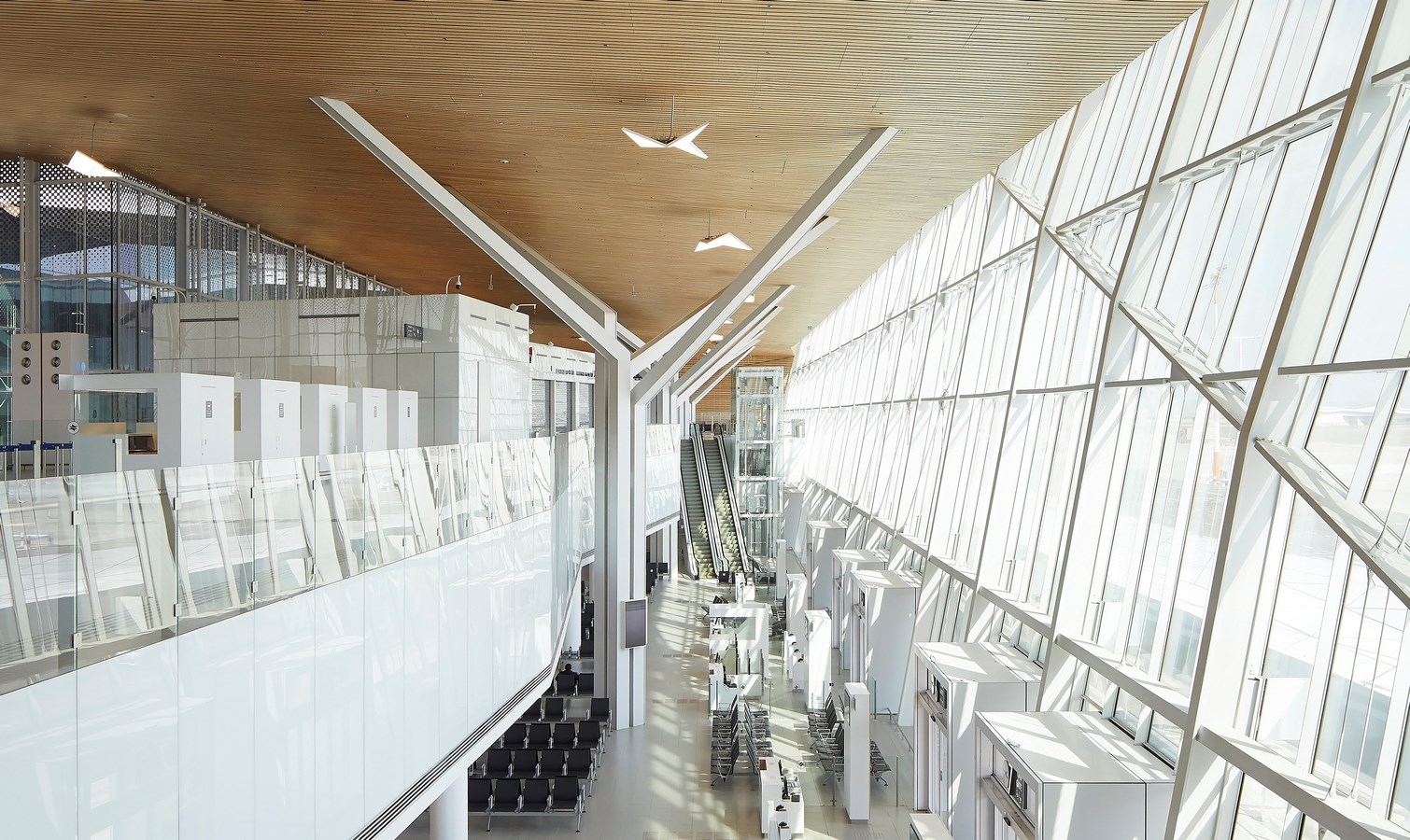

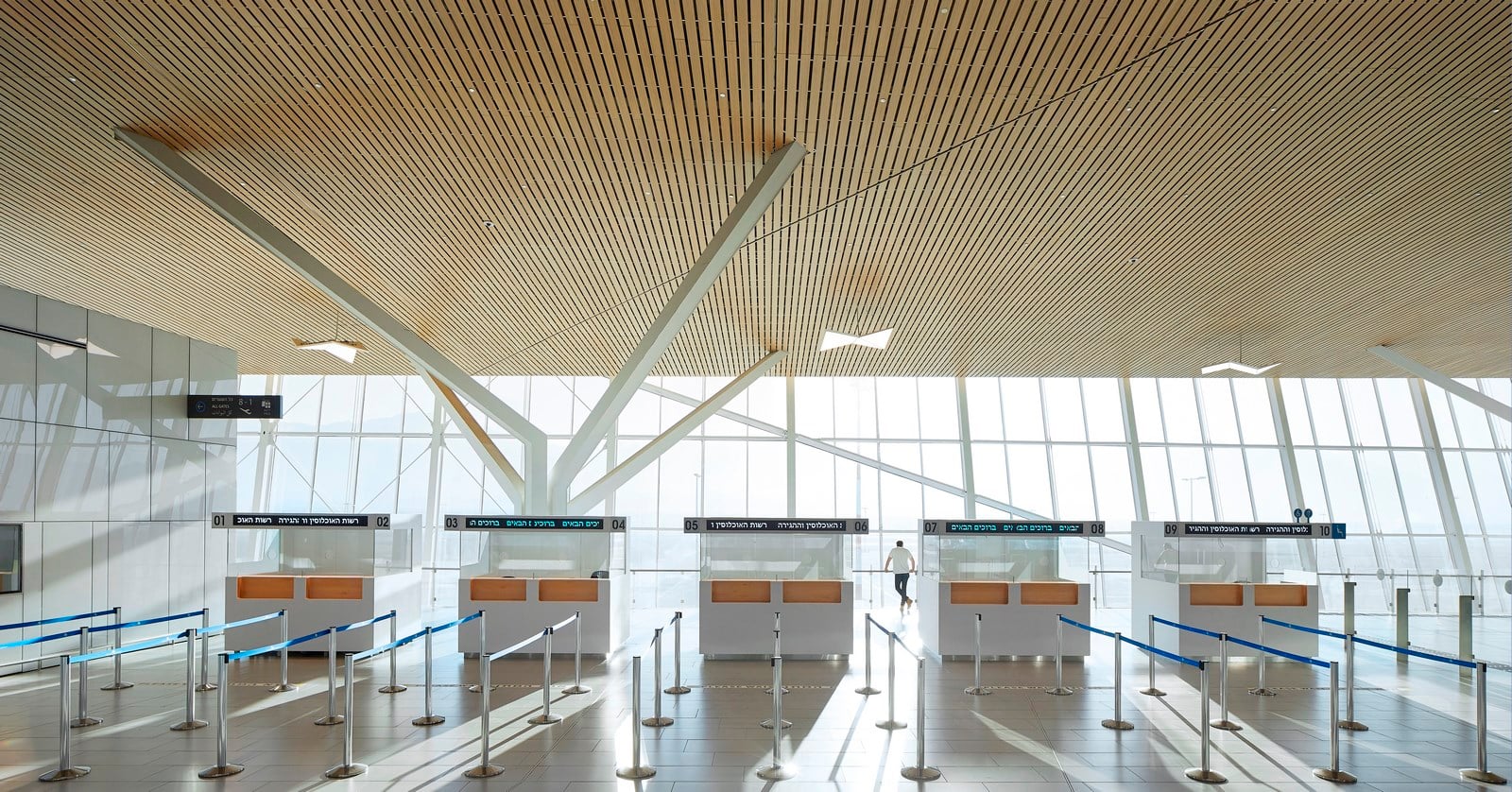

The terminal building’s minimalist interior scheme is based on a tightly organized high-ceilinged hall with low-level furniture and pavilions acting as dividers. Its entire infrastructure including baggage handling, security processes, and many other technical operations and systems are all hidden on a lower level. This allows for the roof to be free of any technical equipment as a fifth façade viewed from the airplane window, and for all passenger processes to be efficiently on one single level. The result is a “Miesian”-like terminal hall where all passenger traffic is viewable, separated only by the desert patios. The terminal opens at the boarding gate area with a 20-meter high glass curtain wall towards the theatre of aviation with the desert view as a backdrop.

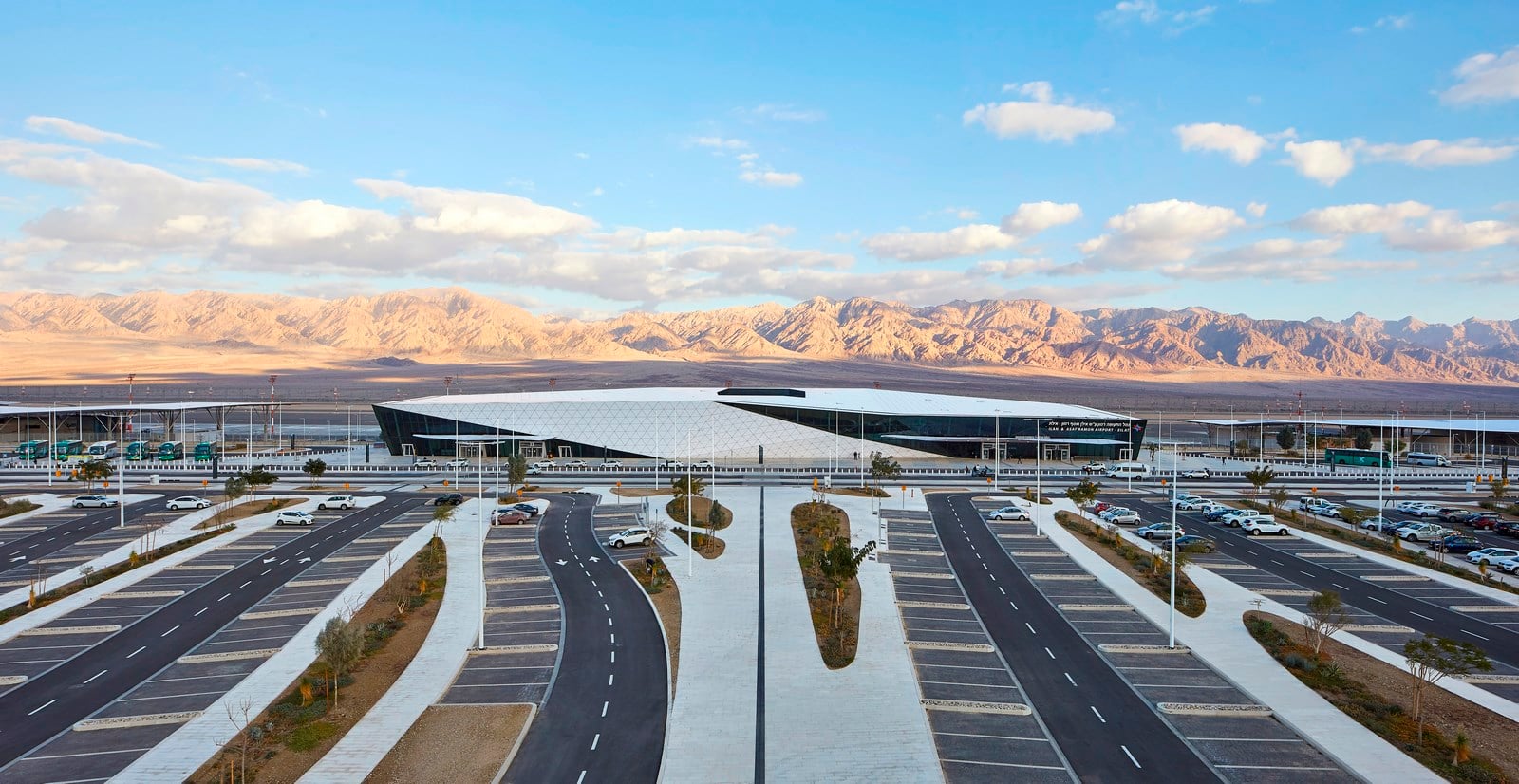

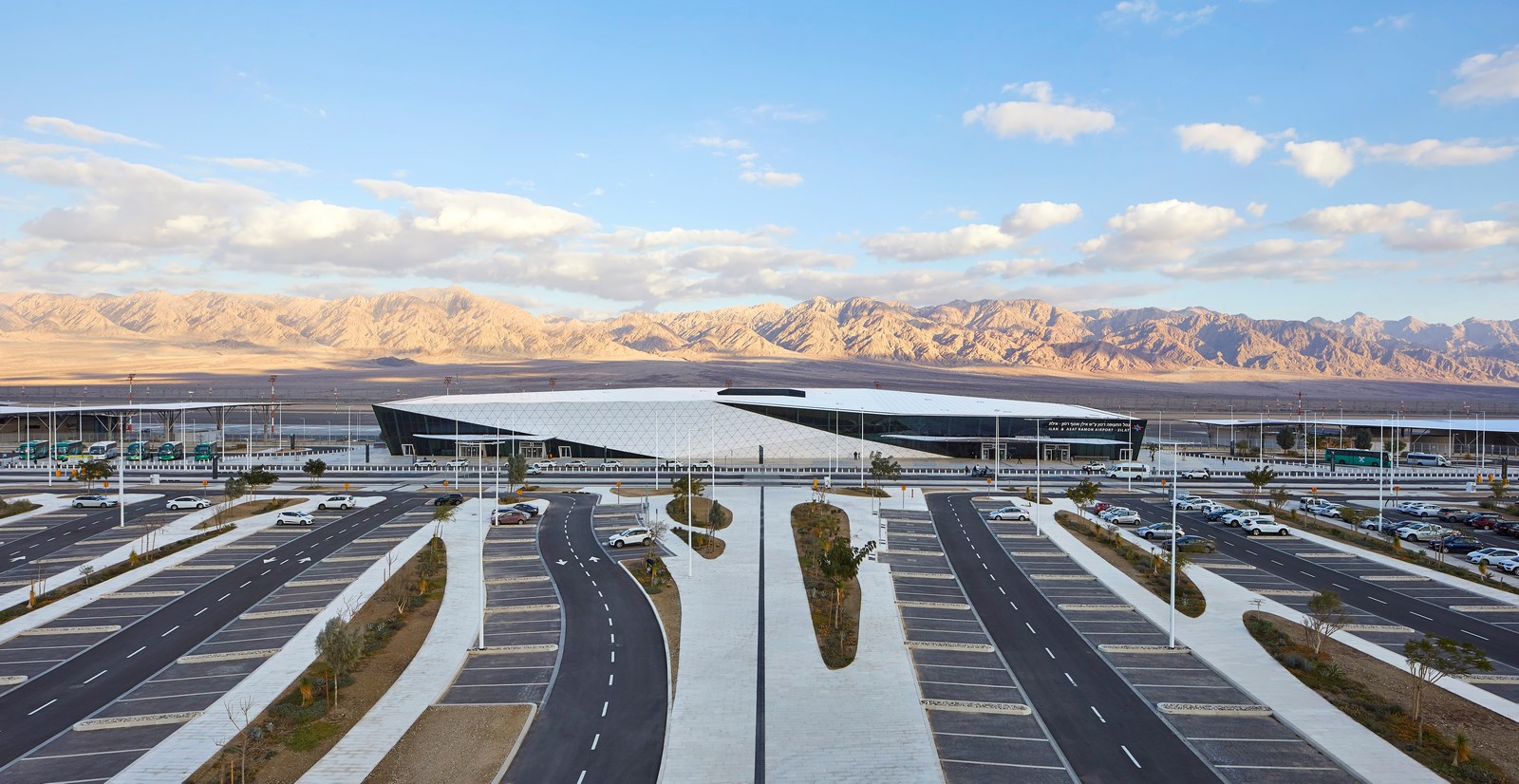

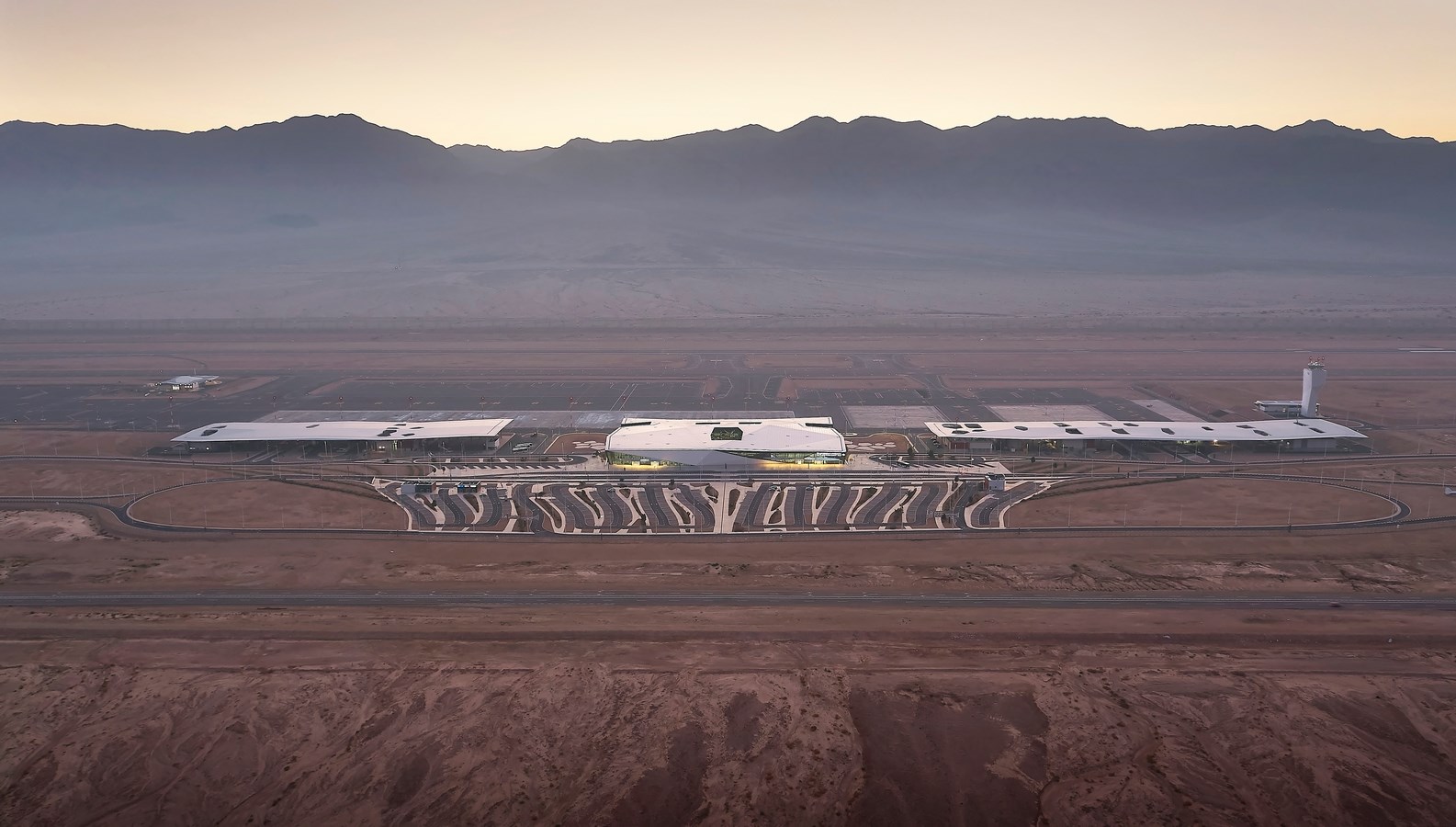

The landscape design development drew inspiration from the existing river delta fan created by the mountain flooding into the desert valley. Thus, the delicately winding paths of the parking lot and the landscape development follow the shape of the natural spill from the streams. As part of the aspiration to preserve and integrate the landscape with the environment, and with the intention of maximizing the use of existing local materials, all the sand and rock infrastructure excavated at the site was used as a filler for the construction of the runways, the airplane hardstands, and the roads.
To this end, a grinding factory was set up to crush the pebbles into bedding materials. The land collected during dig was also used to finally cover the ground upon completion of construction to seamlessly integrate the landscape development with the natural surrounding. In addition, local plant seeds were harvested and preserved at the site, grown and incubated in greenhouses during the years of construction, and finally returned to their original location, to serve as the desert vegetation lining the airport’s landscape.
