Since innovation and the use of new technologies increase efficiency while reducing their negative effects on the environment, they are essential to the objective of sustainable development. An example of such an innovation is the use of Heat-sensitive cameras, also known as thermal imaging and used in infrared thermography help to identify even the tiniest temperature changes. This is a quick non-destructive inquiry (NDI) technique that doesn’t involve damaging the study item or removing samples. As a result, it can image huge surface regions and collect and analyze data without requiring touch. This non-invasive technique captures infrared radiation emitted by objects and has emerged as a valuable tool in various fields because of its ability to visualize and quantify temperature variations across surfaces. Temperature differences as low as 0.1°C can be observed and recorded.
Unlike the more traditional methods used for investigation, thermal imaging enables the damage to be located without the need to cause further disturbances, for example, by drilling holes. Therefore, the results of thermographic surveys can facilitate a more accurate assessment of the condition of a building without hostile investigation or experimental opening-up work. As a result, this can help to minimize the costs and risks associated with renovations or remedial works as surveyors and enforcement officers have been able to recognize and classify thermal defects and produce a clear method for dealing with housing conditions that may give an upsurge to hazards. Applications of thermal imaging include the detection of cracks, delamination, moisture, and water infiltration, observing thermal bridges, as well as locating areas of heat loss and air leakages. Furthermore, it can also be used to assess the performance of insulation methods. This can be done by noticing any temperature discrepancies on a surface.
Thermal Cameras

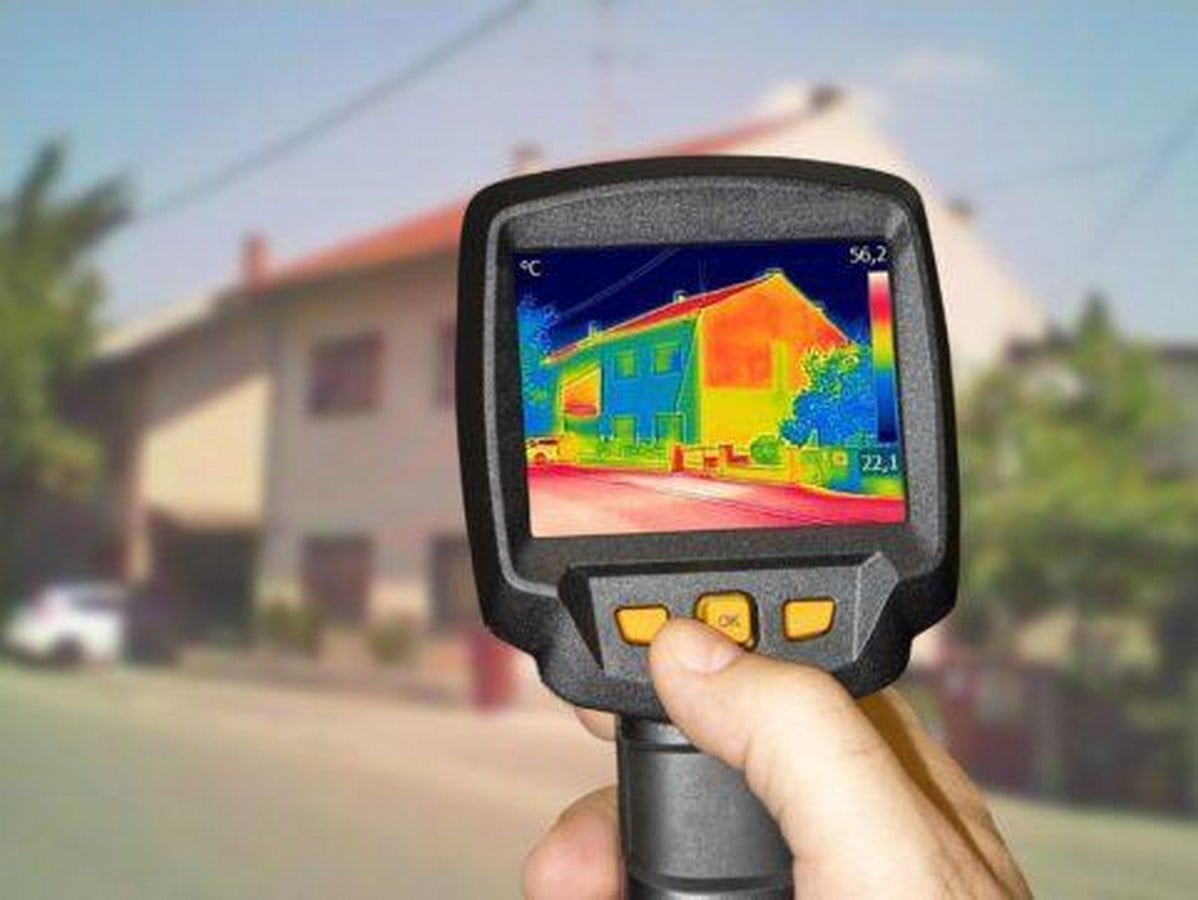

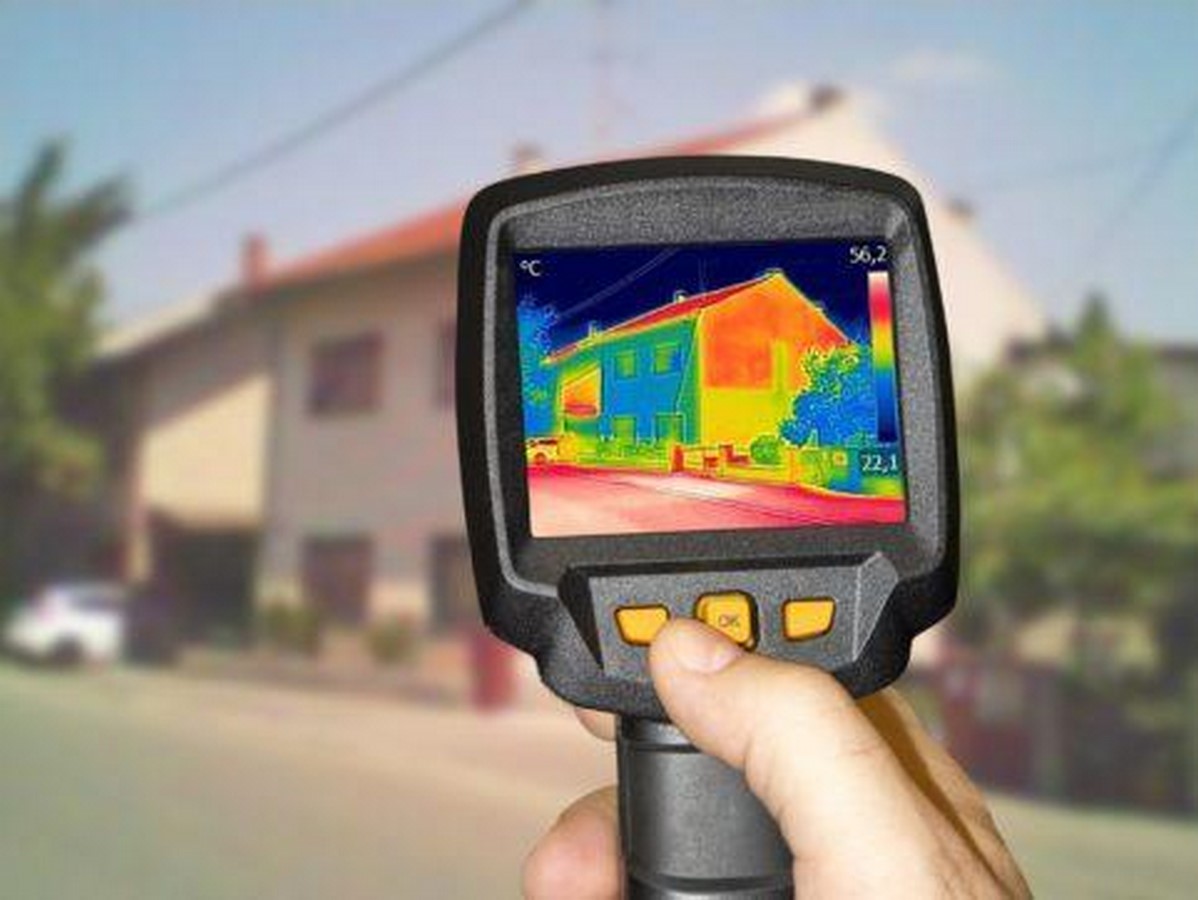

Thermographic or infrared imaging devices are a versatile technology with many industrial uses. They are made to detect infrared radiation that objects release and transform it into visible images. Because of its wavelength being longer than that of visible light, infrared light is invisible to the human eye without IR ray detectors. Therefore, thermal cameras operate in the infrared spectrum, unlike traditional cameras which rely on visible light to capture images. This allows them to visualize temperature variations and create thermal images. Cameras for building thermography detect long wave IR (Infrared Radiation) of between 8-14μm which does not pass through glass and hence cannot be used to see objects behind glass. This also means that the camera cannot use a glass lens so the lenses in long-wave IR cameras are made of germanium, which is a hard, lustrous, gray-white, brittle metalloid that sits between silicon and tin in group 14 of the periodic table.
Benefits of Thermal Imaging

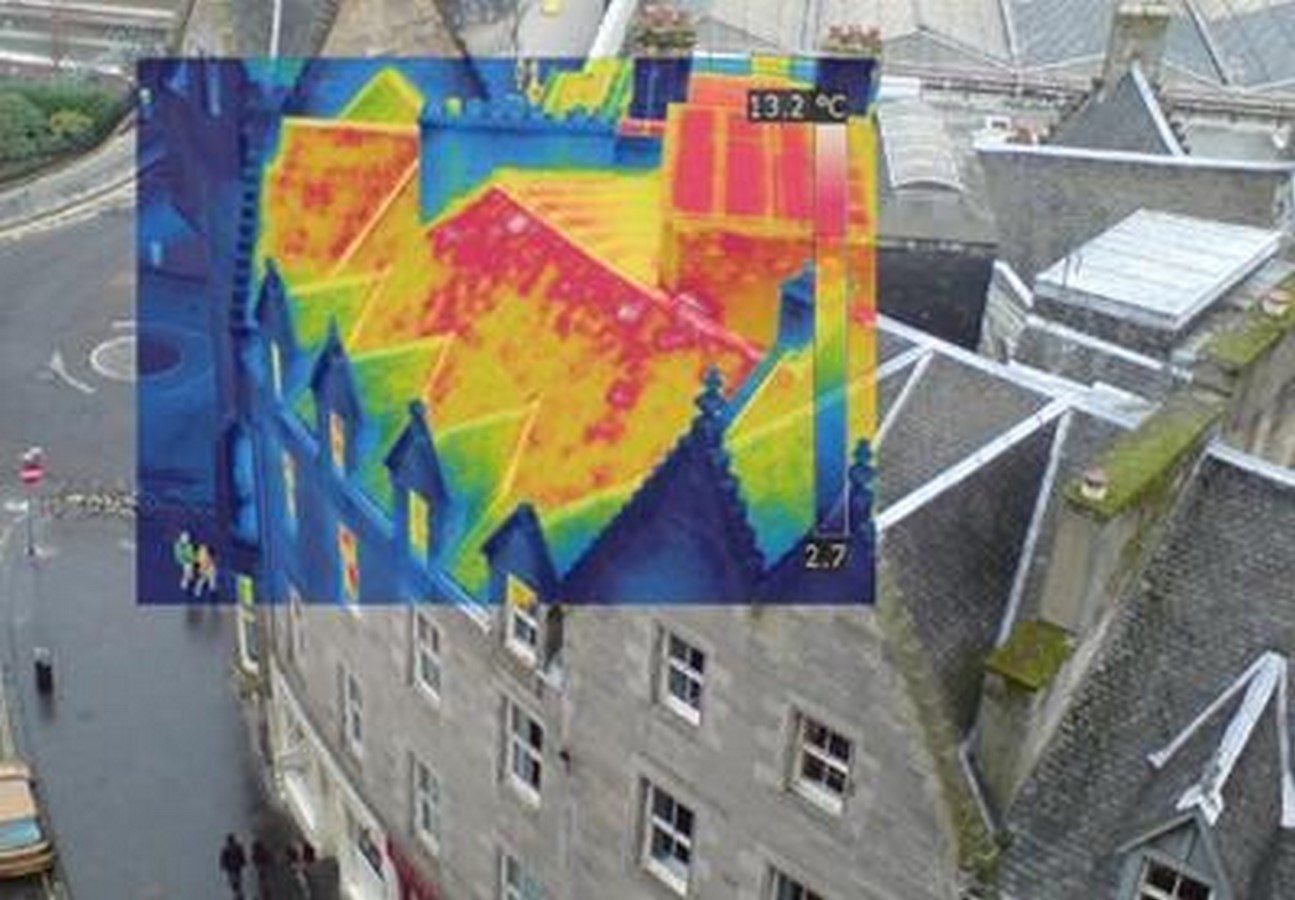

Thermal imaging offers several benefits that contribute to sustainable living practices. Firstly, by locating heat-loss spots in structures and industrial facilities it promotes efficiency and energy conservation. Over 40% of the energy we use is used by buildings, and despite many attempts to lower energy usage over the past 20 years, this percentage keeps on increasing. With the use of thermal imaging, it is possible to identify areas of a building that lose too much heat or energy and to calculate U-values—a measurement of a substances or structure’s thermal transmittance that is sometimes referred to as the insulation value of a building material. Besides this, thermal cameras can also detect air leaks, which are major problems in buildings as they lead to higher energy consumption. The camera does not see the airflow but identifies the cooling effects on adjacent surfaces, hence improving sustainability by exposing and solving faults, cracks, leakages, and other issues without the need to tear down buildings. This also saves a lot of time, resources, and money as the use of thermal imaging and airtightness testing is a comparatively quick and cost-effective way to validate the performance of the building fabric of a finished building.
Moreover, thermography is also very useful when it comes to the detection of dampness. IR thermography can locate existing areas and predict other areas at risk of condensation and evaporative cooling provided that the values for air temperature and relative humidity are available. Evaporative cooling causes warm, damp surfaces to remain relatively cold as moisture is lost from the surface. This situation becomes complex, especially when moisture is held at depth. When moisture is held at depth and the heating has been available for an adequate duration and intensity, trapped water shows up as a hot spot on the IR camera which as a result creates a confusing effect caused by the differences in the thermal capacity of the water inside the wall and the wall itself. Even though the IR camera only sees the temperature of surfaces, it can additionally provide data about the deeper structure. The pattern of variations in heat flow can often give clues on sub-surface structures, visualise the performance of underfloor heating, and also help to locate hot-water and heating pipes hence proving to be very beneficial to locate problems without having to open up floors or walls.
Applications for Sustainability
The construction industry utilizes thermal imaging to find thermal bridges, bad electrical connections, and moisture penetration during building inspections. This increases building energy efficiency and promotes occupant comfort and health. This can be so by preventing issues of dampness, moisture, and black mold, amongst others, through early detection and fixing. Furthermore, in urban planning, thermography supports the development of climate-resilient cities by studying land surface temperatures, heat island effects, and urban heat distribution to create more sustainable places to live in. This data helps to make decisions related to green infrastructure initiatives such as green spaces, cooling roofs, and improving ventilation, which will help to mitigate health risks related to heat and better overall urban infrastructure and liveability.
Challenges and Limitations of Thermal Imaging
Despite its benefits, thermal imaging also faces several challenges that may delay its adaptation and effectiveness in the modern-day world. One major challenge is that of the high initial costs associated with thermal imaging equipment, which may deter small businesses and individuals from using this unless backed up with enough capital to invest in this technology. Moreover, interpreting thermal images also requires specialized training and expertise, which is an added cost on its own. Thermal imaging is also further limited by environmental factors such as weather conditions and background radiations, which can affect the accuracy of the results.
In conclusion, thermography represents a bright route towards sustainability and its application in various fields, including construction and urban planning by contributing to resource optimization and resilience building but also poses significant challenges, such as costs, expertise, and ethical considerations. Addressing these challenges is essential to unlock the full potential of thermal imaging in advancing sustainable practices. Overcoming these obstacles and challenges may allow thermal imaging to play a pivotal role in shaping a more sustainable future.
REFERENCES:
- Bond, M. L., Jones, M. R., Lee, D. E., McLean, B. S., Ford, A. T., Epps, C. W., … & Cerling, T. E. (2019). Novel wildlife in a novel ecosystem: infrared camera traps reveal the dynamics of large mammal populations in an urban-associated landscape. Ecosphere, 10(6), e02799 (Accessed: 23 February 2024).
- BSRIA (2021) Thermal imaging helps improve energy efficiency in building design, BSRIA Blog – Opinions and insights from BSRIA Limited. Available at: https://blogs.bsria.co.uk/2020/03/17/thermal-imaging-helps-improve-energy-efficiency-in-building-design/ (Accessed: 23 February 2024).
- Building thermography: Infratec thermography knowledge (no date) Building thermography | InfraTec thermography knowledge. Available at: https://www.infratec.co.uk/thermography/service-support/glossary/building-thermography/ (Accessed: 23 February 2024).
- Chen, Y., Zhao, L., Li, X., Liu, Z., & Liu, Z. (2019). Estimating land surface temperature from Landsat-8 TIRS imagery using the generalized single-channel algorithm: A case study in the Pearl River Delta Region, China. Remote Sensing, 11(3), 310 (Accessed: 23 February 2024).
- Donnelly, G. (2021) Achieving Sustainable Futures with thermal imaging, GEO BUSINESS. Available at: https://www.geobusinessshow.com/achieving-sustainable-futures-with-thermal-imaging/ (Accessed: 23 February 2024).
- Eicker, U. (2017). Solar technologies for buildings. John Wiley & Sons (Accessed: 23 February 2024).
- Kohl, M., Wagner, A., & Jäger, M. (2017). Automatic thermal infrared inspections of buildings by unmanned aerial systems: a case study. Remote Sensing, 9(5), 442 (Accessed: 23 February 2024).
- Liu, F., Wu, S., Guo, X., & Yang, W. (2017). A review of the applications of thermal infrared remote sensing in hydrology and water resources. Journal of Hydrology, 553, 394-411 (Accessed: 23 February 2024).
- Murdoch, J., Marsden, T., & Banks, S. (2016). Quality, nature, and globalization: An ethnographic study of bottled water networks. Journal of the Royal Anthropological Institute, 22(1), 143-160 (Accessed: 23 February 2024).
- Rhee-Duverne, S. and Cattini, C. (2018) Thermography in historic buildings, Historic England. Available at: https://historicengland.org.uk/whats-new/research/back-issues/thermography-in-historic-buildings/ (Accessed: 23 February 2024).
- Sankaran, S., Khot, L. R., Espinoza, C. Z., Jarolmasjed, S., Sathuvalli, V. R., & Vandemark, G. J. (2015). Low-altitude, high-resolution aerial imaging systems for row and field crop phenotyping: A review. European Journal of Agronomy, 70, 112-123 (Accessed: 23 February 2024).
- Van Beeck, J., Wuyts, K., & Van Hulle, F. (2019). Benefits of thermal imaging in predictive maintenance: A review. Infrared Physics & Technology, 98, 81-90 (Accessed: 23 February 2024).
- Young, M. (2014) Thermal imaging, Thermal Imaging in the Investigation of Solid Masonry Structures. Available at: https://www.buildingconservation.com/articles/thermal-imaging/thermal-imaging.htm (Accessed: 23 February 2024).
