The Design brief was to create a multi utility space accommodating the activities like yoga, chantings and lodgings with the basic kitchen and utilitarian spaces.
Project Name : The Convention Centre
Location : Coimbatore,Tamilnadu
Year Built : 2020-2022
Duration of project : 20 months
Plot Area : 2400 sft
Built up : 2600 sft
Project Size: sq feet : 2600sft
Project Cost Appx : 6200000
Principal Architect(s) : Sabarish Thirumurthy , Tamilselvan
Team Design Credits (for Particular Project) : Gokul G.S , Sanjay Kand
Material Palette of the project : Porotherm Blocks,kota stones ,mandagan terracotta tiles,Hurudi filler blocks

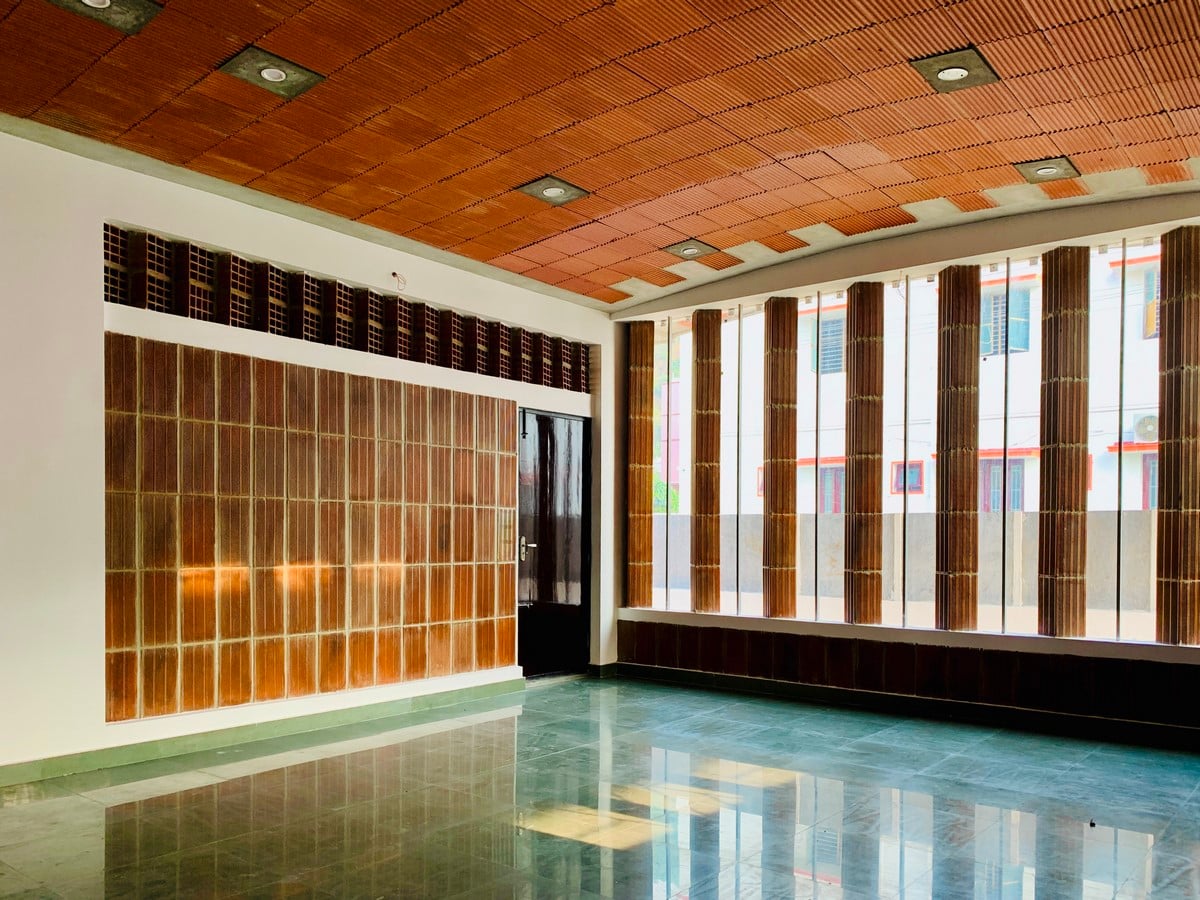

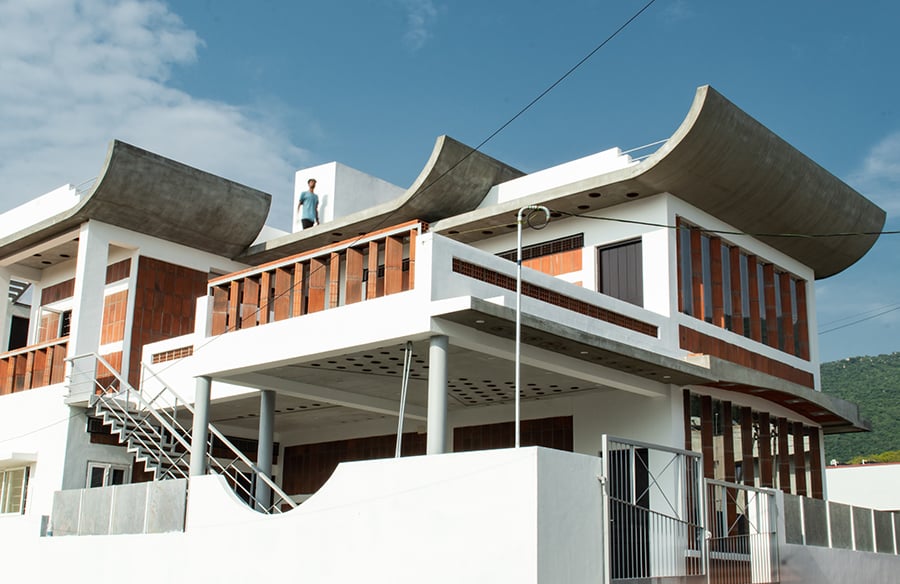

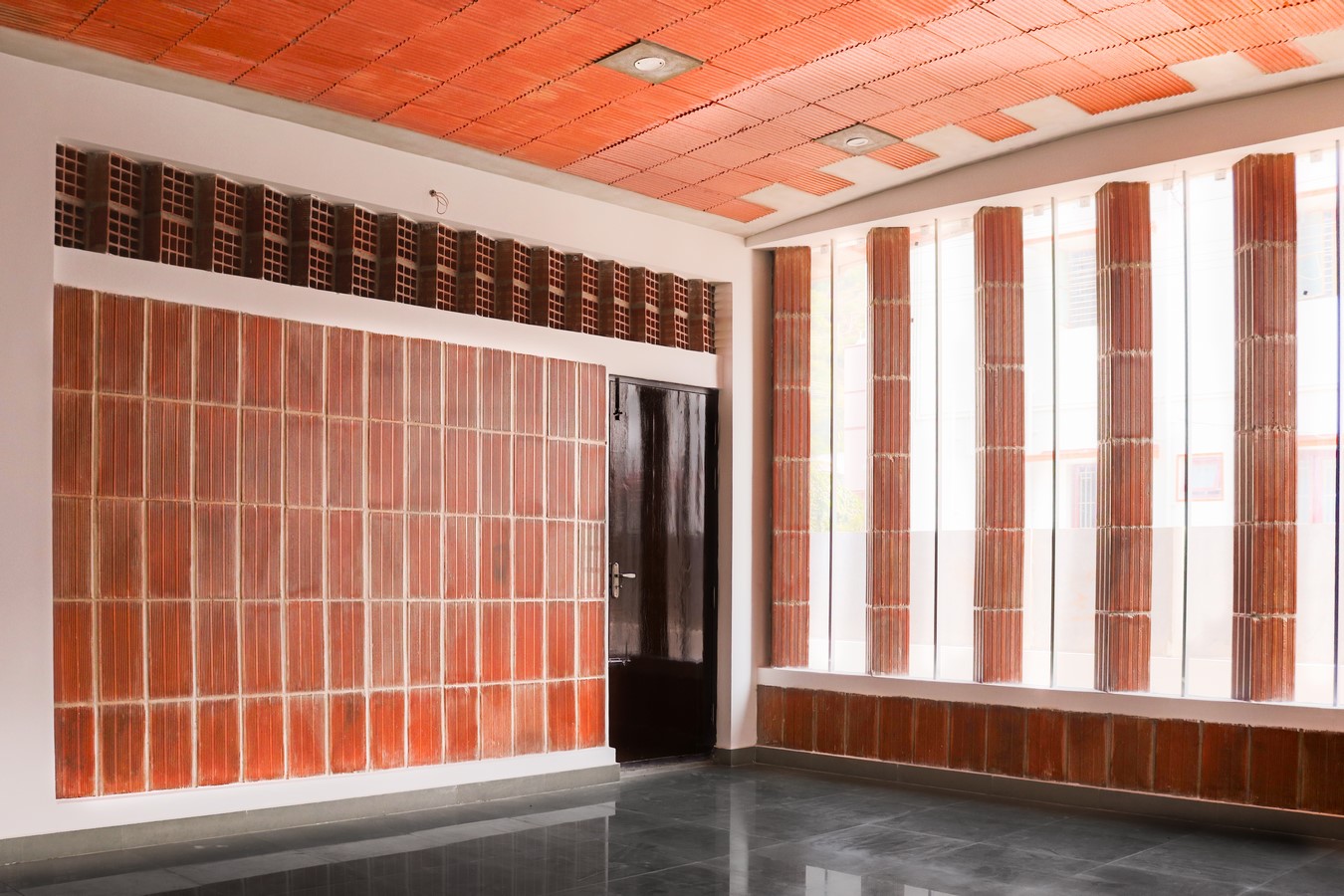

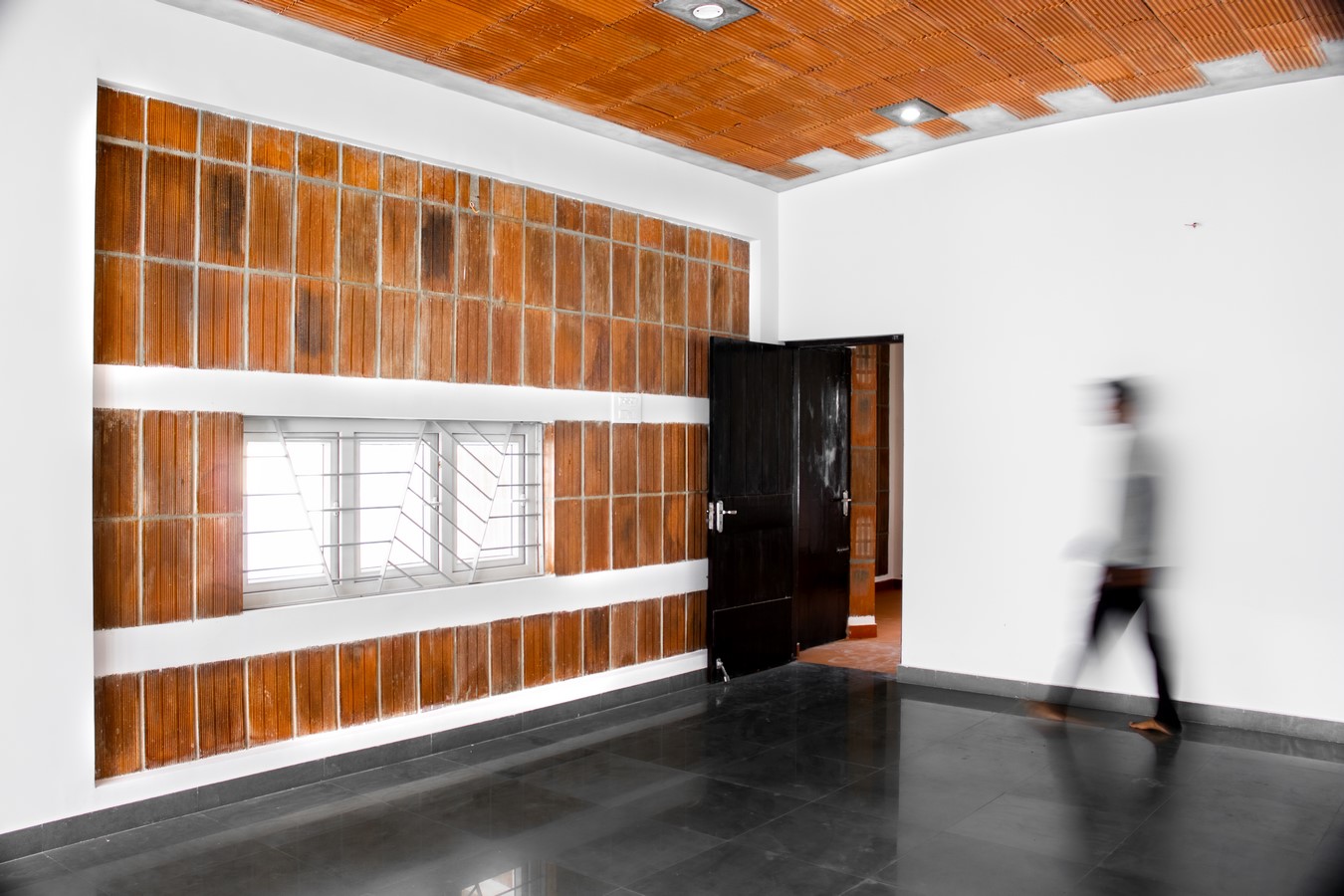

the construction was taken care in two phases .The first phase was focused on constructing a convention space confining 30 to 40 wards .The roof was done as a shallow vault to create a reverberating space to chant from a vantage point.
The ventilation was done in a way such that the easterly winds enter from a lower level into the room and the stacks up and vents out through the western direction. The plot measures of 40’ in width and 60’ in depth located at the foot hills of Coimbatore west .
PLANNING

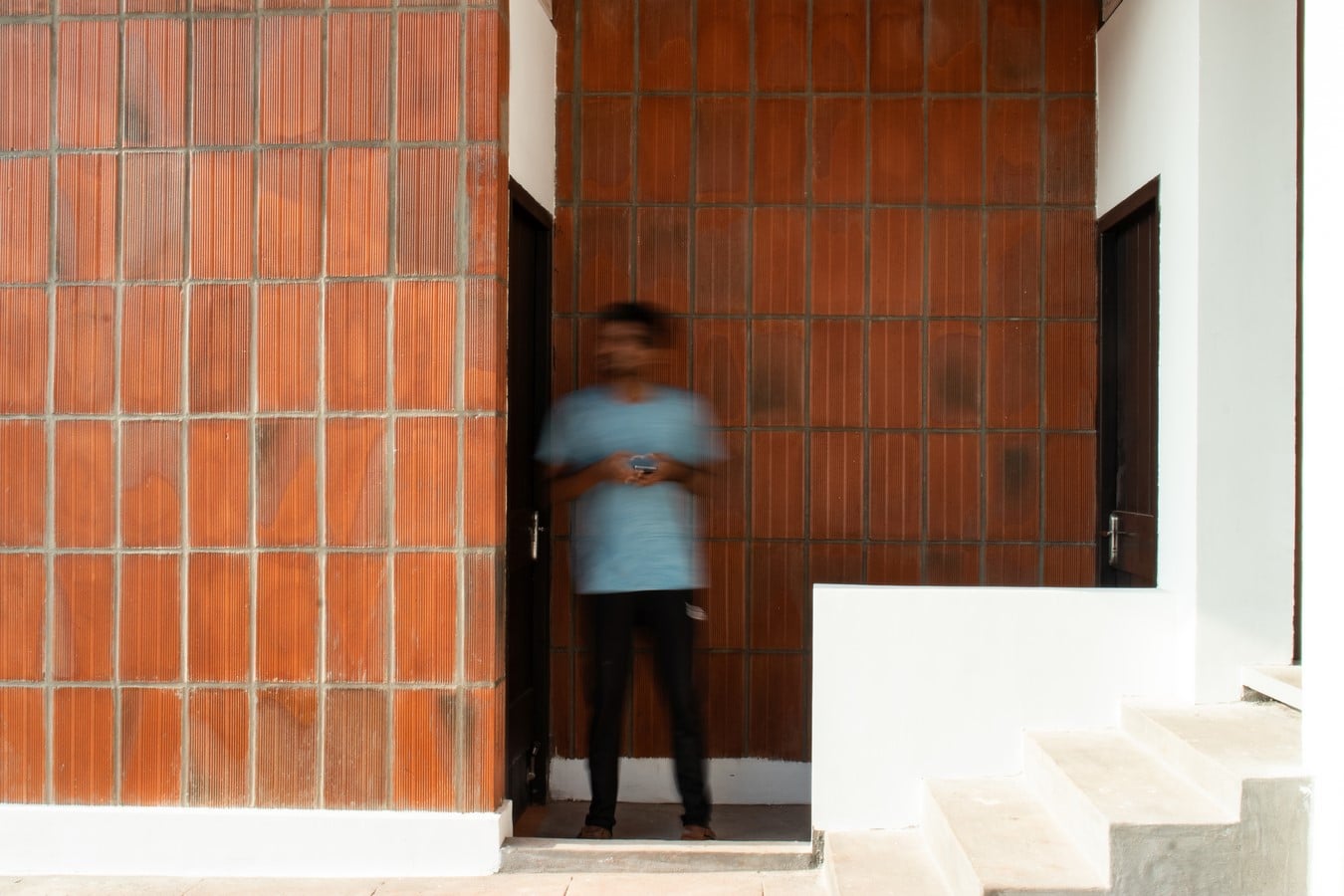

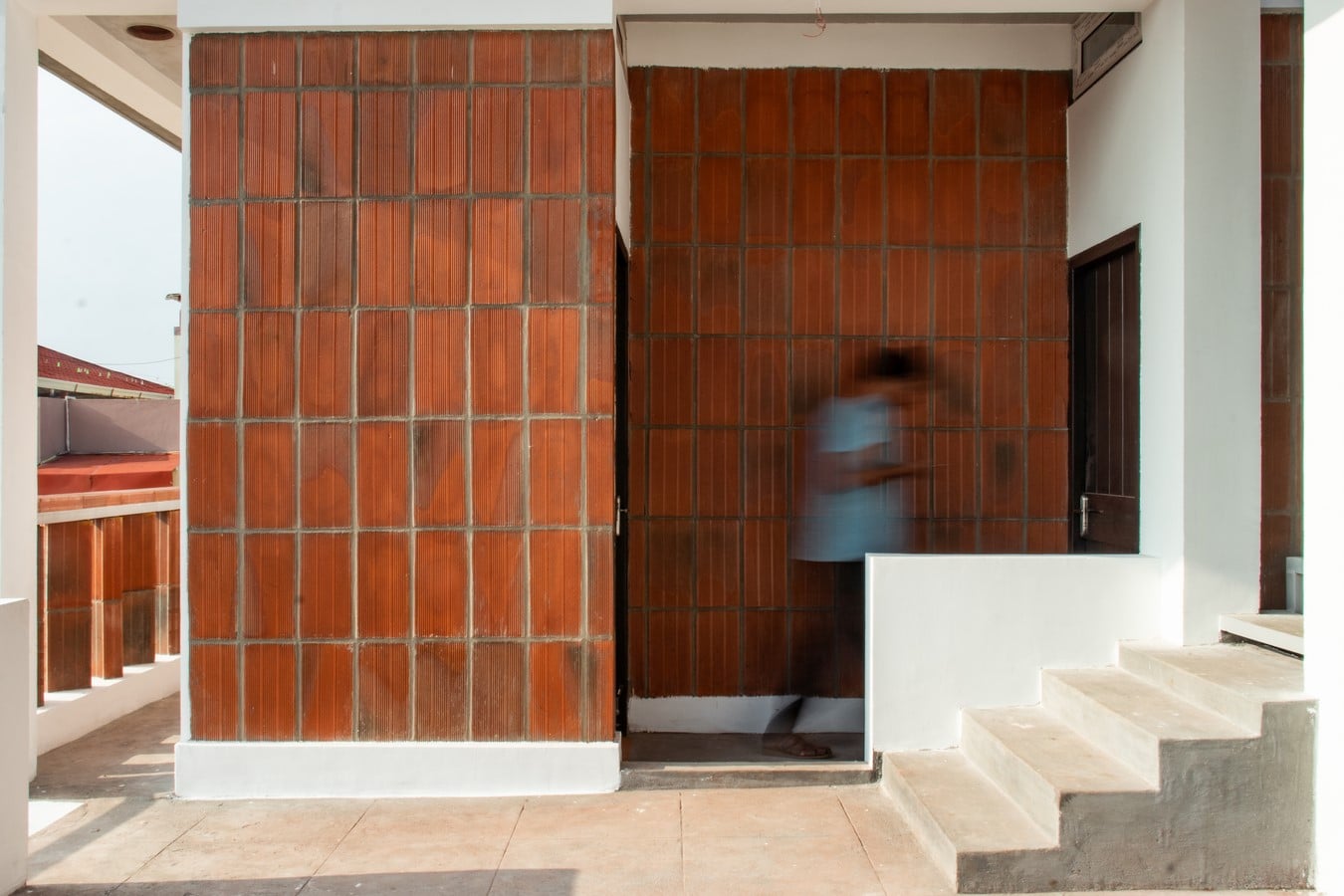

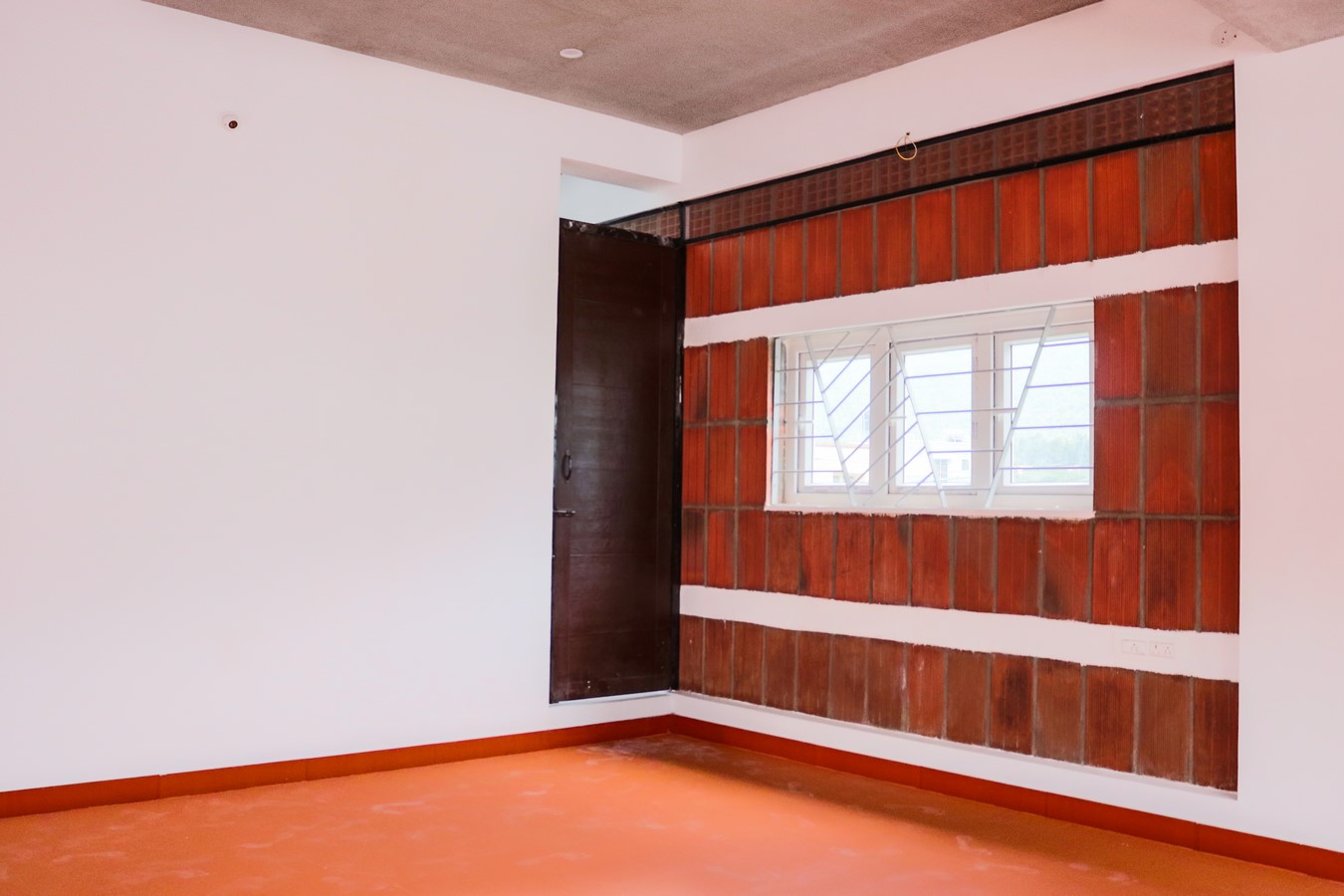

The planning was very simple on a rectilinear plot we placed a rectangular mass on western side with shorted side facing the road and longer side facing west .Due to the exposed side facing west we had to use materials with higher “u” value and lesser “R” value .The ideal choice was to go with porotherm blocks measuring about 16” x 8” x 8” in its size .It is larger in size but light in weight which resulted in a faster construction phases yet while finishing it becomes slow due to the brittleness.
ASPECTS:
1)Filler Slabs
2)North lighting
3)Stack effects
4)Contextual Acoustics
5)Thermal Efficiency
6)Carbon negative Possibilities
