The new building to replace the existing structures, hosts, according to the planning evaluations of the Municipal Administration, the classrooms for Primary School, with related spaces to be allocated to inter-cycle and integrative activities, school canteen and related services. The area affected by the The intervention consists of a lot of approximately 16,500 m2.

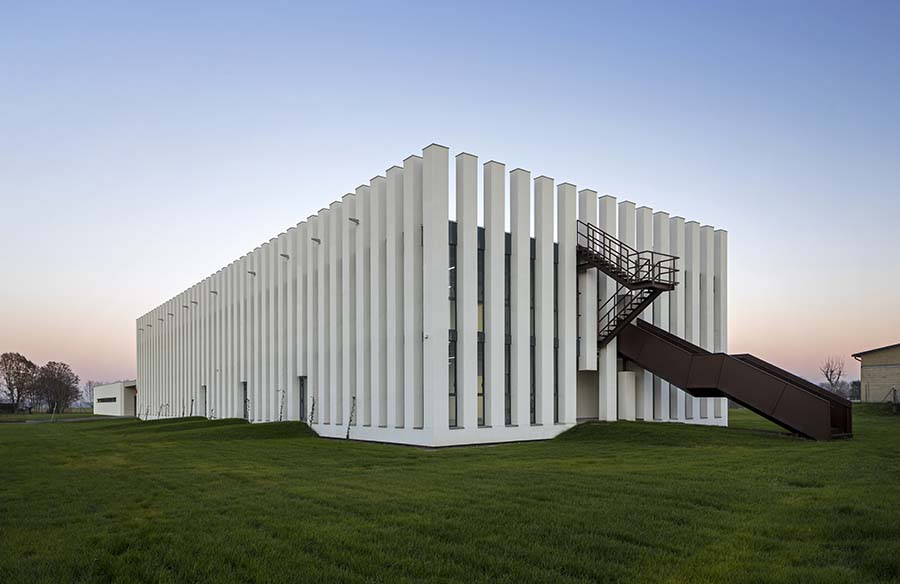

Project Name: Guglielmo Marconi primary school
Studio Name: AAAoffice
Location: Sissa (Province of Parma)
Year: 2023
Designers: Lucio Serpagli and Alessandro Gattara – AAA office
Project team: Architect Italo Jemmi, Engineer Giuseppe Stefanini, Tecnofaber, Biacchi Associati, Geologist Paolo Paolini (in RTP).
Client: Municipality of Sissa Trecasali
Surface area: 3,230 m2
Construction cost: 5.4 million euros
Energy class: Near Zero Energy Building Nzeb, Class A4
Photographs: Roberto Conte
This lot, located near the public services area (the post office is also located in the area), is intended for public parking, partly for a school area and partly for a green area, since the Sissa school in the will of the Municipal Administration it is in a “pedestrian area”, meaning together with the other schools it is part of an area completely closed to vehicular traffic.

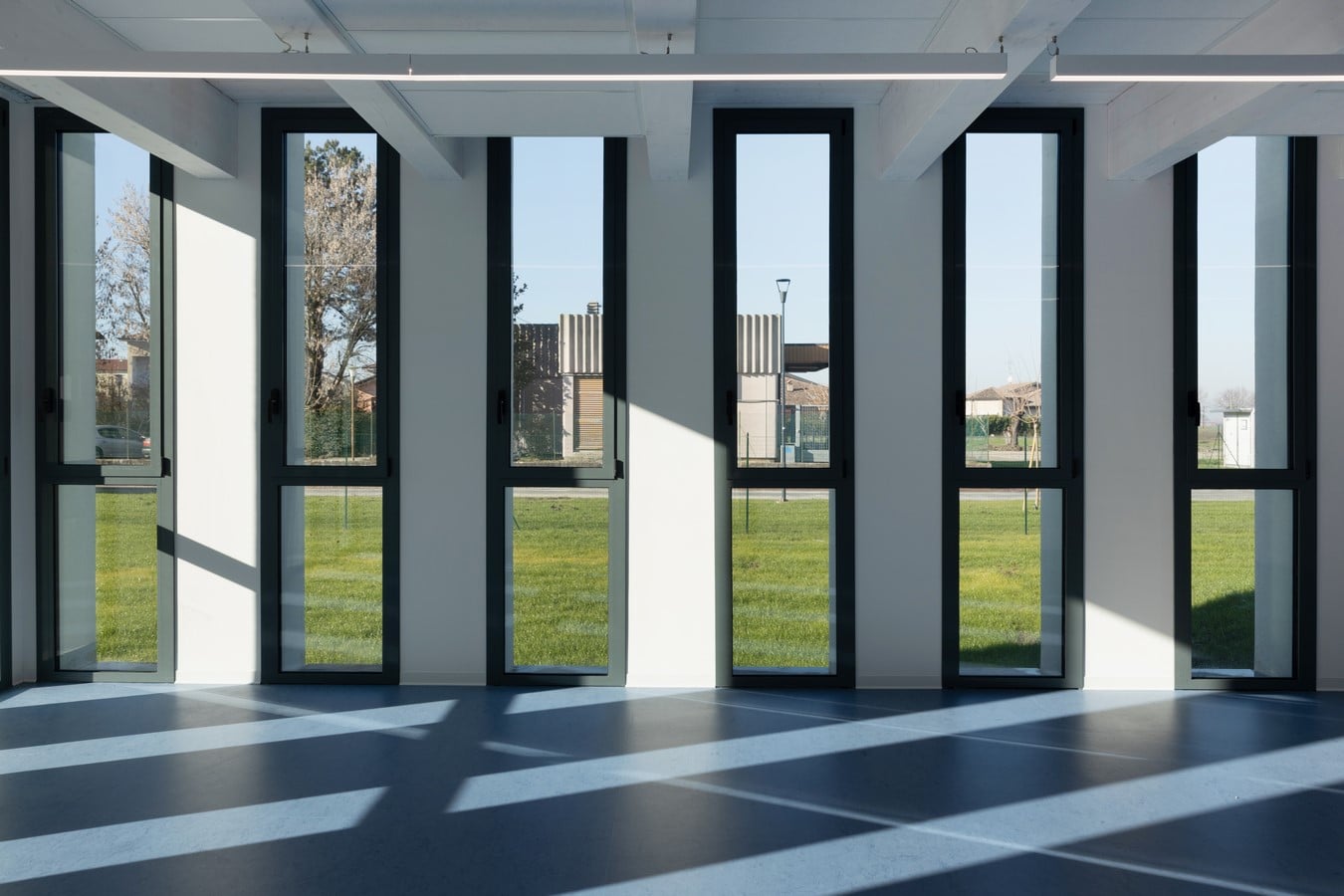

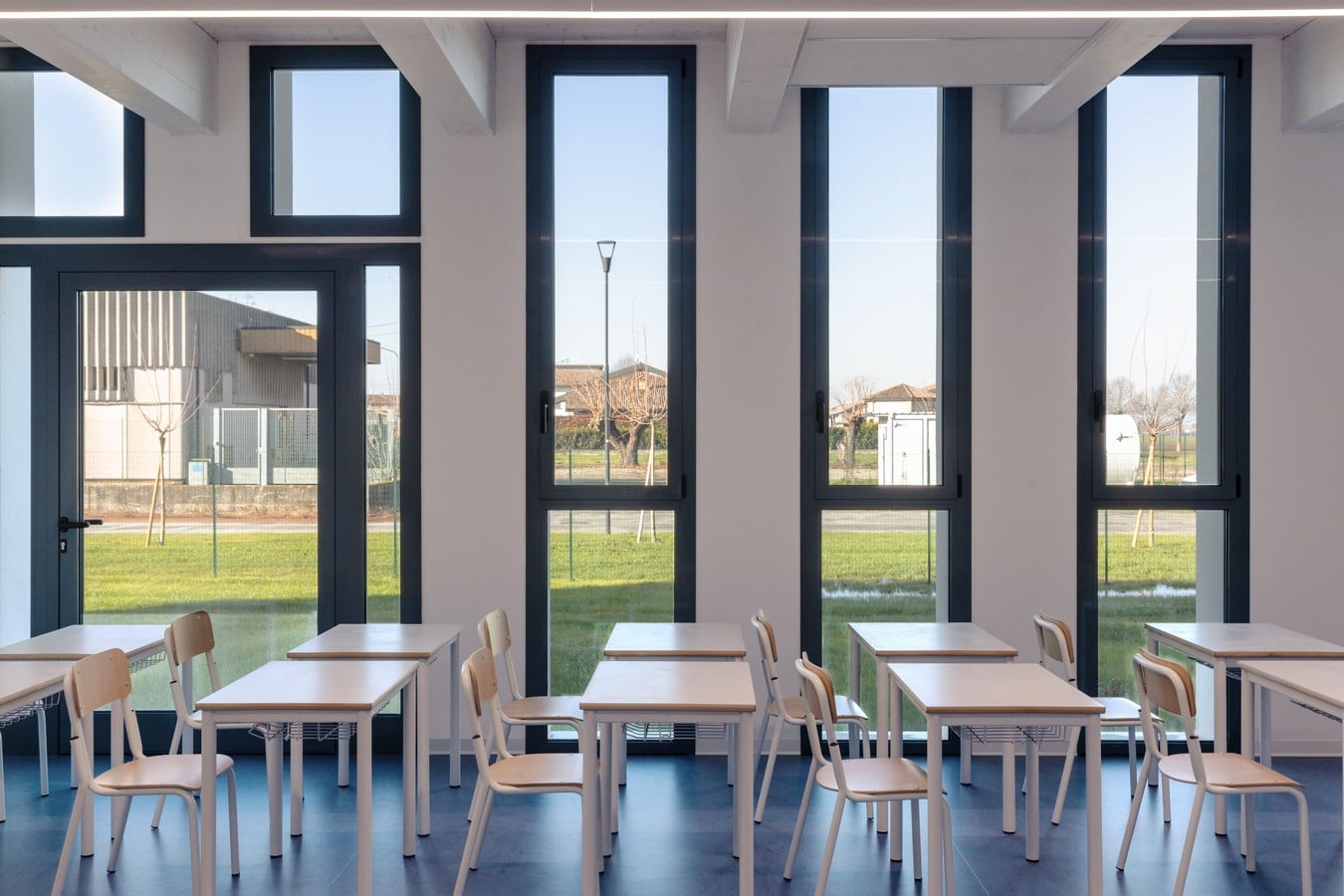

The new building (with useful surfaces of approximately 3,500 m2 and an indicative planimetric footprint of 1,850 m2) hosts n. 10 main classrooms for normal teaching activities in the presence of the whole class, plus to 10 rooms identified as atelier-laboratory for intercycle activities including the school canteen as these are classrooms intended for afternoon activities, in addition, of course, to the necessary spaces for connectivity and services.

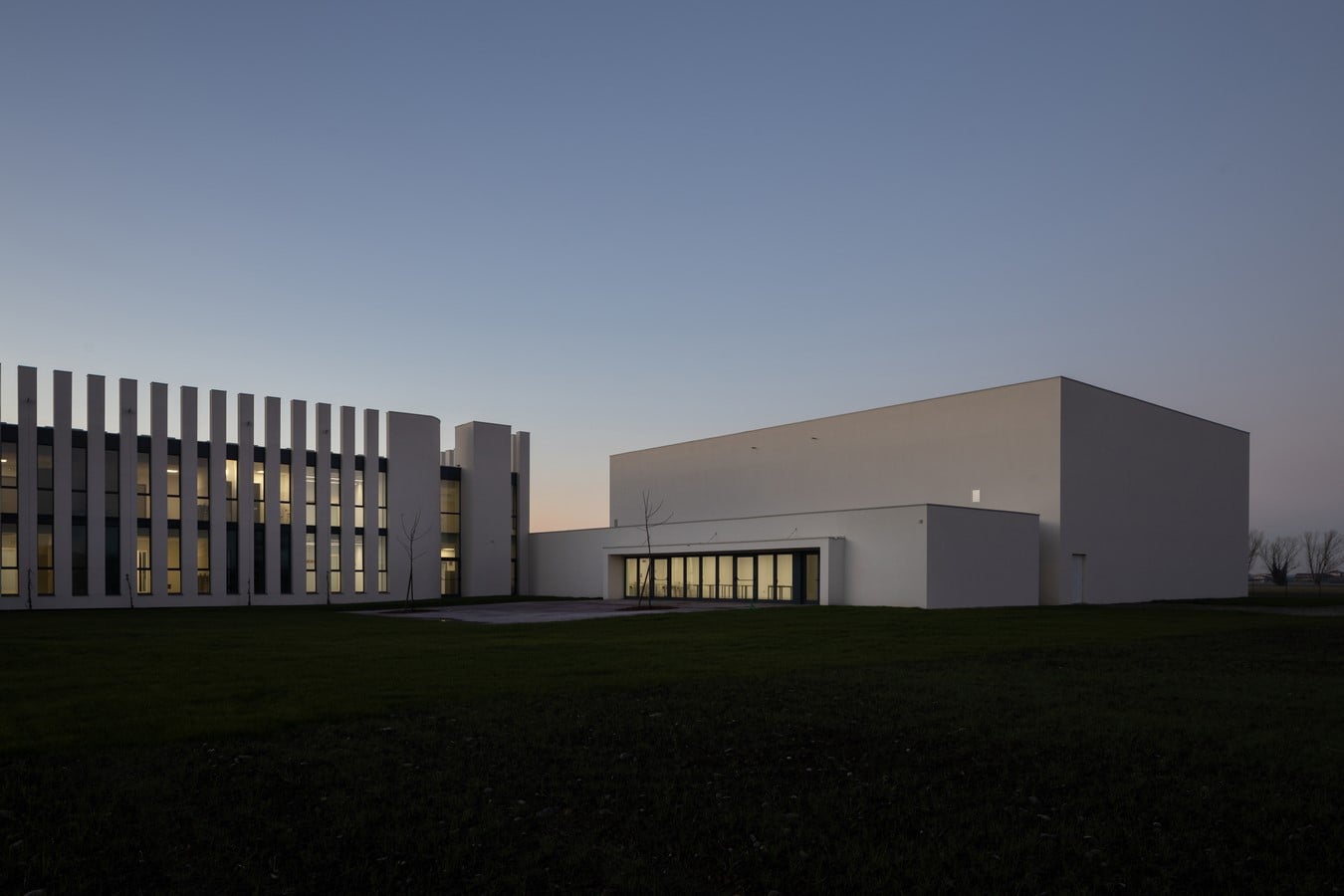

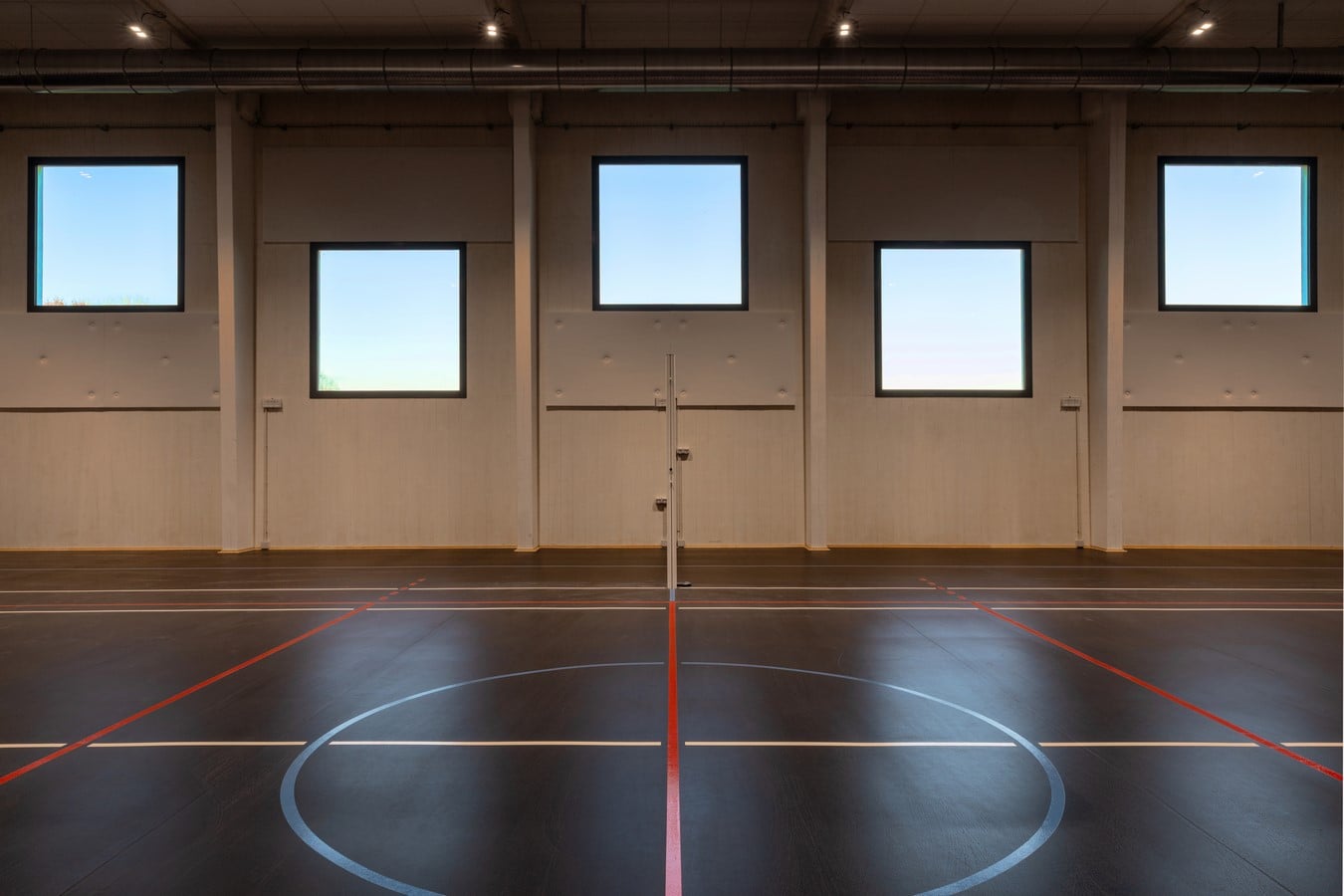

As regards the canteen, the capacity is calculated on approximately 90 users, since it is expected to be used in two consecutive shifts. There is also the construction of an il gym whose use, in addition to activities related to teaching, may also be foreseen for other activities extracurricular. Both the canteen and the gym have independent access. The structure to be built is inspired by the principles of energy efficiency, in order to obtain numerous e undisputed advantages: greater thermal insulation, better acoustics, healthier environment, savings in terms of maintenance and energy efficiency, as well as significant savings in time realization.

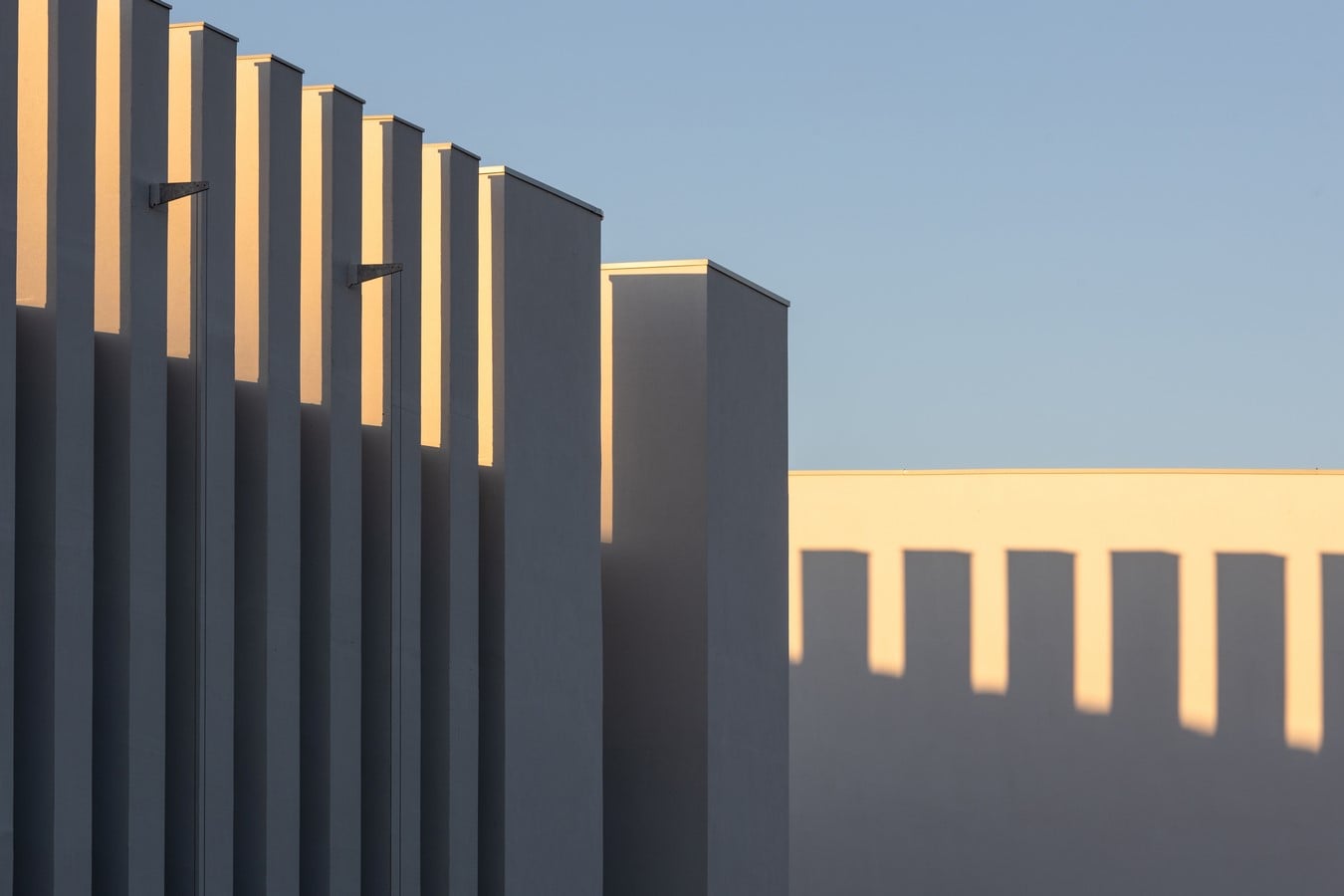

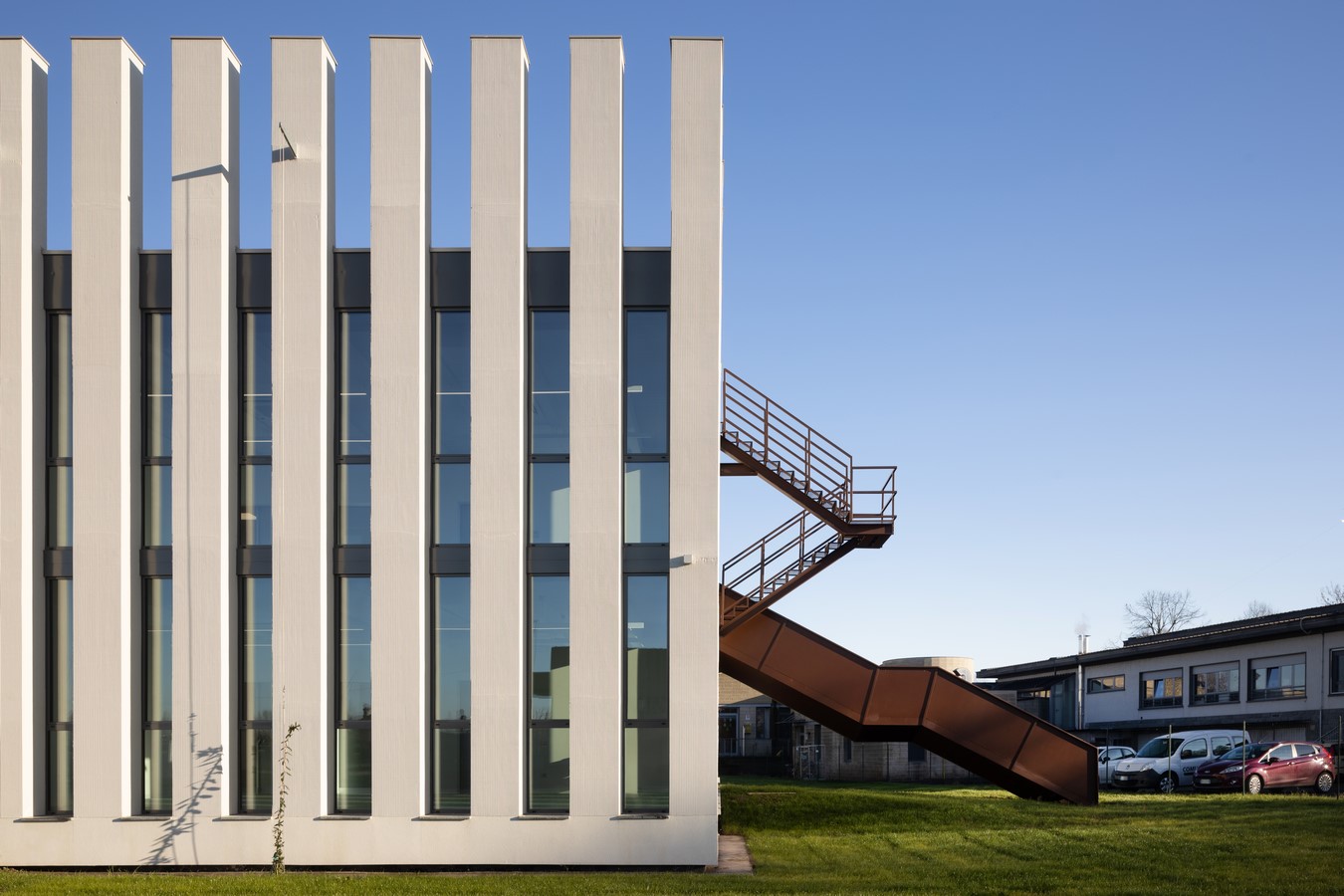

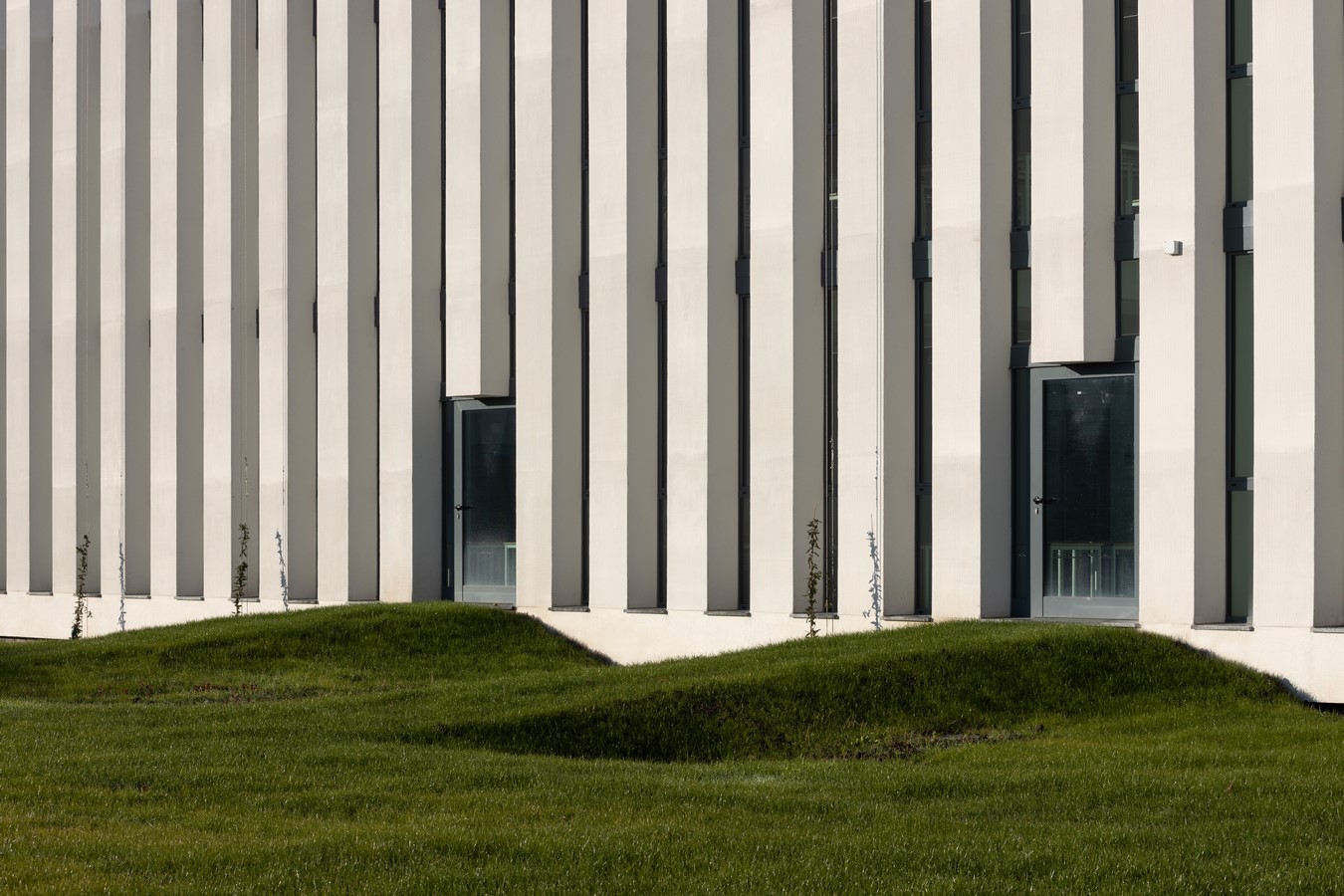

The load-bearing structure is made with X-LAM perimeter walls, i.e. made with wooden panels crossed layers complete with thermal insulation and pre-assembled in the factory. Such walls are made in 5-layer solid wood panels of suitable thickness. There is a thermal insulator external in XPS, subsequently coated with a smoothing coat and subsequent thick painting using siloxane resin. This construction technology allowed shorter construction times, giving a prompt response to the community, significantly reducing the construction time of the construction site.
