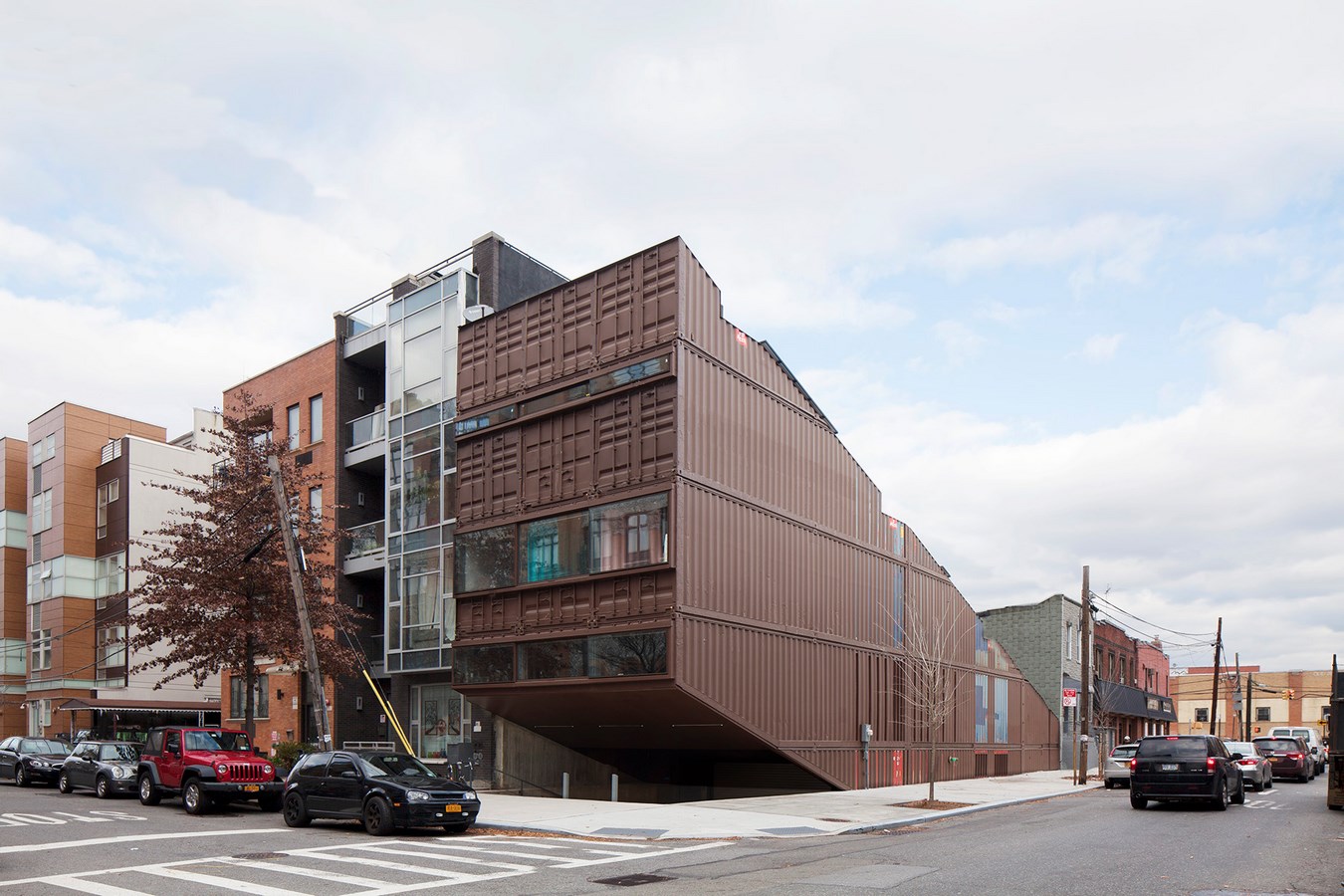

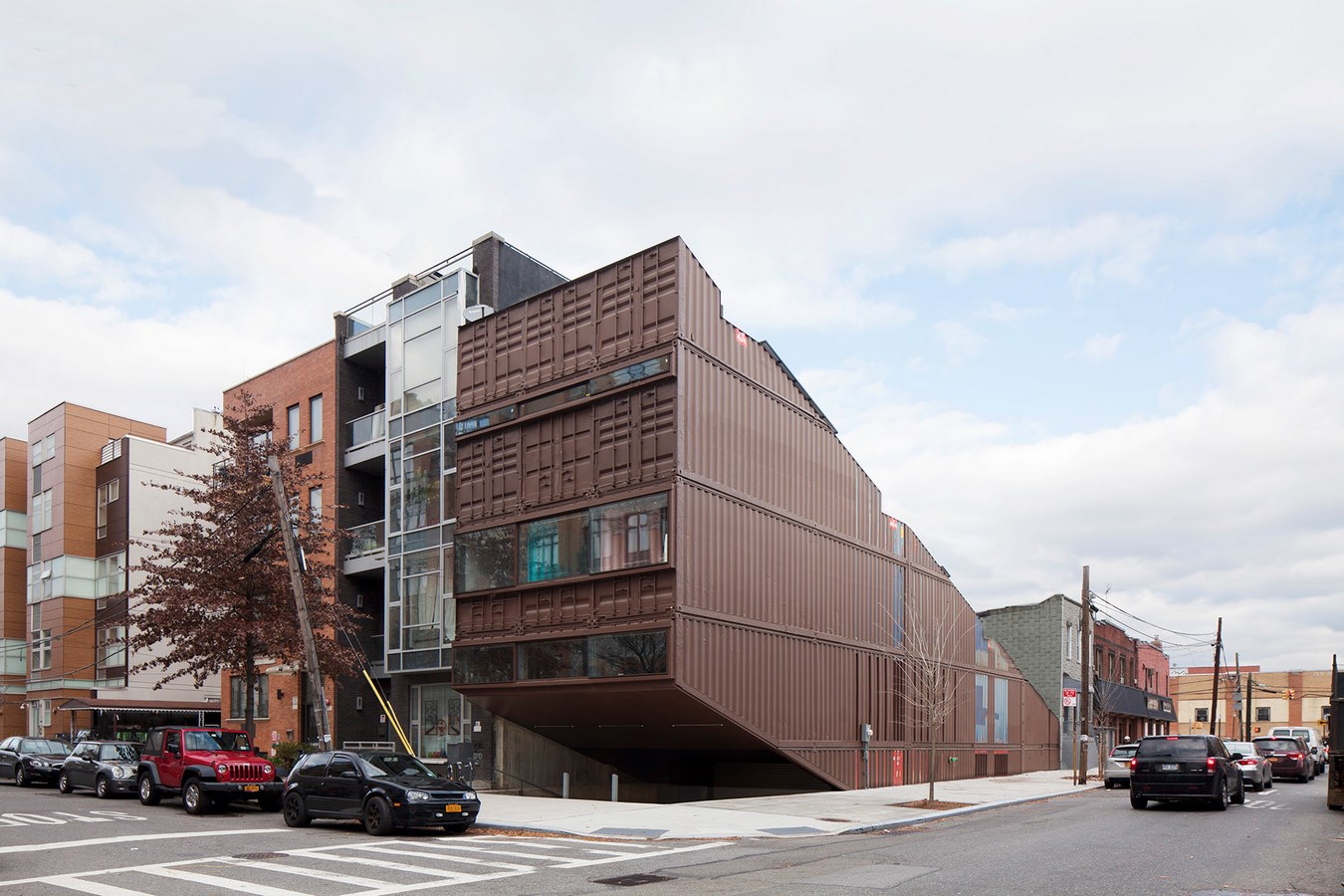

Carroll House is a single-family residence located in a typical 25×100-feet Brooklyn corner lot.

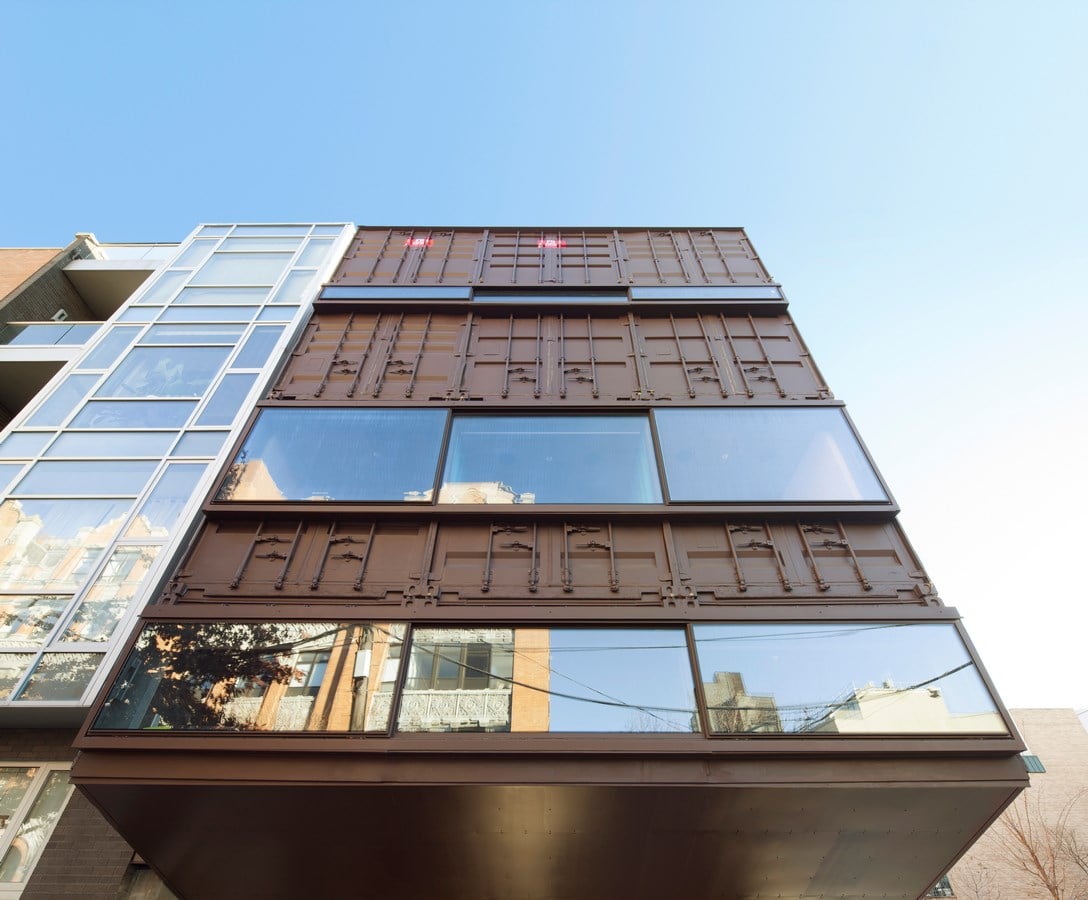

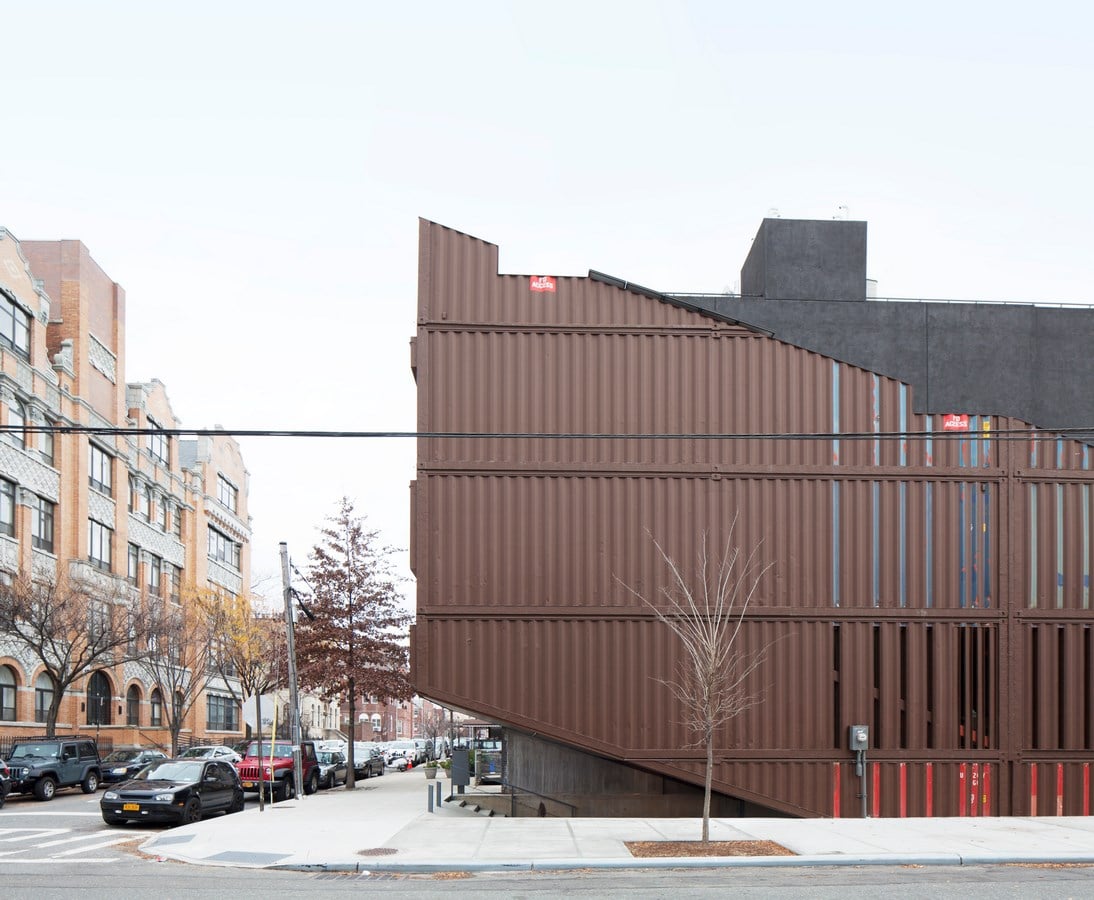

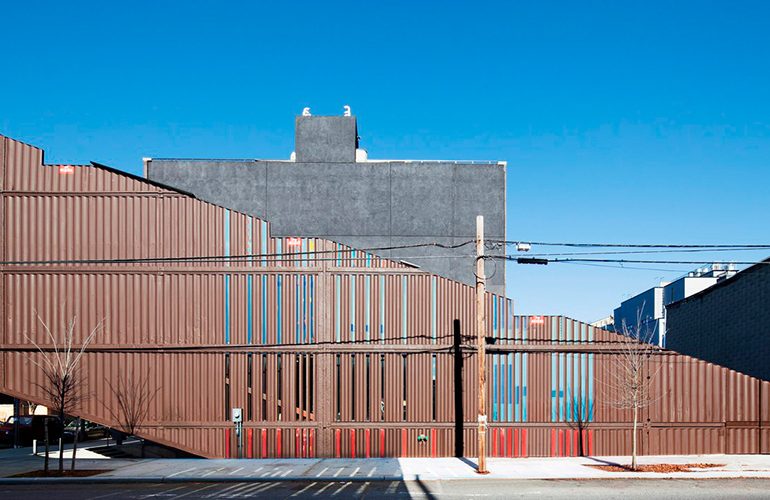

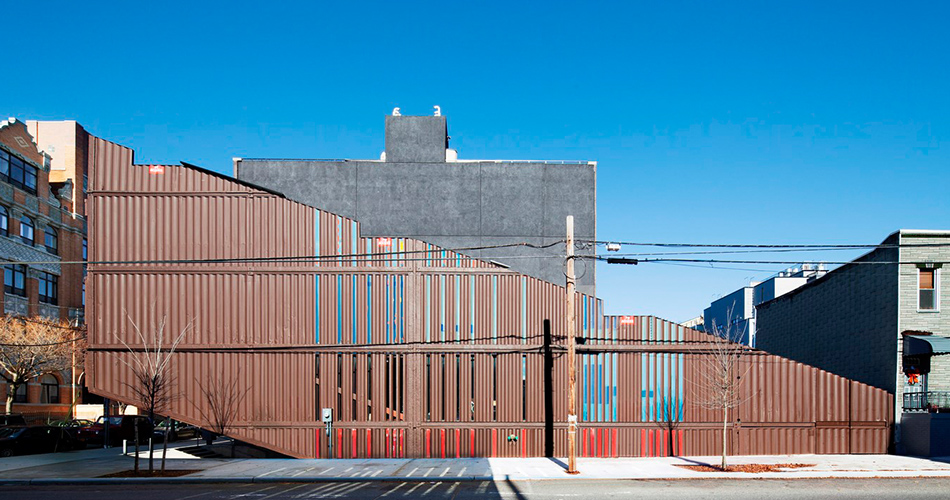

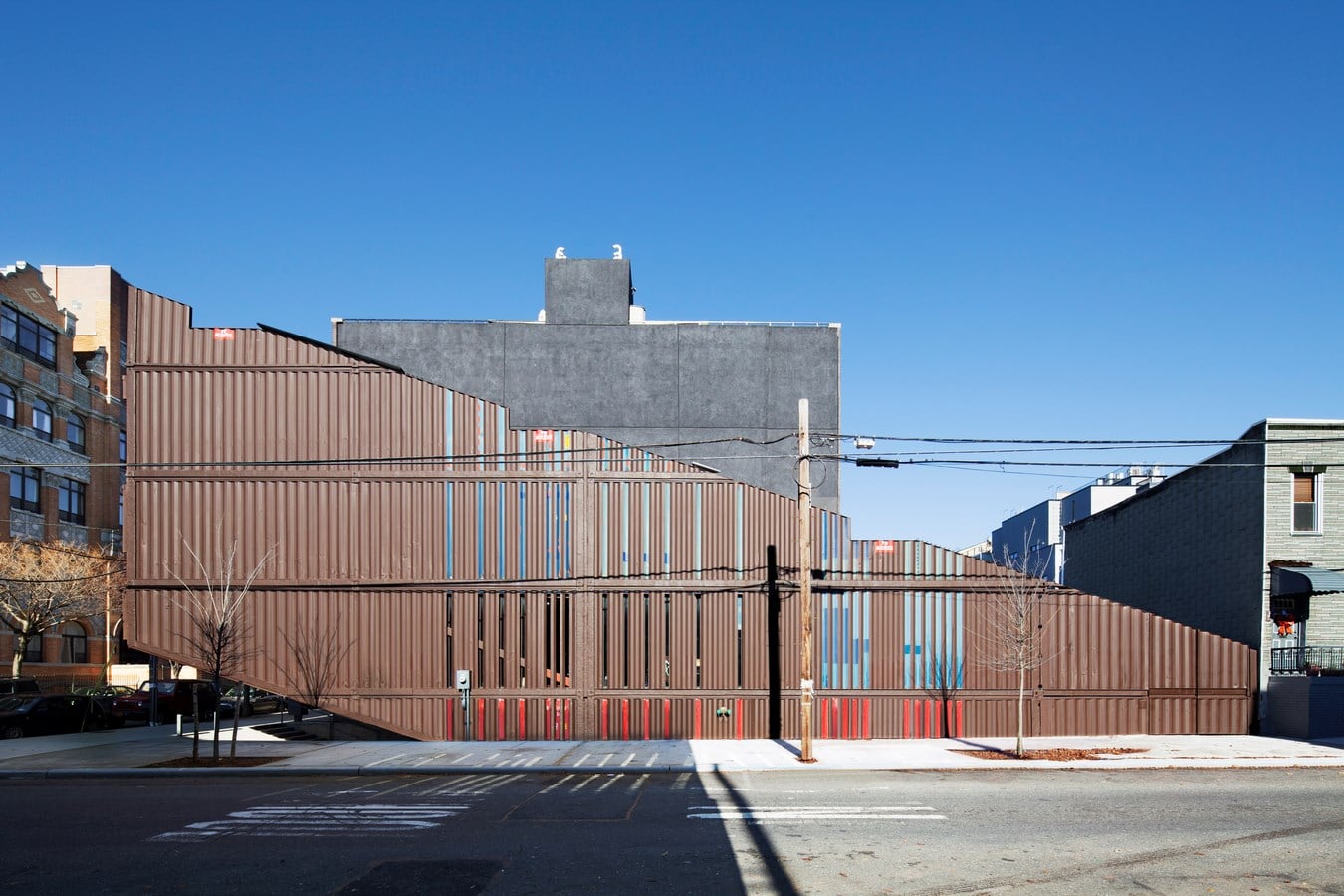

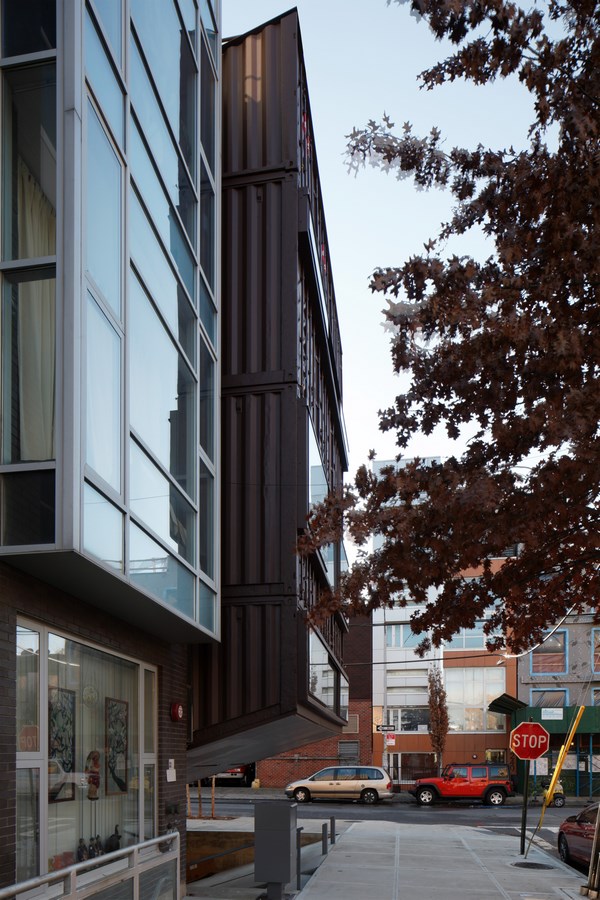

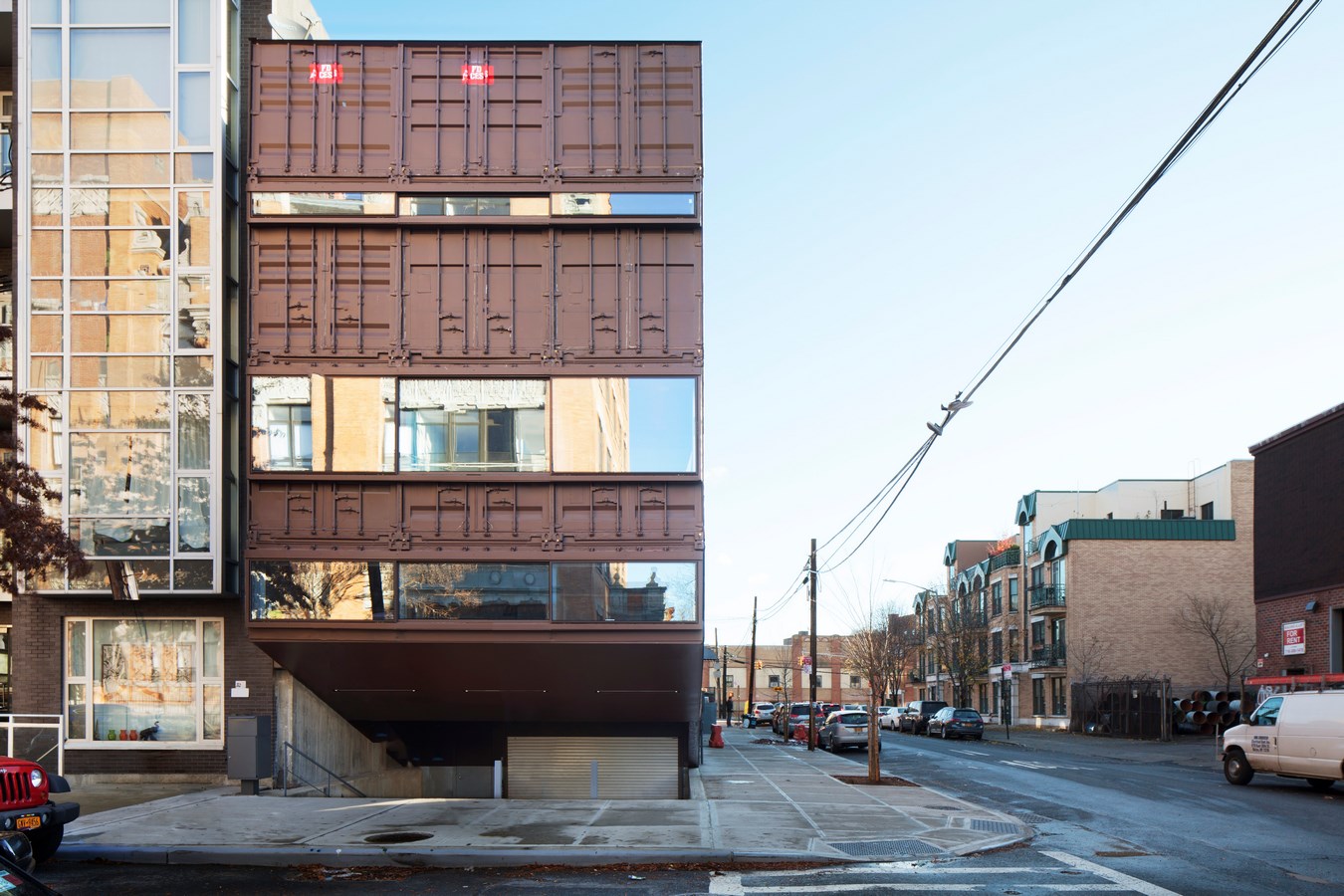

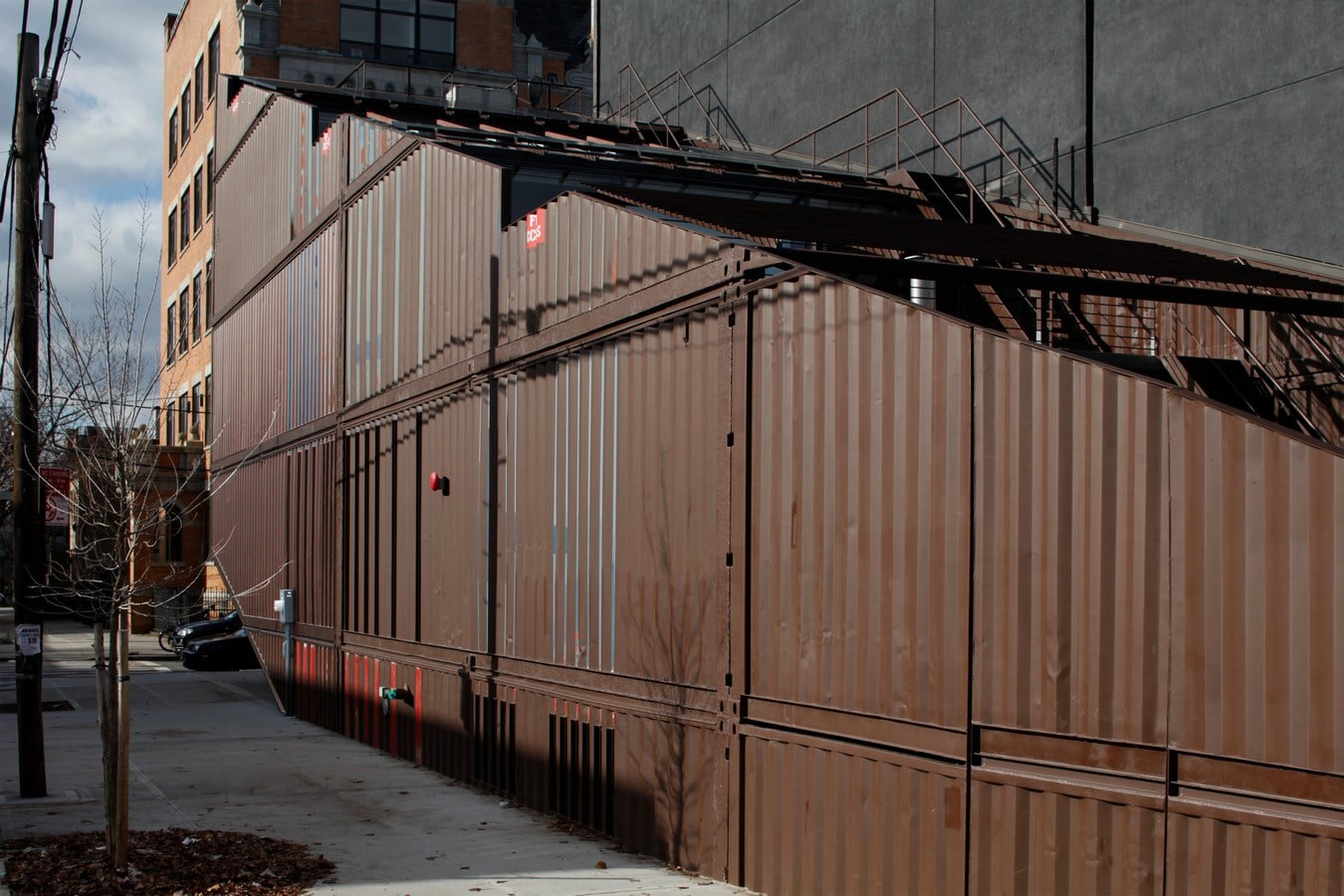

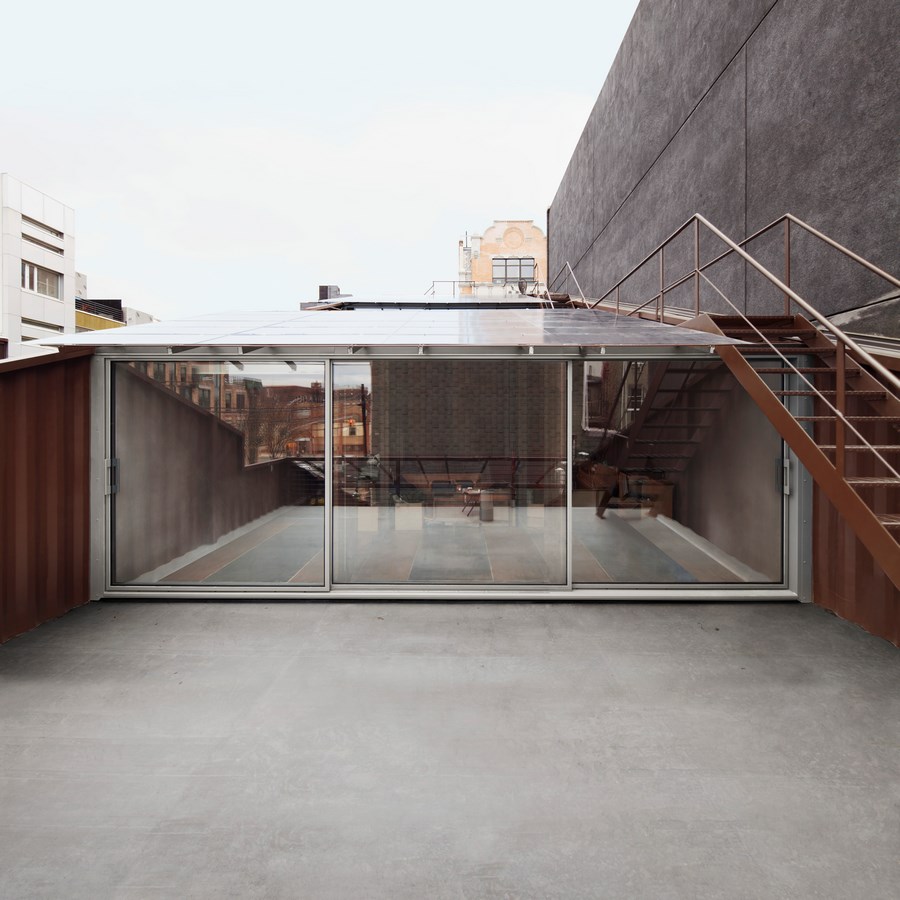

21 upcycled shipping containers are stacked and cut diagonally along top and bottom, generating a monolithic and private volume within the urban fabric. The diagonal cut modifies the conventional ground-floor rear yard type and use, allocating outdoor space at each level. At the same time the container walls along the diagonal cut shield the outdoor space from passers-by. Large sliding glass walls create continuity between indoor space and outdoor private enclosed decks.
Type: Single-family residence
Design: LOT-EK, Ada Tolla + Giuseppe Lignano, Principals, Virginie Stolz, Project Architect
Commission: Kim and Joe Carroll
Location: Brooklyn, NY
Size: 5,000 SF
Consultants: Structural Engineer: SILMAN
MEP / Sustainability: Dagher
Photography: Danny Bright

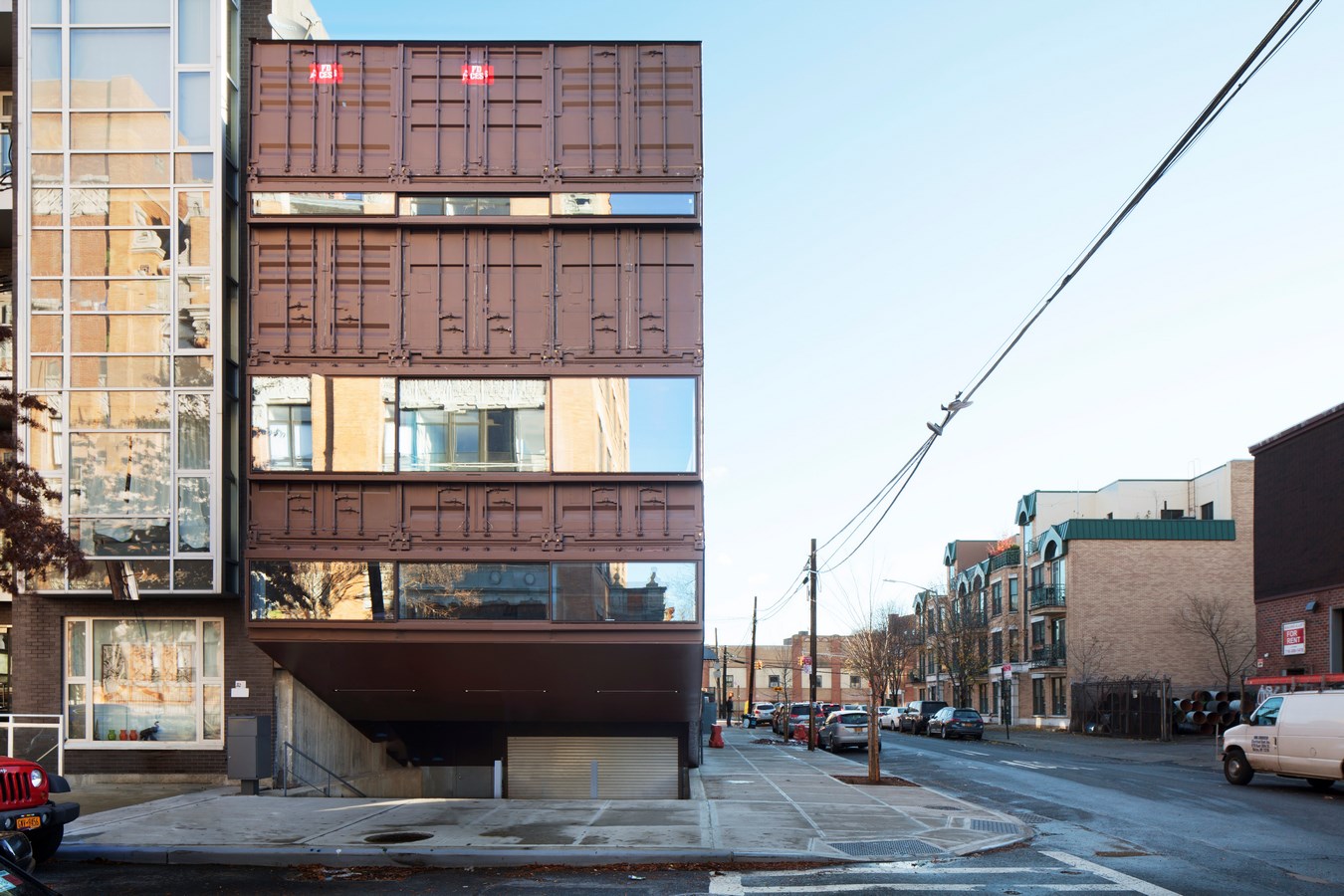

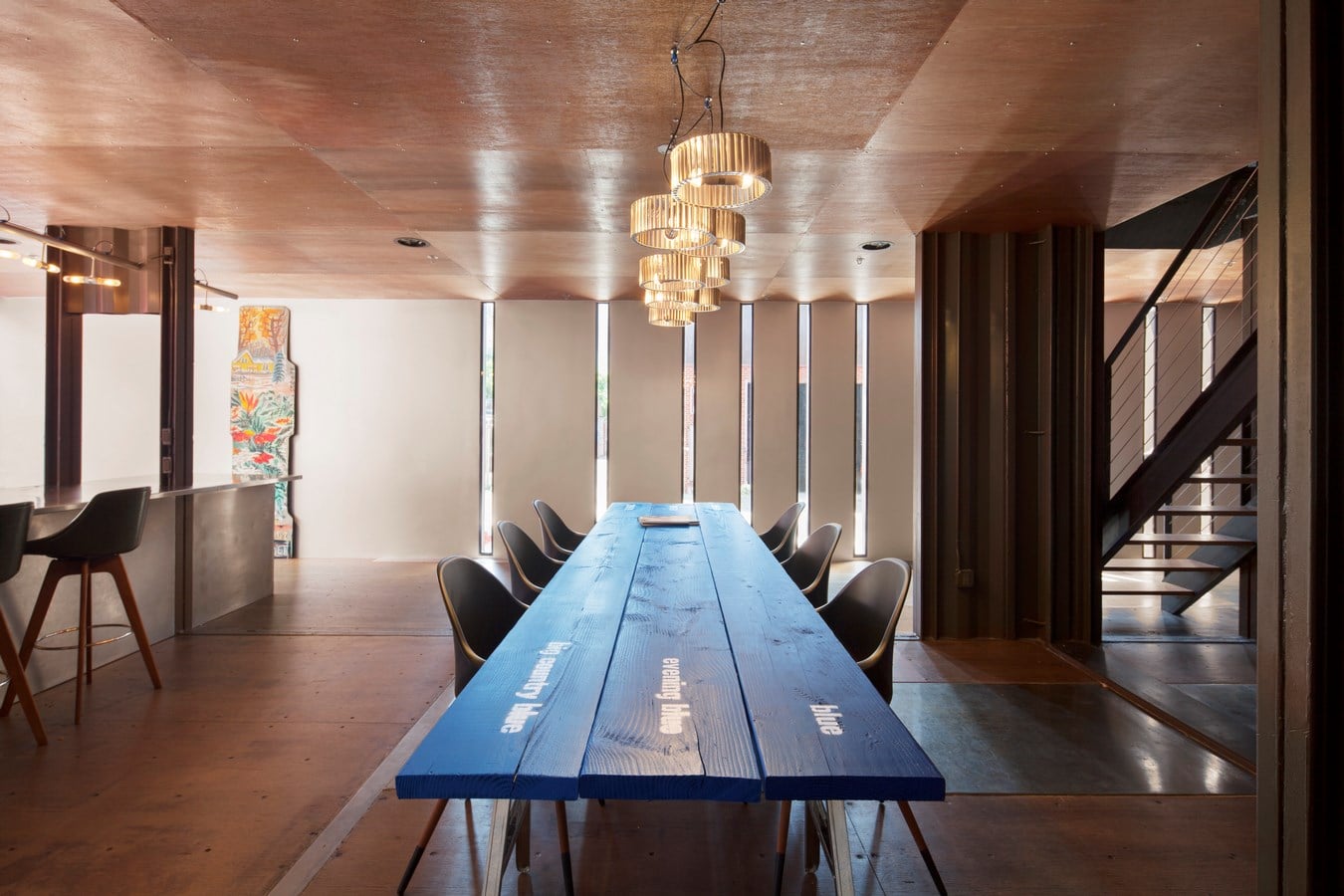

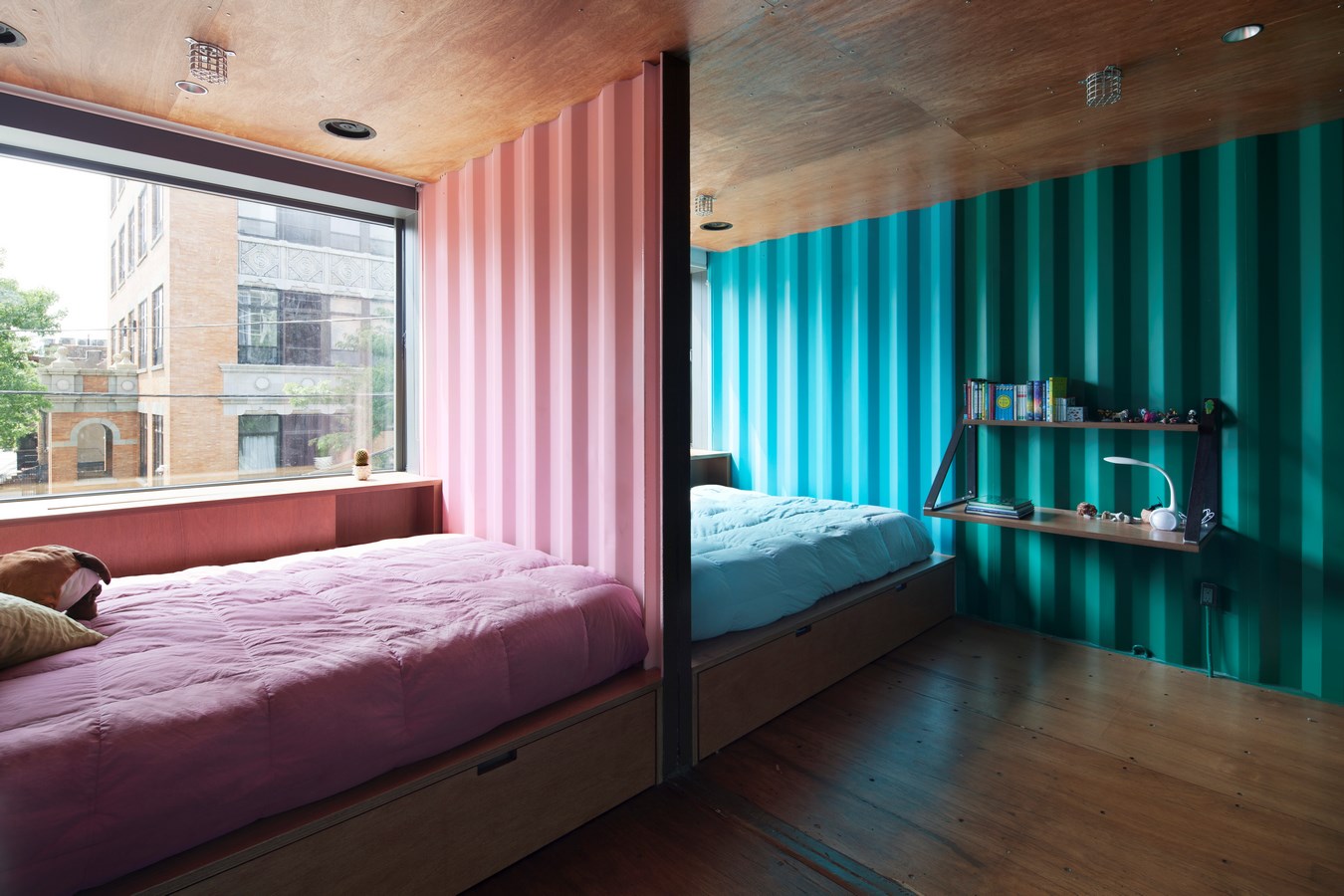

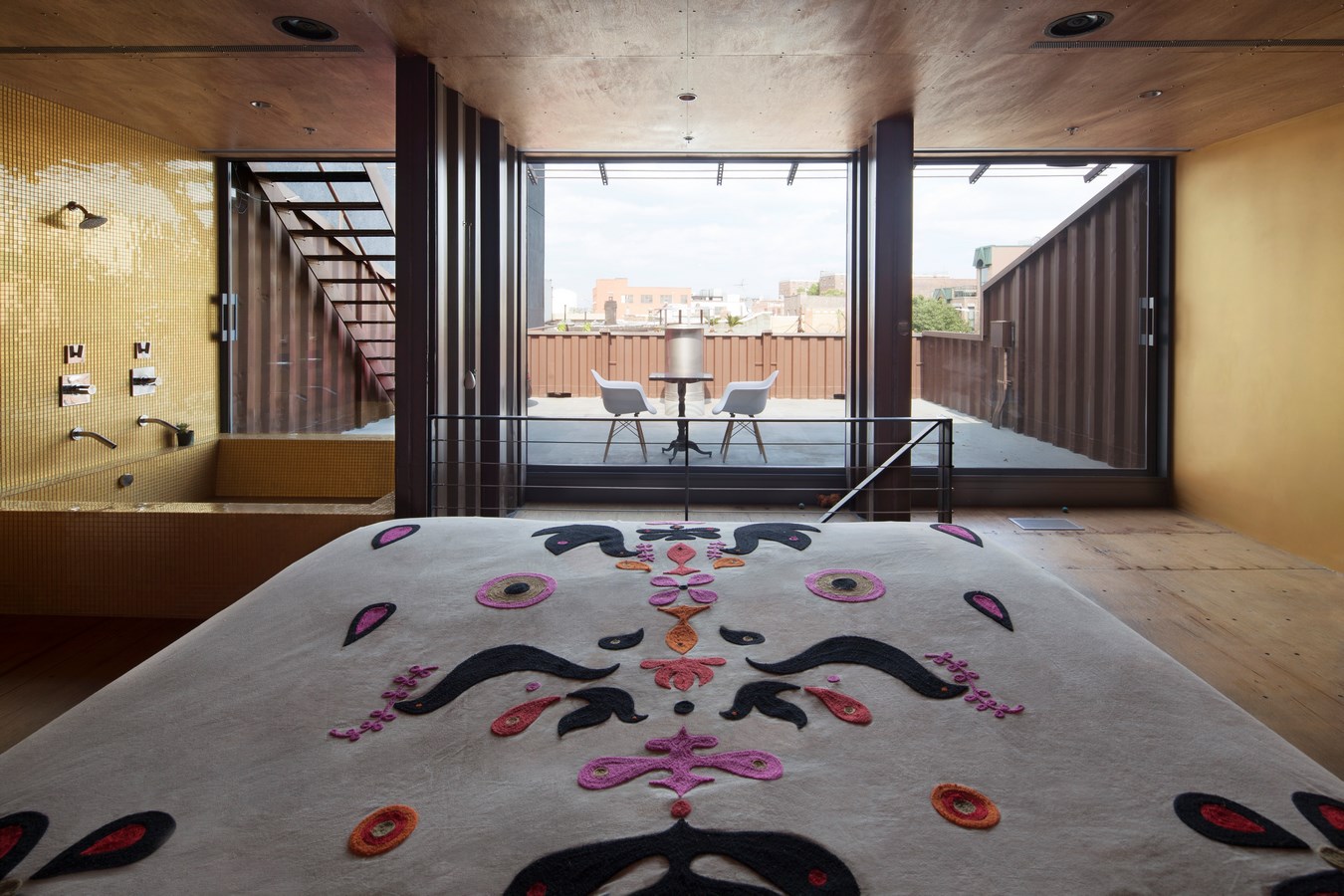

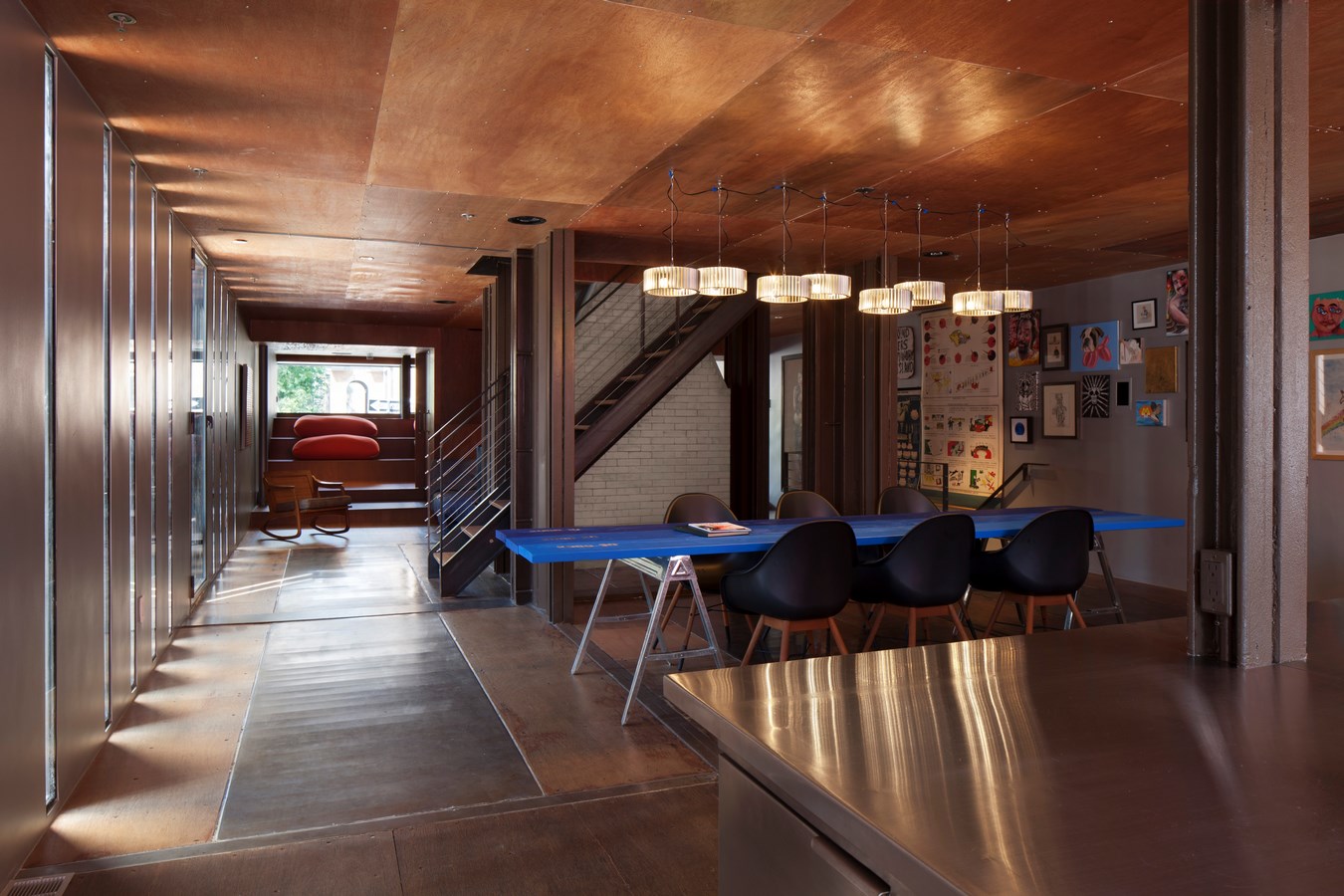

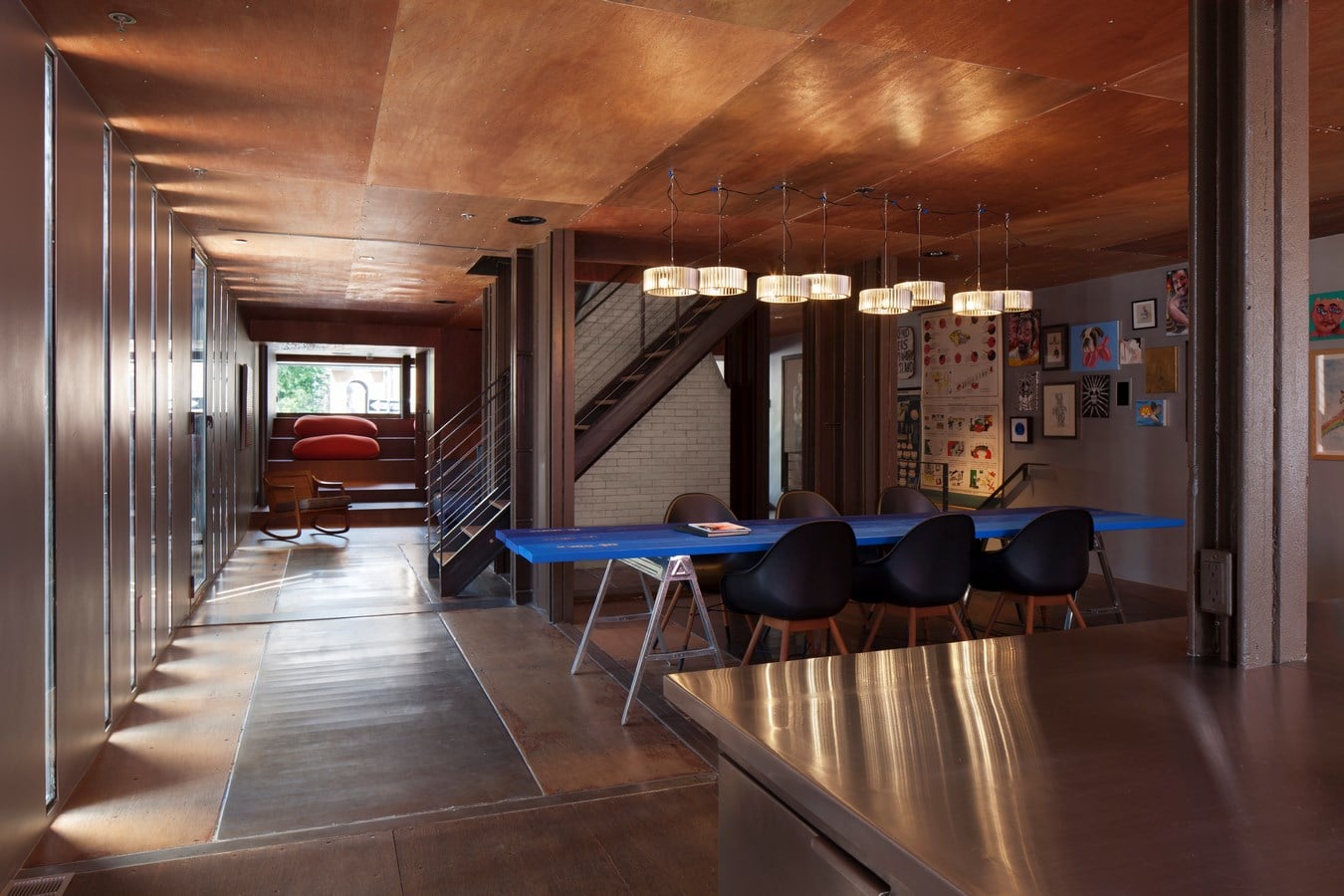

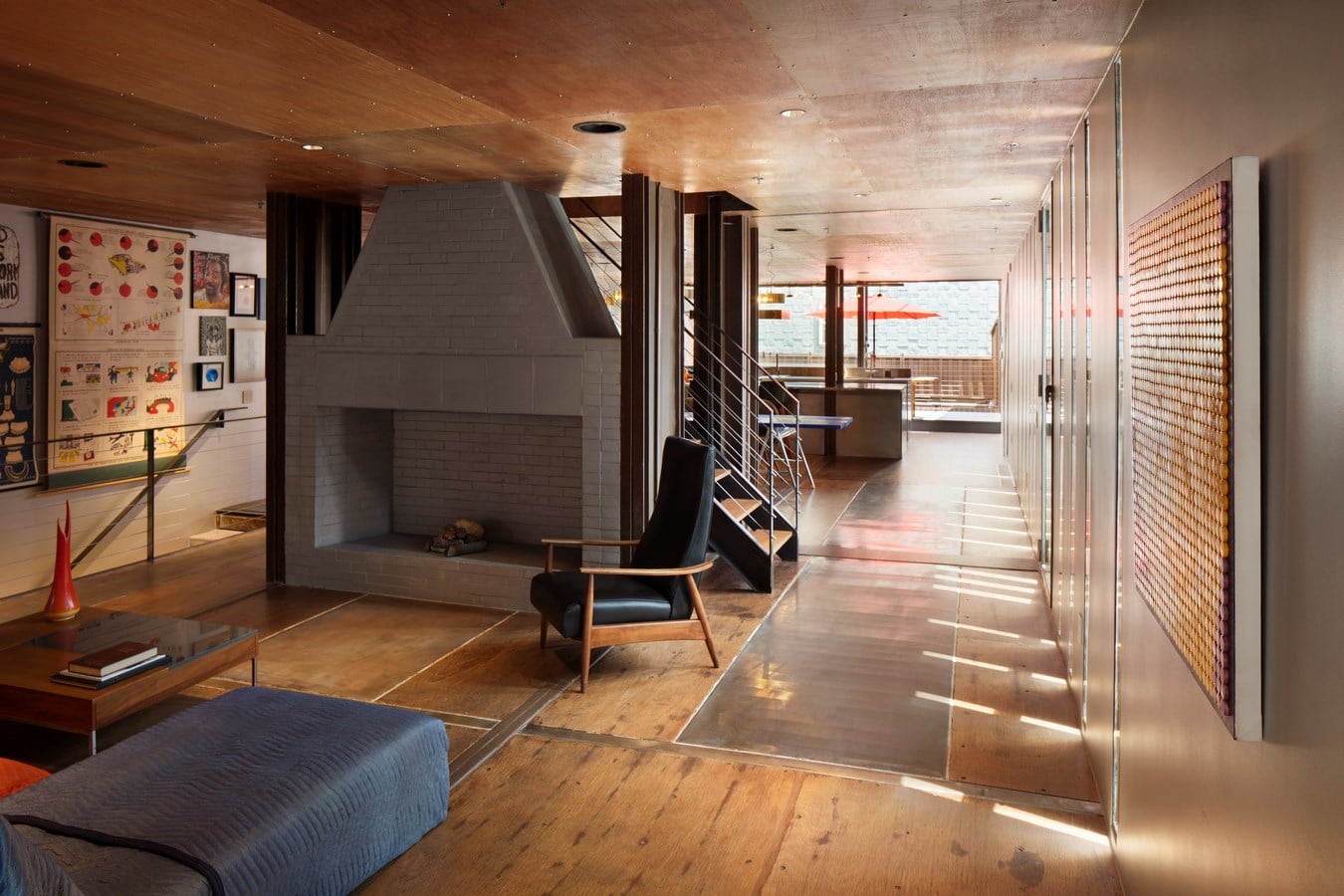

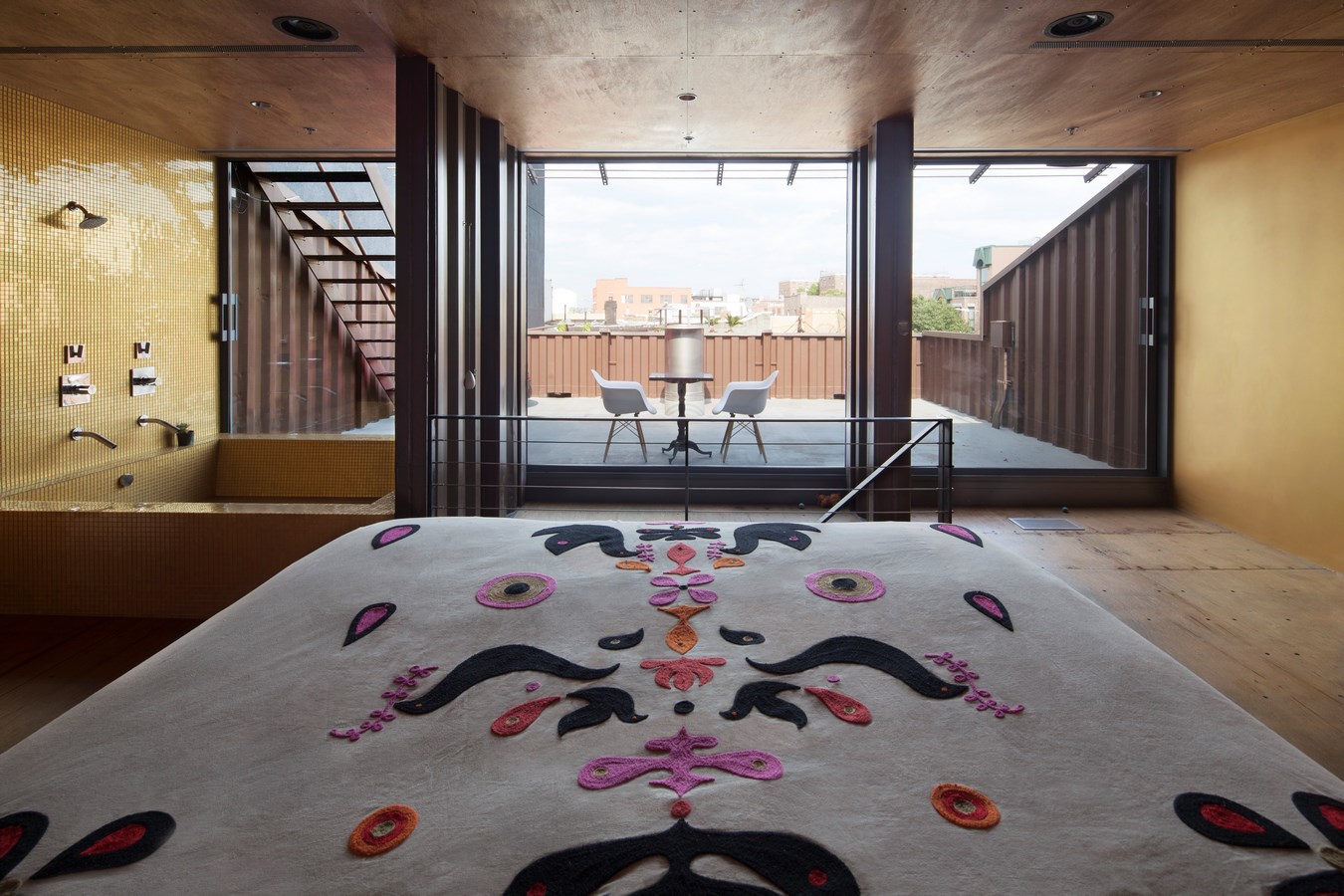

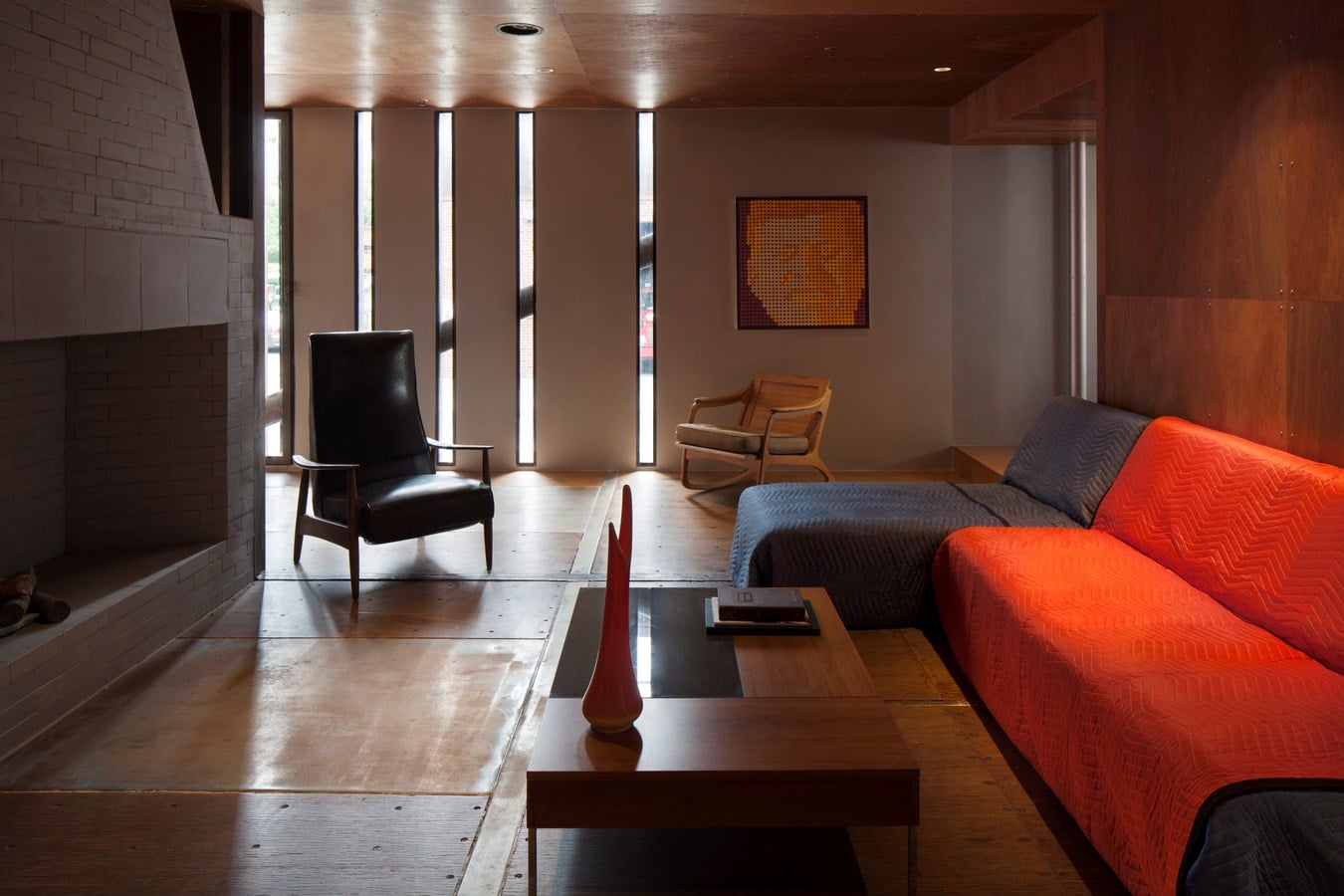

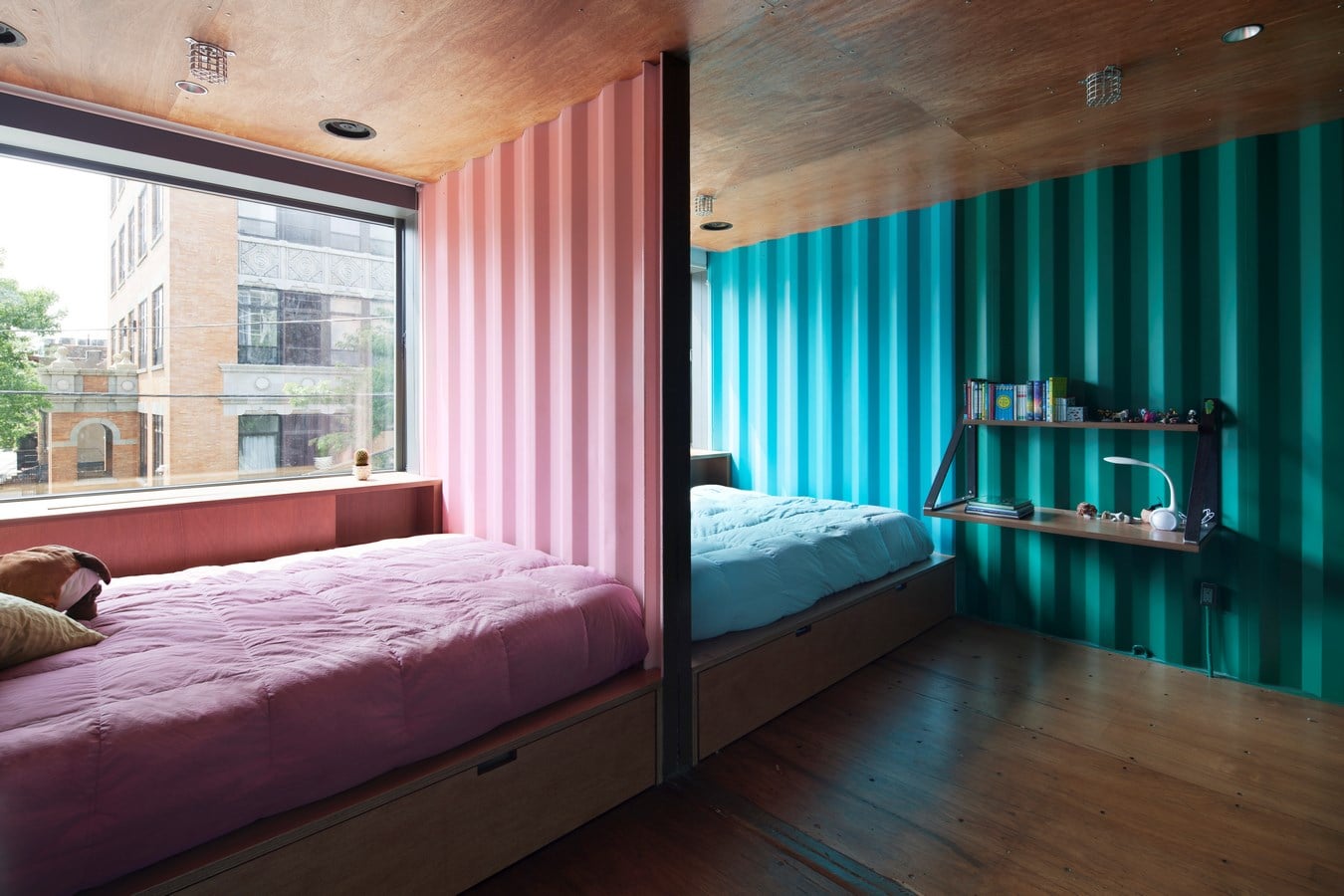

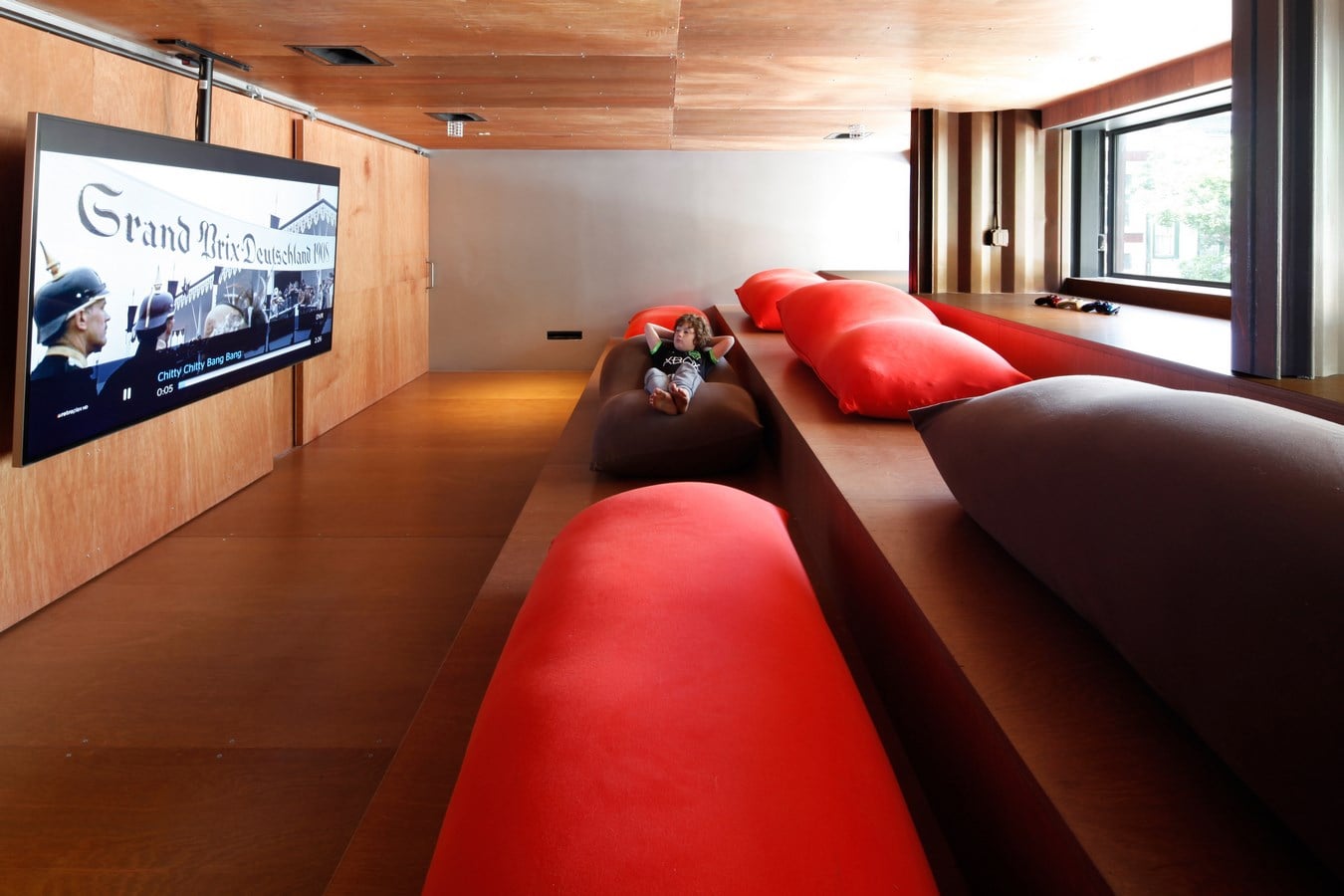

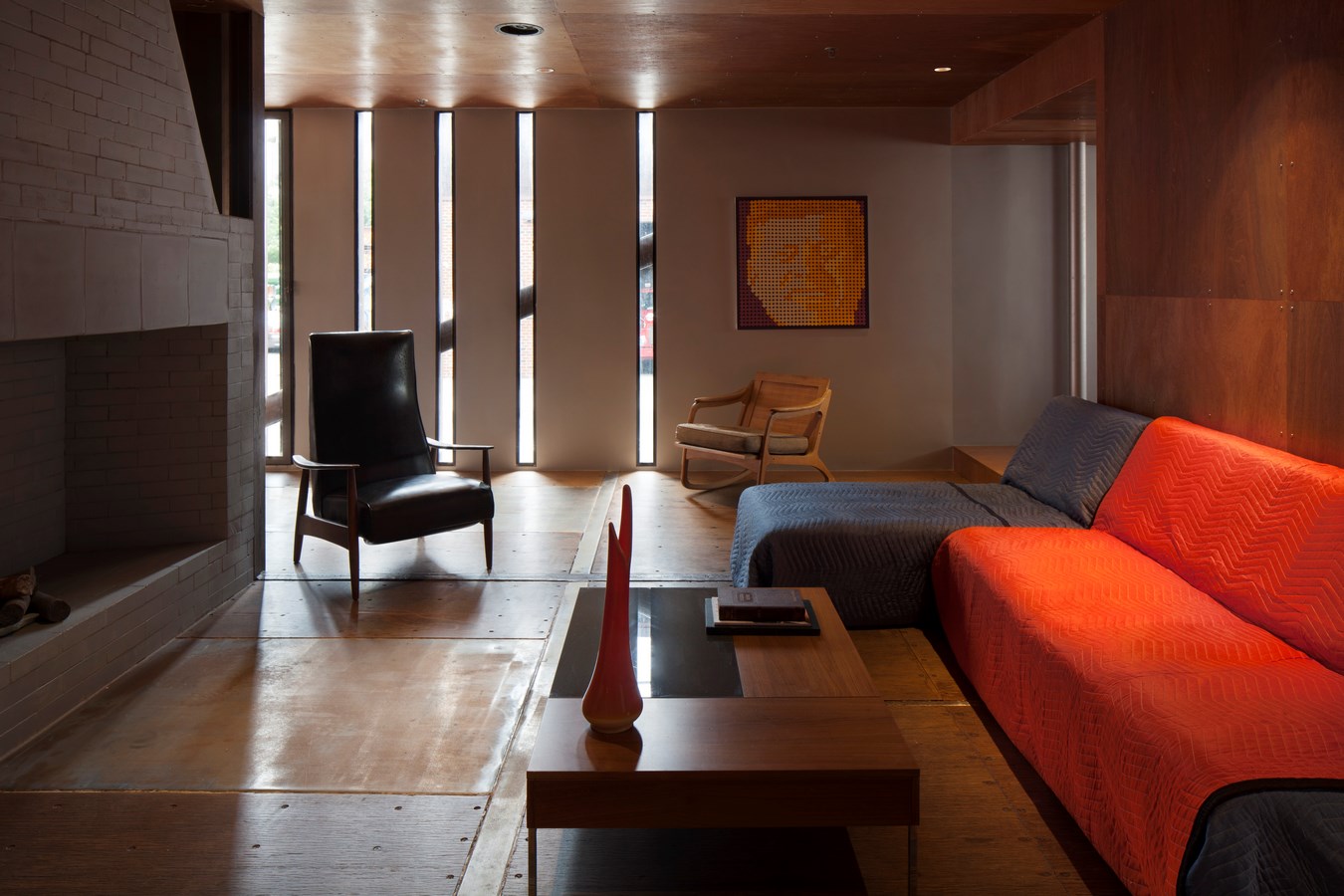

At ground level, the diagonal cut provides entry to the cellar and garage. Kitchen, dining and living room occupy the first floor above ground, while the area right above the garage ramp forms a media room with bleacher seating and projector. The kids’ level is right above, with the intimate space of single containers providing privacy to the bedrooms and a large open area dedicated to play. At the top, the master bedroom is split into an open space with bed and large bathtub and a large dressing area with powder rooms.
The container assembly optimizes usage, recombining all leftovers generated by the diagonal cut. The containers are sourced in New Jersey after being retired. They were cut and reinforced in New Jersey and transported to Brooklyn on flat bed trucks. The entire house volume was assembled in 4 days, followed by the work on interior systems and finishes and exterior sealing and windows.
