The renovation project of the house for a couple with children is developed in a valuable Roman building from the 1970s, inevitably conditioned by the design of the balconies that clearly characterize the external appearance of the building.

Project name: casa dritta curva
Company name: Filippo Bombace
Website: www.filippobombace.com
Location: Roma
Completion Year: 2021
Other participants:
(collaborators, consultants, etc)
Giorgio Bombace
Photo credits: Serena Eller Vainicher

Casa dritta curva - roma By oficina de arquitectura - Sheet3
©Serena Eller Vainicher

The simple geometric sequence of the straight line, the semicircle and the quarter circle, becomes in fact the project layout, coherently defining to the external spaces the design of the internal partitions and all the furnishings that complete the home.

Once defined the distribution scheme on this geometric principle, it began the exciting work of material and chromatic definition, which arrived through several versions at an approach based on the use of oak wood and the white of the walls; some citations of calacatta marble are inserted in this clear dualism, where the function, mainly in terms of resistance, requires a material which is more suitable from this point of view.

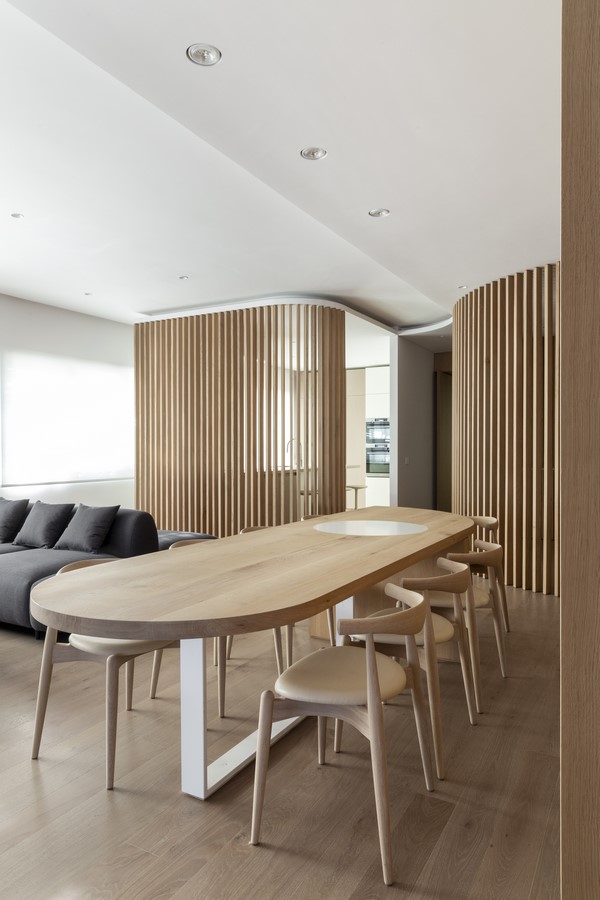

Casa dritta curva - roma By oficina de arquitectura - Sheet5
©Serena Eller Vainicher

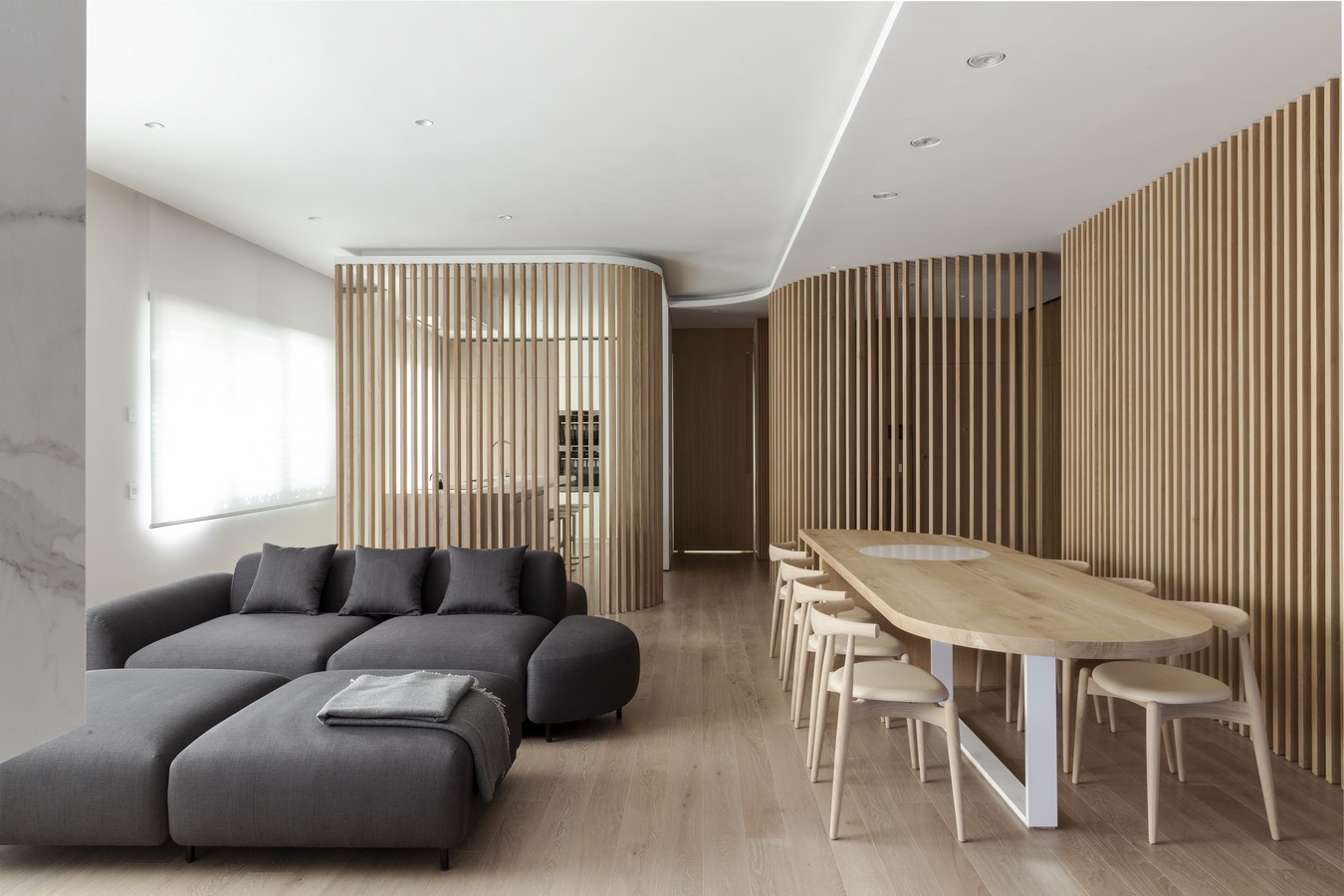

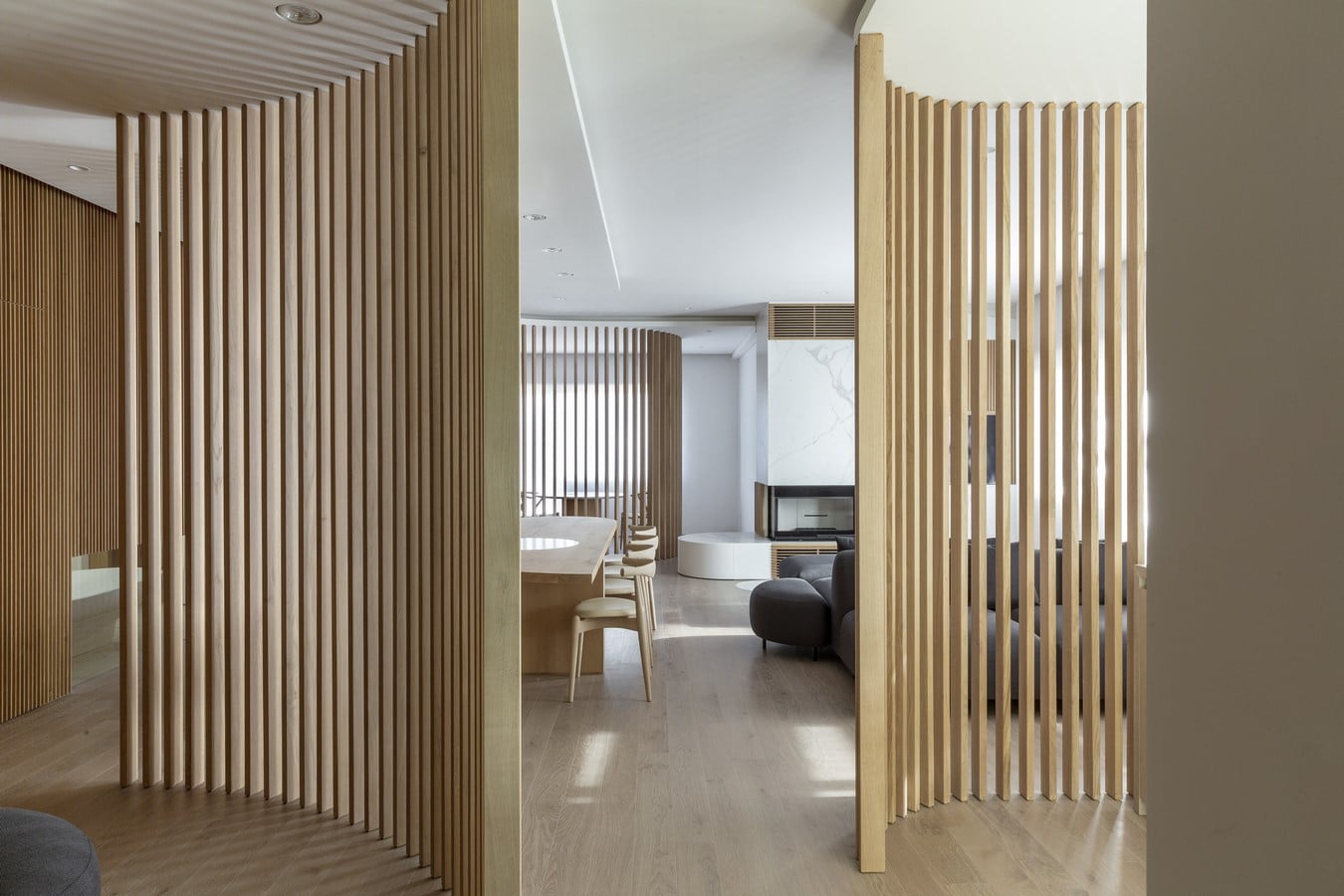

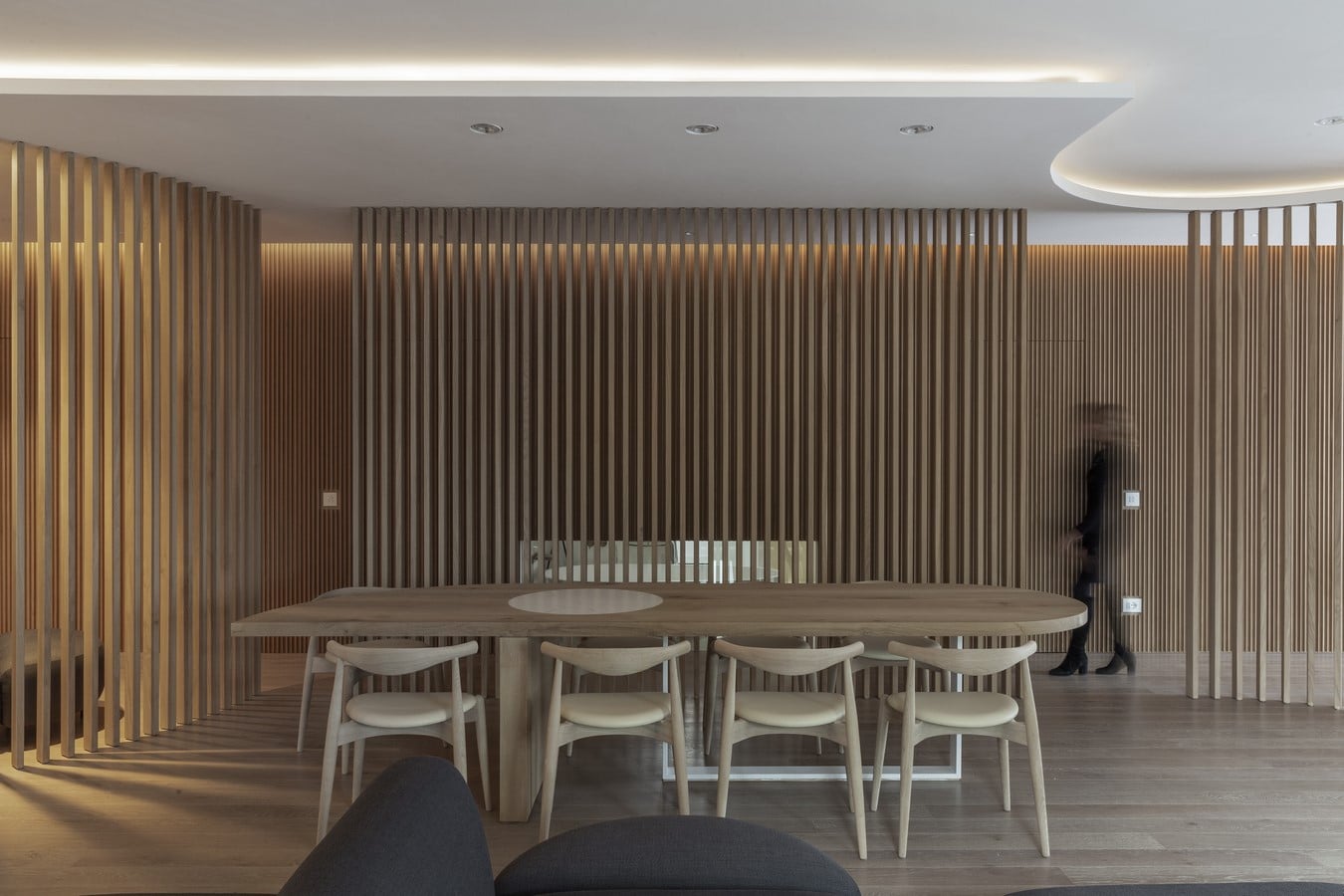

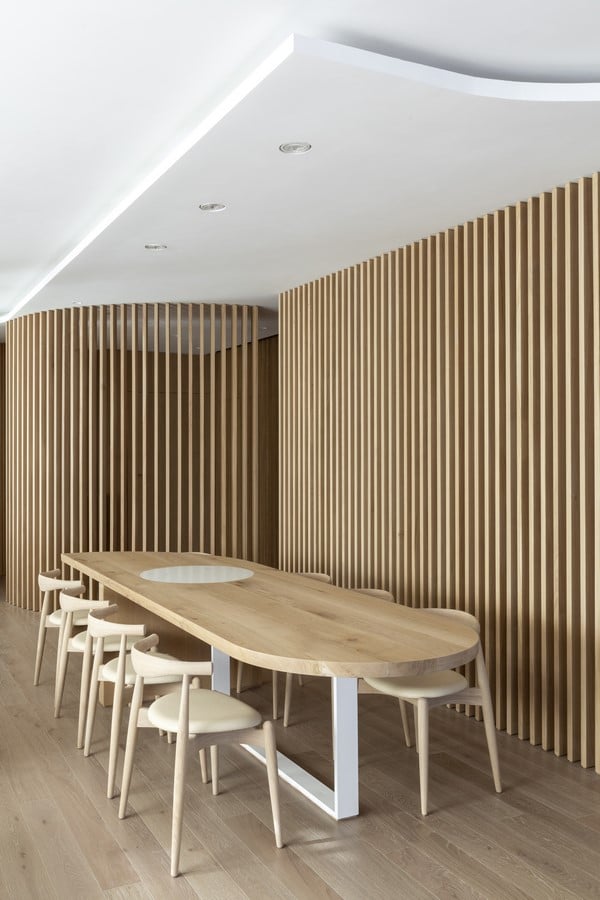

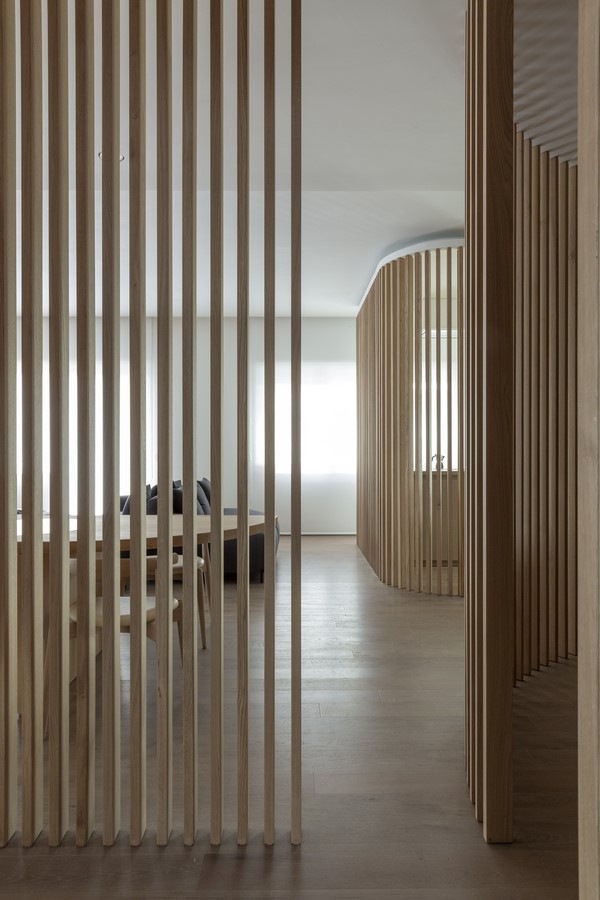

The final version therefore is characterized by the living space divided by partitions in oak wood which defines the entrance, the distribution spaces, the kitchen area and the study.

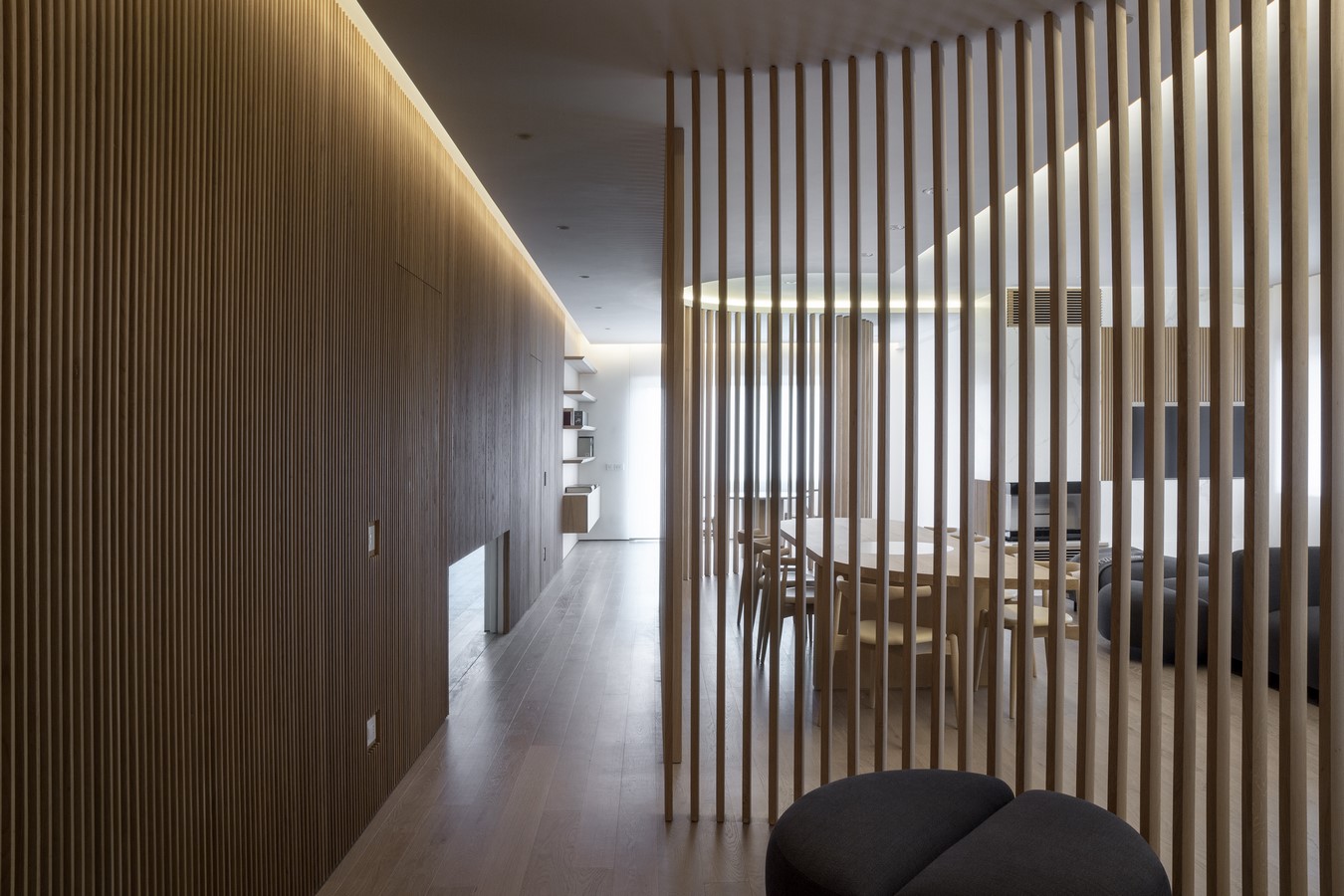

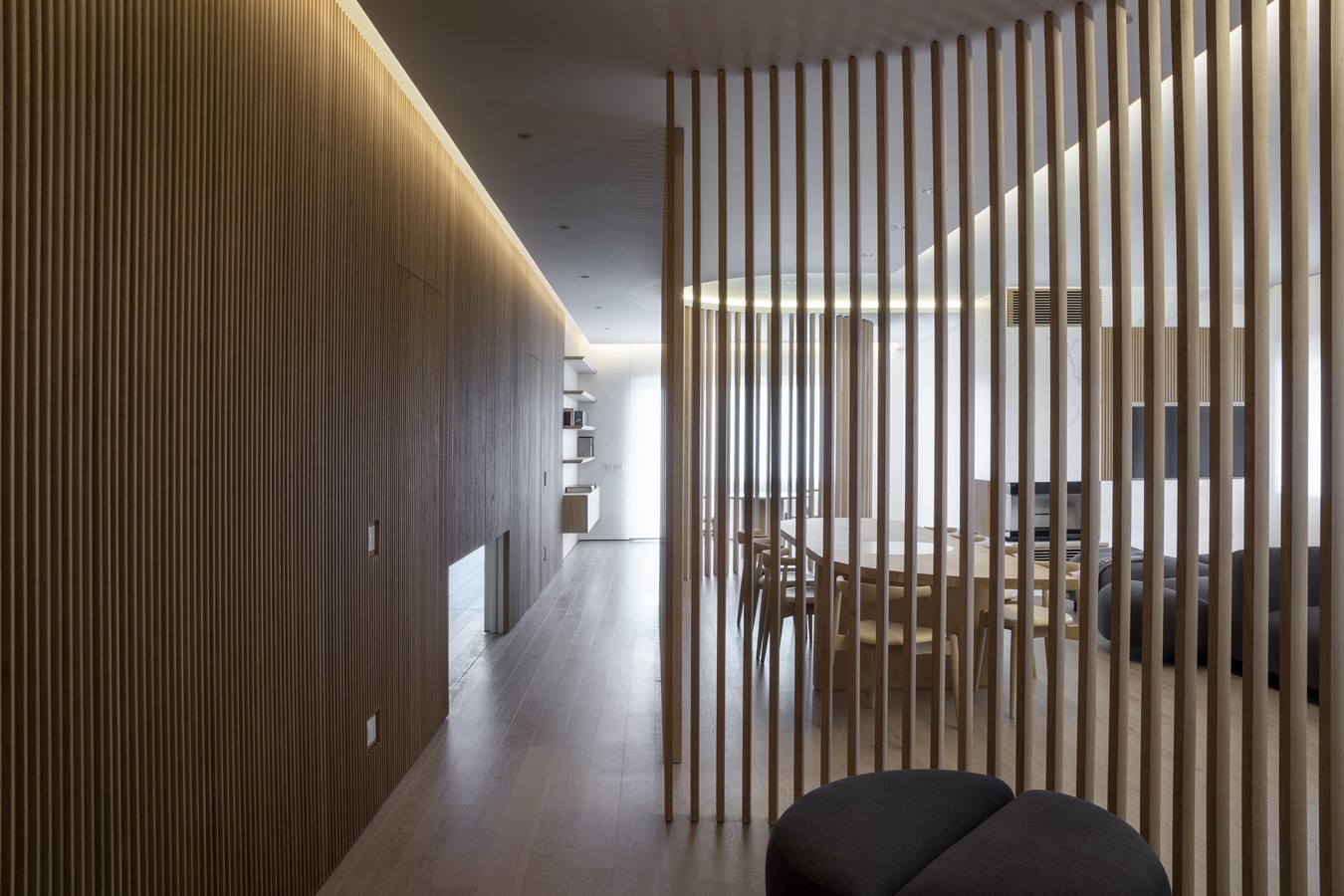

Oak wood is also used for the wardrobes, furnishings and above all for the stave paneling that covers the entire long wall of the corridor that runs along the living area.

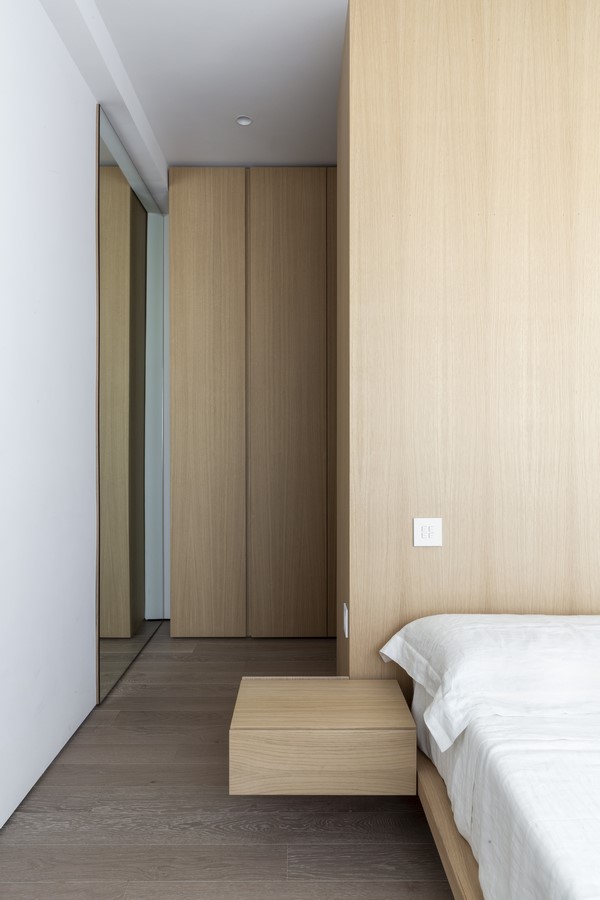

The master suite, characterized by a wardrobe in the center of the room that acts as a headboard, accesses the bathroom directly from a sliding panel that first shows the free-standing bathtub, then the large shower compartment, the double sink station and finally, secluded, the toilet and bidet area.

Even the children’s bedrooms and their bathrooms are organized according to the design philosophy appropriately interpreted in the colors most appropriate to the age.

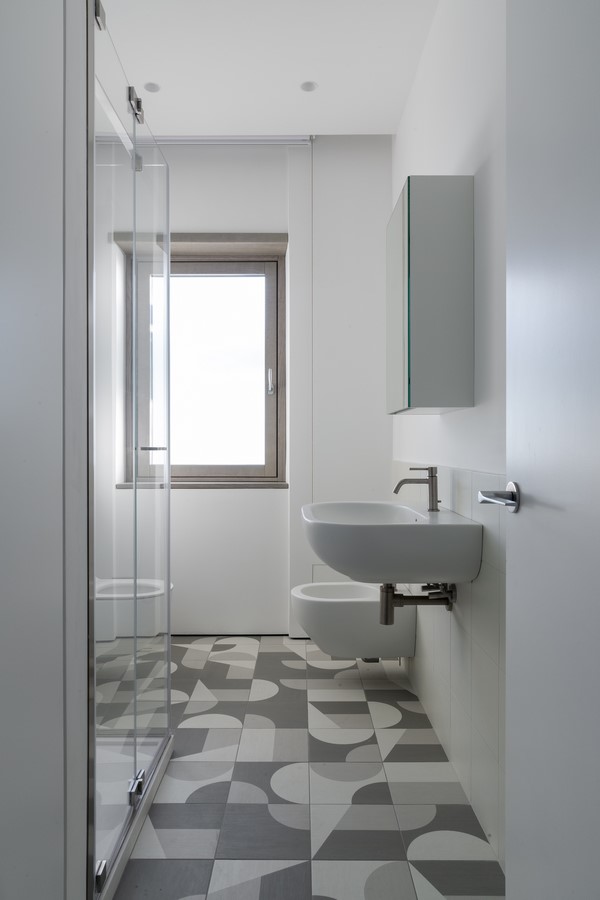

Casa dritta curva - roma By oficina de arquitectura - Sheet10
©Serena Eller Vainicher

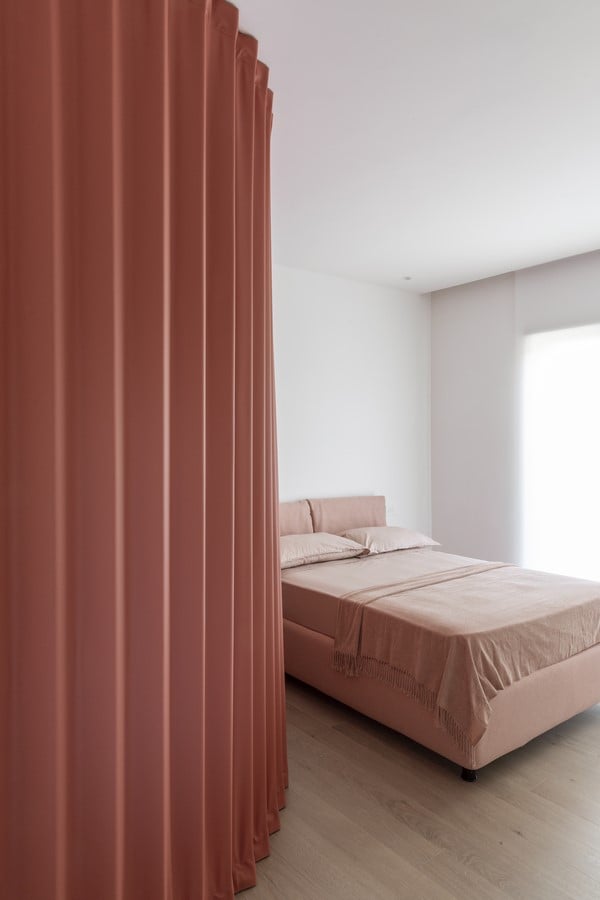

The baby in the family finds as well a nice hiding place behind the large retractable textile wall that encloses her wardrobe, obviously according to a straight curved geometry.

Materialization

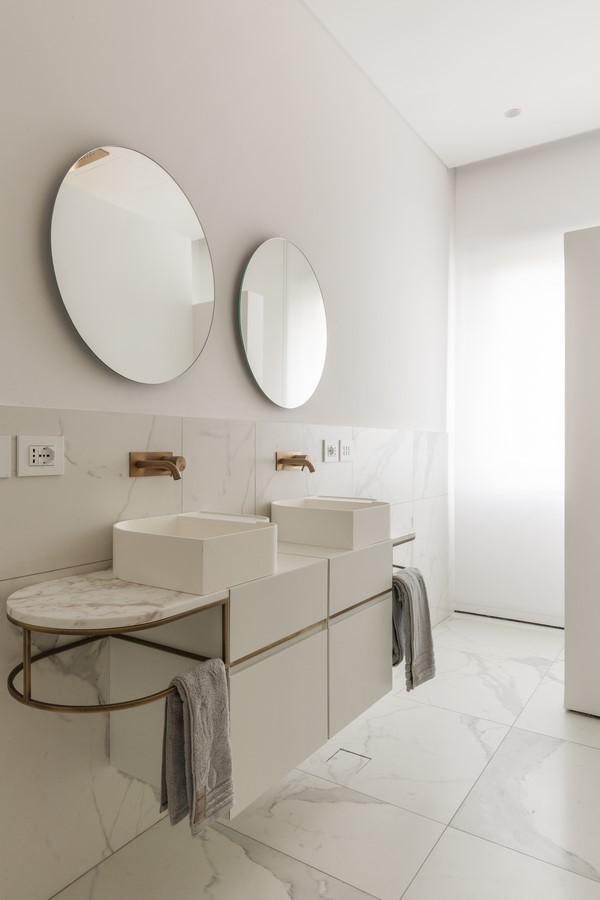

bathroom 1

  • porcelain stoneware marble effect white large slabs Ariostea Ultra type bianco calacatta, finishes silk, thickness 6 mm, sizes cm 75 x 75 and 37,5 x 75 – https://www.ariostea-high-tech.com/ultra/ultra-marmi/bianco-calacatta
  • skirting boards recessed with aliminium profile
  • double washbasins in white LivingTec® t Nouveau collection, sizes cm 45 x 37 x h 11, colour white ral 9016 + wall mounted cabinets in white, with metal handles Ex.t serie Nouveau, with drawers – https://www.ex-t.com/products/nouveau/
  • wall hung wc and bidet Ceramica Flaminia App collection with goclean® system, milky white colour, matt ceramic – https://www.ceramicaflaminia.it/en/products/330-app/filter/41-wc-and-bidet
  • concealed cistern Oli 74 plus simflex with plate Blink collection, steel-bronze finished – https://www.oli-world.com/it/prodotti/sistemi-sanitari/cassette-di-risciacquo/oli74-plus-simflex/meccanica—/
  • bathtube free standing Agape model Spoon in cristalplant – https://www.agapedesign.it/en-GB/bathtubs/free-standing/spoon
  • Gessi taps cesello 316 series – finishes 726 Warm Bronze Brushed PVD

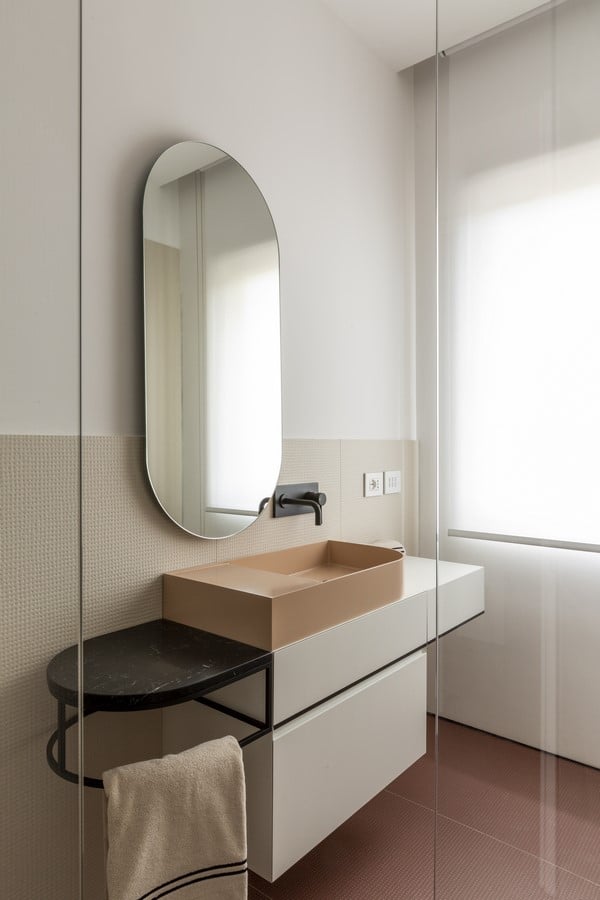

bathroom 2

  • unglazed homogeneus porcelain stoneware Mutina Pico series – tickness 12 mm – type Pico up red
  • unglazed homogeneus porcelain stoneware Mutina Pico series –tickness 12 mm – type Pico down natural blanc and Pico red dots blanc – https://www.mutina.it/en/collection/pico-by-ronan-erwan-bouroullec
  • skirting boards recessed with aliminium profile
  • washbasin LivingTec® t Nouveau collection, sizes cm 45 x 37 x h 11, colour pink + wall mounted cabinets in white, with metal handles Ex.t serie Nouveau, with drawers – https://www.ex-t.com/products/nouveau/
  • wall hung wc and bidet Ceramica Flaminia App collection with goclean® system, milky white colour, matt ceramic – https://www.ceramicaflaminia.it/en/products/330-app/filter/41-wc-and-bidet
  • concealed cistern Oli 74 plus simflex with plate Blink collection, lacquered black – https://www.oli-world.com/it/prodotti/sistemi-sanitari/cassette-di-risciacquo/oli74-plus-simflex/meccanica—/
  • shower tray Disenia join in tecnogel white – sizes cm 80 x 160 x 4 – https://www.diseniashowers.com/product/join-flush-or-raised-shower-tray/
  • shower cabin Disenia WALK-IN – sizes cm108,5 – 110 – h cm. 205 – tickness 8 mm – extra clear glass – shower enclosures ‘nero materico’ – https://www.diseniashowers.com/product/easy-box-doccia-in-cristallo/
  • taps Gessi Via Tortona – finish nero XL – https://www.gessi.com/en/catalogue/emporio-gessi/via-tortona/via-tortona/bathroom-designs

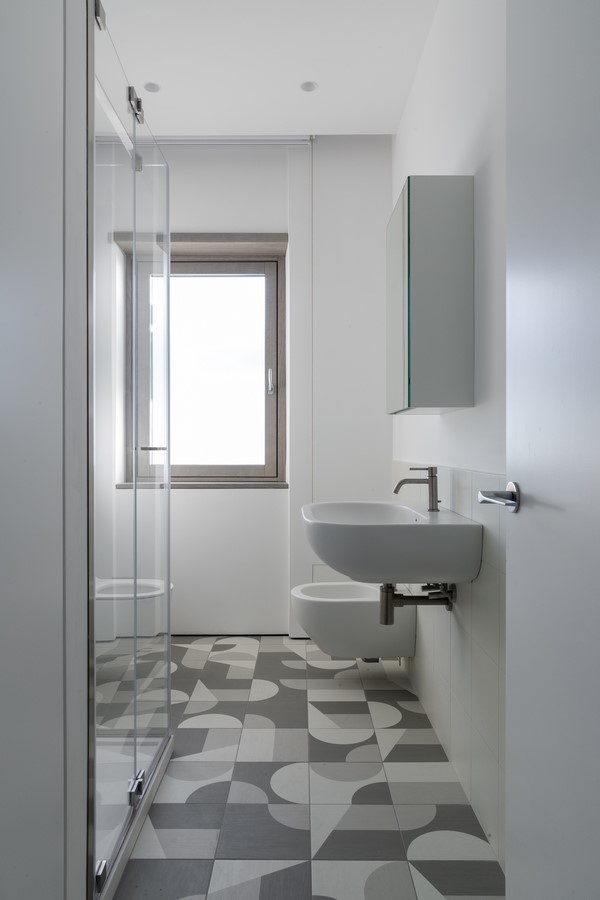

bathroom 3

  • pavement: glazed porcelain stoneware Mutina puzzle stone collection, mixture of 4 pieces – sizes cm 25 x 25 colour aland
  • wall: glazed porcelain stonewa Mutina puzzle collection, sizes cm 25 x 25 colour powder – https://www.mutina.it/en/collection/puzzle-by-barber-osgerby
  • skirting boards recessed with aliminium profile
  • wall-mounted washbasin Ceramica Flaminia PS72L Pass 72, milky white colour, matt ceramic – https://www.ceramicaflaminia.it/en/products/309-pass/filter/38-basins
  • wall hung wc and bidet Ceramica Flaminia App collection with goclean® system, milky white colour, matt ceramic – https://www.ceramicaflaminia.it/en/products/330-app/filter/41-wc-and-bidet
  • concealed cistern Oli 74 plus simflex with plate Blink collection, steel brushed – https://www.oli-world.com/it/prodotti/sistemi-sanitari/cassette-di-risciacquo/oli74-plus-simflex/meccanica—/
  • shower tray Disenia Join in tecnogel bianco, sizes cm 90 x 70 x 4
  • shower cabin AISI Y5 in brushed stainless steel – sizes cm 88 – 89 h cm 200 – tickness extra clear glass 8 mm
  • taps Gessi Via Tortona – finish 149 Finox – https://www.gessi.com/en/catalogue/emporio-gessi/via-tortona/via-tortona/bathroom-designs

parquet

  • oak wood flooring Margaritelli prima smart finish cashmere country, sizes mm 800/1000/1200 x 140 x 12,5 – https://www.listonegiordano.com/en/wood-flooring/
  • skirting boards recessed with aliminium profile

balconies

  • pavimentazione in gres Progetto micro microtiles collection, scheme oddfellow, sizes cm 10 x 10 and 5 x 5 colors cotto, terracotta and klinker – http://progettomicro.it//collezioni/microtiles/
  • Wall-hung washbasin Galassia 5403 MEG11sizes cm 65 x 45 white – https://www.ceramicagalassia.com/risultati-di-ricerca.html?cerca=5403%20MEG11
  • taps Bongio T cross finish natural brass – https://www.bongio.com/en/collezioni/t-cross/

entrance door

  • hinged entrance door Dierre Sleek Hibry 4.0 safety door flush with the wall with double jamb with concealed hinge and lock with electronic and manual management

interior doors

bedroom 2 and 3, bahroom 2 and 3

  • hinged door flush with the wall L’Invisibile – sizes cm 70/80 x 210, magnetic lock – https://linvisibile.com/design_doors/hinged-door/#product-intro

textile wall bedroom 2

  • folding textile doors DOOR with false ceiling recessed track – https://dooor.it/en/door/modelli/

windows

  • windows wood/aluminium Campesato type Biplanar 81 rectangular – https://campesato.com/fixtures-wood-aluminium-biplanar/
  • Rolling shutter with adjustable aluminium slats Rolltek slim – https://www.rolltek.it/web/en/slim/rolltek-slim/

kitchen

  • Kitchen furniture Alta Cucina serie S22 in natural oak and lacquered white, top in natural oak and neolith marble calacatta effect
  • remote under-roof motor Falmec nuvola 90 finish scotch brite stainless steel and tempered extra light painted, perimeter suction, electronic control, LED lighting – https://www.falmec.com/en-ww/products/nuvola-90-47/
  • Swivel bar stool adjustable in height with gas piston Magis Tibu model, colour beige, in steel painted in polyester powder – https://www.magisdesign.com/product/tibu/

living room fireplace

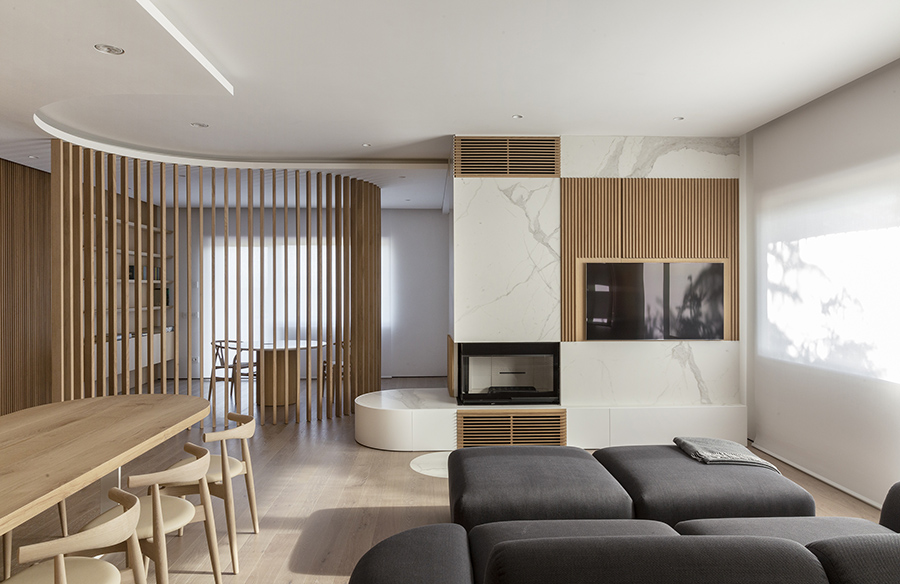

  • corner wood hearth Palazzetti WT78 sx – https://palazzetti.it/prodotti/caminetti-a-legna/ecomonoblocco-wt/ecomonoblocco-wt-78-angolo-thermofix-11-4-kw-naturale-sinistro-aria-irraggiamento/

carpentry works

  • handcrafted works in stained oak:
  • bedroom L1: wardrobes complete with shelves with drawer
  • round study desk with top in carrara marble and cylindrical base in natural oak
  • straight vertical bris soleil and chicane, made of solid oak slats
  • staved fireplace wall paneling

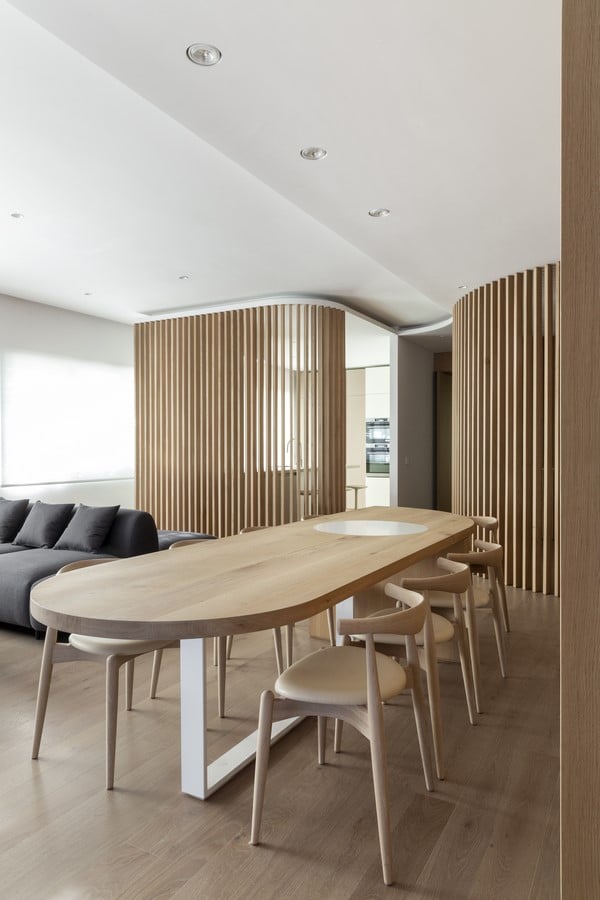

  • dining table made with wooden top with a curvilinear design, total dimensions 335 x 100 cm
  • pivoting panel complete with FritsJurgens 90 ° rotation system
  • external sliding bathroom wall panel 1, with sliding system embedded in the false ceiling
  • corridor and entrance wall paneling in slatted panels, including access doors to bedrooms 1 and 2, tub glass hole, door that can be opened by pulling the entrance wardrobe compartment, container unit for emptying pockets in the existing niche at the entrance, bookcase furniture in the area study

dining and study chairs

Carl Hansen

  • study chairs Carl Hansen model CH24 oak soap and natural paper cord – https://www.carlhansen.com/en/collection/chairs?modelName=CH24
  • dining chairs Carl Hansen model CH20 oak soap and leather beige – https://www.carlhansen.com/en/collection/chairs/ch20/ch20-oak-oil-hr-thor-300/variant/6768

textile bedroom 1

  • linen set of sheets and runner in cashmere by Ivano Redaelli

recessed lighting

  • Deltalight DEEP RINGO S1 cod. 202 11 26 W LED GU 10, white
  • AQForm RING 111 QRLED trimless recessed – dining table area
  • MODULAR LOTIS 86 IP 55 GU10, codice 10883638, colore white struc. Wet area

electrical system components

  • Vimar exè Flat, colour white matt

insufflation of external walls and internal climate management

The blowing was carried out with Isover Insulsafe 33 from Saint-Gobain (white glass wool in flakes, produced with recycled glass, without thermosetting resin) after checking the conditions of the cavity by means of an endoscope, to check the state of the facings and the possible presence of water infiltrations.

Once the suitability of the conditions was ascertained, the holes necessary for the application were made, sealing the possible escape routes, then the actual blowing using an injector machine, starting from the bottom and then gradually rising towards the ceiling.

The beams were insulated with Isover Clima 34 panels from Saint-Gobain.

radiant floor system and controlled mechanical ventilation

Radiant floor system with low thickness screed, equal to 6 cm, engaged by 20 mm of insulation, 20 mm piping, 20 mm of self-leveling screed made with Termoanidro Premium, self-leveling premixed screed based on pure natural anhydrite, selected limestone aggregates and additives to improve the performance of the product, indicated in green building interventions, ideal for radiant floor conditioning systems.

The installation took place using a suitable means of transport equipped with a pump. The outdoor unit that powers the system is a Daikin Altherma EPGA11DAV3 low temperature split unit, an air-water floor heat pump for heating, cooling and domestic hot water production, ideal for homes with low energy requirements.

The indoor units are instead the Daikin INTEGRATED R32 H / C 230L 16 kW.

Due to the presence of beams that inhibited the correct passage of the pipes, it was necessary to resort to two separate dehumidifiers, two machines also from Daikin RER050AE000 Dehumidifier Recovery 050 IsoT.

A 4kWh photovoltaic roof system contributes to the power supply of the air conditioning system.
