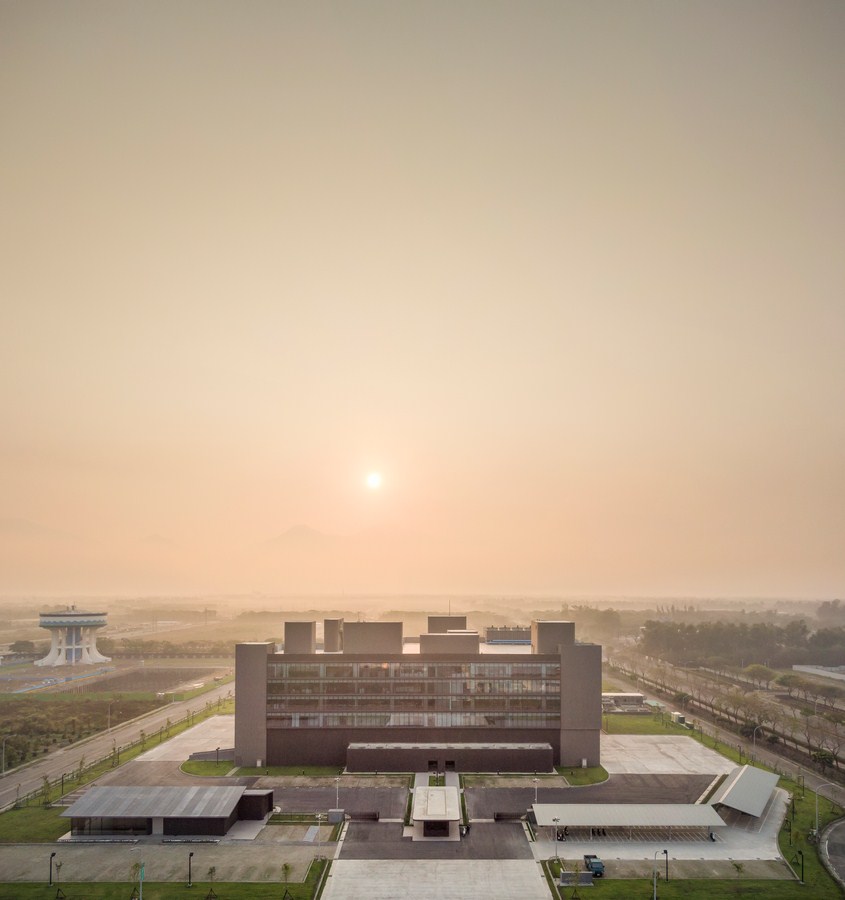

Located in the Pingtung Agricultural and Bio-technology Park (PABP) in southern Taiwan, the T-Ham PABP factory is the largest and the most advanced pork meat processing factory in the country. This LEED gold certified factory complex contains a main factory building (22,000 m²), a diner and gift shop building (650 m²), and a waste water treatment building. The factory’s expansive product range covers more than 250 items, ranging from Western style hams, sausages and bacon, to artisanal wood smoked hand-tied hams, to Chinese style stewed, boiled and roasted meats, ready-to-eat meals, as well as various meat ingredients for chain restaurants and bakeries.

Rethinking The Future Awards 2022

Project Name: T-HAM PABP Factory
Architect Name: WZWX Architecture Group

T-HAM PABP Factory By WZWX Architecture Group - Sheet4The client T-HAM is the oldest and the largest meat processing brand in Taiwan with over 50 years of history. The design of this new factory has been assigned with four principal goals. Firstly, it is to double the company’s production capacity in order to meet increasing demand from the domestic market. Secondly, to upgrade the production facility in order to meet the export requirements of Japan, Singapore and the United States as it prepares for market expansion in 2020. Thirdly, it is to deliver a statement of the company’s corporate values which are high quality products, sustainable development, and environmental friendliness. Fourthly, it is to upgrade the working environment of their factory workers and their daily working experience – as “happy employees make better products”.

Eduwik- Online Courses for Architects & Designers

The conventional meat processing factory building in Taiwan is essentially an enclosed refrigerated shed for storage and production. For this project, the design team pursued a spatial solution that is neither a shed, nor a fridge-like box, in order to distinguish ourselves from other brands. We wanted to incorporate as much daylight and views of the outside as possible into the building to improve the users’ experience.

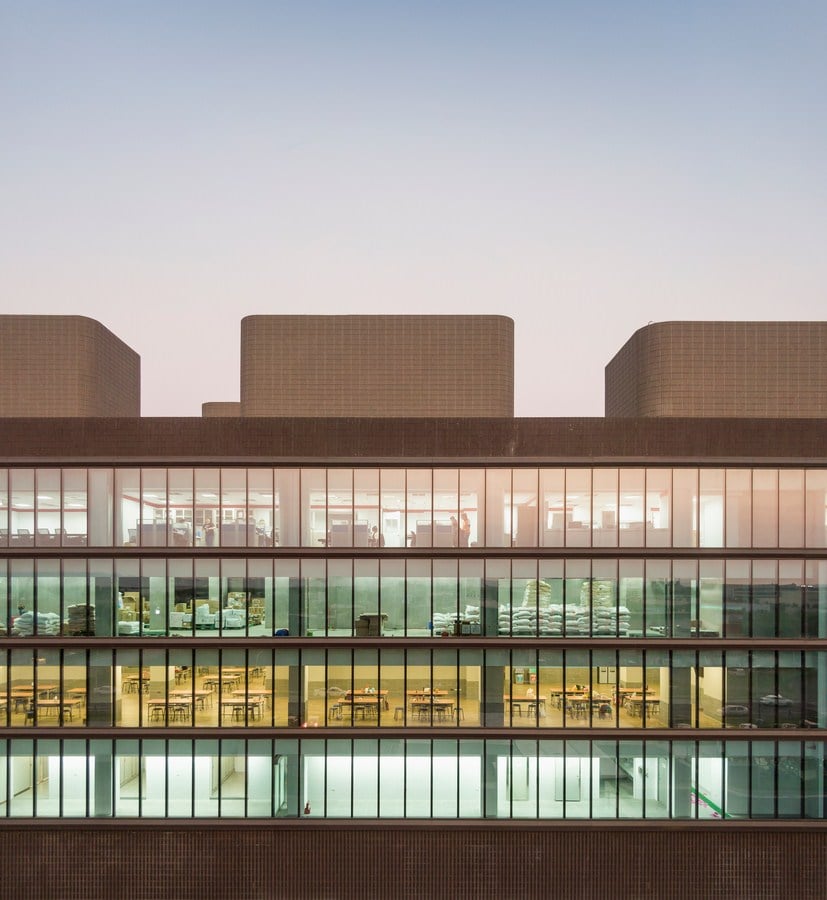

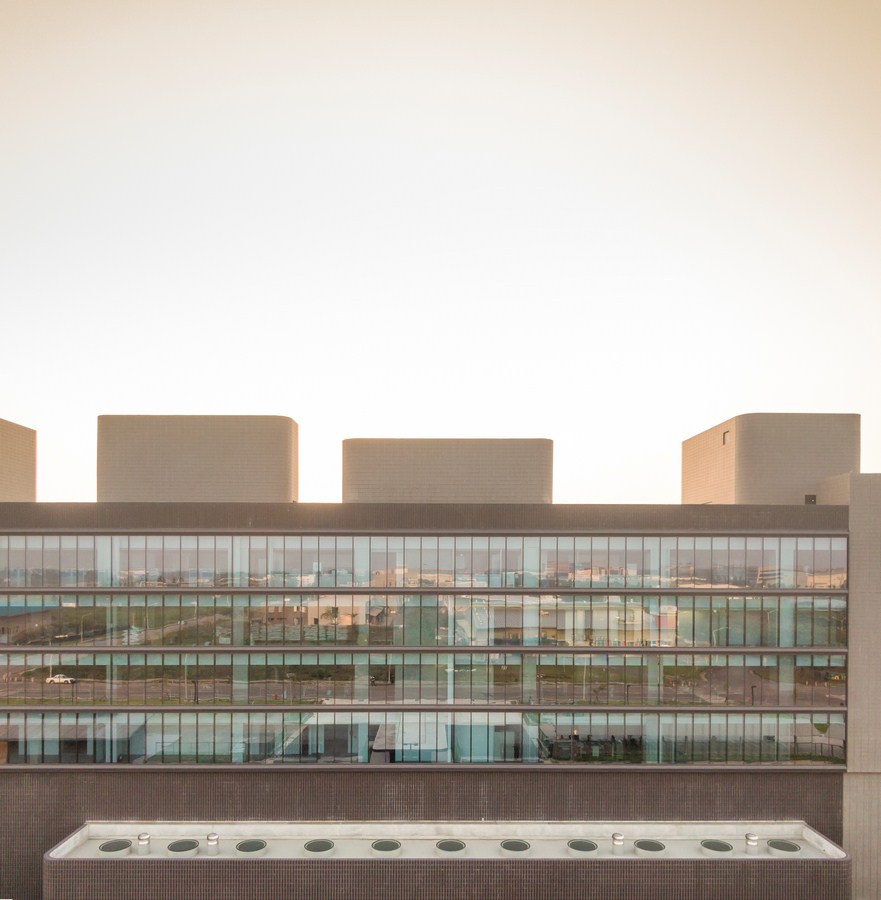

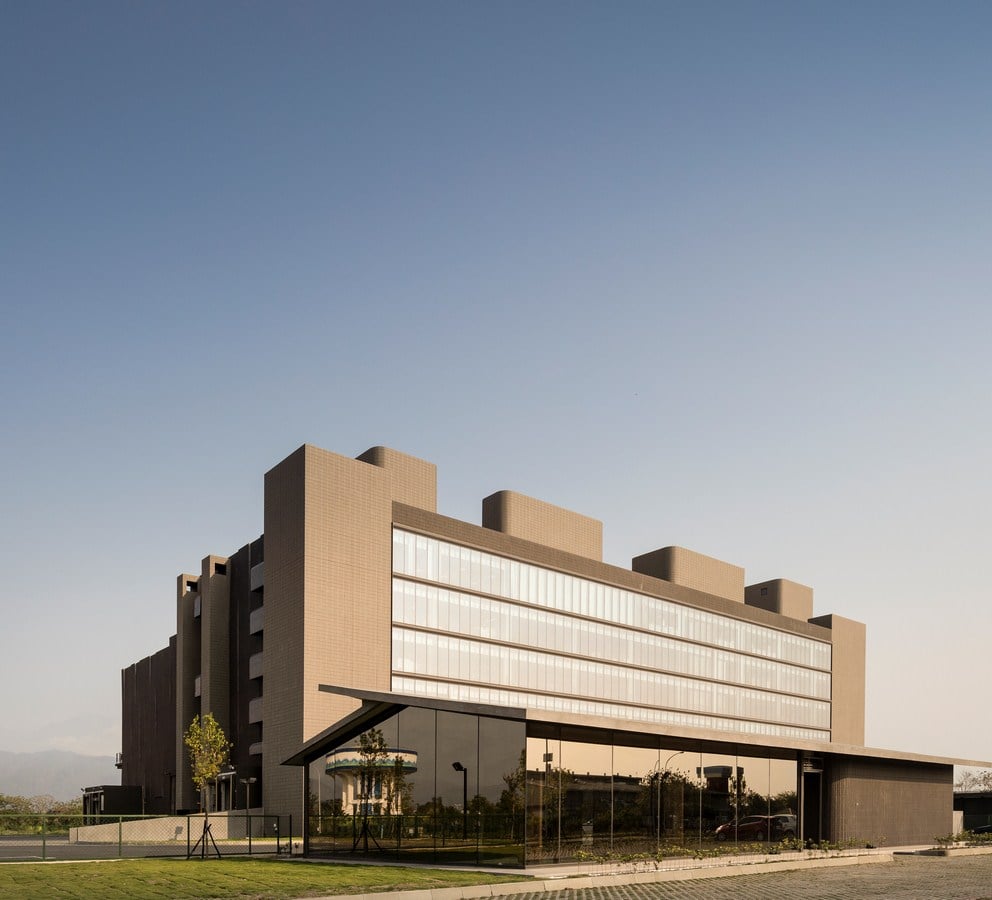

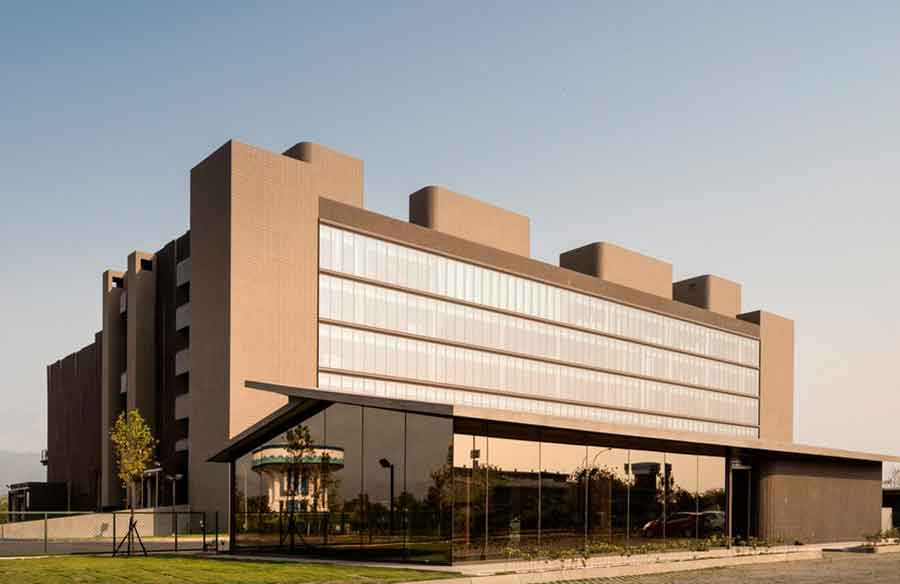

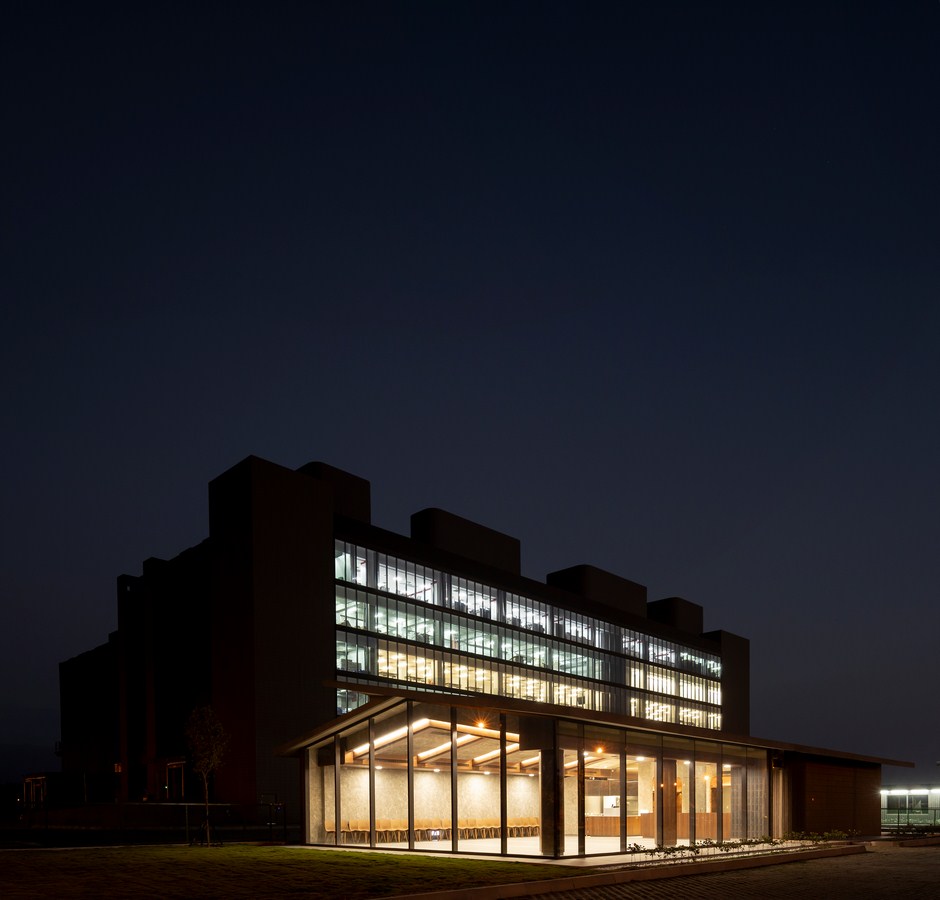

T-HAM PABP Factory By WZWX Architecture Group - Sheet6The factory’s various so called ancillary functions were identified and organised to the “front” of the building behind a curtain wall facade in order to provide plenty natural light and views for these human activities. Ancillary functions include offices for admin, R&D, quality control, a seasoning laboratory, as well as staff canteens, changing rooms and toilets. Office staff and more importantly factory workers receive plenty of sunlight and views of surrounding plains when they use the canteens on their breaks and during their visits to the lavatories by passing the light filled corridors.

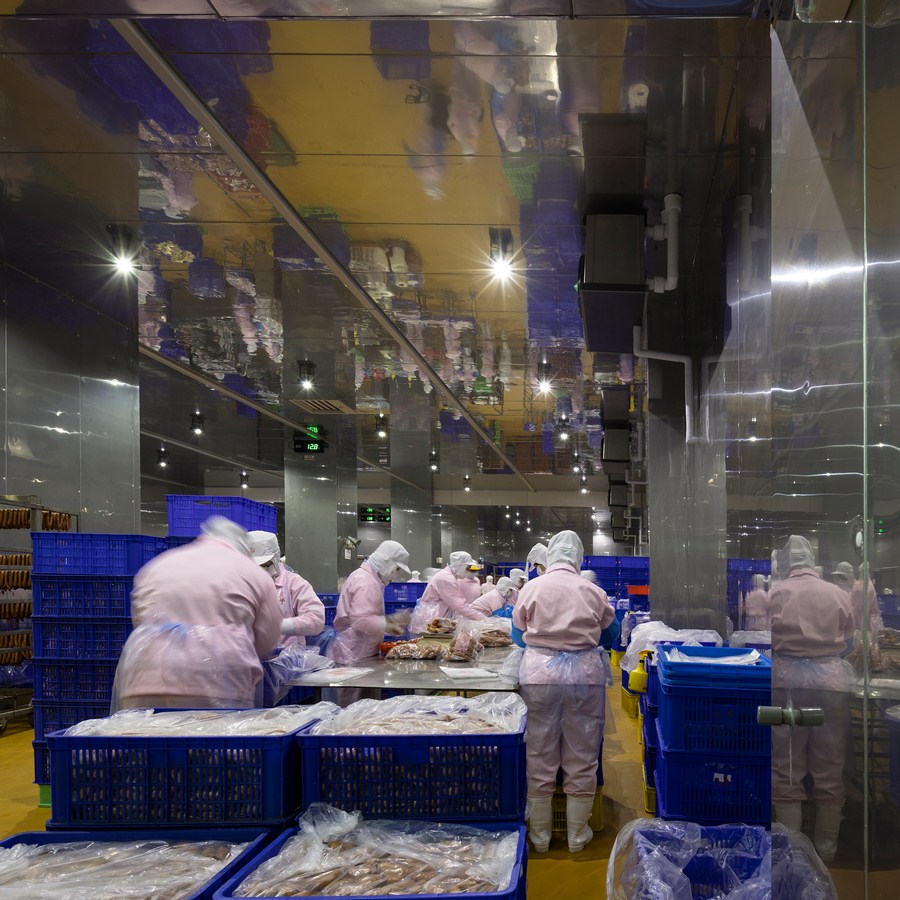

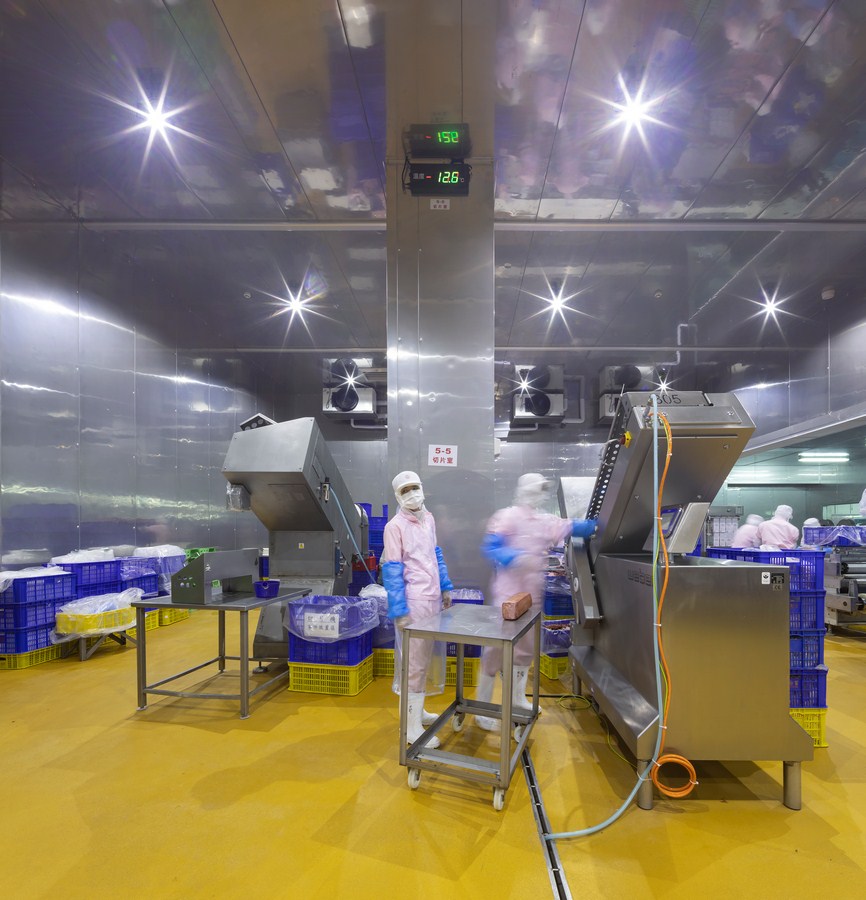

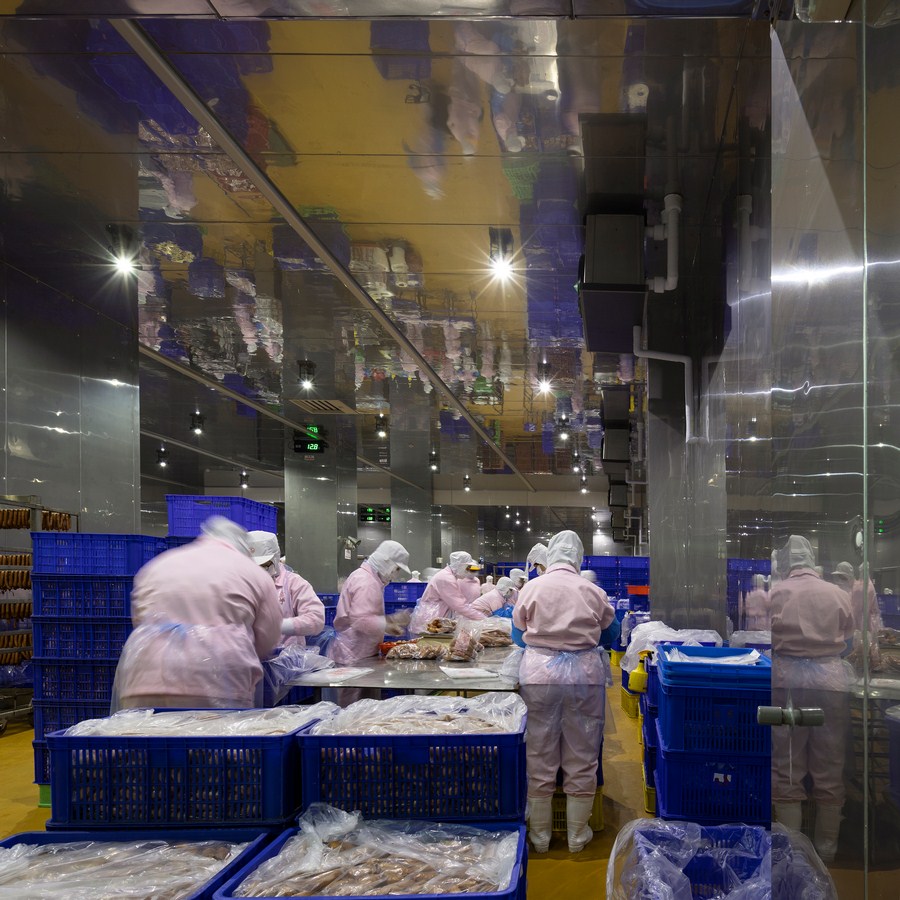

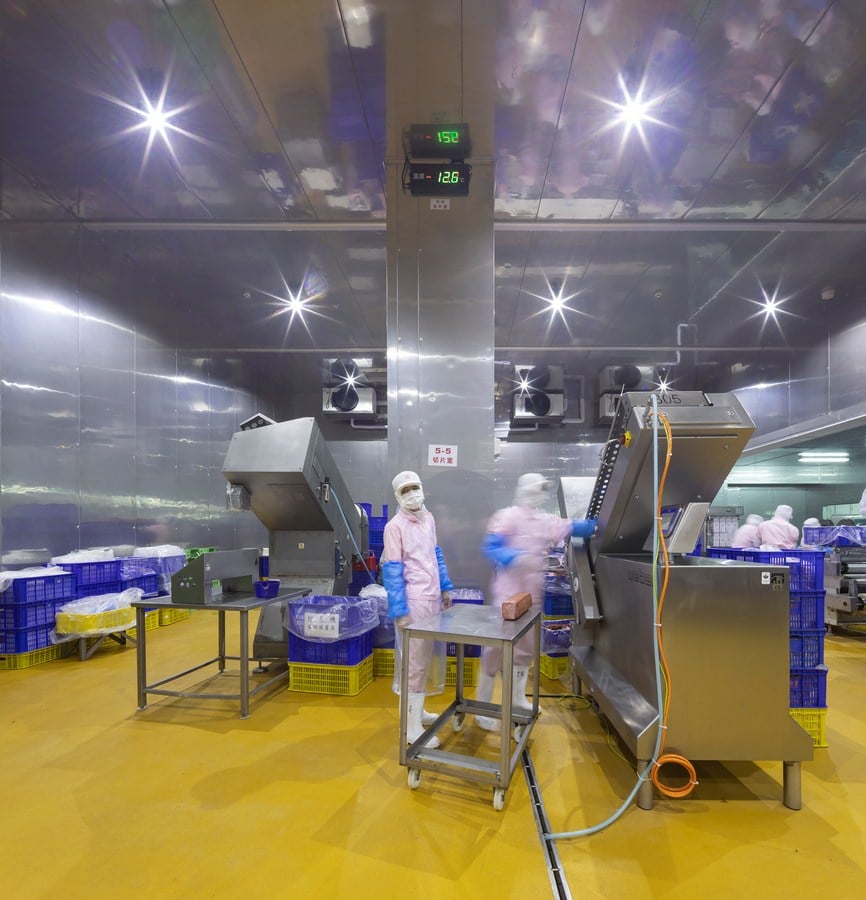

Storage and production functions were organized to the “rear” of the factory, with highly insulated walls to help maintain internal temperatures. Most production zones are refrigerated spaces with temperatures ranging from -35 degrees to 13 degrees.

Eduwik- Online Courses for Architects & Designers

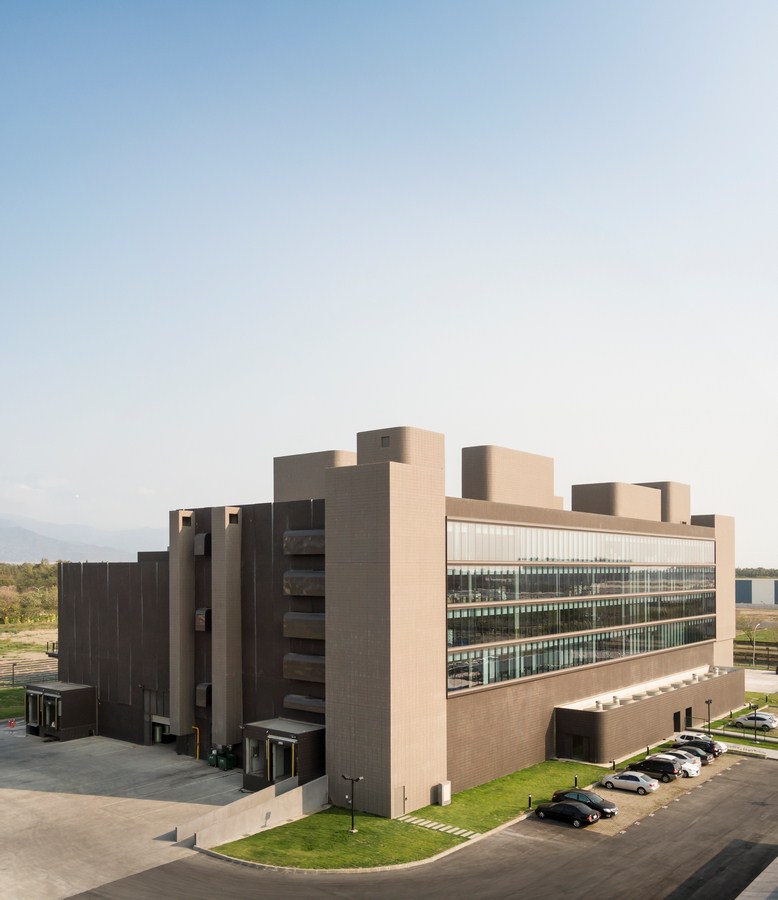

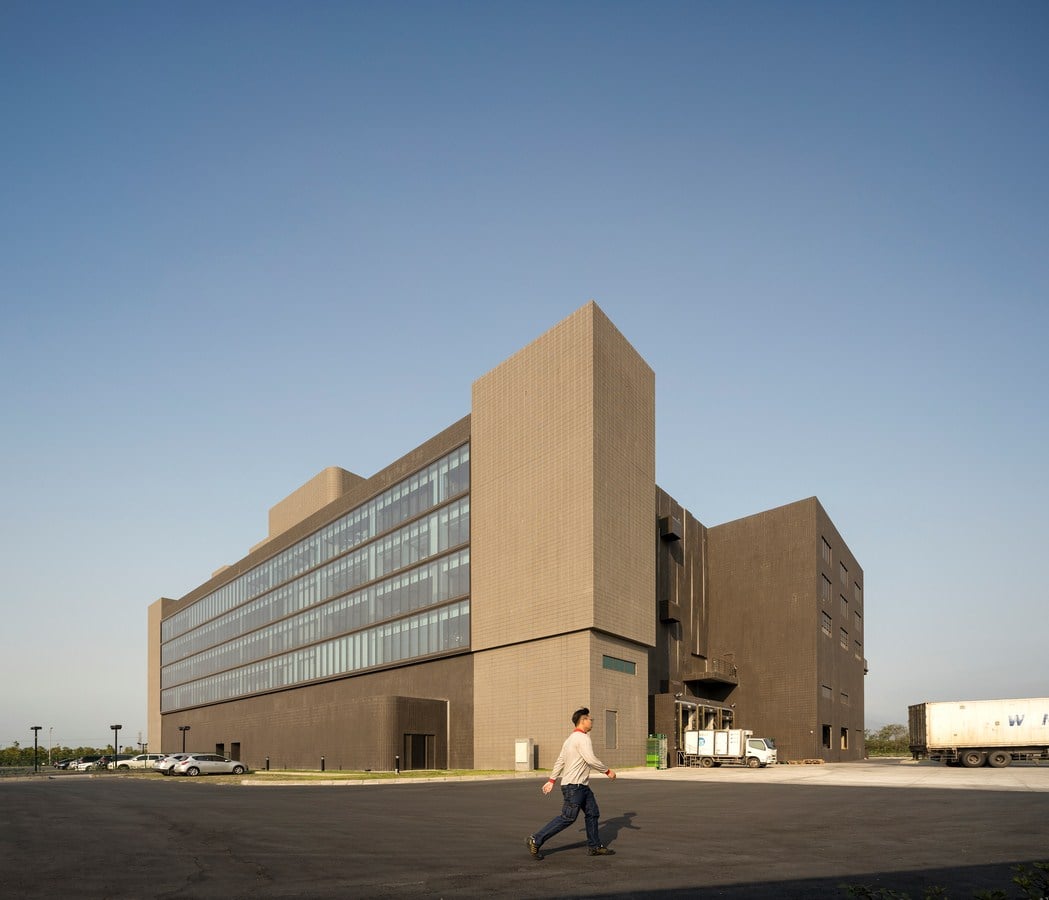

The outer skin of the factory were clad in rough textured clay tiles, a typical Taiwanese cladding material, which was chosen to effectively protect the building from the region’s harsh southern sun and torrential rains in the rainy season.

T-HAM PABP Factory By WZWX Architecture Group - Sheet7The dark purplish-brown tiles have rough textures which mimic the fertile agricultural lands of this southern county. A touch of finesse and detail has been introduced by patterning the textures to give the skin a woven quality much like the premium hand-tied hams.

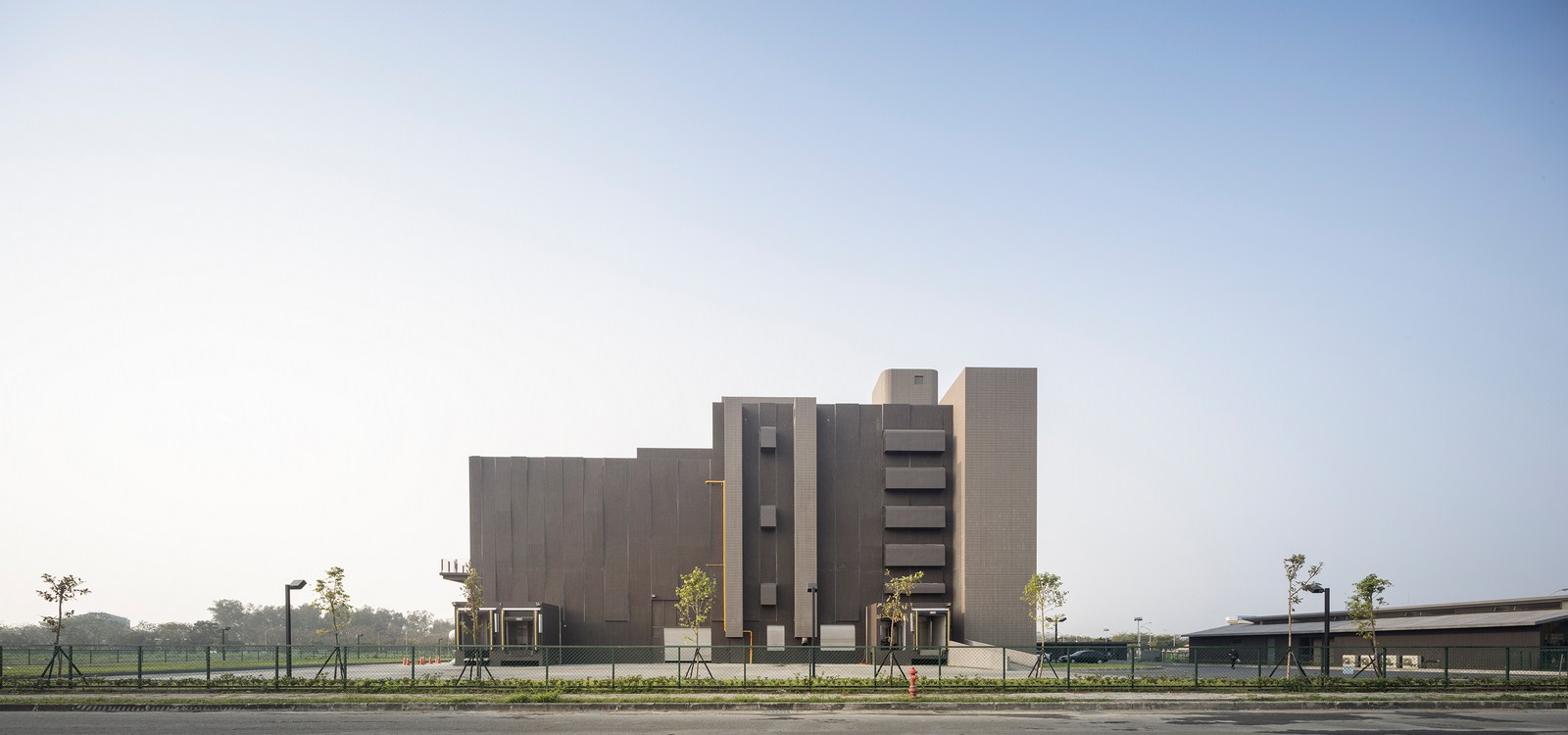

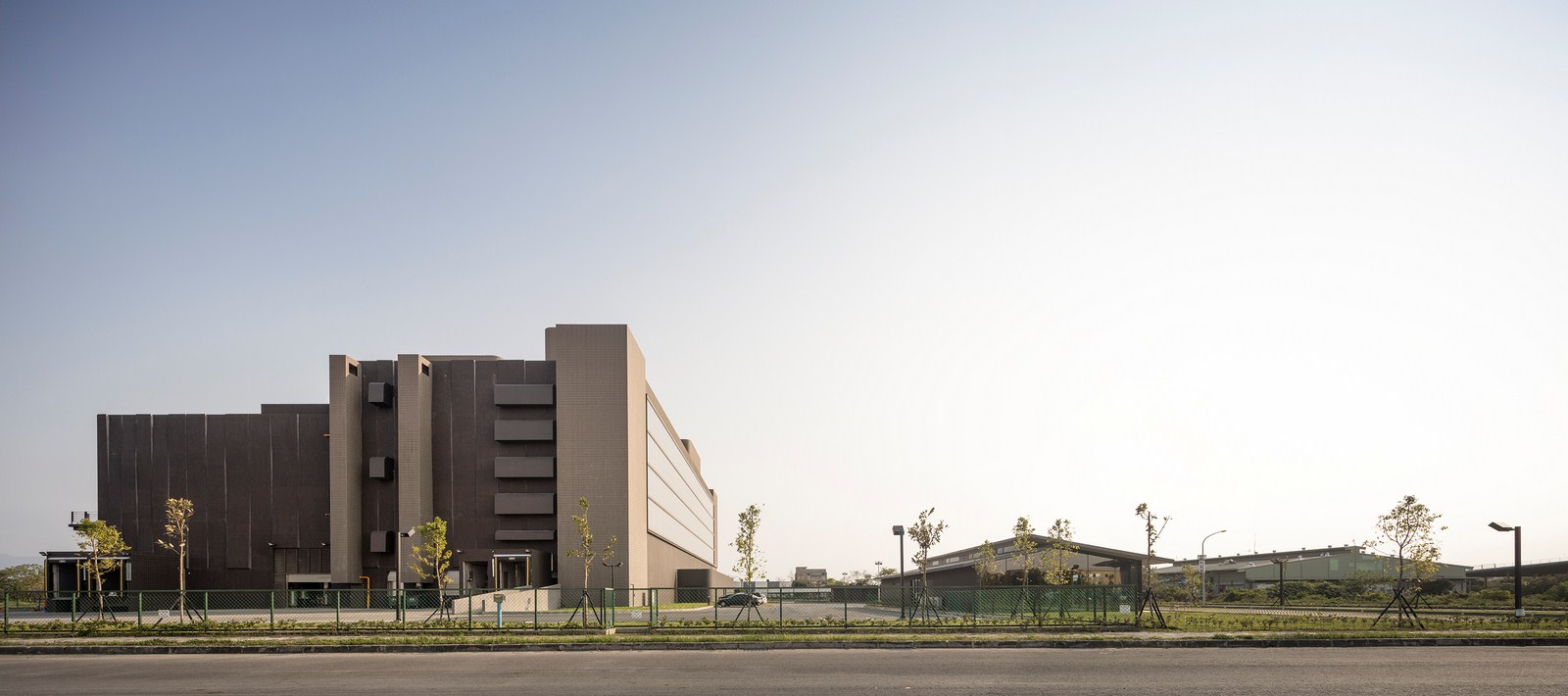

The walls on the south and north façade were slightly tilted in alternating angles so that the shadows on the walls form delicate patterns that vary as the day changes.

Eduwik- Online Courses for Architects & Designers

In order to meet the strict hygiene standards for meat export purposes to major markets such as Japan and Singapore, all flows of people, goods, air and liquids in the factory had to be strictly separated between the production areas of raw meat and cooked meat.

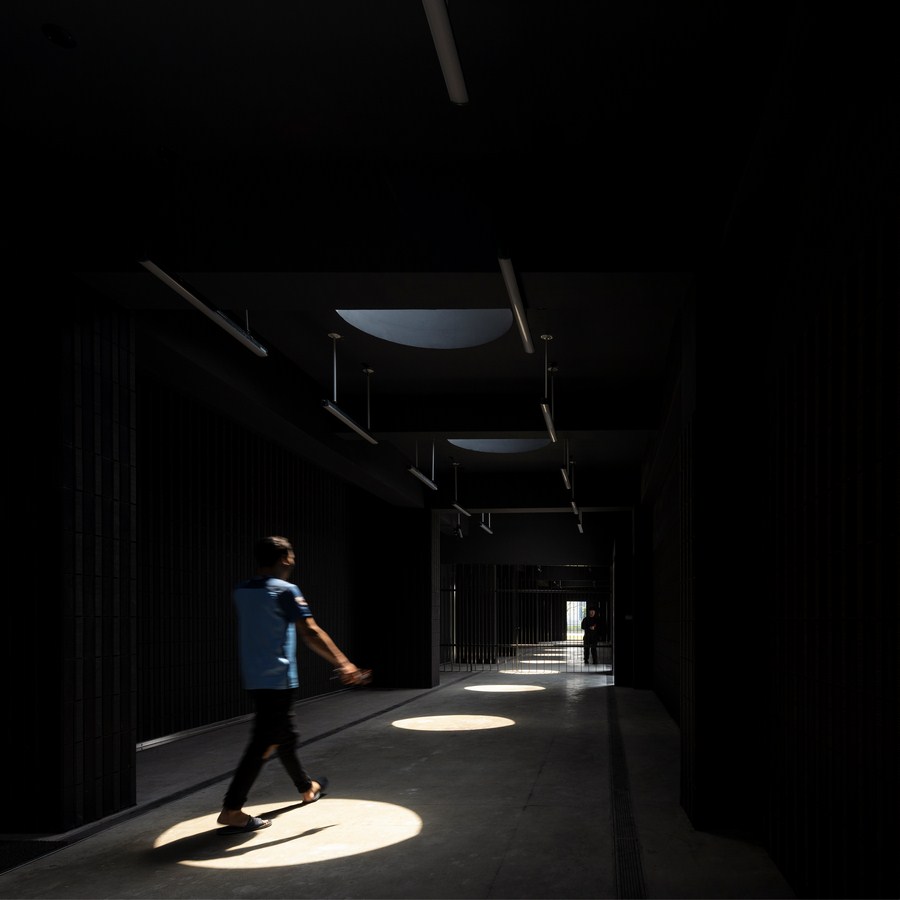

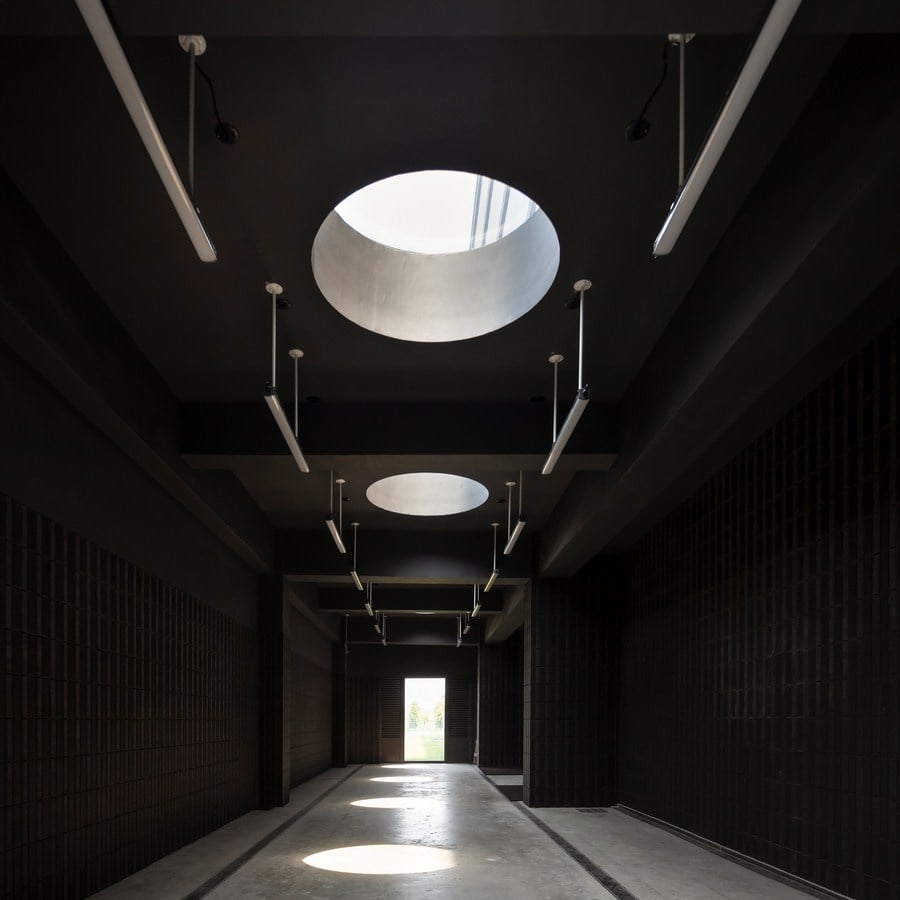

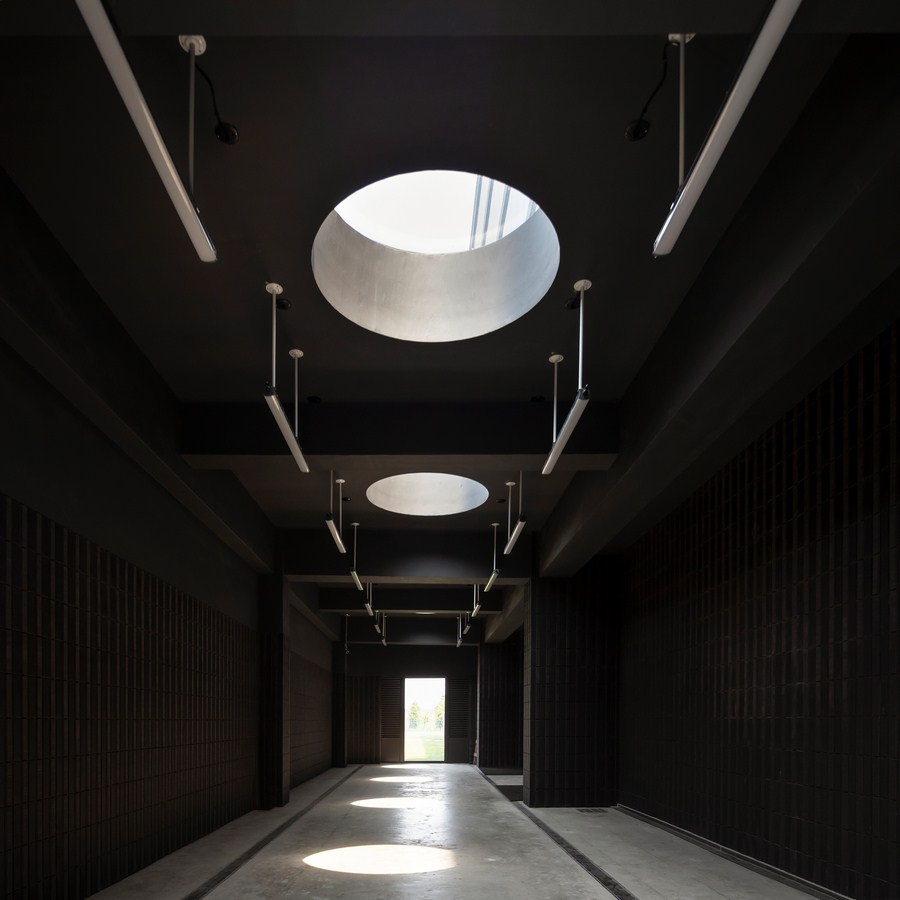

The separation of circulation started at the factory entrance. Staff working in the raw and cooked meat sections enters from different entrances. Circular skylights on the roof of the entrance tunnel give the staff glimpses of daylight as they enter and exit the factory. Within, circulation routes, changing rooms, and canteens have all been colour coded according to raw product and cooked product zones in order to prevent any cross contamination.

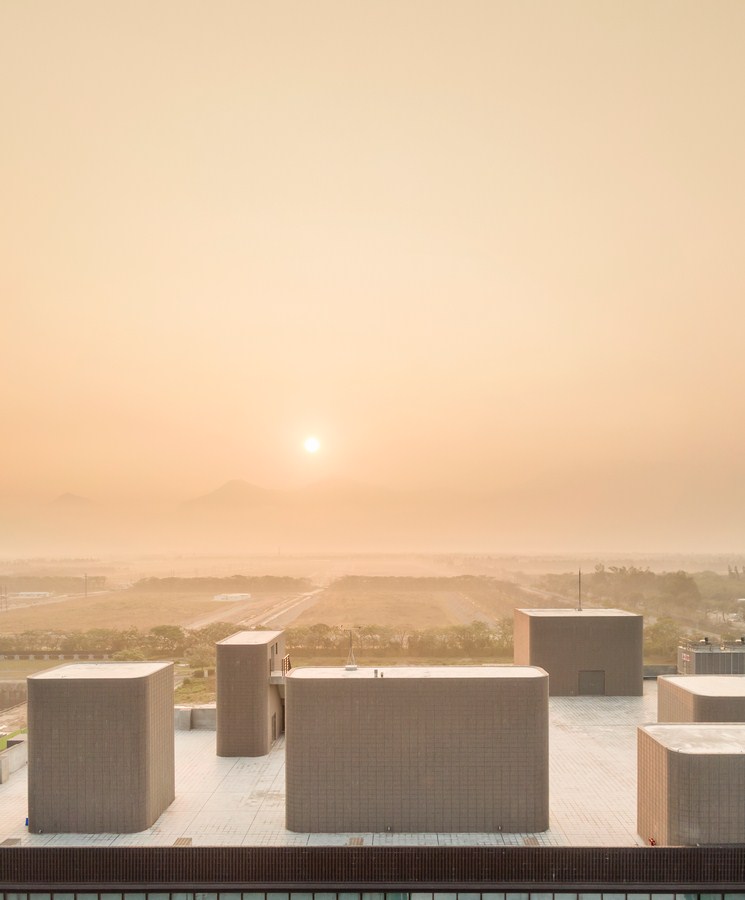

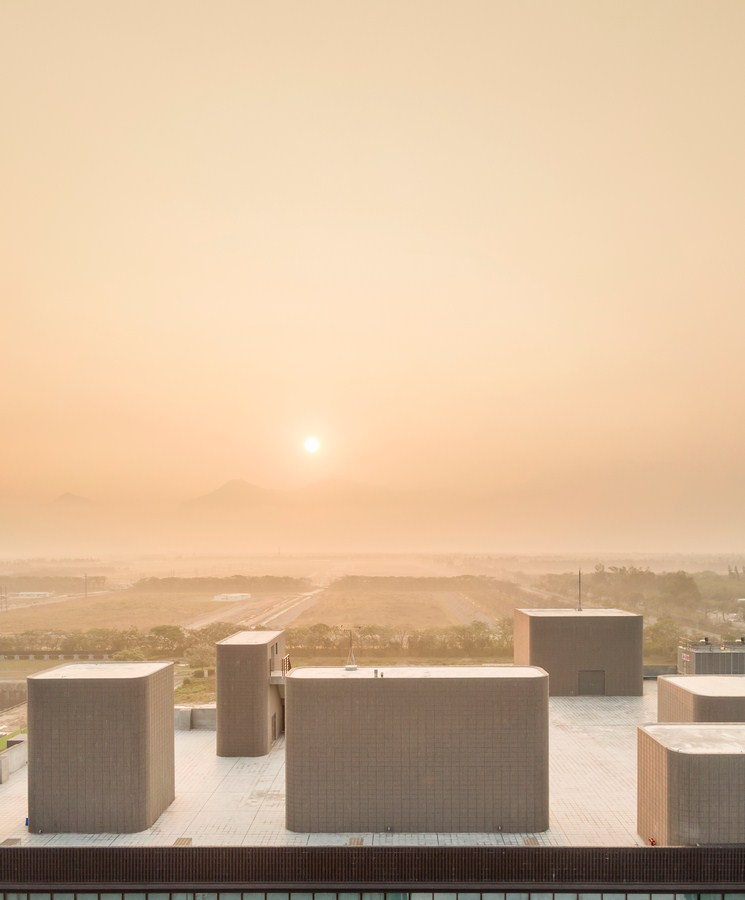

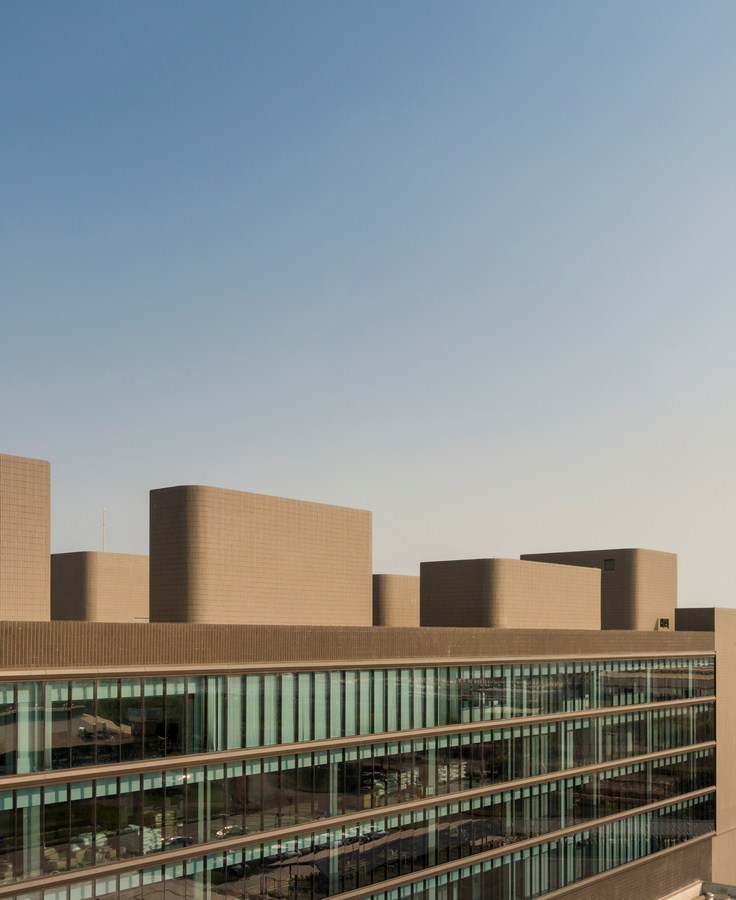

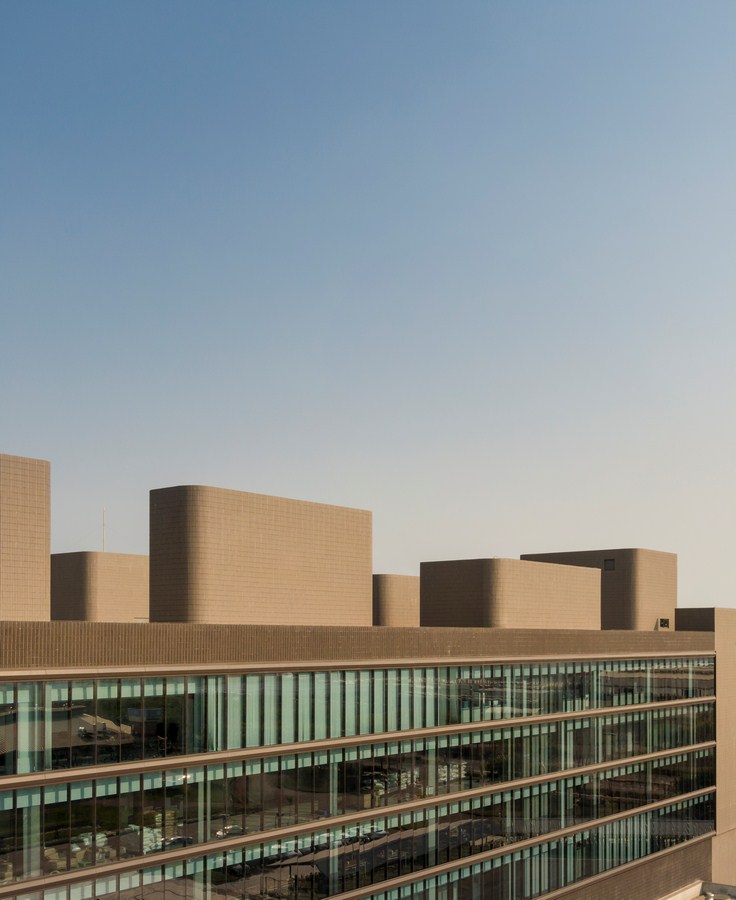

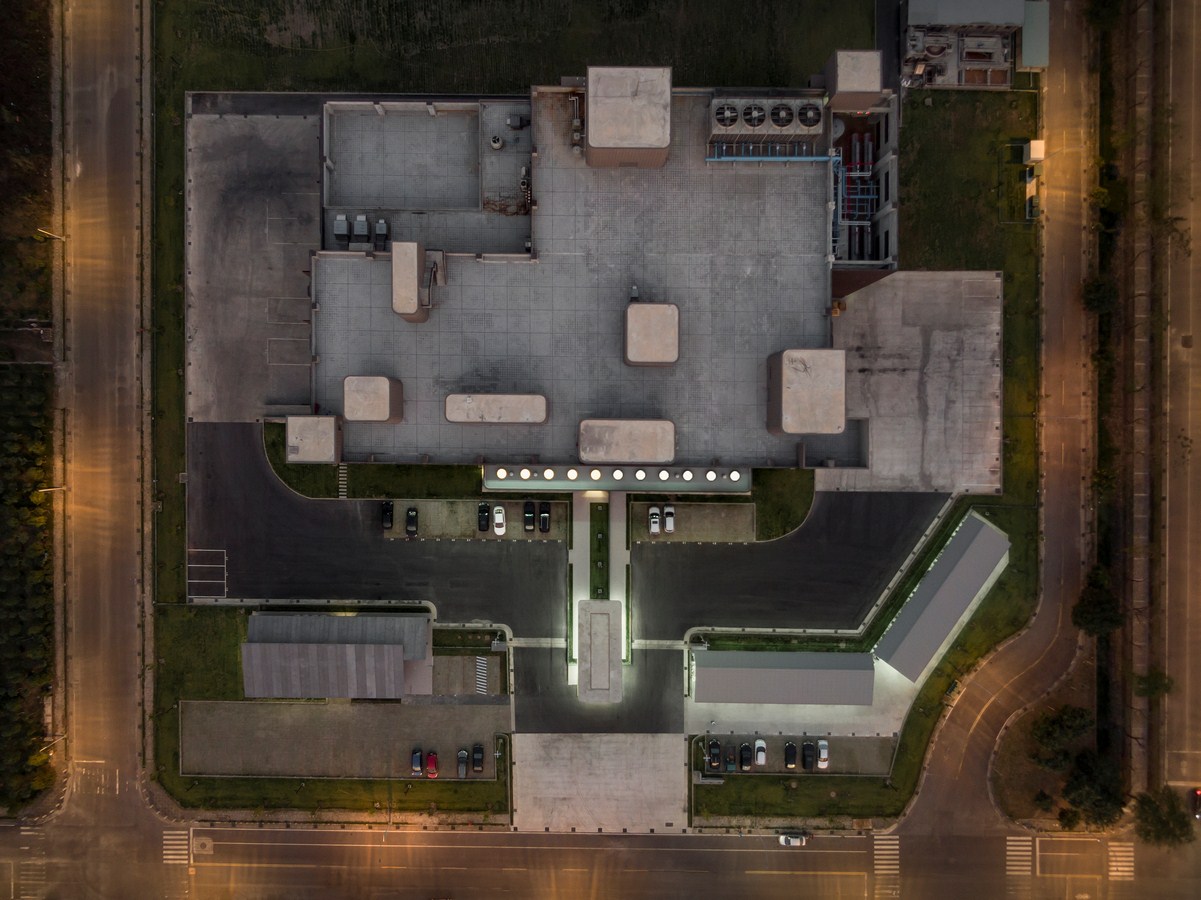

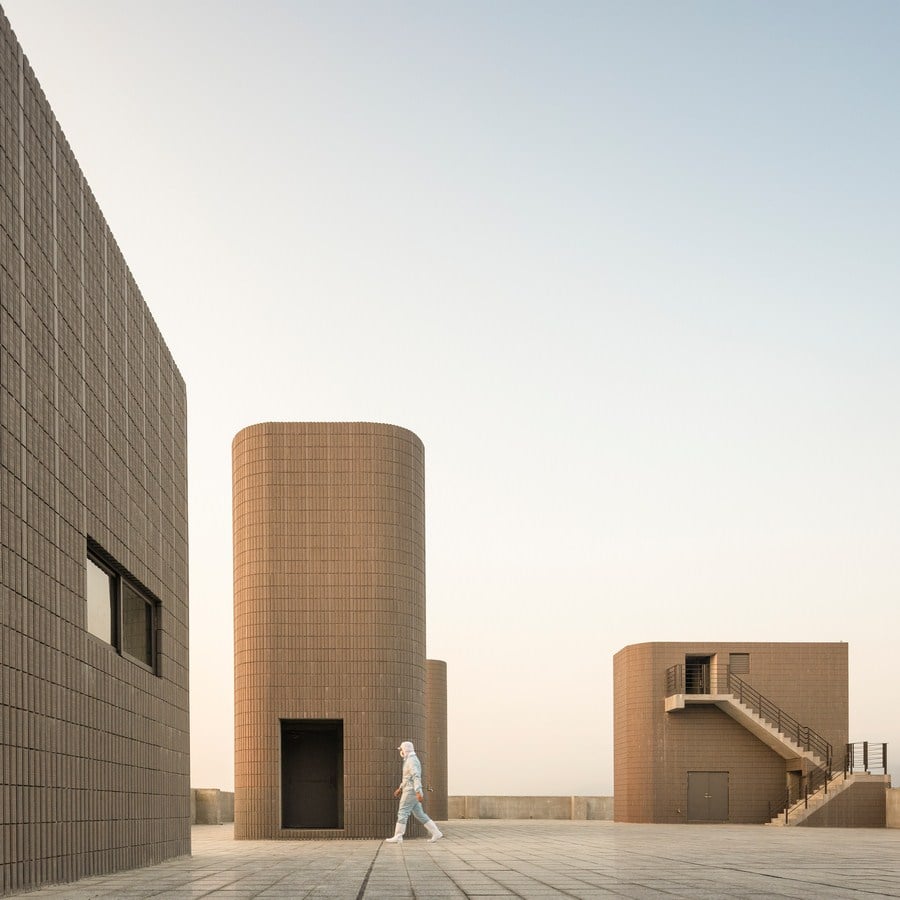

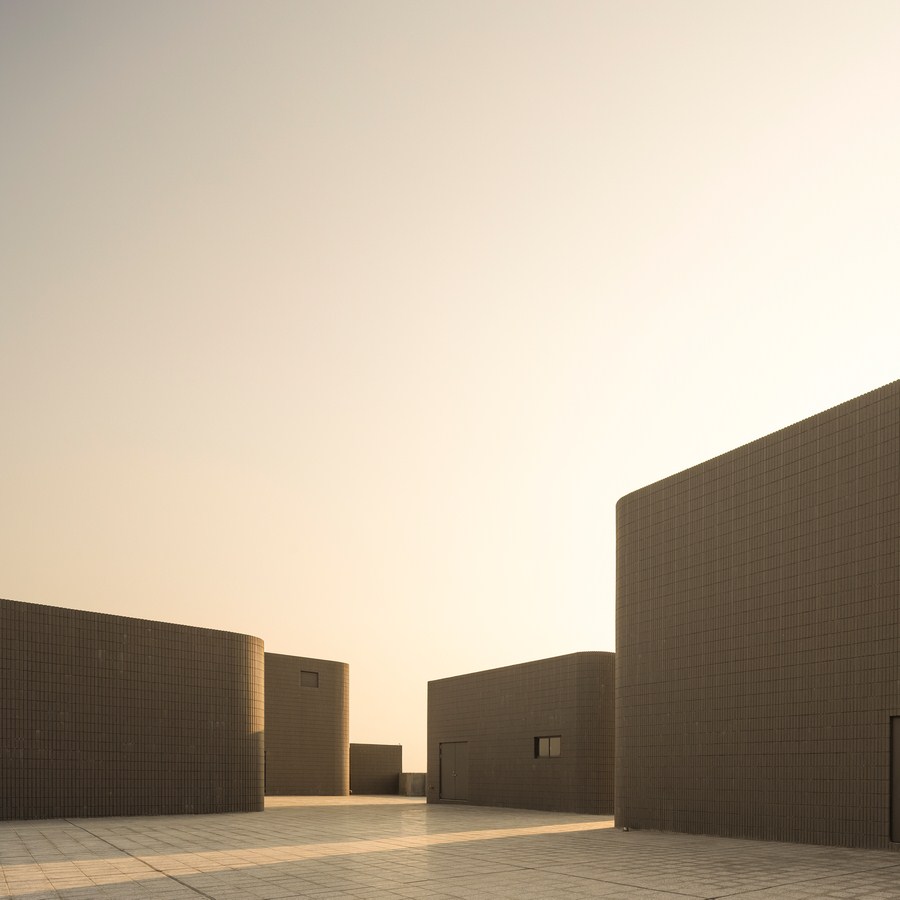

On the rooftop, seven elevator shafts required for the production rise prominently into the sky. Their individual heights were dictated by their functions, but their forms were given sculptural expression – referencing the rocky central mountain ranges of Taiwan visible in the far distance. These rooftop forms – an abstract mountainous landscape – give the factory a distinct and sturdy identity. Open spaces on the rooftop provide ample space necessary to clean factory equipments, for special events and for staff to take their breaks.

Eduwik- Online Courses for Architects & Designers

T-HAM PABP Factory By WZWX Architecture Group - Sheet9Three main design factors contributed to the gold rating in LEED. Firstly, Carbon emission was minimized by using a high proportion of locally made and recycled materials, such as tiles, concrete and glass. Secondly, energy savings came from efficient MEP and HVAC design which saved about 20% of electricity. Thirdly, water efficiency was improved by selecting efficient fixtures and appliances which saved about a third of the normal levels. A rain water capture and reuse system was implemented to provide water for toilets, irrigation and car washes. The planting of local species of vegetation also contributed as they do not need extra irrigation once they passed the one year nursery period.

The new factory design has been well received by the client. According to the factory manager, the new facility design greatly improved the overall production efficiency. It has also raised the morale and pride in the work force. The introduction of views and daylight into the workers’ office and social areas has made the factory workers’ daily experience much more pleasant. This has been translated into better motivation and improved product quality. The new facility has not only doubled the retention rate of existing workers, it has also made hiring new factory workers a much easier task.

T-HAM PABP Factory By WZWX Architecture Group - Sheet12When a foot and mouth disease outbreak took place in Taiwan in the late 1990s, a twenty year embargo on Taiwanese pork export followed. Next year, in 2020, there is a good chance that the embargo would be lifted, allowing Taiwanese pork to be exported again. This new factory has now strategically placed T-HAM ahead of its competitors, as the only meat factory in Taiwan that meets the highest export standards.

Eduwik- Online Courses for Architects & Designers


WZWX was founded by brothers Dr. Richard and Dr. Stephen Wang in 2014. They have offices in Taipei (Taiwan) , Shanghai and Huai’an (China). Their professional and energetic team is managed under the direction of four partners.

The company specializes in developing integrated design solutions which span across the full range of spatial scales, including site-planning, comprehensive architectural design, interior design, and bespoke furniture design.

Eduwik- Online Courses for Architects & Designers

Parallel to their design expertise, their capacities in architectural project management and construction management mean that they are able to assist clients truly from the inception till completion of each project.

WZWX strives for a seamless fusion of conceptual design, construction detailing, and quality management of the construction process. They have consistently been recognized for their high quality works. Recent awards include the ArchDaily award, INSIDE Festival of Interiors Award, Red Dot Design Award, German Design Award, iF Design Award, International Interior Design Association – Asia Pacific Design Award, Hong Kong Institute of Architects – Cross Straits Design Award, A’Design Award, and the Asia Pacific Property Award.
