Oh!
Atelier A has transformed an old residence to a rustic split-level café.
Located near Gulou (the Drum Tower) in central Beijing, the renovated café Oh! retains the historic style of its original building and is modified with modern materials for functional and aesthetic purposes.

Rethinking The Future Awards 2022

Project Name: Oh!
Architecture Firm: Atelier A
Contact Email: aone27@163.com
Completion Year: 2019
Built Area: 153 m2
Project Location: 16 Di’Anmenwai Avenue, Beijing, China
Photographer: Binming Tian

Lead Architect: Yanwen Zhu
Team: Binming Tian, Racha Wang
Client: Fine Café and Canteen
Budget: $250,000

Eduwik- Online Courses for Architects & Designers

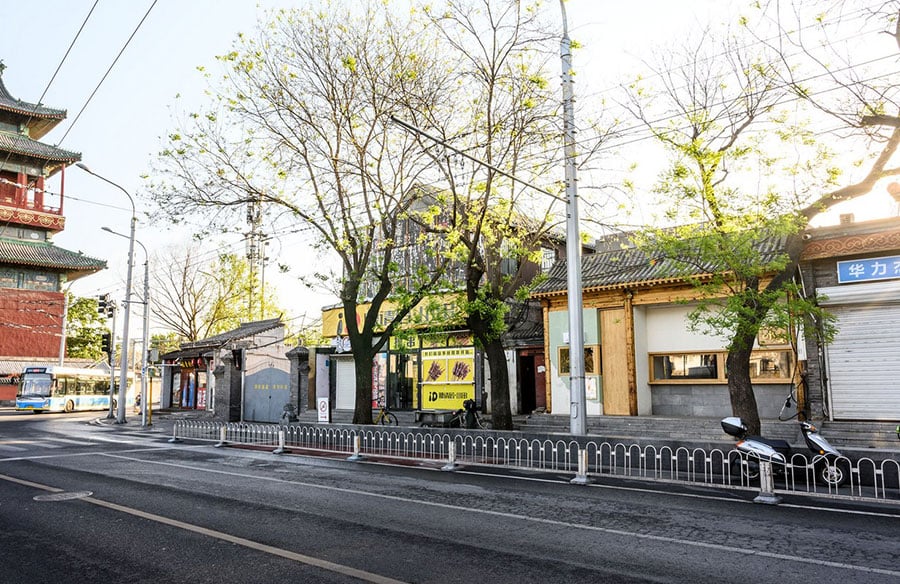

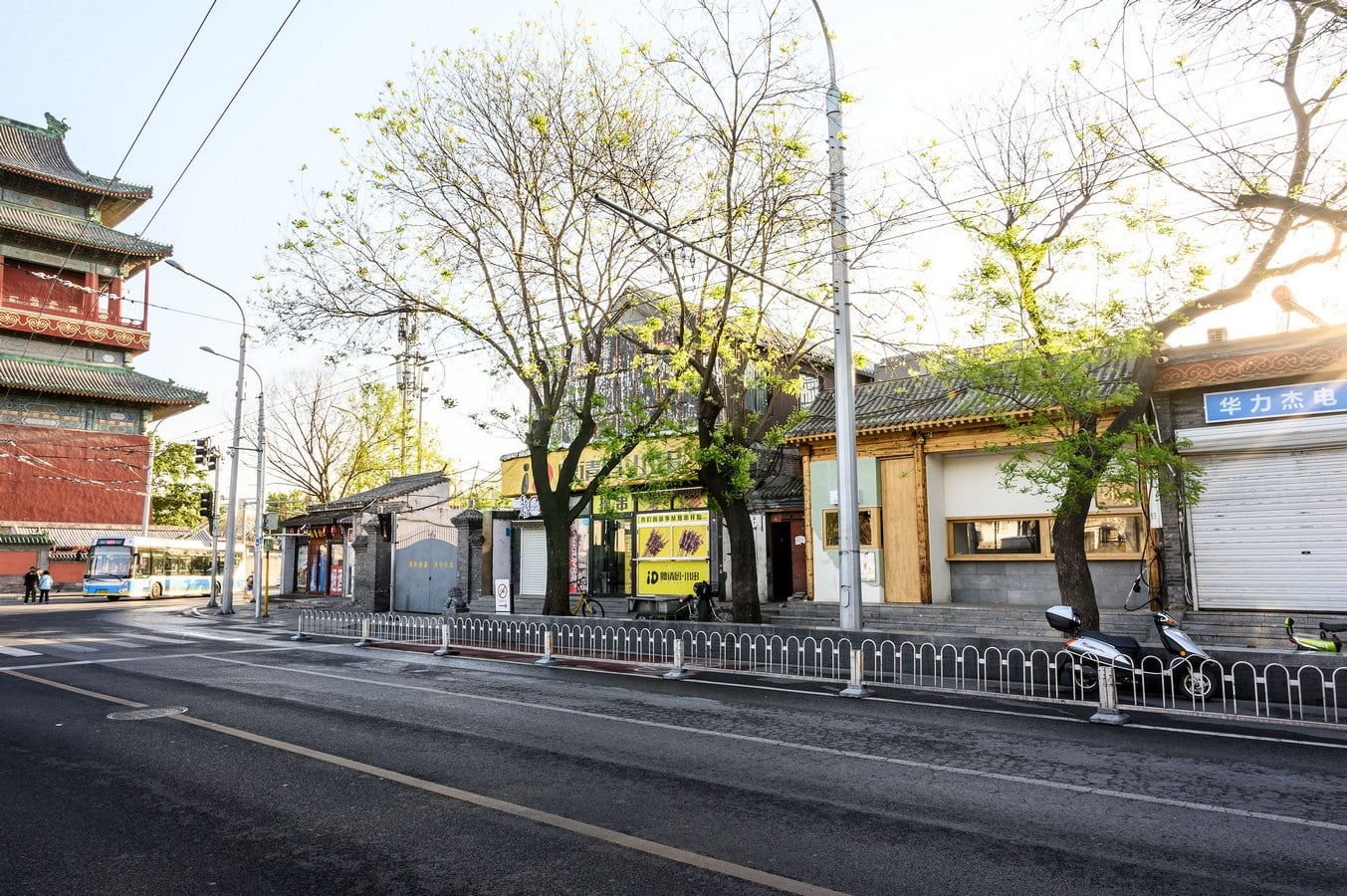

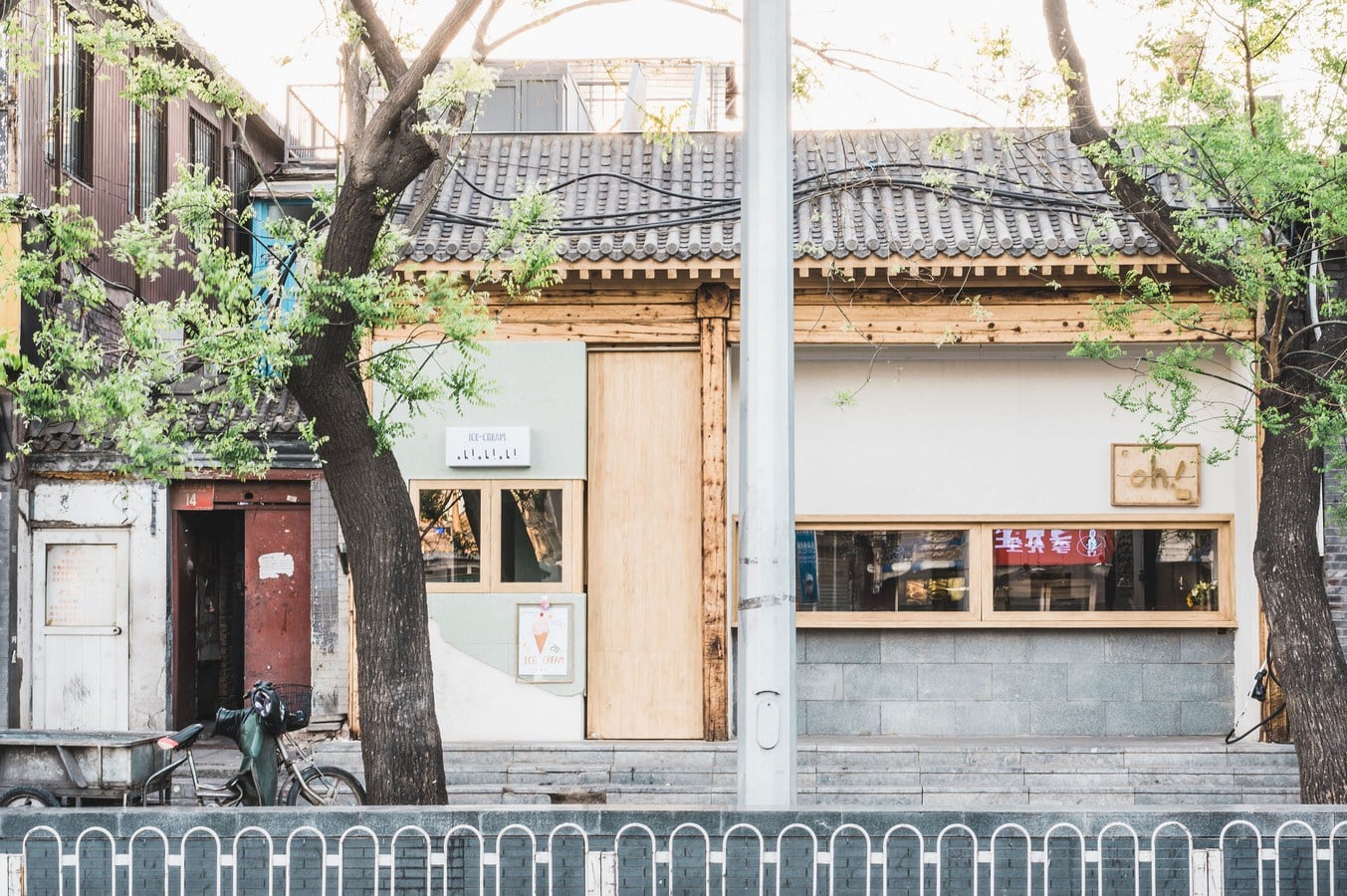

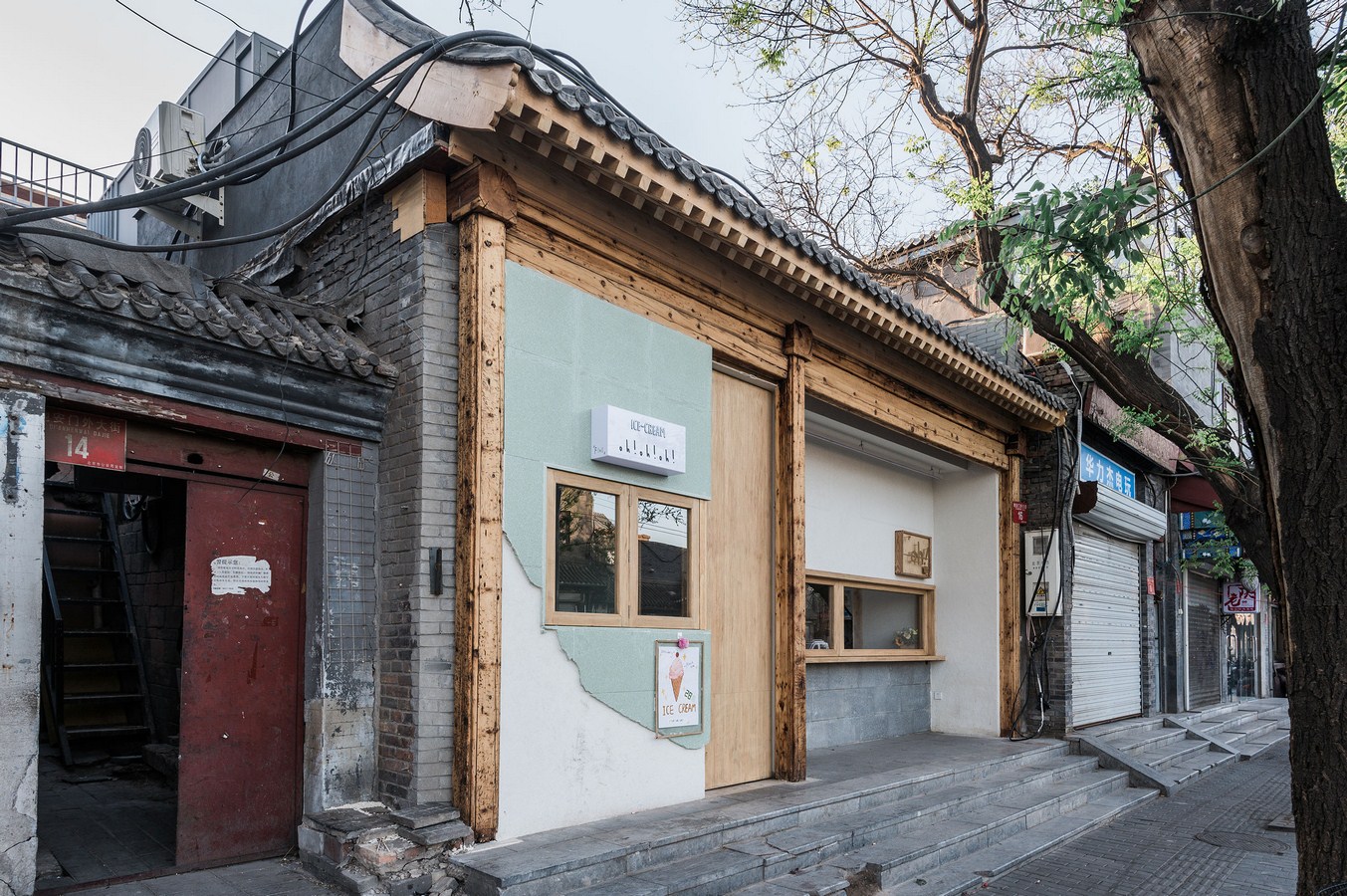

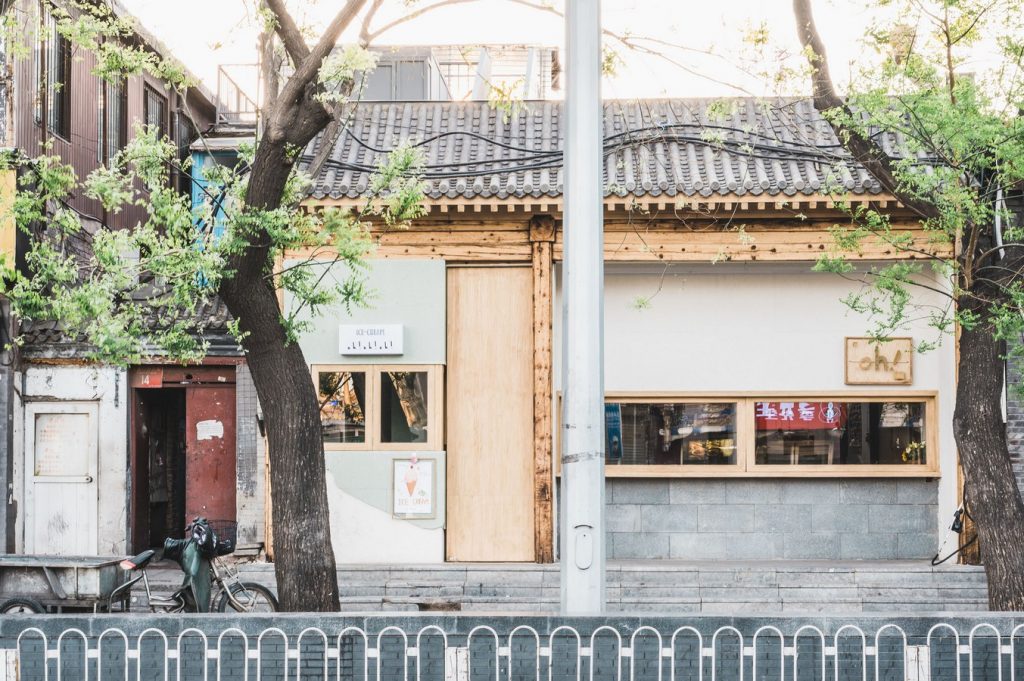

oh by fine - Sheet2The hybrid design philosophy is best embodied in its façade, with half decorated with traditional Chinese grey bricks and wood, and the other half, an ice-cream hut, with light green terrazzo. Such contrast is harmonized under the same tiled roof and wood beam, refreshing but not obtrusive in the surrounding historic quarter.

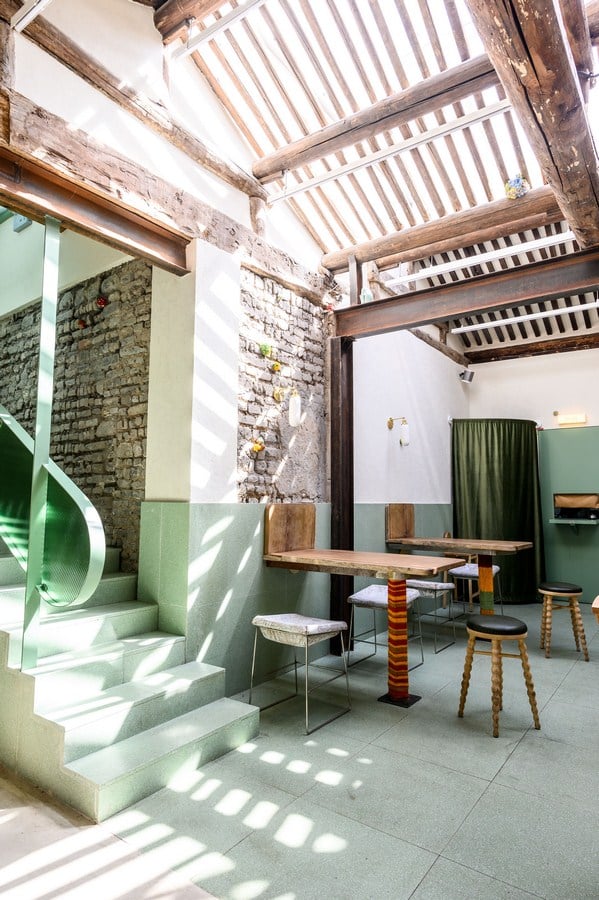

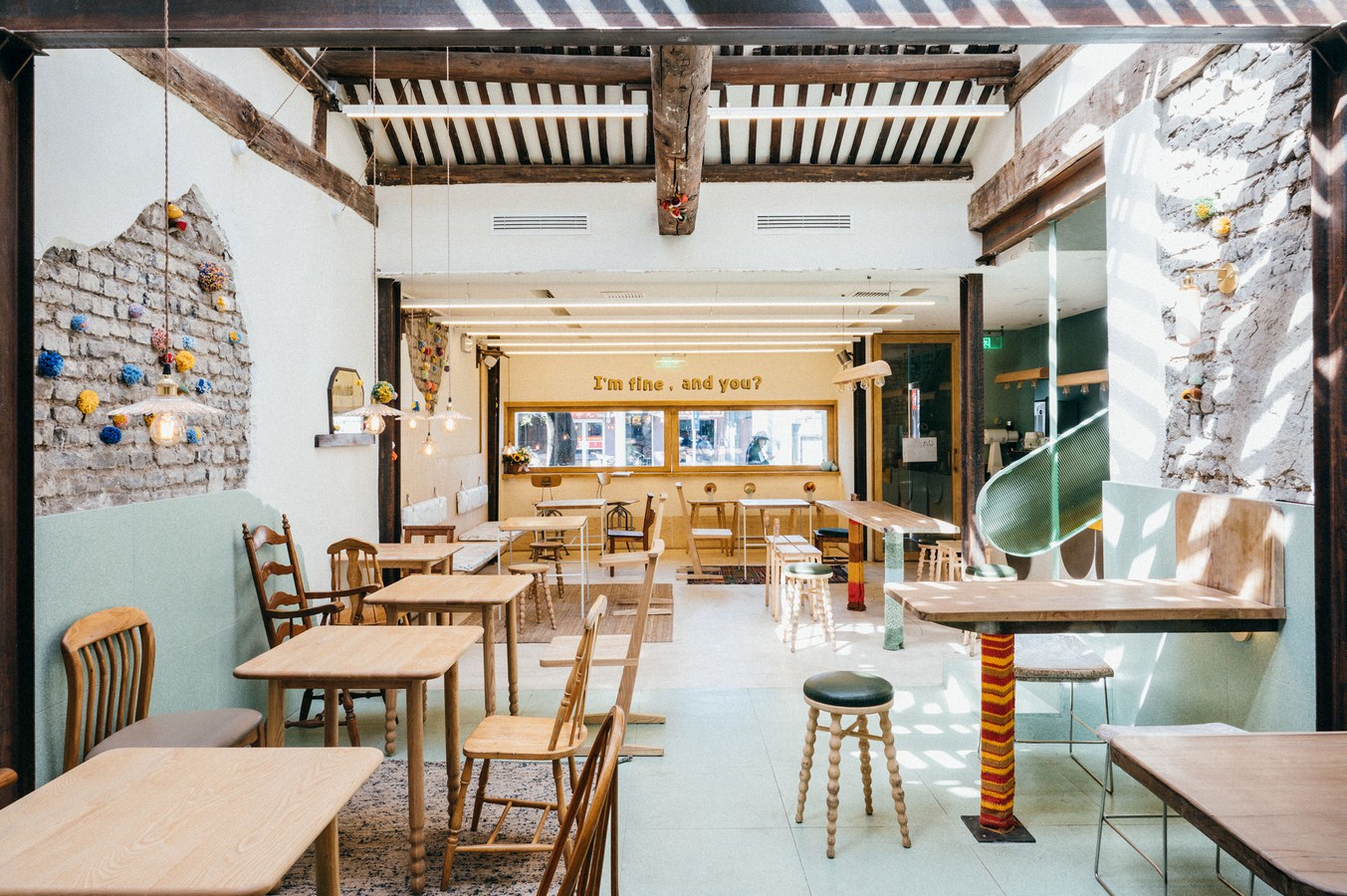

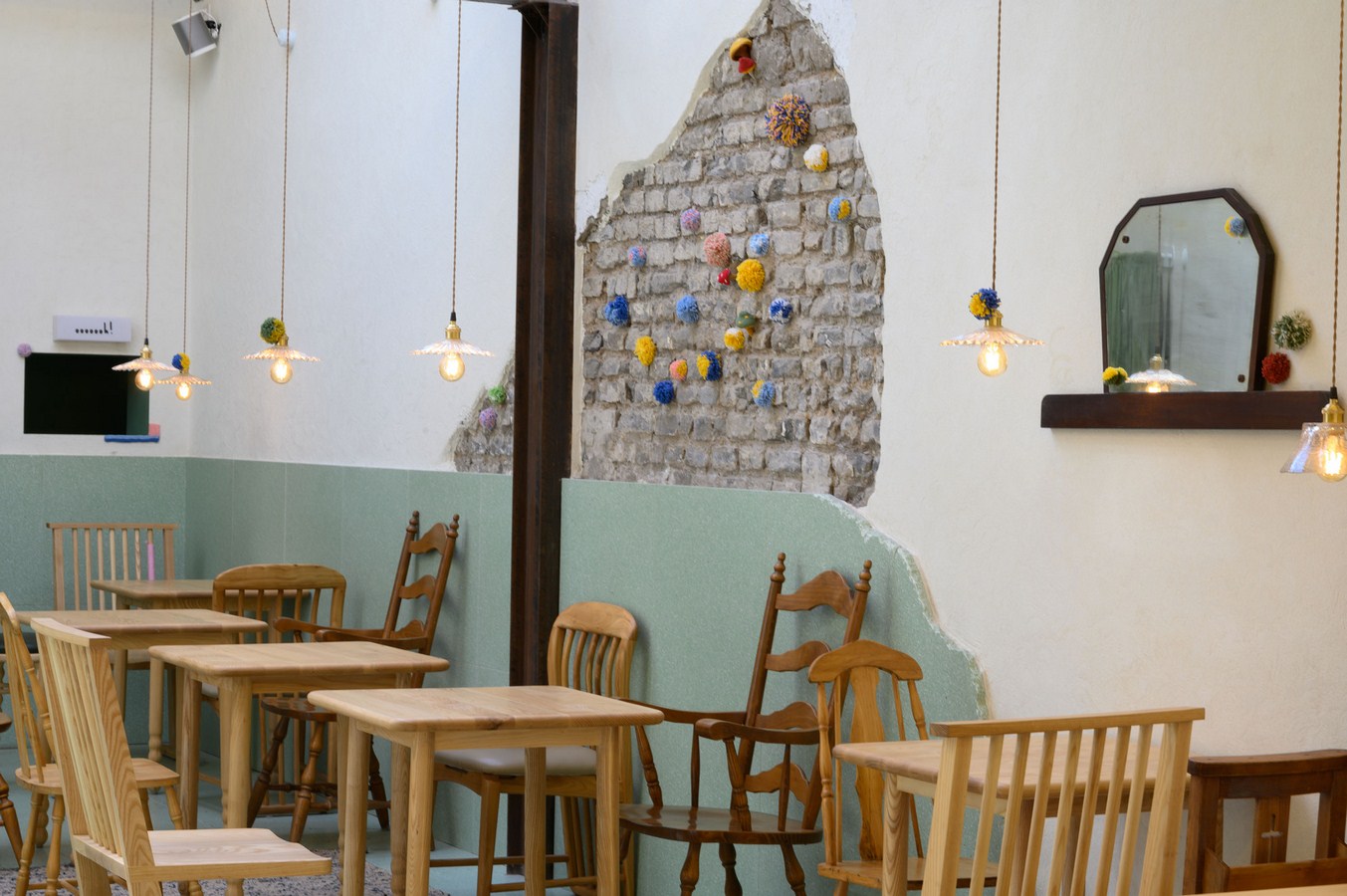

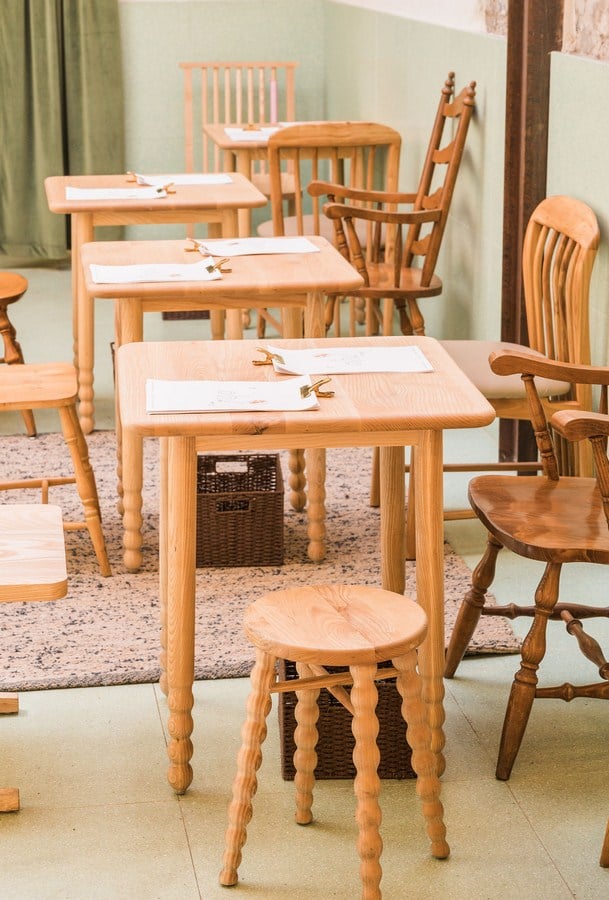

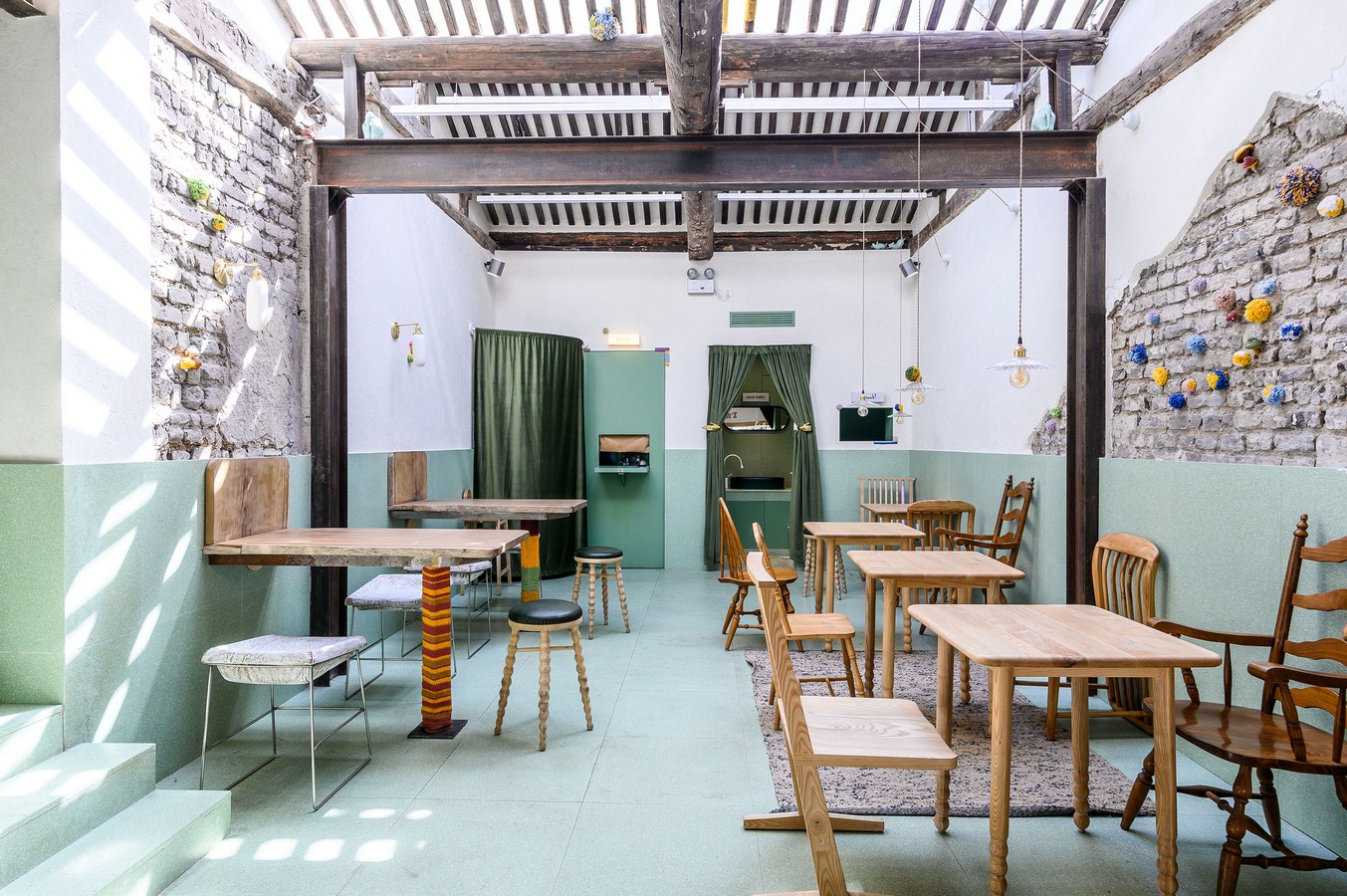

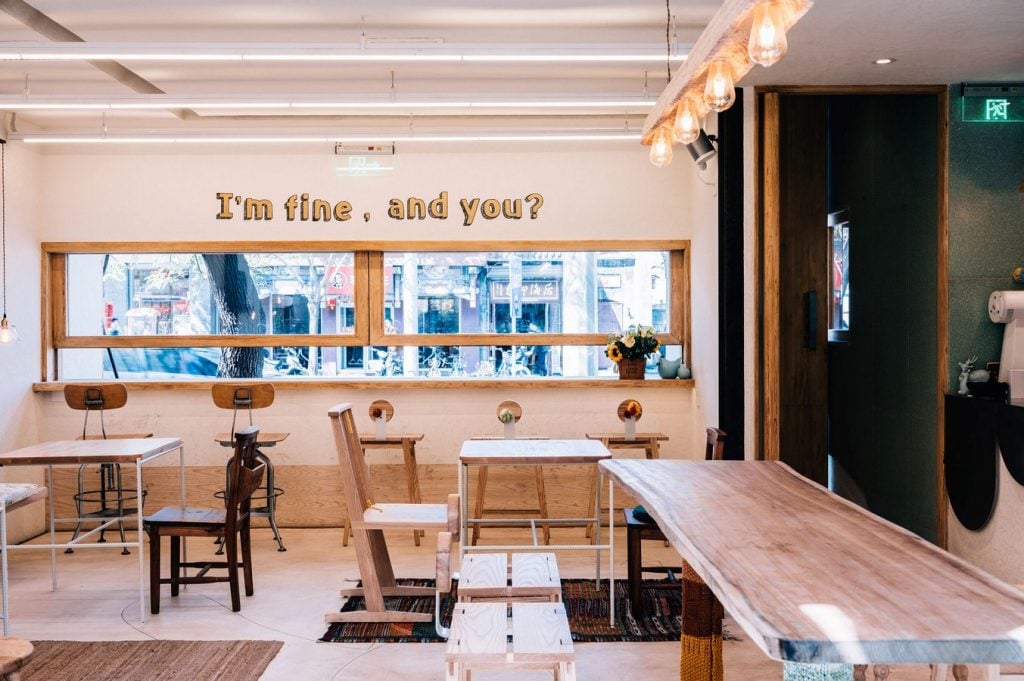

oh by fine - Sheet4The wood framing of the original residence is kept and reinforced by I-beams. Yet they are not concealed, for the designer intends to bring a rustic and real feeling. The tiles on the middle of the m-shaped roof were taken away, and a glass ceiling has been installed on top to add natural light and expose the beautiful wood purlins. For the sake of safety, the flat roof at the entrance has been rebuilt to increase load-bearing capability, and the walls are partially painted with stucco, while some of the original grey bricks are still visible. The café is furnished with wooden tables and chairs. The big table tops are all made from solid old logs. The floor and part of the walls are paved with terrazzo of quiet green and simple texture, in tune with the wood structure of the whole building.

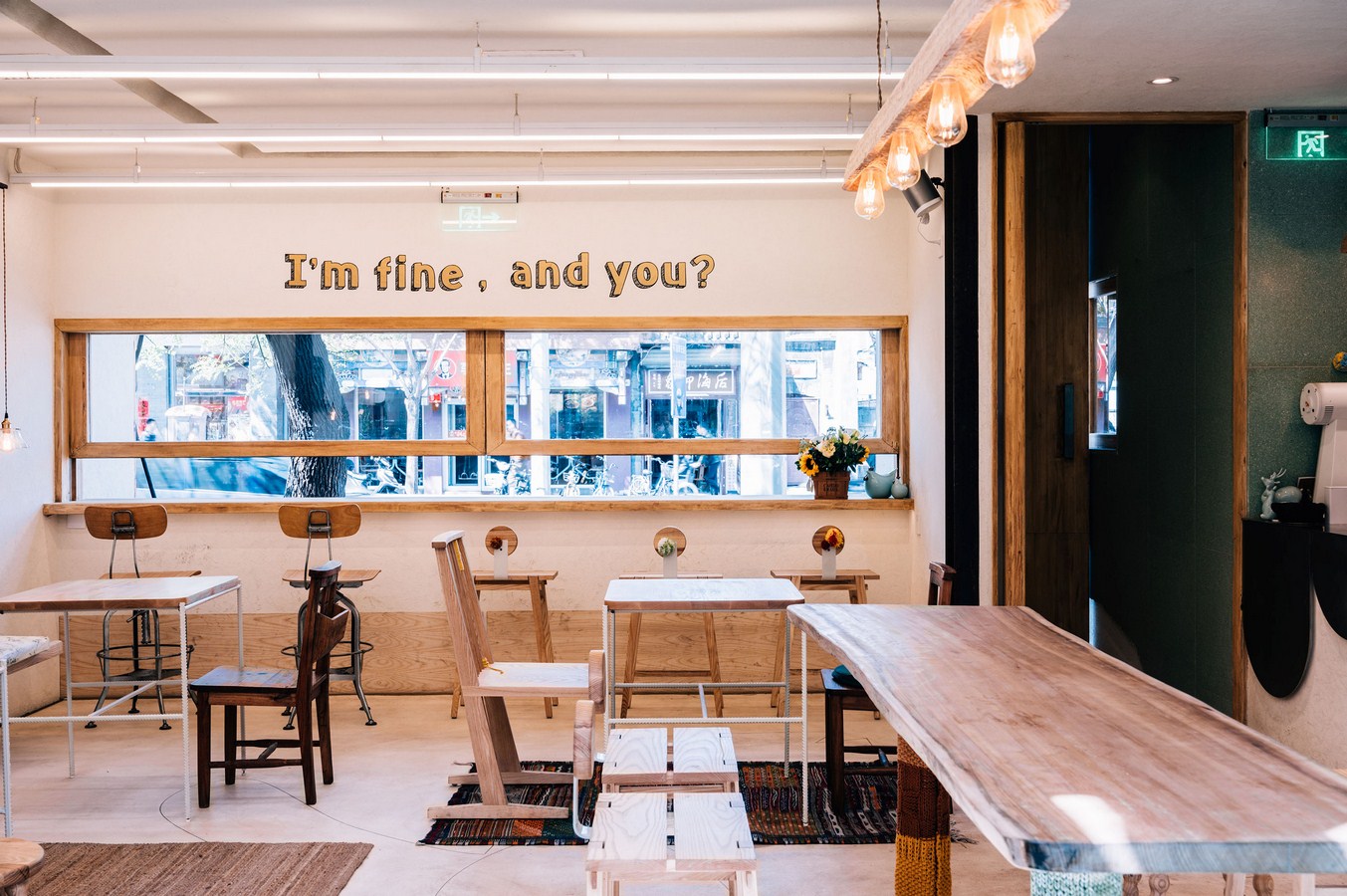

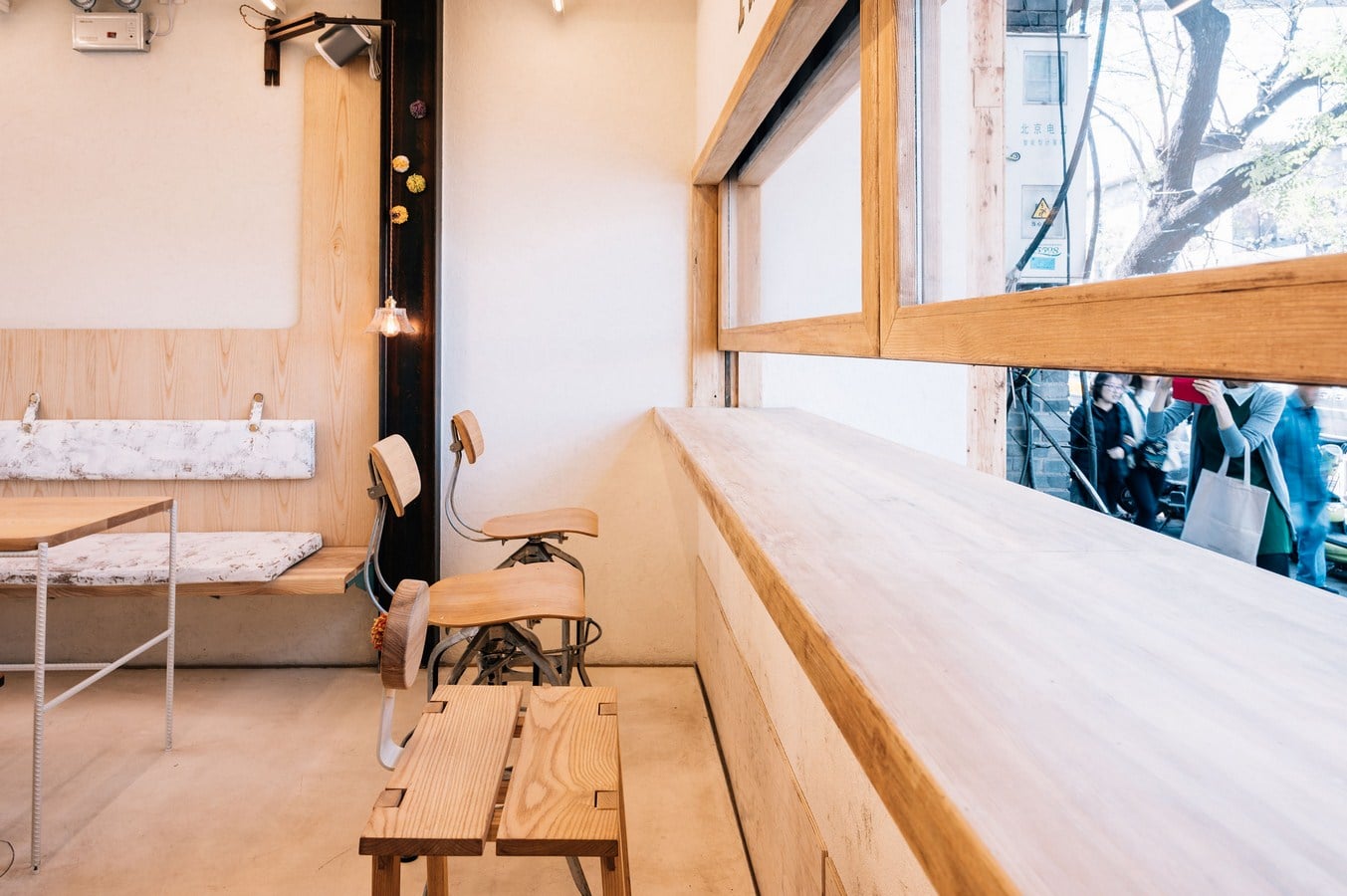

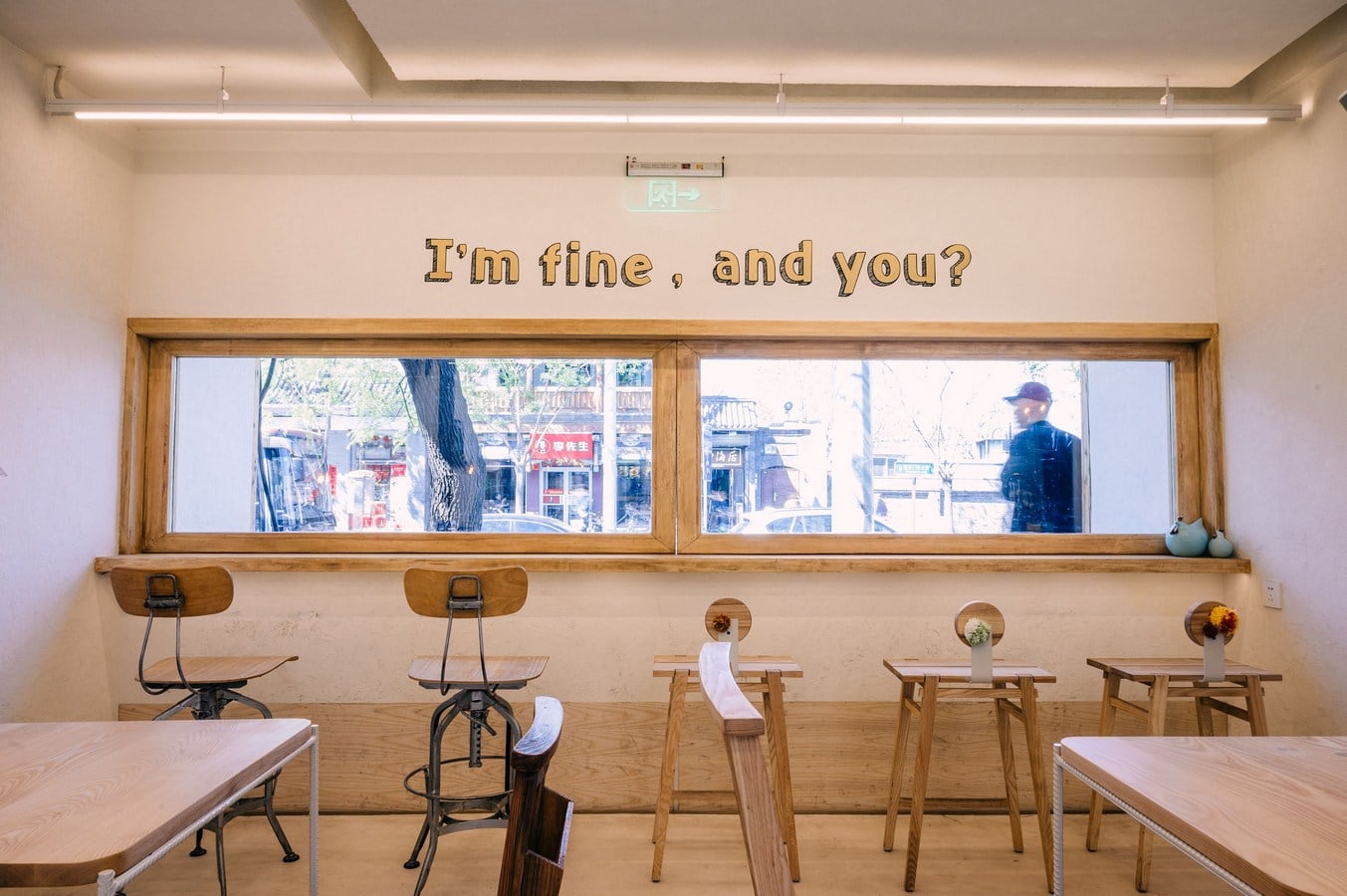

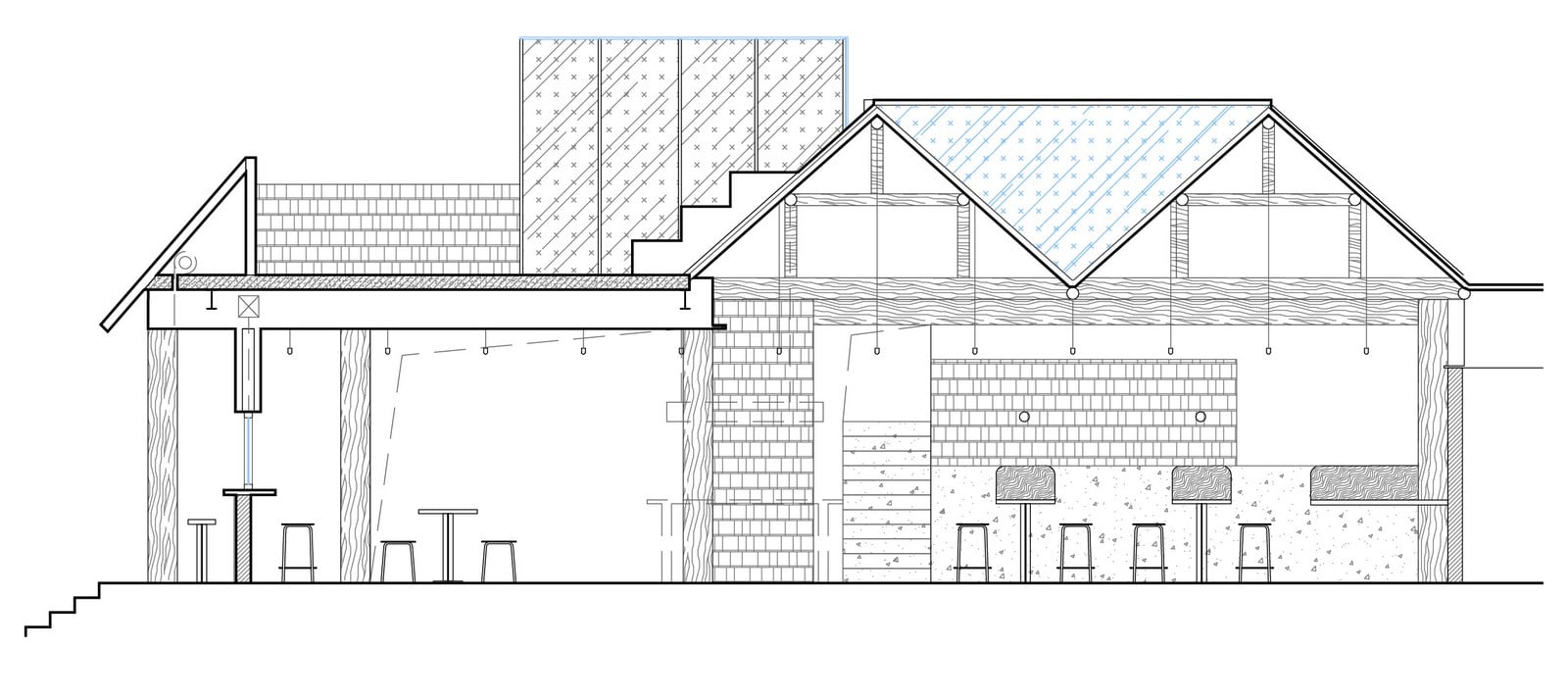

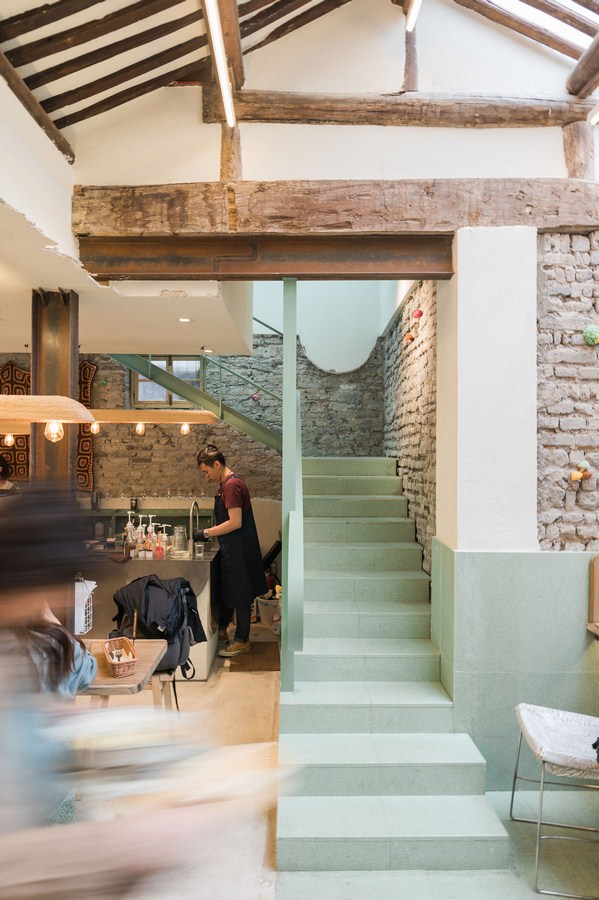

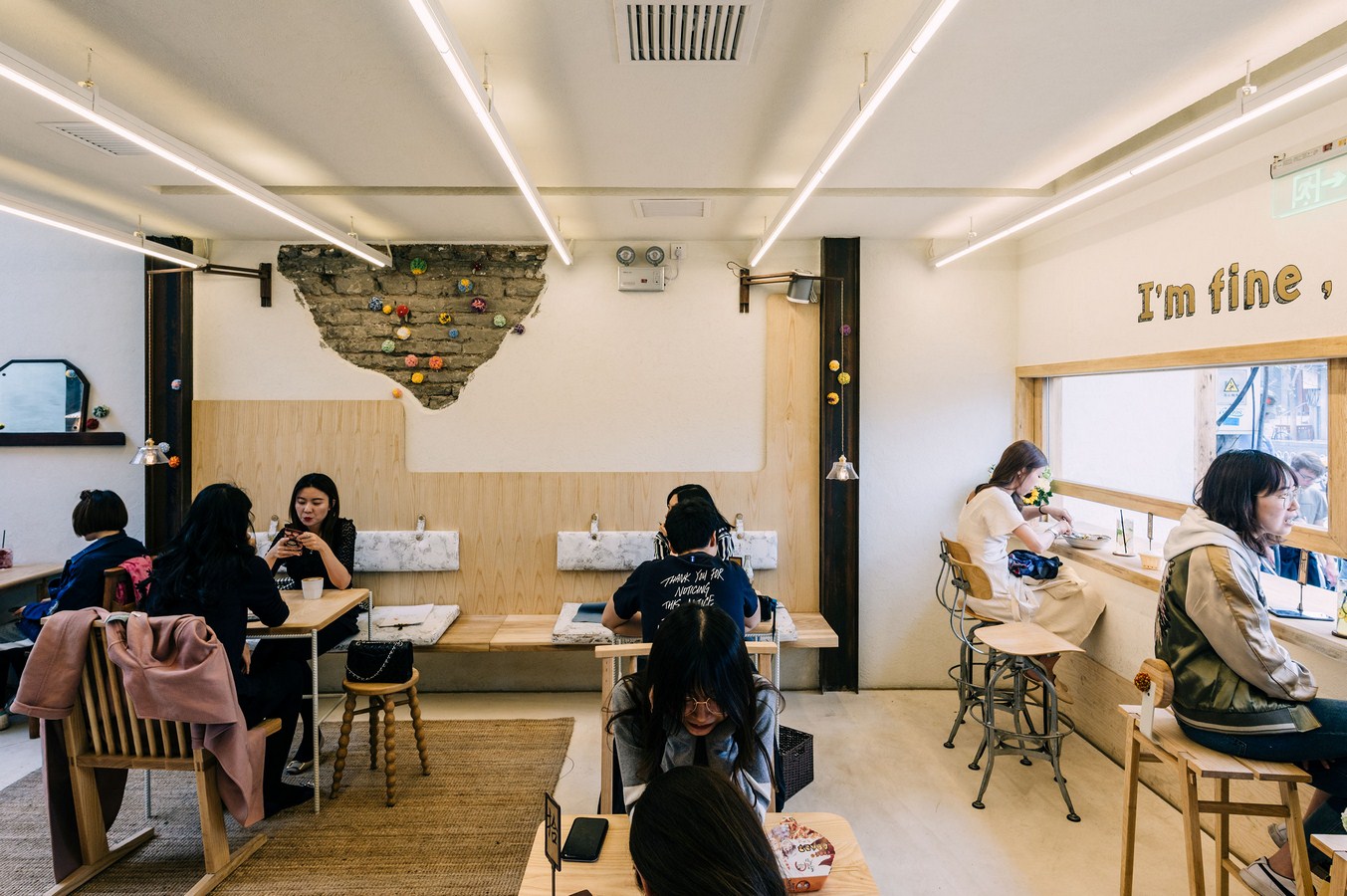

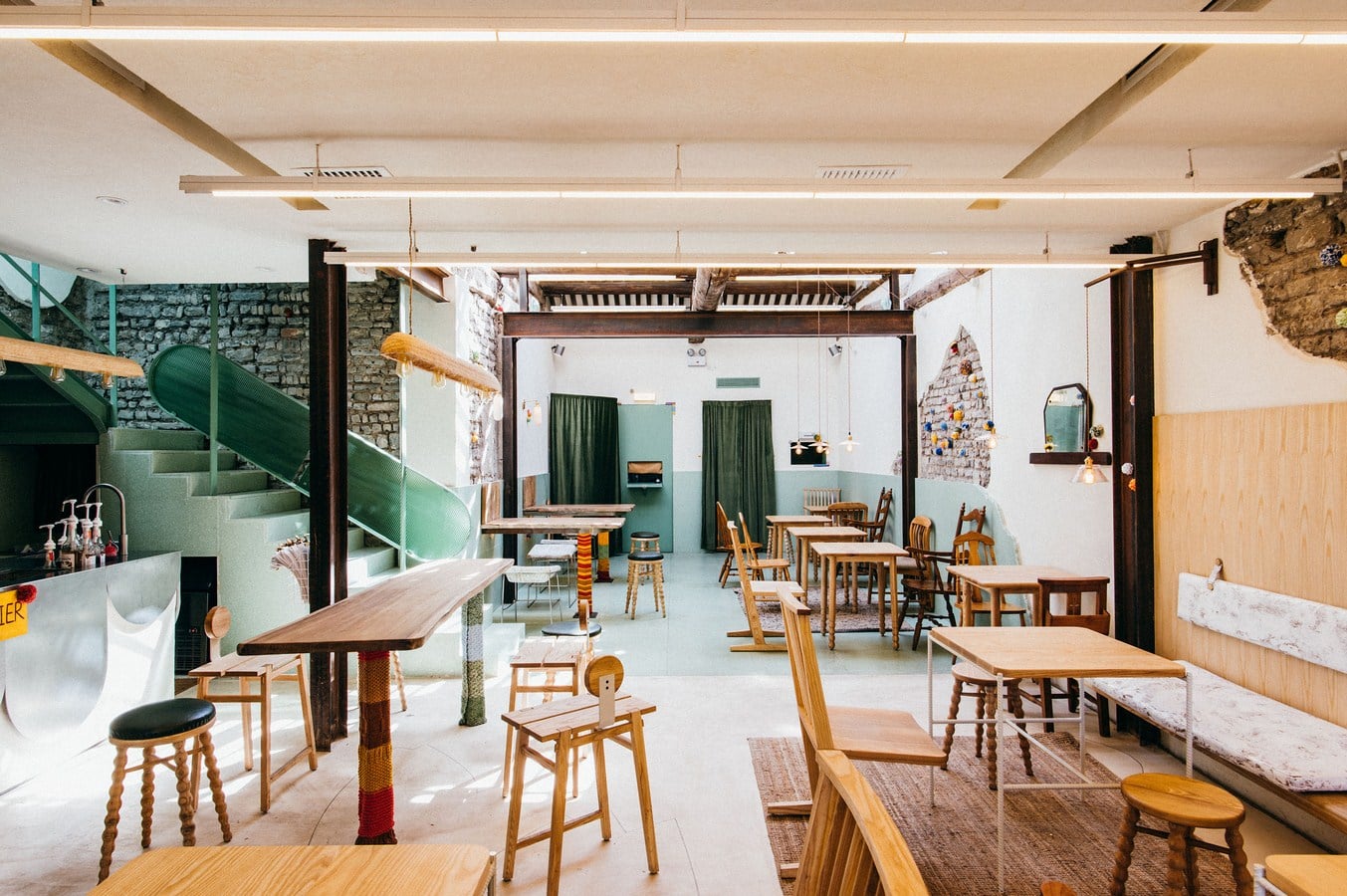

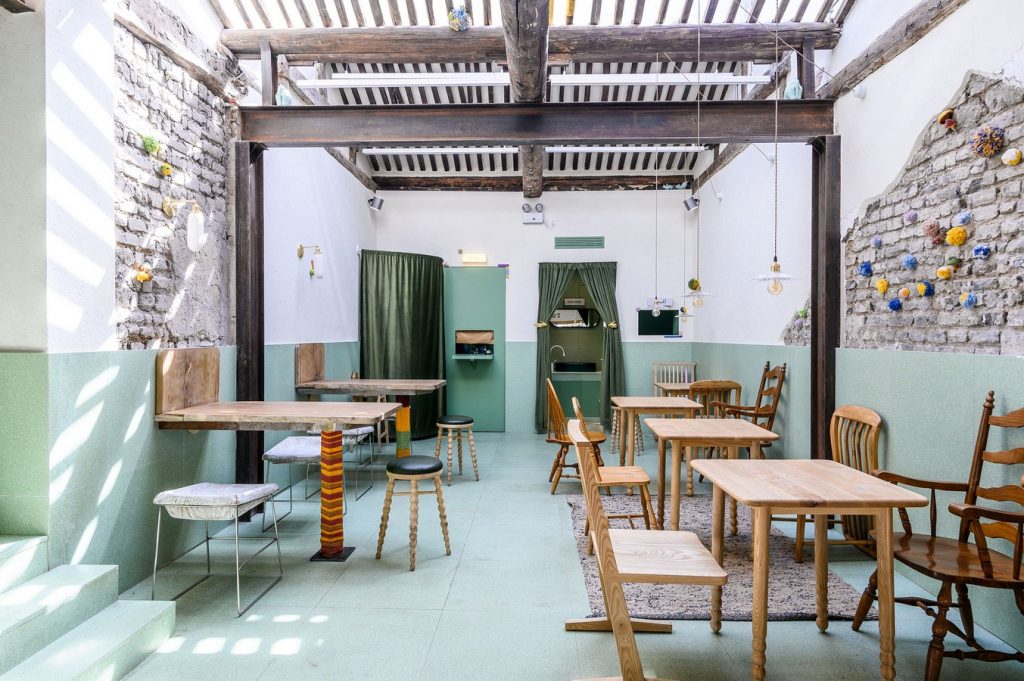

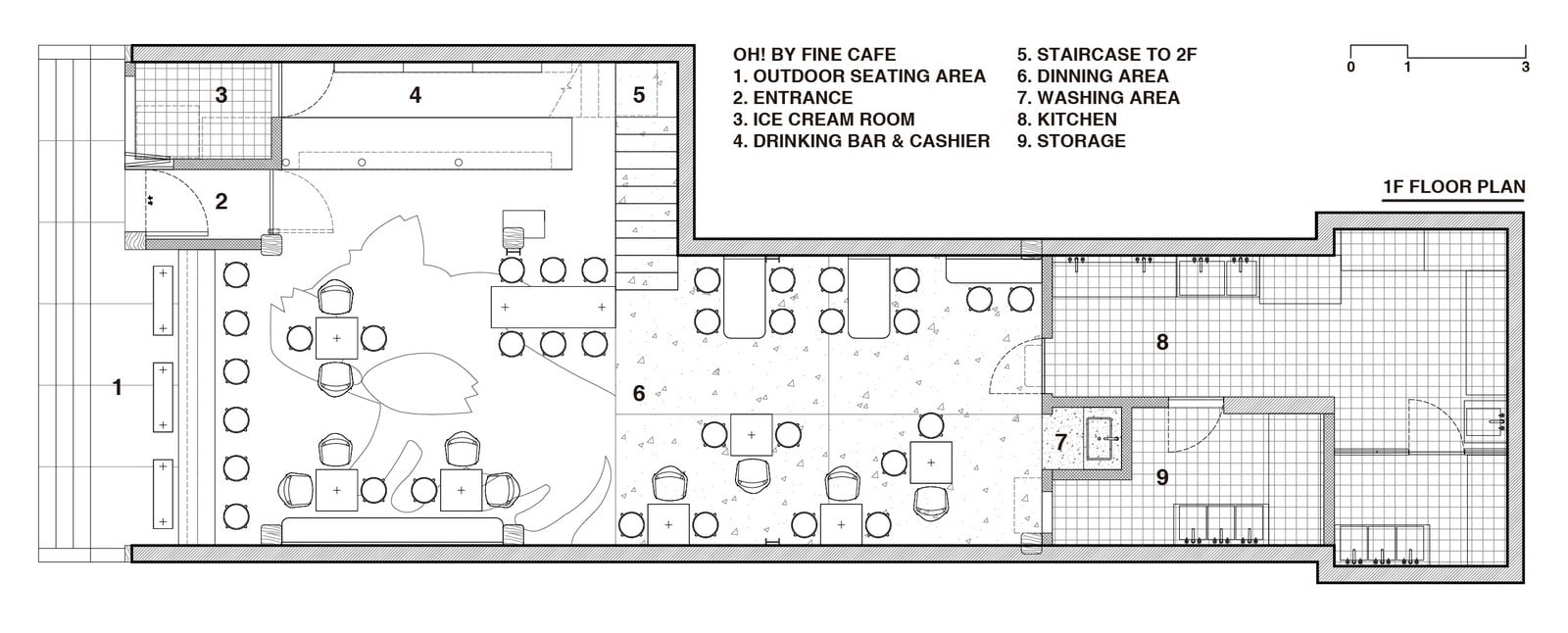

oh by fine - Sheet6The original one-storey residence has been transformed into a multi-leveled and complex space. The customers go through a narrow entrance, a short passage enclosed by double doors, and a low-ceilinged foyer before they step into the spacious rear area under the high m-shaped roof. The ceiling of the fore part of the café has been deliberately made low when being rebuilt in order to hide air-conditioners and pipes as well as to contrast with the expansive rear space. Long light bars have been installed to echo the purlins and increase sense of depth. The window on the façade is made in the shape of a slender horizontal rectangle so that if one looks into the café from outside, they experience the same narrow-to-broad transition.

Eduwik- Online Courses for Architects & Designers

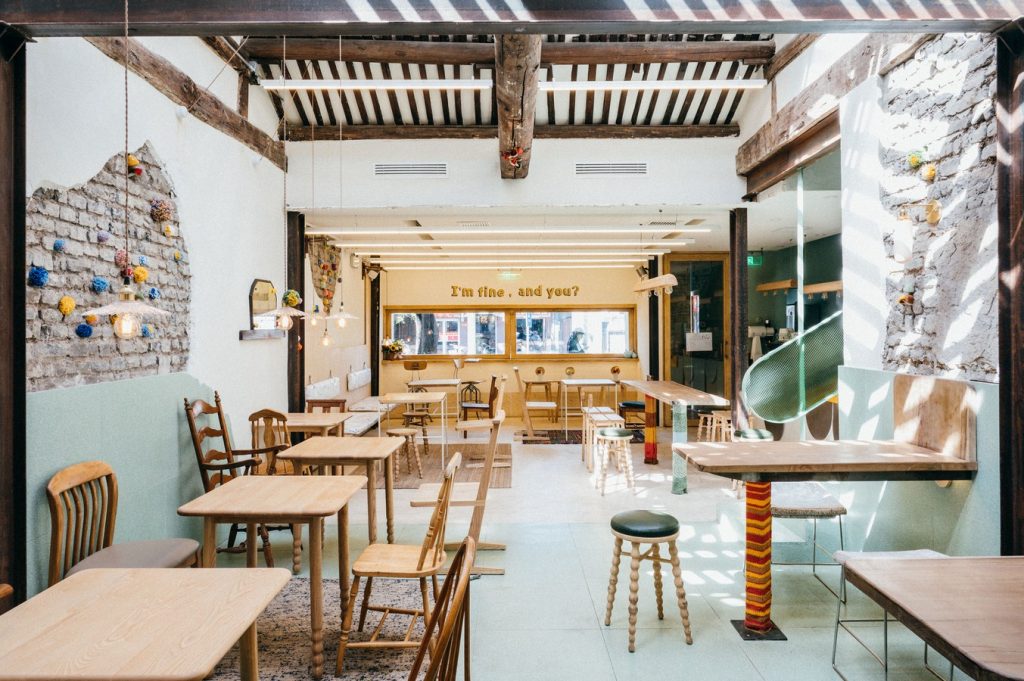

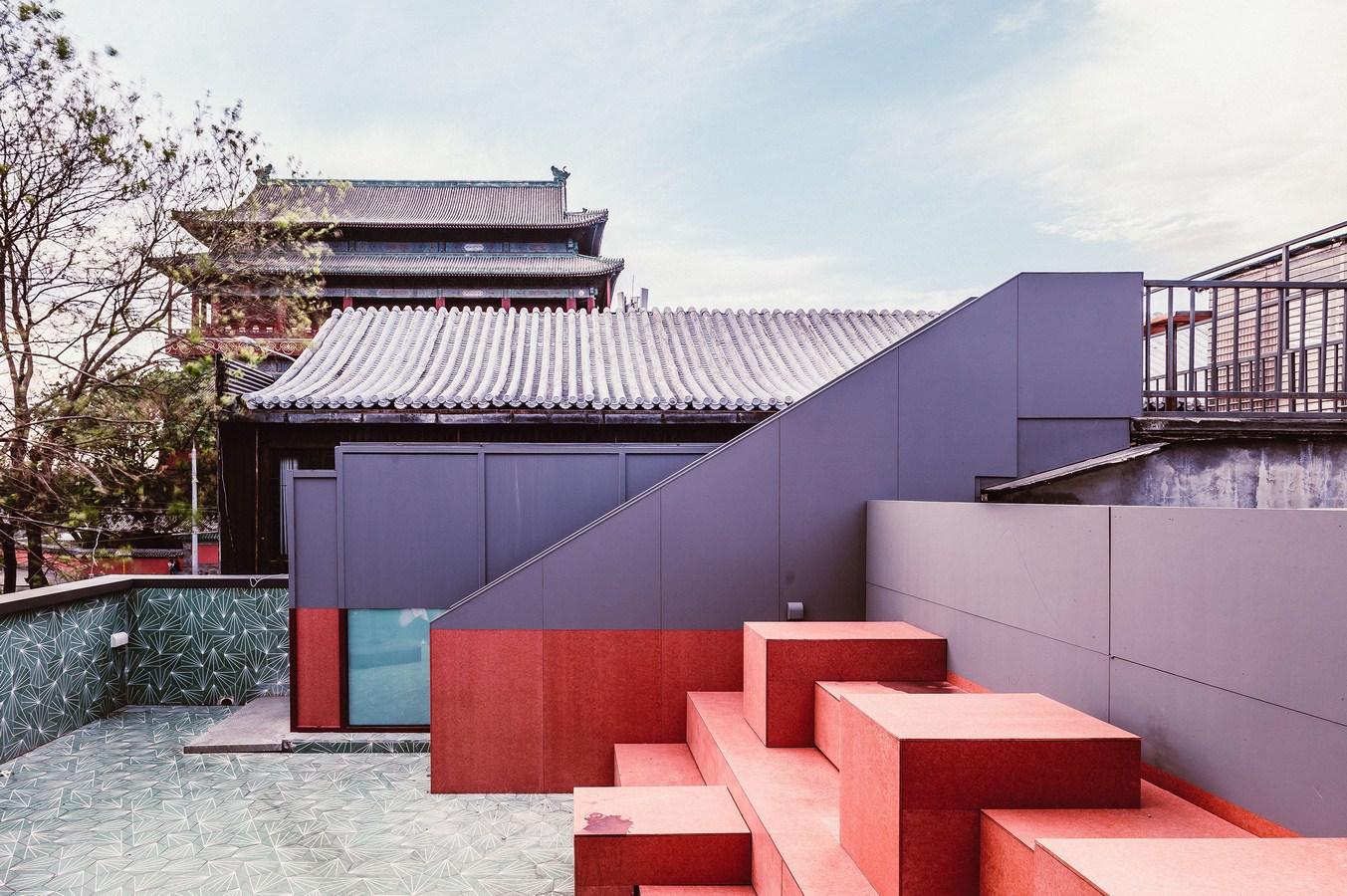

oh by fine - Sheet7Renovations have also been made on the roof area in order to increase space, including the flat roof converted to a terrace, a set of steps as seating places installed against the slope roof, standing tables placed on the higher-level neighbouring roof, which is the best spot to admire the ancient Drum Tower at sunset.


Zhu Yanwen

Graduated from École nationale supérieure des arts appliqués et des métiers d’art in Paris, Zhu Yanwen, the founder of Atelier A has over ten years’ experience in interior design and furniture design. Her works range from residences, hotels, to offices, restaurants, and retails, etc. and have won her many awards and nominations including the 2018 INSIDE World Festival of Interiors Award (Education category) for B Campus school, music hall and library in Zhangjiang, Shanghai (won), the 2016 World Interior News Awards for Guanghua Road SOHO in Beijing (nominated), the 2017 AD 100 Awards for KleeKlee retail store in Shanghai (nominated), the 2017 World Interior News Awards for KleeKlee (nominated) and the 2018 Dezeen Awards for KleeKlee (nominated).

Eduwik- Online Courses for Architects & Designers

Yanwen has unique philosophies in the use of materials, details, and savoir-faire in construction. She prioritizes functionality and user experience in designing instead of decoration for decoration’s sake. Her works usually preserve the original textures of materials, and highlight interaction between space and people so as to ensure the lasting life of finished works.
