Architects spend years learning to draw light. They spend almost no time learning to draw water. And water, more than any other site condition, quietly determines whether a residential project succeeds or slowly degrades.
Light is the discipline’s mythology. Water is its accountant.
The Site as Watershed
Every residential site is a small watershed before it is a building plot. Water arrives from the sky, from upslope neighbors as sheet flow, and from below as subsurface seepage. It leaves through infiltration and engineered conveyance, or it ends up against the foundation.
The topographic survey tells you which. Most architects read it for setbacks and view corridors. Fewer read it as a hydrological record. The first design move on any project is to understand how the site handles water before the building exists. Projects like PROARH’s Issa Megaron on Vis Island succeed in part because they follow existing drainage patterns rather than fight them.
Drainage as an Architectural Decision
The conventional division of labor sends drainage to the civil engineer and form to the architect. The result is a building shaped by light, program, and view, then handed to a consultant who is asked to make the water work around it. This sequence accounts for most residential drainage failures in the field.
Drainage planning is an architectural decision because it shapes outcomes for which the architect is accountable. The discipline already recognizes that site design is foundational rather than supplementary to architecture. Drainage sits inside that recognition.
Siting and Massing
Where the building sits on the contour determines whether the foundation spends the next century fighting hydrostatic pressure or shedding water by gravity. A house placed at the low point of a site, even a beautifully detailed one, is inheriting every drop of water the surrounding land cannot absorb. Moving the building uphill by twenty feet is sometimes the most important decision in the entire project.
Hardscape and Landscape
Patios, driveways, and walkways either move water away from the building or trap it against the wall. Permeable pavers, retaining walls, and other hardscape decisions are architectural moves with budget and visual consequences. A continuous concrete patio that slopes the wrong way is a drainage problem disguised as an amenity. The EPA’s guidance on green infrastructure treats permeable surfaces as a primary stormwater management strategy, and the residential scale is where those principles get tested most directly.
Façade and Material Specification
Cladding decisions at grade are drainage decisions. The height of the stone or brick veneer above the soil line, the detail where siding meets the foundation, and the use of a drip edge or kickout flashing at the roof edge. Each of these specifications determines how the building handles the water that does arrive.
Openings at Grade
Basement egress windows, walkout doors, and light wells are deliberate openings in the building’s primary water defense. Their location is a drainage question before it is a daylighting question. Designed well, they bring usable light to lower levels without compromising the envelope. When poorly designed, they become the leak point that defines the building’s first decade of warranty calls.
Layered Defense
Once siting is set, water management for a residential project breaks down into four layers. Each layer assumes the one above it will eventually be overwhelmed. Designing all four is what separates a building that ages well from one that quietly accumulates moisture damage.
Layer 1: Surface Grading
The first defense is the ground itself. A positive slope away from the foundation, ideally a 5 percent fall in the first ten feet, moves water away by gravity before any engineered system has to engage. Where the survey shows the site grading against the building, the appropriate response is to redesign the grading plan rather than oversize the downstream interior systems. Grading is also the cheapest layer to get right and the most expensive to fix after occupancy.
Layer 2: Downspout and Gutter Management
The roof area is a concentrated runoff. A 2,000-square-foot roof during a one-inch rain event delivers roughly 1,200 gallons of water through four to six discharge points in under an hour. Where that water goes after it leaves the downspout is an architectural decision with century-long consequences.
The options are underground conductor pipes to a daylighted discharge, dry wells, rain gardens, or extensions that move water at least six feet from the foundation. Advanced Basement Solutions executes this layer at the residential scale, and the detail belongs on the architectural drawings rather than being handed off at framing.

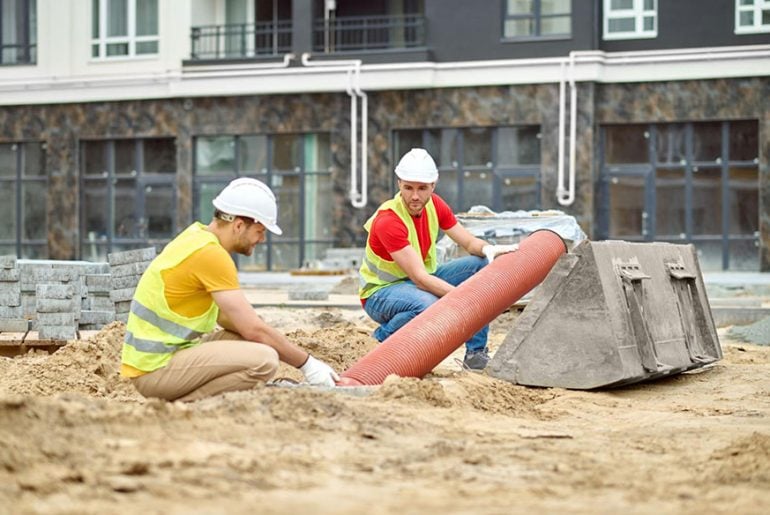

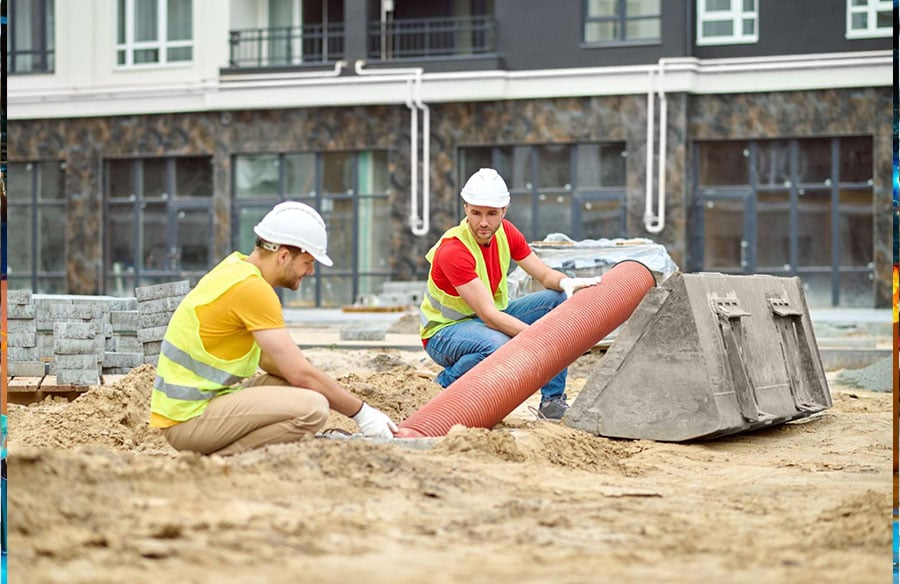

Layer 3: French Drains and Subsurface Drainage
Where surface and downspout management cannot fully resolve the water, perimeter and field drains intercept it below grade. Position them outside the footing, daylight or sump them, and treat them as part of the site plan. The cost difference between a properly specified subsurface drain installed during excavation and a retrofit cut into a finished basement floor a decade later is roughly an order of magnitude.
Layer 4: Foundation Drainage
The footing drain tile loop, the dampproofing or waterproofing membrane on the wall, and the interior backup system if the water table warrants it. The distinction between dampproofing and waterproofing is the distinction between a five-year fix and a fifty-year one, and the specification belongs in the architectural drawings.
When the Layers Fail
Architects rarely see the basements of the buildings they designed ten years ago. The failures trace back to the original drawings.
Efflorescence on foundation walls is a record of moisture migrating through the concrete. Hairline cracks become entry points for water once hydrostatic pressure builds. Finish failures appear three to five years post-occupancy as peeling paint, warped baseboards, and lifting drywall seams. In the worst cases, lateral pressure bows the wall inward.
None of these failures appears in the first year. All are determined before the pour.
The Drawings Decide
Water is the discipline’s accountant. The architects whose residential work ages well, holds resale value, and reads as considered twenty years out are the ones who designed for water from the first contour sketch. Drainage planning is not the part of the project to delegate. It is the part that, done well, makes everything else possible.
Light gives a building its character. Water decides how long it gets to keep it.
