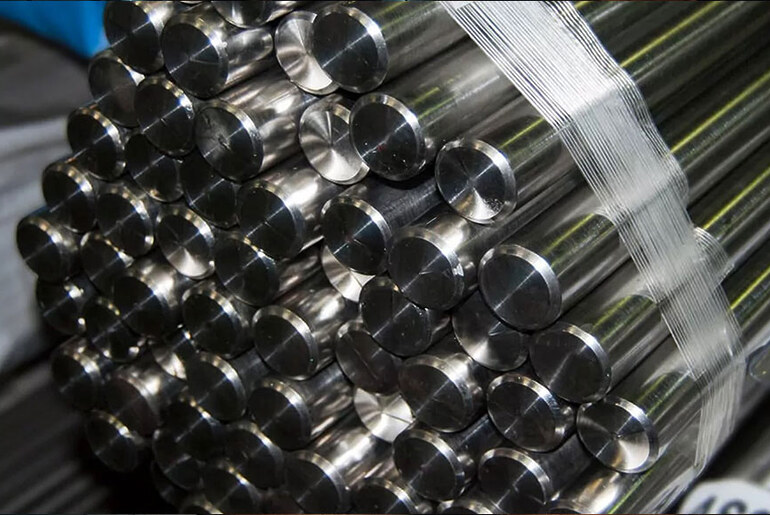

Knowing the exact dimensional tolerances is crucial for ensuring the quality and functionality of your final product when working with precision materials in engineering or manufacturing. This is especially true when dealing with specialized alloys like 17-4 stainless steel. So, what are the typical dimensional tolerances for 17-4 round bars?
The typical dimensional tolerances for 17-4 round bars are ±0.005 inches for diameters up to 1 inch and ±0.0075 inches for diameters between 1 and 2 inches. The tolerance increases gradually for larger diameters.
While these tolerances are generally accepted in the industry, it’s important to note that they can vary depending on the specific manufacturer, production method, and intended application. Continuing to read will provide you with a more comprehensive understanding of the factors that can influence these tolerances and how to choose the right specifications for your project.
What Factors Influence The Dimensional Tolerances Of 17-4 Round Bar?
Several factors can affect the dimensional tolerances of the 17-4 round bar. One of the most significant influences is the manufacturing process. Hot-rolled bars typically have looser tolerances compared to cold-finished bars, which undergo additional processing to achieve tighter tolerances and improved surface finish.
The size of the bar also determines the achievable tolerances. Generally, smaller diameter bars can be produced with tighter tolerances than larger ones. This is due to the increased difficulty in maintaining precise dimensions across larger cross-sections during the manufacturing process.
Another factor to consider is the specific grade or condition of the 17-4 stainless steel. For example, bars in the annealed condition may have slightly different tolerances compared to those in the heat-treated condition, as the heat-treatment process can cause minor dimensional changes.
How Do Dimensional Tolerances For 17-4 Round Bar Compare To Other Stainless Steel Grades?
When comparing 17-4 round bar tolerances to other stainless steel grades, it’s important to note that 17-4 is precipitation-hardening stainless steel, which sets it apart from austenitic grades like 304 or 316. Generally, 17-4 round bars can be produced with similar or slightly tighter tolerances compared to common austenitic grades.
For instance, standard tolerances for 304 stainless steel round bars are often in the same range as those for 17-4, with ±0.005 inches for smaller diameters. However, due to the precipitation-hardening nature of 17-4, it can sometimes be manufactured with even tighter tolerances, especially when cold-finished.
Martensitic stainless steels like 410 or 420 may have slightly looser tolerances compared to 17-4, particularly in larger diameters. This is because these grades can experience more significant dimensional changes during heat treatment processes.
What Should I Consider When Specifying Tolerances For 17-4 Round Bar In My Project?
When specifying tolerances for 17-4 round bar in your project, it’s crucial to balance your functional requirements with cost considerations. Tighter tolerances generally result in higher production costs, so it’s important to determine the level of precision actually needed for your application.
Consider the intended use of the 17-4 round bar in your project. If it will be used in a high-precision application, such as aerospace components or critical machine parts, you may need to specify tighter tolerances than the standard. On the other hand, if the bar will be used in less demanding applications, standard tolerances may be sufficient.
It’s also important to consider any subsequent machining or processing that the bar will undergo. If you plan to machine the bar to final dimensions, you can work with looser initial tolerances, potentially reducing material costs. However, if you’re using the bar as-is or with minimal processing, tighter tolerances may be necessary to ensure proper fit and function in your final assembly.
How Does Heat Treatment Affect The Dimensional Tolerances Of 17-4 Round Bar?
Heat treatment is a crucial process for 17-4 stainless steel, significantly affecting the material’s mechanical properties. However, it can also impact dimensional tolerances. During heat treatment, the material undergoes thermal expansion and contraction, which can lead to slight changes in dimensions.
Typically, the dimensional changes due to heat treatment are relatively small for 17-4 round bars, usually less than 0.0005 inches per inch. However, this can accumulate to a noticeable amount in larger diameter bars or longer lengths. It’s important to note that these changes are generally predictable and can be accounted for in the manufacturing process.
Some manufacturers offer a “size-stabilized” 17-4 round bar, which has been heat treated in a way that minimizes dimensional changes in subsequent heat treatments. This can be particularly useful for applications where the end-user plans to perform additional heat treatment on the material.
What Are The Consequences Of Using 17-4 Round Bar Outside Of Specified Tolerances?
Using 17-4 round bar that falls outside of specified tolerances can have various consequences, depending on the application and the extent of the deviation. In less critical applications, minor deviations might not cause significant issues. However, in precision engineering or high-performance applications, the consequences can be more severe.
One potential issue is improper fit in assemblies. If the bar is oversized, it may not fit into mating components or could cause binding in moving parts. Conversely, if it’s undersized, it might result in loose fits, leading to increased wear, vibration, or even failure in extreme cases.
Another consequence could be inconsistent material properties. The heat treatment process for 17-4 stainless steel is typically optimized for specific dimensions. If the bar is significantly out of tolerance, it might not respond to heat treatment as expected, potentially leading to variations in strength, hardness, or corrosion resistance across the material.
In applications where weight is critical, such as aerospace, out-of-tolerance bars could lead to unexpected weight variations in the final product. This could affect performance, fuel efficiency, or balance in rotating components.
Lastly, using out-of-tolerance material could lead to increased scrap rates and higher production costs in machining operations. If the bar is oversized, more material must be removed to achieve final dimensions. If it’s undersized, it might not be possible to achieve the required dimensions at all, potentially leading to scrapped parts.
Moving Forward with Precision
Now that you understand the typical dimensional tolerances for 17-4 round bar and the factors that influence them, it’s time to apply this knowledge to your project. Take a close look at your specific application requirements and consider consulting with a reputable materials supplier or metallurgist. They can help you determine the optimal tolerances for your needs, balancing performance requirements with cost-effectiveness, and ensure you’re getting the most out of this versatile material.
