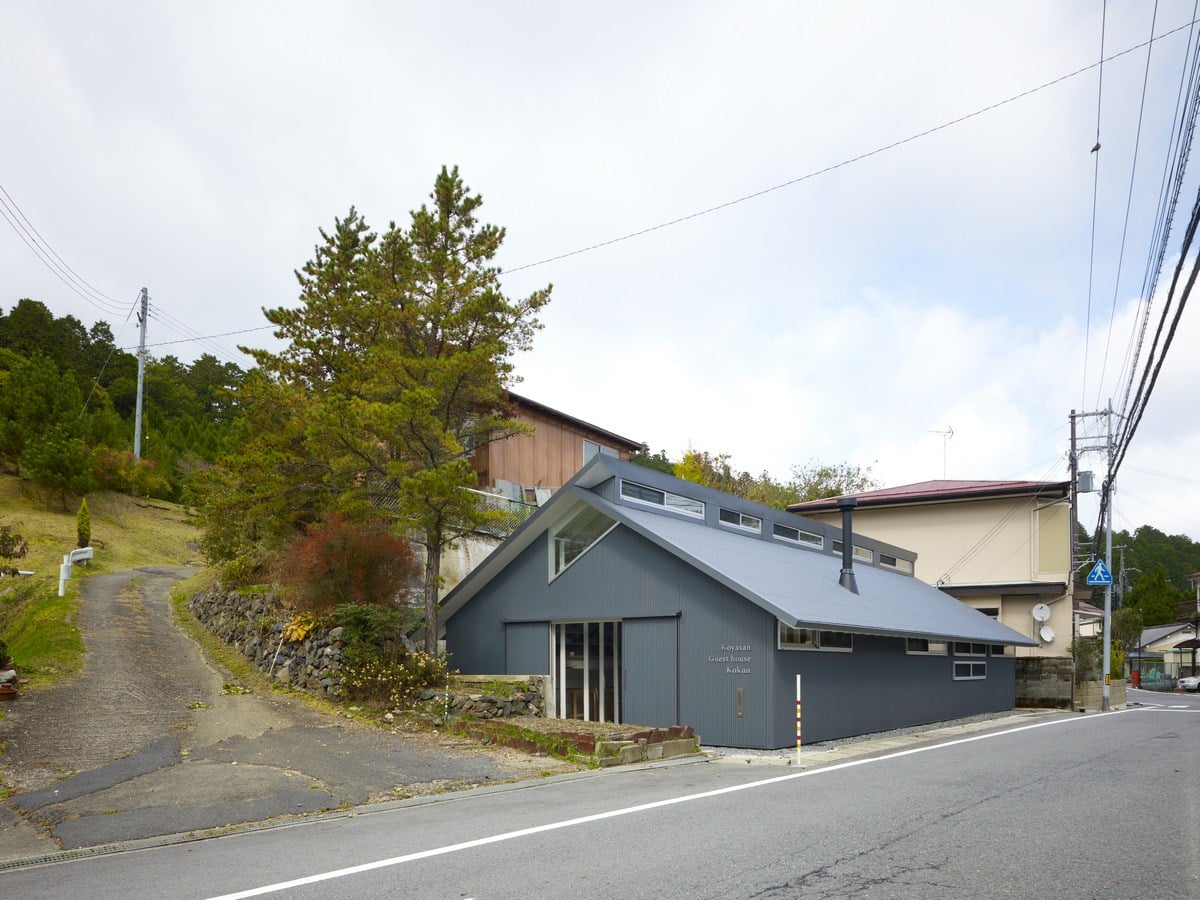

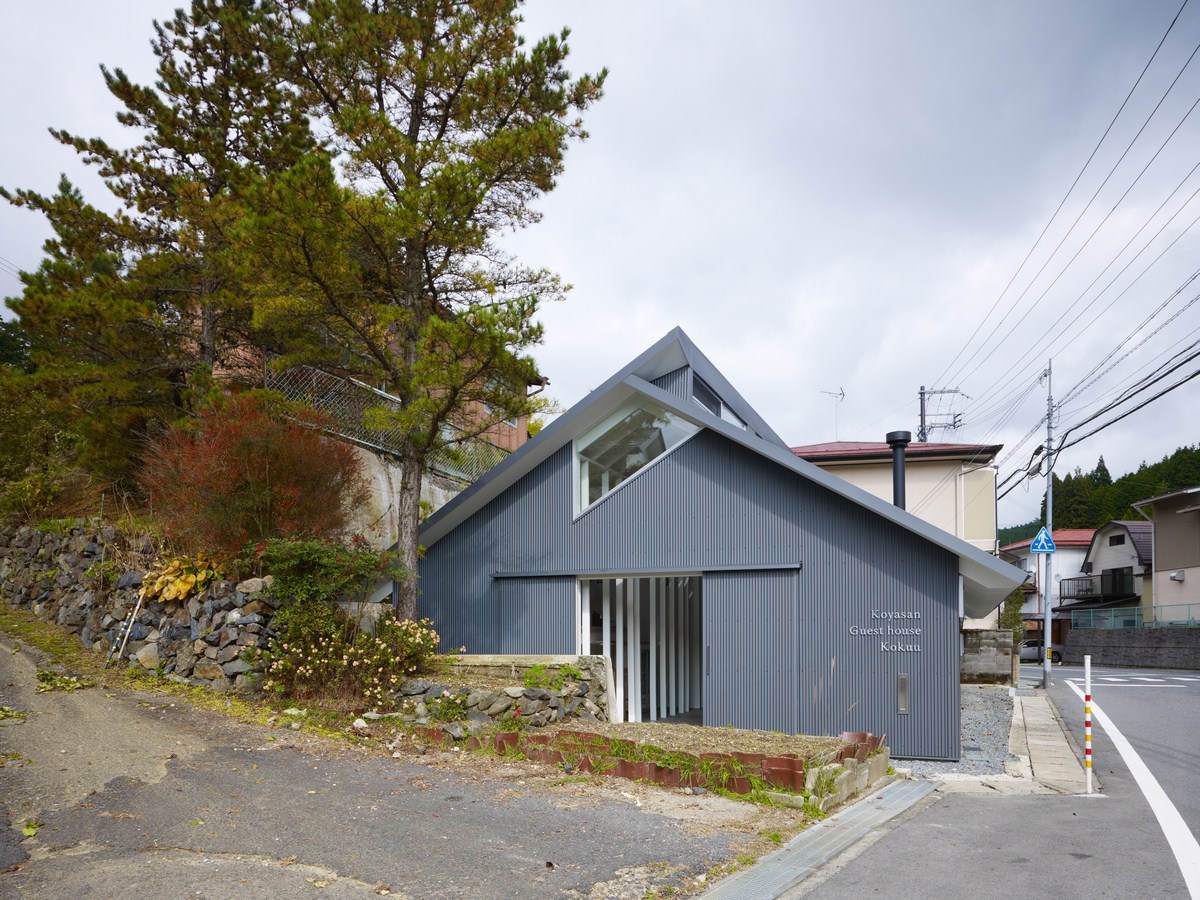

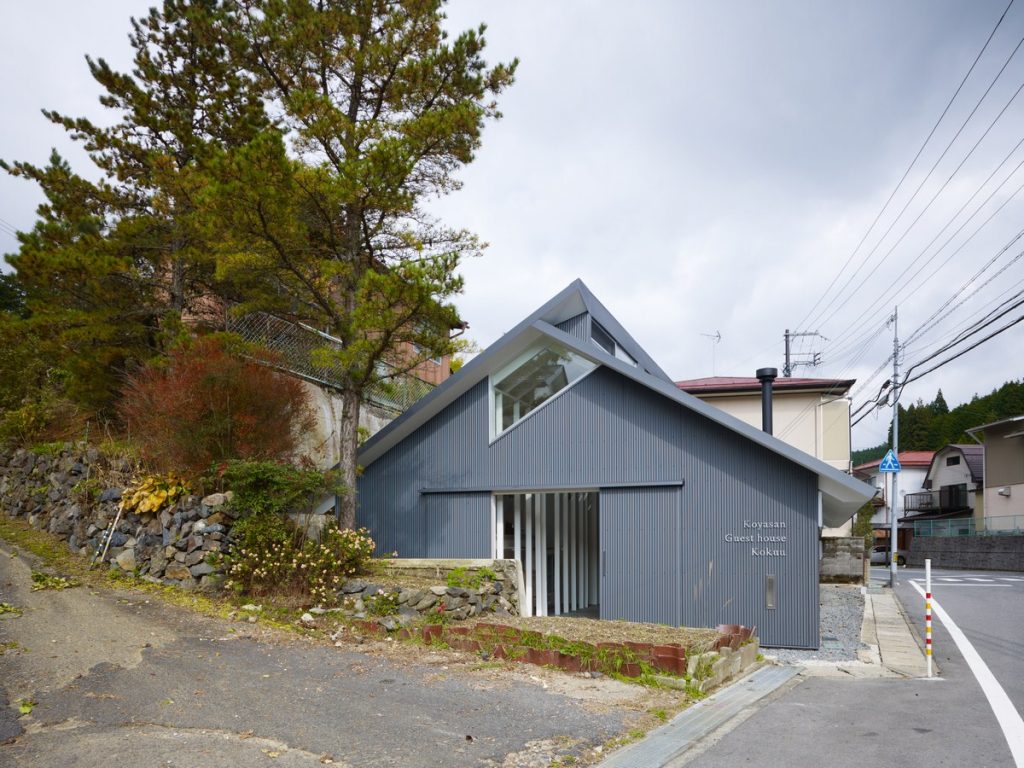

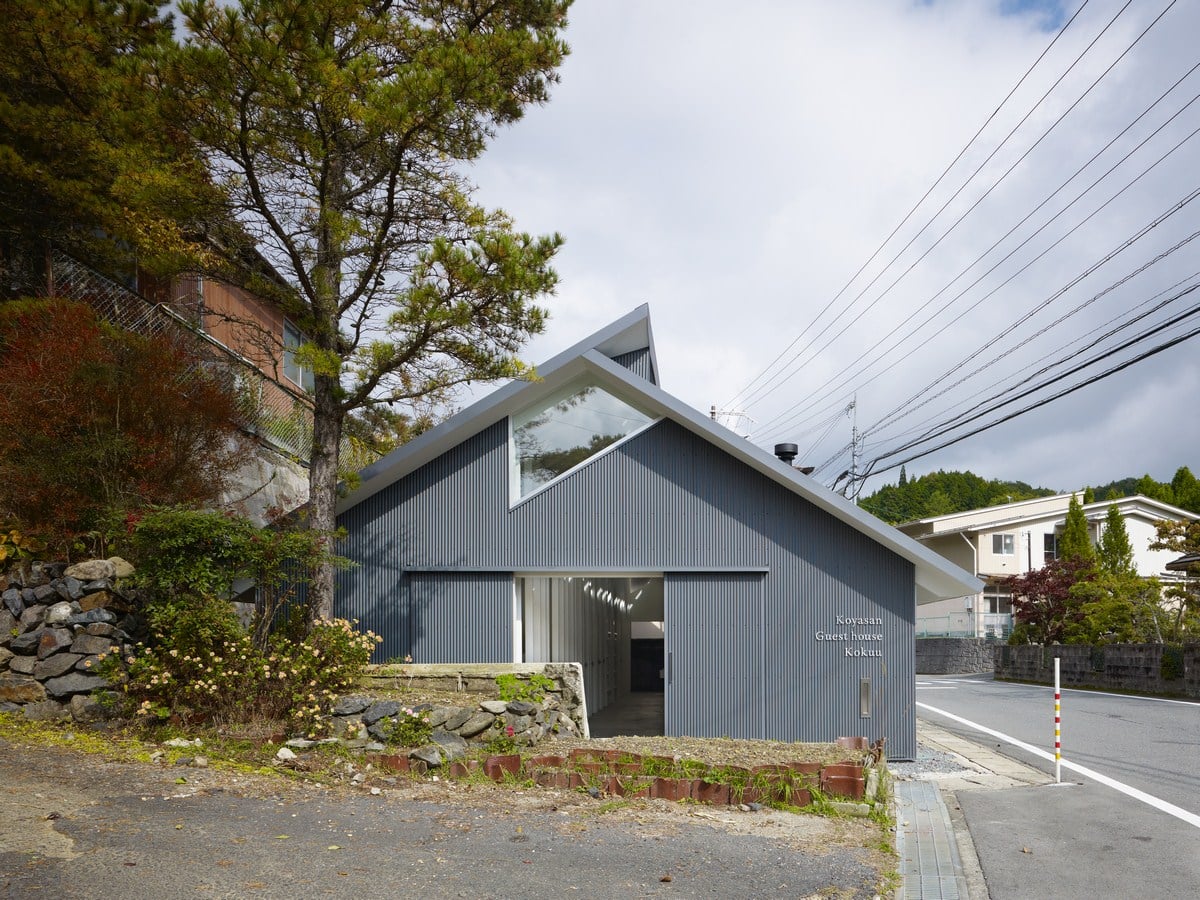

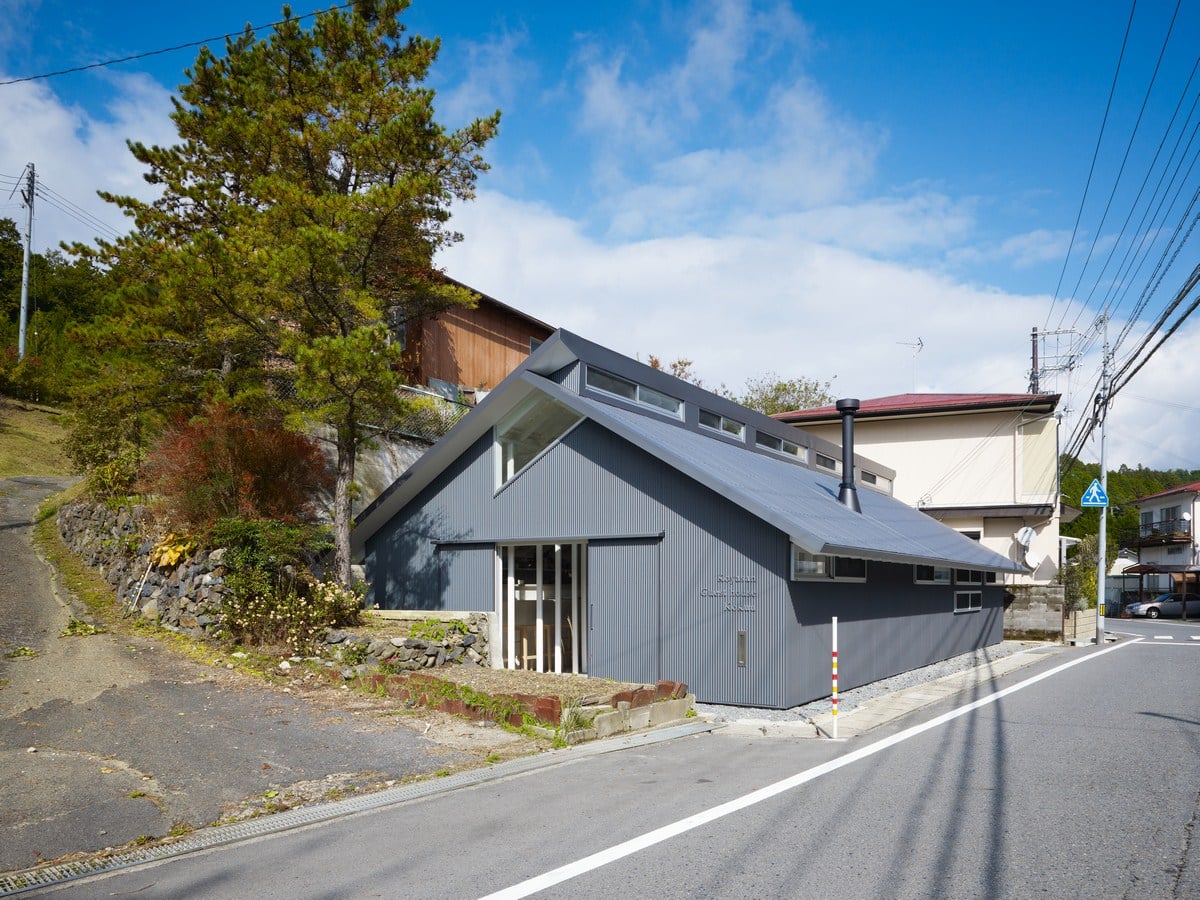

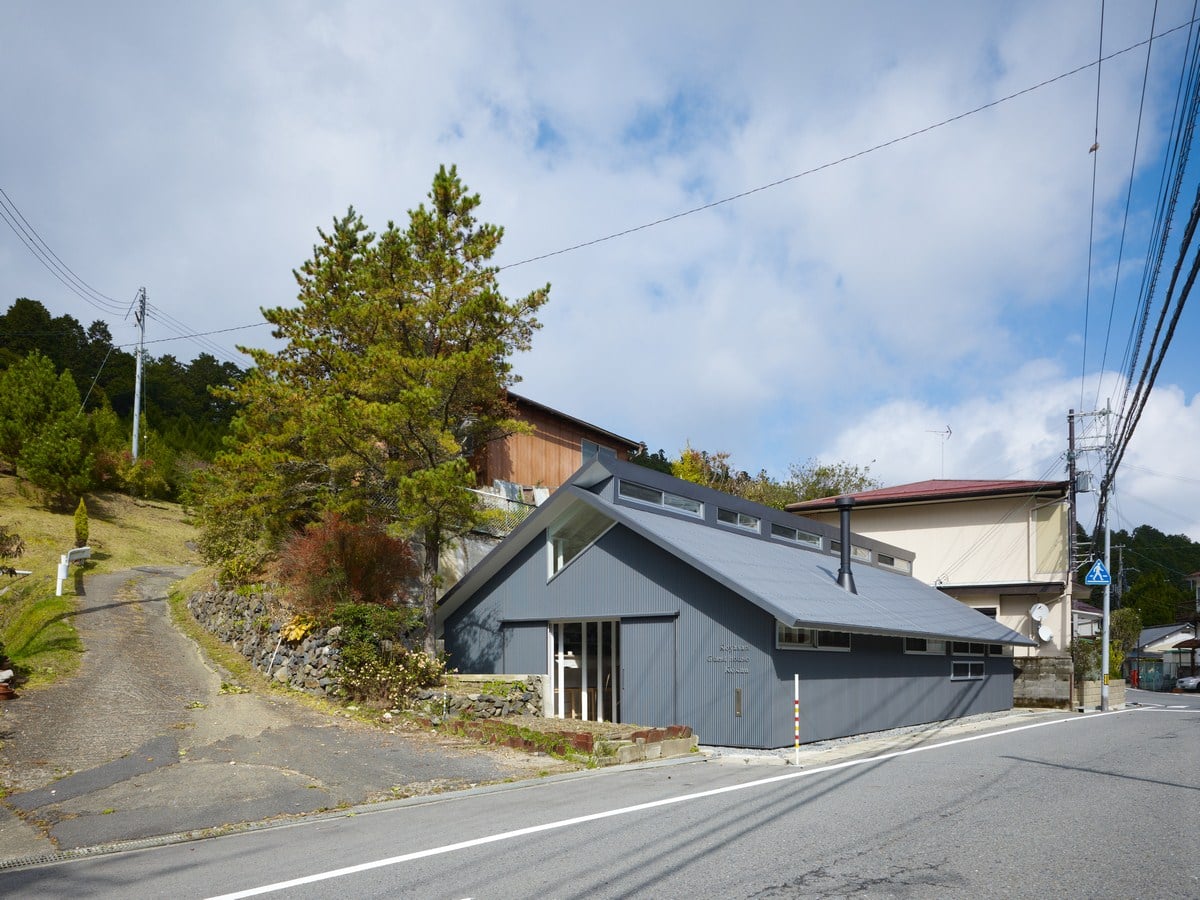

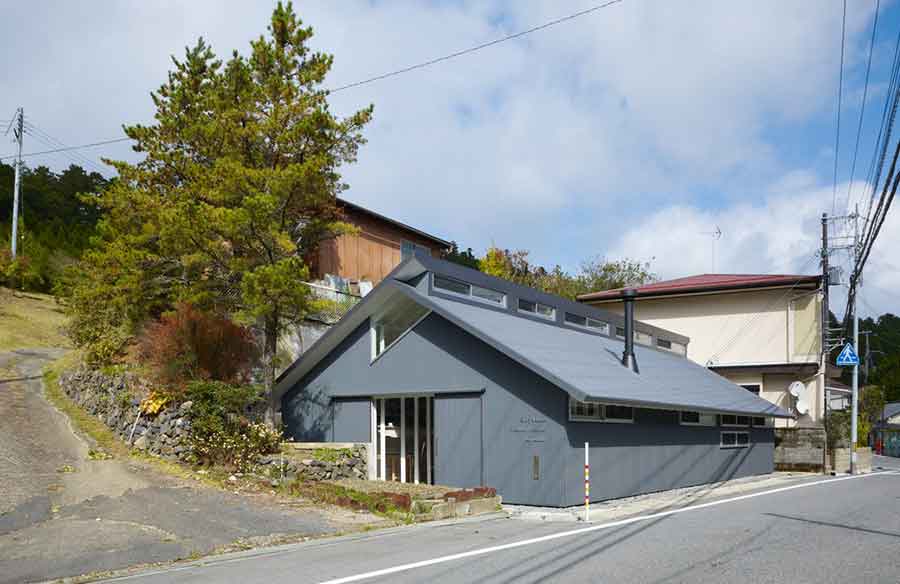

We designed a new guesthouse for young people from all over the world at Koya-san, the head temple of the Shingon sect founded 1200 years ago, the UNESCO world heritage. It is a mixture of Japanese capsule type hotel in which the privacy is well protected, and dormitory in which the communication among the guests is active. Each single room directly faces a hall so that you can chose proper distance with other guests ensuring the privacy.

Project name / Koyasan Guest House
Architects / ALPHAVILLE –  Kentaro Takeguchi + Asako Yamamoto
Project team / Kentaro Tameguchi, Asako Yamamoto, Tomohisa Koike
Structural engineer / Takashi Manda
Photographer /Toshiyuki Yano

INFORMATION:

Use / guesthouse
Site / Koyasan, Japan
Site area / 137.26m2
Building area / 96.00 m2
Total floor area/  96.00 m2
Building scale / 1 story
Facility / [eight] capsule-style rooms, [one] double-bed rooms, [two] double-bed & loft-bed rooms,
[two] toilets (shared), [two] shower rooms (shared)
Structure system / 2×4(inch) wooden structure
Major materials / galvanized steel sheet, aluminum windows, concrete, plaster board, 2×4(inch) wooden structure (45 cm pitch interval), 2×4(inch) wooden furniture
Main contractor / Kimuko Co.

Data of Catholic Suzuka Church By Alphaville architects - Sheet8 Selecting of thin wooden structure, resulting that the burden load per one pillar is relatively light, visibility of environmental facilities for easier maintenance and the simple composition of the space allow not only owner of this guest house but also guests to maintain, modify and keep on using this architecture for the long time.

Data of Catholic Suzuka Church By Alphaville architects - Sheet3We made two different scale spaces, one is a lounge for 20 people and the other is single room of a mattress size, by setting simple wooden continuing structural frame. The architecture is consist only of 2×4 inch wooden structure set at the interval of 455mm wrapped by the exterior wall with insulation outside. We did not make the hierarchy among structure, finish or furniture, same as the old Japanese traditional architecture.

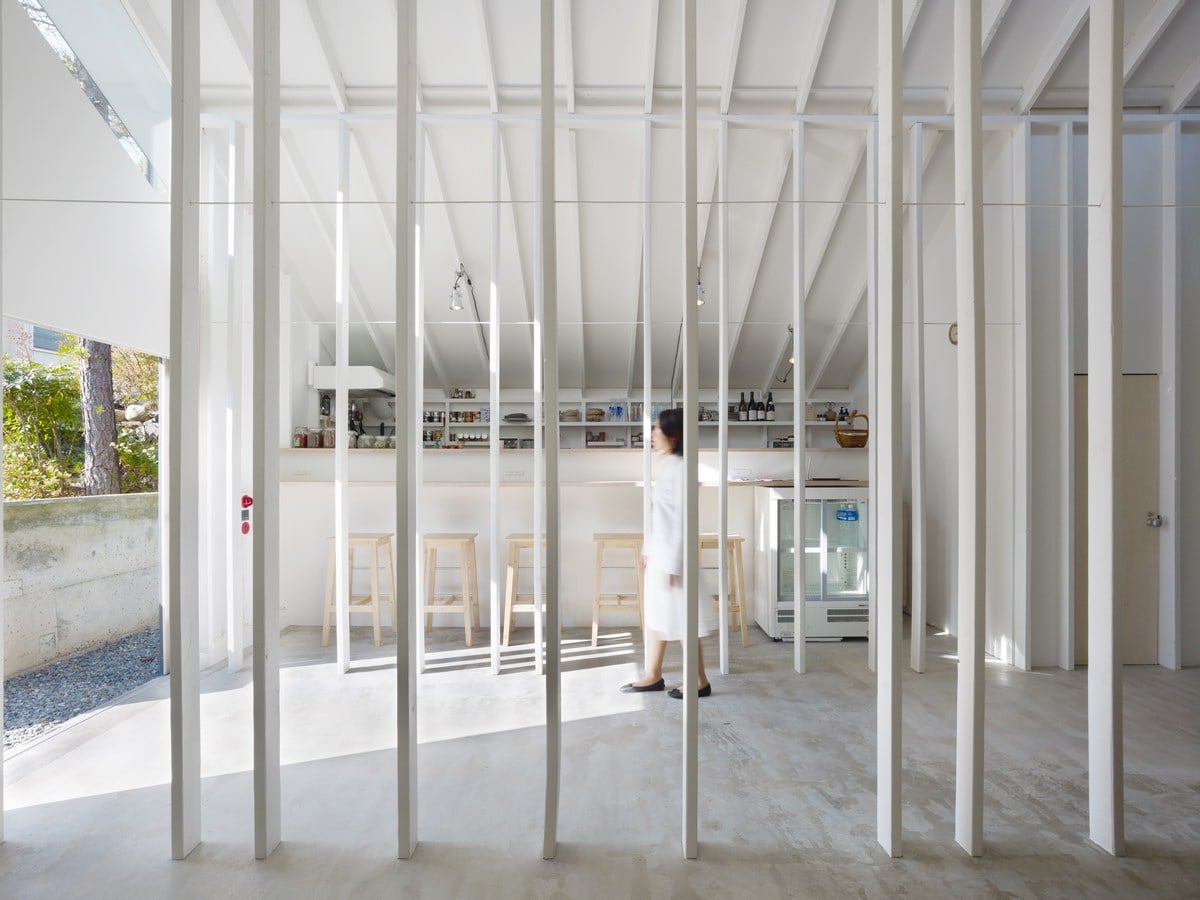

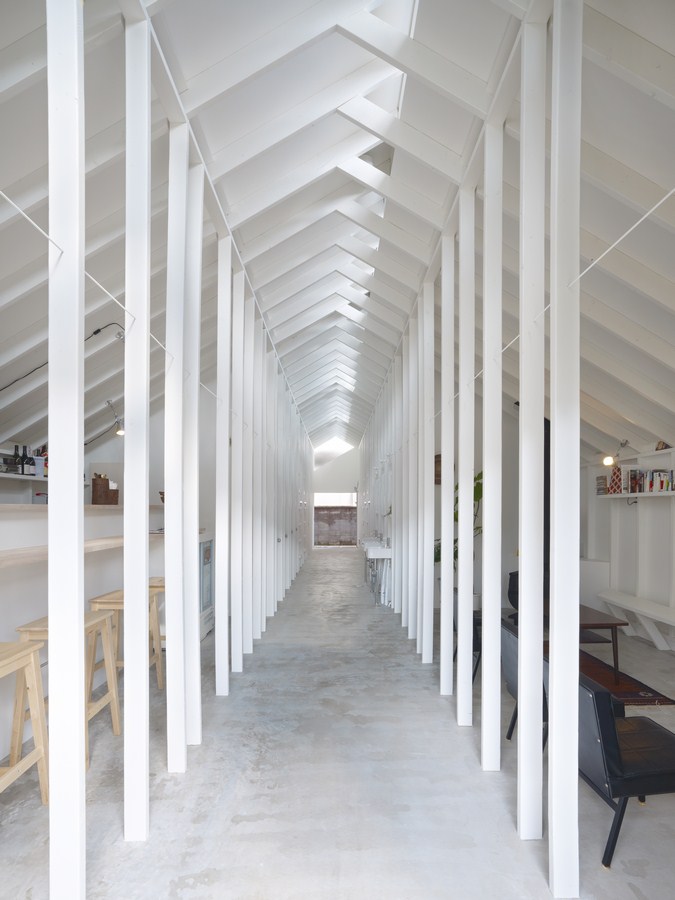

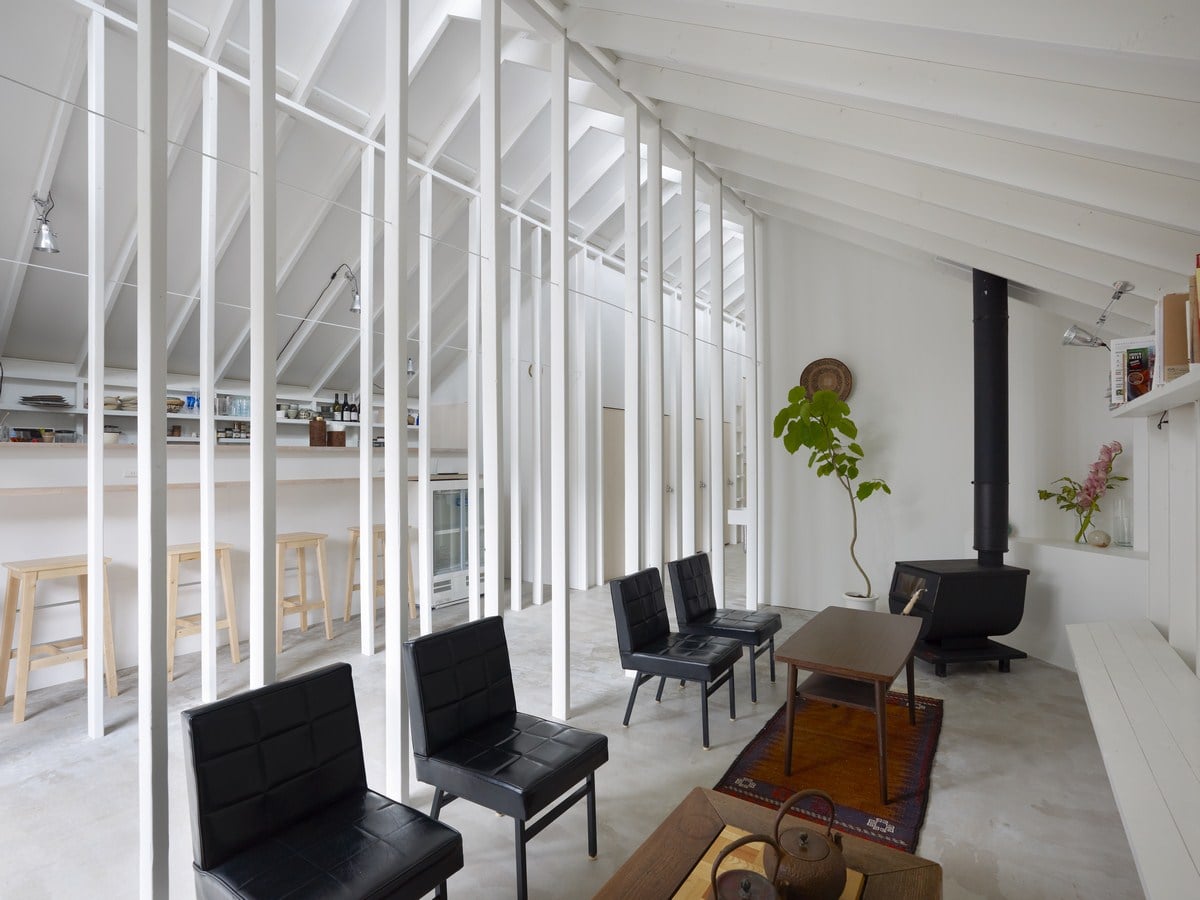

Data of Catholic Suzuka Church By Alphaville architects - Sheet5At the center of this architecture, the corridor between two wooden colonnade illuminated naturally with high-side lit connects private dormitory space and public lounge space. We make use of the subtle light from far above through the wooden structure in tribute to traditional Japanese architecture. Thin small soft pillars give the guests very human scale feeling while gathering of this pillars gives spacious feeling for lounge and bar.
