MOPI elementary school is located in an urban but very green area of Rio de Janeiro, Brazil. It’s main façade faces a busy avenue that connects Rio´ s west and north zones. The opposite side of the building overlooks a national   forest park with mountains, preceded by single family houses and lots of vegetation.

Project Name: MOPI School
Studio Name: Mareines Arquitetura + Patalano Arquitetura
Design Team: Ivo Mareines, Rafael Patalano e Flavia Lima
Site Area: 5330 m²
Area: 5.610 m²
Year Phase 1: 2009
Year Phase 2: 2010
Year Phase 3: 2015
Location: Itanhangá, Rio de Janeiro, Brazil
Consultants: Kremer Engenharia, Ana Moraes, Marita Adania
Photography Credits: Leonardo Finotti

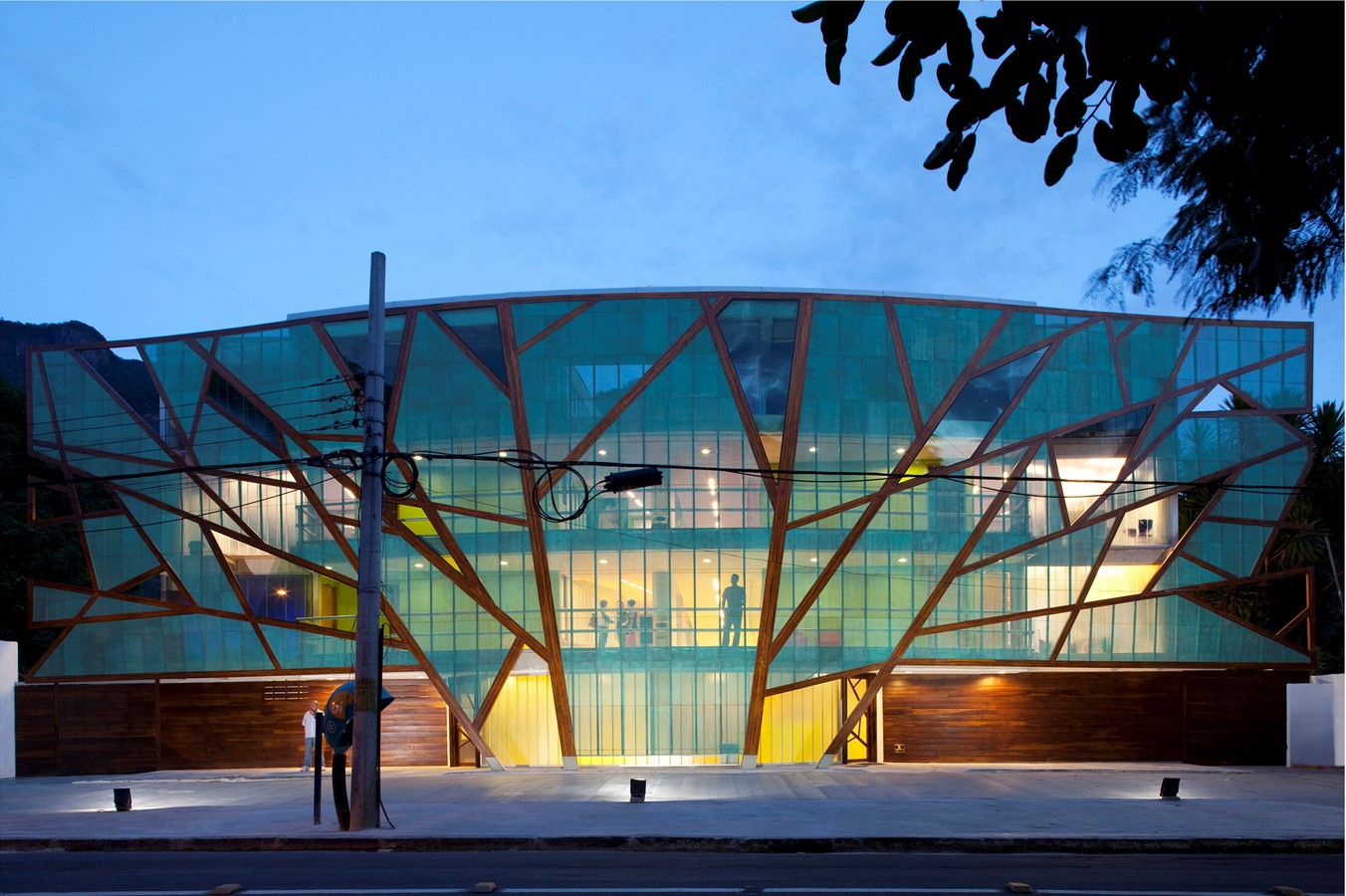

MOPI School by Mareines Arquitetura + Patalano Arquitetura - Sheet2
©Leonardo Finotti

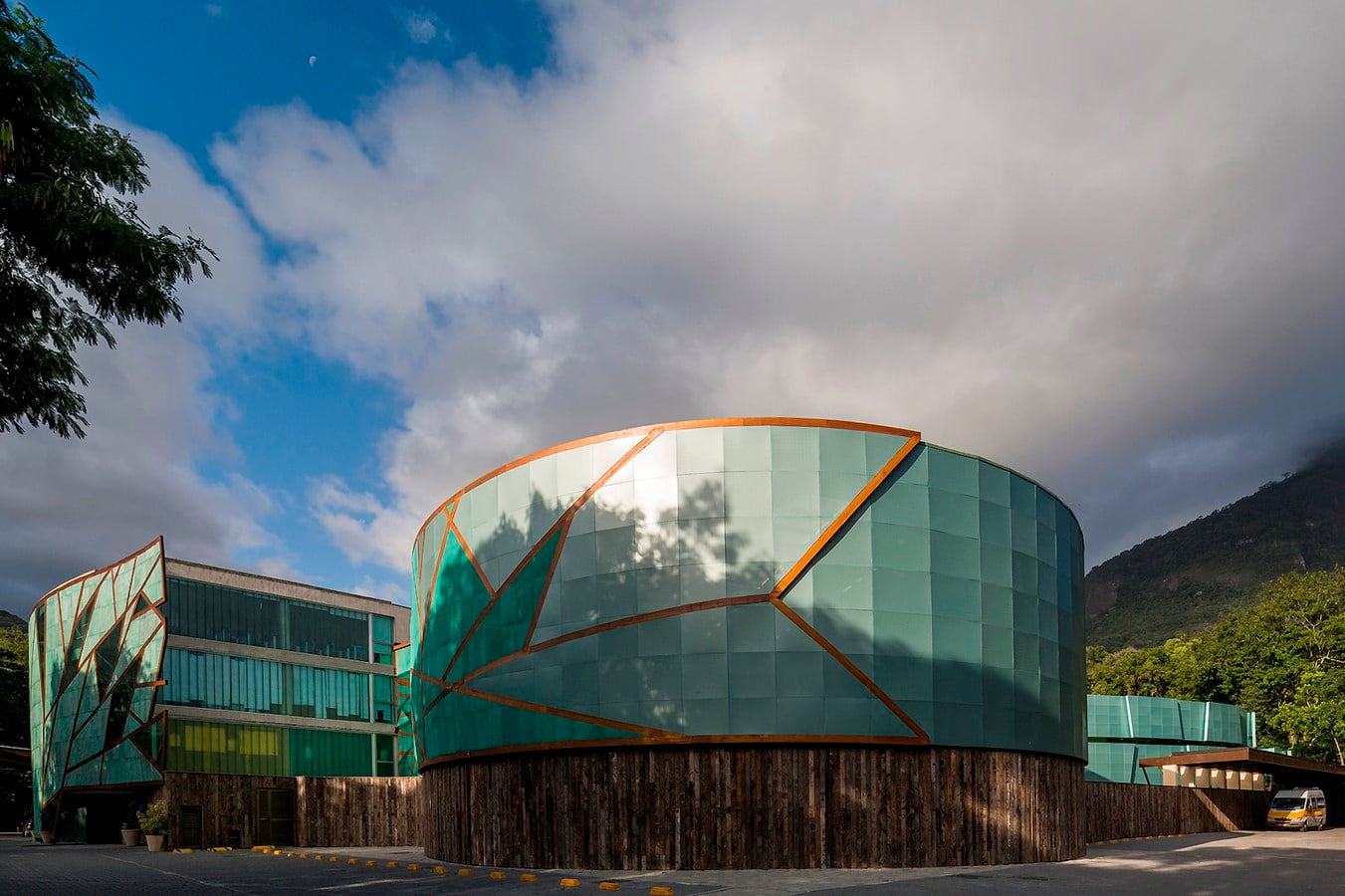

The building was conceived as   four separeted volumes connected by open balconies and derived from a “U” shaped whole open towards   the forest. The two elliptycal volumes that faces the avenue contain the main classrooms, while the other two water drops shaped volumes contains secondary spaces such as administration, pedagogic room, art, library , computer classroom and so on. The whole building being split into four distinct volumes facilitates cross air circulation that provides passive cooling while marking very clearly the use purpose of each one.

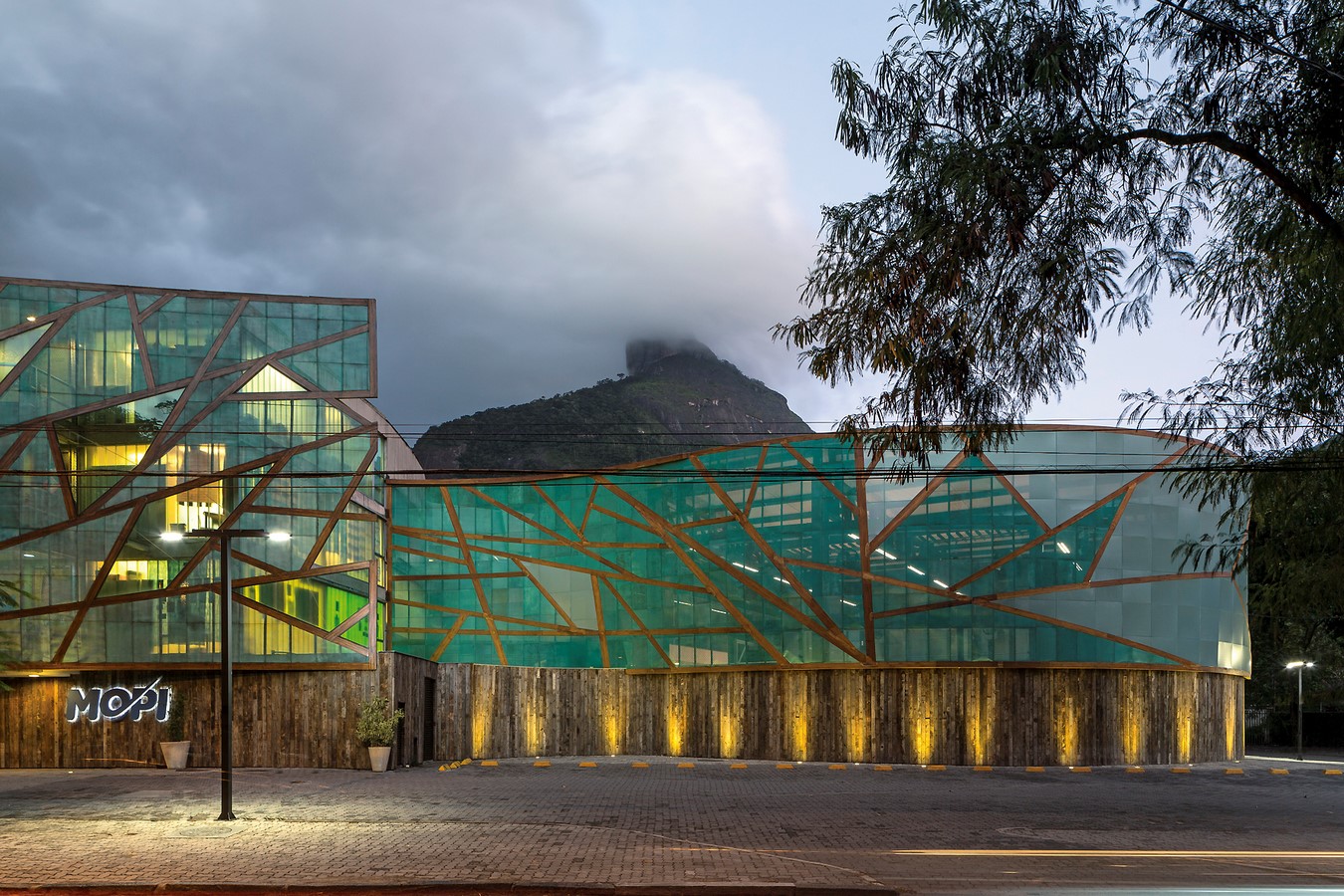

MOPI School by Mareines Arquitetura + Patalano Arquitetura - Sheet3
©Leonardo Finotti

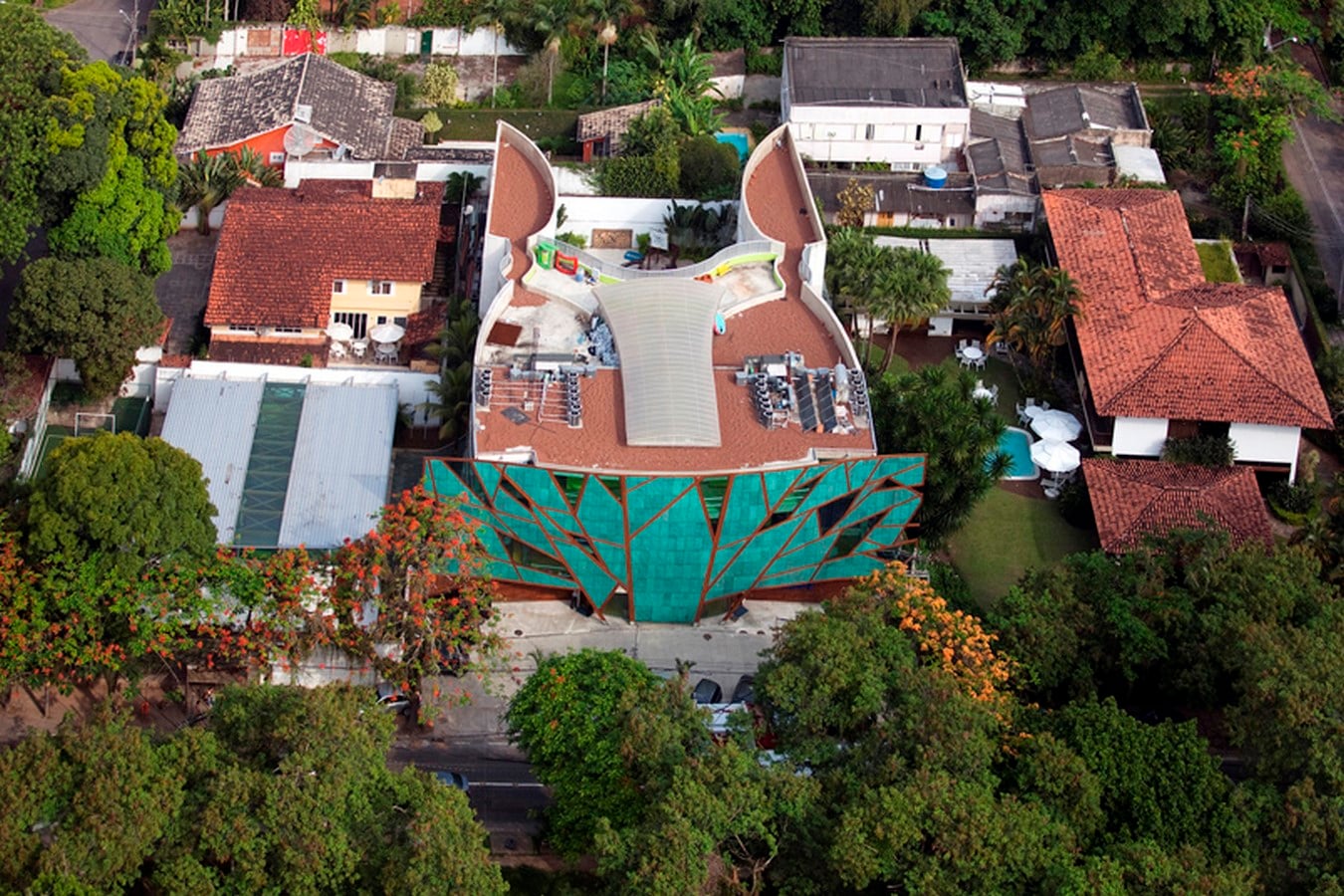

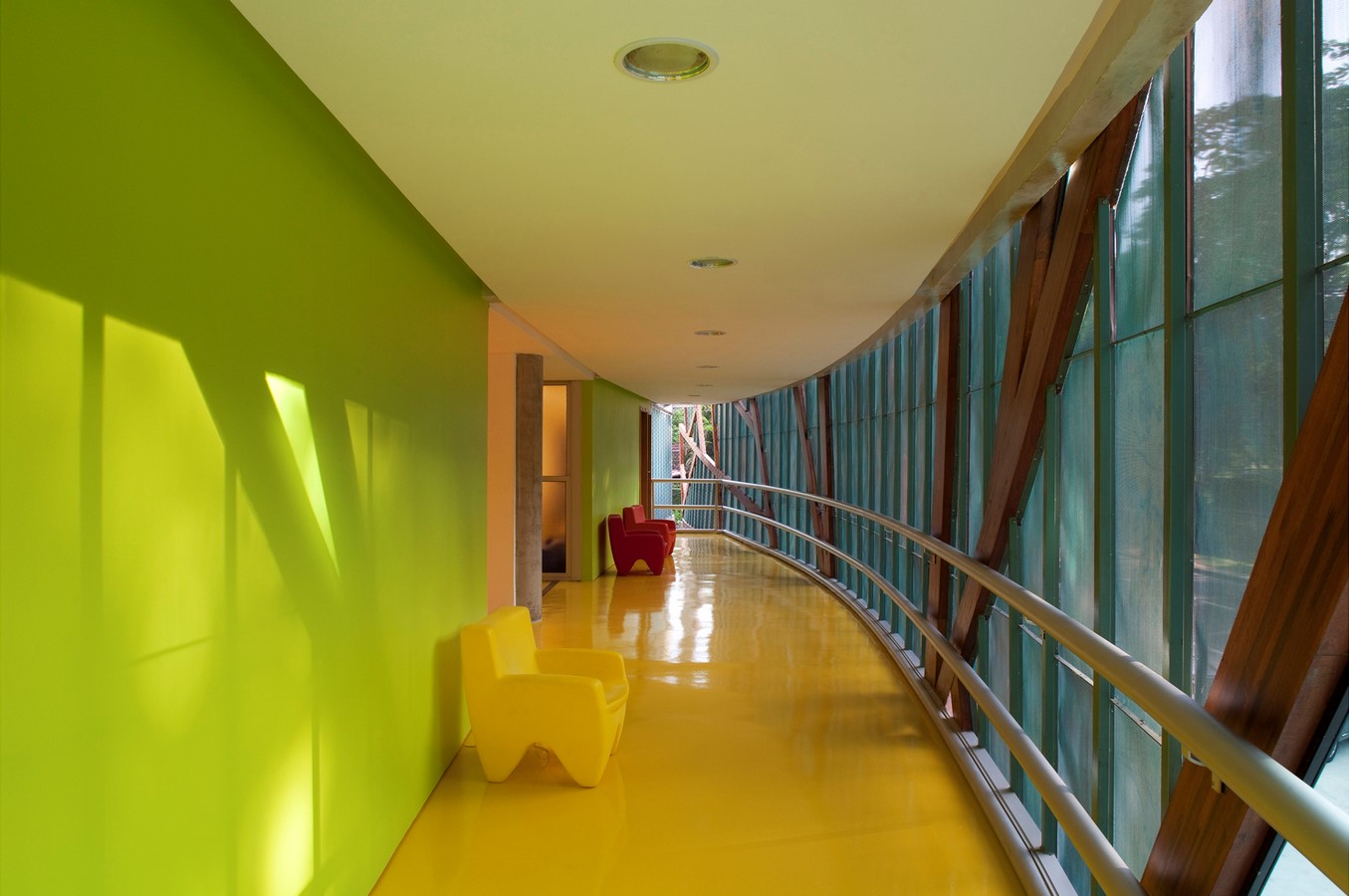

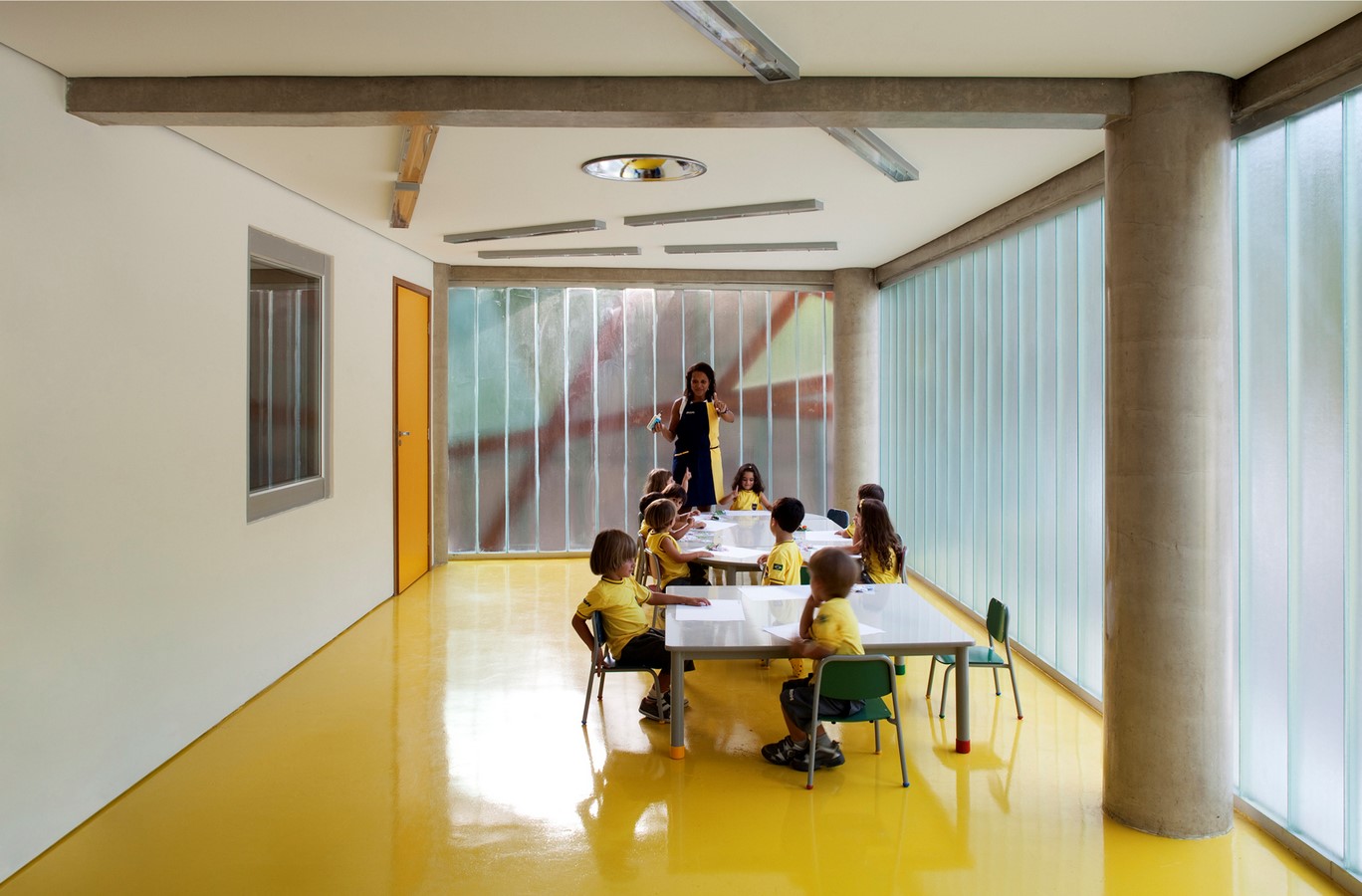

All levels are connected via 8% inclined ramps, to allow the inclusion of disabled students or professors. As ramps consumes a lot of space in plan to go from one level to the next, mid-levels   were adopted. The top  floor of the school, yet to be completed, will be a roof garden with grass and small trees overlooking the mountains with recreational and pedagogical purposes.  Translucent channel glass encloses most of the classrooms, flooding it with light without distracting the students.

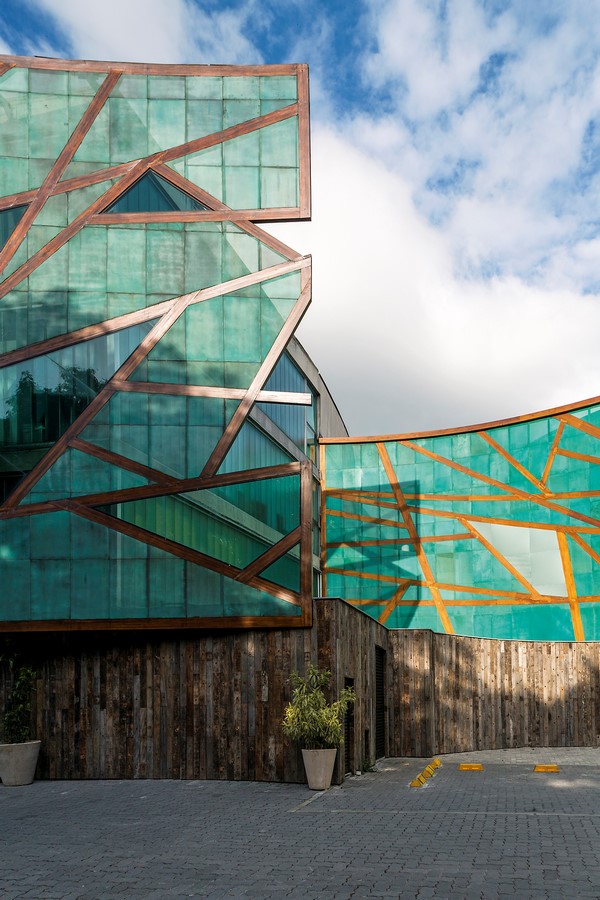

MOPI School by Mareines Arquitetura + Patalano Arquitetura - Sheet4
©Leonardo Finotti

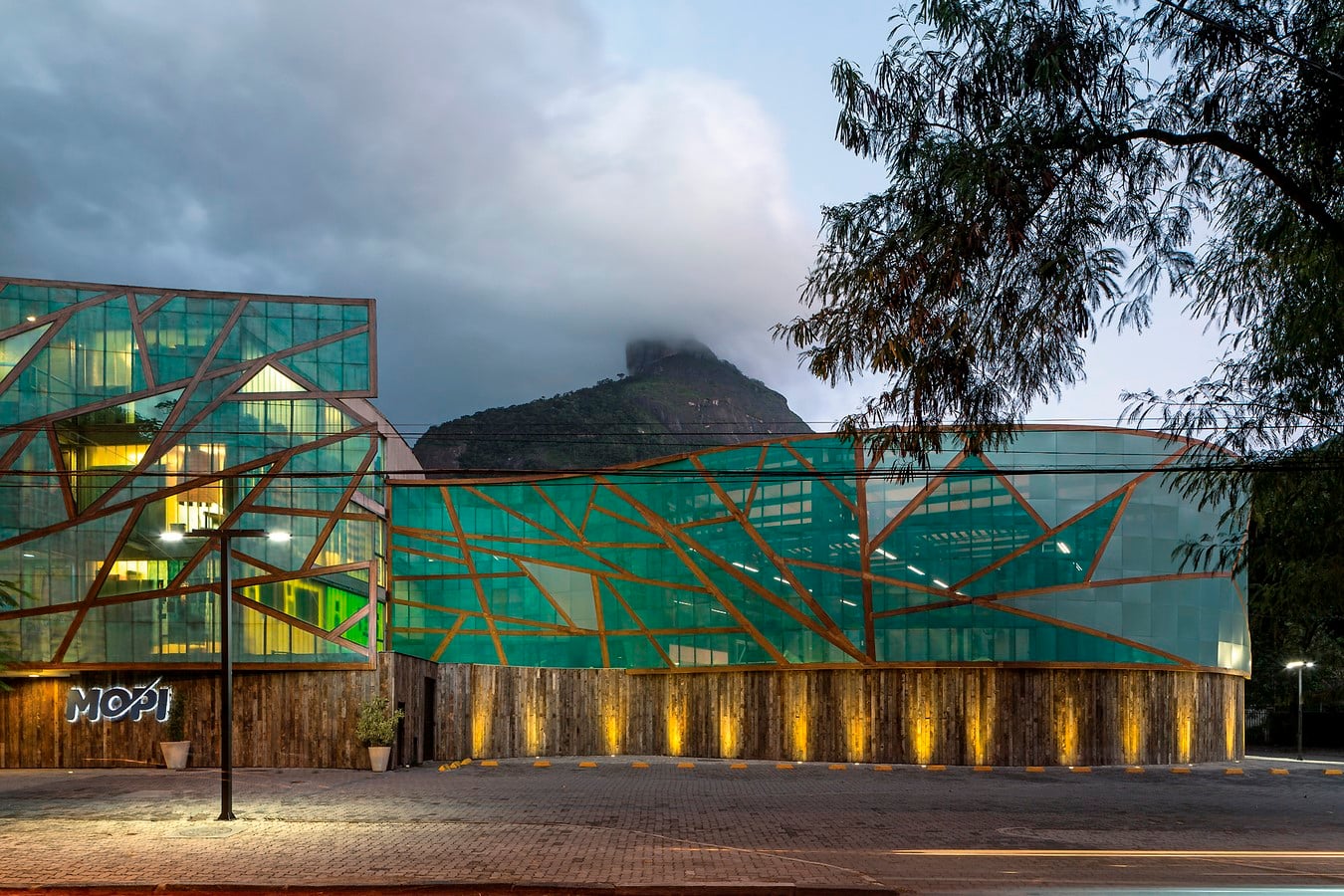

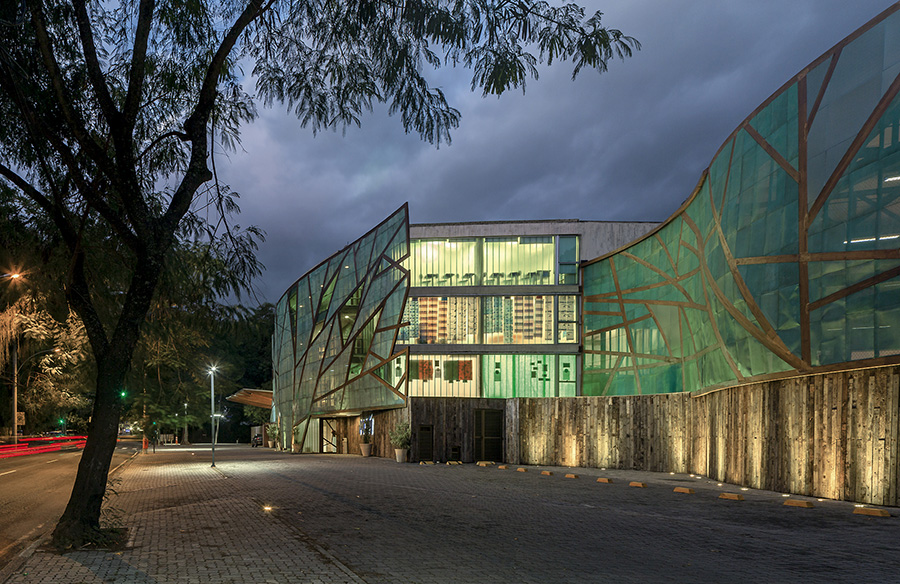

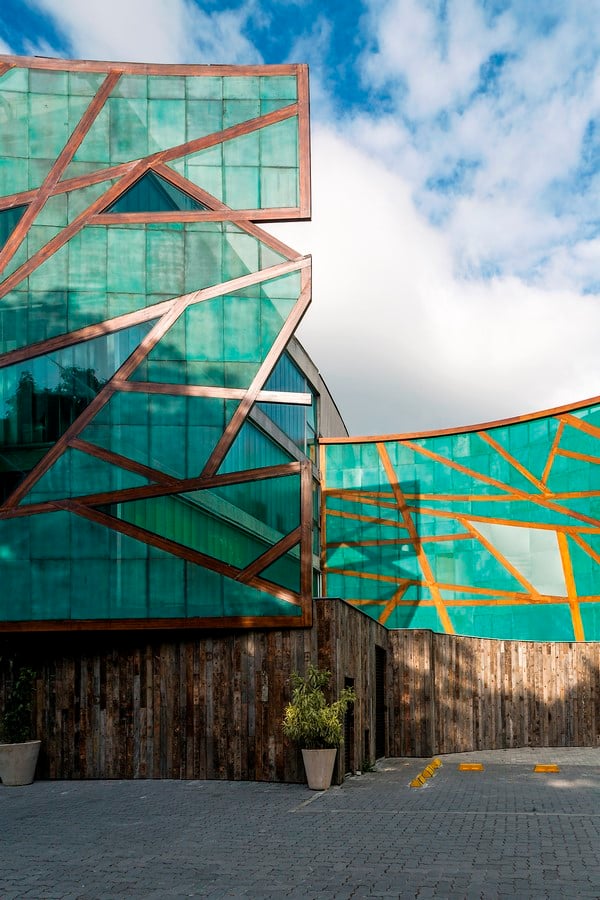

The main façade evokes the forest, it is an abstraction of a tree. It is composed of micro perforated pre-oxidized copper panels attached to   laminated wood beams, which are then attached to the concrete structure of the building. The wood used in these beams are  a fast growing renewable material source, and it’s species (eucalyptus) are planted specifically to be harvested. Other environmental solutions  adopted in Mopi want to achieve   not only  the sustainability of this building, but also the ecological sensibilization  of the students such as: Storage and reuse of rain water, solar heaters for  water, two  phases toilet flushes, Taps with timers, and recycled materials like the rubber tiles  on the ground floor.

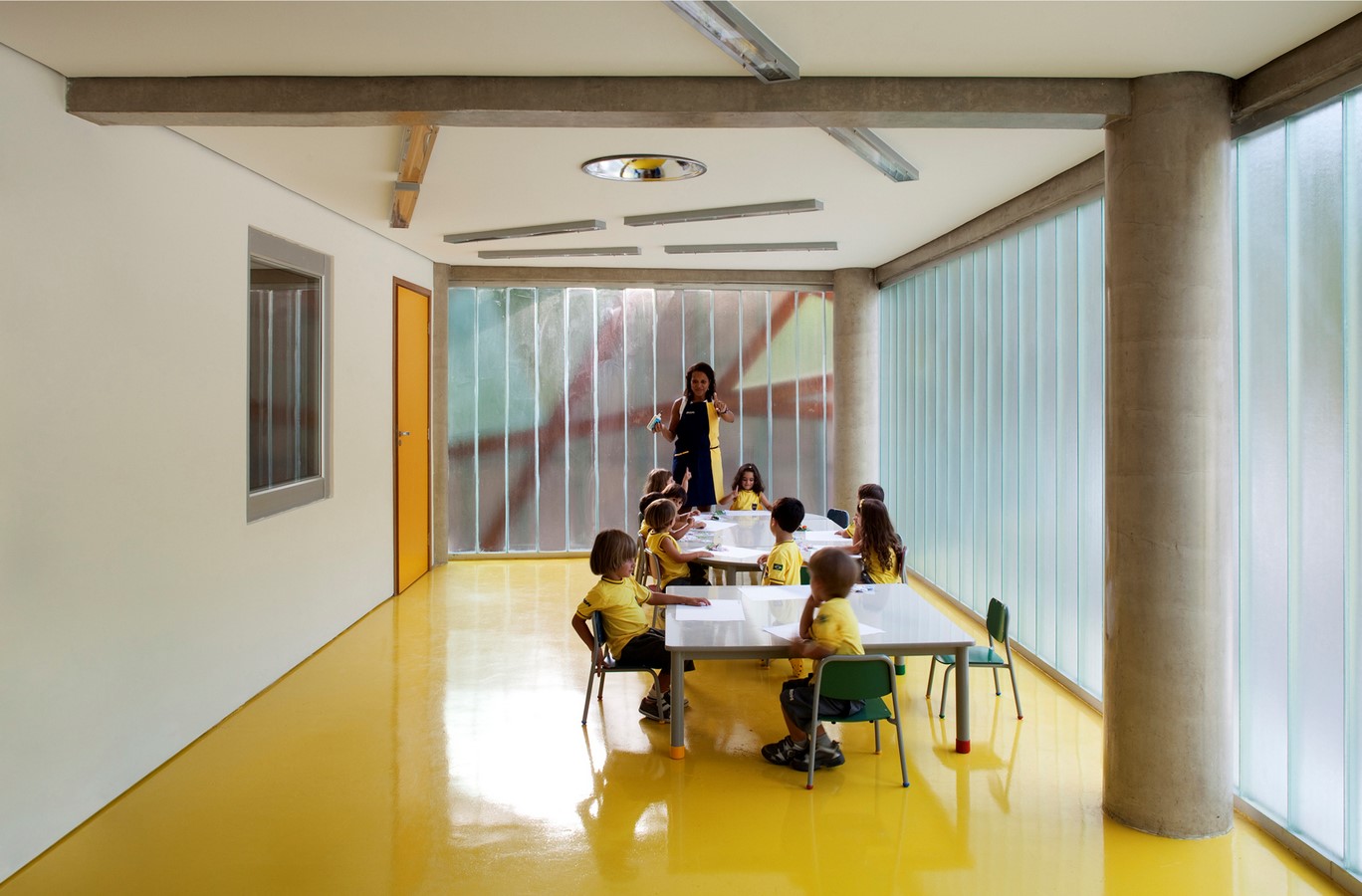

MOPI School by Mareines Arquitetura + Patalano Arquitetura - Sheet6
©Leonardo Finotti

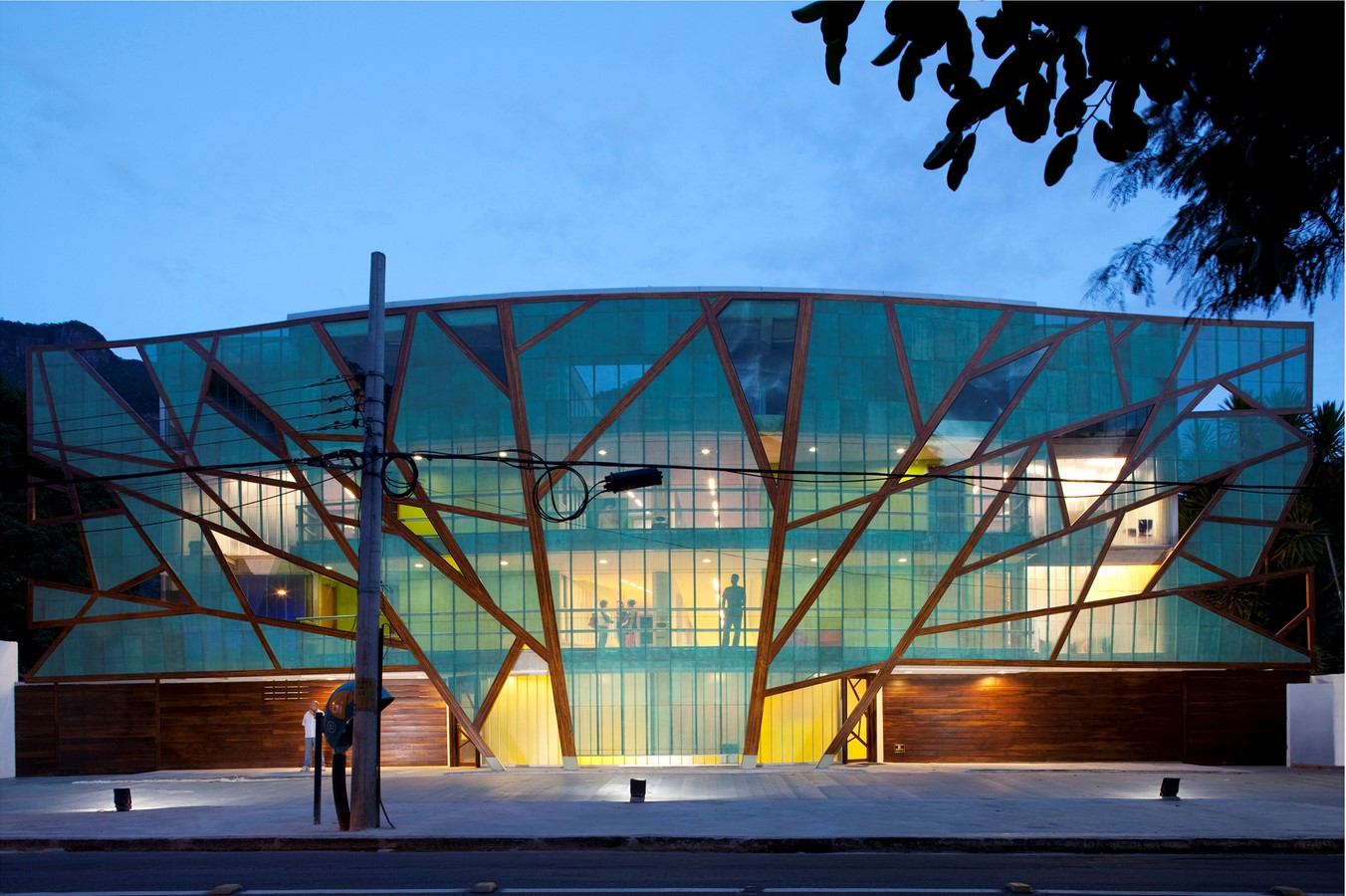

The micro perforation of the copper allows the passage of air while blocking rain water. It also gives the school a very lively aspect since it plays with transparency and opacity. During the day it looks opaque from the outside and semi transparent from inside. The green color dominates the façade. At night, it becomes semi transparent, letting movements and colors shine trough, making it come alive.
