The Richard J. Daley Center in Chicago, United States of America, was designed by the architect Jacques Brownson of C.F Murphy Associates in an international style in 1965. It was initially called The Chicago centre. The Richard J. Daley Center is primarily a civic centre that houses offices and courtrooms but is more iconic as a backdrop and features in TV shows and movies—seen in shows like Chicago P.D., Shameless, and films like the lake house. However, the most iconic part was in its constant appearance in DC Movies – from The Dark Knight, Batwoman, and even Superman.

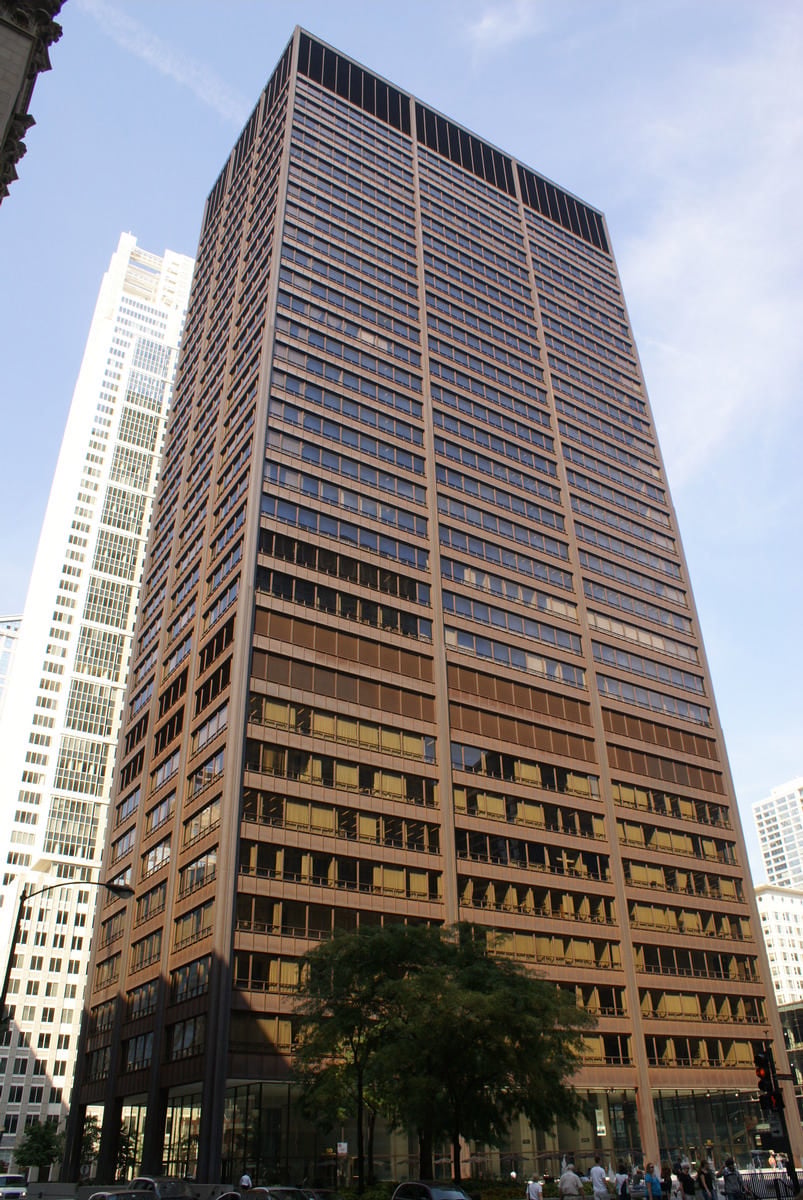

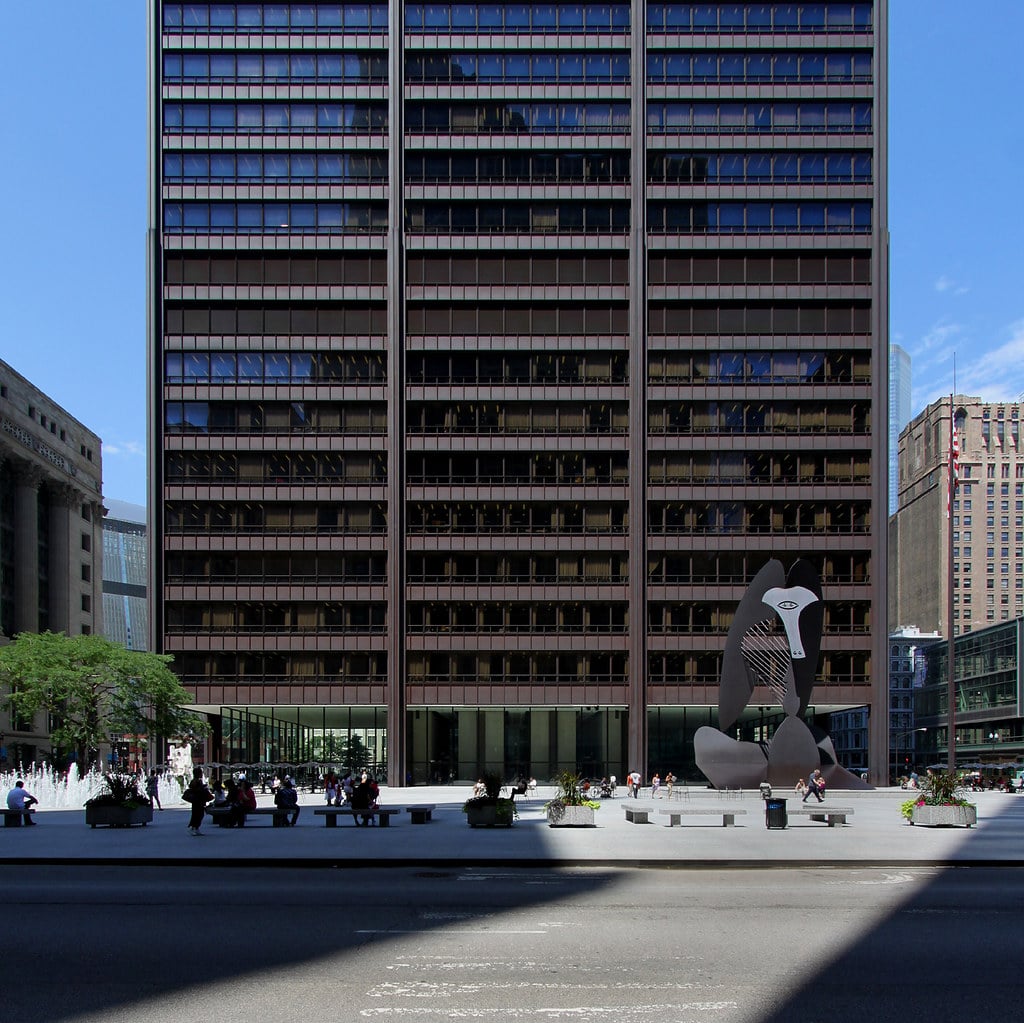

Richard J. Daley Center by C.F Murphy Associates - Sheet1
Richard J. Daley Center_©Structures.net

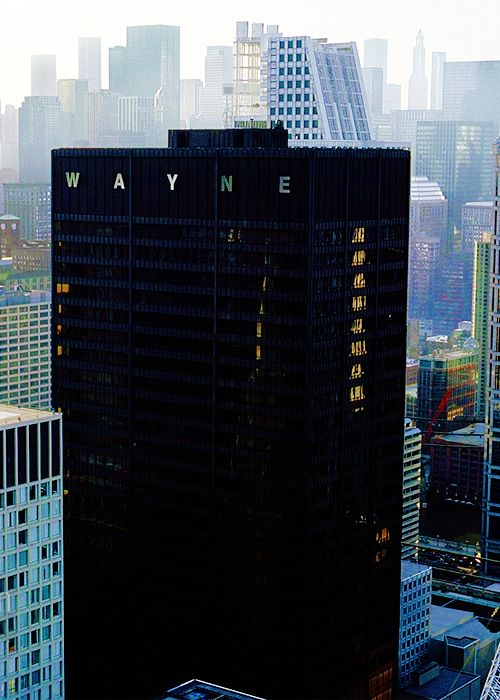

Richard J. Daley Center by C.F Murphy Associates - Sheet2
Richard J. Daley Center, seen in DCU, Dark Knight as Wayne Enterprises _©Warner Bros.

Design.

The International style or internationalism in architecture was a significant style of design developed in the 1920 and 1930s and was highly popular after the world war. The fundamental principle of the international style in architecture was – the volume of space (in the place of mass and solidity), regularity, and flexibility. Jacques Brownson adopted this principle to successfully complete The Richard J. Daley centre in Chicago, Illinois

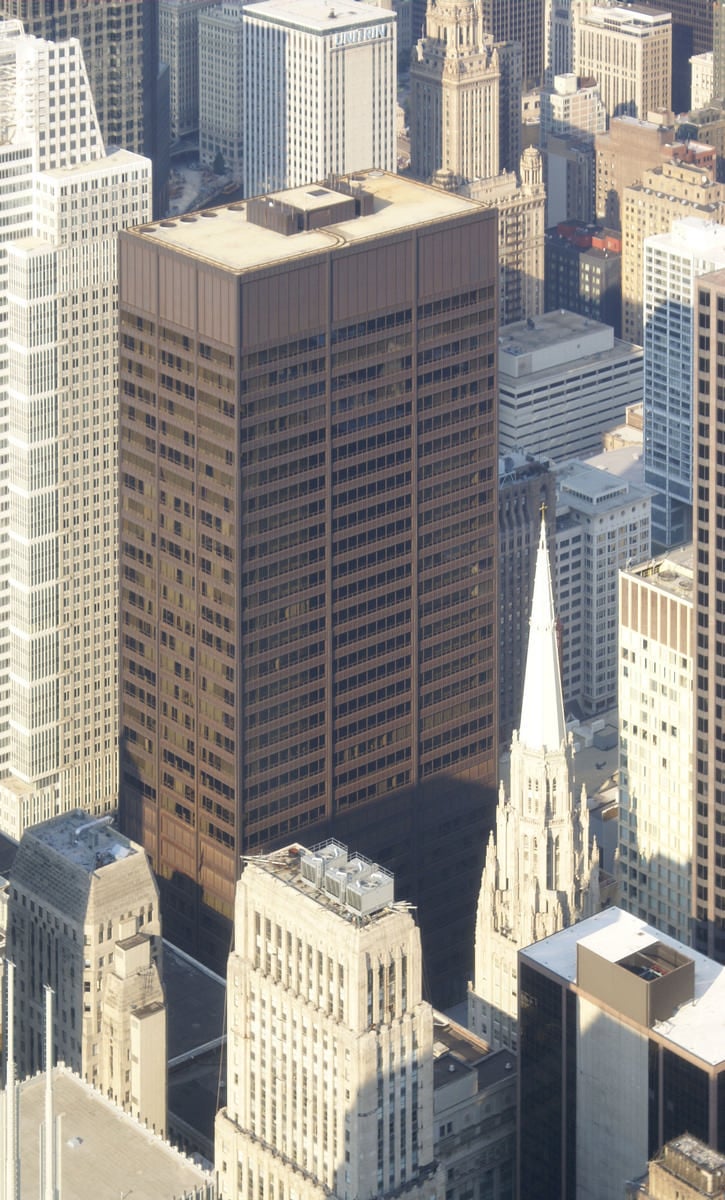

Richard J. Daley Center by C.F Murphy Associates - Sheet3
Richard J. Daley Center_©Structures.net

Like most Mid-Century modern buildings post-war, the Richard J. Daley centre also follows the international style of architectural design in which the main focus is the – skin. While the skin is impressive, the interiors are remarkable. The Richard J. Daley Center is a structure supported by only 16 columns. Twelve surround the Richard J.

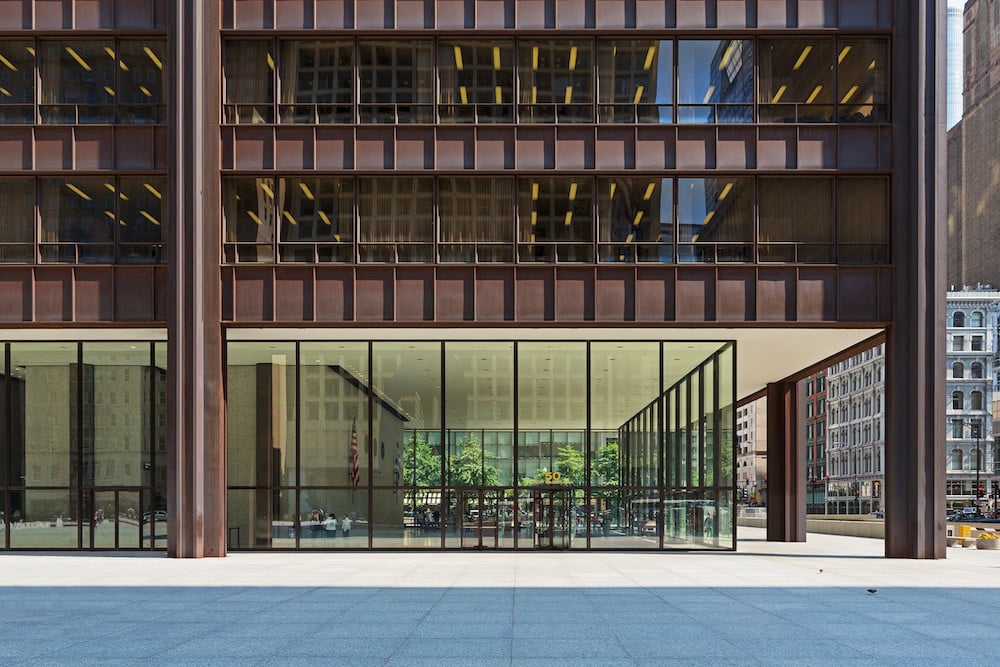

Richard J. Daley Center by C.F Murphy Associates - Sheet4
Richard J. Daley Center, Columns_©Skyscraper.com

Since there were massive spans between each column – about 87 feet by 48 feet, trusses supporting each floor – The Warren Trusses, which were very thick – helped keep a skyscraper. The Richard J. Daley Center has only 31 floors but still reaches a height of a typical building of 50 to 60 stories of 648 feet or 200 meters. This is because every floor has very high ceilings and two-storied courtrooms. The architect even designed the columns so that they got thinner as they rose to reflect the lighter loads as they reached the upper floors.

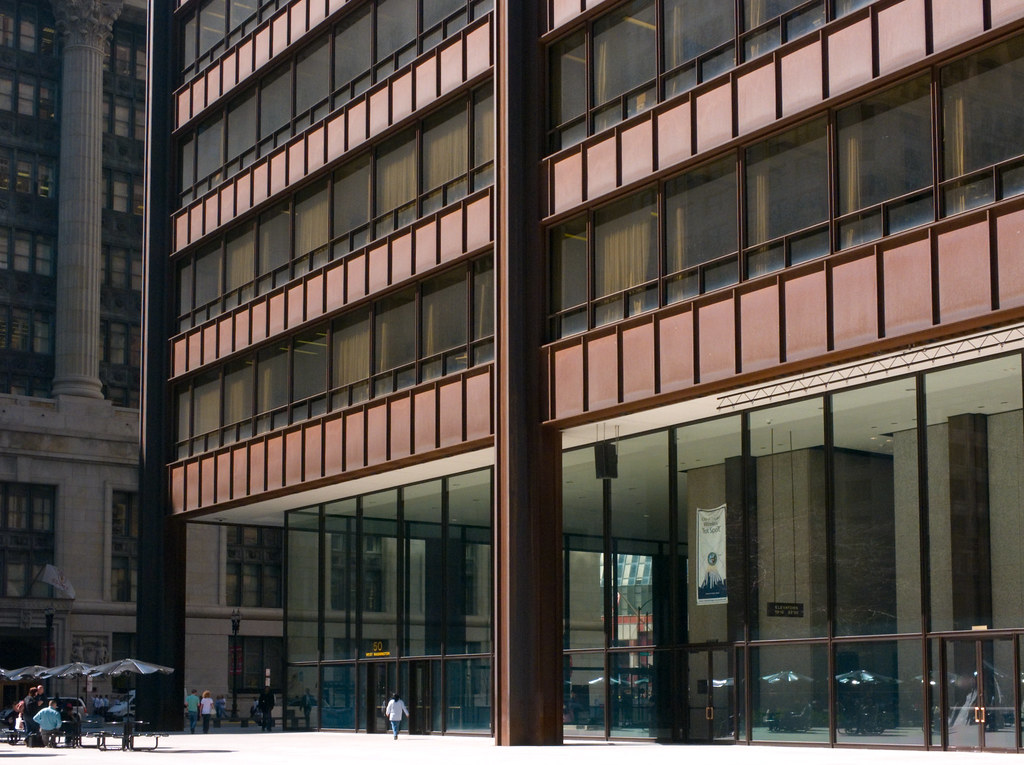

Richard J. Daley Center by C.F Murphy Associates - Sheet5
Richard J. Daley Center, High ceilings_©Skyscraper.com

The Richard J. Daley centre is a public plaza that houses The Chicago Picasso, or locally just the Picasso, which weighs over 160 tons and is 50 feet tall. It pioneered nontraditional art in the Chicago art scene and is a landmark for the city’s landscape. The public plaza has food trucks, a farmers market, stalls adorned with Christmas decorations and a large tree during the holiday season.

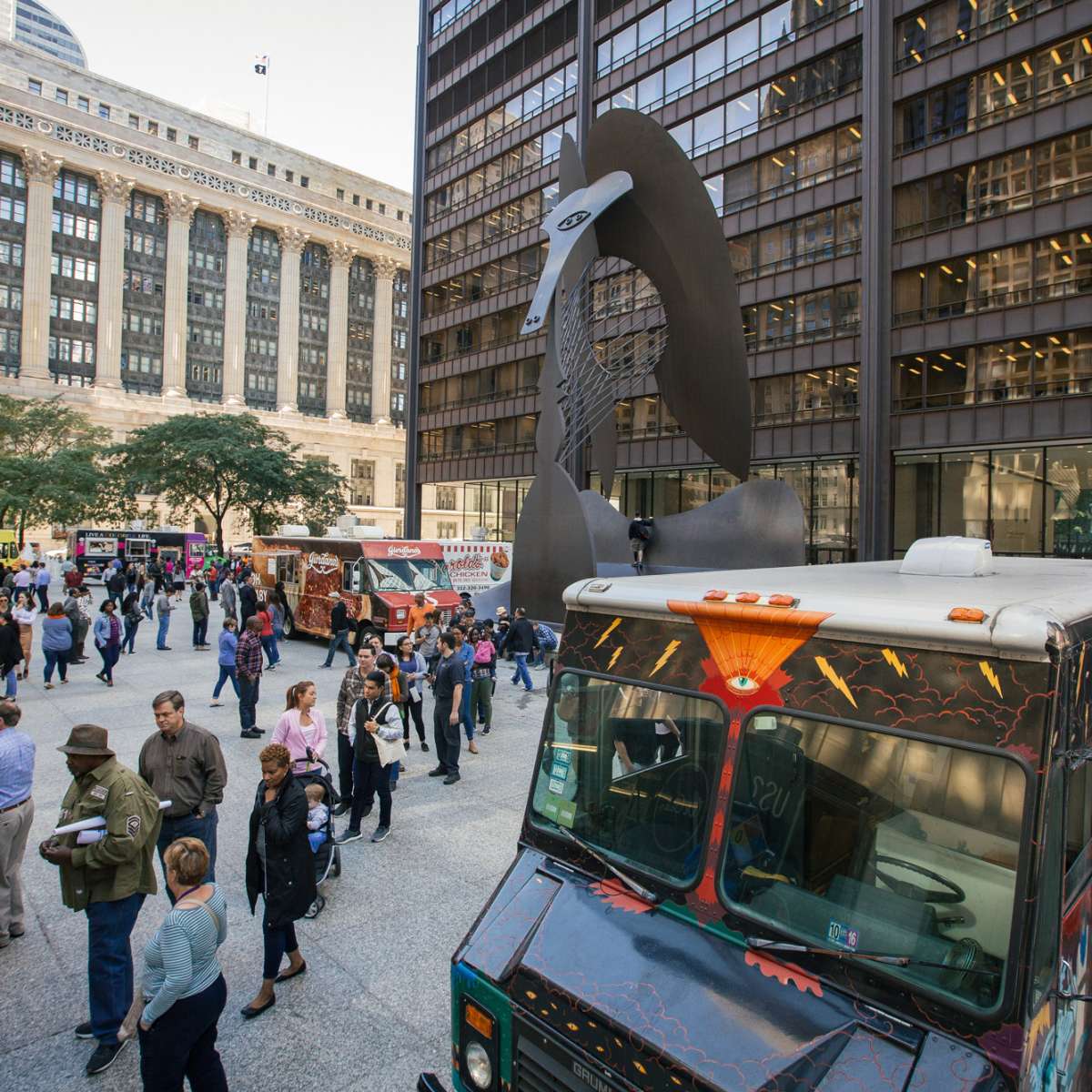

Richard J. Daley Center by C.F Murphy Associates - Sheet6
Richard J. Daley Center, Plaza_©Skyscraper.com

Materials by Construction.

The Richard J. Daley Center was constructed in 1965 in Cor-Ten. Cor-Ten is unpainted steel, and over time, natural rust develops. This becomes a permanent, low-maintenance, protective coating that never needs to be retouched, fixed, or painted. The building’s glass-bronze tint complements these steel panels seamlessly.

The Richard J. Daley centre’s 16 columns are all steel – the twelve on the outside and the four elevator shaft-surrounded columns.

Richard J. Daley Center by C.F Murphy Associates - Sheet7
Richard J. Daley Center, Plaza_©Skyscraper.com

Sustainability.

Since the Richard J. Daley Center was a public access, public-use, and public-funded building – there was a lot of specific need to think about the people, the cityscape, and the environment. While the climatic troubles weren’t as severe in the mid-20th century, the Chicago government was still keen on sustainability and environmentally friendly public spaces.

The owners of the Richard J. Daley centre on behalf of the City of Chicago and cook county – The Public Building Commission of Chicago and the management team of the Richard J. Daley centre – MB Real Estate, together have recognised and focused their focus on the value of energy and various conservation measures. A goal even present-day skyscrapers do not seem to aspire to.

Dating as far back as 1994, The Richard J. Daley centre’s staff have tracked the skyscraper’s energy and water usage periodically and implemented measures to achieve efficient use of energy and water and reductions in the consumption of water, gas, and electricity. While this may seem trivial for a skyscraper that is only 31 stories high, one must keep in mind that The Richard J. Daley centre was designed for assembled use with 33 per cent of freshwater intake. Still, the 12-foot floor-to-ceiling heights throughout the building and some courtrooms have as much as 30-foot floor-to-ceiling heights; there is a significant increase in air conditioning volume.

The requirement only increases over time due to its north-facing position – with the harshest sun rays- and also climatic disturbances in the 21st century, making Illinois summer unbearable without proper cooling systems. More than 27,000 people visit the Richard J. Daley centre every day, and with over 375 semi-private and 70 public restrooms, the need for water is also very high. Despite these challenges, the management and ownership team of The Richard J. Daley had prioritised keeping the building efficient, following the rules of sustainability, and having LEED certifications as recent as 2022, when the centre was certified gold.

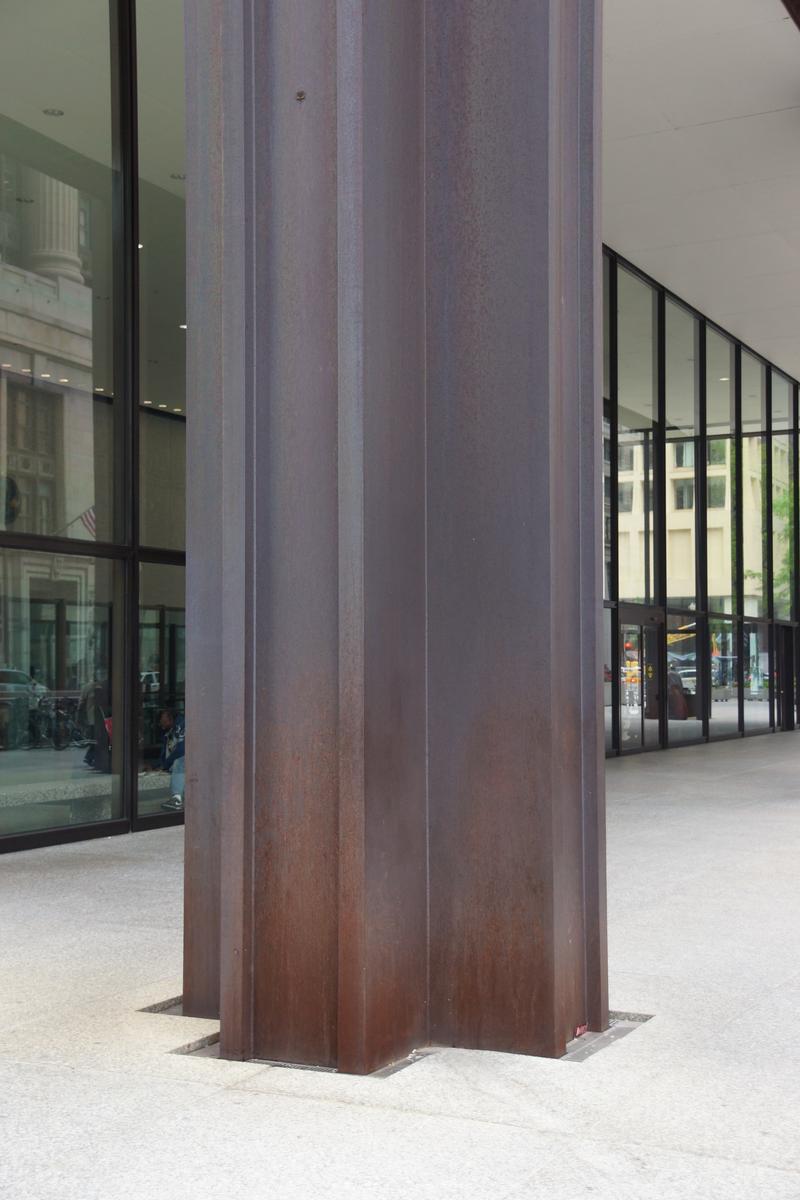

Richard J. Daley Center by C.F Murphy Associates - Sheet8
Richard J. Daley Center, Columns_©Structrnae.net

Conclusion.

“If a man ever reflected a city, it was Richard J. Daley and Chicago. In some ways, he was this town at its best—strong, hard-driving, working feverishly, pushing, building, driven by ambitions so big they seemed Texas-boastful. In other ways, he was this city at its worst—arrogant, crude, conniving, ruthless, suspicious, and intolerant. He was raucous, sentimental, hot-tempered, practical, simple, devious, big, and powerful. This is, after all, Chicago” (Royko 1988:5).

The same could be said for the Ricard J. Daley centre, built in the previous mayor of Chicago’s memory. The building is one of Chicago’s best even years after its construction – it’s strong, powerful, practical, and boastful. It strives to achieve sustainability and get into the future with its movements and practices but also withholds its position in society, representing and commemorating Chicago in its glory years. This a reminder to move towards the title even in the future.

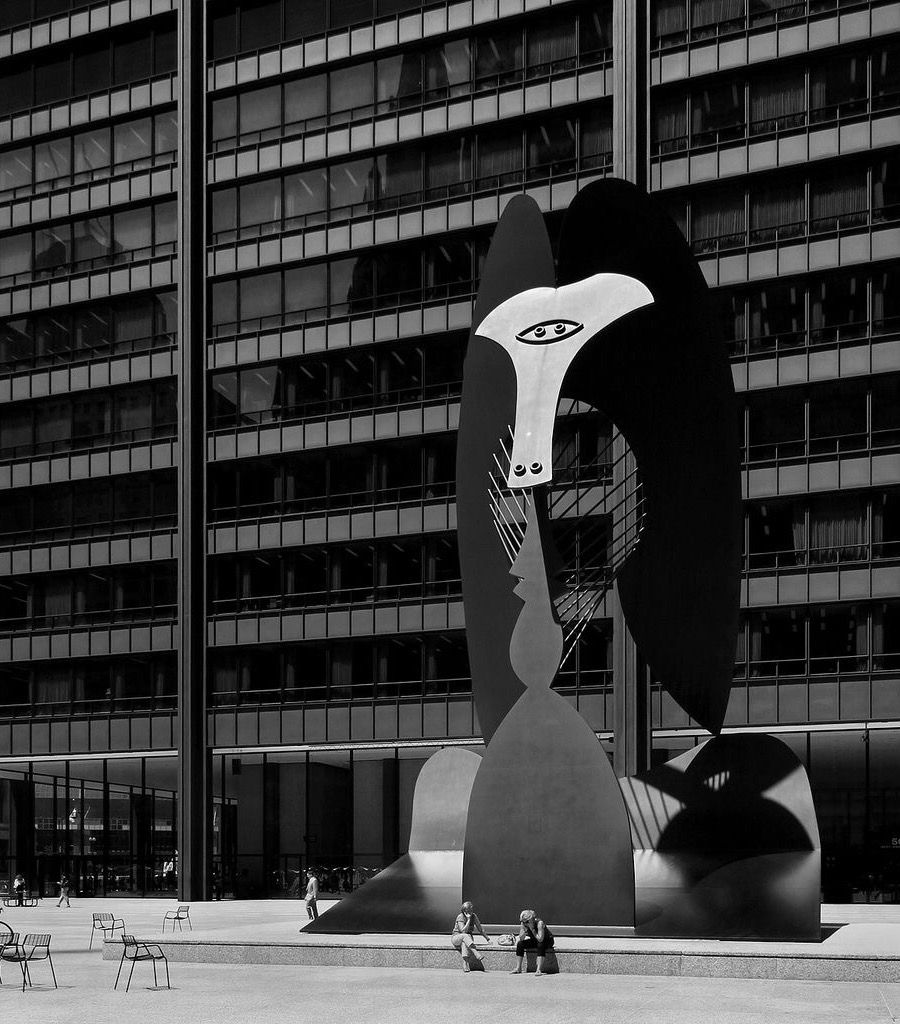

Richard J. Daley Center by C.F Murphy Associates - Sheet9
Richard J. Daley Center, The Picasso_©Skyscraper.com

Citations :

Chicago Architecture Center (2022). Richard J. Daley Center. [online]. Available at: https://www.architecture.org/learn/resources/buildings-of-chicago/building/richard-j-daley-center/ [Accessed date: 19/11/2022].

Usgbc.org (2022). The Richard J. Daley center recertification. [online].Available at: https://www.usgbc.org/projects/richard-j-daley-center [Accessed date: 19/11/2022].

Architectural Digest. (2022). Architect Breaks Down the Evolution Of Batman’s Wayne Manor. [YouTube]. Available at: https://www.youtube.com/watch?v=BJTu6FcDt1I. [Accessed: 20/ 11/ 2022].
