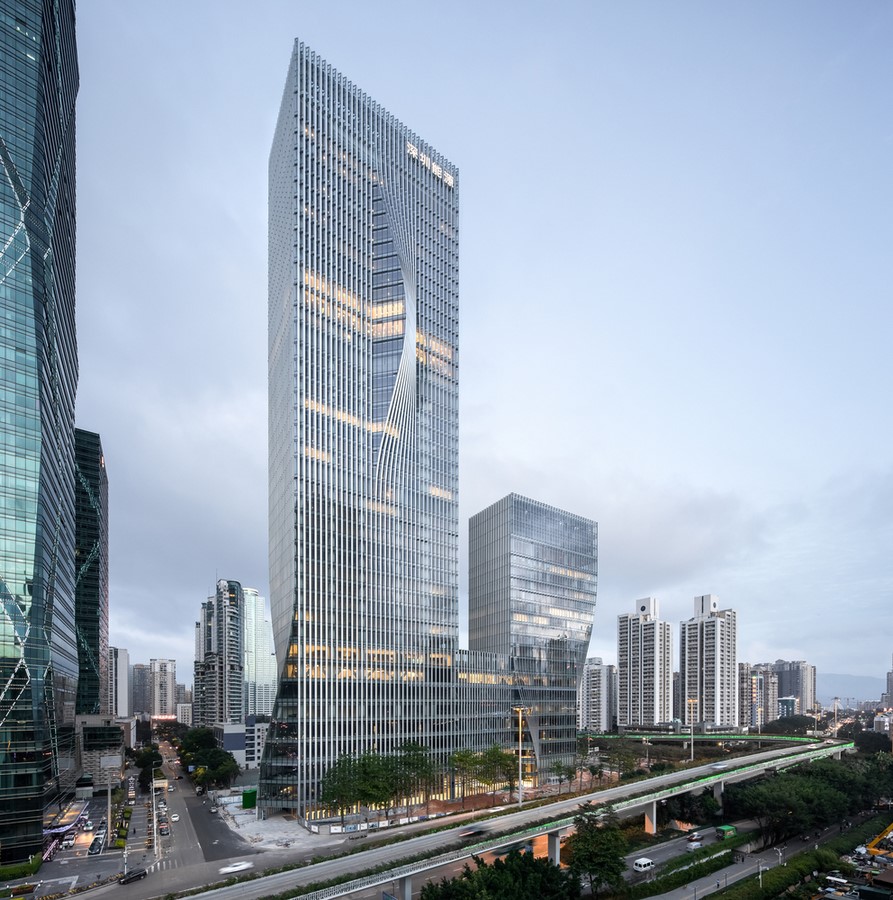

Shenzhen Energy Mansion is designed for a state-owned Shenzhen Energy Company in the downtown area of Shenzhen, China. BIG, Bjarke Ingels Group, won the international design competition in 2009, and construction began in 2012 then completed the construction of the office tower in 2018 with collaborating ARUP, Transsolar, Front. The building covers 96,000 square meters and consists of two towers, rises 240 meters in the north while a 34-meter podium connects 120 meters height tower in the south with the north tower.

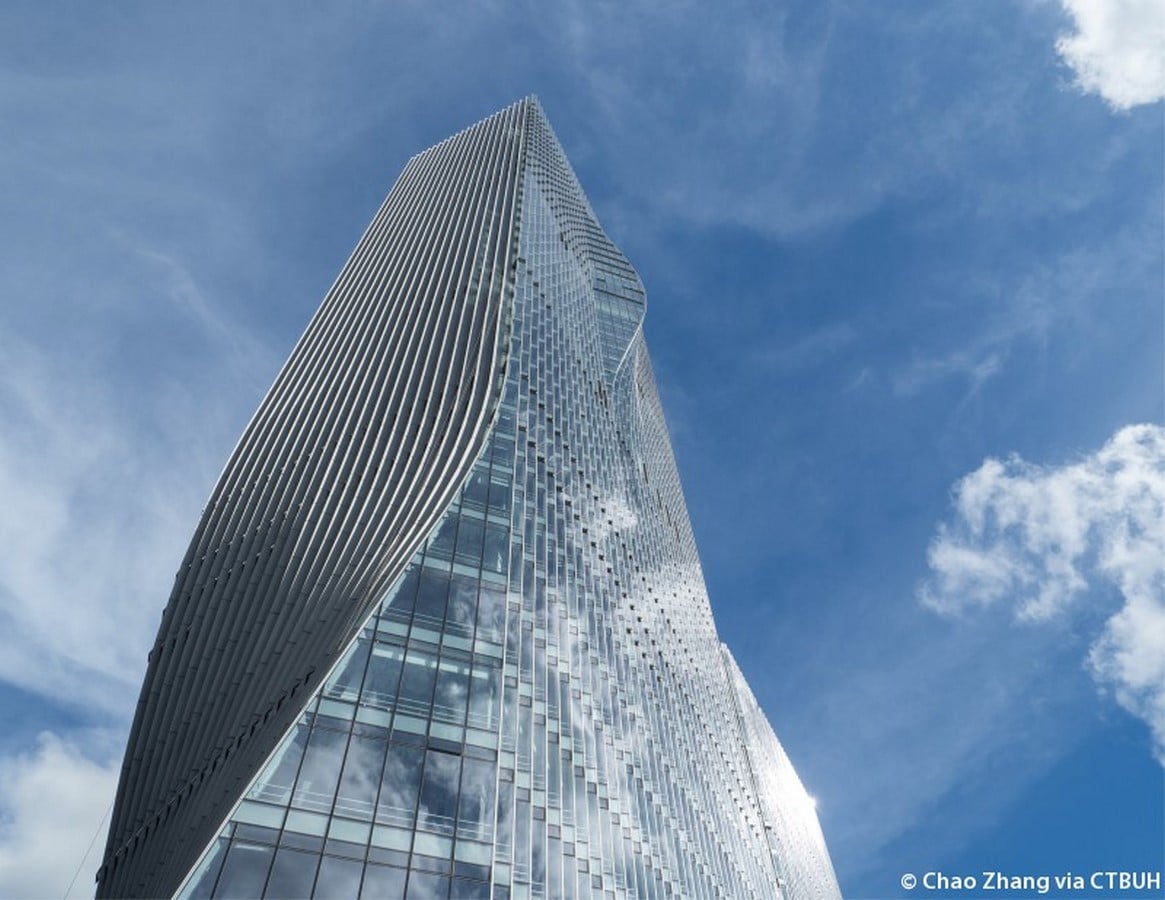

Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet1

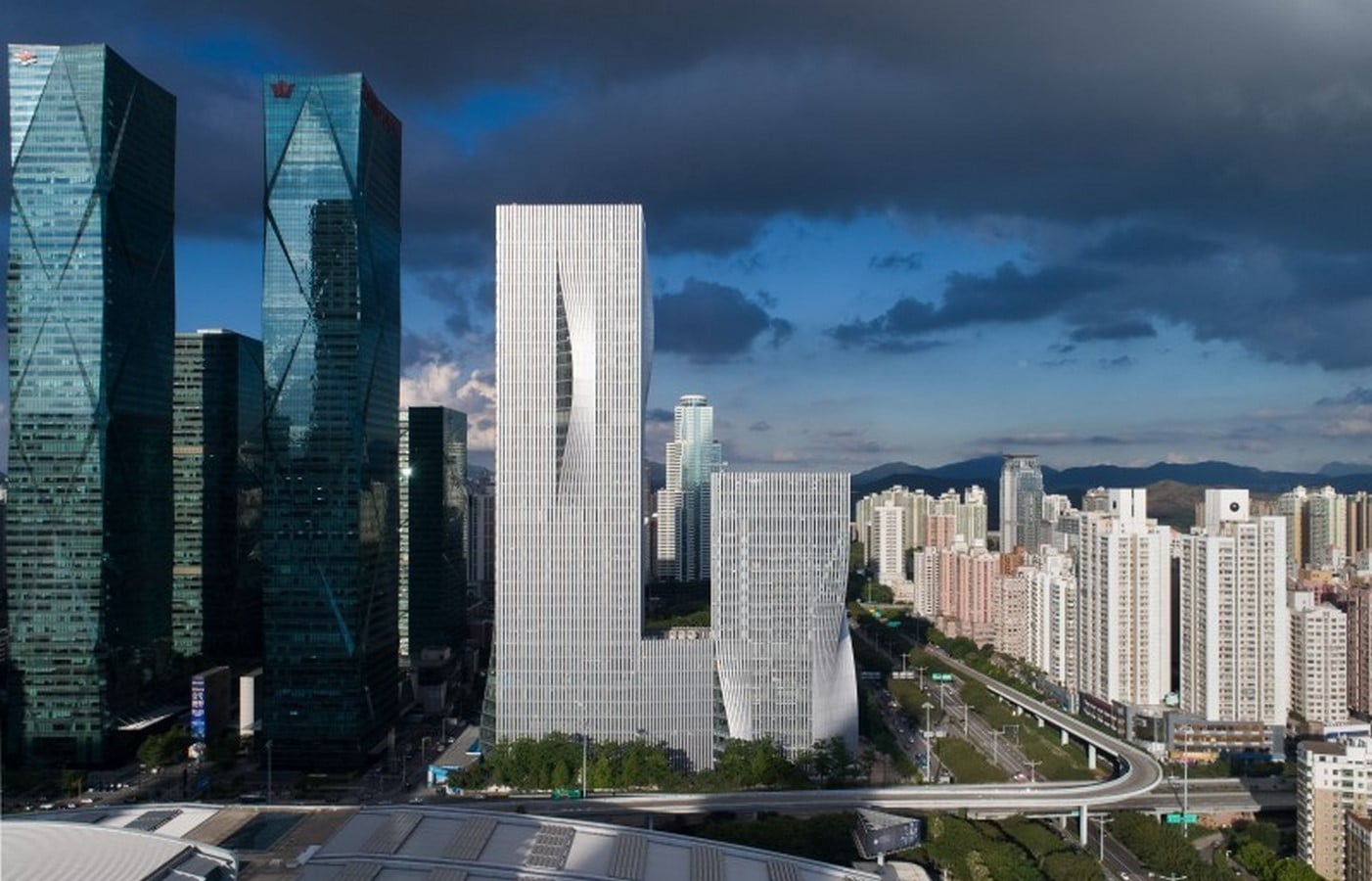

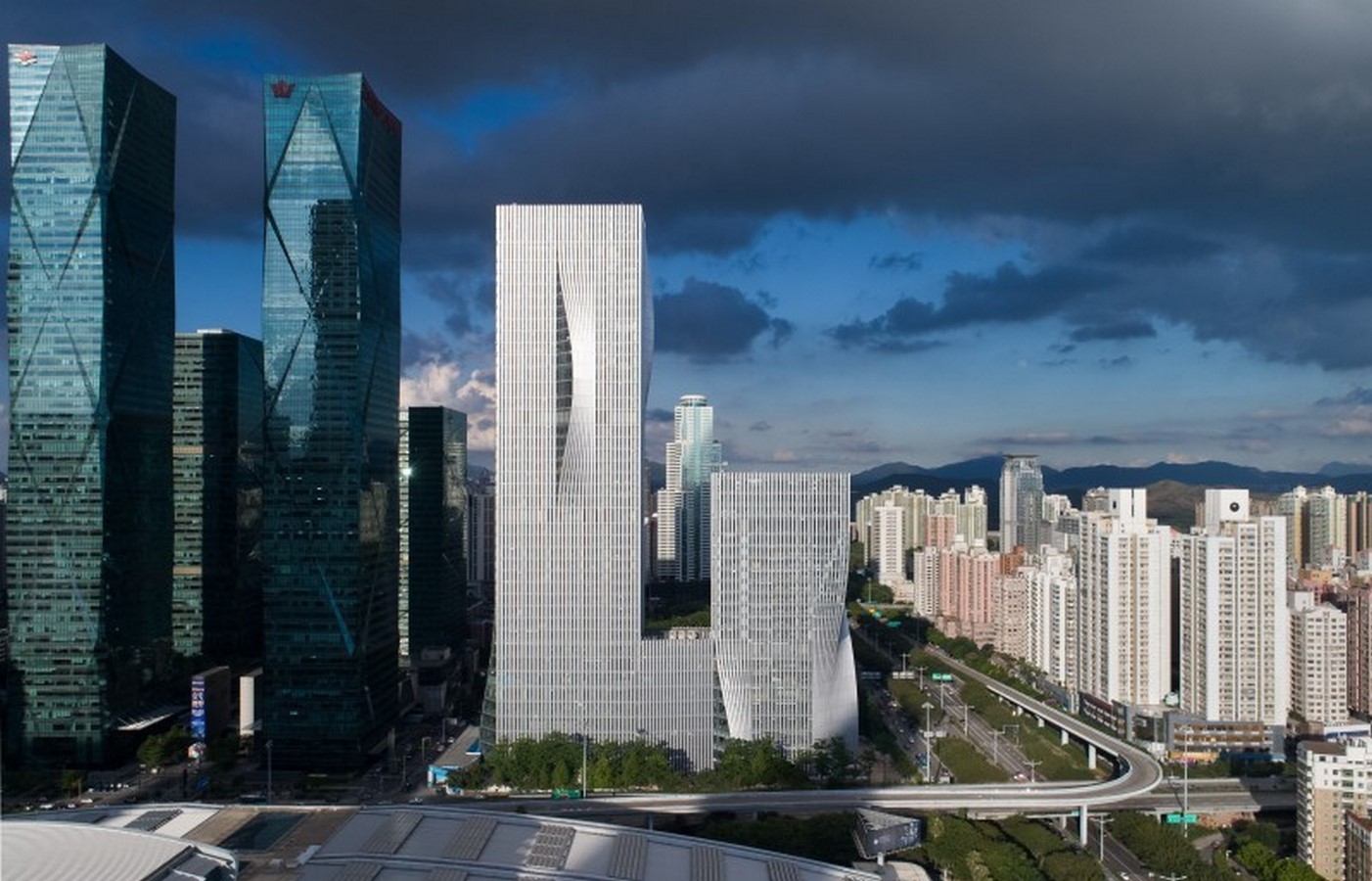

Photo ©Chao Zhang

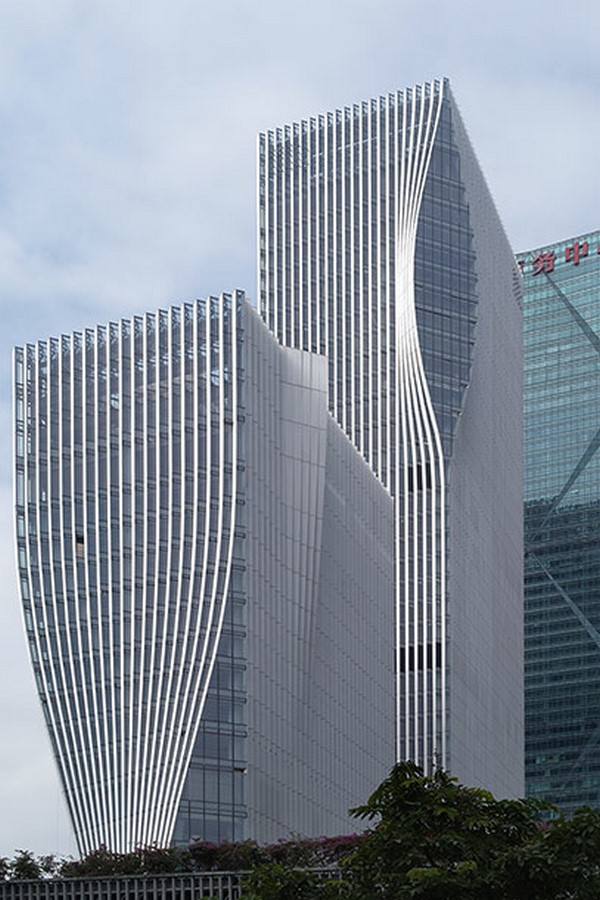

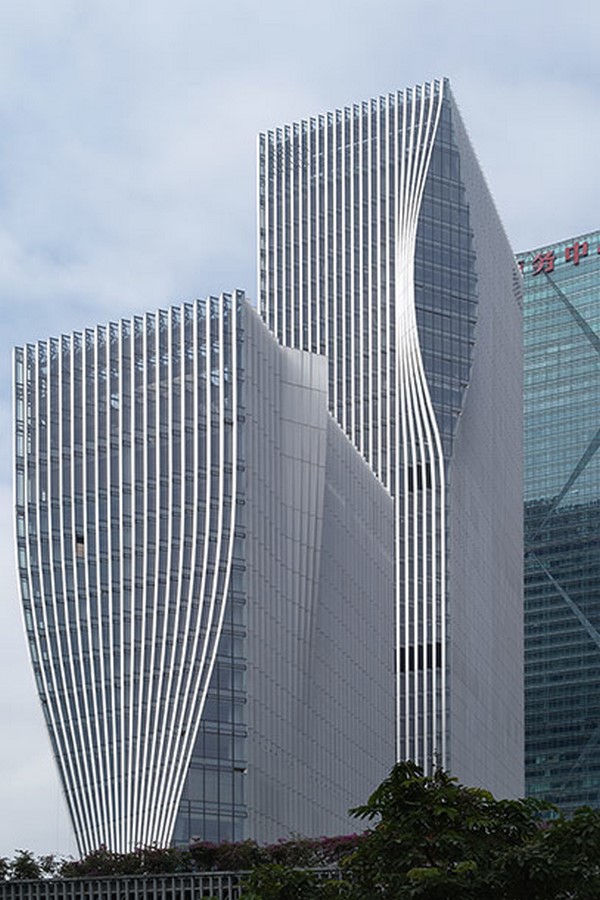

Since 2005 Shenzhen city intends to be an eco-city, and in 2016 it was recognized as one of the most sustainable cities in China besides its spectacular economic and social development. The design competition client was also one of the city’s main power generation companies and known for its renewable energy investments in both domestic and foreign. Under these circumstances, while designing the skyscrapers, BIG set its main philosophy to create an energy-efficient building. To achieve that, they designed a classical glass tower and optimized the building envelope according to solar orientation. They diminished opening on sunny sides; thus, the building was not exposed to much sunlight, and enlarged on the north faced openings to benefit from natural light and provide nice views. The building differs from the classical glass-faced skyscrapers with these fluctuating curtain walls, and that appears as an organic pattern from a distance and pleated structure from close.

Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet2
Photo ©Chao Zhang

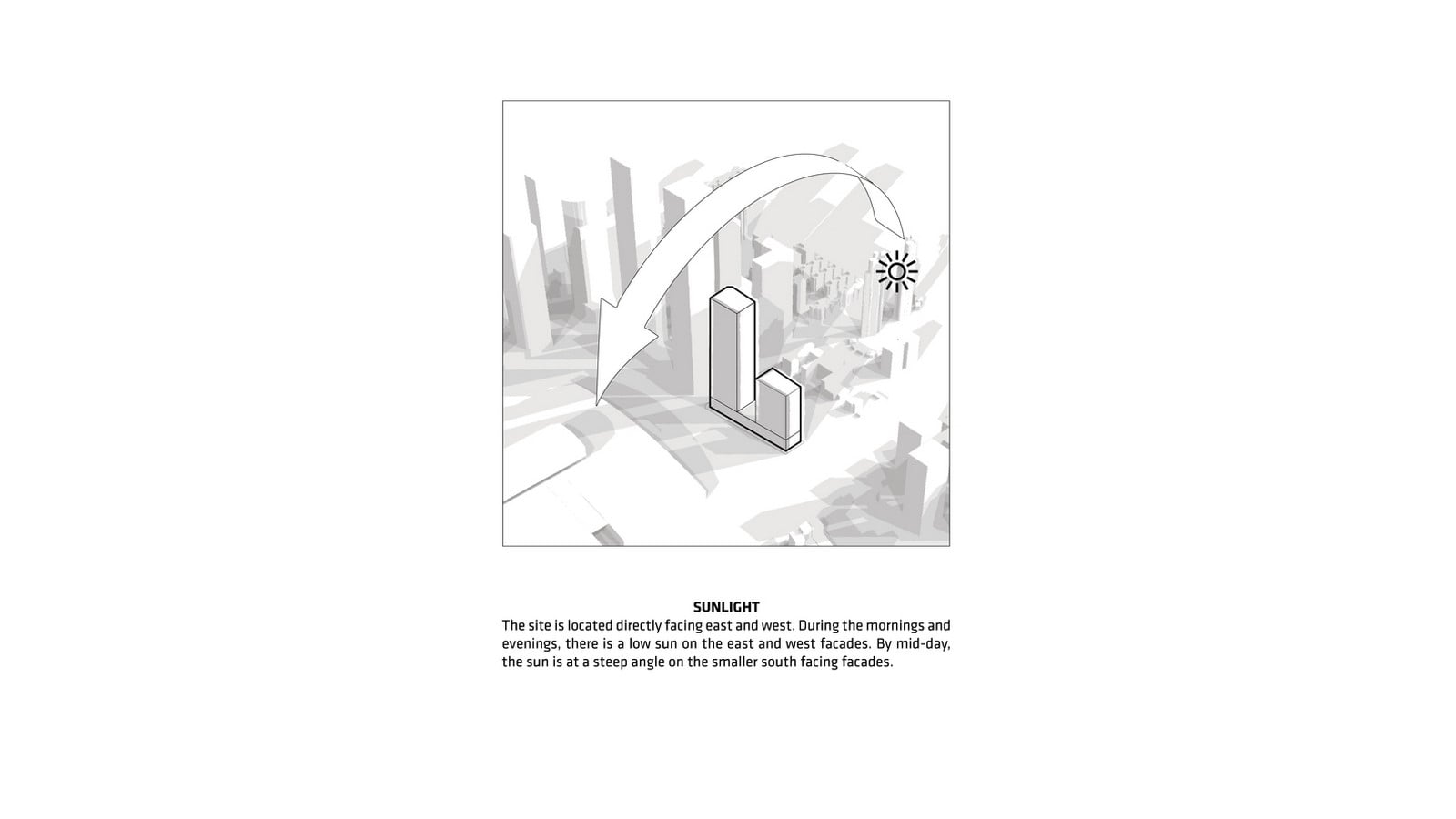

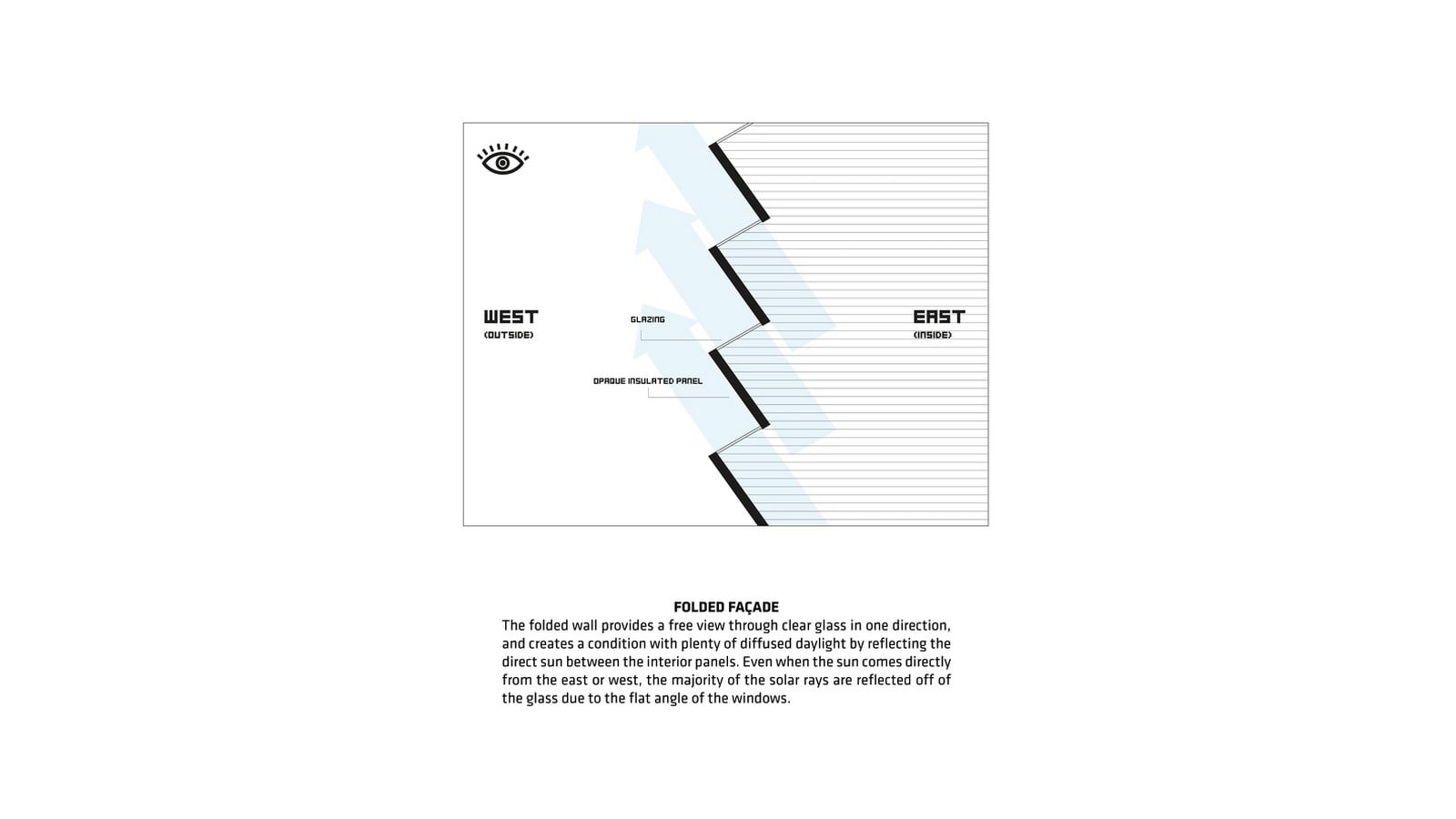

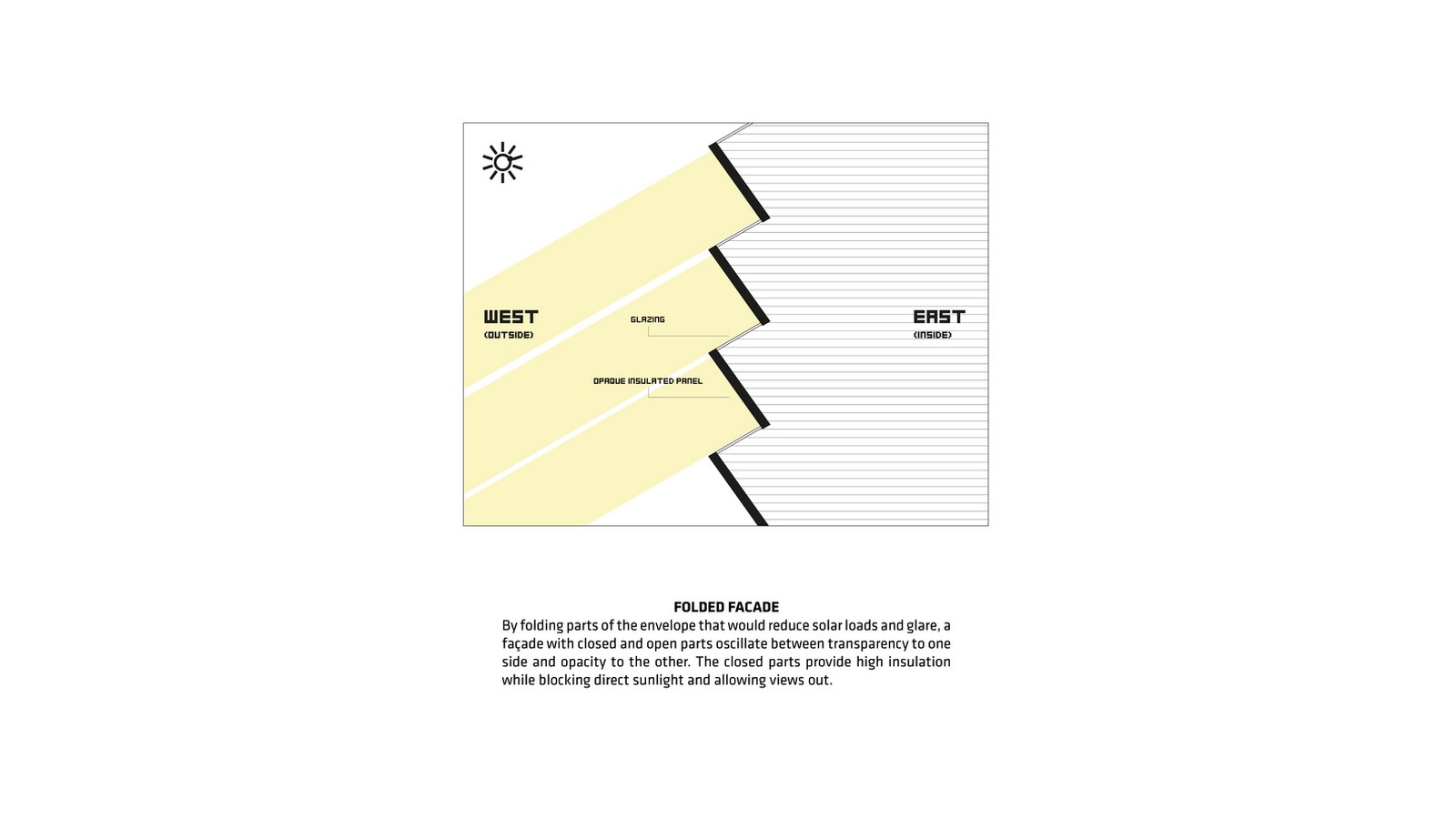

The site is located facing east and west; hence, the building is exposed to excessive heat gain in the mornings and late afternoons, and during the noon, the sun reaches inside the tower at a steep angle. Therefore, much consumption of air conditioning is needed. Thanks to folded facade design, excessive sunlight is prevented by opaque insulated elements, and with transparency, the view is not blocked completely when there is no direct sun. Also, facade orientation served to keep moisture out and benefit more from the wind.

Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet3

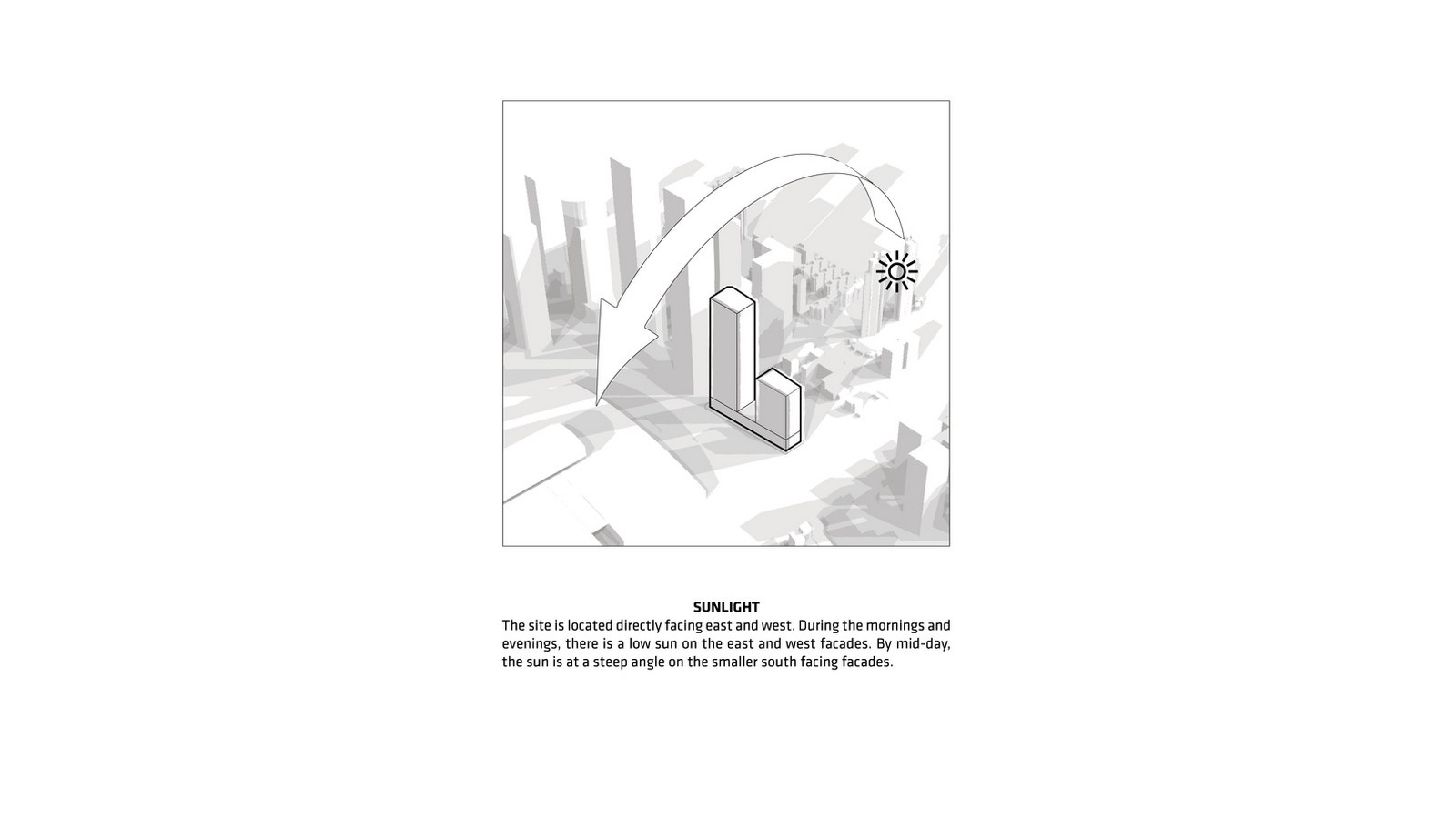

Image courtesy Bjarke Ingels Group

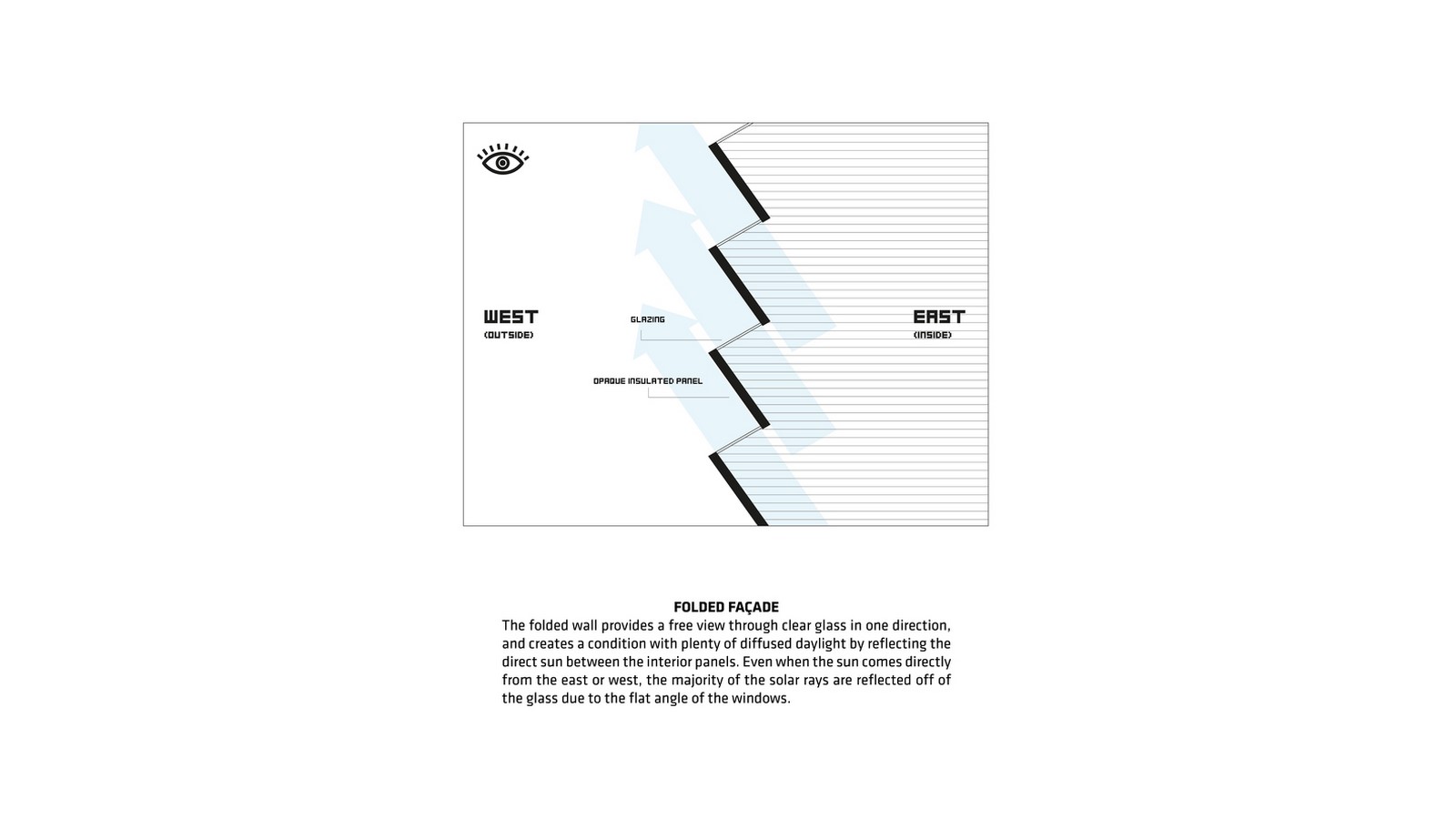

Even though the client was a firm that invests in high technologies that contribute to energy efficiency, facade design serves as a passive solar strategy and decreases energy consumption by eschewing expensive technology equipment. Therefore, Bjarke Ingels, Founding Partner of BIG, defines the design as an example of “engineering without engines” and urges upon that they aimed to solve the problems with passive systems because it is less costly.

Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet4
Image courtesy Bjarke Ingels Group
Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet5

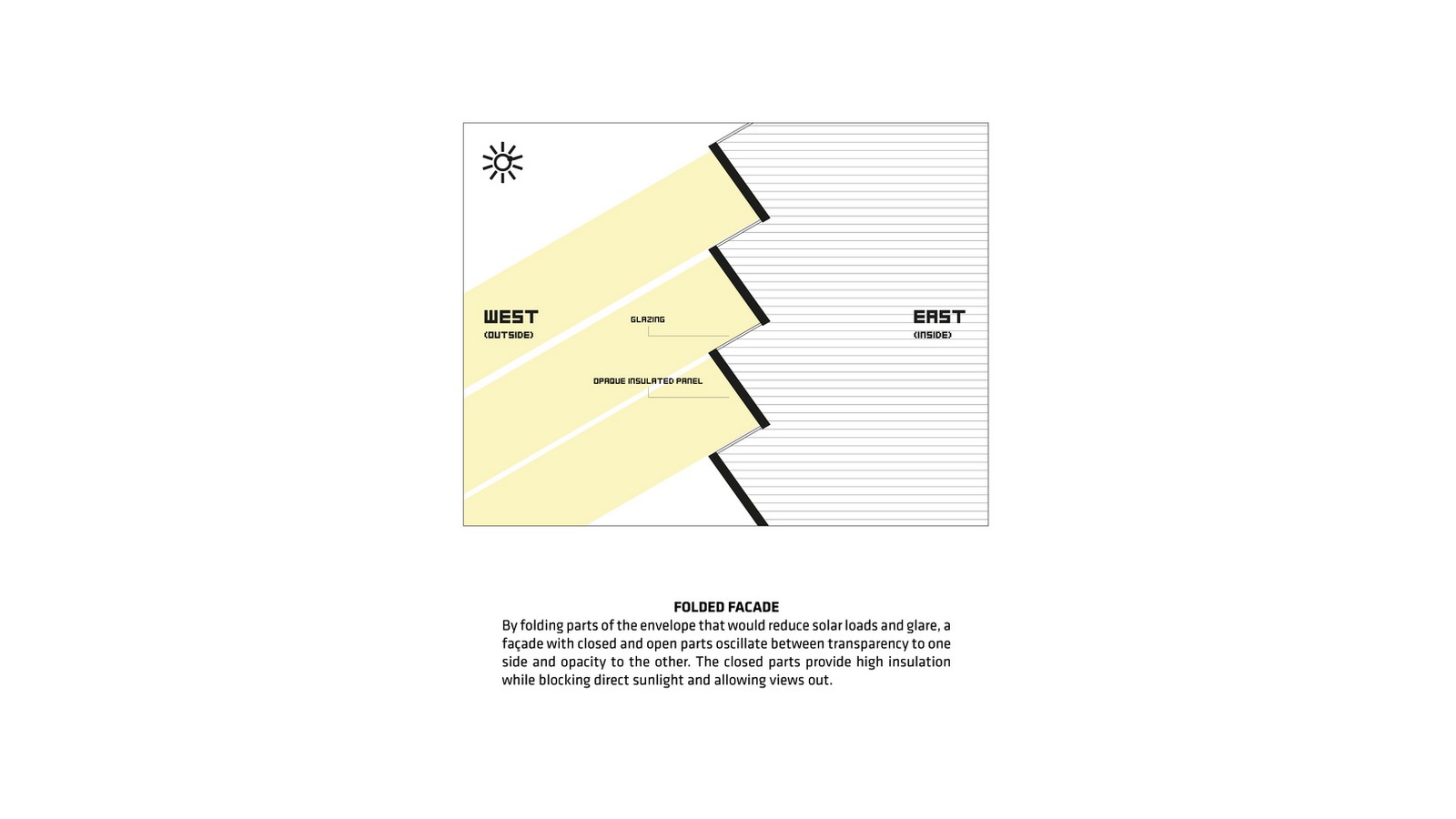

Image courtesy Bjarke Ingels Group

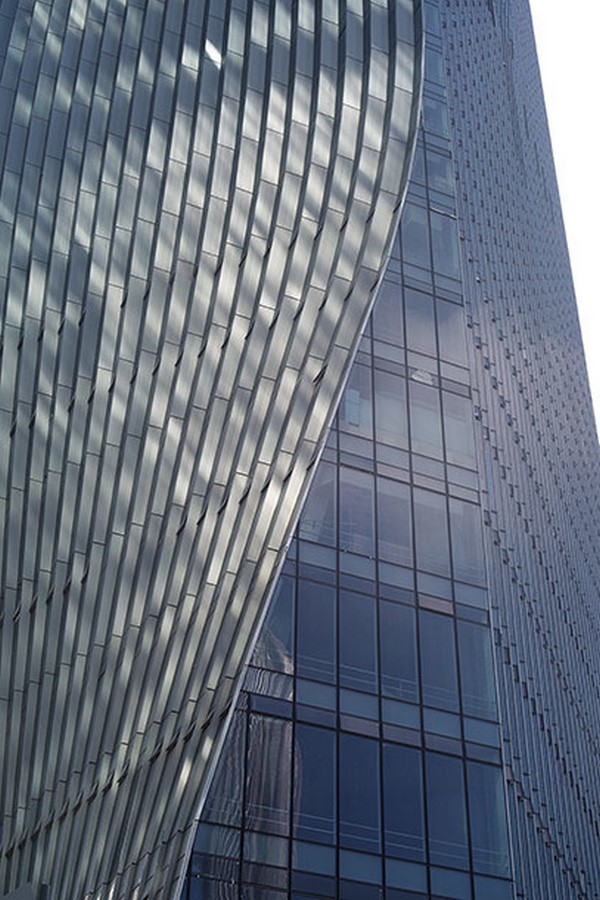

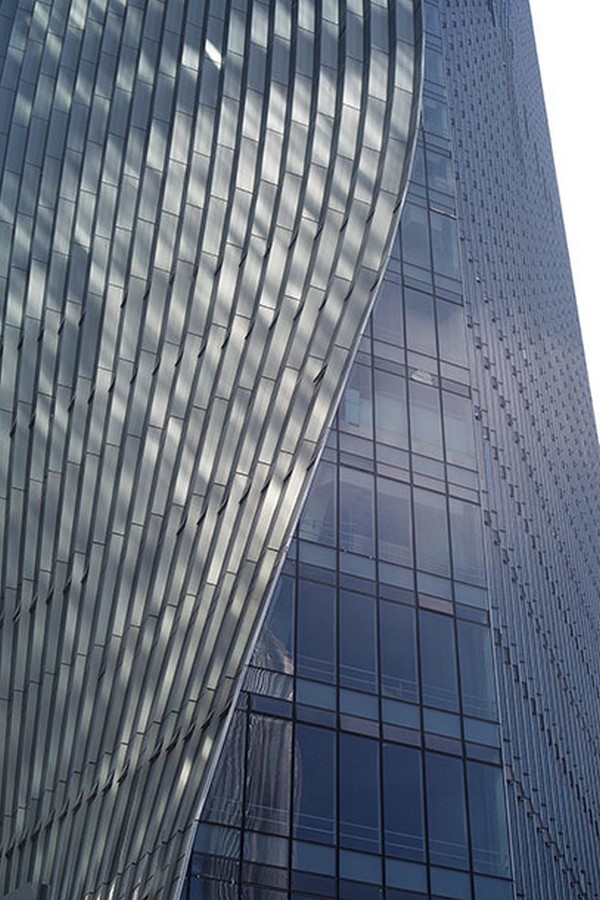

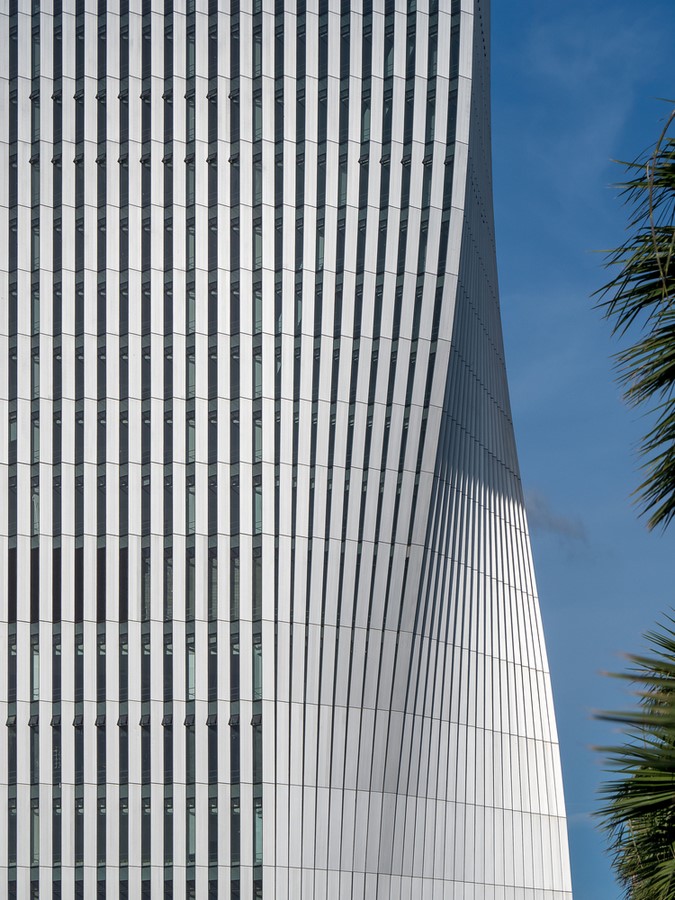

Rippled skin that surrounds the towers creates a classical view, and the geometry nonetheless, fluctuations on the building surface, contributes to the view on upper floors and at the north and south ends of the towers are recessed to make the entrances more accessible. There are three entrances to the building, and they caused multiple indentations and protrudes on the facade. Thus, that gave the final shape of the building’s envelope.

Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet6
Photo © Chao Zhang
Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet7
Photo ©Julien Lanoo

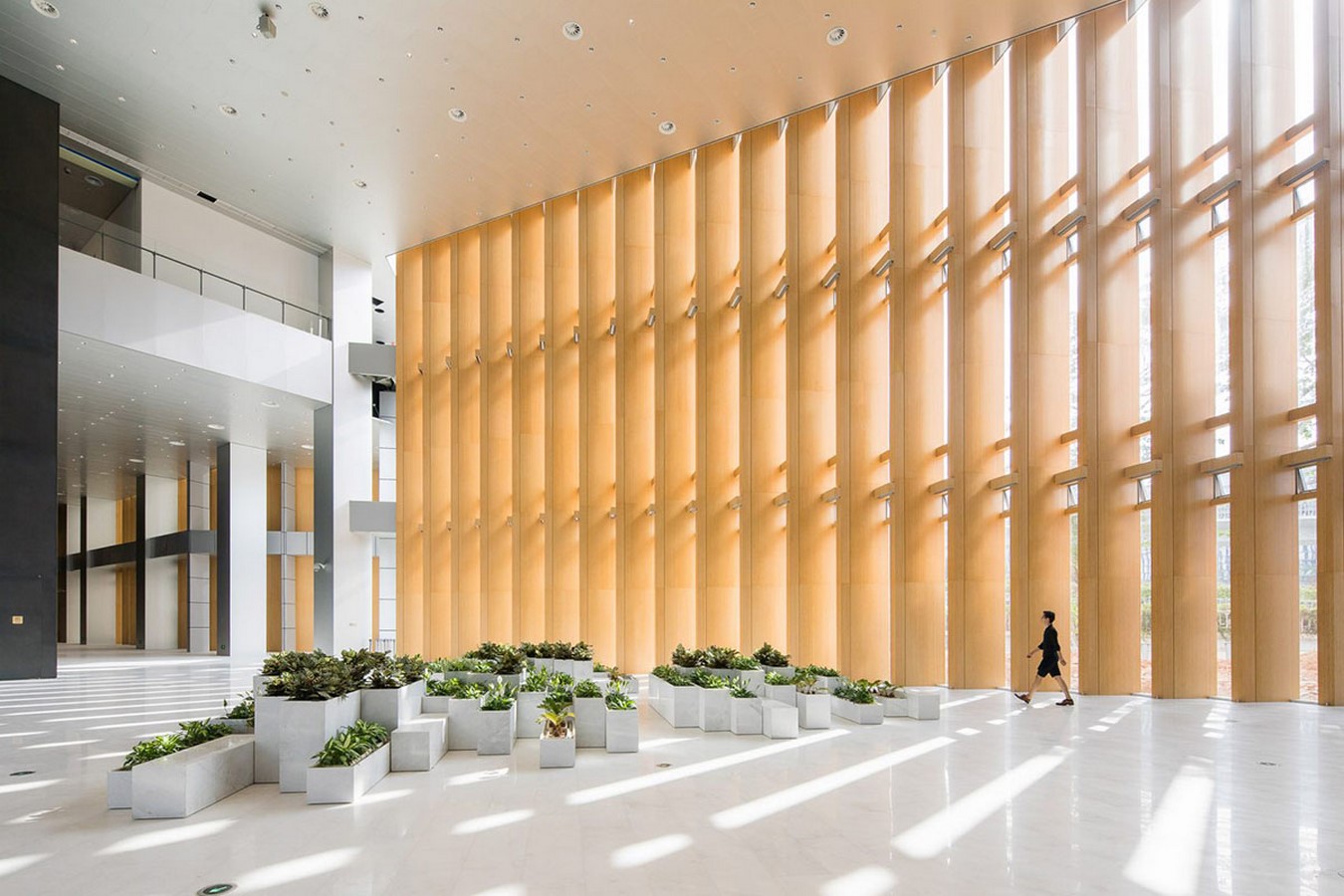

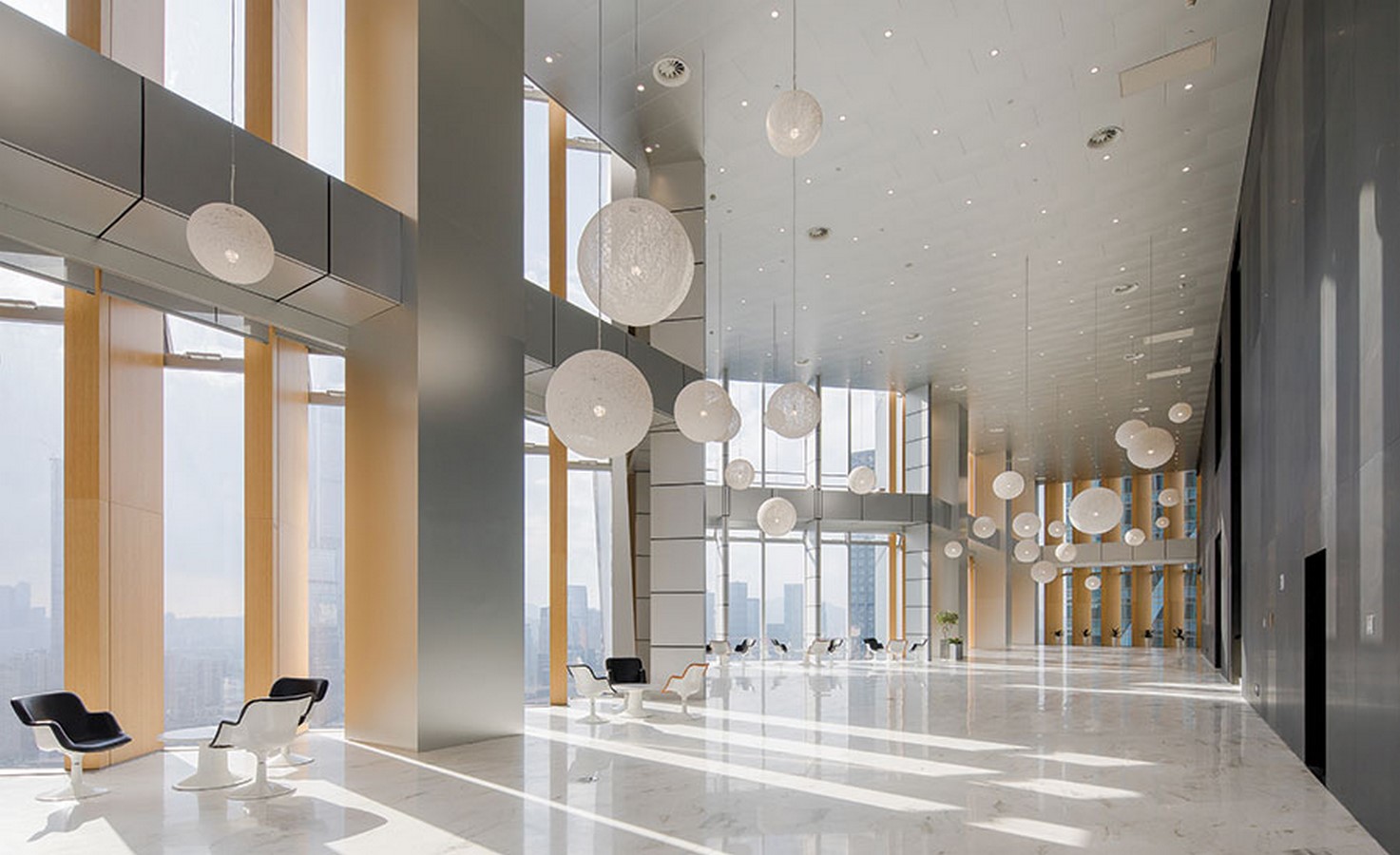

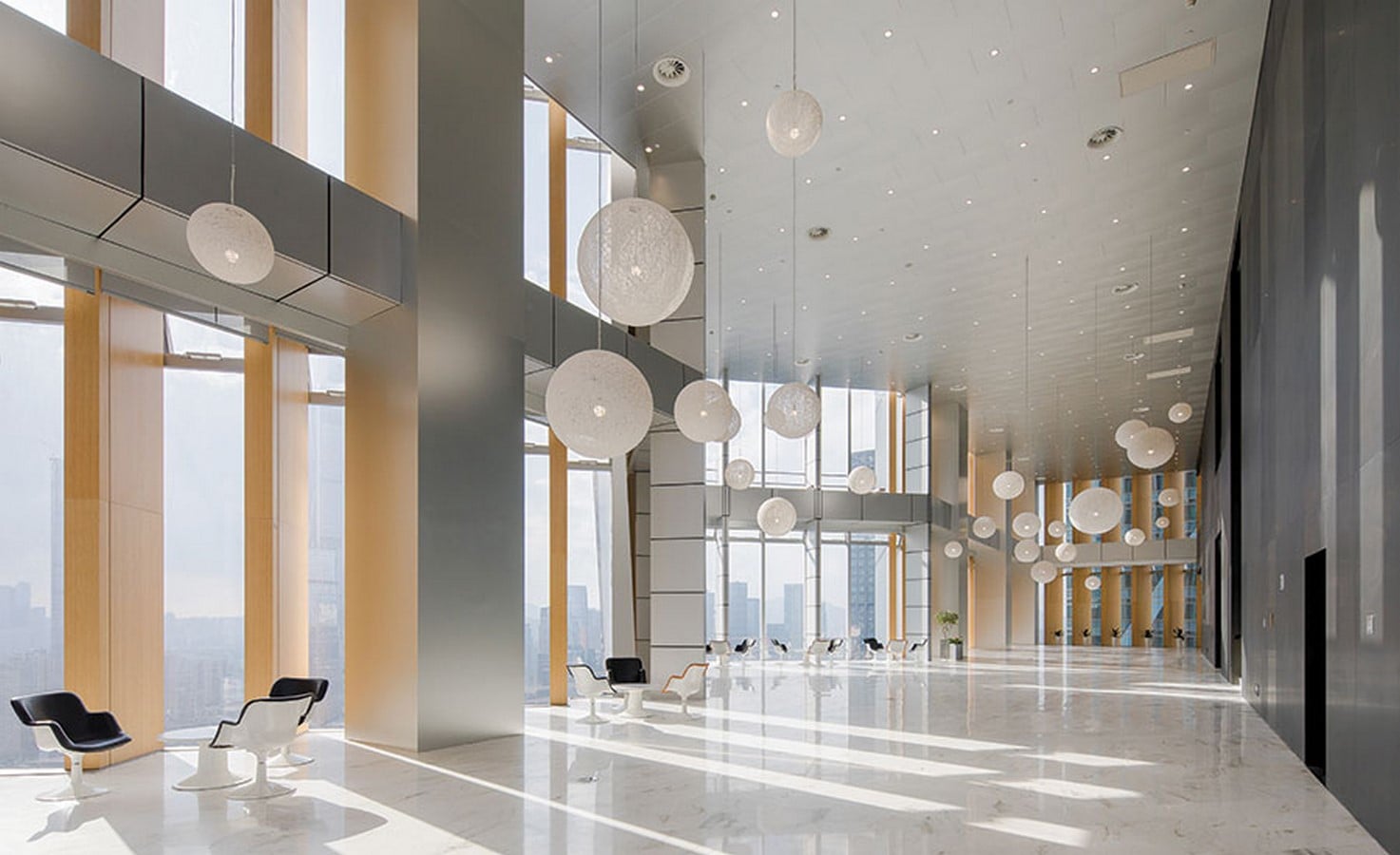

BIG placed the offices on the highest floors for the spatial organization to advance a marvelous city view and keep the rest of the floors as rentable office spaces. The top 13 floors provided a space for the headquarters of the company. Stretched parts on the building facade created extra views on differently functioned rooms. Also, nine-story connecting block and bottom levels of the towers house main lobbies, a conference center, a cafeteria, an exhibition space, and a parking space.

Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet10
Photo © Chao Zhang
Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet11

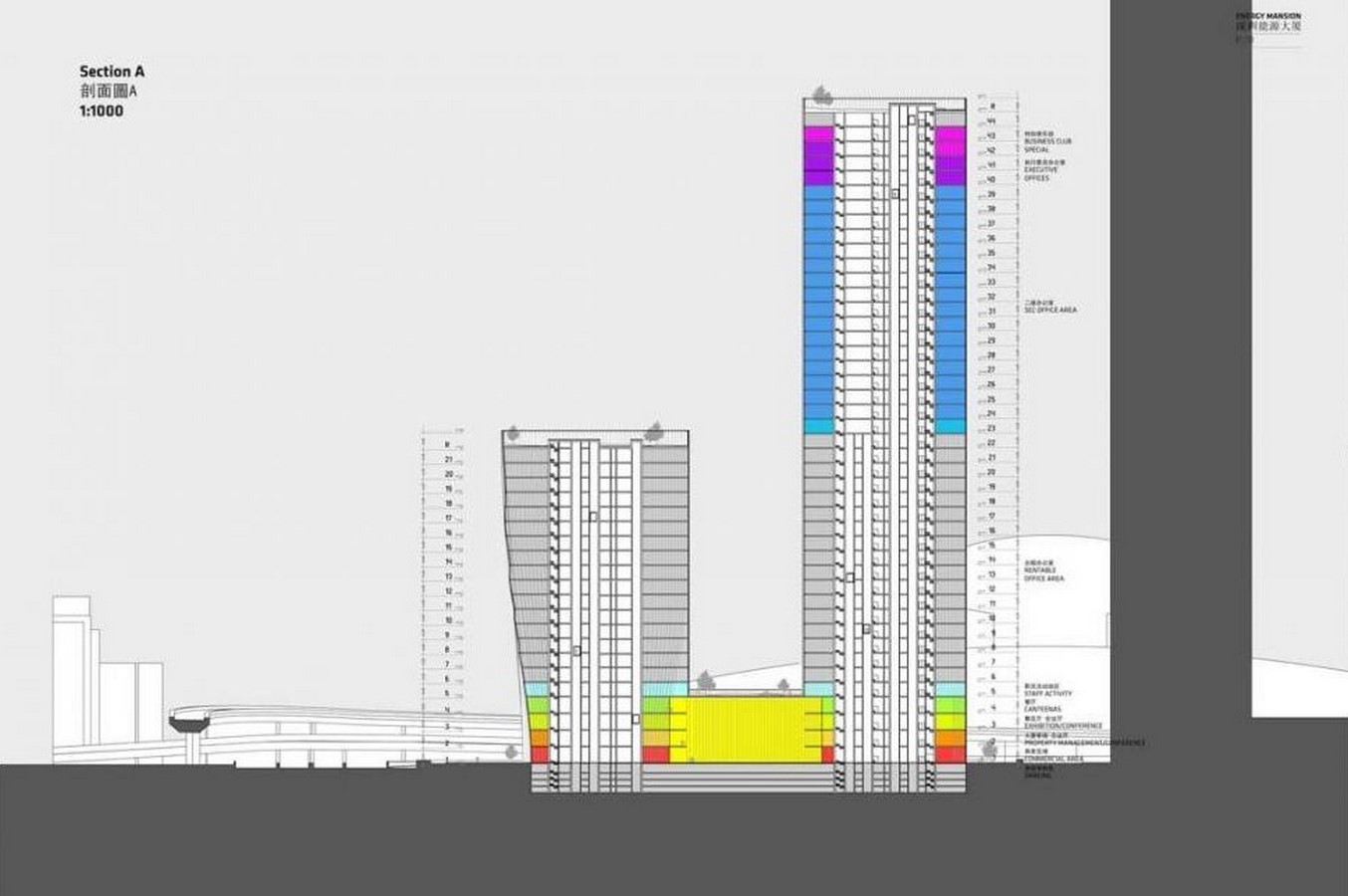

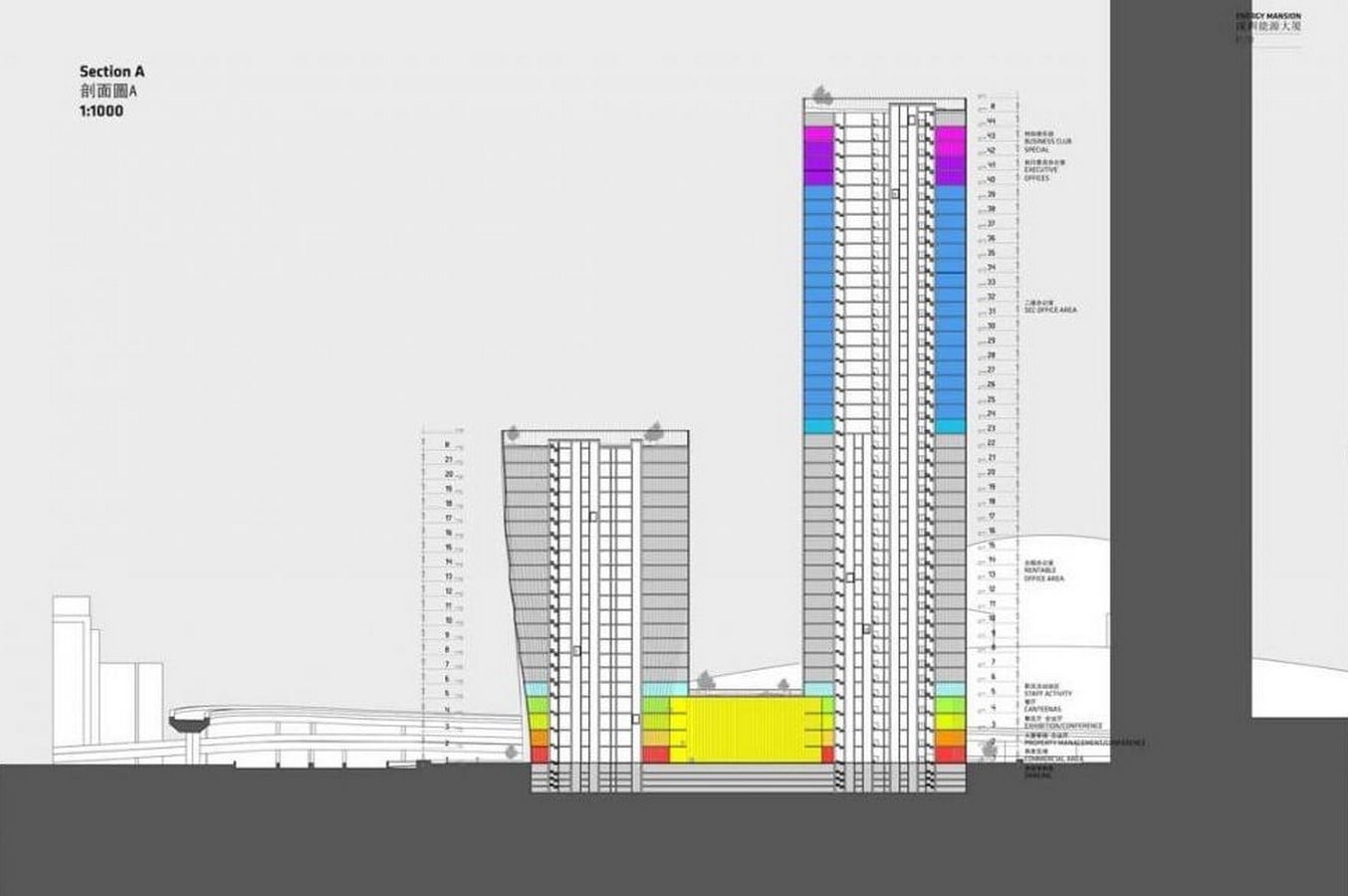

Section- Image courtesy ©2020 Architype Review Inc.

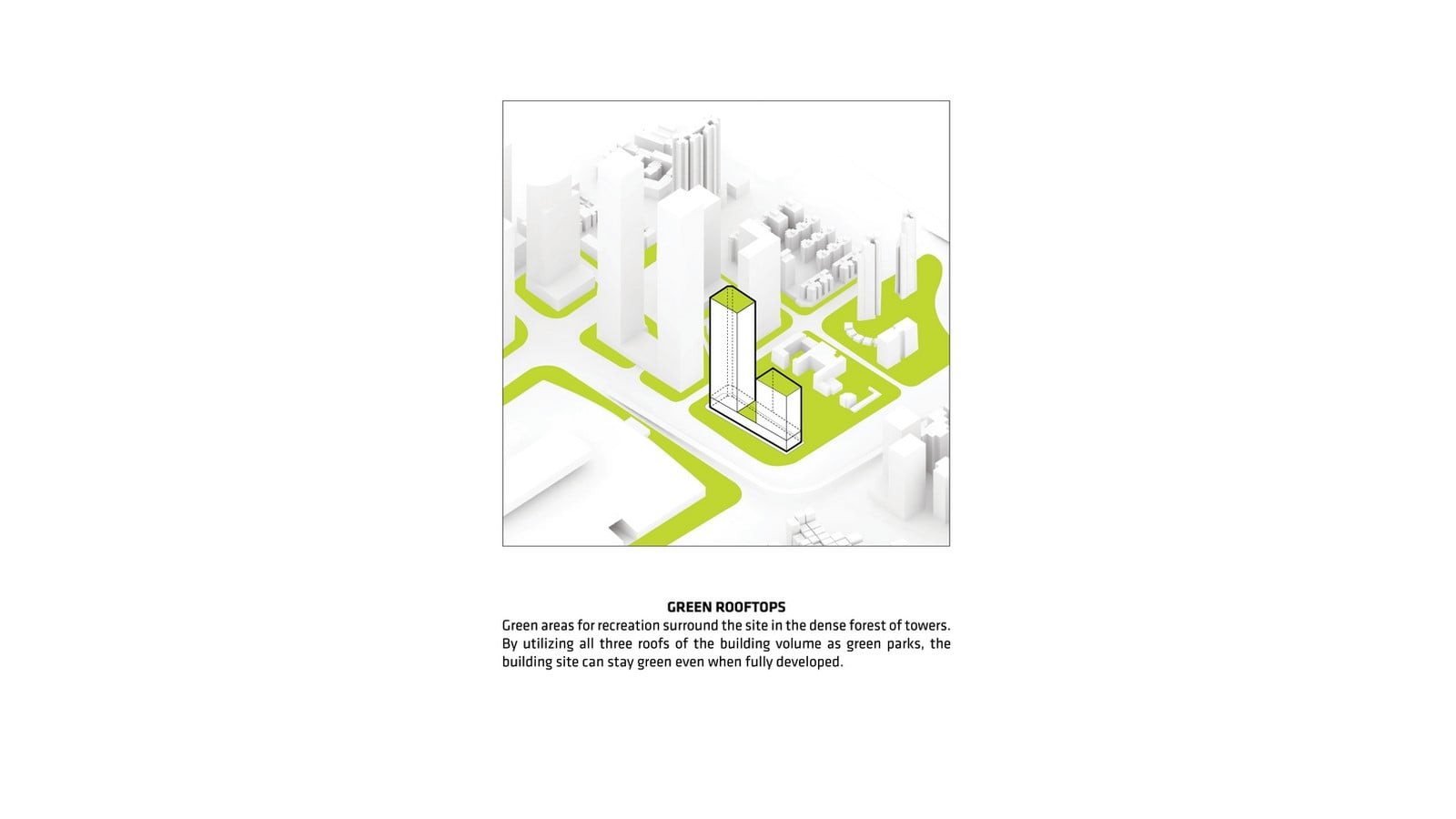

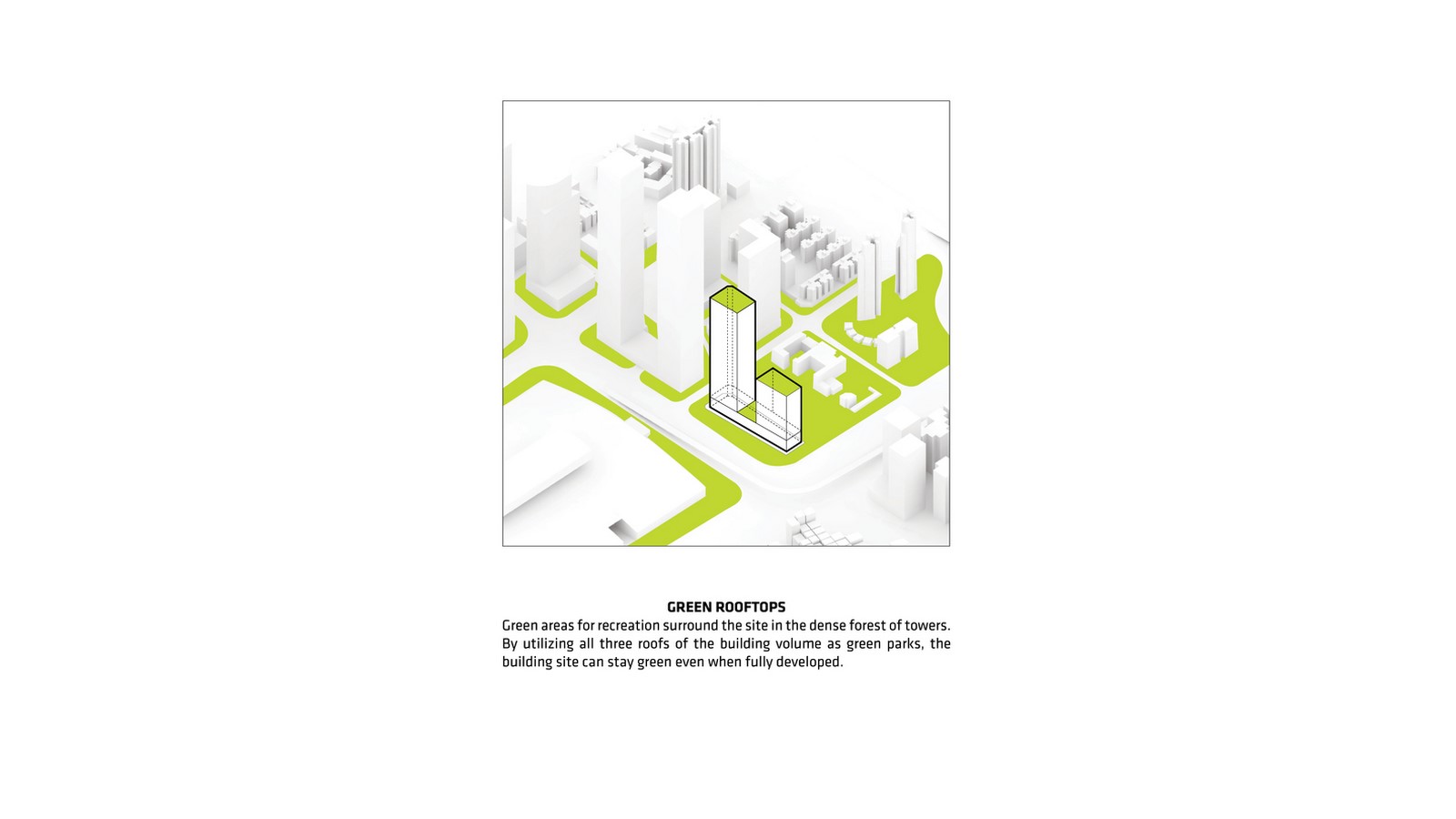

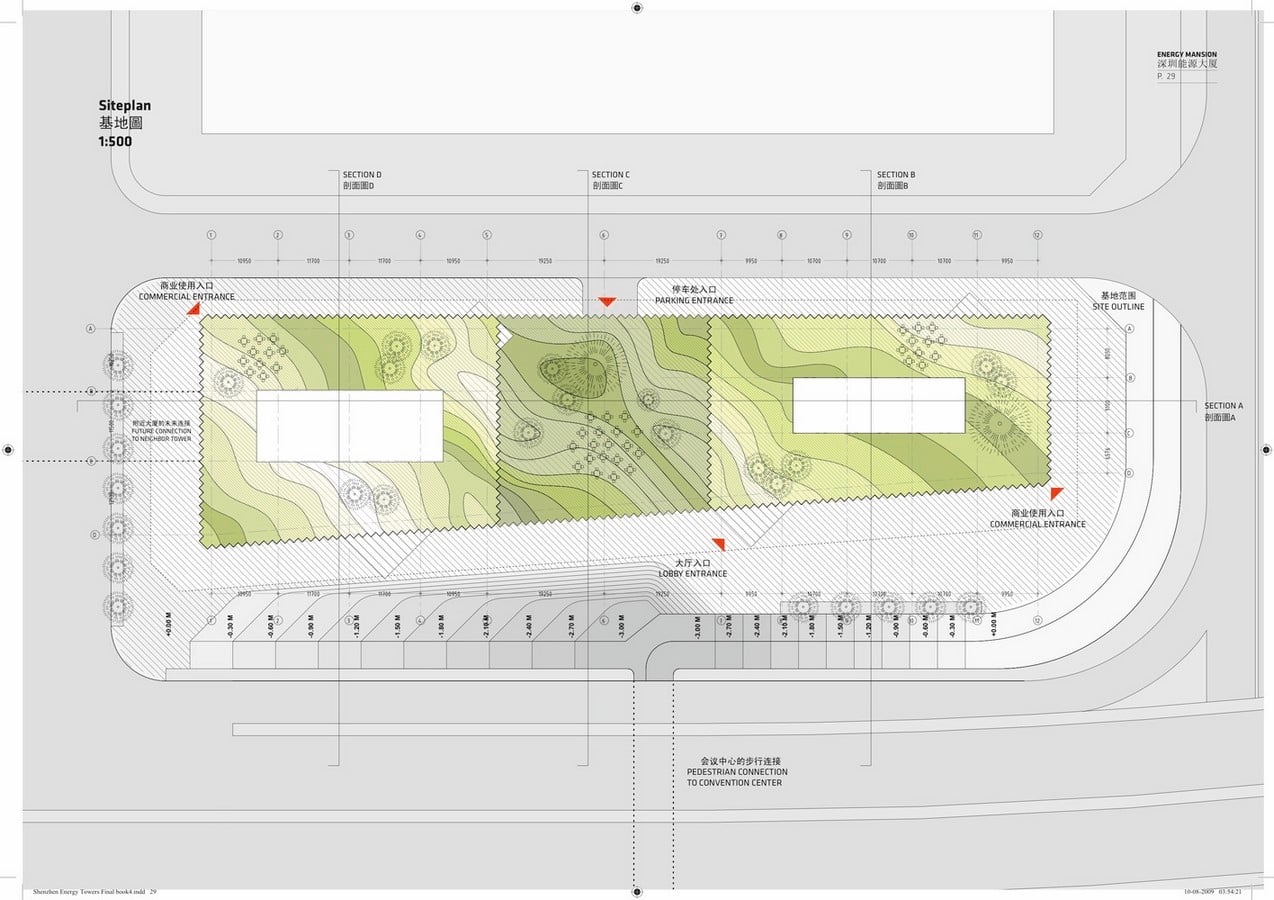

The design intended to utilize the roofs planted areas as a continuation of the green recreation areas surrounding the building, and since the district contains towers and not green parks, Shenzhen Energy Mansion can become prominent for its greenery.

Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet9
Photo ©Julien Lanoo

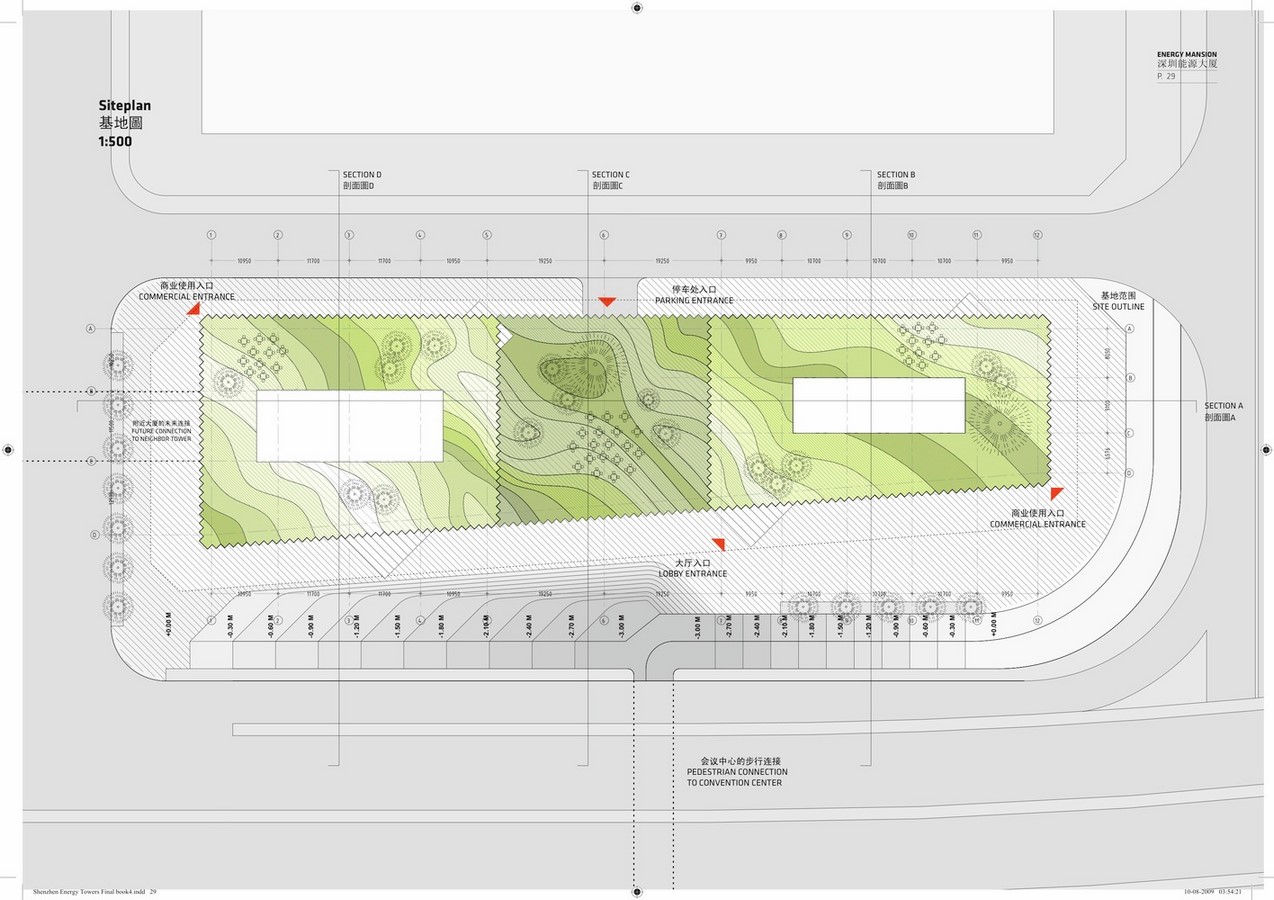

Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet12
Section- Image courtesy ©2020 Architype Review Inc.

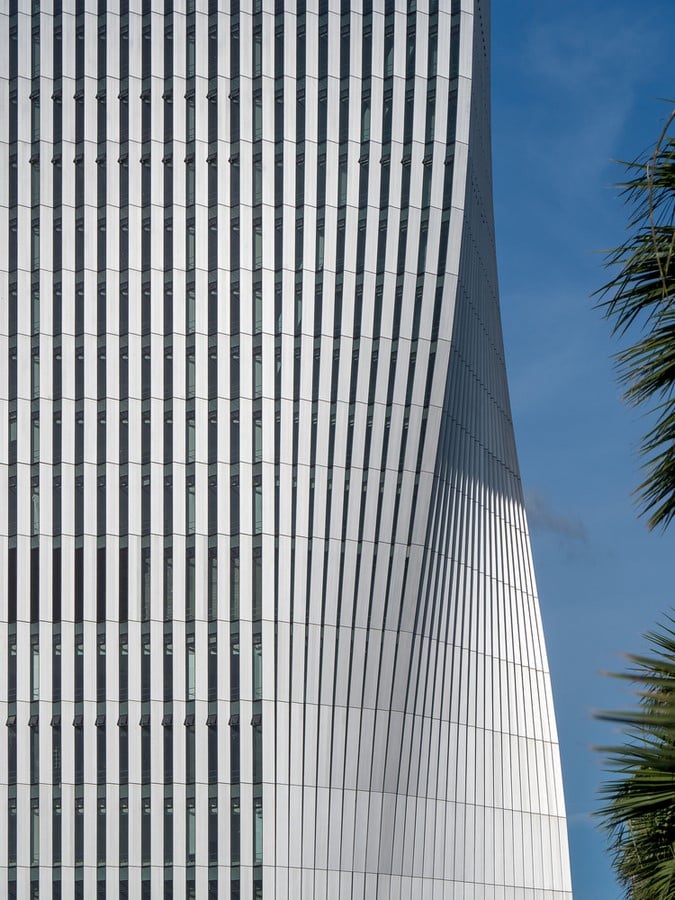

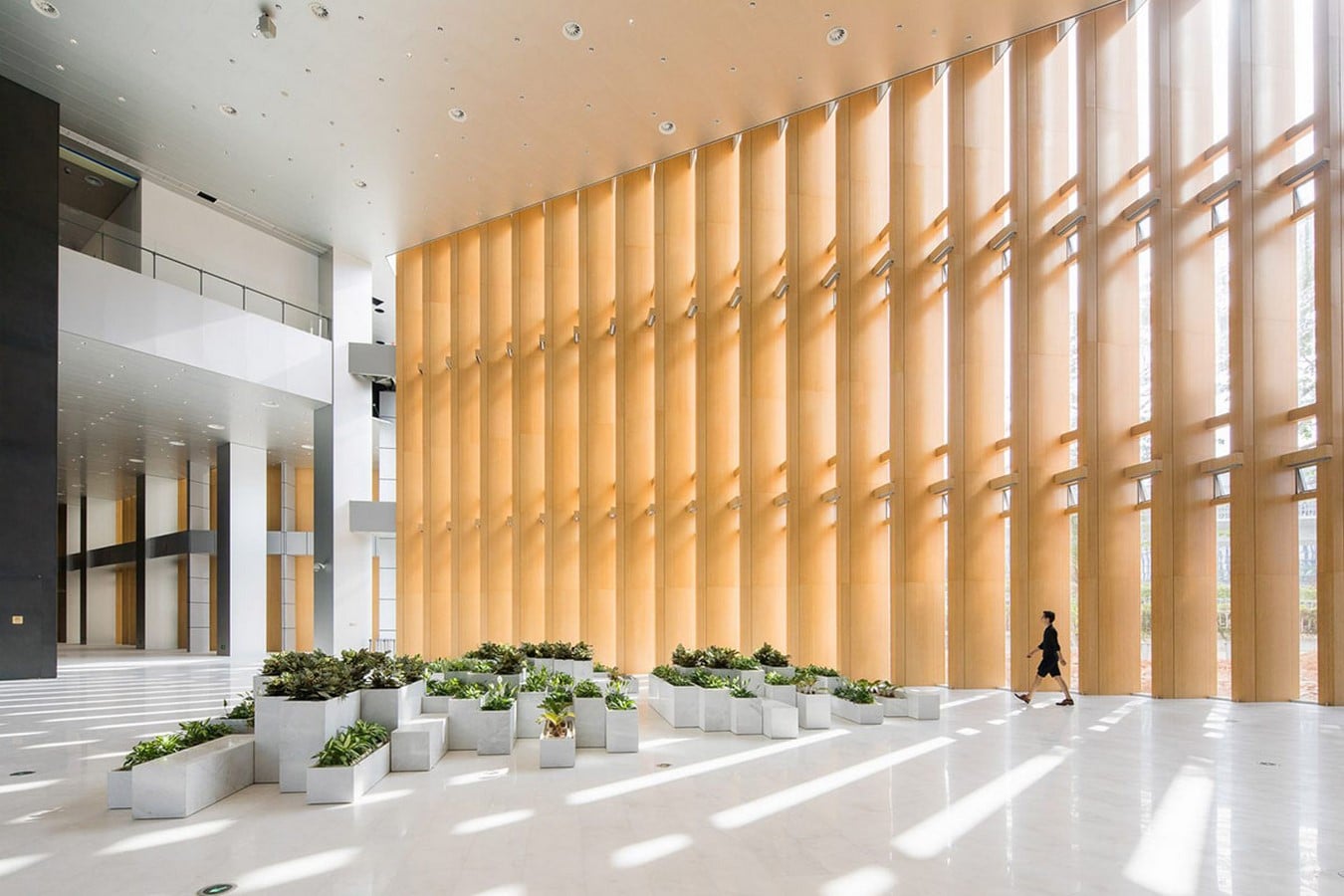

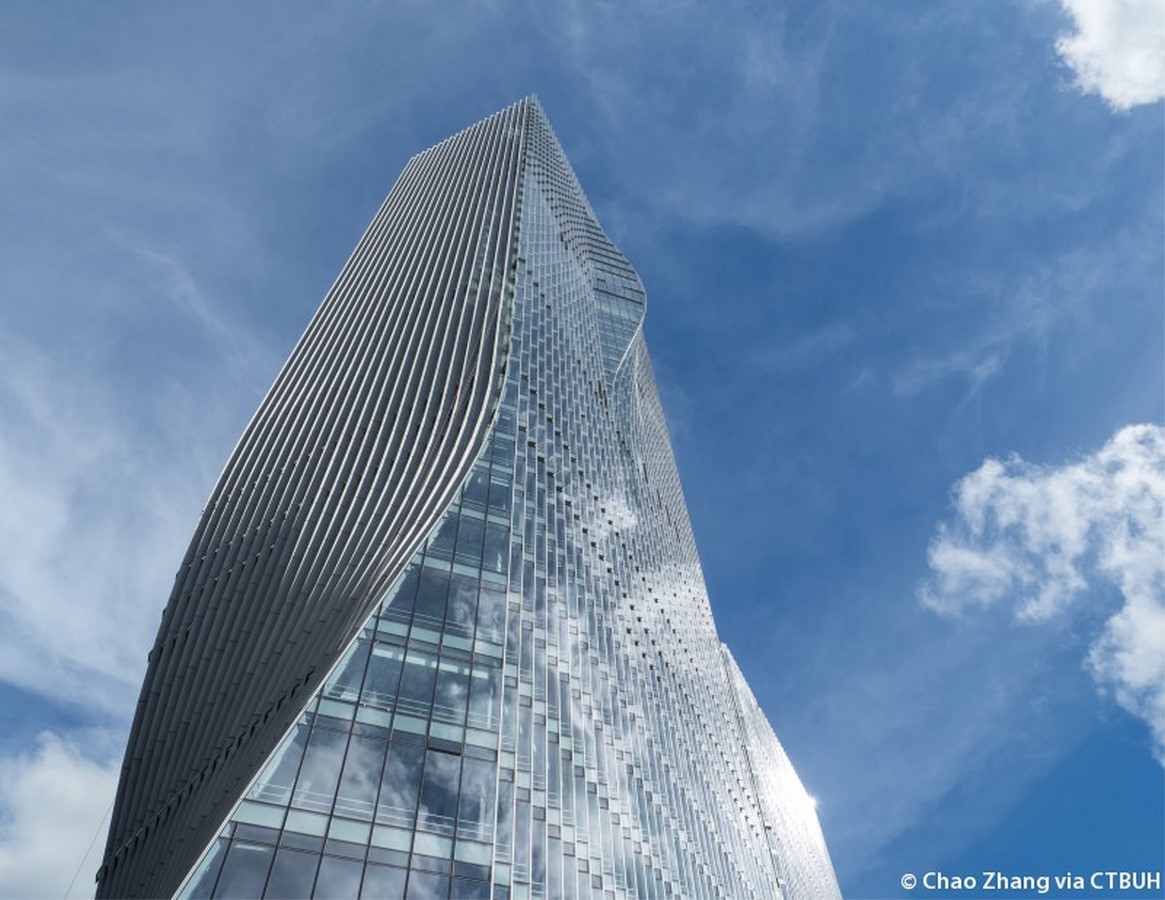

The curtain wall’s main material is powder-coated (PVDF) aluminum, and for the large windows, double-glazed panes of low-E tempered glass angled at 45 degrees in the plane. However, after the sun goes down, the texture resembles the wood or vertically terraced hills due to the building’s changing transparency and curved surfaces.

Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet13
Photo © Chao Zhang
Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet14
Photo © Chao Zhang

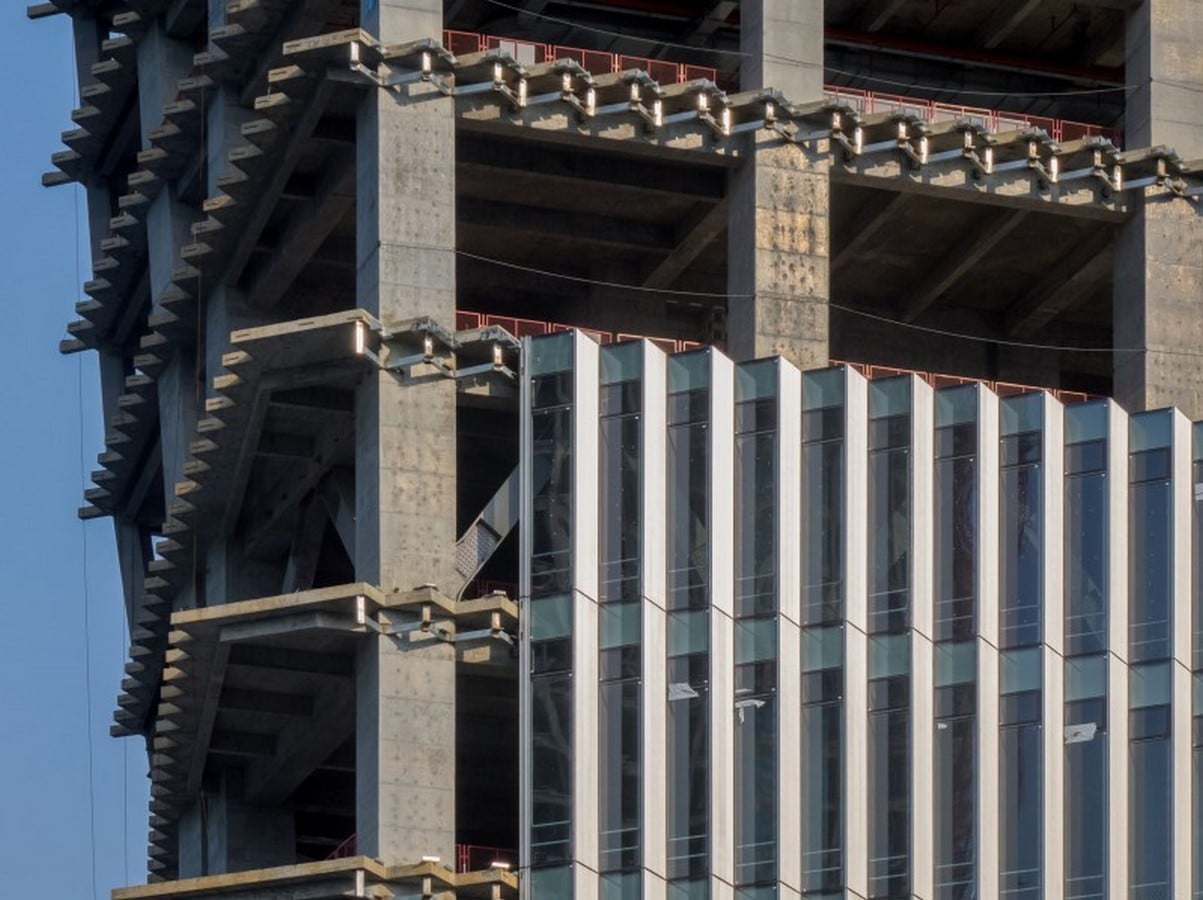

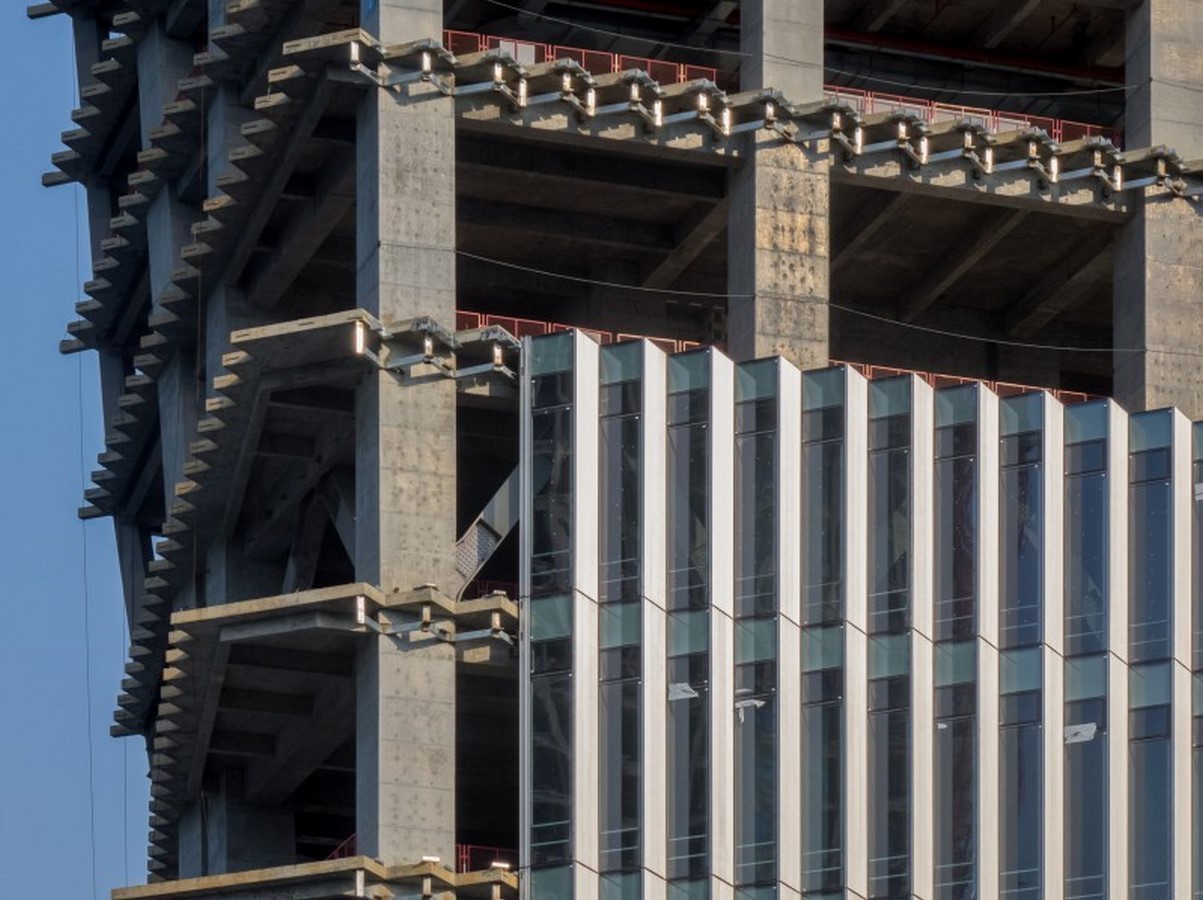

The curtain walls’ structural system consists of a reinforced concrete base and external beam-column frames supposed to carry the high building height and provide endurance in bad weather conditions such as typhoon winds and protect from seismic loading. Also, sustainable active systems are integrated with the building, such as highly effective lighting systems and gray water recycling systems. Considering China’s subtropical climate, BIG believes that the innovative dual chilled water and energy storage system can reduce energy consumption.

Shenzhen International Energy Mansion by BIG: The uncommon facade design - Sheet16

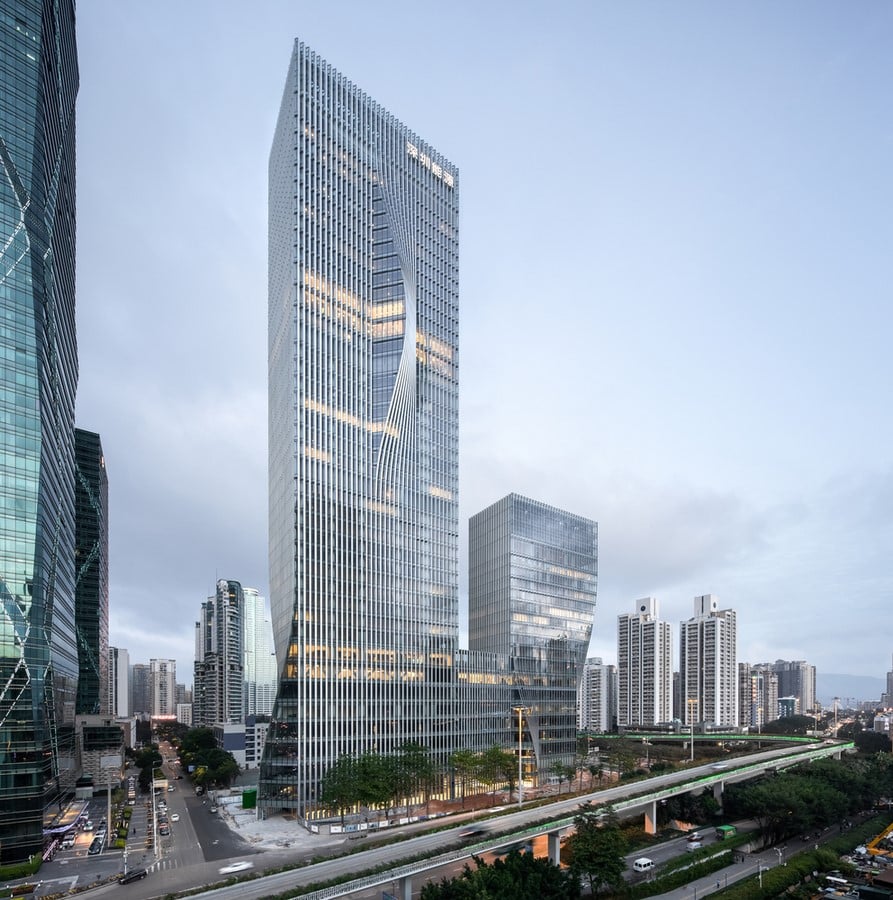

Photo © Chao Zhang

Shenzhen Energy Mansion is a design that sets sustainability as its concept and determines to increase environmental awareness among Chinese society and encourages the use of passive systems as an esthetic value in design. The building was awarded LEED Gold certification and two out of three stars under the Chinese Green Building Evaluation Label. It is also a building that reinforces the client company’s public opinion as an environmentally friendly firm because, even though there is little information on the internet about the company, many sources mention its eco-friendly office towers. Therefore, that is a successful design because it corresponds to the client’s expectations even though the building does not look much different from a classic, glass covered with curtain walls, skyscrapers.
