Shelter @ Rainforest by Marra + Yeh Architects

Shelter @ Rainforest by Marra + Yeh Architects is a zero-energy structure in the jungle of Borneo in Sabah, Malaysia. Designed by Marra + Yeh Architects and commissioned by a local forestry company, this house is a zero-energy structure built amidst 100,000 hectares of tropical rainforest that regenerates sustainable reforestation.

Shelter provides accommodation to the company manager, his family, and guests of the forestry company.

Location Context

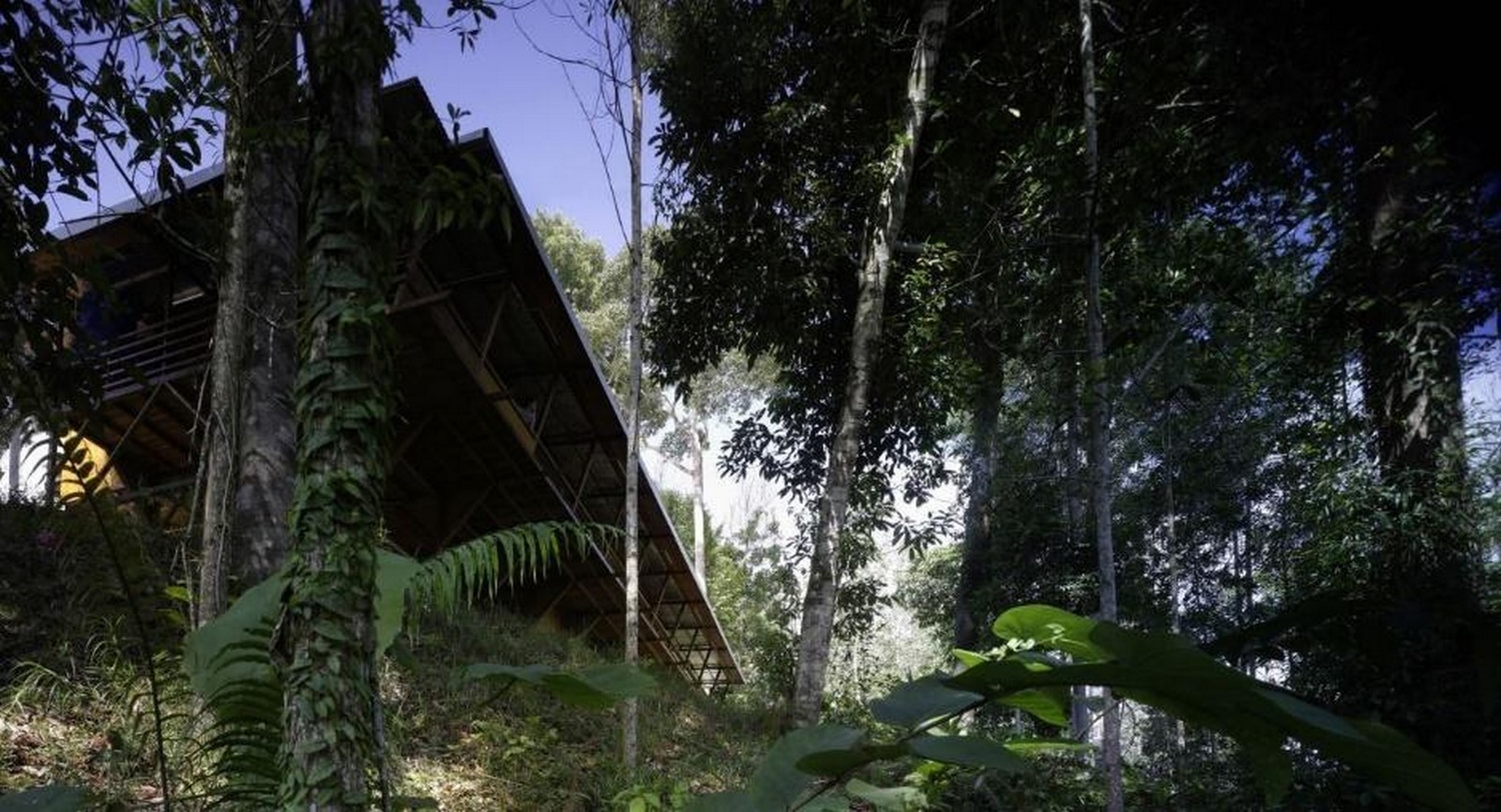

Set amidst the dense jungle of Borneo atop a ridge, a few of the concerns of the location was its inaccessibility, rugged terrains and lack of skilled labor in sight. Moreover, accommodating the company manager and his family without compromising the company operations was a concern for the client.

As a result, the client’s key aim was to create an environmentally friendly housing unit and economically feasible retreat sympathetic to the forest surroundings and the company’s project activities.

Design Philosophy

The house reflects the vernacular longhouses with a frugal wooden structure influenced by the design philosophy of Thoreau’s Walden Pond with its message of simple living and self-sufficiency, ensuring a sustainable and vernacular design approach.

Shelter @ Rainforest is environment friendly with a low budget cost with solar power cells, a biogas unit, and rainwater collection for the housing facility.

As a part of the planning processes, the residents of the house are obligated to replant the rainforest at a ratio of 30:1, meaning for every 1 tree they cut down, they must plant 30 more trees.

Planning & execution

The primary building material is locally harvested and processed timber and was constrained in two small section sizes, 100×50 and 50×50.

Planning was done to address the present scenario of limited resources, increase the yield of usable timber per tree, and logistical issues like manual handling of all building materials. The project’s planning included the planting of 100 indigenous tropical hardwood species.

Material & construction

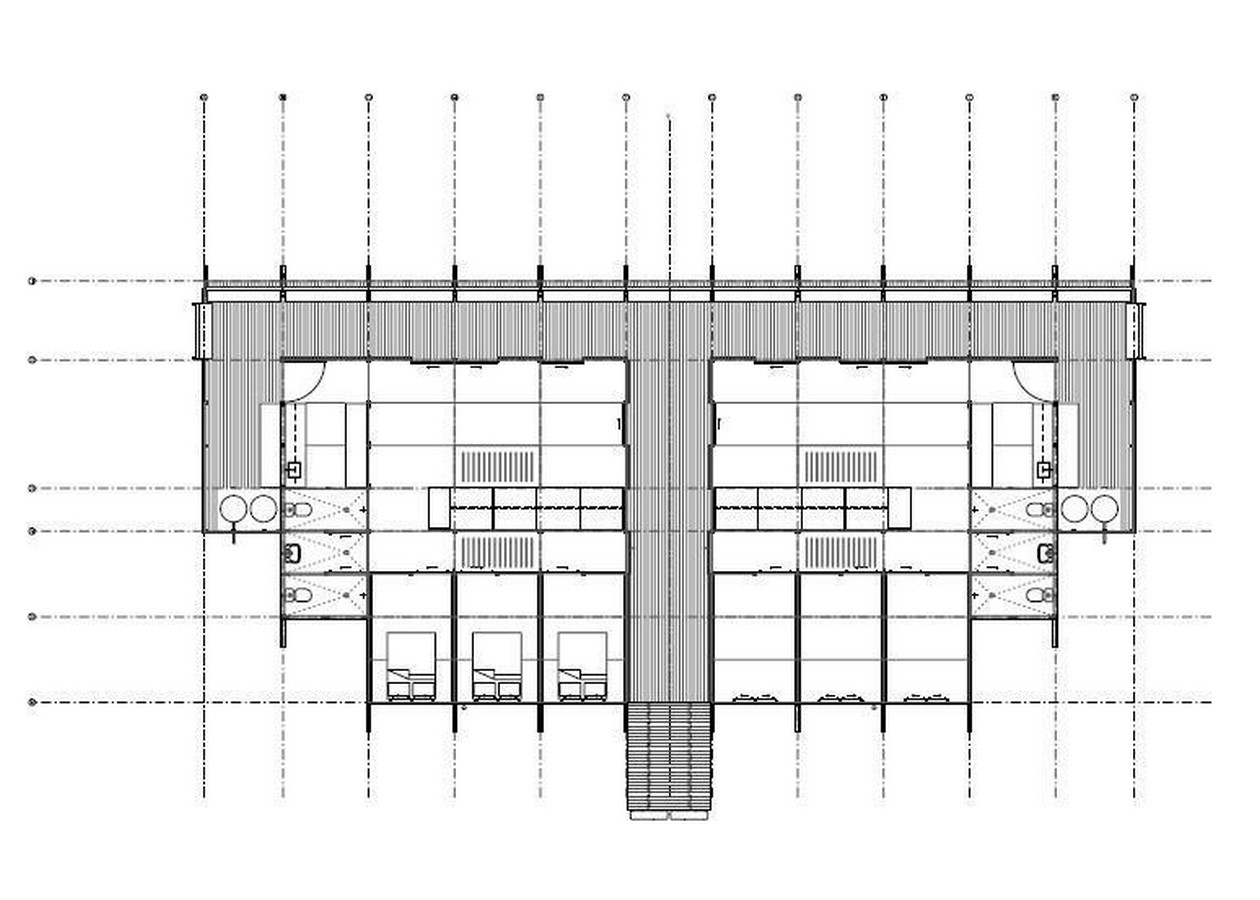

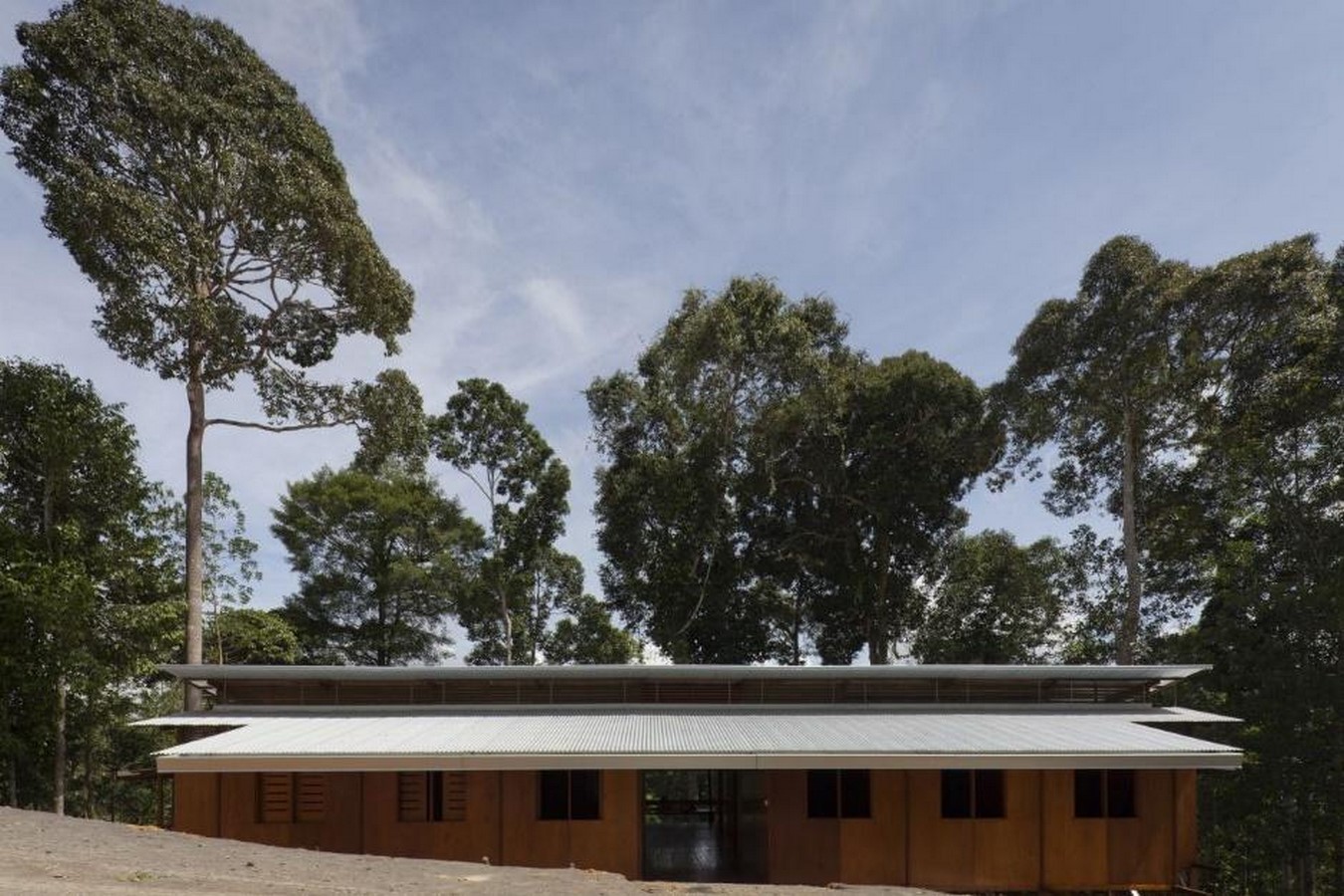

Shelter @ Rainforest is divided into two mirrored halves by an entrance ‘dog run’ and a long veranda overlooking the forest. Individuals within a group and each group benefit from this composition in terms of both privacy and community.

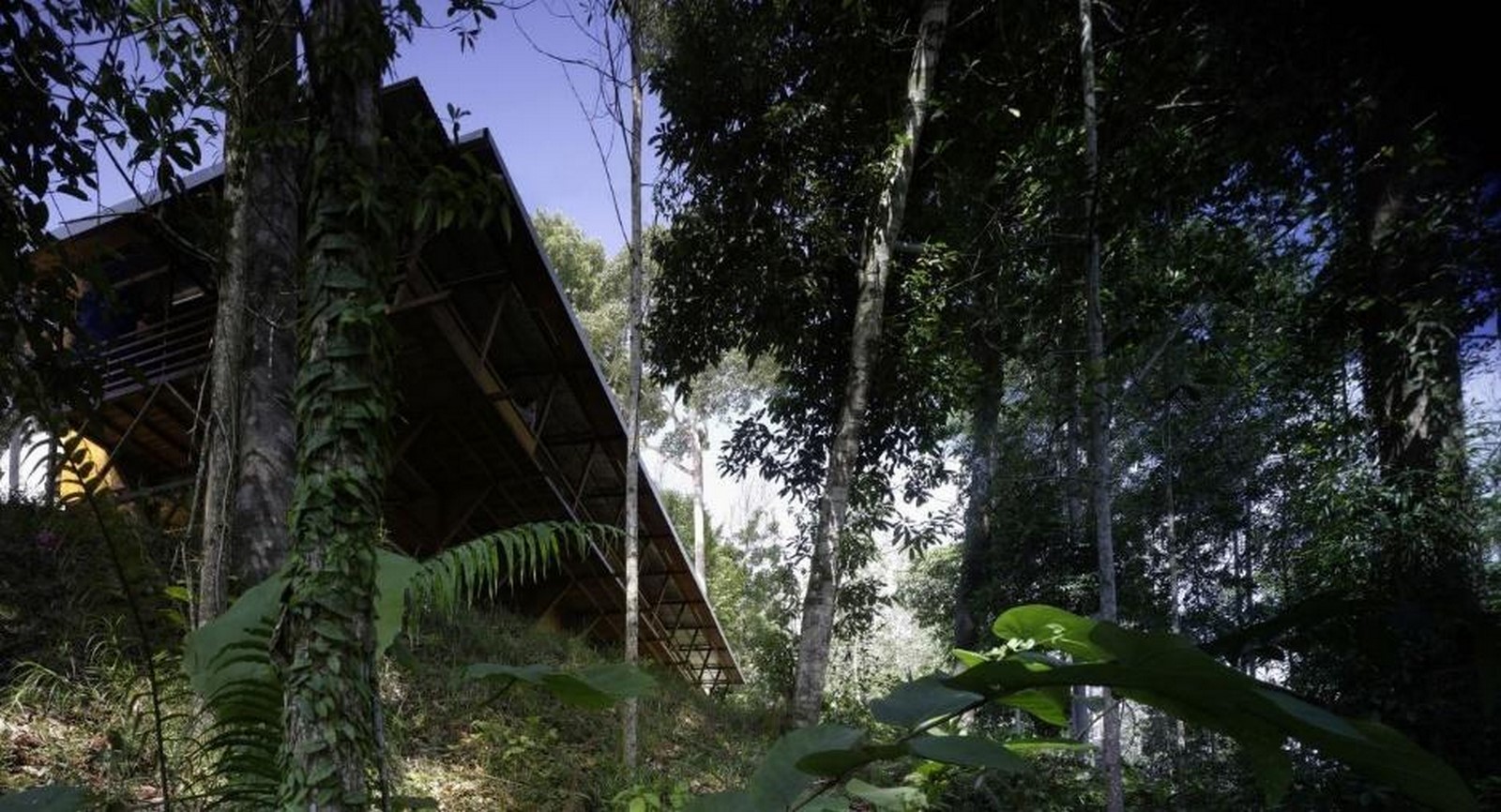

Since the vital material is locally harvested timber, the houses are built as an array of poles and planes, vertical and horizontal components that serve as a framework as well as scaffolding. Plywood produced locally is utilized as the diaphragm for walls and floors as well as the module standard.

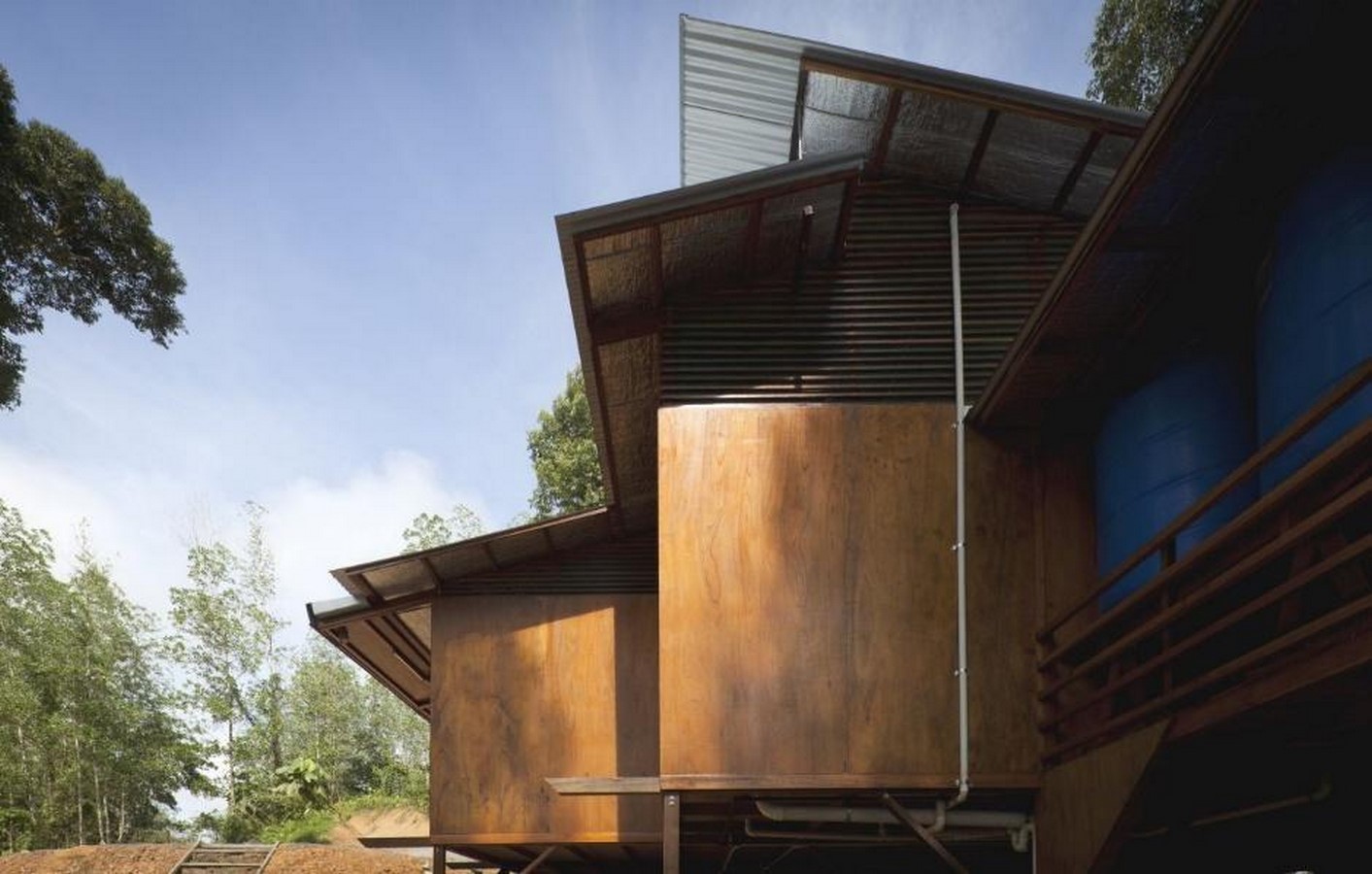

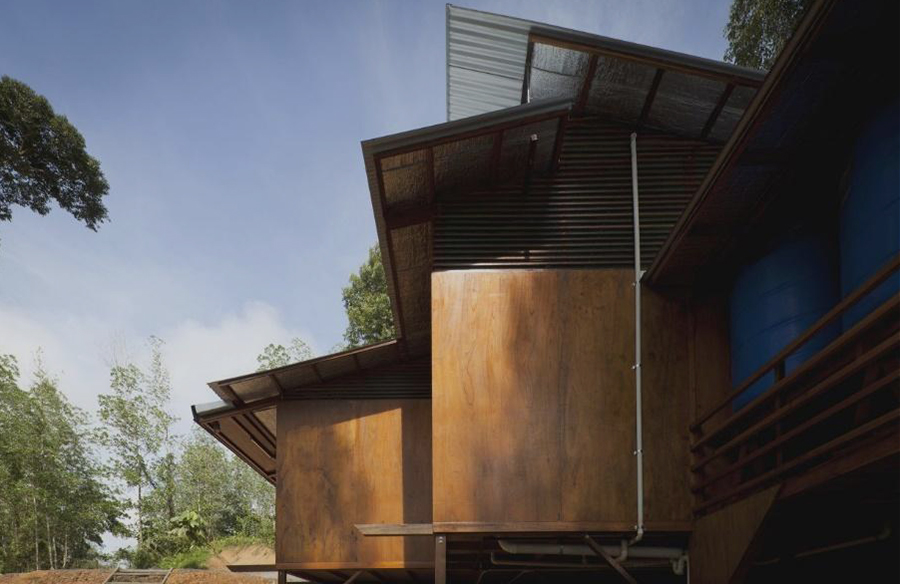

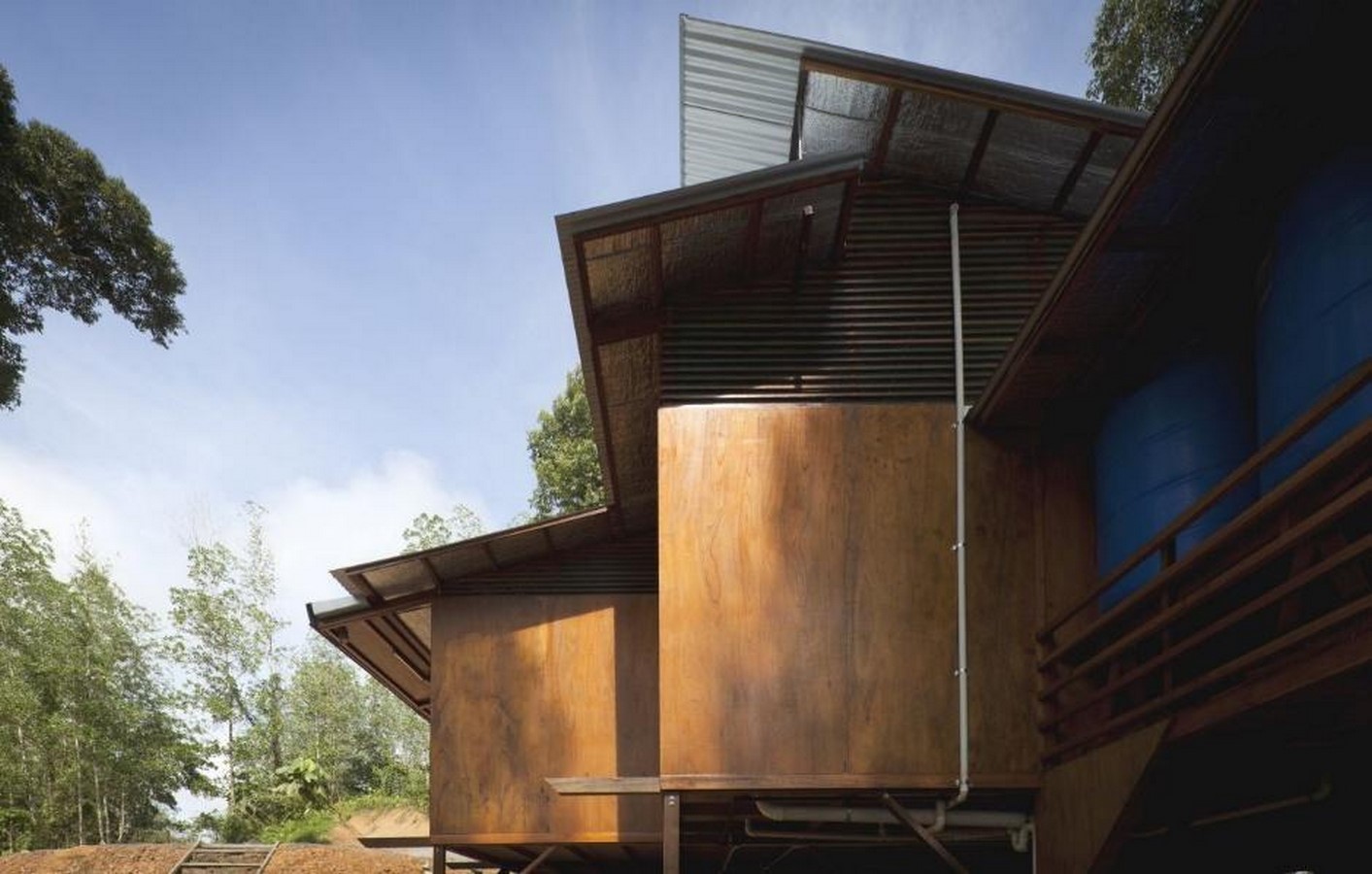

Rooftop photovoltaic panels and biogas units supply power for the home, while rainwater captured on the roof is preserved in cisterns inside the house.

Strong winds and unpredictable weather demanded some engineering ingenuity, such as the tying together of roof rafters by threaded rods, one counterbalancing the other during high winds. Owing to the scarcity of skilled artisans in Borneo, the construction of the houses required large models to be created and brought in as a reference for less skilled workers from neighbouring villages.

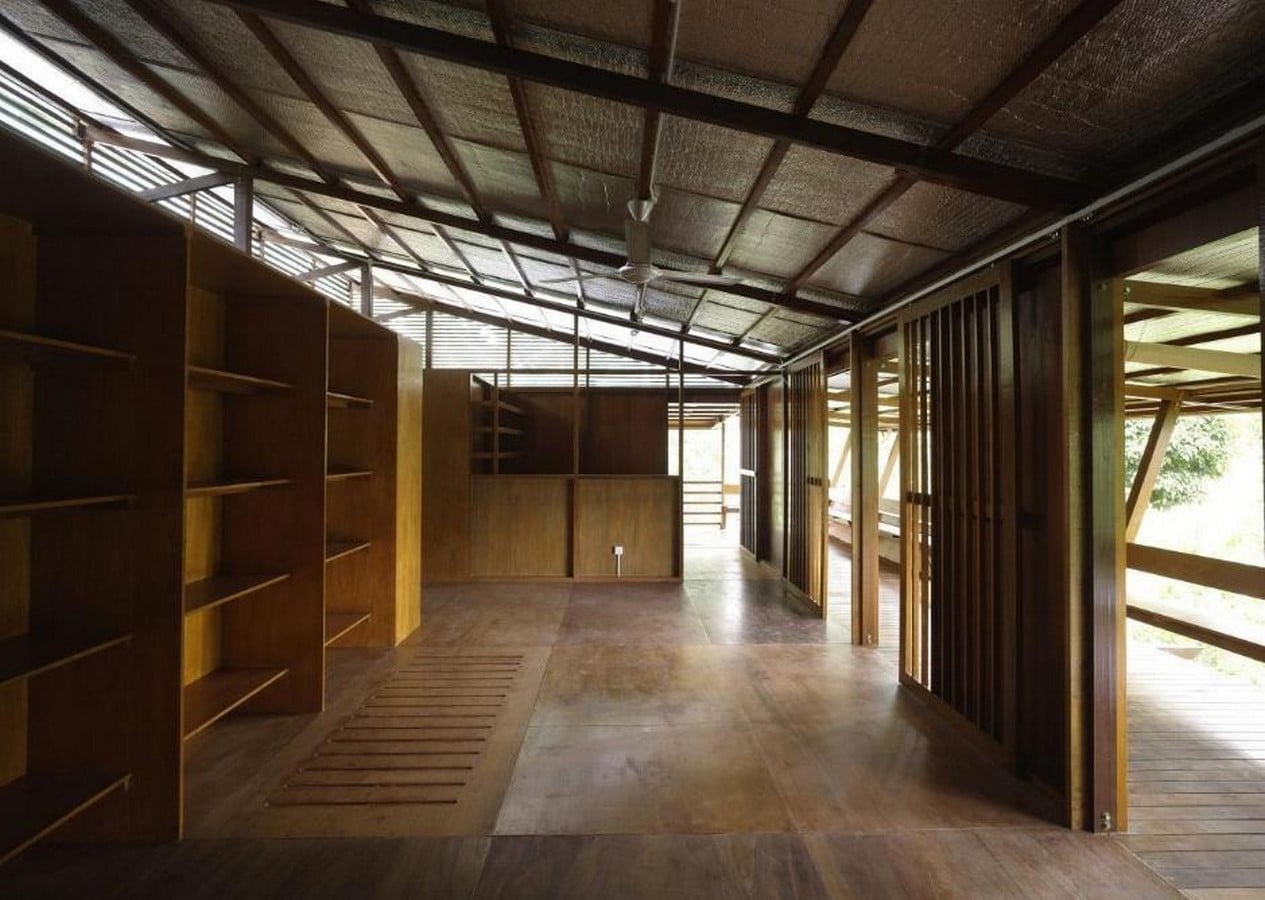

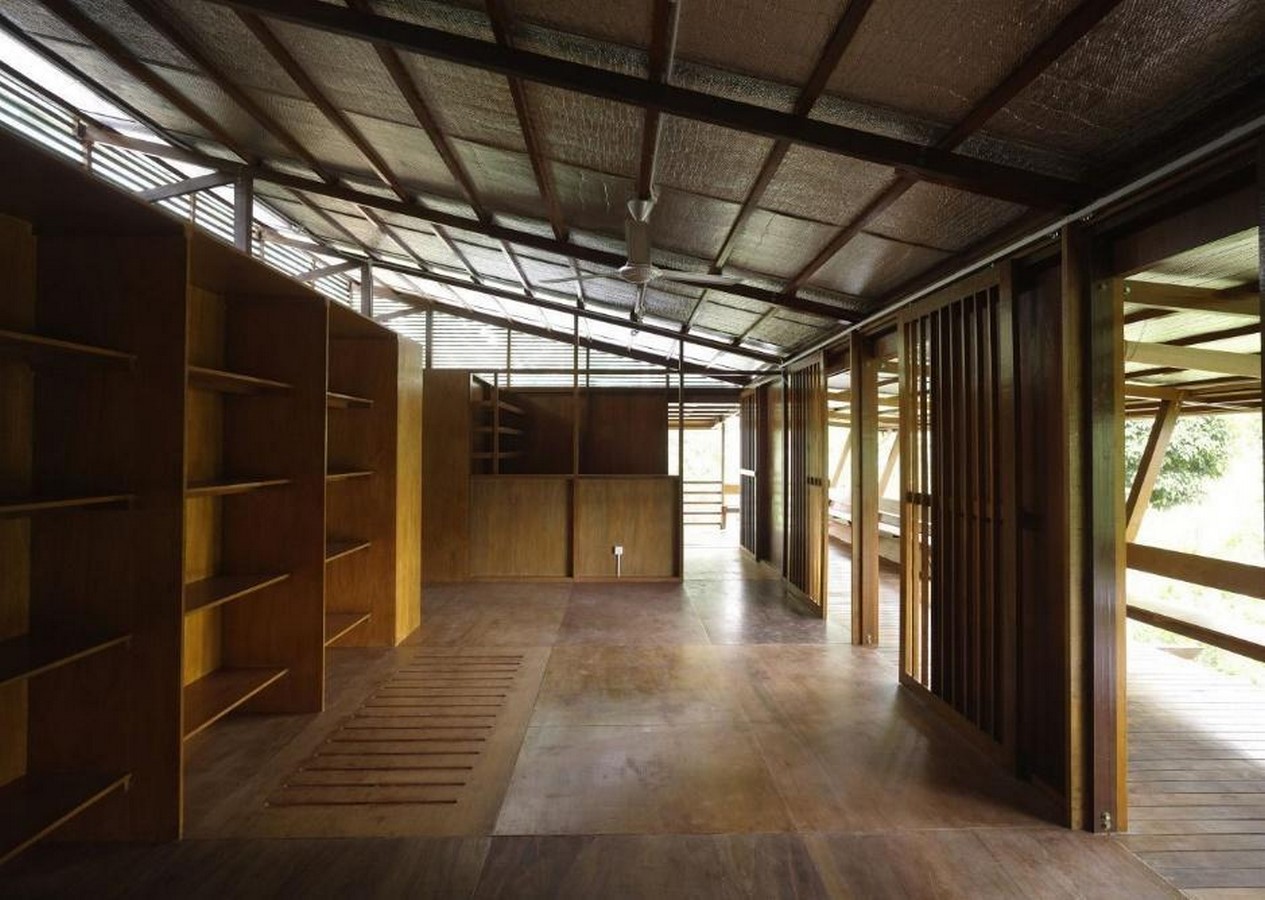

Interior architecture

The “guests retreat” is distinct from the principal residence, giving both the guests and the forest manager sufficient privacy.

 Separate volumes within the residence allow for spatial separation. Guests socialize in some areas of the house, whereas others are designated for a serene, solitary space. Sliding doors with slats provide natural ventilation in the rooms.

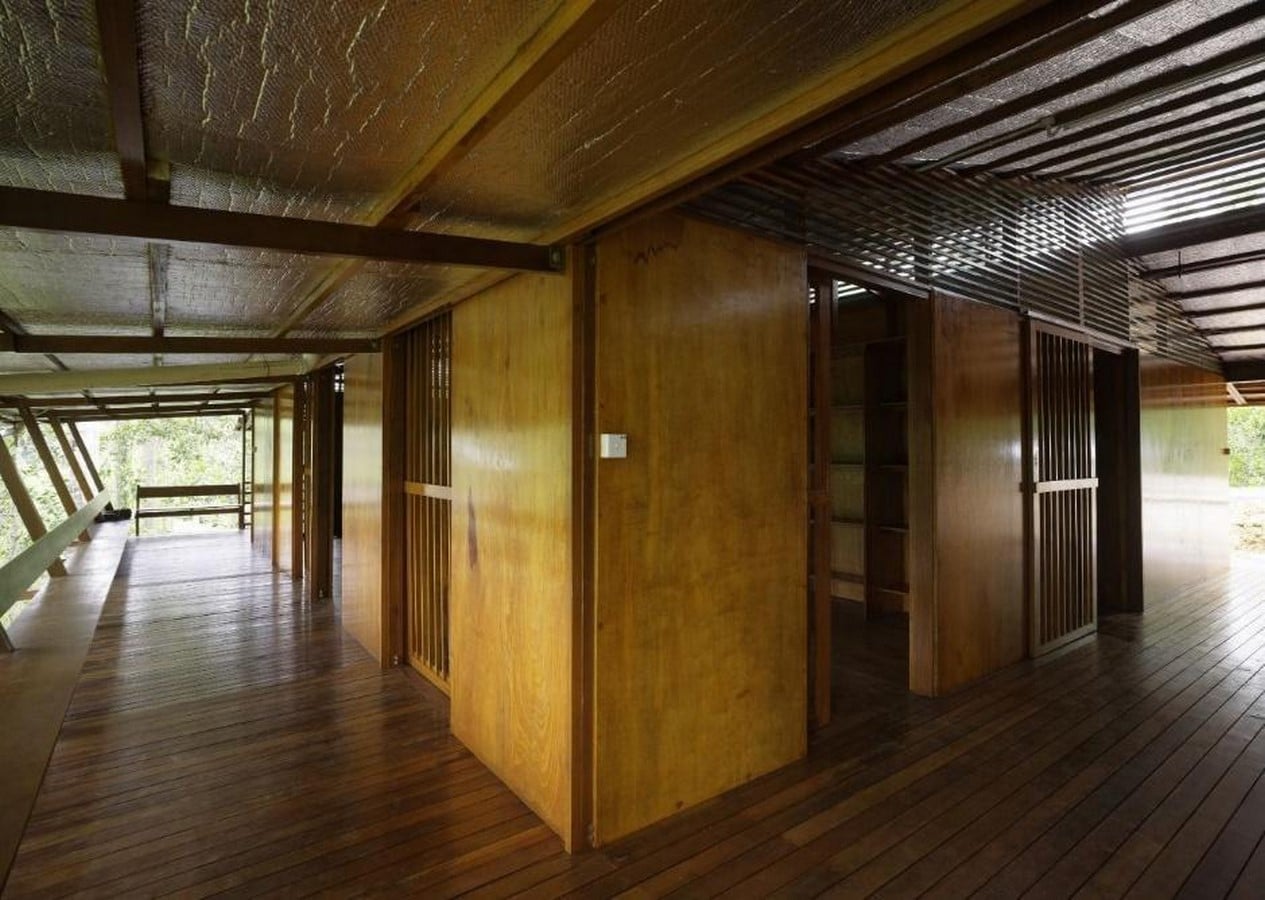

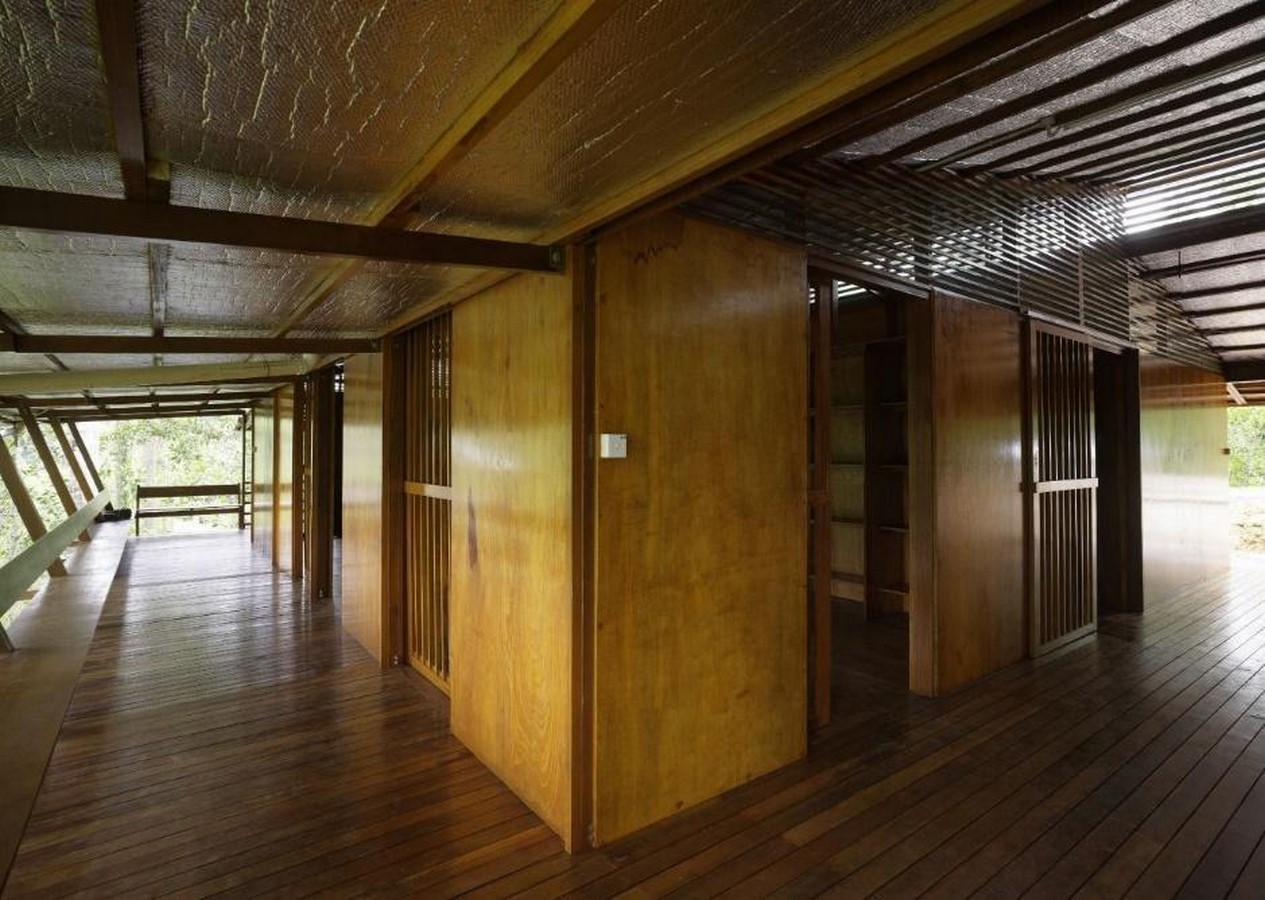

A timber verandah stretches down to the rear of the house, pulling in the natural splendour of the forest beyond.

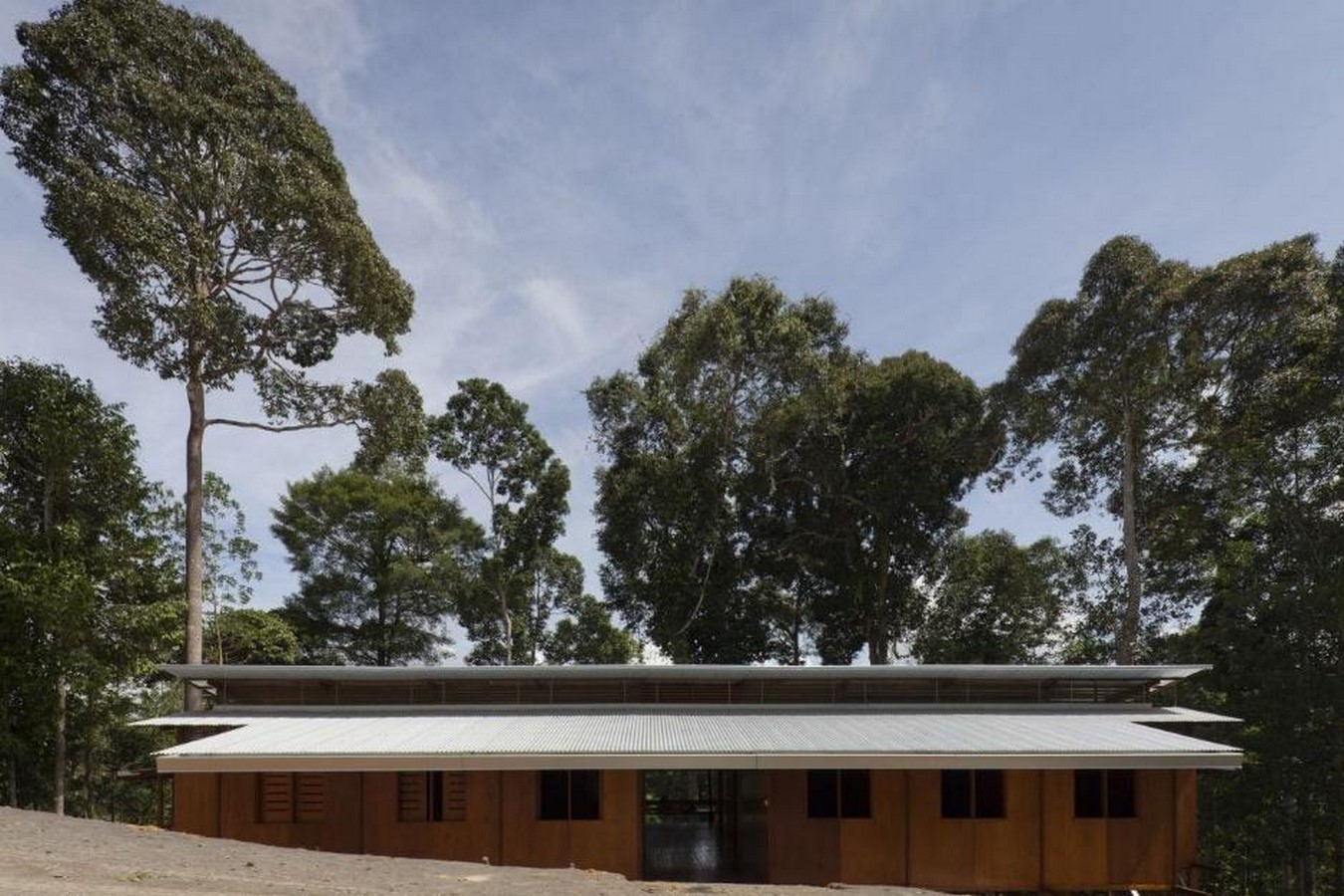

The residential design is also ecologically conscious, with verandas and overhangs to shield the interior from midday heat and ample sunlight throughout. A screened clearstory and monsoon floor tiles enable constant ventilation, maximizing the house’s natural airflow due to its location on top of a ridge.

Sustainability

Every house is self-sufficient with solar power, garbage recycling equipment, and rainwater collecting. Despite the tropical latitude temperature of 34 degrees Celsius and heavy humidity, the design ensures a comfortably ventilated indoor environment of 26 degrees Celsius.

The design approach incorporates a modular system based on the rigid geometry of a plywood sheet, small-scale timber sections, and research into vernacular and climate-adaptive architecture in Asia-Pacific. Sustainable design ensures that the framework provides freedom and flexibility, allowing for various building styles and adaptability to individual site conditions, which is crucial in a remote area.

Marra & Yeh created a team of botanists, anthropologists, and structural engineers with the goal of creating architecture that is environmentally, socially, and technically relevant. The resulting architecture incorporates most of the local materials and manpower, as well as structural engineering expertise and sophisticated jointing techniques. This low-cost building solution is a visible representation of environmental sustainability for the client company.

This project has hallmarks of sustainable reforestation, locally acquired materials, solar energy, rainwater harvesting, biotechnologies, and minimal site disturbance. As revamped vernacular, it is dominant in its endorsement of environmental diligence, a lesson in both outstanding craftsmanship and the political correctness of its sustainability philosophy.
