Week one: the rating and the design brief get written together
Two documents land on a perimeter project in week one: the design intent from the architect, and the security requirement from somebody else. Whichever arrives second gets treated as a modification to the first, and that is where the money goes. Laser cut fence panels are where the collision shows up most expensively.
A cut pattern can be engineered to a rating. Certified panels have holes in them already. 358 mesh is 3 inch by 0.5 inch apertures in 8 gauge wire, and it carries LPS 1175 ratings because the aperture and the wire were sized against the tools first. Sheet panels with a pattern burned through them work the same way. Applying a pattern to an already rated panel is a worse exercise entirely.
Put both parties in one room in week one and produce a single sheet: rating and toolkit, aperture limit, panel span, post spacing, finish. If the requirement is LPS 1175 Issue 8, the letter and the number both belong on it. C5 means the panel holds off disc grinders, crowbars, chisels and sledgehammers for five minutes, and a panel drawn for B3 does not get there with more paint. Swapping one for the other in month three is a redesign.
Choosing the material before choosing the pattern
By the time anyone draws a pattern, the material decision has fixed most of what the pattern can be.
Ask the fabricator for three numbers first: sheet thickness, maximum unsupported span at that thickness, and the post spacing that span implies. Tighter spacing lets you run thinner sheet and a denser cut, and costs more in posts and foundations. Wider spacing saves money in the ground and demands more from the panel. That trade is the whole argument, and week two is when it’s free.
A perimeter frame changes the answer: a framed panel carries load through the frame, an unframed sheet carries it through the sheet.
Fixings decide as much as the panel. A rated panel hung on fasteners a socket set removes from the outside has a rating on paper only. Ask how the panel attaches, whether the fixings can be reached from the attack side, and what substituting them does to certification. Catalog products shorten this, because someone has worked out the span and paid for the testing. CLD Physical Security Systems lists decorative metal fence panels alongside its rated mesh systems, which helps where one site needs a presentable street elevation and a rated back fence.
Where the cut pattern and the rating collide
Every aperture is material removed from a panel that was rated with the material in place. Denser pattern, less section, less mass. No fabricator can talk you out of that.
Aperture size is the other half. 358 mesh works on geometry: the opening is too small for a finger to grip and too tight for standard bolt cutter jaws to seat on a wire. Hold your pattern against both. Can a gloved hand get a purchase in it? Can a jaw seat on an edge and close? A pattern that reads well from thirty feet reads differently at arm’s length, and horizontal elements at regular vertical spacing are footholds whatever the drawing calls them.
Paladin-style variable mesh panels reach the visual goal from the other direction, using mesh geometry for the effect instead of cutting a pattern into solid sheet. Where the Paladin fence profile suits the client, the appearance decision stays clear of the panel’s structural section.
A rating attaches to a tested assembly: panel, posts, fixings and how the whole thing sits in the ground. Change the cut pattern and the assembly is no longer the one that was tested. The Loss Prevention Certification Board certifies what went through the test, and a variant nobody tested is a variant nobody certified. A supplier who says the pattern makes no difference is either testing every variant or estimating. Ask which.
The surface treatment line most specifications leave out
Laser cutting leaves bare steel at every edge, and a decorative panel has a great deal of edge.
Galvanizing after fabrication coats those edges. Cutting pre-galvanized sheet does not, and the cut line is the first place to bloom in coastal or de-iced conditions. Say which sequence you want, in the specification, not at the factory gate.

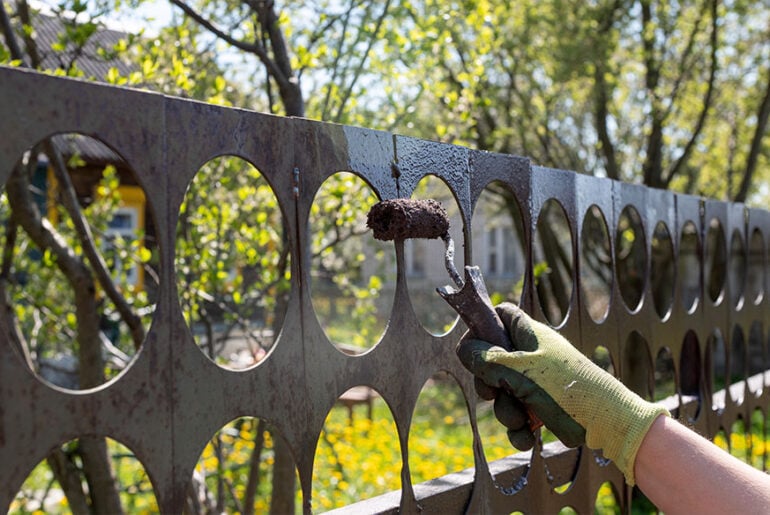

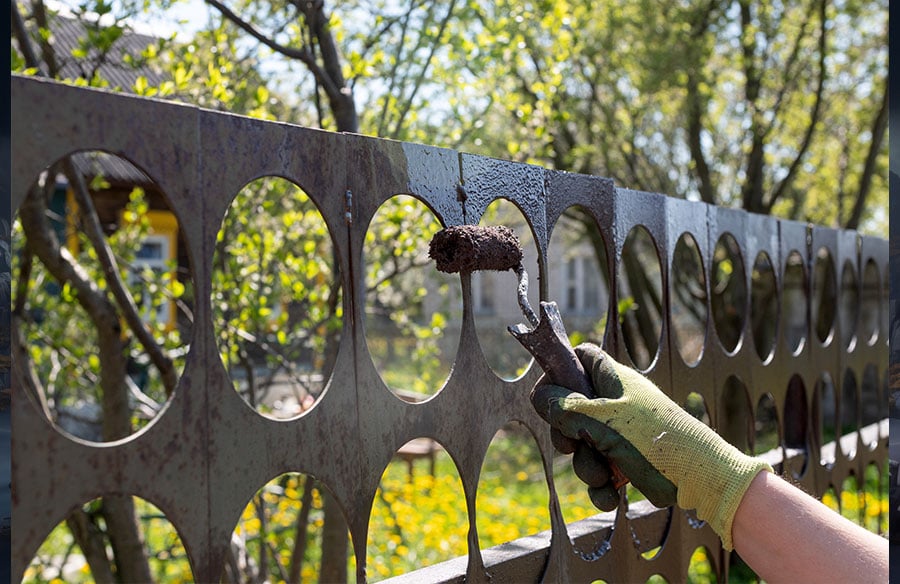

Powder coating over galvanizing needs the right pretreatment or the layers separate at the interface, and that shows up years later as lifting along the pattern edges. Specify the process, the coating thickness and who inspects it, then add the color reference. A specification that names a color and nothing else has handed the durable half of the finish to whoever quotes cheapest.
Salt air and spray off a de-iced road attack a coating differently, and the panel with the most cut edge per square foot shows it first. Process certification and product performance are different things. CLD holds ISO 9001:2015 and ISO 14001:2015, which describe how a factory runs, while an LPS 1175 letter and number describe what a panel survived.
What it costs to find out late
At tender stage, a rating change costs drawings and time. The panel schedule gets reissued and the fabricator reprices. Your program slips by one reissue cycle. Annoying, survivable.
After fabrication, the same change costs steel. Nesting is done and the sheets are cut, so panels turn into scrap or go back for reinforcement that shows on the face. If the fix is tighter post spacing, the cost stops being about panels: you are back into foundations and a second groundworks mobilization after that crew has left.
After coating, add the finish. Drill or weld a galvanized and powder-coated panel on site, and the coating is broken at the point that corrodes first.
Then the line nobody prices. Installed panels have to come out, which on a live site means temporary fencing standing in for the permanent run and a security case for the days the perimeter is down. Gates bite hardest. Security fences and gates get drawn as one elevation and bought as two packages, so a security fence gate with a patterned leaf needs different hinges and a heavier frame than the fence beside it, and that only shows up once the panel design is fixed.
None of this argues against decorative fencing, which gets certified regularly and looks like the site chose it rather than settled. Sequence decides the cost. Write the rating into the design brief in week one, and a laser-cut metal fence becomes a design problem with a defined boundary. Leave it out, and the same panel becomes a certification problem in month five, when the boundary is a pallet of cut sheet. Ask the fabricator on the first call which parts of the pattern are negotiable and which are load path. Anyone who answers straight away has done it before.
