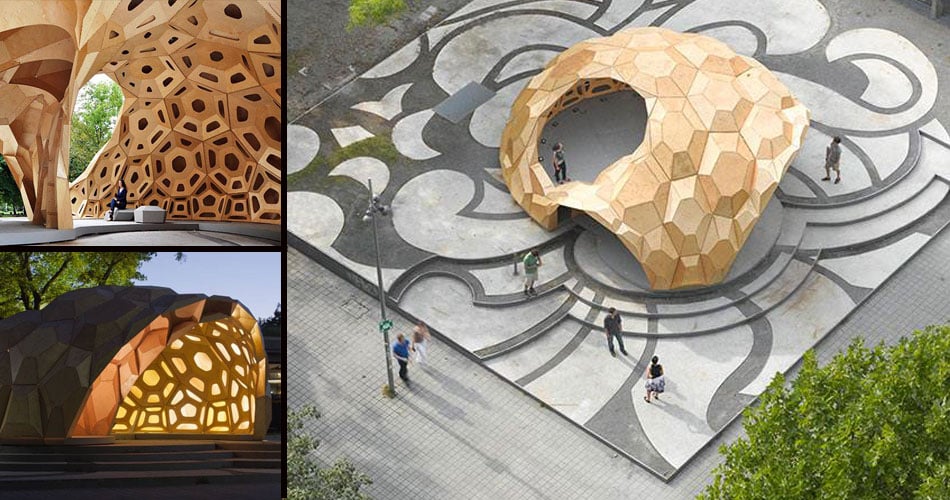

The project aims at integrating the performative capacity of biological structures into architectural design and at testing the resulting spatial and structural material-systems in full scale. The focus was set on the development of a modular system which allows a high degree of adaptability and performance due to the geometric differentiation of its plate components and robotically fabricated finger joints. During the analysis of different biological structures, the plate skeleton morphology of the sand dollar, a sub-species of the sea urchin (Echinoidea), became of particular interest and subsequently provided the basic principles of the bionic structure that was realized.

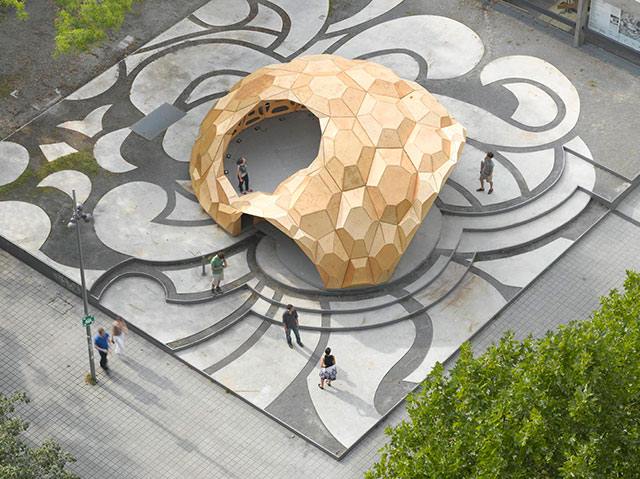

Amazing Design ICD/ITKE Research Pavilion - Sheet1

The skeletal shell of the sand dollar is a modular system of polygonal plates, which are linked together at the edges by finger-like calcite protrusions. High load bearing capacity is achieved by the particular geometric arrangement of the plates and their joining system. Therefore, the sand dollar serves as a most fitting model for shells made of prefabricated elements. Similarly, the traditional finger-joints typically used in carpentry as connection elements, can be seen as the technical equivalent of the sand dollar’s calcite protrusions.

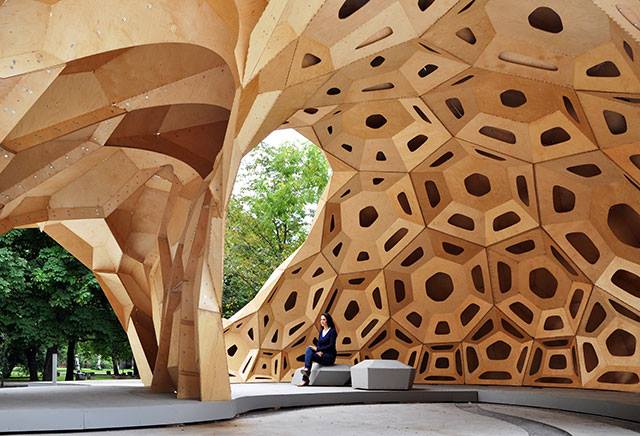

Amazing Design ICD/ITKE Research Pavilion - Sheet2

MORPHOLOGY TRANSFER

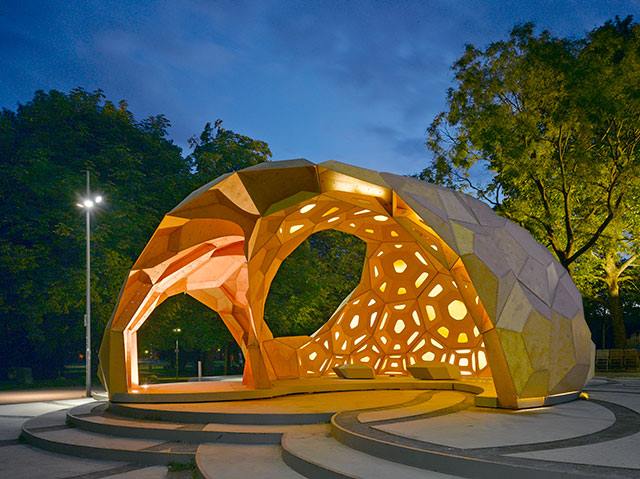

Following the analysis of the sand dollar, the morphology of its plate structure was integrated in the design of a pavilion. Three plate edges always meet together at just one point, a principle which enables the transmission of normal and shear forces but no bending moments between the joints, thus resulting in a bending bearing but yet deformable structure. Unlike traditional lightweight construction, which can only be applied to load optimized shapes, this new design principle can be applied to a wide range of custom geometry. The high lightweight potential of this approach is evident as the pavilion that could be built out of 6.5 mm thin sheets of plywood only, despite its considerable size. Therefore it even needed anchoring to the ground to resist wind suction loads.

Amazing Design ICD/ITKE Research Pavilion - Sheet3

Besides these constructional and organizational principles, other fundamental properties of biological structures are applied in the computational design process of the project:

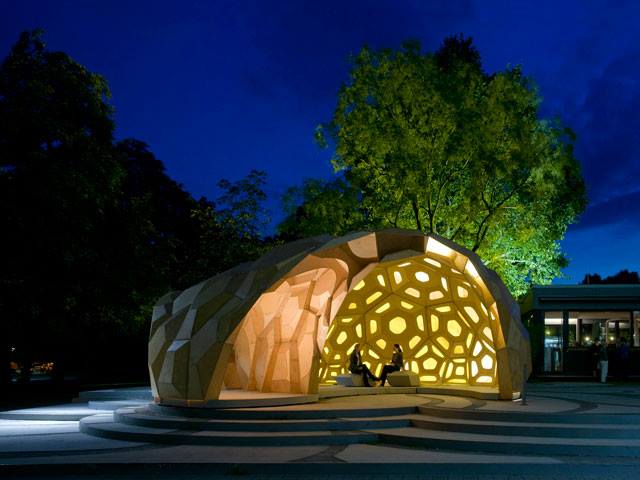

– Heterogeneity: The cell sizes are not constant, but adapt to local curvature and discontinuities. In the areas of small curvature the central cells are more than two meters tall, while at the edge they only reach half a meter.

Amazing Design ICD/ITKE Research Pavilion - Sheet4

– Anisotropy: The pavilion is a directional structure. The cells stretch and orient themselves according to mechanical stresses.

– Hierarchy: The pavilion is organized as a two-level hierarchical structure. On the first level, the finger joints of the plywood sheets are glued together to form a cell. On the second hierarchical level, a simple screw connection joins the cells together, allowing the assembling and disassembling of the pavilion. Within each hierarchical level only three plates – respectively three edges – meet exclusively at one point, therefore assuring bendable edges for both levels.

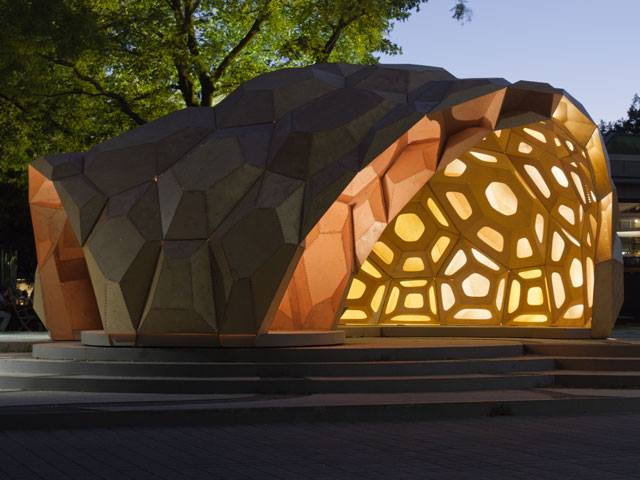

Amazing Design ICD/ITKE Research Pavilion - Sheet5

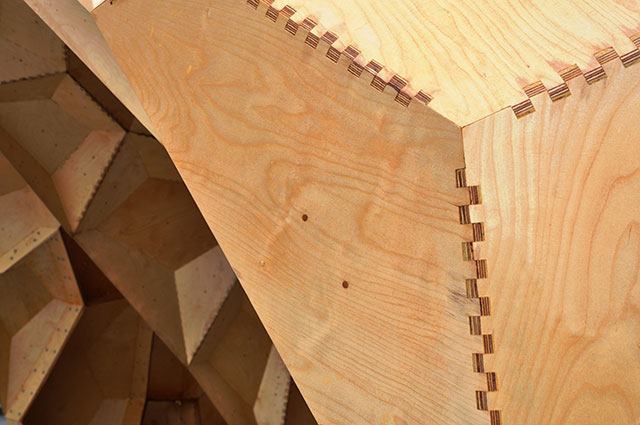

Amazing Design ICD/ITKE Research Pavilion - Sheet6
COMPUTATIONAL DESIGN AND ROBOTIC PRODUCTION

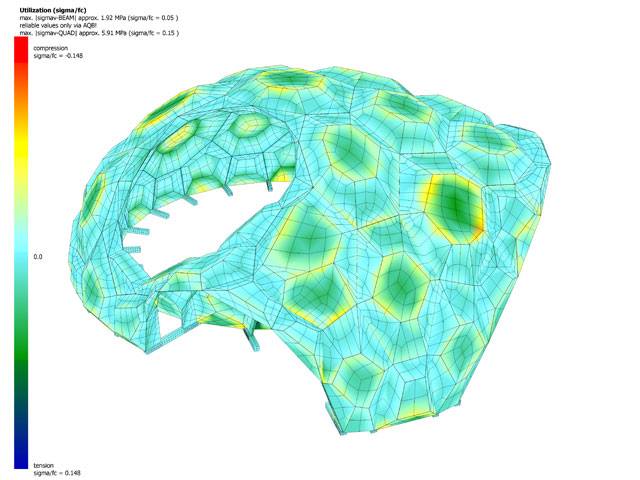

A requirement for the design, development and realization of the complex morphology of the pavilion is a closed, digital information loop between the project’s model, finite element simulations and computer numeric machine control. Form finding and structural design are closely interlinked. An optimized data exchange scheme made it possible to repeatedly read the complex geometry into a finite element program to analyze and modify the critical points of the model. In parallel, the glued and bolted joints were tested experimentally and the results included in the structural calculations.

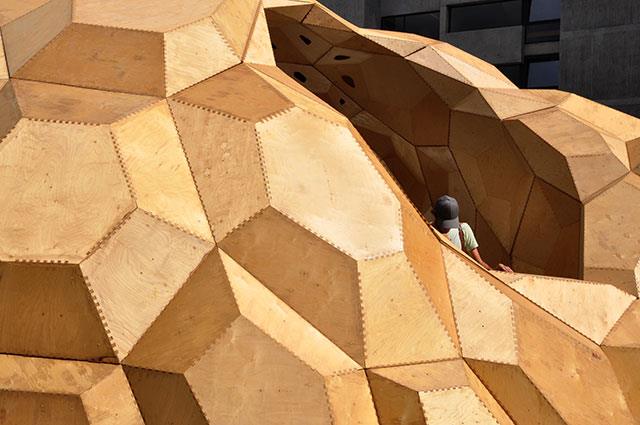

Amazing Design ICD/ITKE Research Pavilion - Sheet7

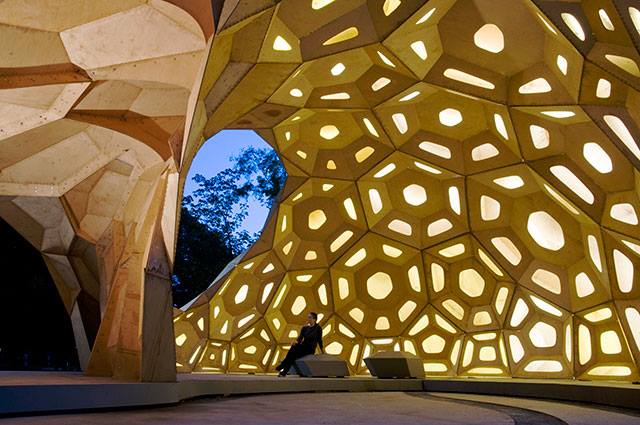

Amazing Design ICD/ITKE Research Pavilion - Sheet8

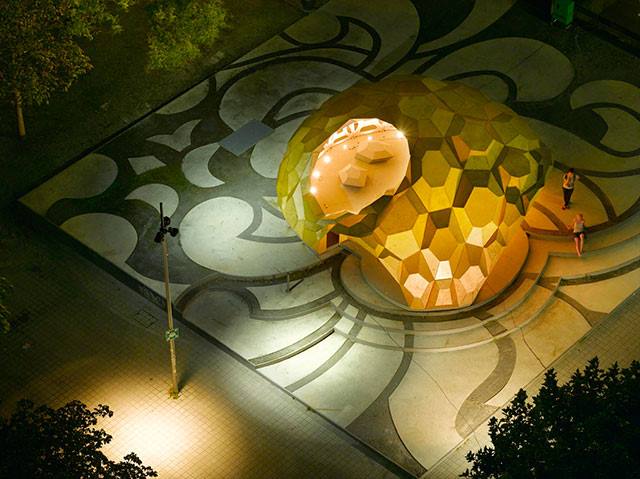

Amazing Design ICD/ITKE Research Pavilion - Sheet9

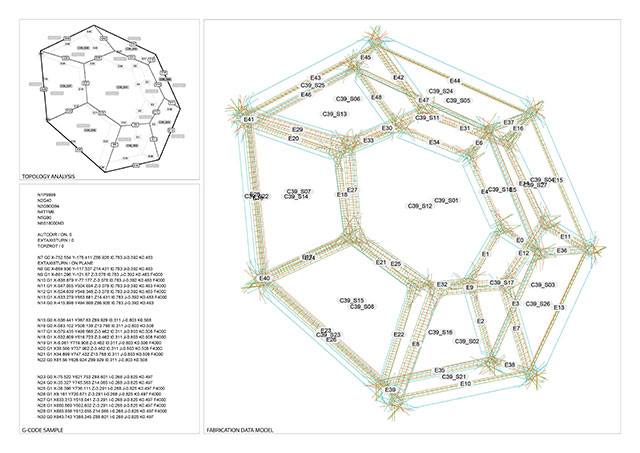

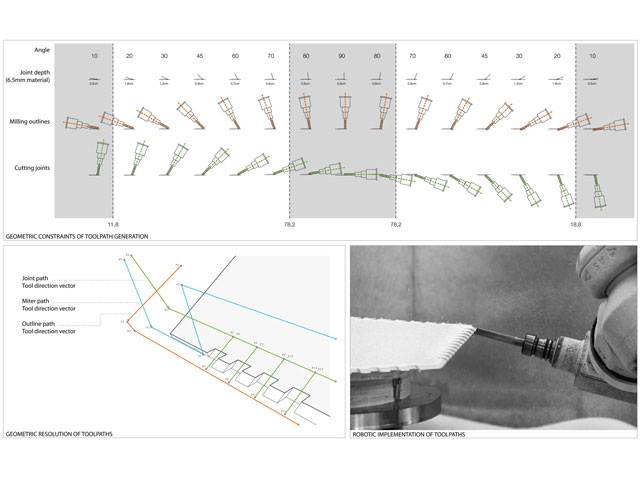

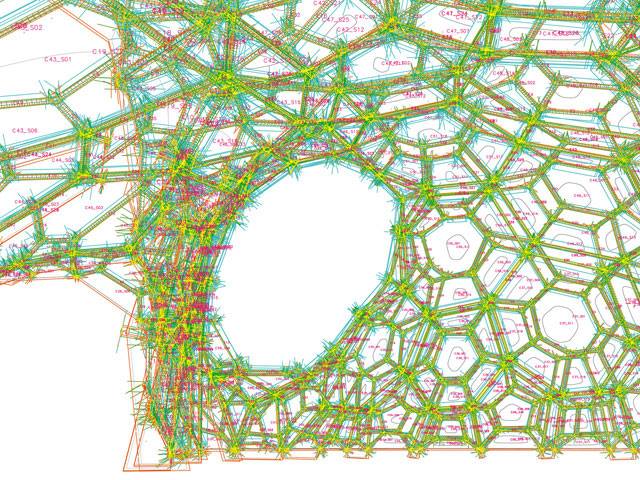

The plates and finger joints of each cell were produced with the university’s robotic fabrication system. Employing custom programmed routines the computational model provided the basis for the automatic generation of the machine code (NC-Code) for the control of an industrial seven-axis robot. This enabled the economical production of more than 850 geometrically different components, as well as more than 100,000 finger joints freely arranged in space. Following the robotic production, the plywood panels were joined together to form the cells.Amazing Design ICD/ITKE Research Pavilion - Sheet10 Amazing Design ICD/ITKE Research Pavilion - Sheet11 Amazing Design ICD/ITKE Research Pavilion - Sheet12

Amazing Design ICD/ITKE Research Pavilion - Sheet13

The assembly of the prefabricated modules was carried out at the city campus of the University of Stuttgart. All design, research, fabrication and construction work were carried out jointly by students and faculty researchers.
