The history of the single-family house in Sydney during the last century is one that fuses an evolving approach to our relationship with the landscape with a history of experimentation in residential house design. These two strands have come together most memorably in the occupation of the steep and often spectacular landscapes around the inner harbour and the modes of habitation made possible in the way these houses relate to their site and Sydney’s benign climate.

Project Name: Castle Cove House
Studio Name: Terroir

Project size: 510 m2
Completion date: 2018
Location: Sydney, Australia
Photography: Brett Boardman

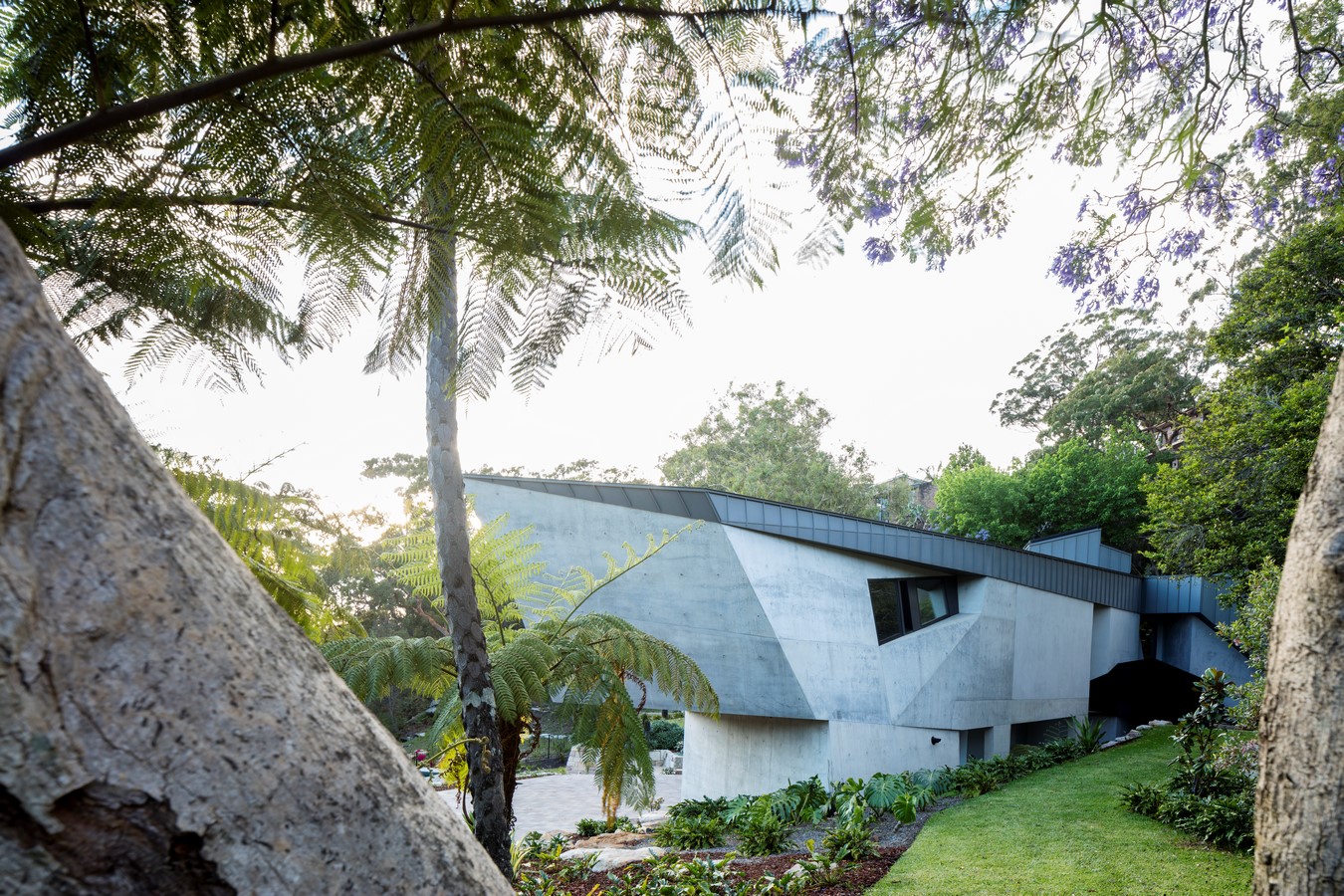

Castle Cove House By Terroir - Sheet4
©Brett Boardman

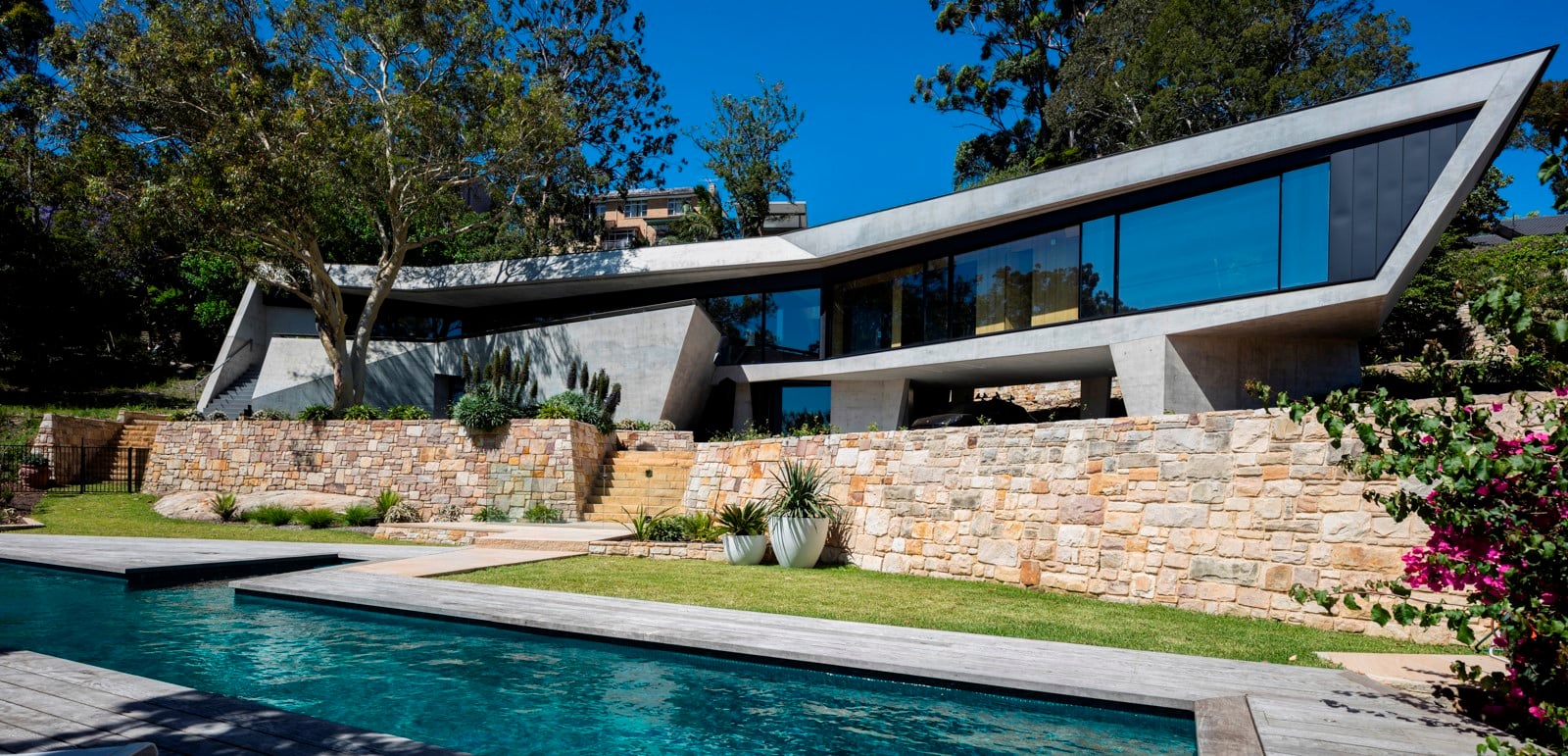

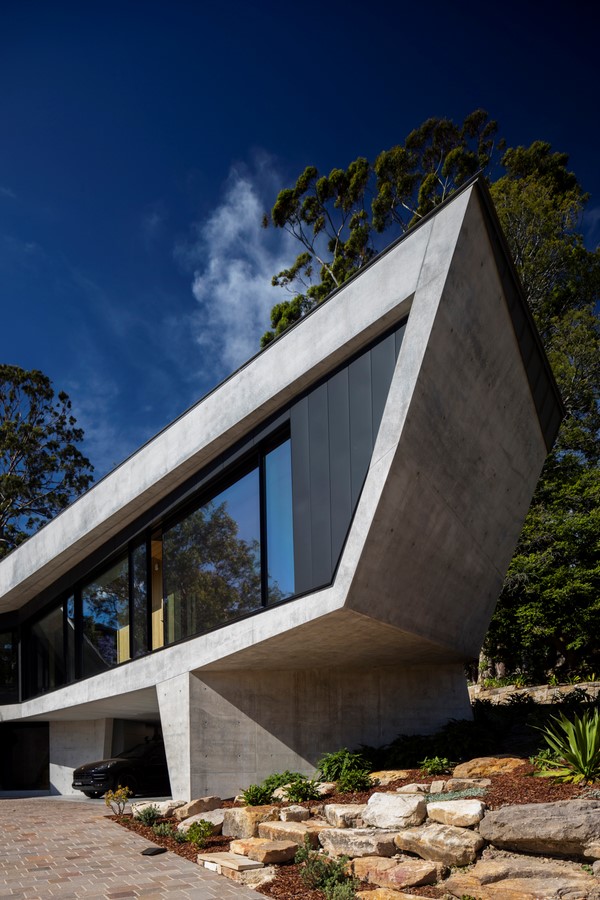

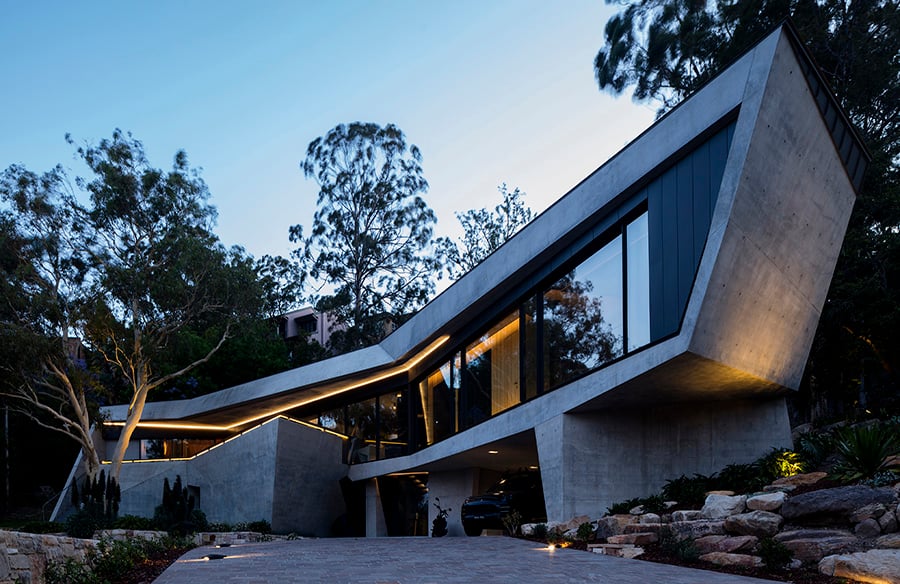

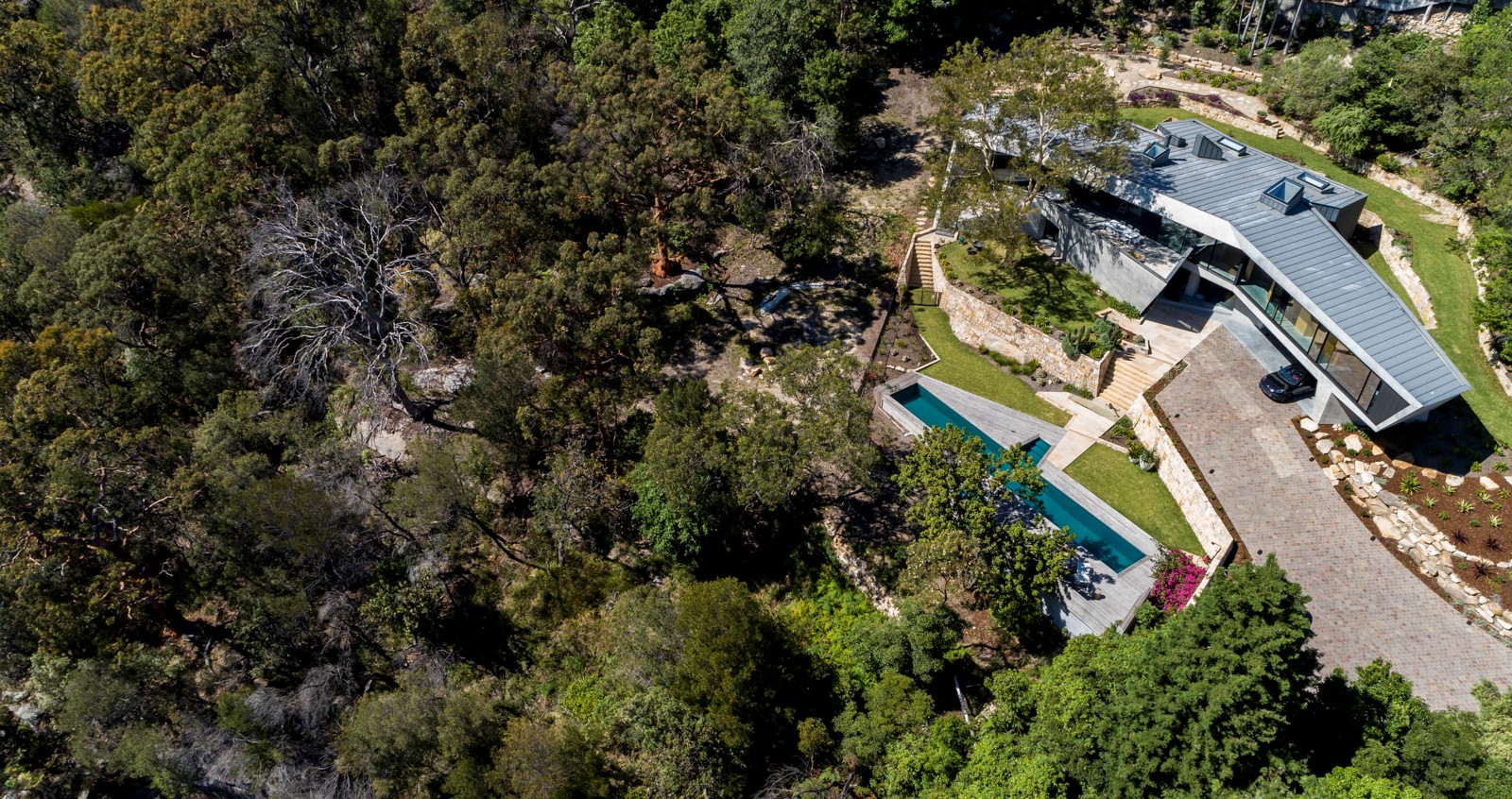

This project is sited in one of these classic Sydney contexts, Castle Cove, where steep ravines contain tributaries that flow through angophora bushland down to the harbour. The sandstone geology is omnipresent and takes many forms, from mighty escarpments to
minor ripples in the bedrock. These landscape tectonics inform the design, where a concrete shell of irregular geometry steps around outcrops and contours, creating an
indeterminate form that is distinctively new but also could equally be a strange object
‘unearthed’ in excavation.

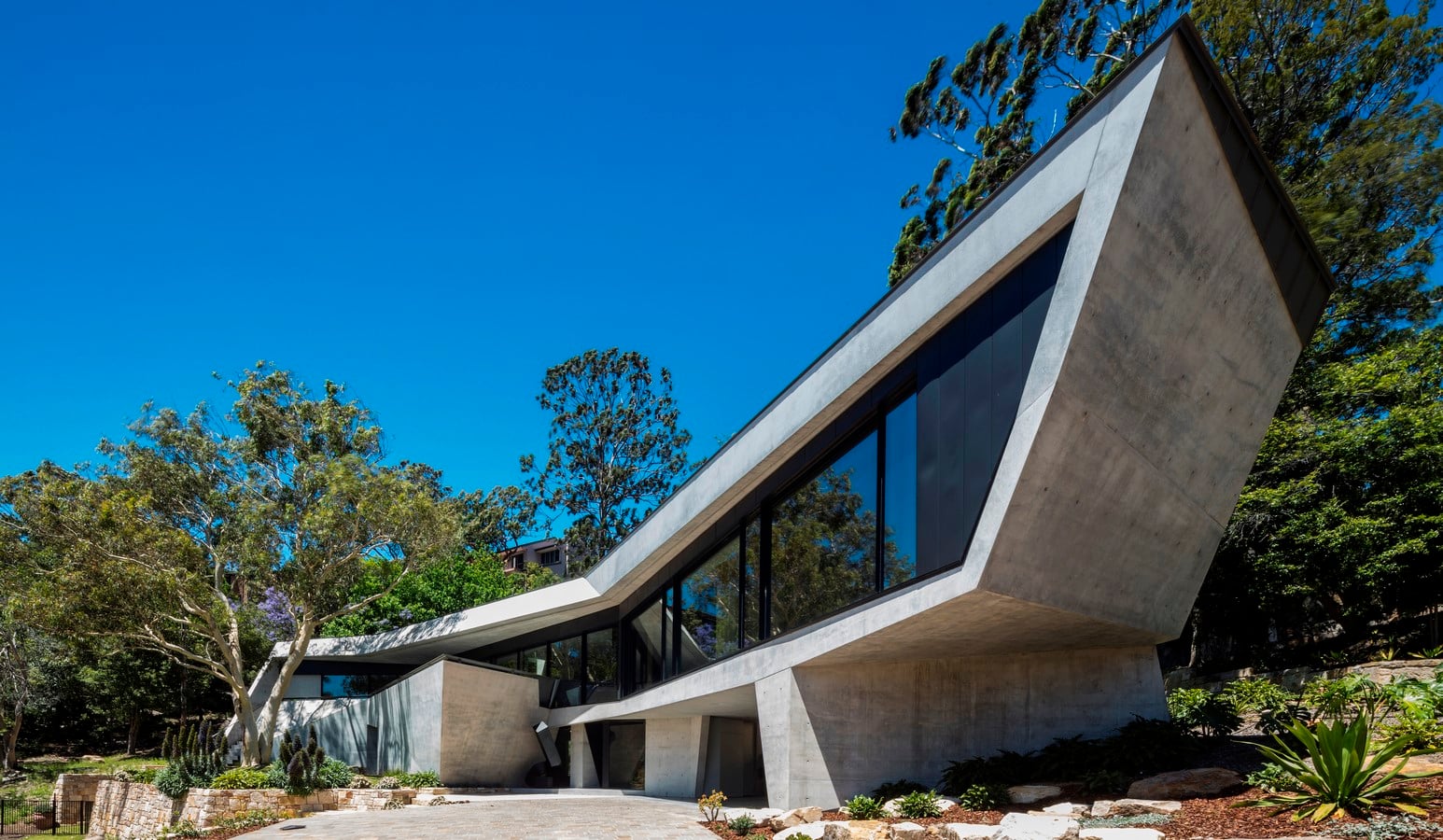

Castle Cove House By Terroir - Sheet8
©Brett Boardman

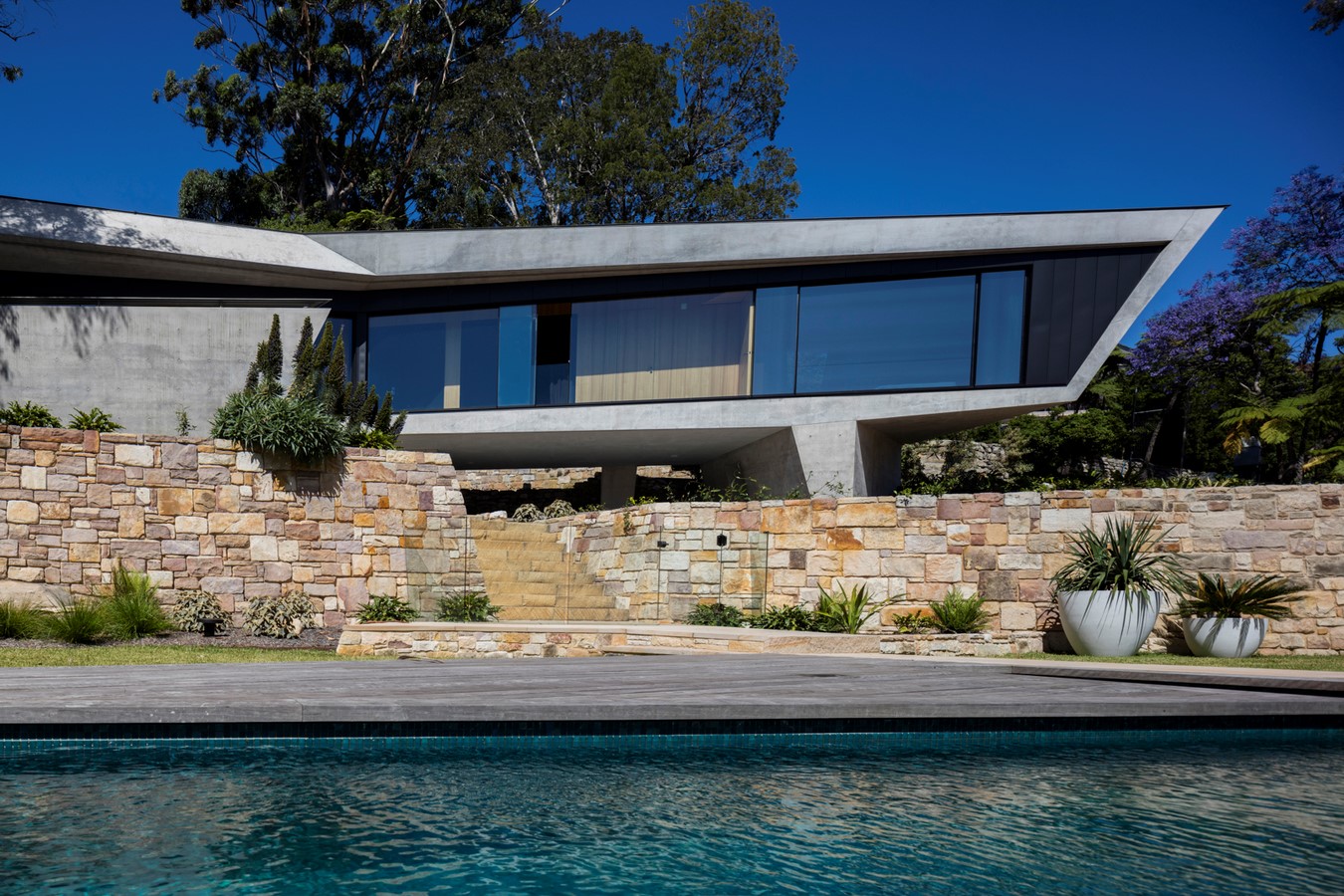

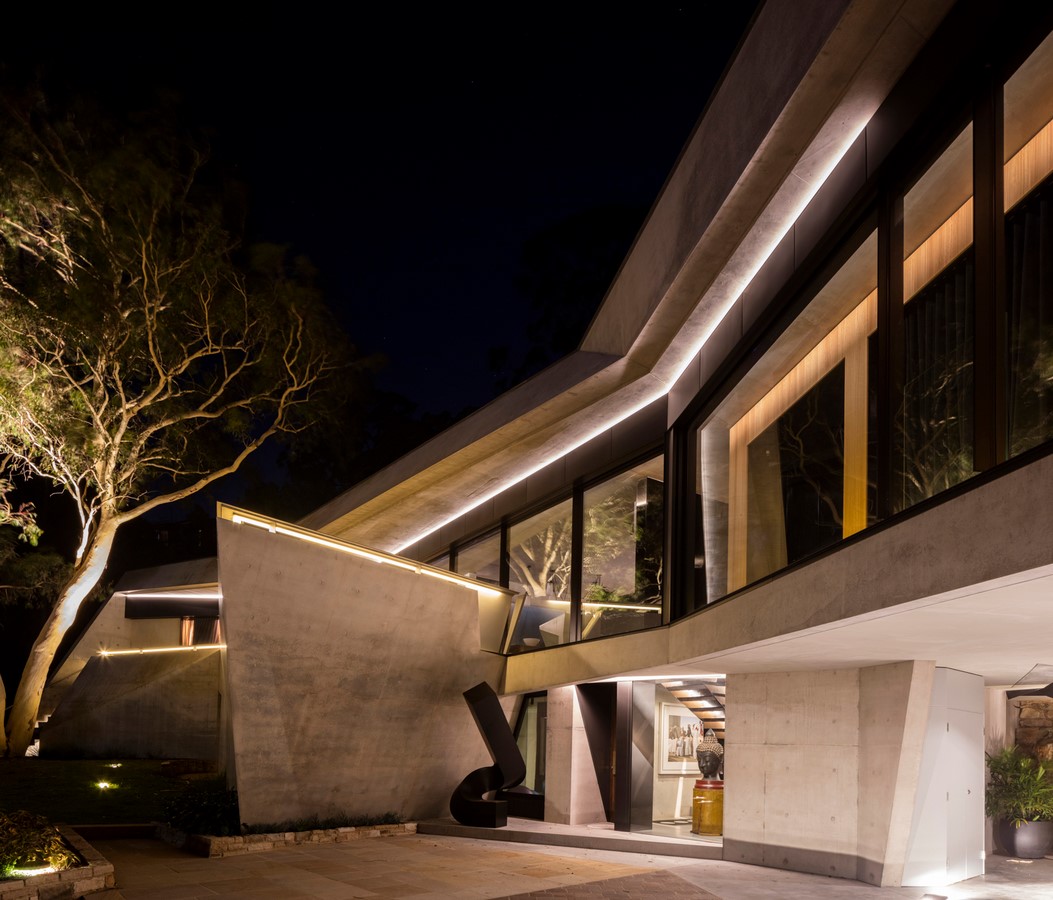

Either way, the concrete element reverberates with the site geometry while forming a built escarpment that provides a plateau for habitation. The concrete escarpment is roofed in a continuous zinc membrane that folds over to form a smaller pocket to the rear containing private rooms. Both materials will patinate over time, moving again from a “new” to “pre-existing” form.

Castle Cove House By Terroir - Sheet12
©Brett Boardman

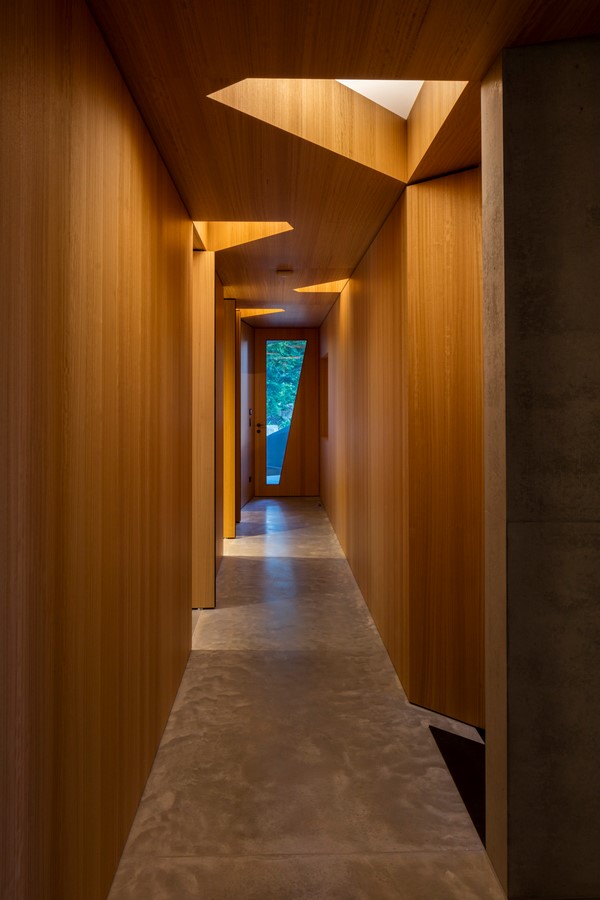

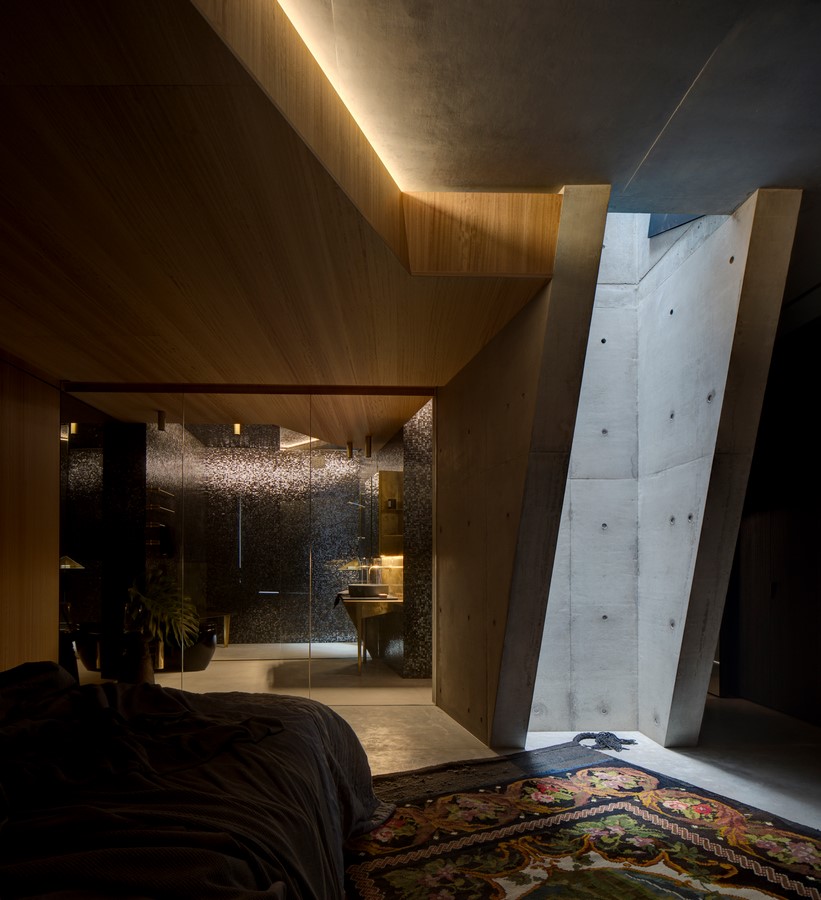

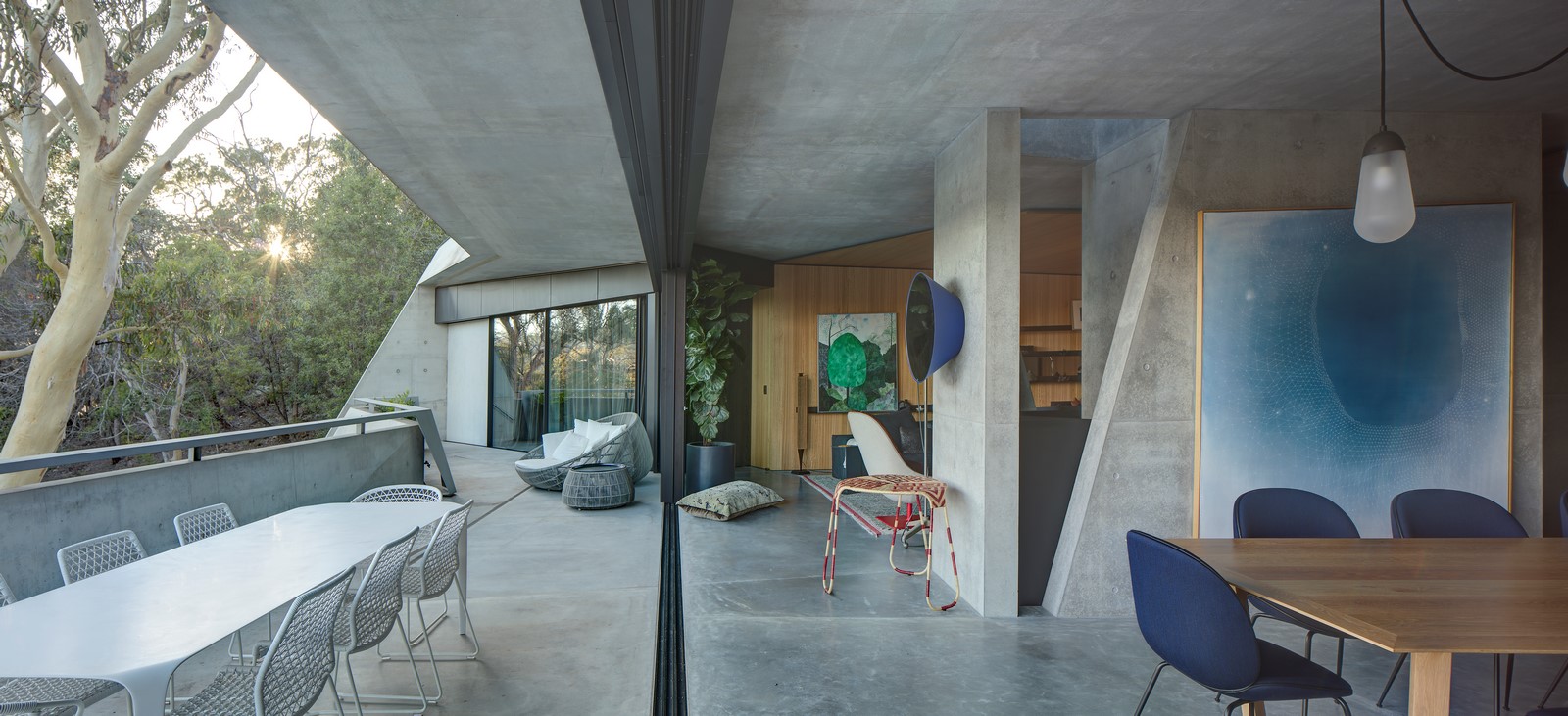

The infrastructural nature of this primary gesture has in its counterpoint the means of occupying the house through a series of crafted timber linings that enable the occupation of this concrete landscape with a spirit and glamour reminiscent of California’s mid-century houses by John Lautner and others. The resulting interior spaces connect inhabitants with the monumental and wonderous nature of the landscape yet still provide intimate moments for occupation that are so necessary for everyday life.

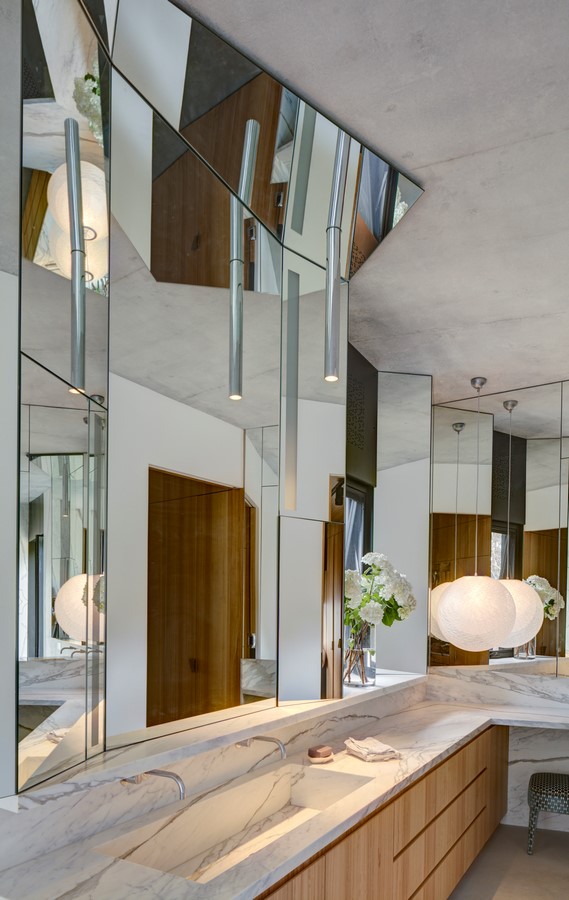

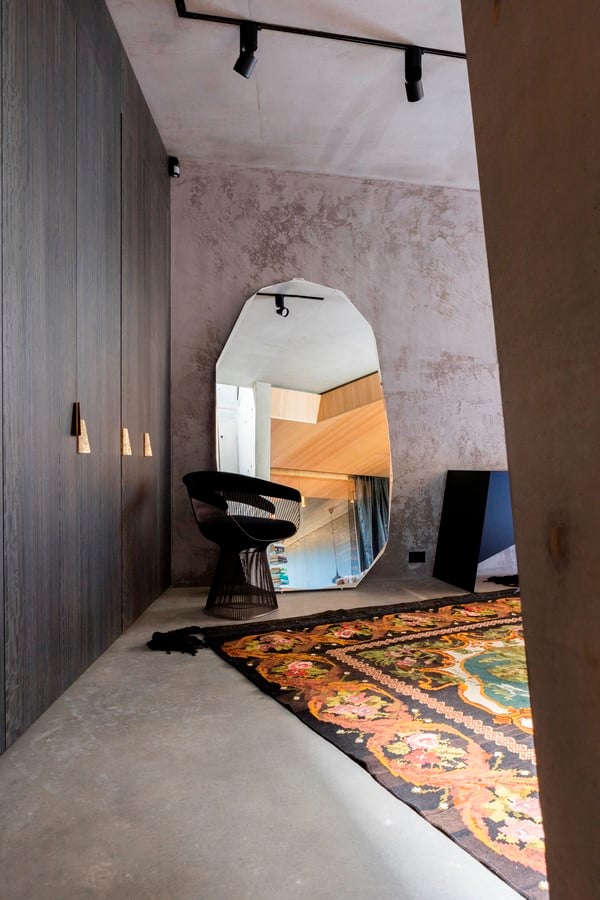

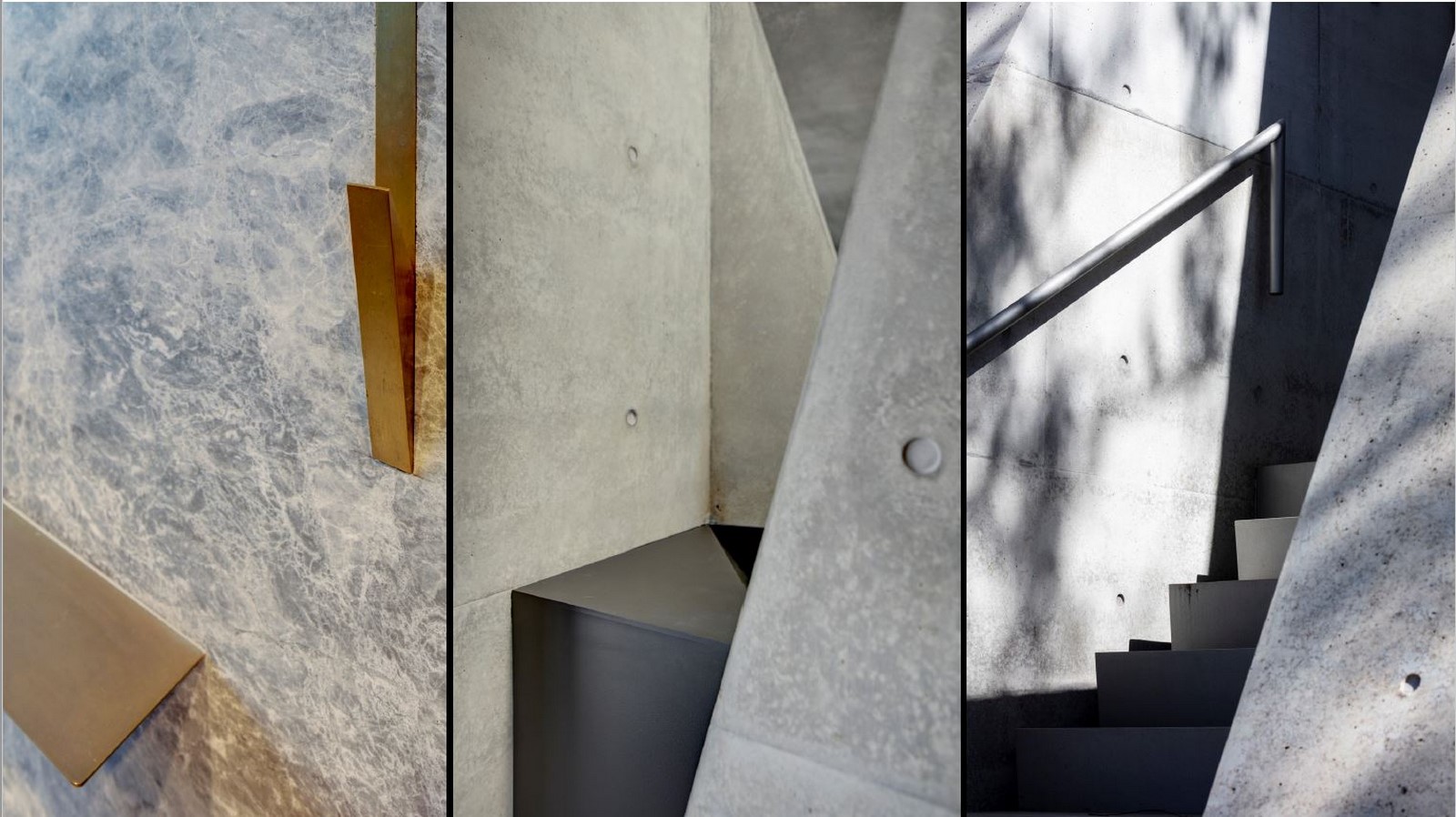

These linings are further embellished with a number of steel, brass and mirror inserts that
are like devices or instruments that start in the practical requirements of occupation, given
their basis in linings, benches, windows and skylights. The common thread through each
instrument is the further diffusion of the concrete container both physically (in fissures and pockets that increase its porosity) and perceptually (through mirrors, skylights passing
through all levels, openings that limit acoustic privacy) that serve to mentally expand the
scale of the building. In every case, the instruments serve to intensify the relation between
the occupants and landscape so directly established by the primary concrete form.

Castle Cove House By Terroir - Sheet15
©Brett Boardman

This strong connection to place has also led to passive house strategies embedded in and
intertwined through the form of the structure. The basement acts as a cold sink that allows
for cool air to be constantly drawn through the main living spaces via floor vents and
operable skylights purposely tilted north to draw heat and assist in the convection process.
Combined with cross ventilation, generous overhangs, thermal mass, double glazing with
internal and external blinds and a hydronic underfloor heating system these passive
strategies have produced a thermally stable environment for the occupants that requires
little active power consumption.
