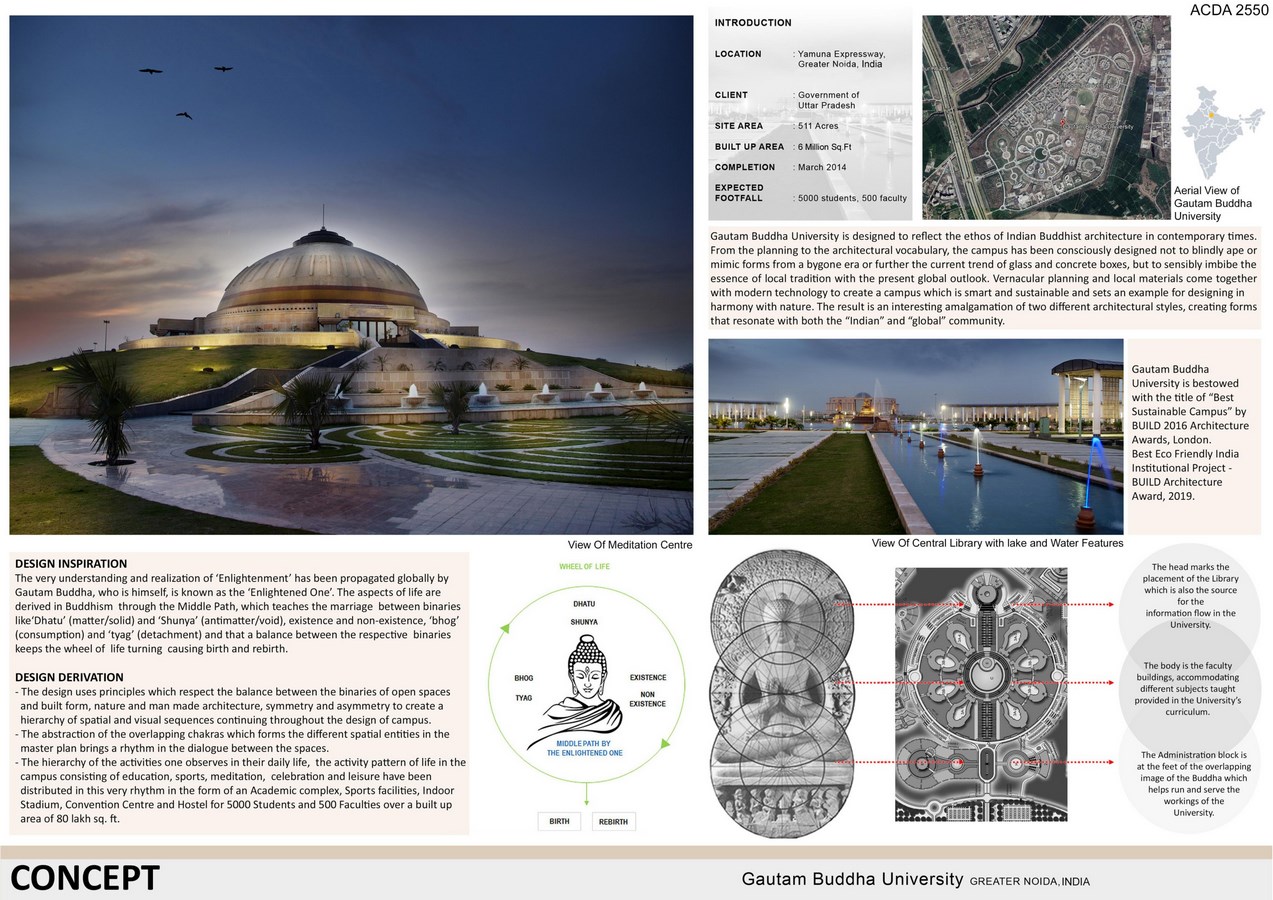

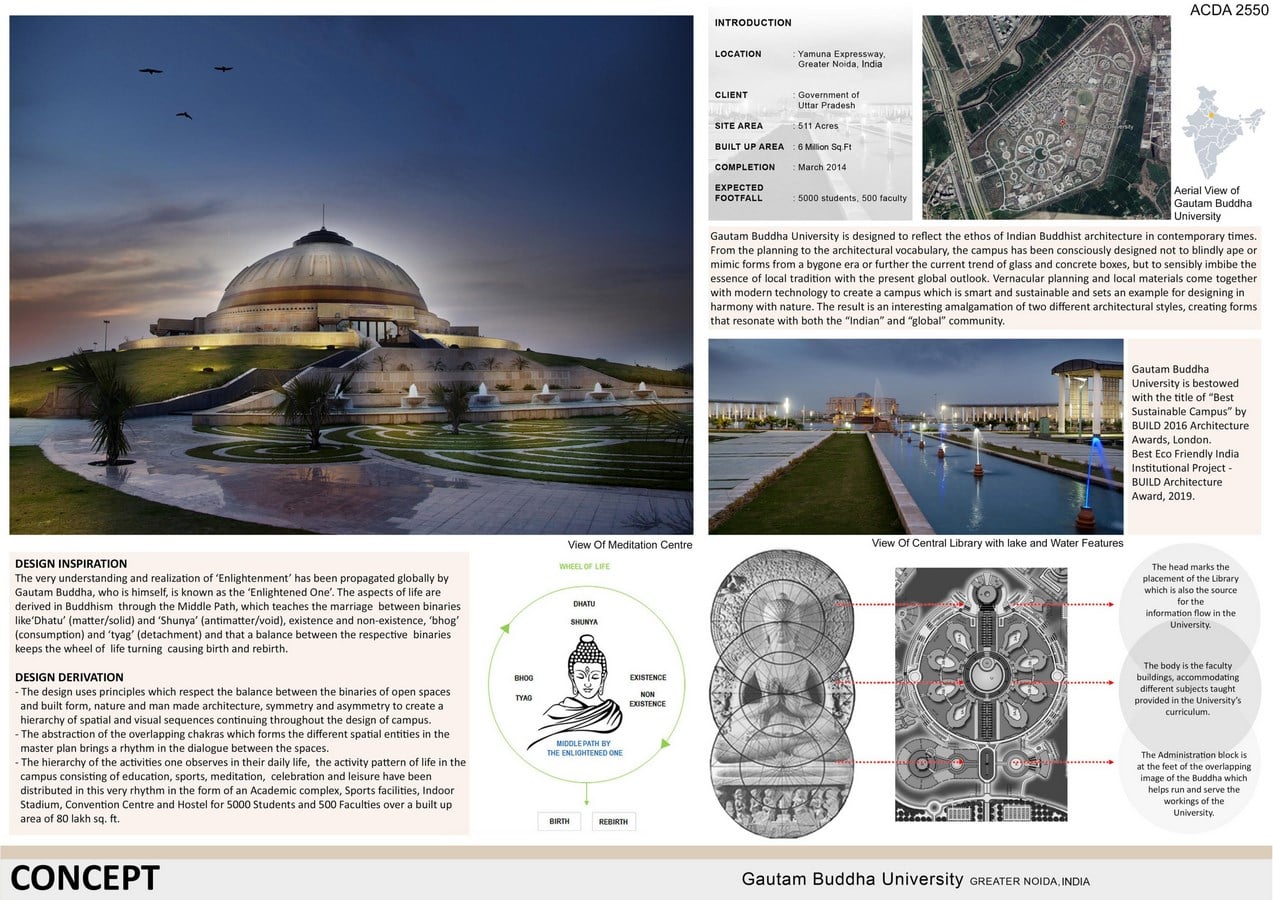

The site plan of Gautam Buddha University is derived from the understanding of the basic structure of Lord Buddha in meditation position. This image is superimposed and various architectural block units are derived. The head marks the placement of the Library which is also the source for the information flow in the University. The body is the faculty buildings, accommodating different subjects taught provided in the University’s curriculum. The distribution of activities in these units facilitates the structure of the Campus. The Administration block is at the feet of the overlapping image of the Buddha which helps run and serve the workings of the University. The landscape designed connects these units and establishes a sense of harmony and coexistence for these different aspects of the Buddha to come together and form a Campus, well-versed in its design and integrated philosophies.

Rethinking The Future Awards 2022

Architecture, Construction & Design Awards 2018
First Award | Category: Institutional (Built)

Architect: C P KUKREJA ARCHITECTS
Team Members: DIKSHU KUKREJA
Country: India

Eduwik- Online Courses for Architects & Designers

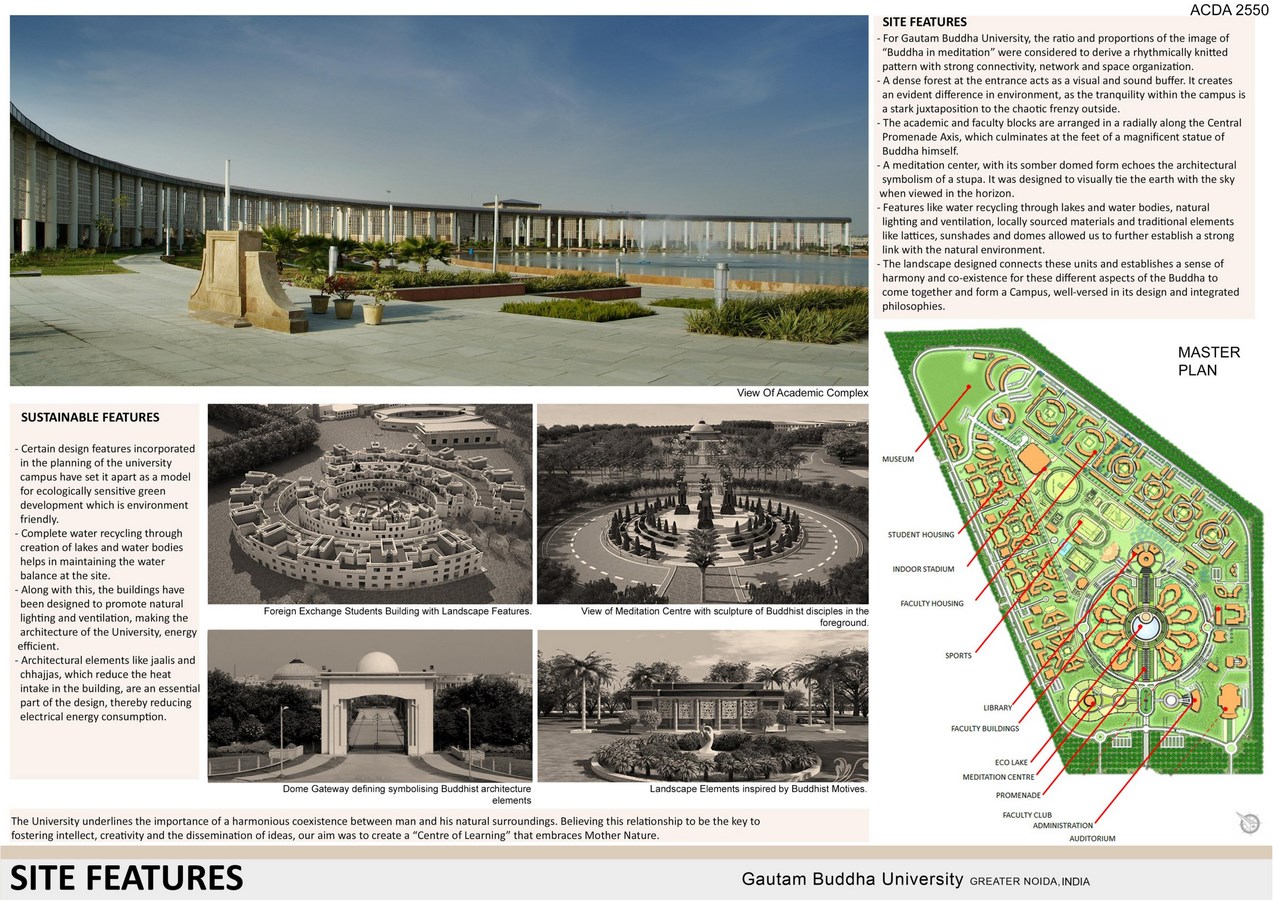

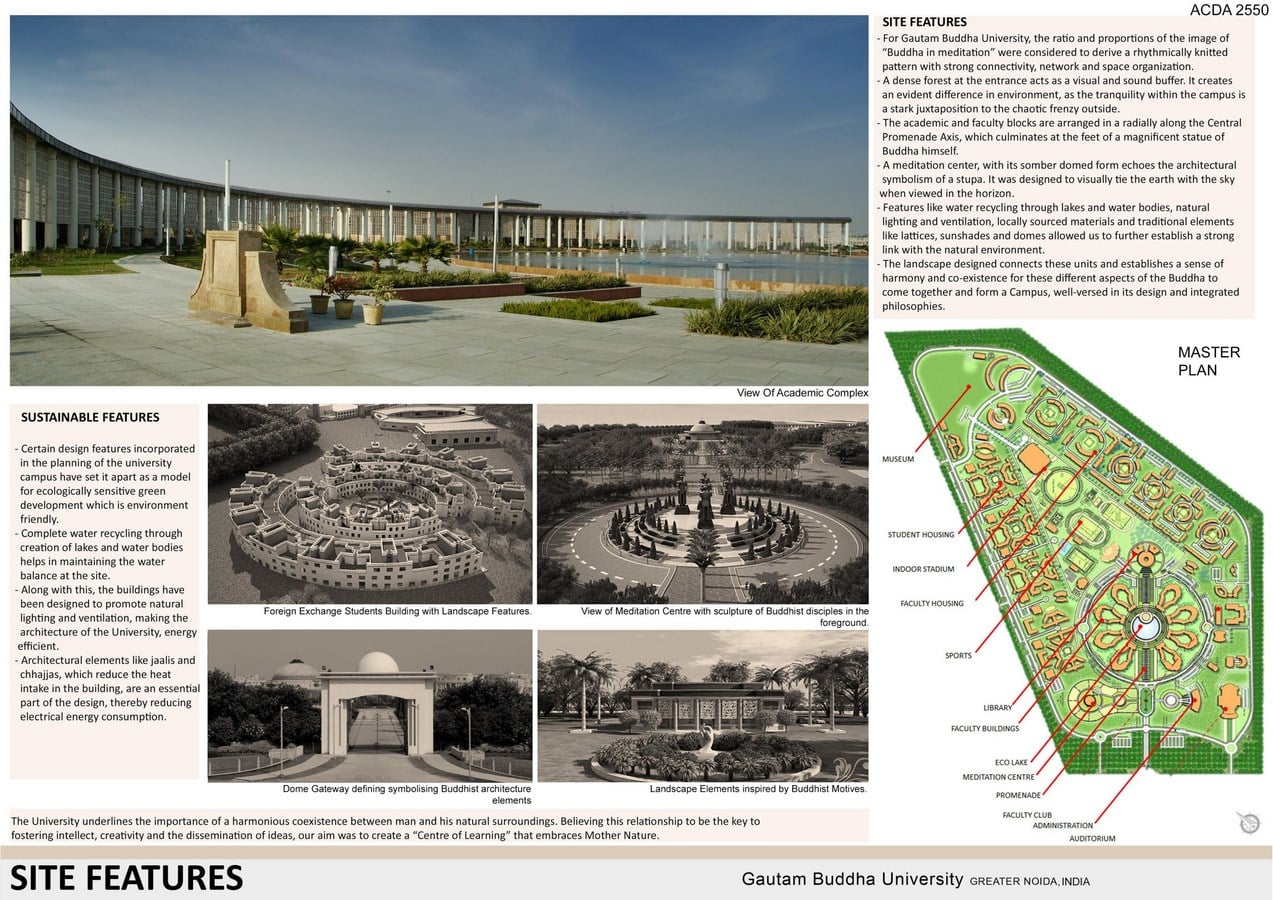

The abstraction of the overlapping chakras which form the spatial entities in the master plan brings a rhythm in the dialogue between the spaces. This also stands as a metaphor for the rhythm of life and death, success and failure, light and dark, and all the binaries which, as the Middle Path of Buddhism advocates, contribute to the creation of the Universe. Like the hierarchy of the activities one observes in their daily life, the activity pattern of life in the campus consisting of education, sports, meditation, celebration, and leisure have been distributed in this very rhythm in the form of an Academic complex, Sports facilities, Indoor Stadium, Convention Centre and Hostel for 5000 Students and 500 Faculties over a built-up area of 80 lakh sq. ft.

Eduwik- Online Courses for Architects & Designers

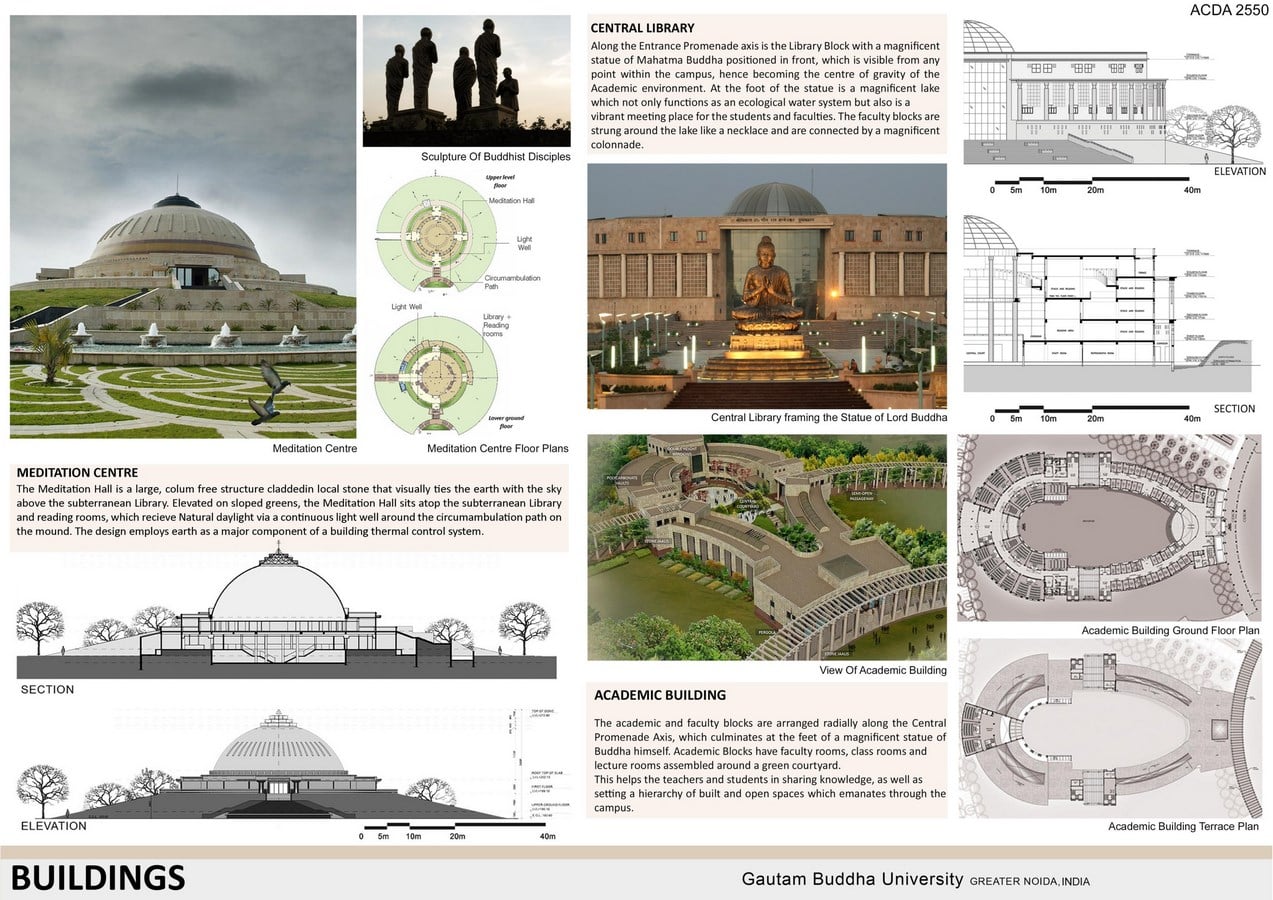

The Gautam Buddha University includes 1 Administrative building, 8 school buildings, 6 girls and 12 boys’ hostels with a capacity of 1623 and 3271 rooms each, Central Library, Auditoriums, Meditation Centre, Health Cente, Bank, Post Office, Shopping Complex and 2 Guest houses.

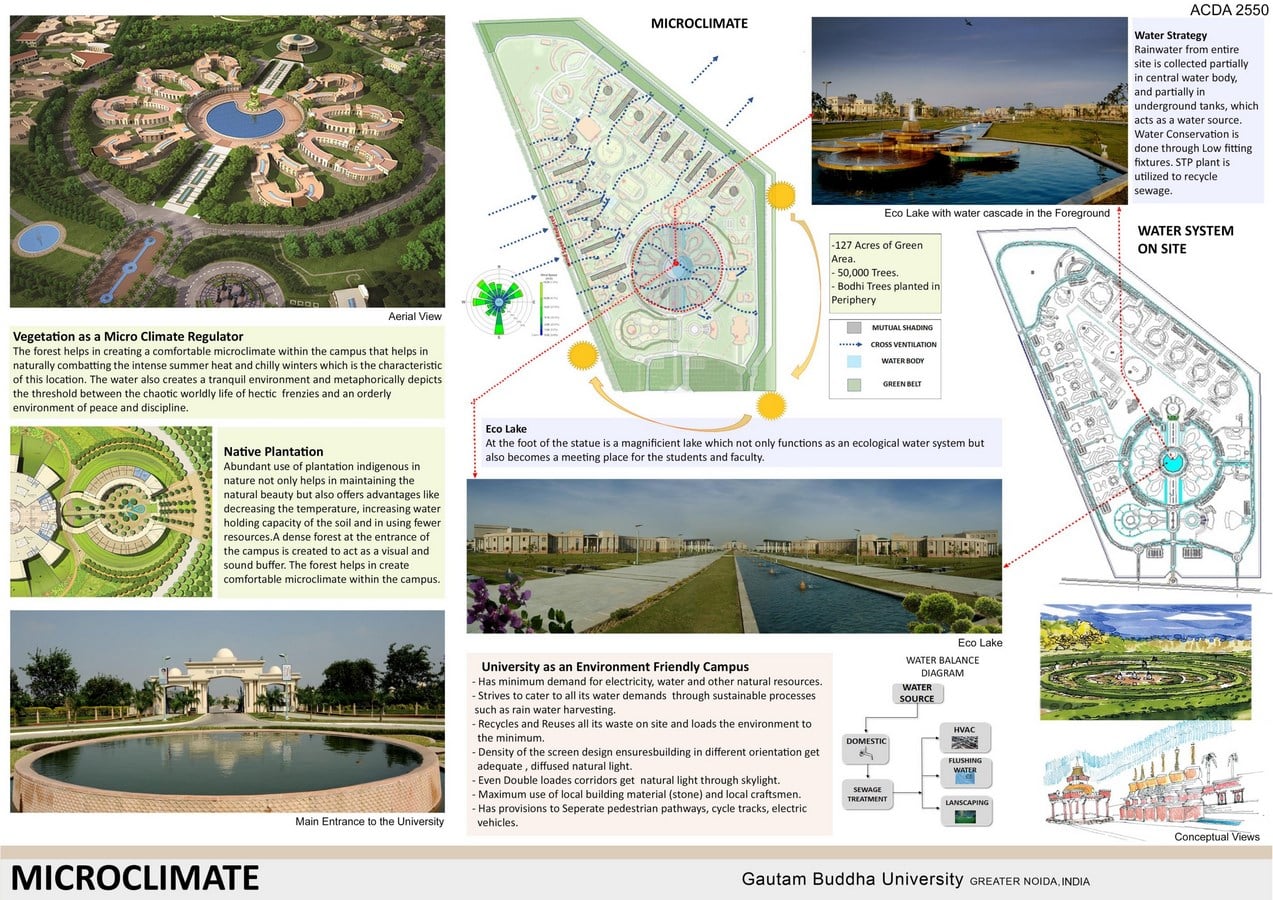

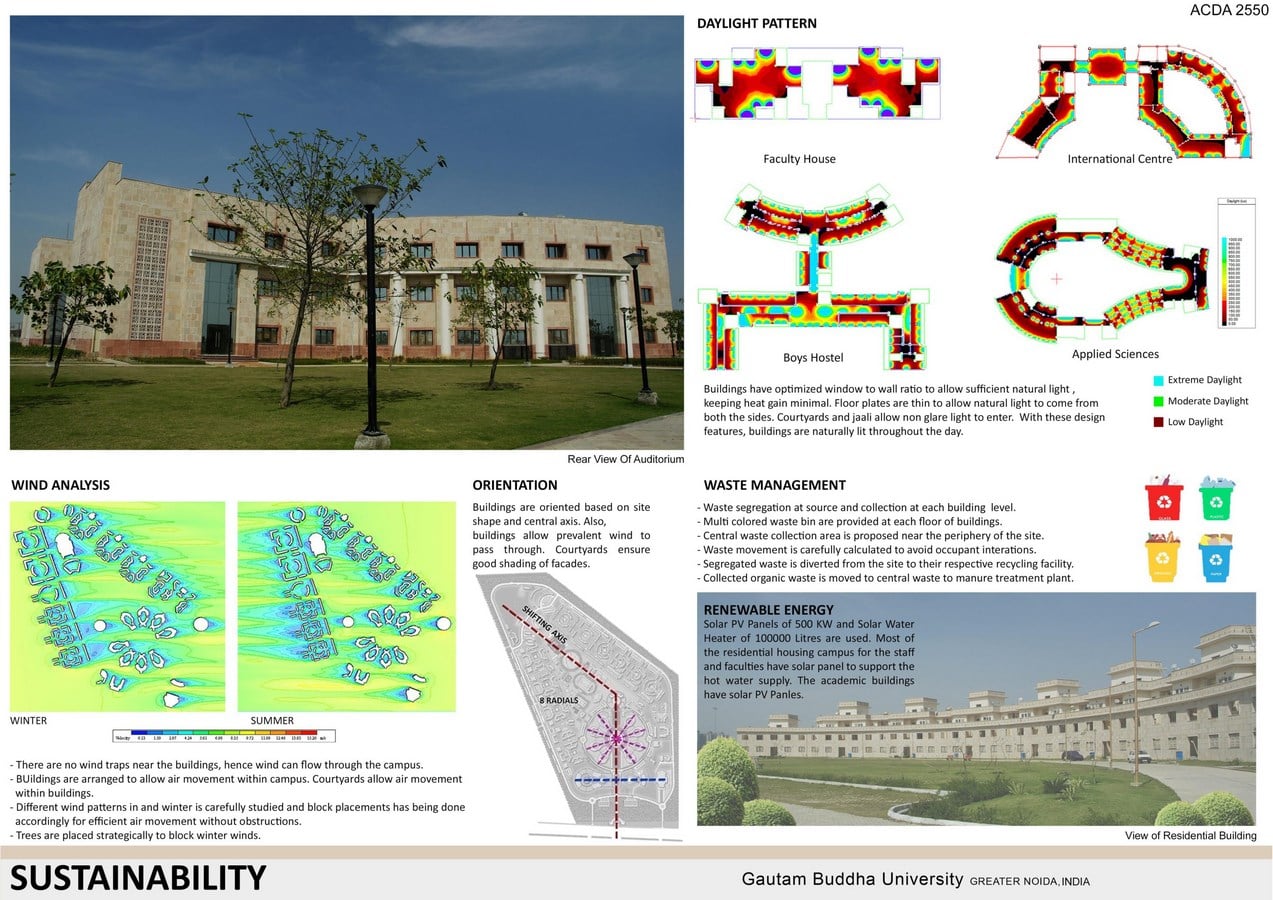

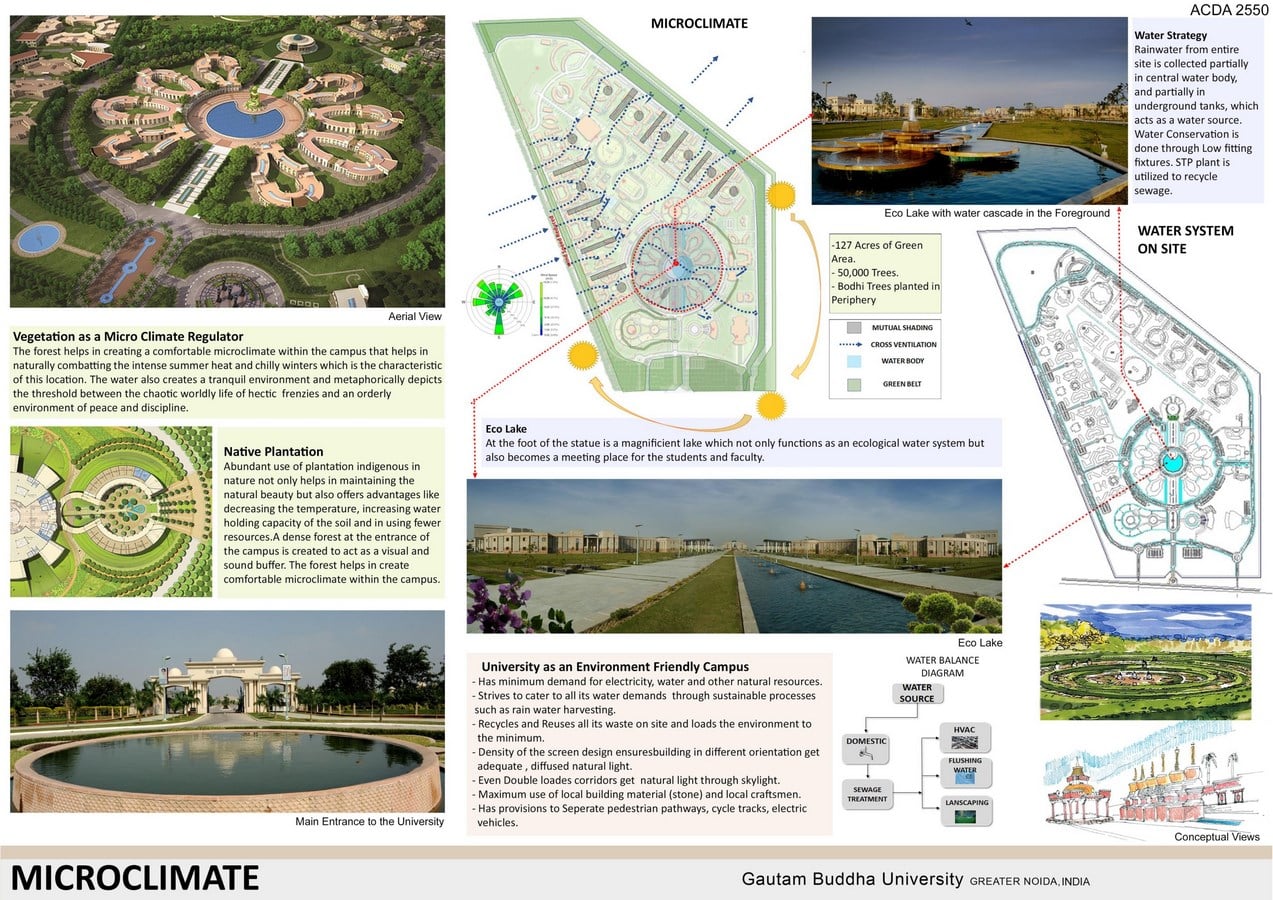

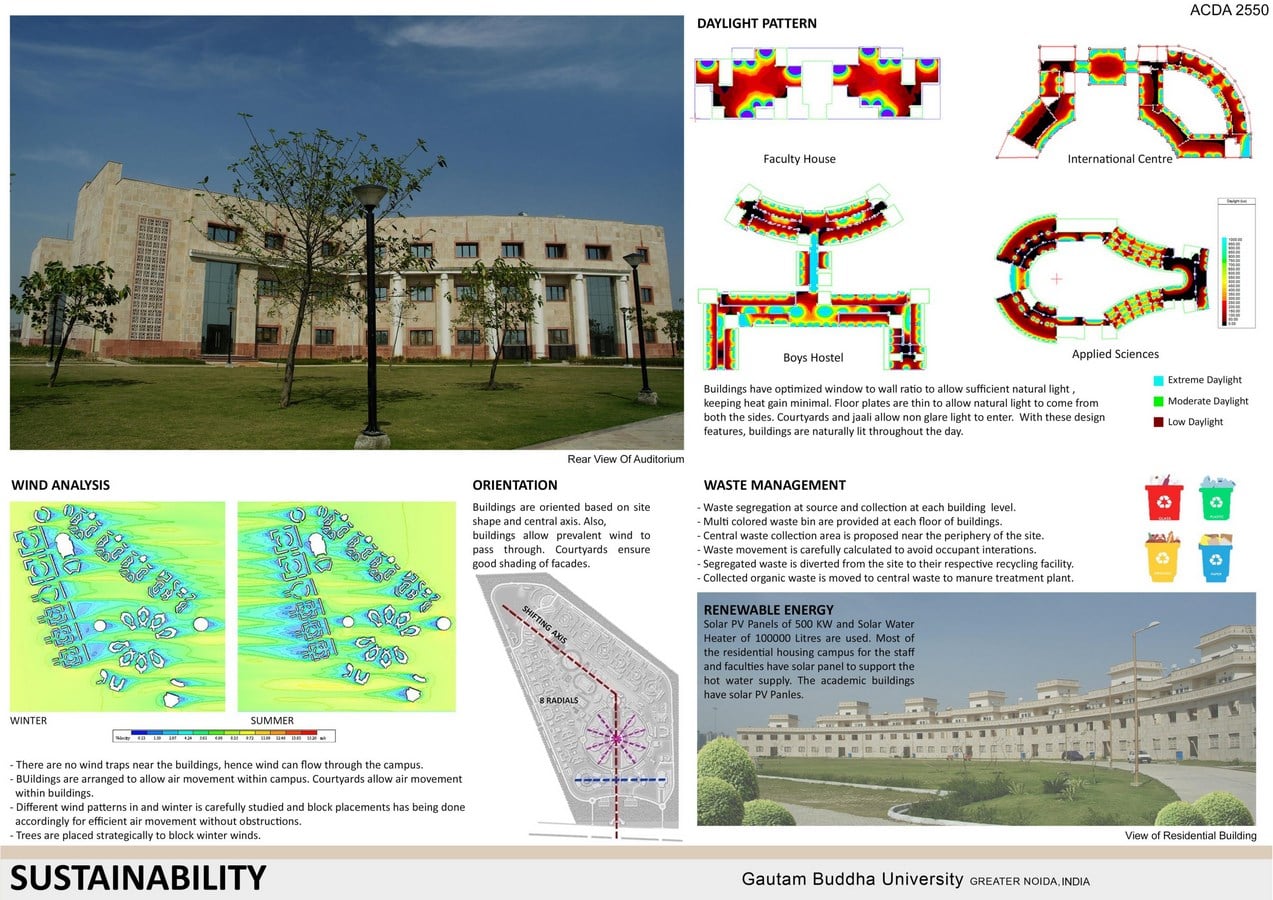

Wind: Buildings are arranged to allow air movement within the campus. The courtyard allows air movement within buildings. Trees are placed strategically to block winter winds. Orientation: Buildings are oriented based on site shape and the central axis. Also, the building allows prevalent wind to pass through.  Even though buildings are not oriented  North-South courtyards ensure good shading of facades.

Eduwik- Online Courses for Architects & Designers

Daylight: Buildings have optimized window to wall ratio to allow sufficient natural light within the building, keeping heat gain minimal. Floor plates are thin to allow natural light to come from both sides. Courtyards and the use of Jalis allow non-glair light to enter. With these design features, buildings are naturally lit throughout the day.

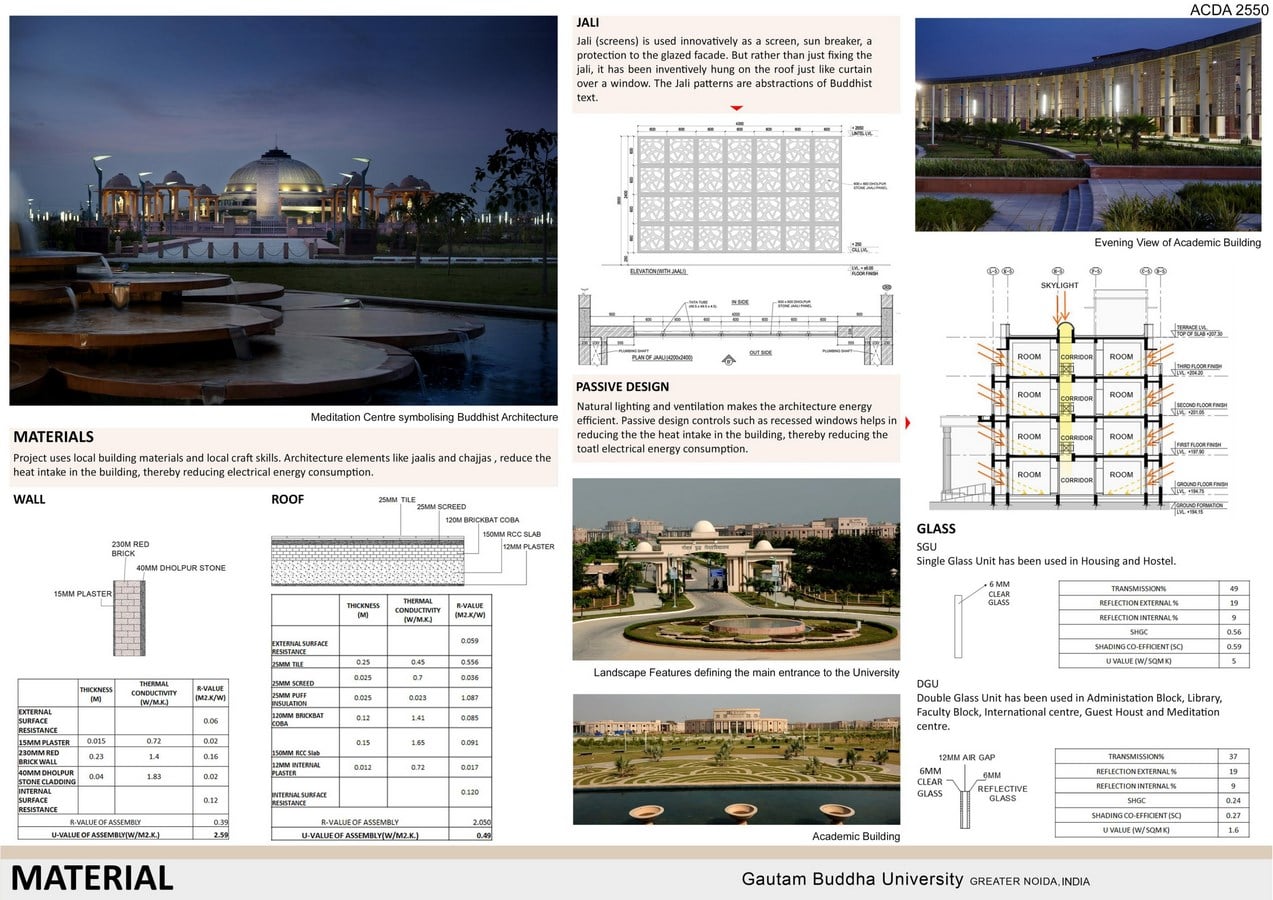

Material: The project uses local building materials and local craft skills. Architectural elements like jaalis and chhajjas, reduce the heat intake in the building, thereby reducing electrical energy consumption.

Eduwik- Online Courses for Architects & Designers

Resource Optimization: The site was flat, hence no excessive cut and fill was done. Precast materials are used wherever possible to conserve material. Precast materials like Lintels, Pavers, etc. conserve material compared to casting them in places. Low flow water fixtures and recycling water demand. The use of energy conservation measures helped in reducing electrical requirements. Waste segregation and organic waste treatment helped in reducing the burden of waste treatment.
