Building Bridges: A Primer On The Different Types of Bridges and Their Benefits

Bridges often go unnoticed as we buzz around town during our commutes, yet at other times, we can’t help but marvel at their sheer size, pleasing aesthetic, and engineering design. Throughout history, as humans expanded their territories from small villages to larger communities, the need to traverse natural obstacles and drastic changes in landscapes became critical.

For over 6,000 years, bridges have served as fundamental infrastructural elements, enabling the seamless movement of people and goods across otherwise impassable landscapes. These remarkable structures have evolved significantly over time, with each subsequent type meticulously designed to meet specific requirements based on span length, load-bearing capacity, and environmental conditions.

This primer will explore the main types of bridges, highlighting their unique benefits and the materials employed in their construction. Whether you’re a civil engineering student, an architecture enthusiast, or simply intrigued by the intricacies of bridge building, this guide will provide a simple and comprehensive overview.

Types of Bridges

1. Beam Bridges
2. Arch Bridges
3. Suspension Bridges
4. Cable-Stayed Bridges
5. Truss Bridges
6. Cantilever Bridges

Beam Bridges

Also commonly known as Girder bridges, beam bridges are one of the simplest and oldest types of bridges. Constructed with horizontal beams supported at each end by piers or vertical columns, their straightforward architecture makes them relatively easy and quick to construct.

Due to their simple design and the use of readily available materials like reinforced concrete, steel, and sometimes timber (for shorter spans or less trafficked areas), beam bridges are often more economical compared to other bridge types. Most suitable for short to medium spans, beam bridges can be used in diverse locations, from rural areas to urban settings.

Arch Bridges

Arch bridges remain one of the most popular types of bridges despite their design being over 3,000 years old. Employing a curved arch structure beneath the deck, arch bridges efficiently transfer weight along the arch and to the abutments at either end rather than straight down.

Modern iterations often use reinforced or prestressed concrete, offering enhanced durability and design flexibility.

This design provides robust structural integrity and also offers a timeless, elegant appearance, making arch bridges suitable for scenic locations, particularly in rural or suburban settings.

Historically, traditional arch bridges constructed using stone have proven to be long-lasting structures due to the compressive strength of the stone. For longer spans, steel arches provide a combination of strength and flexibility.

Suspension Bridges

Suspension bridges consist of cables (also known as wire ropes) suspended between piers (or towers), with the bridge deck hanging below the cables. Suspension bridges can span the greatest distances of any bridge type, making them ideal for crossing large bodies of water. The design allows for considerable movement and flexibility, beneficial in areas prone to seismic activity. Additionally, fewer piers in the water reduce environmental impact and navigation obstacles.

The primary materials for these bridges are cables made of stainless steel or galvanized carbon steel due to their high tensile strength and durability. Concrete is typically used for the bridge deck and anchorage points, providing stability and strength.

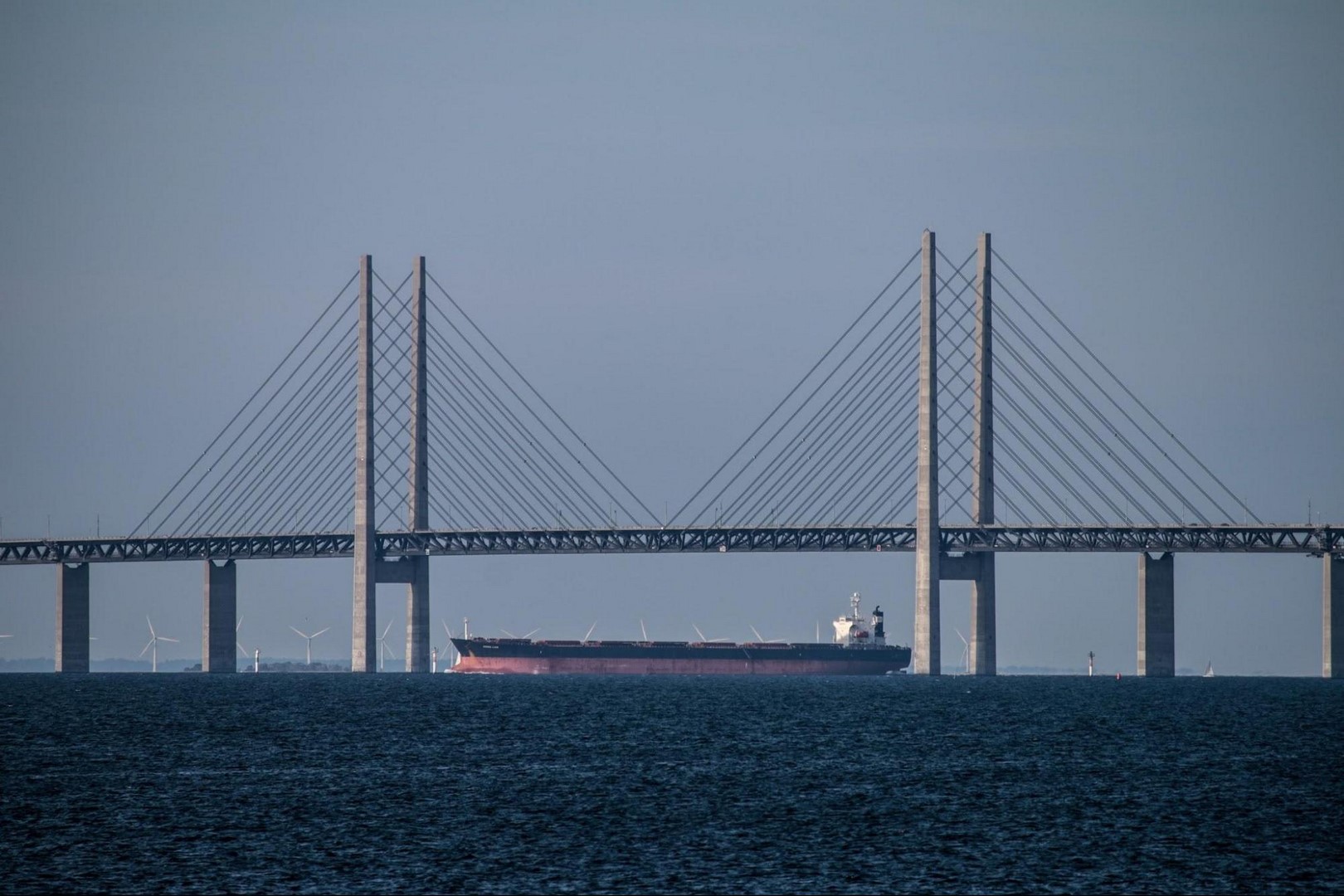

Cable-Stayed Bridges

Similar to suspension bridges, cable-stayed bridges feature one or more towers from which cables extend directly to the bridge deck, forming a series of “stays” and providing support. These bridges are noted for their sleek, modern appearance; many have become iconic landmarks. The cable-stayed design distributes loads efficiently, reducing the need for multiple piers.

While more complex than beam bridges, cable-stayed bridges are generally more cost-effective than suspension bridges for medium to long spans because they can use less cable than suspension bridges, and the deck can be constructed out of precast pieces fabricated on land.

Truss Bridges

Truss bridges consist of triangular units that provide a rigid structure. As weight goes over the deck above the steel beams that comprise the truss, some beams are squeezed (compression) while other beams are pulled (tension), providing excellent load distribution and ensuring remarkable strength and stability.

The designs of these structures use materials very efficiently, achieving a high strength-to-weight ratio. Suitable for both short and long spans, truss bridges can be adapted to various terrains and load requirements.

Steel is predominantly used in their construction due to its strength and ability to be fabricated into the required truss elements. However, timber has also been historically used for smaller, simpler truss bridges, especially in rural areas.

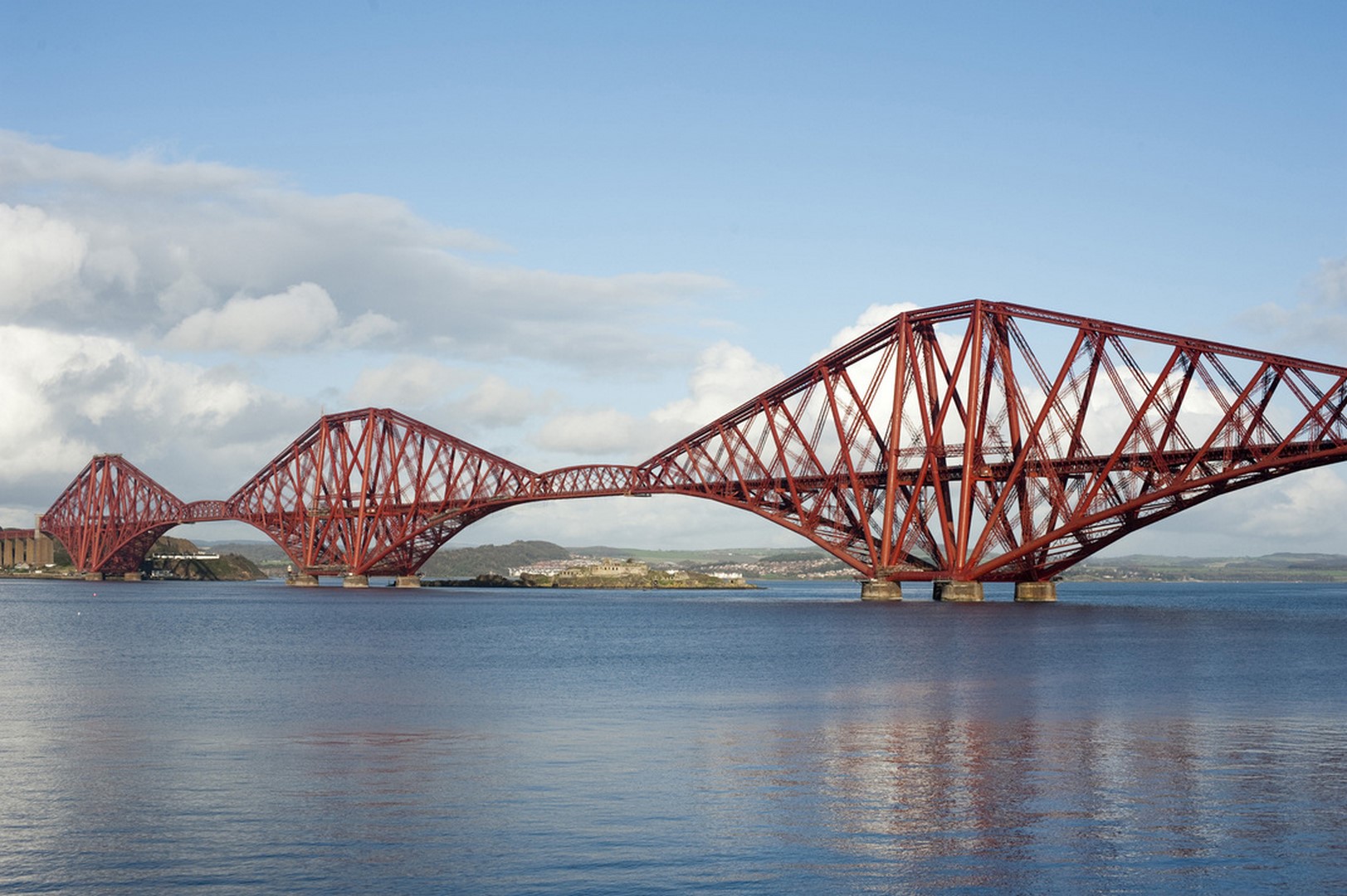

Cantilever Bridges

Cantilever bridges employ uniquely designed structures that project horizontally into space, supported only at one end. They often feature a combination of cantilevers with a central suspended span, making them ideal for spanning difficult terrain where building supports in the middle of the span is challenging.

The cantilever design provides balance and stability, allowing for large spans with fewer supports. They can also be built segmentally, simplifying construction in difficult environments.

As with the previous bridge types, steel is commonly used for its strength and ability to handle the tension and compression forces of the cantilever structures.  Reinforced concrete is also used, particularly for the deck and piers.

Conclusion

Each type of bridge design serves distinct purposes, influenced by factors such as span length, load requirements, and environmental conditions. Beam bridges offer simplicity and cost-effectiveness for shorter spans, while arch bridges provide strength and durability with a classical aesthetic. Suspension bridges cover the longest spans, providing flexibility and minimal environmental impact, and cable-stayed bridges offer modern design and efficient load distribution for medium to long spans. Truss bridges are versatile and material-efficient, suitable for various terrains, and cantilever bridges are ideal for challenging sites with their balanced, stable design.

The materials used in bridge construction—primarily concrete, steel, wire rope, and sometimes timber—are chosen based on their strength, durability, and suitability for the bridge type and environmental conditions. Understanding the benefits and materials of each bridge type enables engineers and planners to choose the most appropriate design for each unique situation, ensuring the creation of safe, efficient, and enduring infrastructure.
